Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

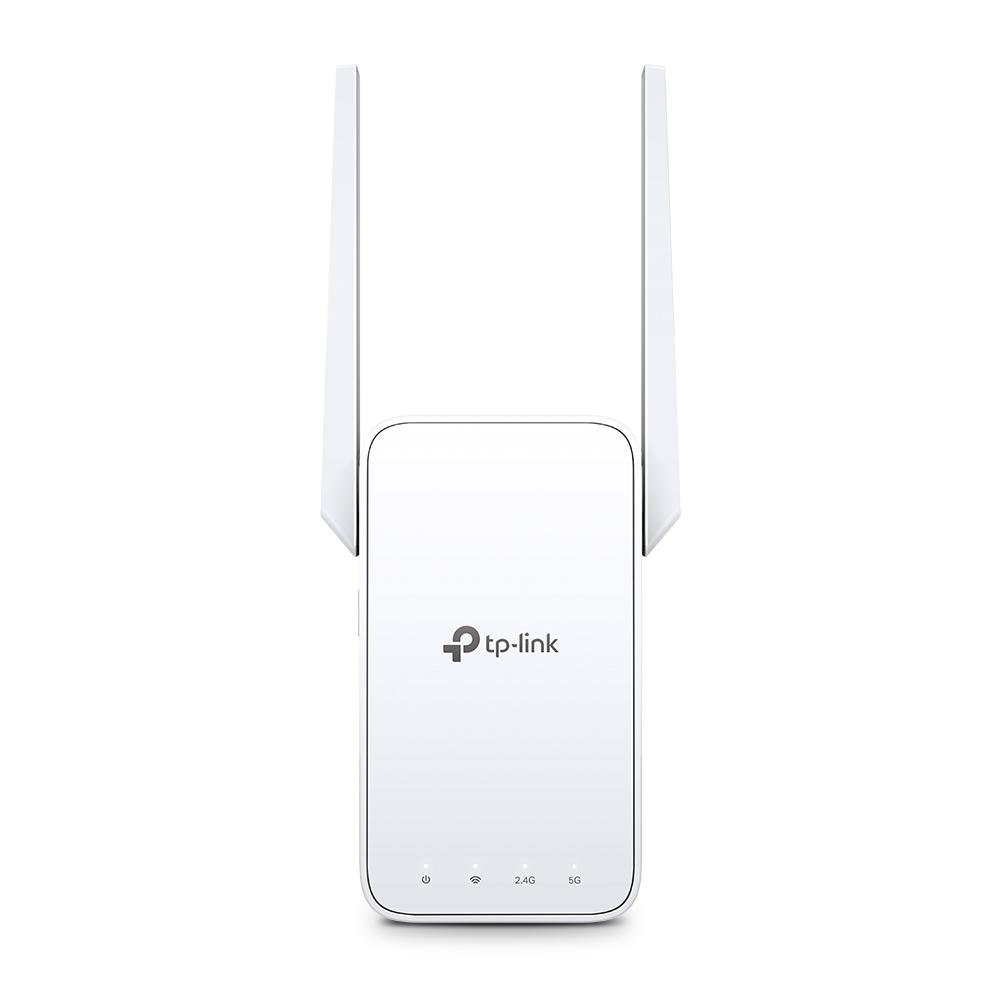

RE315
AC1200 Mesh Wi-Fi Range Extender
Eliminate weak signal areas with whole home WiFi coverage.
2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience.
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Adaptive Path Selection connects to the fastest connection path to the router automatically and runs at top-speed.
High Speed Mode maximizes speed by using one WiFi band as dedicated backhaul, ideal for HD streaming and gaming.
AP Mode create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.
Works with any Wi-Fi router or wireless access point.
HARDWARE FEATURES
Interface
1 x 10/100M Ethernet Port (RJ45)
Button
WPS Button, Reset Button
Power Consumption
9.5Wmax power consumption
Antenna
2 External Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4GHz and 5GHz(11ac)
Signal Rate
5 GHz:Up to 867 Mbps
2.4 GHz:Up to 300 Mpbs
Reception Sensitivity
5 GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4 GHz:
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBm
Wireless Modes
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security
64/128-bit WEP, WPA/WPA-PSK2/WPA2-PSK2 encryptions
Transmission Power
2.4 GHz less than or equal 20dBm, 5 GHz less than or equal 30dBm
OTHERS
CertificationCE, RoHS
Package ContentsWi-Fi Range Extender RE315
Quick Installation Guide
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Item Dimension (L"xW"xH")
7 x 5 x 4

Weight
2 lbs

Warranty Information
2 year

Available Quantity

5

UPC

840030701498

SKU

mingleRE315

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

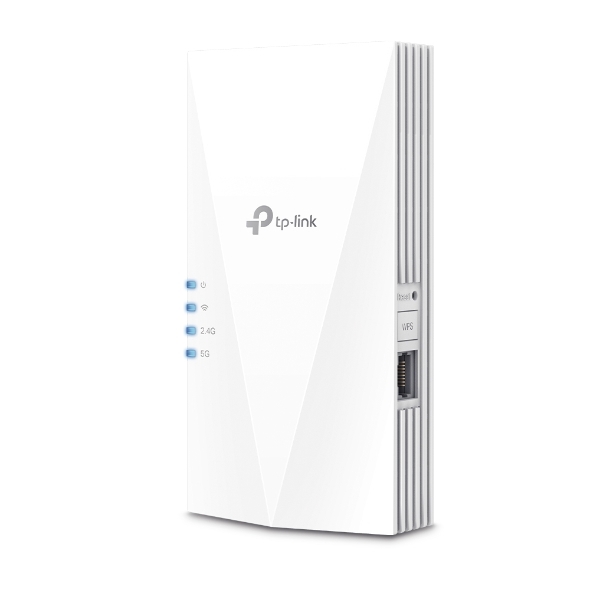

RE600X
AX1800 Wi-Fi 6 Range Extender
RE600X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Gigabit Ethernet Port Provides faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
AP Mode Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-LINK Tether App Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility Extends the range of any Wi-Fi router or wireless access point
HARDWARE FEATURES
Ports
1 Gigabit Ethernet Port
Button
WPS Button, Reset Button
Power Consumption
10.8W
Antenna
2 Internal Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency
2.4GHz and 5GHz
Signal Rate
574 Mbps at 2.4GHz, 1201 Mbps at 5GHz
Reception Sensitivity
5GHz:
11ax HE80 MCS0: -87dBm, 11ax HE80 MCS11: -56dBm
11ax HE40 MCS0: -90dBm, 11ax HE40 MCS11: -60dBm
11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -64dBm
11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm
11ac HT20 MCS0: -93dBm, 11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4GHz:
11ax HE40 MCS0: -92dBm, 11ax HE40 MCS11: -62dBm
11ax HE20 MCS0: -94dBm, 11ax HE20 MCS11: -64dBm
11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Transmit Power
CE: 2.4GHz less than or equal 16dBm, 5GHz less than or equal 21dBm
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security
WEP, WPA, WPA2, WPA3
OTHERS
Package Contents
Wi-Fi Range Extender RE600X
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications
CE, RoHS
Item Dimension (L"xW"xH")
10 x 8 x 4

Weight
3 lbs

Warranty Information
2-year

Available Quantity

5

UPC

840030702235

SKU

mingleRE600X

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

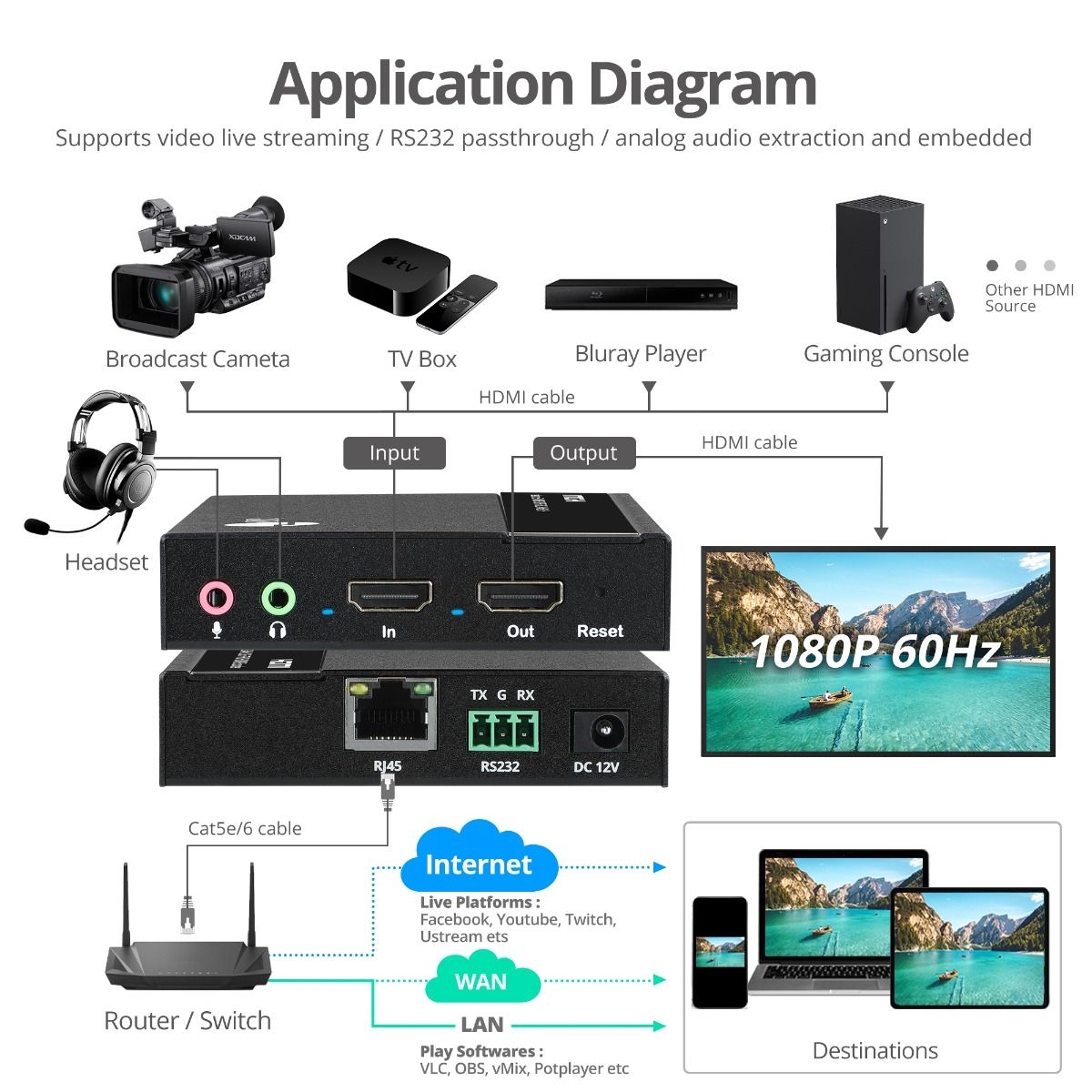

Features

Support multiple video decoding: H.265 mainstream, H.264 basic, mainstream and advanced quality, MJPEG/JPEG basic quality

Broadcast resolutions supports up to 1080p@60Hz 4:4:4 8 bit, and support HDCP 1.4

Supports RTSP / HLS / RTMP (S) / RTP / UDP protocols

Audio coding format supports AAC, AAC+, AAC++/AC3/MP2/MP3

Maximum supports 2 channel video stream decoding, supports 1 channel only audio stream decoding

Preview your incoming HDMI signal via the local HDMI pass-thru output port

Support CBR/VBR two coding modes, maximum code rate up to 40Mbps (Main code stream is 40M, Sub-code stream is 8M)

Support analog audio extraction and analog audio embedded

High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation
Resolution:
1080p / 1080i / 720p / 480p
Compliant with HDCP 1.4
Supports protocols:
RTSP / HLS / RTMP (S) / RTP / UDP
Video decoding:
H.265 mainstream, H.264 basic
Audio coding:
AAC, AAC+, AAC++/AC3/MP2/MP3
LPCM 2.0 sampling rate:
44.1/48KHz
Audio bit rate:
AACLC: 48 to 320
AAC+: 32 to 128
AAC++: 16 to 64
Default IP:
192.168.1.168
Product:
Housing material:
Metal
Color:
Black

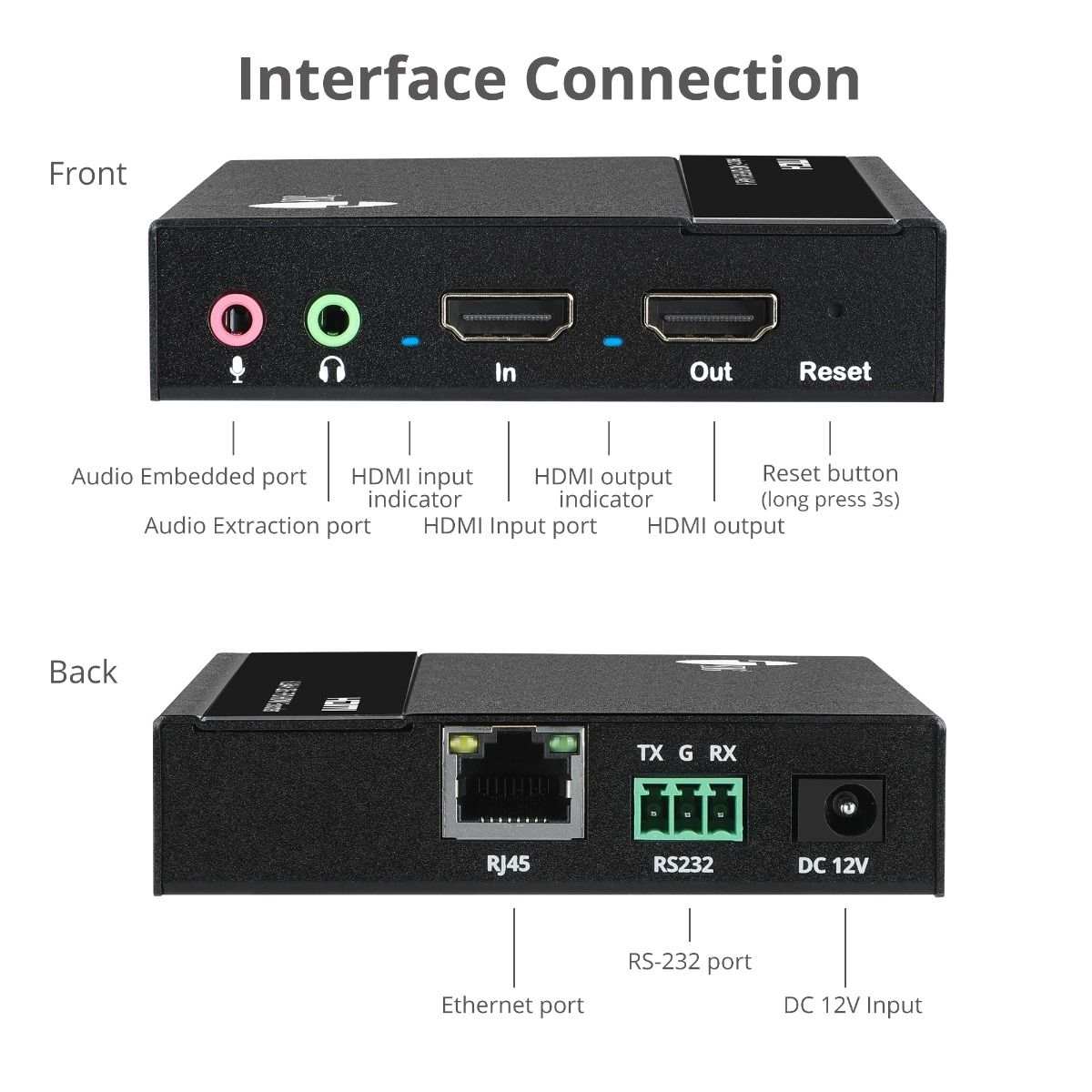

Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop-out
1x 8-pin, RJ45, Output
1x 3-pin Terminal Block
1x 3.5mm Audio output
1x 3.5mm Mic input
1x Power jack
1x Reset button
Power adapter:
Input:
100-240V / 50-60Hz
Output:
DC 12V/1A
UL listed:
E504312 / Level: VI
Environmental conditions:
Operating temperature:
32 to 104 degrees F
Storage temperature:
14 to 140 degree F
Relative humidity:
5% to 95% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
China
Package contents

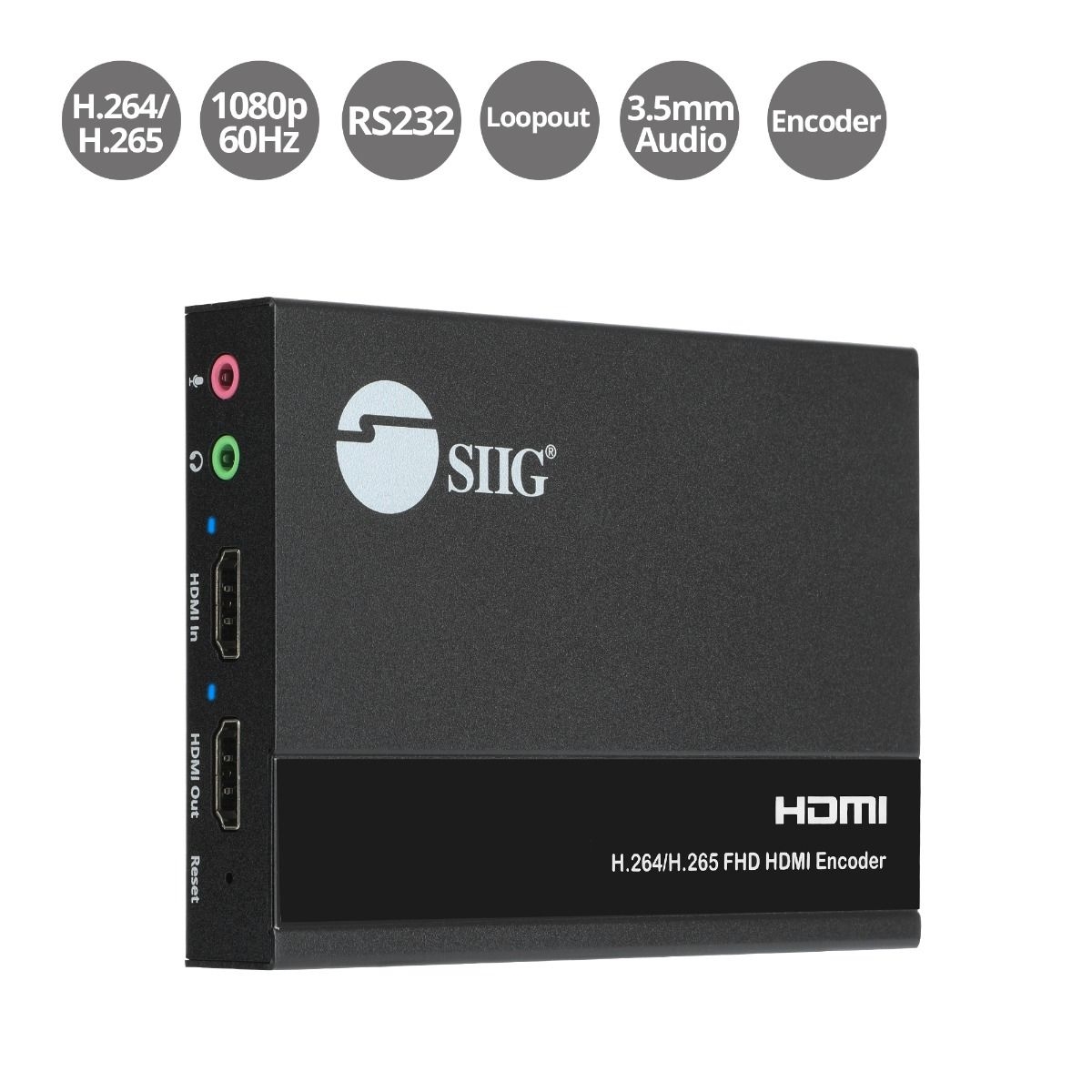

HDMI Video H.264 H.265 IPTV Encoder with loopout
Power adapter DC 12V/1A
Mounting ears and Screw kit
Phoenix plugs
User manual
Item Dimension (L inchxW inchxH inch)
5 x 1 x 4

Weight
1.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774045030

SKU

mingleCE-H27511-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

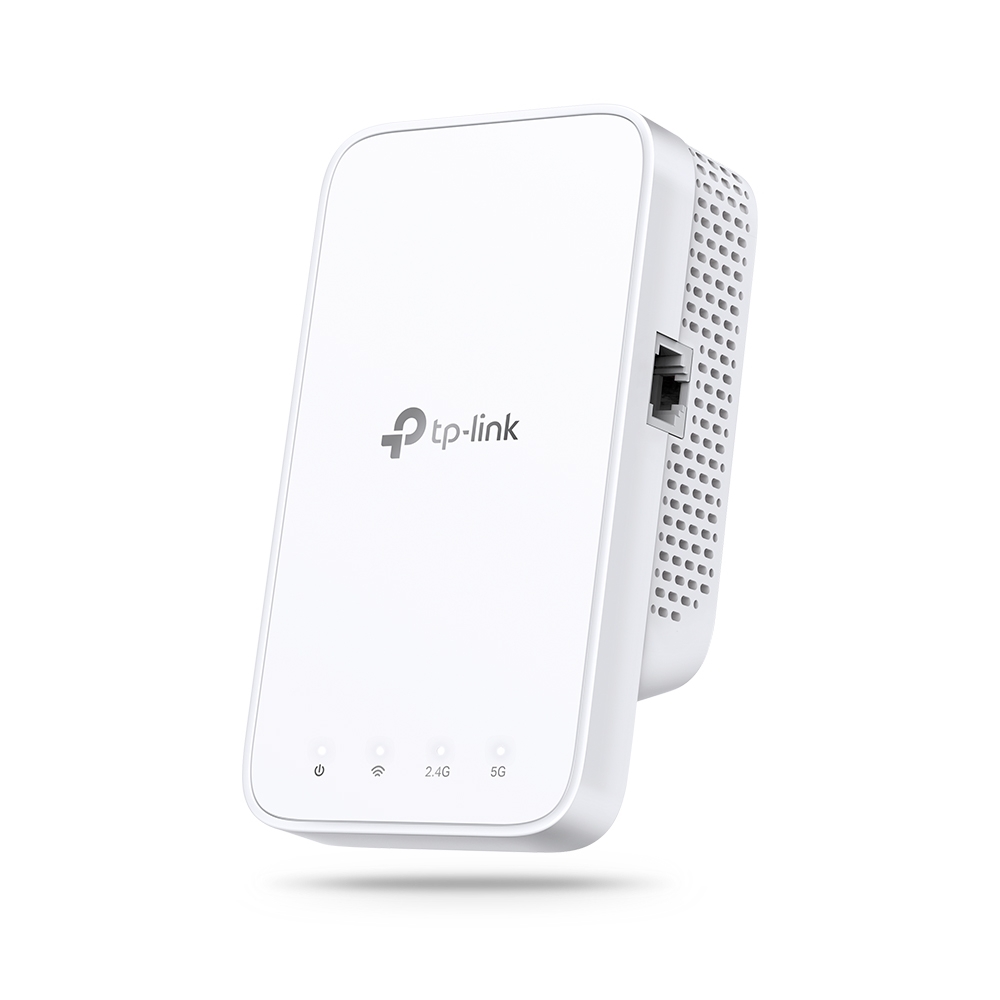

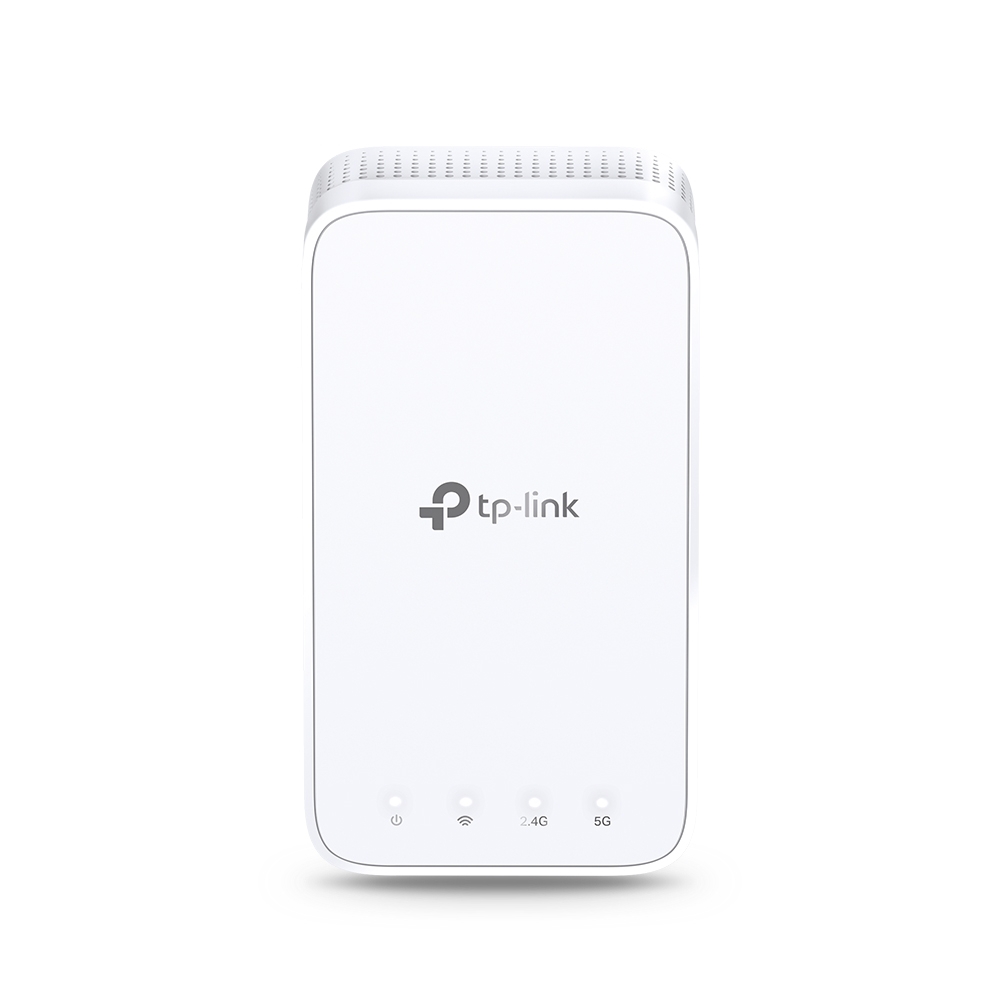

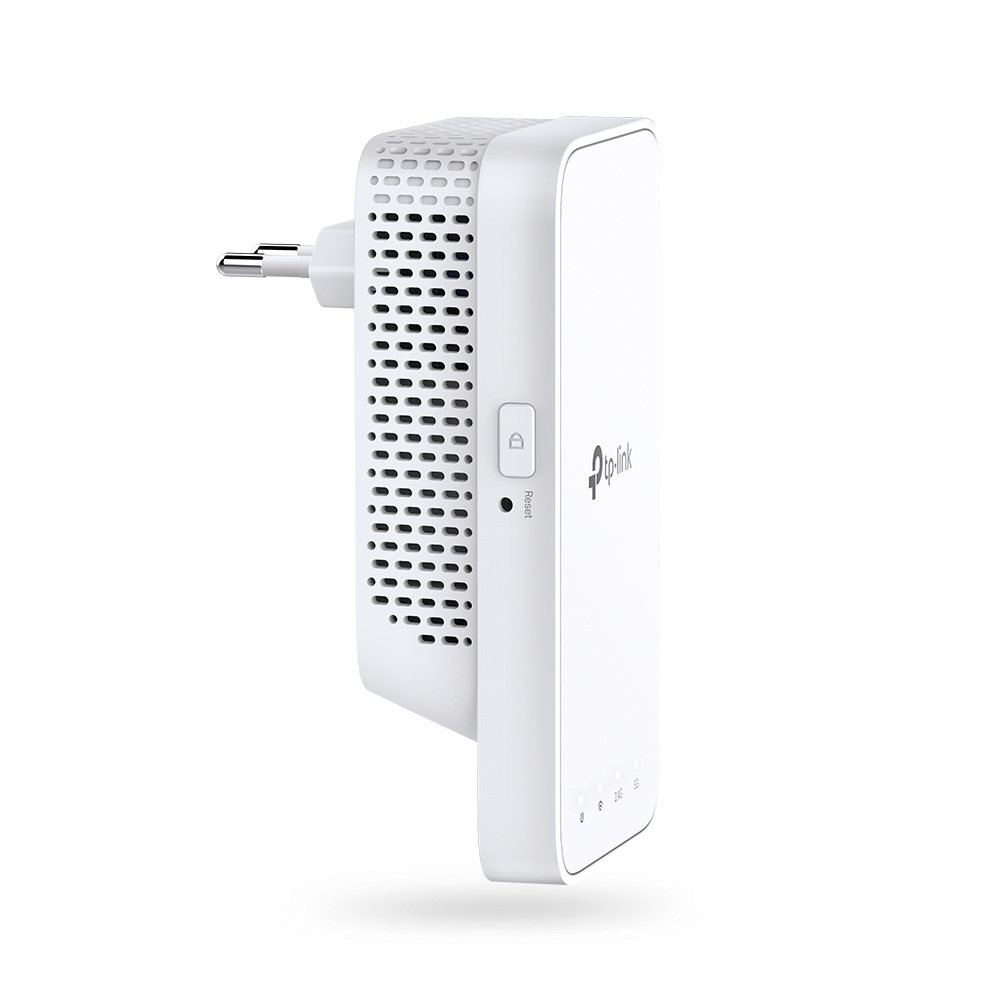

AC1200 Mesh Wi-Fi Extender

Eliminate weak signal areas with whole home WiFi coverage.

2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience.

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.

Adaptive Path Selection connects to the fastest connection path to the router automatically and runs at top-speed.

High Speed Mode maximizes speed by using one WiFi band as dedicated backhaul, ideal for HD streaming and gaming.

AP Mode create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.

Smart signal indicator helps to fi nd the best location for optimal Wi-Fi coverage by showing the signal strength.

Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.

Works with any Wi-Fi router or wireless access point.


Boost WiFi Signal Wherever You Need it

A single router has limited WiFi coverage and always causes WiFi dead zones. RE330 wirelessly connects to your existing router and expands its WiFi signal into areas it can t reach on its own. Enjoy stable and high-speed AC1200 network experience wherever you re at your home.


Faster Dual Band WiFi Up to 1200 Mbps

The RE330 delivers dual band (2.4GHz and 5GHz) to transmit WiFi signal, doubling the performance of single band. It enables you to keep more devices connected at the same time with its 2.4GHz 300 Mbps and 5GHz 867 Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.


TP-Link OneMesh

OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Interface
1 x 10/100M Ethernet Port (RJ45)
Button
WPS Button, Reset Button
Power Consumption
9.5W
Antenna
2 Internal Antennas
WIRELESS FEATURES
Frequency
2.4GHz and 5GHz(11ac)
Signal Rate
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity
5 GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4 GHz:
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBm
Wireless Modes
Range Extender/Access Point
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security
64/128-bit WEP, WPA-PSK/WPA2-PSK encryptions
Transmission Power
2.4 GHz is less than or equal to 20dBm, 5 GHz is less than or equal to 30dBm
OTHERS
Certification
FCC, RoHS
Package Contents

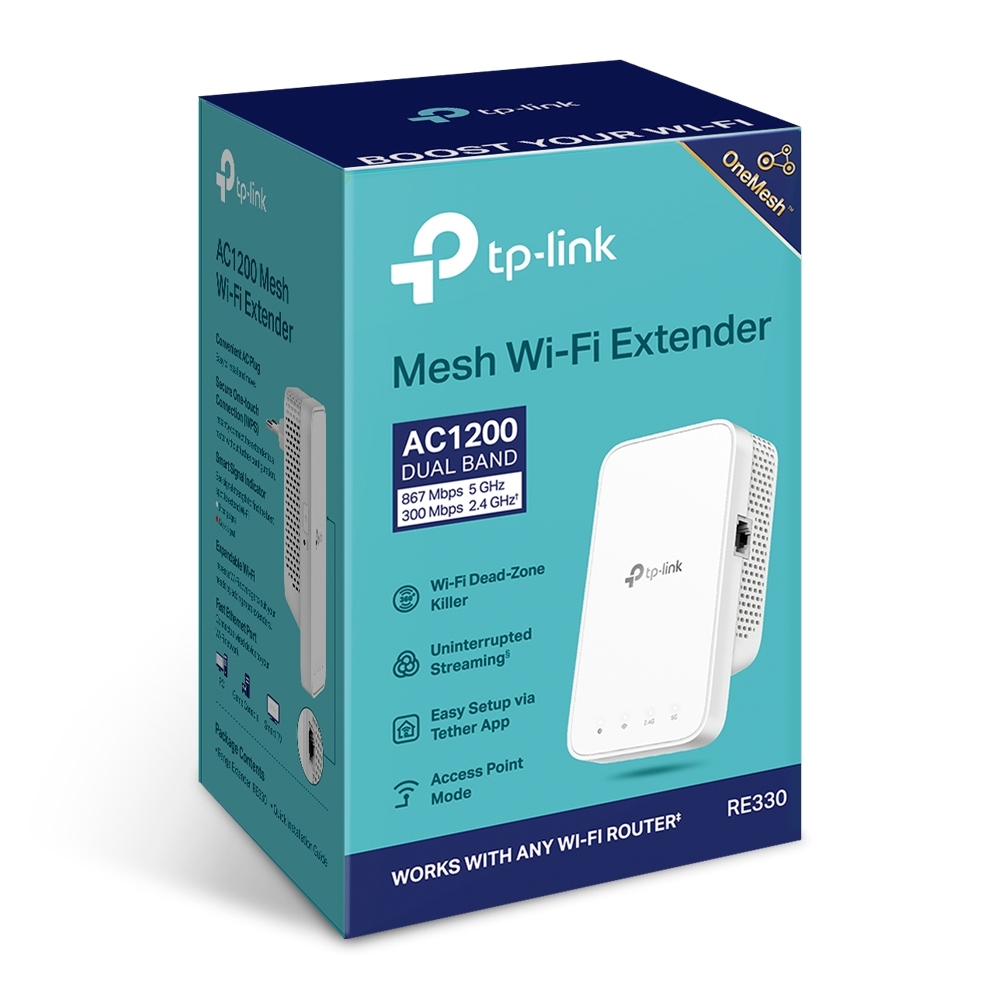

Wi-Fi Range Extender RE330
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Item Dimension (L inchxW inchxH inch)
7 x 4 x 4

Weight
1.00 lb

Warranty Information
2 year

Available Quantity

5

UPC

840030703034

SKU

mingleRE330

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

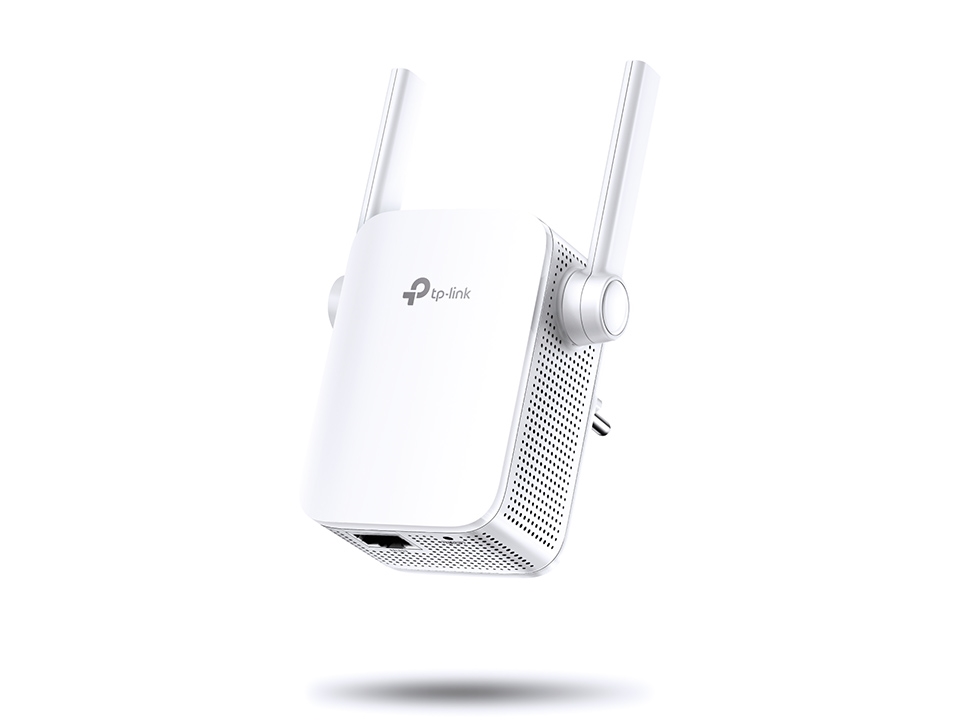

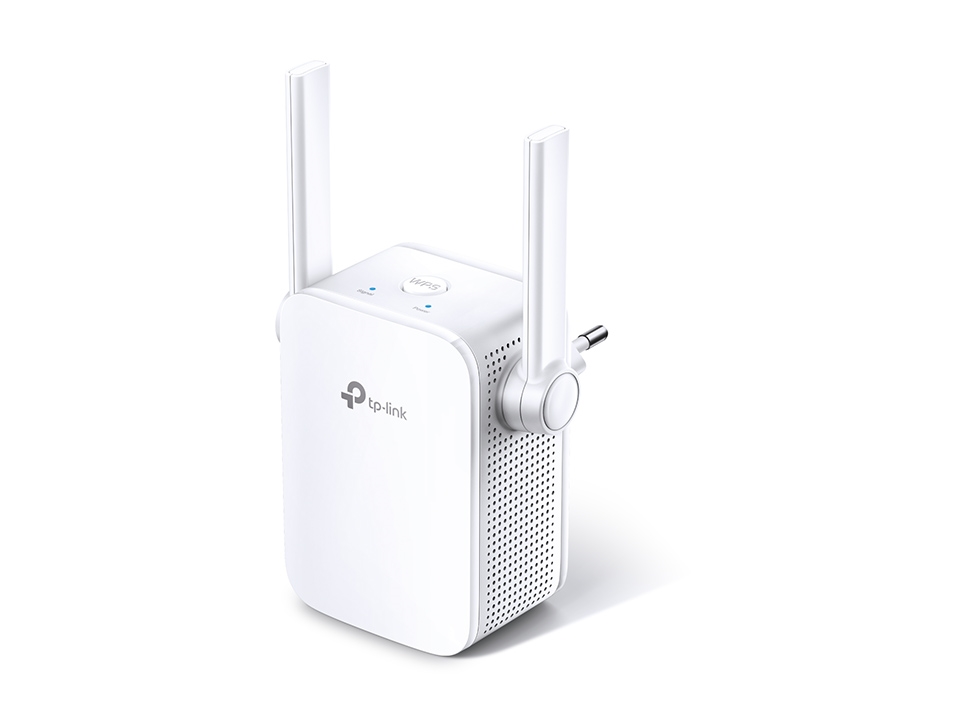

300Mbps Wi-Fi Range Extender


Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity

External antennas for faster and more reliable Wi-Fi

Supports AP mode which creates a new Wi-Fi Access point

Easily expand wireless coverage at a push of the Range Extender button

Set the Power Schedule for the range extender for power-saving

Works with Any Wi-Fi Router


Compact. Strong.

Despite its compact size, it may be hard to ignore the RE105 due to the truly impressive way that it projects Wi-Fi access into the areas of your home that your standard router simply cannot reach. The RE105 supports wireless speeds of up to 300Mbps and keeps all of your favorite devices running as fast as possible.


As Powerful As You Expect

The two external antennas with MIMO technology help set the RE105 apart from the rest. MIMO technology enhances your network by dramatically increasing wireless speeds and the two external antennas ensure that a stable wireless signal reaches you where you need it most.


Effortless Network Expansion

Two Simple Taps and You are Ready to Connect

Just press the WPS button on your router, then press the Range Extender button on RE105 to begin enjoying simple, expanded Wi-Fi.
HARDWARE FEATURES
Plug Type
EU, UK, US
Interface
1 x 10/100M Ethernet Port (RJ45)
Button
WPS Button, Reset Button
Power Consumption
3.6W
Antenna
2 x external
WIRELESS FEATURES
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 to 2.4835GHz
Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity
270M: less than -68dBm at 10% PER
130M: less than -68dBm at 10% PER
108M: less than -68dBm at 10% PER
54M: less than -68dBm at 10% PER
11M: less than -68dBm at 8% PER
6M: less than -68dBm at 10% PER
1M: less than -68dBm at 8% PER
Transmit Power
less than 20 dBm (EIRP)
Wireless Modes
Range Extender/Access Point
Wireless Functions
Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control
Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification
CE, RoHS
Package Contents
300Mbps Wi-Fi Range Extender RE105
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L inchxW inchxH inch)
7 x 4 x 4

Weight
1.00 lb

Warranty Information
2-year

Available Quantity

5

UPC

840030700446

SKU

mingleRE105

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

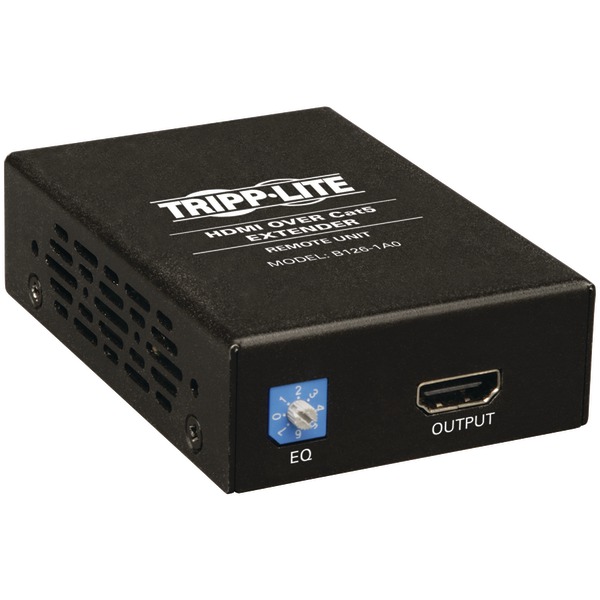

• Transmits an HDMI(R) signal to a monitor using a single CAT-5E/6 patch cable;• Supports HD video resolutions up to 1080p (60 Hz);• Equalization adjustment;• Active transmission reception for greater distances;• Reception distance: 200 ft. at 1080i or 150 ft. at 1080p;• For use with B126-002 or B126-004;• RoHS and TAA compliant;• 1-year limited warranty;

Available Quantity

5

UPC

037332157485

SKU

mingleB126-1A0

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

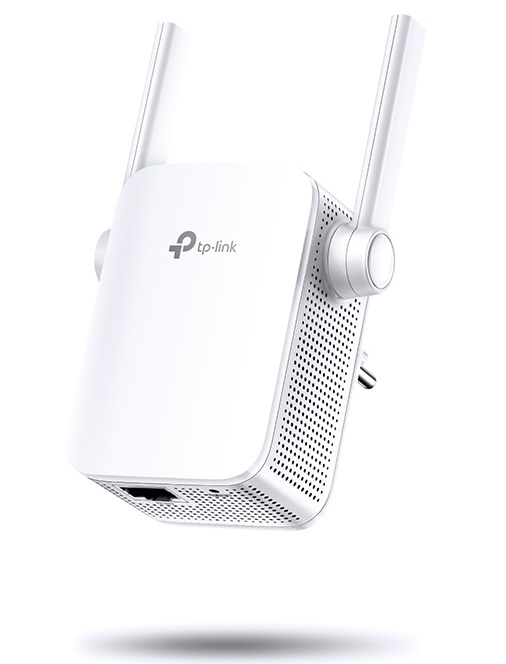

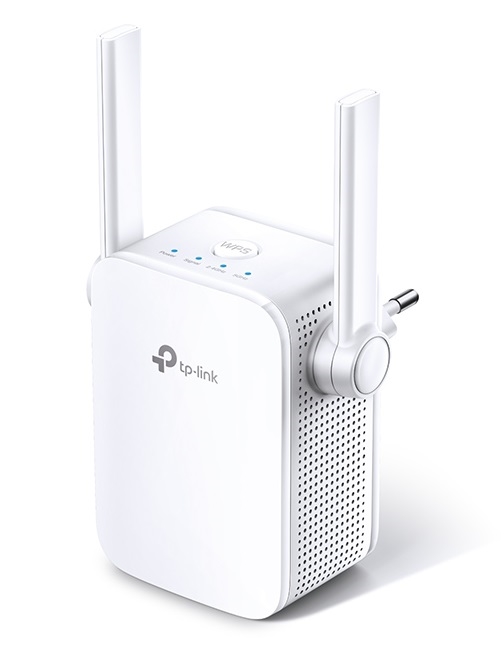

High-Speed Dual Band Wi-Fi for Better Connections
The RE305 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 867Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.


Perfect Location at a Glimpse
An Intelligent Signal light helps you quickly find the best location to install the RE305.


Built-in Access Point Mode
RE305 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.


Easy Management and Remote Control
The RE305 works with all Wi-Fi routers. You can use TP-Link's free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.


Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps

Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience

Intelligent signal light helps to fi nd the best location for optimal Wi-Fi coverage by showing the signal strength

Works with any Wi-Fi router or wireless access point
HARDWARE FEATURES
Plug Type
EU, UK, US
Standards and Protocols
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface
1 x 10/100M Ethernet Port (RJ45)
Button
WPS Button, Reset Button
Power Consumption
7.3W(max power consumption)
Antenna
2 x external
WIRELESS FEATURES
Frequency
2.4GHz and 5GHz(11ac)
Signal Rate
5GHz:Up to 867Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity
5GHz:
11a 6Mbps:-91dBm at 10% PER
11a 54Mbps: -74dBm at 10% PER
11ac HT20 mcs8: -68dBm at 10% PER
11ac HT40 mcs9: -63dBm at 10% PER
11ac HT80 mcs9: -59dBm at 10% PER
2.4GHz:
11g 54M: -79dBm at 10% PER
11n HT20 mcs7: -77dBm at 10% PER
11n HT40 mcs7: -74dBm at 10% PER
Wireless Modes
Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security
64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power
<17dBm(2.4GHz)
<17dBm(5GHz)
OTHERS
Certification
CE, FCC, RoHS
Package Contents

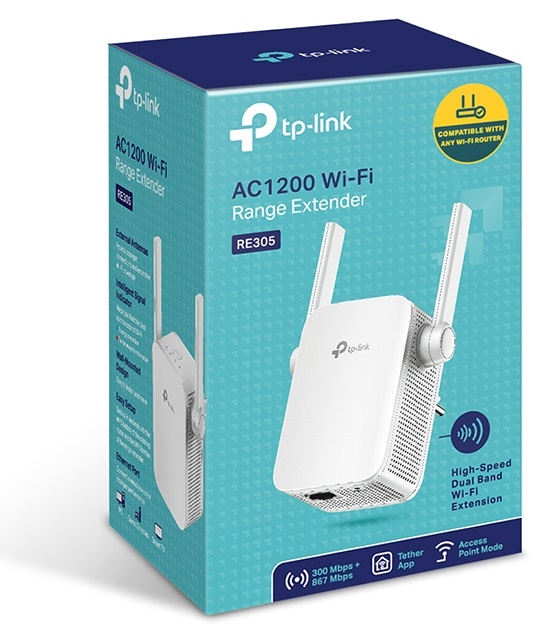

AC1200 Wi-Fi Range Extender RE305
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux. Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^{oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing}
Item Dimension (L inchxW inchxH inch)
4 x 4 x 7

Weight
1.00 lb

Warranty Information
2-year

Available Quantity

5

UPC

845973097998

SKU

mingleRE305

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

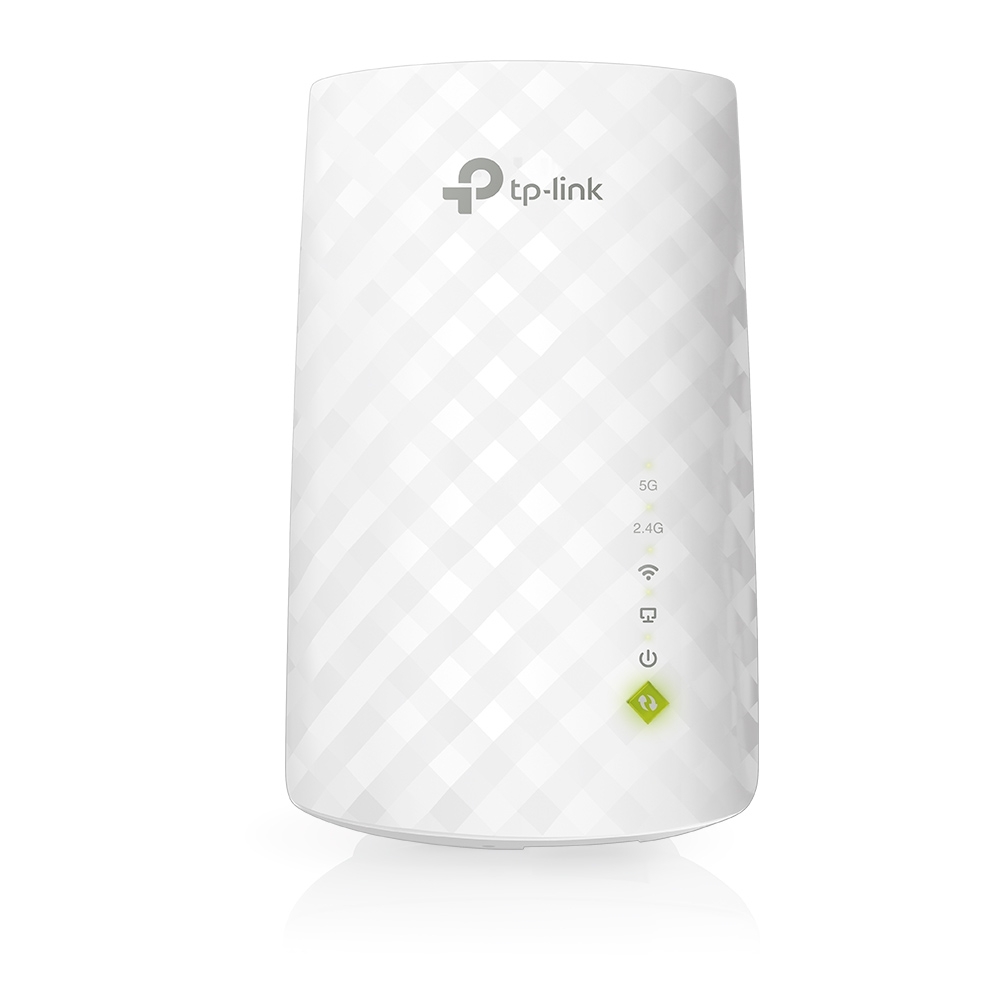

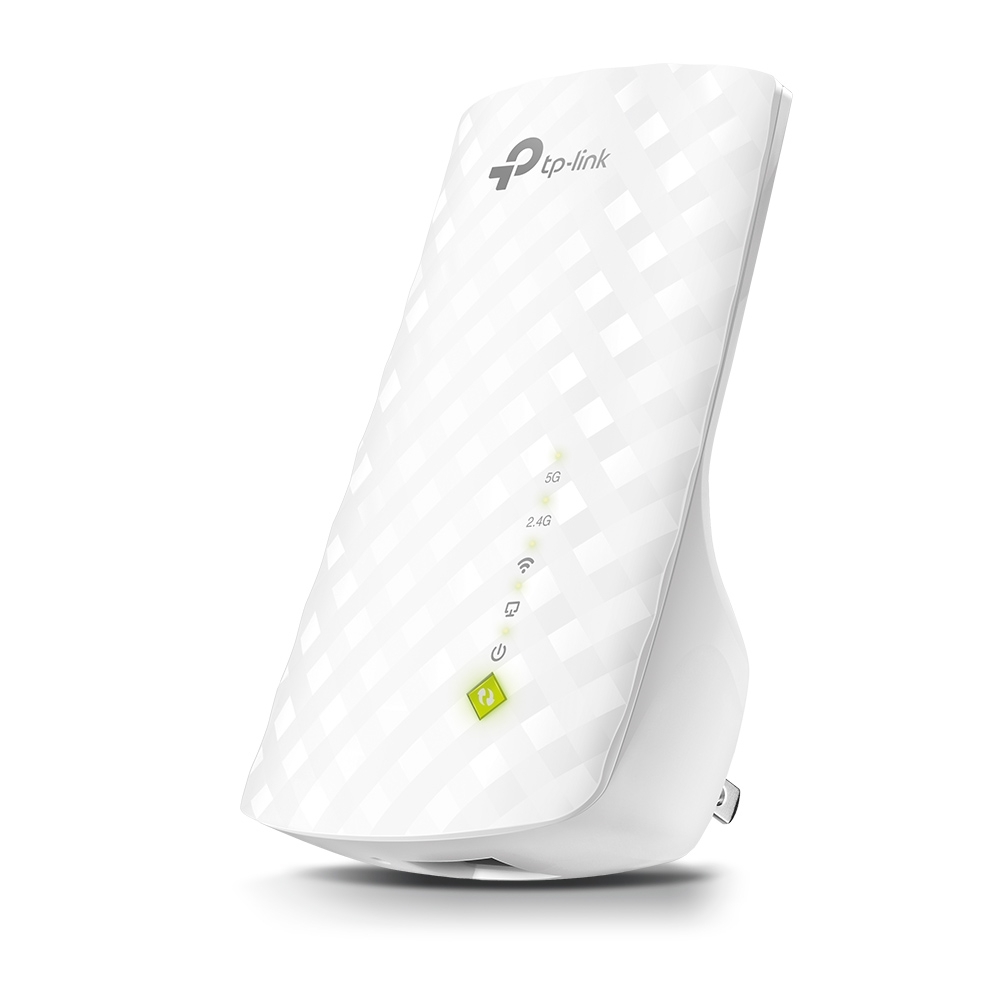

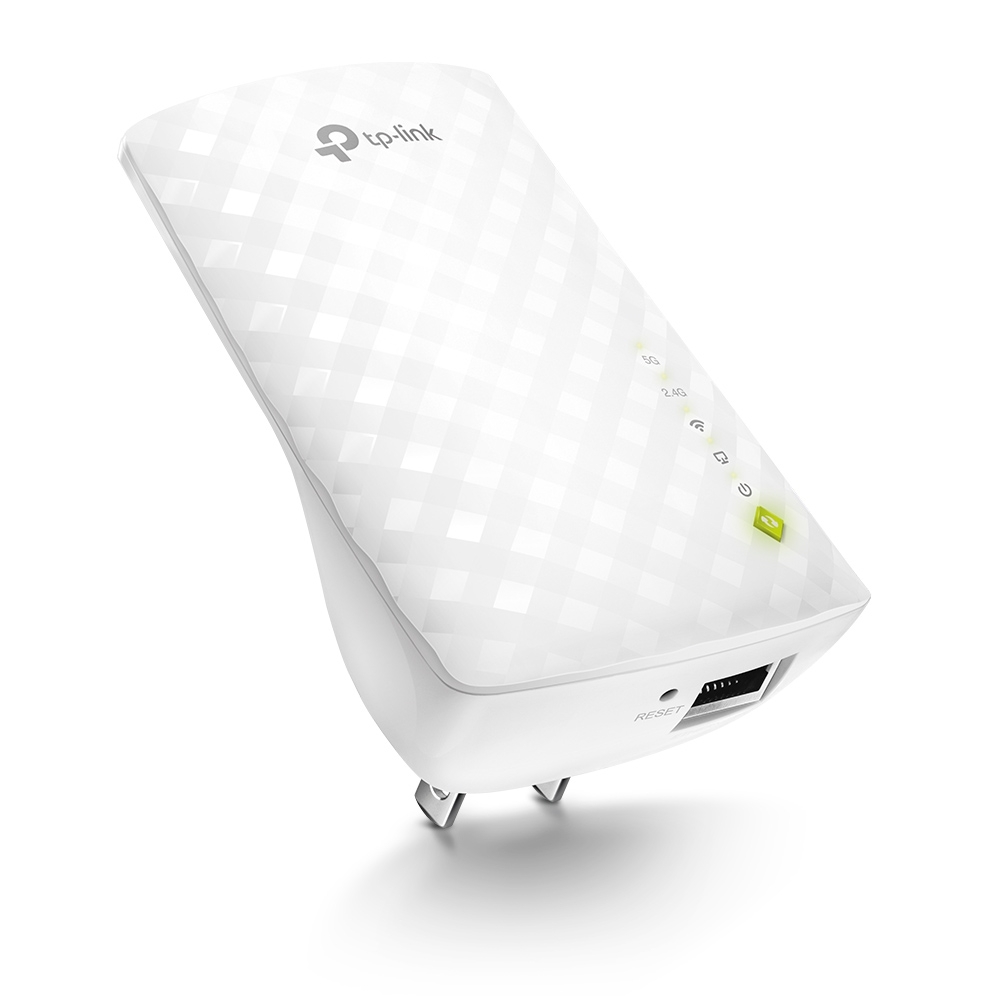

Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices

Dual band speeds up to 750Mbps

Miniature size and wall-mounted design make it easy to deploy and move flexibly

Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

Boost Your WiFi to hard-to-reach Areas

Place the RE220 between your wireless router and wireless devices, expanding WiFi coverage while eliminating WiFi dead zones. Dual-band WiFi can reach speeds up to 750 Mbps and extends up to can not only extend to 3,200 sq. ft. (300m2) with your router. Make the most of you ISP speeds by streaming HD videos, gaming online and other bandwidth-intensive tasks.

Stable Dual Band Connection for More Devices

The RE220 s wireless AC technology creates faster and stronger WiFi connections across your home and extends dual band WiFi up to 750 Mbps. Dual 2.4 GHz and 5 GHz bands provide WiFi connections for up to 32 devices, allowing you to enjoy a stable and drop-free experience on all your devices.

Simple Two-Step Setup

Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the
extender via Tether app or Web UI if your router doesn t support WPS.

Step 2: Relocate the extender to a better location for optimal WiFi coverage with the help of the smart signal indicator light.
HARDWARE FEATURES
Plug Type
US
Standards and Protocols
IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface
1 x 10/100M Ethernet Port (RJ45)
Button
RE (Range Extender) Button, Reset Button
Power Consumption
About 6.5W
Antenna
3 x internal
WIRELESS FEATURES
Frequency
2.4GHz and 5GHz
Signal Rate
5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity
2.4G:
270M: -70dBm at 10% PER
130M: -70dBm at 10% PER
108M: -73dBm at 10% PER
54M: -75dBm at 10% PER
11M: -86dBm at 8% PER
6M: -92dBm at 10% PER
1M: -94dBm at 8% PER
5G:
390M: -60dBm at 10% PER
29.3M: -83dBm at 10% PER
180M: -64dBm at 10% PER
13.5M: -87dBm at 10% PER
78M: -68dBm at 10% PER
6.5M: -90dBm at 10% PER
54M: -75dBm at 10% PER
6M-90dBm at 10% PER
Transmit Power
< 20 dBm (EIRP)
Wireless Modes
Range Extender
Wireless Functions
WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function
Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification
FCC, RoHS
Package Contents
AC750 Wi-Fi Range Extender RE220
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0^oC-40^oC (32^oF-104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Item Dimension (L"xW"xH")
7 x 4 x 4
Weight
1.00 LB
Warranty Information
2 year

Available Quantity

5

UPC

845973099732

SKU

mingleRE220
