Product Description

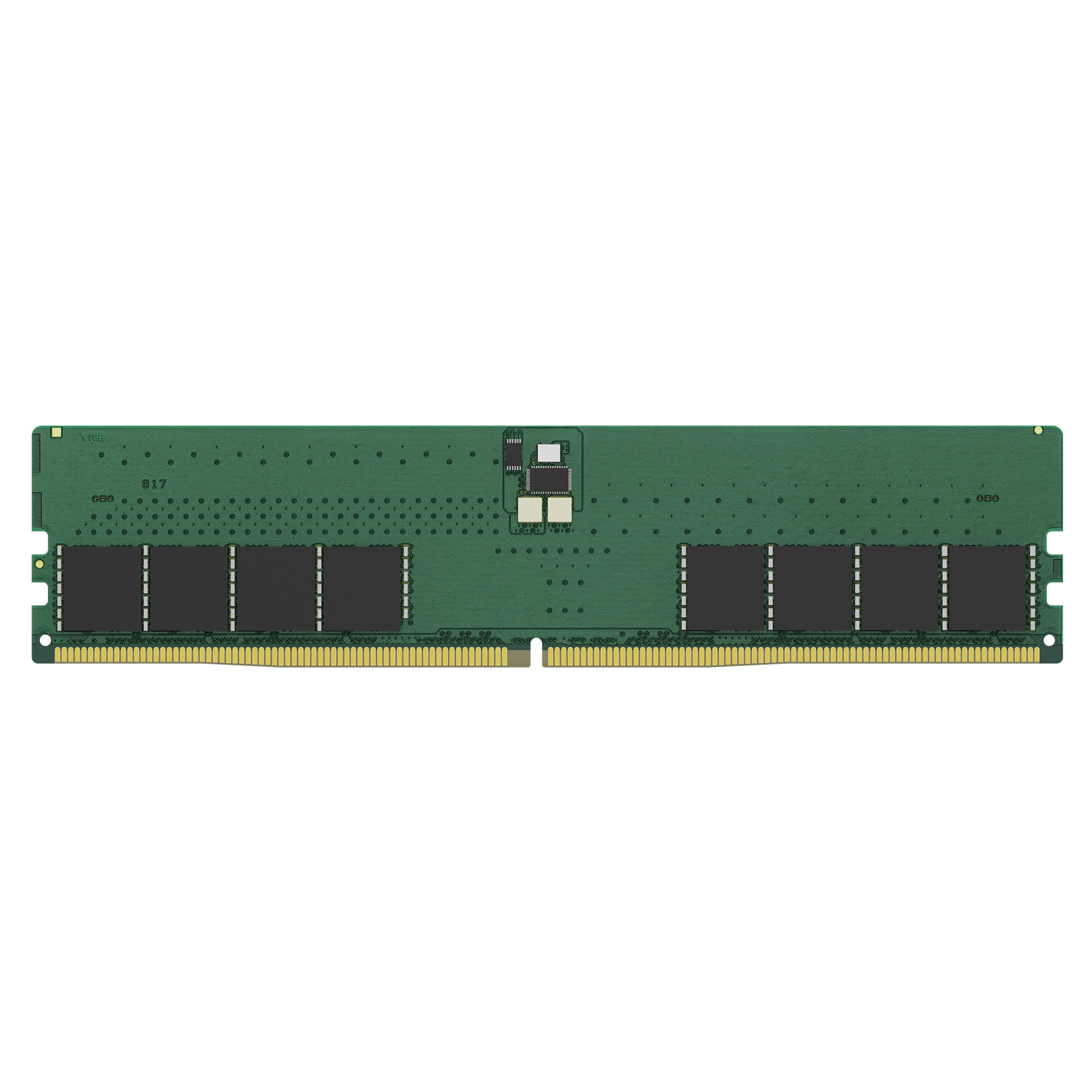

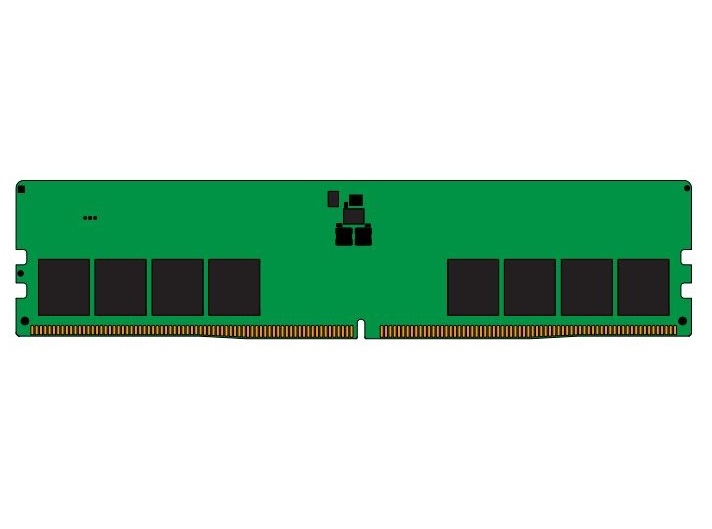

KVR56U46BD8-32

32GB 2Rx8 4G x 64-Bit

PC5-5600 CL46 288-Pin DIMM


DESCRIPTION


This document describes ValueRAM's KVR56U46BD8-32 is a 4G x
64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR5-5600 timing of
46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The
electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
46 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 2 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617332865

SKU

mingleKVR56U46BD8-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

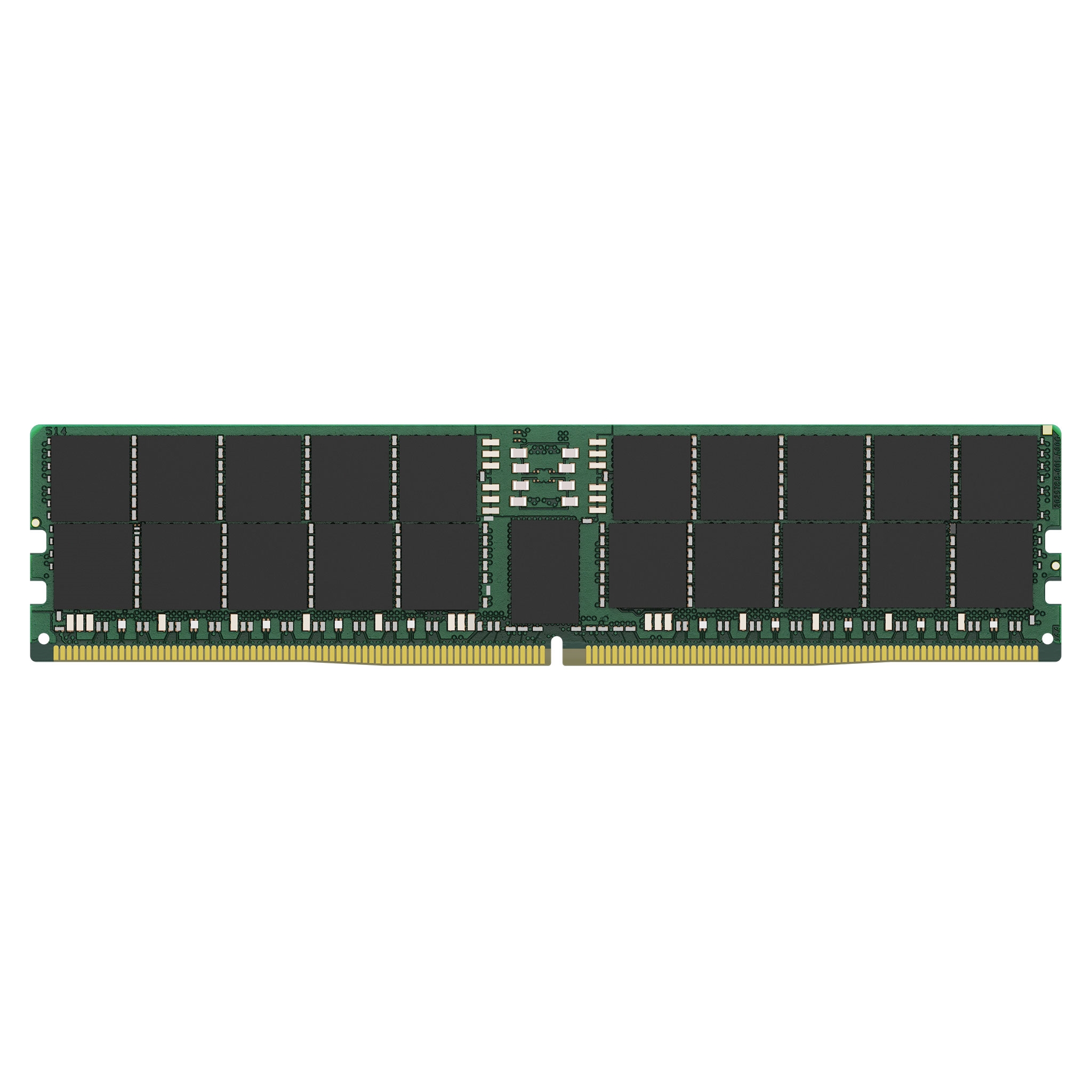

KSM56R46BD4PMI-64HAI

64GB 2Rx4 8G x 80-Bit

PC5-5600 CL46 Registered EC8 288-Pin DIMM



Kingston's KSM56R46BD4PMI-64HAI is a 8G x 80-bit (64GB)
DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC,
memory module, based on forty 4G x 4-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR5-5600 timing
of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.



FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

x80 ECC (x40, 2 independent I/O sub channels)

32 internal banks

Hard/Soft Post Package Repair

Sideband access with I3C/I2C

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
46 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Row Precharge Time (tRPmin)
16ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +95^o C
Storage Temperature
-55^o C to +100^o C
Module Assembly
DRAM: HYNIX (A-Die)
RCD: IDT/Renasas
PMIC: MPS
SPD Hub: Montage
TS: IDT/Renasas
Item Dimension (L inchxW inchxH inch)
6 x 1 x 2

Weight
1 lb

Warranty Information
Limited Lifetime

Available Quantity

5

UPC

740617337198

SKU

mingleKSM56R46BD4PMI-64HAI

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

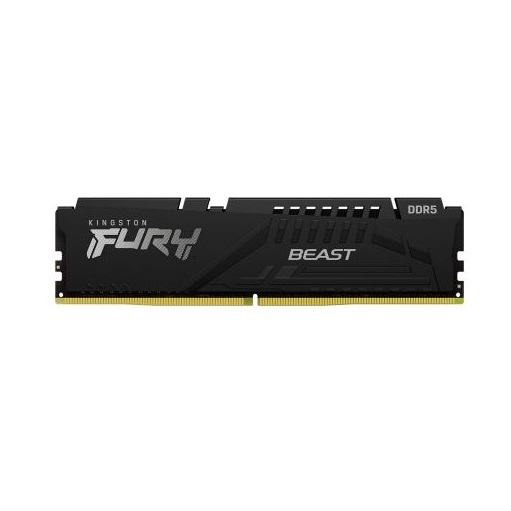

KF560C40BBK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)

DDR5-6000 CL40 288-Pin DIMM Kit


DESCRIPTION
Kingston FURY KF560C40BBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 40-40-40 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-6000 CL40-40-40 @1.35V

XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 4 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617331684

SKU

mingleKF560C40BBK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

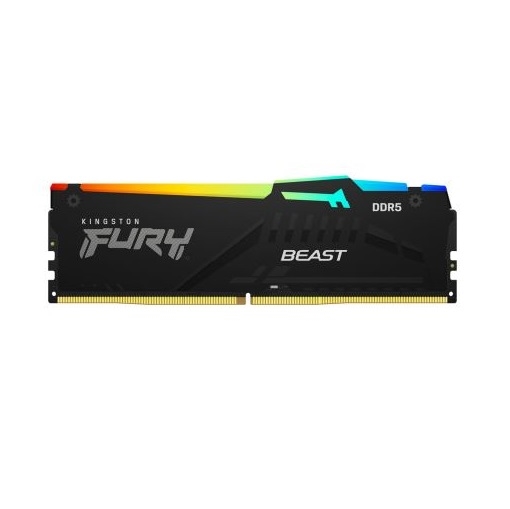

KF560C40BBAK2-32

32GB (16GB 2G x 64-Bit x 2 pcs.)

DDR5-6000 CL40 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF560C40BBAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 40-40-40 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-6000 CL40-40-40 @1.35V

XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328547

SKU

mingleKF560C40BBAK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

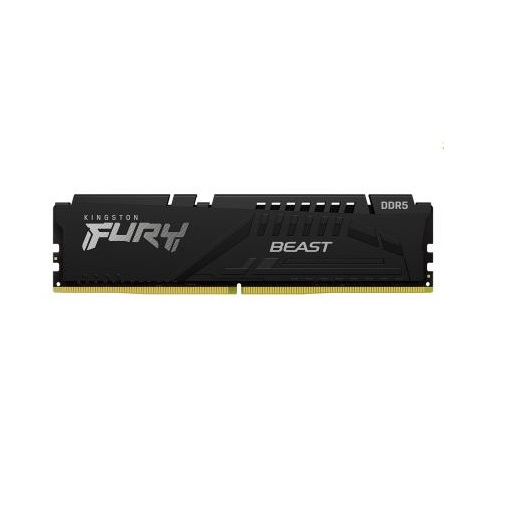

KF560C36BBEK2-32

32GB (16GB 2G x 64-Bit x 2 pcs.)

DDR5-6000 CL36 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF560C36BBEK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD EXPO v1.0 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

EXPO Profile #0: DDR5-6000 CL36-38-38 @1.35V

EXPO Profile #1: DDR5-5600 CL36-38-38 @1.25V

XMP Profile #1: DDR5-6000 CL36-38-38 @1.35V

XMP Profile #2: DDR5-5600 CL36-38-38 @1.25V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 4 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617330755

SKU

mingleKF560C36BBEK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

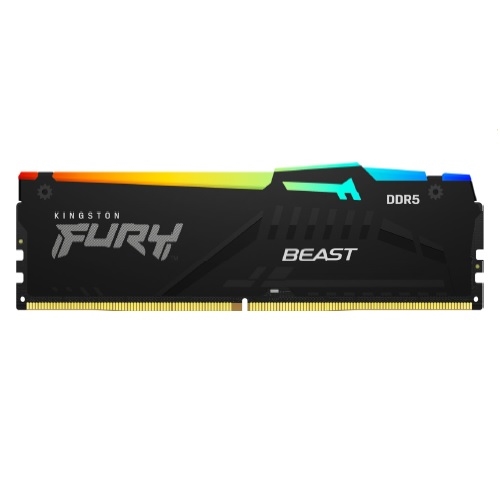

Kingston FURY KF560C36BBEAK2-64 is a kit of two 4G x 64-bit(32GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 2Rx8,memory module, based on sixteen 2G x 8-bit FBGA components permodule. Each module kit supports AMD EXPO v1.0 andIntel Extreme Memory Profiles (Intel XMP) 3.0. Total kitcapacity is 64GB. Each module has been tested to run atDDR5-6000 at a low latency timing of 36-38-38 at 1.35V. TheSPDs are programmed to JEDEC standard latencyDDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMMuses gold contact fingers.
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
FEATURES
Power Supply: VDD equals 1.1V Typical
VDDQ equals 1.1V Typical
VPP equals 1.8V Typical
VDDSPD equals 1.8V to 2.0V
On-Die ECC
Height 1.66 inches (42.23mm), w/heatsink
FACTORY TIMING PARAMETERS
Default (JEDEC): DDR5-4800 CL40-39-39 at 1.1V
EXPO Profile number 0: DDR5-6000 CL36-38-38 at 1.35V
EXPO Profile number 1: DDR5-5600 CL36-38-38 at 1.25V
XMP Profile number 1: DDR5-6000 CL36-38-38 at 1.35V
XMP Profile number 2: DDR5-5600 CL36-38-38 at 1.25V
Item Dimension (L inchxW inchxH inch)
1 x 5 x 7

Weight
1lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617331882

SKU

mingleKF560C36BBEAK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KF560C36BBEA-16

16GB 2G x 64-Bit

DDR5-6000 CL36 288-Pin DIMM

DESCRIPTION

Kingston FURY KF560C36BBEA-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD EXPO v1.0 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

EXPO Profile #0: DDR5-6000 CL36-38-38 @1.35V

EXPO Profile #1: DDR5-5600 CL36-38-38 @1.25V

XMP Profile #1: DDR5-6000 CL36-38-38 @1.35V

XMP Profile #2: DDR5-5600 CL36-38-38 @1.25V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o
Item Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617330731

SKU

mingleKF560C36BBEAK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

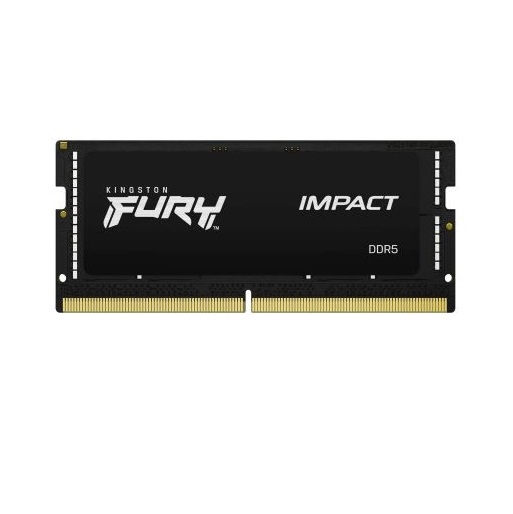

KF556S40IBK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)

DDR5-5600 CL40 262-Pin SODIMM Kit

DESCRIPTION
Kingston FURY KF556S40IBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (Plug N Play): DDR5-5600 CL40-40-40 @ 1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
28.56ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 4 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617331646

SKU

mingleKF556S40IBK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

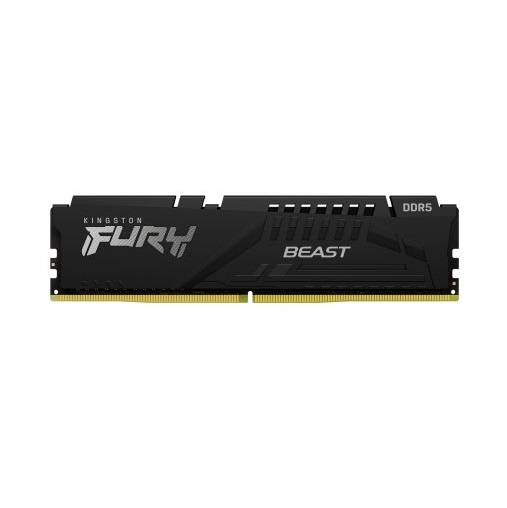

KF556C40BBK4-128

128GB (32GB 4G x 64-Bit x 4 pcs.)

DDR5-5600 CL40 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF556C40BBK4-128 is a kit of four 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 128GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-5600 CL40-40-40 @1.25V

XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617335194

SKU

mingleKF556C40BBK4-128

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

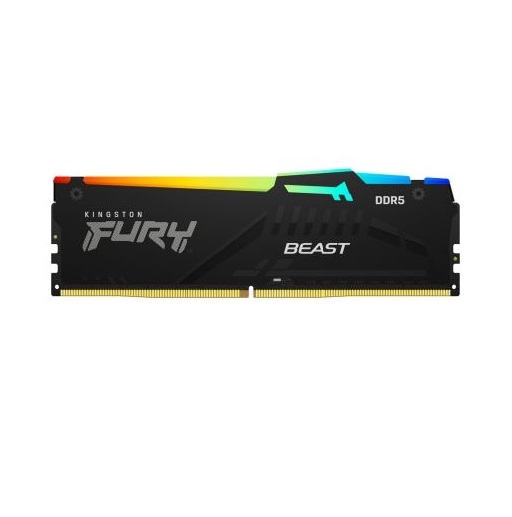

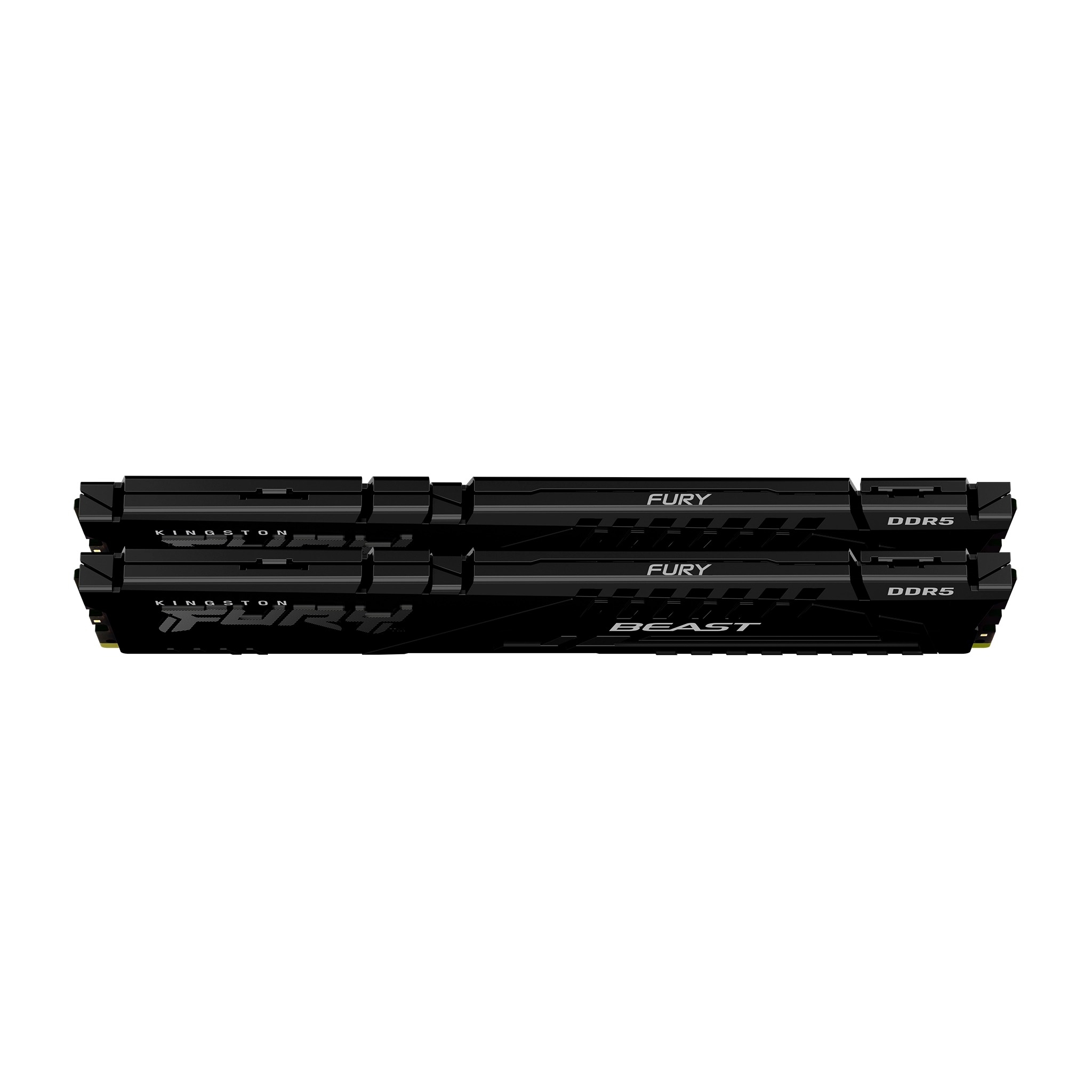

KF556C40BBAK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)

DDR5-5600 CL40 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF556C40BBAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-5600 CL40-40-40 @1.25V

XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328509

SKU

mingleKF556C40BBAK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

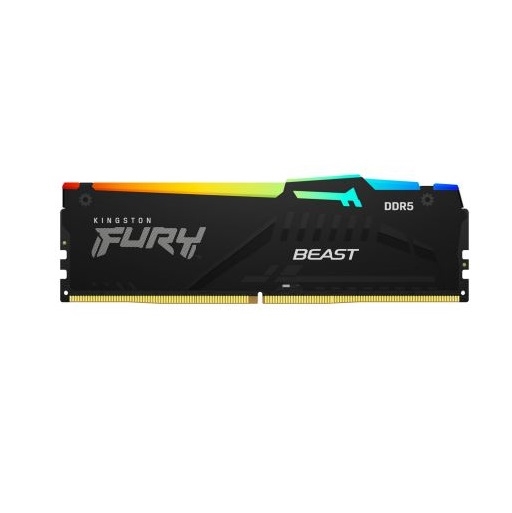

KF556C40BBAK2-16

16GB (8GB 1G x 64-Bit x 2 pcs.)

DDR5-5600 CL40 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF556C40BBAK2-16 is a kit of two 1G x 64-bit (8GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 16GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-5600 CL40-40-40 @1.25V

XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328486

SKU

mingleKF556C40BBAK2-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

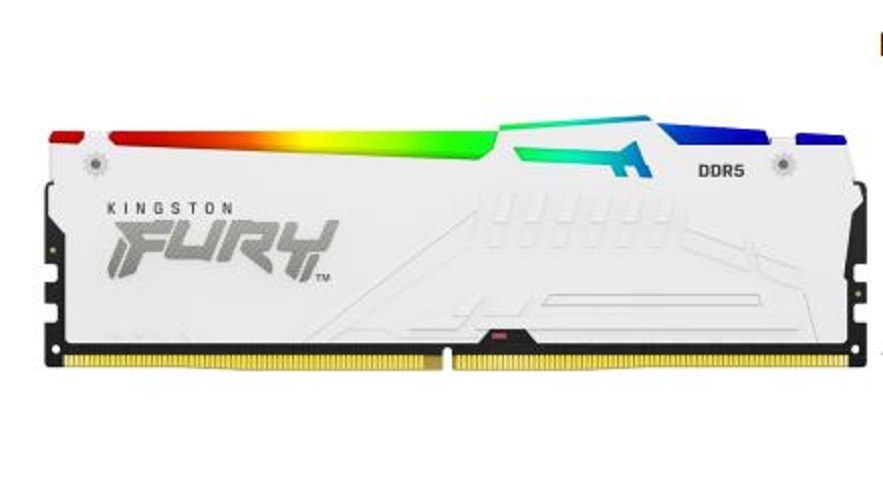

KF556C36BWEAK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)

DDR5-5600 CL36 288-Pin DIMM Kit



Kingston FURY KF556C36BWEAK2-64 is a kit of two 4G x 64-bit
(32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components per
module. Each module kit supports AMD EXPO v1.0 and
Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit
capacity is 64GB. Each module has been tested to run at
DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The
SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:



FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

EXPO Profile #0: DDR5-5600 CL36-38-38 @1.25V

EXPO Profile #1: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #1: DDR5-5600 CL36-38-38 @1.25V

XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V



DEFAULT FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L inchxW inchxH inch)
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617333503

SKU

mingleKF556C36BWEAK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

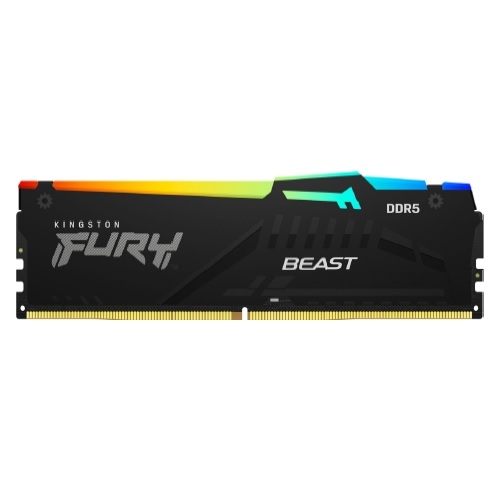

Kingston FURY KF556C36BBEAK2-64 is a kit of two 4G x 64-bit
(32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components per
module. Each module kit supports AMD EXPO v1.0 and
Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit
capacity is 64GB. Each module has been tested to run at
DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The
SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers.
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
FEATURES
Power Supply: VDD equals 1.1V Typical
VDDQ equals 1.1V Typical
VPP equals 1.8V Typical
VDDSPD equals 1.8V to 2.0V
On-Die ECC
Height 1.66 inches (42.23mm), w/heatsink
FACTORY TIMING PARAMETERS
Default (JEDEC): DDR5-4800 CL40-39-39 at 1.1V
EXPO Profile number 0: DDR5-5600 CL36-38-38 at 1.25V
EXPO Profile number 1: DDR5-5200 CL40-40-40 at 1.25V
XMP Profile number 1: DDR5-5600 CL36-38-38 at 1.25V
XMP Profile number 2: DDR5-5200 CL40-40-40 at 1.25V
Item Dimension (L inchxW inchxH inch)
1 x 5 x 7

Weight
1lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617331929

SKU

mingleKF556C36BBEAK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

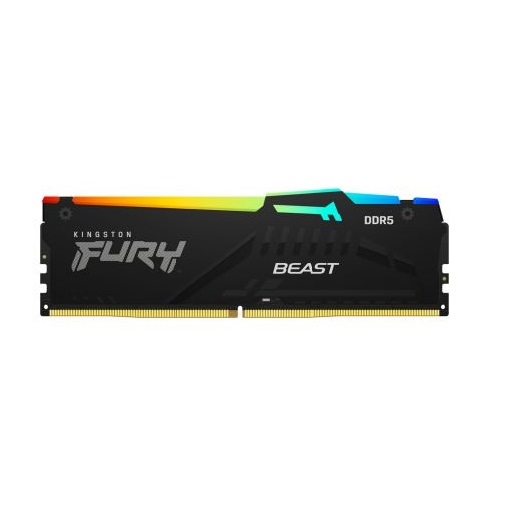

KF552C40BBAK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)

DDR5-5200 CL40 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF552C40BBAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 at 1.1V

XMP Profile #1: DDR5-5200 CL40-40-40 at 1.25V

XMP Profile #2: DDR5-4800 CL38-38-38 at 1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328578

SKU

mingleKF552C40BBAK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

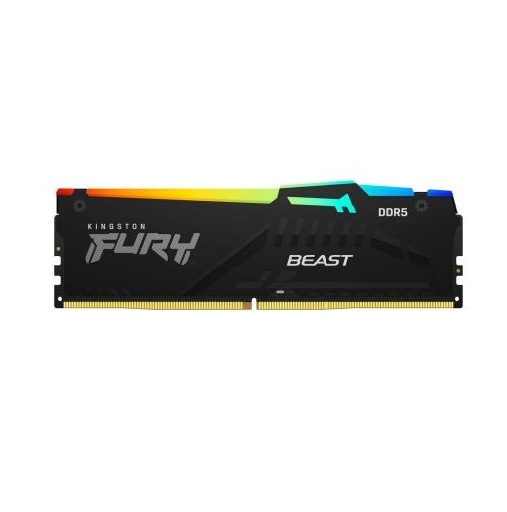

KF552C40BBA-32

32GB 4G x 64-Bit

DDR5-5200 CL40 288-Pin DIMM

DESCRIPTION

Kingston FURY KF552C40BBA-32 is a 4G x 64-bit (32GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #2: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 3 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328622

SKU

mingleKF552C40BBA-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

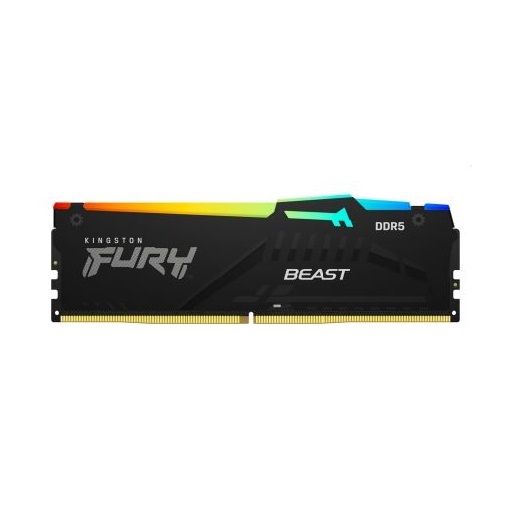

KF552C40BBA-16

16GB 2G x 64-Bit

DDR5-5200 CL40 288-Pin DIMM

DESCRIPTION

Kingston FURY KF552C40BBA-16 is a 2G x 64-bit (16GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 at 1.1V

XMP Profile #1: DDR5-5200 CL40-40-40 at 1.25V

XMP Profile #2: DDR5-4800 CL38-38-38 at 1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 3 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328639

SKU

mingleKF552C40BBA-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Kingston FURY KF552C36BBEAK2-16 is a kit of two 1G x 64-bit (8GB) DDR5-5200 CL36 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. Each module kit supports AMD EXPO v1.0 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 16GB. Each module has been tested to run at DDR5-5200 at a low latency timing of 36-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.


Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.66 (42.23mm), w/heatsink
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
FACTORY TIMING PARAMETERS
Default (JEDEC):
DDR5-4800 CL40-39-39 at 1.1V
EXPO Profile Number 0:
DDR5-5200 CL36-40-40 at 1.25V
EXPO Profile Number 1:
DDR5-4800 CL38-38-38 at 1.1V
XMP Profile Number 1:
DDR5-5200 CL36-40-40 at 1.25V
XMP Profile Number 2:
DDR5-4800 CL38-38-38 at 1.1V
Item Dimension (L inchxW inchxH inch)
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617331981

SKU

mingleKF552C36BBEAK2-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

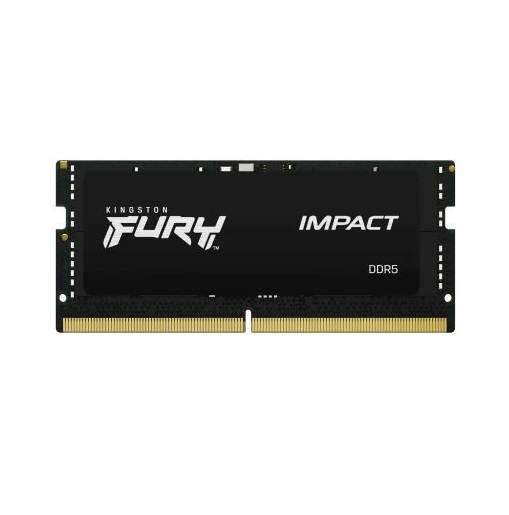

KF548S38IBK2-32

32GB (16GB 2G x 64-Bit x 2 pcs.)

DDR5-4800 CL38 262-Pin SODIMM Kit

DESCRIPTION

Kingston FURY KF548S38IBK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
CL(IDD)
38 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
29.12ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 4 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617326147

SKU

mingleKF548S38IBK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

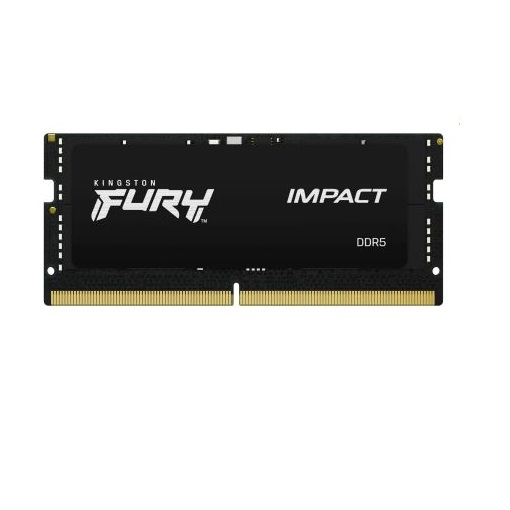

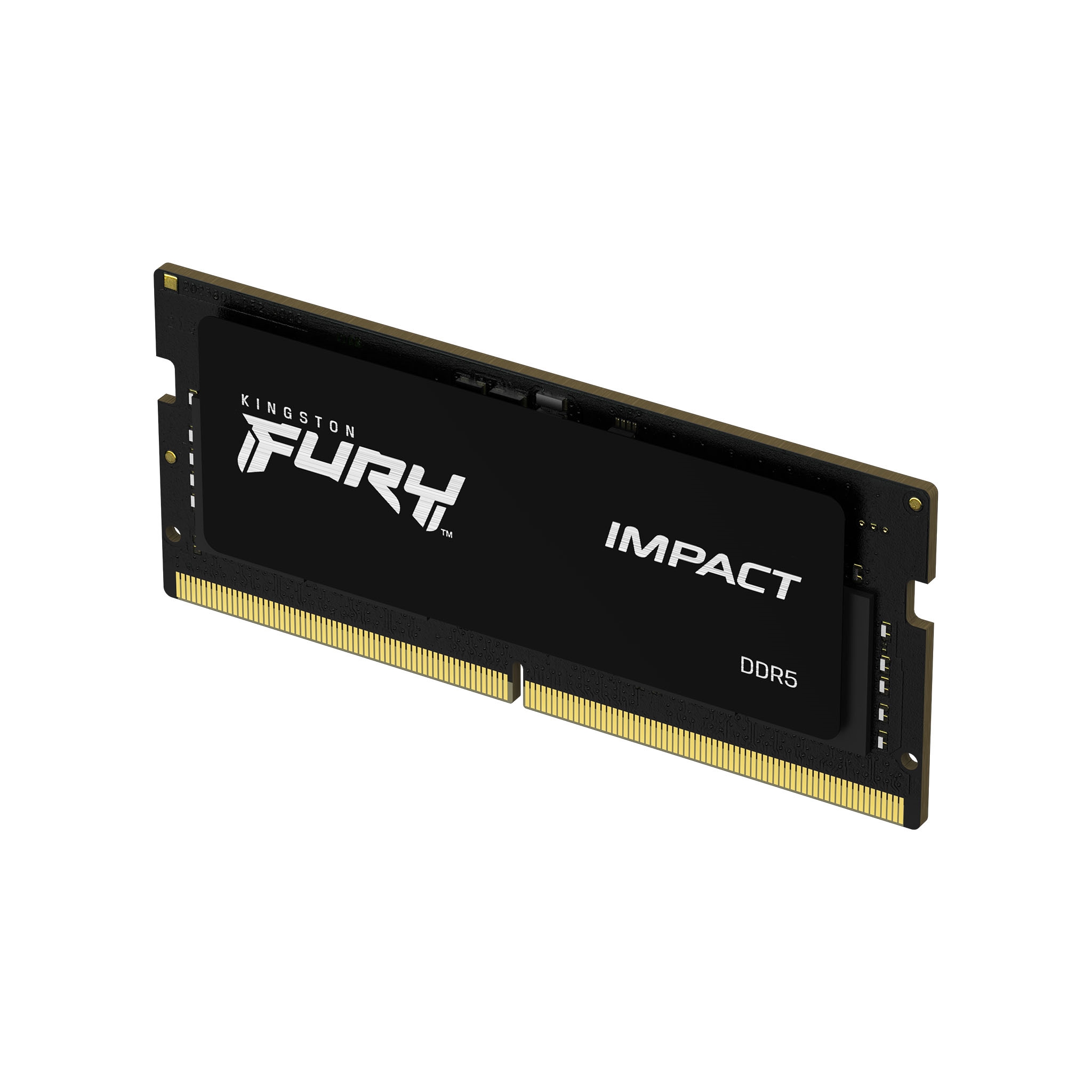

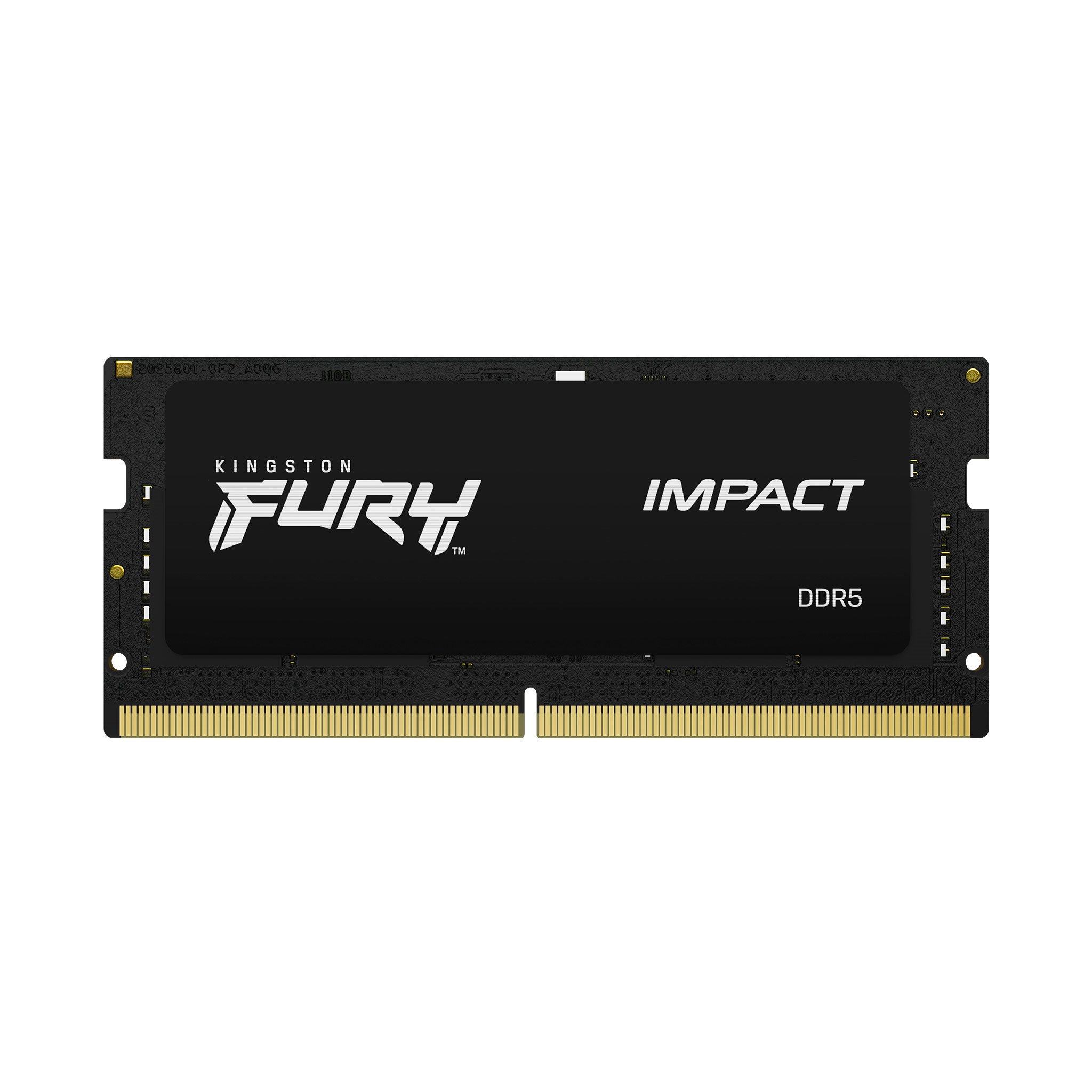

KF548S38IB-16

16GB 2G x 64-Bit

DDR5-4800 CL38 262-Pin SODIMM

DESCRIPTION

Kingston FURY KF548S38IB-16 is a 2G x 64-bit (16GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
CL(IDD)
38 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
29.12ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617326154

SKU

mingleKF548S38IB-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Crucial DDR5 Laptop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time.


Faster load times and file transfers

Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time5. Due to higher bus efficiency, DDR5 technology is not just faster than the previous generation, it s better1.


More responsive multitasking

Crucial DDR5 offers 50% faster speeds than DDR4 at launch4, empowering users with extreme performance right out of the box. Even more impressive, Crucial DDR5 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever.


Extreme innovation for stable performance

Crucial DDR5 takes an extreme step forward in engineering over the previous generation with two independent 32-bit channels per module for optimized performance7. Designed with on-die ECC (ODECC)8 at the component level for long-term stability, Crucial DDR5 is engineered to maintain the same reliability as the previous generation, even with the rigorous demands of next-gen computing.


Optimized power efficiency

For improved efficiency and stability, Crucial DDR5 introduces on-module voltage regulation with a power management integrated circuit (PMIC), which was on the motherboard with older memory technologies7. This results in improved signaling and cleaner power for the modules (DIMMs). Moreover, DDR5 s on-module operating voltage is only 1.1V compared to DDR4 s 1.2V.
General tech specs
Technology
DDR5
Density
8GB
Module type
SODIMM
DIMM type
Unbuffered
Voltage
1.1V / (5V ext)
Module quantity
1
Speed and timing
Speed
DDR5-4800
CAS latency
40
Extended timings
40-39-39
Item Dimension (L inchxW inchxH inch)
3 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528906519

SKU

mingleCT8G48C40S5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Faster load times and file transfers
Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time. Due to higher bus efficiency, DDR5 technology is not just faster than the previous generation, its better.
More responsive multitasking
Crucial DDR5 offers 50% faster speeds than DDR4 at launch, empowering users with extreme performance right out of the box. Even more impressive, Crucial DDR5 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever.
Extreme innovation for stable performance
Crucial DDR5 takes an extreme step forward in engineering over the previous generation with two independent 32-bit channels per module for optimized performance. Designed with on-die ECC (ODECC) at the component level for long-term stability, Crucial DDR5 is engineered to maintain the same reliability as the previous generation, even with the rigorous demands of next-gen computing.
Optimized power efficiency
For improved efficiency and stability, Crucial DDR5 introduces on-module voltage regulation with a power management integrated circuit (PMIC), which was on the motherboard with older memory technologies. This results in improved signaling and cleaner power for the modules (DIMMs). Moreover, DDR5s on-module operating voltage is only 1.1V compared to DDR4s 1.2V.

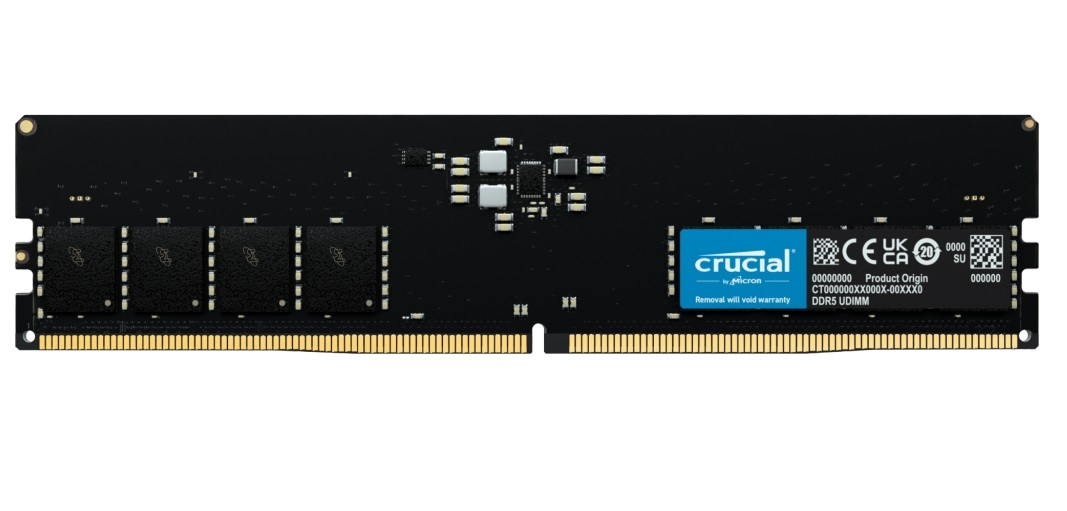

General tech specs
Technology
DDR5
Density
16GB
Module type
UDIMM
DIMM type
Unbuffered
Voltage
1.1V/(5V ext)
Module quantity
1
Speed and timing
Speed
DDR5-5600
CAS latency
46
Extended timings
46-45-45
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528929730

SKU

mingleCT16G56C46U5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Faster load times and file transfers
Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time. Due to higher bus efficiency, DDR5 technology is not just faster than the previous generation, its better.
More responsive multitasking
Crucial DDR5 offers 50% faster speeds than DDR4 at launch4, empowering users with extreme performance right out of the box. Even more impressive, Crucial DDR5 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever.
Extreme innovation for stable performance
Crucial DDR5 takes an extreme step forward in engineering over the previous generation with two independent 32-bit channels per module for optimized performance. Designed with on-die ECC (ODECC) at the component level for long-term stability, Crucial DDR5 is engineered to maintain the same reliability as the previous generation, even with the rigorous demands of next-gen computing.
Optimized power efficiency
For improved efficiency and stability, Crucial DDR5 introduces on-module voltage regulation with a power management integrated circuit (PMIC), which was on the motherboard with older memory technologies. This results in improved signaling and cleaner power for the modules (DIMMs). Moreover, DDR5s on-module operating voltage is only 1.1V compared to DDR4s 1.2V.

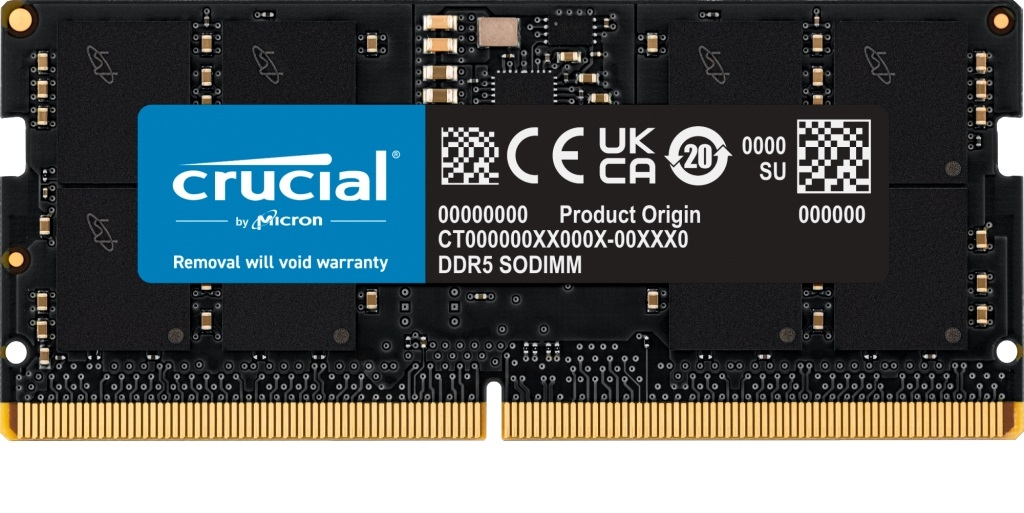

General tech specs
Technology
DDR5
Density
16GB
Module type
SODIMM
DIMM type
Unbuffered
Voltage
1.1V/(5V ext)
Module quantity
1
Speed and timing
Speed
DDR5-5600
CAS latency
46
Extended timings
46-45-45
Item Dimension (L"xW"xH")
3 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528929938

SKU

mingleCT16G56C46S5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

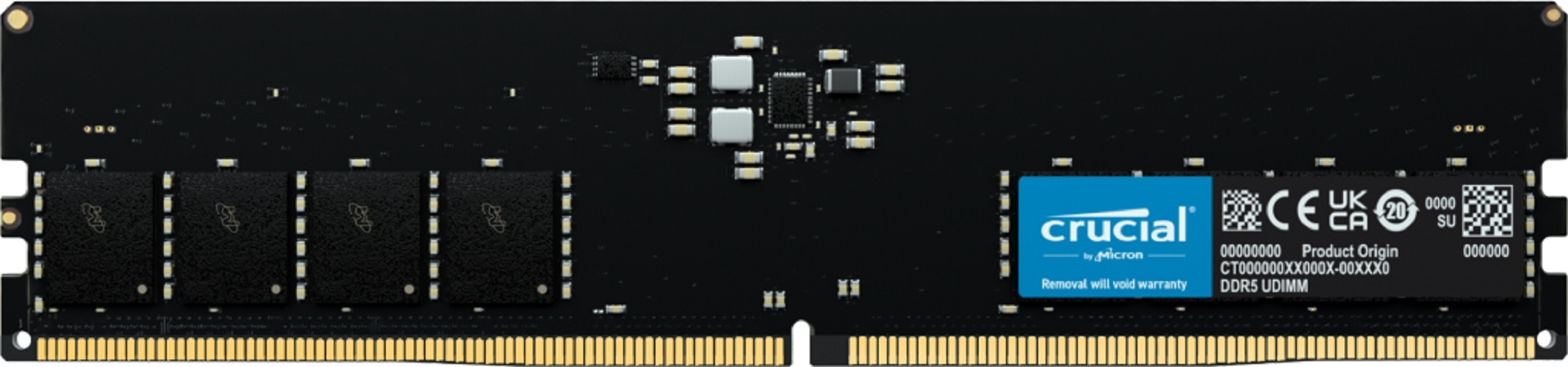

Product Description

Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time.


Faster load times and file transfers

Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time5. Due to higher bus efficiency, DDR5 technology is not just faster than the previous generation, it s better.


More responsive multitasking

Crucial DDR5 offers 50% faster speeds than DDR4 at launch4, empowering users with extreme performance right out of the box. Even more impressive, Crucial DDR5 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever.


Extreme innovation for stable performance

Crucial DDR5 takes an extreme step forward in engineering over the previous generation with two independent 32-bit channels per module for optimized performance. Designed with on-die ECC (ODECC)8 at the component level for long-term stability, Crucial DDR5 is engineered to maintain the same reliability as the previous generation, even with the rigorous demands of next-gen computing.


Optimized power efficiency

For improved efficiency and stability, Crucial DDR5 introduces on-module voltage regulation with a power management integrated circuit (PMIC), which was on the motherboard with older memory technologies7. This results in improved signaling and cleaner power for the modules (DIMMs). Moreover, DDR5 s on-module operating voltage is only 1.1V compared to DDR4 s 1.2V.
General tech specs
Technology
DDR5
Density
16GB
Module type
UDIMM
DIMM type
Unbuffered
Voltage
1.1V / (5V ext)
Module quantity
1
Speed and timing
Speed
DDR5-5200
CAS latency
42
Extended timings
42-42-42
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528935724

SKU

mingleCT16G52C42U5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KVR48U40BD8-32

32GB 2Rx8 4G x 64-Bit

PC5-4800 CL40 288-Pin DIMM

DESCRIPTION

This document describes ValueRAM's KVR48U40BD8-32 is a 4G x 64-bit (32GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617325058

SKU

mingleKVR48U40BD8-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KVR48S40BS8-16

16GB 1Rx8 2G x 64-Bit

PC5-4800 CL40 262-Pin SODIMM

DESCRIPTION

This document describes ValueRAM's KVR48S40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

PCB: Height 1.18 (30.00mm)

RoHS Compliant and Halogen-Free
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617327113

SKU

mingleKVR48S40BS8-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KVR48S40BD8-32

32GB 2Rx8 4G x 64-Bit

PC5-4800 CL40 262-Pin SODIMM

DESCRIPTION

This document describes ValueRAM's KVR48S40BD8-32 is a 4G x 64-bit (32GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC

PCB: Height 1.18 (30.00mm)
RoHS Compliant and Halogen-Free
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617327137

SKU

mingleKVR48S40BD8-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KSM32RD4/64HCR

64GB 2Rx4 8G x 72-Bit PC4-3200

CL22 Registered w/Parity 288-Pin DIMM

DESCRIPTION

Kingston's KSM32RD4/64HCR is a 8G x 72-bit (64GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx4, ECC, memory module, based on thiry-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available

Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supported
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617326710

SKU

mingleKSM32RD4/64HCR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Kingston FURY Renegade DDR5 RGB Memory

Up to 6400MT/s*

Game in style with Kingston FURY Renegade DDR5 RGB1 memory, designed for extreme performance on next-gen DDR5 platforms. Give your system the performance boost and flair needed to stay on top with ultra-fast memory up to 6400MT/s* and utilizing FURY CTRL, 16 customizable RGB lighting effects. Kingston FURY Renegade DDR5 RGB features a sleek, newly designed black and silver heat spreader with dynamic LED light bar utilizing Kingston s patented Infrared Sync Technology to provide smooth, synchronized RGB lighting effects to complement the look of the latest PC builds.


Whether you re creating content, multi-tasking or pushing the limits to the extremes for your bleeding edge game title, Kingston FURY Renegade DDR5 RGB memory is the ideal choice for gamers, enthusiasts, content creators and extreme overclockers. 100% factory tested at speed and backed by a limited lifetime warranty and over 30 years of expertise, dependable Kingston FURY Renegade DDR5 RGB gives you the best of both worlds: extreme performance and maximum peace of mind.


* Learn More about megatransfers per second - MT/s denotes megatransfers (million transfers) per second and represents the effective data rate (speed) of DDR (Double Data Rate) SDRAM memory in computing. A DDR SDRAM memory module transfers data on the rise and fall of every clock cycle (1 Hz).

Ex: DDR4-3200 (PC4-3200)

Clock Rate: 1600MHz

Data Rate: 3200MT/s

Bandwidth: 25,600 MB/s (25.6 GB/s)
Capacities
Kit of 2: 32GB
Speeds
6000MT/s
Latencies
CL32
Voltage
1.35V
Operating Temperature
0^oC to 85^oC
Item Dimension (L inchxW inchxH inch)
1 x 5 x 7

Weight
1.00 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617329766

SKU

mingleKF560C32RSAK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

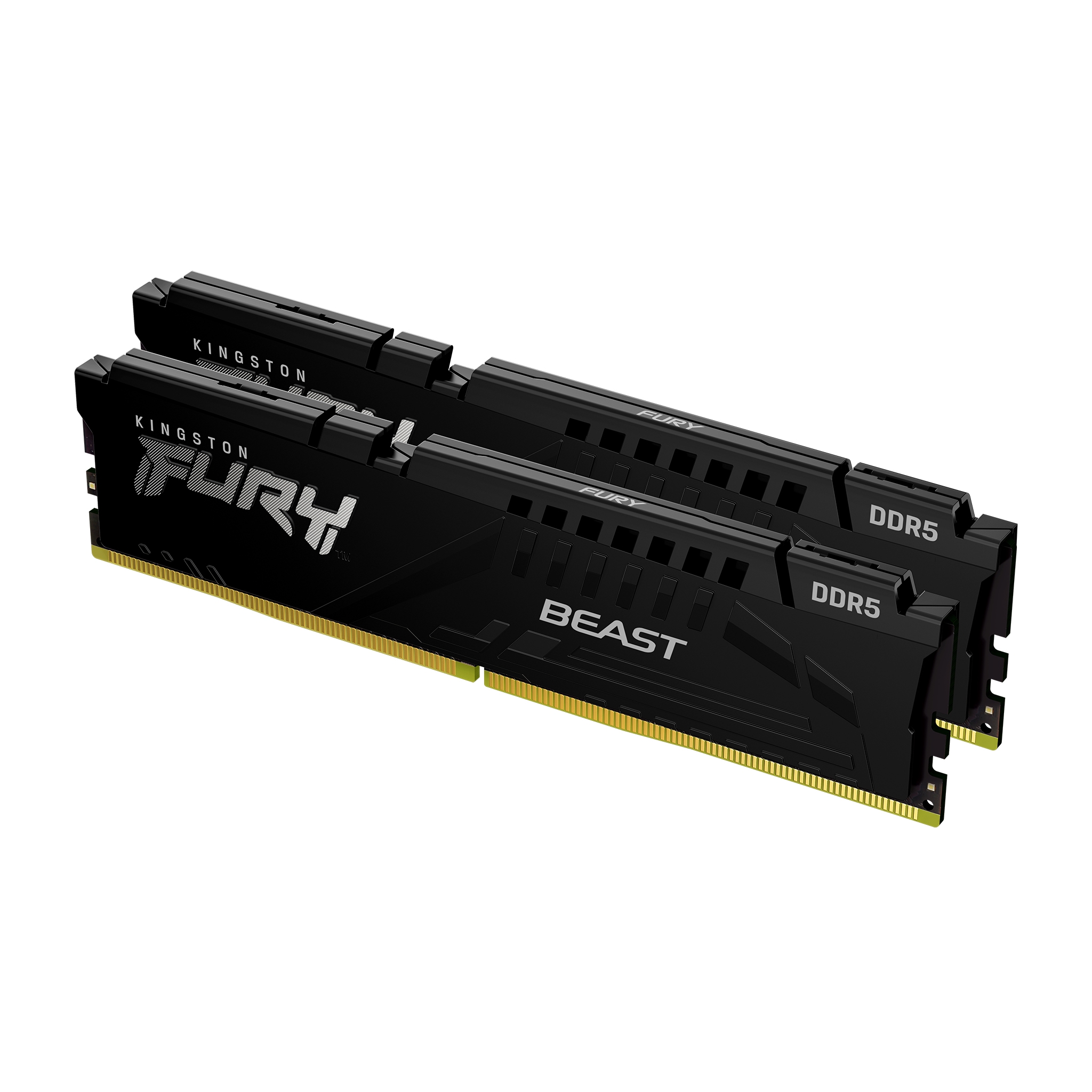

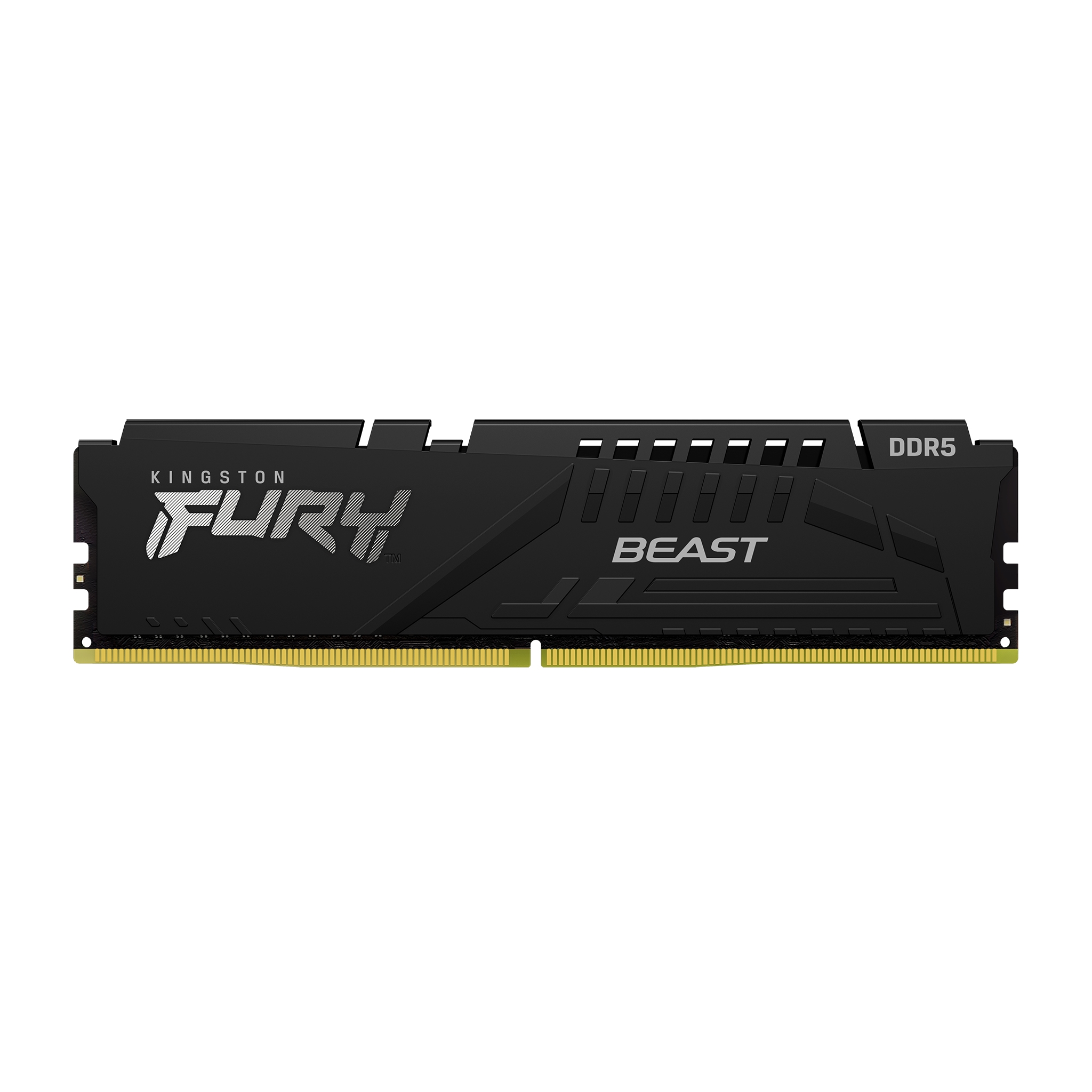

Kingston FURY KF556C40BBAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:


FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-5600 CL40-40-40 @1.25V

XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V


FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.66 (42.23mm), w/heatsink
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L inchxW inchxH inch)
1 x 5 x 7

Weight
1.00 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328493

SKU

mingleKF556C40BBAK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KF556C36BBEAK2-32

32GB (16GB 2G x 64-Bit x 2 pcs.)

DDR5-5600 CL36 288-Pin DIMM Kit

DESCRIPTION

Kingston FURY KF556C36BBEAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD EXPO v1.0 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

EXPO Profile #0: DDR5-5600 CL36-38-38 @1.25V

EXPO Profile #1: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #1: DDR5-5600 CL36-38-38 @1.25V

XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617330779

SKU

mingleKF556C36BBEAK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

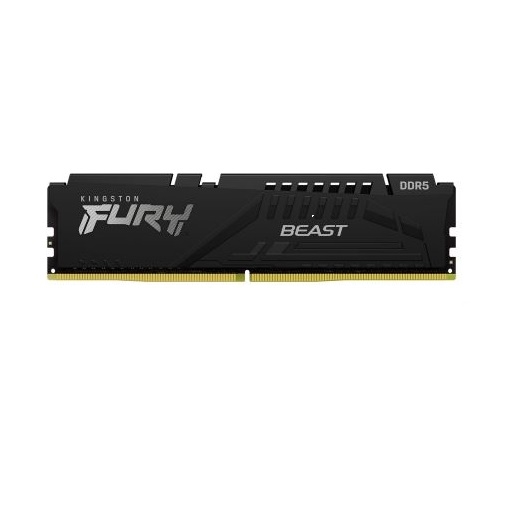

KF552C40BBAK2-32

32GB (16GB 2G x 64-Bit x 2 pcs.)

DDR5-5200 CL40 288-Pin DIMM Kit


DESCRIPTION


Kingston FURY KF552C40BBAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-5200 CL40-40-40 @1.25V

XMP Profile #2: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617328561

SKU

mingleKF552C40BBAK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Kingston FURY KF552C36BBEAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5200 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD EXPO v1.0 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5200 at a low latency timing of 36-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:


FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

EXPO Profile #0: DDR5-5200 CL36-40-40 @1.25V

EXPO Profile #1: DDR5-4800 CL38-38-38 @1.1V

XMP Profile #1: DDR5-5200 CL36-40-40 @1.25V

XMP Profile #2: DDR5-4800 CL38-38-38 @1.1V


FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.66 (42.23mm), w/heatsink
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0 ^oC to +85 ^oC
Storage Temperature
-55 ^oC to +100 ^oC
Item Dimension (L inchxW inchxH inch)
1 x 5 x 7

Weight
1.00 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617330892

SKU

mingleKF552C36BBEAK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KF548S38IBK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)
DDR5-4800 CL38 262-Pin SODIMM Kit

DESCRIPTION

Kingston FURY KF548S38IBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS
Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V
XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
CL(IDD)
38 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Active Time (tRASmin)
29.12ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 4 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617326130

SKU

mingleKF548S38IBK2-64

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KF548S38IB-32

32GB 4G x 64-Bit

DDR5-4800 CL38 262-Pin SODIMM

DESCRIPTION

Kingston FURY KF548S38IB-32 is a 4G x 64-bit (32GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.18 (30mm)
CL(IDD)
38 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
29.12ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617326123

SKU

mingleKF548S38IB-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

D4ER01-16G
DDR4 ECC Registered DIMM
Capacity:
16GB
Applied Models:
FS series:FS3410
Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.
Item Dimension (L"xW"xH")
8 x 7 x 8

Weight
4 lbs

Warranty Information
5 Years

Available Quantity

5

UPC

846504004829

SKU

mingleD4ER01-16G

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

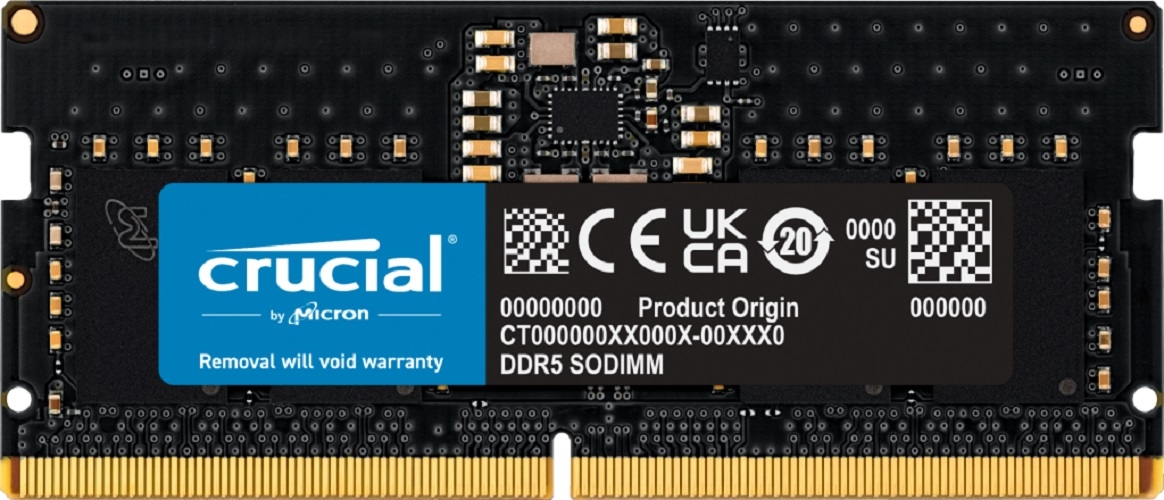

Crucial Memory CT16G48C40S5 16GB DDR5 4800Mhz SODIMM Retail
Technology
DDR5
Speed
DDR5-4800
PC speed
PC5-38400
Density
16GB
Module type
SODIMM
DIMM type
Unbuffered
CAS latency
40
Extended timings
40-39-39
Voltage
1.1V
Kit Qty
1
Item Dimension (L"xW"xH")
3 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528906526

SKU

mingleCT16G48C40S5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

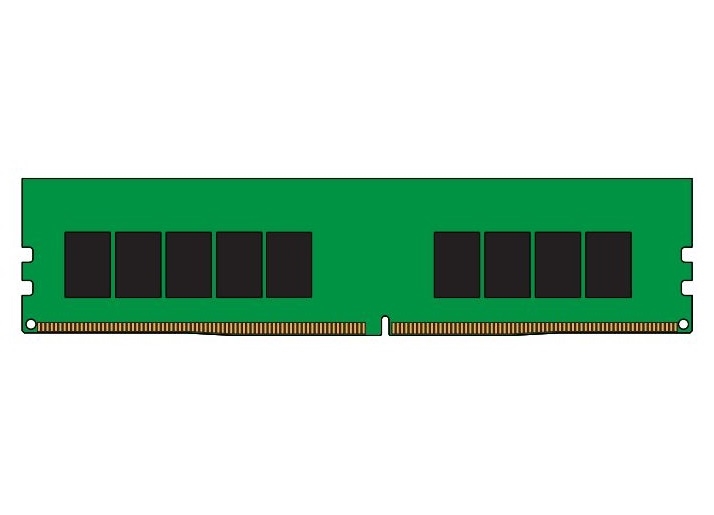

KSM32ES8/16HC

16GB 1Rx8 2G x 72-Bit PC4-3200

CL22 288-Pin DIMM

DESCRIPTION

Kingston's KSM32ES8/16HC is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

Temperature sensor with integrated SPD

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^oC to +100^o C
Item Dimension (L"xW"xH")
1 x 2 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617325805

SKU

mingleKSM32ES8/16HC

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KF560C40BB-16

16GB 2G x 64-Bit

DDR5-6000 CL40 288-Pin DIMM

DESCRIPTION

FURY KF560C40BB-16 is a 2G x 64-bit (16GB) DDR5-6000 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 40-40-40 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

XMP Profile #1: DDR5-6000 CL40-40-40 @1.35V

XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
6 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617325683

SKU

mingleKF560C40BB-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Faster processing and file manipulation

Crucial DDR5 Laptop Memory can empower your computer to transfer data 50% faster than DDR4 at launch, resulting in shorter load times, file transfers, downloads, lag time and improved refresh ratesDue to higher bus efficiency, DDR5 technology is not just faster than the previous generation, it s better¹.


Responsive multitasking on the go

Crucial DDR5 offers 50% faster speeds than DDR4 at launchempowering laptop users with extreme performance right out of the box. Even more impressive, Crucial DDR5 Laptop Memory is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions². Opening more browser tabs and switching between apps now feels more responsive than ever.


Note
1. DDR5 architecture includes efficiency improvements that deliver 36% more system bandwidth than DDR4, even at the same theoretical speeds of 3200MT/s, per an internal simulation of dual ranked x8 modules in client platforms. Combined with lower voltage per module, this design provides superior (better) performance.

2. Under memory-intensive workloads, DDR5 delivers 1.87x the bandwidth as a result of double burst length (16 instead of 8), double the banks (32 instead of 16) and bank groups (8 instead of 4), and significantly higher speed than DDR4. It is enabled to support scaling memory performance with improved channel efficiency, even at higher speeds, not just during testing, but under real-world condition, as established by JEDEC, an independent standardization body that develops open standards for the microelectronics industry.
Technology -
DDR5
Speed -
DDR5-4800
PC speed -
PC5-38400
Density -
32GB
Module type -
SODIMM
DIMM type -
Unbuffered
CAS latency -
40
Extended timings -
40-39-39
Voltage -
1.1V
Kit Qty -
1
Item Dimension (L inchxW inchxH inch)
3 x 2 x 1

Weight
1.00 lb

Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528906533

SKU

mingleCT32G48C40S5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KVR48U40BS8-16

16GB 1Rx8 2G x 64-Bit PC5-4800

CL40 288-Pin DIMM
DESCRIPTION

This document describes ValueRAM's KVR48U40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
6 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617325096

SKU

mingleKVR48U40BS8-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Kingston's KSM32RD8/32HCR is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:


FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available

Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supported
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
See IDD Table
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617326659

SKU

mingleKSM32RD8/32HCR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KSM32ED8/32HC

32GB 2Rx8 4G x 72-Bit PC4-3200

CL22 288-Pin DIMM

DESCRIPTION

Kingston's KSM32ED8/32HC is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for

data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Dual-rank

On-board I2 serial presence-detect (SPD) EEPROM

Temperature sensor with integrated SPD

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8

via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 2 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617325287

SKU

mingleKSM32ED8/32HC

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

KSM26ED8/32HC

32GB 2Rx8 4G x 72-Bit PC4-2666

CL19 288-Pin DIMM

DESCRIPTION

Kingston's KSM26ED8/32HC is a 4G x 72-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for

data, strobe, and mask signals

Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Dual-rank

On-board I2 serial presence-detect (SPD) EEPROM

Temperature sensor with integrated SPD

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8

via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
19 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
1 x 2 x 7

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617324877

SKU

mingleKSM26ED8/32HC

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

FURY KF556C40BBK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.

Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V.

Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:


FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.37 (34.9mm), w/heatsink
CL(IDD)
40 cycles
Row Cycle Time (tRCmin) Refresh to Active/Refresh
48ns(min.)
Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L inchxW inchxH inch)
6 x 2 x 1

Weight
1.00 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617325706

SKU

mingleKF556C40BBK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Kingston FURY Beast DDR5 Memory
16GB capacities up to 6000MHz
Kingston FURY Beast DDR5 memory brings the latest, cutting-edge technology for next-gen gaming platforms. Taking speed, capacity and reliability even further, DDR5 arrives with an arsenal of enhanced features, like on-die ECC (ODECC) for improved stability at extreme speeds, dual 32-bit subchannels for increased efficiency, and an on-module power management integrated circuit (PMIC) to provide juice where its needed most.
Superior speed advancements with double the banks from 16 to 32 and double the burst length from 8 to 16, take DDR5 memory, your gaming experience and your overall system applications to the next-level of performance.
Whether youre pushing the limits in your gaming with the most extreme settings, live streaming at 4K+ or pushing large animation and 3D Rendering, Kingston FURY Beast DDR5 memory is the level up needed, while seamlessly bridging style and unleashing performance.
Additionally, it utilizes Intel XMP 3.0, a new overclock spec that includes two customizable profiles for speeds and timings.
Features
Greater performance starting at 4800MHz
Improved stability for overclocking
Increased efficiency
Intel XMP 3.0-Ready and Certified
Qualified by the worlds leading motherboard manufacturers
Plug N Play at 4800MHz
Low-profile heat spreader design
Capacities
Singles: 16GB
Frequencies
5200MHz
Latencies
CL40
Voltage
1.25V
Operating Temperature
0^oC to 85^oC
Item Dimension (L"xW"xH")
6 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617324372

SKU

mingleKF552C40BB-16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

FURY KF548C38BBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module.

Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:


FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

Height 1.37 (34.9mm), w/heatsink
CL(IDD)
38 cycles
Row Cycle Time (tRCmin) Refresh to Active/Refresh
48ns(min.)
Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
29.12ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L inchxW inchxH inch)
7 x 4 x 1

Weight
1.00 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617324709

SKU

mingleKF548C38BBK2-64
