Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

• Connects outdoor mast-mounted antenna rotator to manually operated control or indoor base unit;• Flat cable;• 3 conductors, 22 gauge;• 75 ft. iong;• UL(R) listed;

Available Quantity

5

UPC

044476067655

SKU

mingleVH127RV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

Extends HDMI audio/video signals up to 197ft over Cat6 cable. Supports 720p/1080i/1080p at 60Hz resolutions, PoC, HDCP1.4, 3D, Mountable Metal Housing Design

Features

Extending HDMI Signals up to 197ft

Easily extend HDMI audio/video signals over a single Cat6 network cable, while maintaining signal strength and superior quality and extends transmission distance up to 197ft (60m)

Power over Cable (PoC)

Utilizes Power over Cable technology, allowing a single power supply connected to the transmitter (TX) to power the receiver (RX) over the Cat 6/7 cable, simplifies installation and reduces the need for additional power outlets or adapters at the receiver end, saving wiring space and cost

High Performance

Offers a true 10.2Gbps video bandwidth and supports LPCM 2.0 audio, delivering high-quality sound and video

Full HD Video Resolution

Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.4 to deliver a clear picture quality, supports 3D video formats

Multiple Connectivity Ports

Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, one DC power jack (5V/1A)

Mountable Metal Housing Design

Features a mountable metal housing design for durability and ease of installation. The robust construction ensures long-term reliability and performance, even in demanding environments
Specifications
HDMI 1.3 and HDCP 1.4 compatible
Supports resolution: 480p/720p/1080i/1080p, 3D
Transmission distance up to 197ft (60m)
HDMI Cable distance:
up to 5M (Input and output)
Power consumption:
Transmitter < 2W, Receiver < 2W
No software installation required
Housing:
Metal
Color:
Black
Products:
Transmitting unit (TX):
Dimensions: 3.12(W) x 0.65"(H) x 2.68"(D)
Weight: 0.26 lbs
Connector :
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, Output
1x Power Jack
Receiving unit (RX):
Dimensions: 3.12(W) x 0.65"(H) x 2.68"(D)
Weight: 0.26 lbs
Connector :
1x 8-Pin, RJ45, Input
1x 19-pin, HDMI, Type A, Female, output
Power adapter:
Input: 100-240VAC
Output: 5V DC, 1A, UL listed: E305498, VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
China
Item Dimension (L"xW"xH")
8 x 4 x 5

Weight
2 lbs

Warranty Information
NA

Available Quantity

5

UPC

662774046372

SKU

mingleCE-H3EX01-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

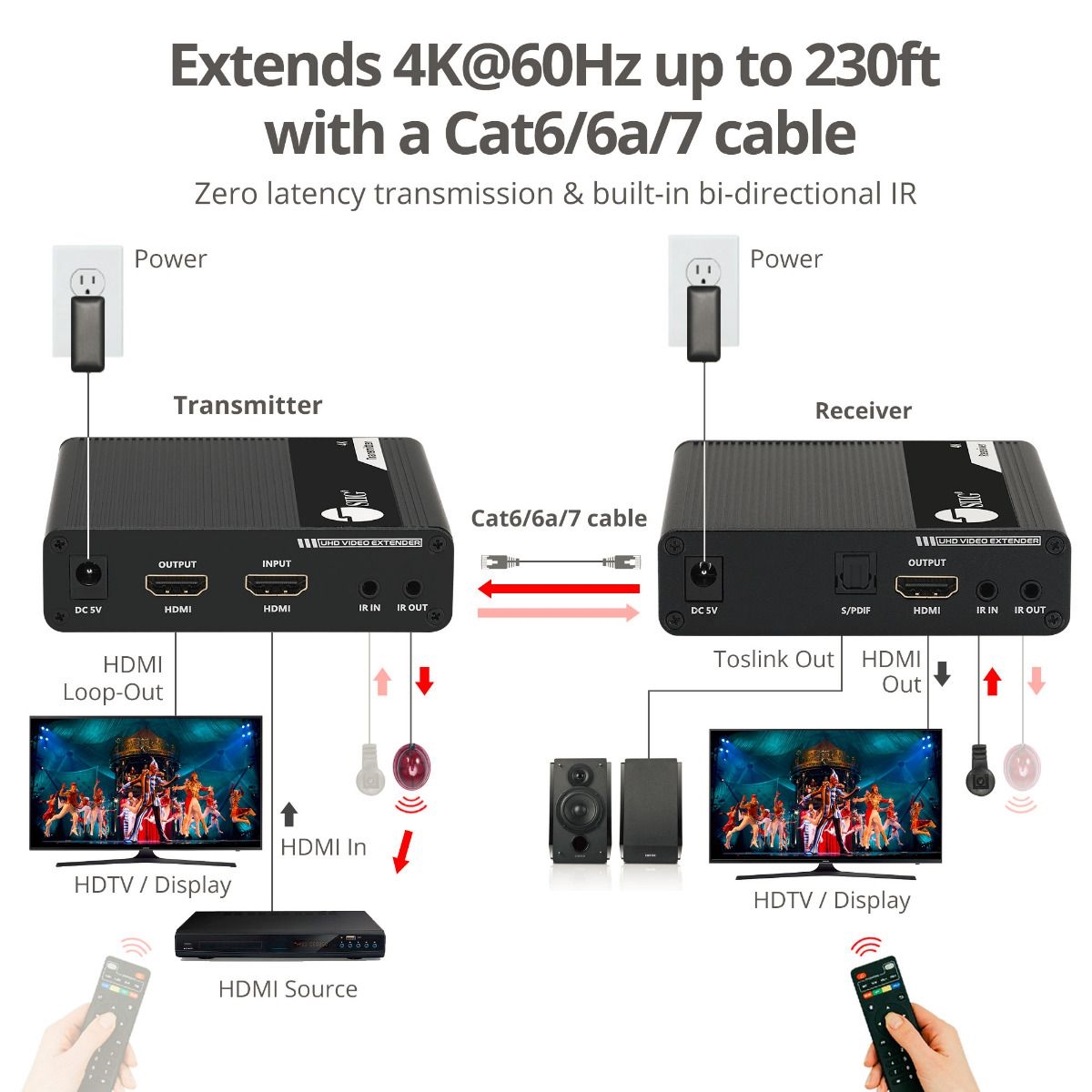

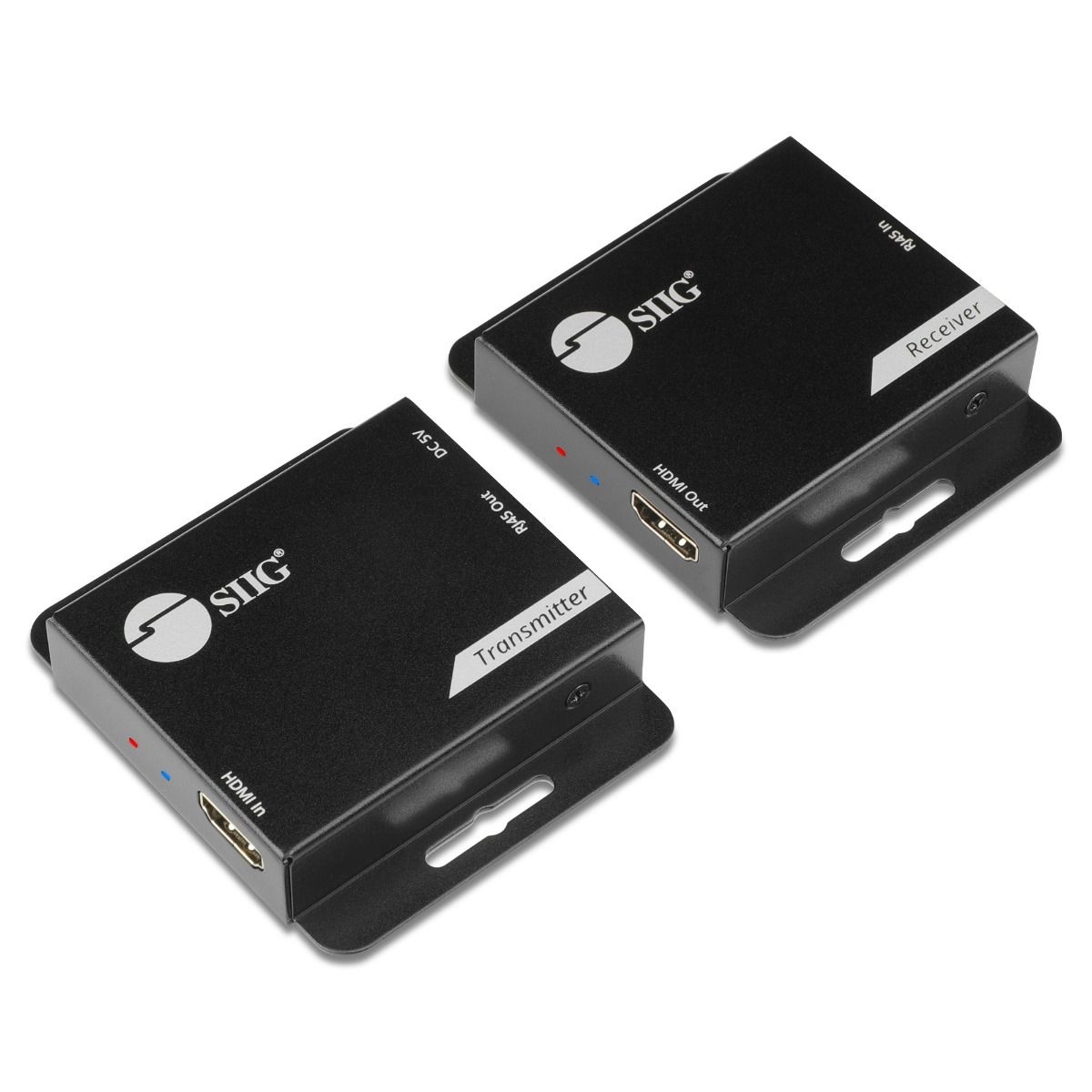

Product Description

Features

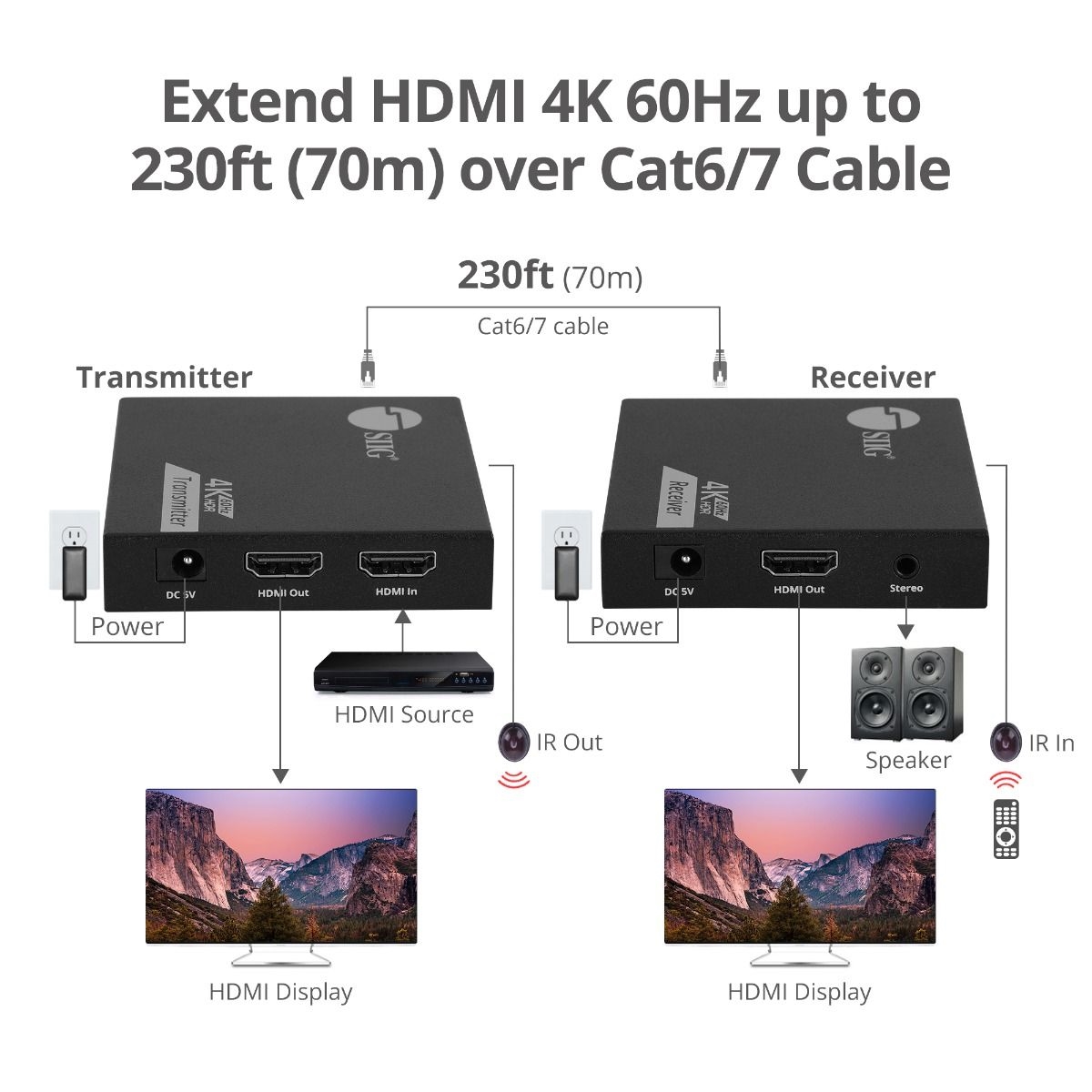

Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 230ft via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup

Delivers video content up to UHD 4K@60Hz with zero latency up to 230ft/70m through a Cat6/7 network cable, support HDR 10

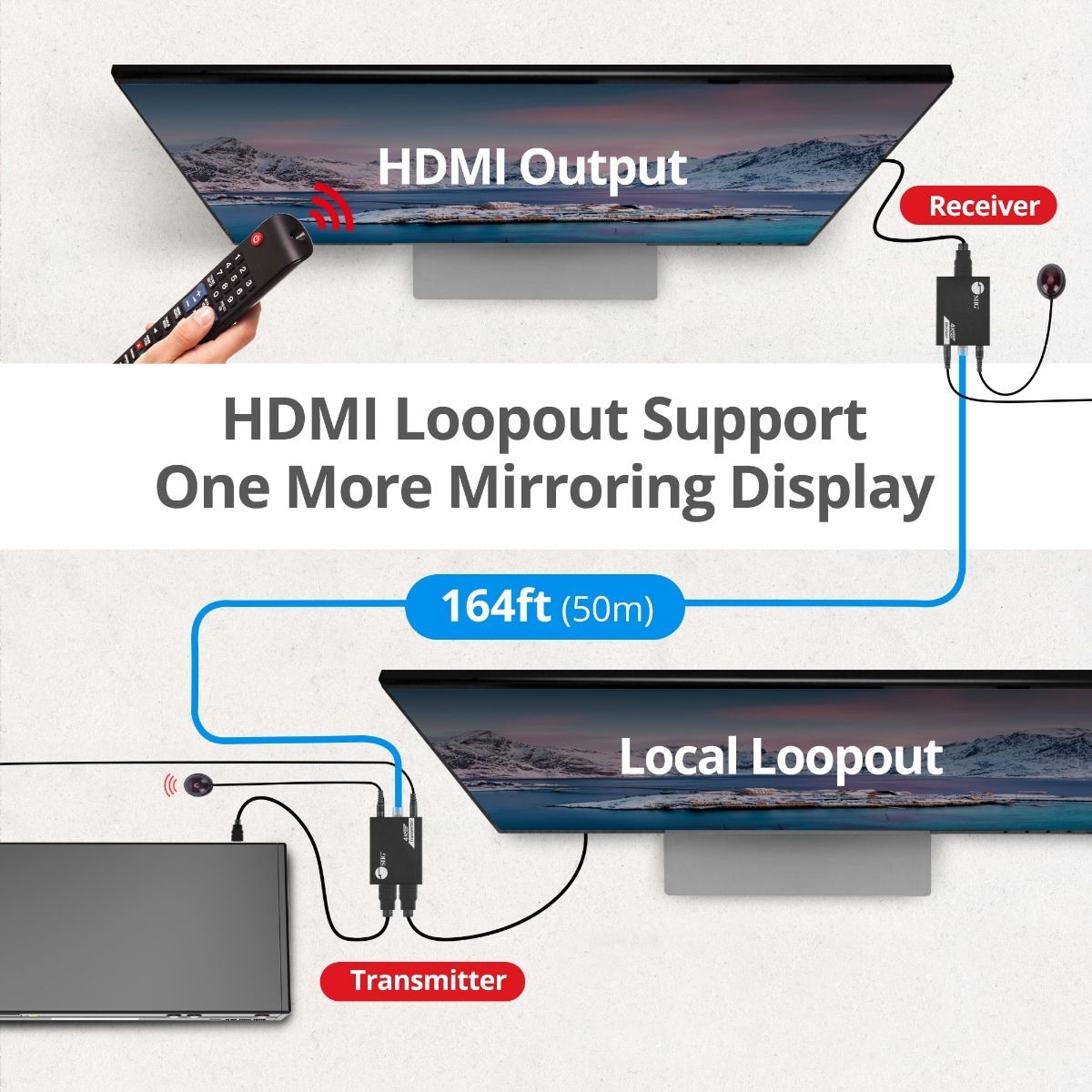

The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to another display device

Supports PCM / DTS-HD/ Dolby Digital 5.1ch via HDMI and 3.5mm stereo audio from receiver

Supports EDID passthrough and auto downscaling

Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.

Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life

Plug-n-Play installation, no software installation or hardware setup is required


Multiple Connectivity Ports

Comes with one HDMI video input port, one HDMI video loop-out port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm stereo audio port, two reset buttons, two DC power jacks (5V/1A)


Applications

Lecture hall

Educational facilities

Multimedia education

Home theater

Restaurant

Shopping center

Digital signage

Meeting room

Trade show

Library

Show room

Church
Compliant with HDCP 2.2, support HDR 10
Supports resolution:
Up to 3840x2160 at 60Hz
Maximum transfer rate:
18Gbps
Audio:
PCM 7.1 / DTS-HD / Dolby Digital 5.1ch via HDMI and 3.5mm stereo audio from receiver
Transmission Distance:
4K at 60Hz Up to 230ft/70M via Cat6/7 cable
HDMI cable length:
up to 5 meters (Input and output)
IR Remote Control:
20-60Hz Frequency Range
Product:
Color:
Black
Housing:
Metal
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop out
1x 3.5mm jack, IR Blaster
1x 8-pin, RJ45 Output
1x Reset Button
1x Power Jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 3.5mm jack, L/R Audio Output
1x 8-pin RJ45, Input
1x Reset Button
1x Power Jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/1A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature:
-20 to 60 degrees F
Storage temperature:
-30 to 70 degrees F
Relative humidity:
0% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS

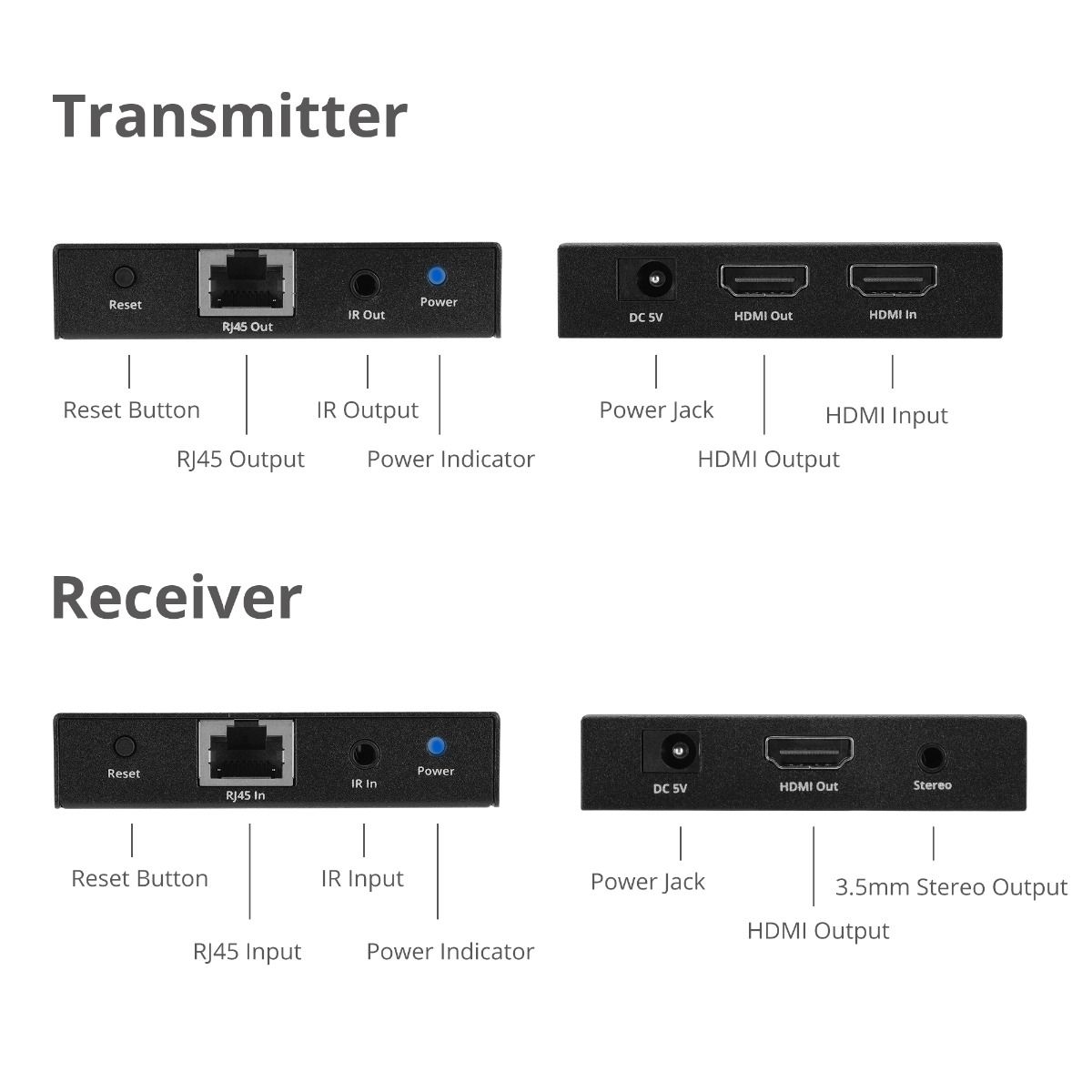

Interface
Transmitter (TX)
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 3.5mm infrared jack, IR emitter (output)
1x 8-pin, RJ45 (output)
1x Reset button
1x DC power jack, 5V/1A
Receiver (RX)
1x 19-pin, HDMI, Female (output)
1x 3.5mm infrared jack, IR receiver (input)
1x 8-pin, RJ45 (input)
1x 3.5mm L/R stereo audio
1x Reset button
1x DC power jack, 5V/1A

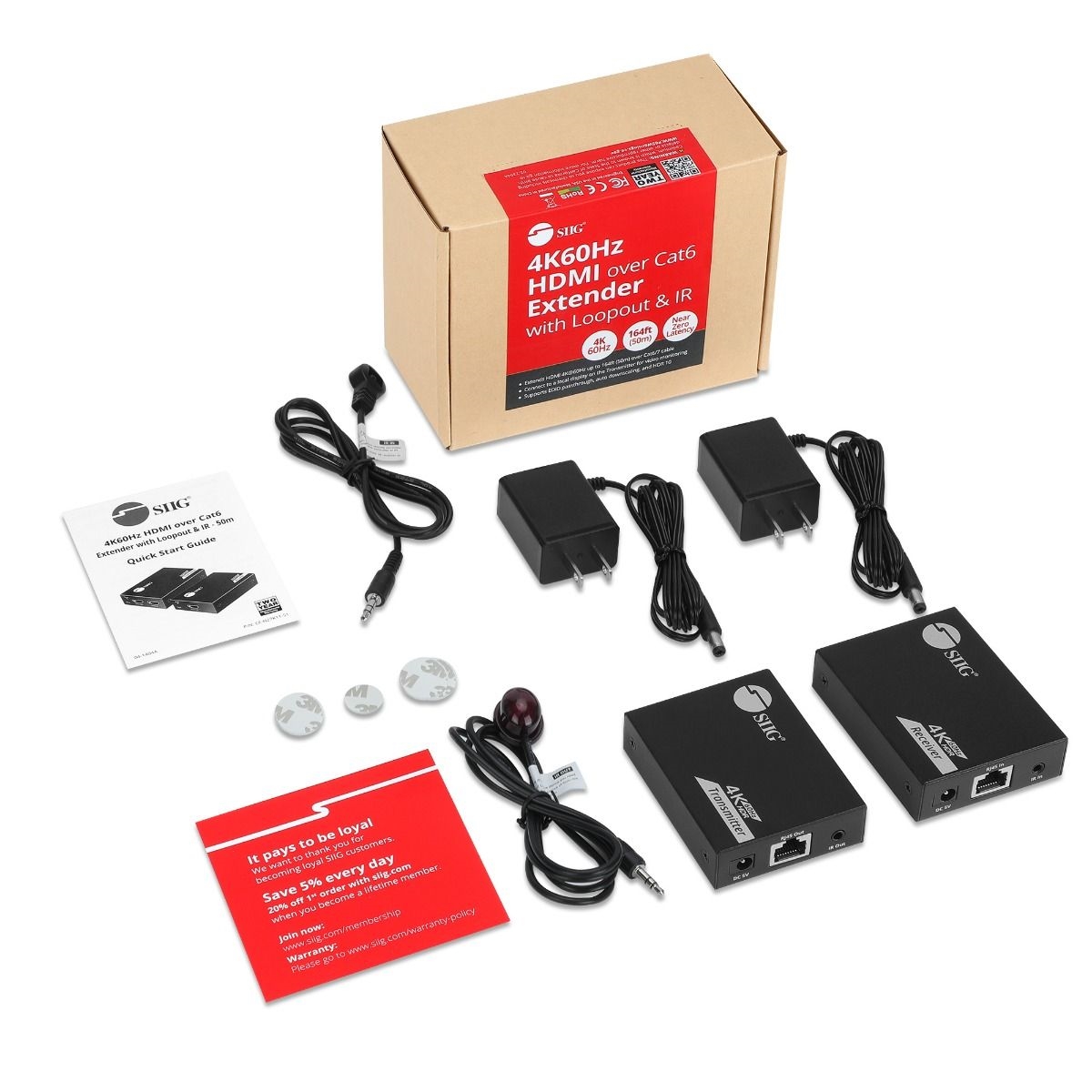

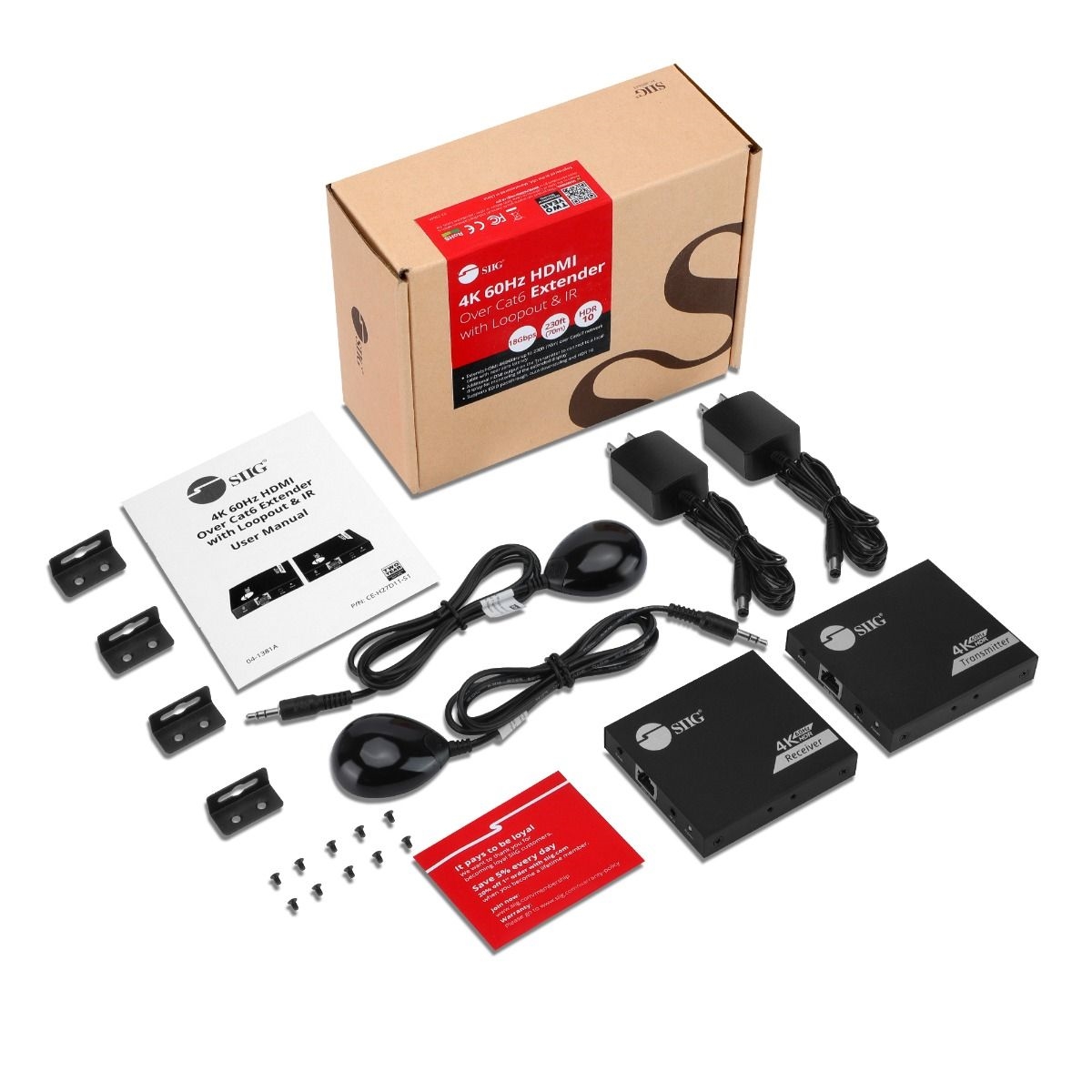

Package contents

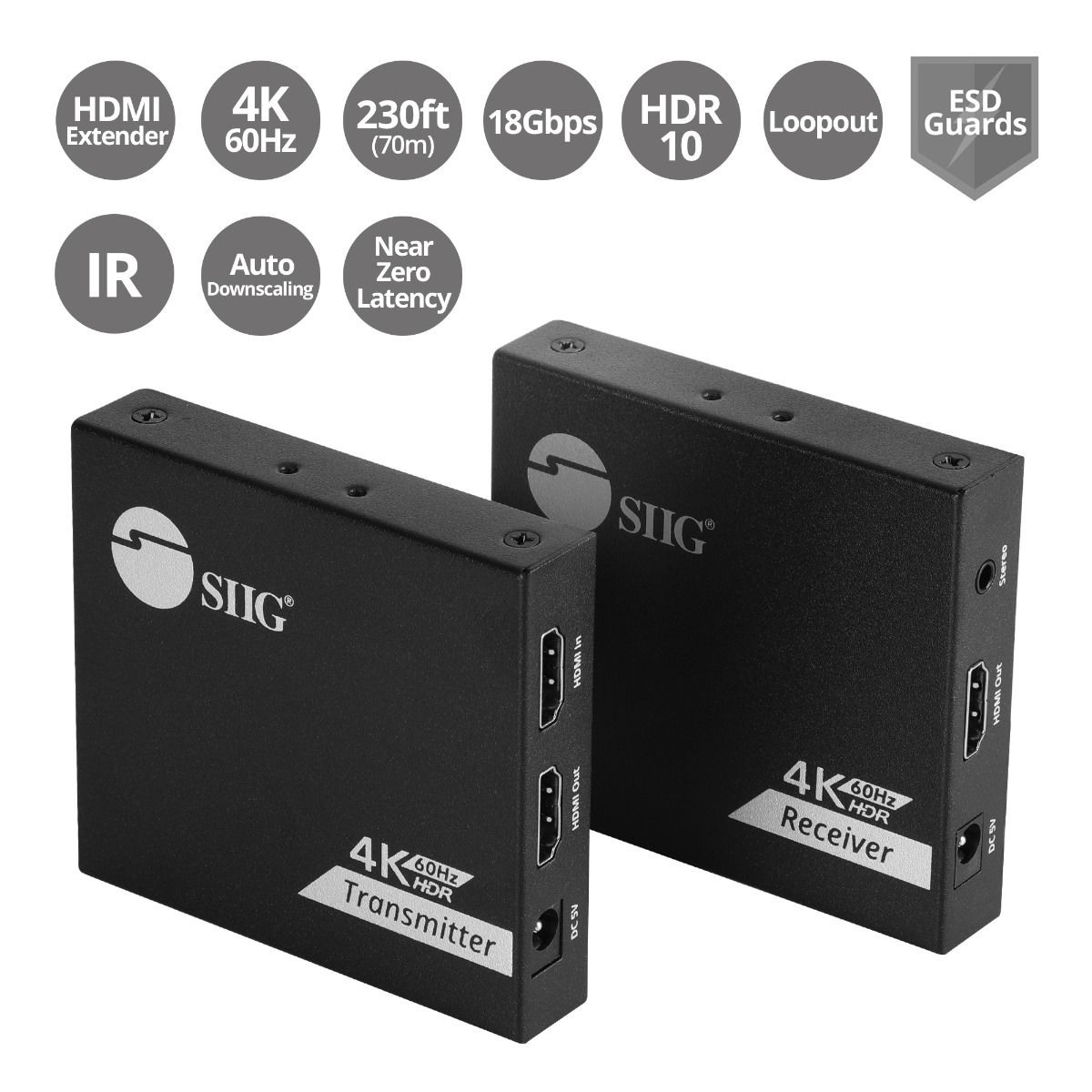

4K 60Hz HDMI Over Cat6 Extender with Loopout and IR
Power adapter (x2)
IR Blaster extension cable
IR Receiver extension cable
Mounting ears (x4) and Screws (x8)
User Manual
Item Dimension (L inchxW inchxH inch)
8 x 4 x 6

Weight
2.00 lb

Warranty Information
NA

Available Quantity

5

UPC

662774045382

SKU

mingleCE-H27D11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

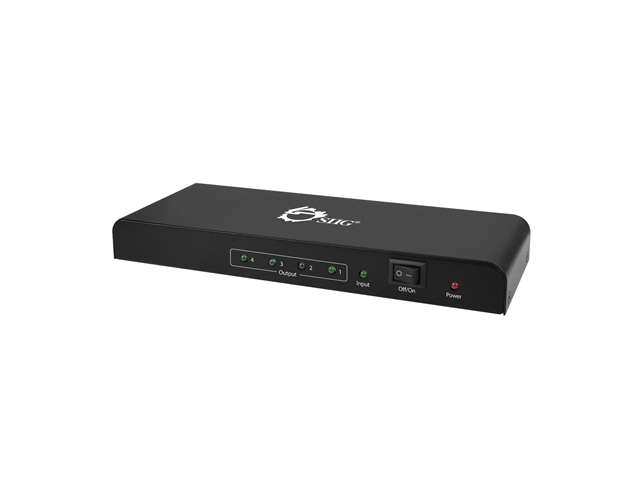

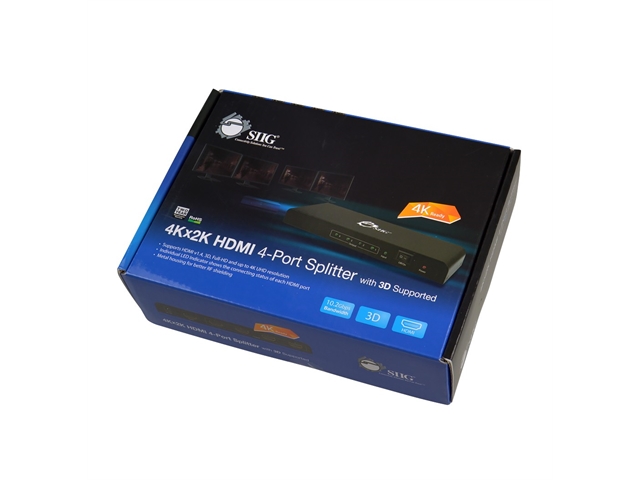

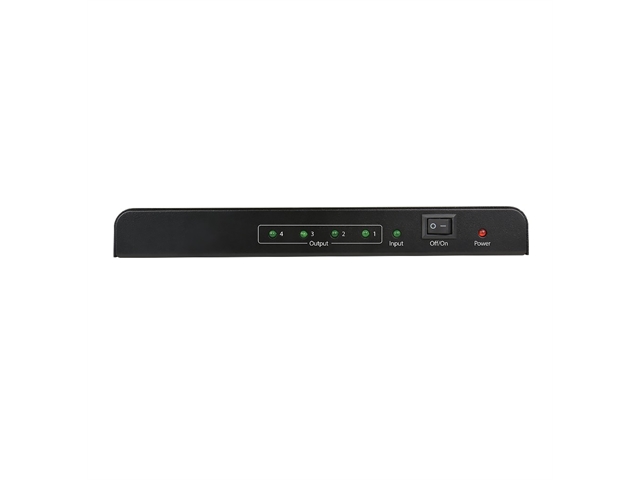

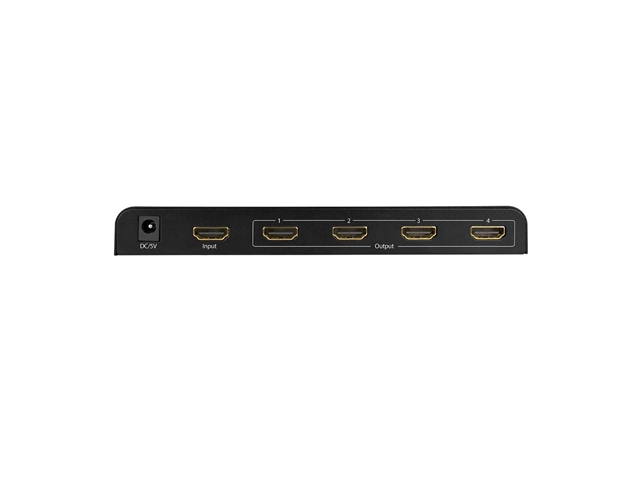

SIIGs 4Kx2K HDMI 4-Port Splitter with 3D Supported is designed to broadcast HDMI content from one HDMI source to 4 display units without signal distortion and degradation. It supports premium video quality with full scale display resolutions up to 4Kx2K, 3D video, HDMI Deep Color, and multiple digital audio formats including Dolby Digital, DTS-HD and Dolby TrueHD. It is easy and hassle-free to install with no software installation required. And it features automatic EDID learning ability to fully maximize the display units compatibility. This HDMI 4-Port Splitter is a great device for digital signage deployment to broadcast high definition audio and video for both home and commercial applications.
Chipset: Silicon Image 19187B
Compliant with HDMI and HDCP
Video bandwidth: 10.2 Gbps (single-link 340MHz)
Video support 480p/720p/1080i/1080p/4K2K
Resolution up to 4Kx2K 30Hz
Supports Deep color and 3D
Audio support: DTS-HD/Dolby-true HD/LPCM7.1
Supports transmission distance up to 15M (Input 5m / Output 10m)
LED indication for power and link
Metal housing for better RF shielding
Product:
Color: Black
Housing: Metal
Connector:
1x 19-Pin, HDMI, Type A, Female, Input
4x 19-pin, HDMI, Type A, Female, Output
1x Power switch
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V DC, 1A
Environmental conditions:
Operating temperature: 14 to 131 degrees F
Storage temperature: 5 to 158 degrees F
Relative humidity: 5 to 90Percent RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L"xW"xH")
2.24 x 7.99 x 5.71

Weight
0.97 lb

Warranty Information
2 years

Available Quantity

5

UPC

662774021928

SKU

mingleCE-H22C12-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

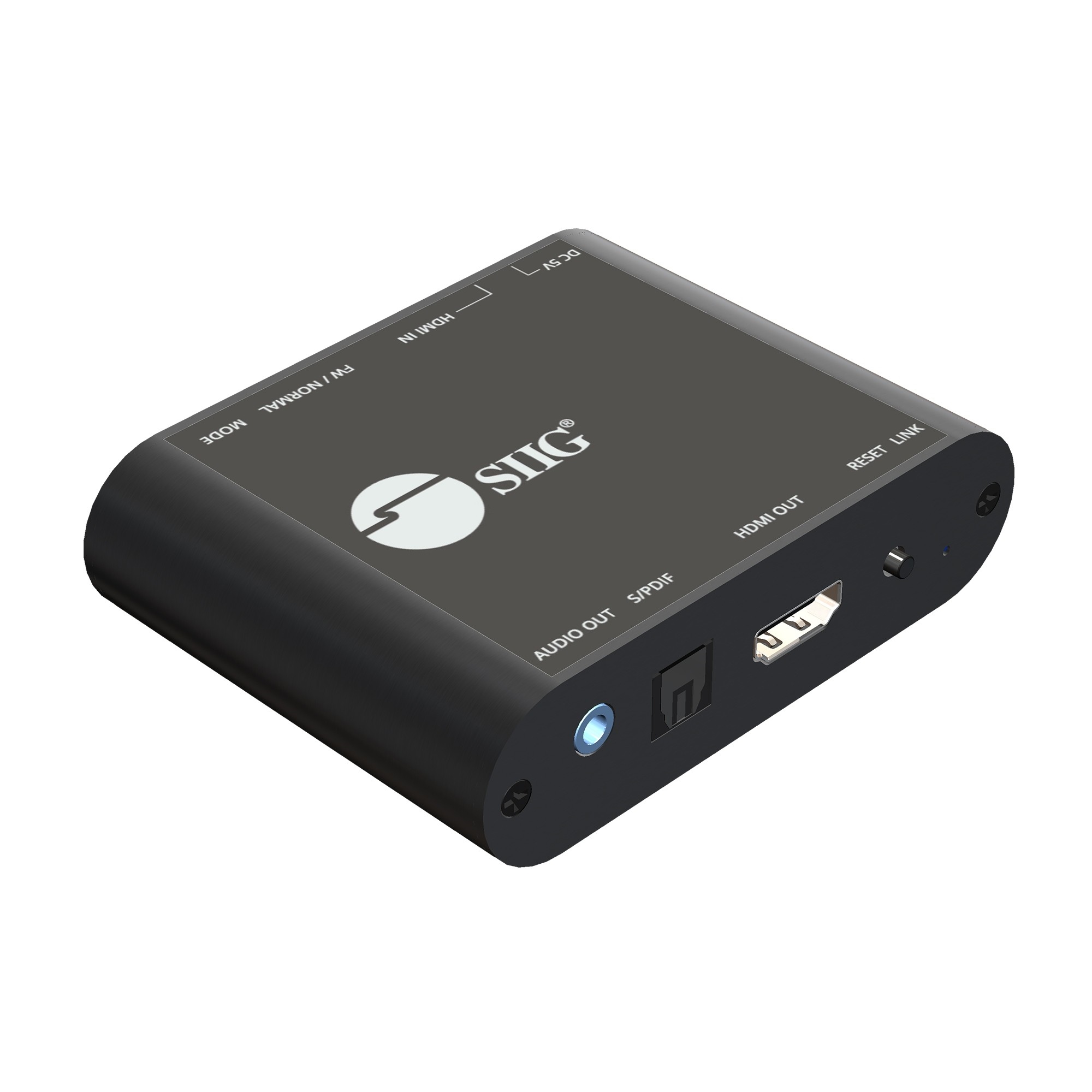

Identifies and separates high quality audio track from an incoming HDMI signal and sends it to a 3.5mm stereo jack and Toslink S/PDIF port, allowing you to connect to speakers, AV receivers and entertainment systems that lack an HDMI connection

Works with multi-channel HDMI embedded audio

Supports PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 audio

Supports audio extraction via stereo and Toslink

Supported Optical Audio Formats: PCM 2-CH and Dolby 5.1

Supports ARC audio extraction via Toslink connection

Wall-mountable metal housing allows easy installation in any environment and provides better RF shielding and heat dissipation for dependable performance and long life

Plug and Play Installation - No driver or software installation required
Compliant with HDMI 2.0a specification
Support HDCP 2.2, HDR and CEC bypass
Supports 4Kx2K at 60 YUV 4:4:4 8bits and 4K HDR YUV 4:2:0 10bit
Video bandwidth up to 18Gbps (600MHz per channel)
Resolution:
480p / 720p / 1080i / 1080p / 4Kx2K at 60Hz
Supports audio extraction via 3.5mm stereo jack and Toslink optical
Supports ARC audio extraction via Toslink
Supports audio format:
HDMI: PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1
Optical audio format: PCM 2, Dolby 5.1
Supports audio embedded via stereo and S/PDIF (Toslink)
ESD protection:
+/-15kV Air and +/-8kV Contact
Matel housing with wall mount design
Power consumption:
up to 3 watts
Product
Color: Black
Housing material: Metal, wall mountable
Connector:
1x 19-Pin HDMI, Type A, Female, Input
1x 19-Pin HDMI, Type A, Female, Output
1x 5-Pin Micro USB, Power or Firmware update
1x 3.5mm, Stereo audio, Input
1x S/PDIF, Toslink audio, Input
1x 4-Pin Mode Switch
1x Slider switch, Firmware update / Working mode
1x Push button, factory reset
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
5 x 6 x 1
Weight
1.04 LB
Warranty Information
3 years

Available Quantity

5

UPC

662774042251

SKU

mingleCE-H24F11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

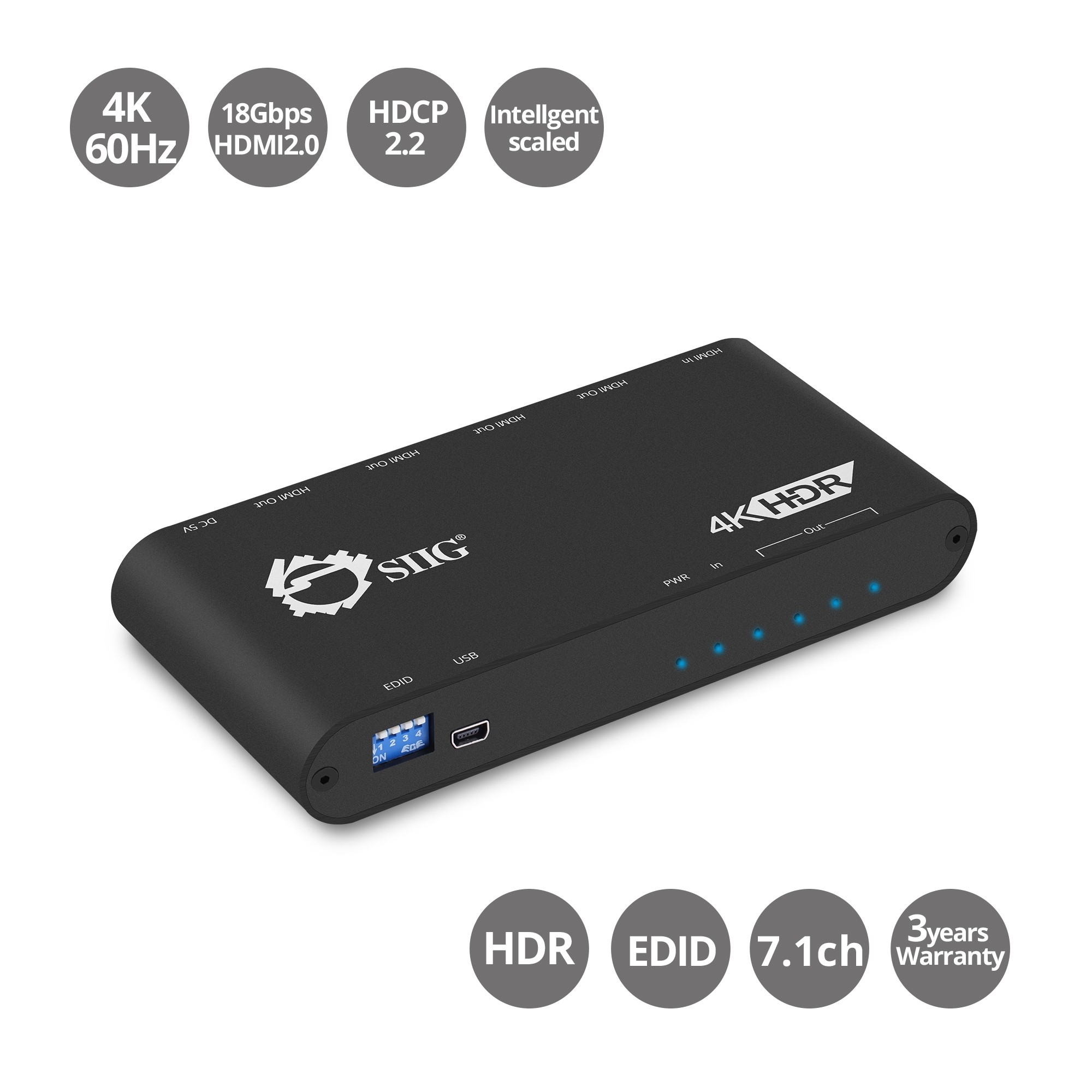

Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality

Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth

Supports up to 4K at 60Hz (YUV 4:4:4 8-bit), HDR 4K at 60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color and Deep Color

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations

EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility

Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance

Easy to cascade multiple splitters for more displays. Supports up to 10 layers

Notes:

Below are limitations associated with 4K content down scaling:

- Down scaling to 720p and 480p is not supported

- YUV 4:2:2 down scaling is not supported

- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported

- 4K at 30Hz monitors will display in 1080p at 60Hz when the source content is 4K at 60Hz

- The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
Chipset
ITE-IT6664
HDMI 2.0a compliant
HDCP 2.2 compliant
Supports 4Kx2K at 60Hz (YUV 4:4:4 8bit)
Supports HDR 4Kx2K at 60Hz (YUV 4:2:0 10bit)
Supports xvYCC, x.v.Color and Deep Color
Video Bandwidth
18Gbps (single-link 600MHz)
Frequency Range
25MHz - 600MHz
Supports resolution down scaling from 4K to 1080p. See Notes below for limitations
Maximum Resolution
3840x2160 at 60Hz (YUV 4:4:4)
HDR 3840x2160 at 60Hz (YUV 4:2:0)
Display Mode
Mirror
Supports embedded EDID and EDID learning via DIP switch
Audio Support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD Protection
+/- 15kV Air / +/-8kV Contact
Supports cascading of multiple splitters for adding more displays, supports up to 10 layers
Built-in firmware update mechanism (via Mini USB port) for expanding compatibility
Sturdy metal housing provides durability and reduces EMI/RFI noise interference
Product
Color: Black
Housing Material
Aluminum
Transmission Distance (HDMI cable)
4K at 60Hz: Up to 10m (5m/In 5m/Out)
1080p at 60Hz and 4K at 30Hz: Up to 15m (5m/In 10m/Out)

Available Quantity

5

UPC

662774041100

SKU

mingleCE-H22Y11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

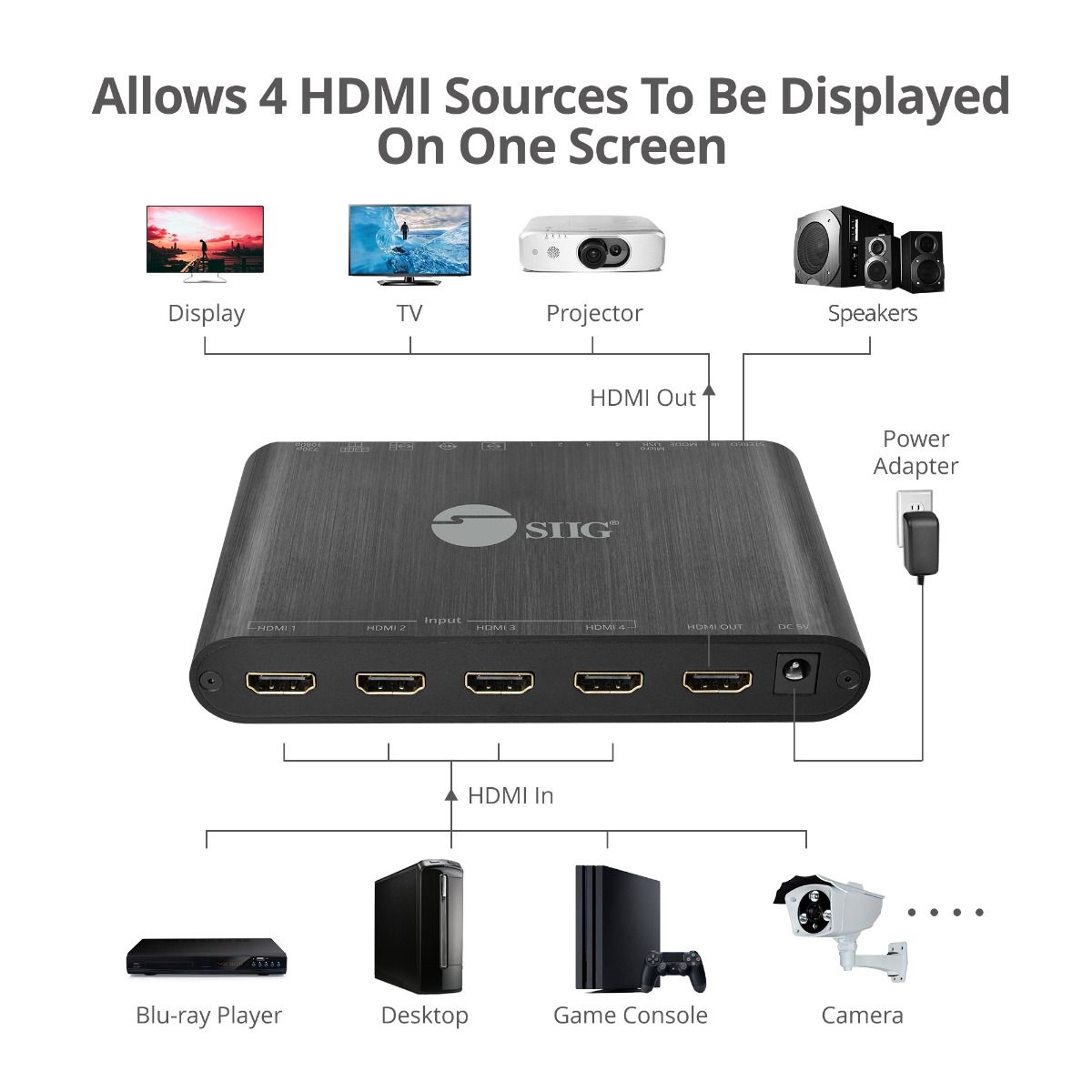

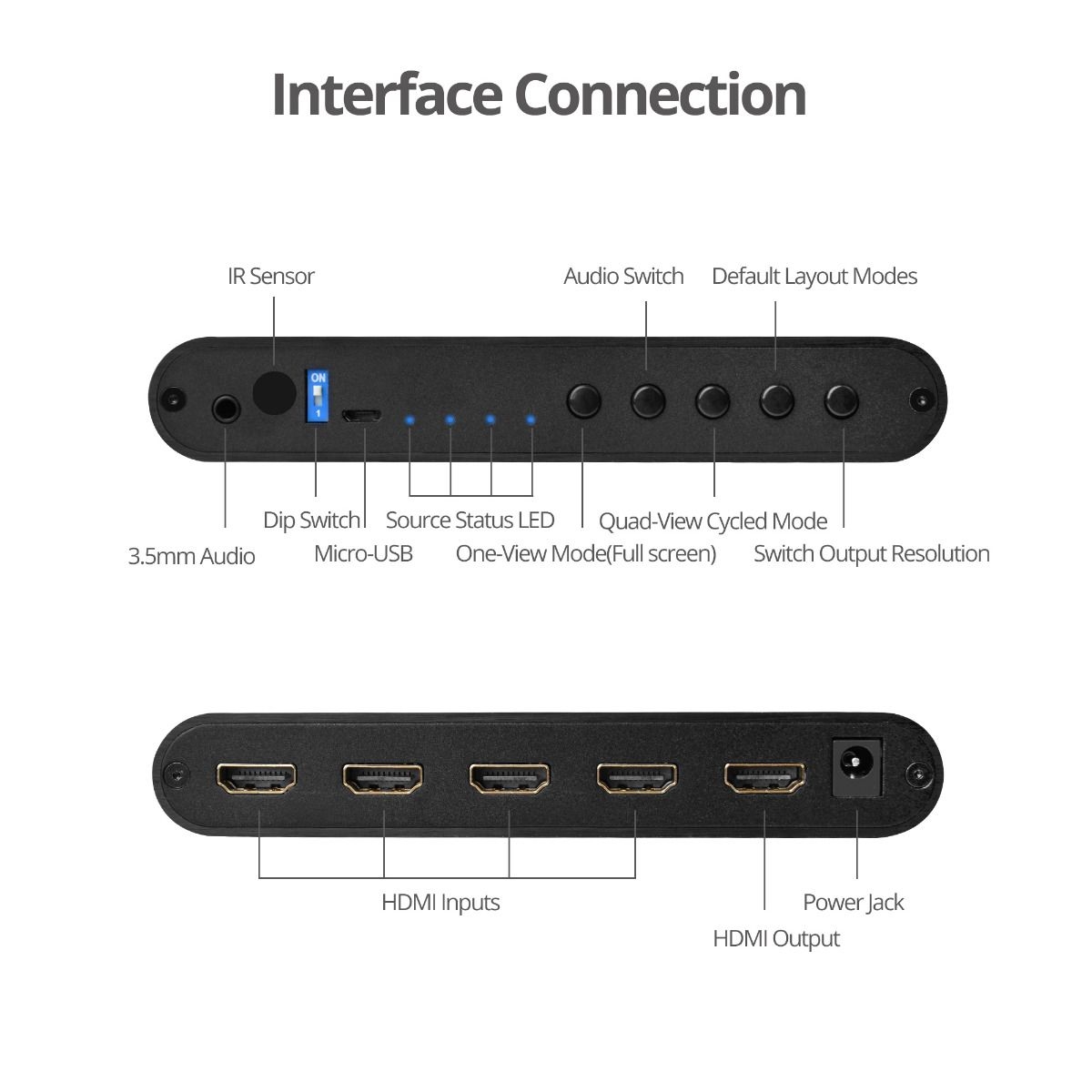

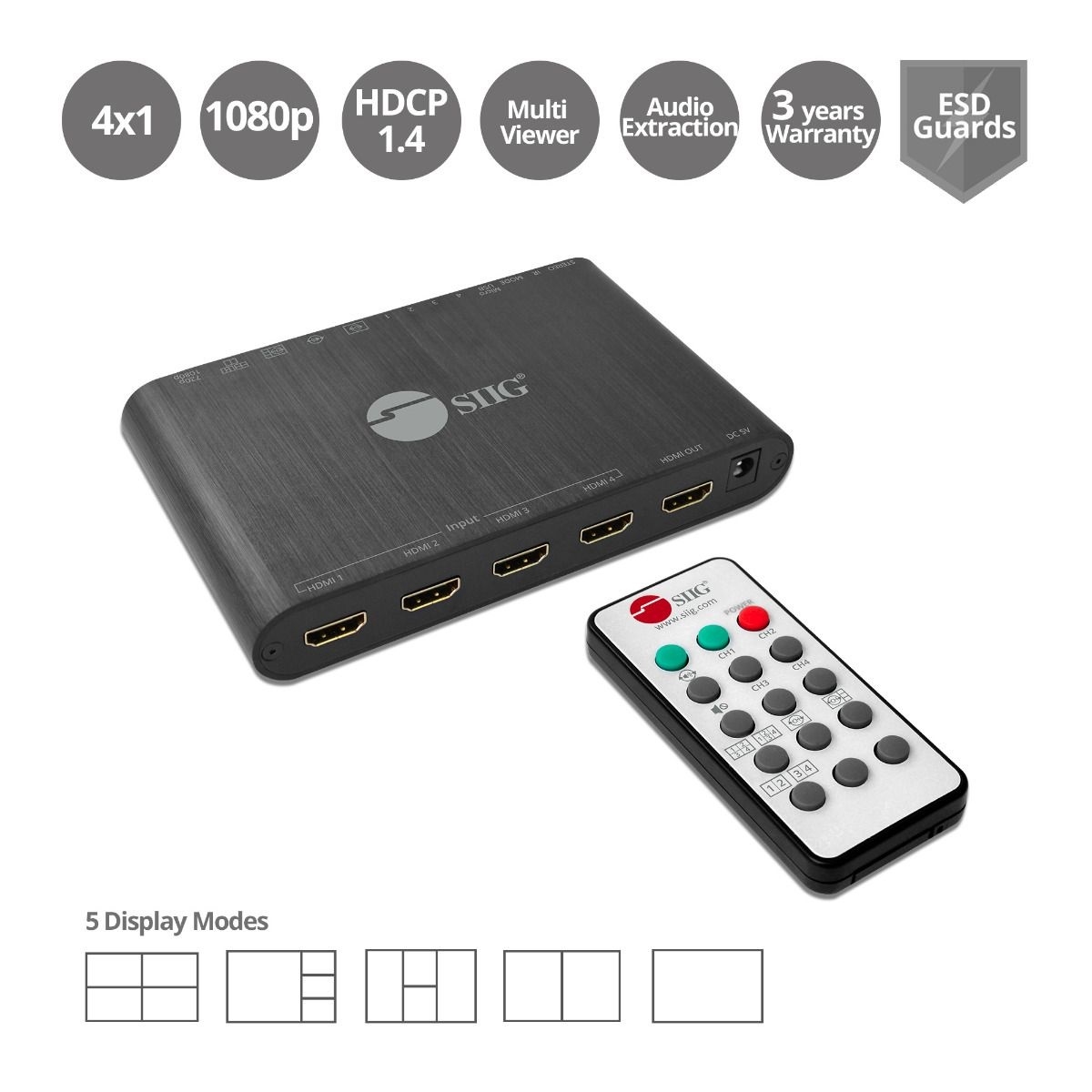

oAllows 4 high definition source devices to display onto 1 HD display simultaneously

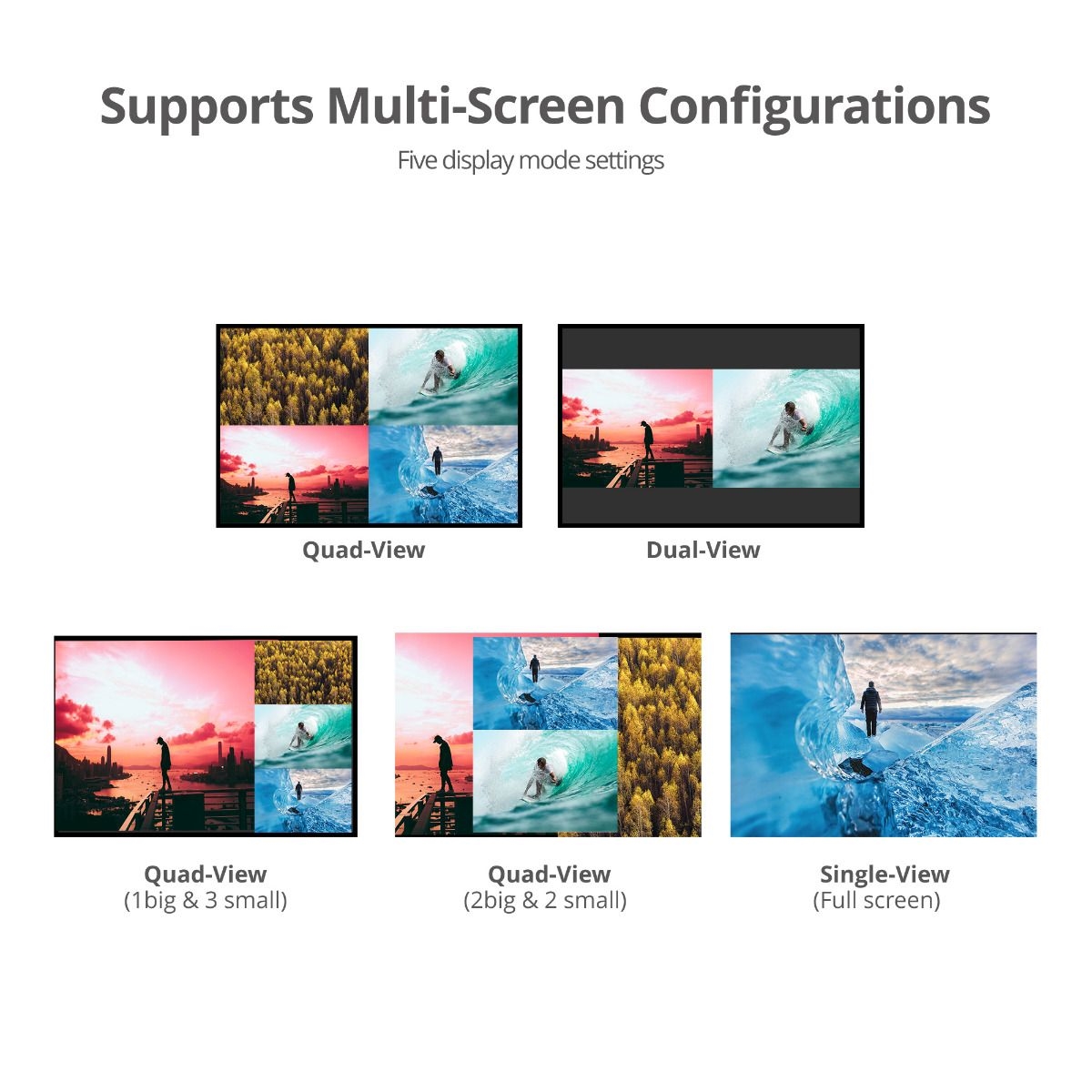

o5 Display Modes: Single-View Mode, Dual-View Mode (left & right), Quad-View Mode, Quad-View Cycled Mode, Quad-View H mode

oSeamless source device and display mode switching via front panel push button or included IR remote control

oCompatible with most HDMI source devices such as desktop computers, laptops, notebooks, DVD/Blu-ray players, cameras, and set-top boxes

oVideo resolutions up to 1080p@60Hz delivers crystal clear picture quality

oControl Options: 1) Push buttons, 2) IR remote, 3) software control via micro-USB

oFirmware upgradeable - add features, fix bugs; allows all hardware to work better together enhancing overall performance

oMetal housing provides excellent EMF protection and improves heat dissipation for reliability and long life
Compatible with HDMI 1.3 and HDCP 1.4
Input resolution:
480i /480p / 576i / 576p / 720p / 1080i / 1080p
Output resolution:
720p at 60Hz / 1080p at 60Hz
Video bandwidth:
6.75Gbps
Display modes:
Quad-View Mode, Quad-View Cycled Mode, Quad-View H mode: 4 HDMI sources displayed on 1 screen
Dual-View Mode: 2 HDMI sources displayed on 1 screen
One-View Mode: 1 HDMI source displayed on 1 screen
HDMI cable length:
Input: up to 10 meters
Output: up to 10 meters
Audio support:
Bypass
Supports audio switch function
Supports audio extraction via stereo audio from selected HDMI input
Power consumption:
<5 watts
Color:
Black
Housing:
Aluminum
Connector:
4x 19-pin, HDMI, Female, Input
1x 19-pin, HDMI, Female, Output
3x Mode button
1x Audio button
1x Output resolution switch button
1x Micro-USB, software control / firmware update
1x DIP Switch
1x Power Jack
Power Adapter
Input: 100-240V AC / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L"xW"xH")
6 x 1 x 4
Weight
1.00 LB
Warranty Information
3 years

Available Quantity

5

UPC

662774043371

SKU

mingleCE-H25R11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

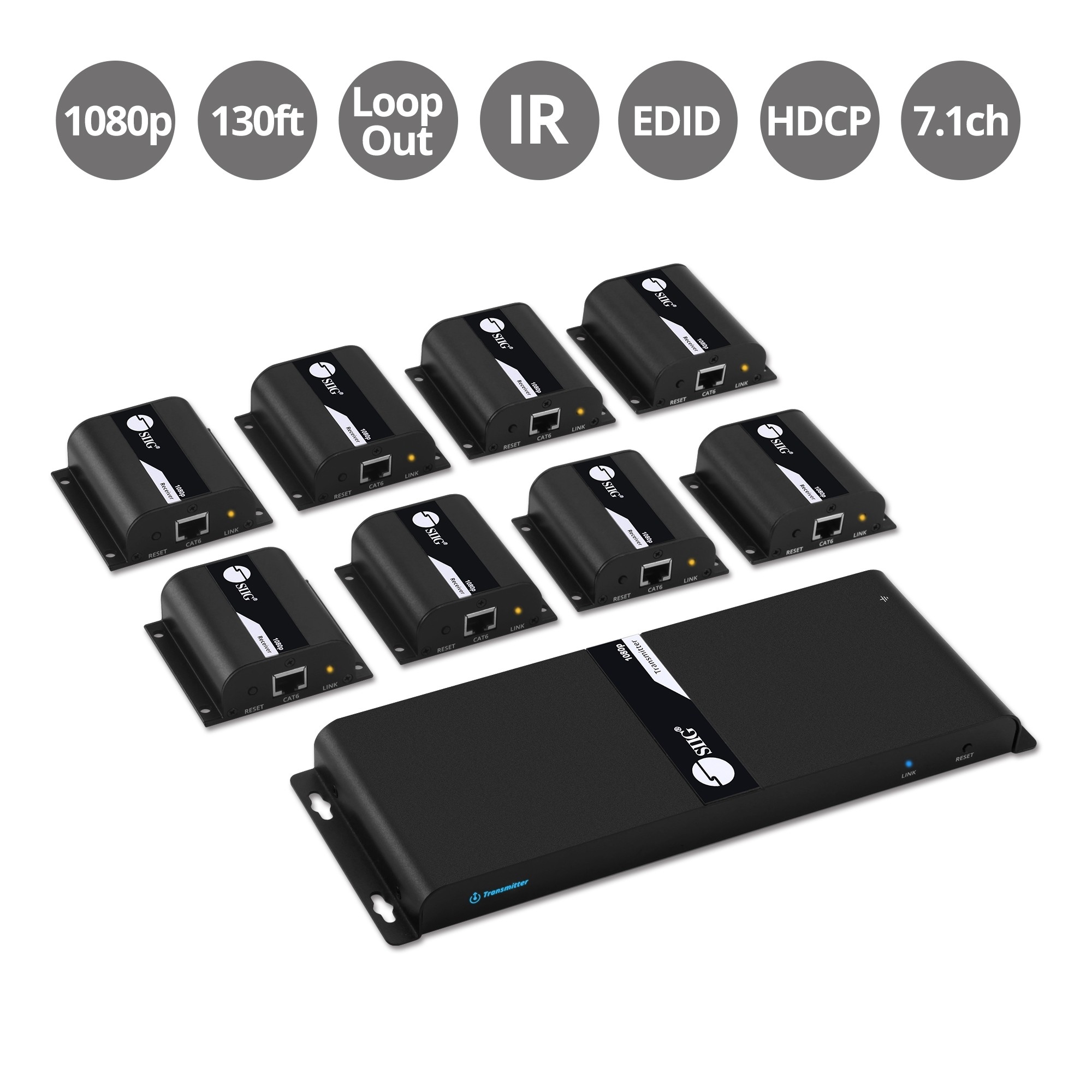

Extends high definition video signals up to 130ft (40m) over economical Cat6 cabling to up to eight HDMI displays

Delivers crystal clear Full HD content up to 1080p@60Hz resolution

IR control through Cat6 allows you to control the HDMI source device at the remote display location

High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation

Plug-n-Play installation, no software installation or hardware setup is required
Compliant with HDMI 1.3 and HDCP 1.2
Transmission distance:
up to 40m (130ft) at 1080p at 60Hz resolution
Supports Digital stereo 2-ch DTS and PCM 7.1-ch audio
Supports full frequency IR signal from 20KHz to 60KHz
Supports EDID manual setting function
Resolution:
480p / 720p / 1080i / 1080p 60Hz
Metal housing with wall mount design
Network cable:
UTP/STP CAT5e/6/6a/7
Product:
Transmitting unit (TX):
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, loopout
1x 3.5mm jack, IR Blaster
8x 8-pin, RJ45, HDMI signal output
1x Power jack
1x Reset button
1x 3-Pin Switch, EDID adjustment
Receiving unit (RX):
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDMI signal input
1x Power jack
1x Reset button
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 12V/2A for TX
Output: DC 5V/1A for RX
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Notes:
This kit is point to point connection and comes with 1 Transmitter and 8 Receivers. Does not work through routers or network switches
Good quality Cat6 cables are essential in delivering reliable quality content
Item Dimension (L"xW"xH")
4 x 14 x 12
Weight
5.29 LB
Warranty Information
2 years

Available Quantity

5

UPC

662774042091

SKU

mingleCE-H24811-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

• Adapts HDMI(R) video to analog component video for displays that don't have HDMI(R) ports;• Supports up to 1080p;• Ideal portable solution with no external power supply required;• Easy installation;

Available Quantity

5

UPC

044476127250

SKU

mingleDHCOPE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 2 displays

Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR

HDMI Loopout + Extend 2 Displays - Supports one HDMI loop-out for additional local display connections and extender 2 receivers for HDTV or Projector via Cat6/7 cable

EDID Management - Support EDID management capability to controls the resolution output to the display(s)

Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal

IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa

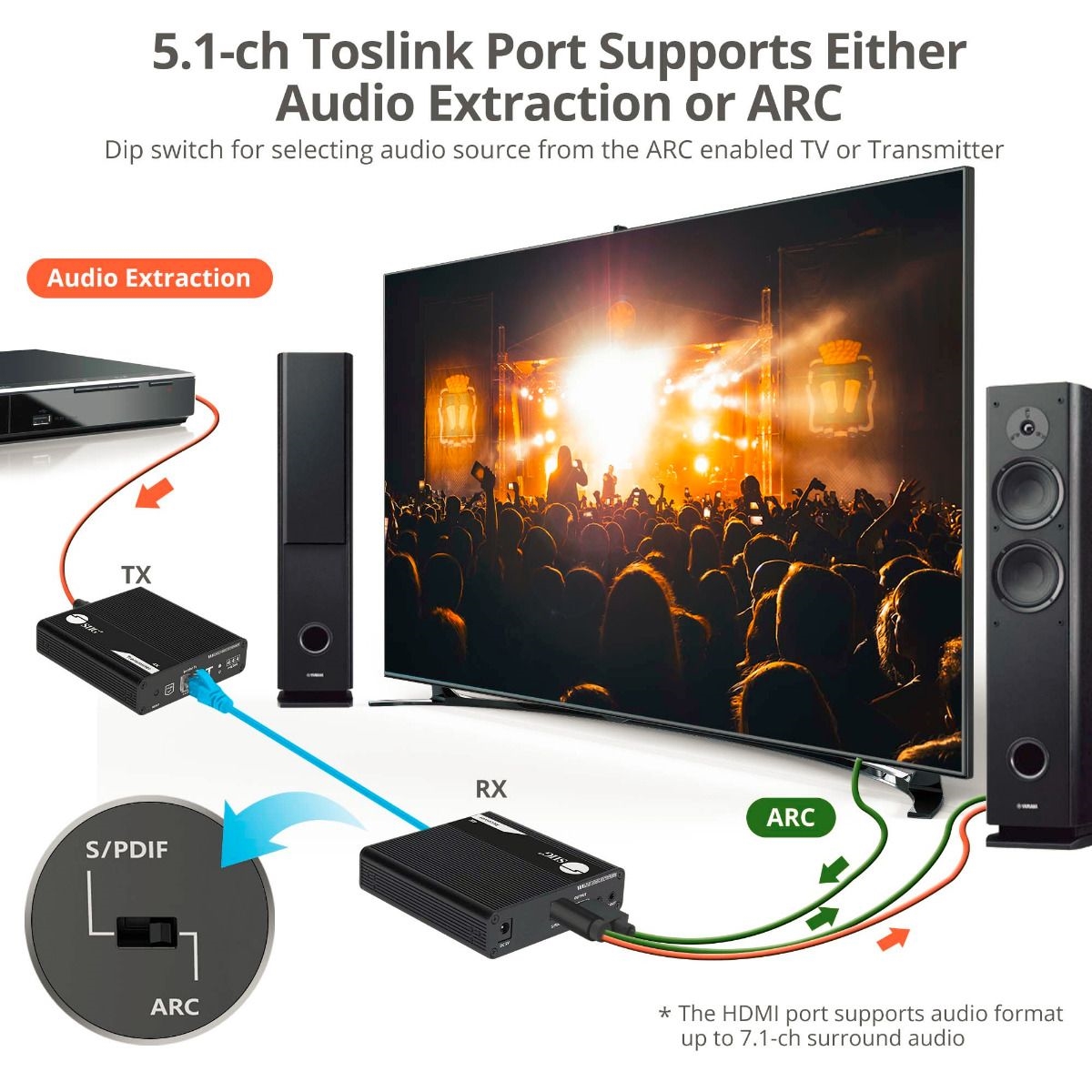

ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)

RS-232 Control - Support RS-232 command control in the Transmitter

Protection - Lightning Protection, Surge Protection, ESD Protection

High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation

Easy Installation - Plug and play installation, no driver installation required


Multiple Connectivity Ports

Comes with one HDMI video input port, one HDMI video loop-out port, two HDMI video output ports, four RJ45 network ports, three 3.5mm IR emitter ports, three 3.5mm IR receiver ports, two S/PDIF ports, one RS-232 terminal block, one DIP switch, three reset buttons, two audio slide switches, one DC power jack (12V/2A) for TX, two DC power jacks (5V/2A) for RXs
Video Resolution:
Up to 3840x2160 at 60Hz, 2160p / 1080p / 1080i / 720p / 480p
Compliant with HDCP 2.2
Transmission Distance:
4K at 60Hz: Up to 70m via Cat6/7 cable
4K at 60Hz: Up to 40m via Cat5 cable
Audio:
HDMI: PCM2/5.1/7.1, Dolby and DTS 5.1
Toslink: PCM2, Dolby and DTS 5.1
Full frequency IR signal from 20KHz to 60KHz
RS-232:
3-pin: GND-RxD-TxD, follow RS-232 Levels, Support up to 115200 baud rates
Network cable:
UTP/STP CAT5e/6/6a/7
Product:
Housing material:
Metal with wall mount design
Color:
Black
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Female, Loopout
2x 8-pin, RJ45, video output
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 3-pin Terminal Block, RS-232 for control
1x 4-pin DIP Switch for EDID management
1x Power jack
1x Reset button
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45, video input
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x S/PDIF Toslink, Audio and ARC
1x Slide switch, (S/PDIF and ARC)
1x Power jack
1x Reset button
Power adapter:
Input:
100-240V / 50-60Hz
TX :
DC 12V/2A
RX :
DC 5V/2A
UL listed:
E335801 / Level: VI
Environmental conditions:
Operating temperature:
14 to 140 degrees F
Storage temperature:
-4 to 158 degrees F
Relative humidity:
0 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Interface
1x Transmitter (TX)
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 3.5mm infrared jack, IR emitter (output)
1x 3.5mm infrared jack, IR receiver (input)
2x 8-pin, RJ45 (output)
1x 3-pin, RS-232 terminal block (for control)
1x 4-pin, DIP switch (for EDID management)
1x Reset button
1x DC power jack, 12V/2A
2x Receivers (RX)
2x 19-pin, HDMI, Female (output)
2x 3.5mm infrared jack, IR emitter (output)
2x 3.5mm infrared jack, IR receiver (input)
2x 8-pin, RJ45 (input)
2x S/PDIF, Toslink digital audio (output)
2x Audio slide switch (S/PIDF and ARC)
2x Reset button
2x DC power jack, 5V/2A
Package contents
1x2 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC and RS-232
Power adapter (x3)
IR Blaster extension cable (x1)
IR Receiver extension cable (x2)
Terminal block
Mounting kit
User Manual

Available Quantity

5

UPC

662774045269

SKU

mingleCE-H27911-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

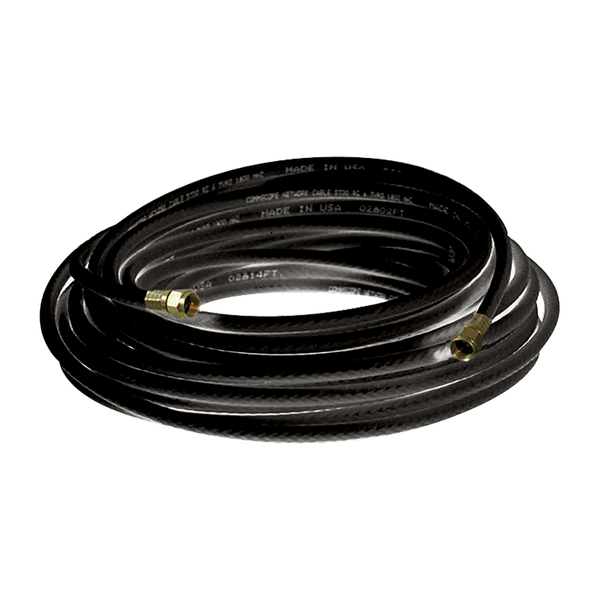

• RG6 coaxial cable with F-connectors;• Connects 75-ohm A/V source to TV, HDTV, or A/V receiver;• Carries both analog and digital RF signals;• Twice the shielding of standard RG6 cables for high-quality audio and video and optimum signal;• Corrosion-resistant gold-plated connectors;• Provides a reliable and precise connection;

Available Quantity

5

UPC

079000316114

SKU

mingleVHB6111R

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

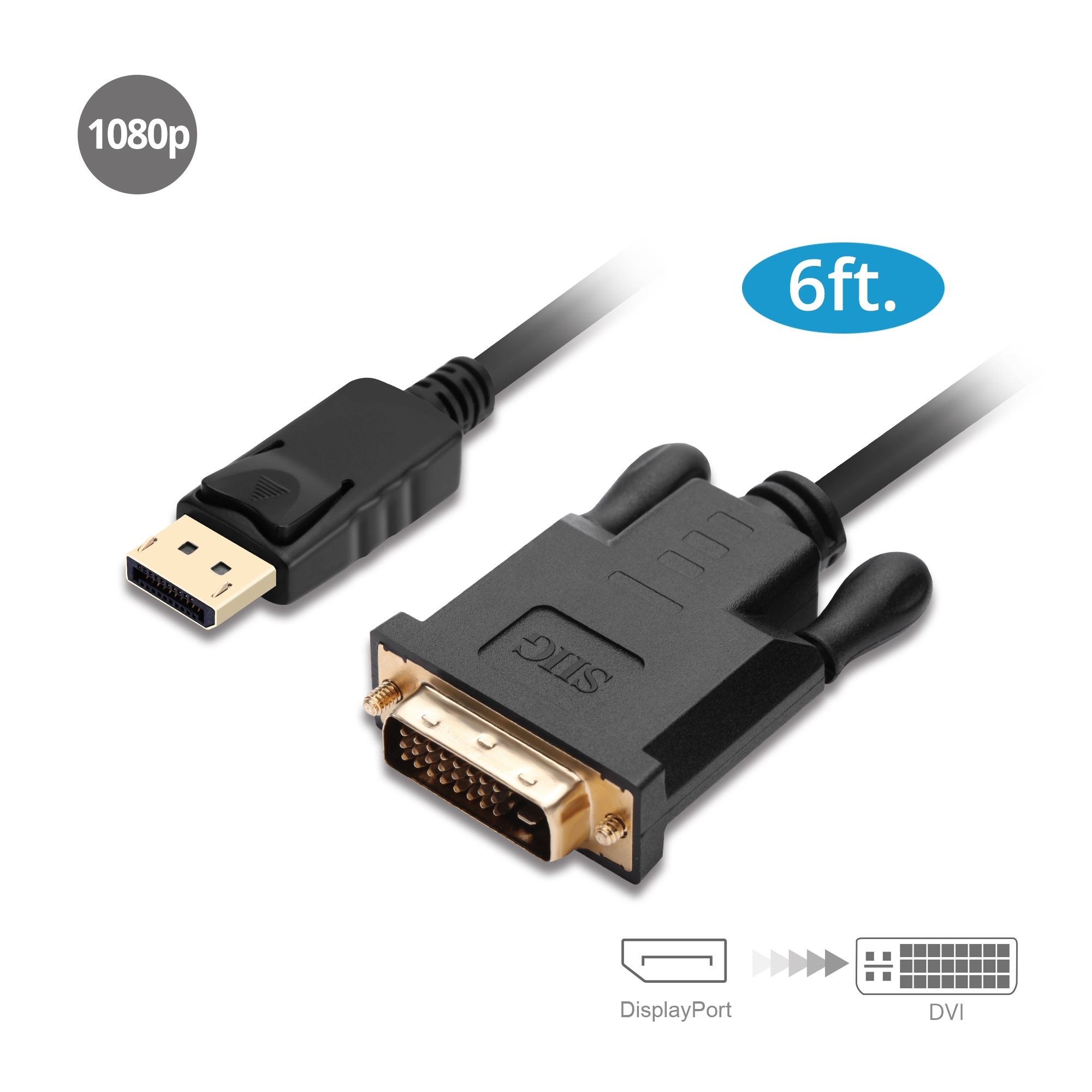

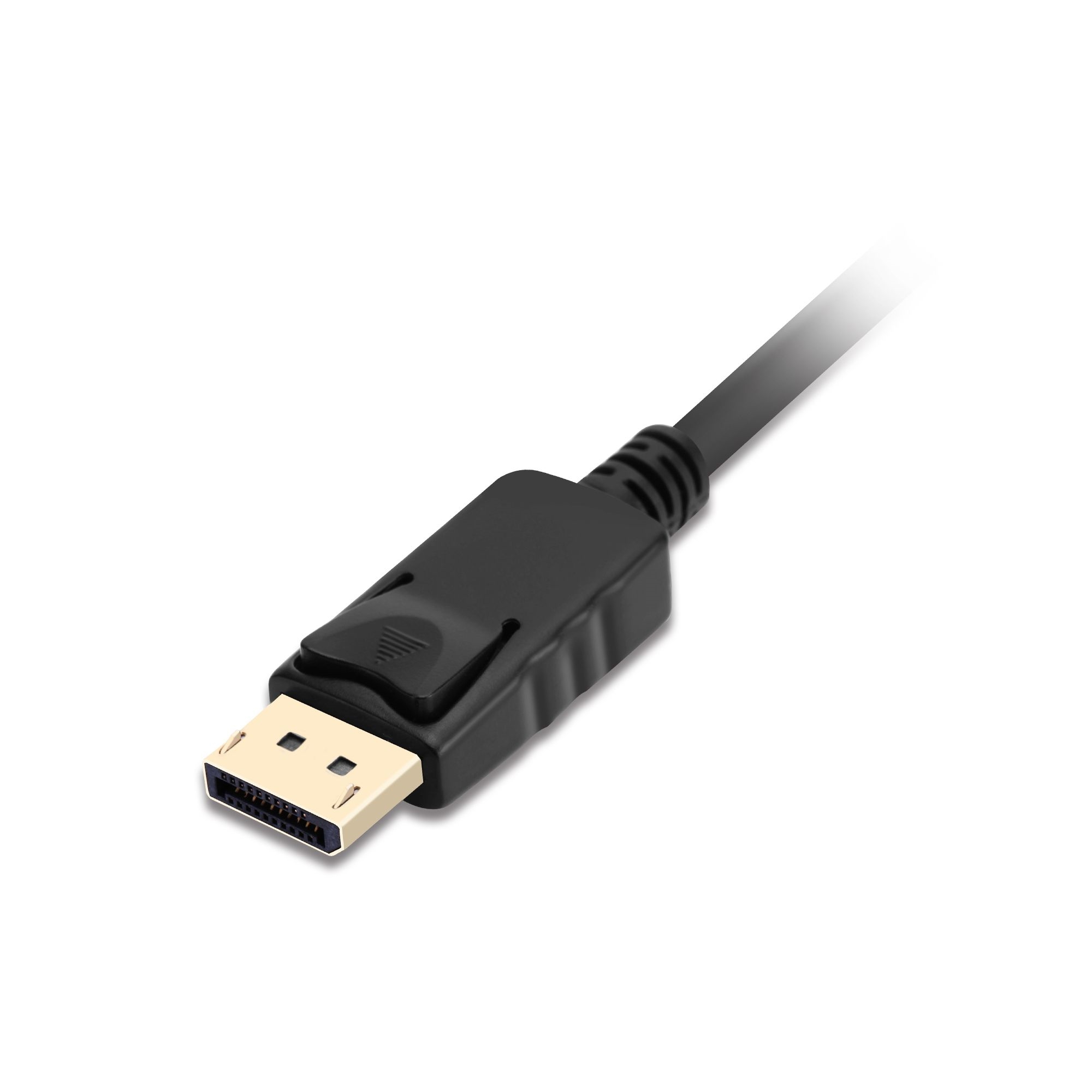

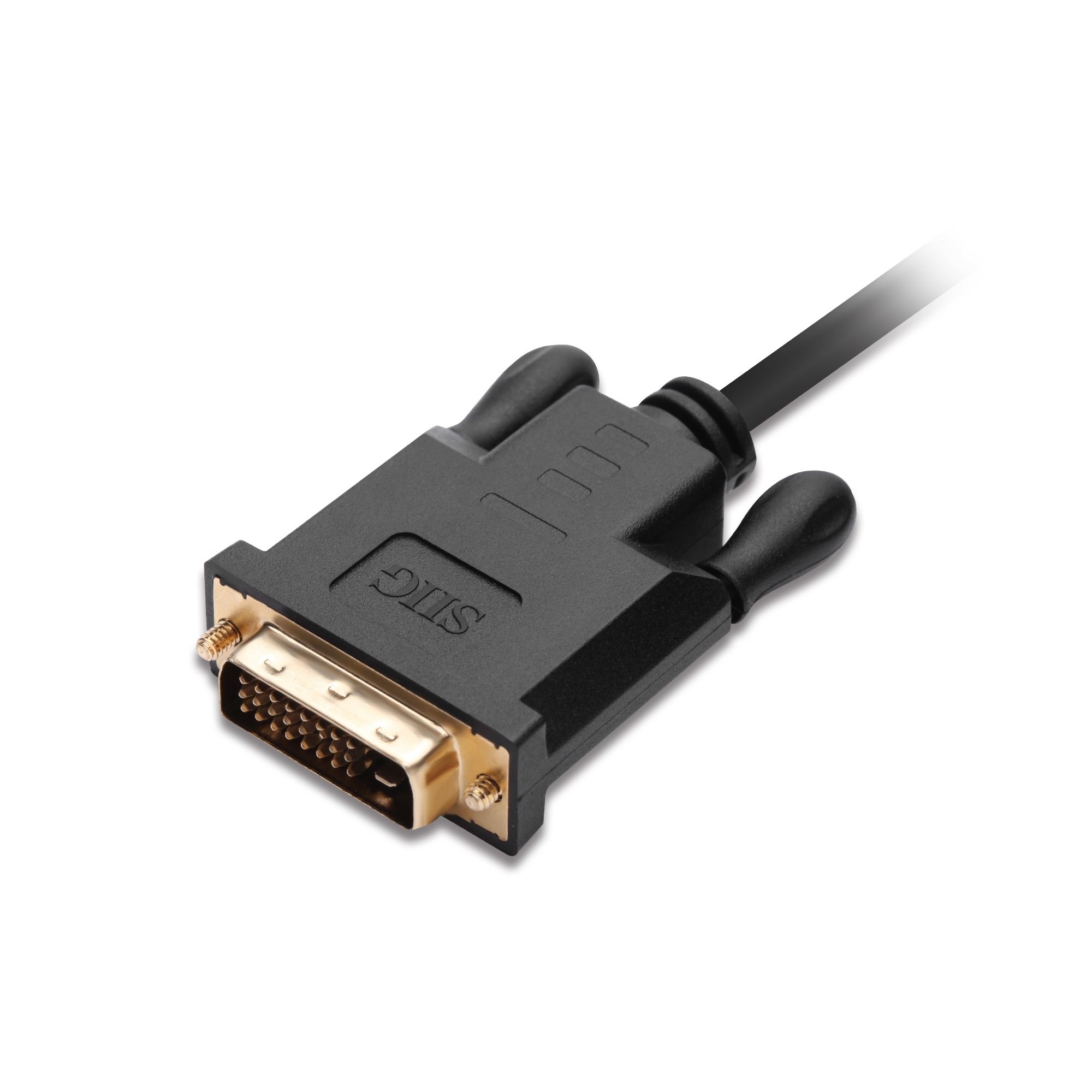

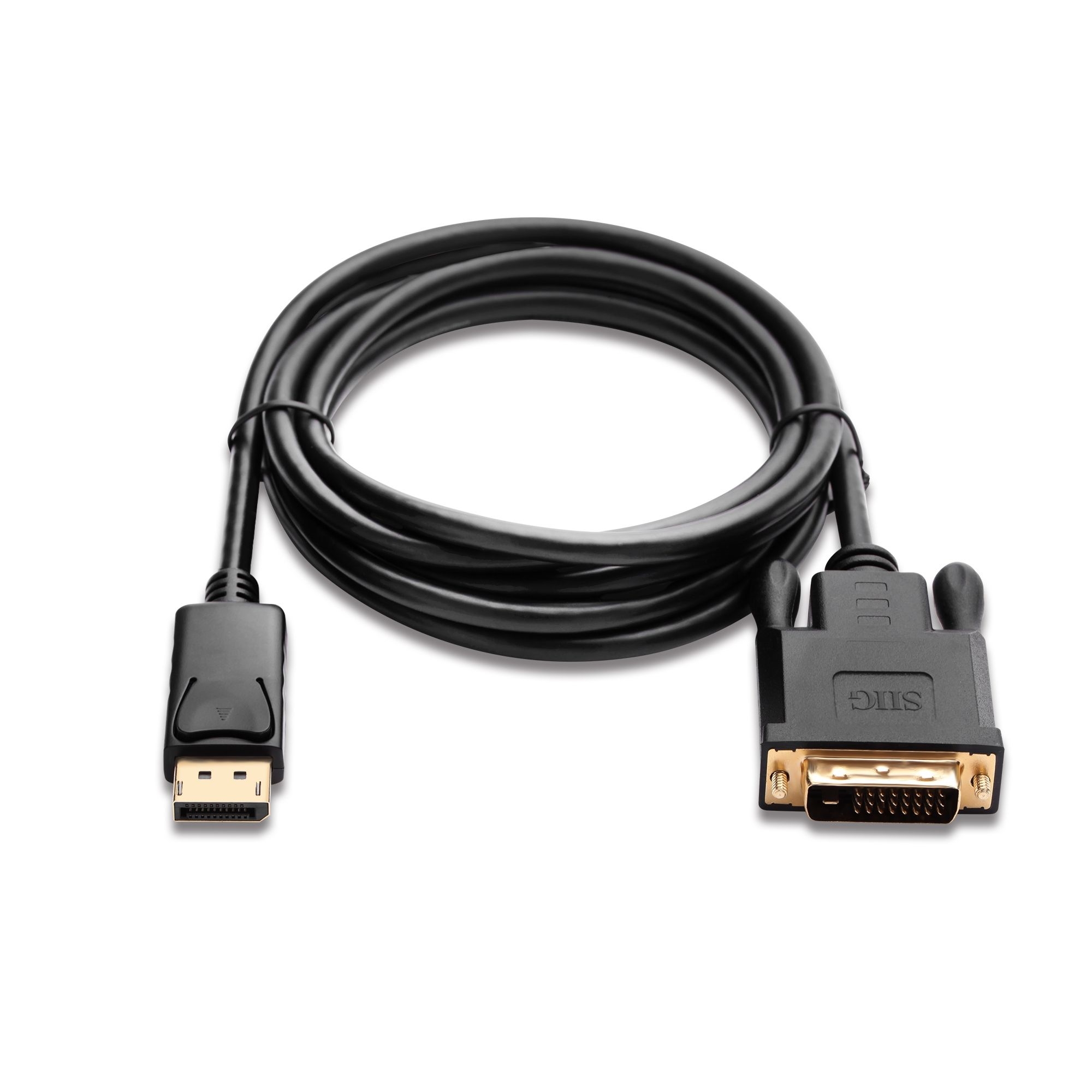

Converts a Dual Mode DisplayPort (DP++) output to DVI-D single link signal to connect a DVI-D display

Note: This is not a bi-directional cable. Does not work for DVI to DisplayPort conversion

Compliant with DisplayPort specification v1.1a, supporting 1.62 and 2.7 Gbps bandwidth

Supports HDTV resolution up to 1080p @60Hz and PC graphics resolutions up to 1920x1200 @60Hz

Latching DisplayPort connector for a secure connection

Features gold plated connectors and triple shielded cable with PVC jacket for maximum video performance and prevention of signal loss

Easy plug-n-play installation no driver installation required
Chipset:
PS8121E
Compliant with
DisplayPort specification v1.1a, supporting 1.62 and 2.7 Gbps
Compatible with
Dual Mode DisplayPort (DP++) output
Triple-shielded cable with PVC jacket
DVI signal:
DVI-D Single Link
Supports 1920x1200 at 60Hz or HDTV resolutions up to 1080p at 60Hz
Supports bandwidth up to 2.25 Gbps per channel (6.75Gbps all channels)
Supports 12-bit per channel (36-bit all channels) deep color
Adapter type:
Passive
Color:
Black
Connectors:
1 x 20-pin, DisplayPort, Male, Input
1 x 25-pin, DVI-D, Male, Output
Environmental conditions:
Operating temperature:
32 to 140 degrees F
Storage temperature:
14 to 158 degrees F
Humidity: less than
85% non-condensing
Certifications/Standards:
FCC, CE, RoHS
System Requirements
Systems with a Dual Mode DisplayPort (DP++) output
DVI-D single-link monitor
Package contents

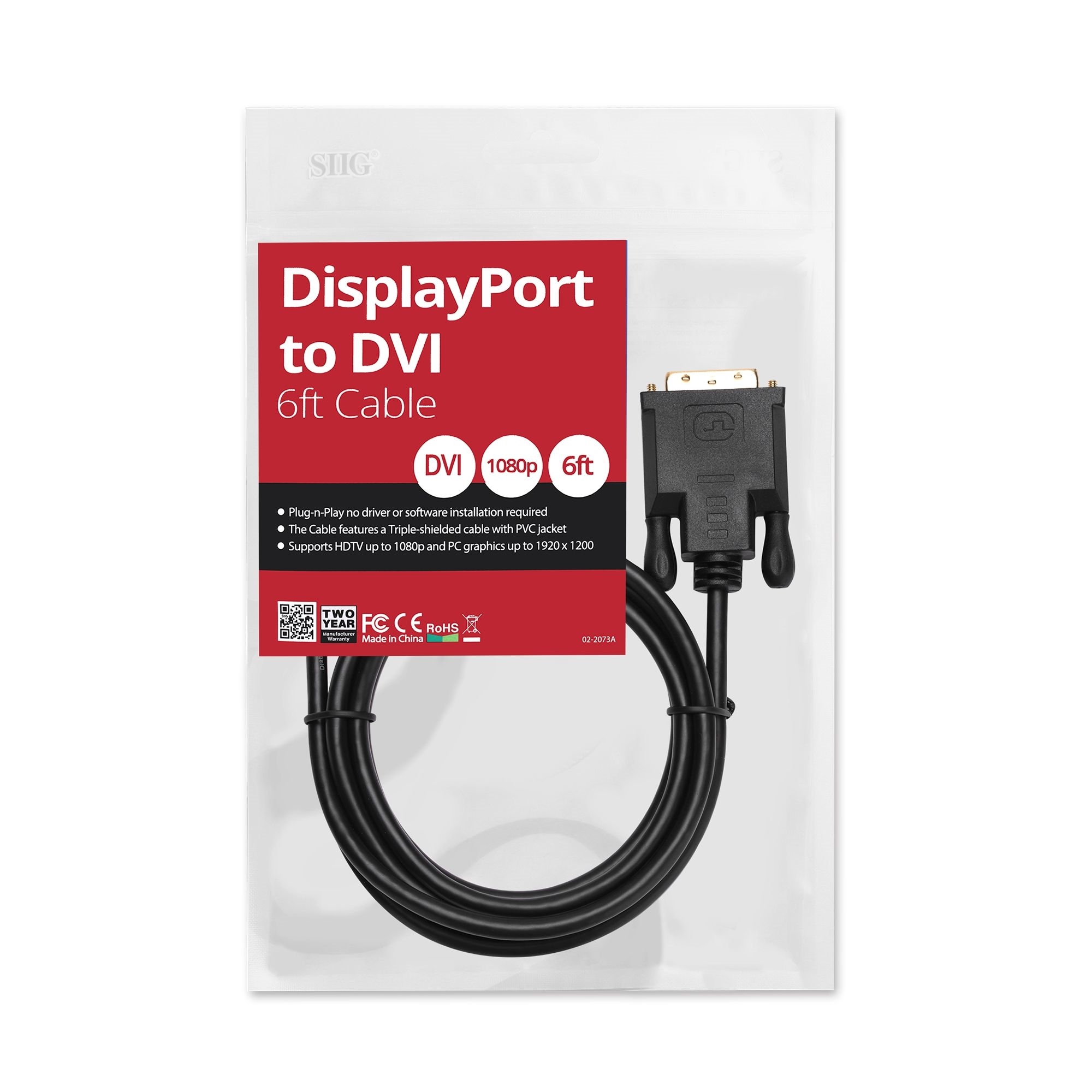

DisplayPort to DVI 6ft Cable
Item Dimension (L inchxW inchxH inch)
1 x 1 x 2

Weight
1.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774041537

SKU

mingleCB-DP1V12-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

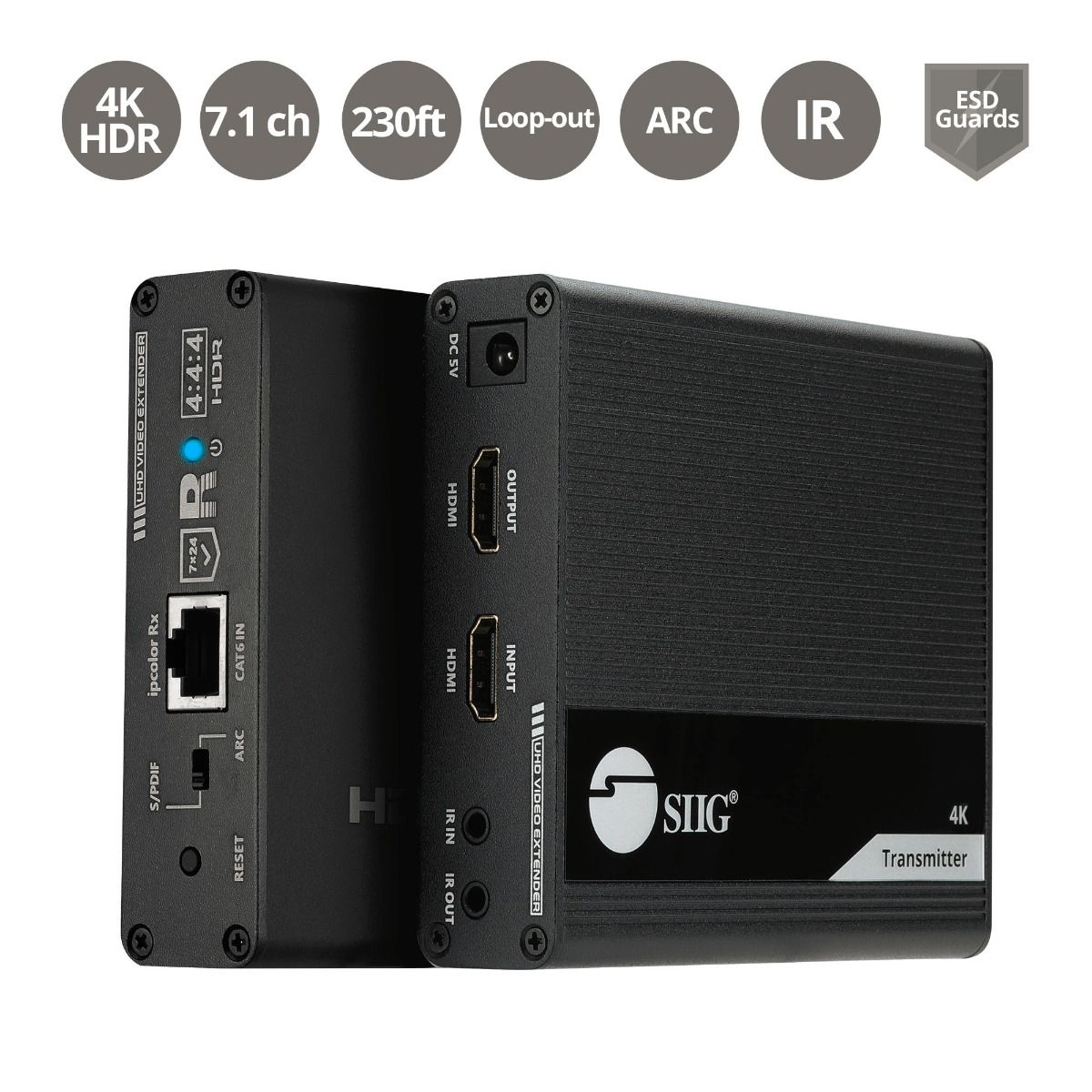

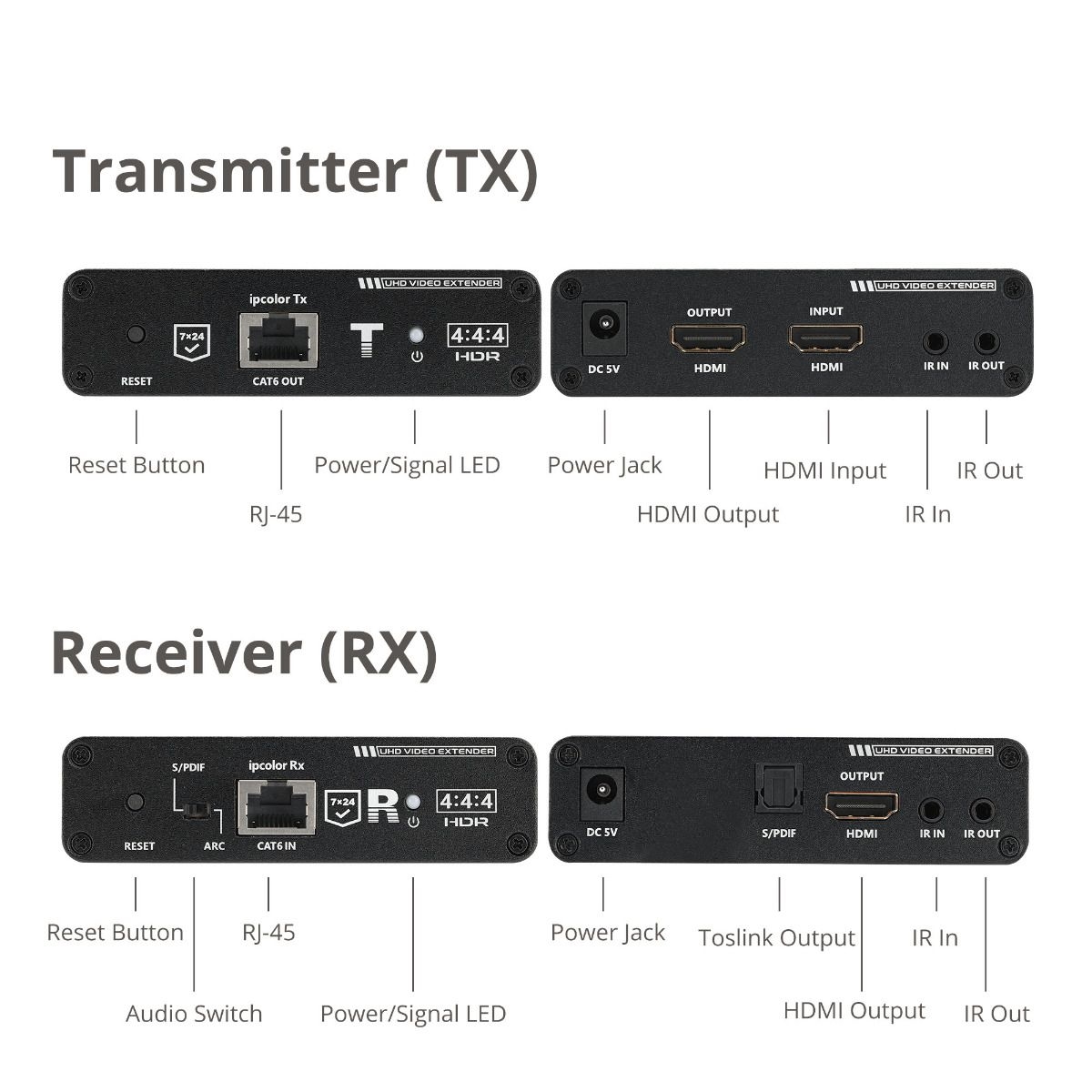

4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable

Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency

Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal

IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa

Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s)

Protection - Lightning Protection, Surge Protection, ESD Protection

High Quality Design - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

Easy Installation - Plug and play installation, no driver installation required
Compliance:
HDMI 2.0, HDCP 2.2
Resolution:
4K (3840x2160) at 60Hz, HDR YUV 4:2:0 10bit
ipcolor Transmission protocol:
Latency: Zero
Signal compression: None
Audio:
HDMI input: PCM 2/5.1/7.1, Dolby, DTS 5.1
Toslink output: PCM2, DTS 5.1, Dolby 5.1
Transmission Distance:
4K at 60Hz: Up to 40m via Cat5 cable
4K at 60Hz: Up to 70m via Cat6/6a/7 cable
IR Remote Control:
20-60Hz Frequency Range
Product:
Color: Black
Housing: Aluminum, ABS

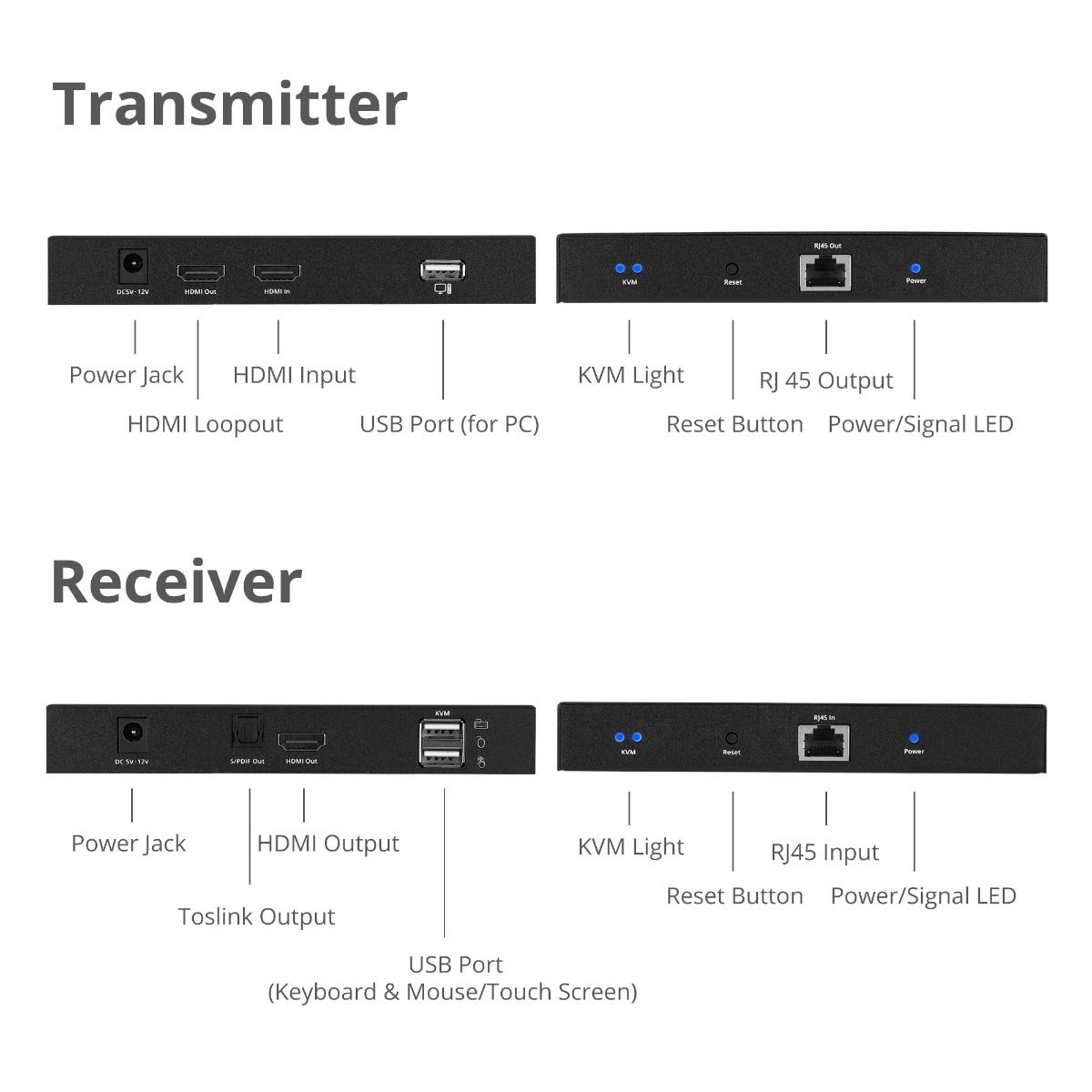

Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x19-pin HDMI, Female, Loop-out
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, Output
1x Reset button
1x Power jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 8-pin RJ45, Input
1x S/PDIF Toslink, Output, Audio / ARC
1x Slide switch, S/PDIF and ARC control
1x Reset button
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 14 to 140 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
5 x 2 x 4
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044613

SKU

mingleCE-H26L11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) at Full HD 1080p, up to 230ft (70m) at UHD 4K (3840x2160) through a single premium quality CAT5e/6 cable

Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended

Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)

Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support

Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered using only one power adapter connected to either unit

Bi-directional IR sensors allow you to remotely control the HDMI source device at the remote display side or control the remote display at the source device side

High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use

Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements


Note: Does not support connecting to Router or Switch
Compliant with HDMI 1.4 and HDCP 1.4
Supports HDCP and EDID bypass, Auto Skew Equalization, CEC, Deep Color and full 3D
Video Bandwidth: Up to 10.2Gbps (340MHz per channel)
Video Latency
< 20us
Audio
Surround sound (up to 7.1ch), stereo digital, DTS-HD Master Audio and Dolby TrueHD high bit rate
Supports full frequency IR signal from 20KHz to 60KHz
Bi-directional IR pass-through
Full Duplex RS-232 control up to 115,200bps through connector
Resolution
480p / 720p / 1080i / 1080p at 60Hz / 3840x2160p at 30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)
Supports PoC (Power over Cable)
allows a single power supply connected to either the TX or RX unit to power both units
ESD protection
+/-15kV Air / +/-8kV Contact
Aluminum housing with wall mount design
Transmission Protocol
HDBaseT technology
Note: Does not support connecting to Router or Switch
Transmission Distance
Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
1080p at 60Hz: up to 330ft (100 meters)
3840x2160 at 30Hz: up to 230ft (70 meters)
Product

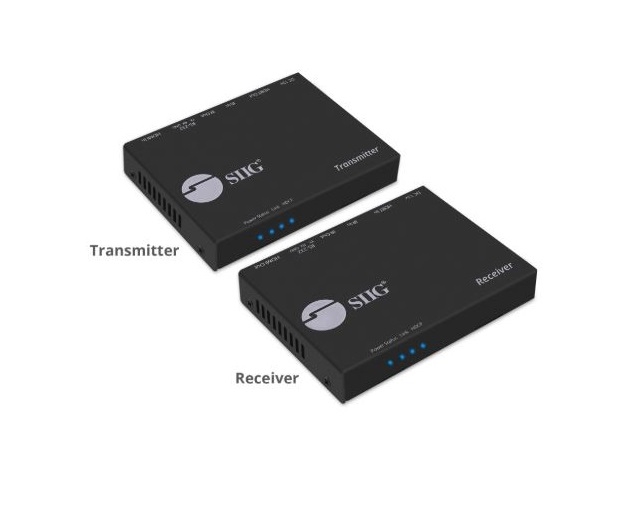

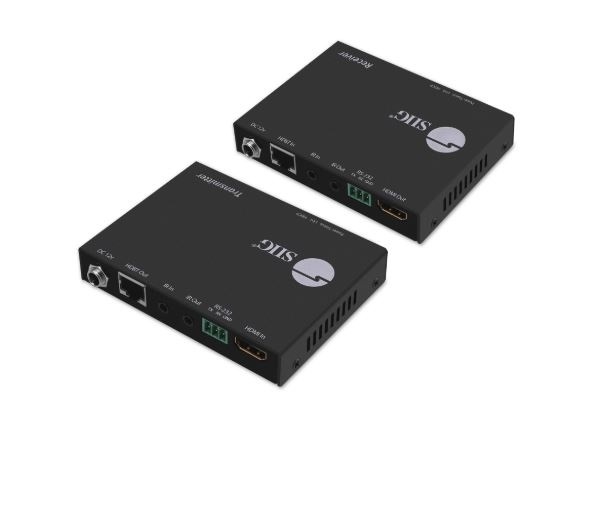

Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, output
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator
1x 3-Pin, RS-232, Phoenix connector
1x Power jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45, Input
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator
1x 3-Pin, RS-232, Phoenix connectorv
1x Power jack
Power Adapter
Input: 100-240V / 50-60Hz
Output: DC 12V/2A
UL Listed: E163743/Class VI
Environmental Conditions
Operating temperature: 32 to 104^oF
Storage temperature: 14 to 158^oF
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
TAA compliant
Item Dimension (L"xW"xH")
7 x 11 x 4
Weight
3.00 LB
Warranty Information
3 years

Available Quantity

5

UPC

662774041407

SKU

mingleCE-H23F11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

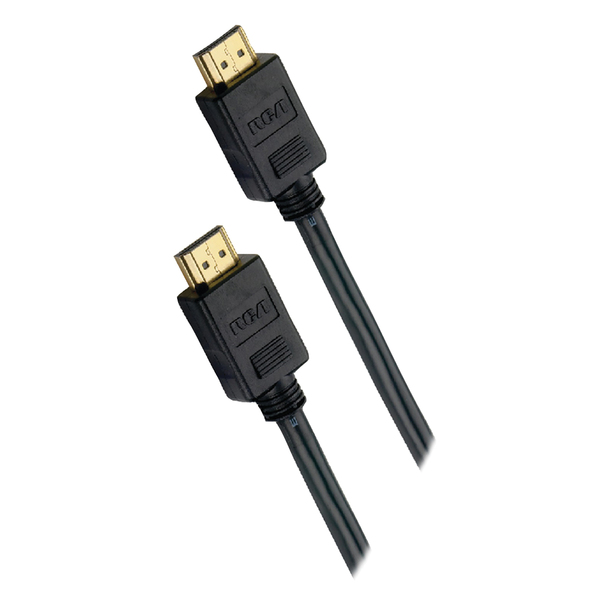

• Connects an HDMI(R)-compatible A/V source to HDTV ;• Carries uncompressed, high-definition video and digital audio signals ;• Supports HD video formats up to 4K 2160p; supports wide variety of audio formats from standard stereo to multi-channel surround sound; supports HDR;• Supports 3D, Ethernet, Audio Return Channel, and 18 Gbps bandwidth;• Gold-plated connector construction ensures precise fit for enhanced picture clarity and more accurate sound;• Certified to perform at standards set by HDMI(R);• 1-year limited warranty;• 25 ft.;

Available Quantity

5

UPC

044476071850

SKU

mingleDH25HHE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

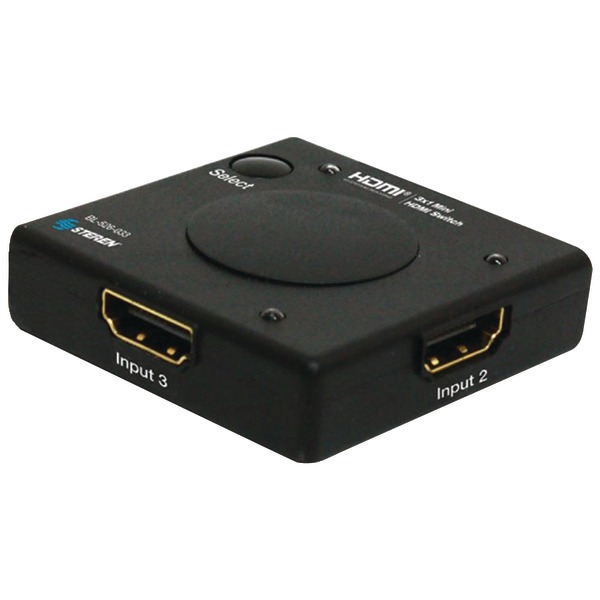

• Provides additional HDMI(R) connections to an HDTV ;• 3 HDMI(R) inputs;• 1 HDMI(R) output ;• HDMI(R) high-speed certified;• Up to 1080p resolution;

Available Quantity

5

UPC

884645118029

SKU

mingleBL-526-033

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

Rocstor premium usb type-c to displayport cable 4k 60hz, provides you a perfect connection between your computer s USB-C port and a 4K HD DisplayPort monitor. Without any hassle or complex installation requirements. With 4K high resolution running at 60Hz, this cable allows you to experience an astonishingly graphic-rich content without any distortions. Whether you connect it to a wide screen or your laptop screen, the 3840 x 2160p resolution will provide you a high quality display making your work look clearer and professional. Moreover, it is also backward compatible with 1080p resolution displays, making it an economical device for your current and future 4k displays. The cable is an ideal length for making a clean connection with your devices. It not so long that you need to tie it and not too short requiring additional adapters. This extremely well-designed and reliable cable features display connectors that fit in tight spaces and provides high precision quality, which results in reduced signal loss and unwanted echoes.

This super-easy-to-use cable is compatible with almost all laptops and Thunderbolt 3 & 4 devices that are capable of passing DisplayPort signal over USB-C port, such as macOS , Windows , Android , Chromebook , MacBook , iPad Pro , Lenovo , and Dell devices. Just plug it into the USB-C port of your device and it gets installed automatically, without needing any software or drivers for its installation. This premium cable is backed by Rocstor s 2-year warranty and phone support.

FEATURES & ATTRIBUTES

4K UHD resolution

Backward compatible

2-year warranty

High performance cable with 21.6Gbps data transmission rate

Supports high definition 4K display at 60Hz with jaw-dropping video quality

Backward compatibility with 1080p resolution devices

Molded cable with durable and dependable connection
Item Dimension (L"xW"xH")
10 x 8 x 1

Weight
1 lb

Warranty Information
2-year limited

Available Quantity

5

UPC

810606031366

SKU

mingleY10C240-W1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

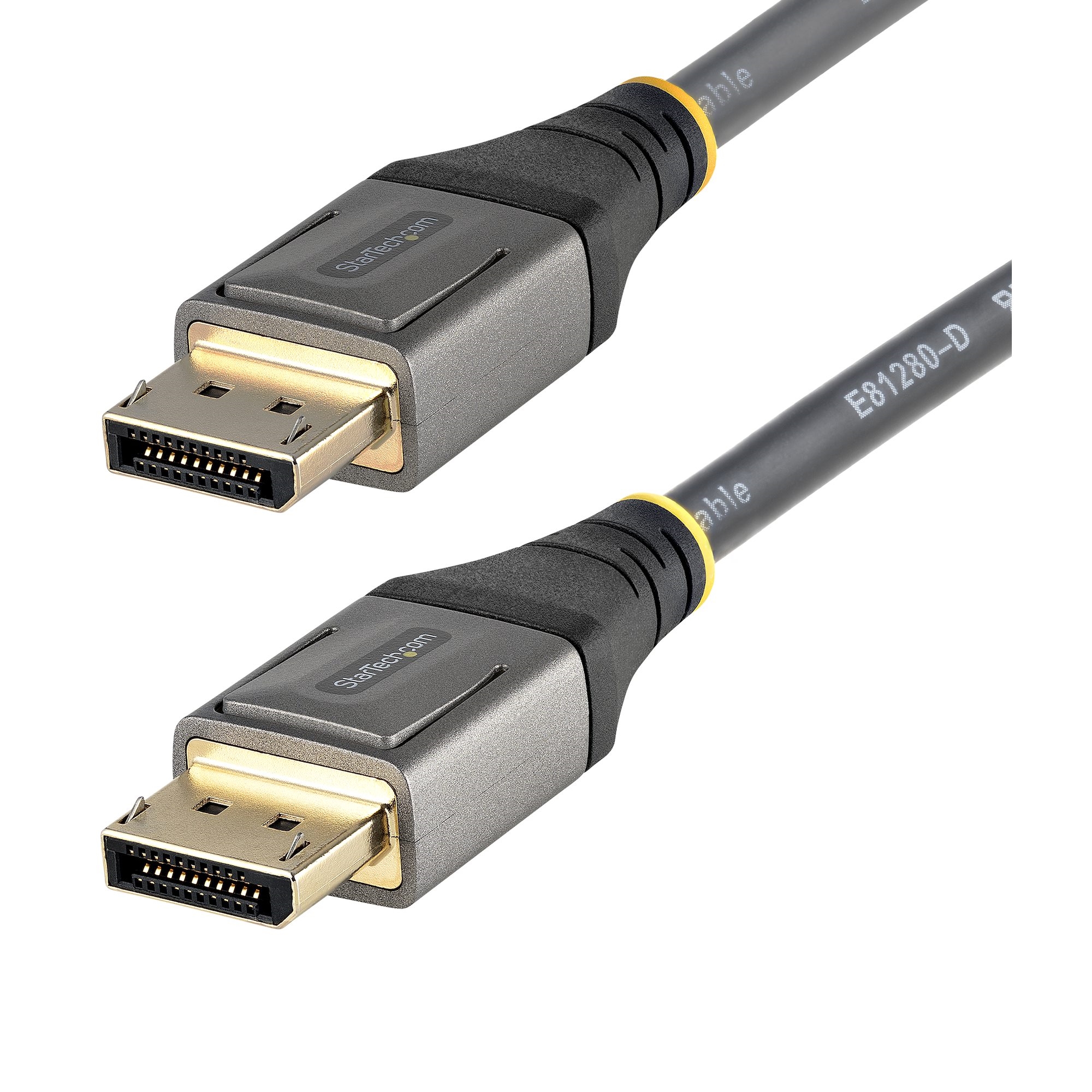

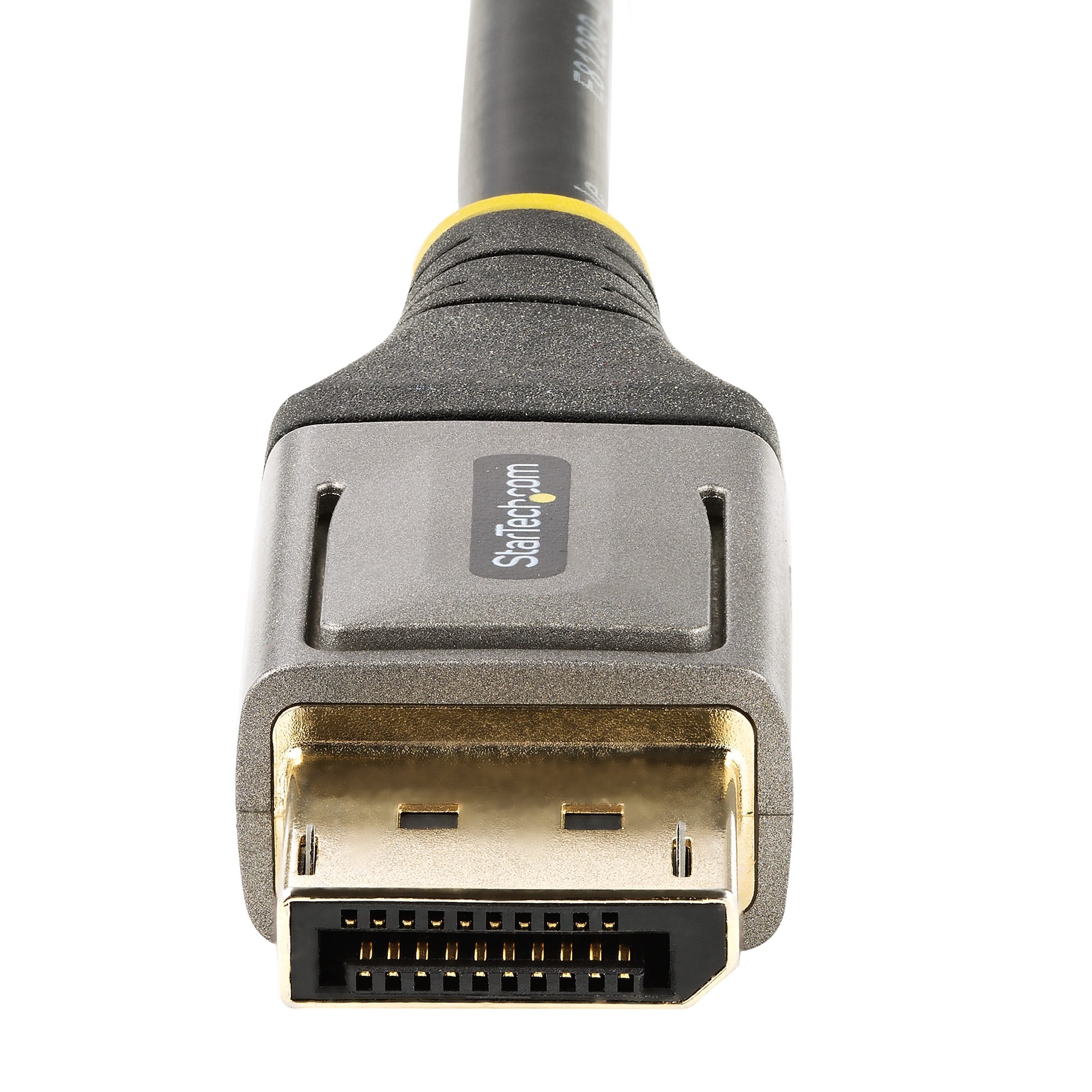

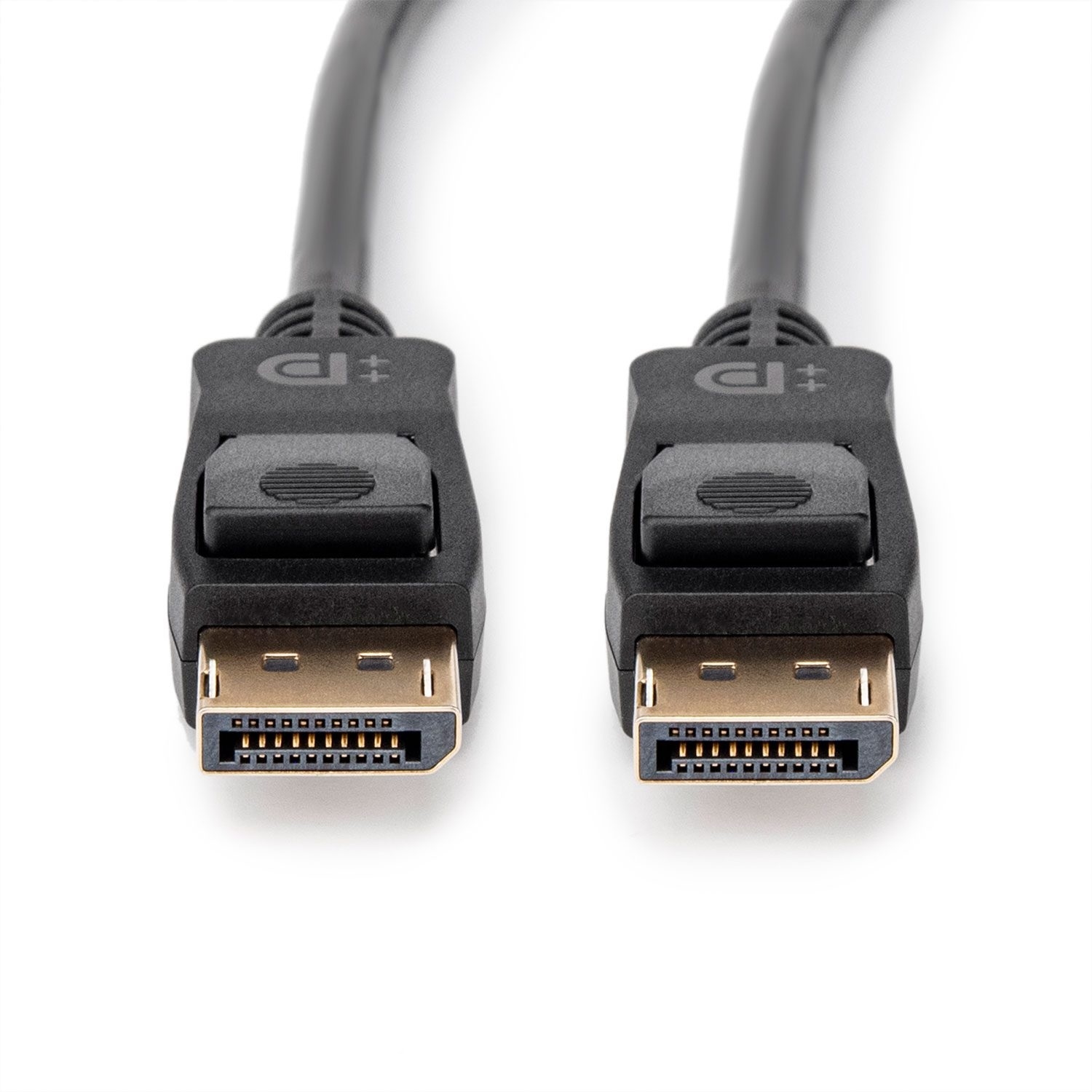

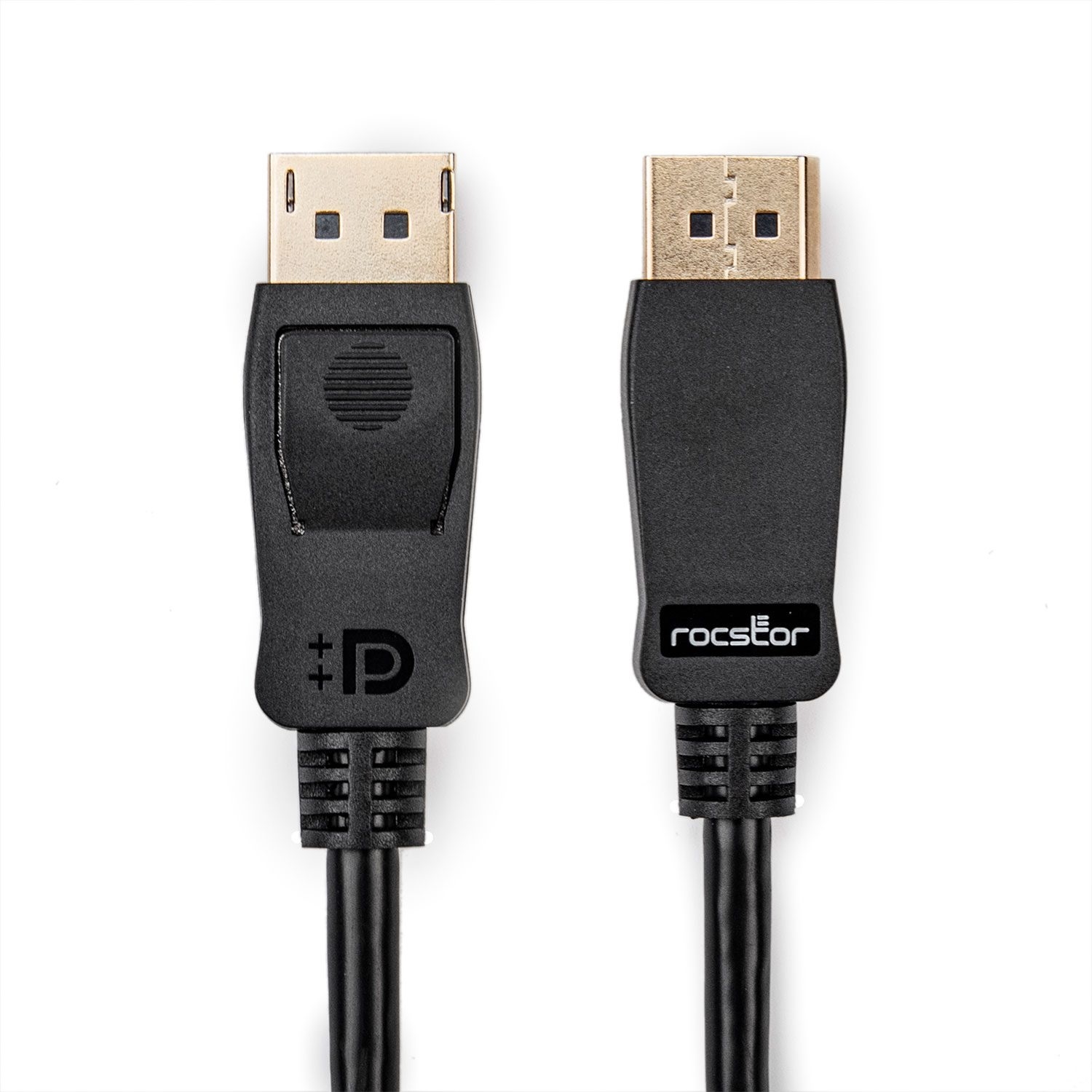

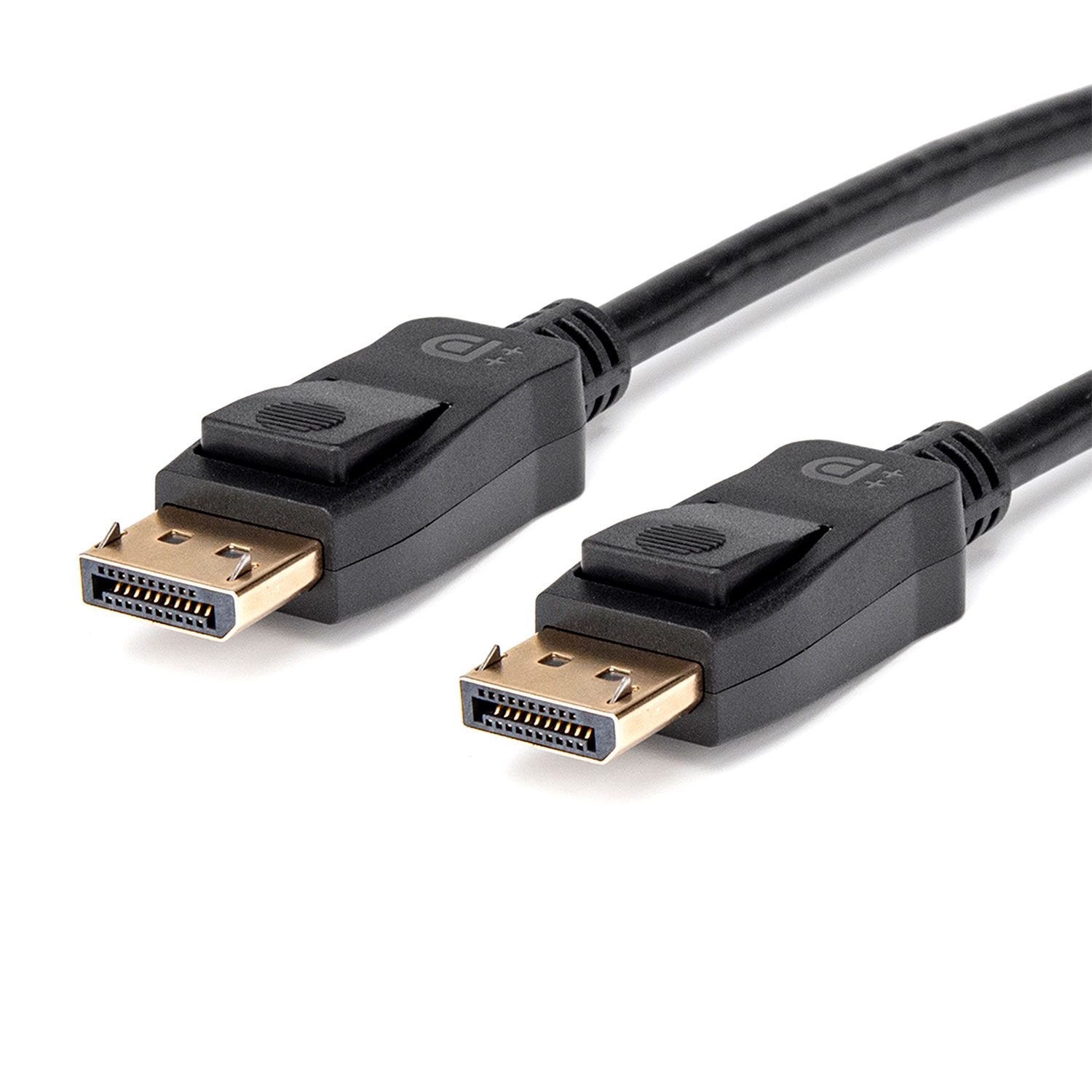

Rocstor Premium DisplayPort 1.2 Cable 4k@60Hz

3ft / (1m) DisplayPort 1.2 Cable M/M DisplayPort 4k DisplayPort Male Digital Audio/Video supporting, resolutions up to 4Kx2K @ 60Hz and HBR2 bandwidth of up to 21.6 Gbps Black



Rocstor Premium DisplayPort 1.2 Cable allows you to connect your DisplayPort enabled devices with HBR2 to create high-resolutions of 4K x 2K up to 15ft away between your display and source. Also available in lengths from 3ft up to 15ft. Experience better performance than either HDMI or dual link DVI when using this cable, supporting resolutions up to 4Kx2K @ 60Hz and HBR2 bandwidth of up to 21.6 Gbps. Ensures that digitally protected content that is both HDCP and DPCP capable is displayed properly. Additionally, the cable can support Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
Basic
Brand Name:
Rocstor
Cable Type:
DisplayPort
Color:
Black
Connector on First End:
DisplayPort Male Digital Audio
Connector on Second End:
DisplayPort Male Digital Audio
Packaged Quantity:
1
Product Type:
A/V Cable
General Information
Brand Name:
Rocstor
Manufacturer:
Rocstor
Manufacturer Part Number:
Y10C238-B1
Manufacturer Website Address:
https://rocstor.com
Product Line:
Slimline
Product Name:
DisplayPort 1.2 Cable M/M - DP 4k
Product Type:
Video Cable
Miscellaneous
Environmental Certification:
RoHS
Environmentally Friendly:
Yes

Physical Characteristics
Material:
Poly
Color:
Black
Technical Information
Connector on First End:
DisplayPort Male Digital Audio/Video
Connector on Second End:
DisplayPort Male Digital Audio/Video
Cable Type:
DisplayPort
Conductor:
Copper
Device Supported:
Audio/Video Device
Data Transfer Rate:
2.70 GB/s
Supported Resolution:
3840 x 2160
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

810606031304

SKU

mingleY10C234-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

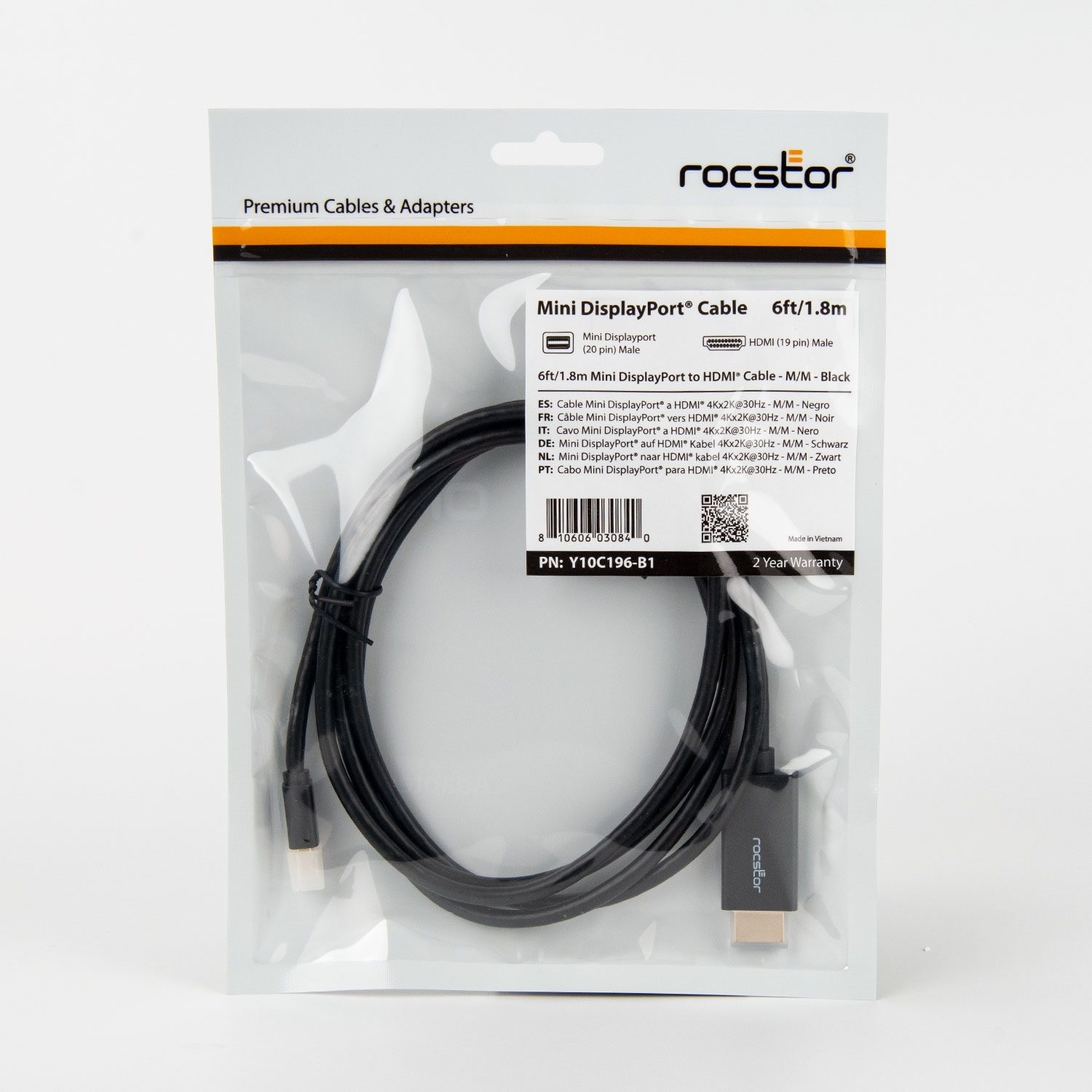

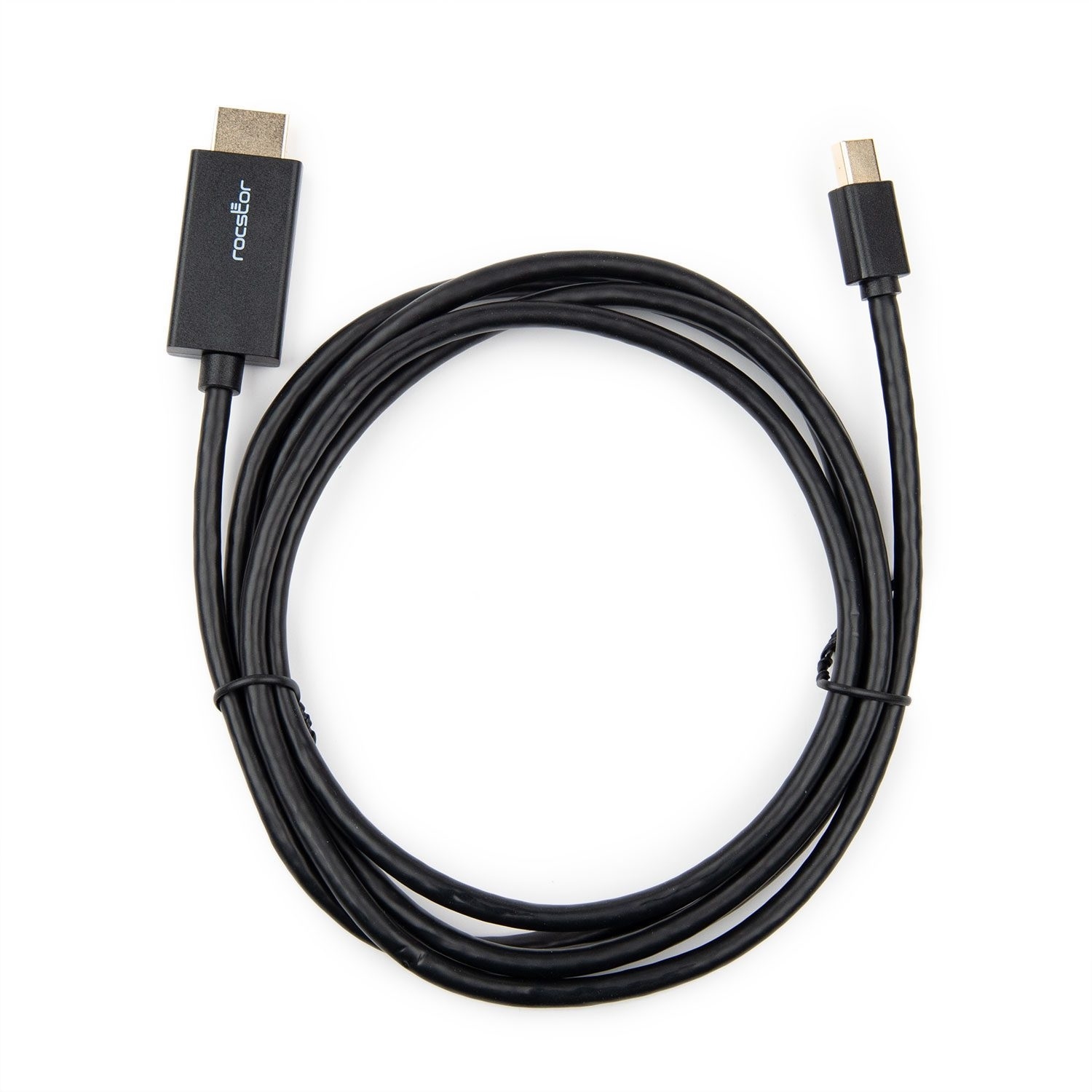

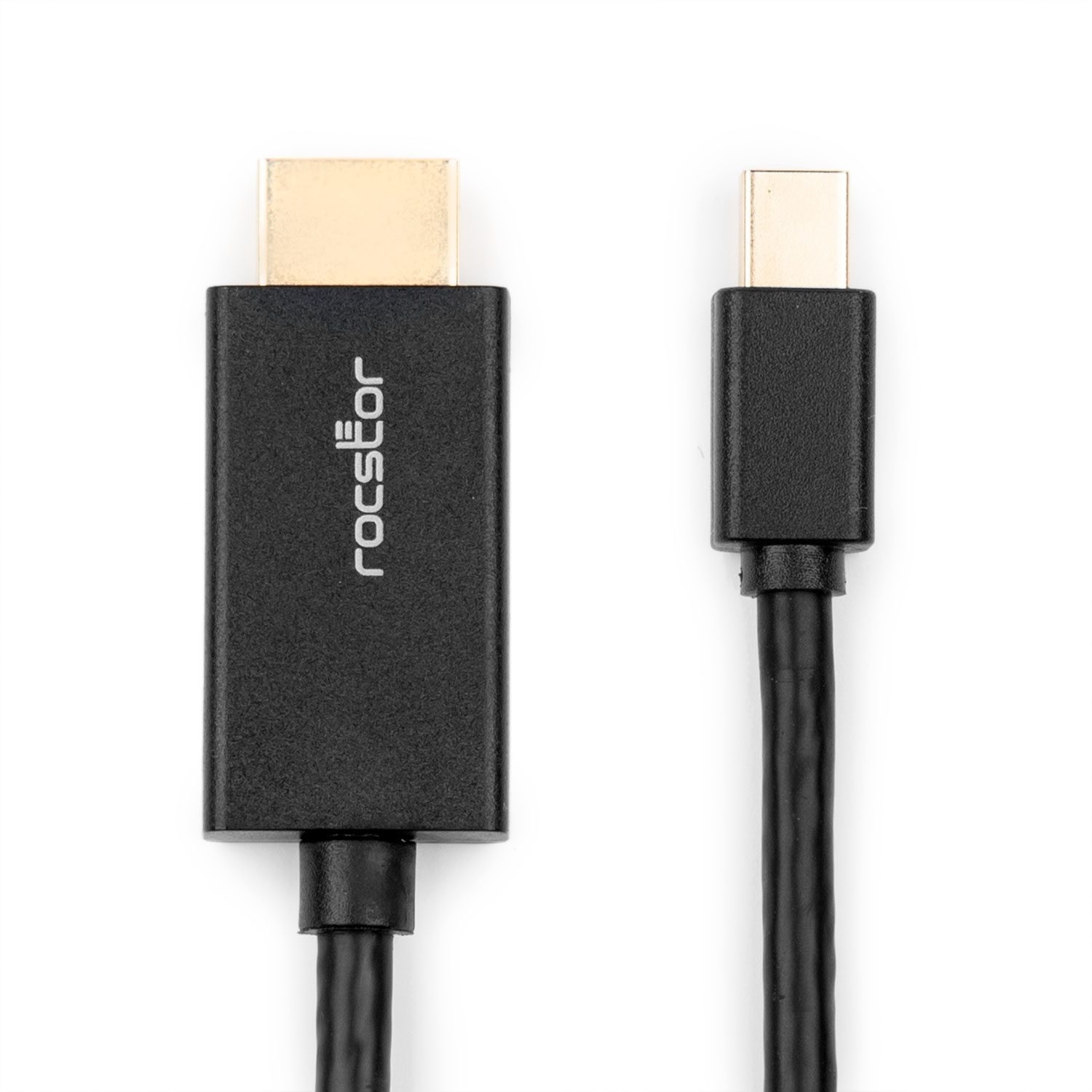

Mini DisplayPort to HDMI Cable Adapter M/M 30Hz

Rocstor Premium Mini DisplayPort to HDMI cable 6 ft (2m) 4K/2K DisplayPort to HDMI Cable For MacBook, Macbook Pro, Macbook Air, Mac Mini, Ultrabook, Projector, Desktop Computer 6 ft 1 Pack 1 x Mini DisplayPort Male 1 x HDMI Male Gold Plated Connectors 4Kx2K@30Hz Black CABLE MDP TO HDMI CABLE.




Mini DisplayPort to HDMI Cable Adapter M/M 30Hz, enables Mac or PC computers to connect directly to an HDMI Display or projector. This cable is effective and provides a single solution for connecting a Mac or PC to an external video device instead of having many convertor cables or adapters. Rocstor provides a quality and clear single cable connection from your Macbook , Macbook Air, Macbook Pro, Mac Mini or Ultrabook laptop equipped with mDP (mini DisplayPort_ to an HDMI monitor or projector. This Rocstor passive adapter supports video resolutions up to Ultra HD 4K and is Thunderbolt 3 Compatible supporting DisplayPort over Thunderbolt I/O port. This cable ensures you to maintain an astonishing picture quality, four times the resolution of 1080p, The passive cable supports video resolutions up to HD 4K. This cable is backward compatible with lower resolution displays and video sources. It will support for high-definition resolutions of 1080p and 720p, and you can easily use this cable for any future 4K video setup. This Rocstor premium cable does not need a power source, unlike other brands converter cables that require active power. For the ultimate connection, this Rocstor cable offers gold-plated connectors and contacts and high purity BC conductors for excellent conductivity.
Basic
Brand Name:
Rocstor
Cable Type:
Mini DisplayPort to HDMI
Color:
Black
Connector on First End:
Mini DisplayPort Male Digital (Thunderbolt^TM 3 Compatible)
Connector on Second End:
HDMI Male Digital Audio/Video
Product Type:
A/V Cable
General Information
Manufacturer:
Rocstor
Manufacturer Website Address:
https://rocstor.com
Packaged Quantity:
1
Product Type:
A/V Cable

Miscellaneous
Connector:
Gold Plated

Physical Characteristics
Color:
Black
Technical Information
Connector on First End:
Mini DisplayPort Male Digital Audio/Video
Connector on Second End:
HDMI Male Digital Audio/Video
Device Supported:
Macbook
Macbook Air
Macbook Pro
Mac Mini
Ultrabook
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2-year Limited

Available Quantity

5

UPC

810606030840

SKU

mingleY10C196-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

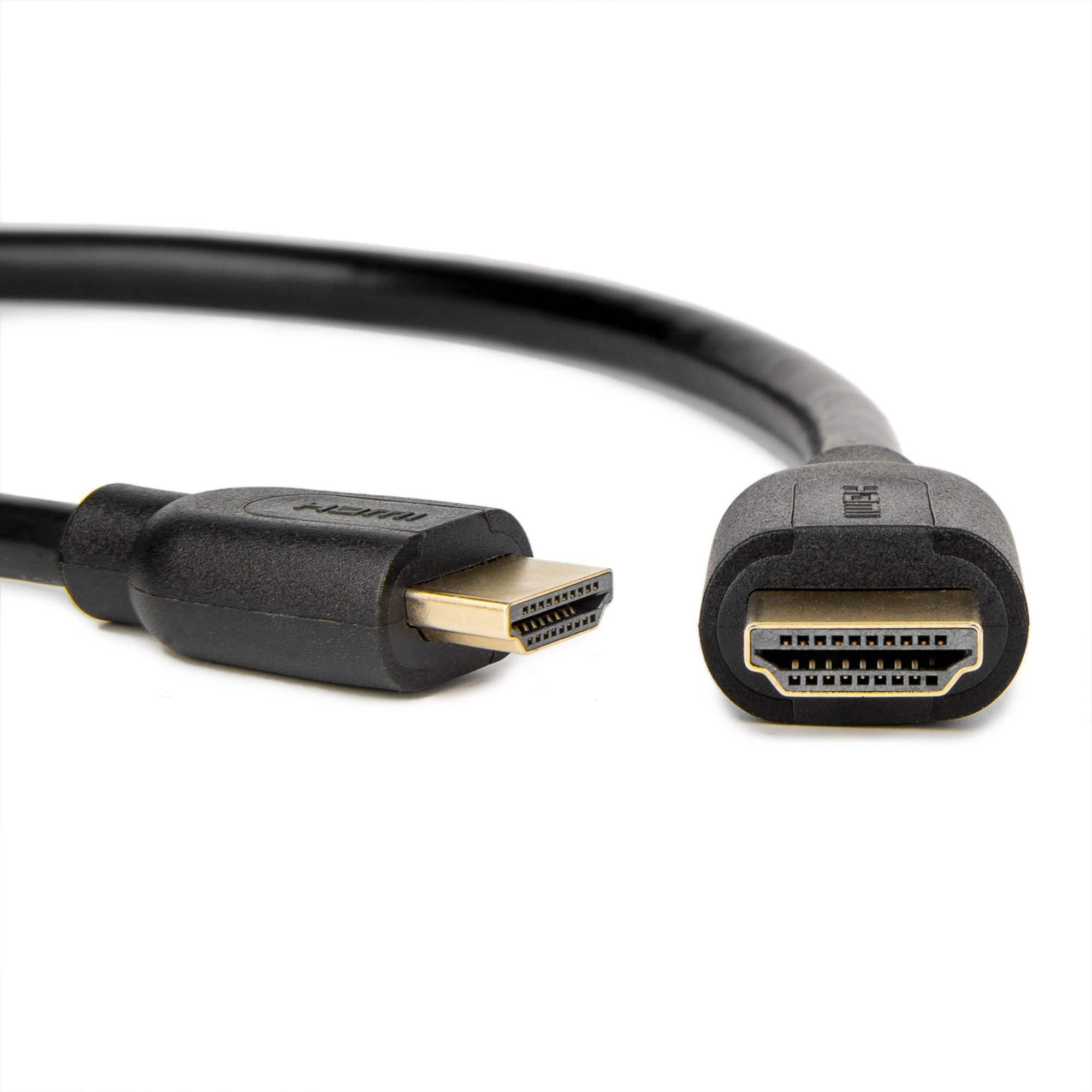

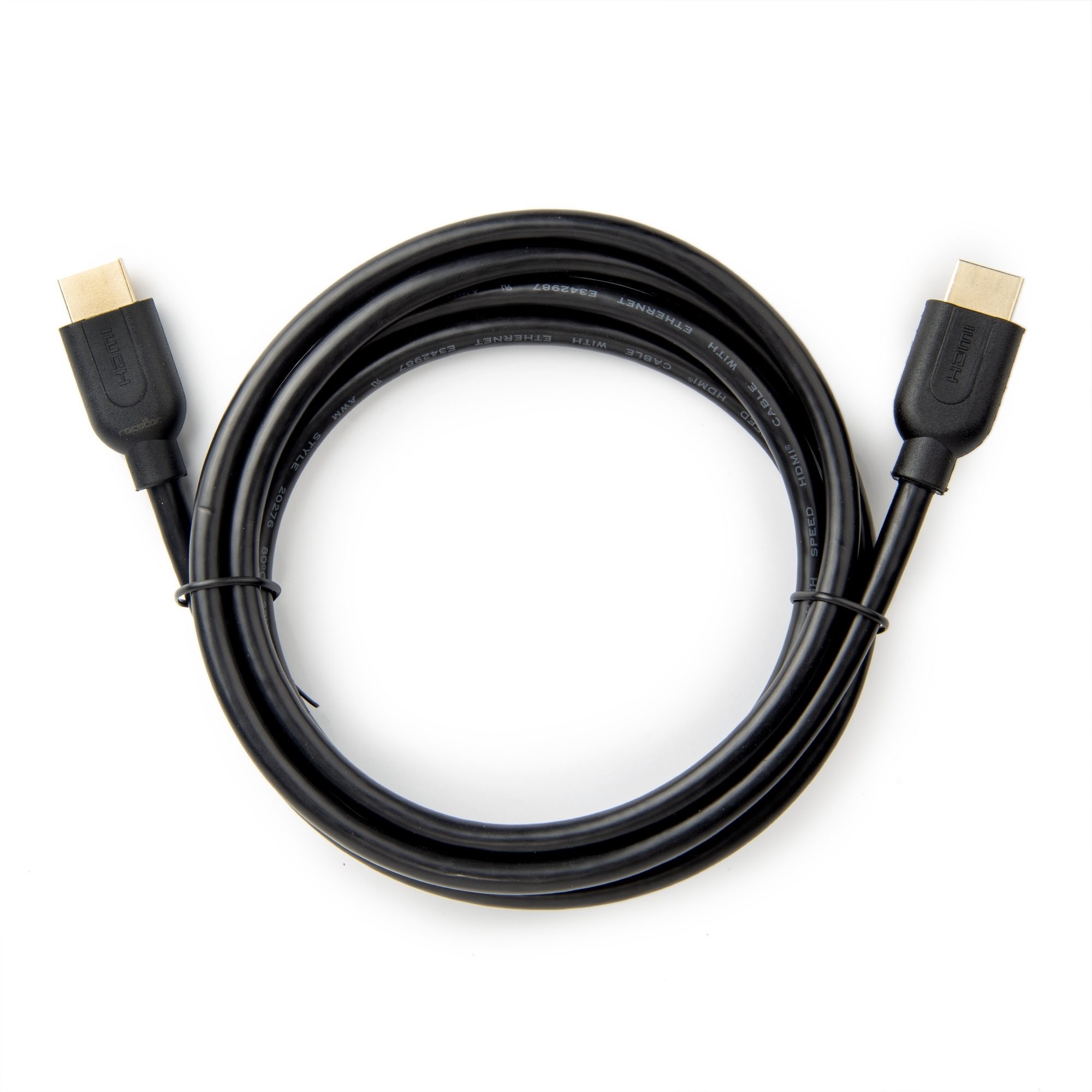

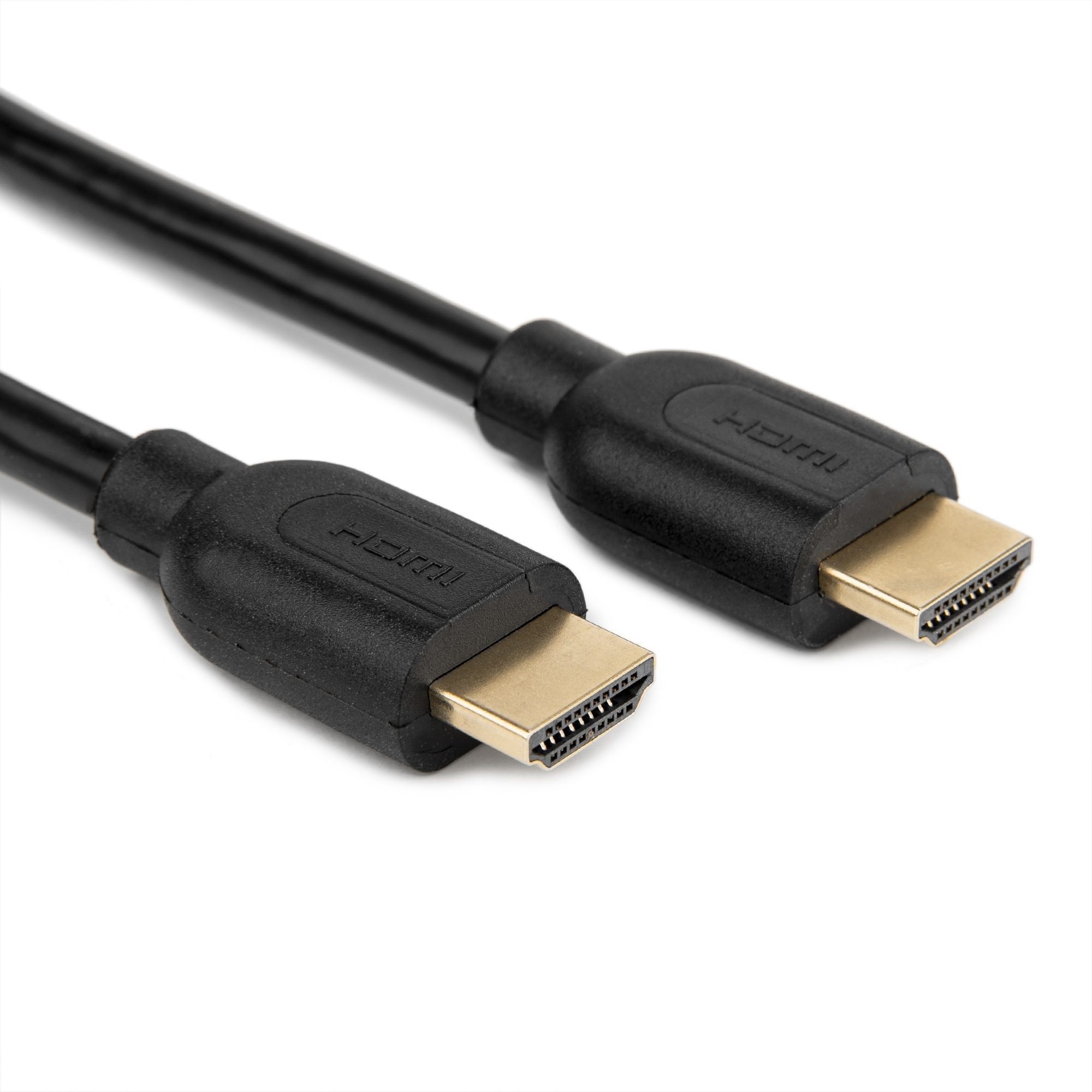

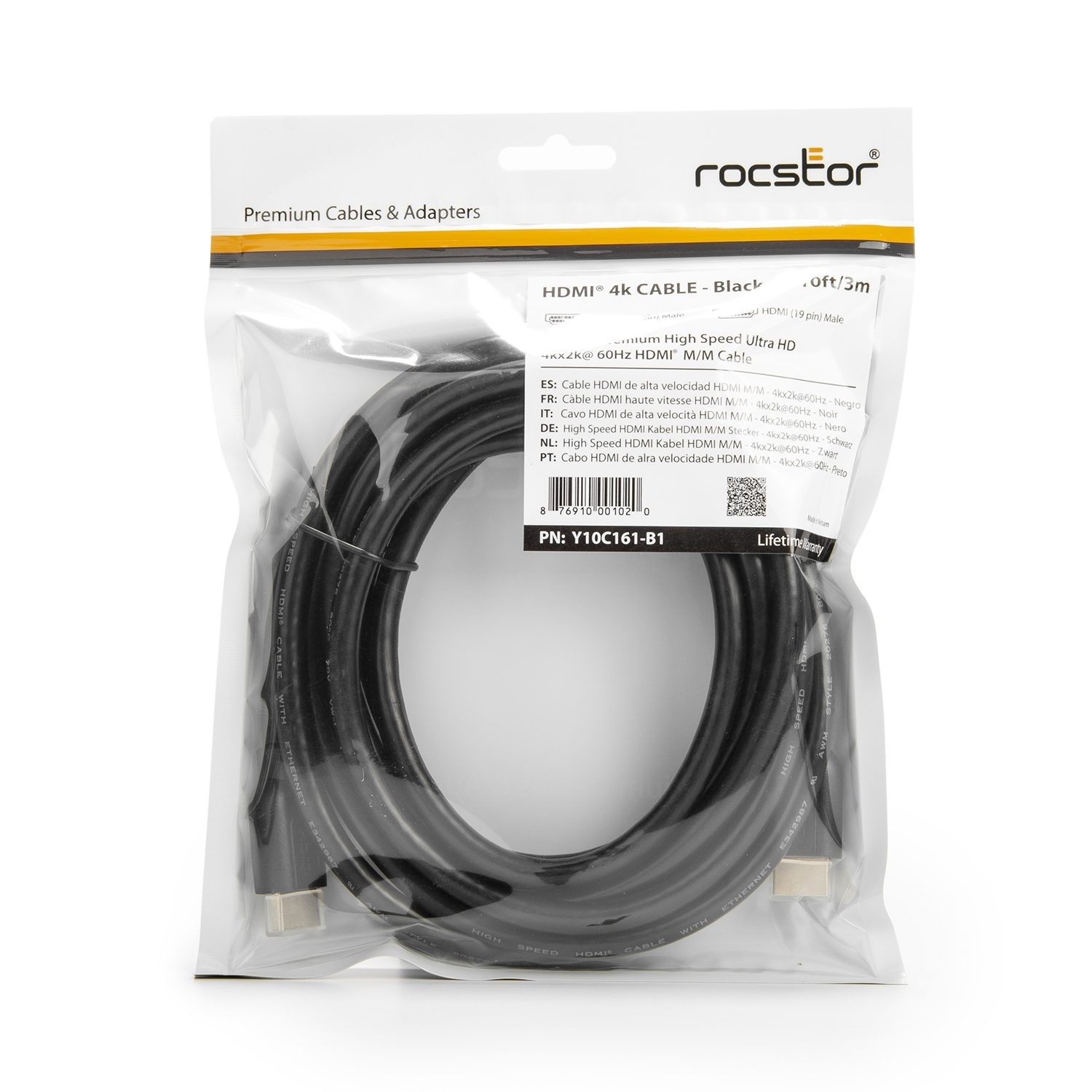

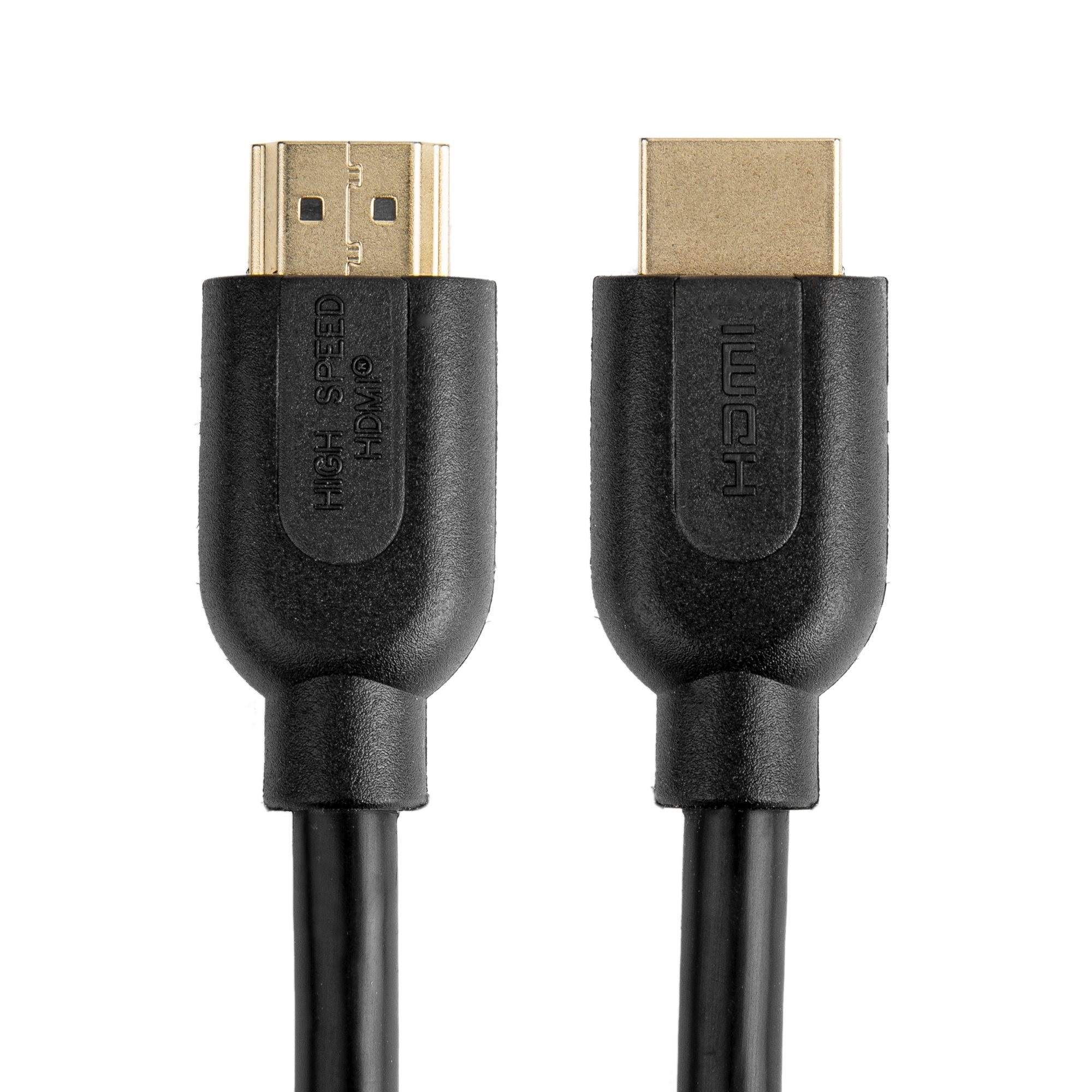

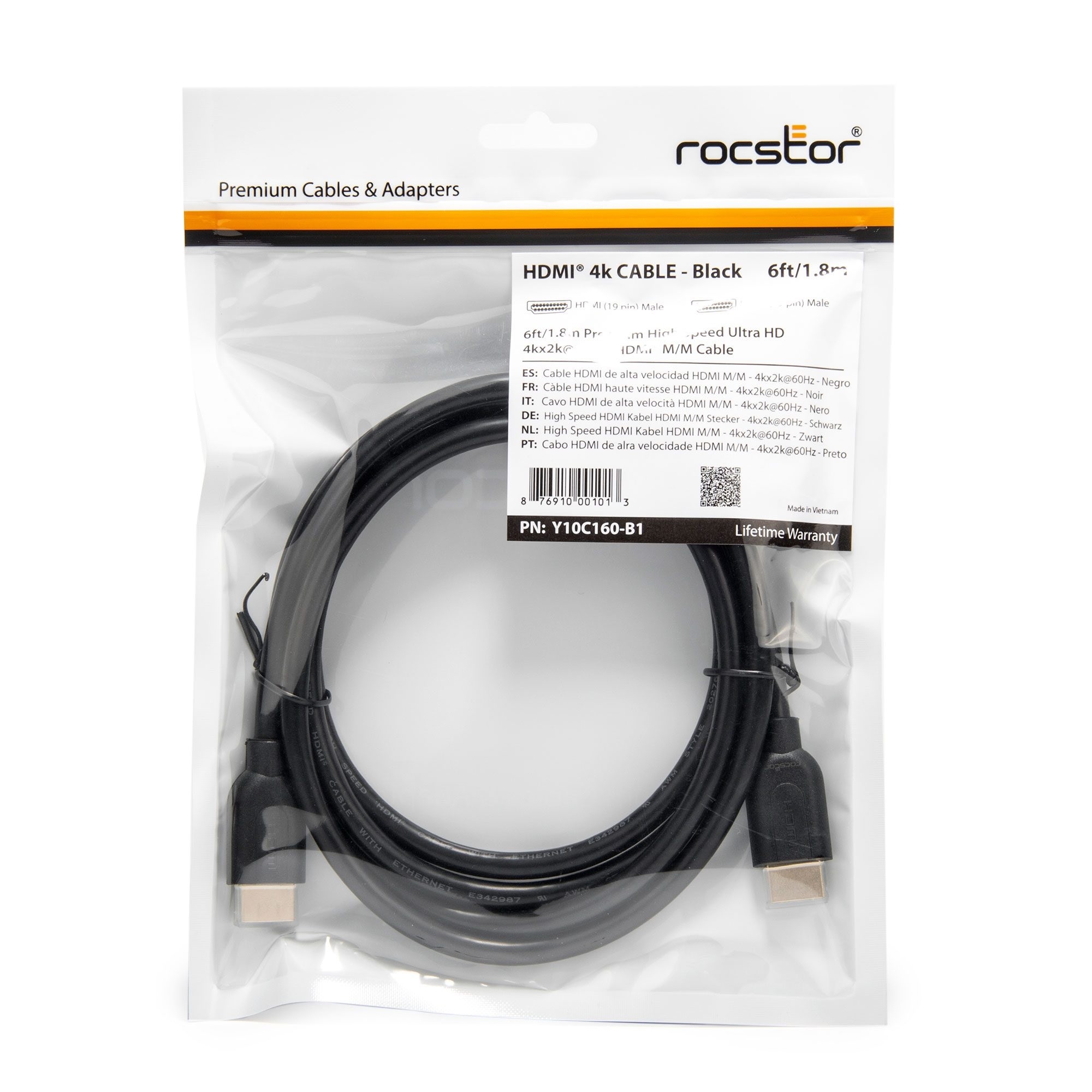

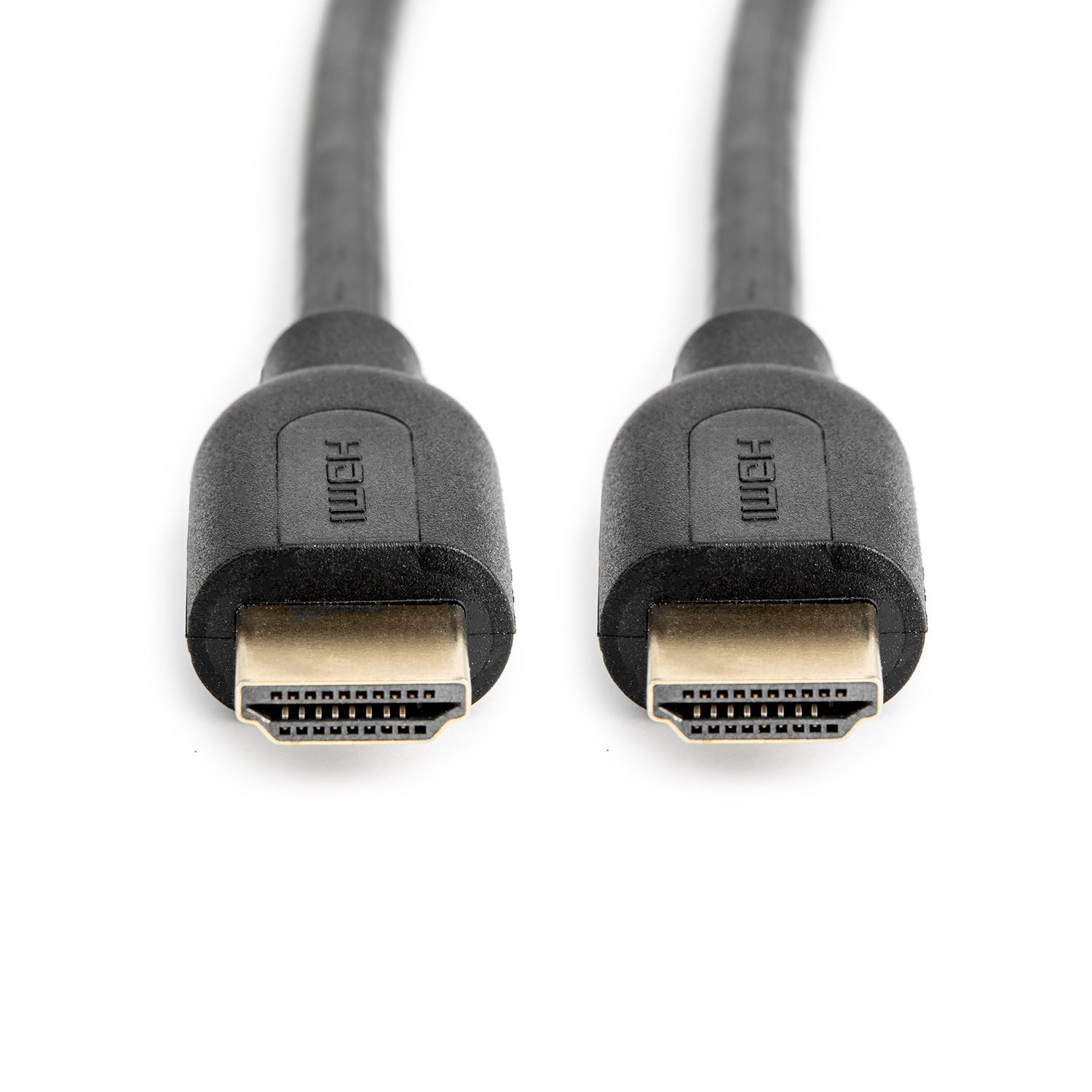

Rocstor Premium HDMI Cable with Ethernet 4K/60Hz

10ft (3m), 4K High Speed HDMI to HDMI M/M Cable Ultra HD HDMI 2.0 Supports 4k x 2k at 60Hz with resolutions up to 3840x2160p and 18Gbps Bandwidth Male to Male HDMI 2.0 for HDTV, DVD Player, Stereo Receiver, Digital Signage Projector, Gaming Console, Audio/Video Device, TV, Digital Video Recorder 1 Retail Pack Gold Plated Connectors Shielding Black



FEATURES & ATTRIBUTS

4K high resolution

18Gbps bandwidth

Gold plated connector

TPE cable jacket

Insulated conductor

High performance and flexibility

Durable and reliable

Extremely flexible and reliable cable with high quality signal transmission connection

Supports 4K UHD resolution up to 4096x2160p (3840 2160) and HDR for realistic colors and higher contrast ratio

Supports 18Gbps bandwidth and provides high speed performance

Provides reduced friction and more flexibility with perfectly insulated conductor

Withstands high mechanical load and resists extreme temperature conditions with TPE cable jacket.

Provides distortion & noise free for a high graphic HDMI display

Extremely stylish and compelling cable with gold plated connectors

Compatible with 4K high definition as well as 1080p resolution devices.
Product Type:
A/V Cable

Product Name:
Rocstor Premium High Speed HDMI Cable with Ethernet M/M- 4K 60Hz 3840x2160 Res

Manufacturer and Brand:
Rocstor

Cable Type:
HDMI

Connector:
HDMI Male to Male

American Wire Gauge:
28 AWG

Environmental Certification:
RoHS
WEEE

Environmentally Friendly:
Yes

Color
Black

Connector on First End:
1 x 19-pin HDMI Male HDMI 2.0 (Gold Platted)

Connector on Second End:
1 x 19-pin HDMI Male HDMI 2.0 (Gold Platted)

Connector Plating:
Gold

Device Supported:
Cable Box
Computers
Monitors
HDTV
Audio/Video Device
Home Theater System

Shielding:
Yes

Supported Resolution:
3840 x 2160
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

876910001020

SKU

mingleY10C161-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

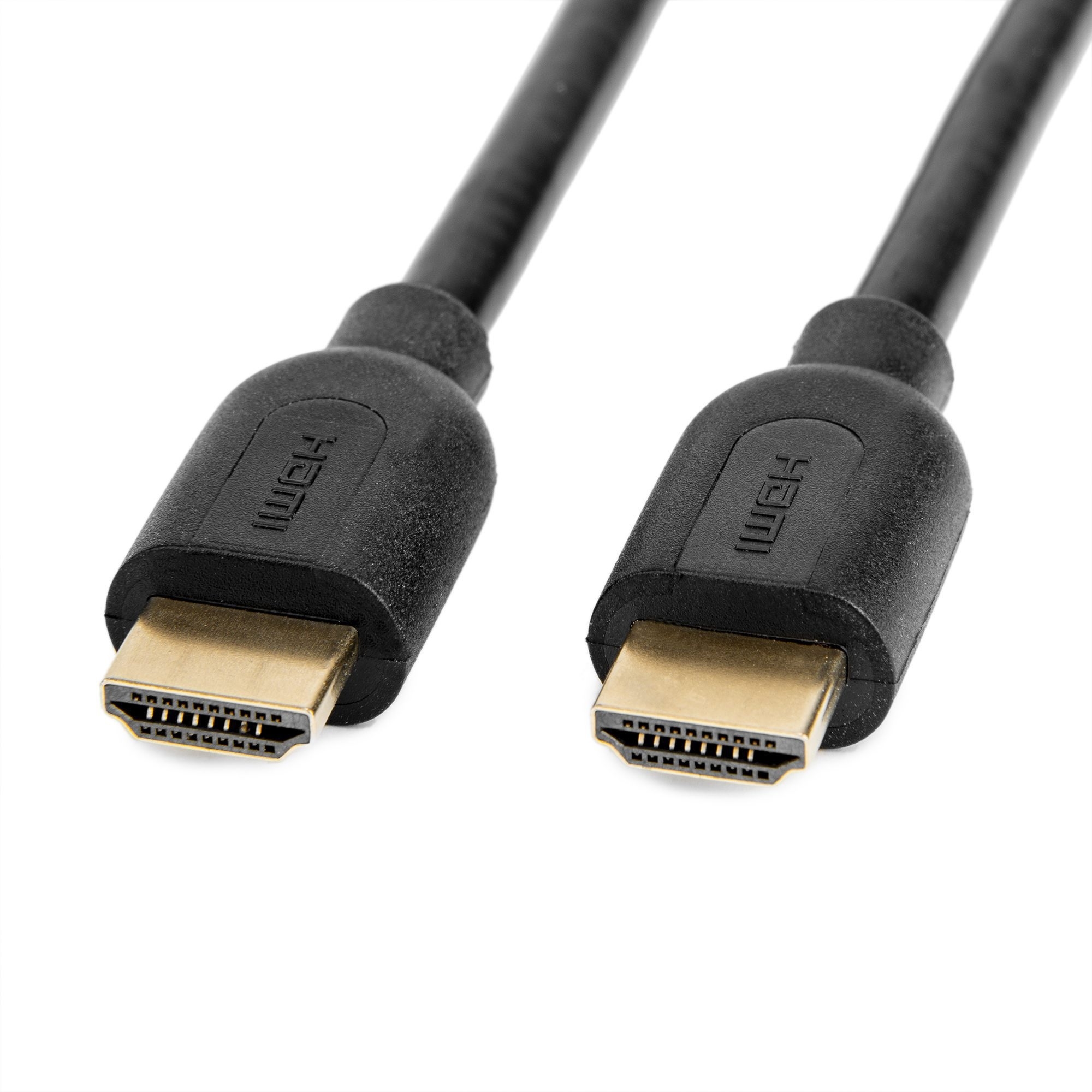

Rocstor Premium HDMI Cable with Ethernet 4K/60HzM

6ft (1.8m), 4K High Speed HDMI to HDMI M/M Cable Ultra HD HDMI 2.0 Supports 4k x 2k at 60Hz with resolutions up to 3840x2160p and 18Gbps Bandwidth Male to Male HDMI 2.0 for HDTV, DVD Player, Stereo Receiver, Digital Signage Projector, Gaming Console, Audio/Video Device, TV, Digital Video Recorder 1 Retail Pack Gold Plated Connectors Shielding Black



FEATURES & ATTRIBUTES

4K high resolution

18Gbps bandwidth

Gold plated connector

TPE cable jacket

Insulated conductor

High performance and flexibility

Durable and reliable

Extremely flexible and reliable cable with high quality signal transmission connection

Supports 4K UHD resolution up to 4096x2160p (3840 2160) and HDR for realistic colors and higher contrast ratio

Supports 18Gbps bandwidth and provides high speed performance

Provides reduced friction and more flexibility with perfectly insulated conductor

Withstands high mechanical load and resists extreme temperature conditions with TPE cable jacket.

Provides distortion & noise free for a high graphic HDMI display

Extremely stylish and compelling cable with gold plated connectors

Compatible with 4K high definition as well as 1080p resolution devices.
Product Type:
A/V Cable

Product Name:
Rocstor Premium High Speed HDMI Cable with Ethernet M/M- 4K 60Hz 3840x2160 Res

Manufacturer and Brand:
Rocstor

Cable Type:
HDMI

Connector:
HDMI Male to Male

American Wire Gauge:
28 AWG

Environmental Certification:
RoHS
WEEE

Environmentally Friendly:
Yes

Color
Black or White

Connector on First End:
1 x 19-pin HDMI Male HDMI 2.0 (Gold Platted)

Connector on Second End:
1 x 19-pin HDMI Male HDMI 2.0 (Gold Platted)

Connector Plating:
Gold

Device Supported:
Cable Box
Computers
Monitors
HDTV
Audio/Video Device
Home Theater System

Shielding:
Yes

Supported Resolution:
3840 x 2160
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

876910001013

SKU

mingleY10C160-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Rocstor Premium DisplayPort to DVI-D Video Converter Cable 6ft

6 ft (1.8m) DisplayPort 1.2 to DVI Cable M/M Resolution 3840 2160 @ 30Hz, Supports 2K,4K @ 30Hz DP 1.2v/DVI for Notebook, PC, Monitor, Video Device, TV, Projector, Graphics Card, HDTV Retail Pack Gold Plated Black



Rocstor Premium DisplayPort to DVI-D Video cable converts a DisplayPort computer output to DVI. This premium cable supports uncompressed High-Definition digital video up to 4K at 30Hz and up to 3840 2160 (at 30Hz) resolution to give you clear and high quality images. You will experience a crisp and clear picture with no lag time using this high quality qualified cable. This cable offers an ideal solution for your secured connectivity needs, it is easy to use, and requires no software or drivers.
Basic
Brand Name:
Rocstor
Cable Length:
6 ft
Cable Type:
DisplayPort 1.2/DVI
Color:
Black
Connector on First End:
DisplayPort 1.2v Male
Connector on Second End:
DVI-D (24+1) Male
General Information
Manufacturer:
Rocstor
Manufacturer Part Number:
Y10C155-B1
Manufacturer Website Address:
https://rocstor.com
Packaged Quantity:
1
Product Name:
Rocstor DisplayPort 1.2v to DVI Video Cable 6ft, Supports 4K
Product Type:
Video Cable
Physical Characteristics
Color:
Black
Technical Information
Cable Length:
6 ft
Cable Type:
DisplayPort/DVI
Conductor:
Copper
Connector on First End:
DisplayPort 1.2v Male
Connector on Second End:
DVI-D Male
Device Supported:
1) HDTV
2) Monitor
3) Video Device
4) Notebook
5) Netbook
6) TV
7)Projector

Supported Resolution:
3840 x 2160
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2-year Limited

Available Quantity

5

UPC

876910000962

SKU

mingleY10C155-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Rocstor Premium DisplayPort to DVI-D (24+1) Video Converter Cable

Rocstor s Premium 6ft DisplayPort to DVI Cable provides connectivity between a DVI Display or Projector and a DisplayPort card to from a host computer or device. The premium cable provide a 1080p Video on DisplayPort to DVI-D Cable. It utilizes a DP 1.2 to DVI Monitor Cable configuration. It 6ft Passive DP 1.2 to DVI-D single-link cable connecting to a DVI monitor with resolutions up to 1920 1200/1080p 60Hz; HBR2/HDCP 1.4; EDID.
The DisplayPort to DVI cable is the best solution for connecting your DVI display to a DisplayPort monitors. This is a durable cable that supports video resolutions up to 1920 1200 which is comparable to HDTV resolutions up to 1080p. This cable solution is a passive cable adapter that requires a DP++ Port (DisplayPort++).
6 ft, DisplayPort to DVI-D (24+1) Video Converter Cable Supports 1080p at 30Hz - M/M - Black
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2-Year Limited

Available Quantity

5

UPC

876910000818

SKU

mingleY10C150-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

USB-C to USB-A (2.0) Adapter Converter M/F, Rocstor Premium USB-C Male to USB-A 2.0 Female compact converter connects your legacy computer or device to the newer USB Type-C devices. This compat adapter allows you to connect your new USB-C device accessories to USB-A 2.0 ports. Rocstor USB-C adapter is seamless and simple to use, just plug the USB-C end of the adapter into your computer with USB-C port, then attach the USB-A 2.0 end into your device or accessory with USB-A 2.0 port.
Basic
Adapter Type:
USB
Brand Name:
Rocstor
Connector on First End:
USB Type C
Connector on Second End:
USB Type A Female
Connector Plating:
Nickel Plated
Packaged Quantity:
1
Product Type:
Data Transfer Adapter
General Information
Brand Name:
Rocstor
Manufacturer:
Rocstor
Manufacturer Part Number:
Y10C143-B1
Packaged Quantity:
1
Features:
Compact Adapter
Product Type:
Data Transfer Adapter
Miscellaneous
Environmental Certification:
RoHS
Environmentally Friendly:
Yes

Physical Characteristics
Color:
Black
Technical Information
Adapter Type:
USB
Connector on First End:
1 x 24-pin USB Type C Male USB 3.0
Connector on Second End:
1 x 9-pin USB Type A Female USB 3.0
Connector Plating:
Nickel Plated
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2-year Limited

Available Quantity

5

UPC

876910000627

SKU

mingleY10C143-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

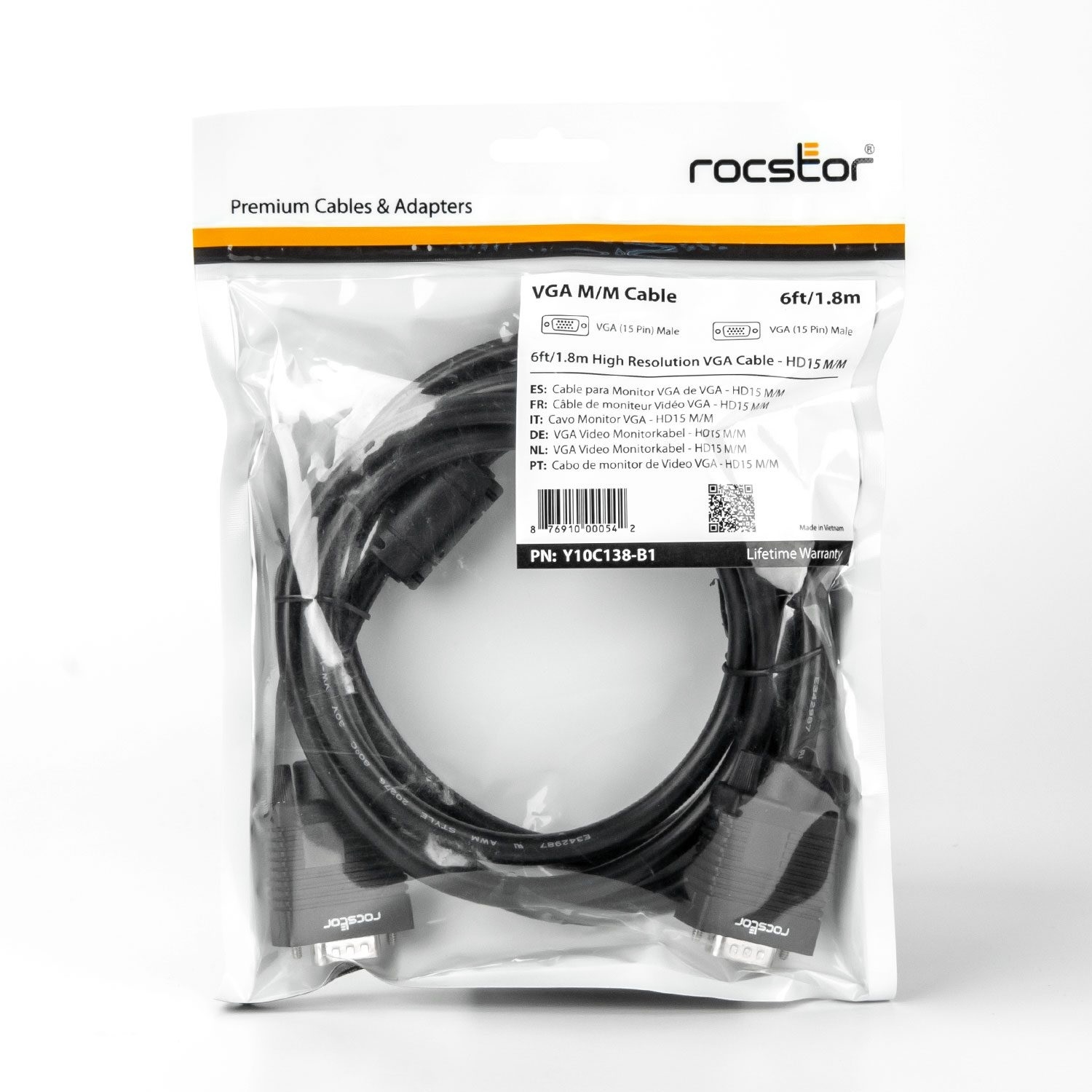

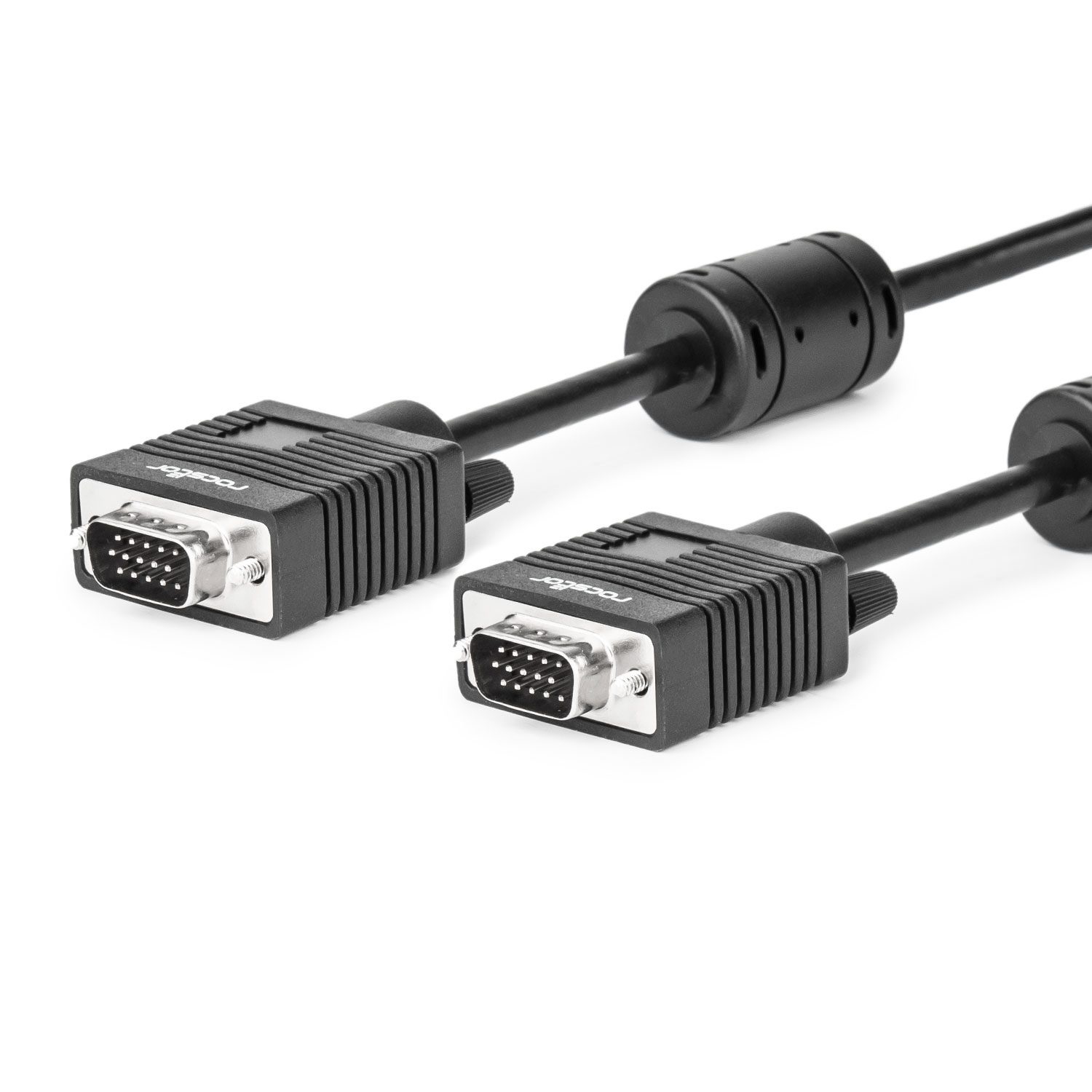

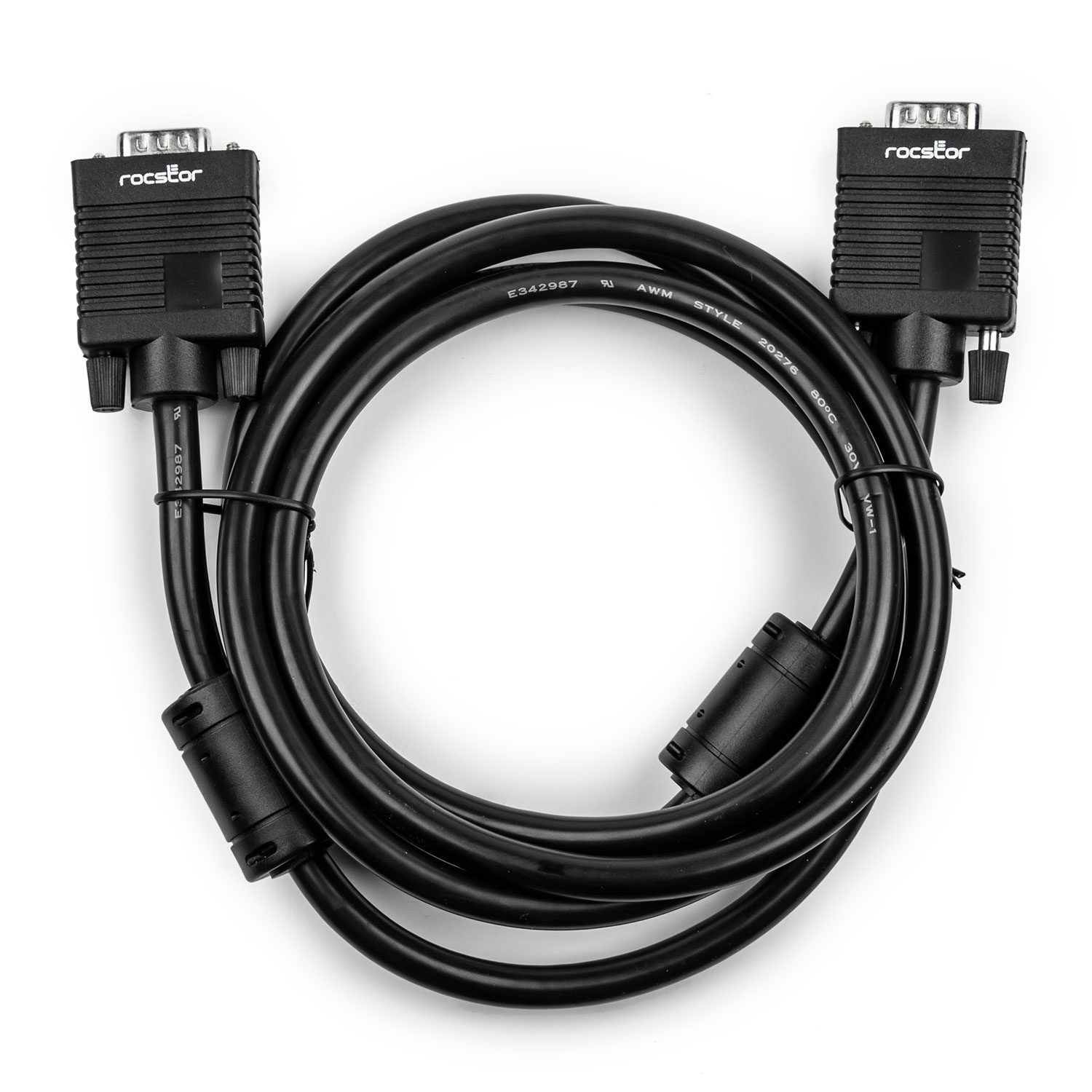

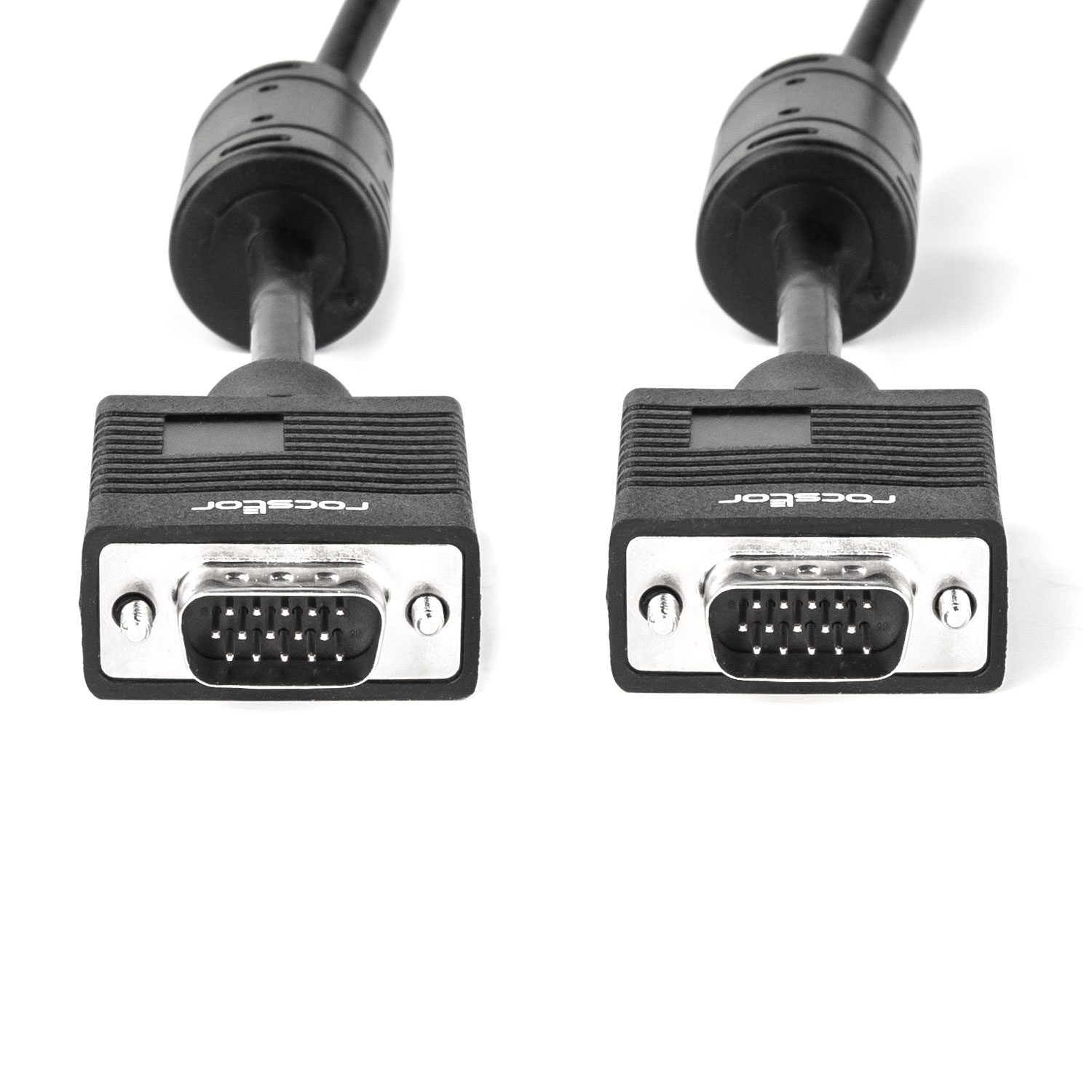

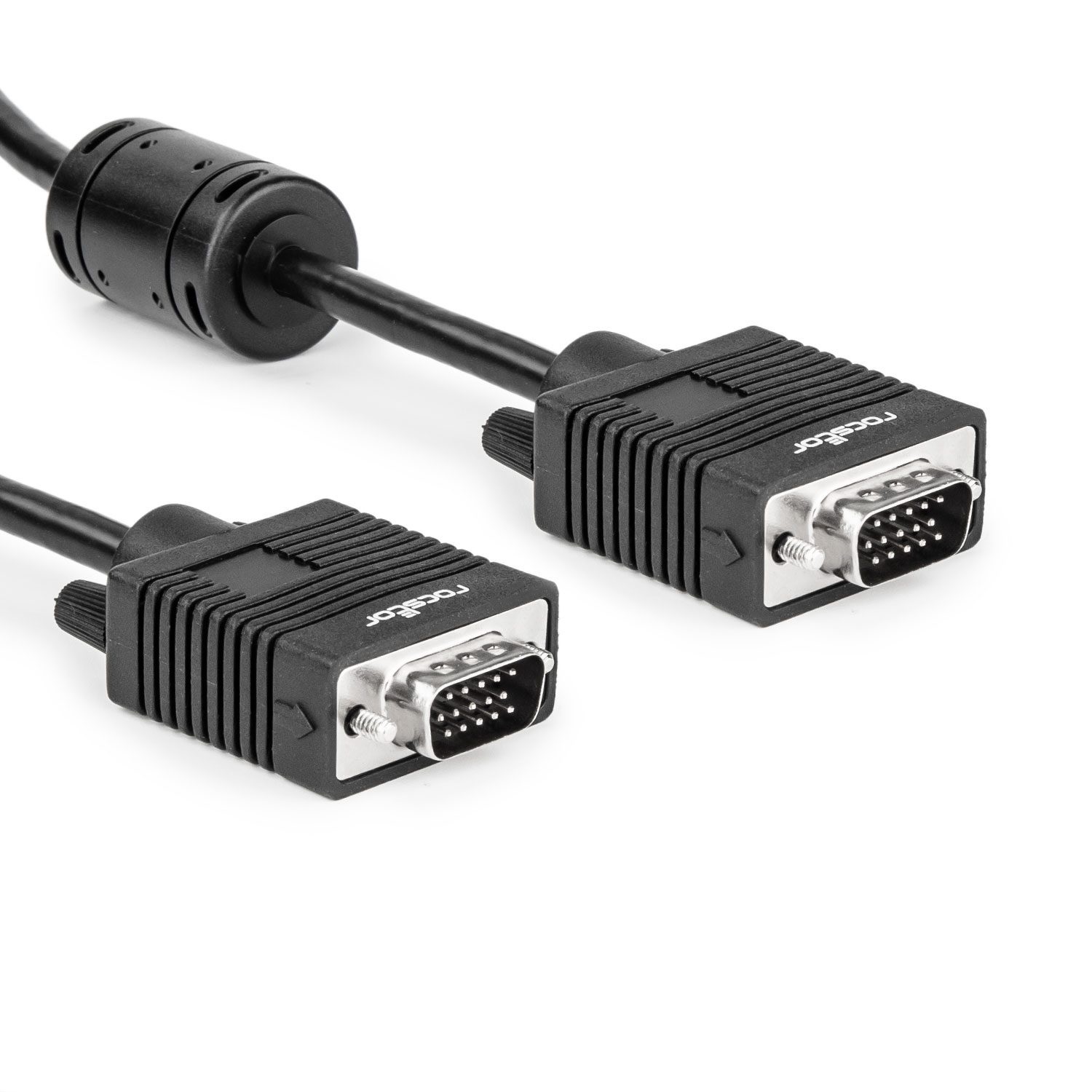

Rocstor Premium High Resolution VGA Monitor Cable<
6 ft (1.8m)- High-Resolution SVGA VGA Monitor cable For Monitor, Projector, TV Extension Cable for Video Device, Monitor, Projector First End: 1 x HD-15 Male VGA Second End: 1 x HD-15 Male VGA Extension Cable Supports up to 1920 x 1200 Shielding Nickel Plated Connector Black

Rocstor Premium High Resolution VGA Monitor Cable, These VGA monitor extension cable provides an extension to your existing VGA HD15 monitor cable or can be used as the replacement VGA cable for your computer display or projector. The Nickle plated connectors and bare copper conductors ensure excellent conductivity. Shielded for maximum EMI/RFI protection. The HD15 male connectors are molded for superior conduction power and long-lasting durability. The Rocstor VGA extension cable is RoHS-compliant as it does not use hazardous levels of any heavy metals in its construction. This High Resolution VGA Cable (3ft) provides the highest video quality possible through VGA and it provides high resolution applications of 19201200 and above. Rocstor provides you a lifetime warranty on this premium cable.

FEATURES ATTRIBUTES
SVGA/VGA monitor cable
High resolution of 1920 x 1200 and above
Nickel plated connectors
High quality picture display with resolution of 1920 x 1200 and above
Offers solid connectivity with nickel plated connectors
Features proper shielding that prevents electromagnetic interference (EMI) and radio frequency interference (RFI).
Light-weight and portable cable with long-lasting durability.
Basic
Brand Name:
Rocstor
Connector on First End:
1 x HD-15 Male Video
Connector on Second End:
1 x HD-15 Male Video
Product Type:
Video Cable
Miscellaneous
Compatibility:
Monitor, Projectors
Environmental Certification:
RoHS
Environmentally Friendly:
Yes
Technical Information
Cable Characteristic:
Extension Cable
Conductor:
Copper
Connector on First End:
1 x HD-15 Male Video
Connector on Second End:
1 x HD-15 Male Video
Device Supported:
Monitor
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

876910000542

SKU

mingleY10C138-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

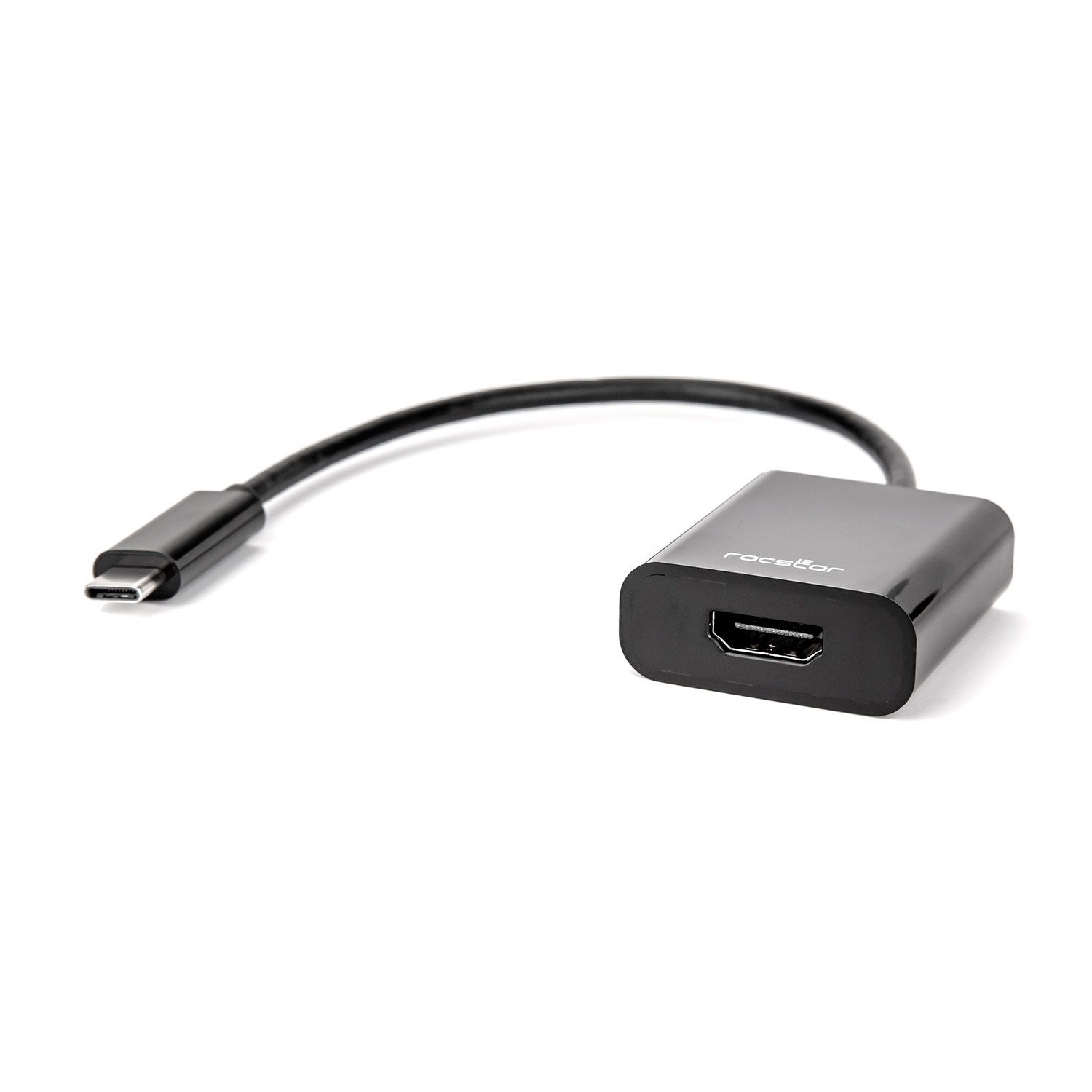

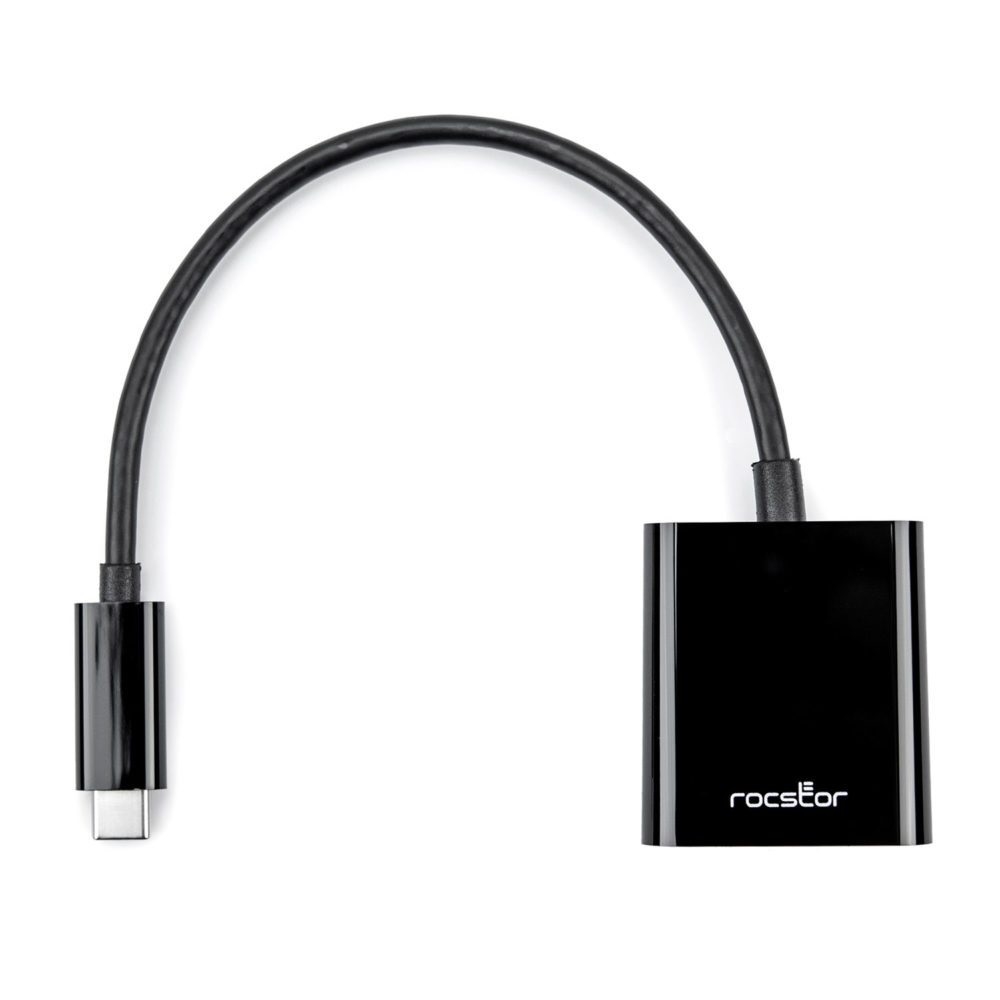

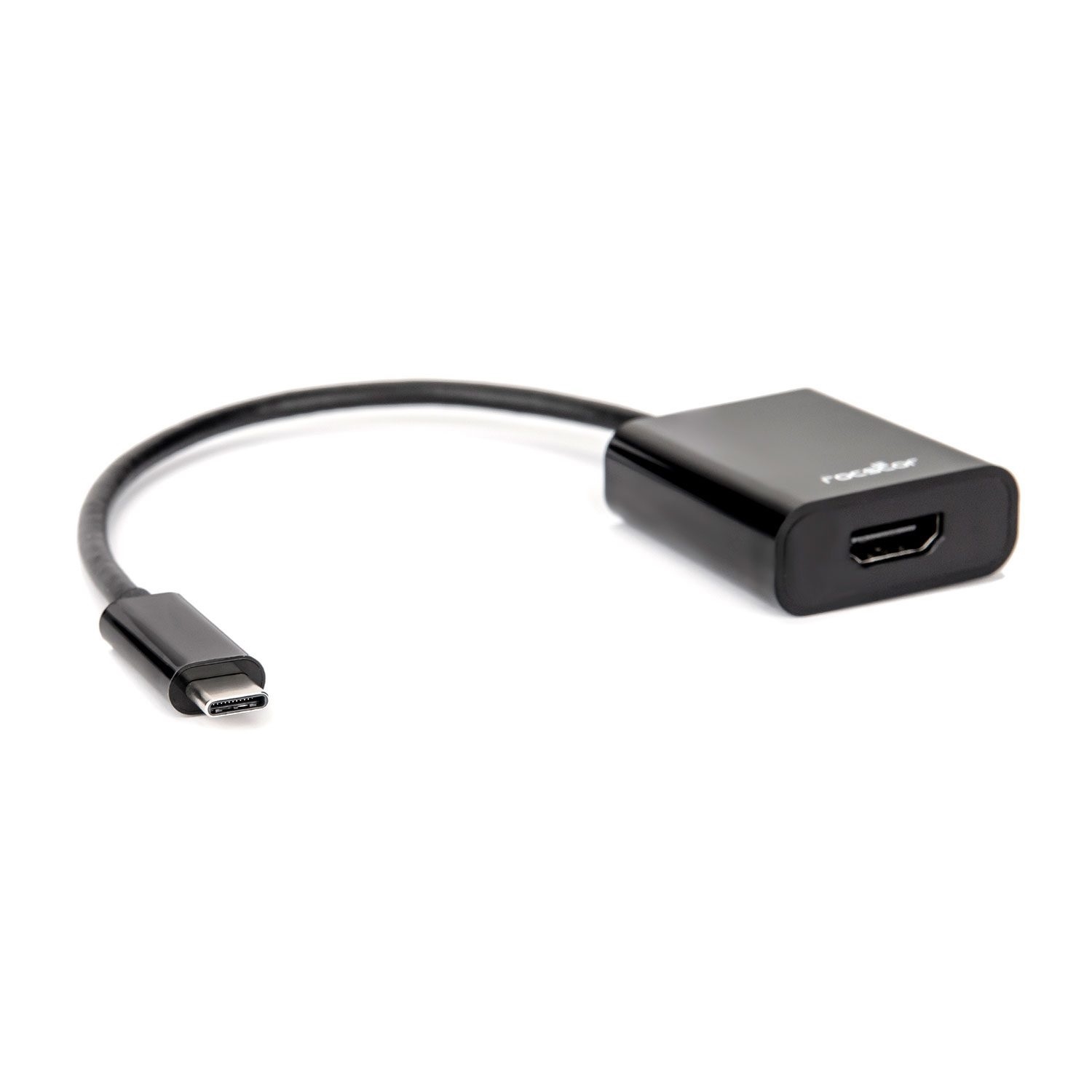

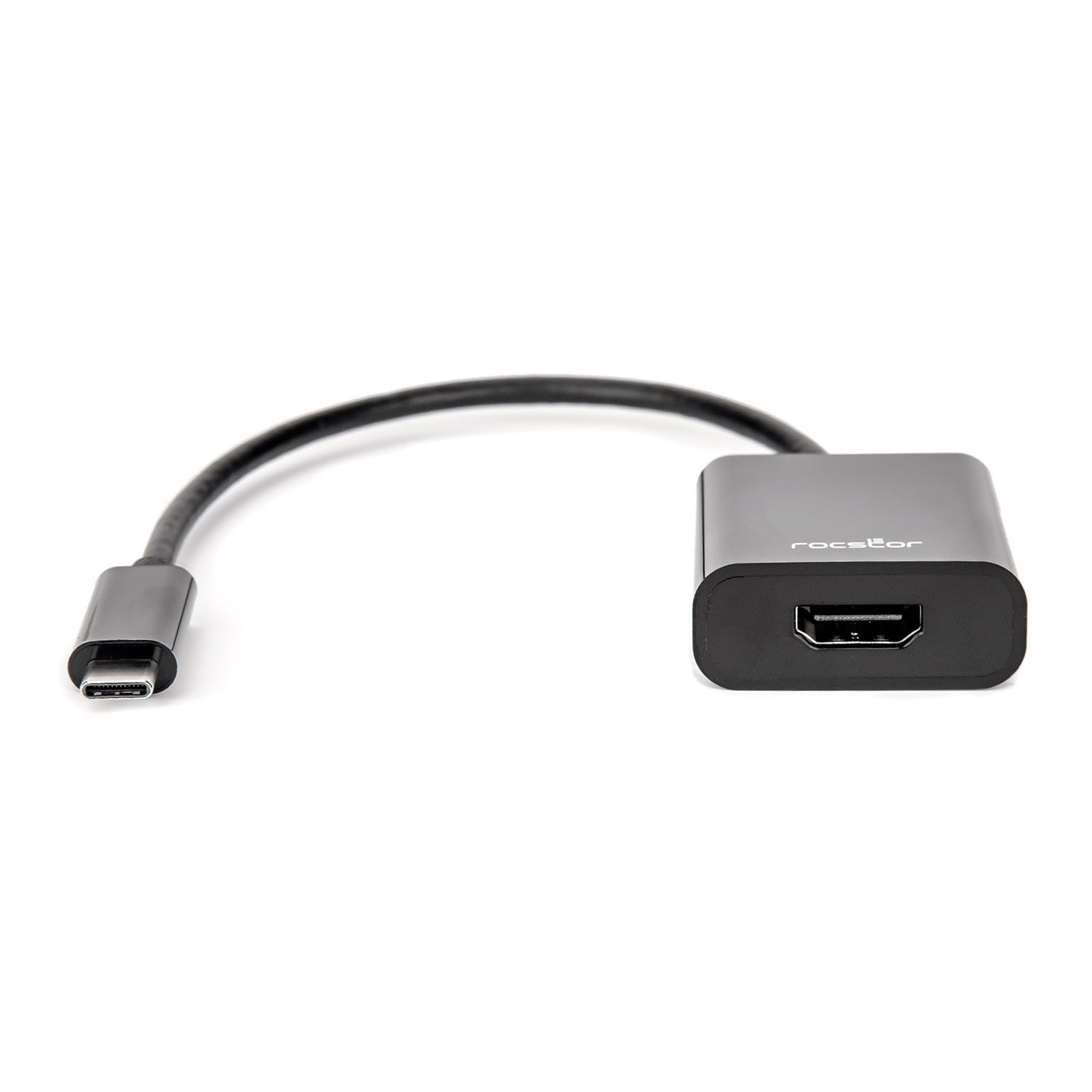

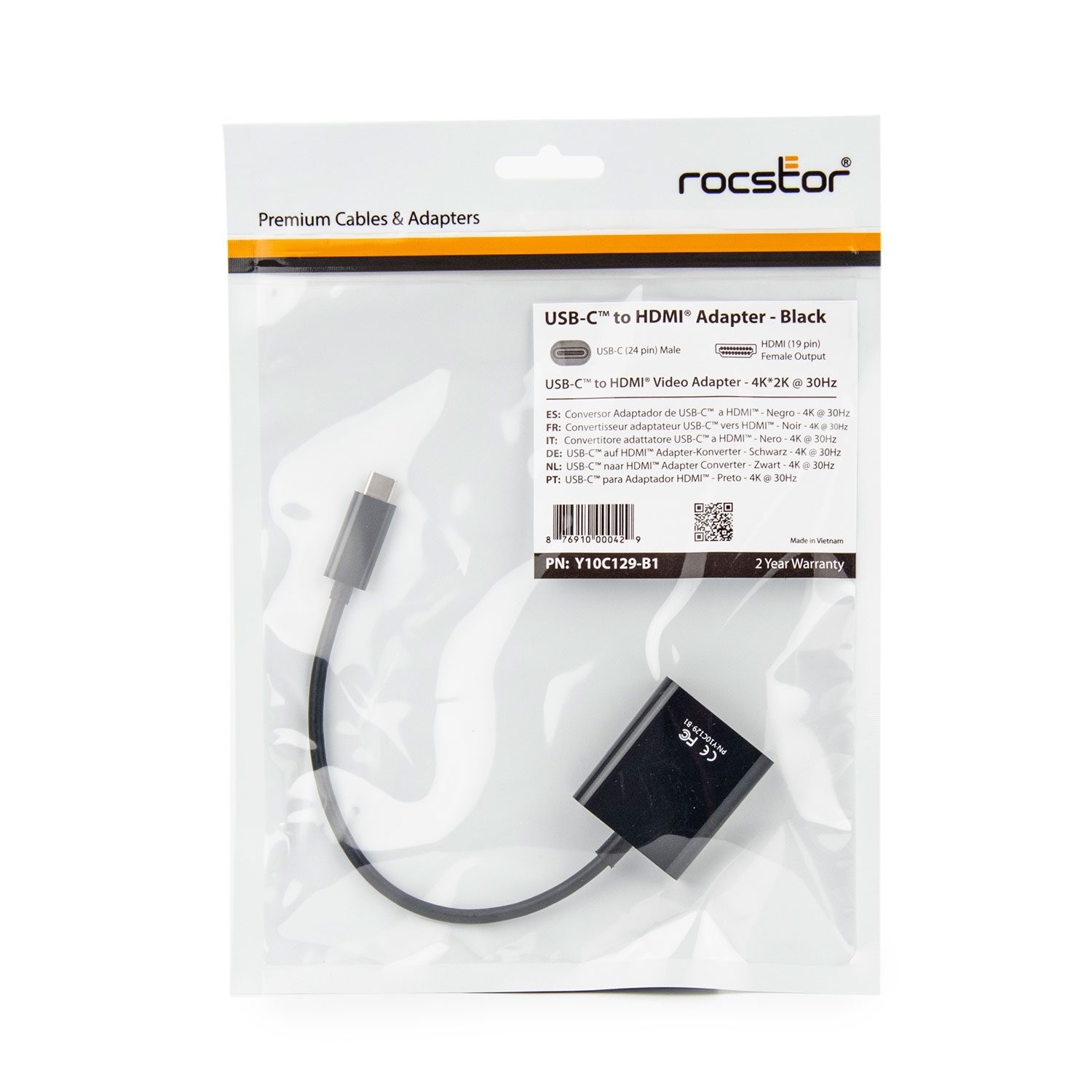

USB-C to HDMI Video Adapter M/F 4K/60Hz 6in

USB-C to HDMI Video Adapter M/F 4K/60Hz 6in is built to provide you a crystal clear 4K video feed thru your device USB Type-C port to an audio/video signal HDMI HDTV or projector to display video. This adapter provides you an easy way to connect your MacBook, Macbook Pro, Chromebook or other USB Type-C laptop to an Ultra HD 60Hz display or projector. This adapter supports up to a 4k (3840 2160 at 60Hz) resolution allowing it to deliver a high quality video image to the connected display. The Rocstor USB C to HDMI is designed and built to deliver quality images and video at 4K 60Hz display. This adapter is backward compatible with 1080p displays, which makes this Rocstor adapter extremely versatile for use at home, office or other workspace and any presentation applications. Provide you the best compatibility with USB Type-C and Thunderbolt 3 ports.
Basic
Brand Name:
Rocstor
Cable Type:
USB-C/HDMI
Connector on First End:
1 x HDMI Female Digital Audio/
Connector on Second End:
1 x USB Type C Male
Packaged Quantity:
1
Product Type:
AV/Data Transfer Cable
General Information
Brand Name:
Rocstor
Manufacturer:
Rocstor
Manufacturer Part Number:
Y10C129-B1
Packaged Quantity:
1
Product Name:
Premium USB-C to HDMI Adapter - 4K 60Hz - Resolution up to 3840x2160
Product Type:
AV/Data Transfer Cable
Miscellaneous
Environmental Certification:
RoHS
Environmentally Friendly:
Yes
Physical Characteristics
Color:
Black
Technical Information
Cable Type:
HDMI/USB
Connector on First End:
1 x HDMI Female Digital Audio/Video
Connector on Second End:
1 x USB Type C Male
Device Supported:
Projector. TV, Type-C USB
Features:
4K 60Hz Resolution - Stylish
Supported Resolution:
3840 x 2160
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2 Years Limited

Available Quantity

5

UPC

876910000429

SKU

mingleY10C129-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Rocstor Premium DisplayPort to HDMI Converter Cable 6 ft

4K DisplayPort to HDMI Cable for Monitor, Projector, Ultrabook, TV, Graphics Cards, Notebook and Desktop Computer 6 ft 1 Pack 1 x DisplayPort Male Digital Audio/Video 1 x HDMI Male Digital Audio/Video



Rocstor Premium 6 ft cable offers you to seamlessly connect your PC to your HDMI Display. This cable is versatile and it provides you to use your current HDMI display instead of buying a new DisplayPort_ monitor. Rocstor provides a premium cable and provides a connection for displaying crystal-clear video on monitors from small to large. Ideal for digital sign application, this cable supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) along with clear full audio (Depending on your DisplayPort card support of audio passthrough) and HDCP (High-Definition Content Protection). This adapter cable ensures you can maintain an astonishing picture quality, four times the resolution of 1080p, The passive adapter cable supports video resolutions up to Ultra HD 4K. This cable is backward compatible with lower resolution displays and video sources. It will support for high-definition resolutions of 1080p and 720p, and also you can easily use this cable for any future 4K video setup. This Rocstor premium cable does not need a power source, unlike other brands converter adapters that require active power. For the ultimate connection, this Rocstor cable offers gold-plated connectors and contacts and high purity BC conductors for excellent conductivity.
Basic
Brand Name:
Rocstor
Cable Length:
6 ft
Cable Type:
DisplayPort/HDMI
Connector on First End:
1 x DisplayPort Male
Connector on Second End:
1 x HDMI Male
Packaged Quantity:
1
Product Type:
A/V Cable
Miscellaneous
Environmental Certification:
RoHS
Environmentally Friendly:
Yes
Cable Length:
6 ft
Cable Type:
DisplayPort/HDMI
Connector on First End:
1 x DisplayPort Male Digital Audio/Video
Connector on Second End:
1 x HDMI Male Digital Audio/Video
Device Supported:
Ultrabook, Notebook, Projectors, Computers, Graphic Cards
Features:
Passive
Supported Resolution:
4096 x 2160
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2-year Limited

Available Quantity

5

UPC

876910000405

SKU

mingleY10C127-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

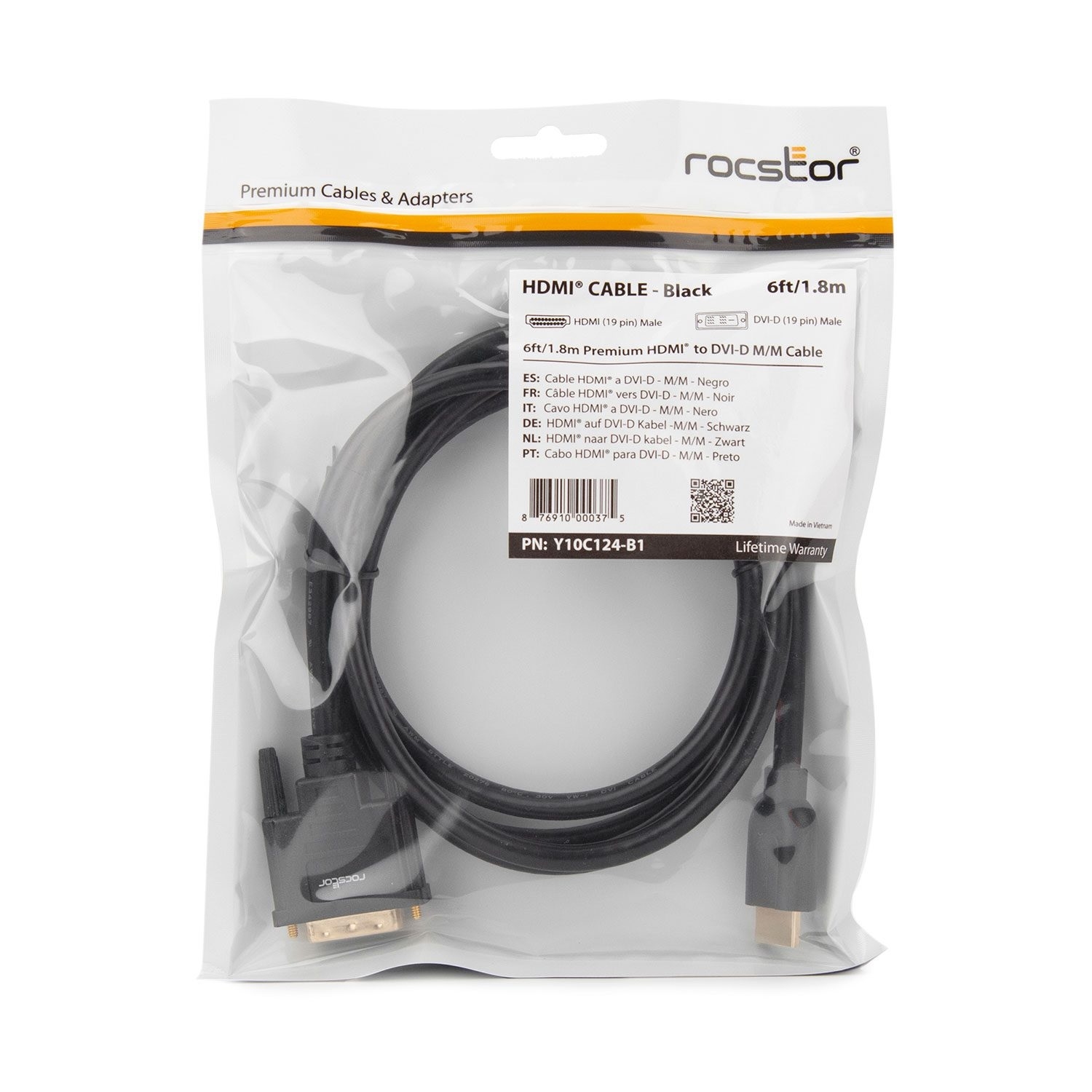

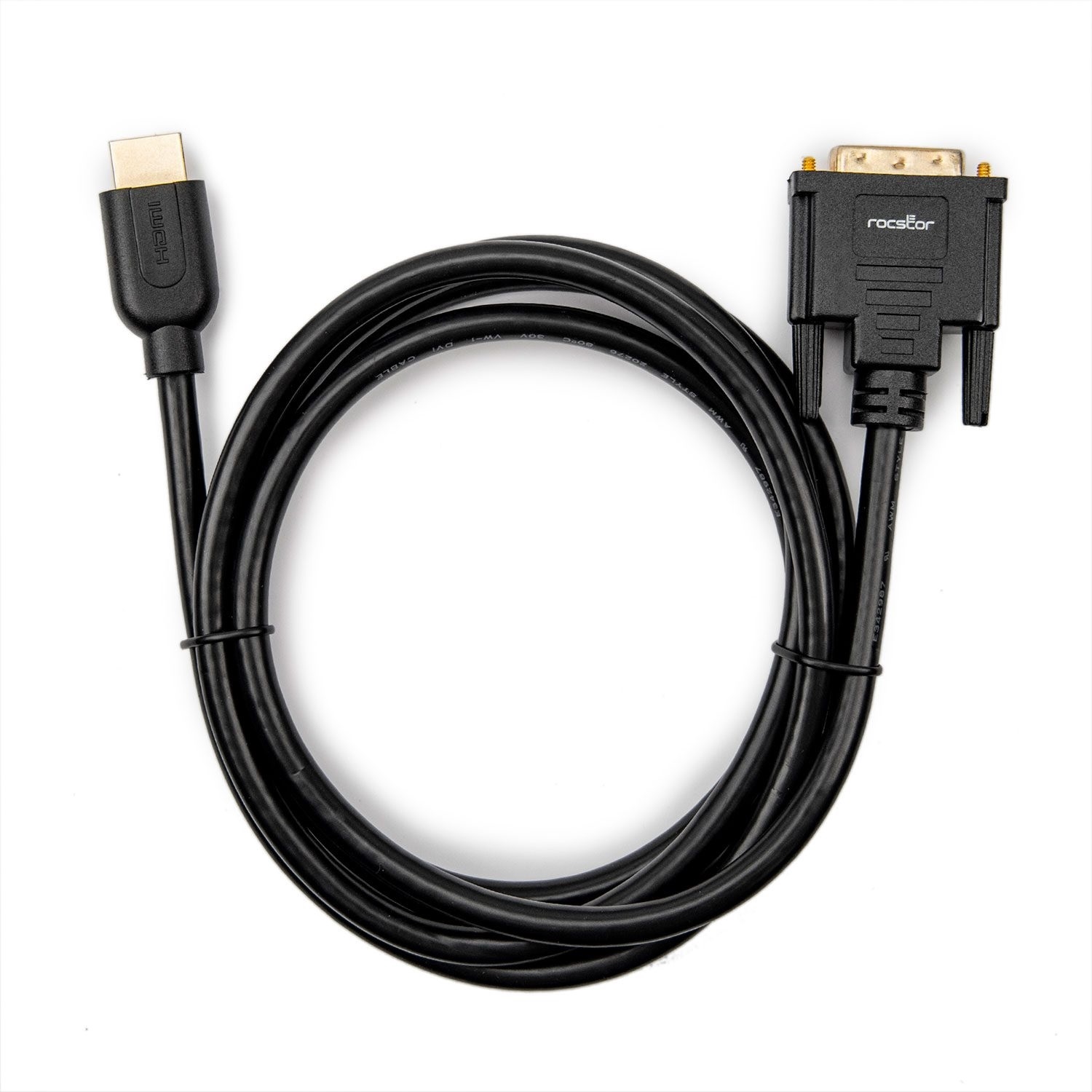

Rocstor Premium HDMI to DVI-D Cable M/M

The Rocstor 3ft Premium cable connects an HDMI source device to a DVI-D display or a DVI-D source device to an HDMI display. Quality at its core, this cable can be used for home theater applications, digital signage, notebook or desktop computer connectivity to a display. It is designed to provide you the best technology and picture quality available for your HDMI or DVI connectivity. This cable supports resolutions up to 1080p and 1920 x 1200 @60Hz, HDCP, high-bandwidth, uncompressed video, has triple shielding for maximum video performance, prevents signal loss & screen ghosting. It is RoHS Certified.



FEATURES & ATTRIBUTES

Resolutions up to 1080p and 1920 x 1200 at 60Hz

Gold-plated connector

Black cable

High performance cable with HD transmission

Supports high quality picture resolution up to 1080p and 1920 x 1200 at 60Hz.

Supports high bandwidth and uncompressed video

Features triple shielding to prevent signal loss and screen ghosting.

Light weight and portable design
Basic
Brand Name:
Rocstor
Cable Type:
DVI/HDMI
Color:
Black
Connector on First End:
1 x DVI-D (Single-Link, 18+1, 19 Pin) Male D
Connector on Second End:
1 x HDMI (Type A) Male Digital
Product Type:
Video Cable
Miscellaneous
Country of Origin:
China
Environmental Certification:
RoHS
Environmentally Friendly:
Yes
Technical Information
Cable Type:
DVI/HDMI
Conductor:
High purity BC Conductor
Connector on First End:
1 x DVI-D (Single-Link) Male Digital Video
Connector on Second End:
1 x HDMI (Type A) Male Digital Audio/Video
Connector Plating:
Gold Plated
Device Supported:
Audio/Video Device
Shielding:
Yes
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

876910000375

SKU

mingleY10C124-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

HDMI to VGA Adapter Converter M/F Black

Rocstor Premium HDMI to VGA adapter for Ultrabook, Laptop, Monitor, Projectors, Desktop PC, Laptop 1920 1080 1 Pack 1 x HDMI Male Digital Audio/Video to 1 x HD-15 Female VGA Black



HDMI to VGA Adapter Converter M/F Black. The Rocstor Premium HDMI to VGA adapter enables you take video content from your laptop, tablet, or Desktop PC and display it on any monitor, projector or HDTV featuring a VGA input. With no need for an external power source, and support for resolutions up to 1080p (1920 1080), this active HDMI to VGA adapter offers a compact and portable solution for connecting a High-Definition VGA display. Rocstor Premium cables are built strong and feature a compact design. This plug-and-play black adapter is easy to use and extremely useful for presentations for clients or movie nights with friends. It also allows you to enjoy your display content or movies on a home projector, mirror your desktop for an expanded show presentation at work, home, or school.
Technical Information
Cable Length
6"
Device Supported
Projector
Video Device
Ultrabook
Tablet
Notebook
Monitor
HDTV
Features
Active
Connector on First End
1 x HDMI Male Digital Audio/Video
Connector on Second End
1 x 15-pin HD-15 Female VGA
Cable Type
HDMI/VGA
Connector Plating
Nickel
Supported Resolution
1920 x 1080
Miscellaneous
Country of Origin
China
Environmentally Friendly
Yes
Environmental Certification
RoHS
General Information
Product Type
Video Cable
Manufacturer Part Number
Y10C120-B1
Manufacturer Website Address
http://www.rocstor.com
Manufacturer
Rocstor
Product Name
Premium HDMI/VGA Video Cable
Product Line
Premium
Brand Name
Rocstor
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2-year Limited

Available Quantity

5

UPC

876910000337

SKU

mingleY10C120-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

,b>Rocstor Premium High Speed HDMI Cable

HDMI High Speed with Ethernet Cable Video/Audio 1 x HDMI Male 1 x HDMI Male Black



Rocstor s Premium High Speed HDMI Cable with Ethernet is designed to deliver the maximum high definition experience to your HDTV. Designed with the highest Gold plated connector quality, this cable is designed to connect cable boxes, satellite receivers, Blu-ray players, streaming devices, computers, projectors, and game consoles to your flat panel TV. Rocstor HDMI cable is designed to support today s advanced electronics utilizing High Speed (category 2) HDMI with Ethernet. It supports up to 10.2 Gbps bandwidth with a 340 MHz refresh rate. You will experience a crisp and clear picture with no lag time on any of our digital video equipment. Experience full 1080p resolutions. Backwards compatible with all previous versions, it supports today s 3D capable devices for a true movie theater experience. High-Definition Multimedia Interface (HDMI) enables the delivery of both high-definition video and multichannel, digital audio quality through just one cable. Rocstor s HDMI Audio Video Cables deliver the richest possible HD video and digital audio experience to your home theater.
Basic
Brand Name:
Rocstor
Cable Type:
HDMI
Color:
Black
Connector on First End:
HDMI Male Digital Audio/Video
Connector on Second End:
HDMI Male Digital Audio/Video
General Information
Manufacturer:
Rocstorage, Inc
Manufacturer Website Address:
https://rocstor.com
Product Name:
Premium High Speed HDMI (M/M) Cable with Ethernet
Product Type:
A/V Cable
Miscellaneous
Environmental Certification:
RoHS
Environmentally Friendly:
Yes

Physical Characteristics
Color:
Black

Technical Information
Cable Type:
HDMI
Connector on First End:
1 x HDMI Male Digital Audio/Video
Connector on First End:
1) 1 x HDMI Male Digital Audio/Video
2) HDMI Male Digital Audio/Video

Connector Plating:
Gold

Data Transfer Rate:
1.28 GB/s

Device Supported:
Audio/Video Device

Supported Resolution:
1920 x 1080
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

853920000434

SKU

mingleY10C108-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Rocstor Premium High Speed HDMI Cable

HDMI High Speed with Ethernet Cable Video/Audio 1 x HDMI Male 1 x HDMI Male Black



Rocstor s Premium High Speed HDMI Cable with Ethernet is designed to deliver the maximum high definition experience to your HDTV. Designed with the highest Gold plated connector quality, this cable is designed to connect cable boxes, satellite receivers, Blu-ray players, streaming devices, computers, projectors, and game consoles to your flat panel TV. Rocstor HDMI cable is designed to support today s advanced electronics utilizing High Speed (category 2) HDMI with Ethernet. It supports up to 10.2 Gbps bandwidth with a 340 MHz refresh rate. You will experience a crisp and clear picture with no lag time on any of our digital video equipment. Experience full 1080p resolutions. Backwards compatible with all previous versions, it supports today s 3D capable devices for a true movie theater experience. High-Definition Multimedia Interface (HDMI) enables the delivery of both high-definition video and multichannel, digital audio quality through just one cable. Rocstor s HDMI Audio Video Cables deliver
the richest possible HD video and digital audio experience to your home theater.
Basic
Brand Name:
Rocstor
Cable Type:
HDMI
Color:
Black
Connector on First End:
HDMI Male Digital Audio/Video
Connector on Second End:
HDMI Male Digital Audio/Video
General Information
Manufacturer:
Rocstorage, Inc
Manufacturer Website Address:
https://rocstor.com
Product Name:
Premium High Speed HDMI (M/M) Cable with Ethernet
Product Type:
A/V Cable
Miscellaneous
Environmental Certification:
RoHS
Environmentally Friendly:
Yes

Physical Characteristics
Color:
Black

Technical Information
Cable Type:
HDMI
Connector on First End:
1 x HDMI Male Digital Audio/Video
Connector on First End:
1) 1 x HDMI Male Digital Audio/Video
2) HDMI Male Digital Audio/Video

Connector Plating:
Gold

Data Transfer Rate:
1.28 GB/s

Device Supported:
Audio/Video Device

Supported Resolution:
1920 x 1080
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

853920000427

SKU

mingleY10C107-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Rocstor Premium High Speed HDMI Cable

HDMI High Speed with Ethernet Cable Video/Audio 1 x HDMI Male 1 x HDMI Male Black



Rocstor s Premium High Speed HDMI Cable with Ethernet is designed to deliver the maximum high definition experience to your HDTV. Designed with the highest Gold plated connector quality, this cable is designed to connect cable boxes, satellite receivers, Blu-ray players, streaming devices, computers, projectors, and game consoles to your flat panel TV. Rocstor HDMI cable is designed to support today s advanced electronics utilizing High Speed (category 2) HDMI with Ethernet. It supports up to 10.2 Gbps bandwidth with a 340 MHz refresh rate. You will experience a crisp and clear picture with no lag time on any of our digital video equipment. Experience full 1080p resolutions. Backwards compatible with all previous versions, it supports today s 3D capable devices for a true movie theater experience. High-Definition Multimedia Interface (HDMI) enables the delivery of both high-definition video and multichannel, digital audio quality through just one cable. Rocstor s HDMI Audio Video Cables deliver the richest possible HD video and digital audio experience to your home theater.
Basic
Brand Name:
Rocstor
Cable Length:
3ft
Cable Type:
HDMI
Color:
Black
Connector on First End:
HDMI Male Digital Audio/Video
Connector on Second End:
HDMI Male Digital Audio/Video
General Information
Manufacturer:
Rocstorage, Inc
Manufacturer Website Address:
https://rocstor.com
Product Name:
Premium High Speed HDMI (M/M) Cable with Ethernet
Product Type:
A/V Cable
Miscellaneous
Environmental Certification:
RoHS
Environmentally Friendly:
Yes

Physical Characteristics
Color:
Black
Technical Information
Cable Type:
HDMI
Connector on First End:
1 x HDMI Male Digital Audio/Video
Connector on First End:
1) 1 x HDMI Male Digital Audio/Video
2) HDMI Male Digital Audio/Video
Connector Plating:
Gold
Data Transfer Rate:
1.28 GB/s
Device Supported:
Audio/Video Device
Supported Resolution:
1920 x 1080
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

853920000410

SKU

mingleY10C106-B1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Rocstor Premium Mini DisplayPort to HDMI 1.2 4K 8 in. Adapter M/F 4K@ 30Hz mDP 1.2 White



The Rocstor Premium 8in / 20cm Mini DisplayPort allows you to connect your Mini DisplayPort equipped device to an HDMI display. For example, connect your MacBook Air or MacBook Pro to an HDMI display, allowing you to connect an HDMI display to a Single Mode mDP video source. Compatible with Mini DisplayPort 1.2 and HDMI 4K @ 30Hz, resolutions up to Ultra HD 4K can be achieved as well as 7.1 channel surround sound. Additionally, the HDMI converter is compatible with Intel Thunderbolt 2 devices that output a DisplayPort video signal. This adapter has an active conversion feature to make sure that it is compatible with any mDP output which is needed to maintain 4K resolutions. This adapter is backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p. Furthermore, this adapter is perfect for 1080p resolution outputs that are compatible with graphic cards that are not able to output multi-mode DP++ signals.
Technical Information
Cable Length
8"
Conductor
Copper
Device Supported
MacBook Air
Audio/Video Device
MacBook Pro
Features
Active
Connector on First End
1 x Mini DisplayPort Male Digital Audio/Video
Connector on Second End
1 x HDMI Female Digital Audio/Video
Cable Type
HDMI/Mini DisplayPort
Supported Resolution
3840 x 2160
Miscellaneous
Country of Origin
China
Environmentally Friendly
Yes
Environmental Certification
RoHS
Item Dimension (L inchxW inchxH inch)
10 x 8 x 1

Weight
1 lb

Warranty Information
2-year Limited Hardware Warranty

Available Quantity

5

UPC

810606031519

SKU

mingleY10A224-W1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164 ft (50 meters) via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup


Supports Ultra High-Definition video resolution up to [email protected], HDCP 2.2, YUV 4:4:4, 8-bit, HDR 4:2:0 10-bit to deliver a crystal-clear picture quality, Deep color and 3D


The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to the extended display


Supports EDID passthrough and auto downscaling, detects and configures video resolution from 4K to 1080p to the capabilities of each connected monitor.


Audio supports PCM / DTS-HD/ Dolby Digital 5.1ch, support IR passthrough for 20KHz to 60KHz


Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.


Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life


Plug-n-Play, no driver and software installation or hardware setup is required
Compliant with HDCP 2.2/1.4, support HDR 10
Supports resolution:
4K (3840x2160)/1080p/1080i/720p/480i/480p at 60Hz
Maximum transfer rate:
18Gbps
Audio:
PCM / DTS-HD/ Dolby Digital 5.1ch
Transmission Distance:
Up to 164ft/50M via Cat6/7 cable
HDMI cable length:
up to 5 meters (Input and output)
IR Remote Control:
20-60KHz Frequency Range
Product
Color:
Black
Housing:
Metal

Transmitting unit (TX):
Dimensions:
2.95" (W) x 0.83" (H) x 2.36" (D)
Weight:
0.29 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop out
1x 3.5mm jack, IR Blaster
1x 8-pin, RJ45 Output
1x Reset hole
1x Power Jack

Receiving unit (RX):
Dimensions:
2.95" (W) x 0.83" (H) x 2.36" (D)
Weight:
0.29 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin RJ45, Input
1x Reset hole
1x Power Jack
Power adapter:
Input:
100-240V / 50-60Hz
Output:
DC 5V/0.5A
UL listed:
E335801 / Level: VI
Environmental conditions:
Operating temperature:
-20 to 60 degrees F
Storage temperature:
-30 to 70 degrees F
Relative humidity:
0% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
Engineered in USA , Manufactured in China
Package contents
4K60Hz HDMI over Cat6 Extender with Loopout and IR - 50m
Power adapter (x2)
IR Blaster extension cable
IR Receiver extension cable
Quick Start Guide
Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
1.04 lbs

Warranty Information
2 years limited

Available Quantity

5

UPC

662774045849

SKU

mingleCE-H27K11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview
The P568-050-ACT Active High-Speed HDMI Cable (M/M) connects a computer, cable box or Blu-ray source to a high-definition monitor, projector or television up to 50-ft. (15.24 m) away. Its built-in signal booster allows a clean audio/video transmission without the effort and expense of adding an external repeater to your HDMI cable run. Plus, a built-in equalization control lets you manually adjust the display image to your liking.
The P568-050-ACT is recommended for digital signage, boardroom and classroom presentations, point-of-sale displays, businesses and other applications that display HD video and multi-channel audio. It supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz. When used with an Apple digital A/V adapter, it supports iPad2 video mirroring for playing games, watching videos or displaying presentations. Backward compatible with previous HDMI generations, the P568-050-ACT is compliant with HDCP v1.3 standards.
The 50-ft. (15.24 m) molded 28 AWG cable features foil and braid shielding to deliver top-of-the-line signal quality and protection from crosstalk and EMI/RFI interference. Corrosion-resistant gold-plated connectors and contacts provide maximum conductivity and minimize data loss. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. A flexible PVC jacket makes the cable easy to install in tight spaces.
Features
Connects HDMI Source to High-Definition TV, Projector or Monitor
Recommended for digital signage, boardroom and classroom presentations, point-of-sale displays, businesses and other applications that display HD video and multi-channel audio
OVERVIEW
Product Type
Active
Technology
HDMI
VIDEO
Video Input
HDMI (MALE)
Video Output
HDMI (MALE)
Max Supported Video Resolution
1920x1080 at 60Hz
Max 1280 x 720 (720p) Range (ft)
50
Max 1920 x 1080 (1080p) Range (ft)
50
Max Supported Color Depth
24-bit True Color
HDR Support
No
3D Video Supported
No
Chroma Sub Sampling
4:2:0
Maximum Signal Range (ft)
50
EDID Support
Yes
Signal Transmission
Unidirectional
AUDIO
Audio Input
HDMI
Audio Output
HDMI
Audio Specification
Stereo Audio
POWER
Power Source Type
USB
Power Source
Receiver end only (Optional)
Power Over Cable (PoC) Support
No
USER INTERFACE, ALERTS AND CONTROLS
LED Indicators
1
PHYSICAL
Color
Black
Cable Jacket Color
Black
Connector Color
Black
Cable Jacket Material
PVC
Cable Jacket Rating
VW-1
Cable Outer Diameter (OD)
7.3mm
Wire Gauge (AWG)
28
Cable Length (ft.)
50
Ferrite Core
No
Minimum Bend Radius
73mm
Number of Displays
1
Form Factor/Mounting Options
Cable
ENVIRONMENTAL
Operating Temperature Range
32 to 113 F (0 to 45 C)
Storage Temperature Range
-40 - 80 ^oC (-40 - 176 ^oF)
Operating Humidity Range
10 to 85% RH, Non-Condensing
Storage Humidity Range
5 to 90% RH, Non-Condensing
COMMUNICATIONS
EDID Compatible
Yes
IR Remote Extension Support
No
RS-232 Serial Extension Support
No
Consumer Electronics Control (CEC) Supported
No
USB Extension Support
No
CONNECTIONS
Side A - Connector 1
HDMI (MALE)
Side B - Connector 1
HDMI (MALE)
Connector Plating
Gold
Contact Plating
Gold
Connector Style
Straight
FEATURES AND SPECIFICATIONS
HDCP Specification
1.3
Driver Required
No
EMI/RFI Line Noise Protection
No
10/100 Ethernet Extension Support
No
Built-In Equalizer
Yes
Ethernet Support
No
STANDARDS AND COMPLIANCE
Product Compliance
RoHS CE (Europe) REACH FCC (USA)
Item Dimension (L"xW"xH")
1 x 11 x 12

Weight
2.1 lbs

Warranty Information
NA

Available Quantity

5

UPC

037332200563

SKU

mingleP568-050-ACT

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency

Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system

Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1

The transmitter's HDMI loop-out allows for local monitoring of the extended display

The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device

Lightning protection, surge protection, ESD protection

Plug and play, no driver installation required

High quality metal housing improve heat dissipation and ensure system stability during long hours of operation


Multiple Connectivity Ports

Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)


Applications

Lecture hall

Educational facilities

Multimedia education

Home theater

Restaurant

Shopping center

Digital signage

Meeting room

Trade show

Library

Show room

Church
Compliant with HDCP 2.2
Resolution:
Up to 3840x2160 at 60Hz, 2160p / 1080p / 1080i / 720p / 480p
HDMI Audio format:
PCM 2/5.1-ch, Dolby/DTS 5.1
Toslink Audio format:
PCM 2ch, Dolby/DTS 5.1
Transmission Distance:
4K at 60Hz: Up to 40m via Cat5 cable
4K at 60Hz: Up to 70m via Cat6/6a/7 cable
Product:
Housing material:
Metal
Color:
Black
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop-out
1x 4-pin USB 2.0 Type-A, Female, for Host connection
1x 8-pin, RJ45, Output
1x Reset button
1x Power jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse or touch screen for control
1x 8-pin, RJ45, Input
1x S/PDIF Toslink, Audio
1x Reset button
1x Power jack
Power adapter:
Input:
100-240V / 50-60Hz
Output:
DC 5V/2A
UL listed:
E335801 / Level: VI
Environmental conditions:
Operating temperature:
14 to 140^oC
Storage temperature:
-4 to 158^oC
Relative humidity:
0% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Interface
Transmitter unit (TX):
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 4-pin, USB 2.0 Type-A, Female (for Host)
1x 8-pin, RJ45 (output)
1x Reset button
1x DC power jack (5V/2A)
Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
2x 4-pin, USB 2.0 Type-A, Female (for keyboard and mouse/touch screen)
1x 8-pin, RJ45 (input)
1x S/PDIF audio, Toslink (output)
1x Reset button
1x DC power jack (5V/2A)
Package contents
4K 60Hz HDR HDMI KVM Over Cat6 Extender with SPDIF and Touch Screen Support
Power adapter (x2)
USB 2.0 Type-A to Type-A cable
Mounting ears and Screw kit
User manual
Item Dimension (L inchxW inchxH inch)
15 x 4 x 7

Weight
4.00 lb

Warranty Information
NA

Available Quantity

5

UPC

662774045252

SKU

mingleCE-H27811-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

Transmits and receives HDMI A/V signals wirelessly without complicated cable or wire installation, working range up to 656ft through line-of-sight environment

Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum

It offers high quality configurable, low-bandwidth video and support up to 1080p@60Hz

Four Receivers At Same Time: Connect one transmitter to four receivers and a local HD display simultaneously! Perfect for sharing content like movies or security systems throughout the house or business! Note: Requires Full HD Wireless HDMI Extender - Receiver (part # CE-H27711-S1) sold separately

Build in 5G wireless high speed transmission signal, faster transmission speed and stronger anti-interference ability. Using an external dual-gain antenna can transmit over long distance, up to 656 ft in an open space.

Note: A delay of less than 200ms might occur due to data compression- Not recommended using for PC gaming.

Supports Audio format LPCM 2.0 CH up to 48KHz

Built-in one way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 60KHz carrier frequency

Works with most of the HDMI equipped devices, such as DVD, Blu-ray players, Set-top boxes, AV receivers, Cable/Satellite boxes and computer systems

Ideal wireless solution for apartments or condos where installing wiring is prohibited, a perfect solution for adding displays throughout your home or serving as digital signage, POP for small business office and showroom

Compact design for easy and flexible installation

Plug-n-play, no software or Wi-Fi connection required
HDMI Bandwidth:
Up to 10.2G
Supported Resolutions:
Up to 1920x1080 at 60
HDCP Version:
HDCP 1.3 compatible
Wireless Bandwidth:
5GHz
Transmission Distance:
1 to 1: 200m (656ft) line-of-sight
1 to 2: 120m (394ft) line-of-sight
1 to 3: 60m (197ft) line-of-sight
1 to 4: 30m (98ft) line-of-sight
Note:
The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
HDMI Cable Length:
Up to 5m (Input and Output)
Audio Format:
R/L LPCM 2.0CH 32KHz / 44.1KHz / 48KHz
IR Remote Control:
20-60Hz Frequency Range
Color:
Black
Housing:
Metal
Transmitting unit (TX):
Connector:
1x 19-pin, HDMI, Female, Input
1x 19-pin HDMI, Female loopout
1x Infrared 3.5mm socket,, IR Out
1x Reset Button
2x Antenna port
1x Power Jack
Receiving unit (RX):
Connector:
1x 19-pin, HDMI, Female, Output
1x Infrared 3.5mm socket, IR In
1x Reset Button
2x Antenna port
1x Power Jack
Power Adapter
Input:
AC 100-240V/50-60Hz
Output:
DC 12V/1A
UL Listed:
E336751 / Class: VI
Environmental conditions:
Operating temperature:
32 to 140 degrees F
Storage temperature:
23 to 158 degrees F
Relative humidity:
5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, RoHS
Interface
Transmitter unit (TX):
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female
1x 3.5mm, Infrared jack (IR output)
2x Wi-Fi antenna jacks, 5G bandwidth
1x reset button
1x DC 12V/1A power jack
Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
1x 3.5mm, Infrared jack (IR input)
2x Wi-Fi antenna jacks, 5G bandwidth
1x reset button
1x DC 12V/1A power jack
Package contents
Full HD Wireless HDMI Extender with Loopout and IR Kit
IR blaster extension cable
IR receiver extension cable
Power Adapter 12V/1A (x2)
Quick Start Guide
Item Dimension (L inchxW inchxH inch)
11 x 4 x 7

Weight
3.00 lb

Warranty Information
NA

Available Quantity

5

UPC

662774045238

SKU

mingleCE-H27611-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Extends HDMI audio/video signals up to 120m over cost effective Cat 6/7 cable, while maintaining signal strength and superior audio/video quality, 4K30Hz, HDCP 1.4, One to Many, Many-to-Many, IR Control


Features

Transmits HDMI audio and video signals to a remote display/monitor over UTP Cat6/7 cable up to 394ft (120m) and sends the 4K HD resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations


What is HDbitT

HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal


Extend Distance

This HDMI 4K30Hz HDbitT over IP Extender designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display


Highly Scalable

Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 255 total RX units, the additional receiver unit (part#- CE-H25E11-S2) is sold separately

*Note: IGMP Gigabit Switch is recommended for best performance and reliability


VLAN setup supported

create a separate VLAN for each TX and its corresponding RX s


4K HD Resolution

Supports high-definition video resolution up to 4K (3840x2160) @30Hz, HDCP 1.4 to deliver a crystal-clear picture quality


IR Extension

IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display


High Performance

Offers a true 10.2Gbps video bandwidth and supports stereo audio
Video
HDMI
1x input, 1x output
Resolution
4K at 30Hz, 1080p/1080i/720p/480i/480p at 60Hz
Transport protocol
HDbitT protocol
Audio/video digital connection transmission protocol
Audio
Stereo audio from HDMI, support 192Kbps bit rate
IR pass-through
Allows remote control of the HDMI source device and playback function at the remote display
Full frequency
20KHz to 60KHz
Power
Power adapter
Input: 100-240V/50-60Hz, Output: DC 5V/2A
UL listed
E335801/Level: VI
Environmental conditions
Operating temperature
32 to 122 degrees F
Storage temperature
14 to 158 degrees F
Relative humidity
0% to 90% RH (non-condensing)
Product Info
Transmitter unit (TX)
Color: black
Housing material: metal (Housing with wall mount design)
Receiver unit (RX)
Color: black
Housing material: metal (Housing with wall mount design)
Certifications/Standards
FCC, CE, RoHS, REACH
Interface
Transmitter unit (TX):
1x 19-pin, HDMI, Female (input)
1x 3.5mm infrared jack, IR emitter (output)
1x 8-pin, RJ45 (output)
1x Reset button
1x DC power jack, 5V/2A
Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
1x 3.5mm infrared jack, IR receiver (input)
1x 8-pin, RJ45 (input)
1x Reset button
1x DC power jack, 5V/2A
Package contents
1x HDMI 4K30Hz HDbitT Over IP Extender - 120m
1x 3.5mm IR emitter extension cable
1x 3.5mm IR receiver extension cable
2x DC power adapter (5V/2A)
1x User reference guide
Item Dimension (L inchxW inchxH inch)
8 x 4 x 6

Weight
2.00 lb

Warranty Information
2 years limited

Available Quantity

5

UPC

662774045603

SKU

mingleCE-H25D11-S2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

• HDMI(R) to composite video adapter;• Ideal for televisions and displays without HDMI(R) ports;• Easy installation;

Available Quantity

5

UPC

044476127243

SKU

mingleDHCOME

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Receives High Definition 1080p HDMI signals using advanced HDBitT technology through economical CAT5e/6 cabling from transmiter unit up to 120 meters away, use with HDMI Over IP Extender with IR - Transmitter (part # CE-H23B11-S2) sold separately


Features

Extend and control HDMI signals with stereo audio up to 394ft (120m) to the remote display with HDbitT over IP technology and supports multi-casting connection for optimal (the best) application


What is HDbitT

HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal


Further Distance

This HDMI over IP Extender with IR-Kit designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display


Highly Scalable

Works as a scalable TX/RX matrix over the dedicated IP network and allows up to 256 total units, limited to 100 units per transmitter, and extends/splits HDMI signals to multiple displays. The additional transmitter unit (part#- CE-H23B11-S1) and receiver unit (part#- CE-H23C11-S1) is sold separately

*Note: IGMP Gigabit Switch is recommended for best performance and reliability


Multicasting connection is transmitting data from multiple HDMI sources over an IGMP network switch to the intended receivers (RX) via Transmitters (TXs)


Full HD Resolution

Supports high-definition video resolution up to1080p (1920x1080) @60Hz, HDCP 1.4 to deliver a clear picture quality and local HDMI loop-out allows you to monitor the extended display from the source location


IR Extension

IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display
Video
HDMI
1x loop-out
Resolution
1080p (1920x1080) / 1080i / 720p / 480p at 60Hz, HDCP 1.4
Transport protocol
HDbitT protocol
Audio/video digital connection transmission protocol
Audio
Stereo audio from HDMI, support 192Kbps bit rate
IR pass-through
Allows remote control of the HDMI source device and playback function at the remote display
Full frequency: 20KHz to 60KHz
RS-232 control
Bi-direction function and pass-through connection to control RS-232 enables devices in either direction
Power
Power adapter
Input: 100-240V/50-60Hz, Output: DC 5V/2A
UL listed
E335801/Level: VI
Environmental conditions
Operating temperature
32 to 122 degrees F
Storage temperature
14 to 144 degrees F
Relative humidity
0% to 90% RH (non-condensing)
Product Info
Receiver unit (RX)
Color:
black
Housing material:
metal
Certifications/Standards
FCC, CE, RoHS, REACH
Interface
Receiver unit (RX):
1x 19-pin, HDMI, Female (output)
1x 3-pin, RS-232 terminal block, Female
1x 3.5mm infrared jack, IR receiver (input)
1x 8-pin, RJ45 (input)
2x Switch RX channel buttons, up/down
2x TX channel buttons, up/down (for TX connection)
1x Reset button
1x DC power jack, 5V/2A
Package contents
1x HDMI over IP Extender with IR- Receiver
1x 3.5mm IR receiver extension cable
1x Remote control (for setting TX and RX channels)
1x 3-pin, RS-232 phoenix connector
1x DC power adapter (5V/2A)
1x Installation kit
1x User Reference Guide
Item Dimension (L inchxW inchxH inch)
8 x 4 x 6

Weight
2.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774045115

SKU

mingleCE-H23C11-S2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description
