Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

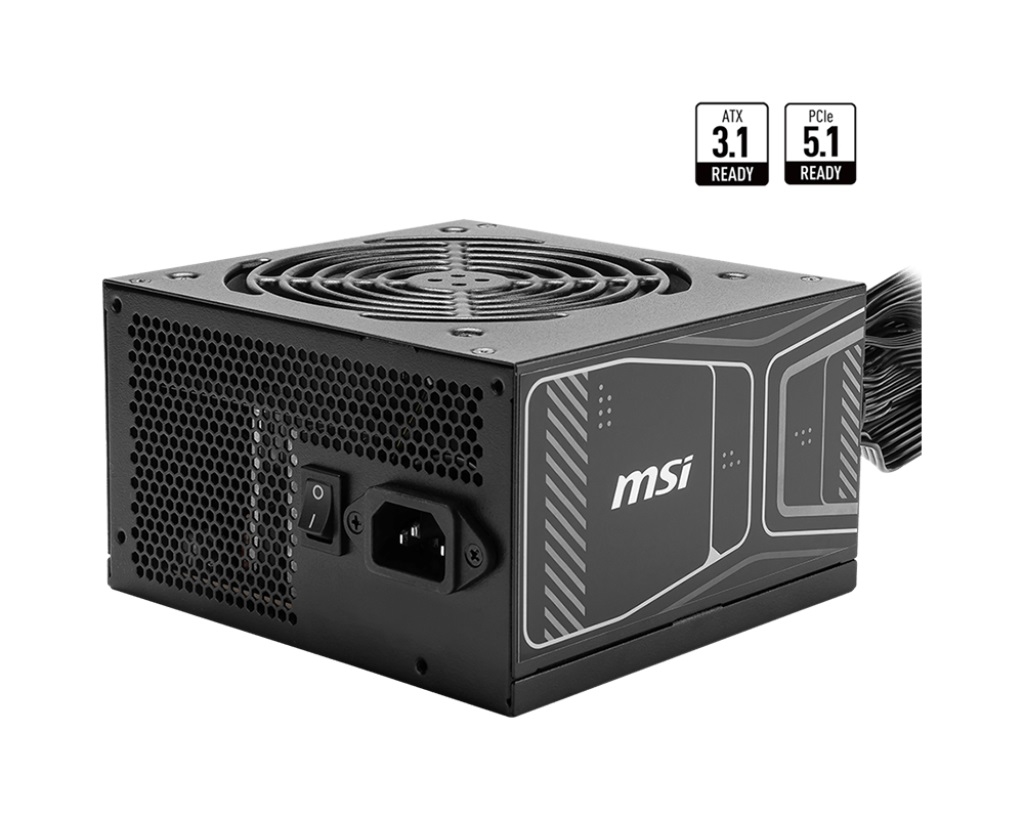

MAG UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.
FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.
Capacitors You Can Trust
The 105^oC main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Yes (full modular)
Fan Size
120 mm
Fan Bearing
Sleeve Bearing
PFC Type
Active PFC
Input Voltage Range
100-240 VAC
Power Watt
850W
Power Excursion
1700W (up to 200% of the PSUs rated power for 100 microseconds)
Input Frequency Range
47-63Hz
Protection
OCP / OVP / OPP / OTP / SCP
ATX (24 pin)
1
EPS (4+4 pin)
2
PCI-E 5.1 (16 pin)
1
PCI-E (6+2 pin)
2
SATA (15 pin)
4
PERIPHERAL (4 pin)
2
Item Dimension (L"xW"xH")
12 x 9 x 5

Weight
5.95 lbs

Warranty Information
3 years

Available Quantity

5

UPC

824142374795

SKU

mingleMAGA850GNPCIE5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

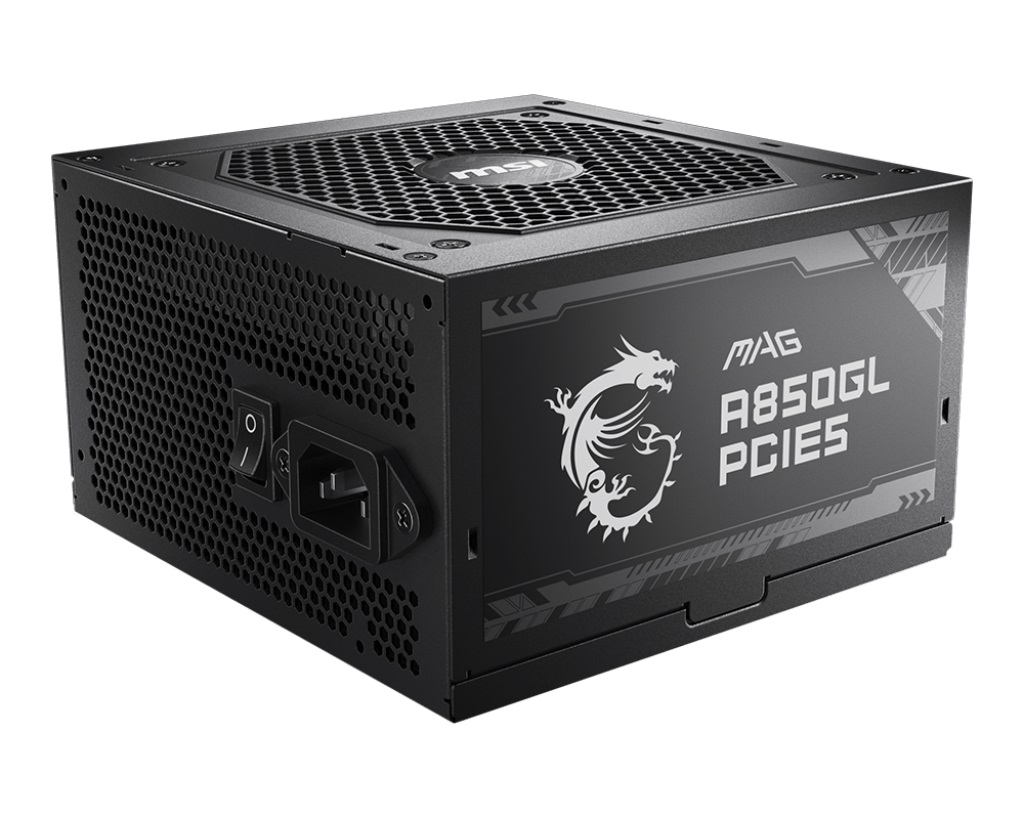

Product Description

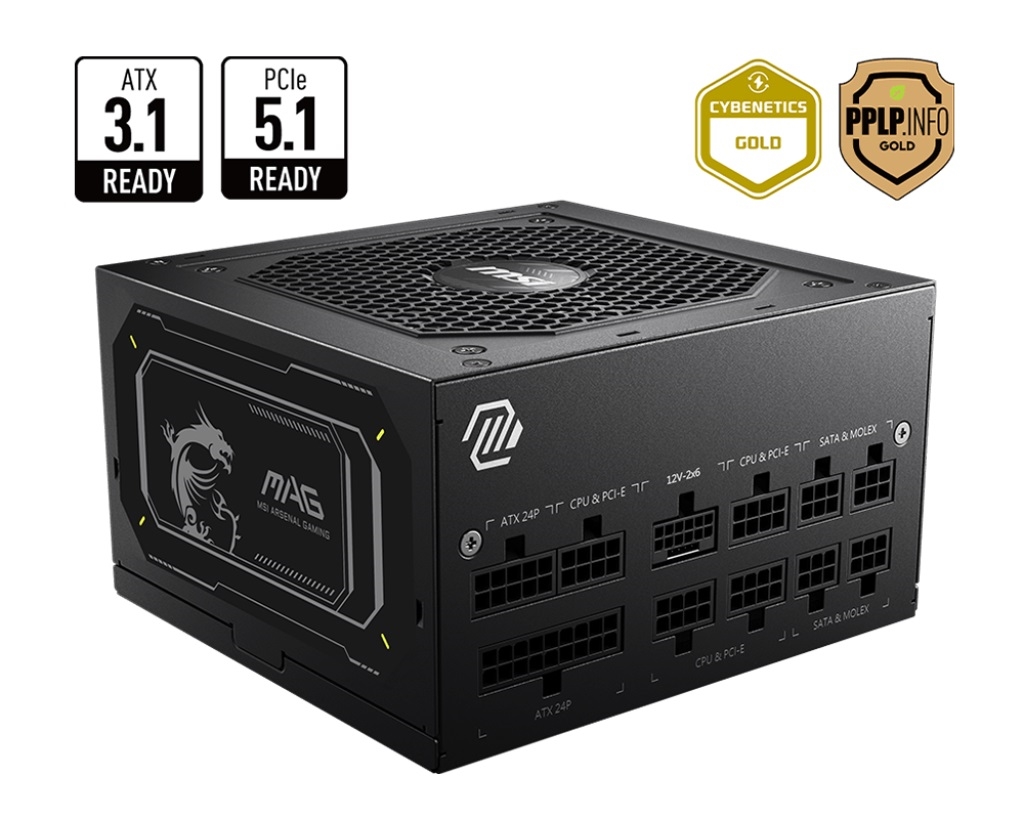

MAG UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

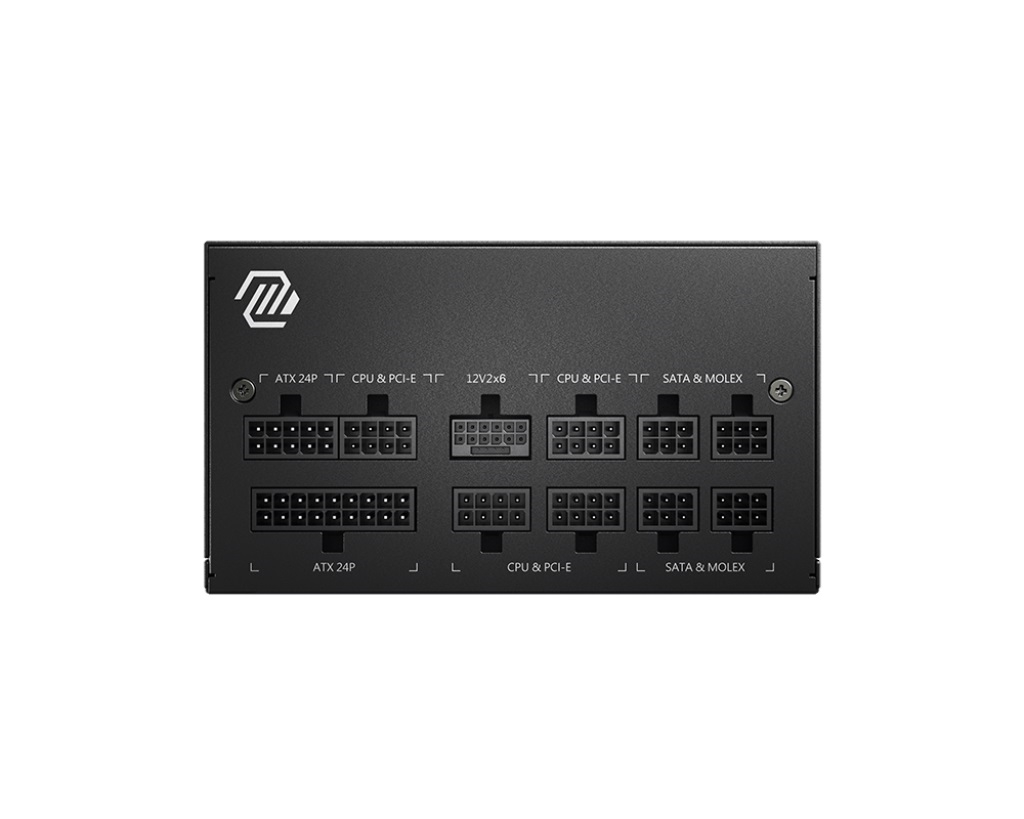

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS Gold and Cybenetics Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the systems overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

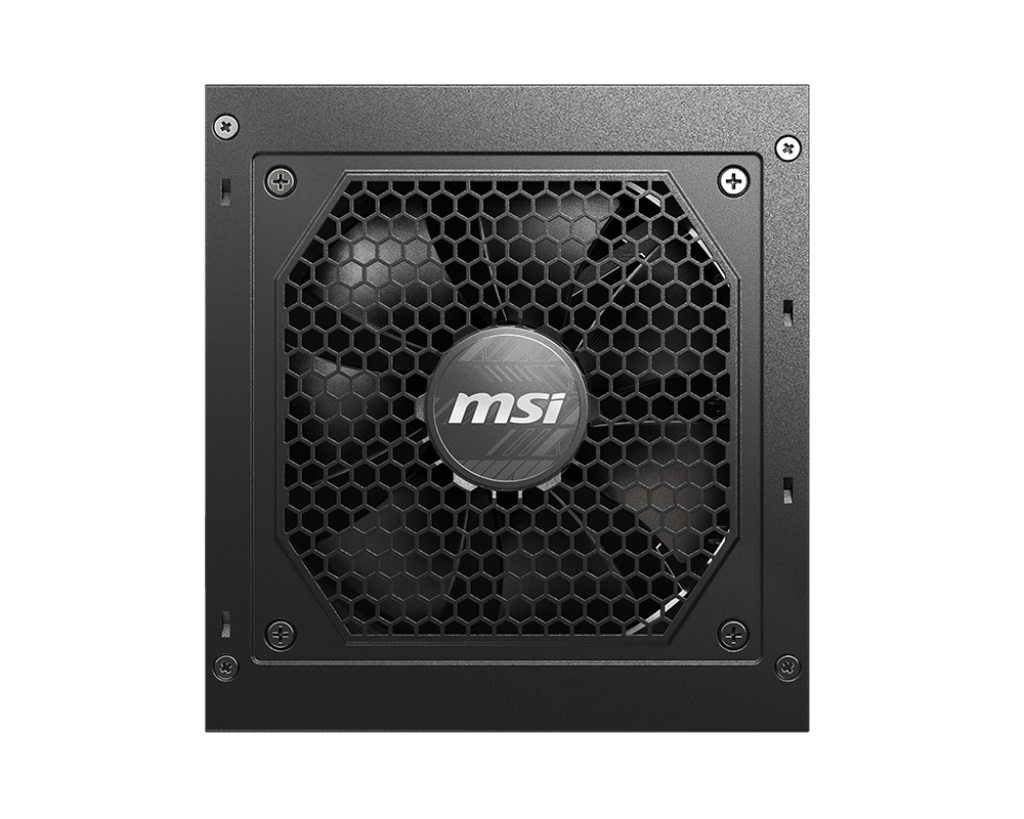

FLUID DYNAMIC BEARING
The power supplys fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Yes (fully modular)
Fan Size
120 mm
Fan Bearing
Fluid Dynamic Bearing
PFC Type
Active PFC
Input Voltage Range
100-240V
Power Watt
850W
Power Excursion
1700W (up to 200% of the PSUs rated power for 100 microseconds)
Input Frequency Range
47-63Hz
Protection
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin)
1
EPS (4+4 pin)
2
PCI-E 5.1 (16 pin)
1
PCI-E (6+2 pin)
4
SATA (15 pin)
8
PERIPHERAL (4 pin)
4
FDD (4 pin)
1
Item Dimension (L"xW"xH")
12 x 9 x 5

Weight
6.67 lbs

Warranty Information
3 years

Available Quantity

5

UPC

824142377079

SKU

mingleMAGA850GLPCIE5II

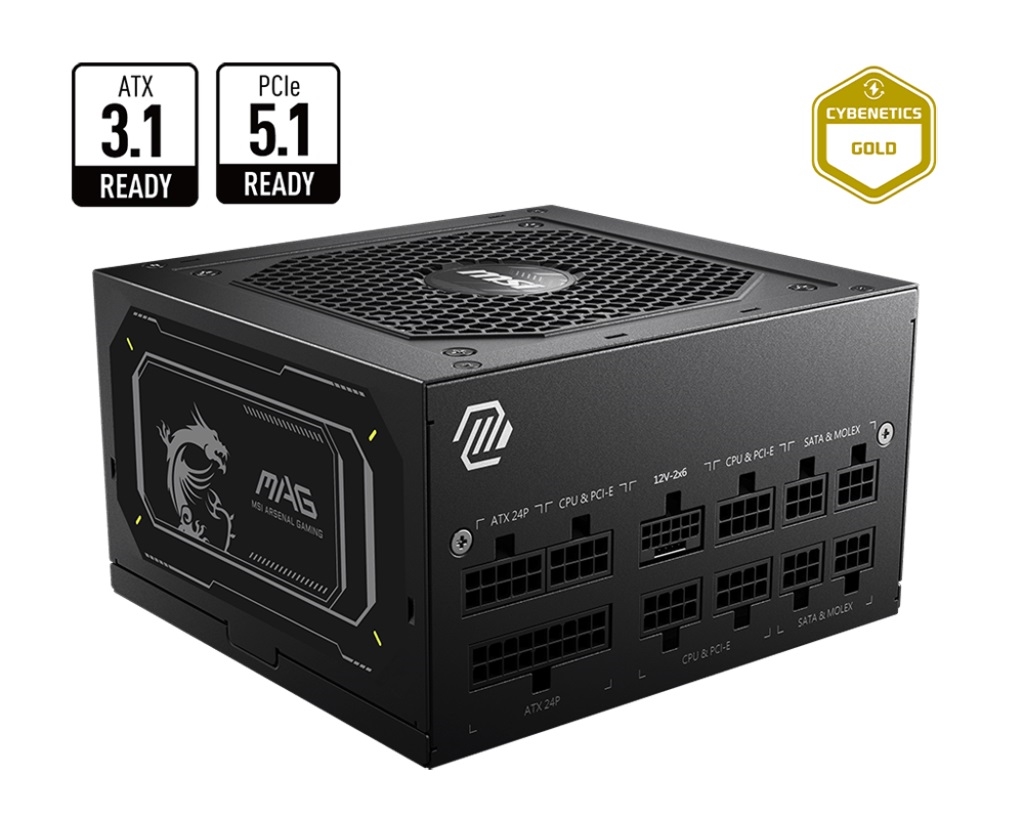

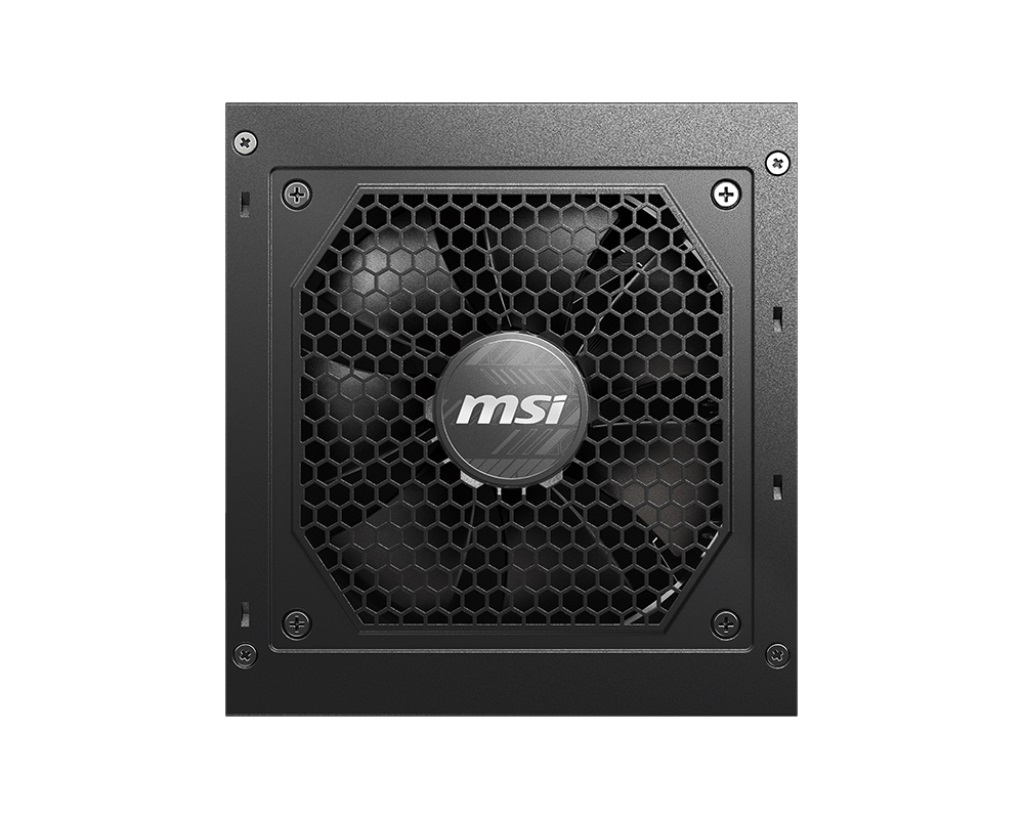

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

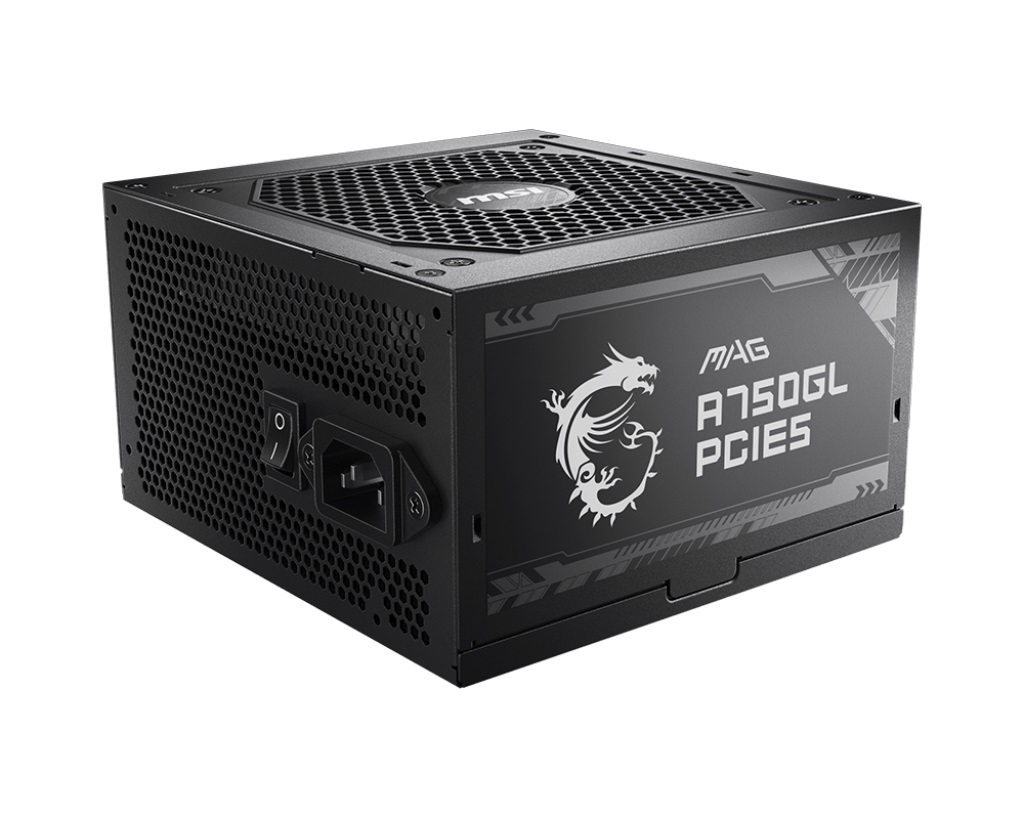

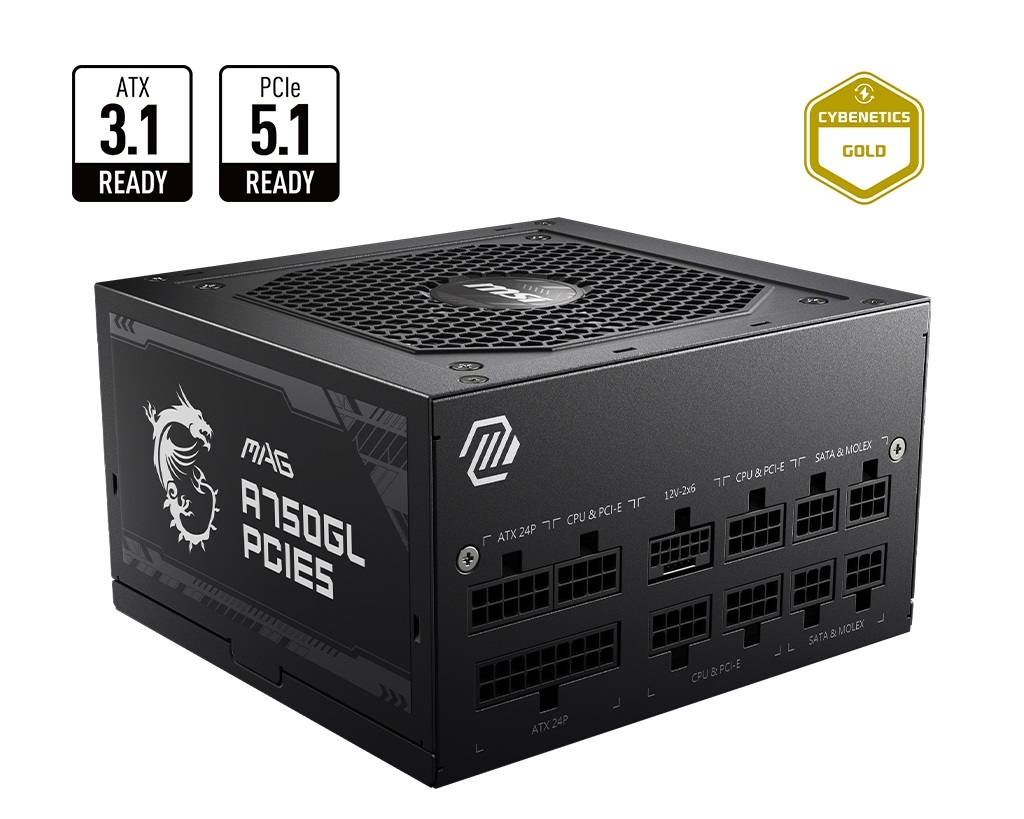

MAG UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

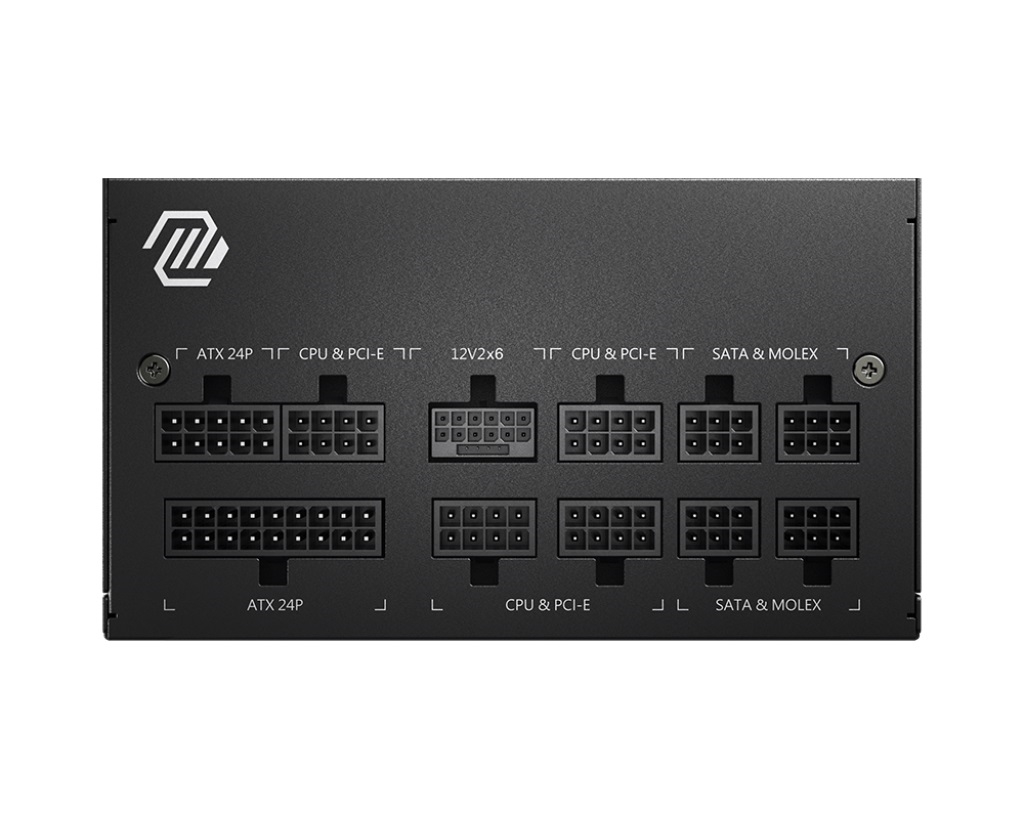

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the systems overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supplys fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Yes (fully modular)
Fan Size
120 mm
Fan Bearing
Fluid Dynamic Bearing
PFC Type
Active PFC
Input Voltage Range
100-240V
Power Watt
750W
Power Excursion
1500W (up to 200% of the PSUs rated power for 100 microseconds)
Input Frequency Range
47-63Hz
Protection
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin)
1
EPS (4+4 pin)
2
PCI-E 5.1 (16 pin)
1 (450W)
PCI-E (6+2 pin)
3
SATA (15 pin)
8
PERIPHERAL (4 pin)
4
FDD (4 pin)
1
Item Dimension (L"xW"xH")
12 x 9 x 5

Weight
6.08 lbs

Warranty Information
3 years

Available Quantity

5

UPC

824142377086

SKU

mingleMAGA750GLPCIE5II

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

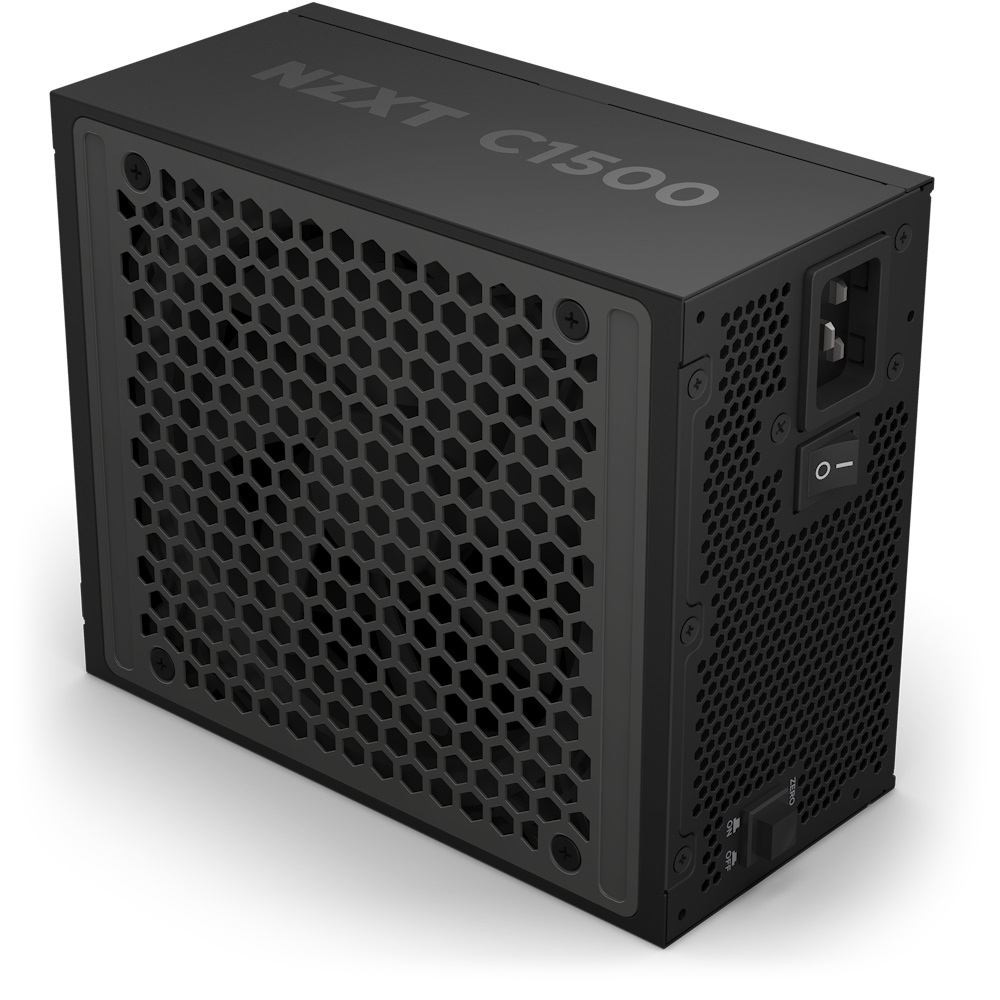

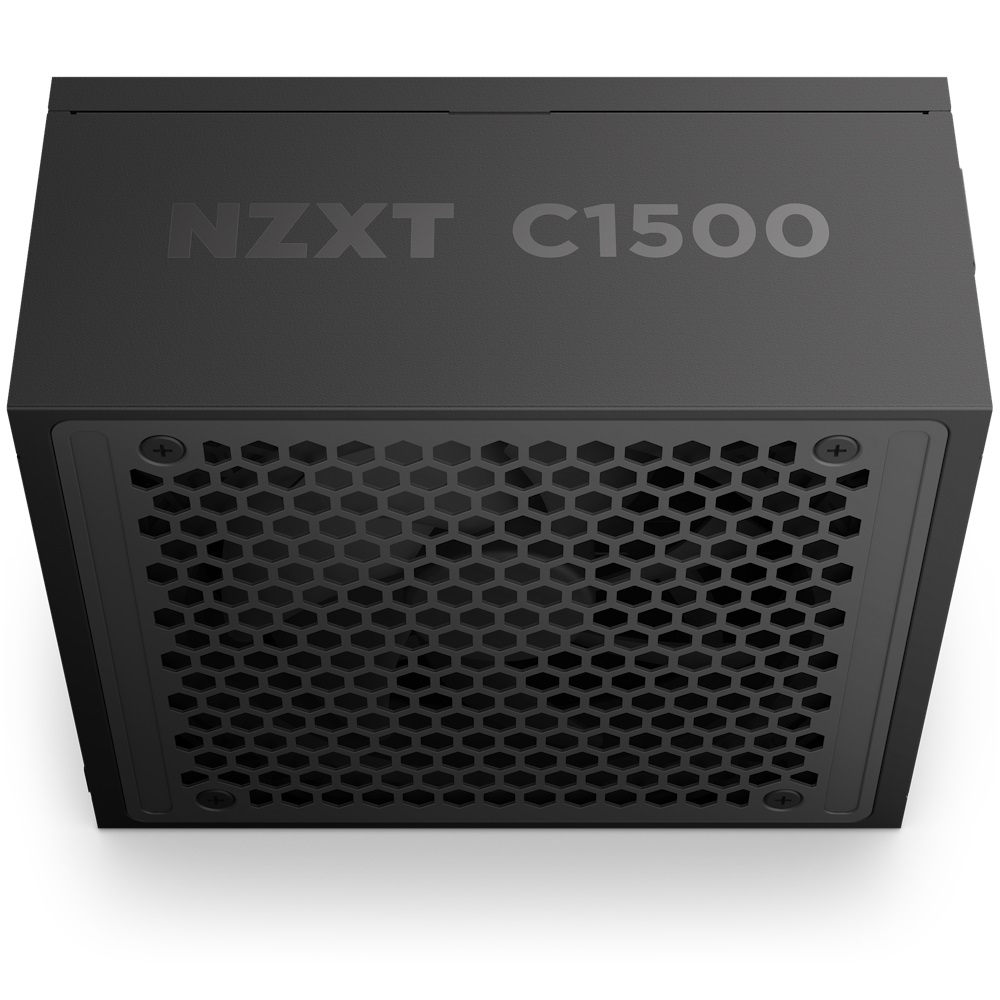

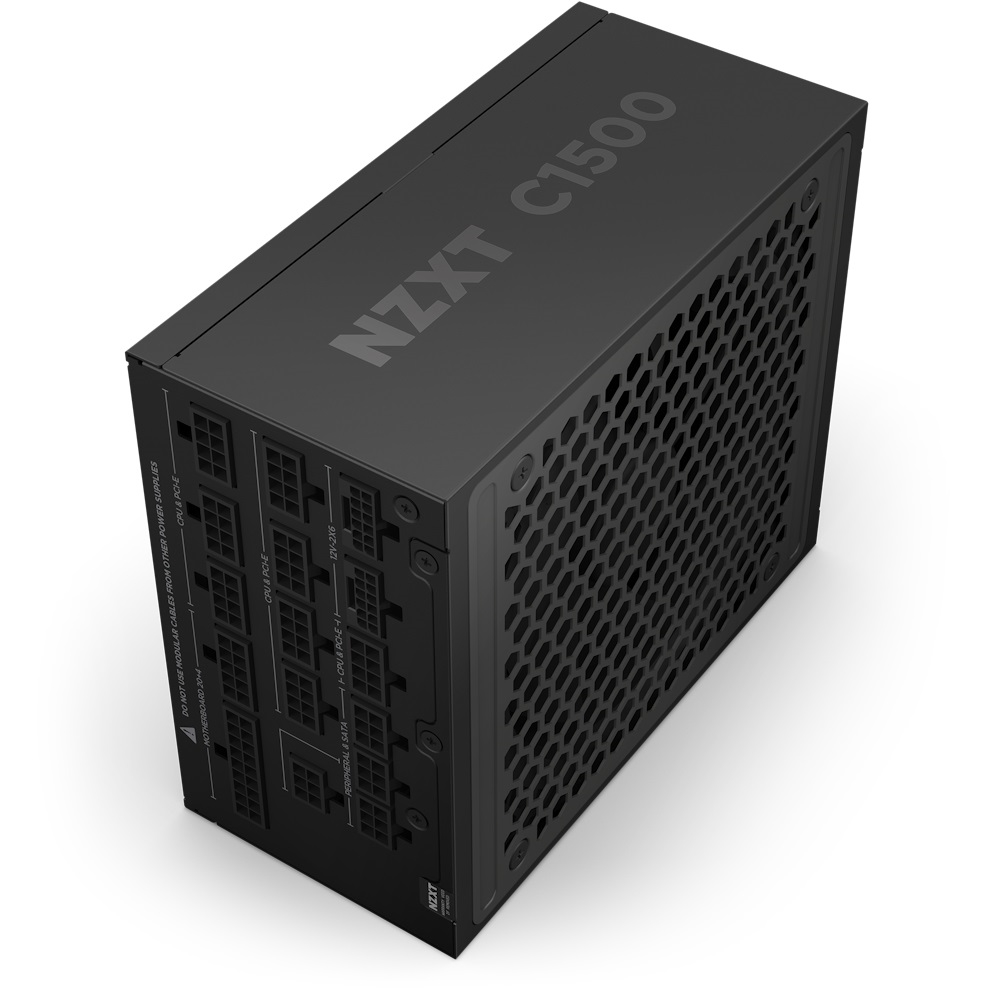

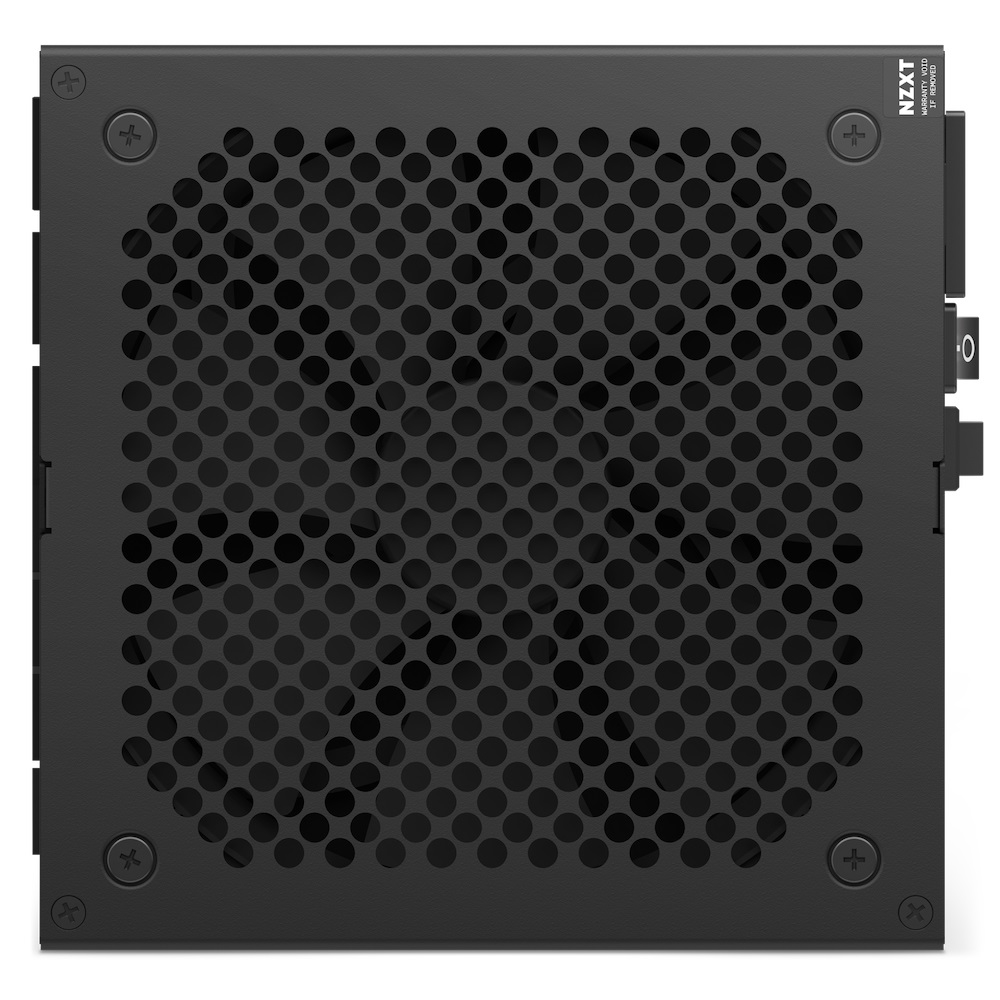

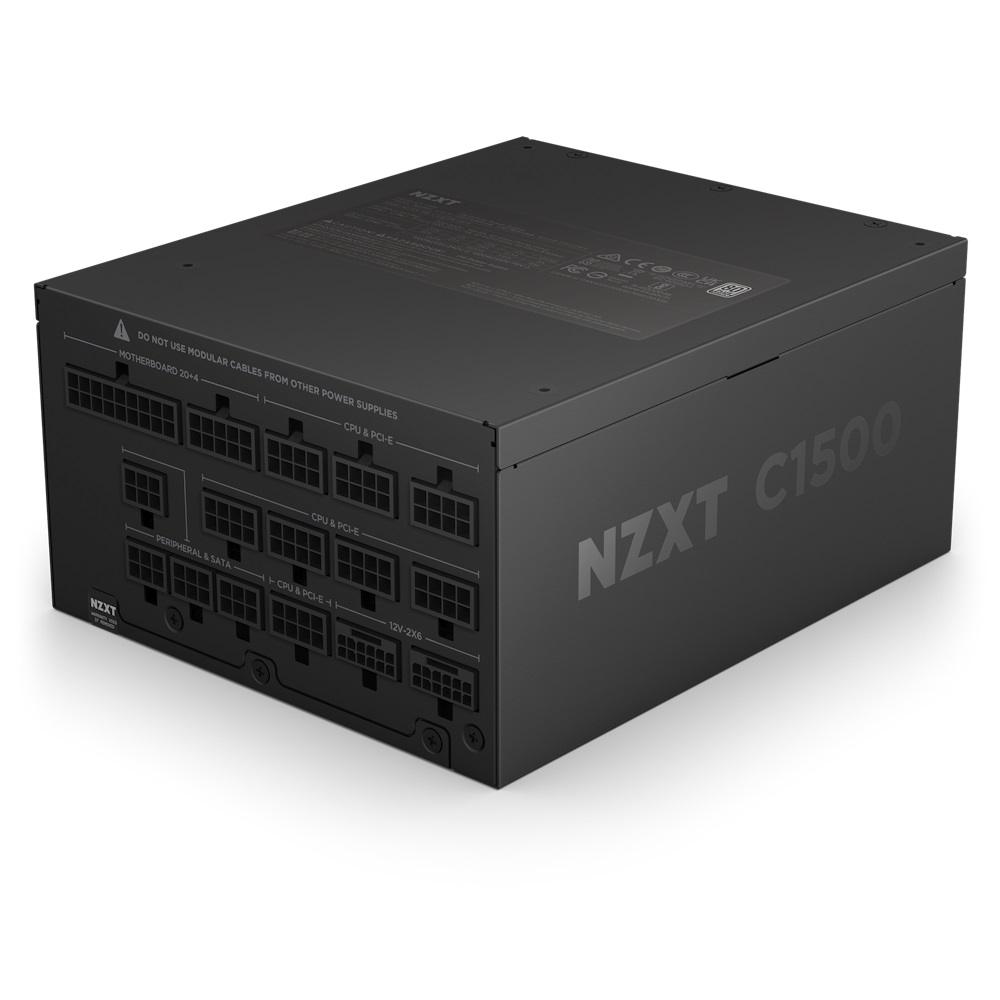

The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.


Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.

Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.

Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.

Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.

Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.

140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.

Constructed using high-quality 105 C Japanese capacitors for excellent reliability and long-lasting performance.

Fully modular design simplifies cable management, allowing for the connection of only necessary cables.

Compact 180mm form factor optimizes valuable case space while promoting improved airflow.


Inside the Box

C1500 Platinum x1

24-pin ATX Power Cable x1

4+4-pin CPU Power Cable x1

8-pin CPU Power Cable x1

6+2-pin PCIe Power Cable x6

16-pin (12+4) 12V-2x6 PCIe Cable x2

SATA Cable x3

Peripherals Cable x1

6-32 Screws x4

AC Power Cord x1

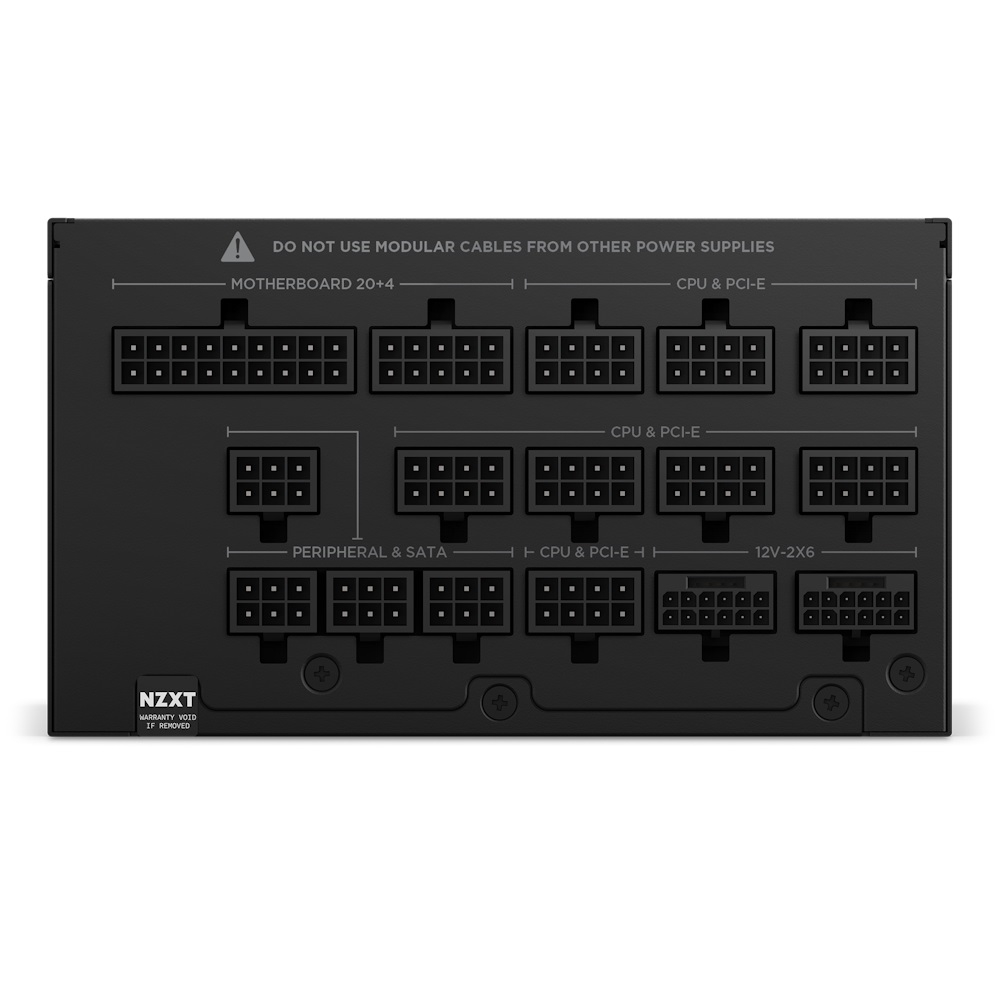

Output Connectors
24-pin ATX Power Cable:
1
4+4-pin CPU Power Cable:
1
8-pin CPU Power Cable:
1
6+2-pin PCIe Power Cable:
6
16-pin (12+4) 12V-2x6 PCIe Cable:
2
SATA Cable:
12
Peripherals Cable:
4
Cable Specs
24-pin ATX Power Cable:
600mm with nylon sleeving
4+4-pin CPU Power Cable:
700mm with nylon sleeving
8-pin CPU Power Cable:
700mm with nylon sleeving
6+2-pin PCIe Power Cable:
650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable:
650mm with nylon sleeving
SATA Cable:
500 + 150 mm with nylon sleeving
Peripherals Cable:
500 + 150 mm with nylon sleeving
AC Input Rating
100 - 240Vac:
15A-9A 50Hz-60Hz
200 - 240Vac:
9A 50Hz-60Hz
DC Output Rating
3.3V / +5V:
22A (120W)
12V:
125A (1500W)
5Vsb:
3A (15W)
Total:
1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency
Rating:
80 Plus Platinum
10% loading:
92% at 115Vac
20% loading:
94% at 115Vac
50% loading:
93.8% at 115Vac
100% loading:
90.8% at 115Vac
Electrical Features
PF Correction:
Active at 0.99
Protections:
OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
Speed:
2500 +/- 10% RPM
Airflow:
125 CFM (Tpy.)
Noise:
41.0 dBA max
Bearing:
Magnetic Levitation Bearing (ML)
Operation
MTBF:
100,000 hours
Temperature:
0 - 50 ^oC
General
Material(s):
Steel, PCB and Plastic
Compliance Standard:
ATX12V v3.1 / EPS12V v2.92
Regulation and Certification:
FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Item Dimension (L inchxW inchxH inch)
14 x 9 x 6

Weight
10.80 lb

Warranty Information
2 years

Available Quantity

5

UPC

810074843720

SKU

minglePA-5P1BB-US

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

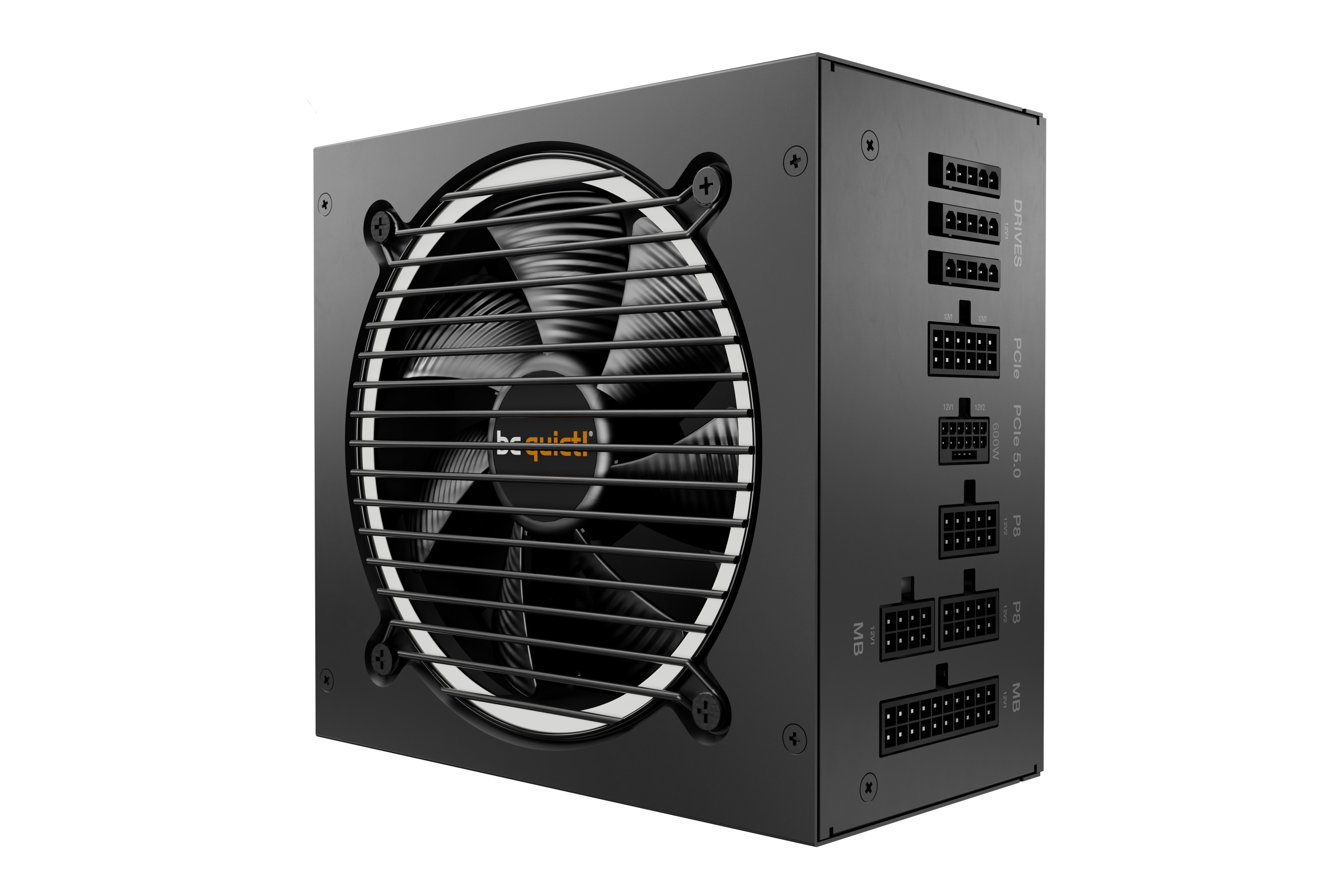

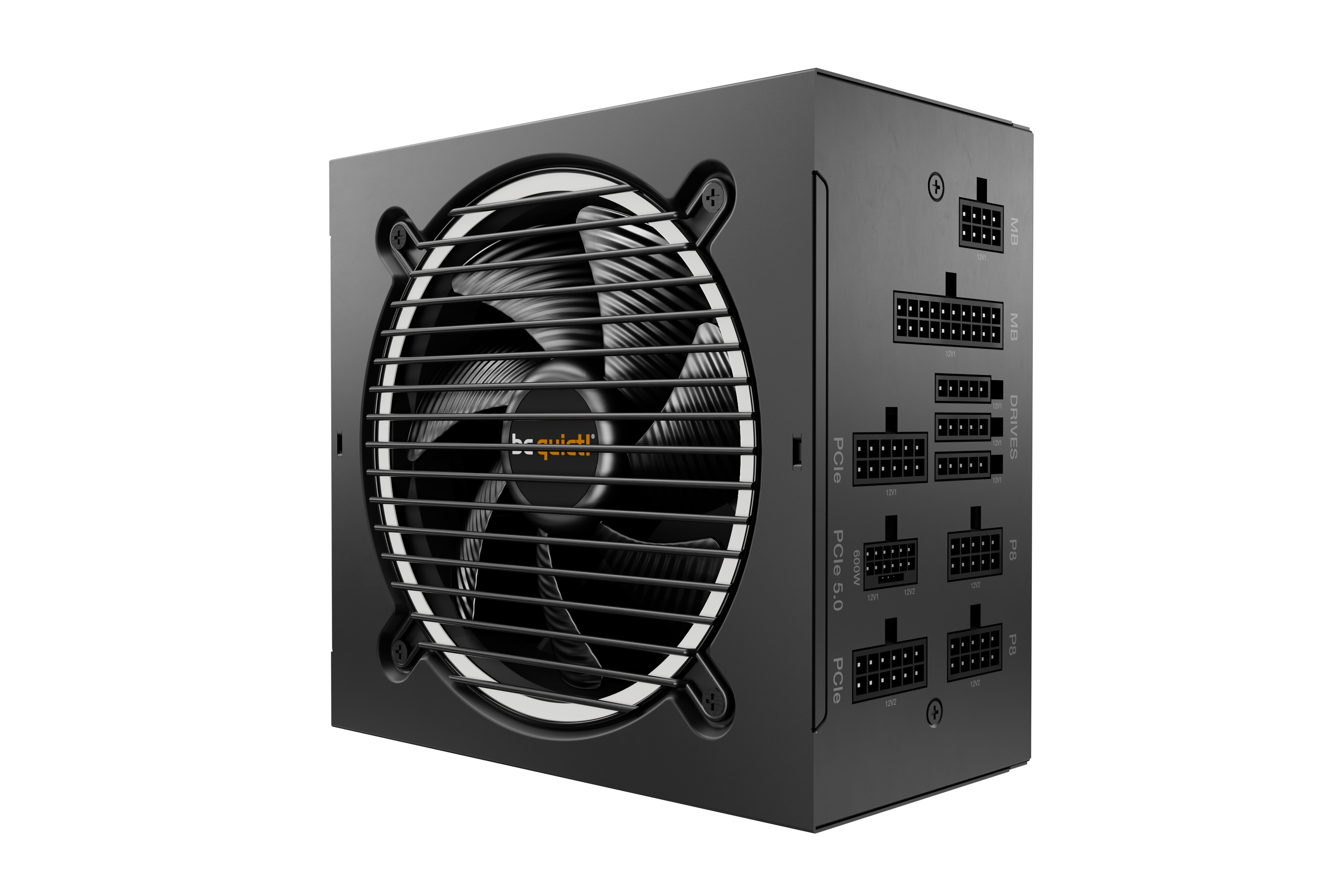

PURE POWER 12 M
1000W
Exceptional quiet, superior features
Pure Power 12 M 1000W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1000W offers the best combination of features with outstanding compatibility.
80 PLUS Gold efficiency (up to 93.1%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Exceptionally silent 120mm be quiet fan
Advanced stability and voltage regulation thanks to LLC technology
2 strong 12V-rails
Modular cables for maximum build flexibility
One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
10-year manufacturers warranty
Characteristics
80 PLUS GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
Model
Pure Power 12 M 1000W
Continuous power (W)
1000
Peak power (W)
1050
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
12 / 6
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25^oC)
>100,000
Operating temperature up to (^oC)
40
Item Dimension (L"xW"xH")
12 x 9 x 4

Weight
7.1 lbs

Warranty Information
10 year

Available Quantity

5

UPC

Does not apply

SKU

mingleBN506

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

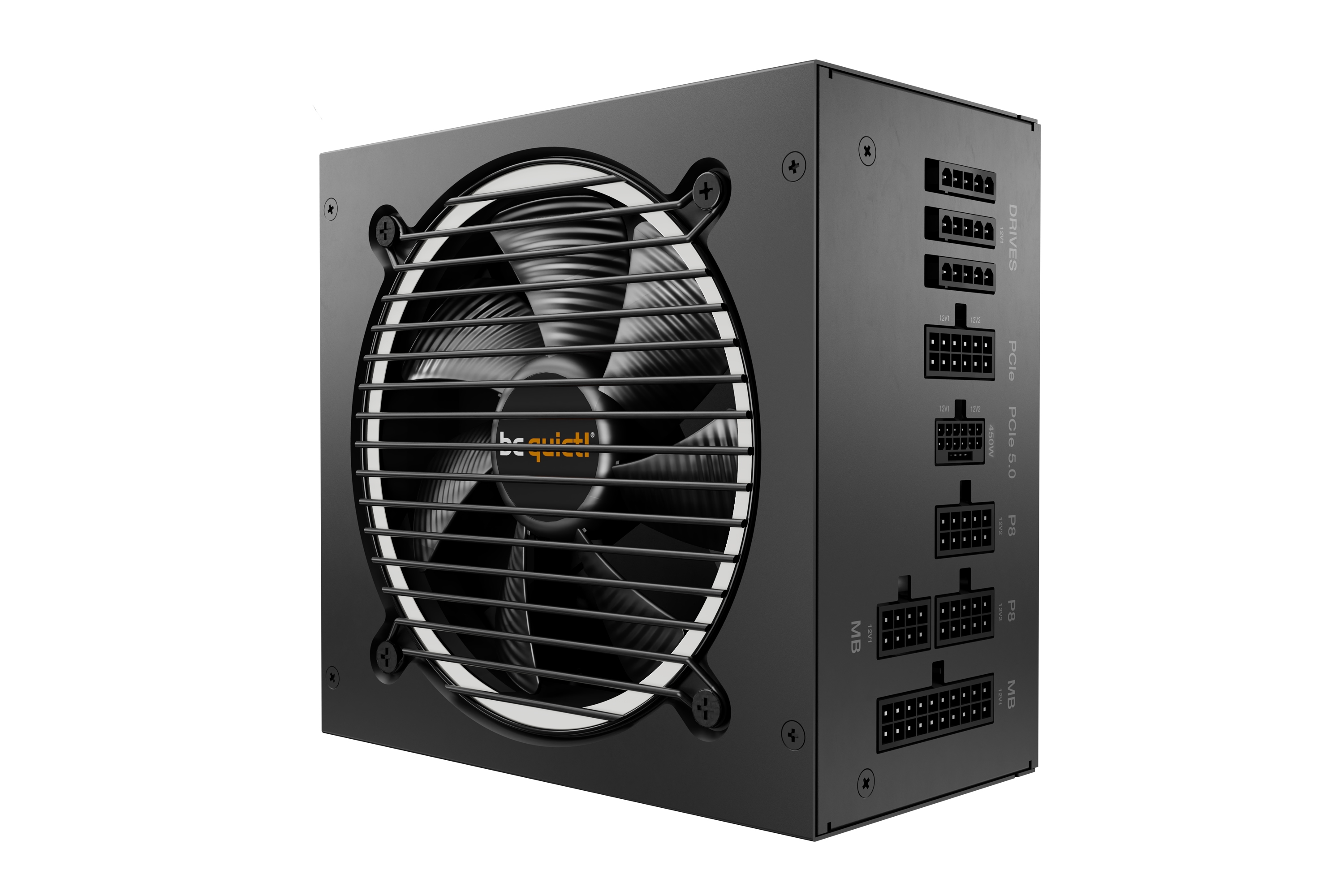

PURE POWER 12 M
850W
Exceptional quiet, superior features
Pure Power 12 M 850W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 850W offers the best combination of features with outstanding compatibility.
80 PLUS Gold efficiency (up to 93.2%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Exceptionally silent 120mm be quiet fan
Advanced stability and voltage regulation thanks to LLC technology
2 strong 12V-rails
Modular cables for maximum build flexibility
One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
10-year manufacturers warranty
Characteristics
80 PLUS GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 850W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.2%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 850W is always the correct choice for quiet systems and gaming PCs
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
Model
Pure Power 12 M 850W
Continuous power (W)
850
Peak power (W)
900
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
12 / 6
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25^oC)
>100,000
Operating temperature up to (^oC)
40
Item Dimension (L"xW"xH")
12 x 8 x 4

Weight
6.53 lbs

Warranty Information
10 year

Available Quantity

5

UPC

Does not apply

SKU

mingleBN505

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

PURE POWER 12 M
750W
Exceptional quiet, superior features
Pure Power 12 M 750W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 750W offers the best combination of features with outstanding compatibility.
80 PLUS Gold efficiency (up to 92.6%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Exceptionally silent 120mm be quiet fan
Advanced stability and voltage regulation thanks to LLC technology
2 strong 12V-rails
Modular cables for maximum build flexibility
One PCIe 5.0 12VHPWR 600W and 2 PCIe 6+2 connectors for high-end GPUs
10-year manufacturers warranty
Characteristics
80 PLUS GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.6%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 750W is always the correct choice for quiet systems and gaming PCs
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
Model
Pure Power 12 M 750W
Continuous power (W)
750
Peak power (W)
820
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
10 / 5
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25^oC)
>100,000
Operating temperature up to (^oC)
40
Item Dimension (L"xW"xH")
12 x 8 x 4

Weight
6.83 lbs

Warranty Information
10 year

Available Quantity

5

UPC

Does not apply

SKU

mingleBN504

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

PURE POWER 12 M
650W
Exceptional quiet, superior features
Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.
80 PLUS Gold efficiency (up to 92.7%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Exceptionally silent 120mm be quiet fan
Advanced stability and voltage regulation thanks to LLC technology
2 strong 12V-rails
Modular cables for maximum build flexibility
One PCIe 5.0 12VHPWR 450W and 2 PCIe 6+2 connectors for high-end GPUs
10-year manufacturers warranty
Characteristics
80 PLUS GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
Model
Pure Power 12 M 650W
Continuous power (W)
650
Peak power (W)
720
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
10 / 5
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25^oC)
>100,000
Operating temperature up to (^oC)
40
Item Dimension (L"xW"xH")
12 x 8 x 4

Weight
6.53 lbs

Warranty Information
10 year

Available Quantity

5

UPC

Does not apply

SKU

mingleBN503

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

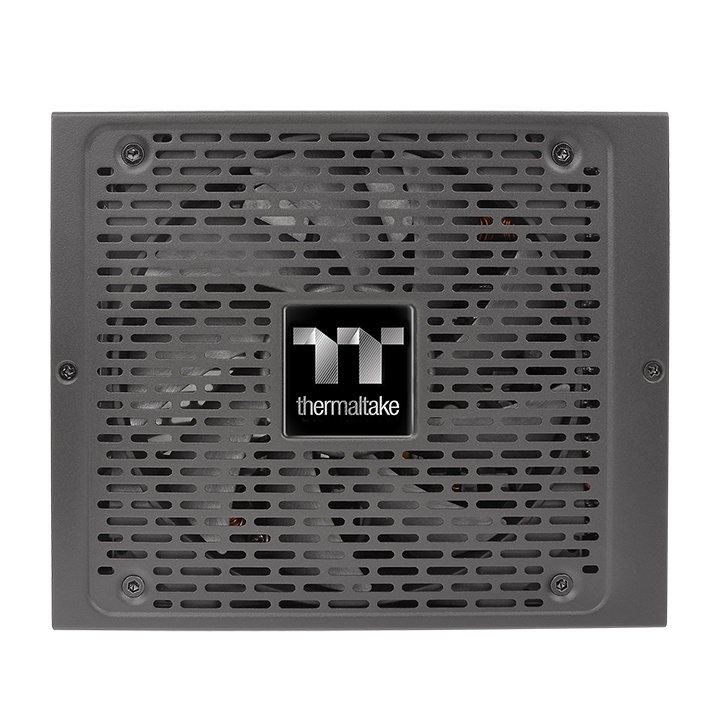

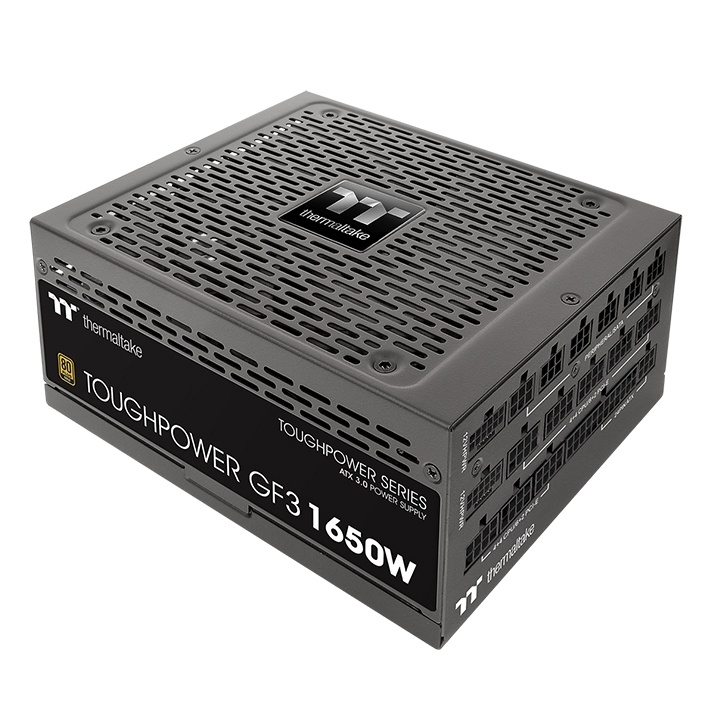

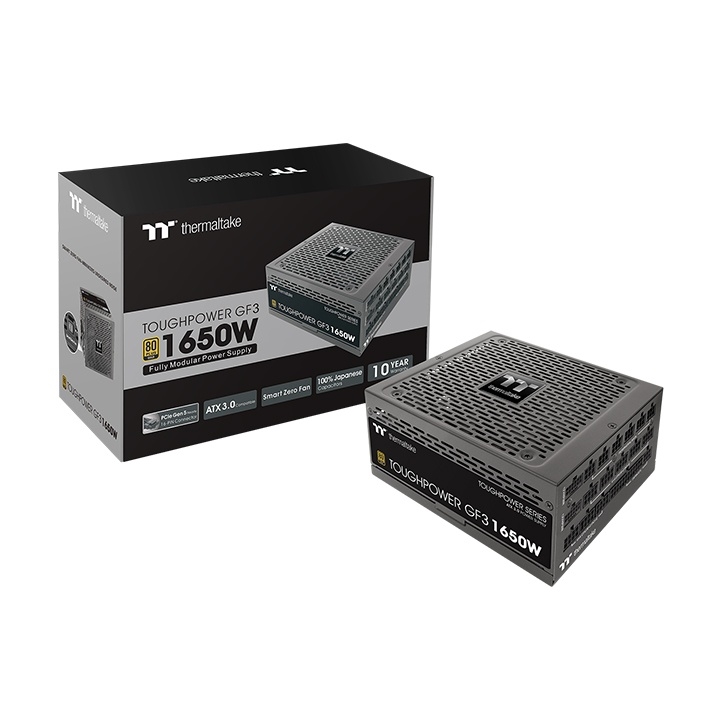

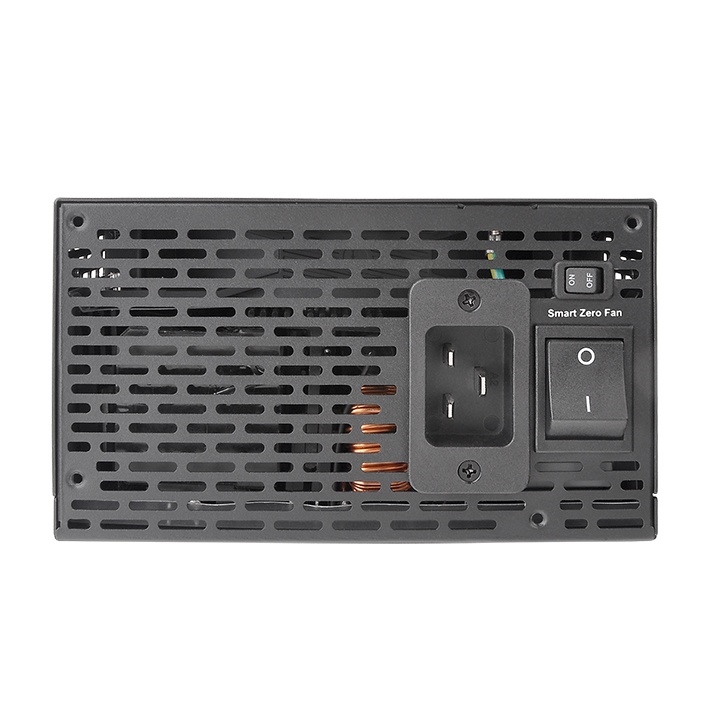

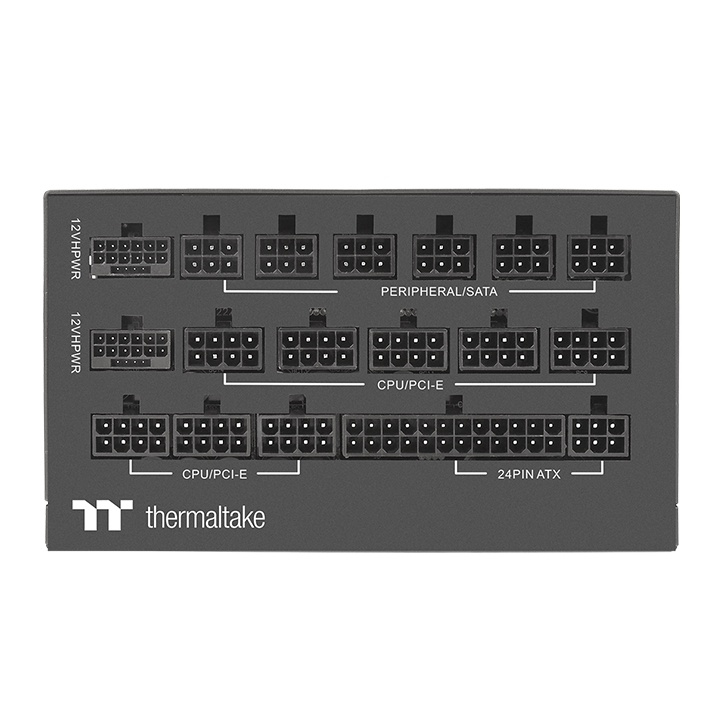

Toughpower GF3 1650W Gold - TT Premium Edition

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.

Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.


PCIe Gen 5.0 Ready! Designed with two native PCIe 12+4pin modular connectors, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphic cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1650W comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.


Fully Compatible With Intel PSDG ATX 3.0 Specifications

Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.
WATTS
1650W
MODEL
TPD-1650AH3FSG
MAX. OUTPUT CAPACITY
1650W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-250 msec
INPUT CURRENT
20 - 16A
INPUT FREQUENCY RANGE
50-60Hz
INPUT VOLTAGE
100 - 240V or more
OPERATING TEMPERATURE
0^oC to + 50^oC
OPERATING HUMIDITY
20% to 90%,non-condensing
STORAGE TEMPERATURE
-40^oC to + 70^oC
STORAGE HUMIDITY
20% to 95%, non-condensing
COOLING SYSTEM
14cm hydraulic bearing fan
EFFICIENCY
Meet 80 PLUS Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE/UKCA/cTUVus/TV/FCC/IC/BSMI/EAC/CB/BIS/KCC
PCI-E 6+2PIN
9
PCIE 12+4PIN
2
Item Dimension (L inchxW inchxH inch)
14 x 10 x 7

Weight
10.56 lb

Warranty Information
10 years

Available Quantity

5

UPC

841163084533

SKU

minglePS-TPD-1650FNFAGU-4

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

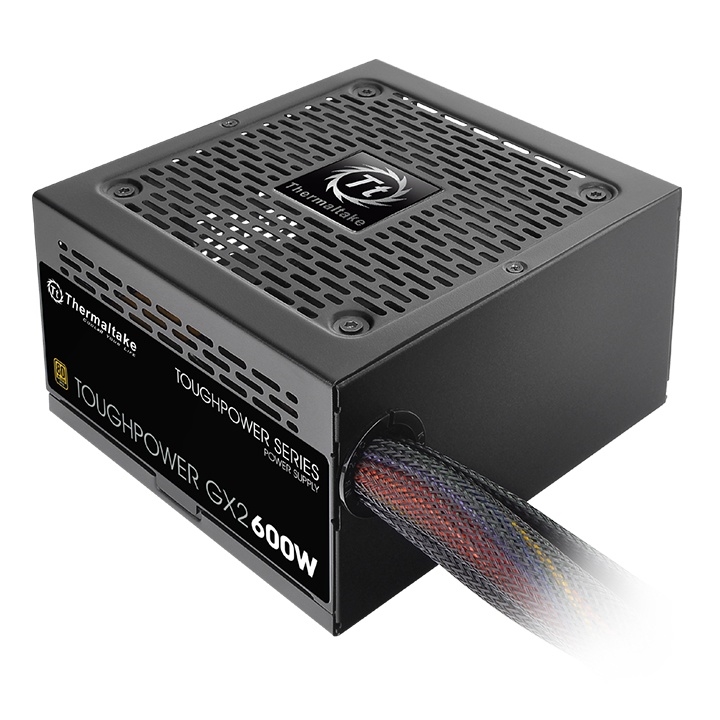

Toughpower GX2 600W
The Toughpower GX2 is built to deliver 80 PLUS Gold efficiency. It features a 120mm cooling fan, multiple connectors for users to power up the build, and high quality components to help deliver a continuous and stable power with an ambient temperature up to 50C, while near silent operation and reliable performance are guaranteed. With an ample 5-year warranty, the Toughpower GX2 is able to satisfy the market, where PC enthusiasts are looking for a budget-friendly power supply with all the fundamental features.
Ultra-Quiet 120mm Cooling Fan
Featuring a 120mm cooling fan, the Toughpower GX2 delievers excellent airflow at an exceptionally low noise level.
Meet Intel Low Ripple Noise
The Toughpower GX2 meets all Intels ripple noise requirement on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Meet Intel Voltage Regulation
The voltage regulation of Toughpower GX2 meets Intels standard 5% for major rails and 10% for -12V, ensuring the highest performance.
Multiple Connectors
All sleeved cables make cable installation an easy task while powering the system at an advantageous voltage.
High Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
P/N
PS-TPD-0600NNFAGU-2
WATTS
600W
RGB FAN
No
MODEL
SP-600AH2NCG
TYPE
ATX 12V 2.3
MAX. OUTPUT CAPACITY
600W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-500 msec.
HOLD UP TIME
>10msec
INPUT CURRENT
9A max
INPUT FREQUENCY RANGE
47Hz - 63Hz
INPUT VOLTAGE
100V-240V
OPERATING TEMPERATURE
+0^oC to +40^oC
OPERATING HUMIDITY
20% to 90%,non-condensing
STORAGE TEMPERATURE
-20^oC to +70^oC
STORAGE HUMIDITY
5% to 95%, non-condensing
COOLING SYSTEM
120mm Fan: 2000+/-10% RPM
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE, TUV SUD, CB, EAC and RCM certified.

Available Quantity

5

UPC

841163073971

SKU

minglePS-TPD-0600NNFAGU-2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

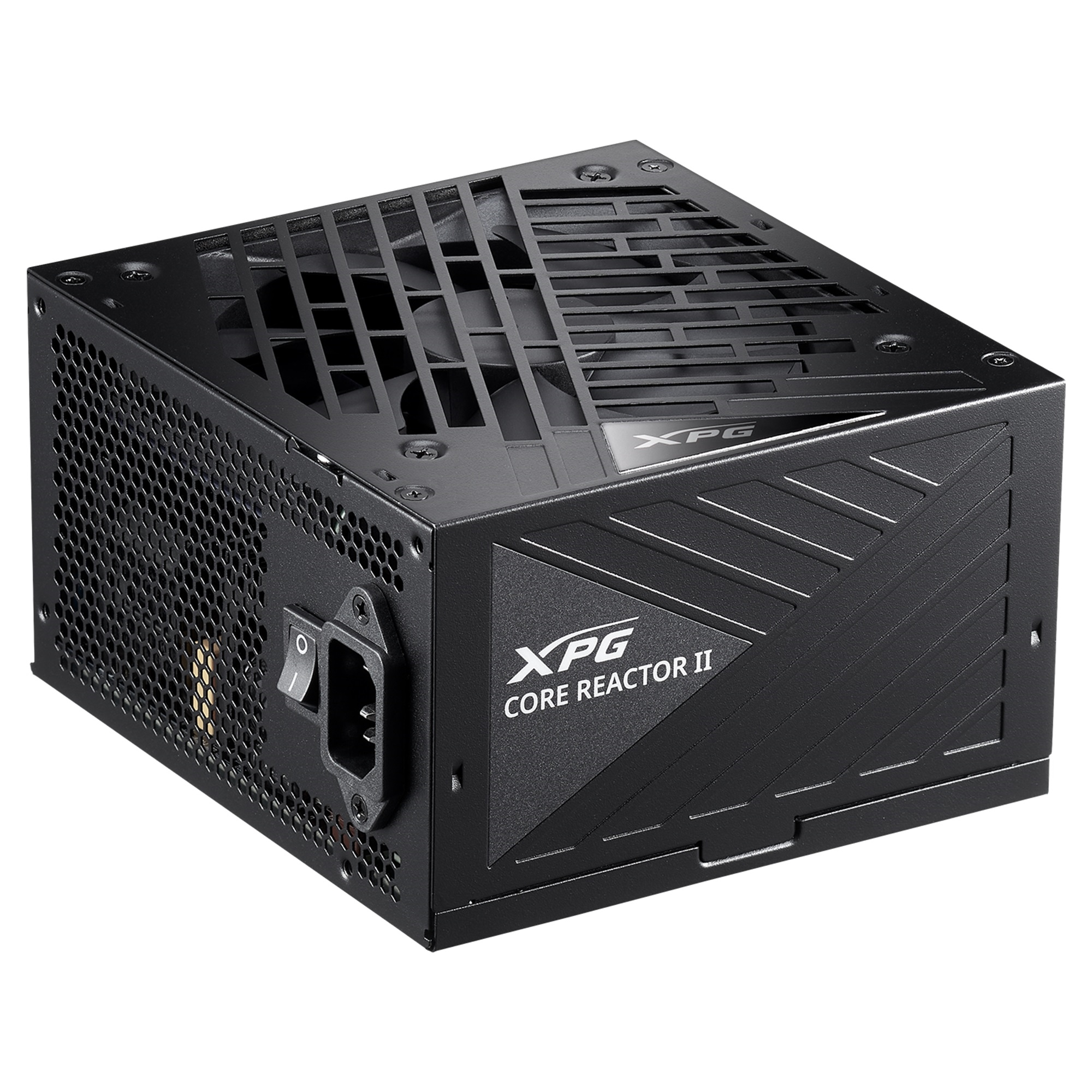

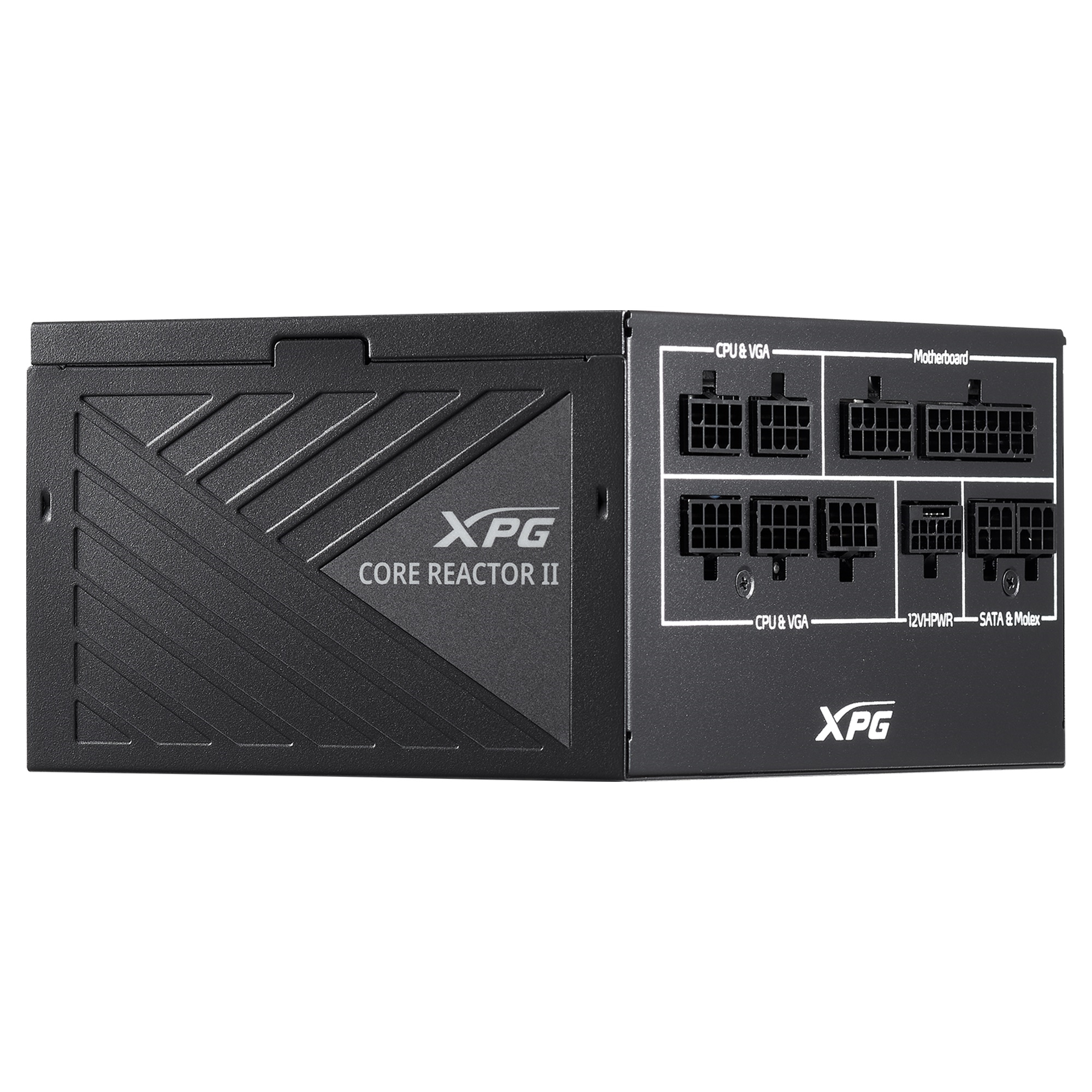

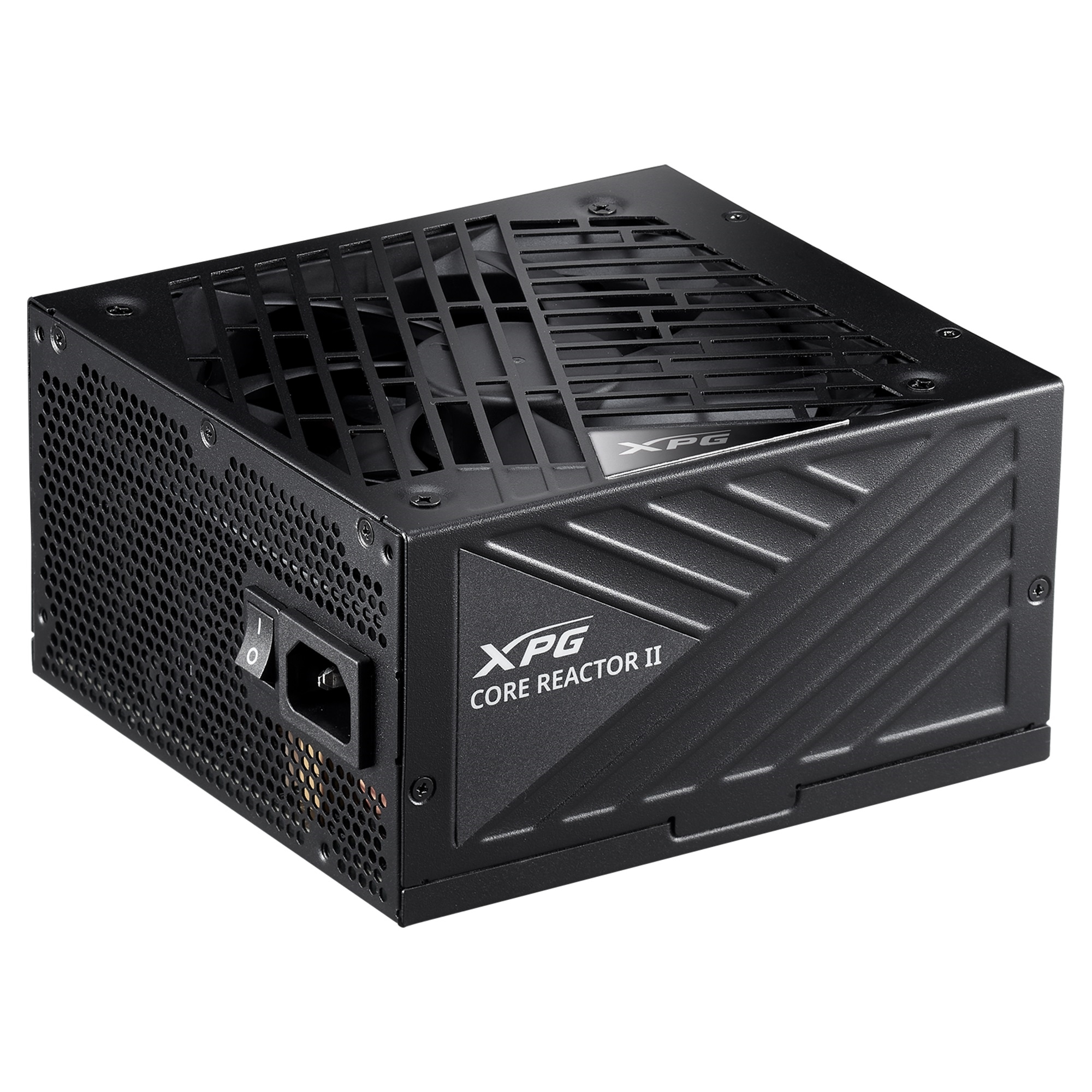

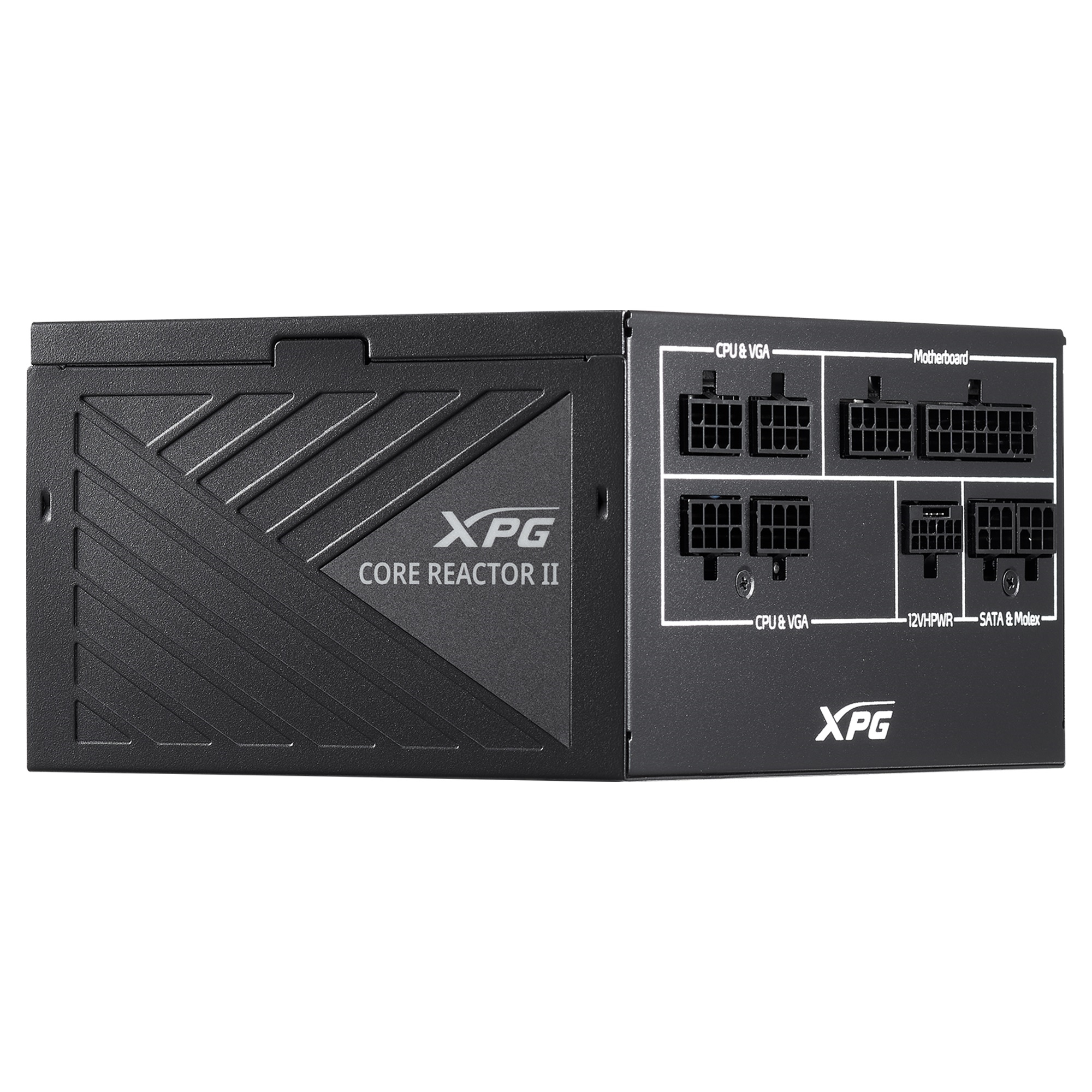

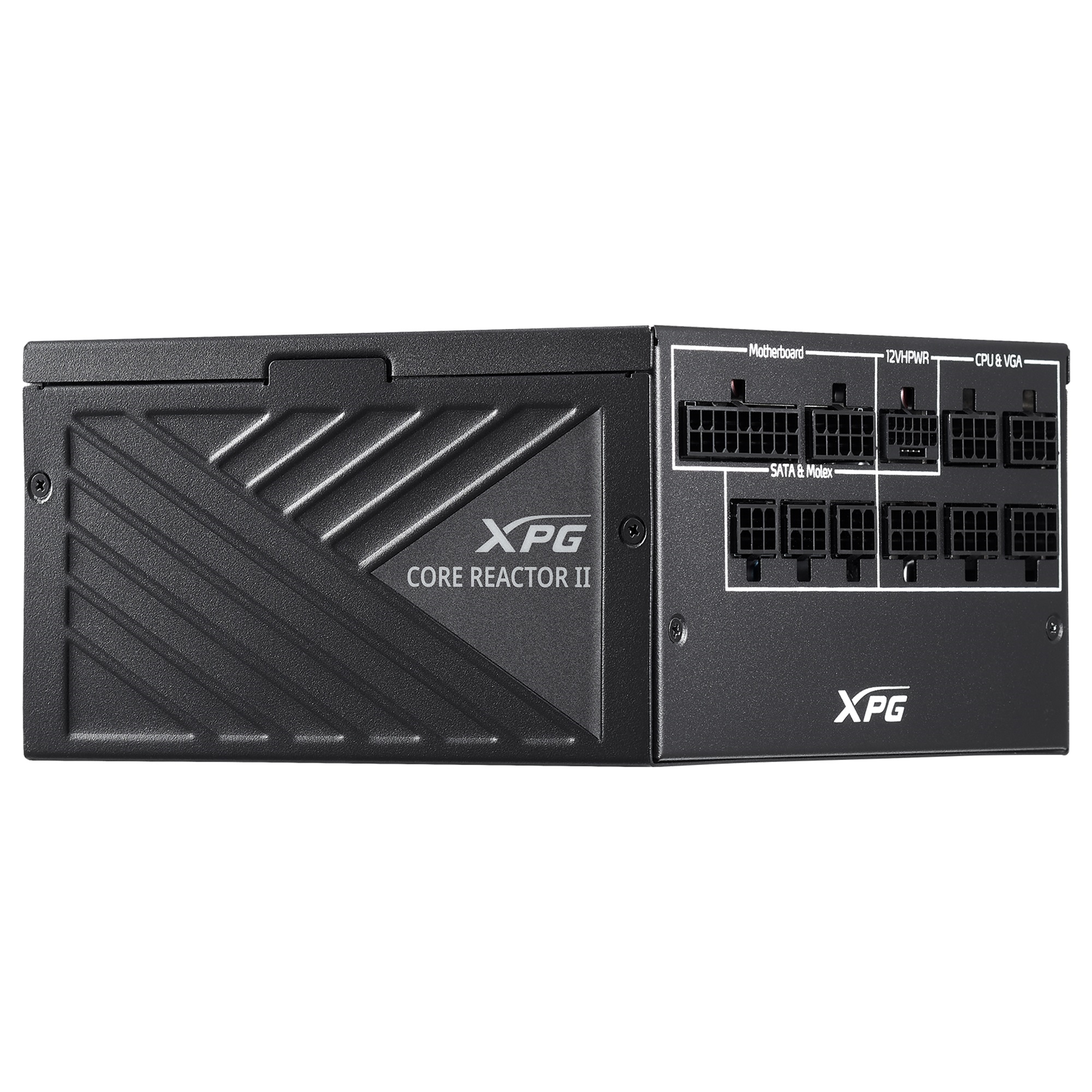

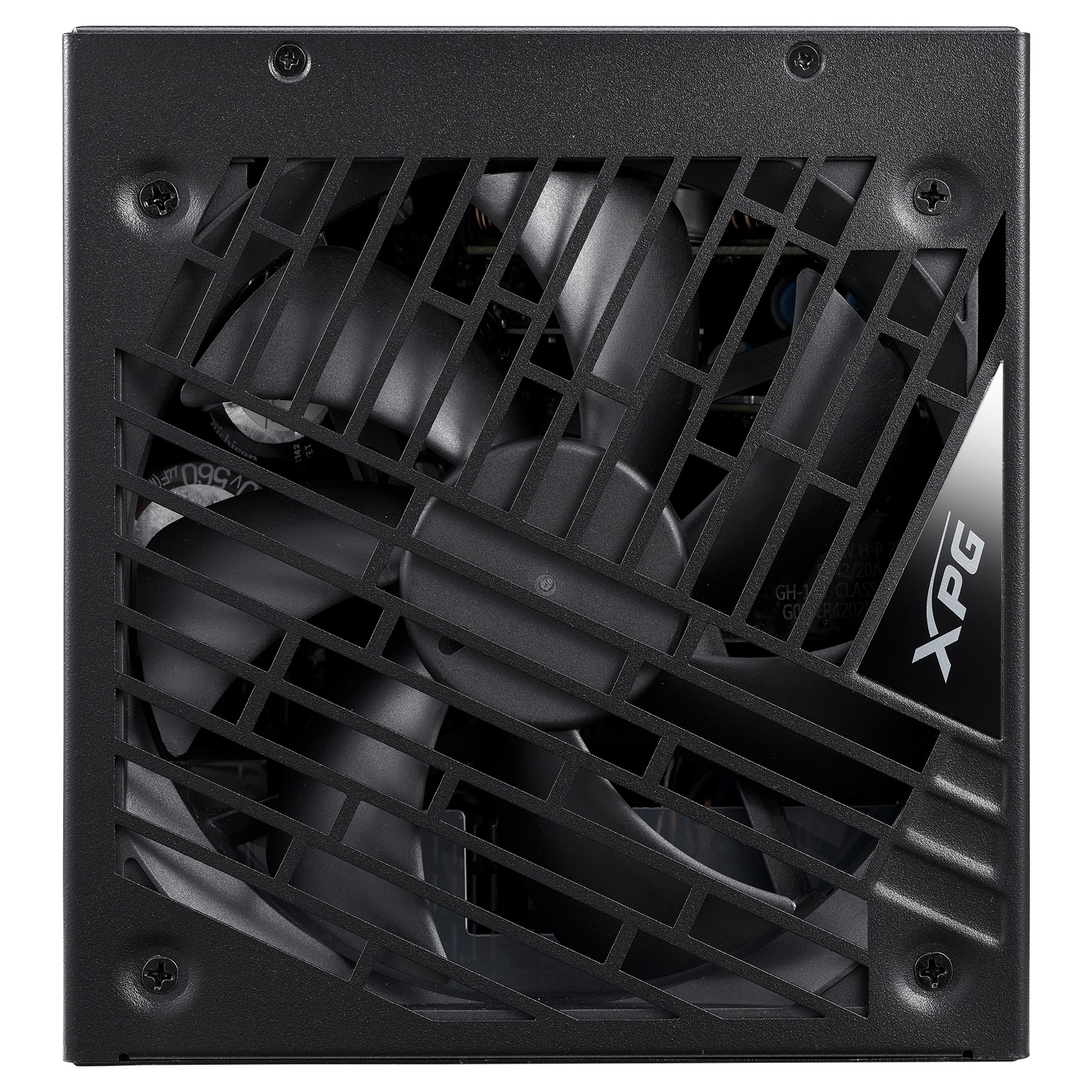

CORE REACTOR II

IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE

CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.


Next-Gen Ready - ATX 3.0 COMPLIANT

CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.


Certified GOLD Efficiency

CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.


Intelligent Fan-Curve Design

The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.


Premium 105 C Japanese Capacitors

CORE REACTOR II features top-tier 105 C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.
80 Plus Rating
GOLD

ATX Version
ATX 12V v3.0 and EPS v2.92

Protections
OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP

Certification
CE, CB FCC(IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC, RCM

PFC
> 0.99

Input Voltage
100-240V
Input Current
1000W: 13A
Input Frequency
1000W: 50Hz-60Hz
DC Output Voltage
+5V, +3.3V, +12V, -12V, +5Vsb
Total Output
1000W: +5V/+3.3V: 22A, +12V: 83.5A, -12V: 0.3A, +5Vsb: 3A
Operating Temperature
50^oC
Fan Size
1000W: 135mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)

Fan Speed
2400 RPM

MTBF
100K hours at full load
ATX 24 Pin Connector
1000W: 1
EPS 8 Pin Connector
1000W: 2
PCI-E 6+2 Pin Connector
1000W: 8
Molex 4 Pin Connector
1000W: 3
12VHPWR (12 + 4) Connector
1000W: 1
SATA Connector
1000W: 9
Item Dimension (L inchxW inchxH inch)
13 x 9 x 7

Weight
7.56 lbs

Warranty Information
10 Years

Available Quantity

5

UPC

842243029420

SKU

mingle75261203

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

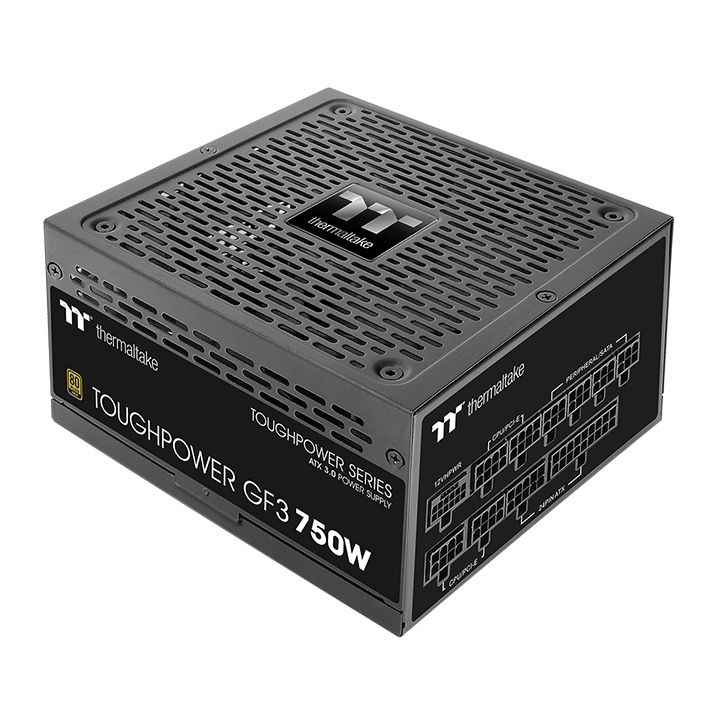

Toughpower GF3 750W Gold - TT Premium Edition
PCIe Gen 5.0 Ready Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 750W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < +/-2%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.
Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.
PCIe Gen 5.0 Ready
Toughpower GF3 750W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.
Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

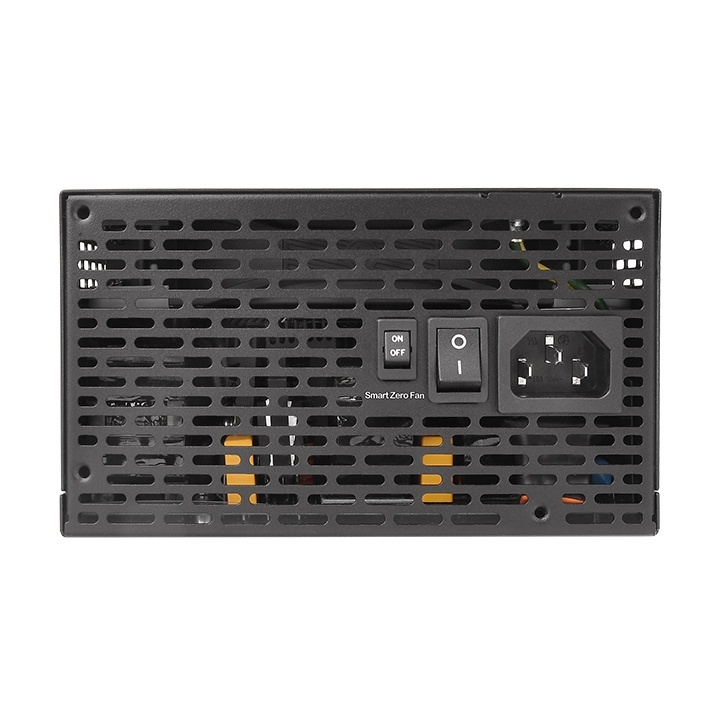

Ultra Quiet Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
WATTS
750W
MODEL
TPD-0750AH3FCG
MAX. OUTPUT CAPACITY
750W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
More than 17msec at 100% of full load
INPUT CURRENT
10.0A / 5.0A
INPUT FREQUENCY RANGE
50/60Hz
INPUT VOLTAGE
100V - 240V
OPERATING TEMPERATURE
0^oC to + 40^oC
OPERATING HUMIDITY
20% to 90%,non-condensing
STORAGE TEMPERATURE
-20^oC to + 70^oC
STORAGE HUMIDITY
5% to 95%, non-condensing
COOLING SYSTEM
13.5cm fluid bearing fan
EFFICIENCY
Meet 80 PLUSGold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE/UKCA/cTUVus/TV/FCC/IC/BSMI/EAC/CB/CCC
PCI-E 6+2PIN
PCIe 6+2Pin X 4
PCIe 12+4Pin X 1
PROTECTION
OCP, OVP, UVP, OPP, SCP, OTP

Available Quantity

5

UPC

841163083871

SKU

minglePS-TPD-0750FNFAGU-4

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

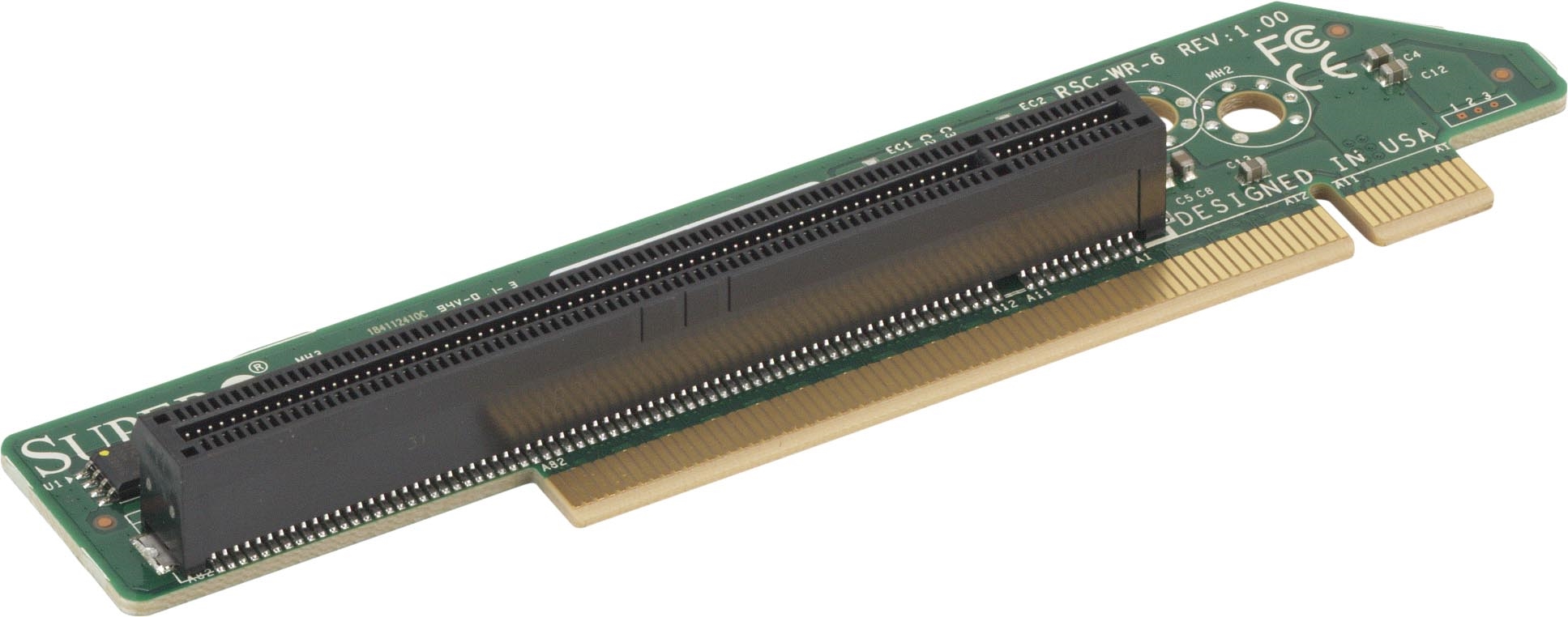

Supermicro Accessory RSC-WR-6 1U RHS WIO Riser card with one PCI-Express 4.0 x 16 slot Brown Box
Form Factor
1U
Slot Position
RHS
Design Type
Passive
Output Type
Output:
(1) PCI-E x16
Signal:
(1) PCI-E x16
Gen2/Gen3/Gen4
gen2: No
gen3: Yes
gen4: Yes, depending on MB
GPU_PHI Support
No
NVMe(or Ports)
No
M.2(or Ports)
No
Thermal Sensor
Yes
Auto Detect
Yes
Systems
AS -1113S-WN10RT
AS -2123US-TN24R25M
SSG-6019P-ACR12L+
AS -1014S-WTRT
AS -1114S-WTRT
Weight
1.00 LB

Warranty Information
none

Available Quantity

5

UPC

Does not apply

SKU

mingleRSC-WR-6

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

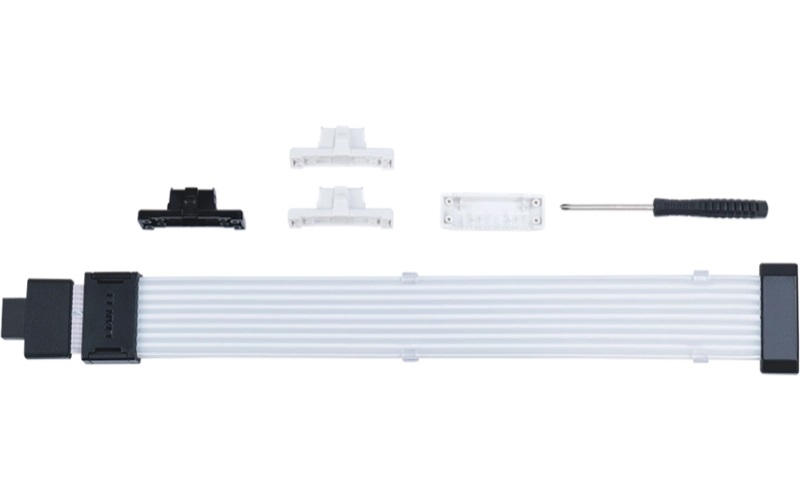

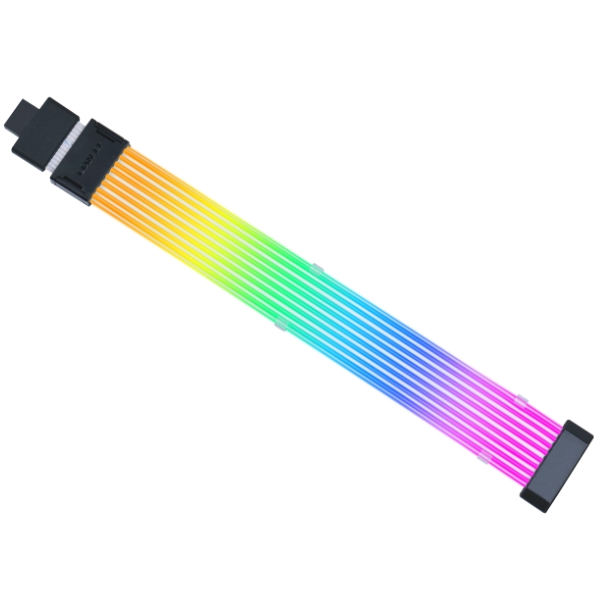

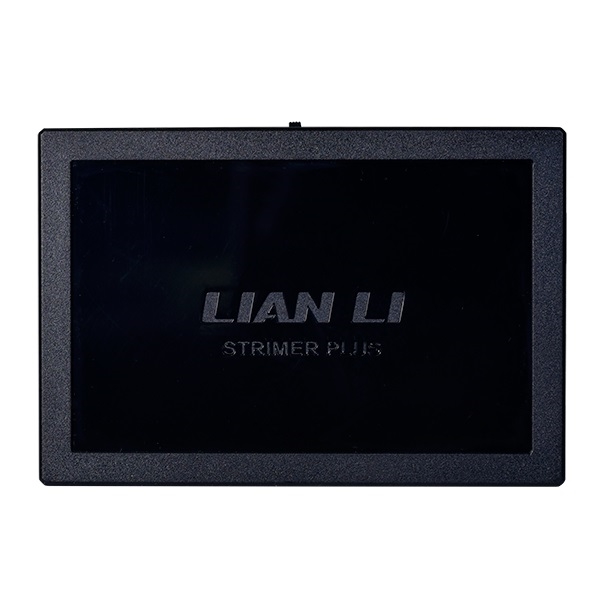

Strimer Wireless

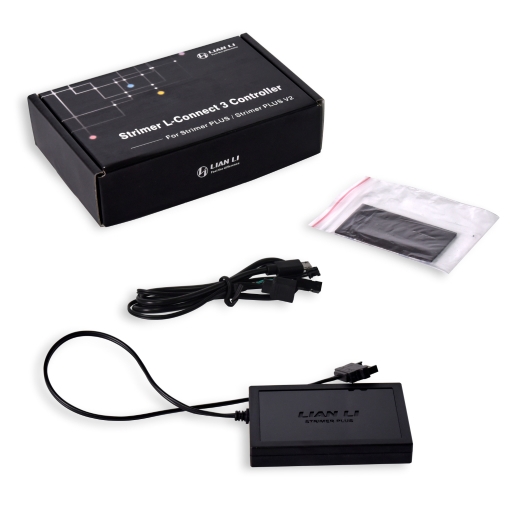

L-Wireless Sync supported (controller required)

Highly customizable addressable RGB extension cables

Available for motherboard 24-pin, CPU 2 8-pin, GPU 2 8-pin, and GPU 12V-2X6

Create a unique PC look with outstanding quality and material

Compatible with L-Connect 3 for personalized light effects

Power LED strips directly from the extension cable
MODEL NAME
STRIMER WIRELESS 16-8
MATERIAL
SILICONE/TPE
CABLE LENGH
340mm
LIGHT GUIDES
8
NUMBER OF LEDS
116
LED POWER CONSUMPTION
8.1W
ACCESSORIES
none
Item Dimension (L inchxW inchxH inch)
17 x 3 x 2

Weight
1.00 lb

Warranty Information
2years

Available Quantity

5

UPC

840353047358

SKU

minglePW16-81W

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

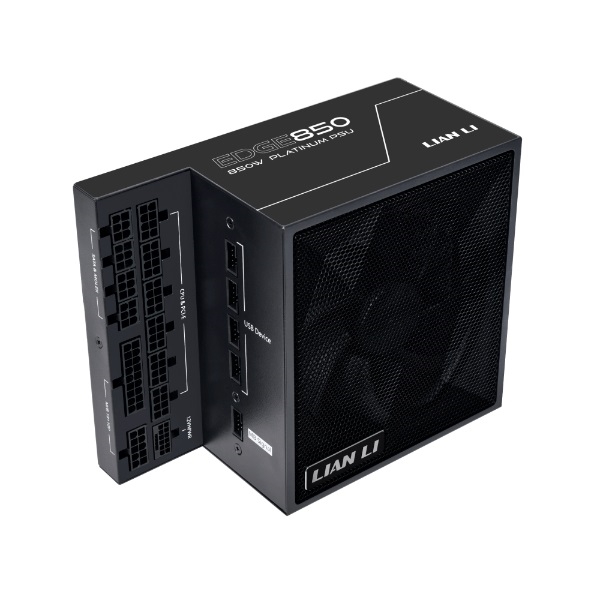

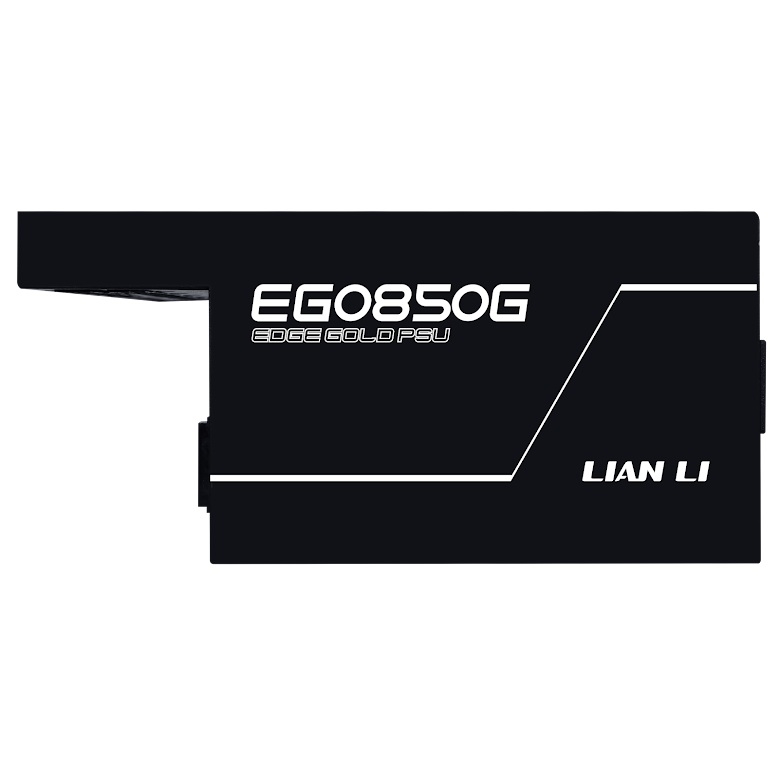

THE POWER FOR DUAL CHAMBER CASES

The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.



AVAILABLE IN 2 COLORS AND 3 WATTAGES

Offering versatile options, the EDGE PSU is available in multiple configurations to meet different power needs or match the components color.

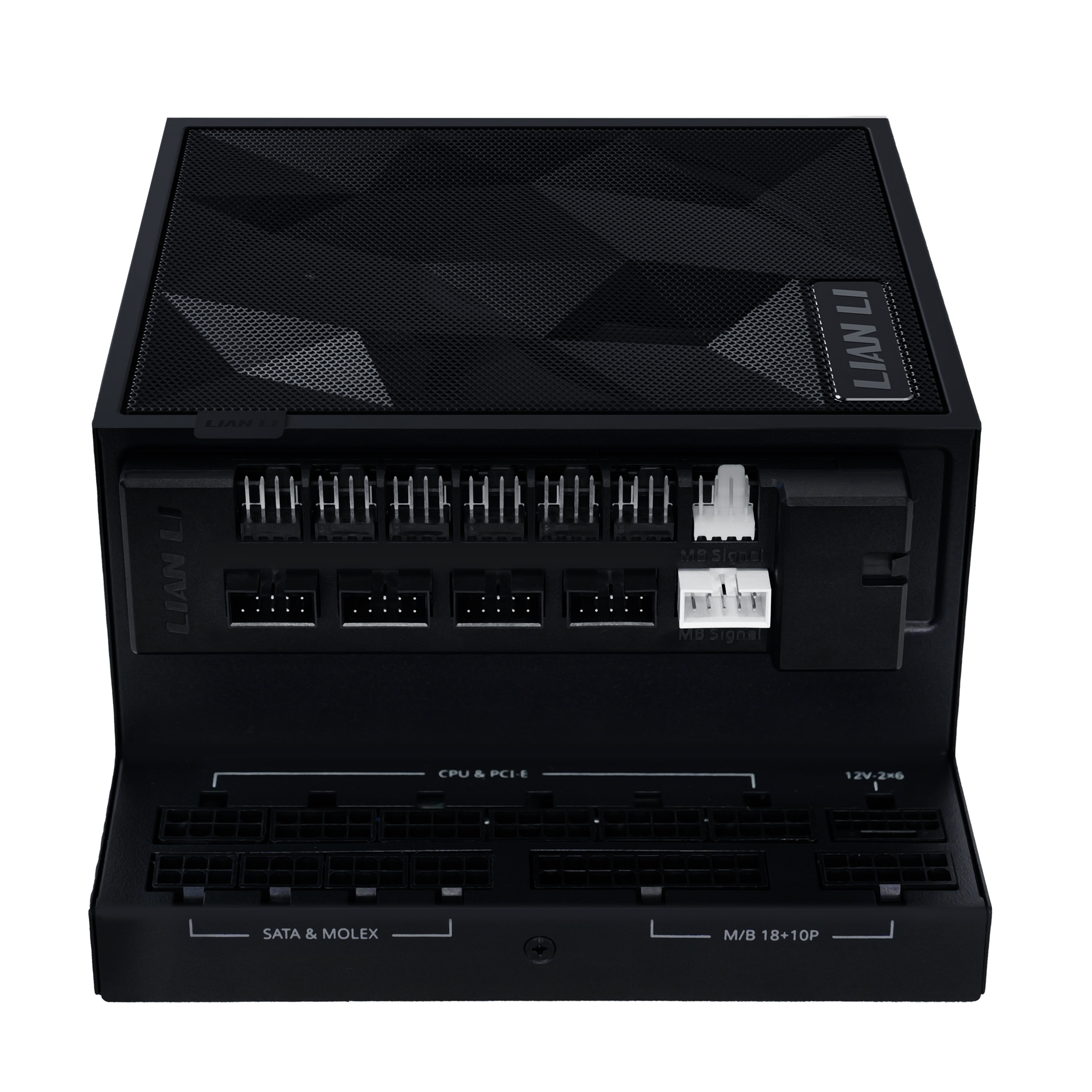

INNOVATIVE L-SHAPE DESIGN

Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU s L-shape design is ideal for vertical installation at the second chamber.

This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.



POWER AND USB HUB TWO-IN-ONE

The full Edge Series integrates 4 9-pin internal USB expansion, which function as a 1-to-7 USB hub, simplifying the connection of USB devices such as UNI fans, Strimer Plus, and RGB controllers to the motherboard.

All USB ports features uninterruptible power, allowing connected devices to remain operational when the PC is turned off, as long as the power supply is on. Each port supports a rate current of 500mA.



PLATINUM CERTIFIED

Achieving the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.



ATX 3.0 AND 3.1 COMPLIANT

Fully compliant with ATX 3.0 and 3.1 standards, the EDGE Series meets the latest power supply specifications, ensuring compatibility with the newest components and motherboards.

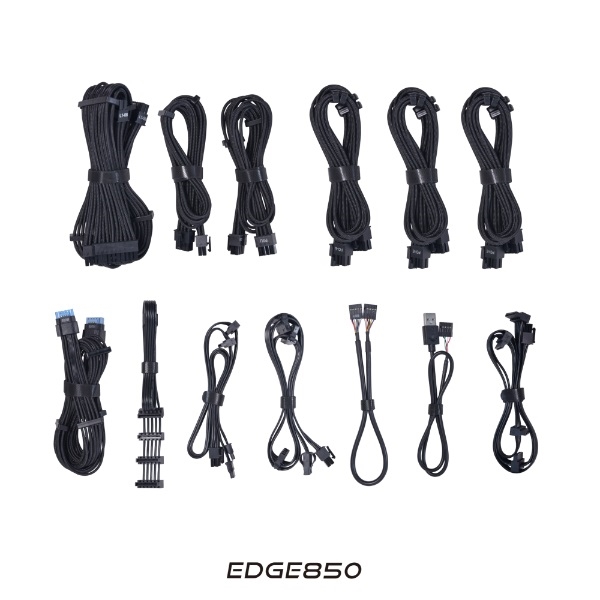

PRODUCT NAME
EDGE850

MODEL
EG0850 BLACK

POWER SUPPLY DESIGN
Fully modular

COLOR
Black

MATERIAL
Steel

FORM FACTOR
ATX 3.1

CERTIFICATION
80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM

MAX. DC OUTPUT
850W

COMBINED +3.3V and +5V
120W

COMBINED +12V
849.6W

INPUT VOLTAGE
100-240Vac

INPUT FREQUENCY RANGE
10-5A 50-60Hz

PFC
Active PFC, PF > 0.90 under full load at 115Vac, 60Hz

EFFICIENCY
92.41% MAX

PROTECTIVE CIRCUIT
OCP/OVP/OTP/OPP/SCP/UVP

CONNECTORS
1 x 24/20-Pin motherboard connector (500mm) x1pcs
1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
1 x 8/6+2 Pin PCle connector (550m m) x3pcs
1 x12VHPWR connector (550mm) x 1pcs
4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
4 x Y Type SATA connector (400mm-125mm x 2) x1pcs
USB 9pin - USB 9pin connector (350mm) x 1pcs
USB 9pin -Type A connector (550mm) x 1pcs

FAN TYPE
120mm FDB Fan

FAN SPEED
2000RPM

FAN NOISE LEVEL
25.96dBA
Item Dimension (L inchxW inchxH inch)
17 x 9 x 6

Weight
7.92 lbs

Warranty Information
10 Years

Available Quantity

5

UPC

840353045897

SKU

mingleEG0850 BLACK

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

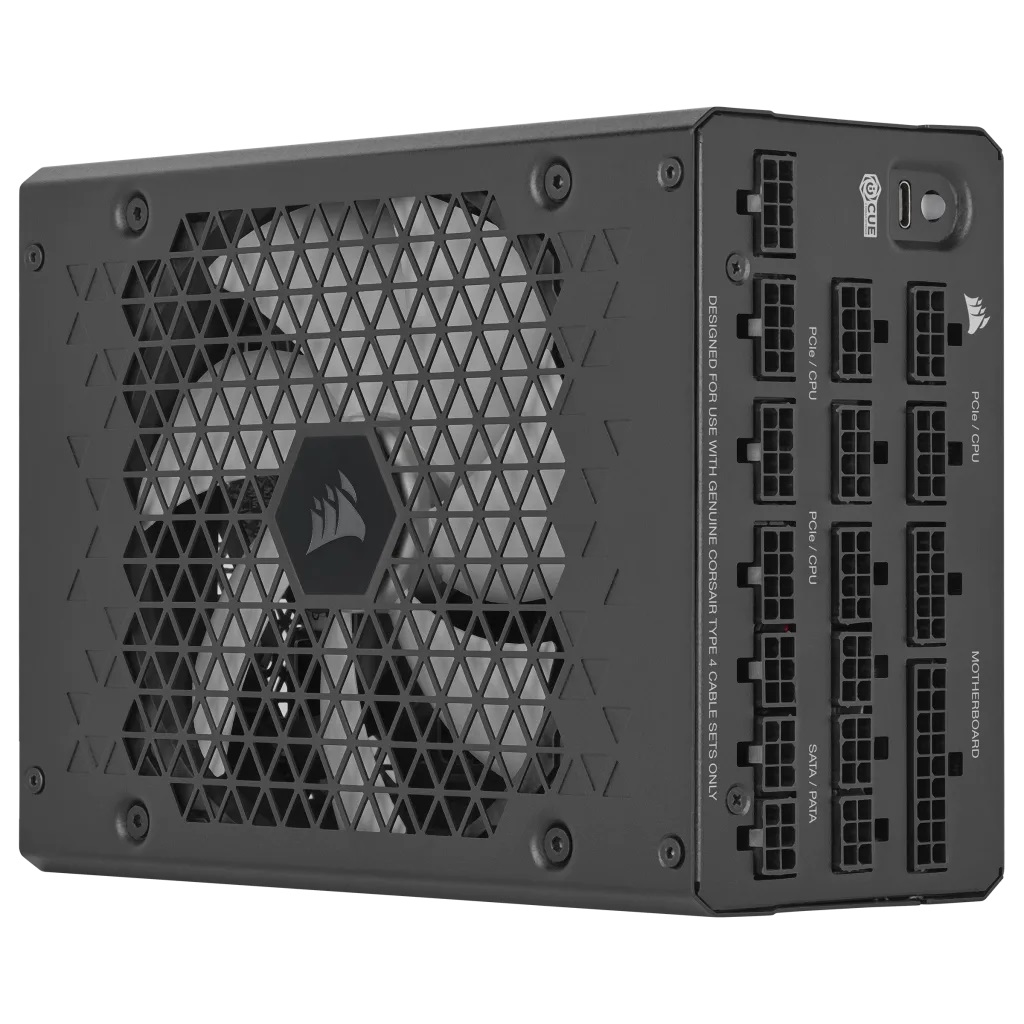

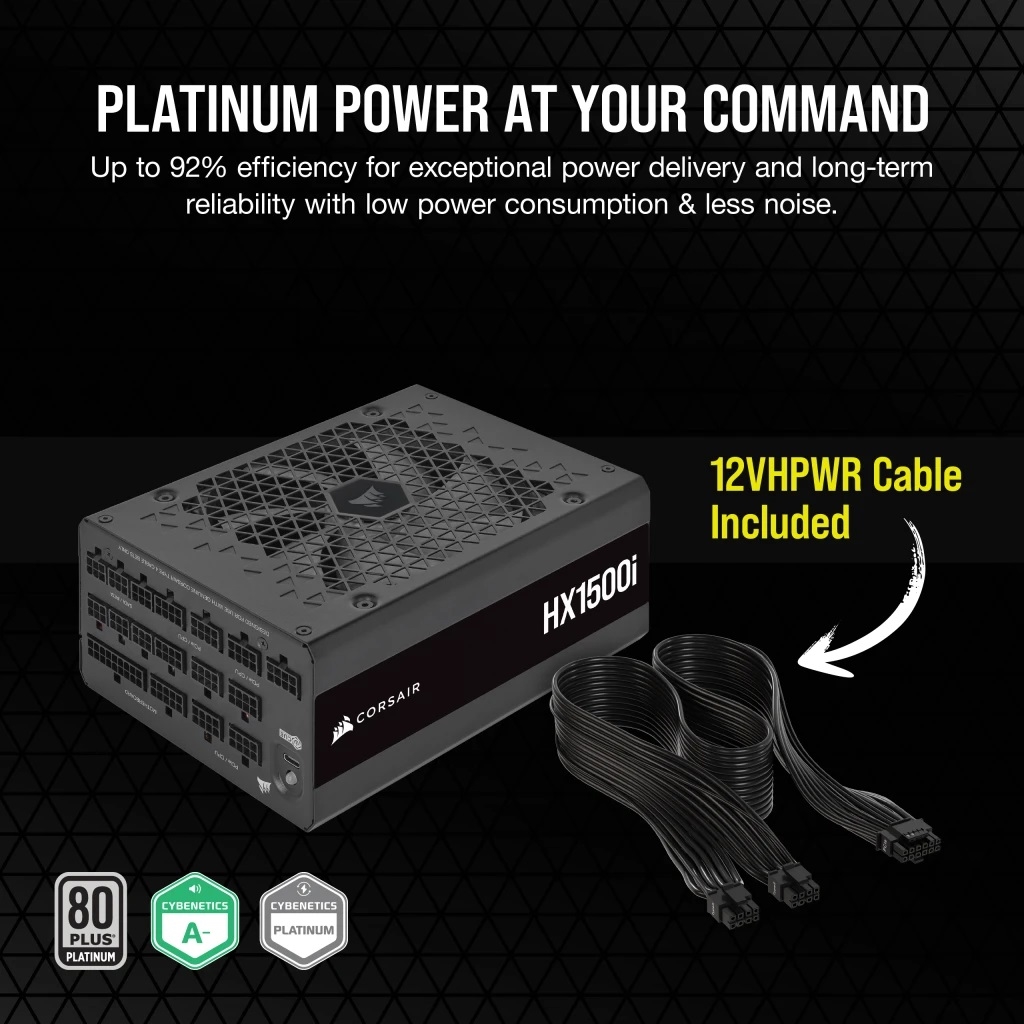

HX1500i Fully Modular Ultra-Low Noise Platinum ATX 1500 Watt PC Power Supply

Compatible with NVIDIA 4000 series and AMD Ryzen 7000 series GPUs

Fluid Dynamic Bearing fan with Zero RPM mode

105 C rated 100% Japanese electrolytic capacitors

10 year warranty

ATX 3.1 & PCIe 5.1 certified



POWERFUL CONNECTIONS

With three EPS12V connectors and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.



ATX 3.1 CERTIFIED

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.1 compliance.



PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA GeForce RTX 40 Series.



QUIET OPERATION

HXi Series PSUs combine a 140mm fluid dynamic bearing fan with Zero RPM mode support for long-lasting fan performance and near-silent operation when the fan switches off at low and medium loads only spinning as fast as it needs to.



UNWAVERING POWER AND QUALITY

80 PLUS Platinum certified with premium 100% Japanese 105 C electrolytic capacitors, HXi PSUs ensure up to 92% efficiency for exceptional power delivery and long-term reliability with low power consumption, less noise, and cooler temperatures.



POWER AT THE READY

As a fully digital power supply, each HXi Series PSU provides clean, consistent power while minimizing coil whine and noise for stable and quiet operation.



Supporting Modern Standby sleep mode, the HXi Series takes low-load efficiency to the next level with quiet operation and extremely fast wake-from-sleep times.
Cybenetics Efficiency
Platinum

Cybenetics Noise
A-

ATX Connector
1

ATX12V Version
3.1

Cable Type
Type 4

Continuous Power W
1500 Watts

EPS Connector
2

Fan Bearing Technology
Fluid Dynamic Bearing

Fan Size MM
140mm

Multi GPU Ready
Yes

SATA Connector
8

PATA Connector
8

Modular
Fully

PCIe Connector
11

MTBF Hours
100,000 hours

PSU Form Factor
ATX

Zero RPM Mode
Yes

80 PLUS Efficiency
Platinum
Item Dimension (L inchxW inchxH inch)
14 x 10 x 6

Weight
10.14 lbs

Warranty Information
10 Year

Available Quantity

5

UPC

840006697497

SKU

mingleCP-9020261-NA

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

PURE POWER 12 M
1200W
Exceptional quiet, superior features
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1200W offers the best combination of features with outstanding compatibility.
80 PLUS Gold efficiency (up to 93.7%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Exceptionally silent 120mm be quiet fan
Advanced stability and voltage regulation thanks to LLC technology
2 strong 12V-rails
Modular cables for maximum build flexibility
One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
10-year manufacturers warranty
Characteristics
80 PLUS GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 1200W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1200W is always the correct choice for quiet systems and gaming PCs
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 1200W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
Model
Pure Power 12 M 1200W
Continuous power (W)
1200
Peak power (W)
1250
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
15 / 7.5
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.12
Average life time (h / 25^oC)
>100,000
Operating temperature up to (^oC)
40
Item Dimension (L"xW"xH")
12 x 9 x 4

Weight
7.03 lbs

Warranty Information
10 year

Available Quantity

5

UPC

Does not apply

SKU

mingleBN513

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

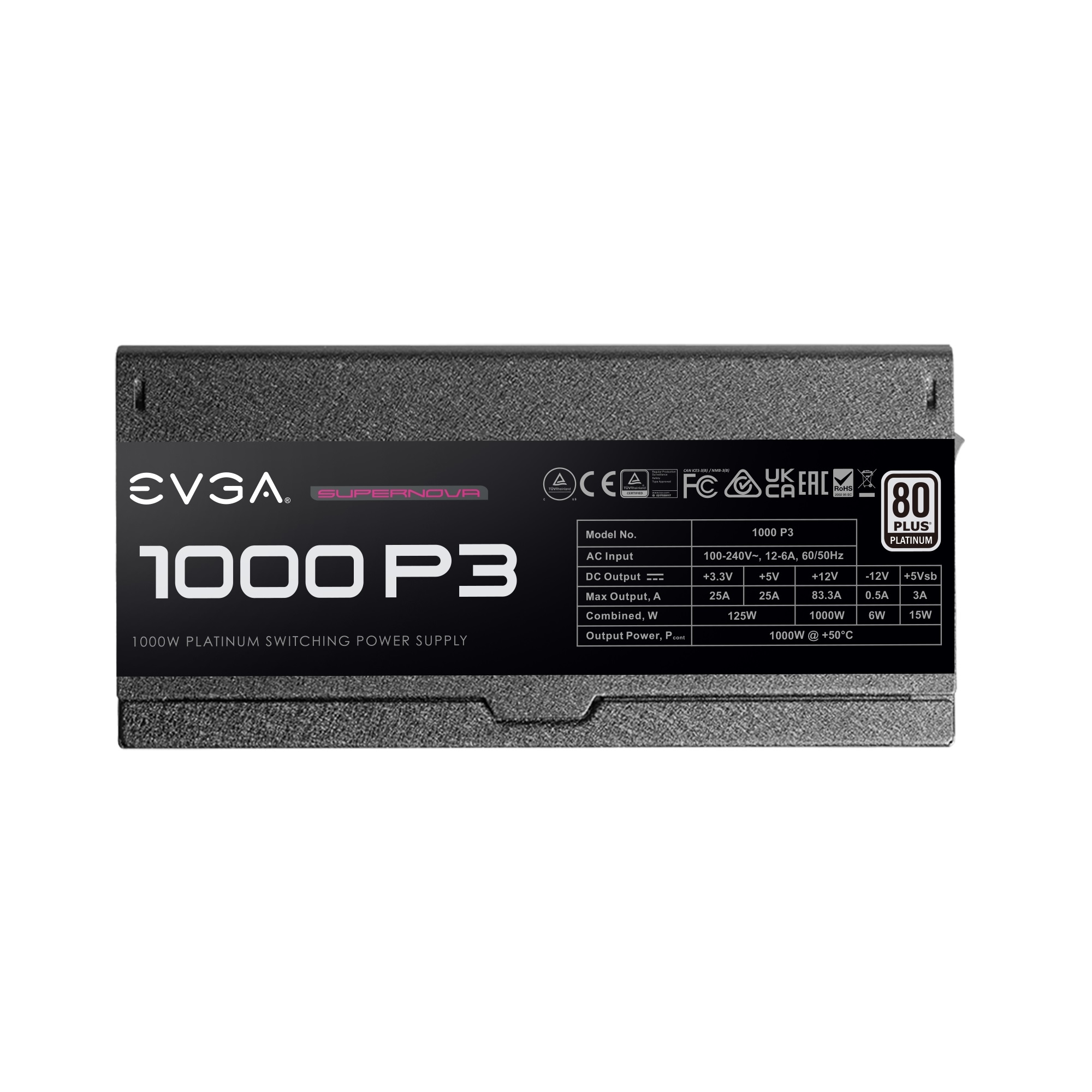

Product Description

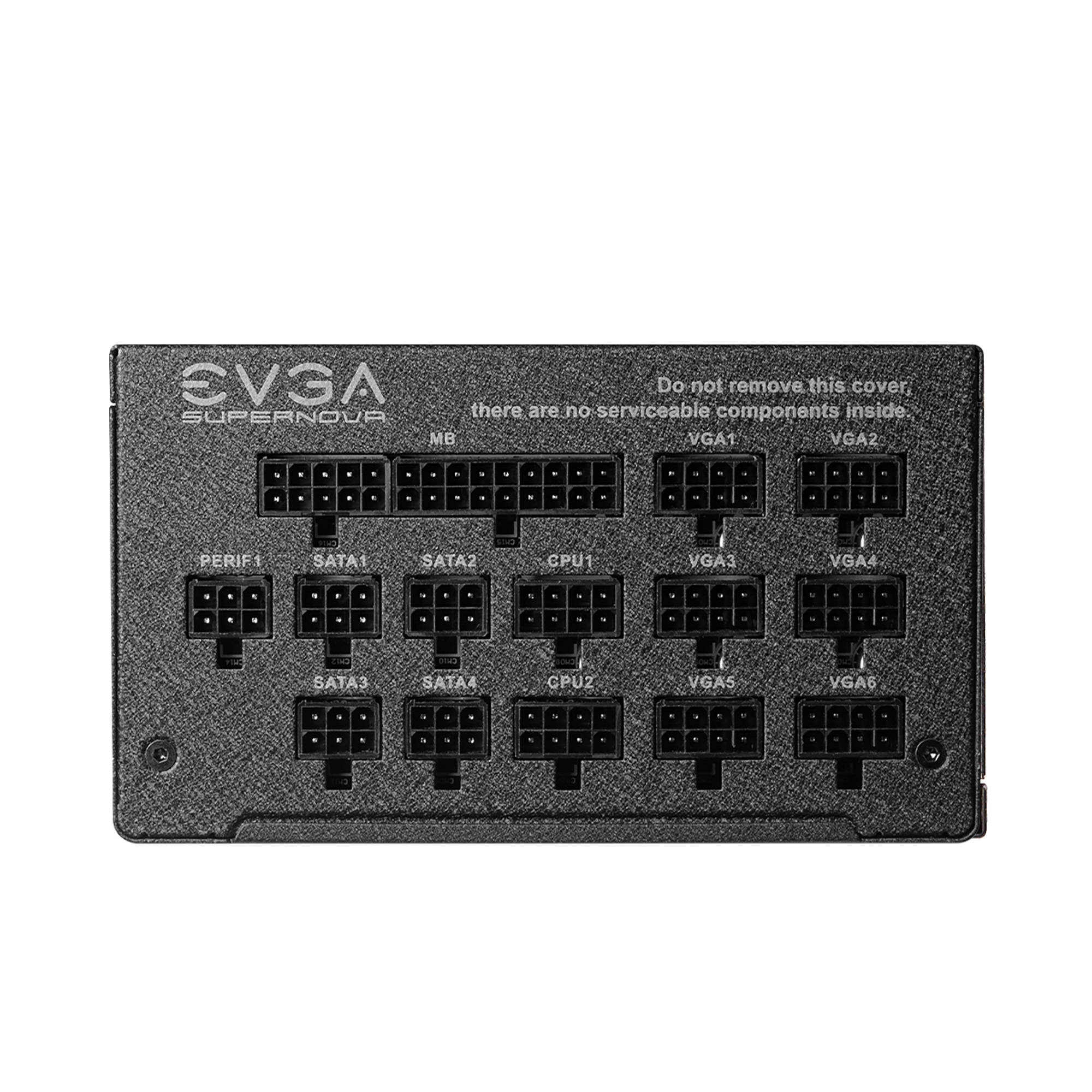

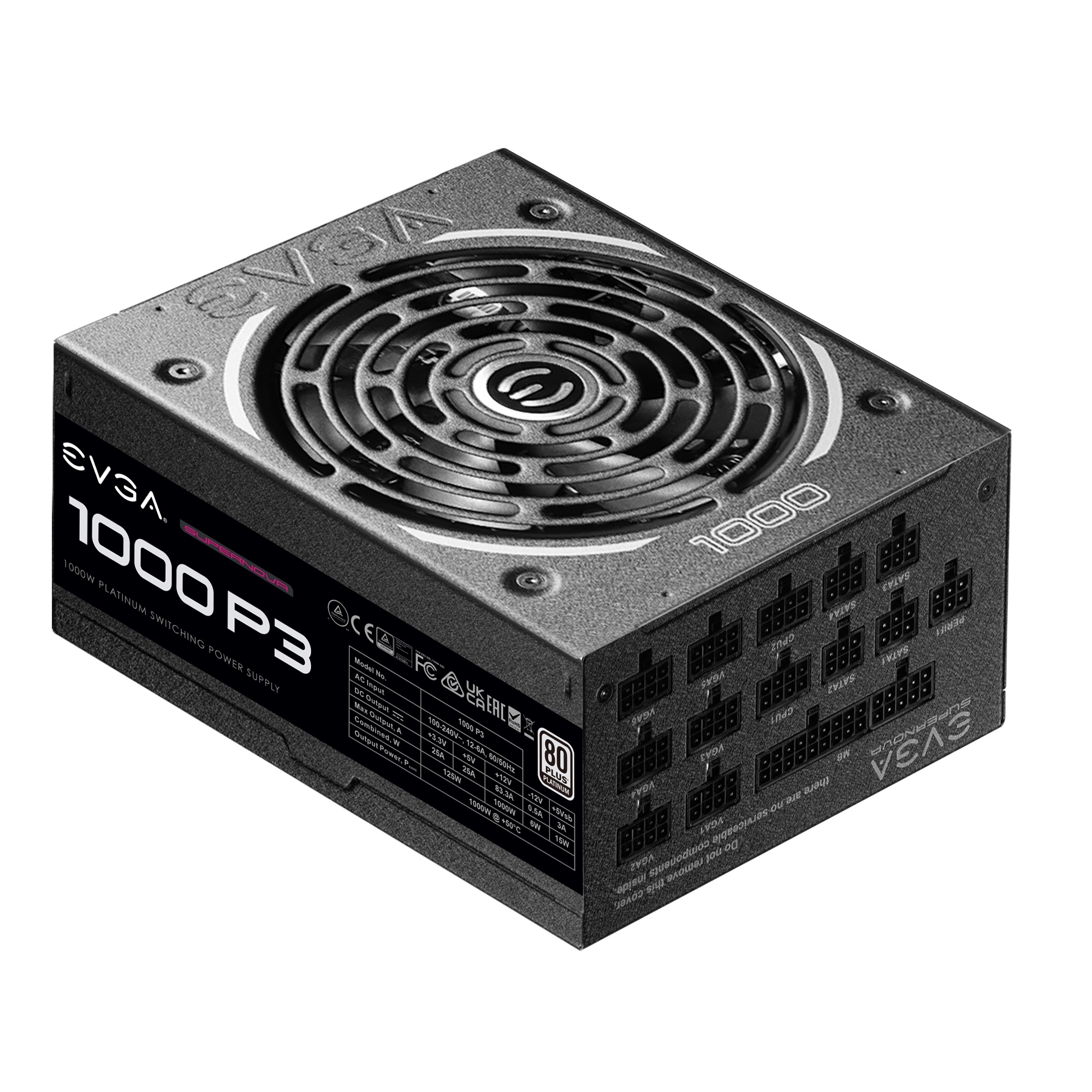

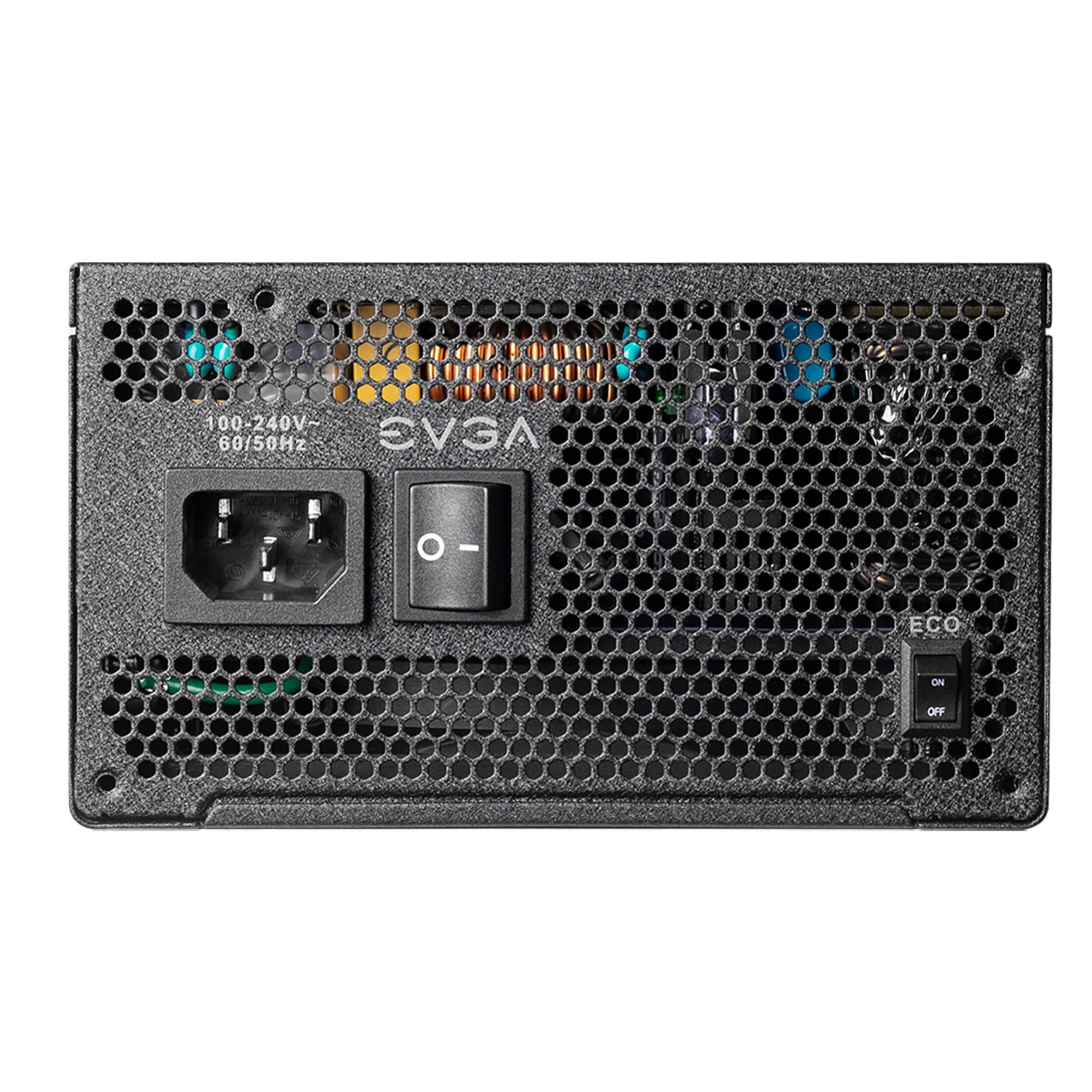

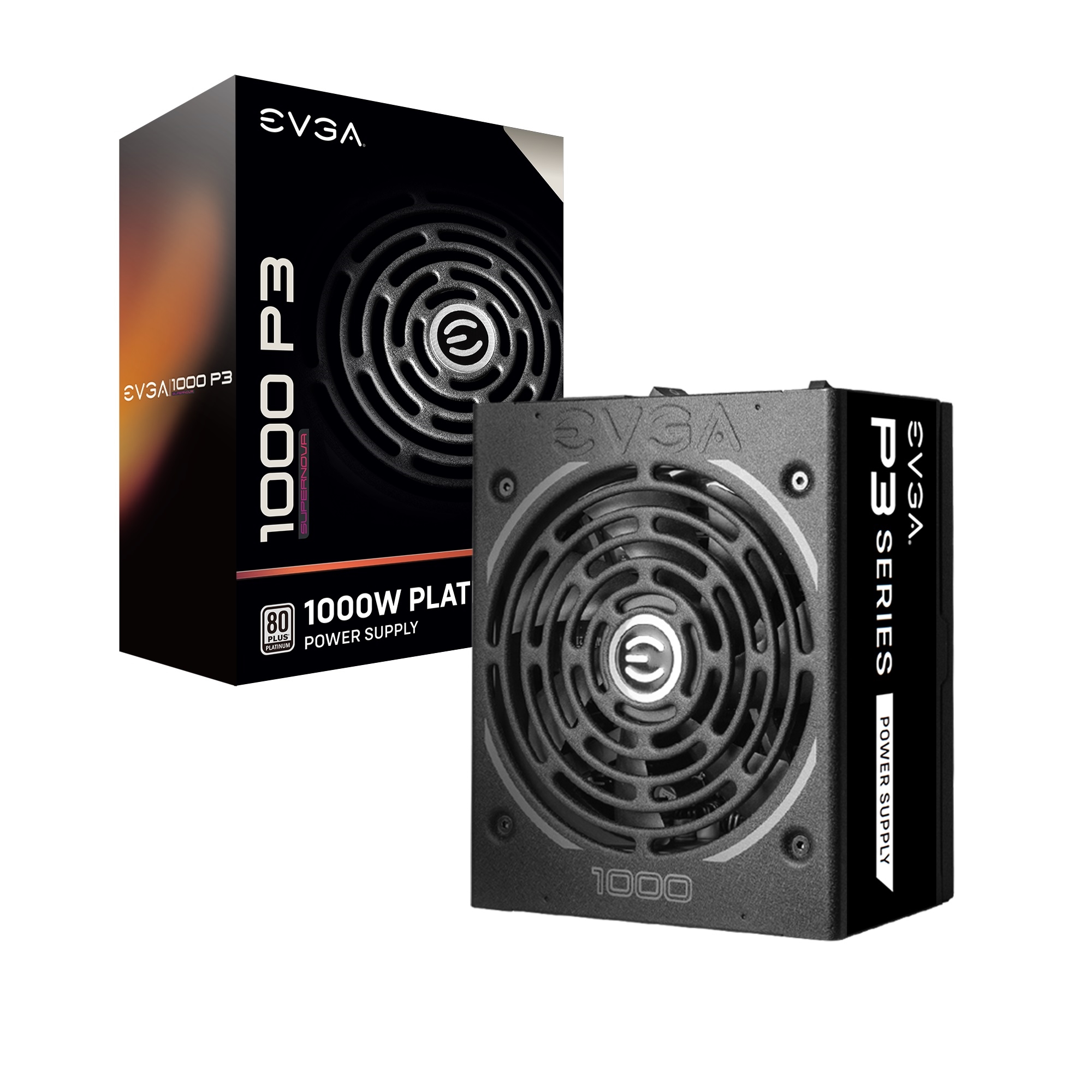

EVGA SuperNOVA 1000 P3, 80 Plus Platinum 1000W, Fully Modular, Eco Mode with FDB Fan, , Includes Power ON Self Tester, Compact 180mm Size, Power Supply
CABLE LENGTH
ATX Cable
1x 600mm
EPS Cable
2x 750mm
PCIe Cable
2x 750mm, 900mm 4x 750mm
SATA Cable
4x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable
1x 550mm, 650mm, 750mm, 850mm
Floppy Adapter
1x 100mm
AC Power
1x 1500mm
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
8x 8pin (6+2)
SATA
12x
Four-Pin Peripheral
4x
Floppy
1x
POWER SPECS
AC Input
100-240ACV, 12-6A, 60/50Hz
Rail / Max Output
+3.3V / 25A / 125W
+5V / 25A / 125W
+12V / 83.3A / 1000W
+5Vsb / 3A / 15W
-12V / 0.5A / 6W
Total
1000W
ADDITIONAL DETAILS
Operating Temperature
0^o to 50^o C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing
Item Dimension (L inchxW inchxH inch)
14 x 5 x 9

Weight
9.00 lb

Warranty Information
10 years

Available Quantity

5

UPC

843368059149

SKU

mingle220-P3-1000-X1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

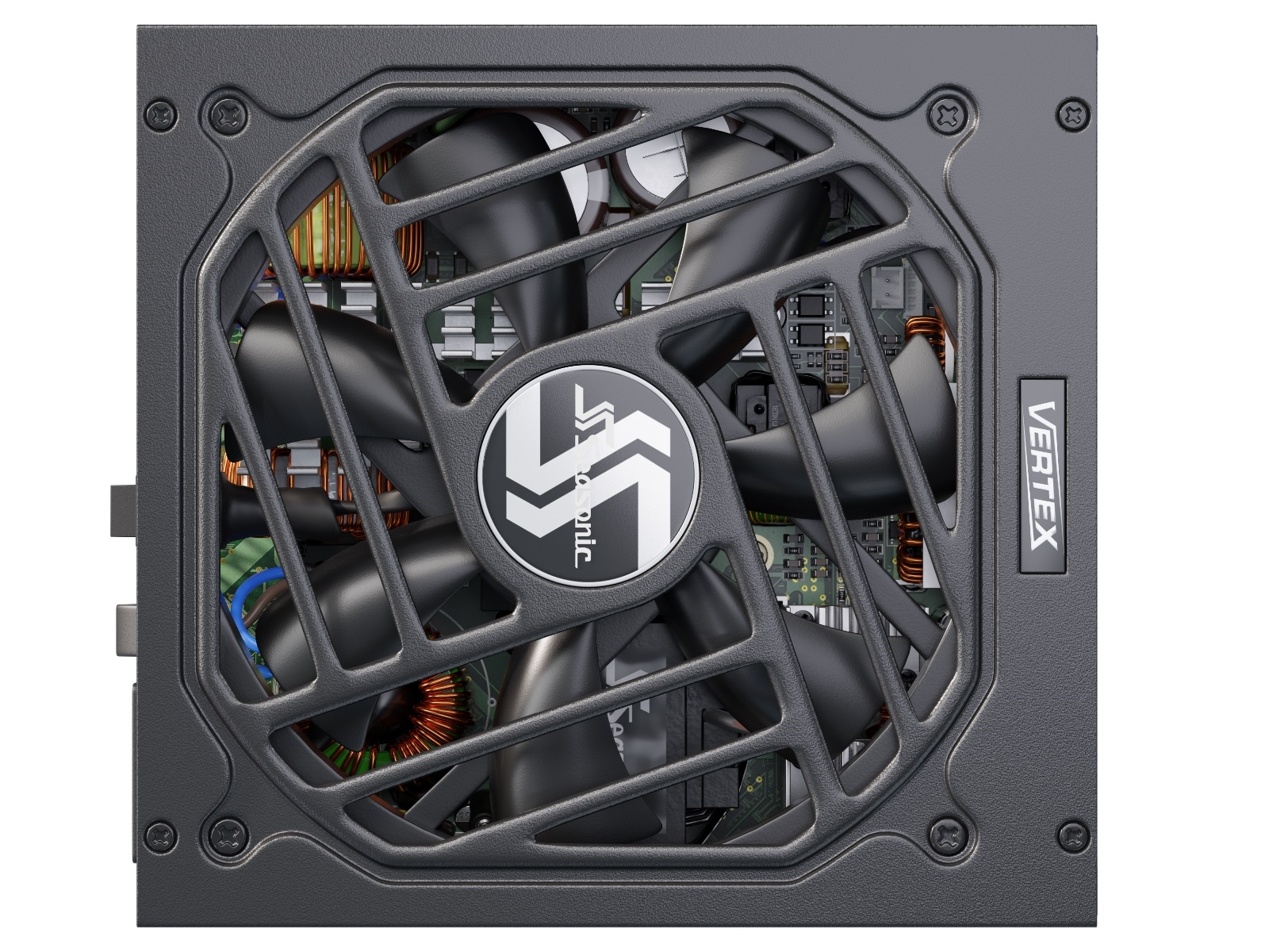

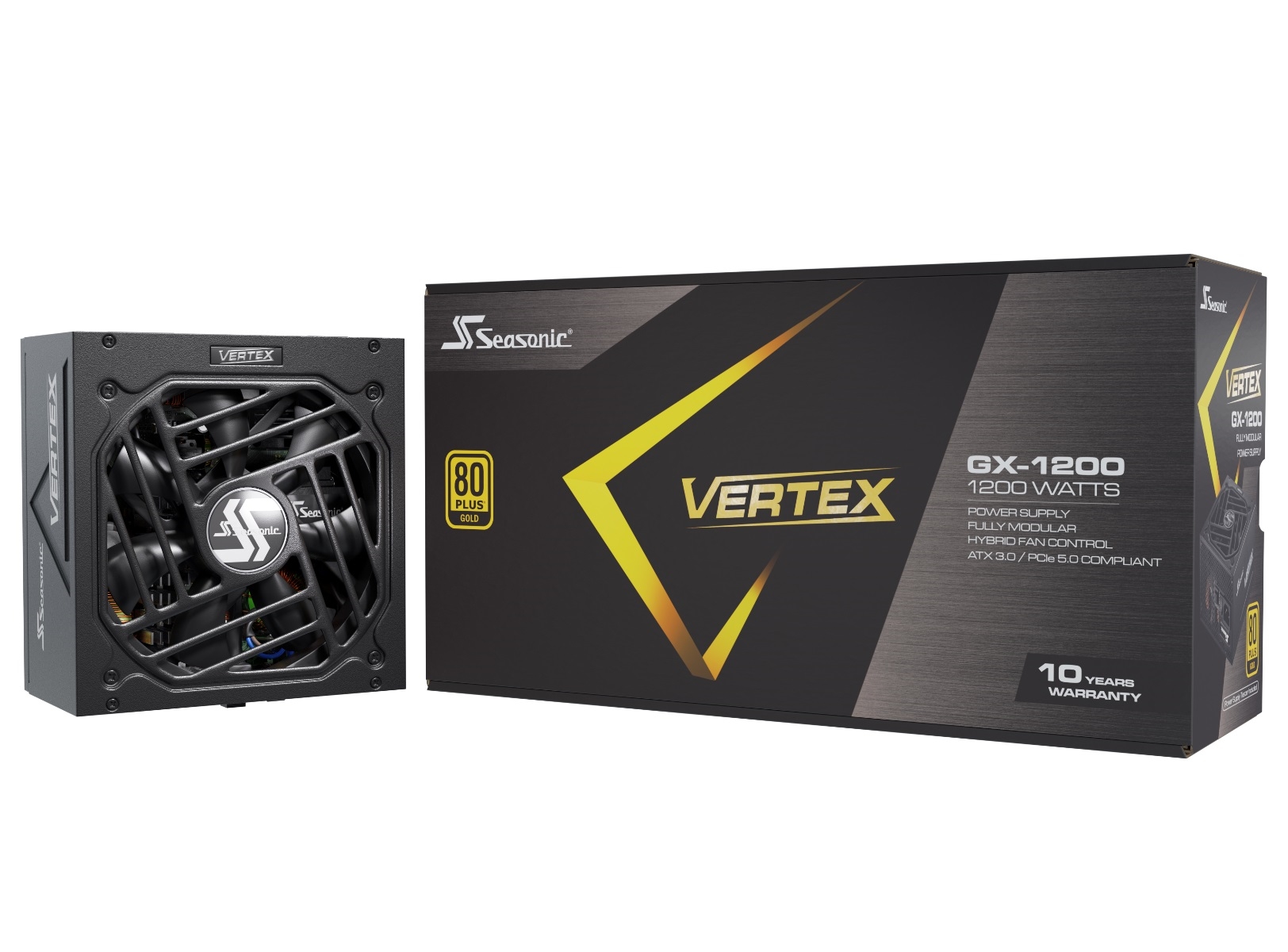

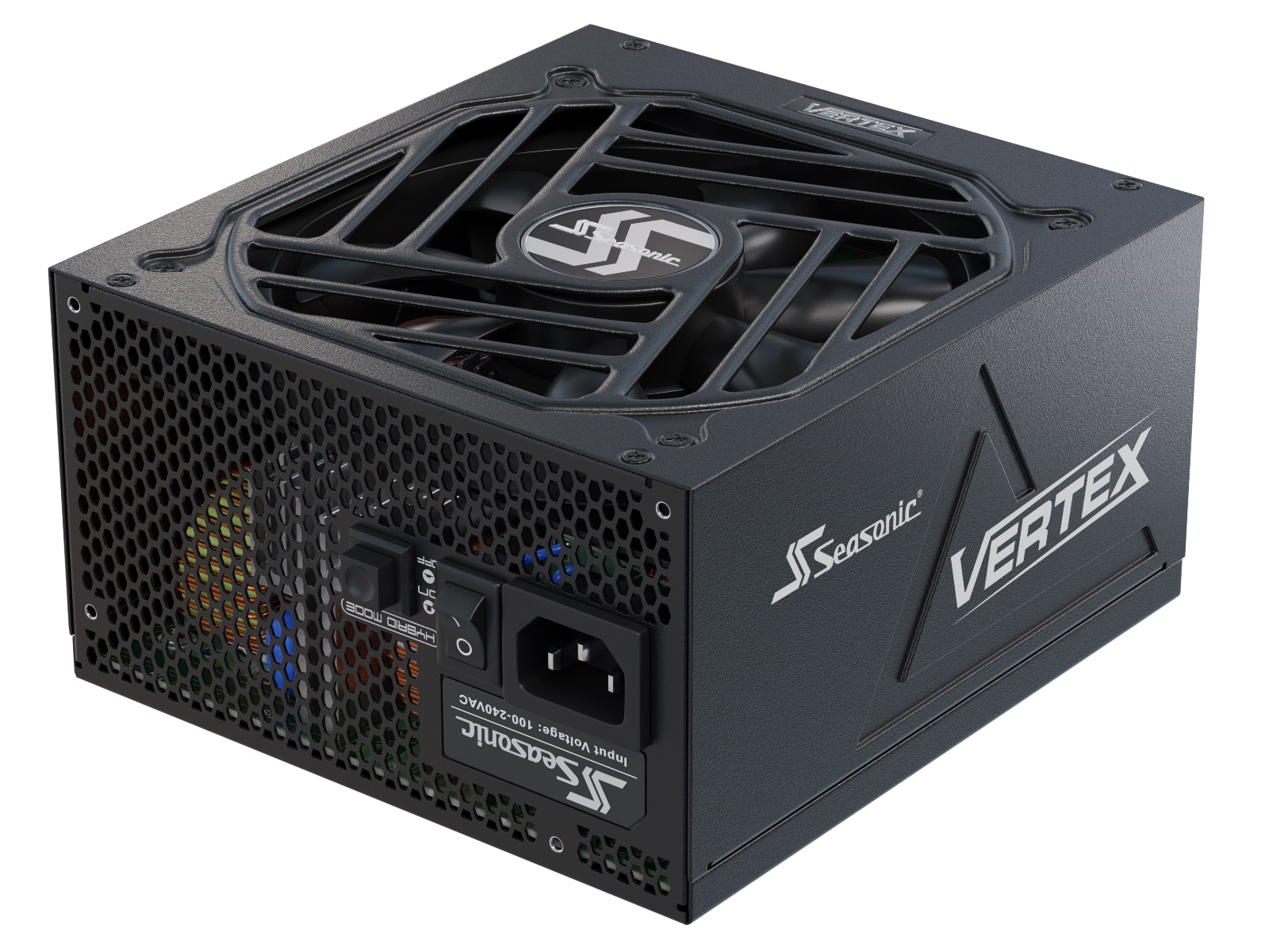

Product Description

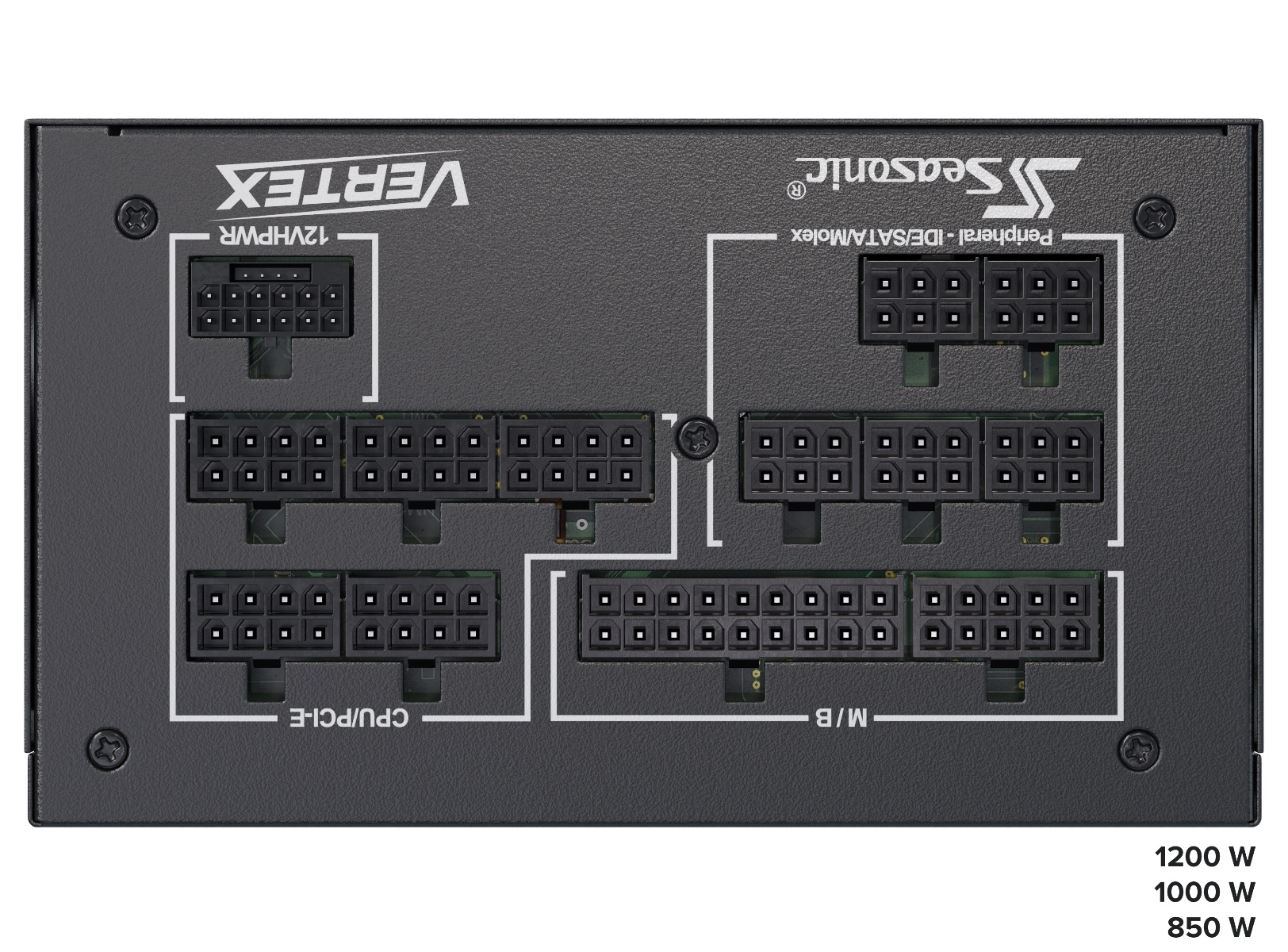

ATX 12 V

Fully Modular

80 PLUS Gold Certified


The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:

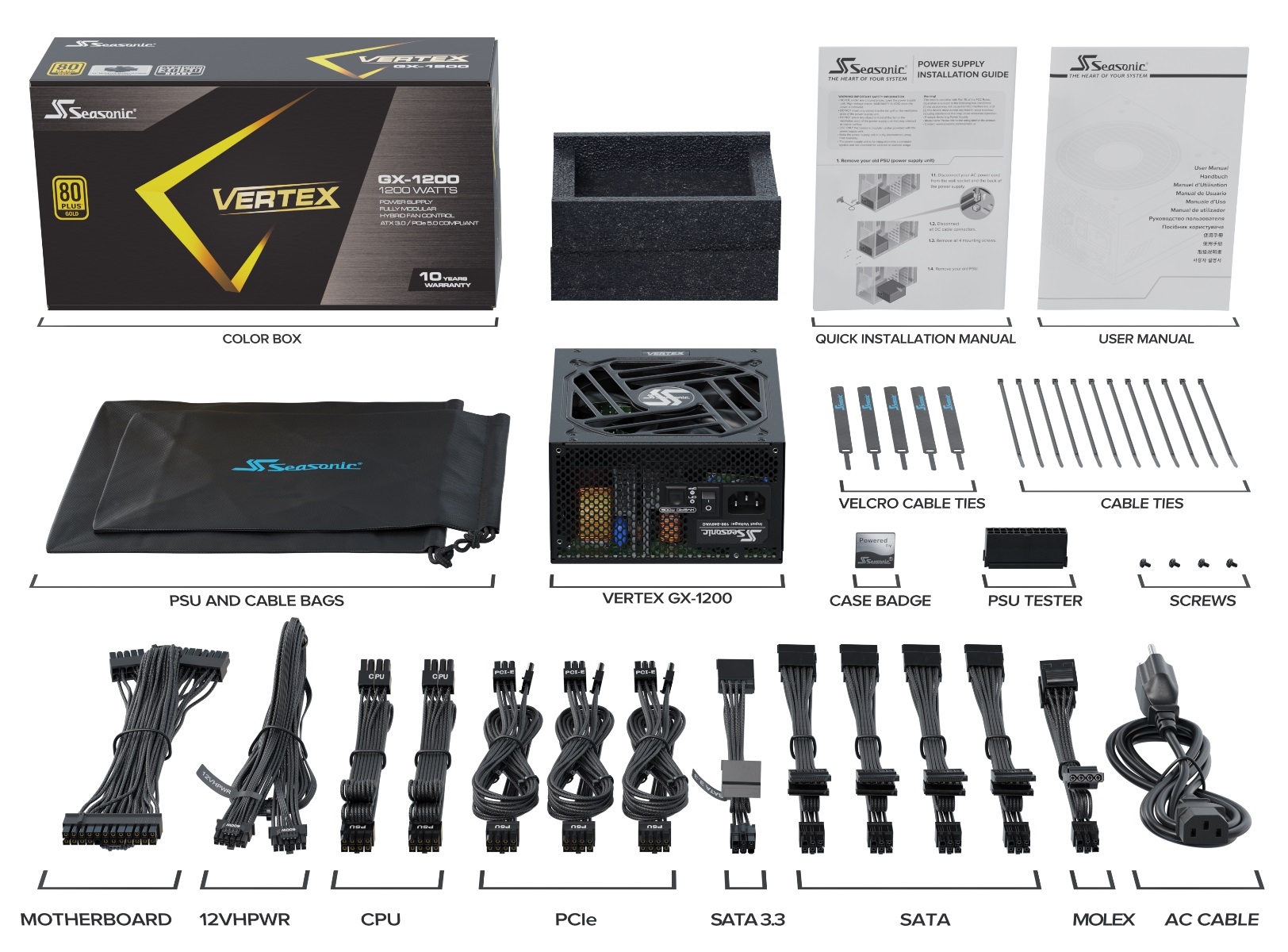

Full modularity for the best cable management options:

- Added 12VHPWR cable to comply with the new graphic cards

- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation

- Seasonic Hybrid Silent Fan Control for optimal cooling

- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP


80 PLUS GOLD

The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.


ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)

Seasonic s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.


PREMIUM HYBRID FAN CONTROL

Seasonic s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.


FLUID DYNAMIC FAN BEARING

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
80PLUS
Gold
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Fan Information
Fan Size
135 mm
Fan Control
Premium Hybrid Fan Control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 ^oC, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Flat black cables
Electrical Features
Operating Temperature
0 - 50 ^oC (derating from 100 % to 80 % from 40 ^oC to 50 ^oC)
MTBF at 25 ^oC, excl. fan
150,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output
AC Input
Voltage: 100 V - 240 V
Current: 15 7.5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail / Maximum Power
+3.3 V / 25 A / 125 W
+5 V / 25 A / 125 W
+12 V / 100 A / 1200 W
-12 V / 0.3 A / 3.6 W
+5 VSB / 3A / 15 W
Total continuous power
1200 W
Item Dimension (L inchxW inchxH inch)
5 x 14 x 8

Weight
6.02 lb

Warranty Information
12 years

Available Quantity

5

UPC

882016002380

SKU

mingleVERTEX1200G

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

ATX 12 V

Fully Modular

80 PLUS Gold Certified


The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:

Full modularity for the best cable management options:

- Added 12VHPWR cable to comply with the new graphic cards

- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation

- Seasonic Hybrid Silent Fan Control for optimal cooling

- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP


80 PLUS GOLD

The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.


ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)

Seasonic s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.


PREMIUM HYBRID FAN CONTROL

Seasonic s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.


FLUID DYNAMIC FAN BEARING

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
80PLUS
Gold
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Fan Information
Fan Size
135 mm
Fan Control
Premium Hybrid Fan Control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 ^oC, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Flat black cables
Electrical Features
Operating Temperature
0 - 50 ^oC (derating from 100 % to 80 % from 40 ^oC to 50 ^oC)
MTBF at 25 ^oC, excl. fan
150,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output
AC Input
Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail / Maximum Power
+3.3 V / 25A / 125 W
+5 V / 25 A / 125 W
+12 V / 83 A / 996 W
-12 V / 0.3 A / 3.6 W
+5 VSB / 3A / 15 W
Total continuous power
1000 W
Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
6.02 lb

Warranty Information
12 years

Available Quantity

5

UPC

882016002373

SKU

mingleVERTEX1000G

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

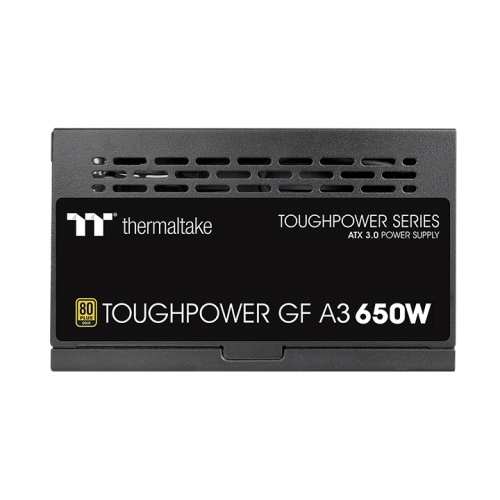

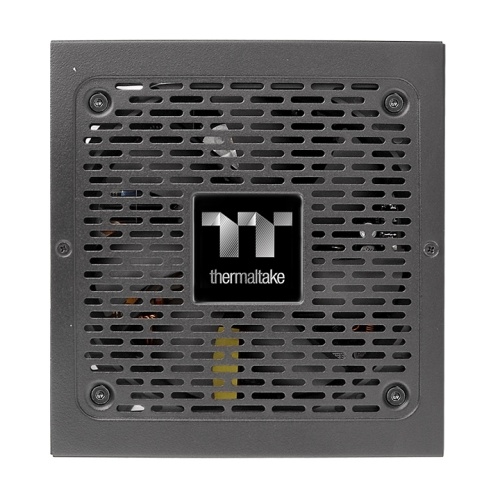

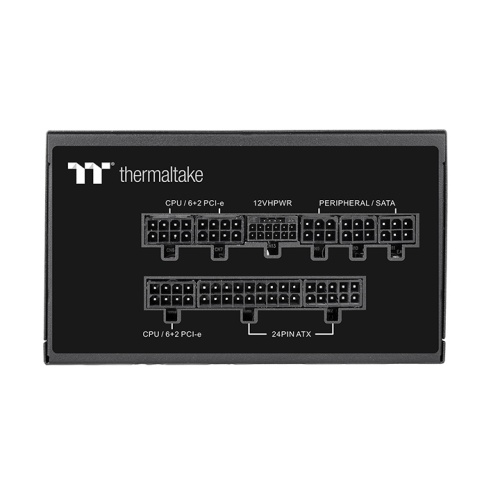

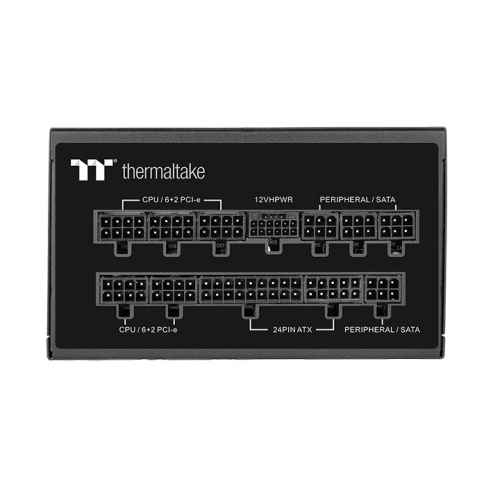

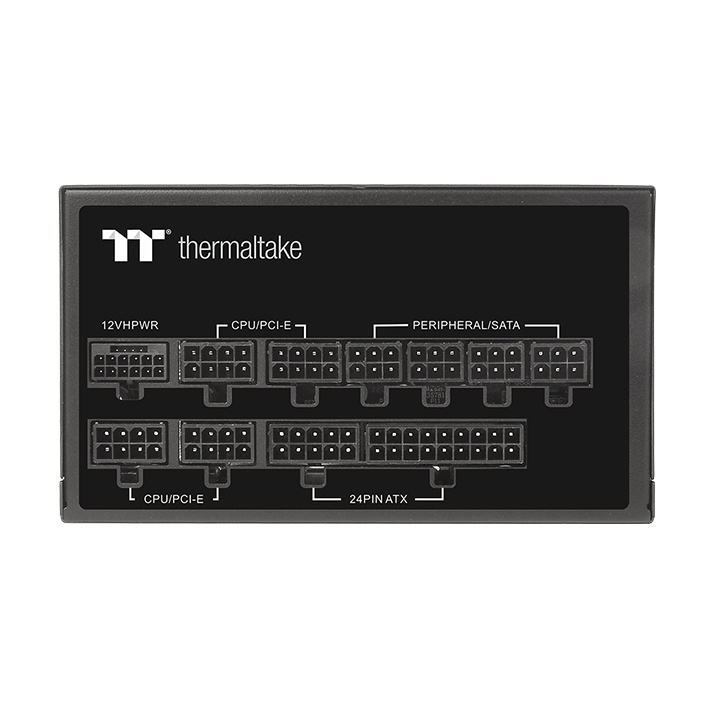

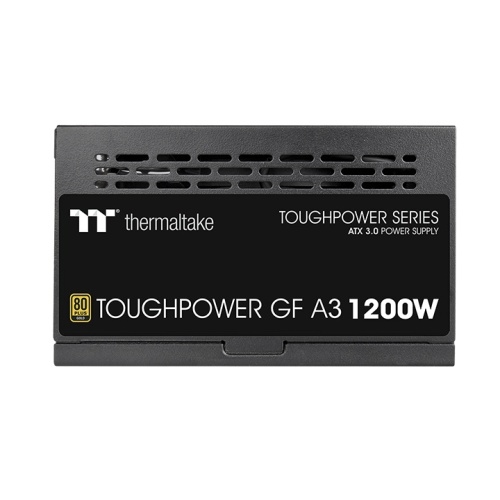

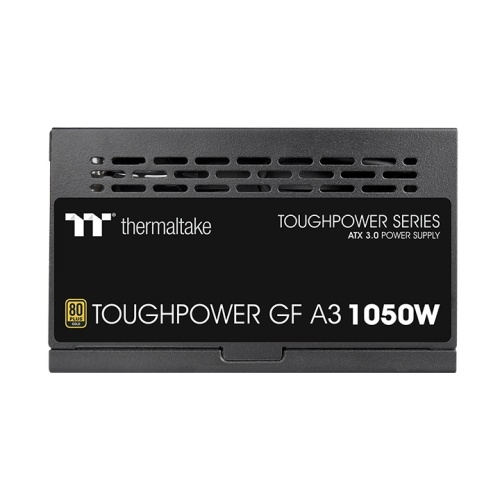

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.


Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.


PCIe Gen 5.0 Ready

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
WATTS
750W
MAX. OUTPUT CAPACITY
750W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
> 17msec
INPUT CURRENT
15A-8A
INPUT FREQUENCY RANGE
50Hz/60Hz
INPUT VOLTAGE
100-240V or more
OPERATING TEMPERATURE
5^oC to + 45^oC
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40^oC to + 55^oC
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
12cm FDB Fan
EFFICIENCY
Meet 80 PLUS Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
FCC/ICES/CB/cTUVus
PCI-E 6+2PIN
4
PCIE 12+4PIN
1(300W)
Item Dimension (L inchxW inchxH inch)
13 x 6 x 9

Weight
6.32 lb

Warranty Information
10 years

Available Quantity

5

UPC

841163087350

SKU

minglePS-TPD-0750FNFAGU-L

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

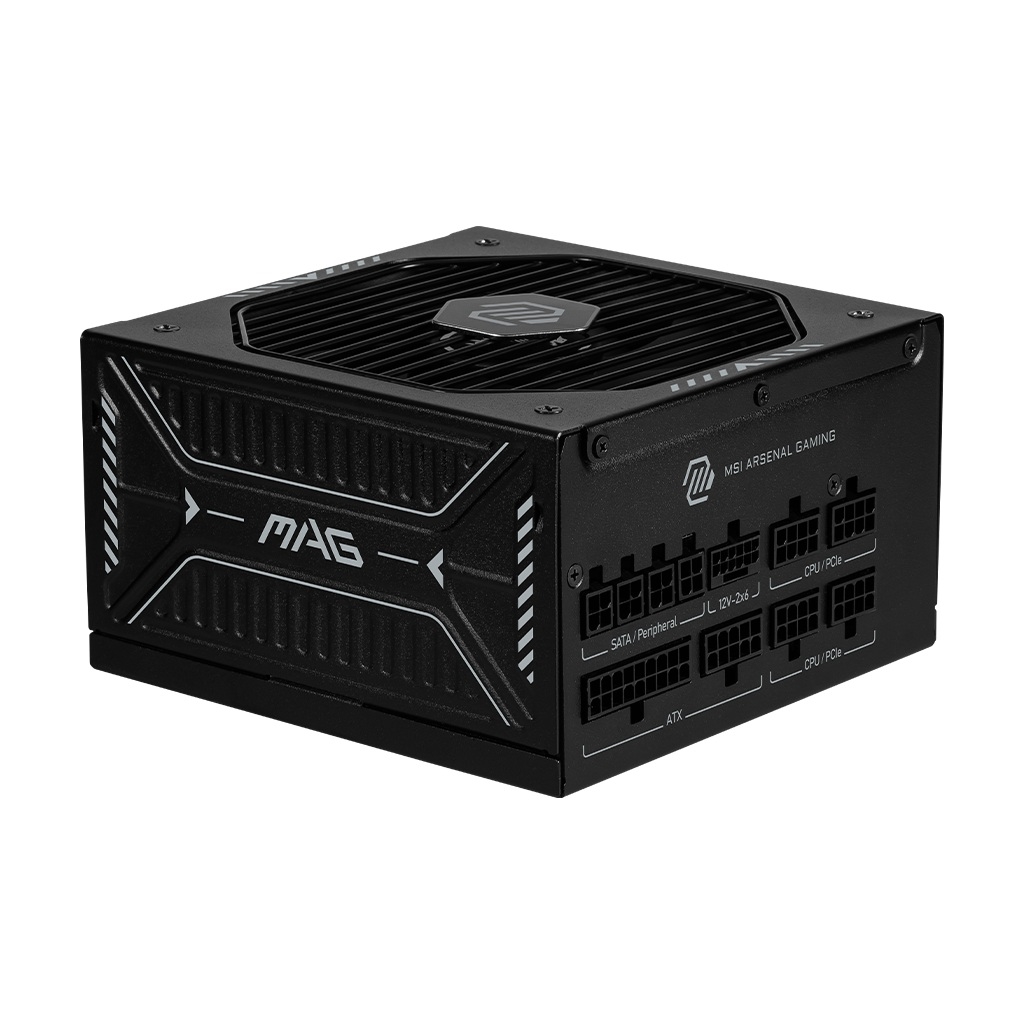

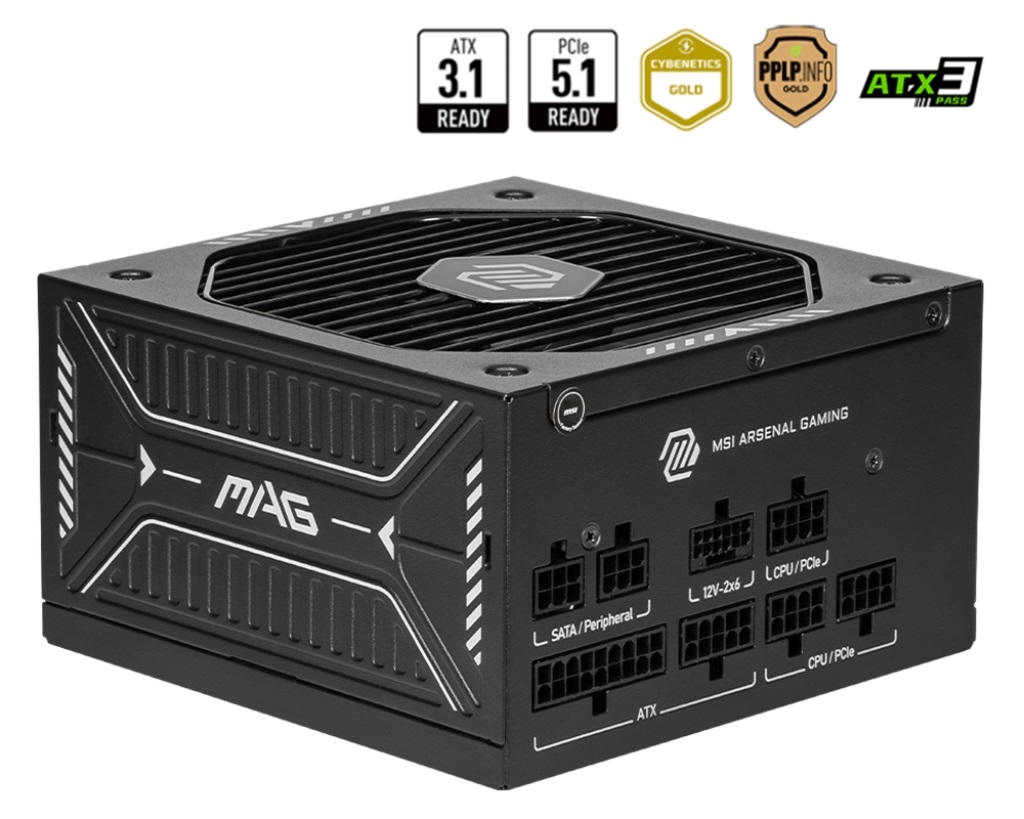

MAG A850GL PCIE5

ATX 3.0 compatible, native PCIe 5.0 connector

Supports NVIDIA GeForce RTX 40 Series graphics cards

Full modular design,Flat cables

80 Plus Gold certified for high efficiency

Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

120mm Fluid Dynamic Bearing Fan

LLC Full Bridge Topology with DC-DC module design


MAG unite as one

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.


ATX 3.0 COMPATIBLE

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.


80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.


COMPACT SIZING

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.


ONLY WHAT YOU NEED

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.


ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
EFFICIENCY RATING
80 PLUS Gold (up to 90%)
MODULAR
Yes (full modular)
FAN SIZE
120 mm
FAN BEARING
Fluid Dynamic Bearing
PFC TYPE
Active PFC
INPUT VOLTAGE RANGE
100 to 240 VAC
POWER WATT
850W
POWER EXCURSION
1700W (Note: up to 200% of the PSUs rated power for 100 microsecond)
INPUT FREQUENCY RANGE
47-63Hz
PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN)
1
EPS (4+4 PIN)
2
PCI-E 5.0 (16 PIN)
1 (600W)
PCI-E (6+2 PIN)
4
SATA (15 PIN)
8
MOLEX (4 PIN)
4
FDD (4 PIN)
1
Item Dimension (L inchxW inchxH inch)
12 x 9 x 5

Weight
6.39 lb

Warranty Information
5 Years

Available Quantity

5

UPC

824142319222

SKU

mingleMAGA850GLPCIE5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

CORE REACTOR II

IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE

CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.


Next-Gen Ready - ATX 3.0 COMPLIANT

CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.


Certified GOLD Efficiency

CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.


Intelligent Fan-Curve Design

The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.


Premium 105 C Japanese Capacitors

CORE REACTOR II features top-tier 105 C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.
80 Plus Rating
GOLD

ATX Version
ATX 12V v3.0 and EPS v2.92

Protections
OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP

Certification
CE, CB FCC(IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC, RCM

PFC
> 0.99

Input Voltage
100-240V
Input Current
750W: 10A
Input Frequency
750W: 47Hz-63Hz
DC Output Voltage
+5V, +3.3V, +12V, -12V, +5Vsb
Total Output
750W: +5V/+3.3V: 22A, +12V: 62.5A, -12V: 0.3A, +5Vsb: 3A
Operating Temperature
50^oC
Fan Size
750W: 120mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)

Fan Speed
2400 RPM

MTBF
100K hours at full load
ATX 24 Pin Connector
750W: 1
EPS 8 Pin Connector
750W: 2
PCI-E 6+2 Pin Connector
750W: 6
Molex 4 Pin Connector
750W: 4
12VHPWR (12 + 4) Connector
750W: 1
SATA Connector
750W: 8
Item Dimension (L inchxW inchxH inch)
13 x 9 x 7

Weight
6.83 lbs

Warranty Information
10 Years

Available Quantity

5

UPC

842243029406

SKU

mingle75261179

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

CORE REACTOR II

IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE

CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.


Next-Gen Ready - ATX 3.0 COMPLIANT

CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.


Certified GOLD Efficiency

CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.


Intelligent Fan-Curve Design

The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.


Premium 105 C Japanese Capacitors

CORE REACTOR II features top-tier 105 C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.
80 Plus Rating
GOLD
ATX Version
ATX 12V v3.0 and EPS v2.92
Protections
OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP
Certification
CE, CB FCC(IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC, RCM
PFC
> 0.99
Input Voltage
100-240V
Input Current
650W: 10A
Input Frequency
650W: 47Hz-63Hz
DC Output Voltage
+5V, +3.3V, +12V, -12V, +5Vsb
Total Output
650W: +5V/+3.3V: 20A, +12V: 54.1A, -12V: 0.3A, +5Vsb: 3A
Operating Temperature
50^oC
Fan Size
650W: 120mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400 RPM
MTBF
100K hours at full load
ATX 24 Pin Connector
650W: 1
EPS 8 Pin Connector
650W: 2
PCI-E 6+2 Pin Connector
650W: 4
Molex 4 Pin Connector
650W: 4
12VHPWR (12 + 4) Connector
650W: 8

Available Quantity

5

UPC

842243029390

SKU

mingle75261167

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

STRIMER L-Connect 3 Controller

Control lighting effects with L-Connect 3 for personalizing light effects.

Compatible with Strimer Plus and Strimer Plus V2.

Available for motherboard 24-pin, GPU dual 8-pin, and GPU triple 8 pin.


CONTROL STRIMER PLUS IN ONE GO

The controller that is included in STRIMER PLUS V2 24-PIN can be connected to an 8-PIN or Triple 8-PIN, offering full control of both cables via L-Connect 3.


L-CONNECT 3 SOFTWARE TO CONTROL STRIMER PLUS V2

Full control and preview the lighting effect of the STRIMER PLUS V2 with the L-Connect 3 interface.


UNLOCK YOUR IMAGINATION OF LIGHTING EFFECTS

Without the need of opening the case, STRIMER PLUS can now be controlled via the L-Connect 3 software with 11 Individual modes and 13 combined lighting modes. The highly customizable software brings the option of setting different sophisticated lighting effects on each STRIMER PLUS or even on each channel (2 light strips).


Combined Lighting Effects

Display your PC with the new combining lighting effects.


Individual Channel Lighting Effects

With 24-pin at 6 channels, the Dual 8-pin at 4 channels, and the triple 8-pin at 6 channels, plenty of personalized light effects can be accomplished by L-Connect 3.


Quick Sync with UNI FAN SL and AL

Quick sync function saves time to sync all LIAN LI device lighting effects at one click. Moreover, sync all devices to the motherboard software.


CONTROL STRIMER PLUS IN ONE GO

The controller that is included in STRIMER PLUS V2 24-PIN can be connected to an 8-PIN or Triple 8-PIN, offering full control of both cables via L-Connect 3.
MODEL
PW24PV2-1
SUPPORTS
Strimer Plus 24-PIN and 8-PIN and Triple 8-PIN/ Strimer Plus V2 24-PIN and 8-PIN and Triple 8-PIN
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.00 lb

Warranty Information
1 year

Available Quantity

5

UPC

840353042582

SKU

mingleSTRIMER L CONNECT 3 CNTLR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The SuperNOVA P+ PSU
Enter the SuperNOVA P+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Platinum Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 P2 and 1200 P2 power supplies left off and continue the tradition of EVGA quality and performance.
Additionally, the SuperNOVA P+ power supplies feature a cleaner internal layout to increase airflow, a Variable Resistor module (to increase voltage stability), two DC to DC modules for more efficient power switching on all models, EVGA ECO Mode, a full suite of power supply protections, and EVGAs World-Leading Global 10-Year Warranty on all P+ power supplies.
SHORTER LENGTH
1600 P+
(200x150x86mm)
vs.
1600 P2
(220x150x86mm)
When it comes to building a system, even the smallest differences can make or break your build. The 1600 P+ is 20mm shorter than its P2 counterpart, giving you more space without sacrificing quality.
QUIET AND LONG-LASTING FANS
1600 P+ - 135mm Double
Ball Bearing Fan
Double Ball Bearings are the industry standard for any power supply expected to carry heavy loads on a regular basis due to their durability and low noise level.
CABLE LENGTH
ATX Cable
1x 600mm
EPS Cable
2x 750mm
PCIe Cable
4x 750mm, 5x 750mm, 900mm
SATA Cable
2x 550mm, 650mm, 750mm, 850mm, 2x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable
2x 550mm, 650mm, 750mm, 850mm
Floppy Adapter
2x 100mm
AC Power
1x 1800mm
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
14x 8pin (6+2)
SATA
14x
Four-Pin Peripheral
8x
Floppy
2x
POWER SPECS
AC Input
115-240V, 17-9A, 60/50 Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
25A / 25A / 133A / 4A / 0.5A
150W / 150W / 1596W / 20W /6W
Total
1600W
ADDITIONAL DETAILS
Operating Temperature
0^o to 50^o C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Double Ball Bearing
Item Dimension (L"xW"xH")
12 x 8 x 11

Weight
10.1 lbs

Warranty Information
10 Years

Available Quantity

5

UPC

843368067632

SKU

mingle220-PP-1600-X1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Introducing the EVGA SuperNOVA P3 Series, the latest higher-wattage power supplies from a lineup well-known for its extreme efficiency, performance and reliability. With these new power supplies, EVGA took the best features of the award-winning SuperNOVA P2 lineup and made them even better. The SuperNOVA P3 s smaller size, improved performance and a new Fluid Dynamic Bearing fan give you ultra-quiet performance with an increased lifespan making these a new generation of platinum power.

FEATURES

80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC-240VAC) efficiency or higher under typical loads

100% Japanese Capacitors ensure long-term reliability

Fully Modular to reduce clutter and improve airflow

Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and low ripple & noise

Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Active Power Factor Correction

Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
CABLE LENGTH
ATX Cable
1x 600mm (m)
EPS Cable
2x 750mm (m)
PCIe Cable
2x 750mm, 900mm (m) 4x 750mm (m)
SATA Cable
4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable
2x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter
1x 100mm
AC Power
1x 1500mm (m)
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
8x 8pin (6+2)
SATA
12x
Four-Pin Peripheral
8x
Floppy
1x
POWER SPECS
AC Input
100-240V, 14-7A, 60/50Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
25A / 25A / 100A / 3A / 0.5A
125W / 125W / 1200W / 15W /6W
Total
1200W
ADDITIONAL DETAILS
Operating Temperature
0^o to 50^o C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing
Item Dimension (L"xW"xH")
14 x 5 x 9

Weight
9.2 lbs

Warranty Information
10 years

Available Quantity

5

UPC

843368070892

SKU

mingle220-P3-1200-X1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Edgecore Power Supply UM400D01-01 400W DC Power Supply FRU Port-to-Power Airflow Retail
400W -48V DC Power Supply FRU, power-to-port airflow, no power cord
Item Dimension (L"xW"xH"):
14.5 x 3.5 x 3.5

Weight:
2.6 lb

Warranty Information:
1-YEAR

Available Quantity

5

UPC

Does not apply

SKU

mingleUM400D01-01

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Edgecore Power Supply CPR-4011-4M21 400W AC for 5600/5610/5710/5712/5812 Airflow Brown Box
Item Dimension (L"xW"xH")
NA

Weight
0.88 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

852714005136

SKU

mingleCPR-4011-4M21

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:
- Fully compatible with ATX 3.0 and PCIe 5.0 standards
- Full modularity for the best cable management options:
- Added 12VHPWR cable to comply with the new graphic cards
- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation
- Seasonic Hybrid Silent Fan Control for optimal cooling
- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP
- 10 years warranty - our commitment to high quality
80 PLUS PLATINUM
The Vertex PX Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonics latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
PREMIUM HYBRID FAN CONTROL
Seasonics vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Technical Specifications
80PLUS
Platinum
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Fan Information
Fan Size
135 mm
Fan Control
Digital Fan Control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 ^oC, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Flat black cables
Electrical Features
Operating Temperature
0 - 50 ^oC (derating from 100 % to 80 % from 40 ^oC to 50 ^oC)
MTBF at 25 ^oC, excl. fan
100,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output
AC Input
Voltage: 100 V - 240 V
Current: 15 - 7.5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V / +5 V /+12 V / -12 V / +5 VSB
Maximum Power
25 A /25 A / 100 A / 0.3 A / 3 A
125 W / 125 W / 1200 W / 3.6 W / 15 W
Total continuous power
1200 W
Item Dimension (L"xW"xH")
5 x 14 x 8

Weight
6.02 lbs

Warranty Information
12 years

Available Quantity

5

UPC

Does not apply

SKU

mingleVERTEX1200P

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
OVERVIEW
80 PLUS GOLD
The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonics latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
DIGITAL HYBRID FAN CONTROL
The industrys first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode.
FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
OVERVIEW
80 PLUS GOLD
The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonics latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
DIGITAL HYBRID FAN CONTROL
The industrys first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode.
Power Output
AC Input
Voltage: 100 V - 240 V
Current: 12 - 6 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V / +5 V /+12 V /-12 V / +5 VSB
Maximum Power
20 A / 20 A / 70 A / 0.3 A / 3 A
100 W / 100 W / 840 W / 3.6 W / 15 W
Total continuous power
850 W
Item Dimension (L"xW"xH")
12 x 8 x 5

Weight
6.5 lbs

Warranty Information
10 Years

Available Quantity

5

UPC

882016002496

SKU

mingleSSR-850FX3

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
OVERVIEW
80 PLUS GOLD
The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonics latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
DIGITAL HYBRID FAN CONTROL
The industrys first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode.
Technical Specifications
80PLUS
Gold
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Fan Information
Fan Size
135 mm
Fan Control
S3FC - Fanless until 30 % load
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 ^oC, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Individual Black Cables with Braided Pattern
Electrical Features
Operating Temperature
0 - 50 ^oC
MTBF at 25 ^oC, excl. fan
100,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output
AC Input
Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V / +5 V /+12 V /-12 V / +5 VSB
Maximum Power
20 A / 20 A / 62 A / 0.3 A / 3 A
100 W / 100 W / 744 W / 3.6 W / 15 W
Total continuous power
750 W
Item Dimension (L"xW"xH")
12 x 8 x 5

Weight
6.23lbs

Warranty Information
10 Years

Available Quantity

5

UPC

882016002502

SKU

mingleSSR-750FX3

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
OVERVIEW
80 PLUS GOLD
The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonics latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
DIGITAL HYBRID FAN CONTROL
The industrys first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Technical Specifications
80PLUS
Gold
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Fan Information
Fan Size
135 mm
Fan Control
S3FC - Fanless until 30 % load
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 ^oC, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Individual Black Cables with Braided Pattern
Electrical Features
Operating Temperature
0 - 50 ^oC
MTBF at 25 ^oC, excl. fan
100,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output
AC Input
Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V / +5 V /+12 V /-12 V / +5 VSB
Maximum Power
25 A / 25 A / 83 A / 0.3 A / 3 A
125 W / 125 W / 996 W / 3.6 W / 15 W
Total continuous power
1000 W
Item Dimension (L"xW"xH")
12 x 8 x 5

Weight
6.64 lbs

Warranty Information
10 Years

Available Quantity

5

UPC

882016002489

SKU

mingleSSR-1000FX3

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.


Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.


PCIe Gen 5.0 Ready

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
WATTS
1200W
MAX. OUTPUT CAPACITY
1200W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
> 17msec
INPUT CURRENT
20A-8A
INPUT FREQUENCY RANGE
50Hz/60Hz
INPUT VOLTAGE
100-240V or more
OPERATING TEMPERATURE
5^oC to + 45^oC
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40^oC to + 55^oC
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
12cm FDB Fan
EFFICIENCY
Meet 80 PLUS Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
FCC/ICES/CB/cTUVus
PCI-E 6+2PIN
5
PCIE 12+4PIN
1(600W)
Item Dimension (L inchxW inchxH inch)
13 x 6 x 9

Weight
7.26 lb

Warranty Information
10 years

Available Quantity

5

UPC

841163088258

SKU

minglePS-TPD-1200FNFAGU-L

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Toughpower GF3 1200W Gold - TT Premium Edition

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.

Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.


PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1200W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < 2%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.


Fully Compatible With Intel PSDG ATX 3.0 Specifications

Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.
WATTS
1200W
MODEL
TPD-1200AH3FCG
MAX. OUTPUT CAPACITY
1200W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
> 17msec at 100% of full load
INPUT CURRENT
15.0A / 7.0A
INPUT FREQUENCY RANGE
50/60Hz
INPUT VOLTAGE
100V - 240V or more
OPERATING TEMPERATURE
0^oC to + 40^oC
OPERATING HUMIDITY
20% to 90%,non-condensing
STORAGE TEMPERATURE
-20^oC to + 70^oC
STORAGE HUMIDITY
5% to 95%, non-condensing
COOLING SYSTEM
13.5cm fluid bearing fan
EFFICIENCY
Meet 80 PLUS Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE/UKCA/cTUVus/TUV/FCC/IC/BSMI/EAC/CB/CCC
PCI-E 6+2PIN
PCIe 6+2pin X 4
PCIe 12+4pin X 1
PROTECTION
OCP, OVP, UVP, OPP, SCP, OTP

Available Quantity

5

UPC

841163084205

SKU

minglePS-TPD-1200FNFAGU-4

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.


Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.


PCIe Gen 5.0 Ready

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
WATTS
1050W
MAX. OUTPUT CAPACITY
1050W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
> 17msec
INPUT CURRENT
16A-8A
INPUT FREQUENCY RANGE
50Hz/60Hz
INPUT VOLTAGE
100 - 240V or more
OPERATING TEMPERATURE
5^oC to + 45^oC
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40^oC to + 55^oC
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
12cm FDB Fan
EFFICIENCY
Meet 80 PLUS Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
FCC/ICES/CB/cTUVus
PCI-E 6+2PIN
5
PCIE 12+4PIN
1(600W)
Item Dimension (L inchxW inchxH inch)
13 x 6 x 9

Weight
7.00 lb

Warranty Information
10 years

Available Quantity

5

UPC

841163087374

SKU

minglePS-TPD-1050FNFAGU-L

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.


Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.


PCIe Gen 5.0 Ready

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
WATTS
850W
MAX. OUTPUT CAPACITY
850W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
> 17msec
INPUT CURRENT
15A-8A
INPUT FREQUENCY RANGE
50Hz/60Hz
INPUT VOLTAGE
100-240V or more
OPERATING TEMPERATURE
5^oC to + 45^oC
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40^oC to + 55^oC
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
12cm FDB Fan
EFFICIENCY
Meet 80 PLUS Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
FCC/ICES/CB/cTUVus
PCI-E 6+2PIN
4
PCIE 12+4PIN
1(450W)
Item Dimension (L inchxW inchxH inch)
13 x 6 x 9

Weight
6.40 lb

Warranty Information
10 years

Available Quantity

5

UPC

841163087367

SKU

minglePS-TPD-0850FNFAGU-L

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.


Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.


PCIe Gen 5.0 Ready

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 650W can deliver up to 300W for PCIe 5.0 graphics cards.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
WATTS
650W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
> 17msec
INPUT CURRENT
12A-6A
INPUT FREQUENCY RANGE
50Hz/60Hz
INPUT VOLTAGE
100-240V
OPERATING TEMPERATURE
5^oC to + 45^oC
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40^oC to + 55^oC
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
12cm FDB Fan
EFFICIENCY
Meet 80 PLUS Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
FCC/ICES/CB/cTUVus
PCI-E 6+2PIN
4
PROTECTION
1
PCIE 12+4PIN
1
Item Dimension (L inchxW inchxH inch)
16 x 6 x 9

Weight
7.00 lb

Warranty Information
10 years

Available Quantity

5

UPC

841163088241

SKU

minglePS-TPD-0650FNFAGU-L

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Details
This PSU delivers 850 watts of clean, stable power which is ideal for gaming PCs with multiple GPUs, or higher power requirements. It is also useful for SLI or Crossfire builds.
Modular design lets builders use only the cables they need
The sleeved main cables lresist heat damage as well as fraying
Fits any case conforming to the ATX standard
Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6900 XT
Zero RPM Fan mode silences the fan under low-load conditions
Dynamic 135mm fluid-dynamic bearing fan
10-year warranty
Inside the Box
C850 Gold
1
24-Pin ATX Power Cable
1
4+4-Pin CPU Power Cables
2
6+2-pin PCIe Power Cable
3
SATA Cables
2
Peripherals Cables
2
6-32 Screws
4
AC Power Cord
1
OUTPUT CONNECTORS
24-pin ATX power:1
4+4-pin CPU power:2
6+2-pin PCIe power:6
SATA power:6
Peripherals:6
CABLE SPECS
24-pin ATX power:600 mm, Nylon sleeving
4+4-pin CPU power:700 mm, Nylon sleeving
6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
SATA power:500 + 150 mm
Peripherals:500 + 150 mm
AC INPUT RATING
100 - 240Vac:10A-5A 50Hz-60Hz
DC OUTPUT RATING
+3.3V and +5V:22A (120W)
+12V:70.8A (850W)
-12V:0.3A (3.6W)
5Vsb:3A (15W)
Total:850W
OPERATION
PF Correction:Active at 0.96
MTBF:100,000 hours
Temperature:0 - 50 ^oC (derating from 100% to 80% from 40 ^oC to 50 ^oC)
ENERGY EFFICIENCY
Rating:80 Plus Gold
20% loading:89.71% at 115Vac
50% loading:90.80% at 115Vac
100% loading:88.03% at 115Vac
FAN SPECS
Dimensions:135 x 135 x 25 mm
Speed:0-2300 +/- 10% RPM
Airflow:93.02 CFM (Tpy.)
Noise:44.5 dBA max
Bearing:Fluid Dynamic Bearing (FDB)
GENERAL
Material(s):Steel, PCB and Plastic
Compliance Standard:ATX12V v2.52 / EPS12V v2.92
Regulation and Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
Model Number:PA-8G1BB
Item Dimension (L"xW"xH")
14 x 9 x 5

Weight
8.02 lbs

Warranty Information
10 Years
