Product Description

Intel CPU CM8071505094018 Corei9-14900KF 24Cores/32Threads 6.0Ghz 36MB LGA1700 tray
Essentials
Product Collection
Intel Core i9 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i9-14900KF
Lithography
Intel 7
CPU Specifications
Total Cores
24
Number of Performance-cores
8
Number of Efficient-cores
16
Total Threads
32
Max Turbo Frequency
6 GHz
Intel Thermal Velocity Boost Frequency
6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.8 GHz
Performance-core Max Turbo Frequency
5.6 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.2 GHz
Efficient-core Base Frequency
2.4 GHz
Cache
36 MB Intel Smart Cache
Total L2 Cache
32 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Adaptive Boost Technology
Yes
Intel Thermal Velocity Boost
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071505094018

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Xeon E-2414 Processor (12M Cache, 2.60 GHz) FC-LGA16A, Tray
Essentials
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Raptor Lake
Vertical Segment
Server
Processor Number
E-2414
Lithography
Intel 7
CPU Specifications
Total Cores
4
Number of Performance-cores
4
Total Threads
4
Max Turbo Frequency
4.50 GHz
Intel Turbo Boost Technology 2.0 Frequency
4.50 GHz
Processor Base Frequency
2.60 GHz
Cache
12 MB
Bus Speed
16 GT/s
TDP
55 W
Supplemental Information
Servicing Status
Baseline Servicing
Embedded Options Available
No
Use Conditions
Server/Enterprise
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR5-4800
Max Number of Memory Channels
2
Intel Optane^TM Persistent Memory Supported
No
ECC Memory Supported
Yes
Expansion Options
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5
Microprocessor PCIe Revision
Gen 5
PCI Express Configurations
Up to 1x16+1x4, 2x8+1x4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
JUNCTION
100 ^oC
Advanced Technologies
Intel Turbo Boost Max Technology 3.0
No
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
No
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Security and Reliability
Intel Total Memory Encryption - Multi Key
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
5 x 2 x 6

Weight
1 lb

Warranty Information
3 Years

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071505025407

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU CM8071504821015 i5-14600K 14Cores/20Threads 5.3Ghz 24MB LGA1700 TRAY
Essentials
Product Collection
Intel Core i5 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i5-14600K
Lithography
Intel 7
CPU Specifications
Total Cores
14
Number of Performance-cores
6
Number of Efficient-cores
8
Total Threads
20
Max Turbo Frequency
5.3 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4 GHz
Performance-core Base Frequency
3.5 GHz
Efficient-core Base Frequency
2.6 GHz
Cache
24 MB Intel Smart Cache
Total L2 Cache
20 MB
Processor Base Power
125 W
Maximum Turbo Power
181 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported
Yes
GPU Specifications
GPU Name
Intel UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.55 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 at 60Hz
Max Resolution (DP)
7680 x 4320 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 at 120Hz
DirectX Support
12
OpenGL Support
4.5
OpenCL Support
3.0
Multi-Format Codec Engines
2
Intel Quick Sync Video
Yes
Intel Clear Video HD Technology
Yes
Number of Displays Supported
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel vPro Eligibility
Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
Intel Threat Detection Technology (TDT)
Yes
Intel Active Management Technology (AMT)
Yes
Intel Standard Manageability (ISM)
Yes
Intel Remote Platform Erase (RPE)
Yes
Intel One-Click Recovery
Yes
Intel Hardware Shield Eligibility
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption - Multi Key
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Stable IT Platform Program (SIPP)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071504821015

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU CM8071504821014 i5-14600KF 14Cores/20Threads 5.3Ghz 24MB LGA1700 TRAY
Essentials
Product Collection
Intel Core i5 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i5-14600KF
Lithography
Intel 7
CPU Specifications
Total Cores
14
Number of Performance-cores
6
Number of Efficient-cores
8
Total Threads
20
Max Turbo Frequency
5.3 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4 GHz
Performance-core Base Frequency
3.5 GHz
Efficient-core Base Frequency
2.6 GHz
Cache
24 MB Intel Smart Cache
Total L2 Cache
20 MB
Processor Base Power
125 W
Maximum Turbo Power
181 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071504821014

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU CM8071504820722 i7-14700KF 20Cores/28Threads 5.6Ghz 33MB LGA1700 TRAY
Essentials
Product Collection
Intel Core i7 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i7-14700KF
Lithography
Intel 7
CPU Specifications
Total Cores
20
Number of Performance-cores
8
Number of Efficient-cores
12
Total Threads
28
Max Turbo Frequency
5.6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.6 GHz
Performance-core Max Turbo Frequency
5.5 GHz
Efficient-core Max Turbo Frequency
4.3 GHz
Performance-core Base Frequency
3.4 GHz
Efficient-core Base Frequency
2.5 GHz
Cache
33 MB Intel Smart Cache
Total L2 Cache
28 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071504820722

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU BX8071514600K Corei5-14600K 14Cores/20Threads 5.3Ghz 24MB LGA1700 Retail
Essentials
Product Collection
Intel Core i5 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i5-14600K
Lithography
Intel 7
CPU Specifications
Total Cores
14
Number of Performance-cores
6
Number of Efficient-cores
8
Total Threads
20
Max Turbo Frequency
5.3 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4 GHz
Performance-core Base Frequency
3.5 GHz
Efficient-core Base Frequency
2.6 GHz
Cache
24 MB Intel Smart Cache
Total L2 Cache
20 MB
Processor Base Power
125 W
Maximum Turbo Power
181 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported
Yes
GPU Specifications
GPU Name
Intel UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.55 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 at 60Hz
Max Resolution (DP)
7680 x 4320 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 at 120Hz
DirectX Support
12
OpenGL Support
4.5
OpenCL Support
3.0
Multi-Format Codec Engines
2
Intel Quick Sync Video
Yes
Intel Clear Video HD Technology
Yes
Number of Displays Supported
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel vPro Eligibility
Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
Intel Threat Detection Technology (TDT)
Yes
Intel Active Management Technology (AMT)
Yes
Intel Standard Manageability (ISM)
Yes
Intel Remote Platform Erase (RPE)
Yes
Intel One-Click Recovery
Yes
Intel Hardware Shield Eligibility
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption - Multi Key
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Stable IT Platform Program (SIPP)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

735858546881

SKU

mingleBX8071514600K

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

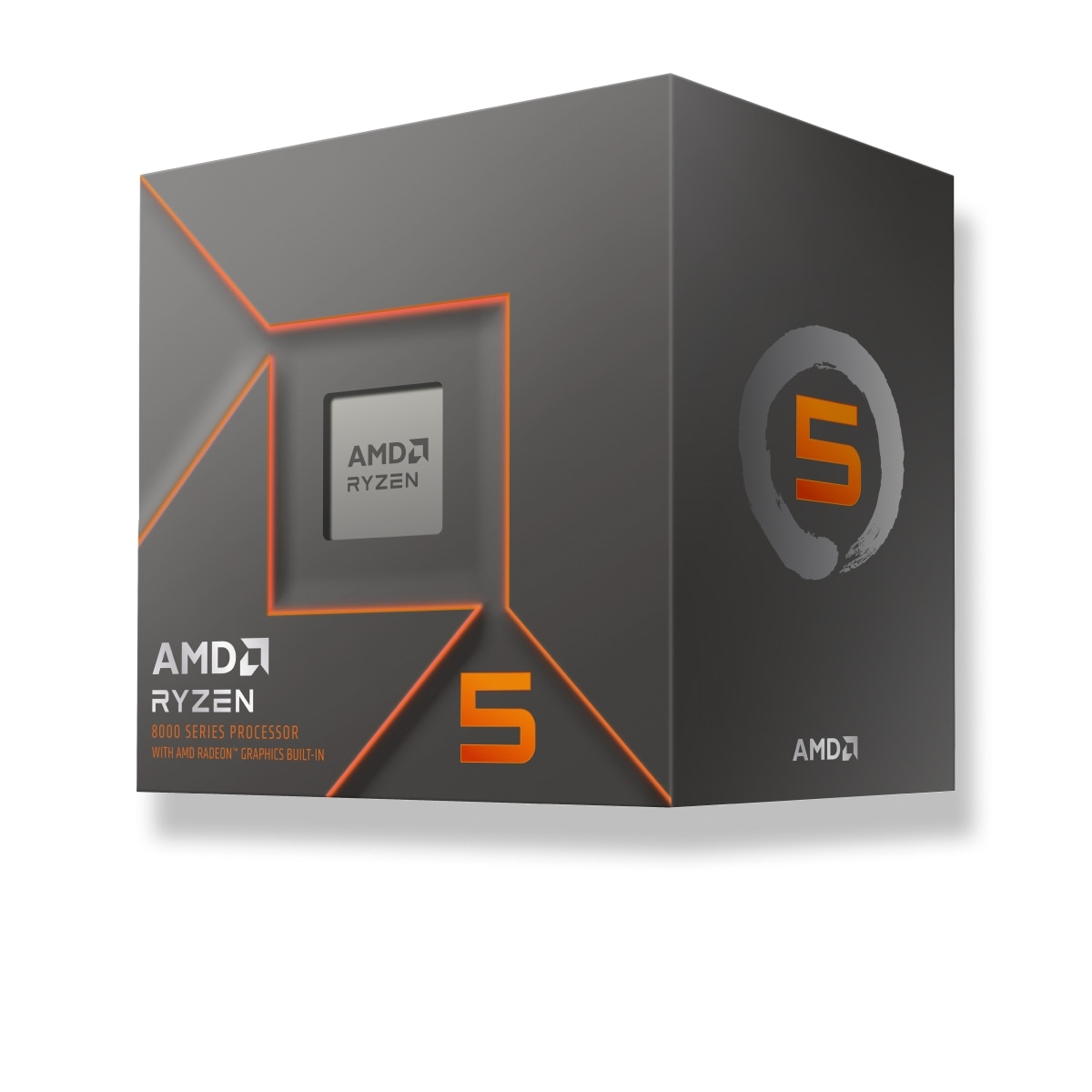

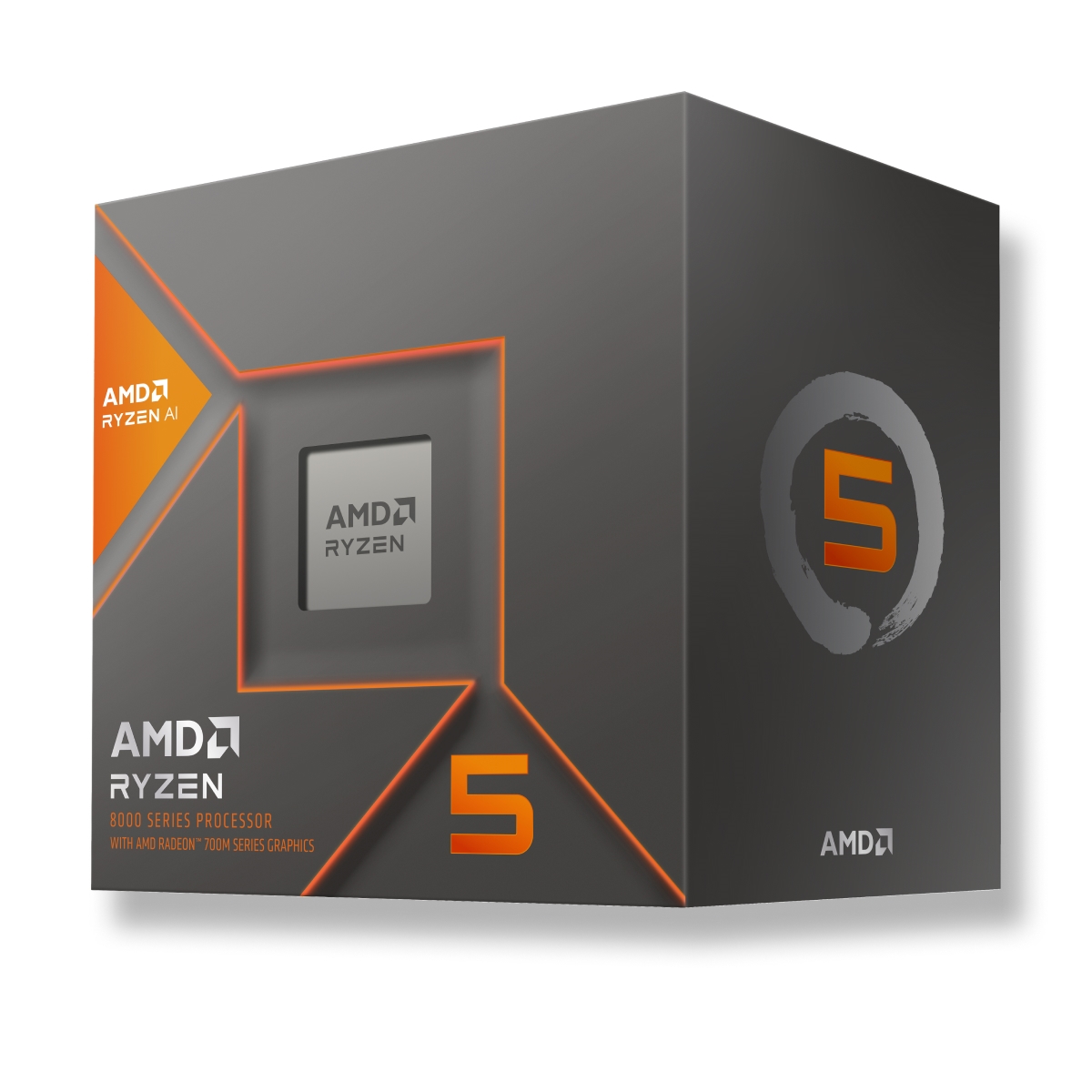

AMD Ryzen 5 8600G Processor

SKU: 100-100001237BOX

# of CPU Cores: 6

# of Threads: 12

Max Boost Clock: Up to 5.0GHz

Base Clock: 4.3GHz

Default TDP: 65W

Graphics Model: AMD Radeon 760M
General Specifications
Platform: Desktop Processor
Product Family: AMD Ryzen Processors
Product Line: AMD Ryzen 5 8000 G-Series Desktop Processors with Radeon Graphics
Number of CPU Cores: 6
Number of Threads: 12
Max. Boost Clock: Up to 5.0GHz
Base Clock: 4.3GHz
L2 Cache: 6MB
L3 Cache: 16MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Unlocked for Overclocking: Yes
CPU Socket: AM5
Thermal Solution (PIB): Wraith Stealth
Max. Operating Temperature (Tjmax): 95^oC
Launch Date: 01/31/2024
OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Operating System (OS) support will vary by manufacturer.
AMD Ryzen AI: Available
Performance: Up to 16 TOPS
Connectivity
PCI Express Version: PCIe 4.0
System Memory Type: DDR5
Memory Channels: 2
Max Memory Speed:
2x1R: DDR5-5200
2x2R: DDR5-5200
4x1R: DDR5-3600
4x2R: DDR5-3600
Graphics Capabilities
Graphics Model: AMD Radeon 760M
Graphics Core Count: 8
Graphics Frequency: 2800 MHz
Item Dimension (L"xW"xH")
4 x 6 x 6

Weight
2 lbs

Warranty Information
3 years

Available Quantity

5

UPC

730143316163

SKU

mingle100-100001237BOX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

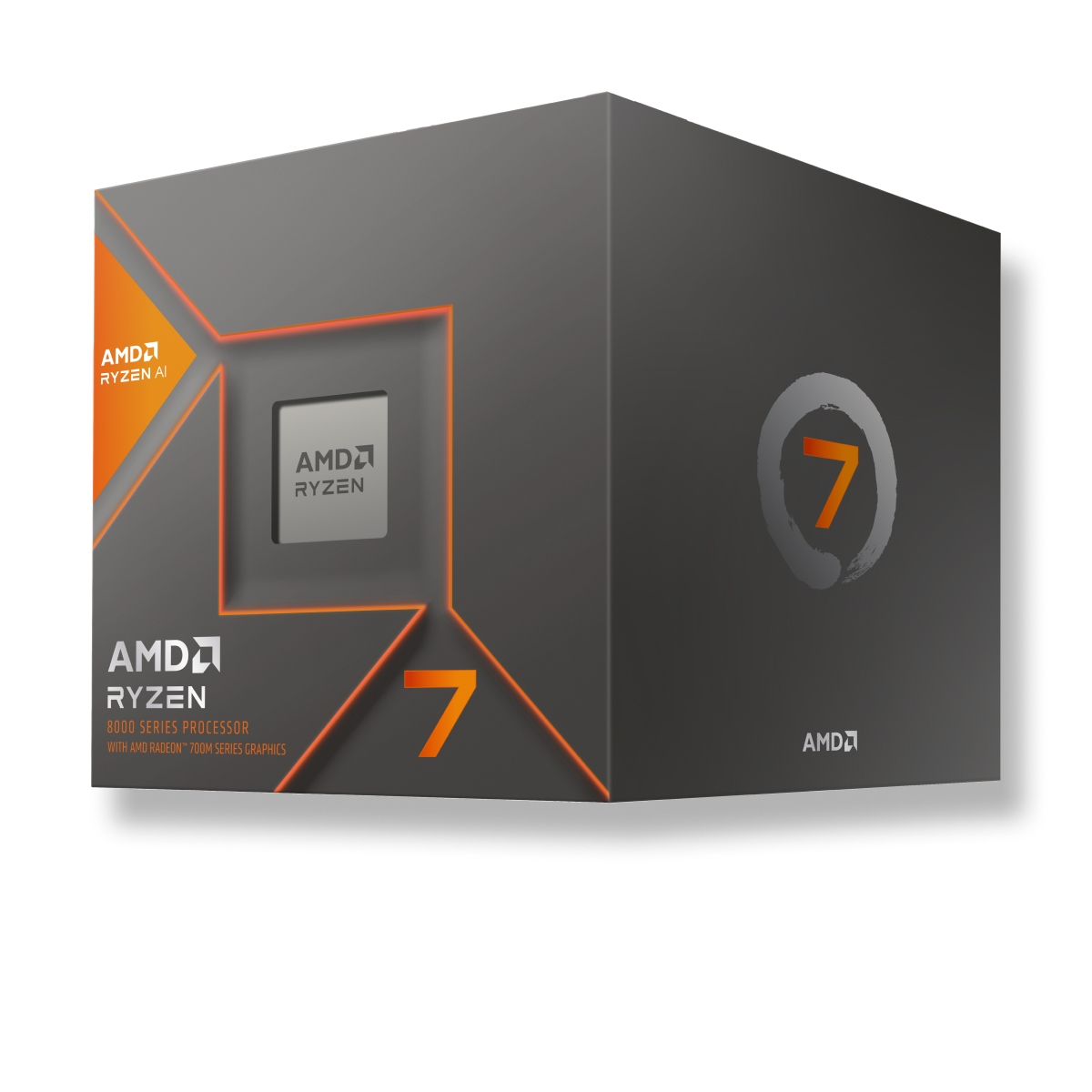

AMD Ryzen 7 8700G Processor

SKU: 100-100001236BOX

# of CPU Cores: 8

# of Threads: 16

Max Boost Clock: Up to 5.1GHz

Base Clock: 4.2GHz

Default TDP: 65W

Graphics Model: AMD Radeon 780M
General specifications
Platform: Desktop Processor
Product Family: AMD Ryzen Processors
Product Line: AMD Ryzen 7 8000 G-Series Desktop Processors with Radeon Graphics
Number of CPU Cores: 8
Number of Threads: 16
Max. Boost Clock: Up to 5.1GHz
Base Clock: 4.2GHz
L2 Cache: 8MB
L3 Cache: 16MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Unlocked for Overclocking: Yes
CPU Socket: AM5
Thermal Solution (PIB): Wraith SPIRE
Max. Operating Temperature (Tjmax): 95^oC
Launch Date: 01/31/2024
OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Operating System (OS) support will vary by manufacturer.
AMD Ryzen AI: Available
Performance: Up to 16 TOPS
Connectivity
PCI Express Version: PCIe 4.0
System Memory Type: DDR5
Memory Channels: 2
Max Memory Speed:
2x1R: DDR5-5200
2x2R: DDR5-5200
4x1R: DDR5-3600
4x2R: DDR5-3600
Graphics Capabilities
Graphics Model: AMD Radeon 780M
Graphics Core Count: 12
Graphics Frequency: 2900 MHz
Item Dimension (L"xW"xH")
6 x 6 x 6

Weight
2 lbs

Warranty Information
3 years

Available Quantity

5

UPC

730143316125

SKU

mingle100-100001236BOX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AMD Ryzen 5 8500G Desktop Processor
AMD Ryzen 5 8500G is the ultimate all-in-one desktop processor with AMD Radeon 740M Graphics capabilities.
General Specifications
Name
AMD Ryzen 5 8500G
Family
Ryzen
Series
Ryzen 8000 Series
Form Factor
Desktops
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
Phoenix
Architecture
2x Zen 4 , 4x Zen 4c
Number of CPU Cores
6
Multithreading (SMT)
Yes
Number of Threads
12
Max. Boost Clock
Up to 5 GHz
Max Zen4c Clock
Up to 3.7 GHz
Base Clock
3.5 GHz
Zen4 Base Clock
4.1 GHz
Zen4c Base Clock
3.2 GHz
L2 Cache
6 MB
L3 Cache
16 MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
CPU Compute Die (CCD) Size
137mm²
Package Die Count
1
AMD EXPO Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen Master Support
Yes
CPU Socket
AM5
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax)
95^oC
Launch Date
1/31/2024
OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 4 (40Gbps) Ports
2
Native USB 3.2 Gen 2 (10Gbps) Ports
2
Native USB 2.0 (480Mbps) Ports
1
PCI Express Version
PCIe 4.0
Native PCIe Lanes (Total/Usable)
14 , 10
NVMe Support
Boot , RAID0 , RAID1
System Memory Type
DDR5
Memory Channels
2
Max. Memory
256 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1RDDR5-5200
2x2RDDR5-5200
4x1RDDR5-3600
4x2RDDR5-3600
Graphics Capabilities
Graphics Model
AMD Radeon 740M
Graphics Core Count
4
Graphics Frequency
2800 MHz
DirectX Version
12
DisplayPort Version
2.1
DisplayPort Extensions
Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR)
7680x4320 at 60Hz , 3840x2160 at 240Hz , 3440x1440 at 360Hz , 2560x1440 at 480Hz , 1920x1080 at 600Hz
DisplayPort Max Refresh Rates (HDR)
7680x4320 at 60Hz , 3840x2160 at 240Hz , 3440x1440 at 360Hz , 2560x1440 at 480Hz , 1920x1080 at 600Hz
HDMI Version
2.1
HDCP Version Supported
2.3
USB Type-C DisplayPort Alternate Mode
Yes
Multi-Monitor Support
Yes
Max Displays
4
AMD FreeSync
Yes
Wireless Display
Miracast
Max Video Encode Bandwidth (SDR)
1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
AMD SmartAccess Memory
Available
Security, Virtualization, and Manageability
AMD Enhanced Virus Protection (NX bit)
Yes
Item Dimension (L"xW"xH")
1 x 1 x 1

Weight
1 lb

Warranty Information
3 years

Available Quantity

5

UPC

730143316439

SKU

mingle100-100000931BOX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

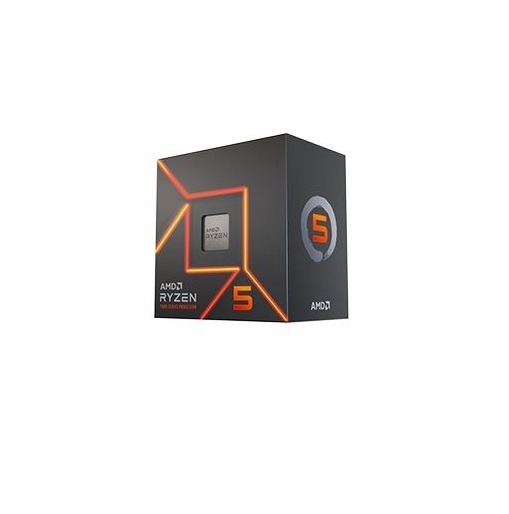

AMD Ryzen 5 7600 Gaming Processor
Powerful Gaming Starts Here
This overclockable processor is built for intense gaming, and comes bundled with a low-profile AMD Wraith Stealth cooler.
General Specifications
Platform
Desktop
Product Family
AMD Ryzen Processors
Product Line
AMD Ryzen 5 Processors
Number of CPU Cores
6
Number of Threads
12
Max. Boost Clock
Up to 5.1GHz
Base Clock
3.8GHz
L1 Cache
384KB
L2 Cache
6MB
L3 Cache
32MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM5
Thermal Solution (PIB)
AMD Wraith Stealth
Max. Operating Temperature (Tjmax)
95^oC
OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express Version
PCIe 5.0
System Memory Type
DDR5
Memory Channels
2
Max Memory Speed
2x1R
DDR5-5200
2x2R
DDR5-5200
4x1R
DDR5-3600
4x2R
DDR5-3600
Graphics Capabilities
Graphics Model
AMD Radeon Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
Key Features
Supported Technologies
AMD EXPO Technology
AMD Ryzen Technologies
Item Dimension (L"xW"xH")
5 x 4 x 5

Weight
1 lb

Warranty Information
3 years

Available Quantity

5

UPC

730143314572

SKU

mingle100-100001015BOX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

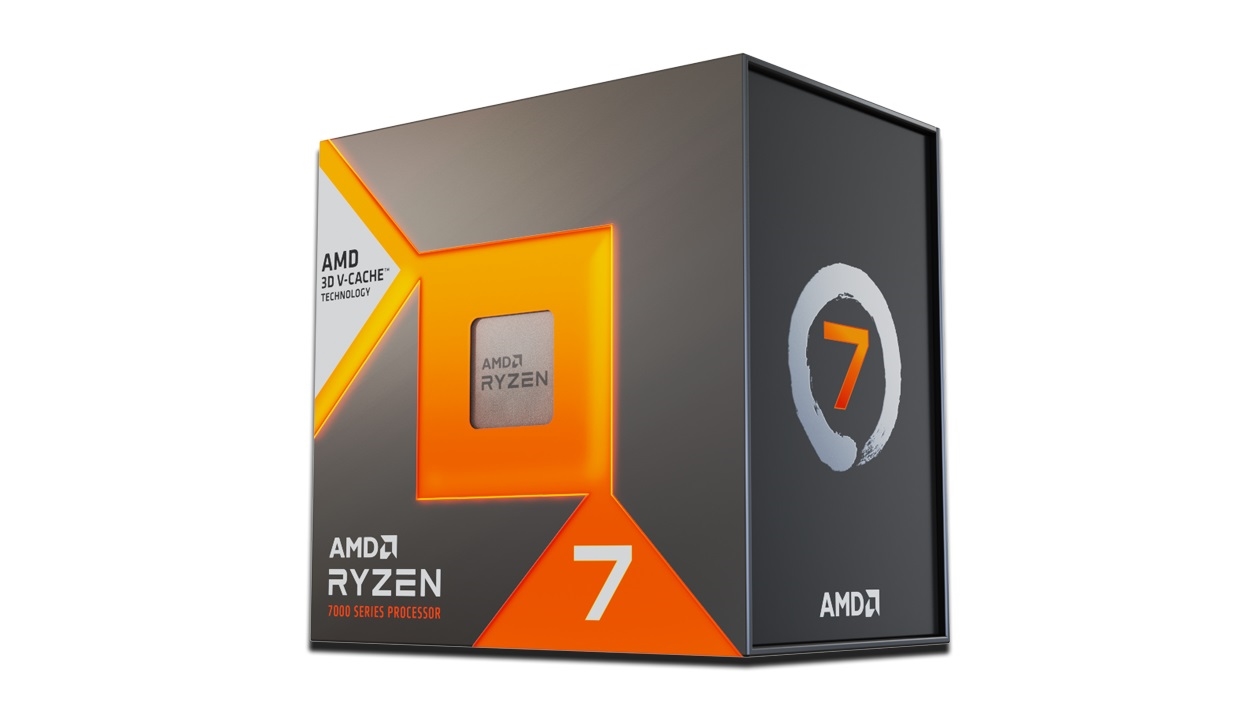

The Dominant Gaming Processor, with AMD 3D V-Cache Technology for Even More Game Performance1

Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache technology for low latency and even more game performance. 1
General Specifications
Platform
Desktop
Market Segment
Enthusiast Desktop
Product Family
AMD Ryzen^TM Processors
Product Line
AMD Ryzen^TM 7 Processors
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
"Raphael AM5"
Architecture
"Zen 4"
Number of CPU Cores
8
Multithreading (SMT)
Yes
Number of Threads
16
Max. Boost Clock
Up to 5.0GHz
Base Clock
4.2GHz
L1 Cache
512KB
L2 Cache
8MB
L3 Cache
96MB
Default TDP
120W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
AMD EXPO^TM Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen^TM Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
X670E
X670
B650E
B650
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)
Not included
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
89^oC
OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Note: Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
1
Native SATA Ports
0
PCI Express Version
PCIe 5.0
Native PCIe Lanes (Total/Usable)
28/24
Additional Usable PCIe Lanes from Motherboard
AMD X670E
12x Gen4
AMD X670
12x Gen4
AMD B650E
8x Gen4
AMD B650
8x Gen4
NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R
DDR5-5200
2x2R
DDR5-5200
4x1R
DDR5-3600
4x2R
DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
AMD Radeon^TM Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C DisplayPort^TM Alternate Mode
Yes
Key Features
Supported Technologies
AMD EXPO^TM Technology
AMD Ryzen^TM Technologies
Item Dimension (L inchxW inchxH inch)
6 x 4 x 6

Weight
2 lbs

Warranty Information
3 Years

Available Quantity

5

UPC

730143314930

SKU

mingle100-100000910WOF

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU PK8071305118600 Xeon Bronze 3408U 8Cores/8Threads 1.8GHz 22.5MB FCLGA4677 Tray
Essentials
Product Collection
4th Generation Intel Xeon Scalable Processors
Code Name
Products formerly Sapphire Rapids
Vertical Segment
Server
Processor Number
3408U
Lithography
Intel 7
CPU Specifications
Total Cores
8
Total Threads
8
Max Turbo Frequency
1.90 GHz
Processor Base Frequency
1.80 GHz
Cache
22.5 MB
TDP
125 W
Supplemental Information
Servicing Status
Baseline Servicing
Embedded Options Available
Yes
Use Conditions
Server/Enterprise
Memory Specifications
Max Memory Size (dependent on memory type)
4 TB
Memory Types
Up to DDR5 4000 MT/s 1DPC and 2DPC
Max Number of Memory Channels
8
ECC Memory Supported
Yes
Expansion Options
Scalability
1S Only
PCI Express Revision
4
Max Number of PCI Express Lanes
80
Package Specifications
Sockets Supported
FCLGA4677
Package Carrier
E1B
DTS Max
91 ^oC
TCASE
79
Advanced Technologies
Intel Data Streaming Accelerator (DSA)
1 default devices
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Resource Director Technology (Intel RDT)
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Technology
2
Intel Transactional Synchronization Extensions
Yes
Intel 64
Yes
Instruction Set Extensions
Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Number of AVX-512 FMA Units
1
Security and Reliability
Intel Crypto Acceleration
Yes
Intel QuickAssist Software Acceleration
Yes
Intel Platform Firmware Resilience Support
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Intel Software Guard Extensions (Intel SGX)
Yes with Intel SPS
Default Maximum Enclave Page Cache (EPC) Size for Intel SGX
64 GB
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
9 x 7 x 2

Weight
1.00 lb

Warranty Information
1 Year Limited

Available Quantity

5

UPC

Does not apply

SKU

minglePK8071305118600

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU CM8071505094017 Corei9-14900K 24Cores/32Threads 6.0Ghz 36MB LGA1700 Tray
Essentials
Product Collection
Intel Core i9 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i9-14900K
Lithography
Intel 7
CPU Specifications
Total Cores
24
Number of Performance-cores
8
Number of Efficient-cores
16
Total Threads
32
Max Turbo Frequency
6 GHz
Intel Thermal Velocity Boost Frequency
6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.8 GHz
Performance-core Max Turbo Frequency
5.6 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.2 GHz
Efficient-core Base Frequency
2.4 GHz
Cache
36 MB Intel Smart Cache
Total L2 Cache
32 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported
Yes
GPU Specifications
GPU Name
Intel UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.65 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 at 60Hz
Max Resolution (DP)
7680 x 4320 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 at 120Hz
DirectX Support
12
OpenGL Support
4.5
OpenCL Support
3.0
Multi-Format Codec Engines
2
Intel Quick Sync Video
Yes
Intel Clear Video HD Technology
Yes
Number of Displays Supported
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Adaptive Boost Technology
Yes
Intel Thermal Velocity Boost
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel vPro Eligibility
Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
Intel Threat Detection Technology (TDT)
Yes
Intel Active Management Technology (AMT)
Yes
Intel Standard Manageability (ISM)
Yes
Intel Remote Platform Erase (RPE)
Yes
Intel One-Click Recovery
Yes
Intel Hardware Shield Eligibility
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption - Multi Key
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Stable IT Platform Program (SIPP)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
14 x 7 x 8

Weight
7 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071505094017

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Core i5-13400F Processor

20M Cache, up to 4.60 GHz
Essentials
Product Collection
13th Generation Intel Core^TM i5 Processors
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i5-13400F
Lithography
Intel 7
CPU Specifications
Total Cores
10
Number of Performance-cores
6
Number of Efficient-cores
4
Total Threads
16
Max Turbo Frequency
4.60 GHz
Performance-core Max Turbo Frequency
4.60 GHz
Efficient-core Max Turbo Frequency
3.30 GHz
Performance-core Base Frequency
2.50 GHz
Efficient-core Base Frequency
1.80 GHz
Cache
20 MB Intel Smart Cache
Total L2 Cache
9.5 MB
Processor Base Power
65 W
Maximum Turbo Power
148 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet
Datasheet
View now: https://www.intel.com/content/www/us/en/products/docs/processors/core/core-technical-resources.html
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision
4
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020C
TJUNCTION
100^oC
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Max Technology 3.0
No
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
5 x 4 x 5

Weight
5.40 lb

Warranty Information
3 Year Limited

Available Quantity

5

UPC

735858528337

SKU

mingleCM8071505093005

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Xeon E-2434 Processor (12M Cache, 3.40 GHz) FC-LGA16A, Tray
Essentials
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Raptor Lake
Vertical Segment
Server
Processor Number
E-2434
Lithography
Intel 7
CPU Specifications
Total Cores
4
Number of Performance-cores
4
Total Threads
8
Max Turbo Frequency
5.00 GHz
Intel Turbo Boost Technology 2.0 Frequency
5.00 GHz
Processor Base Frequency
3.40 GHz
Cache
12 MB
Bus Speed
16 GT/s
TDP
55 W
Supplemental Information
Embedded Options Available
No
Use Conditions
Server/Enterprise

Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR5-4800
Max Number of Memory Channels
2
Intel Optane Persistent Memory Supported
No
ECC Memory Supported
Yes
Expansion Options
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5
Microprocessor PCIe Revision
Gen 5
PCI Express Configurations
Up to 1x16+1x4, 2x8+1x4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
TJUNCTION
100 ^oC
Advanced Technologies
Intel Turbo Boost Max Technology 3.0
No
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
Yes
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Security and Reliability
Intel Total Memory Encryption - Multi Key
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
5 x 2 x 6

Weight
1 lb

Warranty Information
3-year Limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071505025205

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Xeon E-2436 Processor (18M Cache, 2.90 GHz) FC-LGA16A, Tray
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Raptor Lake
Vertical Segment
Server
Processor Number
E-2436
Lithography
Intel 7
CPU Specifications
Total Cores
6
Number of Performance-cores
6
Total Threads
12
Max Turbo Frequency
5.00 GHz
Intel Turbo Boost Technology 2.0 Frequency
5.00 GHz
Processor Base Frequency
2.90 GHz
Cache
18 MB
Bus Speed
16 GT/s
TDP
65 W
Supplemental Information
Embedded Options Available
No
Use Conditions
Server/Enterprise
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR5-4800
Max Number of Memory Channels
2
Intel Optane Persistent Memory Supported
No
ECC Memory Supported
Yes
Expansion Options
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5
Microprocessor PCIe Revision
Gen 5
PCI Express Configurations
Up to 1x16+1x4, 2x8+1x4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
JUNCTION
100 ^oC
Advanced Technologies
Intel Turbo Boost Max Technology 3.0
No
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
Yes
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Security and Reliability
Intel Total Memory Encryption - Multi Key
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
5 x 2 x 6

Weight
1 lb

Warranty Information
3 Years

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071505025005

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Xeon E-2456 Processor (18M Cache, 3.30 GHz) FC-LGA16A, Tray
Essentials
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Raptor Lake
Vertical Segment
Server
Processor Number
E-2456
Lithography
Intel 7
CPU Specifications
Total Cores
6
Number of Performance-cores
6
Total Threads
12
Max Turbo Frequency
5.10 GHz
Intel Turbo Boost Technology 2.0 Frequency
5.10 GHz
Processor Base Frequency
3.30 GHz
Cache
18 MB
Bus Speed
16 GT/s
TDP
80 W
Supplemental Information
Embedded Options Available
No
Use Conditions
Server/Enterprise

Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR5-4800
Max Number of Memory Channels
2
Intel Optane Persistent Memory Supported
No
ECC Memory Supported
Yes
Expansion Options
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5
Microprocessor PCIe Revision
Gen 5
PCI Express Configurations
Up to 1x16+1x4, 2x8+1x4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
TJUNCTION
100 ^oC
Advanced Technologies
Intel Turbo Boost Max Technology 3.0
No
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
Yes
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Security and Reliability
Intel Total Memory Encryption - Multi Key
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
5 x 2 x 6

Weight
1 lb

Warranty Information
3-year Limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071505024905

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Xeon E-2468 Processor (24M Cache, 2.60 GHz) FC-LGA16A, Tray
Essentials
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Raptor Lake
Vertical Segment
Server
Processor Number
E-2468
Lithography
Intel 7
CPU Specifications
Total Cores
8
Number of Performance-cores
8
Total Threads
16
Max Turbo Frequency
5.2 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.2 GHz
Intel Turbo Boost Technology 2.0 Frequency
5.2 GHz
Processor Base Frequency
2.6 GHz
Cache
24 MB
Bus Speed
16 GT/s
TDP
65 W
Supplemental Information
Embedded Options Available
No
Use Conditions
Server/Enterprise

Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR5-4800
Max Number of Memory Channels
2
Intel Optane Persistent Memory Supported
No
ECC Memory Supported
Yes
Expansion Options
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5
Microprocessor PCIe Revision
Gen 5
PCI Express Configurations
Up to 1x16+1x4, 2x8+1x4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
TJUNCTION
100 ^oC
Advanced Technologies
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
Yes
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Security and Reliability
Intel Total Memory Encryption - Multi Key
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
5 x 2 x 6

Weight
1 lb

Warranty Information
3-year Limited

Available Quantity

5

UPC

Does not apply

SKU

mingleCM8071505024706

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Boxed Intel Xeon E-2414 Processor (12M Cache, 2.60 GHz) FC-LGA16A
Essentials
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Raptor Lake
Vertical Segment
Server
Processor Number
E-2414
Lithography
Intel 7
CPU Specifications
Total Cores
4
Number of Performance-cores
4
Total Threads
4
Max Turbo Frequency
4.50 GHz
Intel Turbo Boost Technology 2.0 Frequency
4.50 GHz
Processor Base Frequency
2.60 GHz
Cache
12 MB
Bus Speed
16 GT/s
TDP
55 W
Supplemental Information
Servicing Status
Baseline Servicing
Embedded Options Available
No
Use Conditions
Server/Enterprise
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR5-4800
Max Number of Memory Channels
2
Intel Optane^TM Persistent Memory Supported
No
ECC Memory Supported
Yes
Expansion Options
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5
Microprocessor PCIe Revision
Gen 5
PCI Express Configurations
Up to 1x16+1x4, 2x8+1x4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
JUNCTION
100 ^oC
Advanced Technologies
Intel Turbo Boost Max Technology 3.0
No
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
No
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Security and Reliability
Intel Total Memory Encryption - Multi Key
Yes
Intel Total Memory Encryption
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L inchxW inchxH inch)
17 x 6 x 5

Weight
5.46 lbs

Warranty Information
3 Years

Available Quantity

5

UPC

735858548144

SKU

mingleBX80715E2414

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU BX8071514900KF Corei9-14900KF 24Cores/32Threads 6.0Ghz 36MB LGA1700 Retail
Essentials
Product Collection
Intel Core i9 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i9-14900KF
Lithography
Intel 7
CPU Specifications
Total Cores
24
Number of Performance-cores
8
Number of Efficient-cores
16
Total Threads
32
Max Turbo Frequency
6 GHz
Intel Thermal Velocity Boost Frequency
6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.8 GHz
Performance-core Max Turbo Frequency
5.6 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.2 GHz
Efficient-core Base Frequency
2.4 GHz
Cache
36 MB Intel Smart Cache
Total L2 Cache
32 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Adaptive Boost Technology
Yes
Intel Thermal Velocity Boost
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

735858546980

SKU

mingleBX8071514900KF

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU BX8071514900K Corei9-14900K 24Cores/32Threads 6.0Ghz 36MB LGA1700 Retail
Essentials
Product Collection
Intel Core i9 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i9-14900K
Lithography
Intel 7
CPU Specifications
Total Cores
24
Number of Performance-cores
8
Number of Efficient-cores
16
Total Threads
32
Max Turbo Frequency
6 GHz
Intel Thermal Velocity Boost Frequency
6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.8 GHz
Performance-core Max Turbo Frequency
5.6 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.2 GHz
Efficient-core Base Frequency
2.4 GHz
Cache
36 MB Intel Smart Cache
Total L2 Cache
32 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported
Yes
GPU Specifications
GPU Name
Intel UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.65 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 at 60Hz
Max Resolution (DP)
7680 x 4320 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 at 120Hz
DirectX Support
12
OpenGL Support
4.5
OpenCL Support
3.0
Multi-Format Codec Engines
2
Intel Quick Sync Video
Yes
Intel Clear Video HD Technology
Yes
Number of Displays Supported
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Adaptive Boost Technology
Yes
Intel Thermal Velocity Boost
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel vPro Eligibility
Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
Intel Threat Detection Technology (TDT)
Yes
Intel Active Management Technology (AMT)
Yes
Intel Standard Manageability (ISM)
Yes
Intel Remote Platform Erase (RPE)
Yes
Intel One-Click Recovery
Yes
Intel Hardware Shield Eligibility
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption - Multi Key
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Stable IT Platform Program (SIPP)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
7 x 6 x 3

Weight
1 lb

Warranty Information
3-year limited

Available Quantity

5

UPC

735858546966

SKU

mingleBX8071514900K

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU BX8071514700KF Corei7-14700KF 20Cores/28Threads 5.6Ghz 33MB LGA1700 Retail
Essentials
Product Collection
Intel Core i7 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i7-14700KF
Lithography
Intel 7
CPU Specifications
Total Cores
20
Number of Performance-cores
8
Number of Efficient-cores
12
Total Threads
28
Max Turbo Frequency
5.6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.6 GHz
Performance-core Max Turbo Frequency
5.5 GHz
Efficient-core Max Turbo Frequency
4.3 GHz
Performance-core Base Frequency
3.4 GHz
Efficient-core Base Frequency
2.5 GHz
Cache
33 MB Intel Smart Cache
Total L2 Cache
28 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited

Available Quantity

5

UPC

735858546942

SKU

mingleBX8071514700KF

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel CPU BX8071514700K Corei7-14700K 20Cores/28Threads 5.6Ghz 33MB LGA1700 Retail
Essentials
Product Collection
Intel Core i7 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i7-14700K
Lithography
Intel 7
CPU Specifications
Total Cores
20
Number of Performance-cores
8
Number of Efficient-cores
12
Total Threads
28
Max Turbo Frequency
5.6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.6 GHz
Performance-core Max Turbo Frequency
5.5 GHz
Efficient-core Max Turbo Frequency
4.3 GHz
Performance-core Base Frequency
3.4 GHz
Efficient-core Base Frequency
2.5 GHz
Cache
33 MB Intel Smart Cache
Total L2 Cache
28 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported
Yes
GPU Specifications
GPU Name
Intel UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.6 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 at 60Hz
Max Resolution (DP)
7680 x 4320 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 at 120Hz
DirectX Support
12
OpenGL Support
4.5
OpenCL Support
3.0
Multi-Format Codec Engines
2
Intel Quick Sync Video
Yes
Intel Clear Video HD Technology
Yes
Number of Displays Supported
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100^oC
Package Size
45.0 mm x 37.5 mm
Max Operating Temperature
100 ^oC
Advanced Technologies
Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes
Security and Reliability
Intel vPro Eligibility
Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
Intel Threat Detection Technology (TDT)
Yes
Intel Active Management Technology (AMT)
Yes
Intel Standard Manageability (ISM)
Yes
Intel Remote Platform Erase (RPE)
Yes
Intel One-Click Recovery
Yes
Intel Hardware Shield Eligibility
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption - Multi Key
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Stable IT Platform Program (SIPP)
Yes
Intel Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
10 x 5 x 5

Weight
2 lbs

Warranty Information
3-year limited
