Product Description

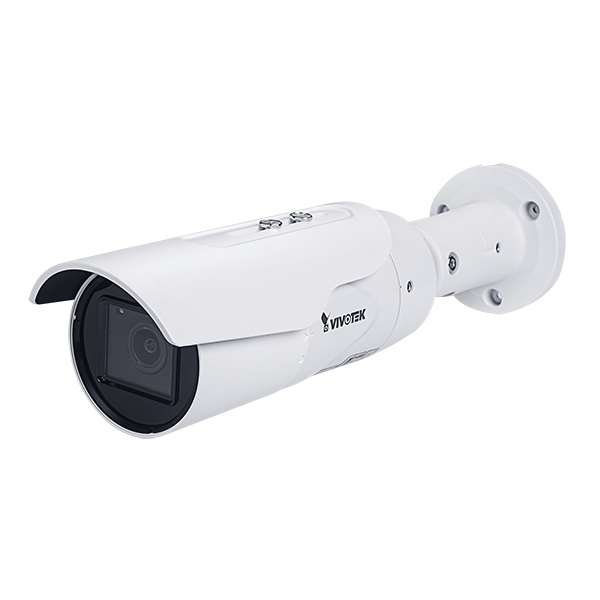

IB9389-EHT-V2
5MP Outdoor Bullet AI Camera
With IR Illuminators, Effective up to 30 Meters
Smart IR Technology to Avoid Overexposure
Vandal-proof IK10, Weather-proof IP66 Protection
Cyber Protection via Trend Micro IoT Security
2.8 - 10mm Motorized Lens
Benefits
Lightning-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search results. Experience the power of Deep Search in VIVOTEKs network video recording, VAST Security Station, and VORTEX VSaaS.
System Information
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
1 GB
Camera Specifications
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f equal 2.8-10 mm
Aperture
F1.8(W) - F2.74(T)
Iris Type
Fixed iris
Field of View
95^o-41^o (Horizontal)
69^o-31^o (Vertical)
127^o-51^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut filter
Yes
Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR LEDx4
Minimum Illumination
0.06 lux at F1.8 (Color)
0.01 lux at F1.8 (B/W)
0 lux with IR illumination on
Tilt Range
90^o
Rotation Range
180^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom
Video
Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps at 2560x1920 (5MP) (WDR on)
30 fps at 2560 x1440 (4MP) (WDR on)
60 fps at 1920x1080 (2MP) (WDR off)
encode mode: mode 0 for all
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
> 55dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings
video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators
illuminators, anti-overexposure
Image settings
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)
Exposure
BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus
zoom, focus
Privacy mask
Scheduled profile settings
Network
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT
Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
AI Analytics
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection
people, vehicle (4-wheeled, 2-wheeled)
Attribute Extraction
people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction
Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
AI-powered Image Enhancement
Smart IR III
Solution Integration
VADP Package
Trend Micro IoT Security (3-year free trial)
Video modtion detection
Motion Detection (Five-window video motion detection)
Alarm and Event
Event Trigger
Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for Network 10/100 Mbps PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max: 12.95W (IR on)
Max: 9.95W (IR off)
Max: 12.95 W (Heater on)
Max: 10.55 W (Heater off)
Certifications
EMC
CE (EN55032, EN55024 Class A, EN50121-4 ), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)
Safety
UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment
IK10 (IEC 62262), IP66 (IEC 60529)
IA
BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature
Starting Temperature:
-30^oC - 50^oC (-13^oF - 122^oF)
Working Temperature(IR on):
-40^oC - 60^oC (-40^oF - 140^oF) (IR off)
-40^oC - 50^oC (-40^oF - 122^oF) (IR on)
Humidity
98% RH (non-condensing)
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack
DORI (EN 62676-4 Standard)
Detection (25PPM/ 8PPF)
Wide: 65.8 m (216.0 ft)
Tele: 140.5 m (461.0 ft)
Observation (63PPM/ 19PPF)
Wide: 26.1 m (85.7 ft)
Tele: 55.8m (182.9 ft)
Recognition (125PPM/ 38PPF)
Wide: 13.2 m (43.2 ft)
Tele: 28.1m (92.2 ft)
Identification (250PPM/ 76PPF)
Wide: 6.6 m (21.6 ft)
Tele: 14.0m (46.1 ft)
Item Dimension (L"xW"xH")
12 x 10 x 5

Weight
5 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

Does not apply

SKU

mingleIB9389-EHT-V2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

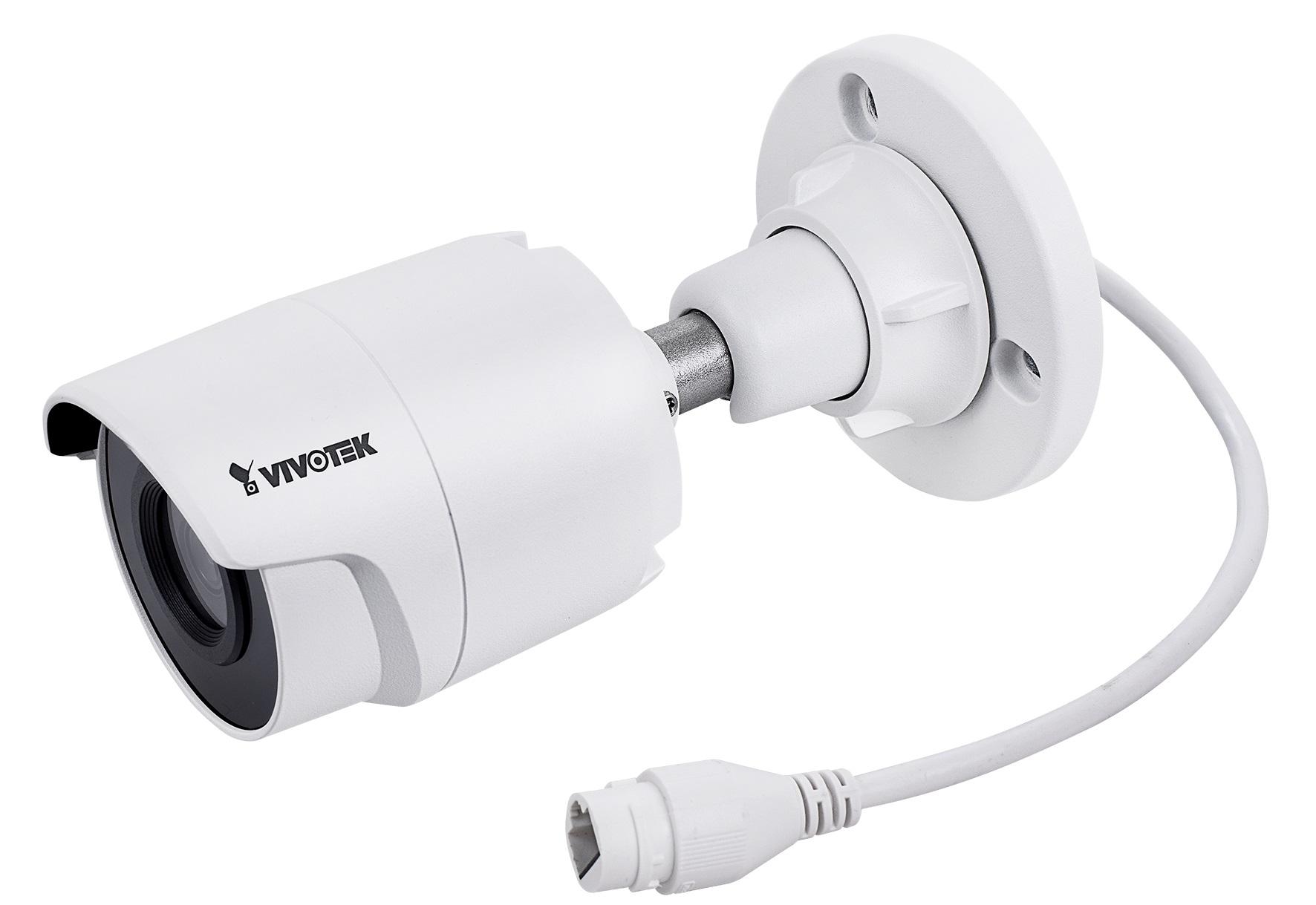

VIVOTEK s IB9380-H is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.



The IB9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9380-H is encased in IP66 and IK10 housing.



By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9380-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenes
System Information
Model
IB9380-H
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
f equals 3.6 mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
76^o (Horizontal)
59^o (Vertical)
100^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LEDx2
Minimum Illumination
0.03 lux at F2.0 (Color)
<0.005 lux at F2.0 (B/W)
0 lux with IR illumination on
Tilt Range
90^o
Rotation Range
180^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
20 fps at 2560x1920
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
67 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
Privacy mask
Scheduled profile settings
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
(It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.)
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger
Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 6.49 W/3.6 W (IR on/off)
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to 60^oC (14^oF to 140^oF)
Working Temperature: -30^oC to 60^oC (-22^oF to 140^oF)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland
Item Dimension (L inchxW inchxH inch)
10 x 6 x 6

Weight
3 lbs

Warranty Information
2 Years

Available Quantity

5

UPC

Does not apply

SKU

mingleIB9380-H

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

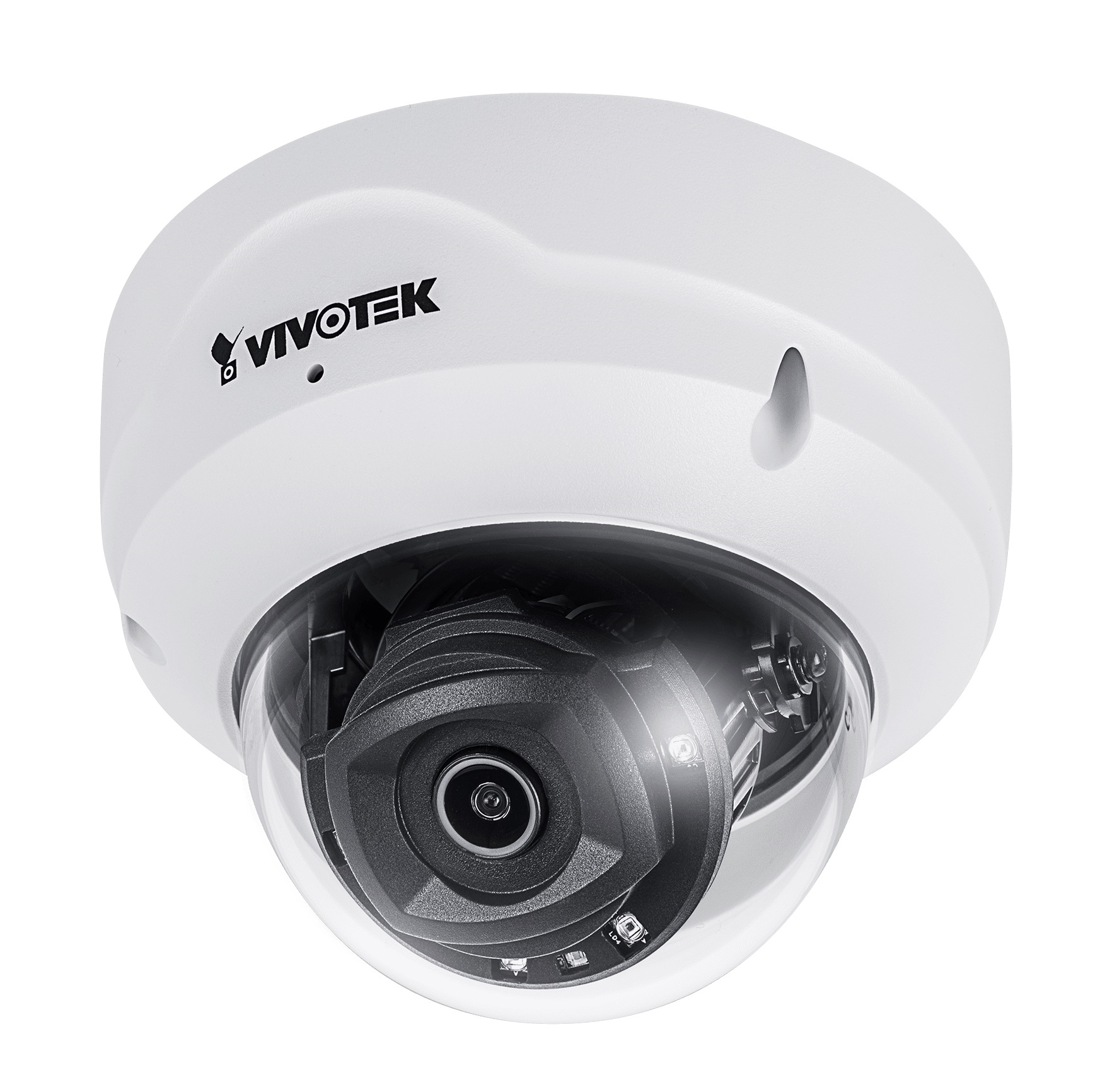

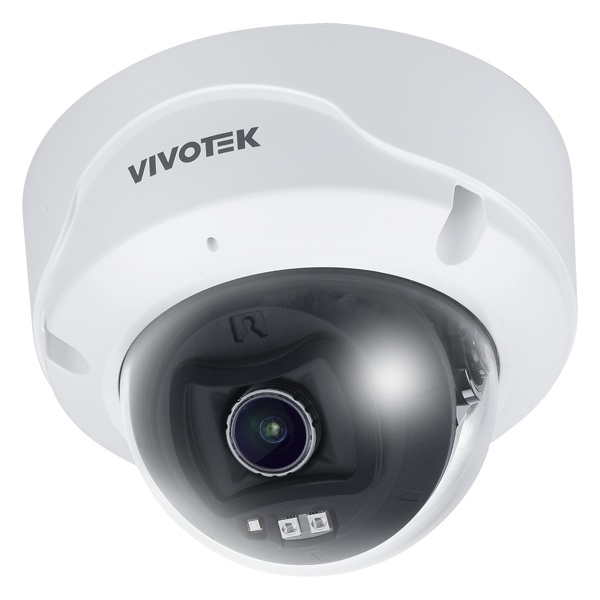

FD9189-H-v2

5MP 30fps, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, SNV



VIVOTEK s FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.



The FD9189-v2 series offers two lens options for different user scenarios: fixed-focal and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility.



The FD9189-v2 series comes with VIVOTEK's Smart Stream III technology and H.265 codec support. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.



* Depending on scenes
System Information
Model
FD9189-H-v2
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
1 GB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
F equals 2.8 mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
103^o (Horizontal)
76^o (Vertical)
134^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LEDx4
Minimum Illumination
0.06 lux at F2.0 (Color)
0.01 lux at F2.0(B/W)
0 lux with IR illumination on
Pan Range
>350^o
Tilt Range
80^o
Rotation Range
+/-175^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps at 2560x1920
60 fps at 1920x1080
Maximum Streams
3 video streams (Up to 8 configurable profiles)
Stream 1: 2560x1920
Stream 2: 1280x960, 800x600, 640x480
Stream 3: 800x600, 640x480
S/N Ratio
55 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Privacy mask
Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726, MPEG-2 AAC-LC
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
(It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.)
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
AI Analytics
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection: people, vehicle (4-wheeled)
Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit https://vivotek.com/video-analytics
Solution Integration
Applications
Stratocast, Trend Micro IoT Security (3-year free trial)
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 6.3 W (IR on)
Max. 3.9 W (IR off)
Certifications
EMC: CE (EN55032, EN55024 Class B, E50121-4), FCC (FCC Part 15 Subpart B Class B),
RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B)
Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety : CNS 14336-1)
Operating Temperature
Starting Temperature:
0^oC - 50^oC (32^oF - 122^oF)
Working Temperature:
-10^oC - 50^oC (14^oF - 122^oF) (IR off)
-10^oC - 45^oC (14^oF - 113^oF) (IR on)
Humidity
90% RH (non-condensing)
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack
DORI (EN 62676-4 Standard)
Detect (25PPM/ 8PPF)
68.6 m (225.1 ft)
Observe (63PPM/ 19PPF)
27.2 m (89.3 ft)
Recognize (125PPM/ 38PPF)
13.7 m (45.0 ft)
Identify (250PPM/ 76PPF)
6.9 m (22.5 ft)
Item Dimension (L inchxW inchxH inch)
8 x 7 x 6

Weight
3 lbs

Warranty Information
3-Year

Available Quantity

5

UPC

Does not apply

SKU

mingleFD9189-H-V2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Key Features

H.265 Compression Technology

20 fps @ 2560x1920 (WDR Pro on)

2.8~12 mm, Remote Focus

WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments

SNV (Supreme Night Visibility) for Low Light Conditions

Smart Stream III to Optimize Bandwidth Efficiency

Built-in IR Illuminators, Effective up to 30 Meters

Weather-proof IP66-rated and Vandal-proof IK10-rated Housing

Trend Micro IoT Security

Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

Built-in Microphone

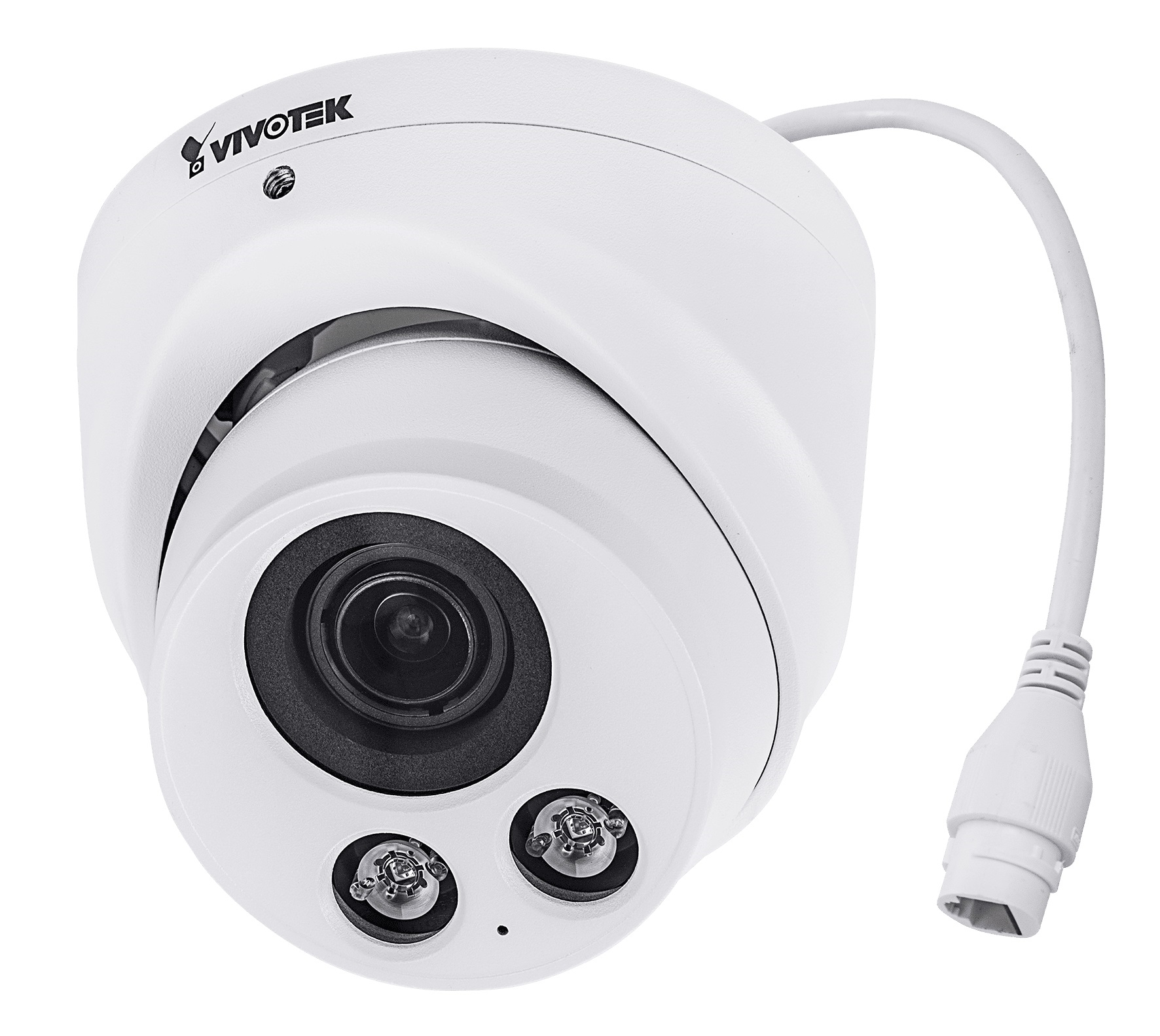

System Information
Model
IT9388-HT
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
F equals 2.8 - 12 mm
Aperture
F1.4 - F2.8
Iris Type
Fixed iris
Field of View
90^o - 30^o (Horizontal)
65^o - 23^o (Vertical)
115^o - 38^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LEDx2
Minimum Illumination
0.035 lux at F1.4 (Color)
<0.005 lux at F1.4(B/W)
0 lux with IR illumination on
Pan Range
360^o
Tilt Range
70^o
Rotation Range
360^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
20 fps at 2560x1920
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
61 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
Privacy mask
Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
(It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.)
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud

Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 9.8 W/6.29 W (IR on/off)
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC - 60^oC (14^oF - 140^oF)
Working Temperature: -30^oC - 60^oC (-22^oF - 140^oF)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above

Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland
Item Dimension (L inchxW inchxH inch)
8 x 7 x 6

Weight
3 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

Does not apply

SKU

mingleIT9388-HT

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

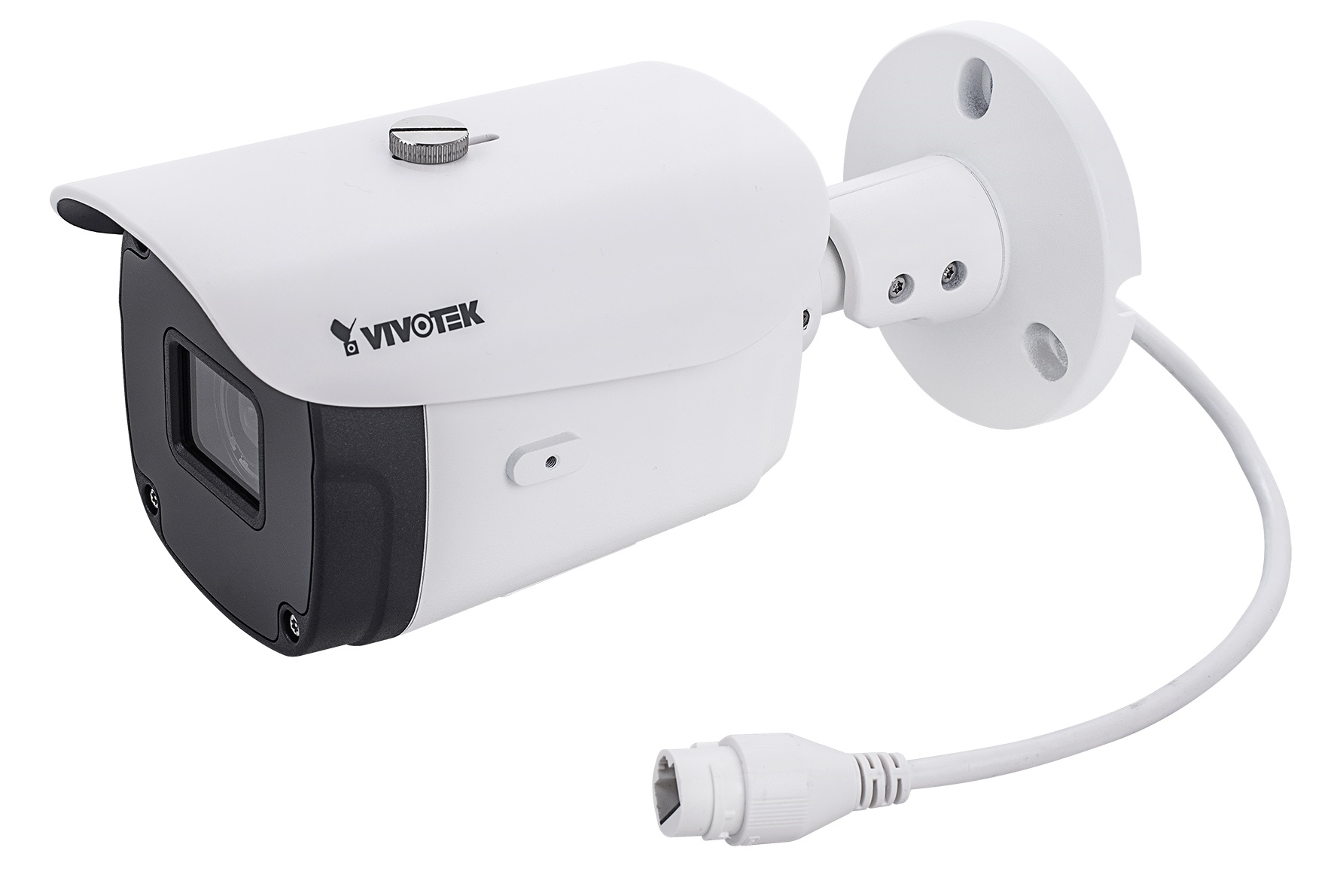

VIVOTEK s IB9388-HT is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9388-HT is capable of capturing high-quality imagery in both high contrast and low light environments.



The IB9388-HT deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9388-HT is encased in IP66 and IK10 housing.



By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9388-HT is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the everexpanding number of user scenarios in a diversifying surveillance market.
System Information
Model
IB9388-HT
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920(5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f equals 2.8 to 12 mm
Aperture
F1.4 to F2.8
Iris Type
Fixed iris
Field of View
90^o to 30^o (Horizontal)
65^o to 23^o (Vertical)
115^o to 38^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LEDx2
Minimum Illumination
0.035 lux at F1.4 (Color)
<0.005 lux at F1.4 (B/W)
0 lux with IR illumination on
Tilt Range
90^o
Rotation Range
180^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
20 fps at 2560x1920
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
67 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
Privacy mask
Scheduled profile settings
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
(It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.)
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger
Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 12.95 W/9 W (IR on/off)
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to 60^oC (14^oF to 140^oF)
Working Temperature: -30^oC to 60^oC (-22^oF to 140^oF)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland
Item Dimension (L inchxW inchxH inch)
10 x 6 x 6

Weight
3 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

Does not apply

SKU

mingleIB9388-HT

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

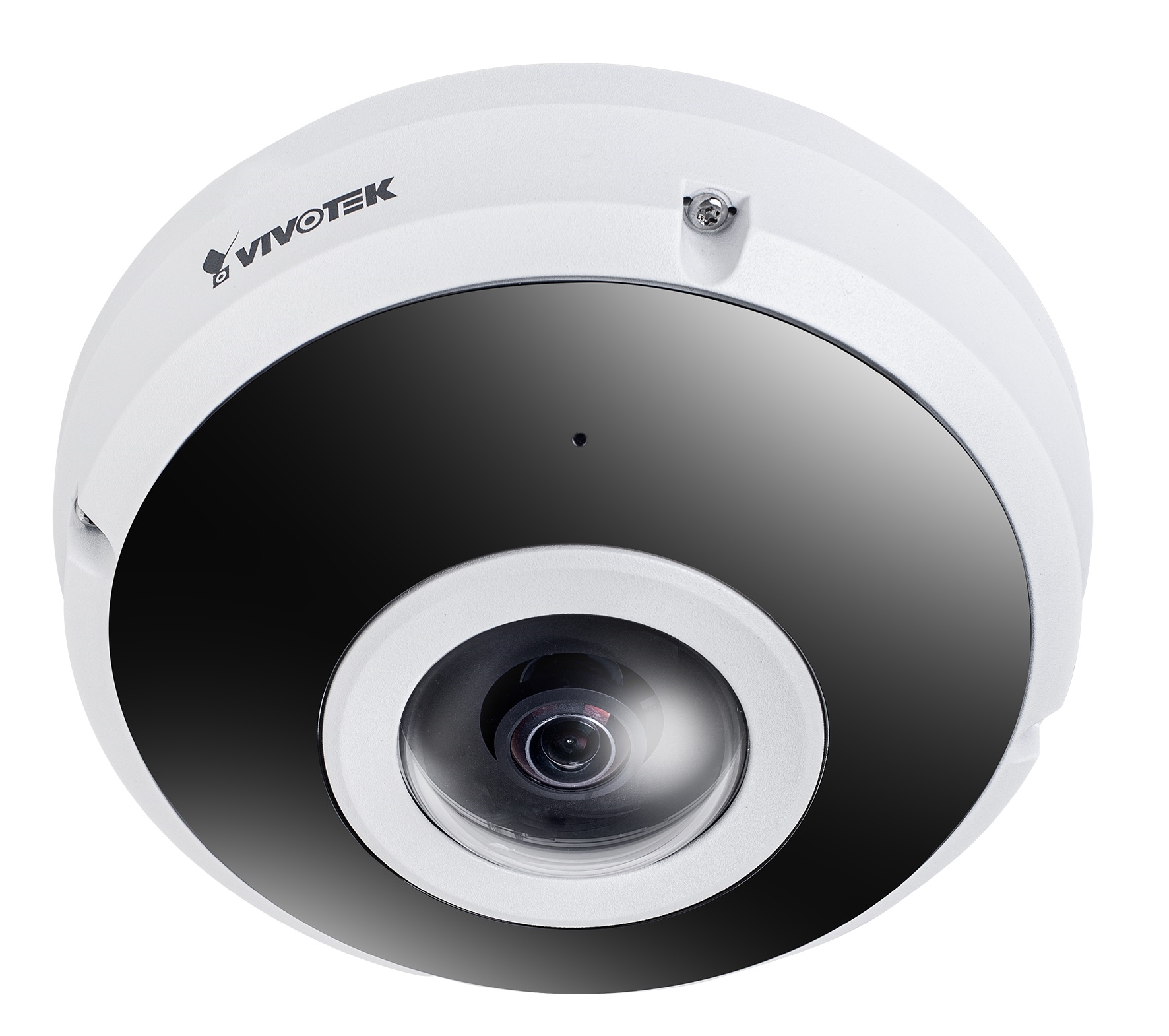

FE9380-HV

5MP, H.265, 10M IR, WDR Pro, IP66, IK10



The 5-Megapixel FE9380-HV is the newest addition to the VIVOTEK 360 fisheye family. The FE9380-HV is a true day/night camera, with a removable IR-cut filter and 360 IR illumination up to 10 meters radius. It supports up to 30fps at full 5MP resolution as well as WDR Pro 120dB to maintain excellent image quality in high contrast lighting environments. These features greatly enable the FE9380-HV to provide clear images 24 hours a day.



To meet the demands of harsh outdoor applications, the FE9380-HV is armed with an IP66-rated housing for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism. Lastly the FE9380-HV uses H.265 compression technology. When combined with Smart Stream III, H.265 helps to reduce bandwidth and storage consumption up to 90%*, enabling the FE9380-HV to record more detailed 360 images while simultaneously helping to reduce costs.



* Depending on scenes
System Information
Model
FE9380-HV
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS in 2688x1944
Max. Resolution
1920x1920
Lens Type
Fixed-focal
Focal Length
f equals 1.16 mm
Aperture
F2.25
Iris Type
Fixed iris
Field of View
180^o (Horizontal)
180^o (Vertical)
180^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 10 meters with Smart IR, IR LEDx4
Minimum Illumination
0.05 lux at F2.25 (Color)
<0.005 lux at 2.25 (B/W)
0 lux with IR illumination on
Pan/Tilt/Zoom Functionalities
ePTZ: 12x digital zoom (12x on IE plug-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
24 fps at 1920x1920 (WDR on)
30 fps at 1920x1920 (WDR off)
Maximum Streams
4 video streams (Up to 9 configurable profiles)
S/N Ratio
63 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), WDR
Privacy mask
Scheduled profile settings
Display Mode
Client dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions

Local dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
(It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.)
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Stratocast, Trend Micro IoT Security (1-year free trial)

Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 12 W/3.8 W (IR on/off)
Certifications
EMC: CE (EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A)
Safety: UL (UL 62368-1), CB (CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
IA: BIS (IS 13252)
Operating Temperature
Starting Temperature:
Starting Temperature: -10^oC - 60^oC (14^oF - 140^oF)
Working Temperature: -30^oC - 60^oC (-22^oF - 140^oF)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above

Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, desiccant bag
Item Dimension (L inchxW inchxH inch)
10 x 8 x 5

Weight
3 lbs

Warranty Information
3-Year

Available Quantity

5

UPC

Does not apply

SKU

mingleFE9380-HV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

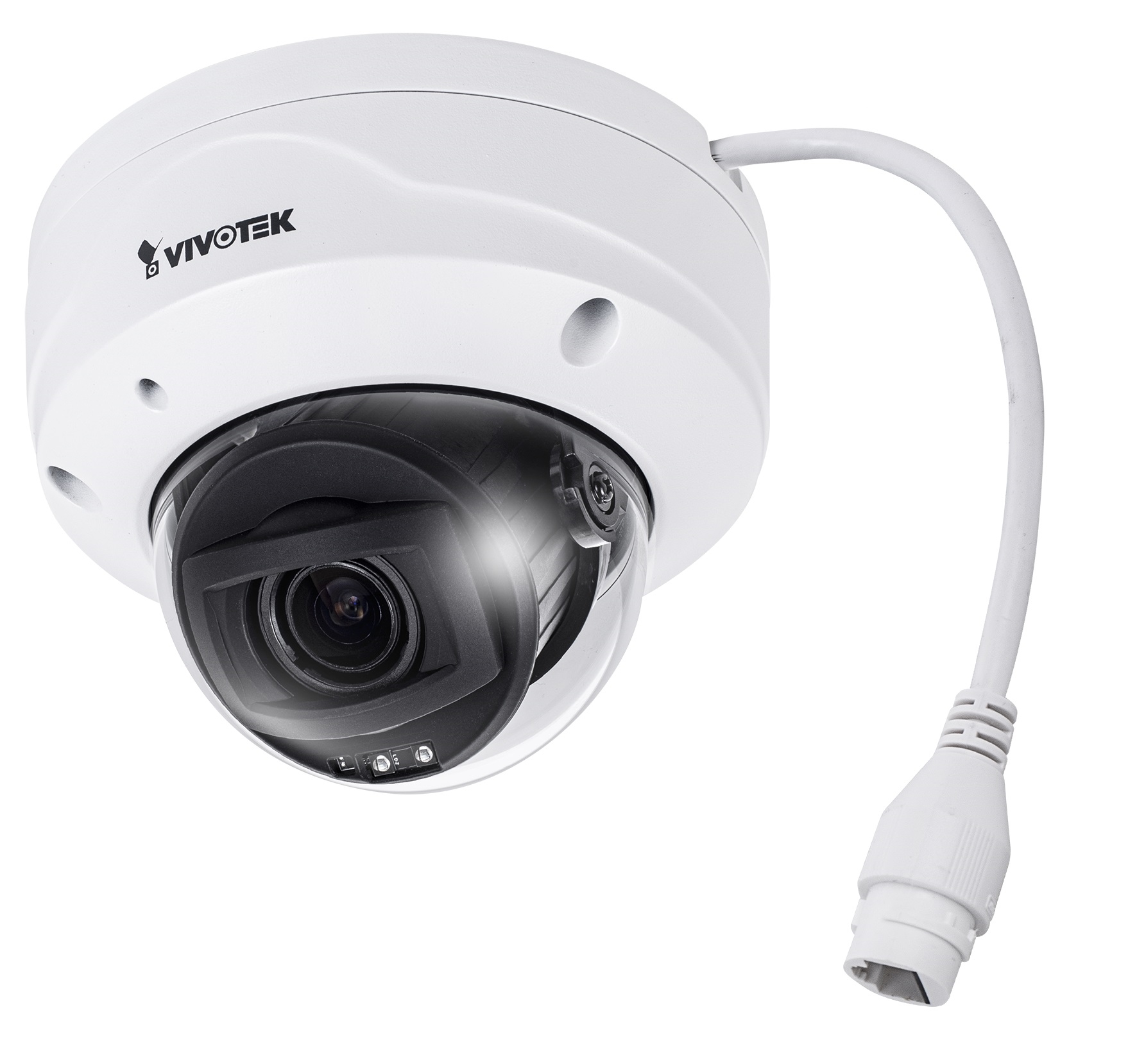

FD9388-HTV


VIVOTEK s FD9388-HTV is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9388-HTV is capable of capturing high-quality imagery in both high contrast and low light environments.



The FD9388-HTV deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9388-HTV is encased in IP66 and IK10 housing.



By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9388-HTV is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenes
System Information
Model
FD9388-HTV
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f equals 2.8 to 12 mm
Aperture
F1.4 to F2.8
Iris Type
Fixed iris
Field of View
90^o to 30^o (Horizontal)
65^o to 23^o (Vertical)
115^o to 38^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LEDx2
Minimum Illumination
0.035 lux at F1.4 (Color)
< 0.005 lux at F1.4 (B/W)
0 lux with IR Illuminators on
Pan Range
353^o
Tilt Range
75^o
Rotation Range
350^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) Built-in Installation Aids
Remote focus, remote zoom
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
20 fps at 2560x1920
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
61 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings. Illuminators: illuminators, anti-overexposure. Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR. Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR. Privacy mask. Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 12.95 W/9 W (IR on/off)
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK10 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to 60^oC (14^oF to 140^oF) Working Temperature: -30^oC to 60^oC (-22^oF to 140^oF)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland
Item Dimension (L inchxW inchxH inch)
8 x 7 x 6

Weight
3 lbs

Warranty Information
2-year

Available Quantity

5

UPC

Does not apply

SKU

mingleFD9388-HTV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

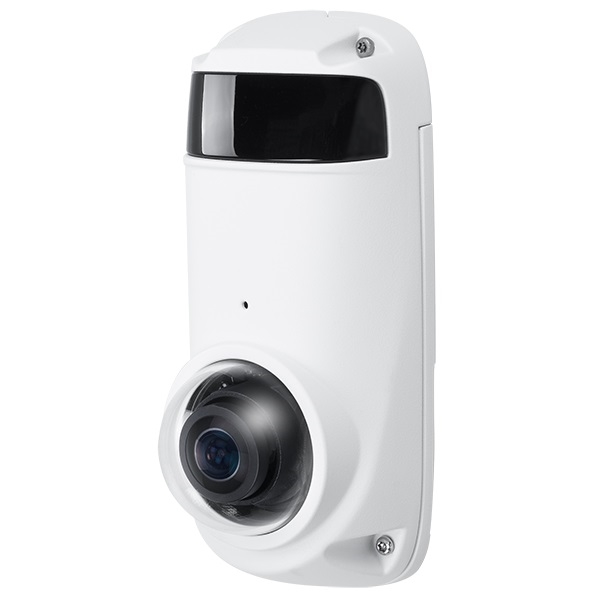

Product Description

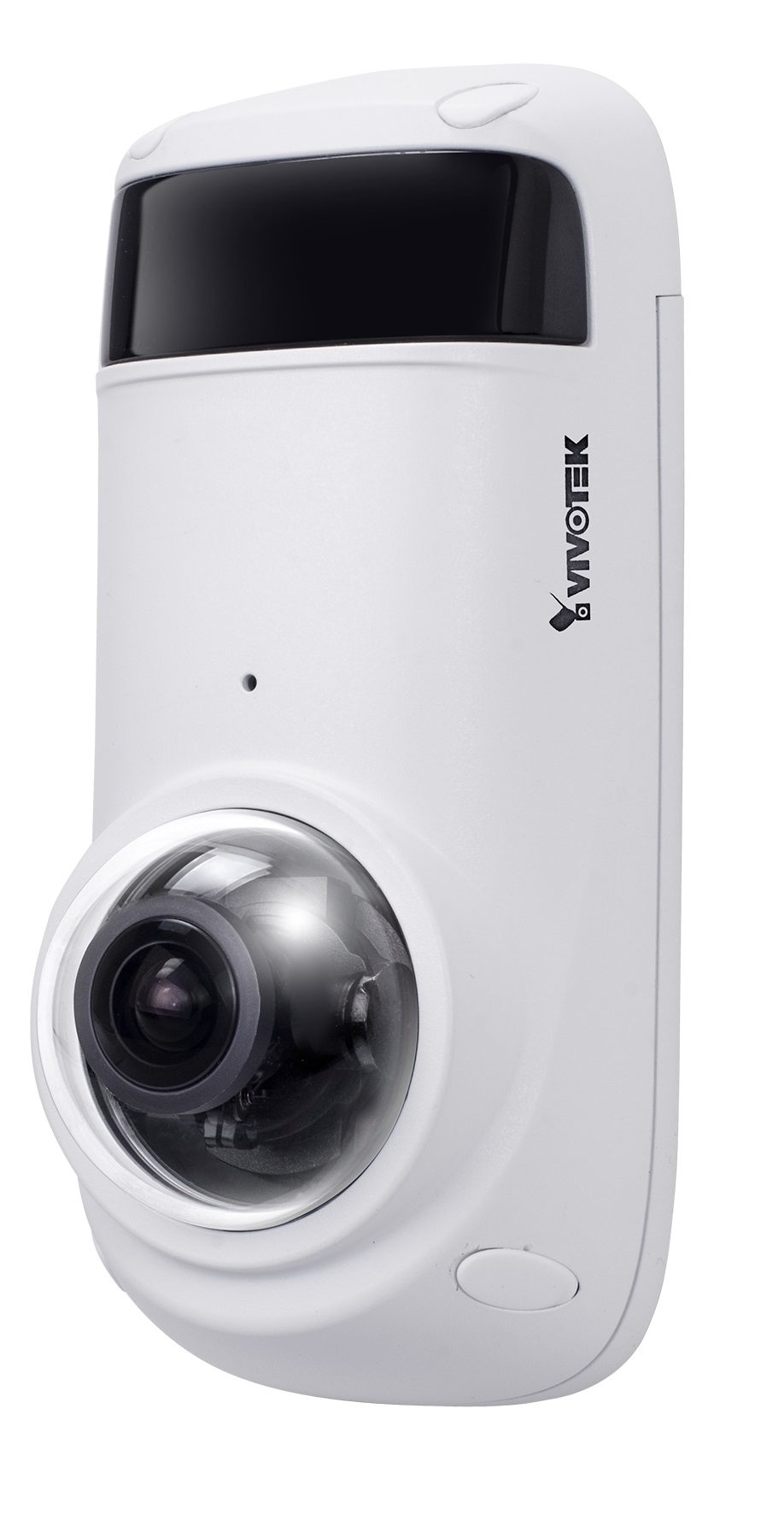

High-Quality Surveillance

Along with offering amazing 180 HFOV coverage, CC9381-HV offers up to 20 fps at 5-Megapixel resolution (30 fps at 5MP with WDR Off). This Panoramic Network Camera also incorporates other value-added features. In order to combat high contrast lighting environments, WDR Pro is included and also has built-in 15M panoramic IR illuminators, ensuring 24/7 surveillance coverage.



180 Clear Night Views

The CC9381-HV also has built-in 180 IR illuminators up to 15 meters. No matter day or night, light or dark, it always provides complete video security.



Maximize Video Quality with Ultra-Low Bandwidth

Combining both H.265 and VIVOTEK Smart Stream III, the CC9381-HV can reduce bandwidth and storage consumption more than 90%* compared to traditional H.264 without smart streaming.

* depending on scene
System Information
Model
CC9381-HV
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
f equals 1.45 mm
Aperture
F2.2
Iris Type
Fixed iris
Field of View
180^o (Horizontal)
120^o (Vertical)
180^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 15 meters with Smart IR, IR LEDx4
Minimum Illumination
0.11 lux at F2.2 (Color)
0.01 lux at F2.2 (B/W)
0 lux with IR Illuminators on
Tilt Range
+/-25^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
H.265: 20 fps/30 fps at 2560x1920 (WDR Pro on/off)
H.264: 20 fps/25 fps at 2560x1920 (WDR Pro on/off)
MJPEG: 20 fps/20 fps at 2560x1920 (WDR Pro on/off)
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
62 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Privacy mask
Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 9.12 W/5.37 W (IR on/off)
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK10 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to 50^oC (14^oF to 122^oF) Working Temperature: -30^oC to 50^oC (-22^oF to 122^oF)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, mounting bracket, tilt bracket, screw pack
Item Dimension (L inchxW inchxH inch)
9 x 7 x 4

Weight
2 lbs

Warranty Information
2-year

Available Quantity

5

UPC

Does not apply

SKU

mingleCC9381-HV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

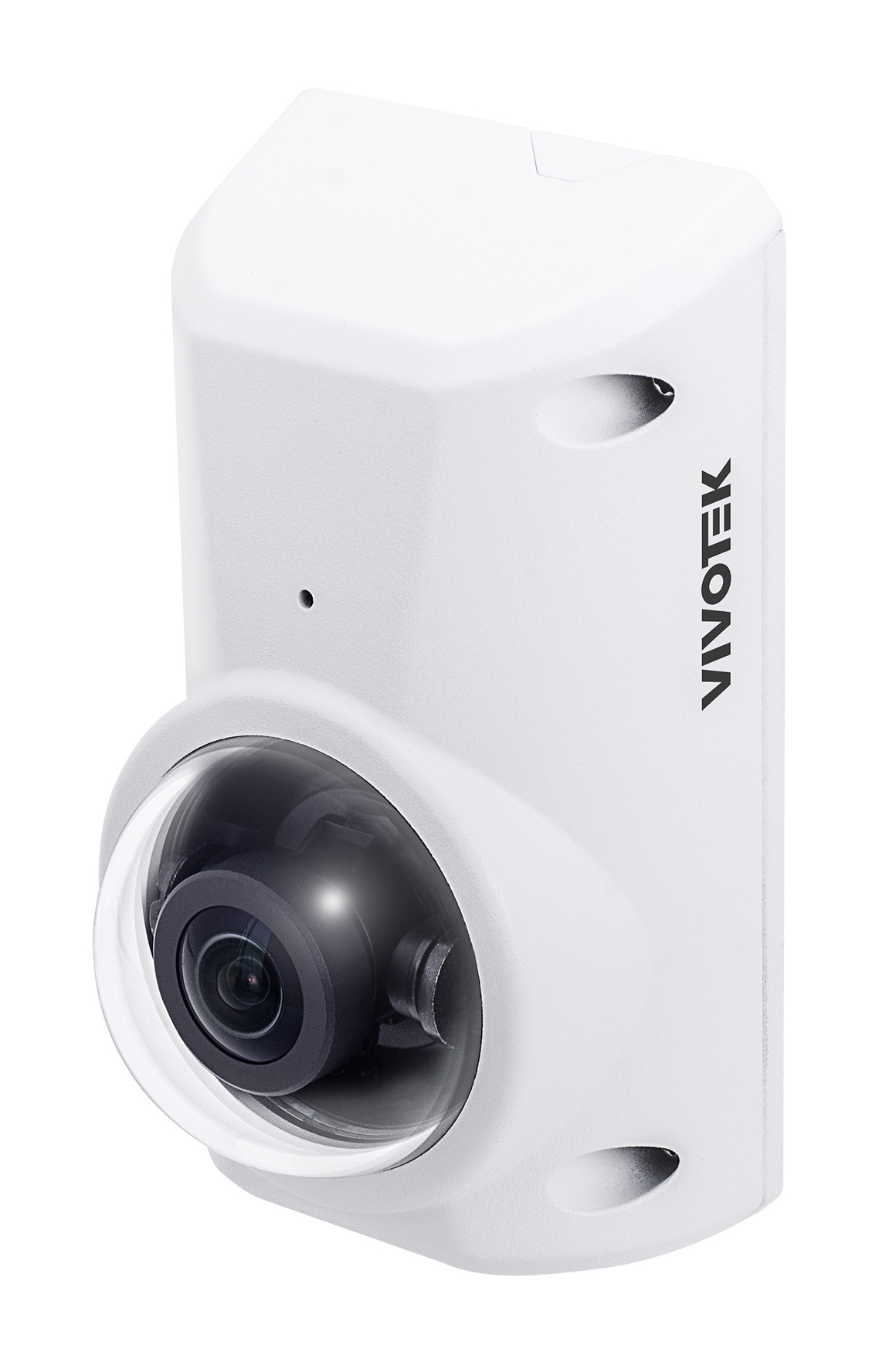

CC9380-HV

5MP, H.265, 30fps, WDR Pro, SNV, IP66, IK10


VIVOTEK s CC9380-HV is an update on the widely popular CC8370-HV, now available in 5MP with H.265 compression.



The CC9380-HV is a true day/night camera, with a removable IR-cut filter. Through the use of a single fisheye lens set to a 180 panoramic view, the seemless image provides a very large vertical field of view. This allows for amazing close range surveillance coverage in a low profile design.



To meet the demands of any harsh outdoor application, the CC9380-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism. In addition the CC9380-HV continues the trend of its predecessor CC8370-HV and has an anti-ligature housing, to reduce chances of suicide and/or self inflicted harm.
System Information
Model
CC9380-HV
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
f equals 1.45 mm
Aperture
F2.2
Iris Type
Fixed iris
Field of View
180^o (Horizontal)
120^o (Vertical)
180^o (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
Minimum Illumination
0.11 lux at F2.2 (Color)
0.01 lux at F2.2 (B/W)
Tilt Range
+/-25^o
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
H.265:
20 fps/30 fps at 2560x1920 (WDR Pro on/off) :
H.264: :
20 fps/25 fps at 2560x1920 (WDR Pro on/off) :
MJPEG: :
20 fps/20 fps at 2560x1920 (WDR Pro on/off)
Maximum Streams:

3 video streams (Up to 8 configurable profiles)
S/N Ratio
62 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bitrate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur), Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR, Privacy mask: Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
It is highly recommended to use standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger
Audio detection, Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 1
Power Consumption
Max. 5W
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), VCCI (VCCI-CISPR 32 Class B). Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950- 22, IEC/EN 62471). Environment: IK10 (IEC 62262), IP66 (IEC 60529). IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10^oC to50^oC (14^oF to 122^oF) Working Temperature: -30^oC to 50^oC (-22^oF to 122^oF)
Humidity
90%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, mounting bracket, screw pack
Item Dimension (L inchxW inchxH inch)
6 x 6 x 5

Weight
2 lbs

Warranty Information
2-year

Available Quantity

5

UPC

Does not apply

SKU

mingleCC9380-HV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

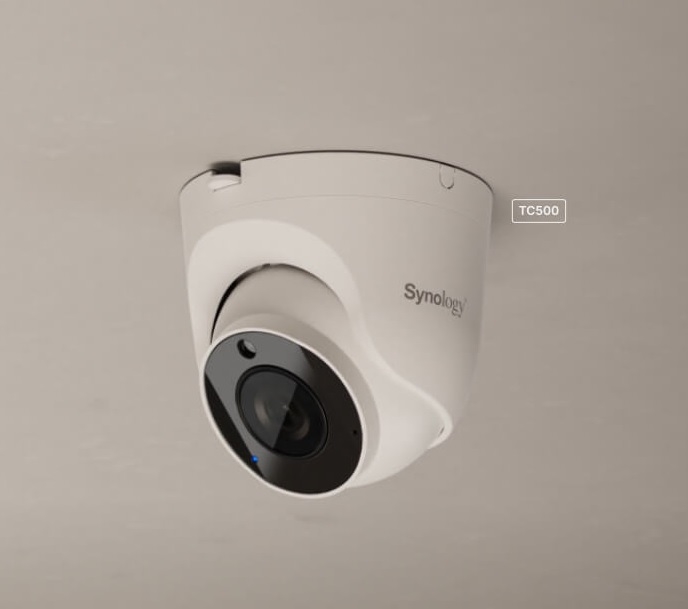

BC500 and TC500
Bullet and turret IP cameras
Versatile AI cameras for securing any location
Consistently clear footage, 24/7
Around the clock surveillance
See clearly at night with four high-power IR LEDs that provide 30 meters of night vision range.
Detailed video recordings in all lighting conditions
Ensure security despite high contrast light conditions with High Dynamic Range (HDR), which provides detailed images in both shadows and bright spots.
Enhance your surveillance with camera-based AI
Be proactive with surveillance. AI features empower security staff to watch over multiple locations more efficiently.
People and Vehicle Detection
Protect against loitering and boost security with cameras that leverage AI to distinguish people and vehicles from other moving objects with high accuracy.
Intrusion Detection
Identify trespassers without maintaining dedicated staff on site. Draw virtual borders to automatically receive alerts when people or vehicles cross.
Optical
Image Sensor
1/2.7"
IR LED wavelength
850 nm
Max. IR distance
30m (98.4ft) (0.001lux)
Shutter Speed
1/16000 s to 1/30 s
Day and Night
Automatically removable infrared-cut filter
Lens
Lens type
Fixed Focal
Focal Length
2.8 mm
Field of View
110^o H, 56^o V, 132^o D
(LDC ON)
DORI
D: 60m, O: 24m, R: 12m, I: 6m
Aperture
F1.8
Video
Max. video resolution
2880x1620 at 30 FPS
Multi-exposure HDR
Yes
DNR
3DNR
2DNR
Audio
Microphone
Yes
I/O
Ethernet
RJ45 10M/100M Ethernet port X 1
Reset
Yes
On-Board Storage
Micro SD card slot X 1
Support Micro SDHC/SDXC card up to 128GB
Supported file format: exFAT
Note: SD card is not included
Power Supply
IEEE 802.3af Type 1 Class 3 or 12V DC
Note
Compatible DC power adapter: 12V/1A (Diameter 2.1mm)
The product does not include a PoE switch or a 12V DC power adapter. Please purchase separately.
General
Form Factor
Turret
Temperature
Operating Condition
Starting temperature:-30^oC to 50^oC (-22^oF to 122^oF)
Operating temperature:-30^oC to 50^oC (-22^oF to 122^oF) (IR off)
Operating temperature:-30^oC to 40 ^oC (-22^oF to 104^oF) (IR on)
Operating humidity:5%-95% (non-condensing)
Storage Condition
Storage temperature:-40^oC to 60^oC (-40^oF to 140^oF)
Storage humidity:5%-95% (non-condensing)
Certification
FCC
CB
IC
CE
UKCA
BSMI
VCCI
RCM
KC
JATE
Environment
REACH Compliant
WEEE Compliant
ROHS Compliant
Waterproof
IP67
Vandal
IK10
NDAA Compliant
Yes
TAA Compliant
Yes
Packaging Content
Main Unit X 1
Installation guide X 1
Screw pack X 1
RJ45 cap cover X 1
Item Dimension (L"xW"xH")
7 x 6 x 5

Weight
2 lbs

Warranty Information
3 years

Available Quantity

5

UPC

846504005109

SKU

mingleTC500

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

BC500 and TC500
Bullet and turret IP cameras
Versatile AI cameras for securing any location
Consistently clear footage, 24/7
Around the clock surveillance
See clearly at night with four high-power IR LEDs that provide 30 meters of night vision range.
Detailed video recordings in all lighting conditions
Ensure security despite high contrast light conditions with High Dynamic Range (HDR), which provides detailed images in both shadows and bright spots.
Enhance your surveillance with camera-based AI
Be proactive with surveillance. AI features empower security staff to watch over multiple locations more efficiently.
People and Vehicle Detection
Protect against loitering and boost security with cameras that leverage AI to distinguish people and vehicles from other moving objects with high accuracy.
Intrusion Detection
Identify trespassers without maintaining dedicated staff on site. Draw virtual borders to automatically receive alerts when people or vehicles cross.
Instant Search
Investigate incidents quickly after they happen. Instant Search lets operators search for activities of interest within a certain area.
Effortless setup and access from anywhere
With hassle-free setup and on-the-go access, these cameras are suitable for single-site small business installations and sprawling multi-site deployments alike.
Hardware Specifications
Optical
Image Sensor
1/2.7"
IR LED wavelength
850 nm
Max. IR distance
30m (98.4ft) (0.001lux)
Shutter Speed
1/16000 s to 1/30 s
Day and Night
Automatically removable infrared-cut filter
Lens
Lens type
Fixed Focal
Focal Length
2.8 mm2.8 mm
Field of View
110^o H, 56^o V, 132^o D
(LDC ON)
DORI
D: 60m, O: 24m, R: 12m, I: 6m
Aperture
F1.8
Video
Max. video resolution
2880x1620 at 30 FPS
Multi-exposure HDR
Yes
DNR
3DNR
2DNR
Audio
Microphone
Yes
I/O
Ethernet
RJ45 10M/100M Ethernet port X 1
Reset
Yes
On-Board Storage
Micro SD card slot X 1
Support Micro SDHC/SDXC card up to 128GB
Supported file format: exFAT
Note: SD card is not included
Power Supply
IEEE 802.3af Type 1 Class 3 or 12V DC
Note
Compatible DC power adapter: 12V/1A (diameter 2.1mm)
The product does not include a PoE switch or a 12V DC power adapter. Please purchase separately.
General
Form Factor
Bullet
Temperature
Operating Condition
Starting temperature:-30^oC to 50^oC (-22^oF to 122^oF)
Operating temperature:-30^oC to 50^oC (-22^oF to 122^oF) (IR off)
Operating temperature:-30^oC to 40 ^oC (-22^oF to 104^oF) (IR on)
Operating humidity:5%-95% (non-condensing)
Storage Condition
Storage temperature:-40^oC to 60^oC (-40^oF to 140^oF)
Storage humidity:5%-95% (non-condensing)
Certification
FCC
CB
IC
CE
UKCA
BSMI
VCCI
RCM
KC
JATE
Environment
REACH Compliant
WEEE Compliant
ROHS Compliant
Waterproof
IP67
Vandal
-
NDAA Compliant
Yes
TAA Compliant
Yes
Packaging Content
Main Unit X 1
Installation guide X 1
Screw pack X 1
RJ45 cap cover X 1
Item Dimension (L"xW"xH")
9 x 6 x 5

Weight
2 lbs

Warranty Information
3-year

Available Quantity

5

UPC

846504005093

SKU

mingleBC500

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The Hikvision ECI-T24Fx Outdoor IR Turrent Camera provides high definition IP output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage. IR technology allows for viewing up to a range of 100 feet (30 meters).


Minimum Illumination: Color: 0.15 lux @ (f/2.0, AGC on); 0.03 Lux @ (f/2.0, AGC on), 0 Lux with IR

Up to 2560 x 1440 Resolution

2.8 mm, 4 mm, and 6 mm Fixed Lens Options

H.265+/H.265/H.264+/H.264/MJPEG

Main Stream: 20 fps (2560 1440), 30 fps (2304 1296, 1920 1080, 1280 720)

Up to 100 ft (30 m) IR Range. 120dB True WDR produces clearer image.

12 VDC 25% (PoE IEEE802.3 af), maximum 6.5 W. Durable metal housing.
Camera
Image Sensor
1/3" (4 MP) progressive scan CMOS
Minimum Illumination
Color: 0.15 lux at (f/2.0, AGC on) 0.03 Lux at (f/2.0, AGC on), 0 Lux with IR
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day /Night
IR cut filter
Digital Noise Reduction 3D
DNR
WDR
120dB
Angle Adjustment (Bracket)
Pan: 0^o to 360^o, tilt: 0^o to 75^o, rotation: 0^o to 360^o
Lens
Focal Length
2.8 mm
Aperture
f/2.0
Focus
No
FOV
2.8 mm, horizontal FOV 100^o, vertical FOV 55^o, diagonal FOV: 117^o
Lens Mount
M12
IR
IR Range
2.8 mm: up to 65 ft (20 m)
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 sub-stream: H.265+/H.265/H.264+/H.264/MJPEG
H.264 Type
Baseline profile/main profile/high profile
H.264+
Main stream
Video Bit Rate
32 Kbps to 16 Mbps
Smart Features
Region of Interest
One fixed region for main stream and sub-stream
Maximum Resolution
2560 x 1440
Main Stream
20 fps (2560 x 1440), 30 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
30 fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement
BLC, 3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day Night Switch
Day, night, auto, scheduled
Network
Nework Storage
Supports NAS (NFS,SMB/CIFS)
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User / Host
Up to 32 users three levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
IE 8+, Chrome 31 to 44, Firefox 30.0 to 51, Safari 8.0+
Interface
Communication Interface
1-Port RJ-45 10M/100M self-adaptive Ethernet port
General
Operating Conditions
-22^o F to 140^o F (-30^o C to 60^o C) humidity: 95% or less (non-condensing)
Power Supply
12 VDC +/- 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.5 A, maximum: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, maximum: 6.5 W
Protection Level
IP67
Material
Metal
Item Dimension (L"xW"xH")
6 x 2 x 6

Weight
1.78 lbs

Warranty Information
3 Years

Available Quantity

5

UPC

842571119565

SKU

mingleECI-T24F2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Smart Familybot

Your smart companion

Move, Observe, Care
Patrol
Remote control with live stream(480p)
Auto Cruise with video recording (1080p at 30fps) up to 24 times per day
Auto Cruise time scheduling
Auto-Return to charging dock
TOF obstacle avoidance
Surveillance
24hrs video recording
Schedule time for video recording
Motion Detection and Notification
Activate video recording when AC or internet is off grid
Infra Red Night Vision
Multiple users log in
Local storage (SD card)
Two way audio
1080p at 30fps video
2.4G/5G Wifi connection
AI feature (Electronic Pet)
Emoji for breathing/heartbeat
Ebo Unique Voicing
Voice and Facial reaction to shake and collusion
Self-diagnosis
Remote Interact and Communciate
FPV remote control
Capturing the best moments real time
Two virtual joystick control mode
2W speaker + highly sensitive microphone for 2 way communications
Item Dimension (L inchxW inchxH inch)
10 x 7 x 6

Weight
4.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleEBO SE
