Product Description

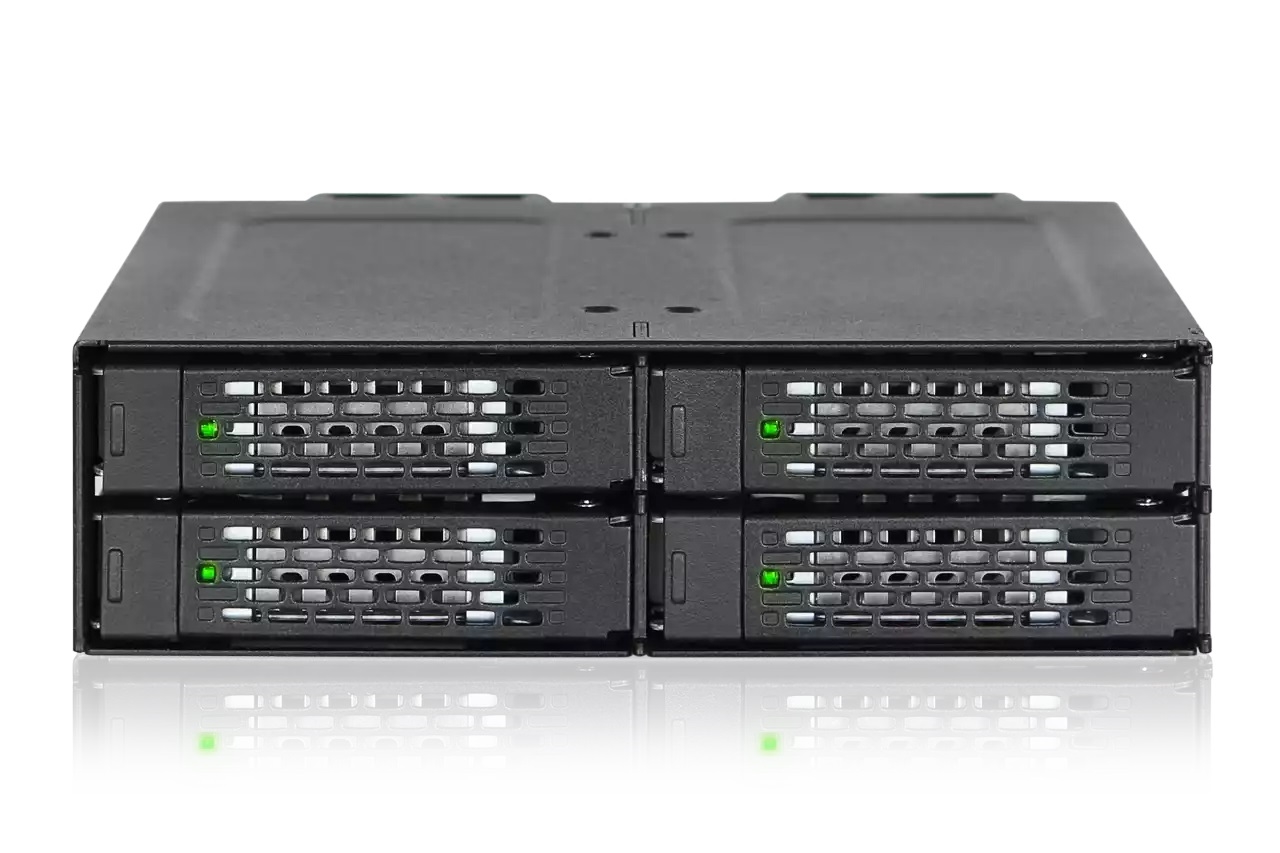

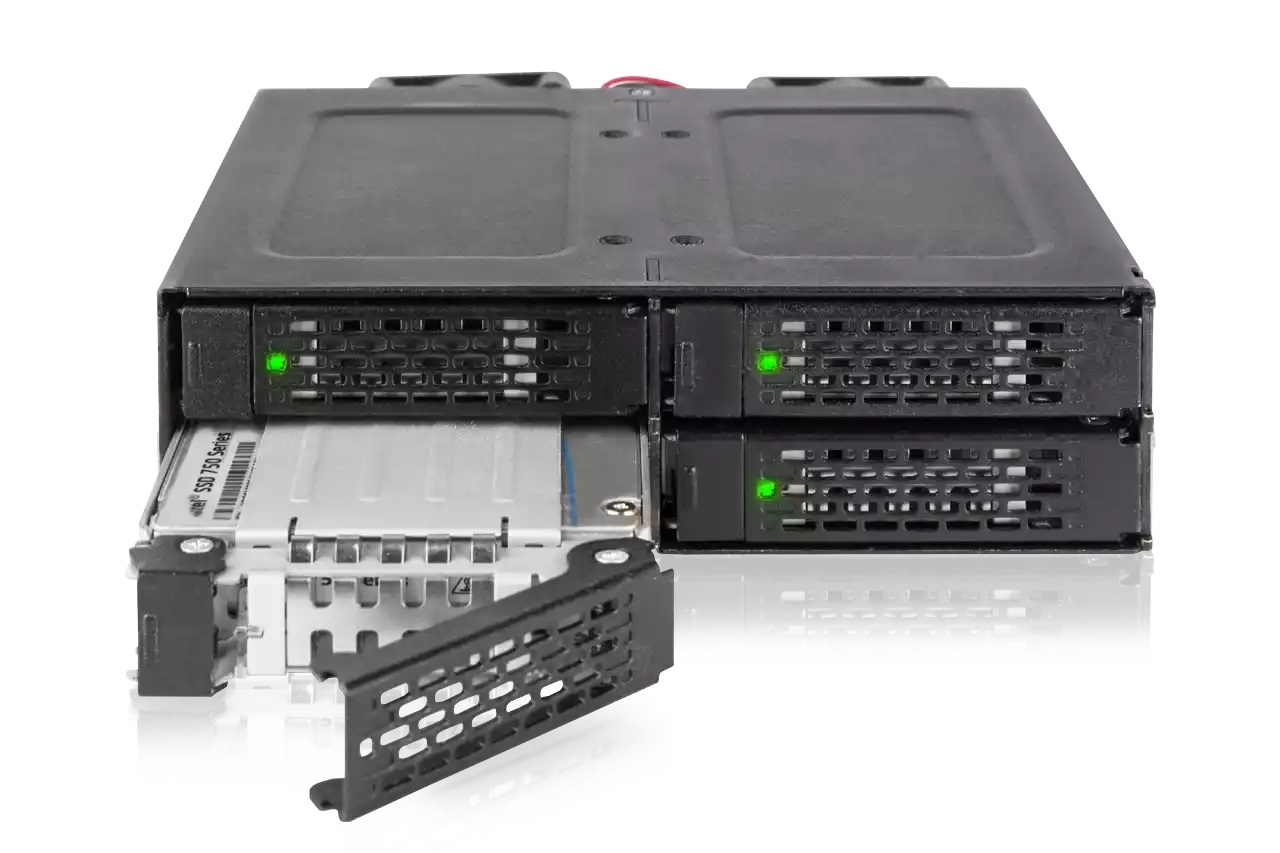

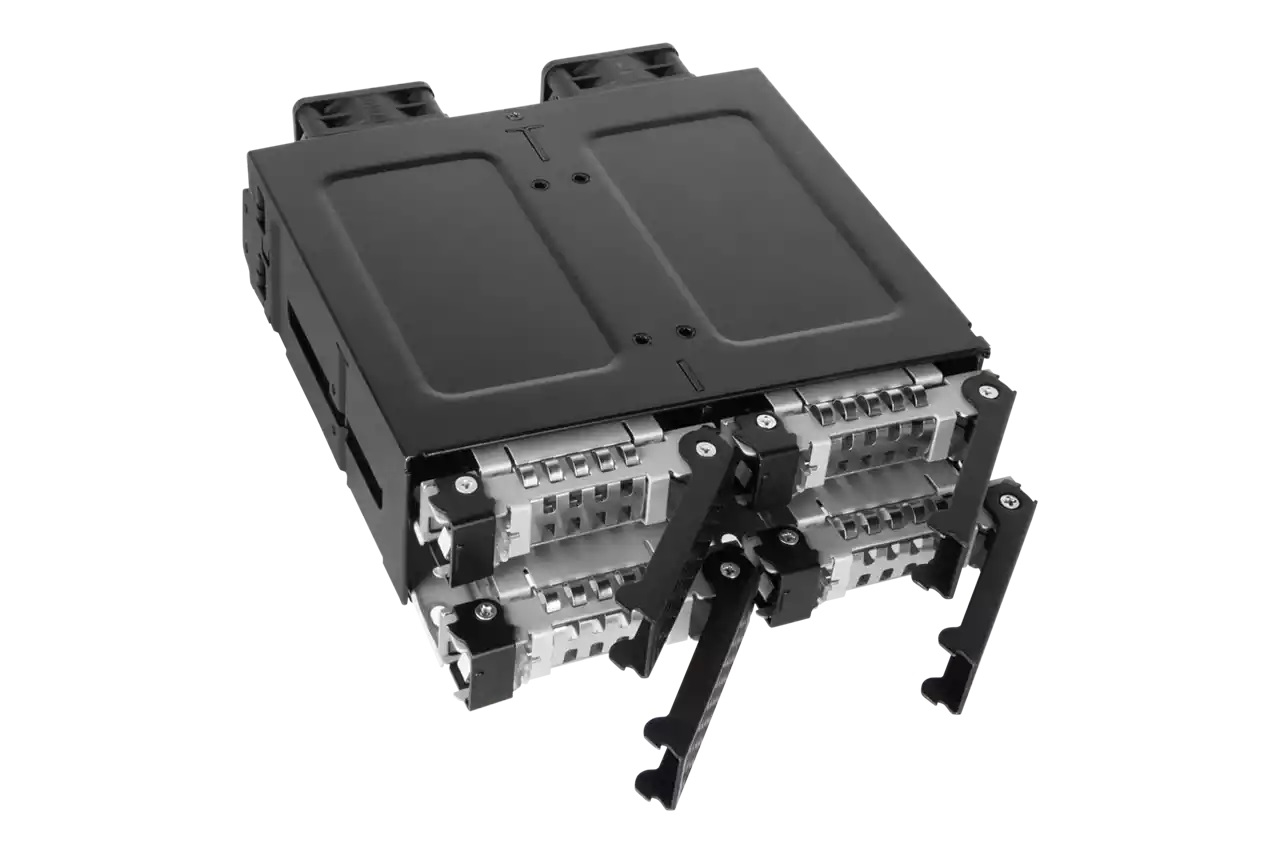

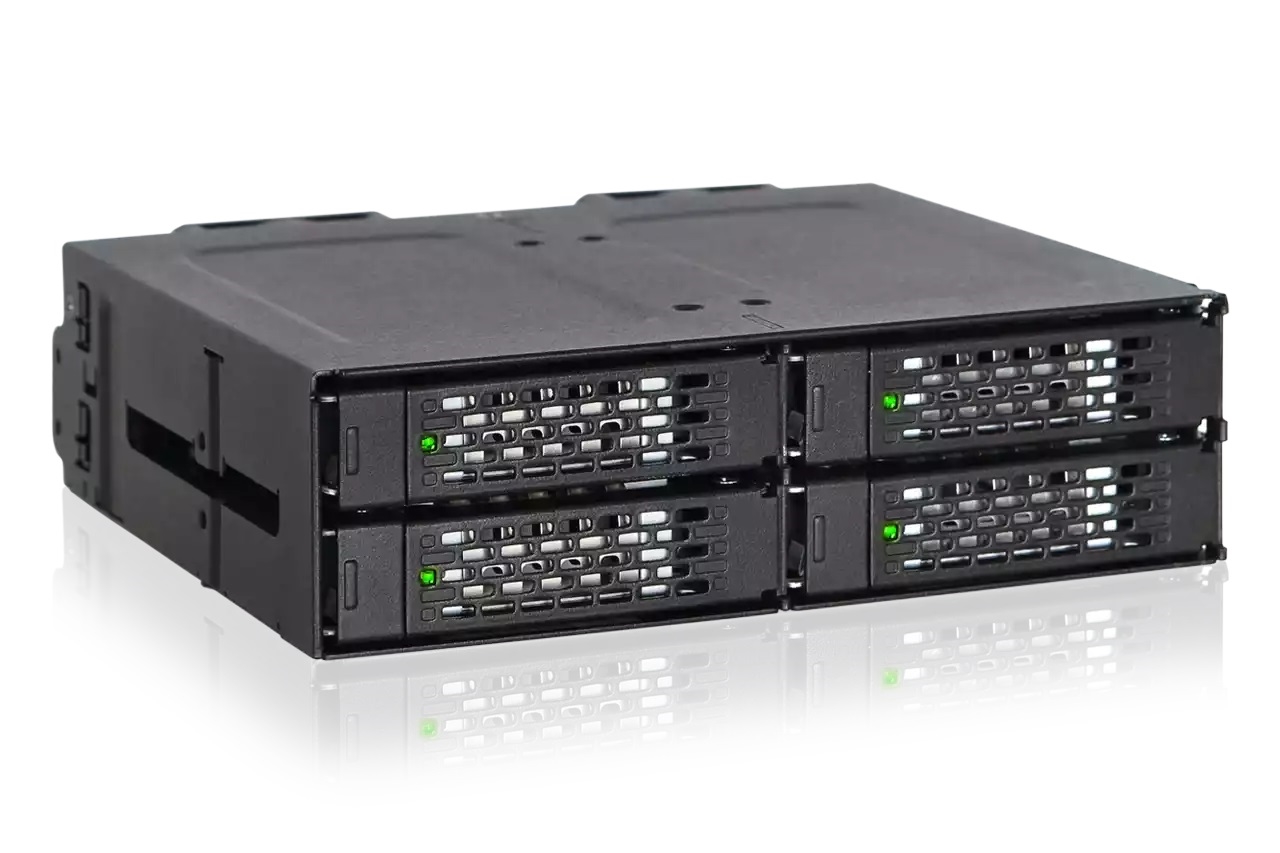

ToughArmor MB699VP-B V3

4 Bay 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 5.25" Drive Bay (4 x OCuLink SFF-8612 4i)

Note: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to the FAQ section. If your hardware is not listed there, please contact us for assistance.


Product Introduction

The ToughArmor MB699VP-B V3 is a Ruggedized Quad Bay Removable U.2/U.3 NVMe SSD Enclosure supporting PCIe 4.0 and fetching up to 64Gb/s data transfer rates through OCuLink (SFF-8612) interface. It is made out of heavy-duty full-metal construction and equipped with removable U.2/U.3 drive trays that simplify the time-consuming drive installation/removal process for easy drive maintenance. In addition, the MB699VP-B V3 uses dual 40x20mm cooling fans to keep the high-speed U.2/U.3 SSD at optimal temperatures and let you adjust the fan speed through the 3-speed fan control located in the rear of the enclosure.


Now Compatible with Tri-Mode Controllers

Due to popular demand and recent circuit board changes from host card manufacturers, the ToughArmor MB699VP-B V3 is now compatible with *Tri-Mode controller cards from Broadcom, Areca, and more. To view more details on compatible cards and cables, please go to the FAQ section of this product page.

*Note - The MB699VP-B V3 only supports NVMe SSD when connecting to a Tri-Mode controller. It does not support SAS/SATA SSD/HDD.
Color:
Black
Support Drive Size:
2.5" (up to 15mm height)
Compatible Drive Type:
U.2/U.3
Number of Drives:
4
Drive Bay:
5.25" half height bay
Host Interface:
4 x OCuLink SFF-8612 4i, pin-out defined by SFF-9402 Rev 1.1
(Tri-mode HBA/RAID card compatible)
Power Input:
2 x 15pin SATA power connector
Transfer Rate:
Up to 64Gbps (depending on SSD speed)
Support SSD Capacity:
No limitation

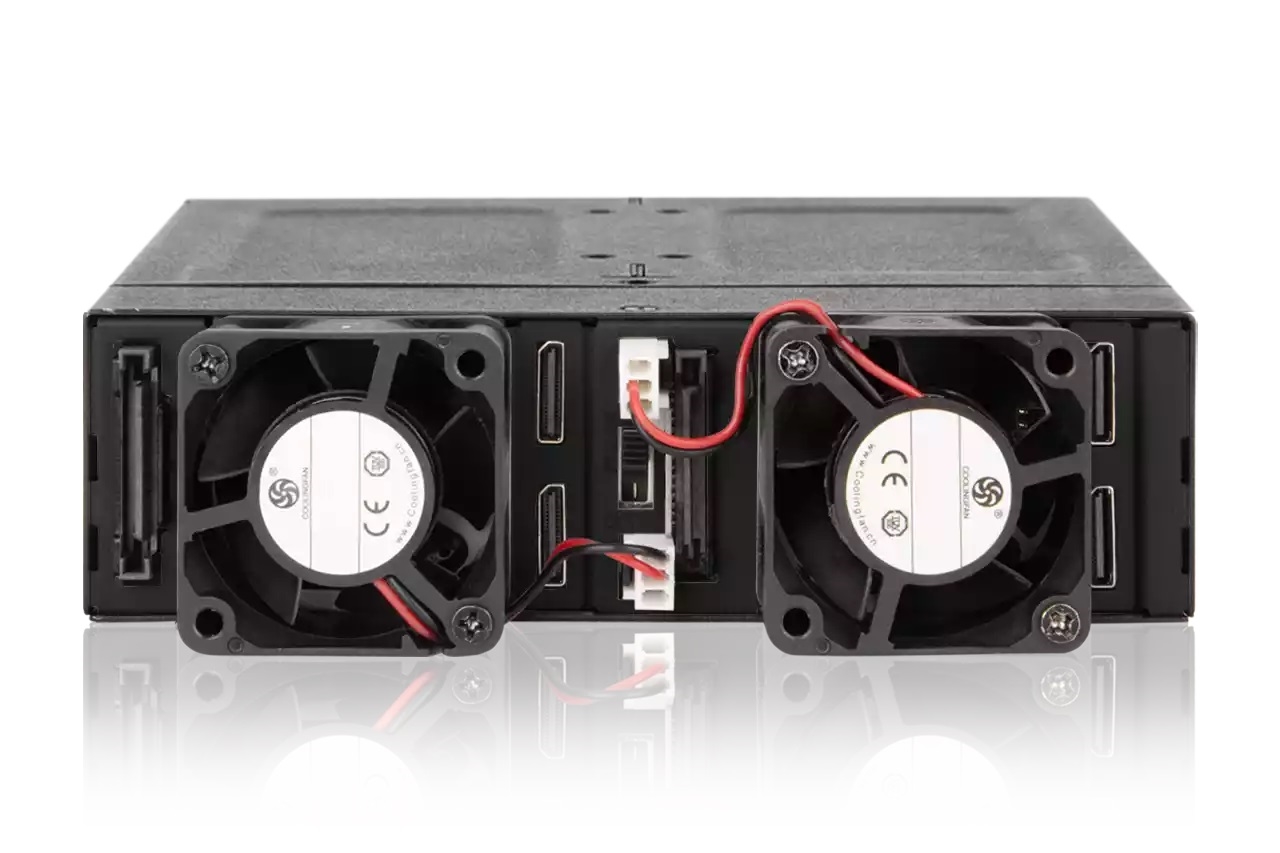

Drive Cooling:
2 x 40x40x20mm fan
Structure / Material:
Full metal
Hot Plug:
Yes
Drive Activity LED Indication:
Drive power: solid green SSD access: flashing green
Package Contents:
Device, user manual, drive ID plugs, screws
SSD Connector Insertion Rate:
10,000
Humidity:
5% to 65% RH
Operating Temperature:
0^oC to 60^oC (32^oF to 140^oF)
Storage Temperature:
-35^oC to 70^oC (-31^oF to 158^oF)
Compliance:
CE, RoHS, REACH
Item Dimension (L inchxW inchxH inch)
8 x 12 x 10

Weight
8.00 lb

Warranty Information
5 Years

Available Quantity

5

UPC

884826508885

SKU

mingleMB699VP-B V3

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

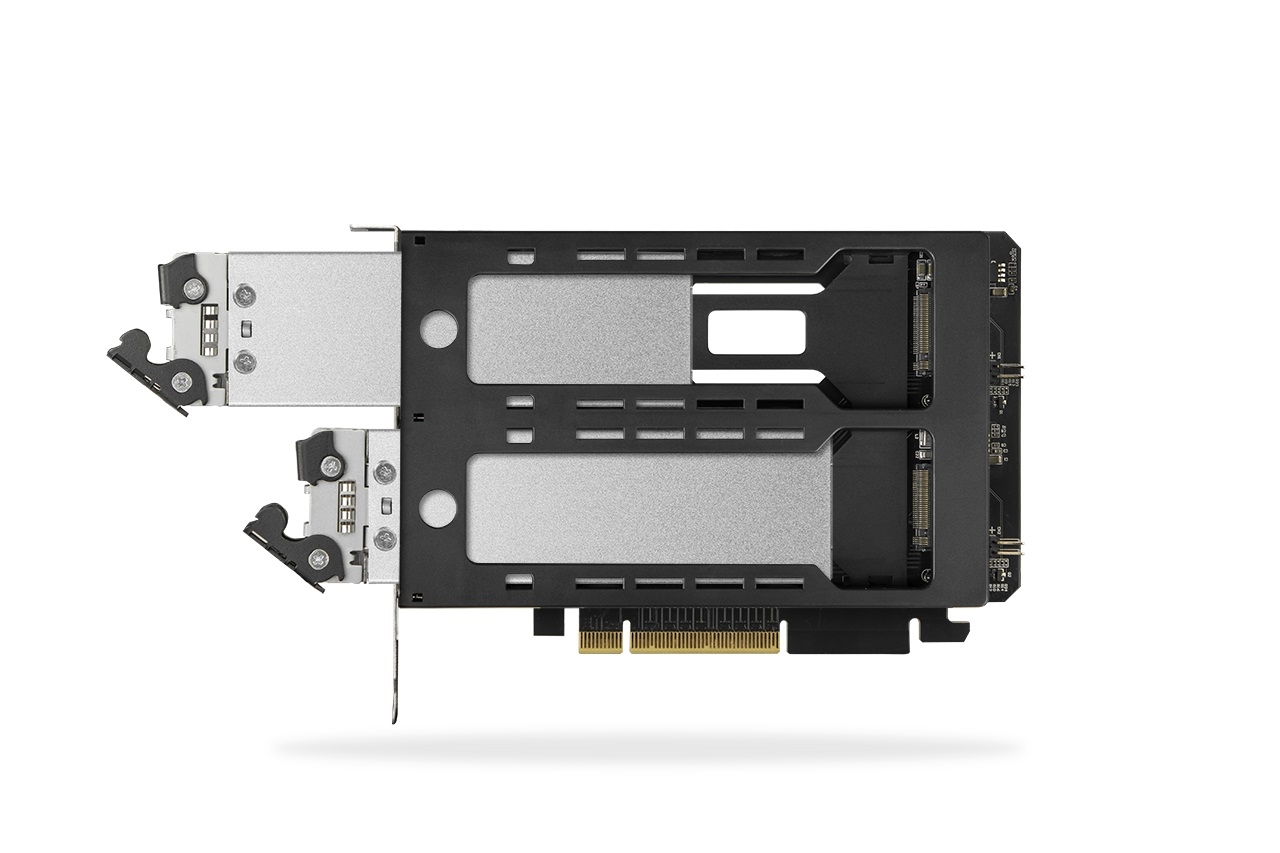

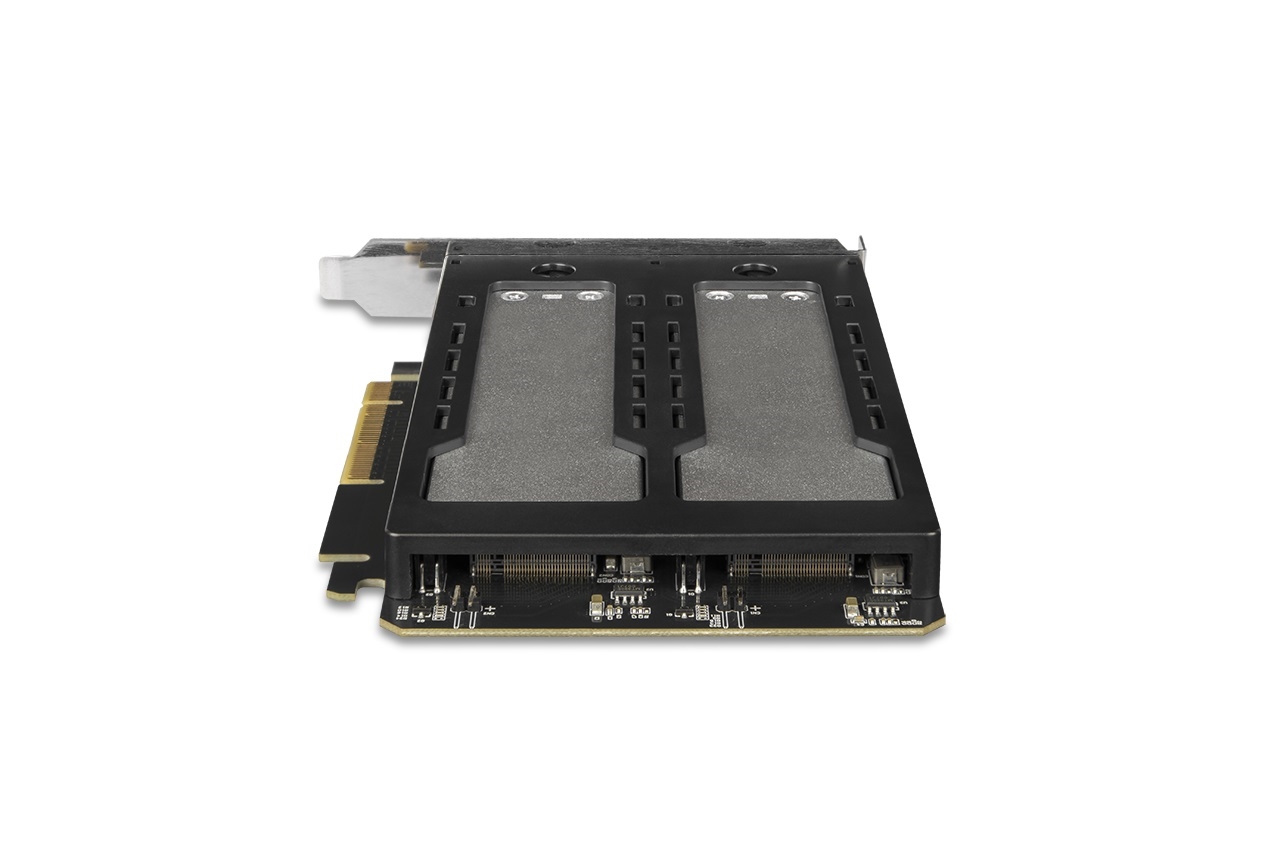

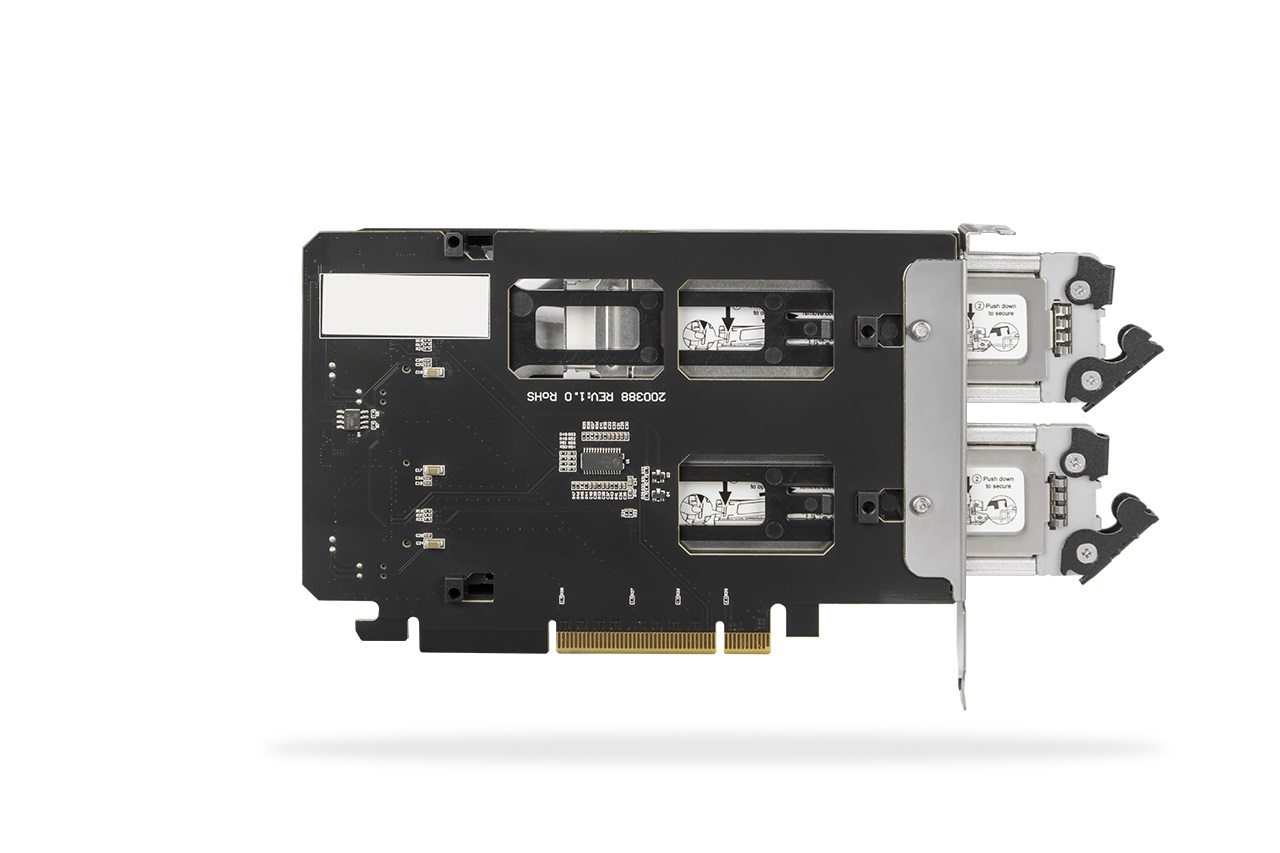

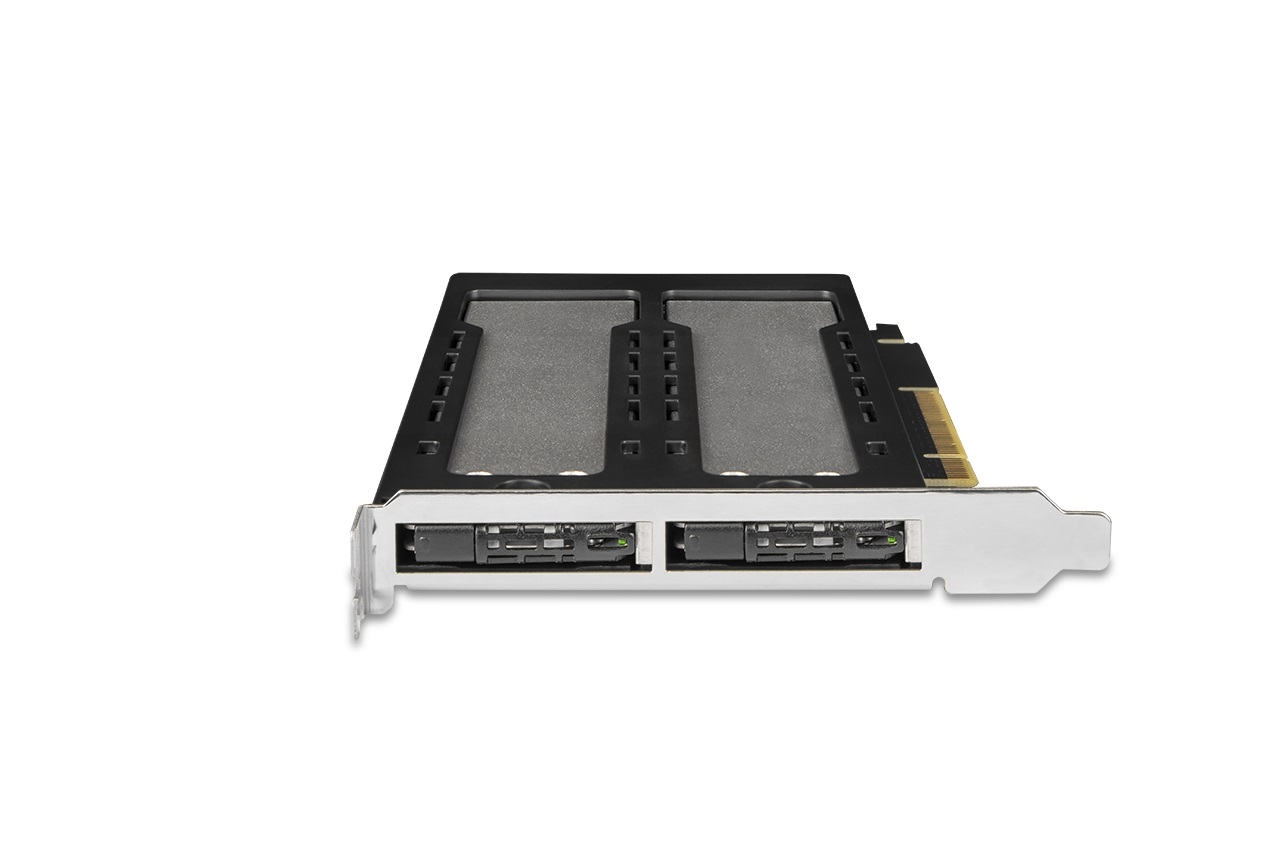

ToughArmor MB842MP-B

Removable 2 Bay M.2 NVMe SSD to PCIe 4.0 x8 Mobile Rack Enclosure for PCI Express Slot (PCIe Bifurcation required)


Note: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to the FAQ section. If your hardware is not listed there, please contact us for assistance.



Innovative Removable M.2 NVMe SSD Enclosure

A typical M.2 drive is installed on a motherboard or a riser card and is secured by a small screw. Additionally, the physical installation process is very troublesome and time-consuming. The ToughArmor MB842MP-B s removable drive tray design utilizes the PCI express slot to make the M.2 SSD installation and removal process completely hassle-free.



Maximum Compatibility

The ToughArmor MB842MP-B is designed for the PCIe slot and is compatible with PCIe 3.0/4.0 x8 and x16 slots.

Note: PCIe Bifurcation mode (x4, x4, x4, x4 for PCIe 16x slot or x4, x4 for PCIe 8x slot) is required to access both M.2 NVMe SSD.



Optimal Cooling Efficiency

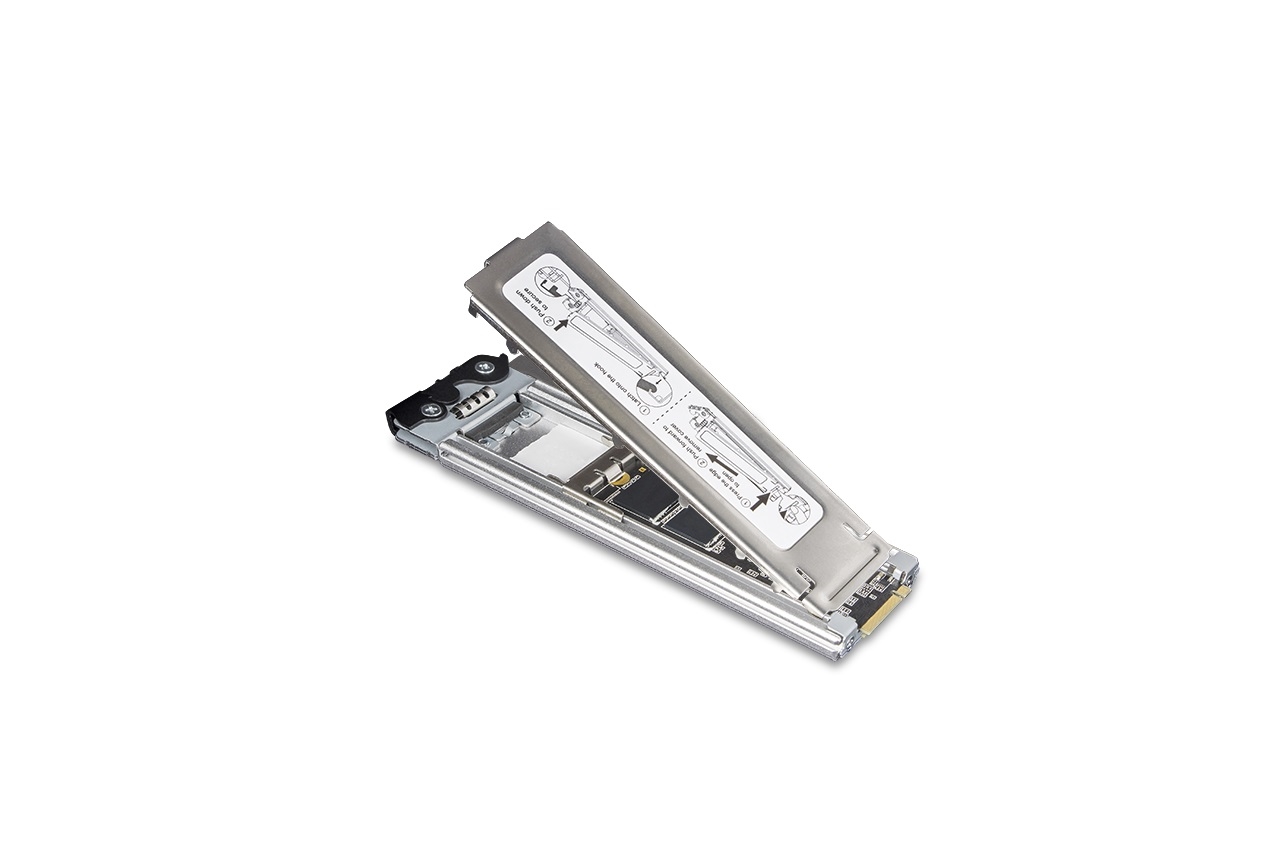

The specialized slim M.2 drive tray is made of thick aluminum and acts as a heatsink to dissipate heat generated by the M.2 NVMe SSD.

The included thermal pad fills the gap between the contact surface and transfers heat away from M.2 NVMe SSD to the larger aluminum surface, allowing airflow to move the heat away quickly.
Model Number:
MB842MP-B

Color:
Black and silver

Support Drive Size:
2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)

Compatible Drive Type:
M.2 PCIe 3.0/4.0 NVMe SSD

Number of Drives:
2

Support Drive Length:
30mm - 110mm

Drive Bay:
1 x PCIe 3.0 or 4.0 x8 / x16 expansion slot
(Motherboard required PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4)

Host Interface:
PCIe 4.0 x8

Power Input:
Via PCIe

Transfer Rate:
Up to 64Gbps (depending on drive speed)

Support SSD Capacity:
No limitation

Drive Cooling:
Metal heat dispersion with passive cooling

Structure / Material:
Metal with partial ABS plastic

Drive Activity LED Indication:
Drive power: solid green
Drive access: flashing green

Package Contents:
Device, user manual, screw, thermal pads

Connector Insertion Rate:
5,000

Humidity:
5% - 65% RH

Operating Temperature:
0^oC to 60^oC (32^oF to 140^oF)

Storage Temperature: -35^oC to 70^oC (-31^oF to 158^oF)

Compliance: CE, RoHS, REACH
Item Dimension (L inchxW inchxH inch)
2 x 6 x 8

Weight
1 lb

Warranty Information
3 Years

Available Quantity

5

UPC

884826508670

SKU

mingleMB842MP-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

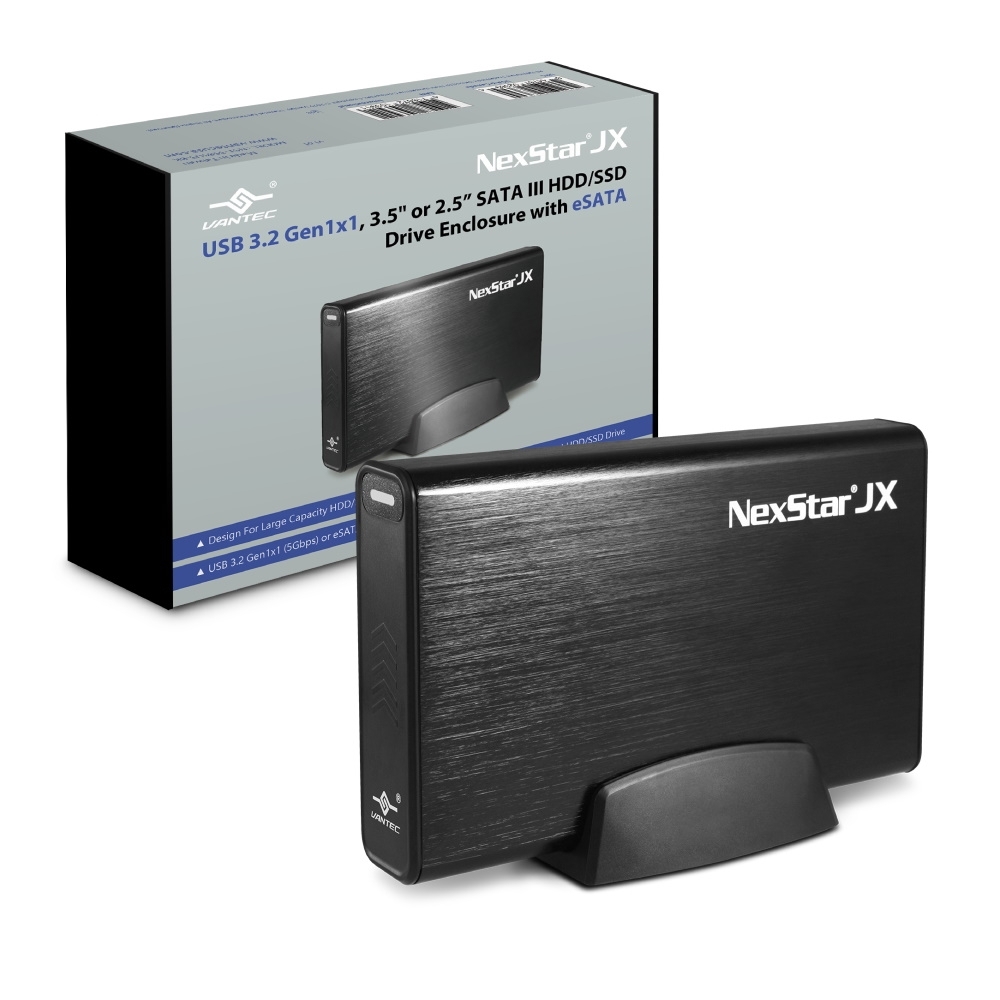

The NexStar JX, USB 3.2 Gen1x1, 3.5" or 2.5 SATA III HDD/SSD Drive Green Enclosure with eSATA is a redesigned enclosure for easy removal of the drive. It features a hard aluminum case that effectively draws away the heat to keep your hard drive running at optimal temperature. This NexStar JX comes with smart and green features to extend the life of the drive by spinning down when the system goes to sleep thus saving energy when it is not in use. The latest UASP protocol and SATA III 6Gbps support faster transfer and backup of files. We at VantecUSA, built this NexStar JX series to continue the same tradition of the legacy NexStar 3 series that is designed to last and grow with you.

Design For Large Capacity Drive

Support 3.5 or 2.5 SATA III HDD/SSD Drive

SATA III specification max 6Gbps (Backwards Compatible With SATA II/I)

Adopt UASP to Enhance Maximum Performance of Hard Drive for Windows 10/11

Aluminum Casing Cools Down Your Hard Drive

Vents To Exhaust Hot Air To Let In Cool Air

Maximum Transfer Rates Up to 5 Gbps w/USB 3.2 Gen1x1

Maximum Transfer Rates Upto 6 Gbps for eSATA

Easily Add Storage to Any System/Appliance with USB or eSATA

Hi-Quality Shielded USB and eSATA Cable Ensures Data Integrity and Speed

Hot-Swappable: Plug & Play Without Rebooting for USB and eSATA (with system support)

No Drivers Needed (NDN) for Windows OS and OSX
Model:
NST-358SU3-BK
Device Support:
SATA III/II/I Hard Drive or SSD
Device Size:
3.5 or 2.5 Standard SATA Drive
Internal Interface:
Standard SATA III
External Interface:
USB 3.0 Type-B and eSATA
Interface Cable:
USB Type-B to Type-A and eSATA cable
USB/eSATA Cable Length:
Each 39 inches / 1000 mm
HDD Capacity:
Up to 20TB via USB 20TB via eSATA
Material:
Aluminum casing, ABS Plastic
Autoswitching Ac Adapter:
12V, 2A, Cable Length: 45 inches / 1143 mm
OS Support:
Windows 11, 10, 8.1, 8, 7 OS X 10.6, or greater Linux
Check www.vantecusa.com FAQ for the latest current capacity. Make sure your eSATA port can support the capacity.
Environmental:
Operating Temperature:
0 ^oC to +45^oC
Operating Humidity:
10% to 85 % RH (no condensation)
Storage Temperature:
-10^oC to +70^oC
Storage Humidity:
5% to 90% RH (no condensation)
System Requirements:
OS with USB storage support or eSATA support
USB 3.0 Type-A port or eSATA port
Package Contents:
1 x NexStar JX, 3.5" SATA III Hard Drive Enclosure
1 x Ac Adapter 1 x Screw Set 1 x USB cable 1 x eSATA cable
1 x Enclosure Stand 1 x Quick Install Guide
Country of Origin:
Taiwan
Item Dimension (L"xW"xH")
9 x 7 x 3

Weight
2 lbs

Warranty Information
1-Year

Available Quantity

5

UPC

844767023694

SKU

mingleNST-358SU3-BK

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

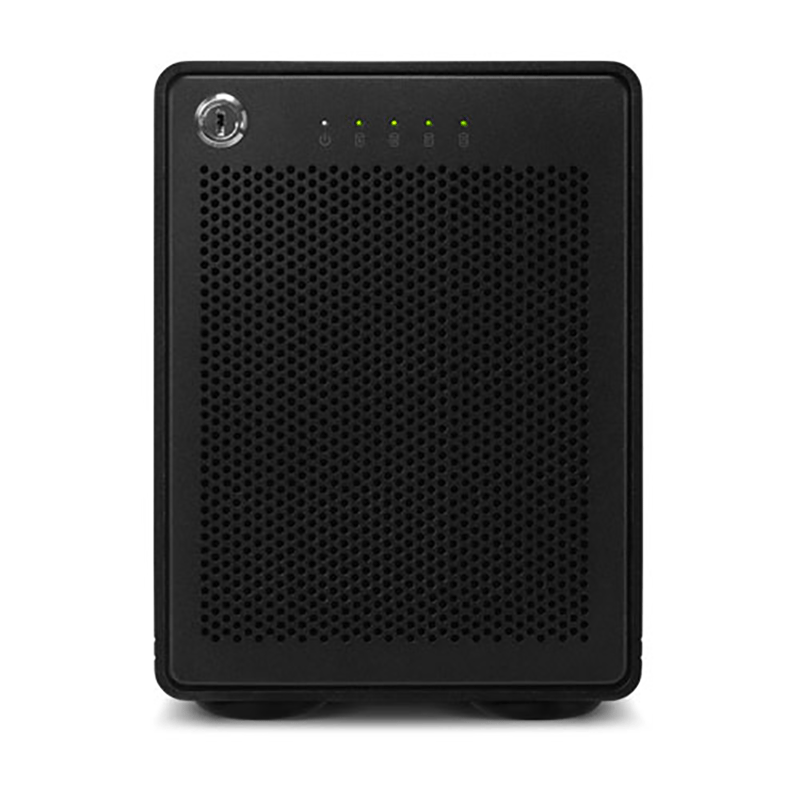

OWC Thunderbay 4, 4 Bay Enclosure, Dual, Soft Raid , Thunderbolt, RAID 5 Ready, Cable Included , Thunderbolt, RAID 5 Ready, Cable Included

Available Quantity

5

UPC

812437029666

SKU

mingleOWCTB3SRKIT0GB

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

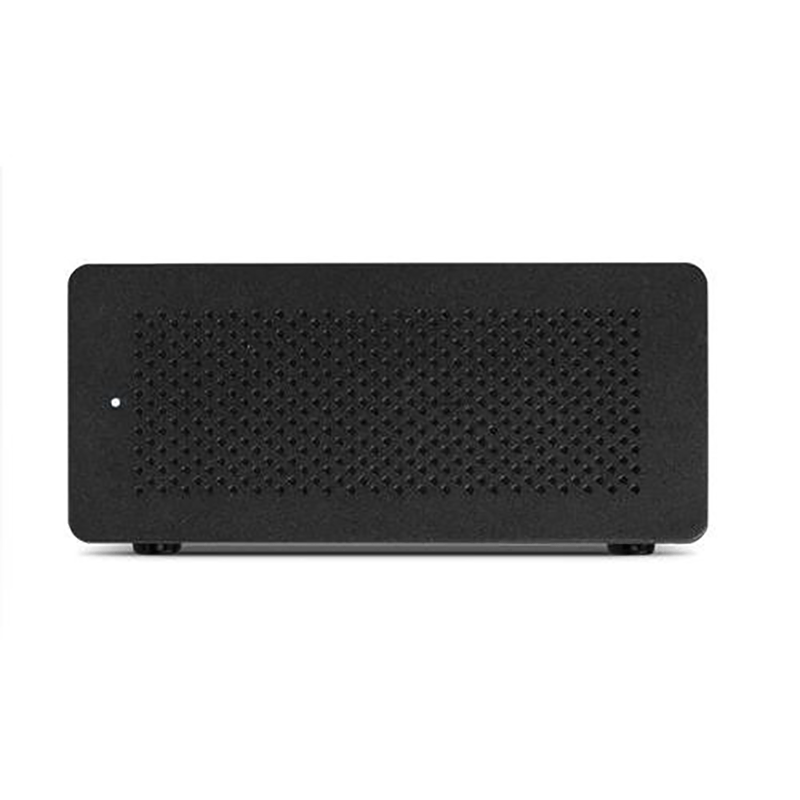

OWC Express 4M2, 4-Slot, NVMe SSD, Enclosure

Available Quantity

5

UPC

810586030090

SKU

mingleOWCTB3EX4M2SL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

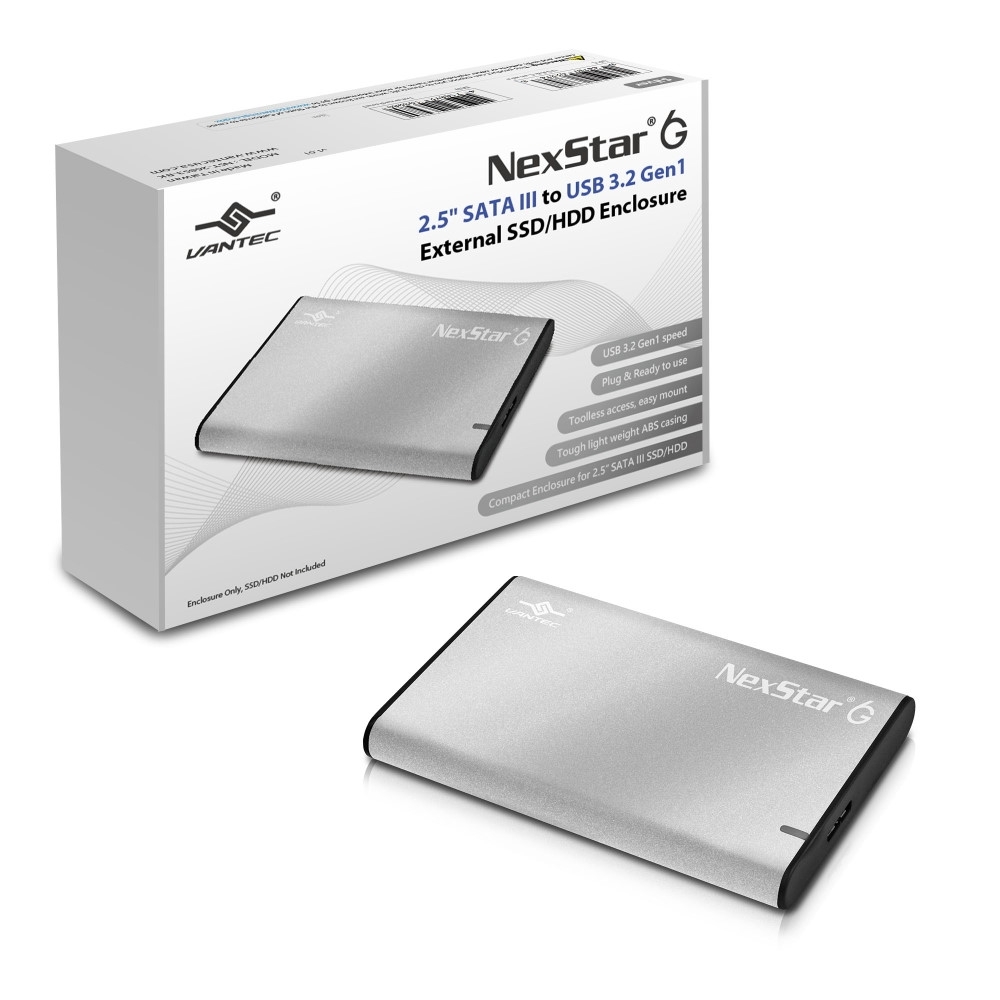

NexStar 6G
NST-268S3-SV
2.5 SATA III to USB 3.2 Gen1 External SSD/HDD Enclosure, ID:Silver

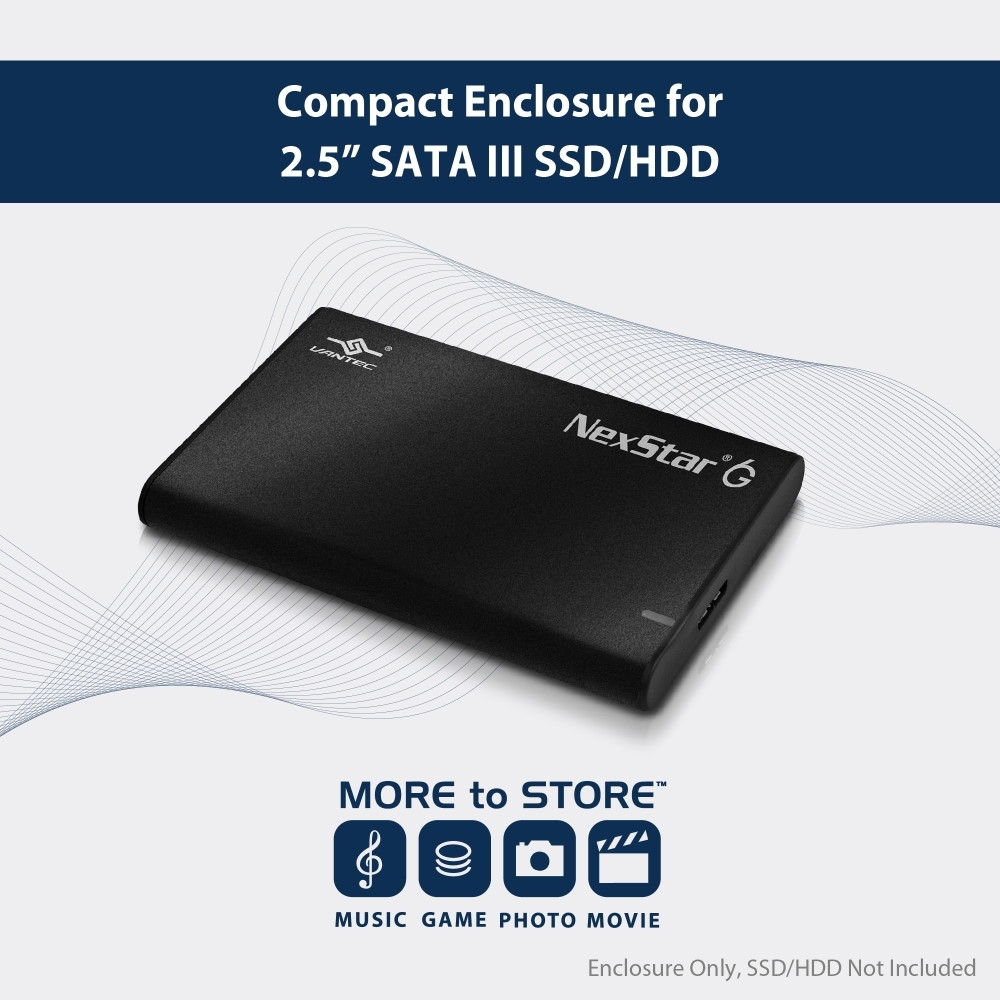

Compact Enclosure for 2.5 SATA III SSD/HDD
USB 3.2 Gen1 speed

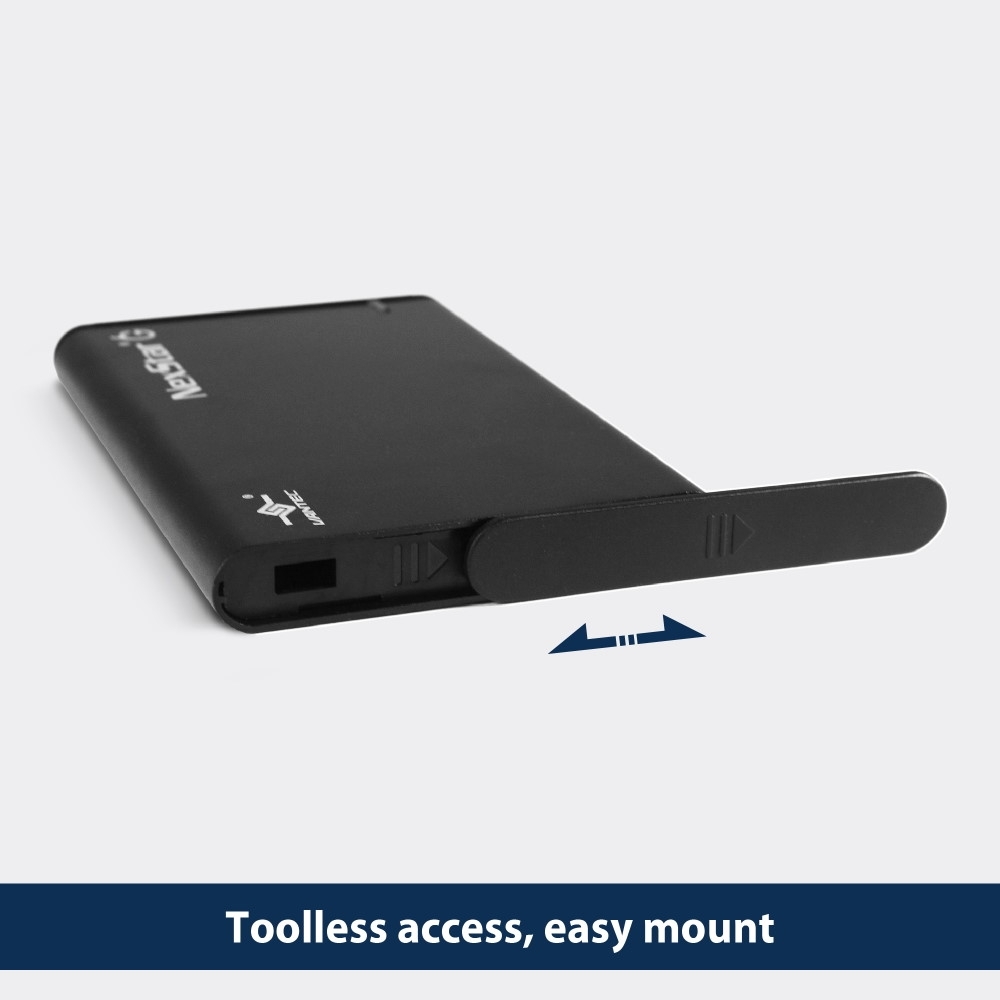

Tool-less access, easy mount
Plug Ready to use
Lightweight Aluminum Casing with Tough ABS tray
Support latest Windows 10/11, Mac OS X, and Linux OS
Support UASP, TRIM, and SMART
Fit 7mm to 9.5mm thickness drives
Green Features Sleep when your system sleeps
This NexStar 6G series, 2.5 enclosure offers a simple compact design to give you a lightweight enclosure for your SSD or HDD. It is easy to access your drive if needed with a toolless slide cover. This 2.5 SATA III Enclosure will fit any standard 2.5 SATA III/II/I SSD or HDD that is 9.5mm or less in thickness (height). The enclosure comes with a standard USB Type A to USB 3 MicroB interface cable for easy connection to your system or laptop. The Light-weight Aluminum Casing with Tough ABS tray is designed small 122x78x13mm in size, easily slips into your pocket, and is ready to go with you everywhere. This is designed with great features like Pocket size, USB 3.2 Gen1, UASP, Plug, and Ready, and no need to add drivers are all the great features you can expect from Vantec Storage.
Model:
NST-268S3-SV (Silver)
SATA Drive Size:
Fit 2.5 Standard SATA III/II/I SSD/HDD, 9.5 to 7mm

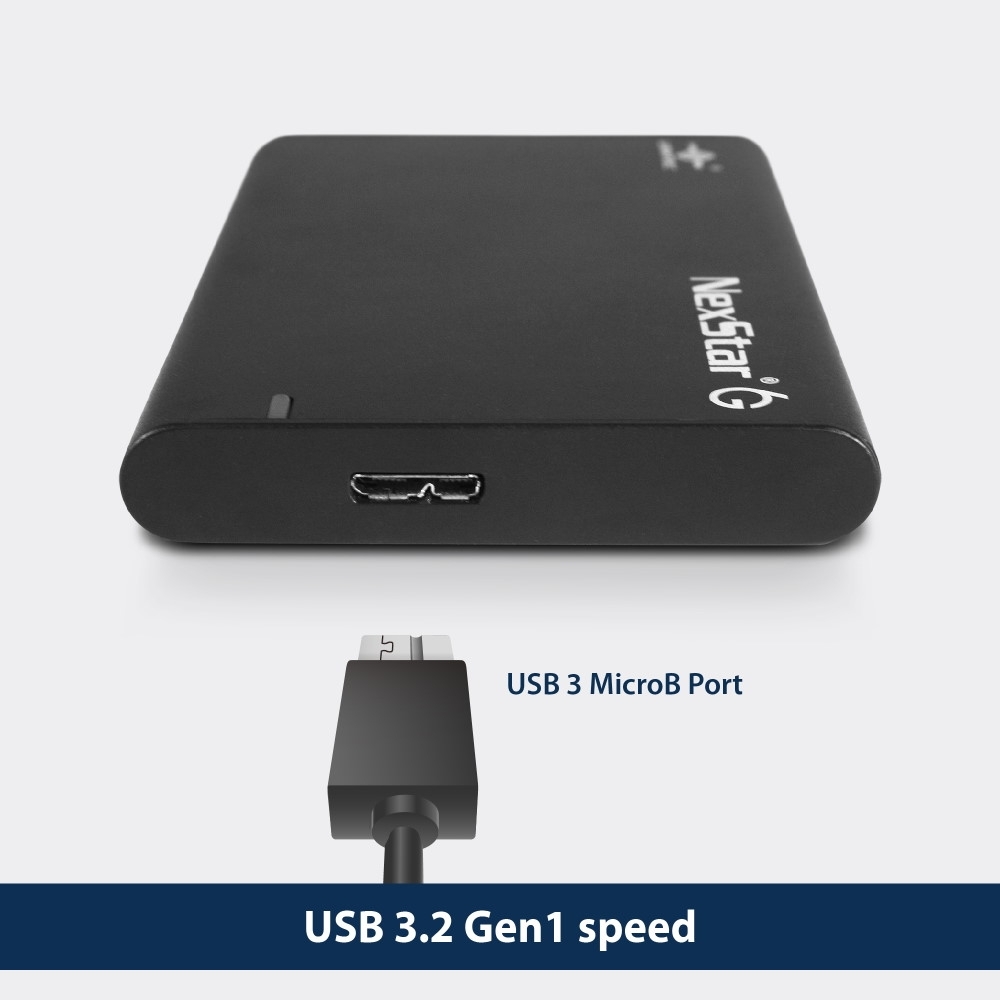

External USB Connector:
USB 3 MicroB
Internal Device Connectors:
2.5 SATA III interface (Compatible with SATA II/I)
Enclosure Material:
Lightweight Aluminum Casing with Tough ABS Tray
Power Supply:
Self-powered, no external power needed
Cable length (tip to tip):
23.6 inches / 600 mm
Cable Type:
USB Type A to USB MicroB
OS Support:
Windows 11/10/8/7, Apple OS X, or Linux
System Requirements:
System with USB Type A port
Package Contents:
NexStar 6G, 2.5" SATA Drive Enclosure
USB cable QIG Screw set screwdriver soft foam pad
Country of Origin: Made in Taiwan
Item Dimension (L"xW"xH")
6 x 4 x 2

Weight
1 lb

Warranty Information
1-Year

Available Quantity

5

UPC

844767023748

SKU

mingleNST-268S3-SV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

NexStar 6G

This NexStar 6G series, 2.5 enclosure offers a simple compact design to give you a lightweight enclosure for your SSD or HDD. It is easy to access your drive if needed with a toolless slide cover. This 2.5 SATA III Enclosure will fit any standard 2.5 SATA III/II/I SSD or HDD that is 9.5mm or less in thickness (height). The enclosure comes with a standard USB Type A to USB 3 MicroB interface cable for easy connection to your system or laptop. The Light-weight Aluminum Casing with Tough ABS tray is designed small 122x78x13mm in size, easily slips into your pocket, and is ready to go with you everywhere. This is designed with great features like Pocket size, USB 3.2 Gen1, UASP, Plug, and Ready, and no need to add drivers are all the great features you can expect from Vantec Storage.


2.5 SATA III to USB 3.2 Gen1 External SSD/HDD Enclosure, ID:Black Color

Compact Enclosure for 2.5 SATA III SSD/HDD

USB 3.2 Gen1 speed

Tool-less access, easy mount

Plug & Ready to use

Lightweight Aluminum Casing with Tough ABS tray

Support latest Windows 10/11, Mac OS X, and Linux OS

Support UASP, TRIM, and SMART

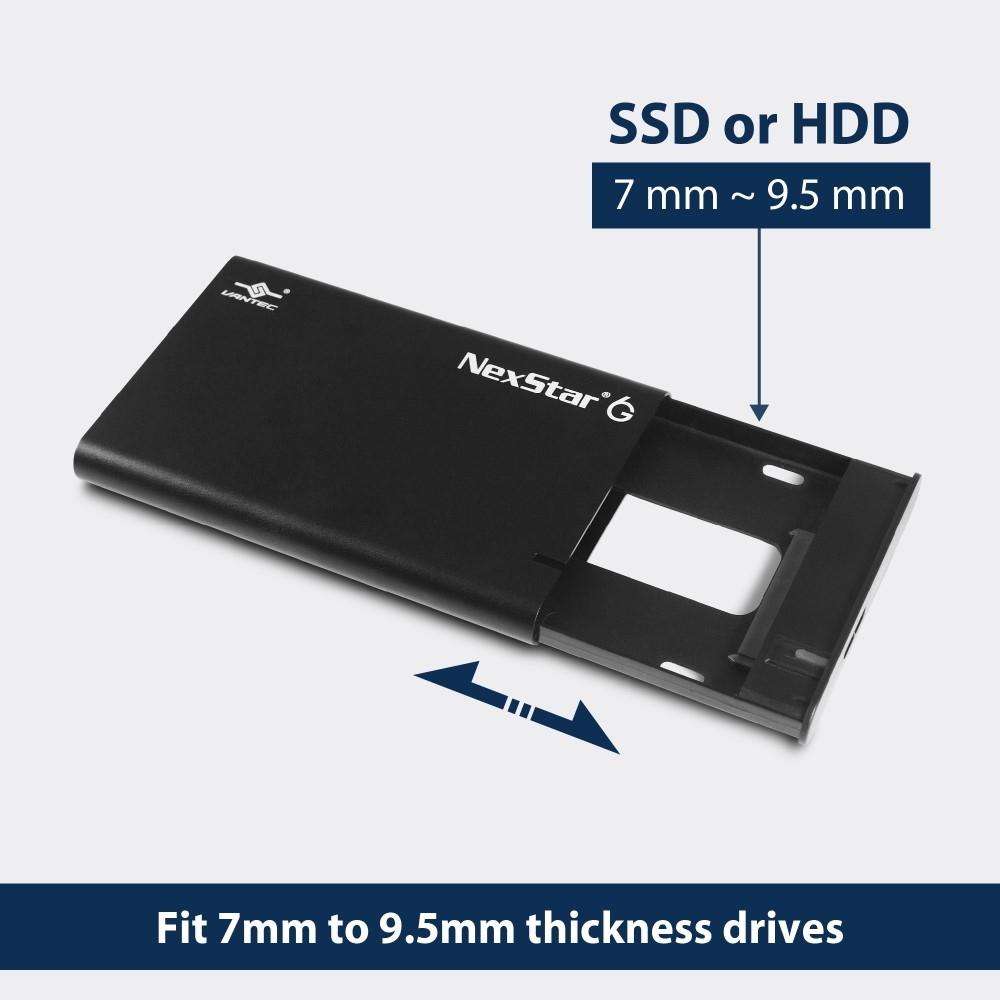

Fit 7mm to 9.5mm thickness drives

Green Features Sleep when your system sleeps
Model:
NST-268S3-BK (Black)
SATA Drive Size:
Fit 2.5" Standard SATA III/II/I SSD/HDD, 9.5 to 7mm
External USB Connector:
USB 3 MicroB
Internal Device Connectors:
2.5" SATA III interface (Compatible with SATA II/I)
Enclosure Material:
Lightweight Aluminum Casing with Tough ABS Tray
Power Supply:
Self-powered, no external power needed
Cable length (tip to tip):
23.6 inches / 600 mm
Cable Type:
USB Type A to USB MicroB
OS Support:
Windows 11/10/8/7, Apple OS X, or Linux
System Requirements:
System with USB Type A port
Package Contents:
NexStar 6G, 2.5" SATA Drive Enclosure
USB cable
QIG
Screw set
screwdriver
soft foam pad
Country of Origin:
Made in Taiwan
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1 lb

Warranty Information
1-Year

Available Quantity

5

UPC

844767023731

SKU

mingleNST-268S3-BK

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

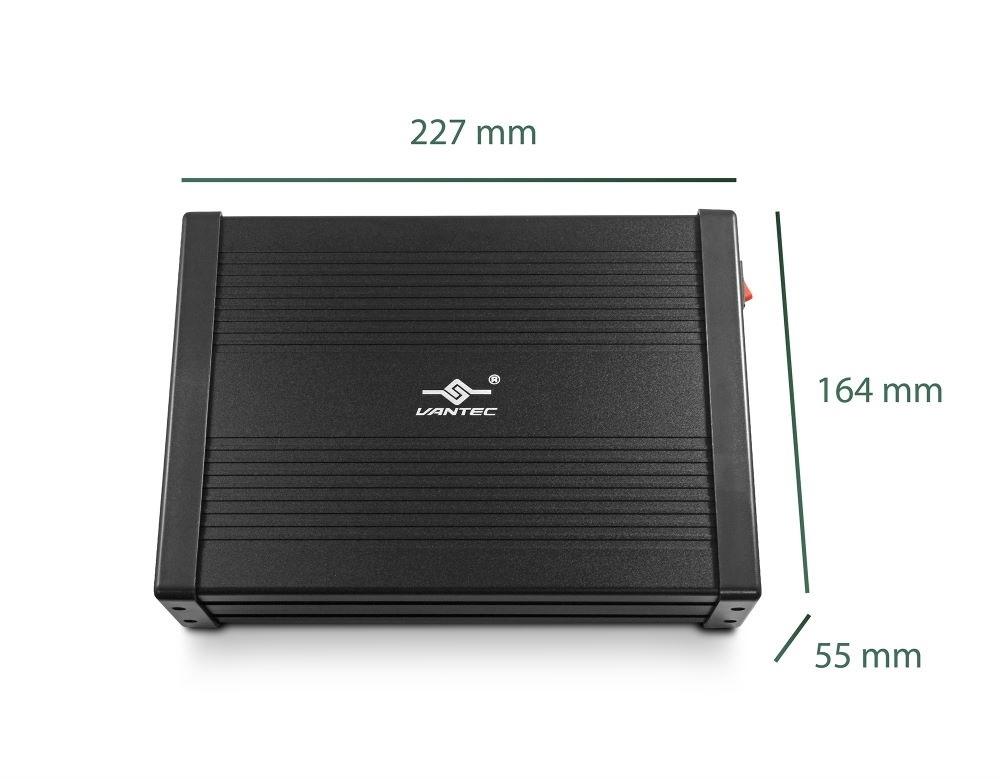

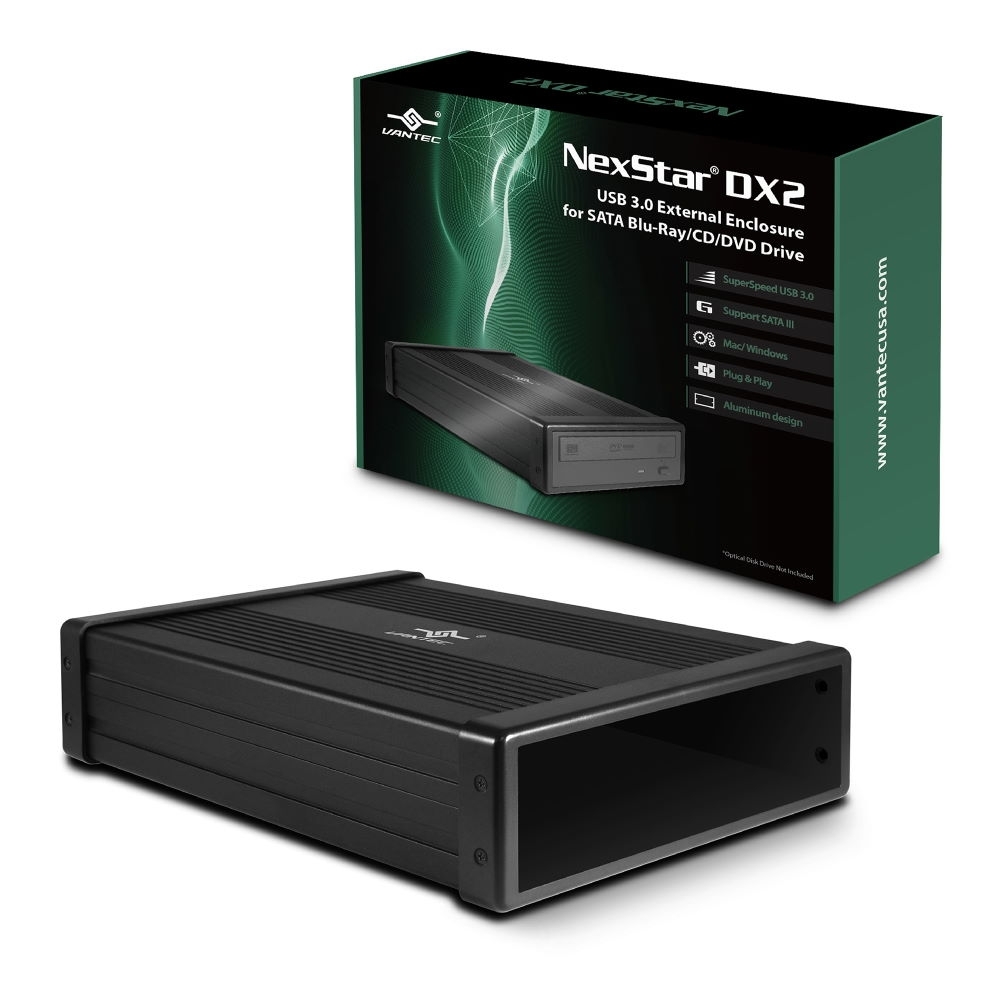

NexStar DX2 USB 3.0 External Enclosure For SATA Blu-Ray/CD/DVD Drive

Design for 5.25" Blu-Ray/CD/DVD drive

Super Speed USB 3.0 transfer rate

Plug and Play, No drivers needed

Aluminum Alloy Casing for reduced noise and vibration

Hot swappable for system equipped with USB port

For any System with USB Mass Storage Device Support


NexStar DX2 is the second generation of the popular DX Optical Enclosure. Like DX, this DX2 is designed to be solidly built enclosure to house a 5.25" Desktop Optical drive and convert into an external enclosure. Your internal 5.25 optical drive now becomes a portable USB 3.0 enclosure that fits and moves with your desktops or laptops. This enclosure supports faster read/write operation requires of the optical drive like Blu-Ray drive, CD and DVD. The aluminum case keeps the device cool and operating at optimum conditions. This second generation NexStar DX2 external 5.25" enclosure is the smart way to optimize and share your optical drive with all your system.
Device Support:
5.25" Blu-Ray / CD / DVD SATA drive
Internal Optical Interface:
Standard SATA
External Data Interface:
Super Speed USB 3.0
Material:
Aluminum Alloy/ABS
Fit Optical Drive Max Depth:
7.2 inches / 185 mm
Power Supply:
Universal Switching AC adapter, 12V/3A
USB Cable:
USB 3.0 Type A to Type B cable, length 100 cm
Environmental:
Operating Temperature:
0 ^oC to +45^oC
Operating Humidity:
10% to 85 % RH (no condensation)
Storage Temperature:
-10^oC to +70^oC
Storage Humidity:
5% to 90% RH (no condensation)
System Requirements:
Windows 7, 8, 10, 11, or Mac OS X 10.6 or later, or Linux OS with kernel support for USB 3.0
Computer with USB 3.0 recommended
Whats Included:
NexStar DX2 Enclosure, Quick Installation Guide, USB 3.0 Cable, AC Adapter, and Installation Screws
Item Dimension (L inchxW inchxH inch)
12 x 10 x 4

Weight
4.00 lb

Warranty Information
1-Year









Note: 1 drive only. Does not come with cables or other accessories.

Available Quantity

5

UPC

844767023649

SKU

mingleNST-540S3-BK

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

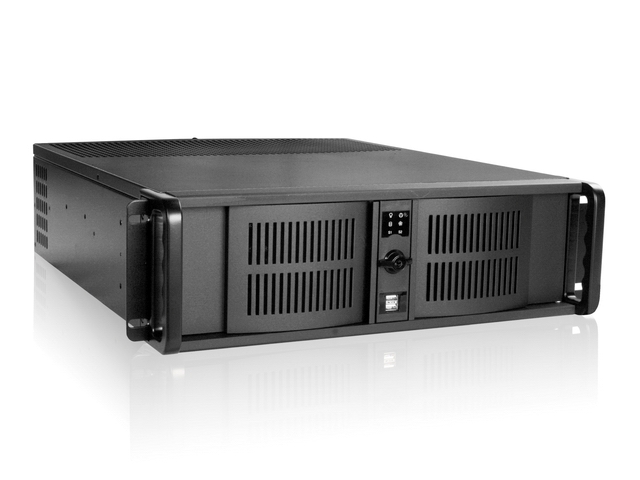

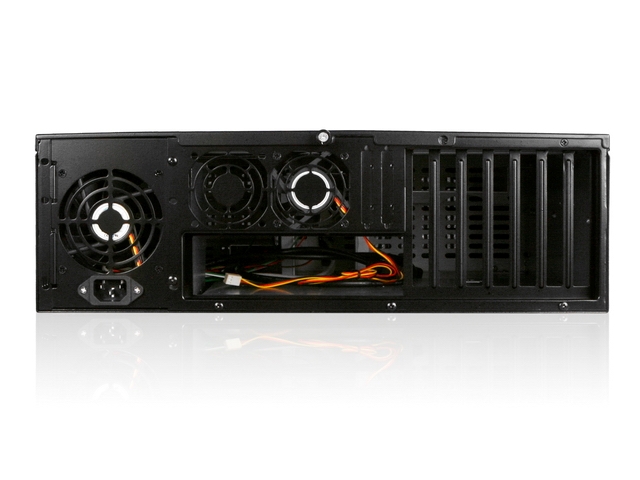

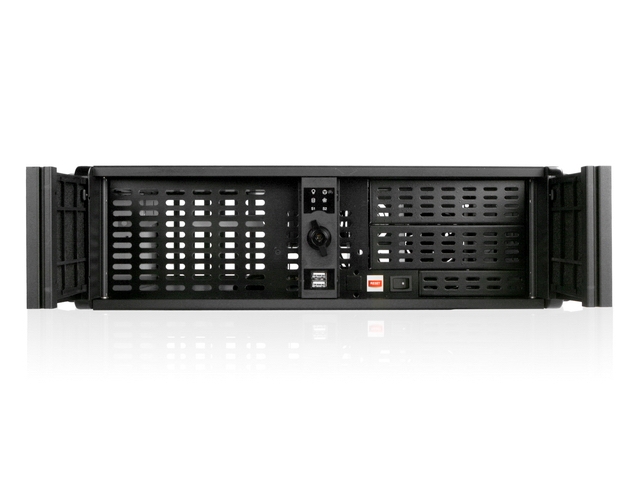

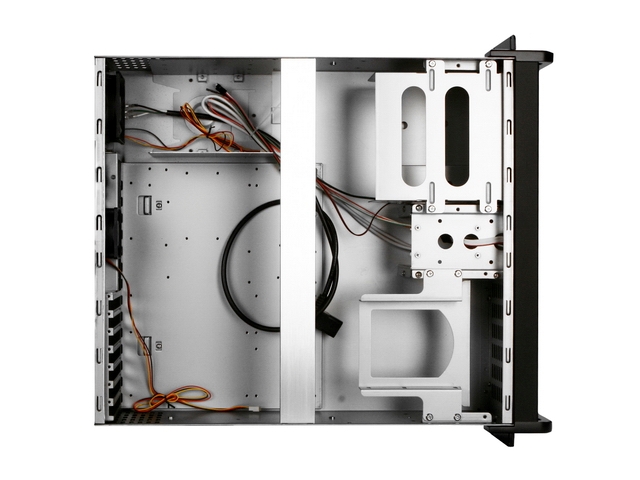

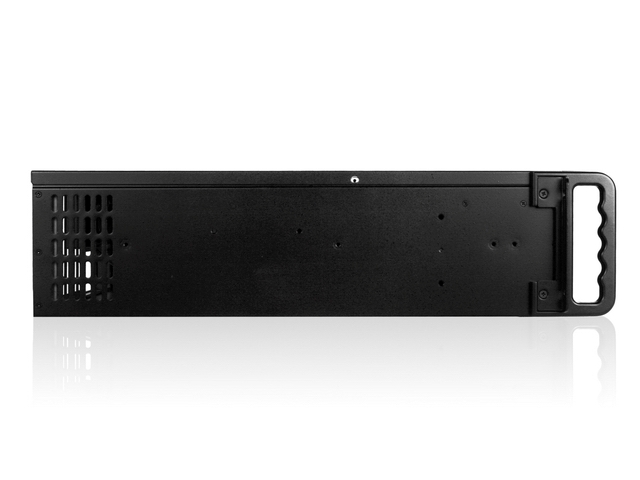

D-300-FS

3U Compact Stylish Rackmount Chassis Front-mounted ATX Power Supply



3 Way Aluminum Front Panel with Locks

Front Access USB2.0 x2

80mm x1, 60mm x1 Cooling Fan

Front Mount ATX Power Supply

Removable Air Filter

Power and HDD LED

Power and Alarm Reset Switch

Optional Aluminum Chassis
iModel Number : D-300-FS
RoHS Compliance Version : Yes
Standard Drive Bays :
3.5inch Drives: 1
3.5inch Drive (internal): 5
5.25inch Drives: 2
Indicators : LEDs for Power ON/OFF, HDD, Fan and Alarm
Switches : Power ON/OFF, System and Alarm Reset
Expansion Slots : Standard: 7xPCI 32bit
Security : Front Bezel
Material of Front Bezel : Aluminum alloy
Material of Handle : SECC Zinc-Coated Steel
Material of Main Chassis : 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Color of Front Bezel : Black
Color of Main Chassis : Black
Dimensions (WxHxD)(inch) :
19.00 x 5.25 x 20.80
48.3 cm x 13.3 cm x 52.8 cm
Motherboard Size : 12 x 10 (ATX, micro-ATX)
Cooling Fan : 1x60mm, 1x80mm
Warranty : 1 Year

Available Quantity

5

UPC

846813002875

SKU

mingleD-300-FS

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

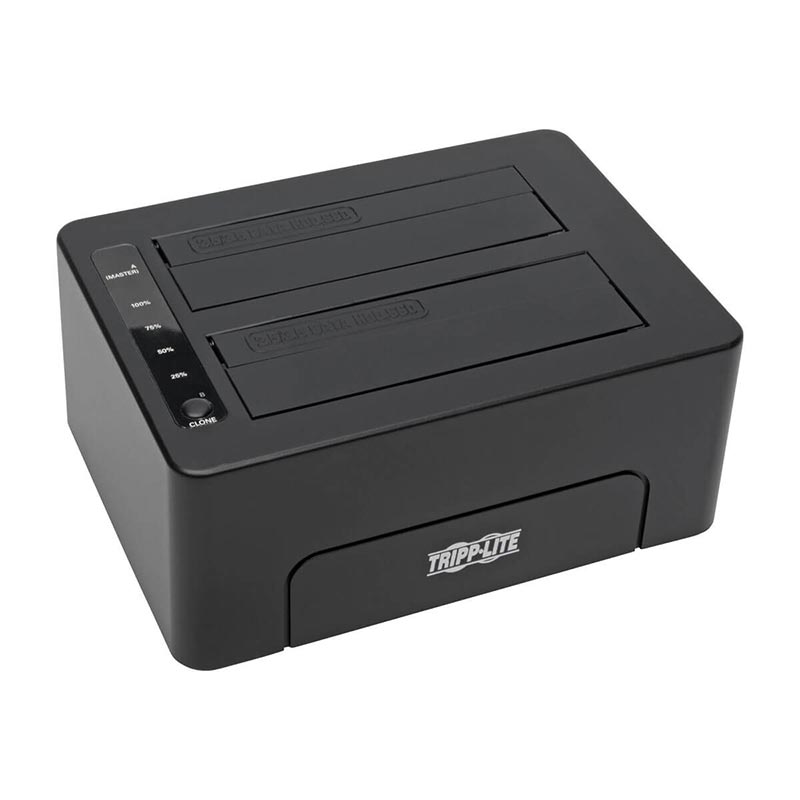

Tripp Lite, USB 3.0 SuperSpeed to Dual SatA External Hard Drive Docking Station with Cloning External Hard Drive Docking Station with Cloning

Available Quantity

5

UPC

037332181299

SKU

mingleU339-002

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

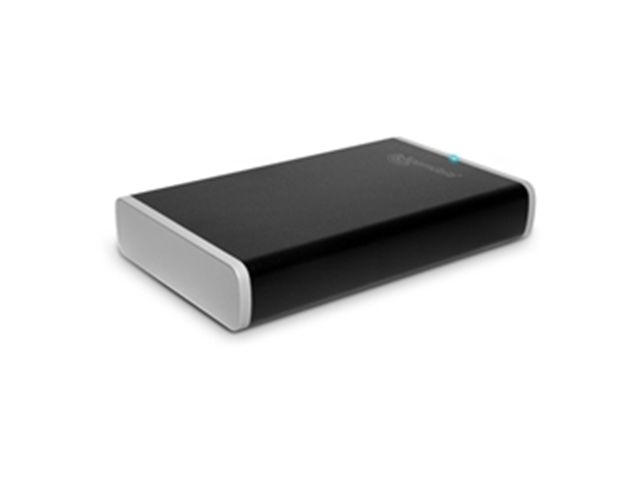

Turn your 3.5" SATA drive into a high-performance external data storage and backup system! The 740 USB 2.0 External Enclosures features a compact aluminum case, fanless operation, hot plug capabilities, an on/off switch and a chassis design that makes installing a hard drive quick and easy! Mac and PC ready!
Product
740 USB 2.0 External Enclosure

Brand
Acomdata

Model Number
HDEXXXU2E-740

Color
Black
Form Factor
3.5"
Internal interface
SATA (Supports up to 2TB drives - not compatible with 3TB drives)
External interface
USB 2.0
System Requirements
Windows 7 / Vista / XP MAC OS 10.3 or later
Packaging

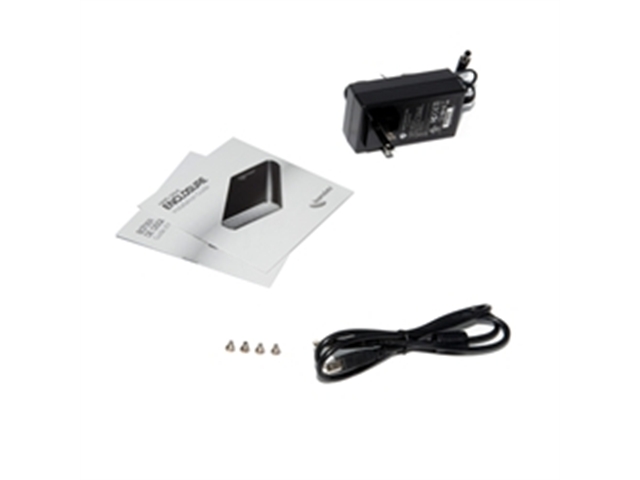

Package Contents and Warranty
740 USB 2.0 External Enclosure
USB 2.0 Cable
AC Adapter
Installation Guide
Hard Drive Mounting Screws
3 Year Warranty
Item Dimension (L"xW"xH"):
7.4 x 4.4 x 1.26

Weight:
0.21 lb

Warranty Information
3 Years

Available Quantity

5

UPC

708769060302

SKU

mingleHDEXXXU2E-740

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

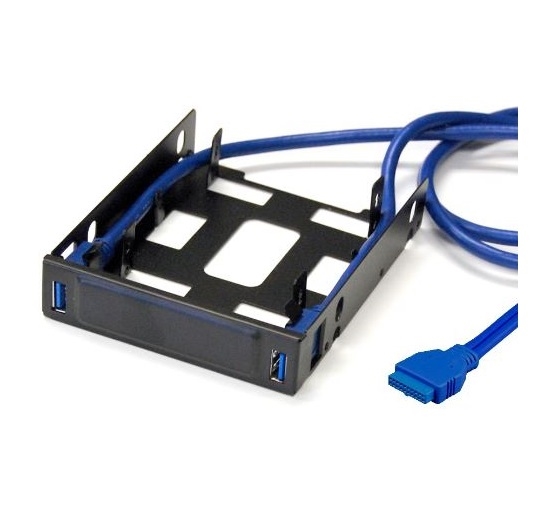

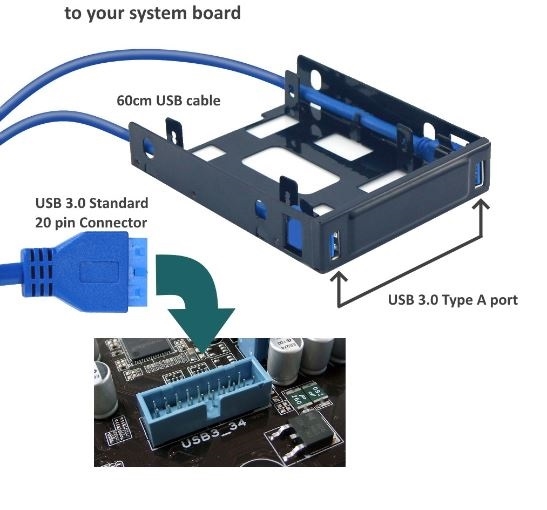

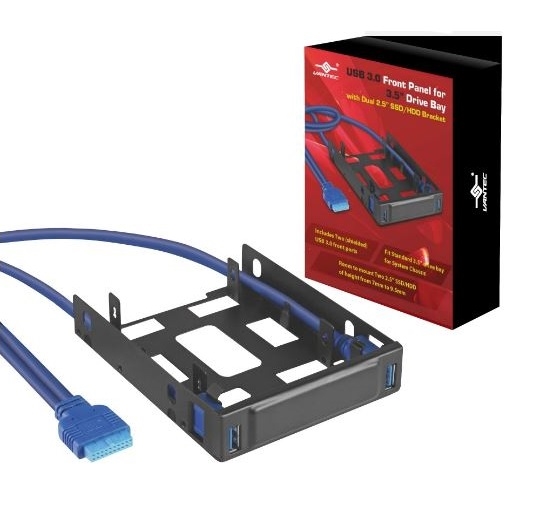

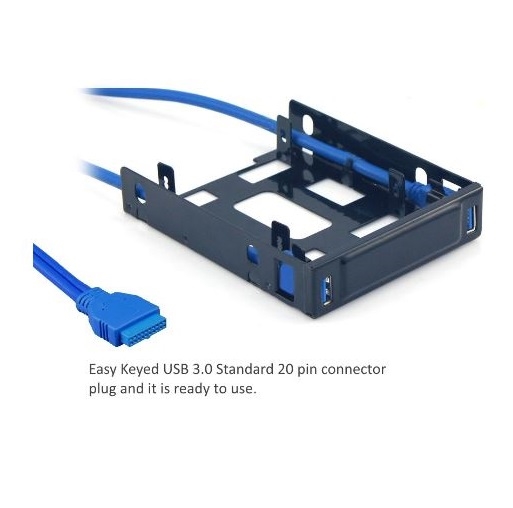

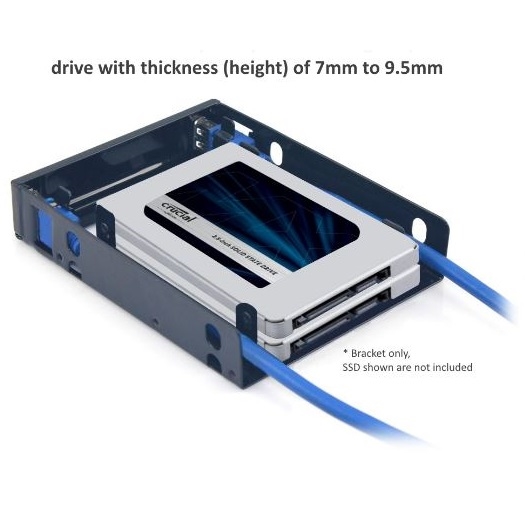

The USB 3.0 Front Panel is a Space Saver, it uses a 3.5" Drive Bay to provide two USB 3.0 port with room to install two 2.5" SSD/HDD drives. The bracket is small and ideal for Slim System Chassis or any Chassis with a 3.5 drive bay. There is room on the bracket to mount two 2.5 SSD/HDD with height (thickness) of 7-9.5mm. The bracket comes with two shielded USB 3.0 front ports for easy connection to your USB 3.0 Type-A devices. The USB cable is 60cm in length for extending to your system board USB 3.0 20 pin standard header. The installation is straight-forward, just mount, connect and it is ready.


Space Saver, Dual USB 3.0 front port and can mount Two 2.5" SSD/HDD

Fit Standard 3.5 drive bay for System Chassis

Room to mount Two 2.5 SSD/HDD of height from 7mm to 9.5mm

Two shielded USB 3.0 front ports with 60 cm (tip of USB port to tip of 20pin connector) cable and standard 20pin connector

Ideal for DYI, System Integrators and IT Professionals

Mount, plug and Ready design, no driver, no external power needed
Device Support:
Two 2.5" SSD/HDD (7-9.5mm)
USB Port:
Two USB 3.0 front Ports with 20 pin connector
Device Size:
3.5 drive bay
Material:
Metal
Color:
Black
Cable length:
23.62 inches / 600 mm (tip of USB port to tip of 20pin connector)
OS Support:
Any OS that support USB 3.0
System Requirements:
System with available 3.5" drive Bay
System board with USB 3.0 20 pin header
Whats included:
USB 3.0 Front Panel For 3.5" Drive Bay Bracket, Mounting screws kit, Quick Install Guide
Environmental:
Operating Temperature 0 ^oC to +45^oC
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10^oC to +70^oC
Storage Humidity 5% to 90% RH (no condensation)
Item Dimension (L"x W"x H")
6 x 5 x 2
Weight
1.00 LB
Warranty Information
1-Year

Available Quantity

5

UPC

844767023205

SKU

mingleHDA-302H

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

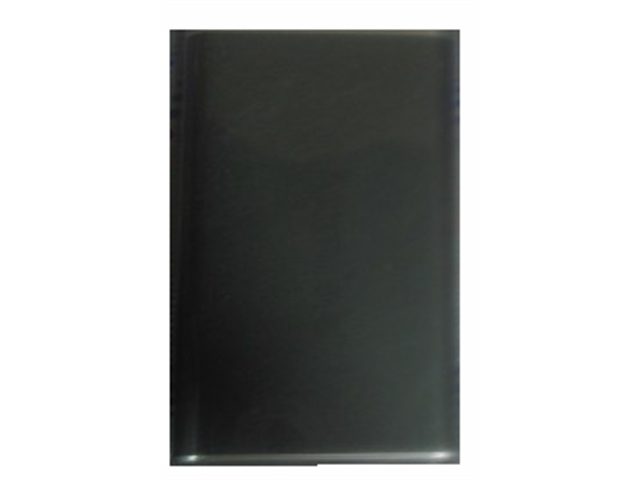

AcomData Storage TNGXXXUSE-BLK 2.5inch SATA HDD External Enclosure USB/eSATA Black Retail
Item Dimension (L"xW"xH"):
6 x 2.5 x 9.5

Weight:
0.60 lb

Warranty Information
3 Years

Available Quantity

5

UPC

708769031111

SKU

mingleTNGXXXUSE-BLK

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AcomData SMBXXU2FE-BLK 3.5inch SATA HDD External Enclosure USB/Firewire 400 Black Retail
Color
Black
Form Factor
3.5"
Internal interface
SATA (Supports up to 2TB drives - not compatible with 3TB drives)
External interface
USB 2.0 FireWire 400
System Requirements
Windows 7 / Vista / XP
MAC OS 10.3 or later
Physical Specification
Enclosure Material Aluminum case
Package Contents
Warranty
Samba Black USB 2.0 FireWire 400 External Enclosure
USB 2.0 Cable
FireWire 400 Cable
AC Adapter
Hard Drive Stand
Installation Guide
Hard Drive Mounting Screws
Item Dimension (L"xW"xH")
11.81 x 9.5 x 3.94

Weight
2.80 lb

Warranty Information
3 Years

Available Quantity

5

UPC

708769031005

SKU

mingleSMBXXXU2FE-BLK

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

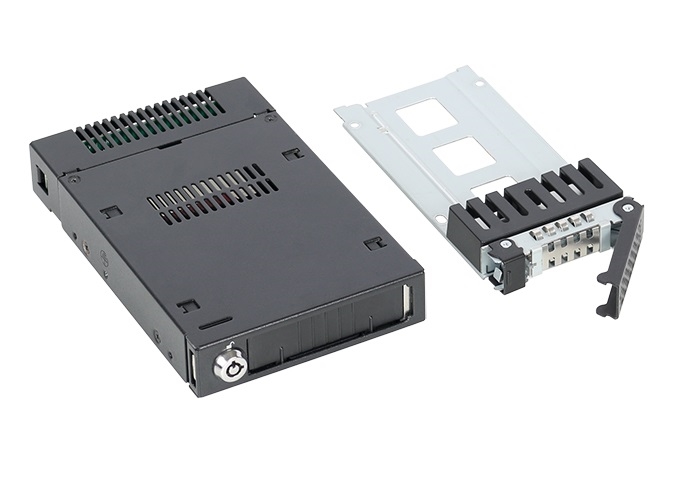

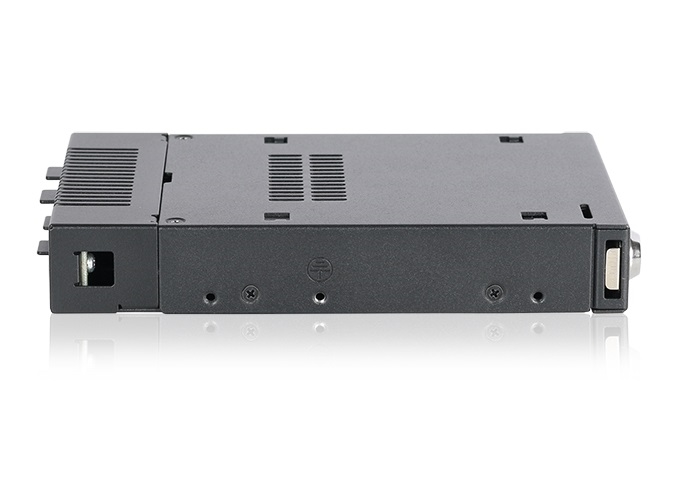

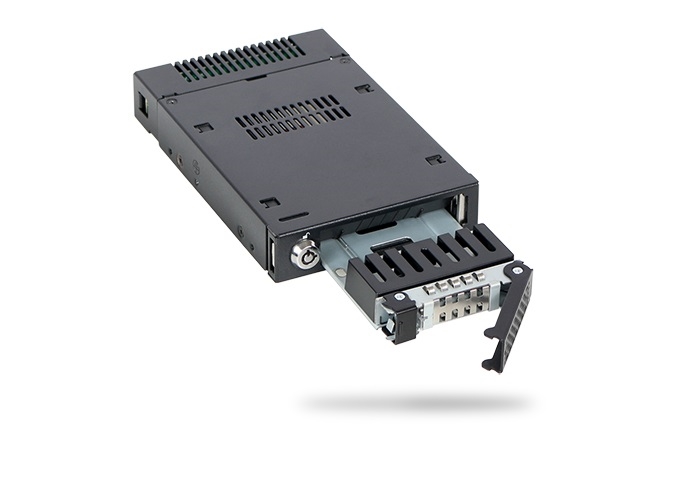

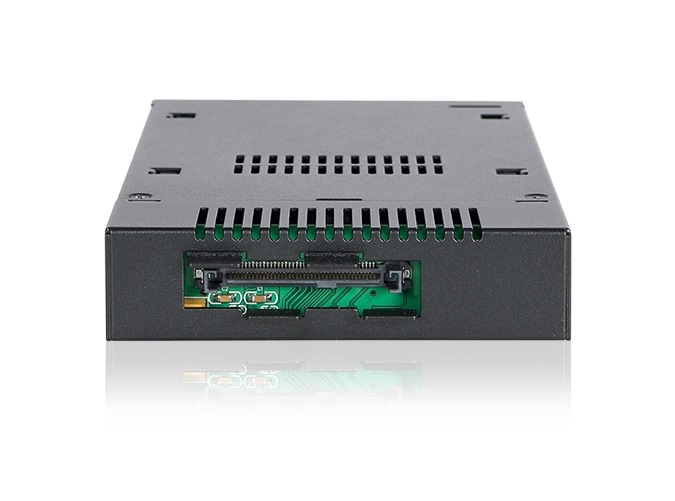

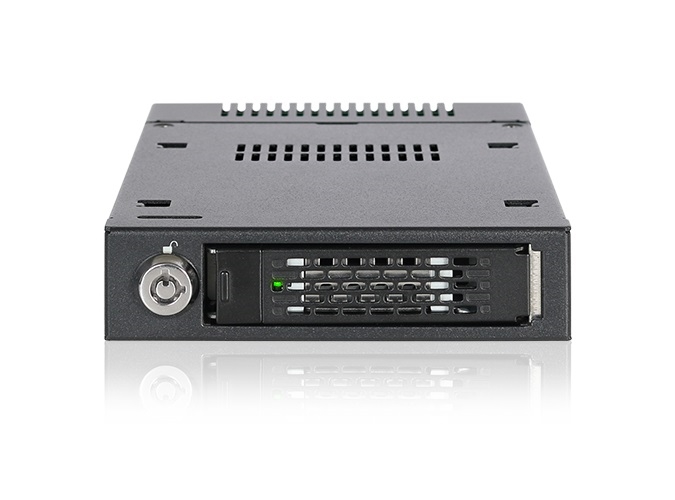

The ToughArmor MB601VK-1B is our next-generation rugged 2.5 U.2 hot-plug mobile rack, supporting ultra-high-speed 32Gbps data transfer with all U.2 NVMe SSDs, including those from Seagate, Samsung, Intel, HGST, Micron, and all other brands.


World s First U.2 Removable Design

Supports removable function for any 2.5 U.2 NVMe SSD, allowing for easy installation and removal, and reducing technician costs.


Superior Performance

Built to utilize the next generation U.2 (SFF-8639) interface to support the full NVMe bandwidth specification of 32Gbps, the ToughArmor MB601VK-1B is over 5 times faster than the previous SATA standard, making it ideal for data intensive applications such as in enterprise servers, data centers, and photography for media professionals.


Safe and Secure

ToughArmor is renowned in the enterprise and industrial data storage industry for its ruggedized full-metal enclosure and superior protection, and this trend continues with the MB601VK-1B. Its 100% steel enclosure provides enhanced protection against wear, bumps, and shock damage, and meets flammability standards.

For optimal cooling, the heat is further dispersed through the intelligently placed ventilation holes on all sides, which works together with your computers cooling system to protect your drives from overheating damage, even under load.


Packed with Features

An LED status light built into the tray and lets you know when your drive is powered up and in use. To save power, the LED shuts off when no drive is installed.

For an additional physical layer of security, the included key-lock can be used to protect against unwanted access and secure drives in particularly rough environments, such as military applications and in-vehicle PCs.
Color :
Black
Support Drive Size :
1 x 2.5" U.2 NVMe SSD (Up to 15mm height)
Compatible Drive Type :
U.2 NVMe
Number of Drives :
1
Drive Bay :
1 x external 3.5" drive bay
Host Interface :
1 x U.2 connector (SFF-8639)
Power Input :
Via U.2 (SFF-8639)
Transfer Rate :
Up to 32Gbps
Support HDD Capacity :
No Limitation
Drive Cooling :
Metal heat dispersion with passive cooling
Structure / Material :
Full Metal
Support Hot-Swap :
Yes
Drive Security :
2 segment key lock
Drive Activity LED Indication :
Drive power: solid green HDD access: flashing green
Package contents :
1 - Device, 1 - user manual, 10 - screw, 2 - key
U.2 Connector Insertion Rate :
10,000
Humidity :
5%-65% RH
Operating Temperature :
0^oC to 60^oC (32^oF to 140^oF)
Storage Temperature :
-35^oC to 70^oC (-31^oF to 158^oF)
Compliance :
CE, RoHS, REACH

Available Quantity

5

UPC

884826508267

SKU

mingleMB601VK-1B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC/AKiTio Thunder 3 Quad, 4 Bay Storage Enclosure, Mini, RAID Ready Enclosure, Mini, RAID Ready

Note

Currently out of stock

Available Quantity

0

UPC

810586032292

SKU

mingleOWCTB3QMLR00GB

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC Drive Dock, USB-C (USB 3.1 Gen 2), Dual Drive Bay Solution Dual Drive Bay Solution

Note

Currently out of stock

Available Quantity

0

UPC

810586031028

SKU

mingleOWCTCDRVDCK
