Product Description

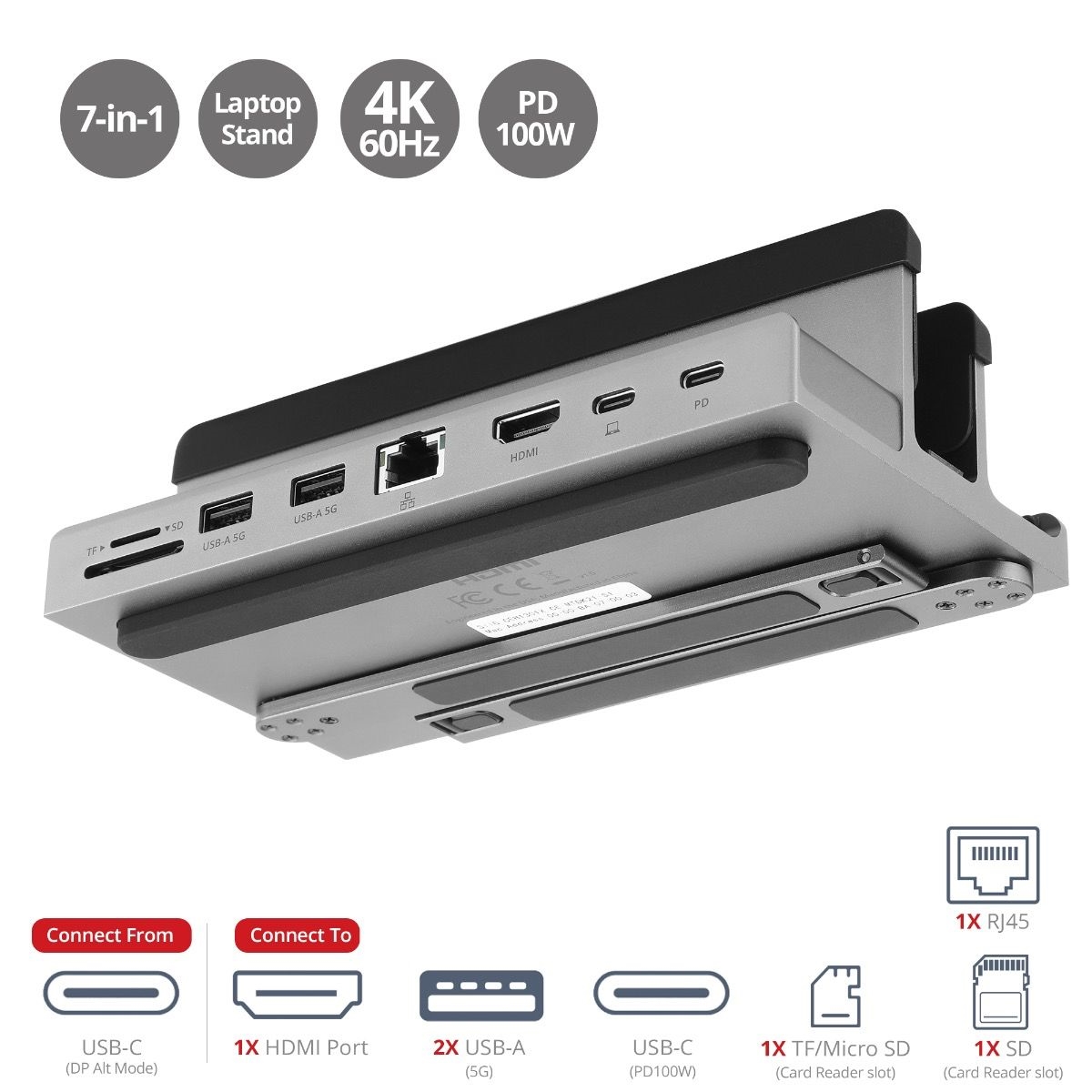

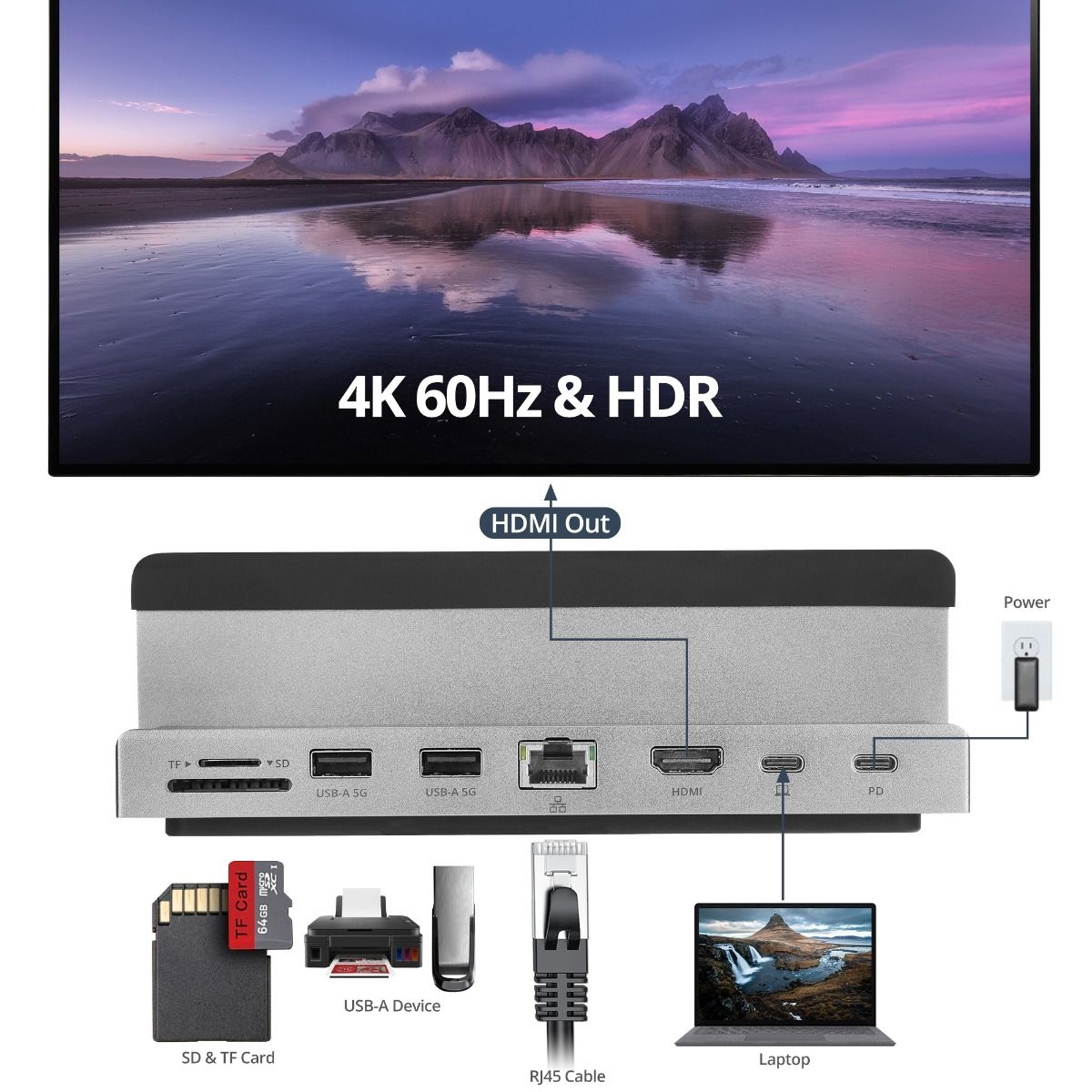

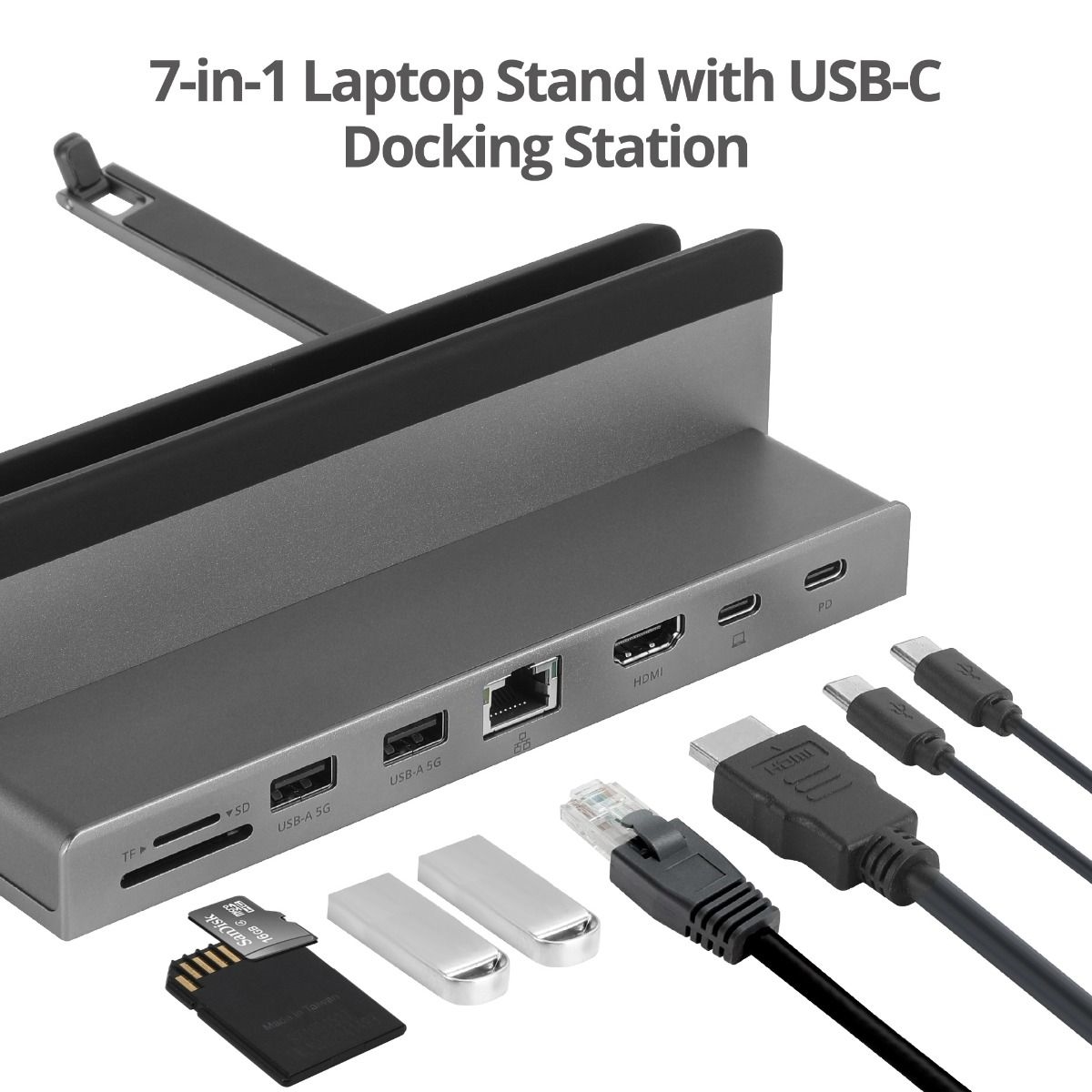

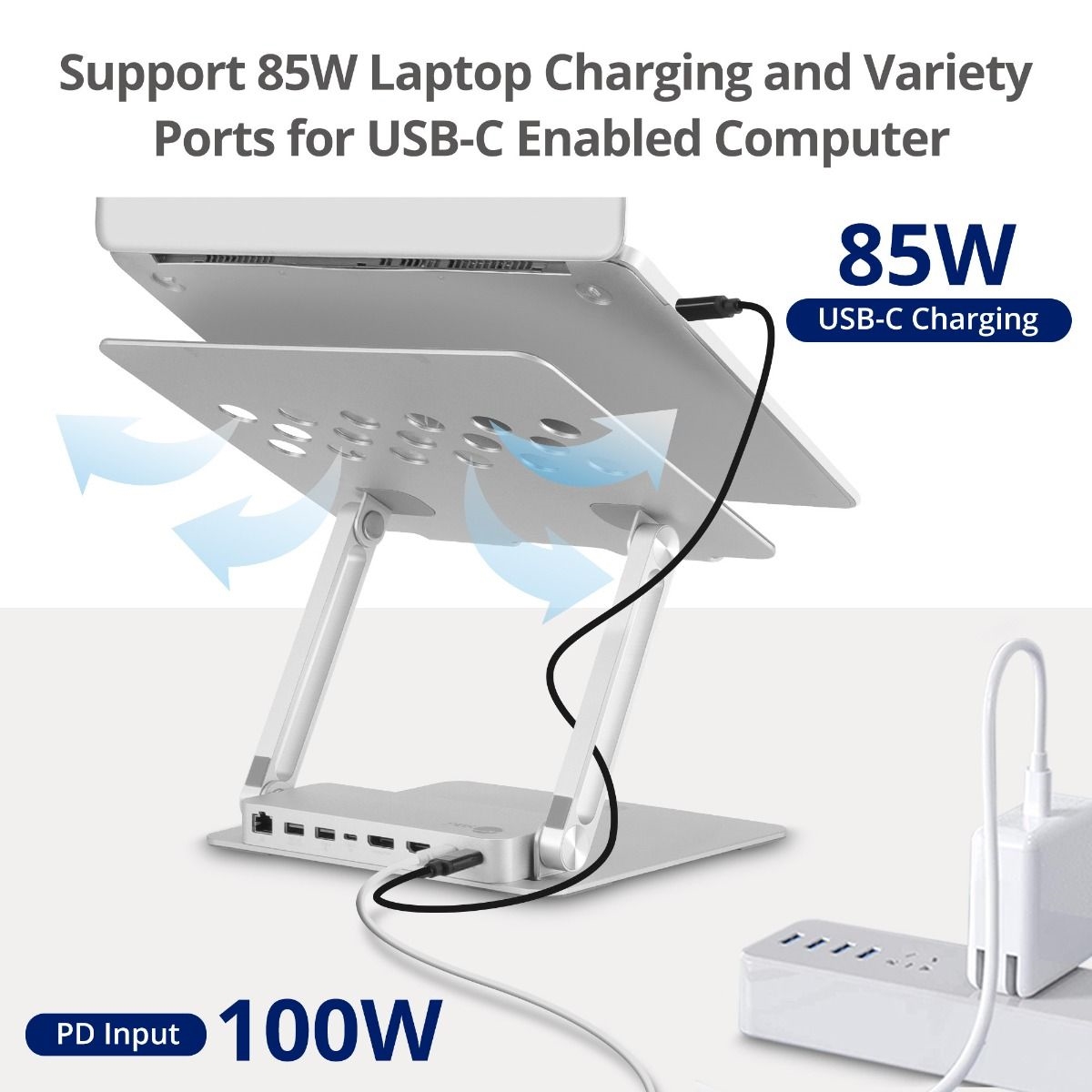

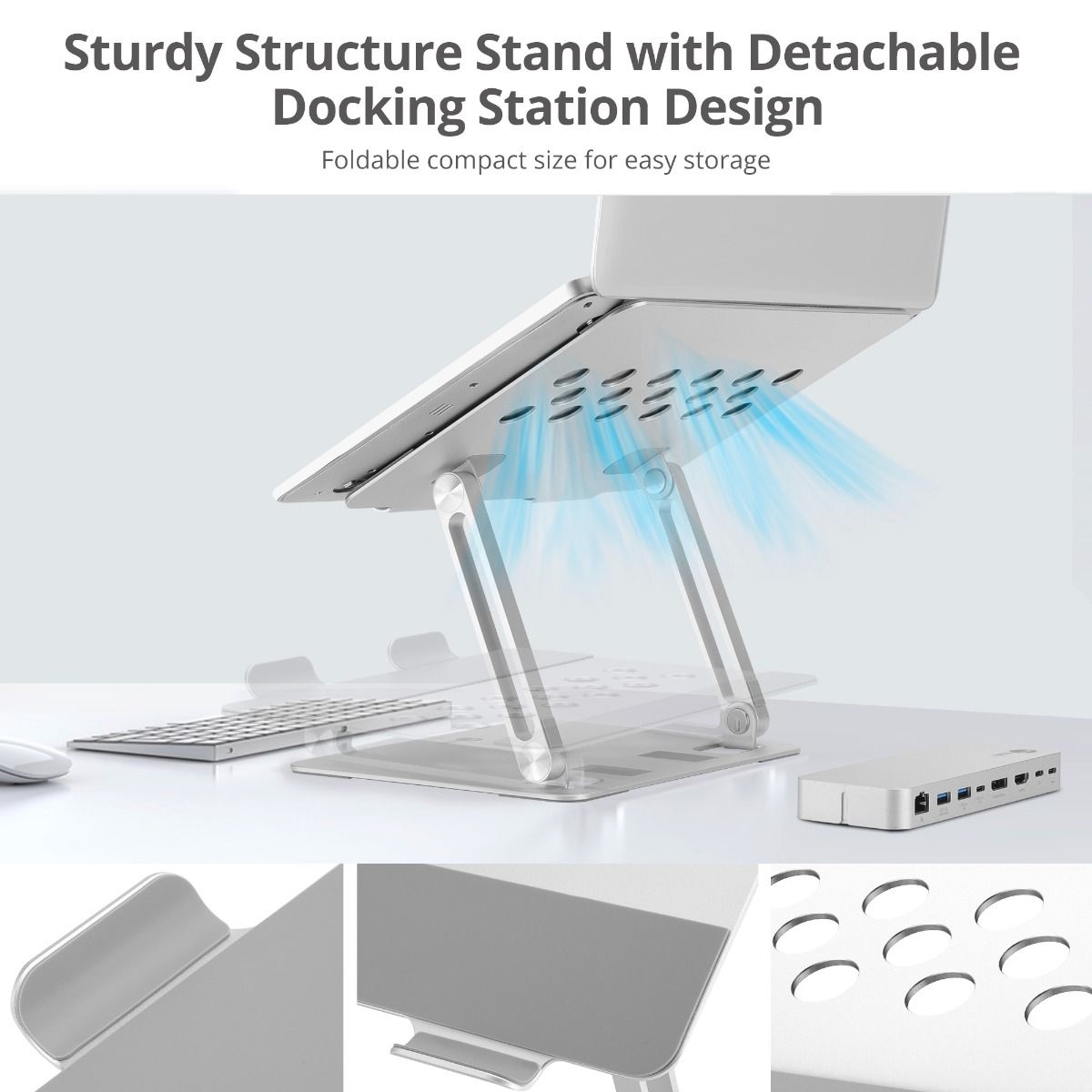

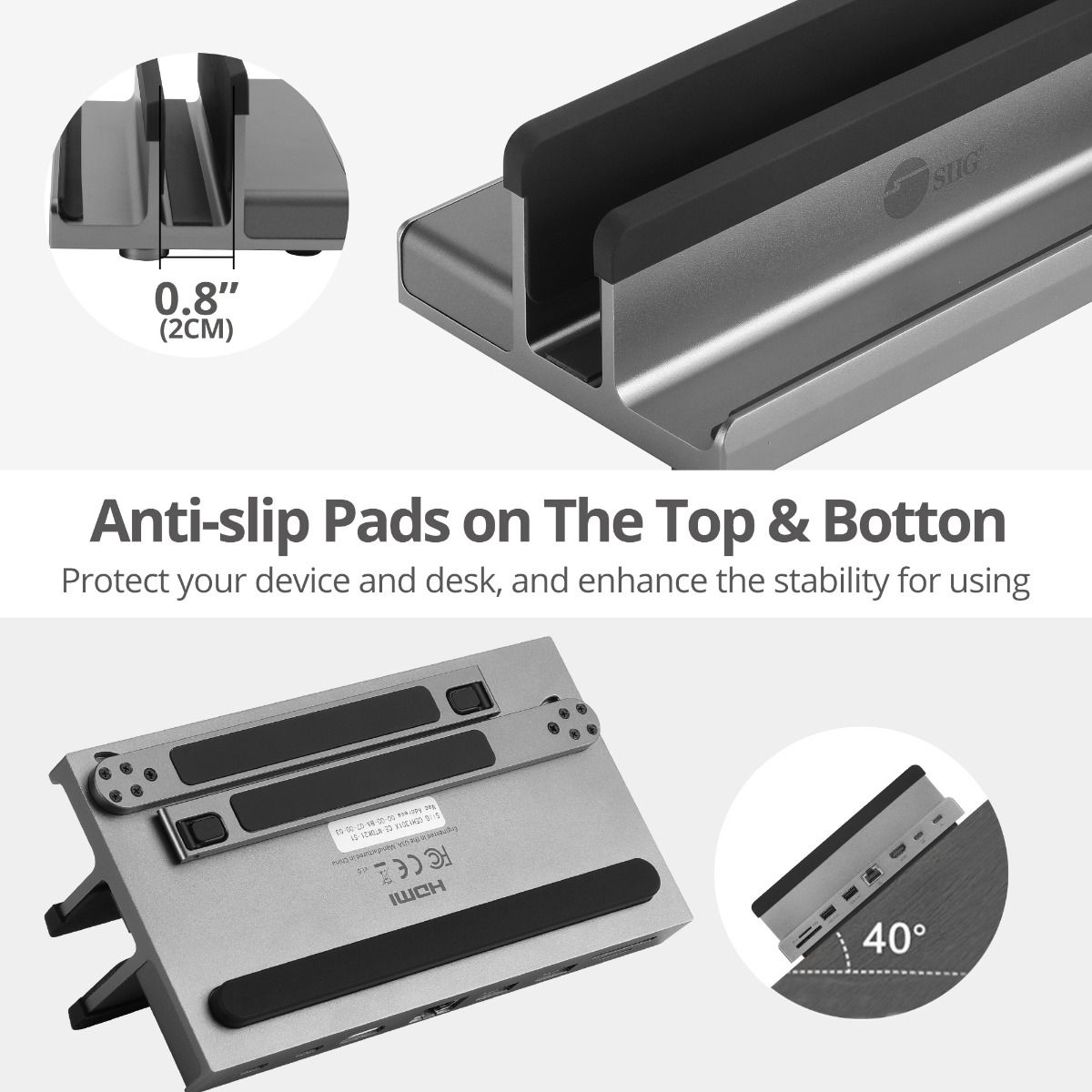

SIIG USB-C Laptop Stand with 4K Multitask Docking Station, HDMI display 4K@60Hz, 2xUSB-A 5Gbps, GbE, SD/Micro SD, PD 100W
Chipset:
PS186+GL3510+GL3224+AX88179A
Compliant with Universal Serial Bus 3.2, 3.0 and 2.0 specification
Resolution:
3840x2160 60Hz with DP 1.4 laptop source, 3840x2160 30Hz with DP 1.2
Supports data transfer rate up to 5Gbp/s
Compatible networks:
10/100/1000 Mbps
Audio Supported:
HDMI up to 7.1 Channel surround sound
SD, Micro SD (TF) 3.0 Card Reader, up to 2TB, can use simultaneously
Power Delivery:
Power Delivery passthrough up to 100W, 90W for charging and 10W for Docking
Fit Laptop size:
under 14"1.90
Color:
Silver
Material:
Aluminum
Connectors:
1x 24-pin USB-C, Female
1x 19-pin HDMI Female, output
2x 9-pin USB-A 5Gbps, Female
1x 8-pin RJ45, Gigabit Ethernet
1x SD 3.0 Card Reader
1x TF (Micro SD 3.0) Card Reader
1x USB-C, PD 3.0 bypass, up to 100W power input, 90W for charging and 10W for Docking
Certifications/Standards:
FCC / CE / RoHS 2.0 / REACH
System Requirements
Host laptop or tablet with an available USB-C port with DP Alt mode (recommend DP 1.4 Alt-mode) or Thunderbolt 3/4 technology
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
MAC OS 10.15 or later

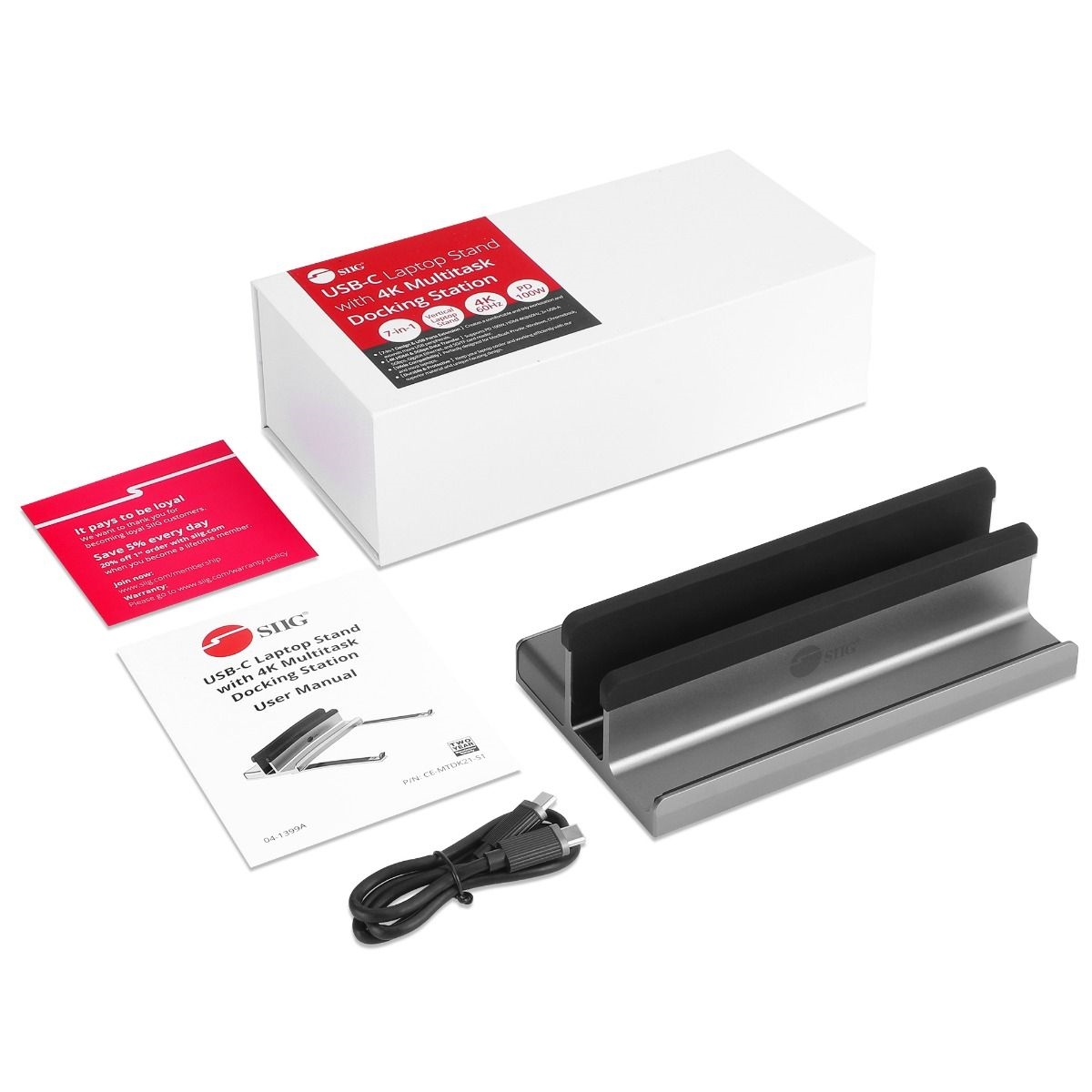

Package contents
USB-C Laptop Stand with 4K Multitask Docking Station
USB-C to USB-C cable
User Manual
Item Dimension (L inchxW inchxH inch)
9 x 3 x 5

Weight
1.90 lb

Warranty Information
2 years limited

Available Quantity

5

UPC

662774045788

SKU

mingleCE-MTDK21-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

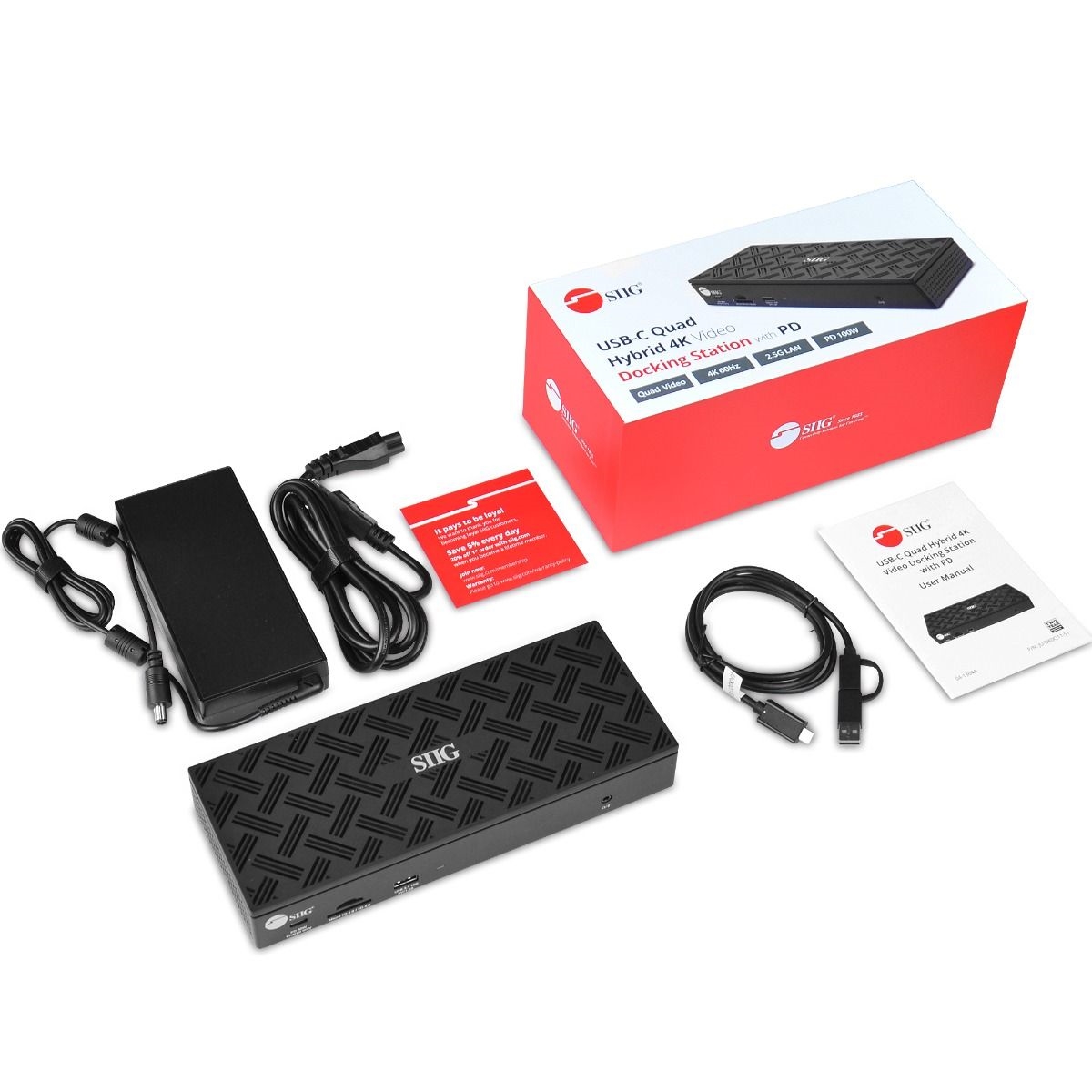

Product Description

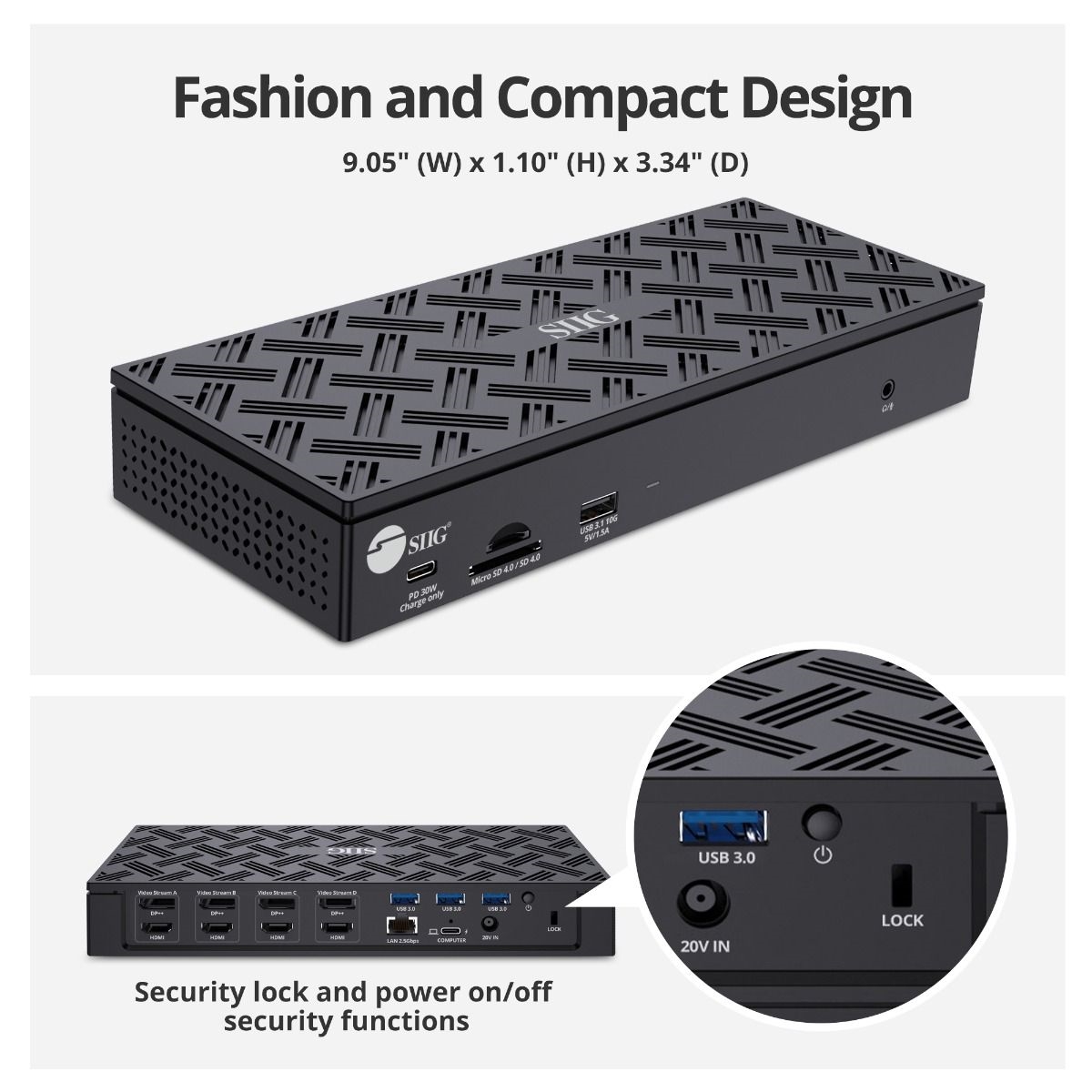

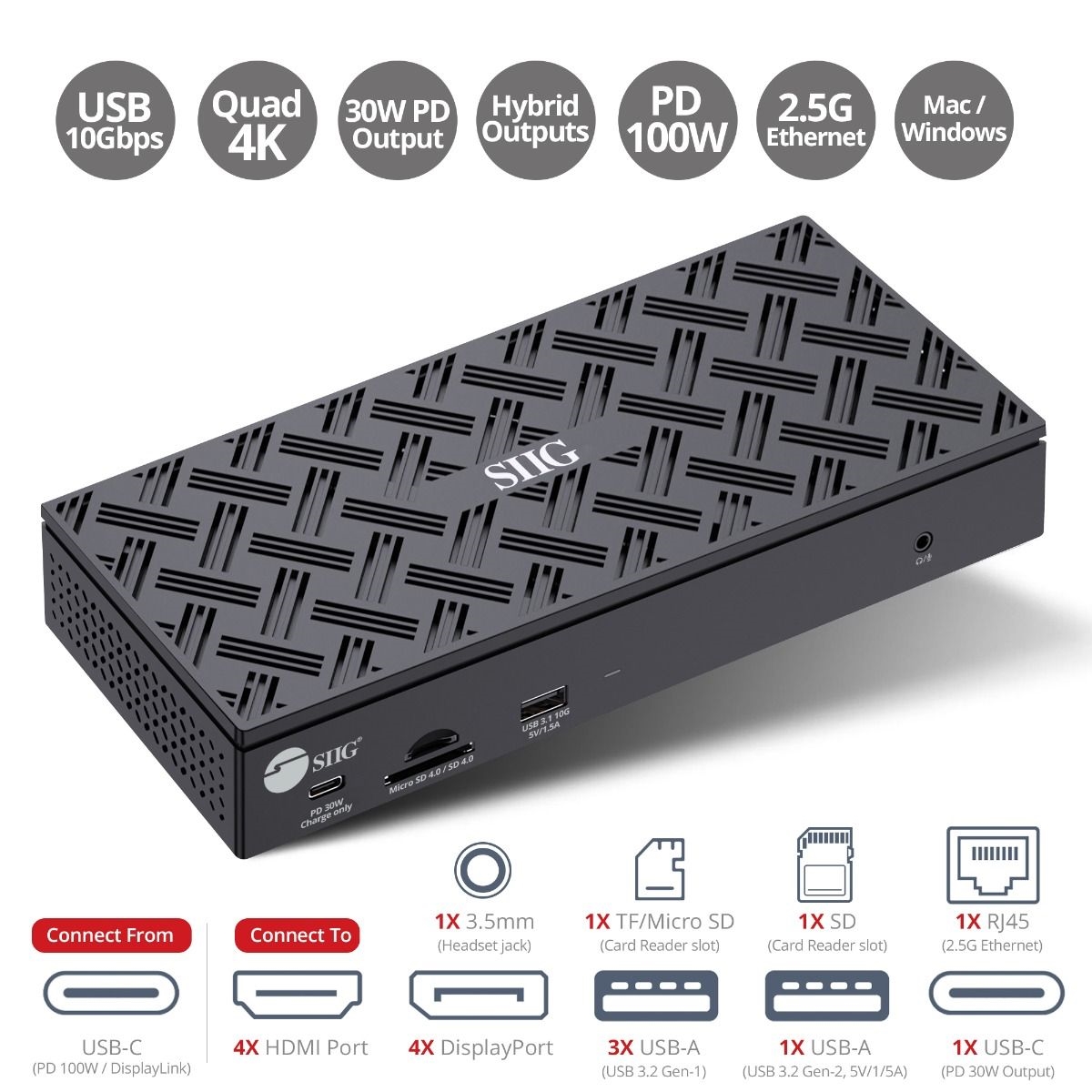

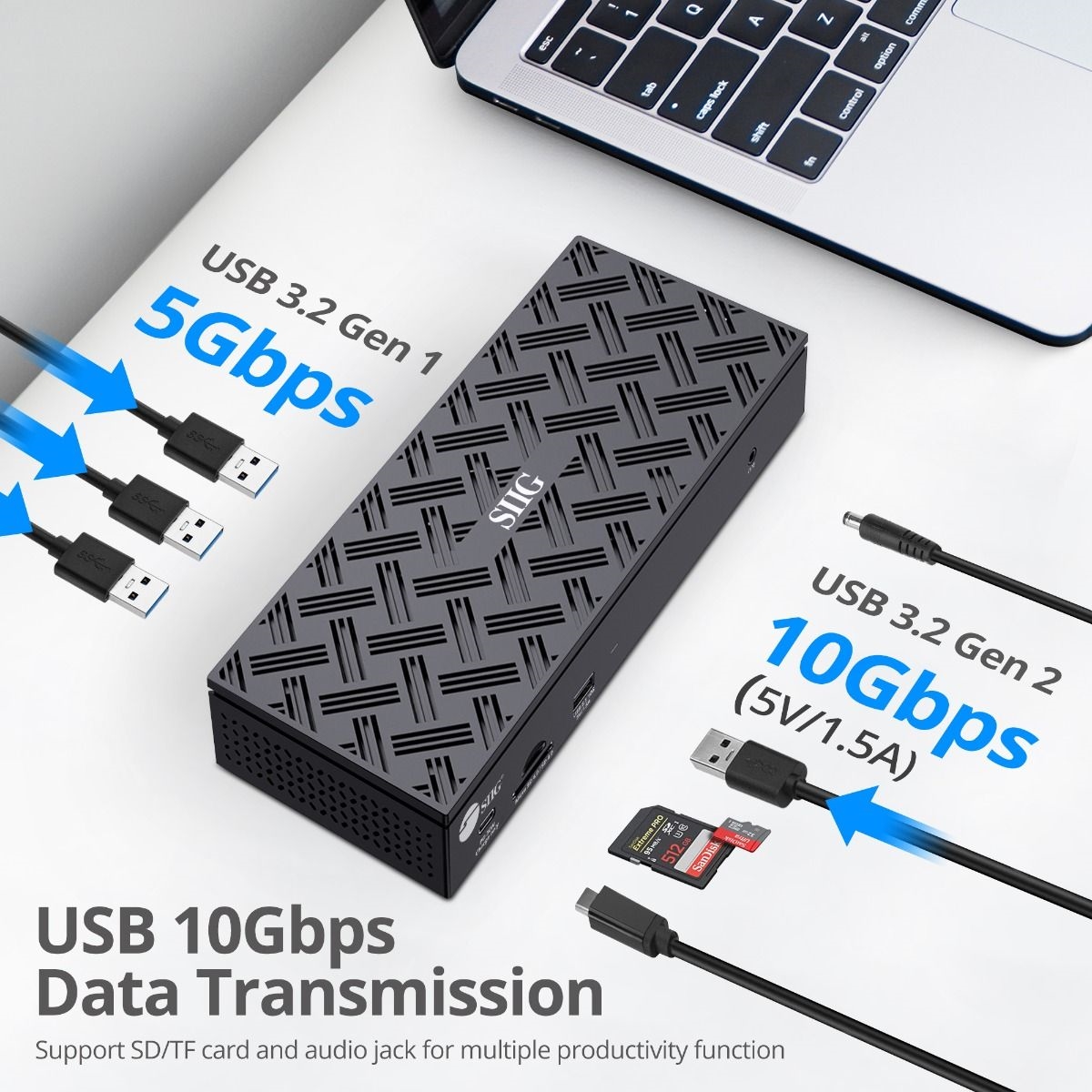

Advanced Hybrid USB C docking station Quad monitor with 4x HDMI or 4x DisplayPort, one USB-A 10Gbps, three USB-A 5Gbps, one USB-C PD 30W, one 2.5G Ethernet, one SD 4.0 card slot, one Micro SD (TF) 4.0 card slot, one stereo audio/microphone, and PD up to 100W for Windows and Mac


Features

Make the powerful visual solution with 4 Hybrid displays (DisplayPort/HDMI) or 5K displays (2x DisplayPort) and multiple connections for increased productivity


5K/4K Video Resolution

Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, quad 4K (3840x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI with DisplayLink IC, and 5.1-ch surround sound


Multiple Connectivity Ports

Adds one USB-C port with DP Alt mode and PD 100W (Host)*, four DisplayPort video output ports (with DisplayLink controlled), four HDMI video output ports (with DisplayLink controlled), one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging port, one USB-A 3.2 Gen 1 5Gpbs, one USB-C PD 30W charging, one 2.5G Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 4.0 UHS-II memory card slot, one Micro SD (TF) 4.0 UHS-II memory card slot, one security lock, one power on/off button, and one DC 20V/9A power jack

* Note: PD charging will not work if you connect a USB-A laptop/notebook


USB-A 3.2 Data Transfer

Provides one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging and three USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices


Memory Card Slots

Compatible with SD 4.0 UHS-II and Micro SD (TF) 4.0 UHS-II memory card and data transfer rate up to 312MB
Hardware
Chipset
DL-6910
Compliant with Universal Serial Bus 3.2, 3.1, 3.0 and 2.0 specification
Software
OS Compatibility
Windows 11, mac OS 12 or new
Note: macOS 10.13.4 to 10.13.6 is not supported
Video
HDMI with DisplayLink IC
x4, 4K at 60Hz
DisplayPort with DisplayLink IC
x4, 4K at 60Hz
Note: Connect 2 DisplayPort output ports to a single 5K TV/monitor
USB
USB-A 3.2 Gen 2
x1, data transfer rate up to 10Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x3, data transfer rate up to 5Gbps, 5V/900mA
Fast Charging Port
Yes
Audio
5.1 channel surround sound from DisplayPort/HDMI output
2 channel stereo audio from 3.5mm audio jack and microphone
Power
Power Delivery 3.0
up to 100W via USB-C port (Host) and up to 30W via USB-C port (source)
Power Adapter
Input: AC 100-240V/50-60Hz, Output: DC 20V/9A, UL Listed: E355343 / Level: VI
Ethernet
Data transfer rate: up to 2.5G (2500Mbps), backward compatible with 10/100/1000Mbps
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 140 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS 2.0, REACH

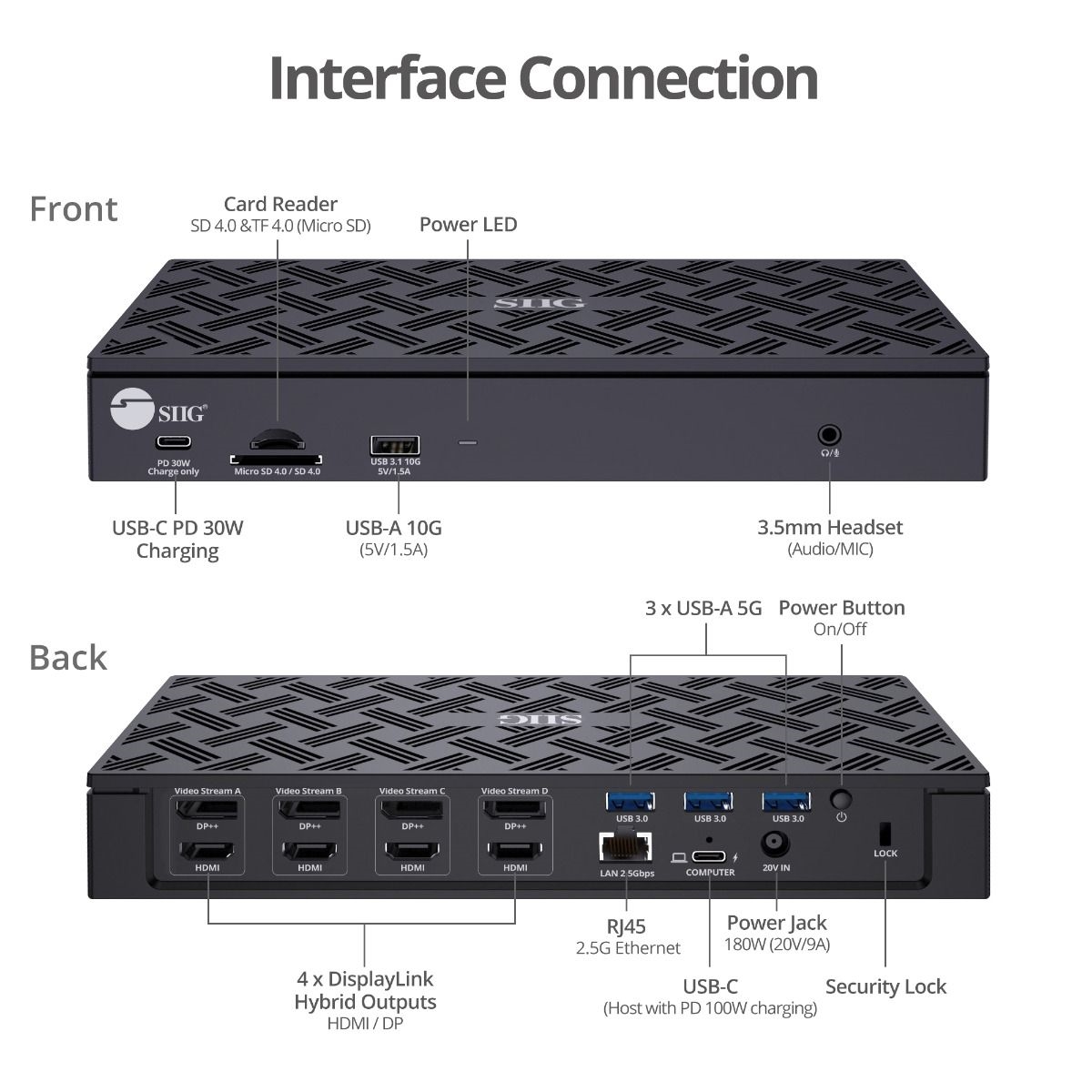

Interface
Input:
1x 24-pin, USB-C with PD 100W, Female (Host)
1x DC power jack, 20V/9A
1x Power button, on/off
Output:
4x 19-pin, HDMI with DisplayLink IC, Female
4x 20-pin, DisplayPort with DisplayLink IC, Female
3x 9-pin, USB-A 3.2 Gen-1, 5Gbps, Female
1x 9-pin, USB-A 3.2 Gen-2, 10Gbps, 5V/1.5A, Female
1x 24-pin, USB-C charging, PD only (30W)
1x 8-pin, 2.5G Ethernet, RJ45
1x SD 4.0 memory card reader slot, UHS-II, up to 312MB
1x Micro SD/TF 4.0 memory card reader slot, UHS-II, up to 312MB
1x 3.5mm, Headset jack, stereo audio and mic
1x Security lock
System Requirements
Desktop or Laptop with an available USB-C/A or Thunderbolt 3 port
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit)
macOS 12 / 11 / 10.13 to 10.15
Note:
- macOS 10.13.4 to 10.13.6 is not supported, its recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
- PD charging doesnt work if you use a USB-A laptop/ notebook

Available Quantity

5

UPC

662774045122

SKU

mingleJU-DK0Q11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

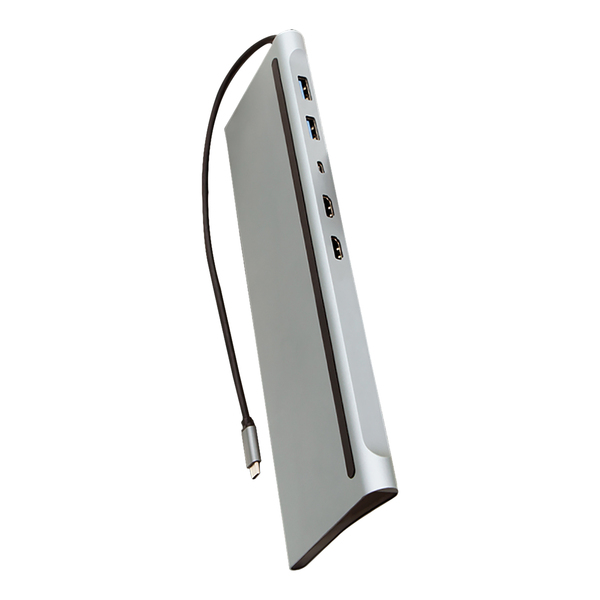

• 5-in-1 USB-C(R) docking station for computers with USB-C(R) 3.1 Gen 1 input;• Compact and versatile; streamlines your connectivity needs with essential ports in 1 sleek solution;• 4K HDMI(R) output (60 Hz): enjoy high-resolution visuals (3840 x 2160);• 2 USB-A ports: quick data transfer at 5 Gbps;• USB-C(R) data port (3.0): high-speed data transfer at 5 Gbps;• USB-C(R) Power Delivery (PD 100 watts): fast charging at 100 watts (no data transfer);

Available Quantity

5

UPC

810061143086

SKU

mingleETHDOCK5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

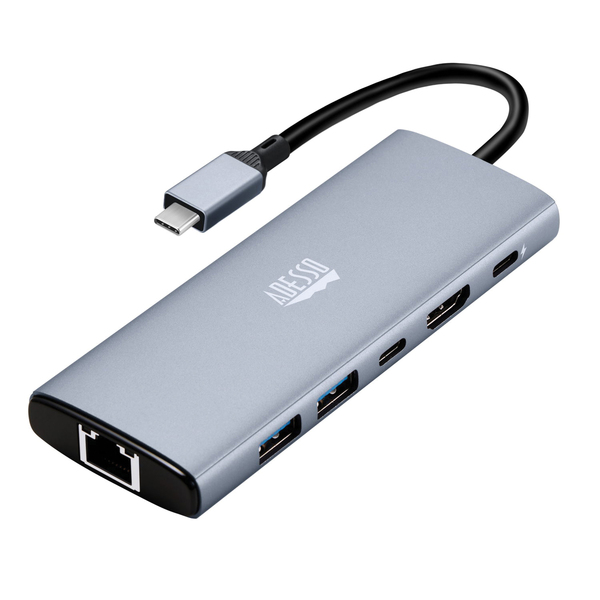

• Expand your laptop's connection port ;• 6 ports;• USB-C(R) 3.1 connection ;• Thunderbolt(TM) 3 compatible ;• 4K HDMI(R) output ;• Lightweight and portable ;• Plug and play;

Available Quantity

5

UPC

783750013338

SKU

mingleAUH-4035

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

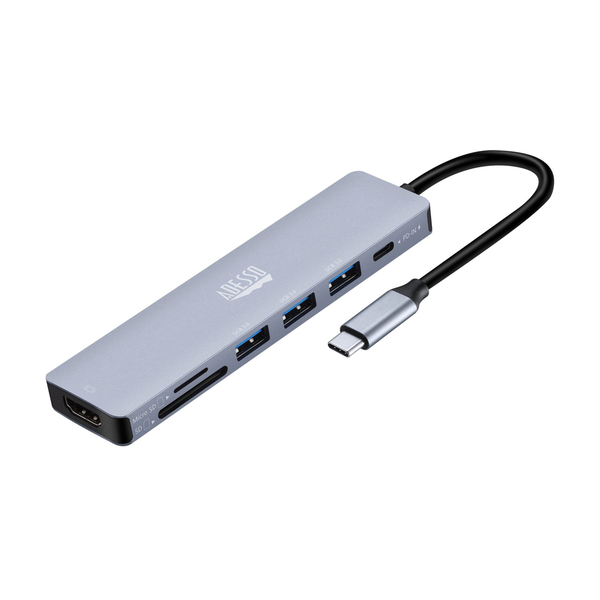

• Expand your laptop's connection port ;• 7 ports;• USB-C(R) 3.1 connection ;• Thunderbolt(TM) 3 compatible ;• 4K HDMI(R) output ;• SD(TM) Card and microSD(TM) Card ports;• Lightweight and portable ;• Plug and play;

Available Quantity

5

UPC

783750013321

SKU

mingleAUH-4025

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

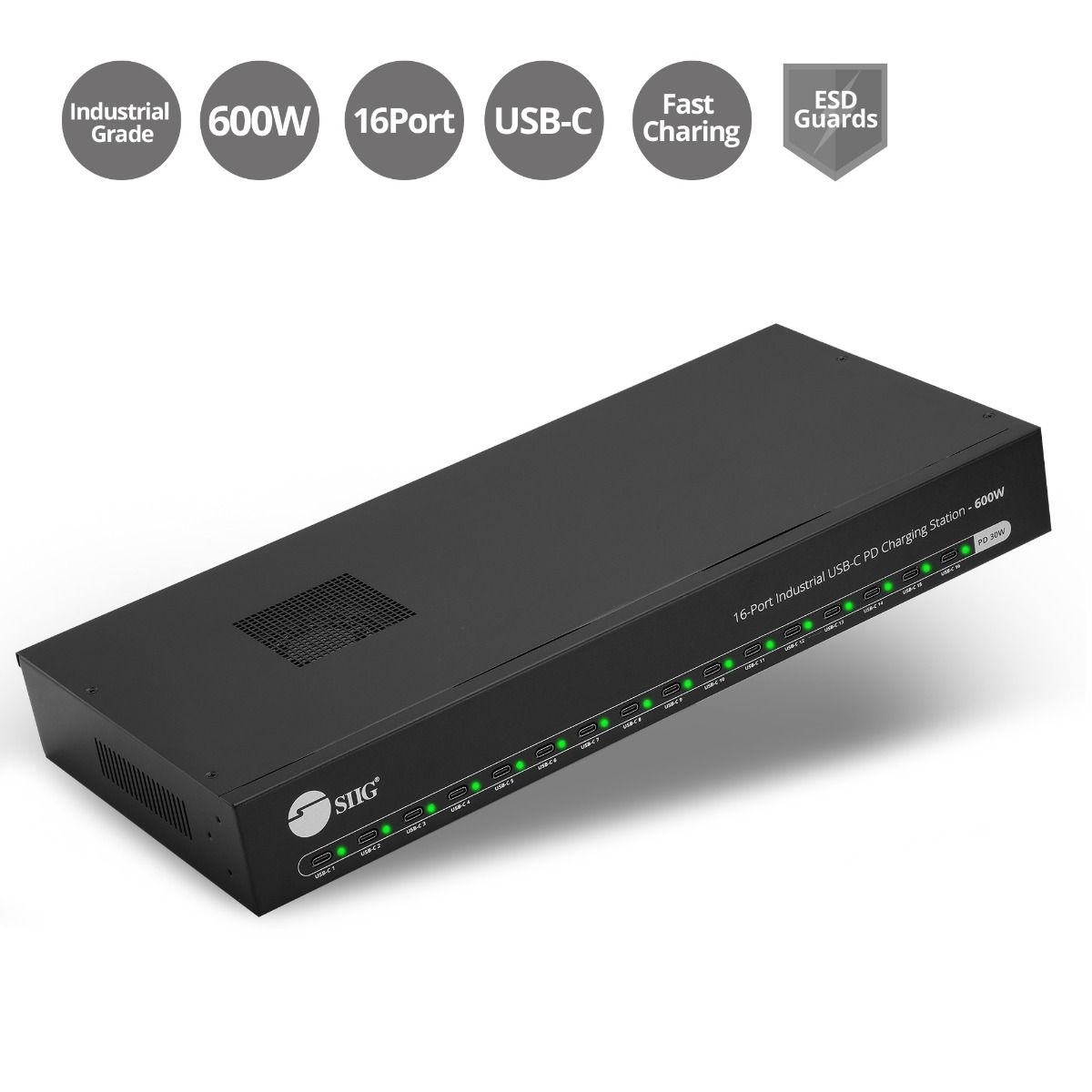

Easily and quickly charge up to 16 USB-C devices such as iPhone/iPad, Tablet, Smart Phone, Mobile device and each port up to 30W charging power

Support Power Delivery 2.0 and 3.0 for 5V/3A, 9V/3A and 12V/2.5A charging specification

Industrial grade and built-in 24V 600W (Meanwell Brand) power adapter with UL certification to keep the safe charges

Power switch conserves energy when not in use, built-in LED provides easy recognition of power status

Protection and Reliability for Over-voltage, input under voltage, output short circuit, output over current, system over temperature

Enables to turn on/off the fans automatically according to the temperature setup

Fully heat dissipating and durable metal housing rack mountable into a standard 19-inch rack

Compatible with Apple iPhone 14/13/12/11/X, iPhone 8, iPhone 8 Plus, Samsung Galaxy Note 8, S8, S8 plus and more, Tablets/ Laptop for Apple iPad, MacBook 12-inch, MacBook Air/Pro and more USB-C devices. This is an excellent choice for charging USB-C products

Applications

School

Restaurant

Airport

Industrial Environment

Educational Institution

Shopping Center

Data Center

High Speed Rail Station

Testing lab
Chipset:
IP6520T
Internal Power Supply:
600W24V Meanwell switching power supply
Input:
Input Voltage: 110VAC/220VAC select by Switch
Frequency: 50Hz / 60Hz
Input Current: 12A/115VAC, 7.5V/230VAC
Output
USB Port: 16 x USB-C, Female
PD output power: 30W (5V/3A, 9V/3A, 12V/2.5A)
Efficiency: VIN24V, VOUT5V/3A, Conversion Efficiency is 92%
USB-C Protocol
Support 5V / 9V / 12V Voltage output
Support PD 2.0 / PD 3.0
PPS support 3 to 11V, 20mV/step Voltage output
Output specification
Support USB-C PD output
Support BC 1.2_DCP, Apple, Samsung protocol
Support Qualcomm QC2.0 / QC3.0
Support MTK PE+1.1 and MTK PE+2.0
Support Fast Charging protocol FCP and AFC (Max 12V)
LED indicators:
Charging in progress: RED color
Power On or Fully charged: GREEN color
Output overcurrent protection:
output >3.5 to 3.9A, USB port current output automatic disconnect
Output overvoltage protection:
When the output terminal voltage>16V or more due to an accidental cause, the TVS discharge on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this port
Product:
Color:
Black
Housing:
Metal housing with standard 19 inch rack mounting
Connectors:
1x AC Power Jack
1x Power Switch
16x USB Type-C, Female, USB device connection
Environmental conditions:
Operating temperature:
14 to 131 degrees F
Storage temperature:
-4 to 158 degrees F
Relative humidity:
20% to 90% RH (non-condensing)
Working Altitude:
Less than 2km
Certifications/Standards:
FCC, CE, RoHS, UL
UL E183223
Country of origin:
Engineered in USA , Manufactured in China
Item Dimension (L"xW"xH")
23 x 4 x 10

Weight
7.44 lbs

Warranty Information
2 year limited

Available Quantity

5

UPC

662774045856

SKU

mingleID-US0A11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

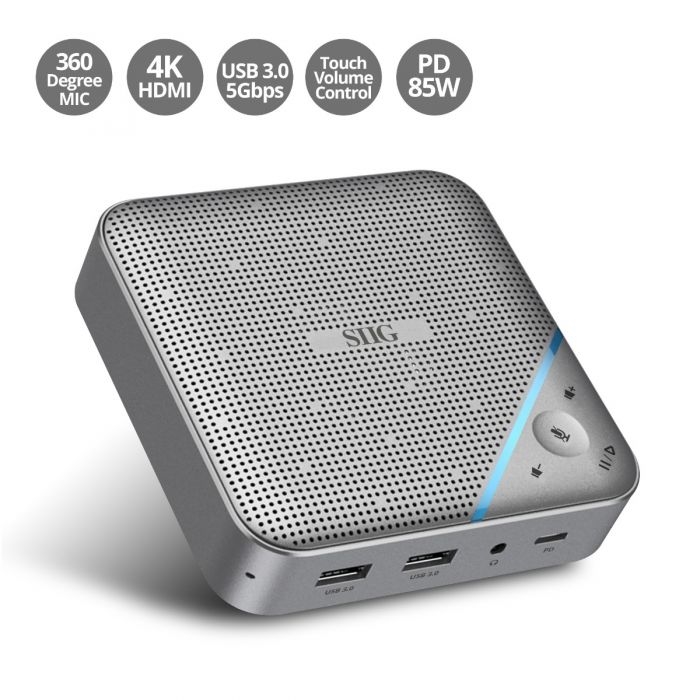

USB-C Multitask Mini Dock with integrated speakerphone and HDMI video, Built-in 4-MIC, 4K HDMI, USB-C 3.2 5Gbps, Volume Touch Control, 3.5mm Audio, PD 100W

Features

With crystal clear voice quality, Ultra-HD display, and audio control button all in one USB-C Multitask Mini Dock- make your video conferencing, conference call, presentation, or teaching easy, convenient, and effective

4K Video Resolution

Supports single 4K (3840x2160) @30Hz Ultra HD video resolution and 5.1-ch. surround sound or 2-ch. stereo audio

Multiple Connectivity Ports

Comes with one USB-C with DP Alt mode port (Host), one HDMI video output ports, two USB-A 3.2 Gen 1 port, one USB-C PD 100W port, one 3.5mm stereo audio jack, four speaker intput ports, one microphone button, two sound volume button, one play or pause touch button, and one audio slide switch

100W Power Delivery

Includes a USB-C 3.2 Gen 1 to USB-C cable for connecting laptop/notebook, PD passthrough 100W to provides up to 85W Power Delivery charging for laptop, notebook, tablet, and smartphone and ensures enough power for USB peripherals

USB-A 3.2 Data Transfer

Provides two USB-A 3.2 Gen 1 ports and data transfer rate up to 5Gbps to enhance the performance and transfer capability of USB devices, such as keyboard, mouse, printer, pen drive...

3.5mm Audio Jack

Supports one 3.5mm audio jack for 2 channel stereo audio connection and an audio slide switch to turn on/off the speaker or microphone

Smart Speaker/Microphone

Built-in four microphone ranged in a 360 degree array pick up voices to 15ft at distances and supports 3W woofer allowing you have clear and smooth communication

Provides a touch button to play or pause music and control volume/mute/LED light via volume buttons allowing you to adjust speaker volume easily & quickly
Specifications
Hardware
Chipset
IT6563+VL817
Compliant with Universal Serial Bus 3.0 and 2.0 specification
Software
OS Compatibility
Windows 11, mac OS 12 or new
Video
HDMI
4K at 30Hz / 1080p at 60Hz / 1080i at 60Hz / 720p at 60Hz / 480p at 60Hz
USB
USB-A 3.2 Gen 1
x2, data transfer rate up to 5Gbps, 5V/900ma
Compatible with USB 2.0/1.1 specification
Audio
5.1 channel surround sound from HDMI output
2 channel stereo audio from 3.5mm audio jack
Built-in 4x microphone and provides 3W woofer
4x touch buttons: play/pause, microphone on/off, volume up with LED, and volume down with LED
Blue LED indicator: speaker or microphone is enabled Red LED indicator: microphone is disabled
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
14 to 140 degrees F
Relative humidity:
0% to 85% RH (non-condensing)
Product Info
Color
Sliver
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS 2.0, REACH
Country of origin:
China
Interface
Input:
1x 24-pin, USB-C with DP Alt mode, Female (Host)
1x Audio slide switch, on/off
Output:
1x 19-pin, HDMI, Female
2x 9-pin, USB-A 3.2 Gen-1, Female
1x 24-pin, USB-C, PD only (100W)
1x 3.5mm, audio jack, stereo audio
1x Microphone button, on/off
1x Sound touch button, volume: up
1x Sound touch button, volume: down
1x Touch button, play or pause
4x built-in microphone
System Requirements
Desktop or laptop with an available USB-C with DP Alt mode or Thunderbolt 3 port
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
macOS 12.x to 10.10
Package contents
1x USB-C Multitask Mini Dock with Conference Speaker
1x USB-C to C cable
1x Velvet bag
1x User reference guide
Item Dimension (L"xW"xH")
5 x 2 x 5

Weight
1 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774045290

SKU

mingleJU-DK0S11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

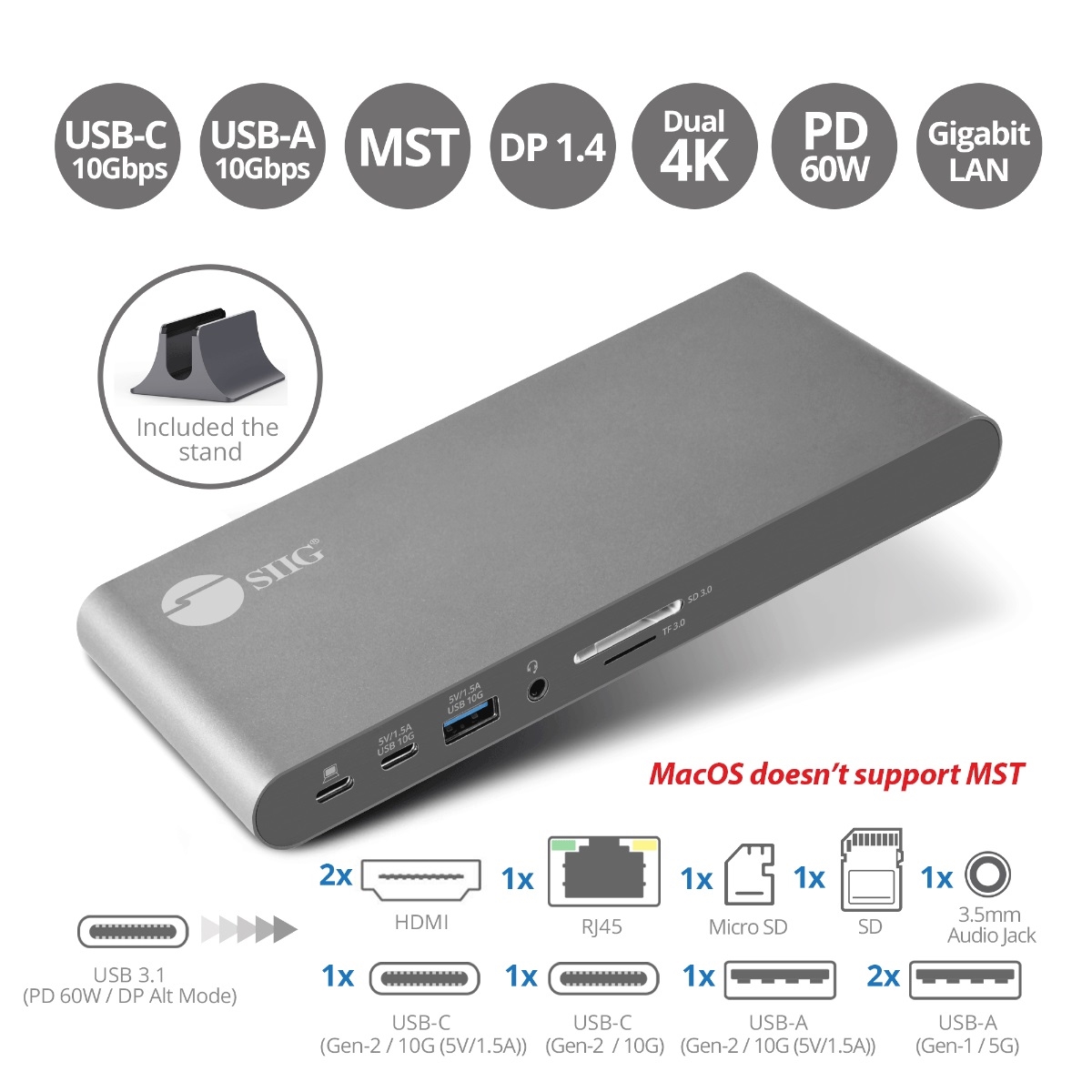

Product Description

Features

Transforms a single USB-C port with DP Alt mode* or Thunderbolt 3 technology into multiple connectivity ports including two simultaneous video outputs *Note: Requires a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.

DisplayPort Multi Stream Transport (MST)* technology supports dual HDMI displays up to 3840x2160 60Hz (with DP 1.4 DSC) or 3840x2160 30Hz (without DP 1.4 DSC) *Note: macOS does not support MST function and will only mirror the displays

Adds a wide variety of ports to your USB-C enabled computer includes - Two USB-C 10Gbps (front port come with 5V/1.5A), one USB-A 10Gbps with 5V/1.5A, one USB-A 5Gbps ports, one SD & TF memory card slots, one Gigabit Ethernet port and 3.5mm headset (Audio/MIC) port

60 Watt PD Charging - Supports up to 60W Power Delivery charging for USB-C laptop.

Ultra-speed Data Transfer - Provides two USB-C 10Gbps (front port come with 5V/1.5A), one USB-A 10Gbps with 5V/1.5A, one USB-A 5Gbps data transfer speeds to enhance your laptop's performance capabilities

Compatible with all laptops and desktops system with USB 3.1 Gen-2 Type-C signal

Easily setting Mirror /Extend/ Primary video mode, streaming video to HDTV monitors and projectors for the perfect visual display

Reliable Wired Network Connectivity - Embedded Gigabit Ethernet port, 10/100/1000BASE-T connectivity

Audio Capability - Includes one 3.5mm headset jack for stereo audio output and microphone capabilities

Support 5.1 channel surround sound through HDM output
Chipset:
VMM5200+RTL8153B+AU84612+VL822
Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification
Resolution:
Dual video up to 3840x2160 60Hz (with DP 1.4 DSC) or 3840x2160 30Hz (without DP 1.4 DSC)3.36
Supports data transfer rate up to 10Gbp/s/5Gbp/s
Compatible networks:
10/100/1000 Mbps
Audio Supported:
HDMI up to 5.1 Channel surround sound 3.5mm headset jack for 2 CH stereo audio
Supported modes:
Extend, Mirror and Primary Display
Power Delivery:
Up to 60W via USB-C for laptop source
Color:
Black
Housing material:
Aluminum housing with stand
Connectors:
1x 24-pin USB 3.1 Type-C, Female
2x 19-pin HDMI Female, output(Support MST Mode)
2x 24-pin USB-C 10Gbps (USB 3.1 Gen-2), Female, Front side come with 5V/1.5A
1x 9-pin USB-A 10Gbps (USB 3.1 Gen-2 with 5V/1.5A), Female
1x 9-pin USB-A 5Gbps (USB 3.1 Gen-1), Female
1x 8-pin RJ45, Gigabit Ethernet
1x 3.5mm Headset Jack, Stereo audio and MIC
1x SD and TF (Micro SD) 3.0 Card Reader, UHS-I, up to 104MB
1x Power Jack
Power Adapter:
Input:
AC 100-240V/50-60Hz
Output:
DC 24V/4A
UL Listed:
E361658 / Class VI
Environmental conditions:
Operating temperature:
32 to 104 degrees F
Storage temperature:
-4 to 140 degrees F
Relative humidity:
less than 20% to 90% RH (non-condensing)
Certifications/Standards:
FCC / CE / RoHS 2.0 / REACH

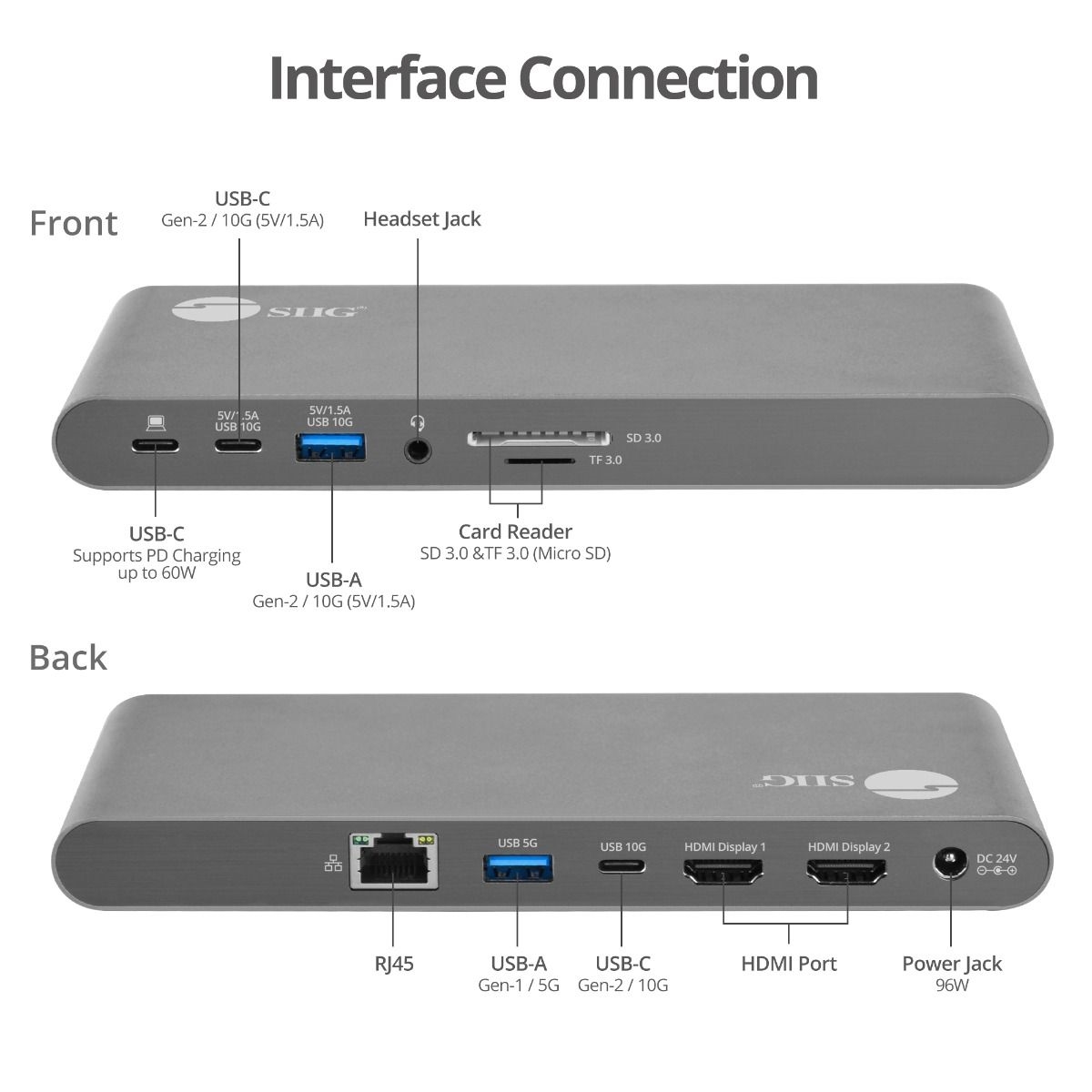

Input:
1x 24-pin, USB-C 3.1, Female (Host)
Output:
2x 19-pin, HDMI (supports MST mode), Female
1x 24-pin, USB-C 3.1 Gen 2 (10Gbps), Female
1x 24-pin, USB-C 3.1 Gen 2 (10Gbps, 5V/1.5A), Female (on front view)
1x 9-pin, USB-A 3.1 Gen 2 (10Gbps, 5V/1.5A), Female
1x 9-pin, USB-A 3.1 Gen 1 (5Gbps), Female
1x 8-pin, RJ45, Gigabit Ethernet, Female
1x 3.5mm, Headset jack, stereo audio and mic
1x SD UHS-I 3.0 card slot, up to 104MB
1x TF (Micro SD) UHS-I 3.0 card slot, up to 104MB
System Requirements
Desktop or laptop computer with an available USB 3.1 Type-C port (with DP 1.4 Alt-mode)
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
Package contents
USB-C Dual Video MST Docking Station with PD Charging
Power Adapter 24V/4A
USB-C to C cable
User Manual

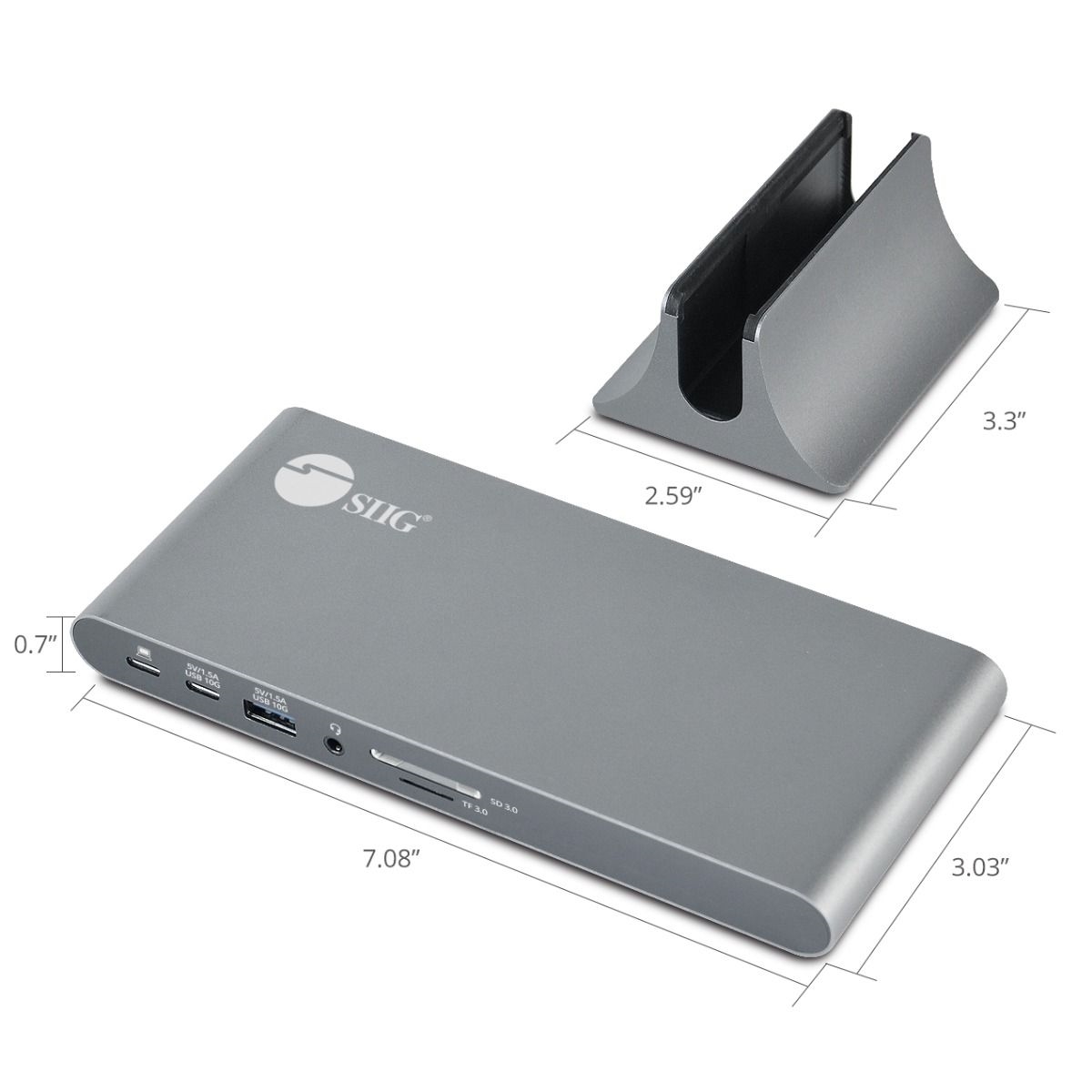

Item Dimension (L inchxW inchxH inch)
8 x 1 x 4

Weight
1.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774045078

SKU

mingleJU-DK0N11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

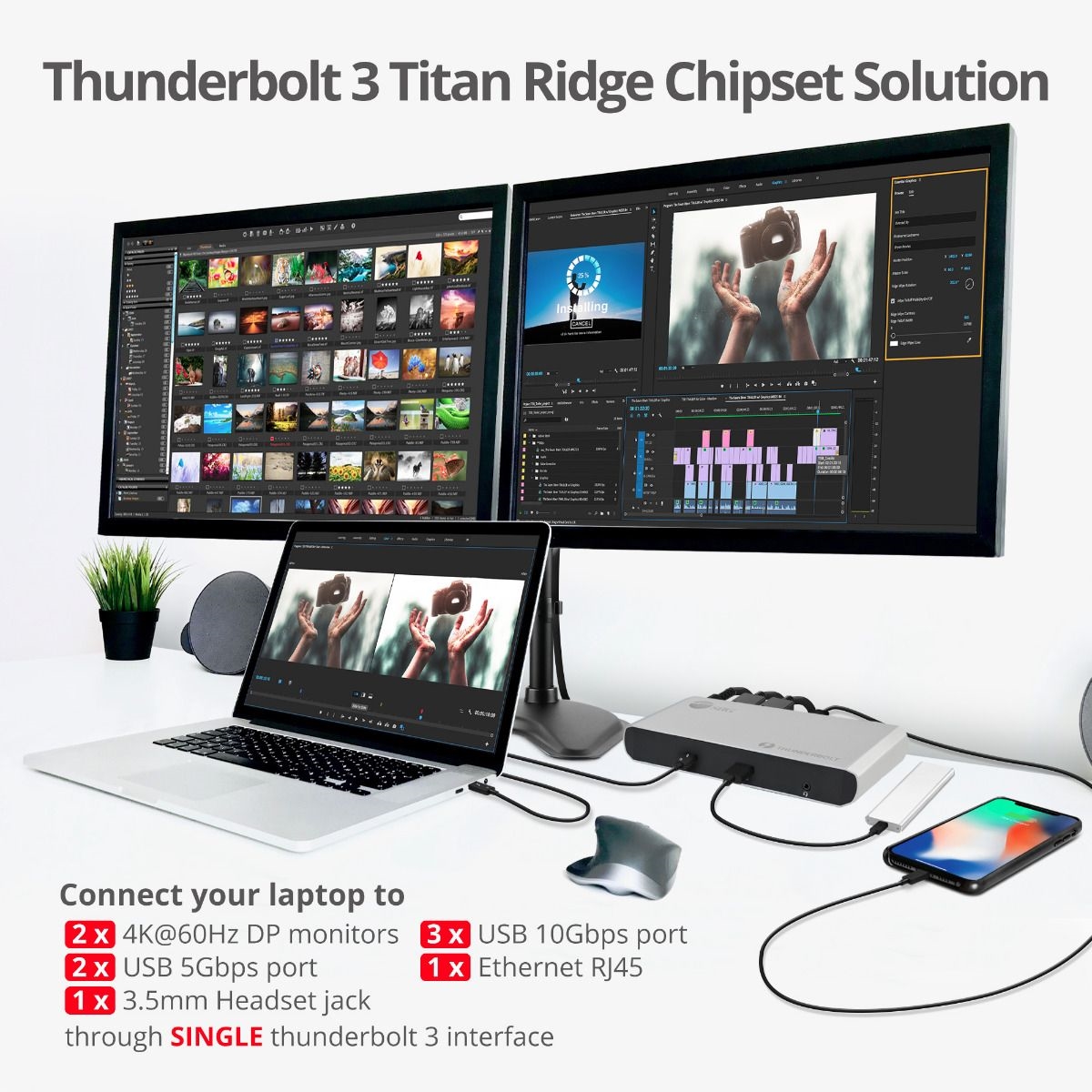

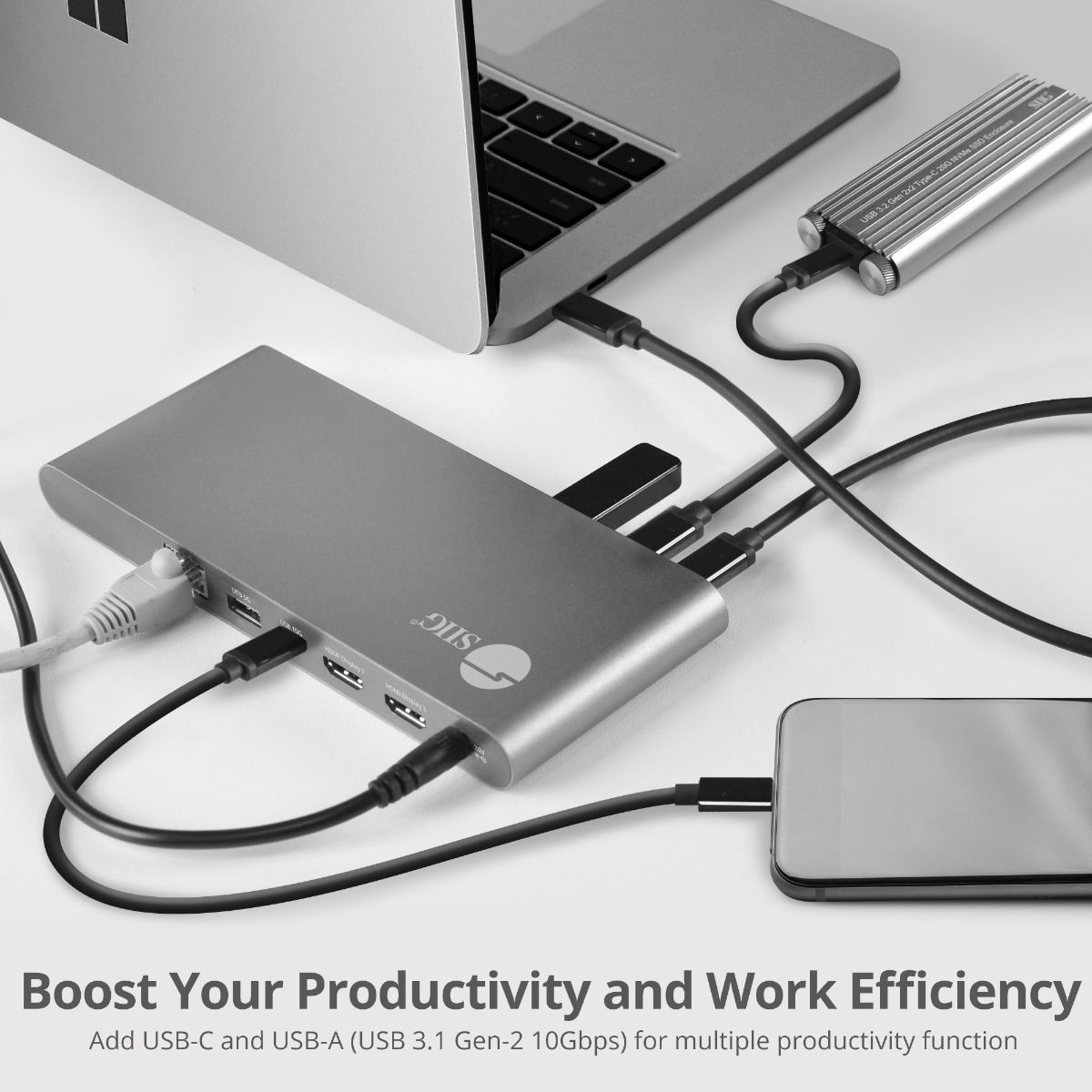

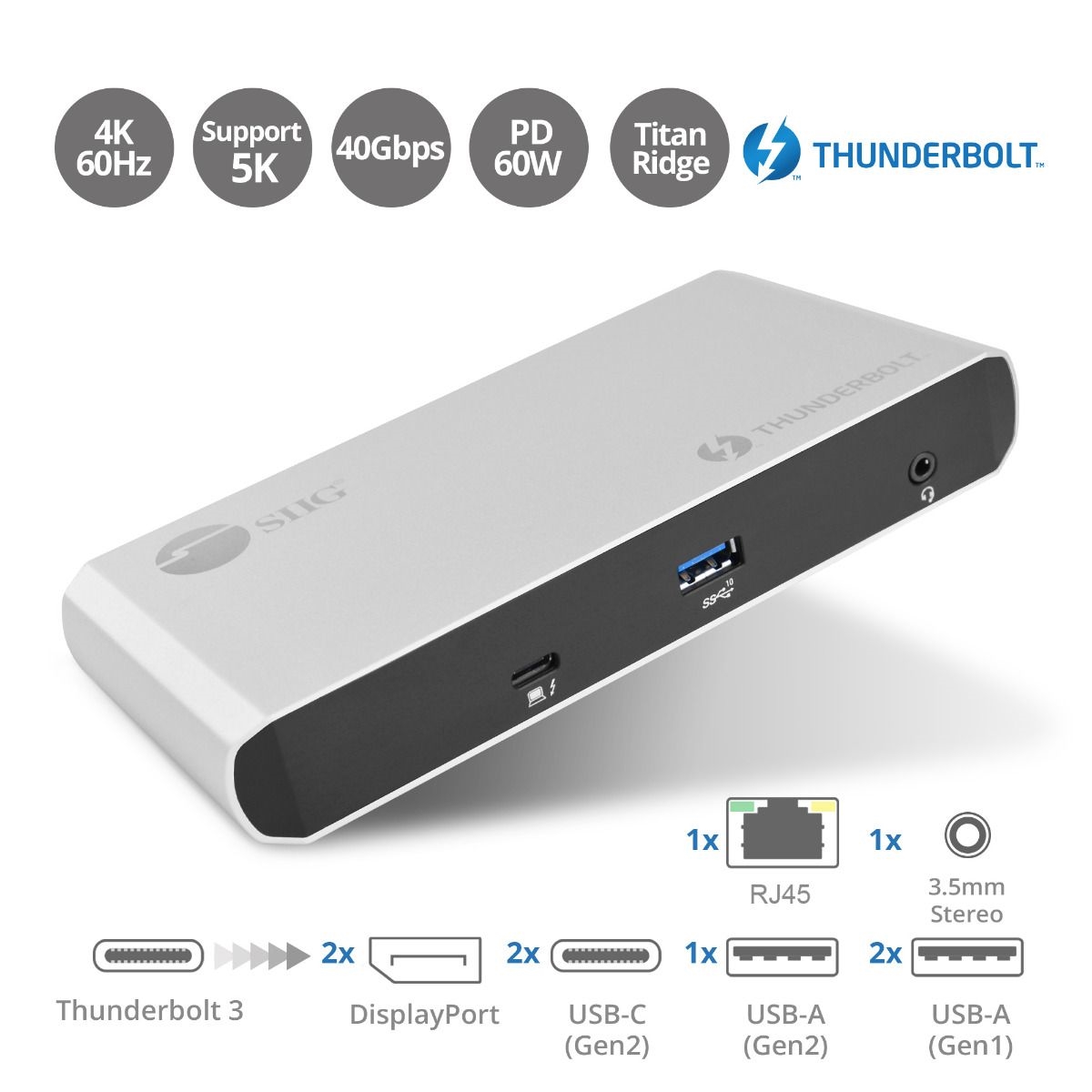

Product Description

oAdds additional connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency

oComes with next generation Intel Titan Ridge IC making the docking station compatible with Thunderbolt 3 and USB-C DP Alt mode compliant systems

oThis docking station adds two USB 3.1 Gen2 Type-C ports, three USB 3.1 Type-A (1 Gen2 with BC 1.2 charging, 2 Gen1) ports, two DisplayPort video ports, one Gigabit Ethernet port, and one dual mode 3.5mm audio jack to connect head phones / Stereo speakers or microphone input

oExperience high resolution graphics by allowing you to connect two 4K Ultra HD displays through DisplayPort connections or a single 5K@60Hz display through dual DisplayPort connection when connected to a Thunderbolt 3 port

oThe included 135W power adapter provides sufficient power for the connected peripherals

oPD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone

oDelivers USB 3.1 Gen-2 10Gbps transfer rate for USB Type-C port and 1 USB Type-A port (Front side)
Chipset: Intel Titan Ridge JHL7440
Compliant with Intel Thunderbolt 3 specifications
Integrated DisplayPort 1.2 interface for 4Kx2K at 60Hz
Integrated Gigabit Ethernet
Up to 1000 Mbps data transfer rate
Backward compatible with 10/100 Mbps
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
Power Delivery 3.0 (USB PD):
5V / 9V / 15V / 20V
Up to 60 watts
Provides one USB 3.1 Gen 2 Type-A with BC 1.2 charging and two USB 3.1 Gen 1 Type-A downstream port
Supports 5.1 channel surround sound from DisplayPort output
Combo 3.5mm audio jack for Stereo audio output / 2-ch Microphone input
Video cable length:
DisplayPort: Up to 3M (max)
Video resolution:
Thunderbolt 3 (source):
Single video:
up to 4K at 60Hz
5K at 60Hz (5120x3200), dual DisplayPort outputs connect to a single 5K DisplayPort display
Dual video: up to 4K at 60Hz
USB-C Alt Mode (source):
Single video: up to 4K at 30Hz (4096x2160)
Dual video: up to 1080p at 60Hz (1920x1080)
Product
Color: Iron Gray
Housing material: Aluminum + plastic
Connectors:
1x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, Input
2x 24-pin, USB 3.1 Gen 2 USB-C, Female (with 5V/1.5A charging)
1x 9-pin, USB 3.1 Gen 2 Type-A, Female (supports BC 1.2 charging)
2x 9-pin, USB 3.1 Gen 1 Type-A, Female
2x 20-pin, DisplayPort, Female, Output
1x 8-pin, RJ45, Gigabit Network, Female, Output
1x 3.5mm, Audio/Headset jack
1x DC power jack
Power Adapter:
Input: AC 100-240V/50-60Hz
Output: DC 20V/6.75A
UL Listed: E132068 / Class VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
7 x 2 x 4
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774042664

SKU

mingleJU-DK0C11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

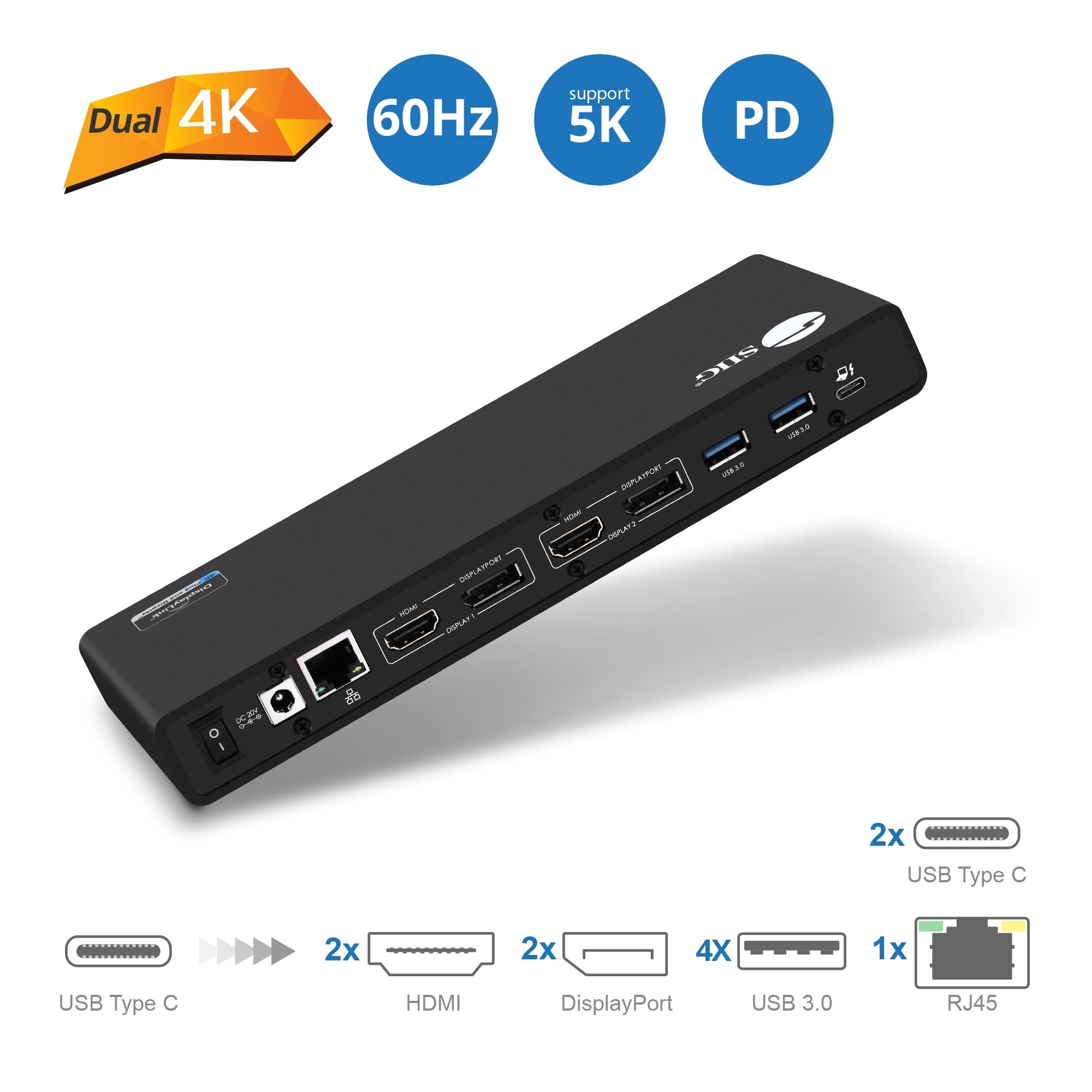

Product Description

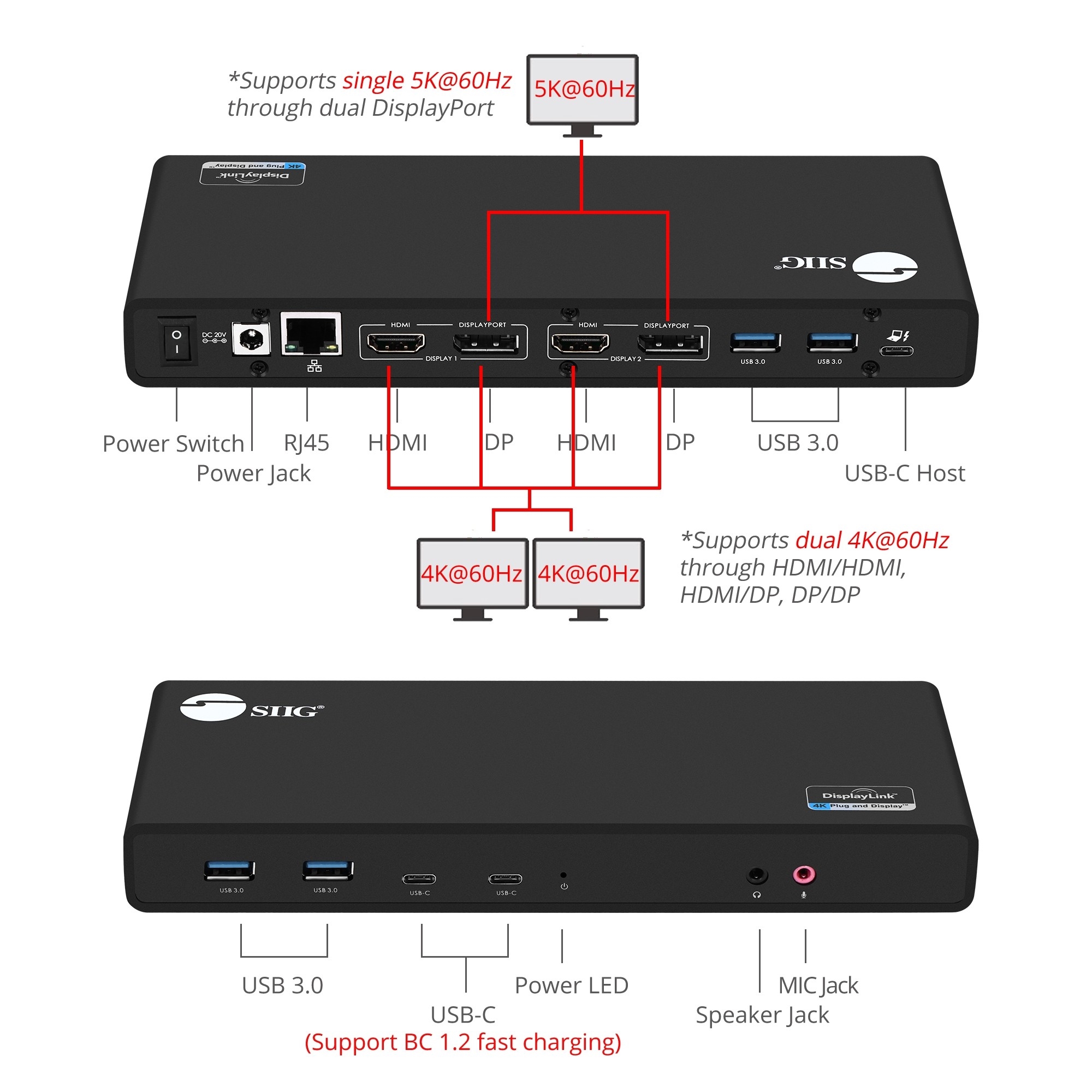

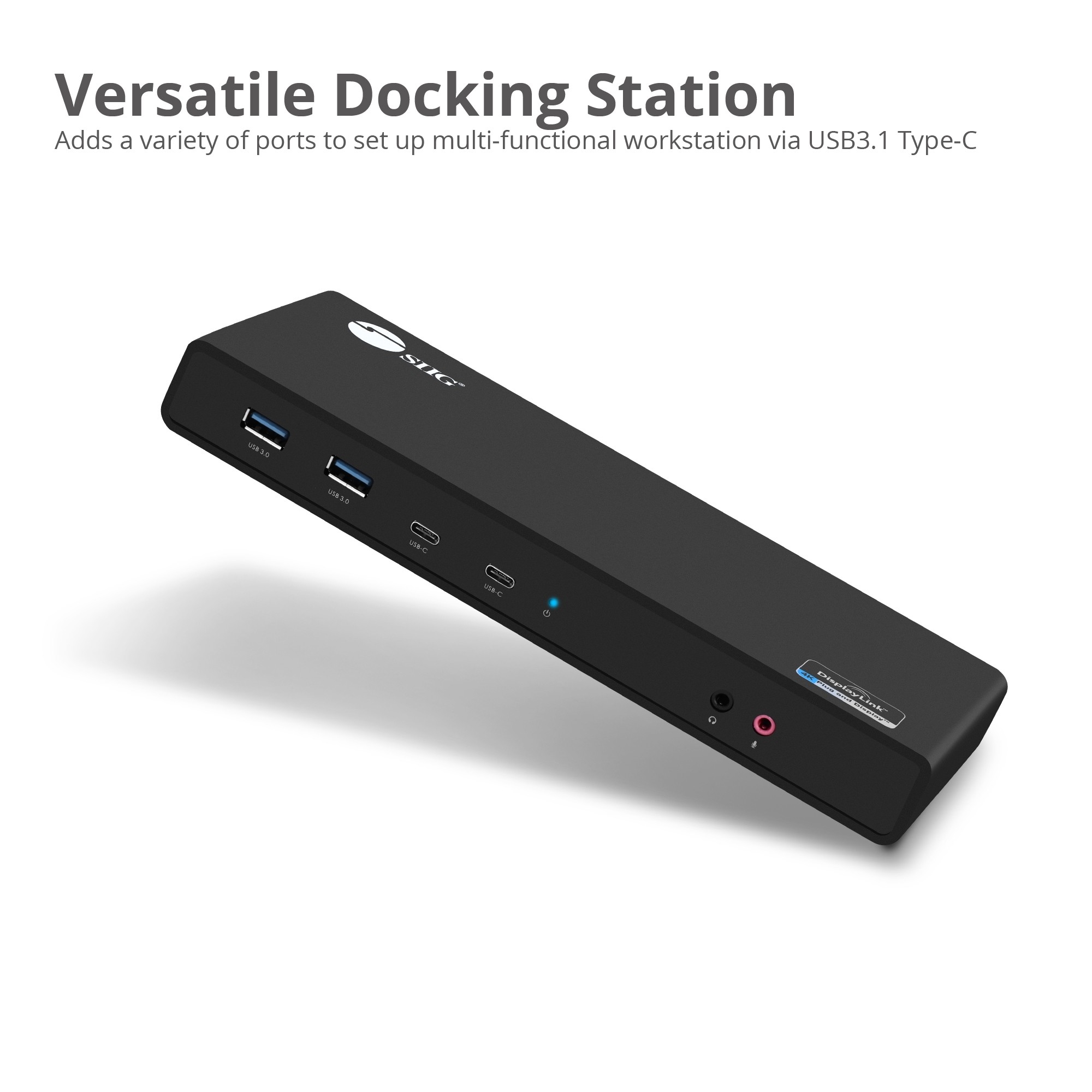

Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer

Industry Recognized Display Technology from DisplayLink - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort

Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor

Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound

USB-C PD Charging - Supports up to 60W power output to charge your laptop

Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology

Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously

Two Fast Charging USB-C ports: Compatible with USB Battery Charge Specification 1.2 (BC 1.2) with up to 5V/1.5A power output, fast charges most portable devices

Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port

Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively

Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
OS Compatibility - Supports various Windows and Mac* computers

*Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier.
Chipset: DisplayLink 6590 + FL5002 + GL3523
Compliant with Universal Serial Bus 3.1 Gen 1 Specification and backward compatible with USB 2.0
Integrated DP 1.2/DP++ interface
Integrated HDMI 2.0 interface
Support 5.1 channel surround sound through DisplayPort and HDMI
Supports USB 3.1 Gen 1 data transfer rate up to 5Gbps
USB Power Delivery up to 60W
Compatible with USB Battery Charge 1.2 (BC 1.2) specification (5V/1.5A output max) on USB-C downstream ports
Supported video cable length:
HDMI: Up to 5M (max)
DisplayPort: Up to 3M (max)
Resolution:
Support resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p

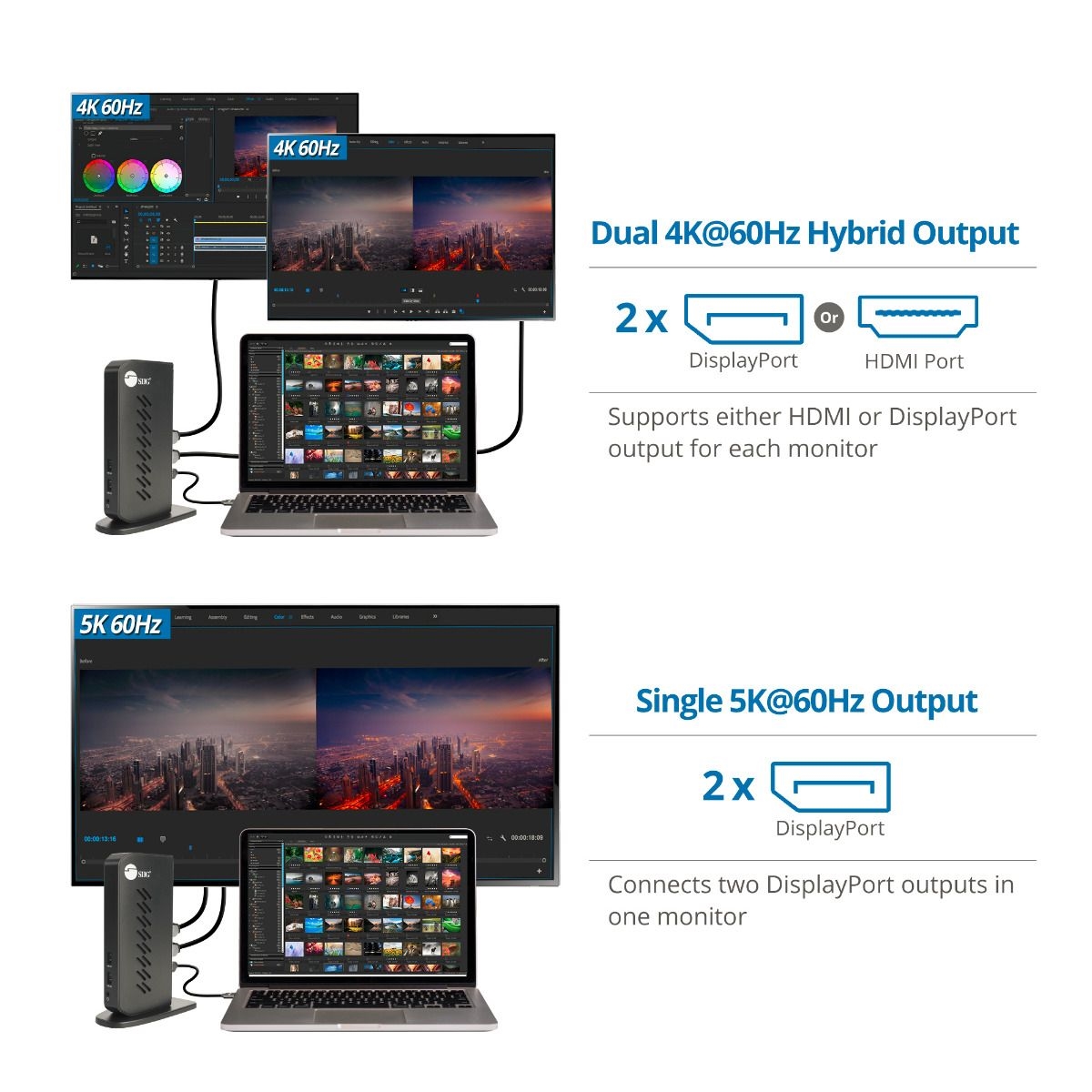

Dual 3840x2160 at 60Hz (4K) through DP + HDMI, HDMI + HDMI, or DP + DP outputs
Single 5120x2880 at 60Hz through dual DisplayPort connection
Note: In order to support 5K output, you must connect both DisplayPort outputs to a single 5K DisplayPort TV/Monitor
Gigabit Ethernet:
Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
Connectors:
1x 24-pin, USB-C, Female, Input, PD charging
4x 9-pin, USB 3.1 Gen 1, Type-A, Female, standard downstream port
2x 24-pin, USB 3.1 Gen 1, Type-C, Female, data downstream port with BC 1.2 charging
2x 20-pin, DisplayPort, Female, Output
2x 19-pin, HDMI Type-A, Female, Output
1x 8-pin, RJ45, Gigabit Network, Female, Output
1x 3.5mm, Stereo audio, Output
1x 3.5mm, Mic, Input
Color:
Black
Housing material:
ABS
Power Adapter:
Input: AC 100-240V/50-60Hz
Output: DC 20V/5A
Environmental Conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. Its recommended to stay with 10.13.3 or earlier.
Item Dimension (L inchxW inchxH inch)
6 x 11 x 4

Weight
2.93lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774041254

SKU

mingleJU-DK0811-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

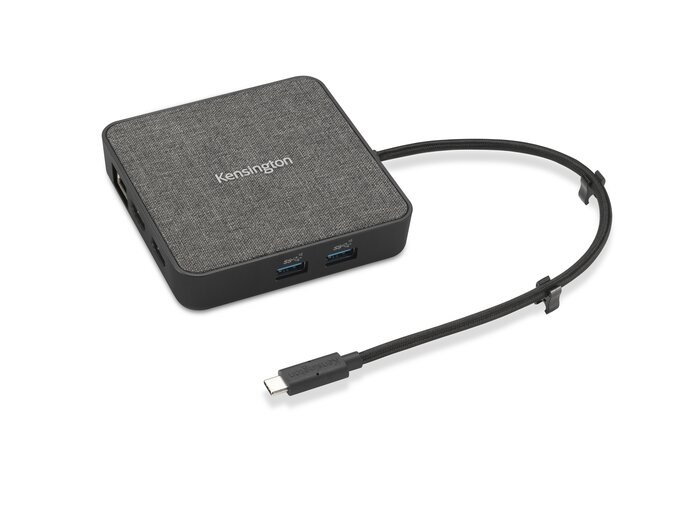

Product Description

Features

Universal Compatibility

Leading the way with USB4, this dock supports numerous technologies, operating systems, and devices. These include USB4, Thunderbolt 3, Thunderbolt 4, and USB-C 3.2 devices running Windows, macOS, iPadOS, and Samsung Dex operating systems. Great for MacBooks with Apple Silicon, USB-C based iPads, USB4-enabled AMD laptops, and more.

Maximizes Video Output

Two HDMI 2.1 ports deliver up to 8K @ 60Hz for single monitor, and up to 4K @ 120Hz for dual monitors*. *Dual 4K not applicable to all devices. Single monitor for M1 MacBook up to 4K @ 60Hz, Dual monitors for M1 Pro and M1 Max MacBook up to 4K @ 60Hz, and up to Single 2K @ 60Hz for iPads and Samsung DeX enabled devices (resolution may vary based on device).

Up to 100W Power Pass-Through

Plug your laptop s USB-C power adapter (80W or greater) into the dock for pass-through power to the laptop (USB-C device must support Power Delivery), or power the dock and connected devices using the laptop s battery when traveling. Add the optional 100W Power Adapter (sold separately) for video, data, and power all in one dock.

Productivity Ports

Extend productivity with up to 40Gbps upstream speed. Includes one USB-C 3.2 Gen2 port supporting data transfer and power pass-through (5V/0.9A charging via bus power, up to 100W charging via power pass-through), two USB-A 3.2 Gen2 ports, and one 2.5Gbps Ethernet port.

Sleek, Compact Design

Ideal for the hybrid worker, the dock fits into your backpack or carrying case for productivity on the go. The matte, soft-touch coating, and soft fabric surface add protection while visually complementing your workspace.

Cable Storage Clips

Neatly stow the 9.8 (25cm) USB4 cable during transport and when not in use.
Connection Technology
USB4
Driverless
Yes
Additional Screen Outputs
2
Video Ports
HDMI
Maximum Resolution
8K
Power Delivery
Pass-Through Power
Operating System(s)
macOS, Windows, iPadOS, Samsung DeX
SD Card Reader
No
Number of USB Ports
3
USB Fast Charging
No
Docking Station Family
The Innovator
DockWorks
No
Best For
USB4, Thunderbolt 3, Thunderbolt 4, USB4-enabled AMD laptops, and USB-C laptops that support Power Delivery and Monitors that support up to dual 4K
Compatibility
Windows 10 or above, macOS 11 or above, iPadOS 13 or above, Samsung DeX
USB-A Ports
2 x USB-A 3.2 Gen2 10Gbps (5V/0.9A)
USB-C Ports
1 x USB-C 3.2 Gen2 10Gbps (5V/0.9A, up to 100W power pass-through)
Ethernet Speed (Mbps)
1000, 100, 10, 2500
Maximum Resolution Supported
Up to Single 8K at 60Hz or Dual 4K at 120Hz (DSC enabled)
Plug and Play
Plug and Play installation without need for drivers or downloads
System Requirements
Compatible with laptops equipped with USB4, Thunderbolt 3/4 and USB-C ports supporting Power Delivery and DisplayPort Alt mode

Available Quantity

5

UPC

085896328506

SKU

mingleK32850WW

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

USB-C Laptop Stand with Dual 4K MST Docking Station, adds Dual 4K@30Hz displays, one USB-C 5Gbps, two USB-A 5Gbps, one Gigabit Ethernet, one 3.5mm Headset Jack, and USB Power Delivery charging up to 85W to Windows/Mac computers, fits 10" to 17" laptops, weights up to 13.23 lbs (6 kg)


Features

Create dual 4K displays with MST technology and the perfect ergonomic viewing position with the USB-C DP 1.4 Alt mode laptop stand, detachable docking station, and PD 100W


Video Resolution

Supports dual 4K (3840x2160) @30Hz or 2K (2560x1440) @60Hz video resolution displays and one single 4K (3840x2160) @60Hz display to deliver stunning crystal-clear images/videos and 5.1-ch. surround sound


3 Display Modes

Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode for perfect visual displays

*Note: macOS only supports Mirror mode


Multiple Connectivity Port

Comes with one USB-C with DP Alt mode and PD input ports (Host), one HDMI video output port, one DisplayPort video output port, one USB-A 3.2 Gen 1 ports, one USB-A 3.2 Gen 1 with 5V/1.5A charging port, one USB-C 3.2 Gen 2 with 5V/1.5A port, one Gigabit Ethernet network port, one 3.5mm headset jack to connect Microphone and Stereo audio, and one USB-C PD charging port


USB-C laptop stand with detachable Docking Station design

Allows you to use the docking station separated from or jointly with the laptop stand. The crafted slight track on the base keeps the docking station stayed firmly even when you move the stand


USB-C/USB-A 3.2 Data Transfer

Delivers one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps), one USB-C 3.2 Gen 1 with 5V/1.5A (5Gbps), and one USB-A 3.2 Gen 1 (5Gbps) to enhance the performance and transfer capability of USB devices
Hardware
Chipset
RTD2142+VL817+VL03B+RTL8153
Compliant with Universal Serial Bus 3.2, 3.0 and 2.0 specifications
Software
OS Compatibility
Windows 11, mac OS 12 or new
Video
DisplayPort
x1, with MST technology, 4K at 60Hz
HDMI
x1, with MST technology, 4K at 60Hz
- Single monitor: 4K at 60Hz Dual monitors: 4K at 30Hz or 2K at 60Hz
Display Mode
Mirror, Extended, Primary video modes ( MacOS only supports Mirror mode)
USB
USB-C 3.2 Gen 1
x1, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x1, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x1, data transfer rate up to 5Gbps, 5V/900mA
Fast Charging Port
Yes
Audio
7.1 channel surround sound from DisplayPort/HDMI output
2 channel stereo audio and microphone from 3.5mm headset jack
Power Adapter
Power Delivery 3.0
Up to 85W via USB-C port (Host)
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 140 degrees F
Relative humidity:
20% to 90% RH (non-condensing)
Product Info
Laptop Stand
Color:
silver
Housing material:
Aluminum
Docking Station
Color:
silver
Housing material:
Aluminum
Certifications/Standards:
FCC, CE, RoHS 2.0, REACH
Interface
Input:
1x 24-pin, USB-C 3.2 Gen 1, Female (Host)
1x 24-pin, USB-C 3.2 Gen 1 with 5V/1.5A, 5Gbps, Female
1x 9-pin, USB-A 3.2 Gen 1 with 5V/1.5A, 5Gbps, Female
1x 9-pin, USB-A 3.2 Gen 1, 5Gbps, Female
1x 24-pin, USB-C charging, PD only (100W)
Output:
1x 19-pin, HDMI with MST, Female
1x 20-pin, DisplayPort with MST, Female
1x 8-pin, Gigabit Ethernet, RJ45
1x 3.5mm headset jack, stereo audio and mic
System Requirements
PC or laptop computer with available USB 3.2 Gen 1 Type-C with DP 1.4 Alt mode or Thunderbolt 3/4 port
Windows 11 / 10

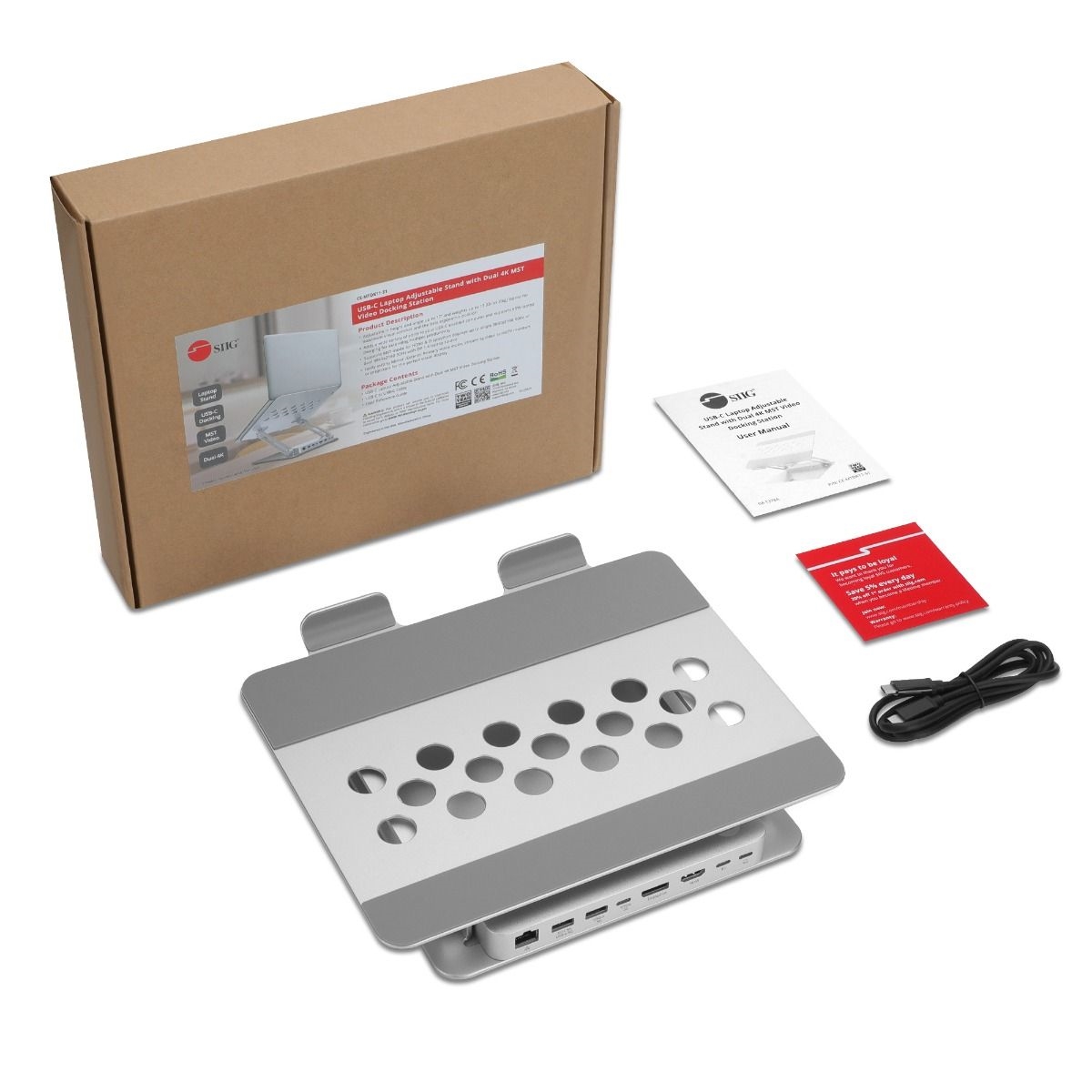

Package contents
1x USB-C Laptop Adjustable Stand with Dual 4K MST Video Docking Station
1x USB 3.2 Gen 1 Type-C to C cable
4x Rubber pad
1x User Reference Guide

Available Quantity

5

UPC

662774045375

SKU

mingleCE-MTDK11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

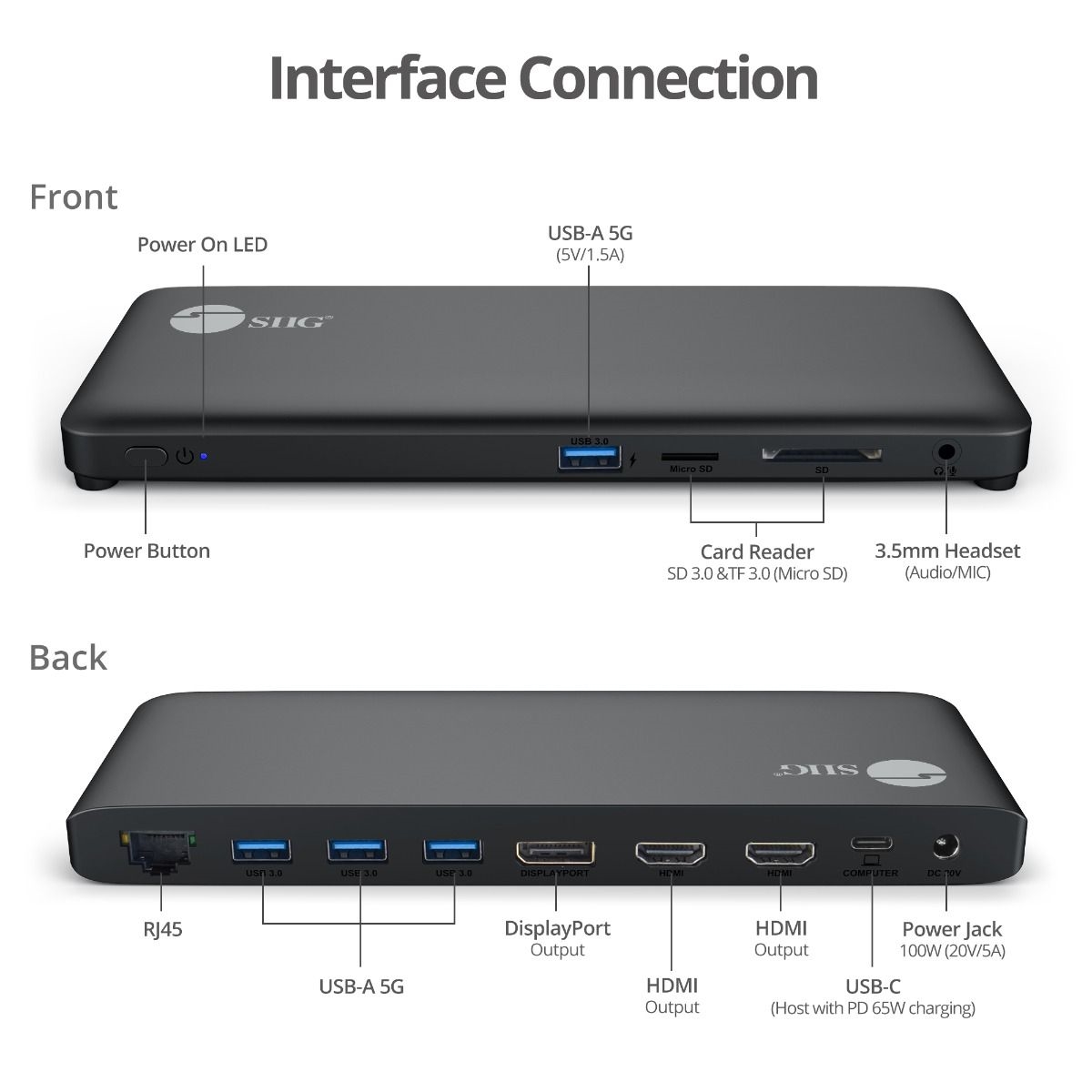

Product Description

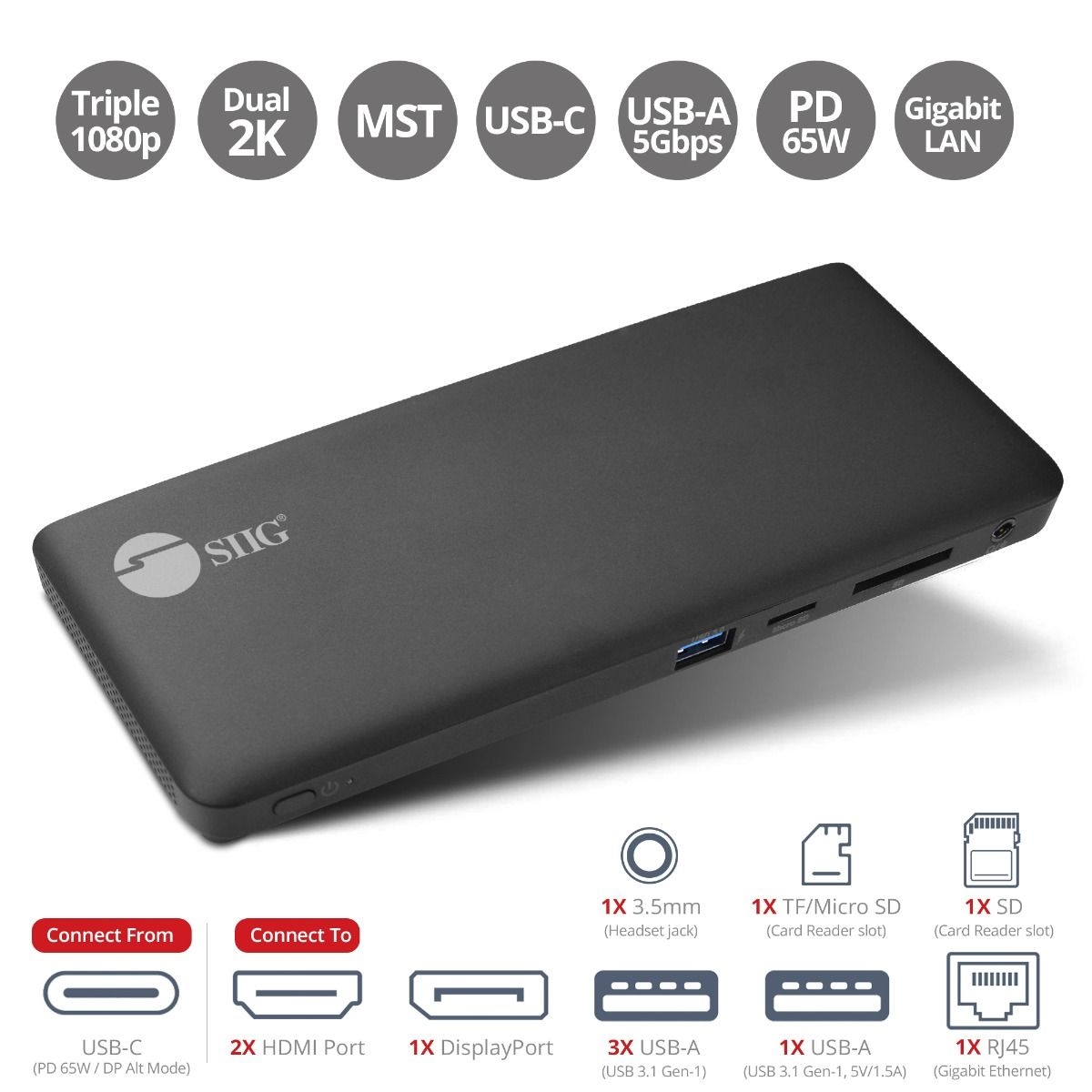

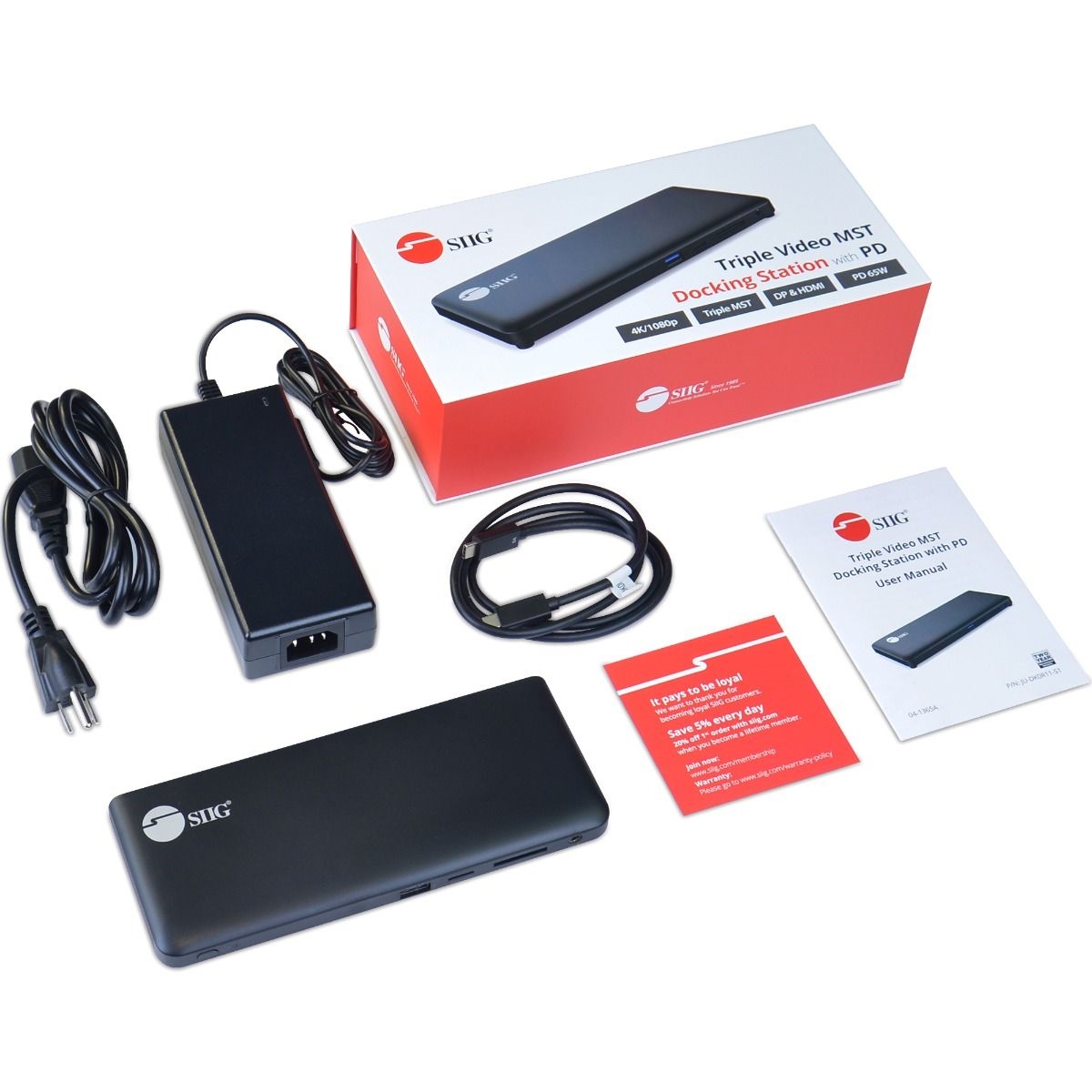

Advanced USB-C docking station adds Triple monitors of DisplayPort & HDMI, one USB-A 3.1 Gen-1 5Gbps with 5V/1.5A fast charging, three USB-A 3.1 Gen-1 5Gbps, one SD 3.0 & Micro SD (TF) 3.0 memory card slots, one Gigabit Ethernet port, a 3.5 mm headset jack for 2-Ch. stereo audio & MIC, and PD up to 65W to Windows computers


Features

Triple displays (DisplayPort/HDMI) with MST technology, 65W PD, and multiple connections by a single USB-C with DP 1.4 Alt mode input to build a productivity workstation


Video Resolution

Supports single 4K (3840x2160, 4:2:0) @60Hz Ultra HD video resolution or Dual 2K (2560x1440) @60Hz or triple 1080p (1920x1080) @60Hz displays with DP 1.4 alt mode and 5.1-ch. surround sound


3 Display Modes

Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays

* Note: macOS only supports Mirror mode


Multiple Connectivity Ports

Adds one USB-C port with DP 1.4 Alt mode and PD 65W (Host), one DisplayPort video output port with MST technology, two HDMI video output ports with MST technology, one USB-A 3.2 Gen 1 5Gbps with 5V/1.5A charging port, three USB-A 3.2 Gen 1 5Gpbs, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 3.0 memory card slot, one Micro SD (TF) 3.0 memory card slot, one DC 20V/5A power jack, and one power on/off button


USB-A 3.2 Data Transfer

Provides one USB-A 3.2 Gen 1 5Gbps with 5V/1.5A charging and three USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices
Hardware
Chipset
VMM5310 + RTL8153
Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specifications
Software
OS Compatibility
Windows 11, mac OS 12 or new
Note: macOS 10.13.4 to 10.13.6 is not supported
Video
DisplayPort
x1, with MST technology, 4K at 60Hz
HDMI
x2, with MST technology, 4K at 60Hz
Display Mode
Mirror, Extended, Primary video modes (Note: MacOS only supports Mirror mode)
USB
USB-A 3.2 Gen 1
x1, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x3, data transfer rate up to 5Gbps, 5V/900mA
Fast Charging Port
Yes
Audio
5.1 channel surround sound from DisplayPort/HDMI output
2 channel stereo audio and microphone from 3.5mm headset jack
Memory Card Reader
SD 3.0 (UHS-I) slot
data transfer rate up to 104 MB/s
Micro SD/TF 3.0 (UHS-I) slot
data transfer rate up to 104 MB/s
Power Adapter
Power Delivery 3.0
up to 65W via USB-C port (Host)
Power Adapter
Input: AC 100-240V/50-60Hz, Output: DC 20V/5A, UL listed: E132068/ Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 140 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS 2.0, REACH

Available Quantity

5

UPC

662774045139

SKU

mingleJU-DK0R11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

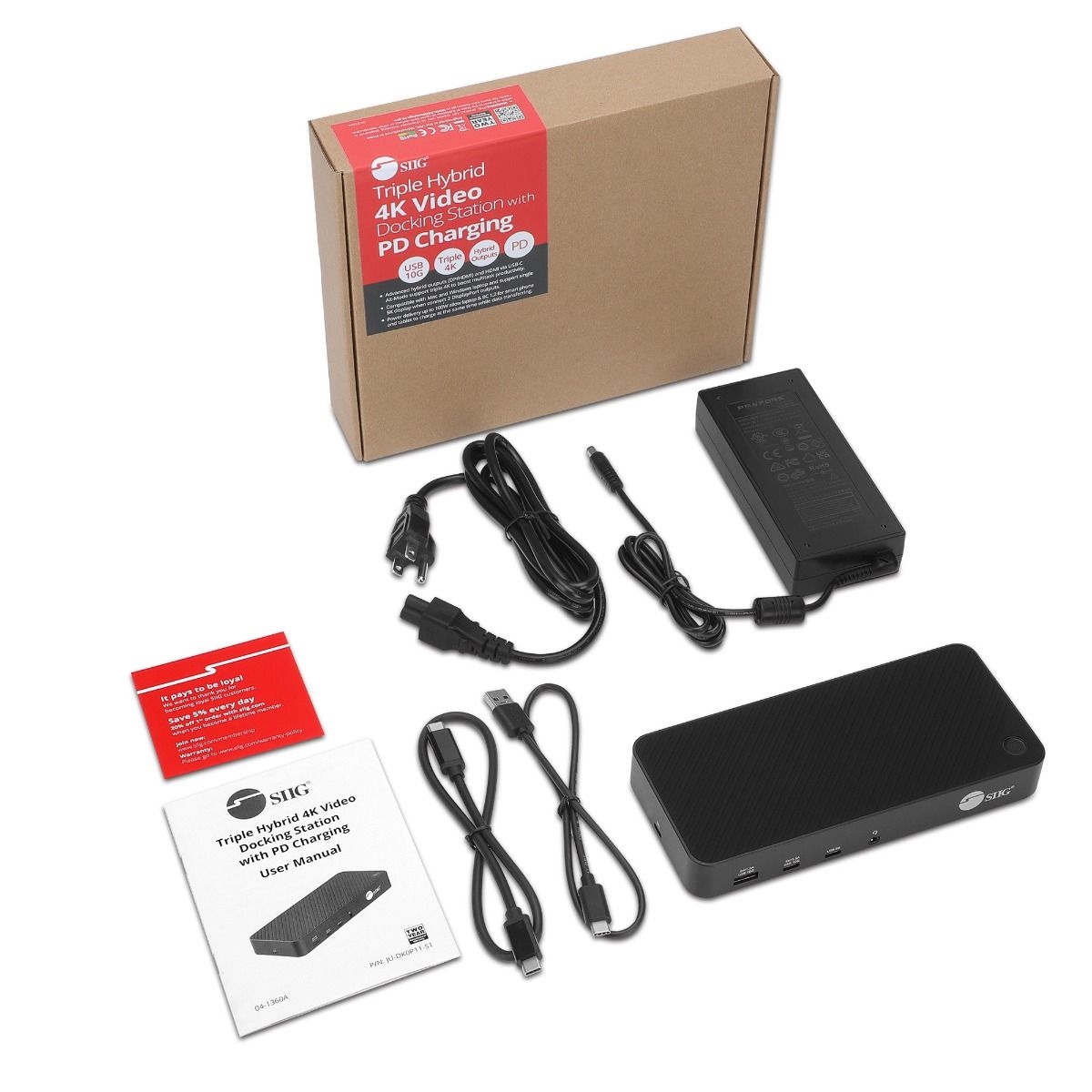

Product Description

Features

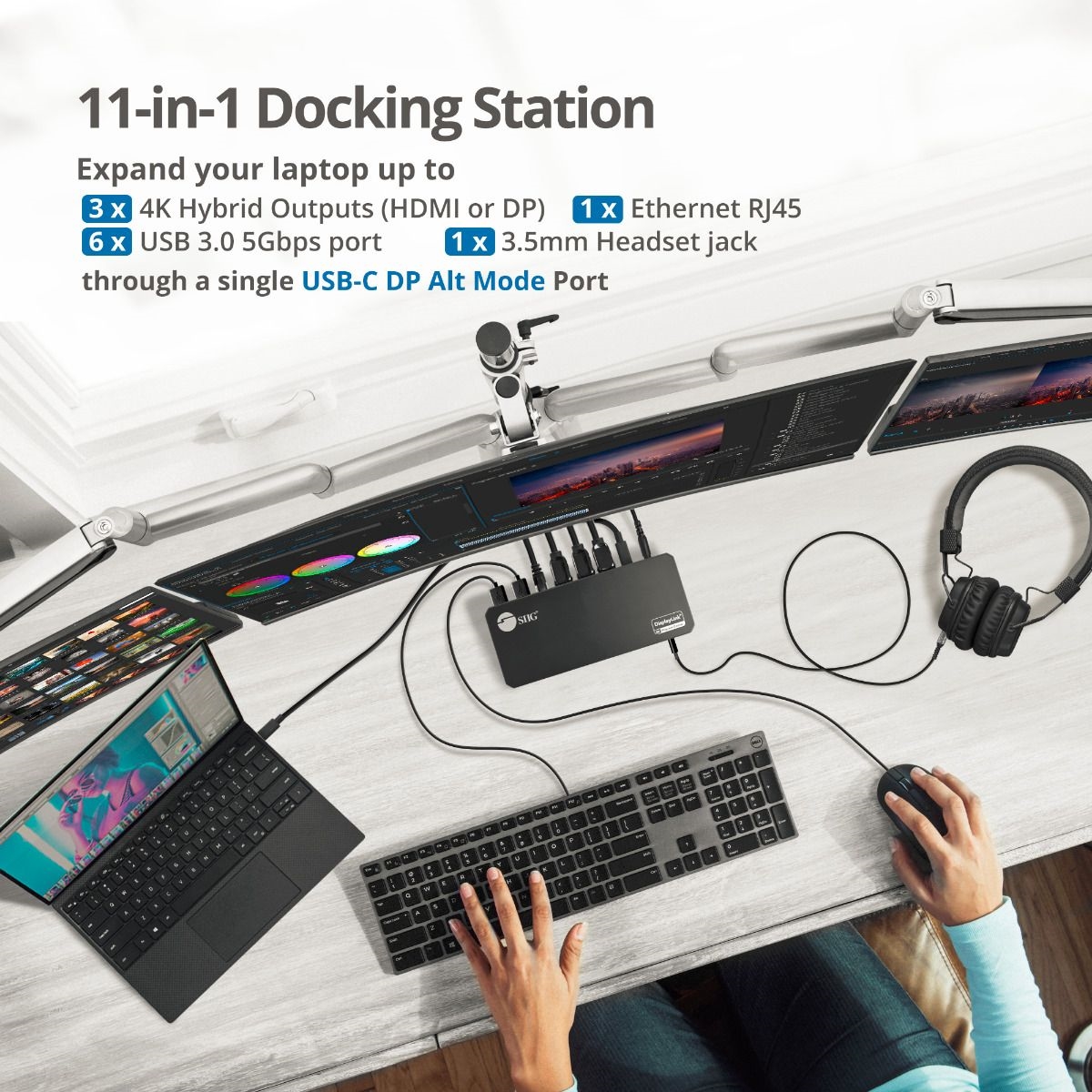

Adds Up to Three 4K displays - One 4K@30Hz via USB-C DisplayPort Alt-mode outputs plus two 4K@60Hz via DisplayLink outputs

Note: Non DisplayPort Alt mode USB-C ports will only provide two 4K@60Hz displays through advanced DisplayLink chipset and drivers

Fully compatible with USB Type-C, Type-A & Thunderbolt 3 laptops and desktops. Both USB-C to USB-C cable and USB-C to USB-A cable included

Hybrid Video Outputs - support Dual monitor via 2 DP & 2 HDMI for Mix output, and the other HDMI via USB-C DisplayPort Alt-mode (MacBook Pro with a USB-C/TBT3 port) support 3 displays up to 4K resolution, for USB-C non DisplayPort Alt-mode is only support 2 Displays up to 3840x2160 60Hz via USB DisplayLink output

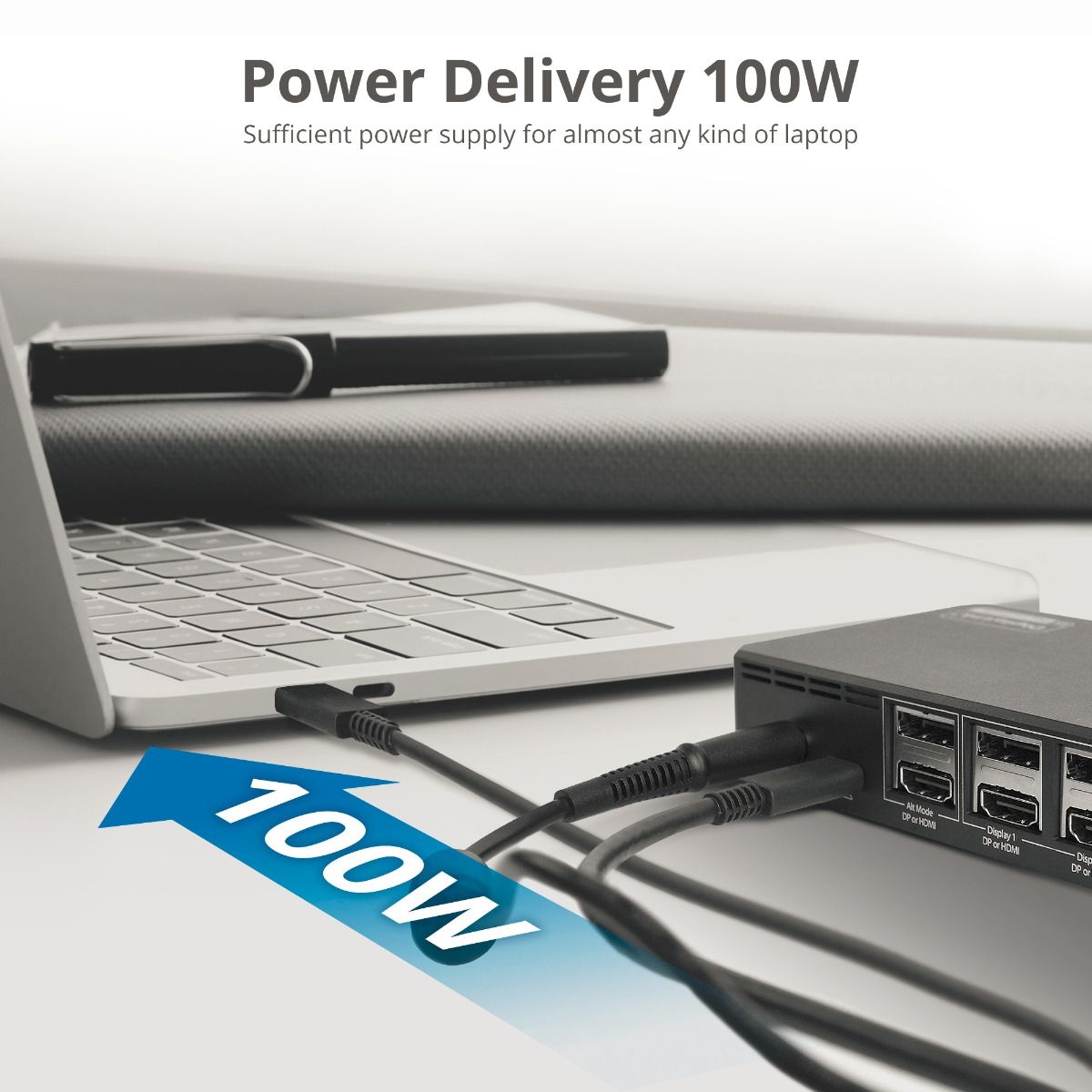

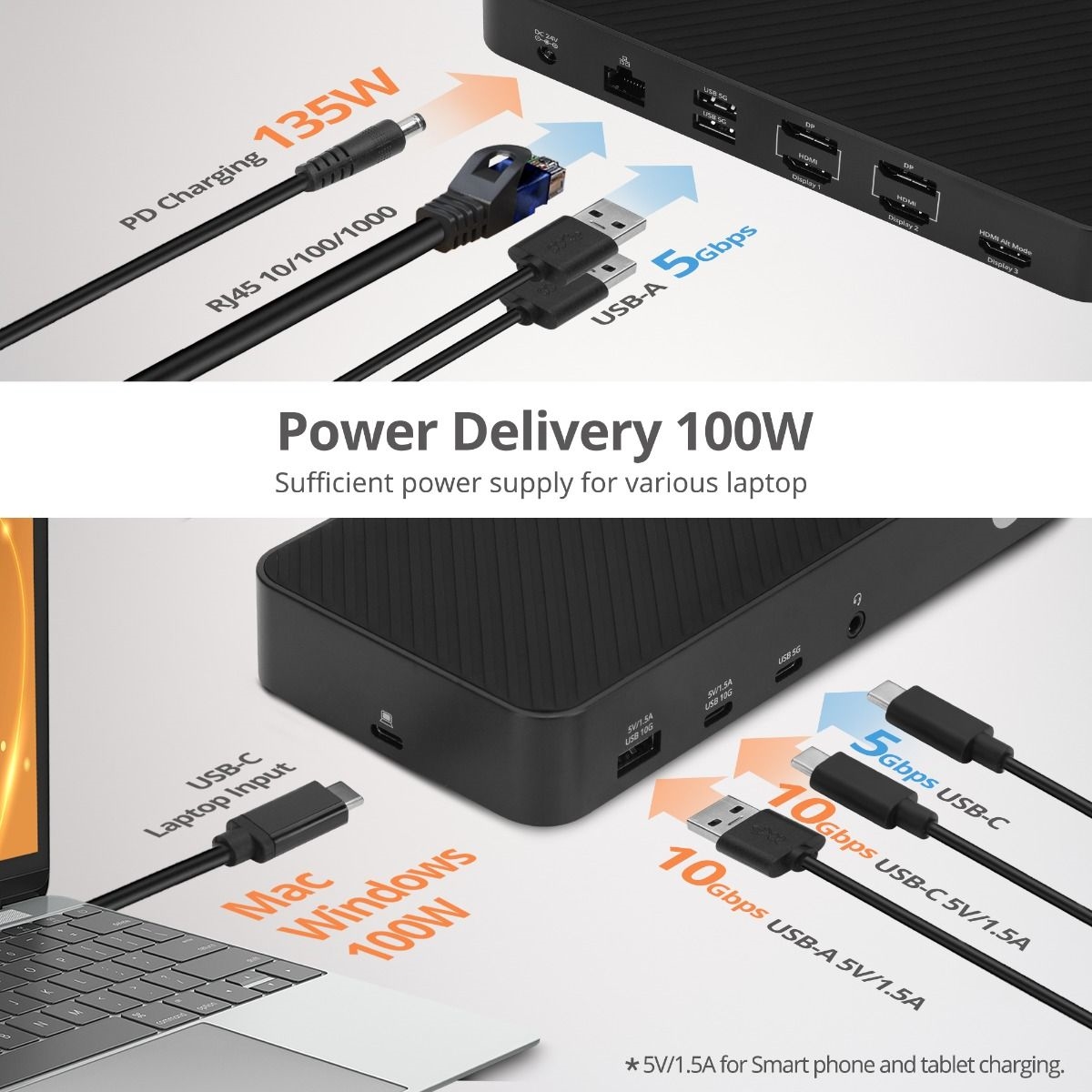

100 Watt PD Charging - Includes high quality USB-C 20V/5A cable for connection to laptop, supports up to 100W Power Delivery chargingfor laptop. The included 135W power adapter ensure enough power for laptop charging and USB peripherals

Ultra-speed Data Transfer - Provides one USB-C 10Gbps with 5V/1.5A Fast Charging, one USB-A 10Gbps with 5V/1.5A Fast Charging, one USB-C 5Gbps and two USB-A 5Gbps data transfer speeds to enhance your laptop's performance capabilities

Reliable Wired Network Connectivity - Embedded Gigabit Ethernet port, 10/100/1000BASE-T connectivity

Audio Capability - Includes one 3.5mm headset jack for stereo audio output and microphone capabilities

Power LED - Built-in power On/Off button with LED provides easy recognition of power status

Compatibility Notes:
- macOS 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website

-Docking station is suggested for use with web and productivity software; not recommended for gaming

- Cannot be used with non-DisplayLink USB adapters and docking stations
Chipset:
DL6950-N + PS176 + VL822 + VL817
- Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification
Resolution:
5K (Connect both DP outputs to a single TV/Monitor) / 4K / 1080p / 1080i / 720p / 480p
- Supports data transfer rate up to 10Gbps (Gen-2) and 5Gbps (Gen-1)
Compatible networks:
10/100/1000 Mbps
Audio Supported:
HDMI / DP up to 5.1 Channel surround sound 3.5mm headset jack for 2 CH stereo audio
Supported modes:
Extend, Mirror and Primary Display
Power Delivery:
PD 3.0 up to 100W via USB-C for laptop source
Color:
Black
Housing material:
ABS with Silicon pad

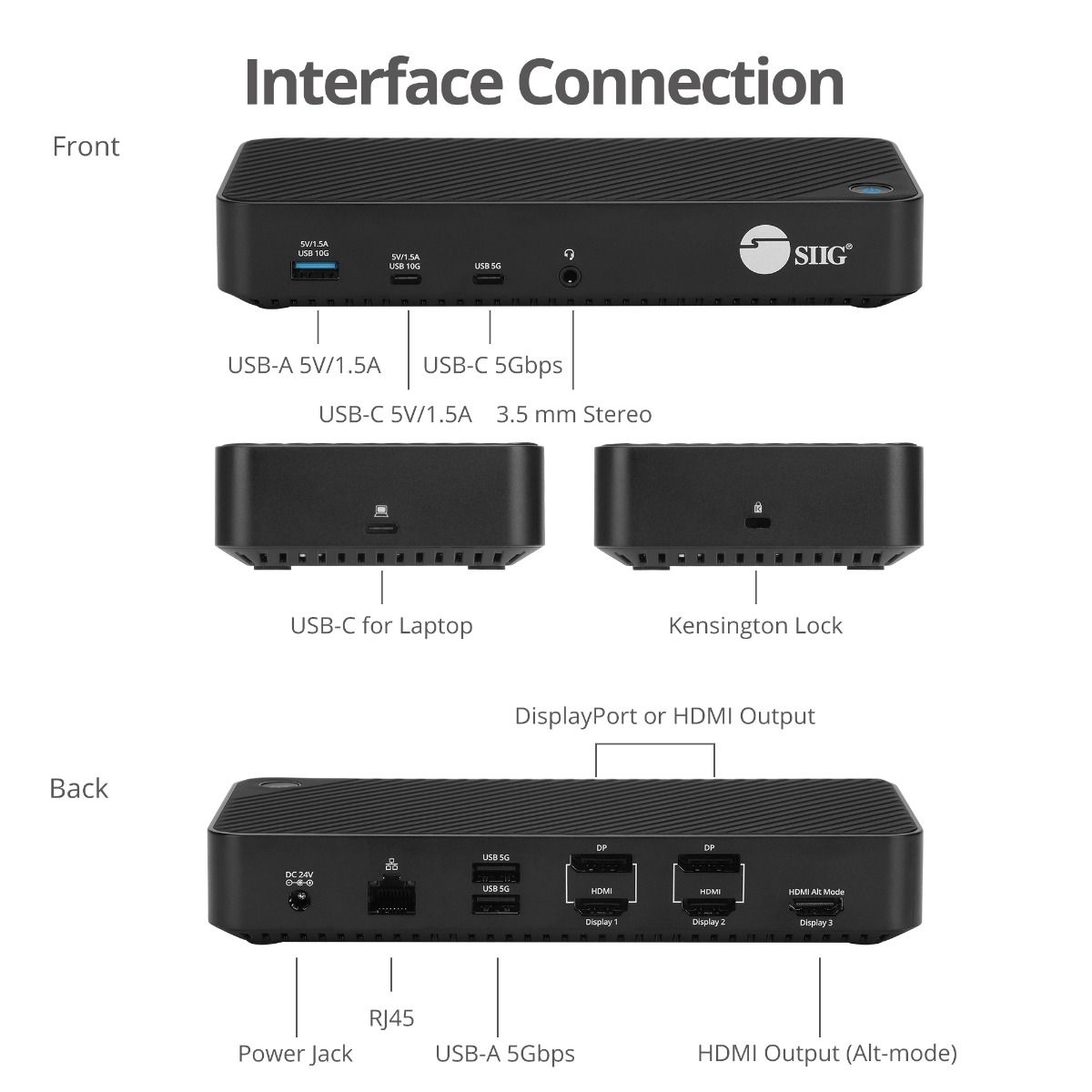

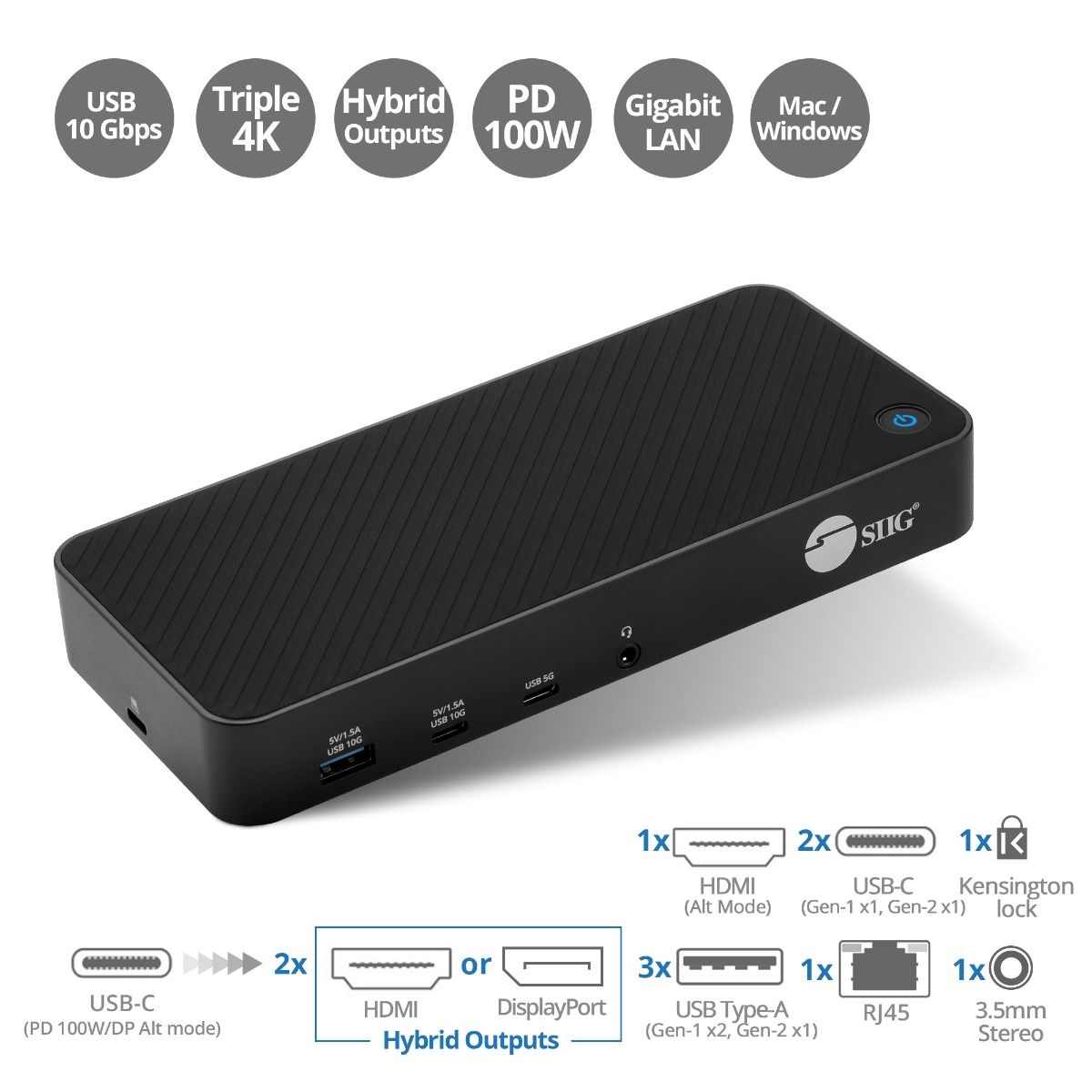

Connectors:
1x 24-pin USB-C with PD 100W, Female, input
1x 19-pin HDMI Female, output(Alt-Mode)
2x 19-pin HDMI Female, output(DisplayLink)
2x 20-pin DisplayPort Female, output(DisplayLink)
2x 9-pin USB-A 5Gbps (USB 3.1 Gen-1), Female
1x 9-pin USB-A 10Gbps (USB 3.1 Gen-2 with 5V/1.5A), Female
v1x 24-pin USB-C 10Gbps (USB 3.1 Gen-2 with 5V/1.5A), Female
1x 24-pin USB-C 5Gbps (USB 3.1 Gen-1), Female
1x 8-pin RJ45, Gigabit Ethernet
1x 3.5mm Headset Jack, Stereo audio and MIC
1x Kensington lock
1x Power button
Power Adapter:
Input: AC 100-240V/50-60Hz
Output: DC 24V/5.41A
UL Listed: E355343 / Class VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: less than 10% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L inchxW inchxH inch)
10 x 2 x 9

Weight
2.34 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774045085

SKU

mingleJU-DK0P11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

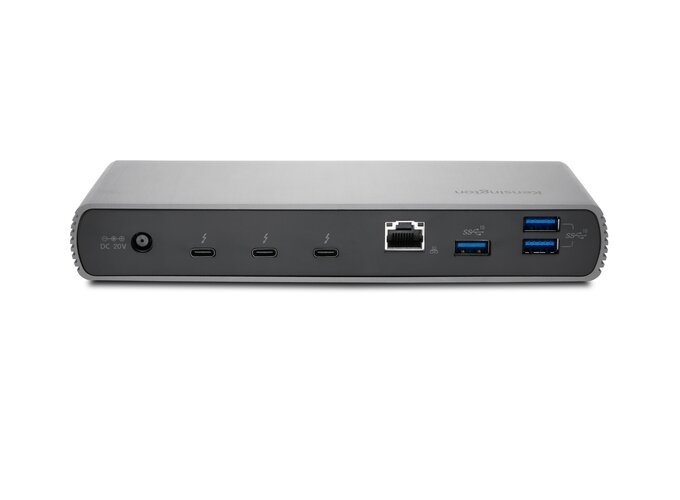

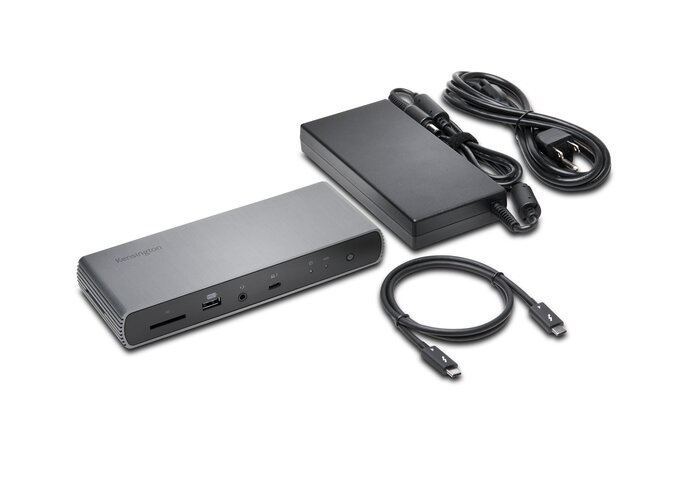

Product Description

Compatibility

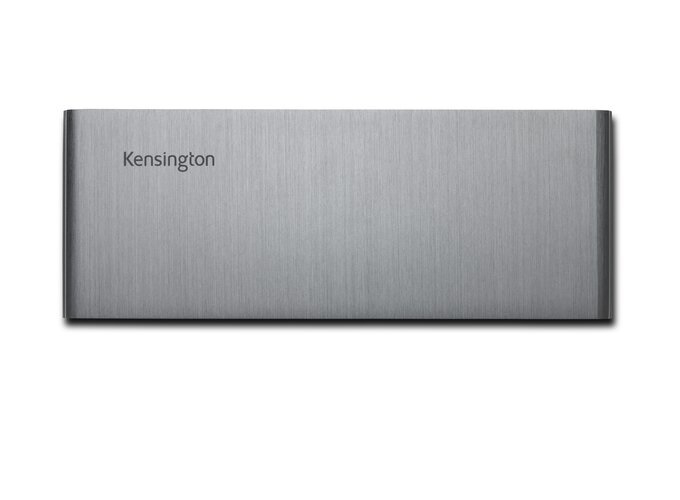

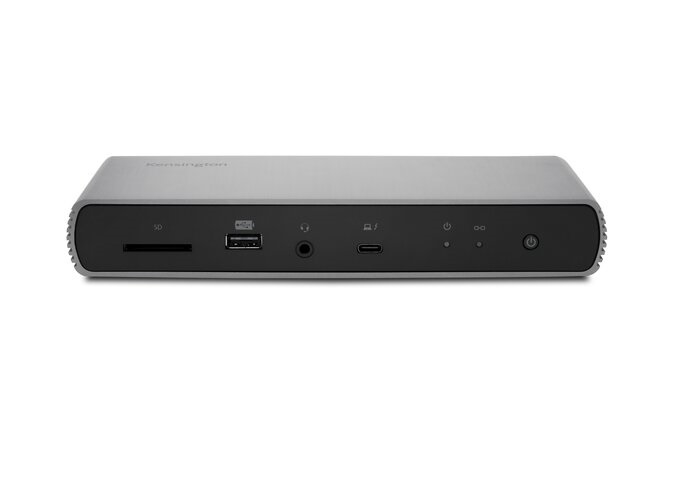

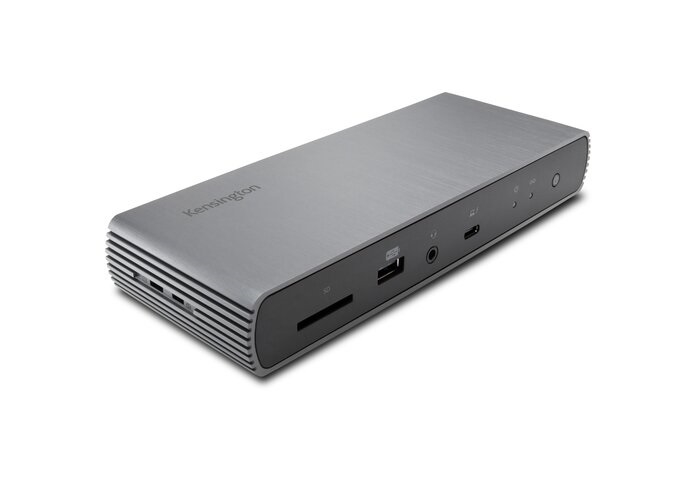

Universally compatible, this Thunderbolt 4 desktop docking station is the first of its kind, providing the ultimate plug-and-play solution for Thunderbolt 4 Window 10 laptops and Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later, while also supporting Thunderbolt 3, Thunderbolt 4, USB-C and USB4 accessories. For Thunderbolt 3 based Windows 10 laptops, please see our range of Thunderbolt 3 docks.


Thunderbolt 4 Technology

For the first time, this Thunderbolt 4 modern docking station can connect up to three additional Thunderbolt devices directly (up to five in total) while providing transfer speeds up to 40Gbps, up to Dual 4K video output, and audio; all through the included 0.8m Thunderbolt 4 cable, for a quick and powerful plug-and-play experience. Intel VT-d DMA protection blocks peripheral devices from unauthorized access to system memory.


Single 8K or Dual 4K Video Output for Thunderbolt 4-Enabled Devices

Single 8K or Dual 4K (@ 60 Hz) video output for Thunderbolt 4-enabled host devices lets you extend visual productivity with the crisp resolution, contrast, and color depth of Ultra HD (Single 8K 30Hz or Dual 4K 60Hz) via the available Thunderbolt 4 ports.


90W Power Delivery

90W power delivery allows you to quickly and easily charge any Thunderbolt 4 Windows 10 laptop or Thunderbolt 3-enabled MacBook running macOS 11 (Big Sur) or later, in addition to providing full support for your USB-C or USB4peripheral accessories. No need to worry about what you have connected to the dock our solution provides the only full powered offering on the market, so you can connect anything, and be sure to receive optimal performance.
Connection Technology
Thunderbolt 4
Driverless
Yes
Additional Screen Outputs
2
Video Ports
Thunderbolt 4
Maximum Resolution
8K
Power Delivery
90W
Operating System(s)
macOS, Windows
SD Card Reader
Yes
Number of USB Ports
4
USB Fast Charging
Yes
Docking Station Family
The Innovator
DockWorks
Yes
Best For
Thunderbolt 4 Windows 10 laptops and Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later. Supports Single 8K or Dual 4K video.
Compatibility
Windows 10, macOS 11 or later
Card Reader
SD Card Slot (UHS-II, SD4.0)
USB-A Ports
4 x (1) USB 2.0 (front) with 5V/1.5A fast-charging and (3) USB 3.2 Gen2 (back) supporting 5V/0.9A
Audio
1 x 3.5mm Combo Microphone and Headphone Port (front)
Data Transfer Speeds
Supports up to 40Gbps data transfer speed
Ethernet Speed (Mbps)
1000, 100, 10
Maximum Resolution Supported
Single 8K 30Hz or Dual 4K 60Hz

Available Quantity

5

UPC

085896351757

SKU

mingleK35175NA

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

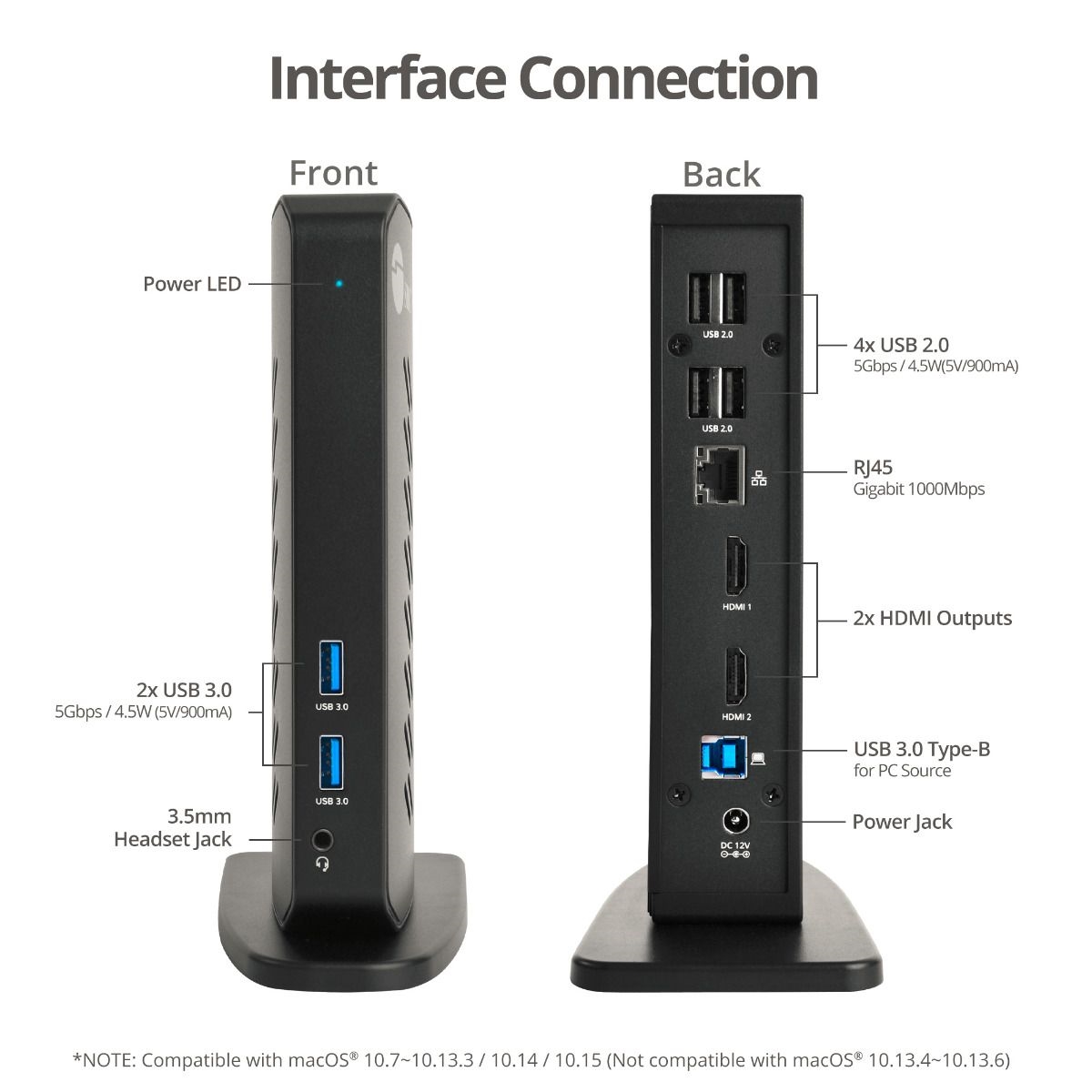

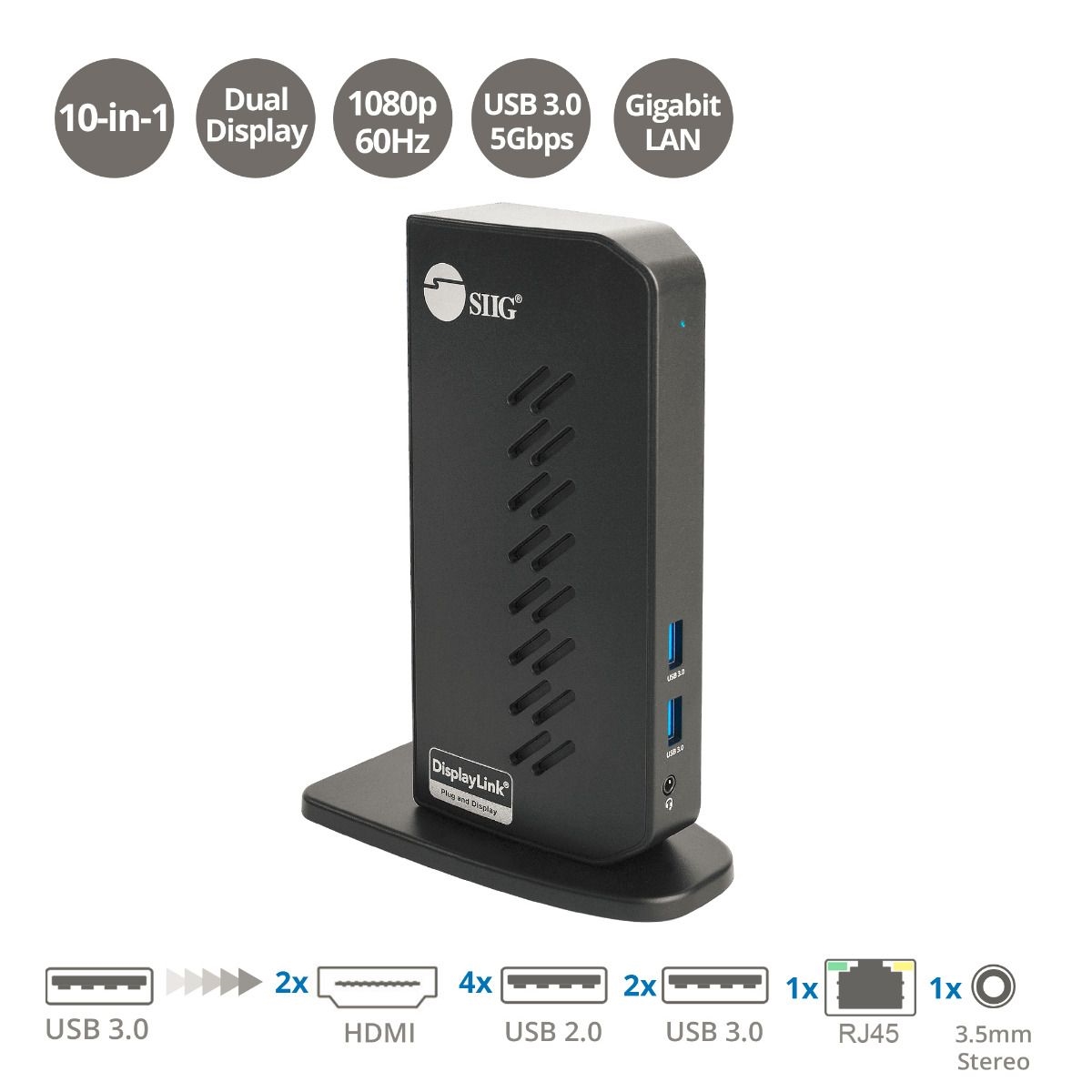

Product Description

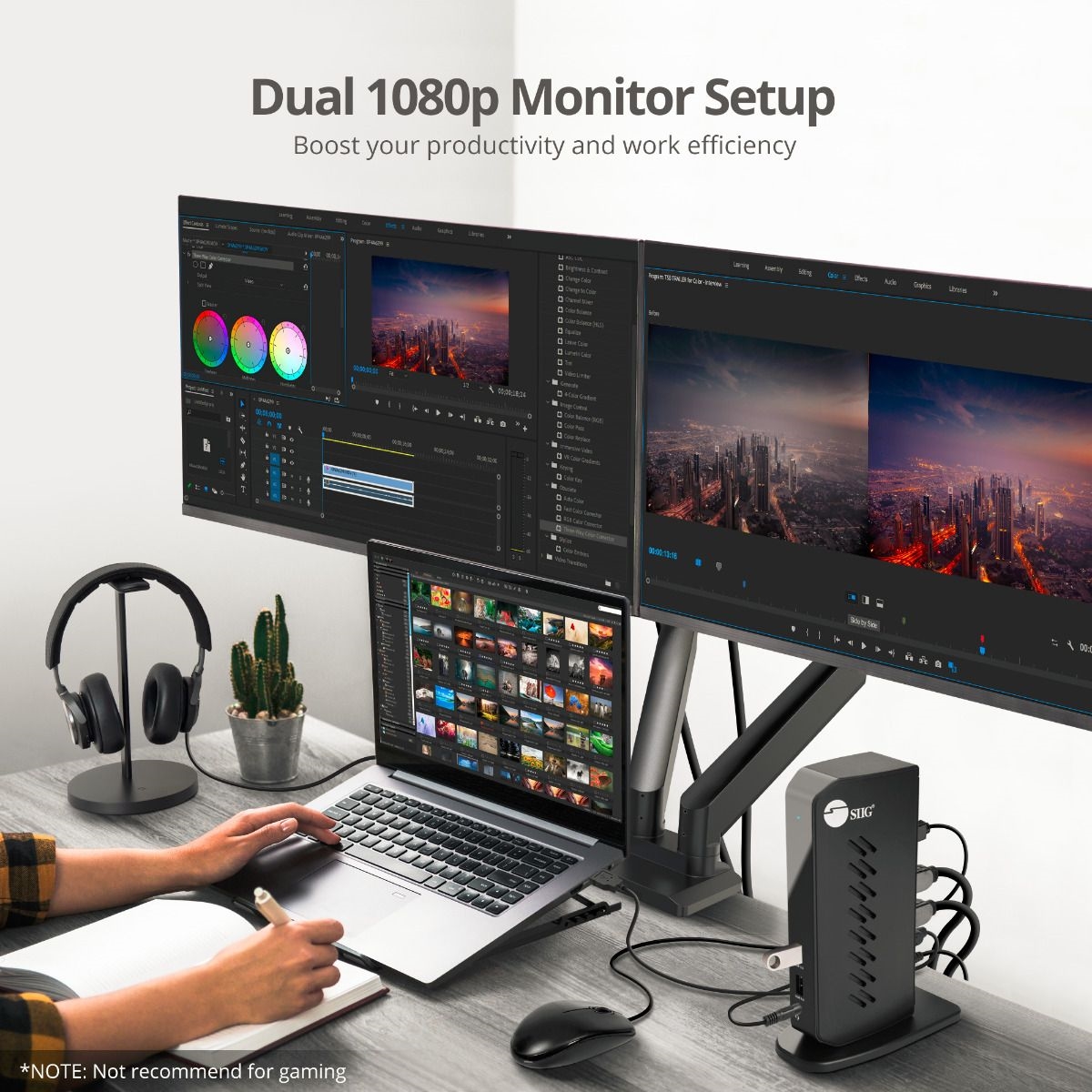

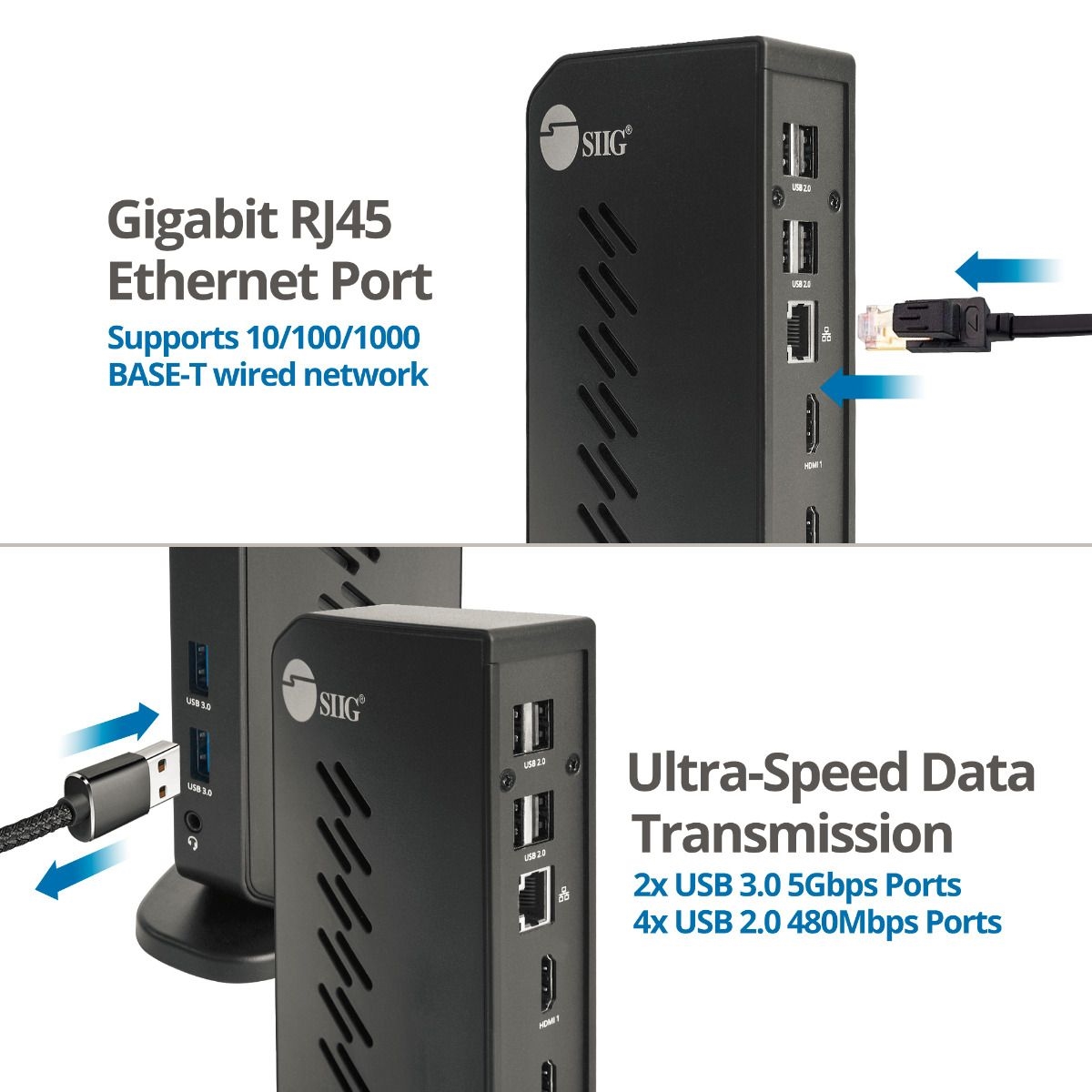

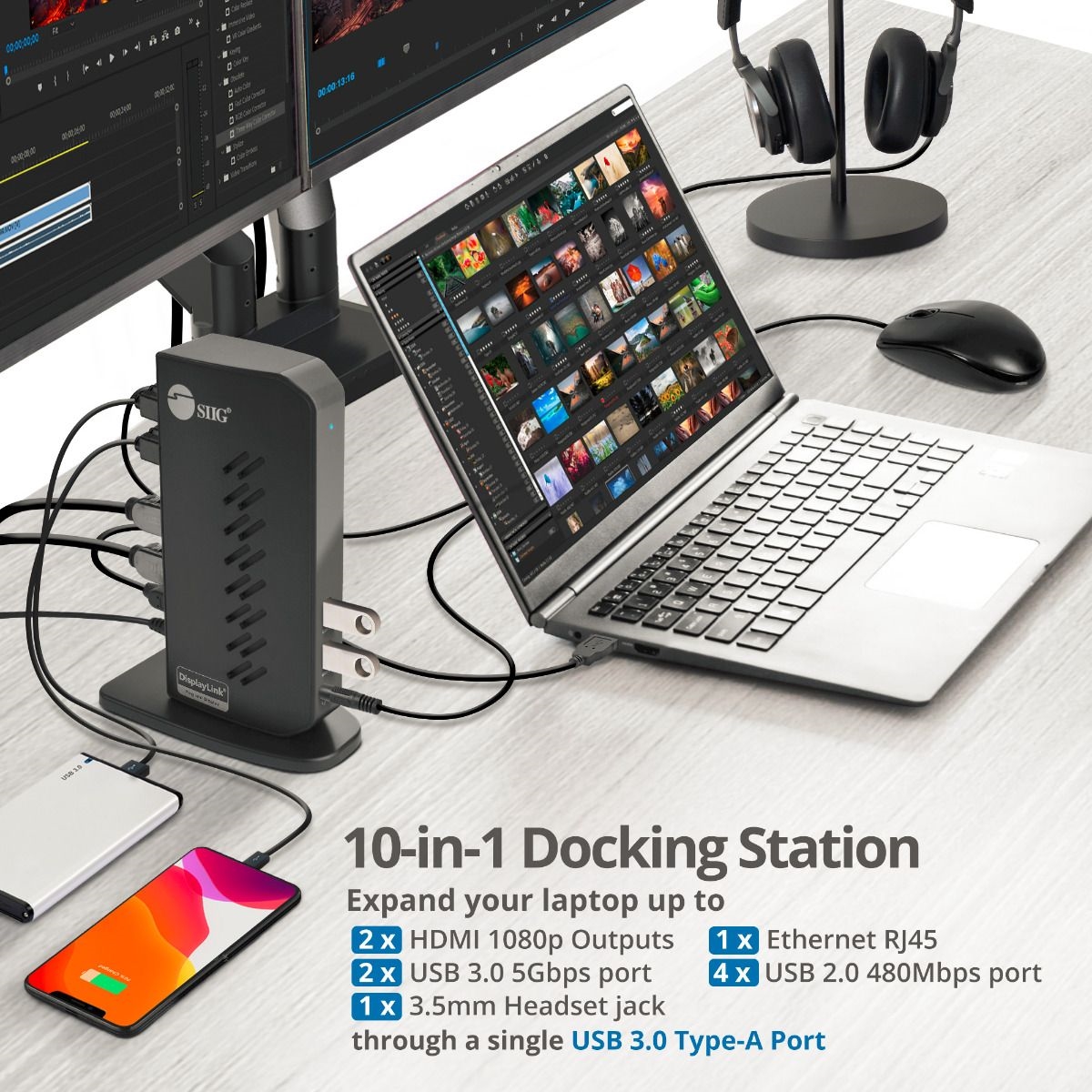

Advanced docking station adds two 1080p displays, 6 USB ports, a Gigabit Ethernet port, and a stereo audio/microphone connectivity to Windows and Mac computers

Transforms a single USB-A port of your computer into multiple connections with a DisplayLink USB graphics technology and provide dual HDMI displays making this docking station more powerful, productive, and high performance

Video Resolution

Supports up to 1080p@60Hz Full HD video display through two HDMI ports and 5.1ch surround sound

Three Display Modes

Provides Mirror, Extended, and Primary video modes, streaming video to HDTV monitors and projectors for the perfect visual display

High Performamce

Expand multiple connectivity ports to your USB-A computer to increase your efficiency. This Dual Head Full HD HDMI Video Docking Station is fully certified to meet DisplayLink certification

DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A

Multiple Connectivity Ports

Adds one USB 3.0 Type-B port (includes USB-A to USB-B cable for easy conversion), two HDMI video outport ports, two USB 3.0 Type-A, four USB 2.0 Type-A, one Gigabit Ethernet, and one 3.5mm audio jack to connect headphones / Stereo speakers or microphone input
Hardware
Chipset
DisplayLink DL-3900
Software
OS Compatibility
Windows 10, mac OS 11 or new
Video
HDMI 1.4
1080p at 60Hz, 2 ports
Resolution
1080p / 1080i / 720p / 480p
USB 3.0
2x Type-A, data transfer rate up to 5Gbps and compatible with USB 2.0 specification
USB 2.0
4x Type-A, data transfer rate up to 480Mbps and compatible with USB 1.1 specification
Audio
5.1 channel surround sound from HDMI output
2 channel stereo audio from 3.5mm audio jack
Display Mode
Mirror, Extended, Primary video modes
Power Adapter
Input
AC 100-240V / 50-60Hz
Output
DC 12V/2A
UL Listed
E221556 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
14 to 158 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"x W"x H")
6 x 8 x 3
Weight
2.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044255

SKU

mingleJU-DK0L11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

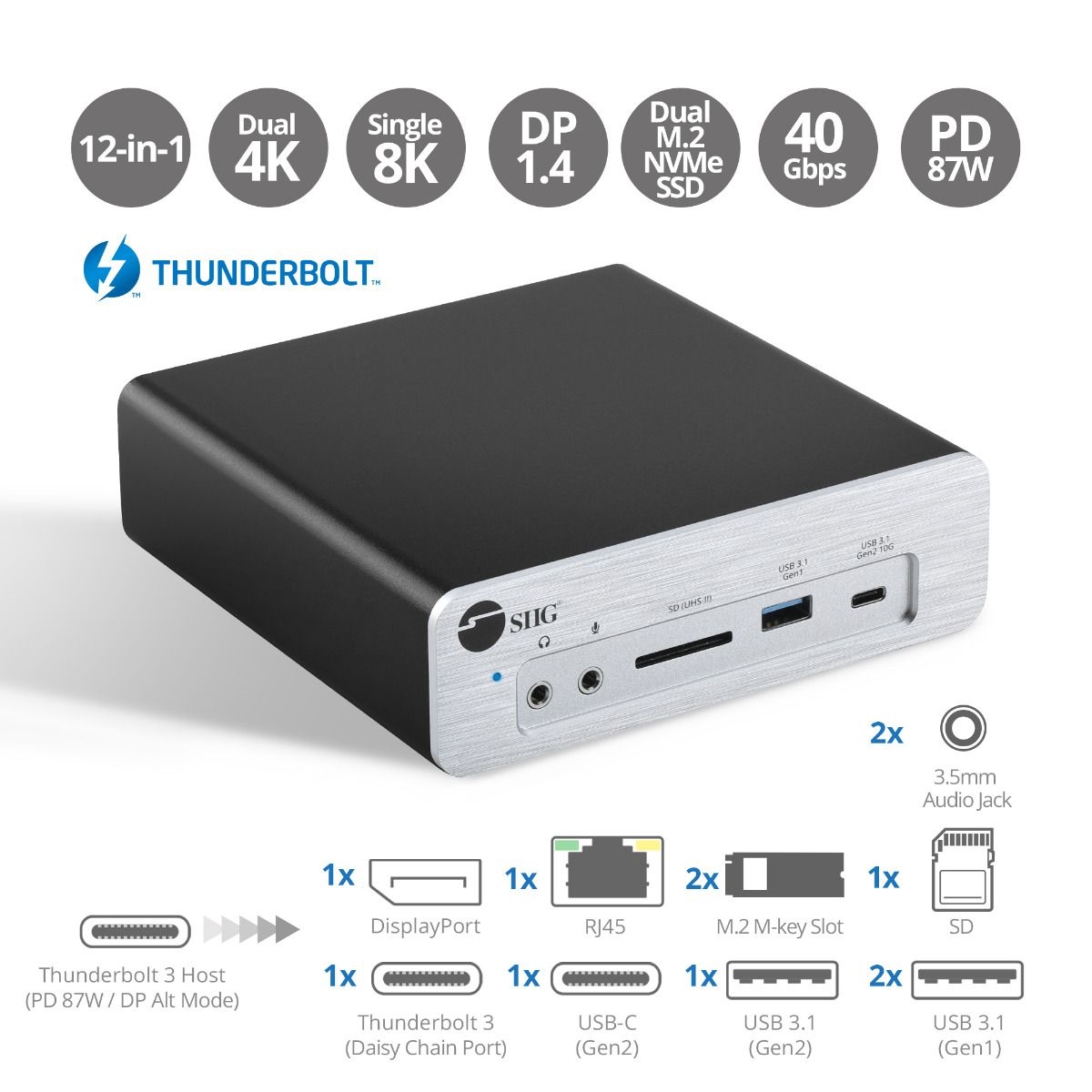

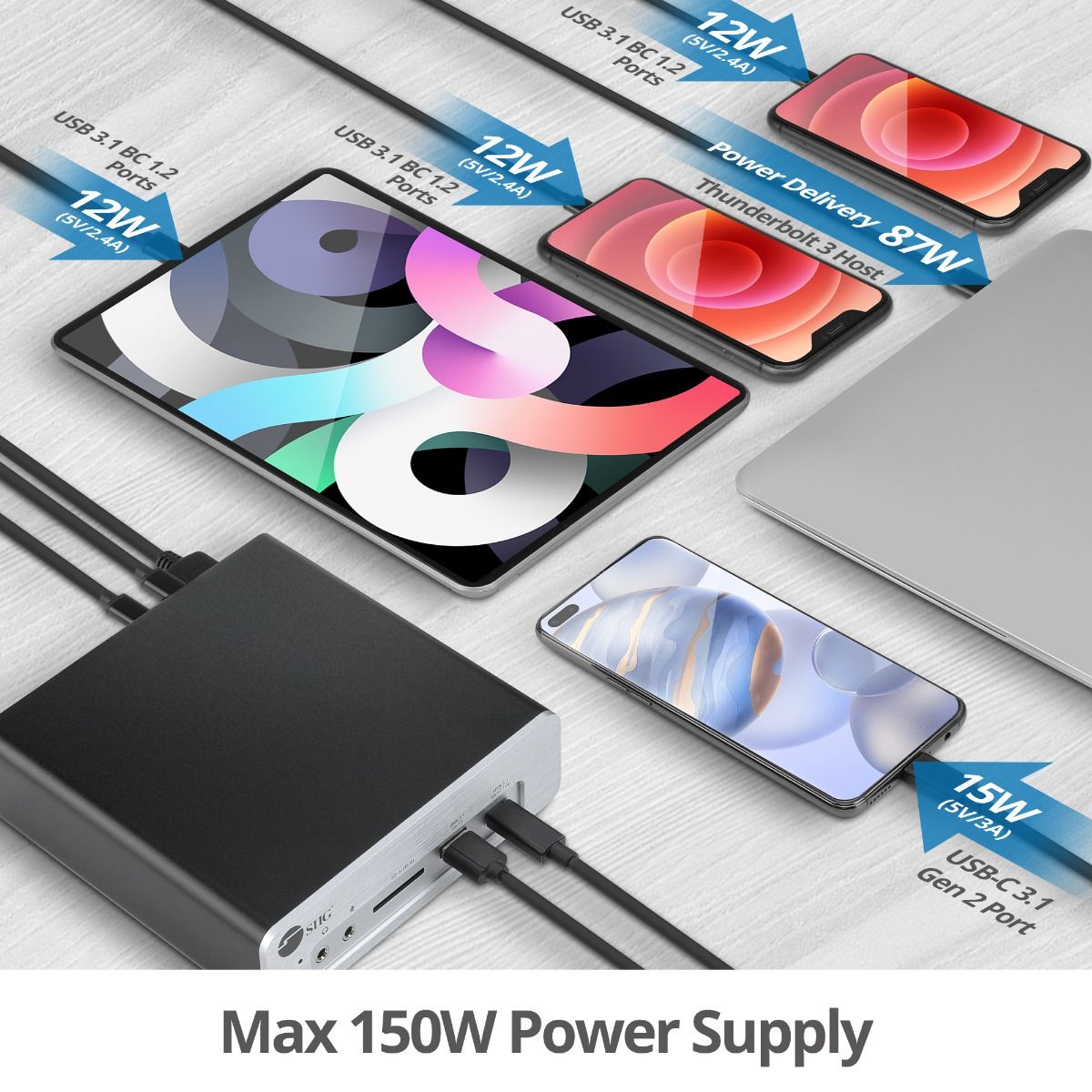

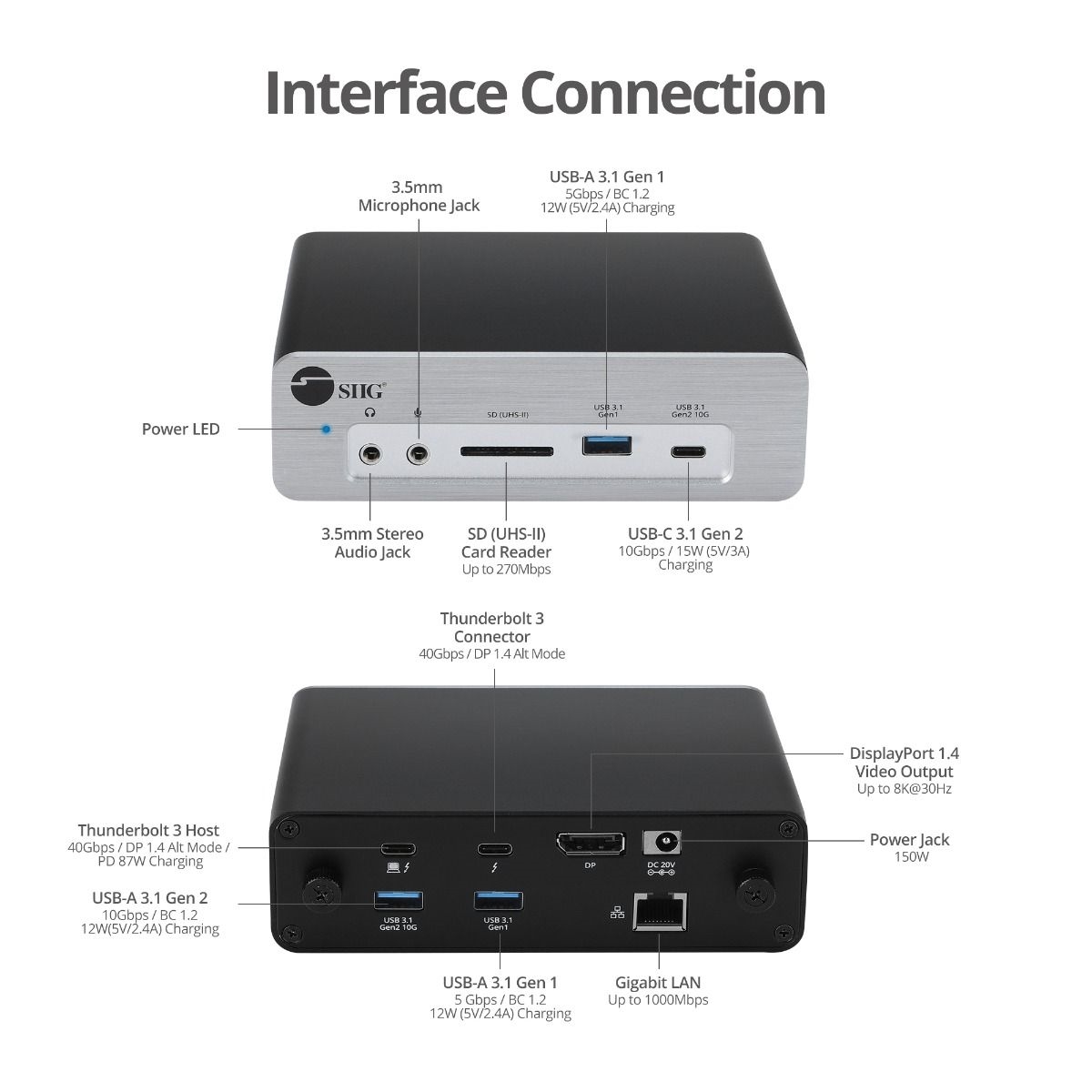

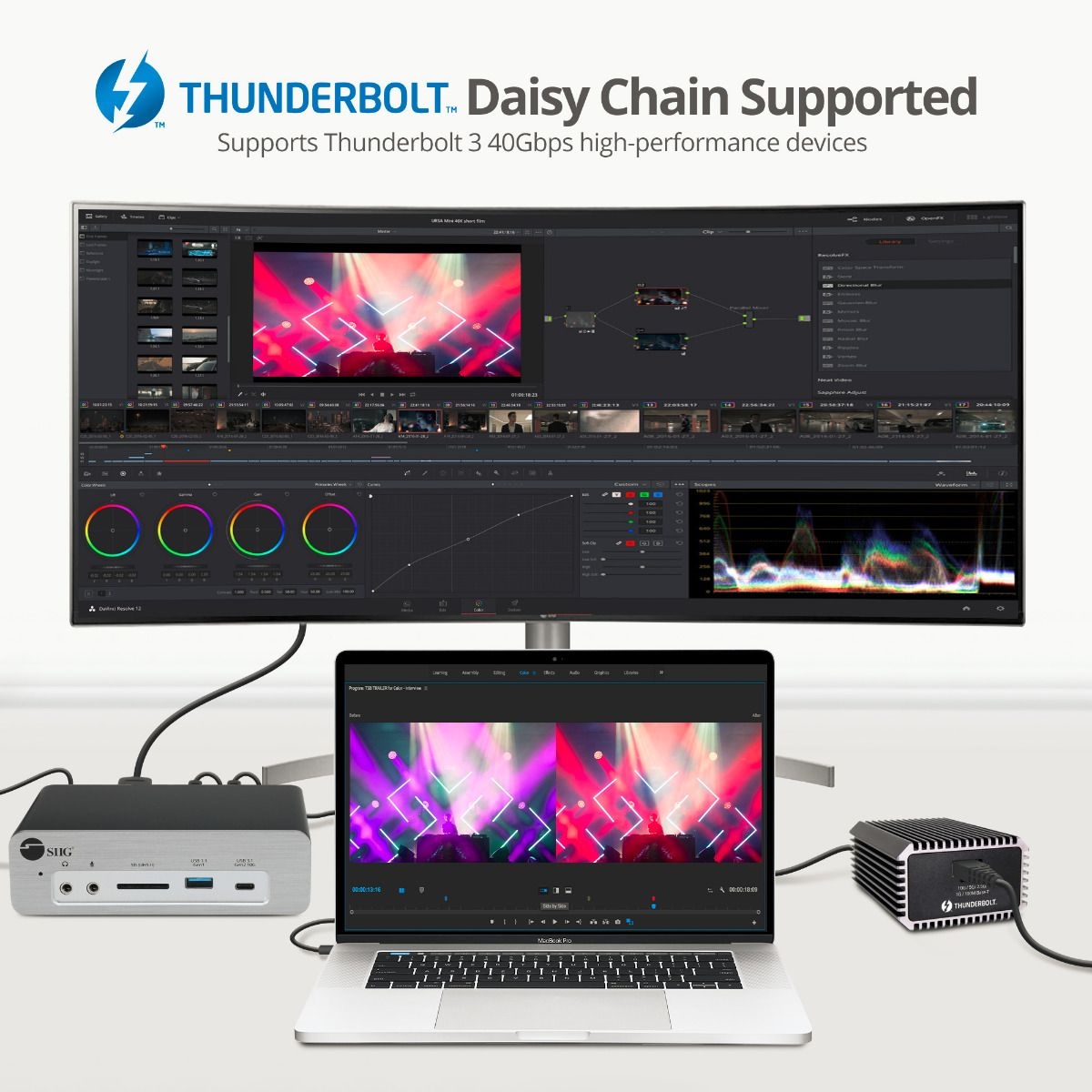

Advanced docking station transforms a single Thunderbolt 3 port into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 Gen2 Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 ports, one Gigabit Ethernet port, an SD memory card reader, and a stereo audio/microphone connectivity with PD 3.0 charging up to 87W. Adds 2 storage drives via dual M Key NVME SSD capabilities

Create a 40G data transmission Ultra-high performance workstation by connecting a single Thunderbolt 3 with DP 1.4 Alt mode input to multiple displays and includes two M.2 M-Key NVMe SSD PCIe excellent storage drives enhanced data transfer, backup speed, and disk upgrade (M.2 M-Key NVMe SSDs are not included)

8K/4K Video Resolution

Allows you to connect either a single 8K display through a Thunderbolt 3 port / DisplayPort 1.4 port or two 4K (3840x2160) @60Hz Ultra HD displays through Thunderbolt 3 and DisplayPort 1.4 ports for stunning and crystal-clear video quality

High Performance

Expand multiple connectivity ports to your Thunderbolt 3 with DP 1.4 Alt mode enabled Mac or Windows PC to increase your efficiency and allows data transfer speeds up to 40Gbps and daisy-Chain up to 6 Thunderbolt 3 devices

Multiple Connectivity Ports

Adds one Thunderbolt 3 port (Host), one Thunderbolt 3 output port, one DisplayPort 1.4 video output port, one USB-C 3.1 Gen 2 output port, two USB-A 3.1 Gen 1 output ports, one USB-A 3.1 Gen 2 output port, one Gigabit Ethernet, two M-Key M.2 PCIe NVMe SDD slots, one SD memory card slot, one 3.5mm stereo audio jack and one 3.5mm microphone input

SD Memory Card Reader

Compatible with the latest memory card such as SD 4.0 UHS-II. Supports data transfer rate up to 270Mbps and a maximum capacity of 2TB
Hardware
Chipset
Intel JHL7540 (Intel Thunderbolt 3 certified)
Software
OS Compatibility
Windows 10, macOS 10.14 or new
Video
TBT3 with DP 1.4
Up to single 8K at 30Hz / single 5K at 60Hz / Dual 4K at 60Hz
TBT3 with DP 1.2
Up to single 5K at 30Hz / Dual 4K at 30Hz
DisplayPort 1.4
1x 8K at 30Hz display / 1x 5K at 60Hz display / 2x 4K at 60Hz displays
DisplayPort 1.2
1x 5K at 30Hz display / 2x 4K at 30Hz displays
USB 3.1 Type-C
1x Gen 2 with fast charging 3.0 (5V/3A), data transfer rate up to 10Gbps
USB 3.1 Type-A
1x Gen 2 with BC 1.2 (5V/2.4A), data transfer rate up to 10Gbps
USB 3.1 Type-A
2x Gen 1 with BC 1.2 (5V/2.4A), data transfer rate up to 5Gbps
Fast Charging Port
Yes
Audio
3.5mm 2 channel stereo audio jack and microphone Jack
Power
Power Delivery 3.0
up to 87W
Power Adapter
Input: AC 100-240V / 50-60Hz, Output: DC 20V/7.5A
UL Listed
E209833 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
Compatible with IEEE 802.3, 802.3u

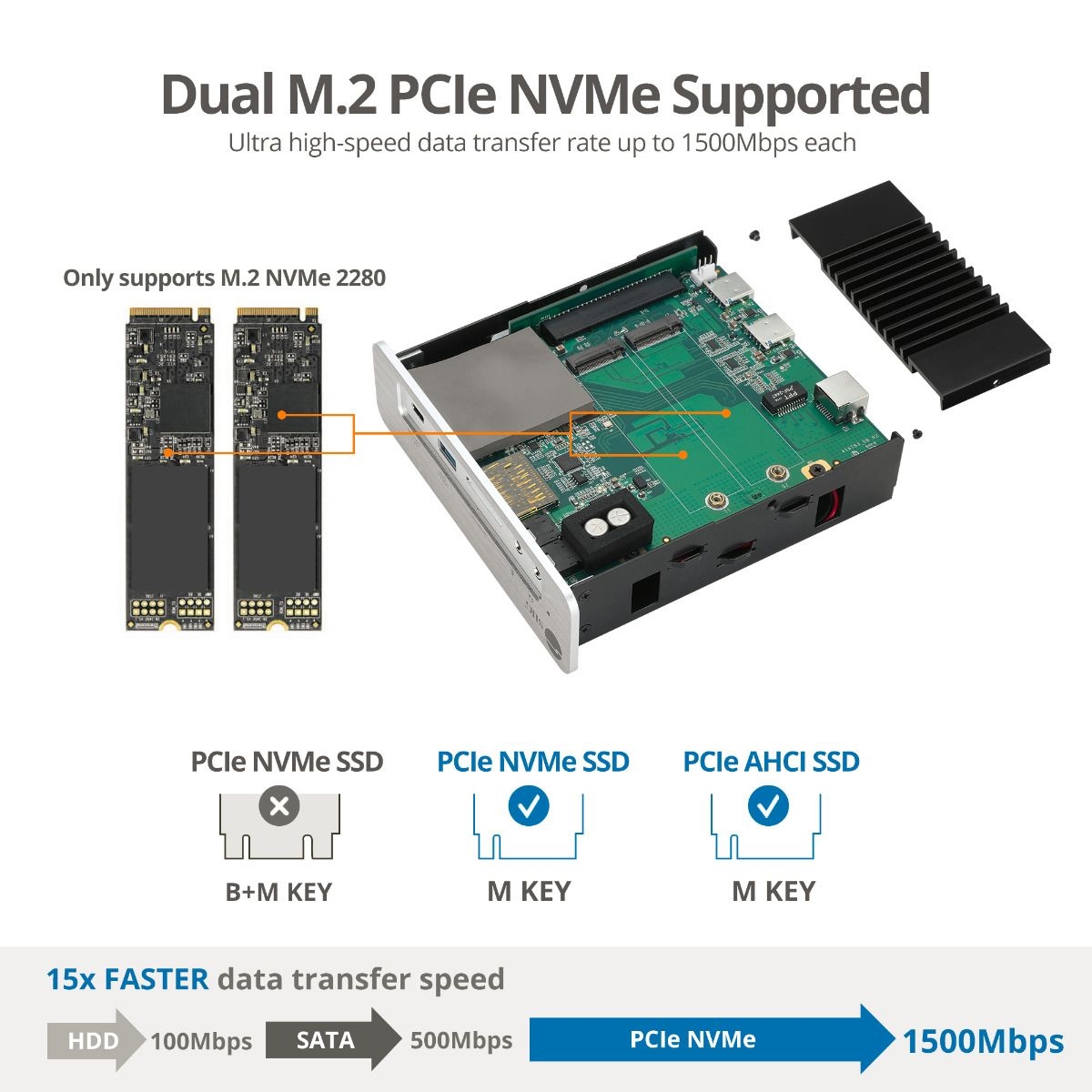

Storage Drive
Form factor: 2x M.2 M-Key 2280 NVMe SSD slots
Data transfer rate: up to 1.5Gbps (1500Mbps)
Compatible with single or dual SSD installation
Separate drive letter for each installed SSD
Card Reader
Class: 1x SD 4.0 (UHS-II) slot, compatible with the earlier versions
Data Transfer rate: up to 270MB/s (UHS-II)
Capacity: 2TB (max)
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 158 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
Metal
Certifications/Standards
FCC, CE, RoHS, TAA compliant
Item Dimension (L"x W"x H")
6 x 2 x 6
Weight
1.98 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044071

SKU

mingleJU-DK0K11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

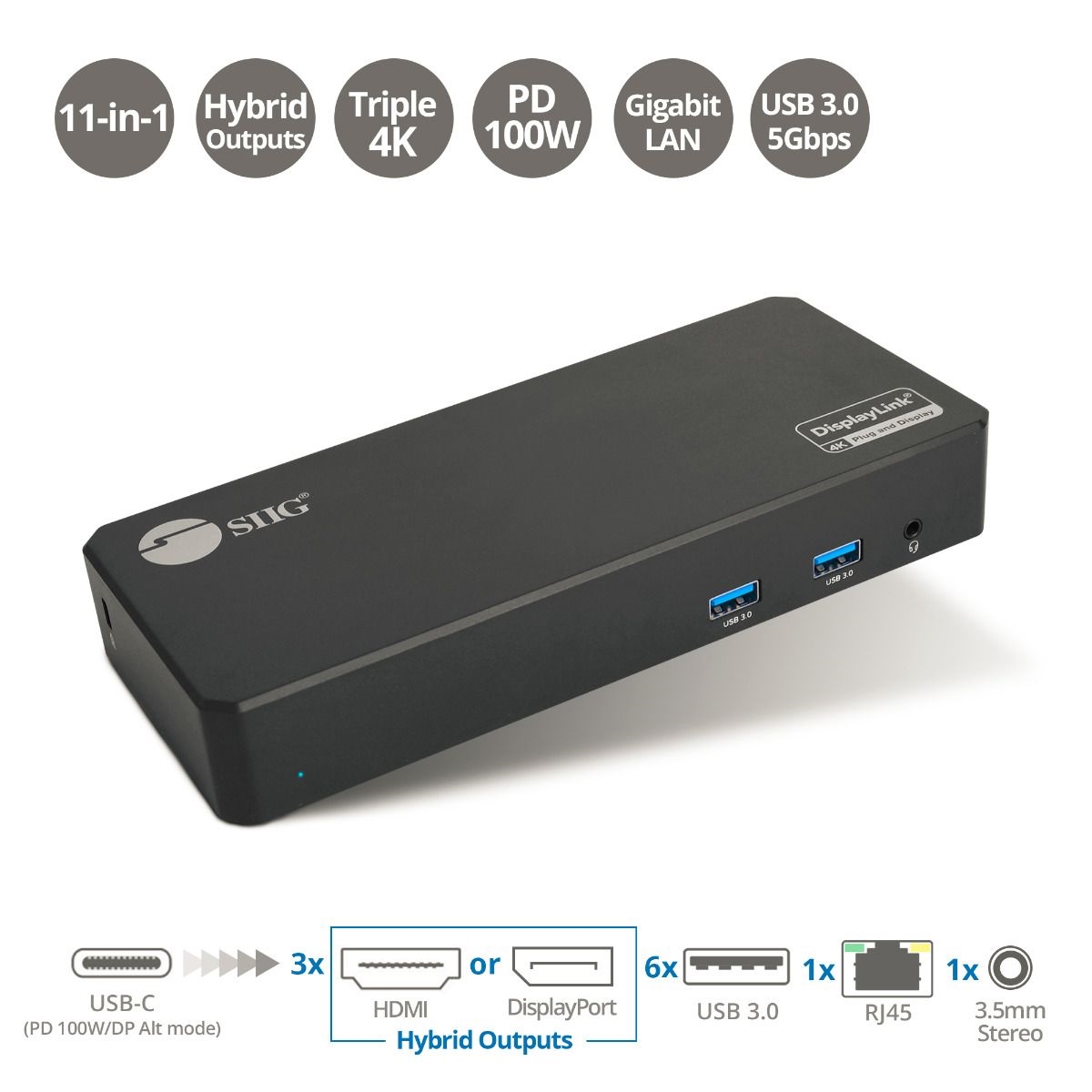

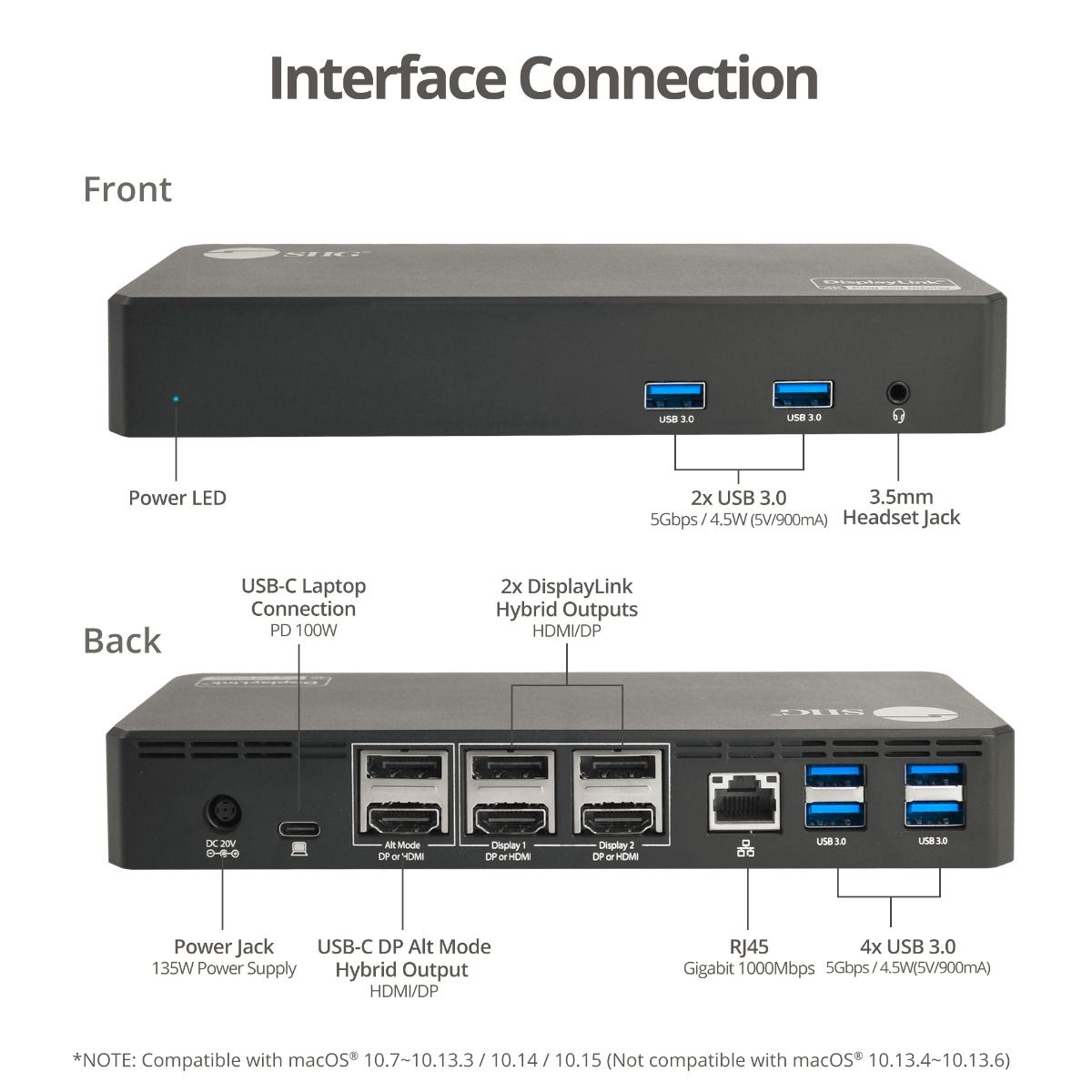

Advanced hybrid docking station adds three 4K displays, 6 USB 3.0 Type-A 5Gbps ports, a Gigabit Ethernet port, a stereo audio/microphone port, and USB Power Delivery charging up to 100 watts to Windows and Mac computers

High Performance

Expand multiple connectivity ports to your USB-C with DP Alt mode or Thunderbolt 3 enabled mac or Windows PC to increase your efficiency. This Universal Hybrid Dual 4K Video Docking Station is fully certified to meet DisplayLink certification. DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A, USB-C, etc.

Multiple Connectivity Ports

Adds one USB-C port with PD 100W (Host), one DisplayPort video output port (with USB-C DP Alt mode), two DisplayPort video output ports (with DisplayLink controlled), one HDMI video output (with USB-C DP Alt mode), two HDMI video output ports (with DisplayLink controlled), six USB-A 3.0 output ports, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone)

SuperSpeed Data Transfer

Provides six USB-A 3.0 ports and data transfer rate up to 5Gbps; enhance your laptop's connectivity options and performance capabilities

100W Power Delivery

Includes high quality USB-C 20V/5A cable for connection to laptop/notebook, supports up to 100W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 135W power adapter ensures enough power for laptop charging and USB peripherals

1G Ethernet Data Transmission

Reliable wired network connectivity through embedded 10/100/1000 Base-T Gigabit Ethernet port
Hardware
Chipset
DisplayLink DL-6950-N
Compliant with Universal Serial Bus 3.0 and 2.0 specification
Software
OS Compatibility
Windows 10, macOS 11 or new
Note: macOS 10.13.4 to 10.13.6 is not supported
Video
DisplayPort 1.2
5K (Connect both DisplayLink controlled DisplayPort 1.2 outputs to a single 5K DisplayPort
TV/Monitor) / 4K / 1080p / 1080i / 720p / 480p
HDMI
4K at 60Hz
USB 3.0
6x Type-A, data transfer rate up to 5Gbps, 5V/900mA, and compatible with USB 2.0 specification
Fast Charging Port
Yes
Audio
5.1 channel surround sound from HDMI/DisplayPort output
2 channel stereo audio and microphone from 3.5mm Headset Jack
Display Mode
Mirror, Extended, and Primary video modes
Power
Power Delivery 3.0
up to 100W via USB-C (Host)
Power Adapter
Input: AC 100-240V / 50-60Hz, Output: DC 20V/6.75A
UL Listed
E132068 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
14 to 158 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"x W"x H")
8 x 2 x 4
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044064

SKU

mingleJU-DK0J11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

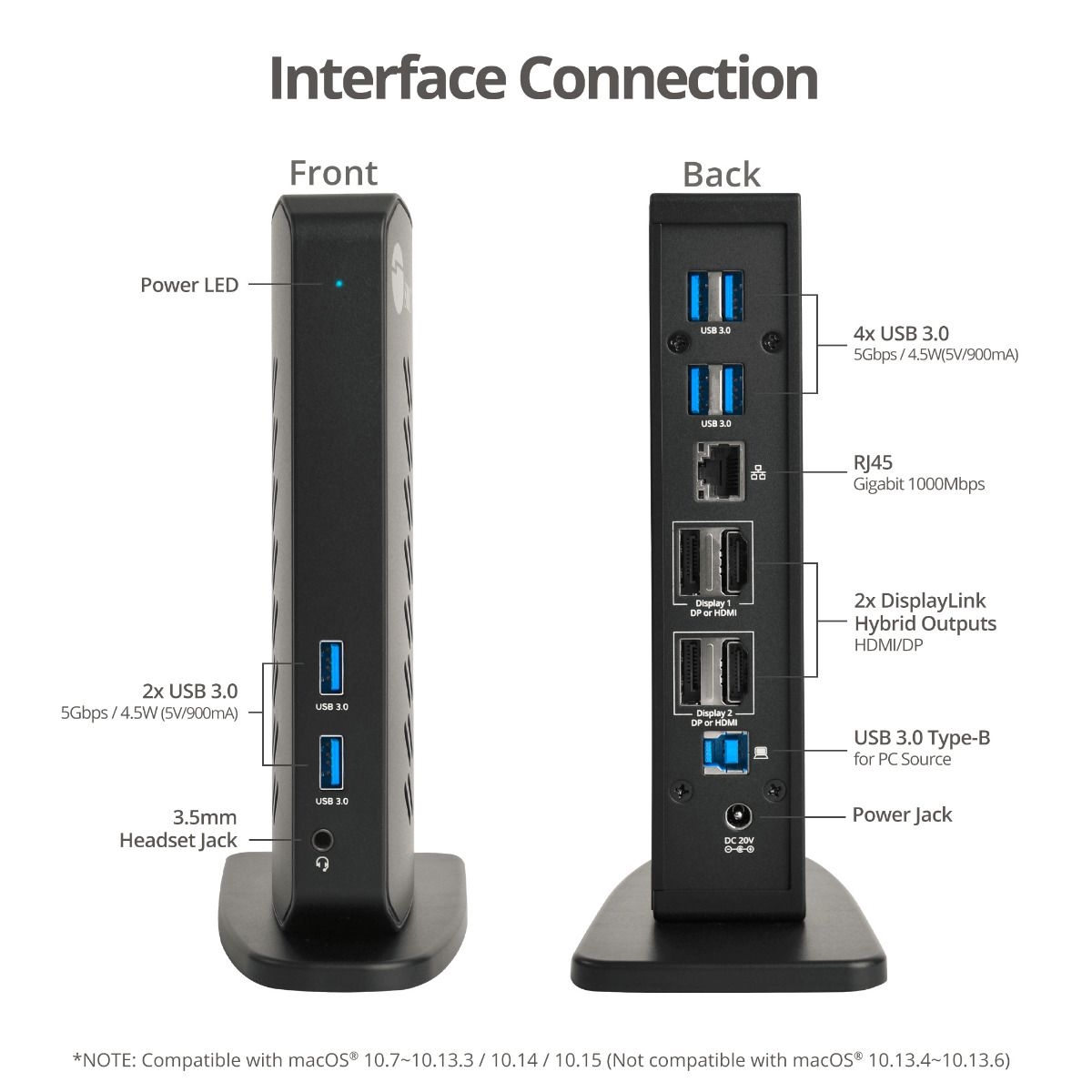

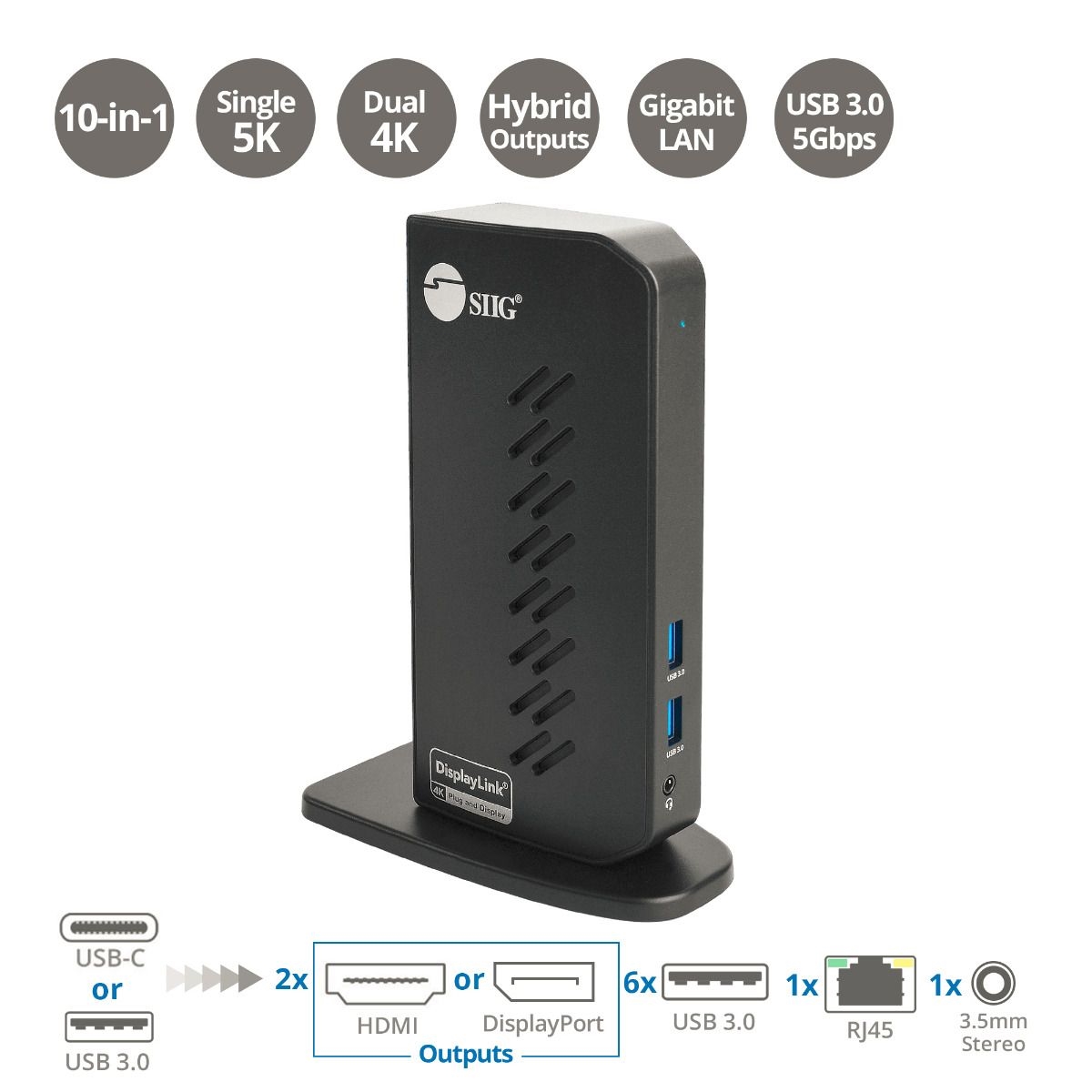

Advanced hybrid docking station adds two 4K displays, 6 USB 3.0 ports, a Gigabit Ethernet, and stereo audio/microphone connectivity to Windows and Mac computers

5K/4K Video Resolution

Allows you to connect either a single 5K (5120x2880) @60Hz display through two DisplayPort ports or two 4K (3840x2160) @60Hz Ultra HD displays through two DisplayPort ports or two HDMI ports or a DisplayPort + a HDMI ports to display the cry stal-clear video quality

Three Display Modes

Provides Mirror, Extended, and Primary video modes, streaming video to HDTV monitors and projectors for the perfect visual display

High Performamce

Expand multiple connectivity ports to your USB-A/USB-C computer to increase your efficiency. This Universal Hybrid Dual 4K Video Docking Station is fully certified to meet DisplayLink certification

DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A, USB-C, etc.

Multiple Connectivity Ports

Adds one USB 3.0 Type-B port (includes USB-A to USB-B cable and USB-C to USB-B cable for easy conversion), two HDMI video outport ports, two DisplayPort video output ports, six USB 3.0 Type-A ports, one Gigabit Ethernet, and one 3.5mm audio jack to connect headphone / Stereo speaker or microphone input

SuperSpeed USB Data Transfer

Delivers six USB 3.0 Type-A ports and supports data transfer rate up to 5Gbps
Hardware
Chipset
DisplayLink DL-6950-N
Software
OS Compatibility
Windows 10, mac OS 10.13 or new
Video
DisplayPort 1.2
5K / 4K at 60Hz, 2 ports
HDMI2.0
4K at 60Hz, 2 ports
Resolution
5K / 4K /1080p / 1080i / 720p / 480p
Single video: up to 5K at 60Hz (Dual DP)
Dual video: up to 4K at 60Hz (Dual DP, Dual HDMI or DP and HDMI)
USB 3.0
6x Type-A, data transfer rate up to 5Gbps and compatible with USB 2.0 specification
Audio
5.1 channel surround sound from HDMI output
2 channel stereo audio from 3.5mm audio jack
Display Mode
Mirror, Extended, Primary video modes
Power Adapter
Input
AC 100-240V / 50-60Hz
Output
DC 20V/2A
UL Listed
E221556 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
14 to 158 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"x W"x H")
6 x 8 x 3
Weight
2.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044057

SKU

mingleJU-DK0H11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

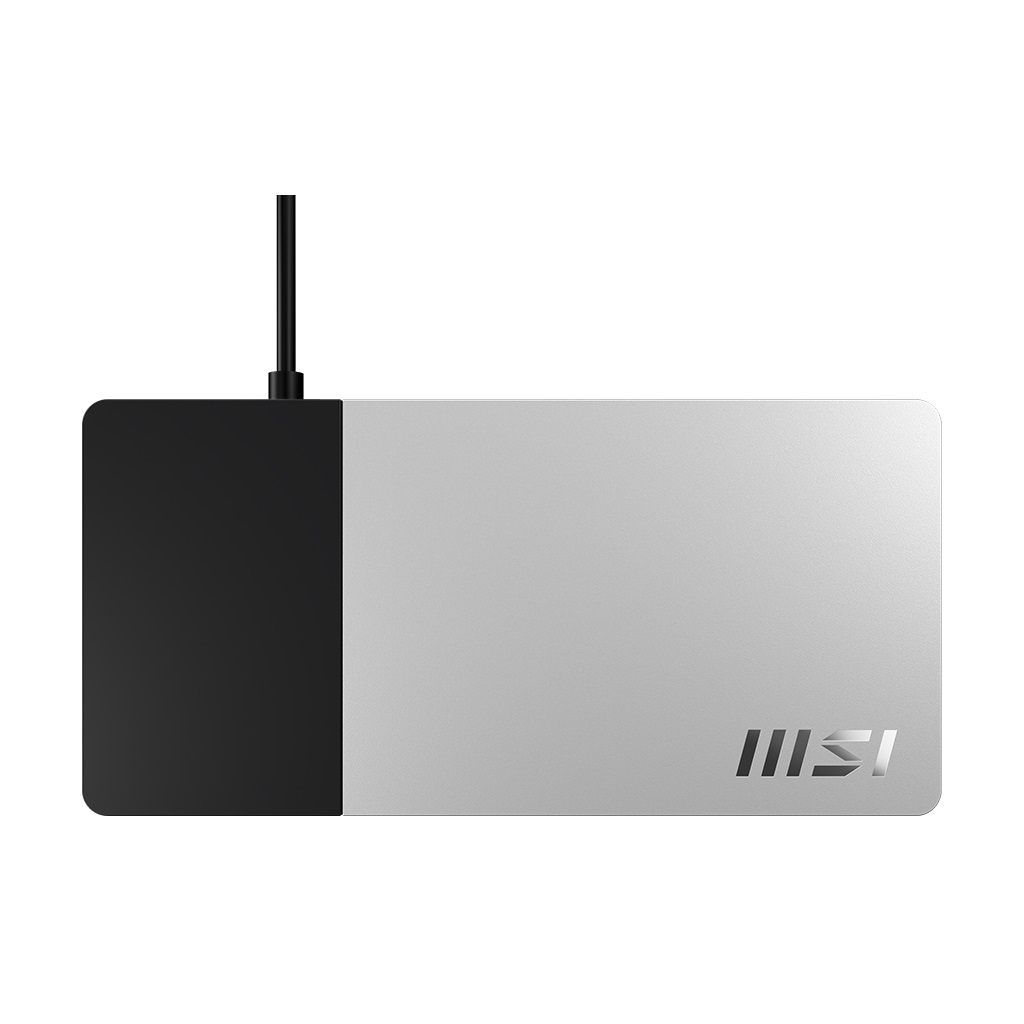

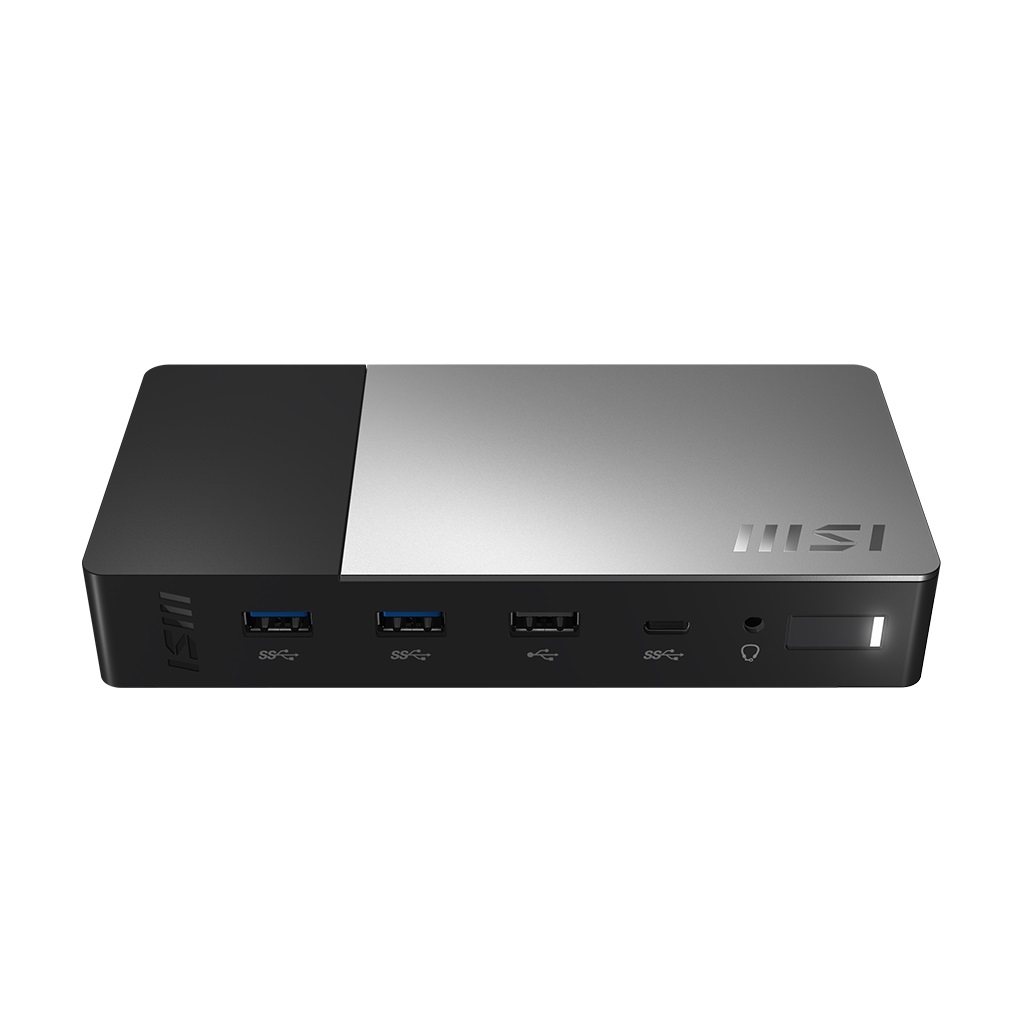

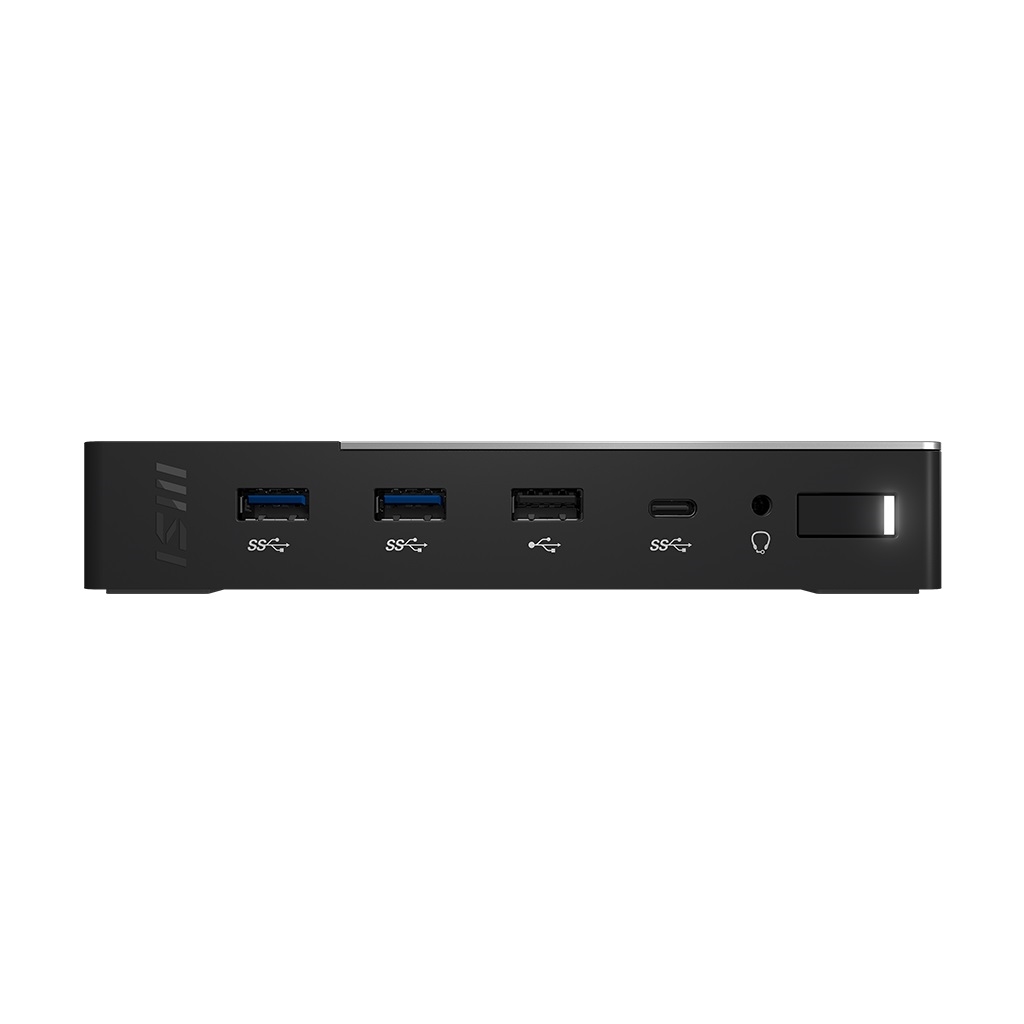

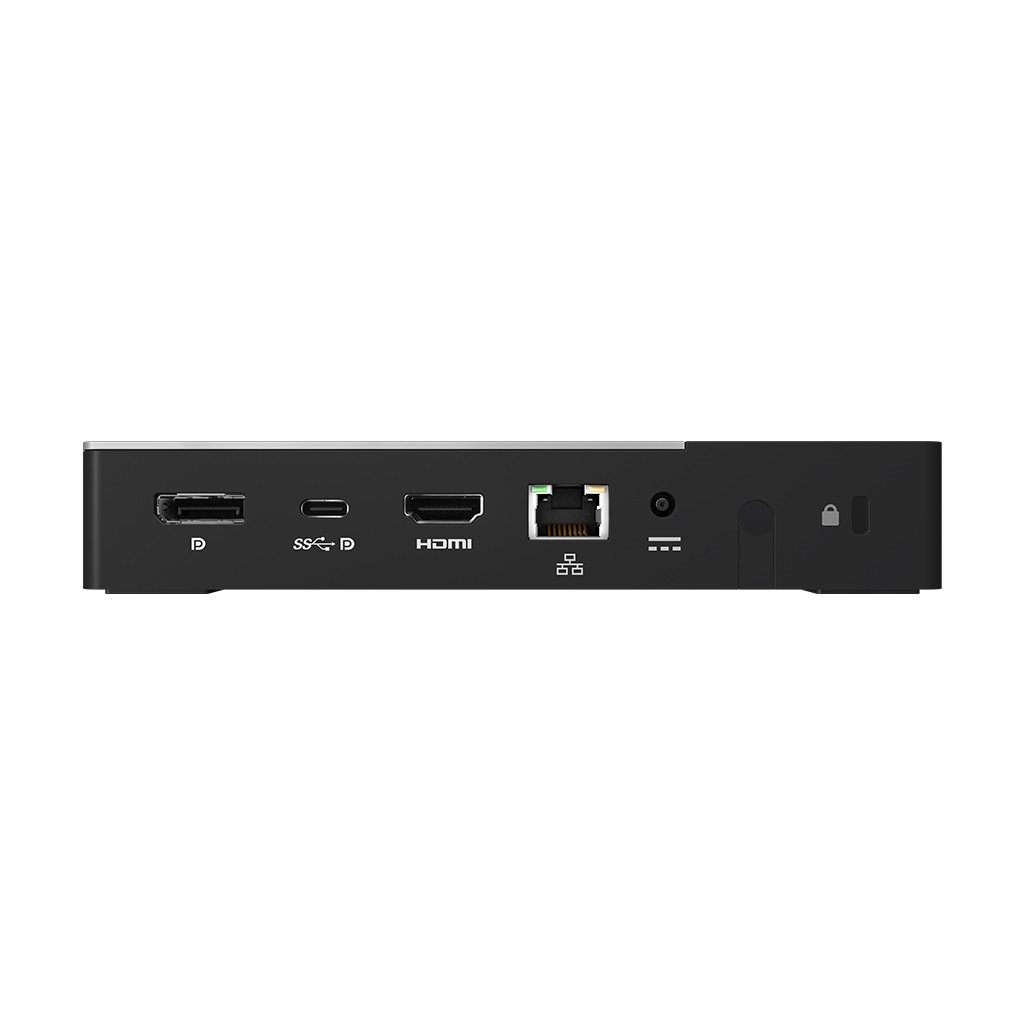

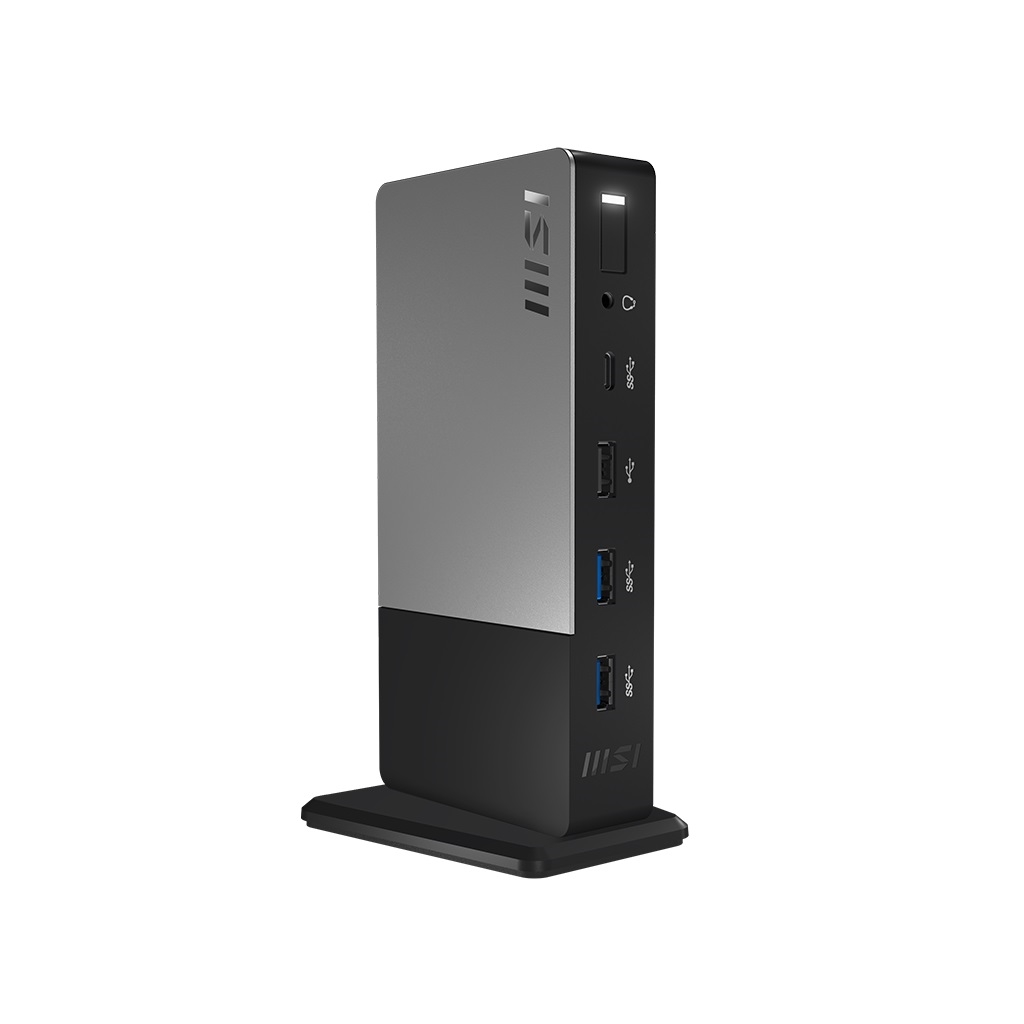

USB C Docking Station Gen 2

Brings more complete functions and upgrade the user experience for business clients. The USB-C Docking Station Gen 2 support your IT partner implement software updates or data transfer remotely, even when you're away from your desk. It's still allow IT partner awakened client's laptop which was in standby mode through internet.



Simply press the power-button to wakeup your laptop and multiple monitors during standby mode.

Two-way positioning: Lie Flat or Stand Upright.

Space-saving Dimension.

With a complete selection of I/O ports, MSI USB-C Docking Station Gen 2 connects all your devices in an instant.

Exclusive Type-C Charging with 100W power delivery to your laptop.

Unrivaled Work : MSI USB-C Docking Station Gen 2 maximizes productivity by expanding up to 3 external 4K UHD displays and additional 5 USB ports

PXE Wake-On-LAN & Mac Address Pass Through Supported to meet business & IT management demand.
AUDIO PORT
3.5mm Audio Jack Combo
AC POWER ADAPTER
150W Adapter
COLOR
Space Gray / Black
I/O PORTS
1 x RJ45
1 x HDMI
1 x USB3.2 Gen 2 Type-C(connect to computer)
1 x DisplayPort(v1.4)
1 x Type-C USB3.2 Gen2
2 x Type-A USB3.2 Gen2
1 X USB 2.0 Type-A
Item Dimension (L inchxW inchxH inch)
13 x 3 x 9

Weight
3.37 lb

Warranty Information
1-year

Available Quantity

5

UPC

824142243367

SKU

mingle1P151E001

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

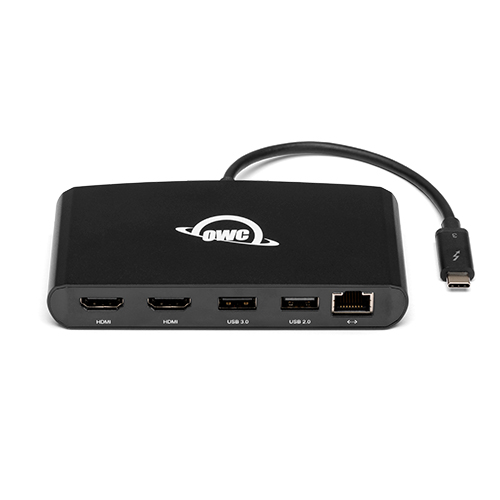

OWC, 5-Port Thunderbolt 3, mini Dock, Bus-Powered 2x HDMI, 1x USB 3, 1x USB 2, Ethernet 1000BT 2x HDMI, 1x USB 3, 1x USB 2, Ethernet 1000BT

Available Quantity

5

UPC

810586035101

SKU

mingleOWCTB3MDK5P

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

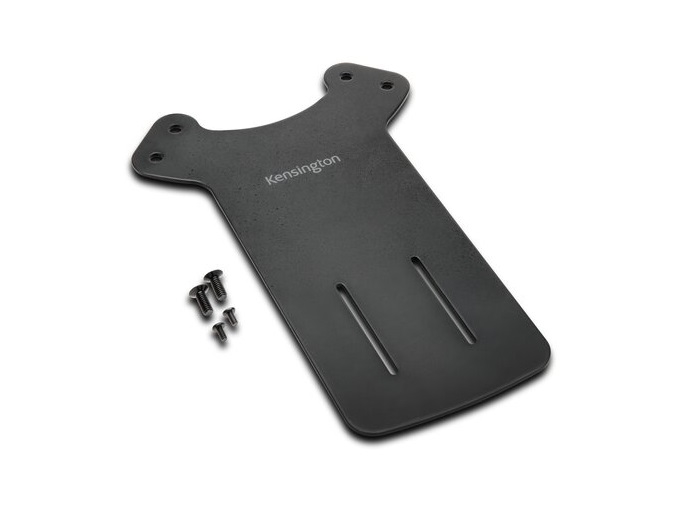

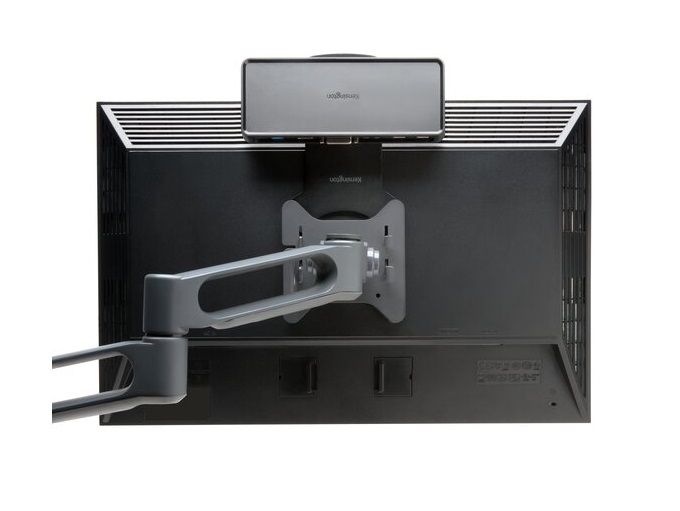

Zero Desktop Footprint

Designed to allow you to remove the docking station from your desktop, freeing up space so you can better utilize the space for other accessories or just leave the desktop uncluttered

VESA Compatible

Easily mount the dock to the backside of your monitor, whether it s on a stand or attached to a monitor arm. Compatible with 75mm or 100mm VESA hole layout in either an up-down or left-right orientation

Adjustable Placement

Specially designed slots in the mounting plate allow you to slide the docking station to your preferred position before tightening it into place

Trusted Kensington compatibility Works with a growing list of Kensington s award-winning docking stations, including SD5550T, SD5200T, SD4900P, SD4800P, SD4700P, SD3650, SD3600, SD2400T and SD2000P.

Compatible with monitors featuring either 75mm or 100mm VESA layout

Adjustable during installation to place the dock at your desired height setting
Color
Black
Features
VESA 100x100mm, VESA 75x75mm
Item Dimension (L"xW"xH")
1 x 5 x 7
Weight
1.00 LB
Warranty Information
24 Months

Available Quantity

5

UPC

085896339595

SKU

mingleK33959WW

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Transforms a single USB-C port, with DP Alt mode* or Thunderbolt 3 technology, into multiple connectivity ports including up to three simultaneous video outputs**

Note: *Requires a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality. **Requires GPU / graphics card to support at least 3 external displays to use all 3 video ports at the same time with extended mode

DisplayPort Multi Stream Transport* (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs (HDMI/DP, DP/VGA, HDMI/VGA) or triple HD 720p video outputs

*Note: Mac OS does not support MST function and will only mirror the displays

Supports PD 3.0* specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices

*Note: The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected

Adds one USB-C PD 3.0 port, two USB 3.0 ports (with BC 1.2 charging), one USB 2.0 port, one HDMI port, one DisplayPort output, one VGA port, one Gigabit Ethernet port, a headphone audio jack, and one SD/TF (Micro SD) card reader slot

Acts as a laptop stand and Tablet/Cell phone holder with handy flip-up stand, non-slip top and bottom surfaces ensures that devices are stable and protected

Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance
Chipset: VL817+RTL8153+GL850+HS100-B
Compatible with USB-C DP Alt mode and Thunderbolt 3 technology
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Supports Power Delivery 3.0 specification up to 100W through USB-C
Supported video cable length
HDMI: Up to 5M (max)
DisplayPort: Up to 3M (max)
VGA: Up to 10M (max)
USB Type-A output
2x USB 3.0 data transfer up to 5Gbps + BC 1.2 (5V/1.5A max)
1x USB 2.0 Type-A, data transfer up to 480Mbps
Integrated Gigabit Ethernet
Up to 1000 Mbps data transfer rate
Backward compatible with 10/100 Mbps
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
3.5mm audio jack
Stereo audio output (speakers/headphones)
Microphone input
SD 3.0 memory card slot
Memory card type: SD / SDHC (UHS-I) / SDXC (USH-I) / Micro SDHC (UHS-I) / Micro SDXC (UHS-I)
Memory card capacity: 2TB (max)
Supports transfer rate up to 104Mbps
Resolution
Single video mode:
DisplayPort: Up to 3840x2160 at 30Hz
HDMI: Up to 3840x2160p at 30Hz
VGA: Up to 1920x1080p at 60Hz
Dual video mode:
DP+HDMI: Up to 1080p at 60Hz (each display)
DP+VGA: Up to 1080p at 60Hz (each display)
HDMI+VGA: Up to 1080p at 60Hz (each display)
Triple video mode:
DP+HDMI+VGA: Up to 720p at 60Hz (each display)
Product
Color: Iron Gray with Black
Housing material: Aluminum + Non-slip mat
Connectors
1x 24-pin, USB-C, Female, for PC connection
1x 24-pin, USB-C, Female, input (PD 3.0)
1x 19-pin, HDMI Type-A video, Female, Output
1x 20-pin, DisplayPort video, Female, Output
1x 15-pin, D-sub, VGA video, Output
2x 9-pin, USB 3.0, Type-A, Female, BC 1.2 (5V/1.5A) output
1x 4-pin, USB 2.0, Type-A, Female, output
1x 8-pin, RJ-45, Gigabit Ethernet, Female, output
1x 3.5mm, Audio jack (Speaker/Headphones/Microphone)
1x SD/Micro SD Memory Card slot
Environmental conditions
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: less than 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop or laptop computer with an available USB-C port with DisplayPort Alternate Mode (DP Alt Mode) and Power Delivery (PD) or Thunderbolt 3 technology
Windows 10 / 8 / 7
Mac OS 10.13 or later
Mac OS does not support MST function and will only mirror the displays
Package Contents
Aluminum USB-C MST Video Docking Station with PD
User Reference Guide
Item Dimension ( L inchxW inchxH inch)
11 x 1 x 4
Weight
1.0 lb
Warranty Information
2 years

Available Quantity

5

UPC

662774042725

SKU

mingleJU-DK0E11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The Kensington Universal AC Charge Station was engineered to meet the demands of classrooms, healthcare offices and retail spaces needing a durable storage solution for tablets, laptops, and e-readers. The Universal AC Charge Station provides best-in-class cable management, ample power adapter storage, and built-in surge protection to store and charge up to 12 devices.



Universal Compatibility allows you to store and charge up to 12 AC-powered devices (up to 14 each), including Chromebook, Surface Pro, MacBook, iPad, Galaxy Tab, laptops and 2-in-1 s

Sturdy Metal Frame offers durable protection to withstand the demands of every day use while also providing effective heat dissipation

Industrial-Grade Surge Protector provides 12 well-spaced outlets for protection against voltage spikes

Ample Power Adapter Storage keeps AC power adapters neatly tucked away

Built-in Cable Management keeps cords organized and reduces clutter

Portable Design fits on standard AV carts for easy transport between offices or classrooms
Item Dimension (L"xW"xH")
22 x 21 x 25
Weight
84.00 lb
Warranty Information
12 Months

Available Quantity

5

UPC

085896628781

SKU

mingleK62878NA

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

POWERFUL WORKSTATION: Expand multiple connectivity ports to your Thunderbolt 3 enabled MacBook Pro or Windows. Provides one 8K Thunderbolt 3 (Titan Ridge) port with 60W power delivery or one 8K DisplayPort 1.4 port, three USB 3.1 Gen 1 ports, one RJ45 Gigabit Ethernet port, and multi-slot memory card reader/writer

SUITABLE FOR PROFESSIONAL PHOTOGRAPHER: With your Titan Ridge Thunderbolt 3 laptop, allows one 8K video output and most popular memory cards, meets the demand of professional and amateur photographers, improving work efficiency, read/write to 4 different memory cards simultaneously with only one docking

MEMORY CARD READER INTERFACE: Supports the latest memory cards such as UHS-II SD 4.0, CFast 2.0, XQD 2.0

60W POWER DELIVERY: Up to 60W Power Delivery through Thunderbolt 3 port to charge your laptop. Includes 120W power adapter to provide enough power for Power Delivery and your connected peripherals

8K HIGH RESOLUTION: Allows a single 8K resolution from a single Titan Ridge Thunderbolt 3 or USB-C DisplayPort 1.4 port to experience the clearest image output

Thunderbolt 3 allows connecting two 4K Ultra HD displays simultaneously through a DisplayPort and Thunderbolt 3 port

SUPER HIGH-SPEED DATA TRANSFER: Thunderbolt 3 port allows data transfer speeds up to 40Gb/s and daisy chaining of Thunderbolt devices, such as monitors, external hard drives and RAID storage, plus three USB 3.1 Gen1 Type-A ports support data transfer rates up to 5Gbps

ALUMINUM COOLING SOLUTION: Premium aluminum housing provides efficient heat dissipation for reliable performance and long life
Chipset:
Intel Titan Ridge JHL7440, Realtek 5411E USB 5G, Realtek 8153B LAN, Realtek 5329 Card-Reader
Compliant with Thunderbolt 3 Technology
Integrated DisplayPort 1.4 interface for 8K at 60Hz
Integrated Gigabit Ethernet and supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
Thunderbolt 3 Host:
Support PD 60W charging
Thunderbolt 3 device:
40Gbps, PD 5V/3A, daisy chain up to 3 Thunderbolt devices
Three USB 3.1 Gen1 Type-A ports, data transfer rates up to 5Gbps with BC 1.2 charging
Supports 5.1 channel surround sound from DisplayPort output
Card reader interface:
UHS-II SD 4.0, CFast 2.0, XQD 2.0/Micro SD/SD
XQD 2.0 supports 400MB/s
CFast 2.0 supports 500MB/s
TF/Micro SD (UHS-I) supports 104MB/s
SD 4.0 (UHS-II) supports 280MB/s
Video cable length (cable not included):
DisplayPort: Up to 3 meters (max)
Video resolution:
Thunderbolt 3 (DP 1.2 source):
Single video: up to 5K at 60Hz
Dual video: up to 4K at 60Hz (DP + Thunderbolt 3)
Titan Ridge Thunderbolt 3 (DisplayPort 1.4 source):
Single video: up to 8K at 60Hz
Dual video: up to 4K at 60Hz (DP + Thunderbolt 3)
Product:
Color: Iron Gray
Housing material: Aluminum + plastic
Connectors:
1x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, Source connection
1x 24-pin, Thunderbolt 3 USB-C, Female, Output
1x 20-pin, DisplayPort, Female, Output
3x 9-pin, USB 3.1, Type-A, Female
1x 8-pin, RJ45, Network, Female
1x Micro SD (UHS-I) memory card slot
1x SD (UHS-II) memory card slot
1x CFast 2.0 memory card slot
1x XQD memory card slot
Power Adapter:
Input: AC 100-240V/50-60Hz
Output: DC 24V/5A
UL Listed: E323418 / Class VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 10% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
8 x 1 x 4
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044187

SKU

mingleJU-DK0G11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Cross-Platform Compatibility

Working with any laptop equipped with USB-C or Thunderbolt 3 and supporting Windows, Mac and Chrome operating systems, the SD2000P allows you to connect with confidence.

USB-C Connectivity

Allows users to transfer data, video, and audio while providing up to 60W of power delivery* to USB-C enabled laptops using the included 1M USB-C cable for a simple plug and play experience. The setup also provides users with a quick connect and disconnect since it eliminates the need to connect the laptop s power adapter at the desk. *Supported USB-C devices with PD function only

Versatile 4K Video Connections

Offers output options for HDMI (4K at 30Hz) or DP++ (4K at 30Hz) to a single external monitor, TV or projector for spectacular true-to-life images**. This versatility allows you to connect with confidence to varying desktop setups. **Host device must support Alt mode over USB-C

3 USB Ports

Extend your productivity capabilities via two USB 3.1 Gen1 ports (up to 5Gbps) with charging up to 5V/1.5A per port***, and one USB-C 3.1 Gen1 port (up to 5Gbps) with power delivery for an external device (5V/3A). ***USB charging is supported at 5V/1.5A per port when the laptop is connected, and at 5V/2.4A per port when the laptop is not connected

Gigabit Ethernet Port

Provides a reliable 1Gbps wired networking connection.

Kensington Security Slot

Allows you to easily implement a cable lock from the #1 brand in physical device security to protect your technology investment from potential thieves.
Best For
USB-C Laptops and Ultrabooks that support Power Delivery and a Single 4K Monitor
Connection Technology
USB-C Alt Mode
USB-C Power Delivery
Supports USB-C PD 3.0 (60W of laptop charging)
Compatibility
Windows 7 or above, macOS 10.13 or above, Chrome 44 or above
Number of Monitors Supported
1
Video Ports
1 x HDMI v1.4 or 1 x DisplayPort v1.2++
Maximum Resolution Supported
Single Monitor: 3840 x 2160 at 30Hz
Plug and Play installation without the need for drivers or downloads
System Requirements
Host device must support Power Delivery and DisplayPort Alt mode over USB-C
Item Dimension (L"xW"xH")
4 x 4 x 8

Weight
2.2 lbs

Warranty Information
36 months

Available Quantity

5

UPC

085896382607

SKU

mingleK38260NA

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Transform a single USB-C port, with DP Alt mode* or Thunderbolt 3 technology, into multiple connections simultaneously, including triple displays** (one DisplayPort, one HDMI, and one VGA). Note: *Requires a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality. **Requires GPU / graphics card to support at least 3 external displays to use all 3 video ports at the same time with extended mode

DisplayPort Multi Stream Transport Technology (MST)* Supports single 4K @30Hz Ultra HD video output or dual Full-HD 1080p video output (HDMI/DP, DP/VGA, HDMI/VGA) or triple HD 720p video output. *Note: Mac OS does not support MST function and will only mirror the displays

Supports Power Delivery 3.0 specification* provides up to 100W power to charge Laptops, Notebooks, and other devices. *Note: The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected

Adds 1 USB-C data and 2 USB Type-A ports with USB 3.1 Gen 1 data transfer rate up to 5Gb/s to your computer

Lightweight aluminum chassis with detachable/stowing USB cable is perfect for business trip and traveling

Anti-slip rubber pads keeps the docking station firmly planted to the desktop
Chipset: VL817+VL103R
Compatible with USB-C DisplayPort Alternate Mode (DP Alt Mode) and Thunderbolt 3 technology
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Supports USB 3.1 Gen1 data transfer rate up to 5Gb/s
Power Delivery 3.0 specification
Power output: 20/15/9/5Vat3A, up to 100W
Supported video cable length
HDMI: Up to 5M (max)
DisplayPort: Up to 3M (max)
VGA: Up to 10M (max)
Resolution
Single video mode
DisplayPort: Up to 3840x2160 at 30Hz
HDMI: Up to 3840x2160p at 30Hz
VGA: Up to 1920x1080p at 60Hz
Dual video mode
DP+HDMI: Up to 1080p at 60Hz (each display)
DP+VGA: Up to 1080p at 60Hz (each display)
HDMI+VGA: Up to 1080p at 60Hz (each display)
Triple video mode
DP+HDMI+VGA: Up to 720p at 60Hz (each display)
Product
Color: Iron Gray with Black
Housing material: Aluminum + Plastic
Connectors
1x 24-pin, USB-C, Female, PC connection
1x 24-pin, USB-C, Female, Data only
1x 24-pin, USB-C, Female, PD 3.0 only
Note: Connects to the laptops USB-C charger
1x 19-pin, HDMI Type-A video, Female, Output
1x 20-pin, DisplayPort video, Female, Output
1x 15-pin, D-sub, VGA video, Output
2x 9-pin, USB 3.1 Gen 1 Type-A, Female, Data only
Cable
USB-C to USB-C
Length: 120mm
Environmental conditions
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: less than 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop or laptop computer with an available USB-C port with DisplayPort Alternate Mode (DP Alt Mode) and Power Delivery or Thunderbolt 3 technology
Windows 10 / 8 / 7
Mac OS 10.13 or later
Mac OS does not support MST function and will only mirror the displays
Package Contents
USB-C MST Video Travel Docking with PD
USB-C to USB-C cable
User Reference Guide
Item Dimension ( L inchxW inchxH inch)
5 x 1 x 3
Weight
1.0 lb
Warranty Information
2 years

Available Quantity

5

UPC

662774042718

SKU

mingleJU-DK0D11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Transforms a single USB-C port, with DP Alt mode or Thunderbolt 3 technology, into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port, one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot

Supports Mirror mode with identical content displayed on each display, Extended mode with individual content displayed on each screen

DisplayPort Multi Stream Transport (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs

Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices

Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology

Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more

SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s

SD flash memory card slots support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer

Plug-n-play, no driver installation or power adapter required

Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go
Chipset:
STDP4320+VL817+VL102+RTL8153B+GL823K
Compatible with USB-C Alt-mode and Thunderbolt 3 technology
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Power Delivery 3.0 specification: 20/12/5V at 5A/3A/2A/1.5A, up to 100W
USB data transfer rate: up to 5Gb/s
Compatible networks:
10/100/1000 Mbps
Memory Card Types:
SDHC 2.0, SDXC 2.0 up to 40Mbps
Memory Card Capacity:
SDHC up to 32GB, SDXC up to 2TB (max)
USB Bus-powered
Supported video cable length:
HDMI: Up to 5 meters (max)
DisplayPort: Up to 3 meters (max)
Resolution:
Single video mode:
DisplayPort: Up to 3840x2160 at 30Hz
HDMI: Up to 3840x2160p at 30Hz
Dual video mode:
DP and HDMI: Up to 1080p at 60Hz (each display)
Product:
Color: Iron Gray with Black
Housing material: Aluminum housing
Connectors:
1x 24-pin, USB-C, Male, for PC connection
1x 24-pin, USB-C, Female, for PD 3.0 charging and USB 3.0 data transmission
2x 9-pin, USB 3.0, Female, output
1x 19-pin, HDMI Type-A video, Female, Output
1x 20-pin, DisplayPort video, Female, Output
1x 8-pin, RJ-45, Gigabit Ethernet, Female
1x SD Card Reader, Female
Cable:
USB-C
Length:200+-10mm
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: < 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
5 x 1 x 3
Weight
1.00 LB
Warranty Information
2 years

Available Quantity

5

UPC

662774042978

SKU

mingleJU-DK0F11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

True Universal Compatibility

Perfect for hot-desking and mixed deployment environments, the SD5550T works with Thunderbolt 3 & USB-C laptops running Windows or macOS.

Thunderbolt 3 Technology

Allows users to transfer up to 40Gbps of data, video and audio (10Gbps for USBC Gen2 laptops and 5Gbps for USB-C Gen1 laptops) using the included Thunderbolt 3 cable for a quick and powerful plug and play experience.

Single 4K or Dual 4K Video Output for Thunderbolt 3 Enabled Devices*

Extend visual productivity with the crisp resolution, contrast and color depth of Ultra HD (Single 4K 60Hz or Dual 4K 60Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. *For USB-C Alt Mode devices, a maximum resolution of Single 4K 30Hz or Dual 1080p @ 30Hz is supported (dual monitors are for devices that support MST).

60W Power Delivery

Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop, and peripheral USB accessories, using the Thunderbolt 3 connection. USB-C laptops must support Power Delivery.

Productive Desktop Ports

Two USB-C Gen2 ports (up to 10Gbps), three USB-A ports (1 Gen2@10Gbps; 2 Gen1@5Gbps), one Gigabit Ethernet port, and one audio combo jack.

DockWorks Compatible

Only Kensington ensures the best connection, performance, and security from your dock. Seamlessly, effortlessly, reliably, and free.

Zero Footprint Mounting Option

Maximize desktop space and reduce desktop cable clutter by mounting your docking station (optional mounting plate K34050WW).

Kensington Security Slot

Protect your technology investment via easy implementation of a Kensington Cable Lock (lock sold separately K65020WW or K64444WW).
Connection Technology
Thunderbolt 3 and USB-C
Driverless
Yes
Additional Screen Outputs
2
Video Ports
DisplayPort
Maximum Resolution
4K
Power Delivery
60W
Operating System(s)
macOS, Windows
Number of USB Ports
5
USB Fast Charging
Yes
Docking Station Family
The Innovator
DockWorks
Yes
Best For
Thunderbolt 3 and USB-C Laptops and Monitors that support up to dual 4K
Compatibility
Windows 10, macOS 10.14 or above
USB 3.0 Ports
3x: (1) USB 3.1 Gen2 (front) with 5V/1.5A fast-charging and (2) USB 3.1 Gen1 (back) supporting 5V/0.9A
USB-C Ports
2 x: USB 3.1 Gen2 (back) with 5V/1.5A charging per port
Audio
1 x 3.5mm Combo Microphone and Headphone Port (front)
Data Transfer Speeds
Supports up to 40Gbps data transfer speed
Ethernet Speed (Mbps)
1000, 100, 10
Maximum Resolution Supported
Thunderbolt 3: Single or Dual Monitors: 4K (4096x2160 at 60Hz) // USB-C Alt Mode - Single Monitor: (4096x2160 at 30Hz) or Dual Monitors: (1920x1080 at 30Hz)
Mounting Option
Maximize desktop space and reduce desktop cable clutter via our optional Docking Station Mounting Bracket (K34050WW)

Available Quantity

5

UPC

085896381310

SKU

mingleK38131NA

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Universal Docking Station
A savvy technology investment for evolving and mixed computer environments, the SD4700P connects to any laptop equipped with USB-C or USB 3.0, and supports both Windows and Mac operating systems.

Simple Set-up
Deploying a universal dock has never been easier. The SD4700P offers quick connections to transfer audio, video, data and power (supported USB-C devices only). Supporting clean and clutter-free workspaces, while also accommodating roaming computer environments and flexible workspaces, the SD4700P was designed with simplicity in mind.

DisplayPort++/HDMI
Providing support for flexible video connections, the SD4700P will support up to 2560x1600 for a single monitor or 2048x1152 for dual monitors.

6 USB Ports
Extending the productivity capabilities of todays thin laptops, the SD4700P provides one USB-C port, and five USB 3.0 ports, one of which is a 2.1A fast-charging port to power up a tablet or smartphone.

135W Power Supply Adapter
Providing ample power for the dock and up to 60W of power for devices connected via Power Delivey (PD) USB-C, the SD4700P is a powerful dock.

Combo 3.5mm Headphone and Microphone Jack
Connect your favorite headset with ease.

Gigabit Ethernet Port
Provides a reliable 1Gb wired networking connection between computers for faster downloads from the corporate intranet or internet.

Kensington Security Slot
Allows you to easily implement a cable lock from the No. 1 brand in physical device security to protect your technology investment from potential thieves.

Zero Footprint Mounting
The dock can be mounted to the back of any VESA-compatible external display (mounting plate (K33959WW) sold separately), allowing you to keep your desktop less cluttered.
Compatibility
OS X 10.13.3 only, Windows 7, Windows 10
Connections
1 x RJ-45 Ethernet (LAN) Female
Connectivity
Wired
Item Dimension (L"xW"xH")
5 x 9 x 5

Weight
3.6 lbs

Warranty Information
3 Year Limited Warranty

Available Quantity

5

UPC

085896382409

SKU

mingleK38240NA

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features


Thunderbolt 3 Technology


Allows users to transfer up to 40Gbps of data, video and audio using the included 0.7m Thunderbolt 3 cable for a quick and powerful plug and play experience.

Cross-Platform Compatibility

Supports Windows and Mac operating systems that support Thunderbolt 3 functionality to easily accommodate cross-platform environments.

Single 5K or Dual 4K Video Output

Provides support for a single 5K (5120x2880@60Hz) display or up to two 4K (4096x2160@60Hz) displays via DisplayPort for spectacular true-to-life images.

85W Power Delivery

Quickly charges your laptop and peripheral USB accessories using the Thunderbolt 3 connection to simplify connects and disconnects.

4 USB Ports

Extend productivity capabilities via three USB-A 3.1 Gen1 ports (up to 5Gbps; charging up to 5V/2.4A (1) and 5V/1.5A (2)), and one USB-C 3.1 Gen1 port (up to 5Gbps) with power delivery for an external device (5V/3A).

Premium Compact Design with Zero Footprint Mounting

Offers high quality structural components, well-organized connection options and the ability to attach the dock to the back of any 75mm or 100mm VESA compatible external display for a tidier workspace (mounting plate sold separately K33959WW).

On/Off Switch

Conveniently turn the dock on or off as needed with the push of a button.
Connection Technology
Thunderbolt 3
Driverless
Yes
Additional Screen Outputs
2
Video Ports
DisplayPort
Maximum Resolution
4K
Power Delivery
85W
Operating System(s)
macOS, Windows
Number of USB Ports
4
USB Fast Charging
Yes
TAA Compliant
Yes
Docking Station Family
The Task Master
DockWorks
Yes
Best For
Thunderbolt 3 Laptops and Ultrabooks and Monitors that support up to 4K
Compatibility
Windows 10, macOS 10.14 or above
USB 3.0 Ports
3x: (1) USB 3.1 Gen1 (front) with 5V/1.5A fast-charging and (2) USB 3.1 Gen1 (back) supporting 5V/0.9A
USB-C Ports
1 x: USB 3.1 Gen1 (front) with 5V/3A charging
Audio
1 x 3.5mm Combo Microphone and Headphone Port (front)
Data Transfer Speeds
Supports up to 40Gbps data transfer speed
Ethernet Speed (Mbps)
1000, 100, 10
Maximum Resolution Supported
Single Monitor: 5K (5120 x 2880 at 60Hz), Dual Monitors: 4K (4096 x 2160 at 60 Hz)

Available Quantity

5

UPC

085896383901

SKU

mingleK38390NA

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Sandisk Professional, PRO-DOCK 4, 4-Bay, Thunderbolt, Reader Docking Station Thunderbolt, Reader Docking Station

Note

Currently out of stock

Available Quantity

0

UPC

718037891620

SKU

mingleSDPD14F-0000-NBAAD

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC 14-Port Thunderbolt 3 Dock w/Cable, Windows/Mac, Space Gray Windows/Mac, Space Gray

Note

Currently out of stock

Available Quantity

0

UPC

810586030540

SKU

mingleOWCTB3DK14PSG

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC, Thunderbolt Pro Dock, 10GbE, USB Ports, CFExpress, Audio, DP, SD 4.0 card reader CFExpress, Audio, DP, SD 4.0 card reader

Note

Currently out of stock

Available Quantity

0

UPC

810586038669

SKU

mingleOWCTB3DKPRO

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC, Thunderbolt Dock w/ Thunderbolt 4 Cable

Note

Currently out of stock

Available Quantity

0

UPC

810586036078

SKU

mingleOWCTB4DOCK

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC, USB-C Travel Dock E, Space Gray

Note

Currently out of stock

Available Quantity

0

UPC

810586035613

SKU

mingleOWCTCDK6P2SG

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC, 2.0 Meter (79") Thunderbolt 4/USB-C cable, Universal C to C, 40Gb/s, 100W Power Universal C to C, 40Gb/s, 100W Power

Note

Currently out of stock

Available Quantity

0

UPC

810586036917

SKU

mingleOWCCBLTB4C2.0M

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

OWC, Thunderbolt Go Dock, Thunderbolt 4, USB-C, USB4 USB4

Note

Currently out of stock

Available Quantity

0

UPC

810100980757

SKU

mingleOWCTB4DKG11P
