Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

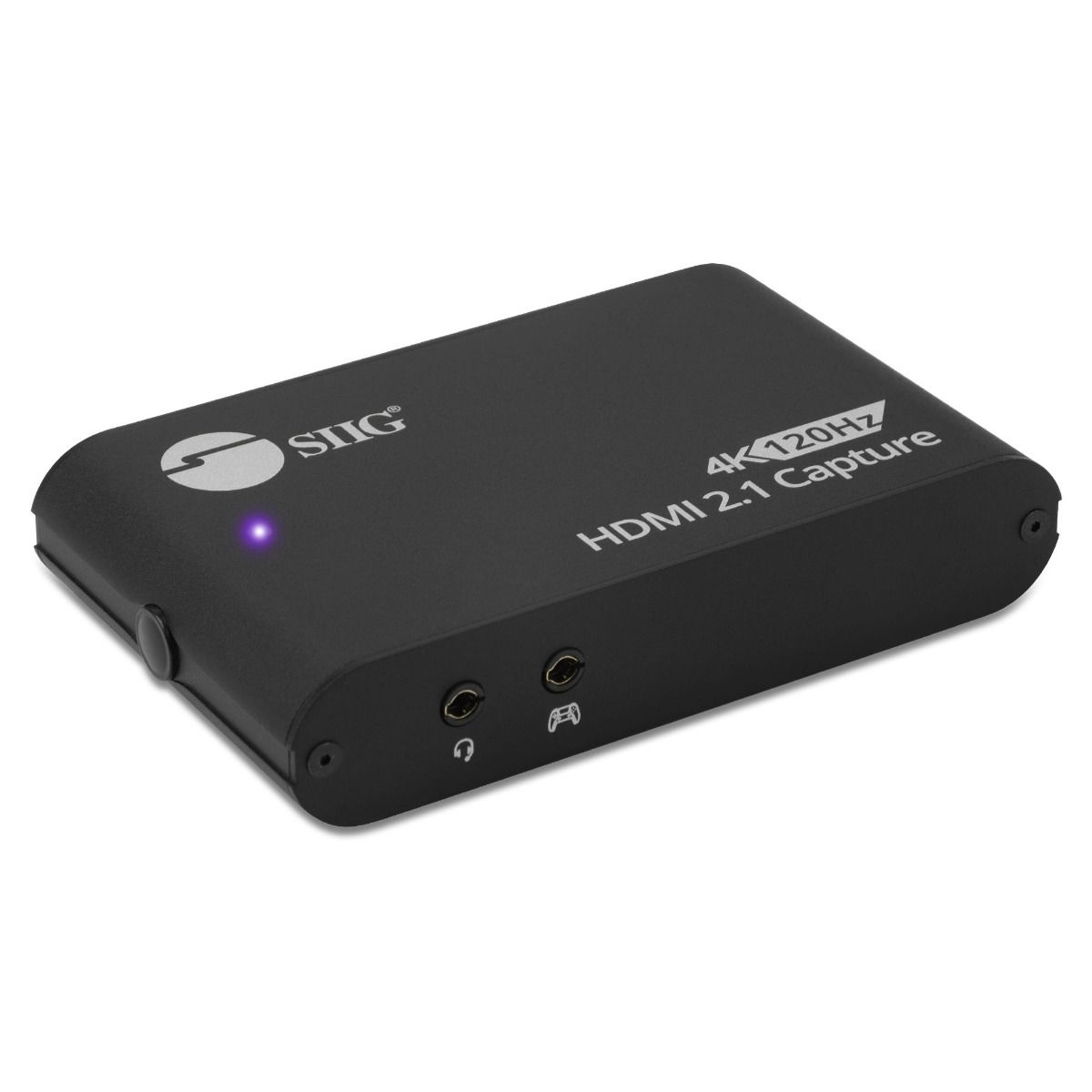

Easily capture and recording 4K60Hz resolution from any HDMI source such as Gaming PC (4K144Hz), Gaming console (4K120Hz), Media players or Set-top box while simultaneously viewing in the HDMI loopout for 4K144Hz / 4K120Hz, 1080p240Hz resolution, USB-C 10Gbps, VRR, Aluminum Housing, ESD Protection, TAA Compliant
Features
Easily capture and record 4K at 60Hz HDMI live video with low latency via a USB-C device and up to 10Gbps date transfer, great for gaming, live streaming, training, meetings and more
4K120Hz / 4K144Hz Pass-through and 4K60Hz Capture
Experience lifelike gaming with 4K144Hz (PC) / 2K144Hz (PC) / 4K120Hz (console) / 1080p240Hz HDMI input and pass-through, seamless capture / recording HDMI signals through USB-C 10Gbps, resolution supports 4K60Hz / 4K30Hz HDR / 2K120Hz / 2K60Hz HDR / 1080p240Hz and so on, ensuring every detail is preserved with crystal clarity. Supports various resolution with downscaling and upscaling
Note: 1) macOS max capture: 4K30Hz 2) 4K144Hz only works in 48G bandwidth, monitor must support 4K144Hz 48G bandwidth, if the monitor only supports 4K144Hz DSC mode, it wont work with 4K144Hz
Live and Party Chat
Built-in two 4-pole 3.5mm jacks enable connection with a controller and headset for game console party mode, easily control game and chat volume, simultaneous party chat and live commentary recording. One 4-pole 3.5mm cable included, no additional purchase required
USB-C 10Gbps Connectivity
With USB-C 10Gbps connectivity, transfer your captured content quickly and efficiently to your computer for editing or streaming purposes
USB-C bandwidth:
Up to 10Gbps (USB-C)
Video support USB-C:
Up to 4K60Hz/ 1080p240Hz/ 2560x1440120Hz/ 4K30Hz HDR
HDMI bandwidth:
Up to FRL 6 (48Gbps)
Video support HDMI input and Loopout:
Up to 4K120Hz / 4K144Hz (4:2:0)
Audio input:
HDMI embedded audio and Mono mic input audio
Audio support:
HDMI output up to 7.1ch, stereo audio up to 2ch
Recording mode:
Software compression
Recording Video Fomat:
RGB/YUY2/NV12/I420/P010/ MJPEG (USB 10Gbps)
MJPEG/YUY2/NV12/I420(USB2.0)
Software compatibility(not complete list):
OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
Firmware update:
Feasible via USB-C port
Product:
Color:
Black
Housing:
Aluminum
Connector:
1x 19-pin HDMI, Type-A, female, Input
1x 19-pin HDMI, Type-A, female, Output
1x 4-pole 3.5mm jack for Headset
1x 4-pole 3.5mm jack for Gamepad
1x 24-pin USB-C 10Gbps, female
Environmental conditions:
Operation Temperature:
32 to 104 degrees F
Storage Temperature:
-4 to 140 degrees F
Relative humidity:
20 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Country of origin:
Taiwan
Item Dimension (L"xW"xH")
7 x 2 x 5

Weight
1 lb

Warranty Information
3 years limited

Available Quantity

5

UPC

662774046327

SKU

mingleCE-H28311-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

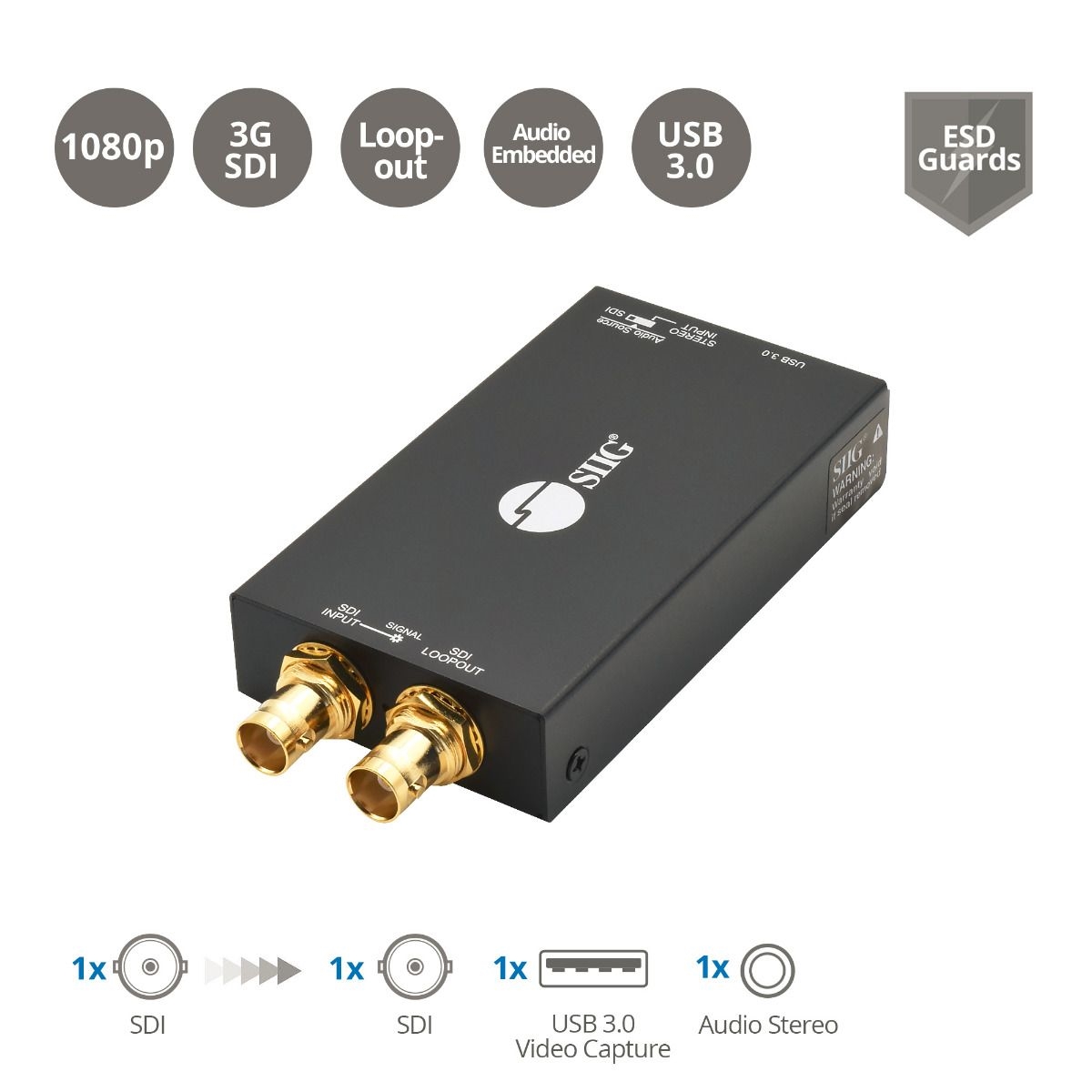

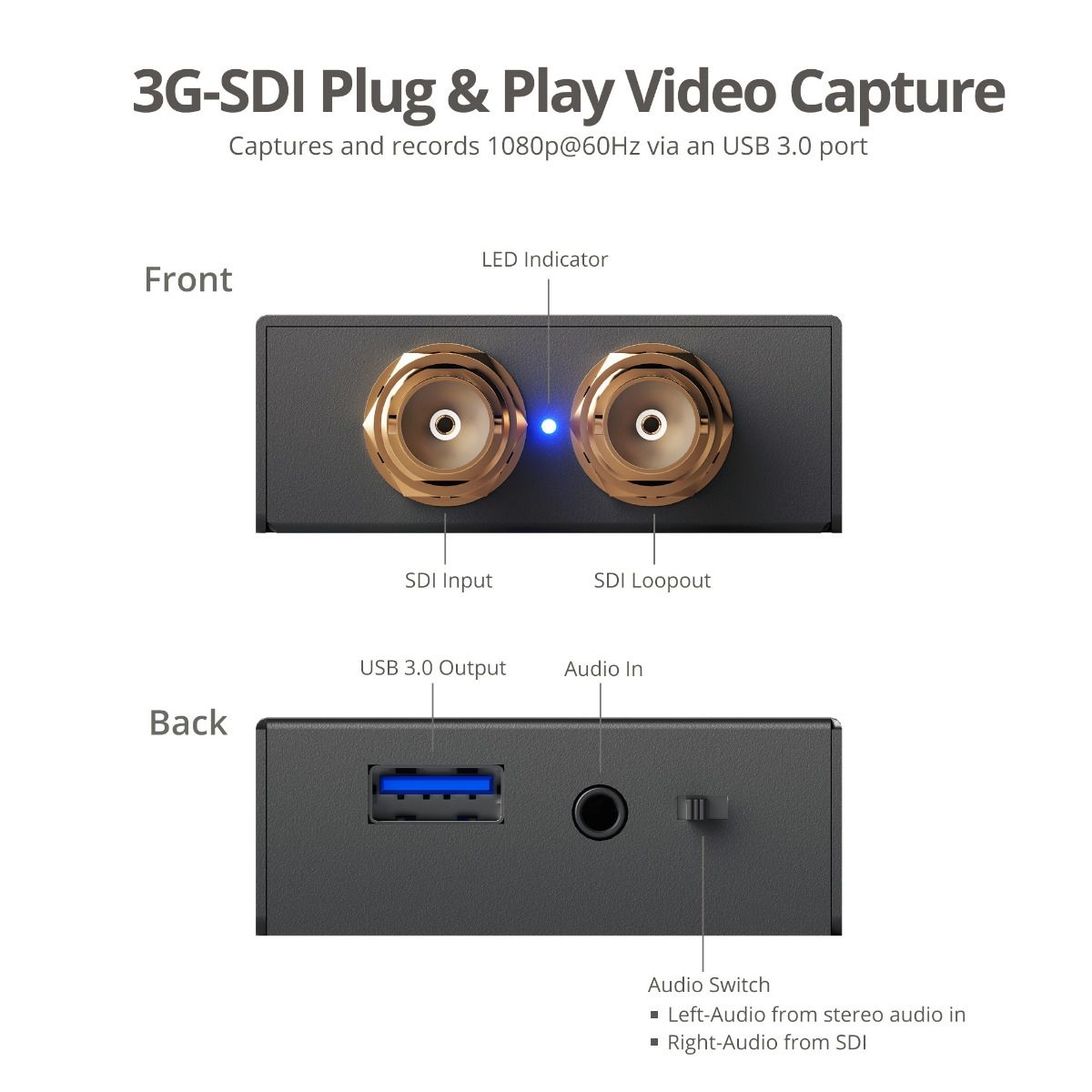

Provides a professional way to capture 3G-SDI signals and audio through USB 3.0 connection from your PC system

Supports 3G-SDI, HD-SDI, and SD-SDI signals, video format auto-detection to ensure plug-n-play operations

Supports 3G-SDI Input & Output, capture and record in 1080p while simultaneously viewing on 1080p@60Hz

Great for on-line meeting, training, gamers and live broadcast. Save money on having to buy a splitter for your setup

Compatible with most 3rd party software such as OBS Studio and AMCap, plus many more software

Compatible with Windows 7 / 8.1 / 10 and Mac OS 10.15 / 11

Mixed audio support from Line-in and 3G-SDI and supports 3G-SDI audio embedding

Support video capture and record up to Full HD resolution up to 1920 x 1080p@60fps

Recording video format: H.264 (Software Compression)

Supports 3G-SDI output resolution scaler with audio embedding


Software compatibility:

- OBS Studio

- AMCap

- Potplayer

- VLC

- XSplit Boardcast

- Skype

- Zoom

- Hangout

- TeamViewer


Compatibility Notes:

- Does not capture or record HDCP protected signals

- HDCP protected signals will pass through to the SDI loop-out port
Chipset:
EJ511
Version:
USB 3.0
Input Video Bandwidth:
2.970 Gbps, 2,970/1.001 Gbps
Output Video Bandwidth:
Up to 350MBps (USB 3.0)
Video resolution:
Up to 1080p at 60Hz
Recoding mode:
H.264 (Software compression)
Recoding Video Format:
YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0)
Audio Input:
SDI Embedded Audio and Stereo Audio input
Audio Format:
2 Channel, 44.1 and 48KHz sample rate, up to 16bit PCM
Software compatibility:
OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows), Skype (Windows, OS X), Hangout (Windows), TeamViewer (Windows)
ESD protection:
Human body model +/-15KV (air-gap discharge), +/-8KV (contact discharge)
Color:
Black
Housing material:
Metal
Connectors:
1x SDI, Video input
1x SDI, Video Loop-out
1x 3.5mm Audio input
1x USB 3.0 Type-A, Female for PC and FW update
1x Slide Switch, Audio mode selection
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Country of origin:
Taiwan
System Requirements
Desktop PC with one available USB 3.0 port
Windows 10 / 8.1 / 7 (32-/64-bit)
macOS 10.15 / 11

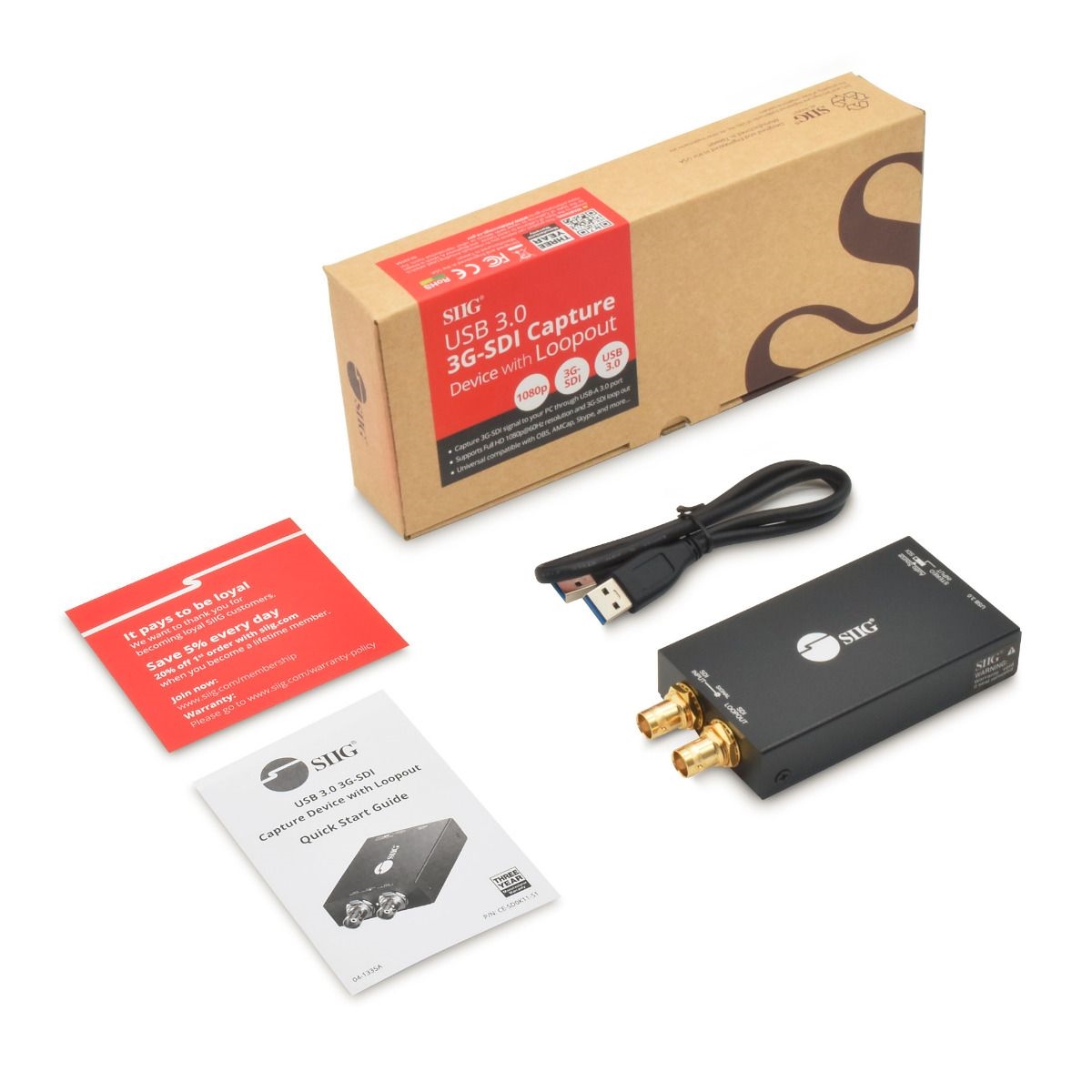

Package contents
USB 3.0 3G-SDI Capture Device with Loopout
USB 3.0 A to A cable
Quick Start Guide

Available Quantity

5

UPC

662774044729

SKU

mingleCE-SD0K11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

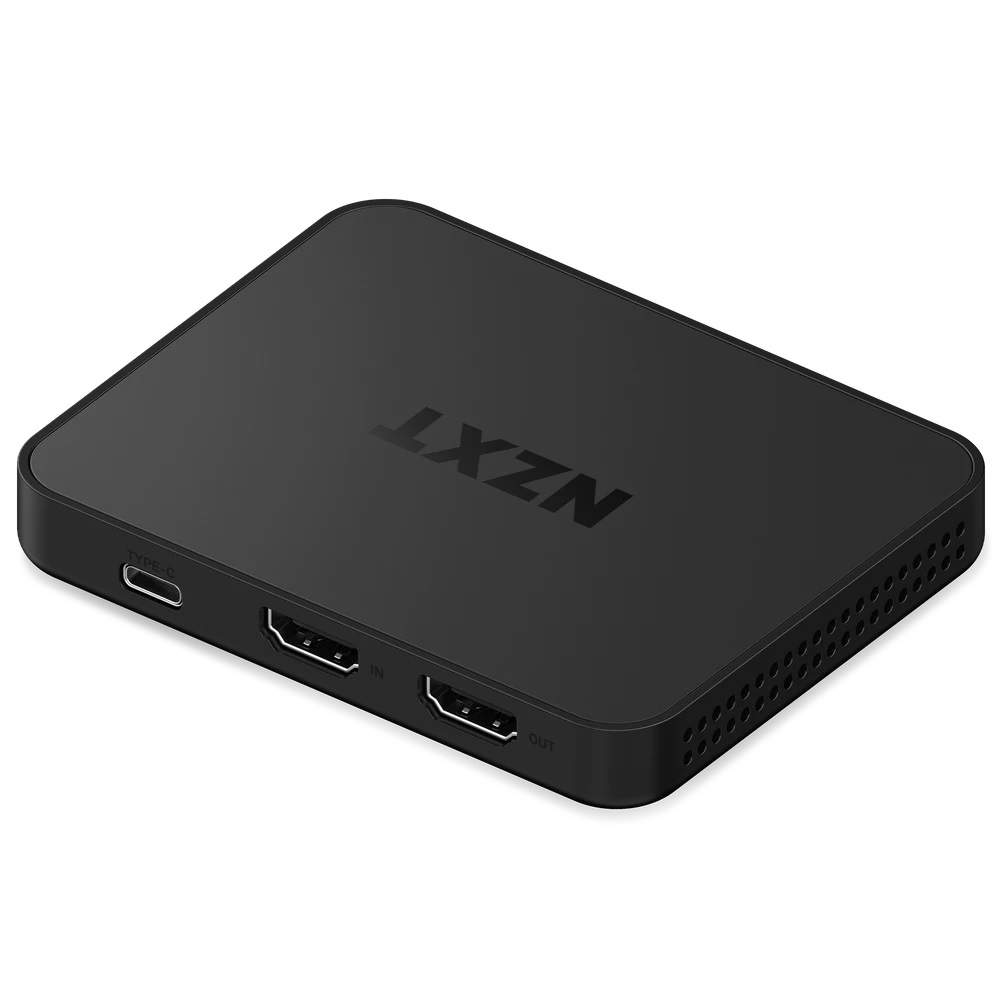

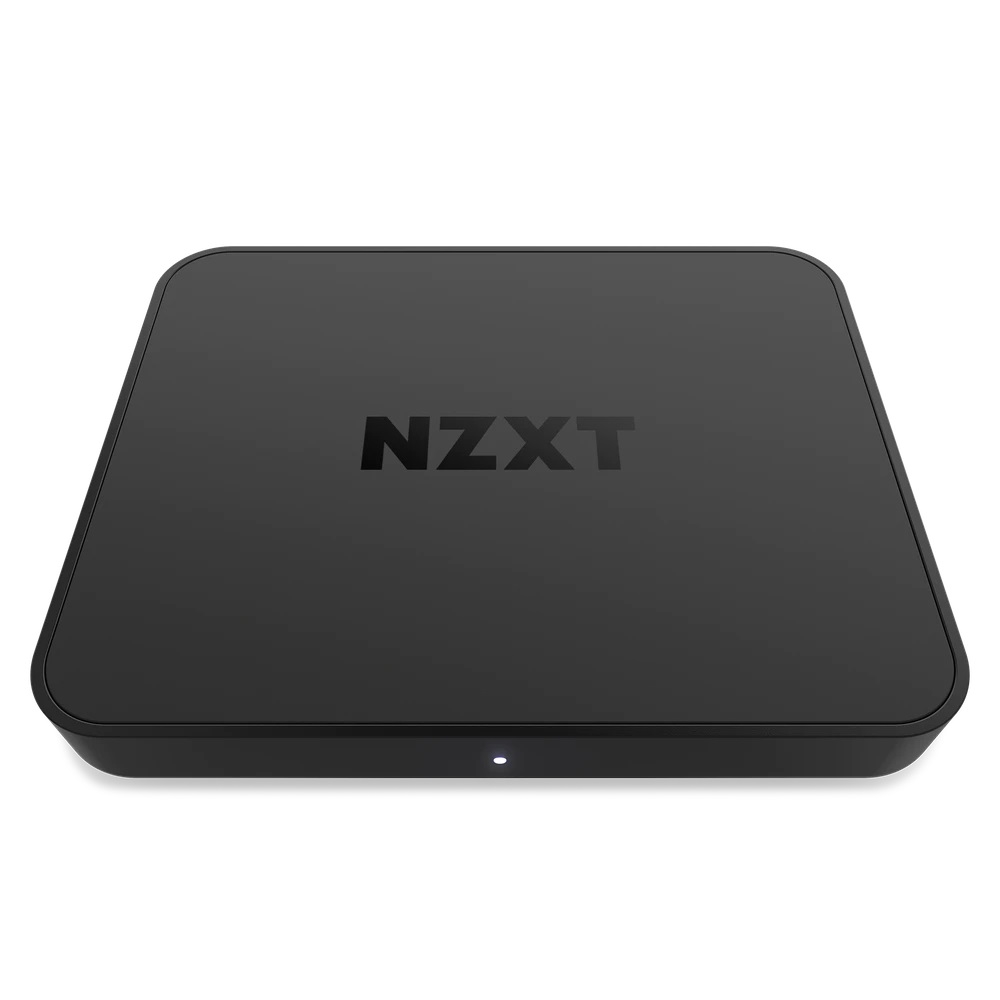

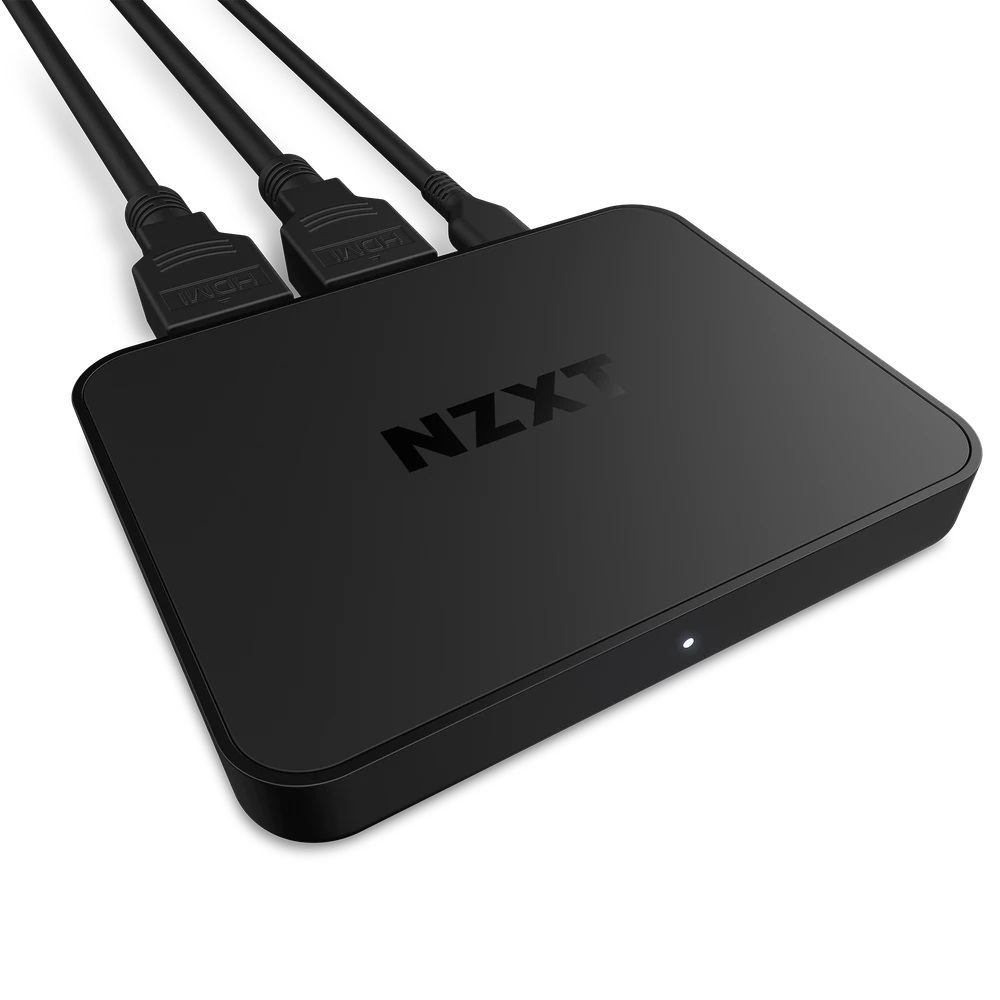

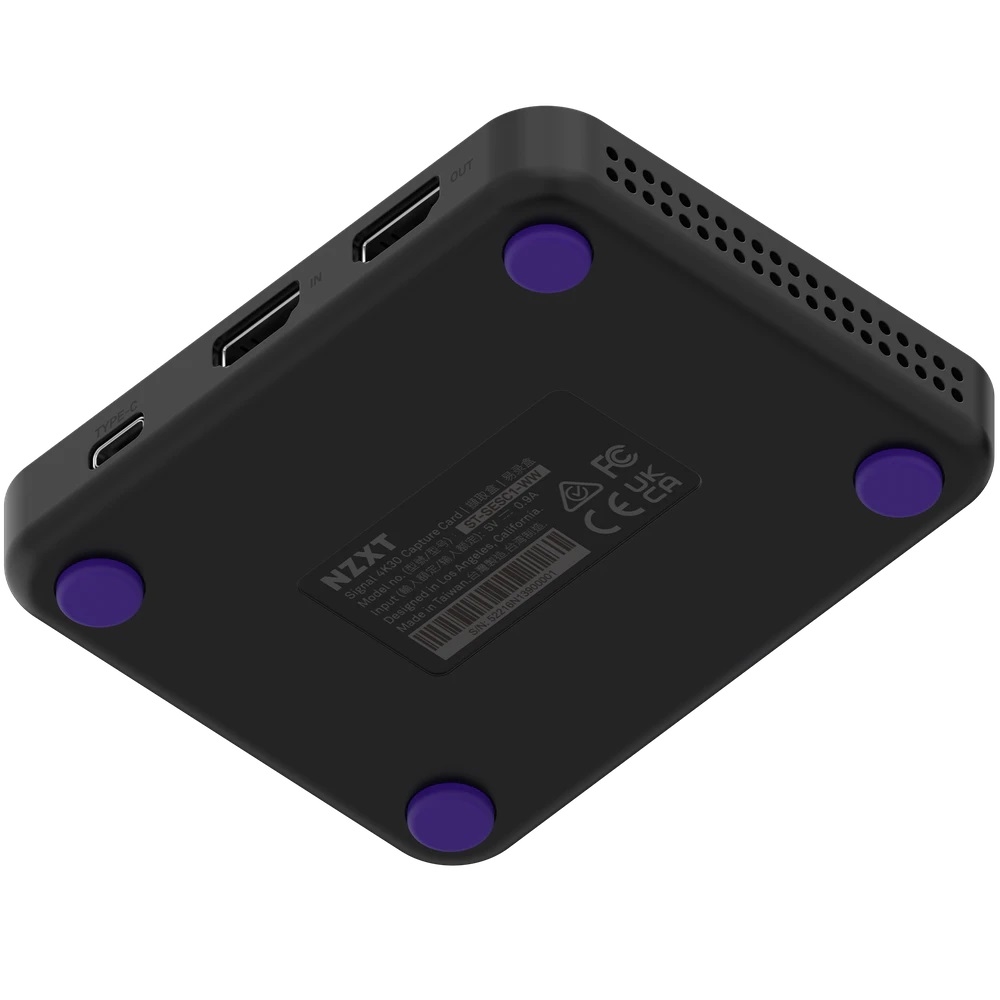

The Signal 4K30 Capture Card makes it easy to record and stream gameplay from current-gen consoles and a high-end gaming PC at maximum quality! It's your stepping stone to building and growing your audience.


Record video content at 4K resolution with 30 frames per second from your console, mobile device, PC, or camera to share with your audience

Play your games in high resolution and refresh rate while recording: 4K60 HDR, 1440p144Hz HDR, or 1080p240Hz HDR with zero-lag passthrough

Get your stream picture-perfect by connecting directly with OBS, Streamlabs, or any other streaming software

Works seamlessly with Skype, Zoom, Discord, or any other video calling software

Hardware compatible with both Mac and PC, requires USB 3.2 Gen 1

Software support through NZXT CAM

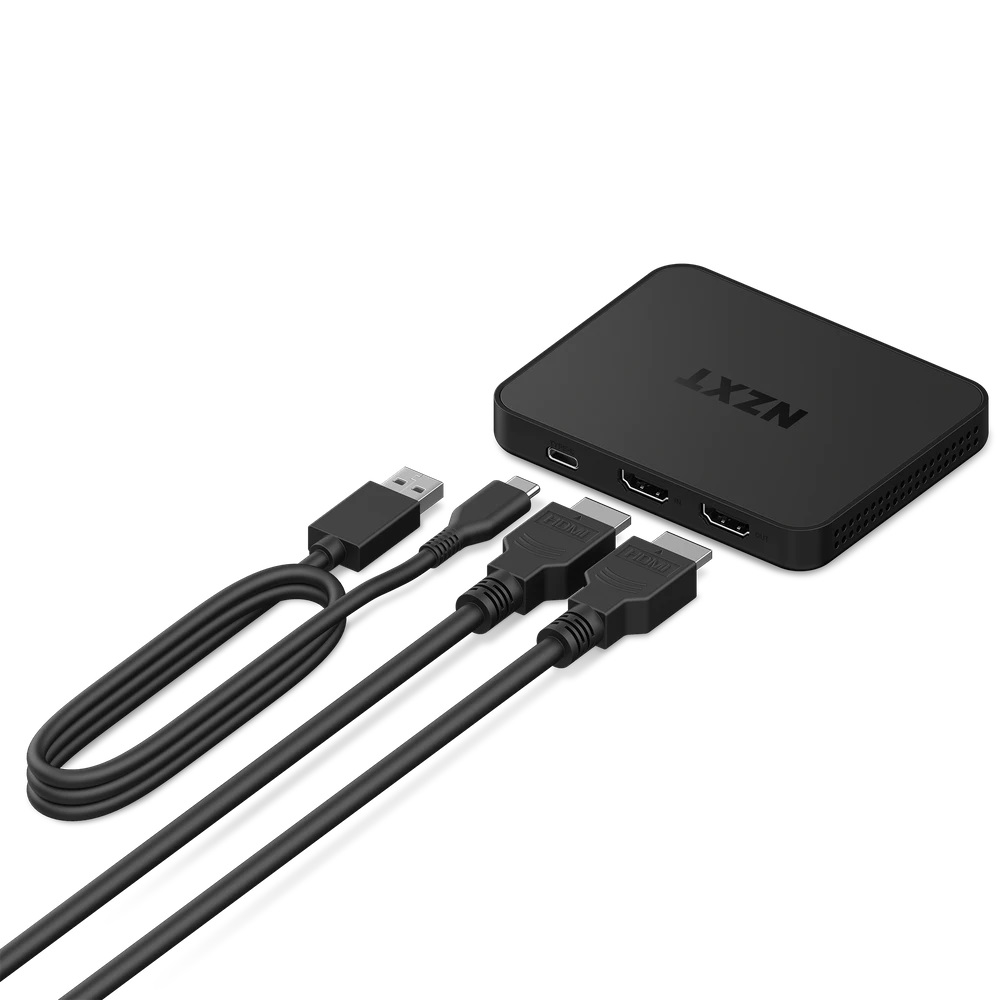

Inside the Box

NZXT Signal 4K30 Capture Card x1

HDMI 2.0 x1

USB-C to USB-A cable x1
Input and Passthrough:
HDMI 2.0
Power and Data:
USB 3.2 (Gen 1) Type C
PC Connection:
USB-C to USB-A
Channels:
2 (16 bit, 48 kHz Audio)
Compliance:
Compliant with HDMI 2.0, HDCP 1.4/2.2 and DVI 1.0 specifications
HDR to SDR Conversion:
HDR10 passthrough with hardware conversion to SDR color
MAXIMUM INPUT and PASSTHROUGH COMPATIBILITY
3840x2160p:60fps HDR
2560x1440p:144fps HDR
2560x1080p:144fps HDR
1920x1080p:240fps HDR
Others:720p, 480p, 576p, 480i, 576i, 1920x1080i
SOFTWARE
Audio:HDMI:
Stereo 16 bit 48K samples/sec
Scaling:
Hardware downscaling, and upscaling to 1080p
UCV Supported Raw Formats:
NV12 and YUY2 (for up to 1440p)
System OS:
PC / Windows 10, Windows 11
Item Dimension (L inchxW inchxH inch)
7 x 6 x 3

Weight
1.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

815671016584

SKU

mingleST-SESC1-WW

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

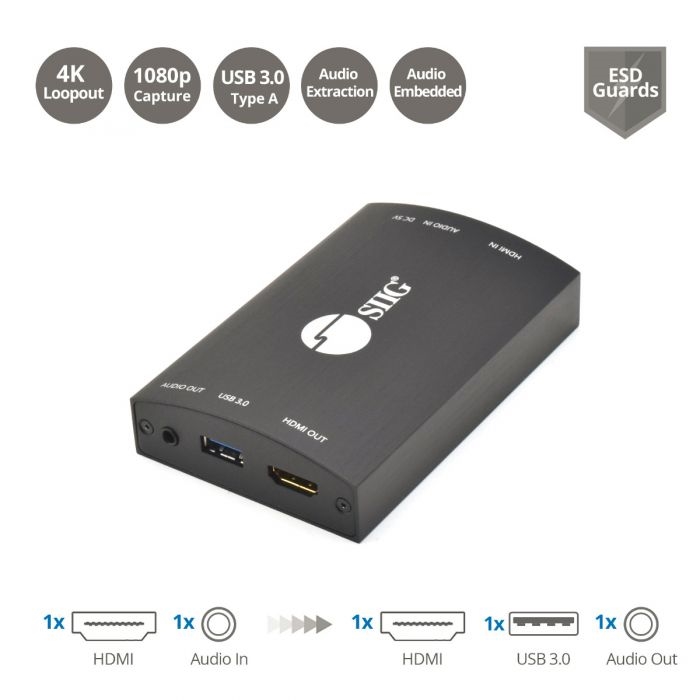

Easily capture and save 4K HDMI signals in 1080p resolution from any HDMI source such as DVD players, media players, or Set-top box while simultaneously viewing in 4K@60H YUV 4:4:4 resolution

Features

Professional like HDMI capture device with audio embedding through USB 3.0 connection from your PC system

Utilizes USB 3.0 interface for high-speed transmission

Allows capture and record in 1080p while viewing at 4K@60Hz YUV 4:4:4 simultaneously. This device saves you the cost and hassle of buying a splitter to play and capture at the same time. Note: 4K HDR is NOT supported on the HDMI loop-out

Great for on-line meetings, training, gaming, and live broadcast

Compatible with most 3rd party software such as OBS Studio and AMCap

Compatible with Windows 7/8.1/10 and Mac

Mixed audio support from Line-in and HDMI with HDMI audio extraction to connect analog stereo speakers

Support video capture and record up to Full HD resolution up to 1920 x 1080p@60 fps

Supports HDMI resolution downscaling from 4K to 1080p

Recording video format: H.264 (Software Compression)

Notes:

- 4K@60Hz YUV 4:2:2 to 1080p resolution downscaling is not supported

- 4K@60Hz YUV 4:2:2 to 4K@60Hz YUV 4:2:0 resolution downscaling is not supported
Specifications
Chipset:
IT6663FN
HDMI Bandwidth:
Single-link 600MHz (18Gbps)
Video Bandwidth:
Up to 350MBps (USB 3.0)
Input resolution:
Up to 4K at 60Hz YUV 4:4:4
Recording mode:
H.264 (Software compression)
Recording video format:
YUY2 (USB 3.0) / MJPG (USB 2.0 / 3.0)
Software compatibility:
OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)VLC (OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
ESD protection:
Human body model +/-15KV (air-gap discharge) +/-8KV (contact discharge)
Product:
Color: Black
Housing material: Aluminum
Connectors:
1x 19-pin HDMI, Female, Input
1x 19-pin HDMI, Female, Loop-out
1x 9-pin USB 3.0, Type-A, Female, To PC system
1x 3.5mm jack, Audio, Input
1x 3.5mm jack, Audio, Output
1x 5-pin, Micro USB, Power jack
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 5V/2A
UL Listed: E135856 /Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Country of origin:
Taiwan
Item Dimension (L"xW"xH")
5 x 1 x 3

Weight
1 lb

Warranty Information
3 years

Available Quantity

5

UPC

662774044217

SKU

mingleCE-H26H11-S1
