Product Description

Features

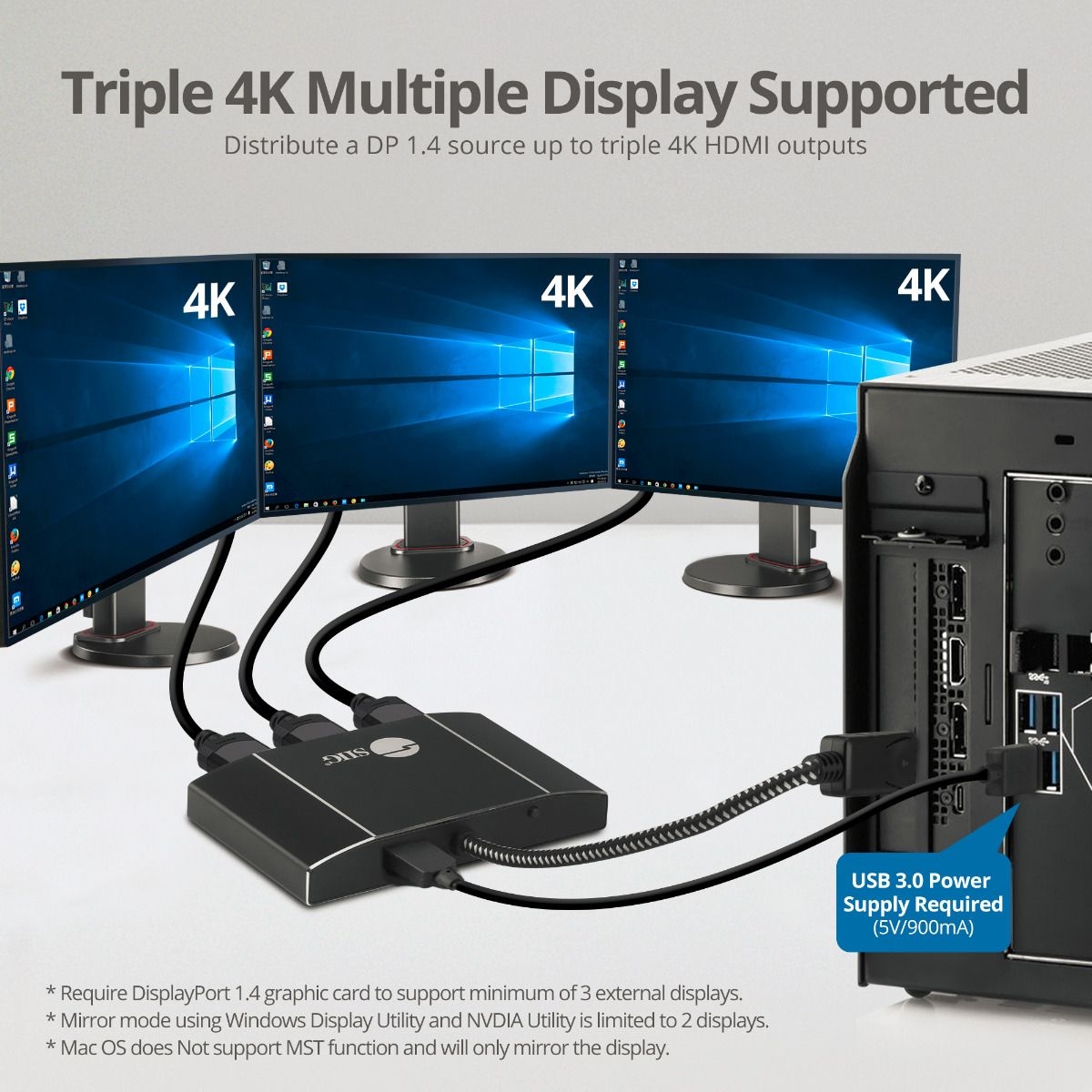

Boost your productivity by connecting three HDMI displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology

Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display

Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter

Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc

Note: The total combined bandwidth among all connected displays must NOT be exceeded the total bandwidth of 32.4Gbps

Compatible with DisplayPort 1.4 MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology

Support 4K HDR and HDCP 2.2

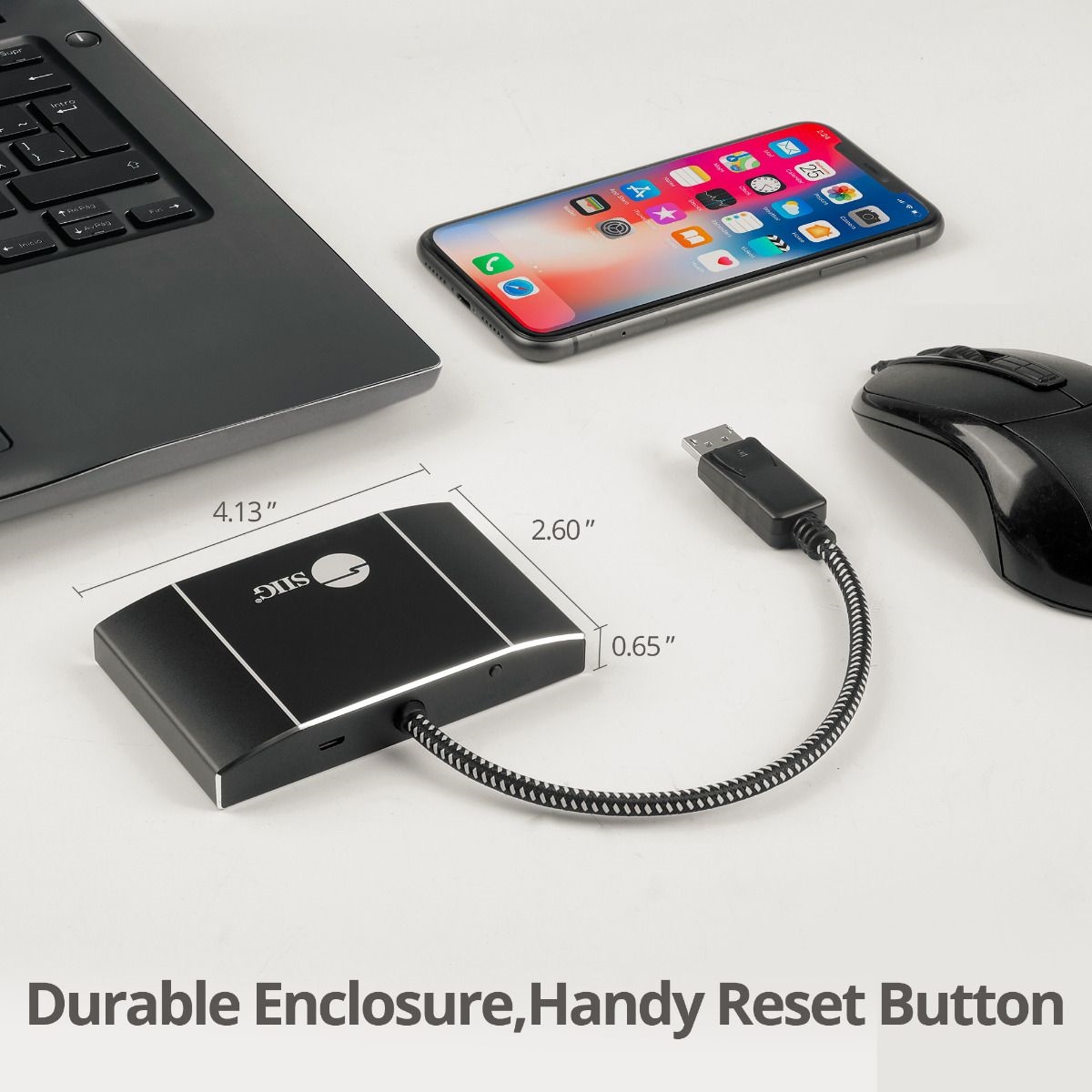

Reset button allows re-detection of all the displays if any of the displays are not detected

Plug-n-play, trouble-free set up without complicated hardware or driver installation

Premium aluminum housing with embedded woven braided DisplayPort cable decreases surrounding interference and provides optimal video quality


Compatibility Notes:

- Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode

- Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays

- Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays

- Requires USB 3.0 power source of at least 5V/600mA
Chipset:
VMM5310+ITE6563
Maximum resolution:
One screen 8K (7680 x 4320) at 30Hz
Two screen 4K (3840 x 2160) at 60Hz
Three screen 4K (3840 x 2160) at 30Hz
Compliant with DisplayPort 1.4 specifications
Audio:
7.1-ch surround audio
Display modes:
Mirror, Extend, Panoramic video wall
- Note : AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Total Bandwidth 32.4Gbps:
Supports a maximum of three 4K at 30Hz displays. Other resolution permutations which are less than or equal to 4K at 30 will be fine also. For example, three 2K, three 1080p, 4K+2K+1080p etc.
- Note: The total combined bandwidth among all connected DisplayPort displays must NOT be exceeded
Color:
Black
Housing:
Aluminum
Connectors:
1x 20-pin, DisplayPort, Male, Input
3x 19-pin, HDMI, Female, Output
1x 5-pin, Micro USB, Female, Input (for power only)
1x Reset button
Environmental conditions:
Operating temperature:
32 to 104 degrees F
Storage temperature:
-4 to 158 degrees F
Relative humidity:
5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
China
System Requirements
Desktop computer or laptop with an available DisplayPort 1.4 Dual mode output
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Requires GPU / graphics card to support at least 3 external displays to use all 3 HDMI video ports at the same time with extended mode
Requires USB 3.0 power source of at least 5V/600mA

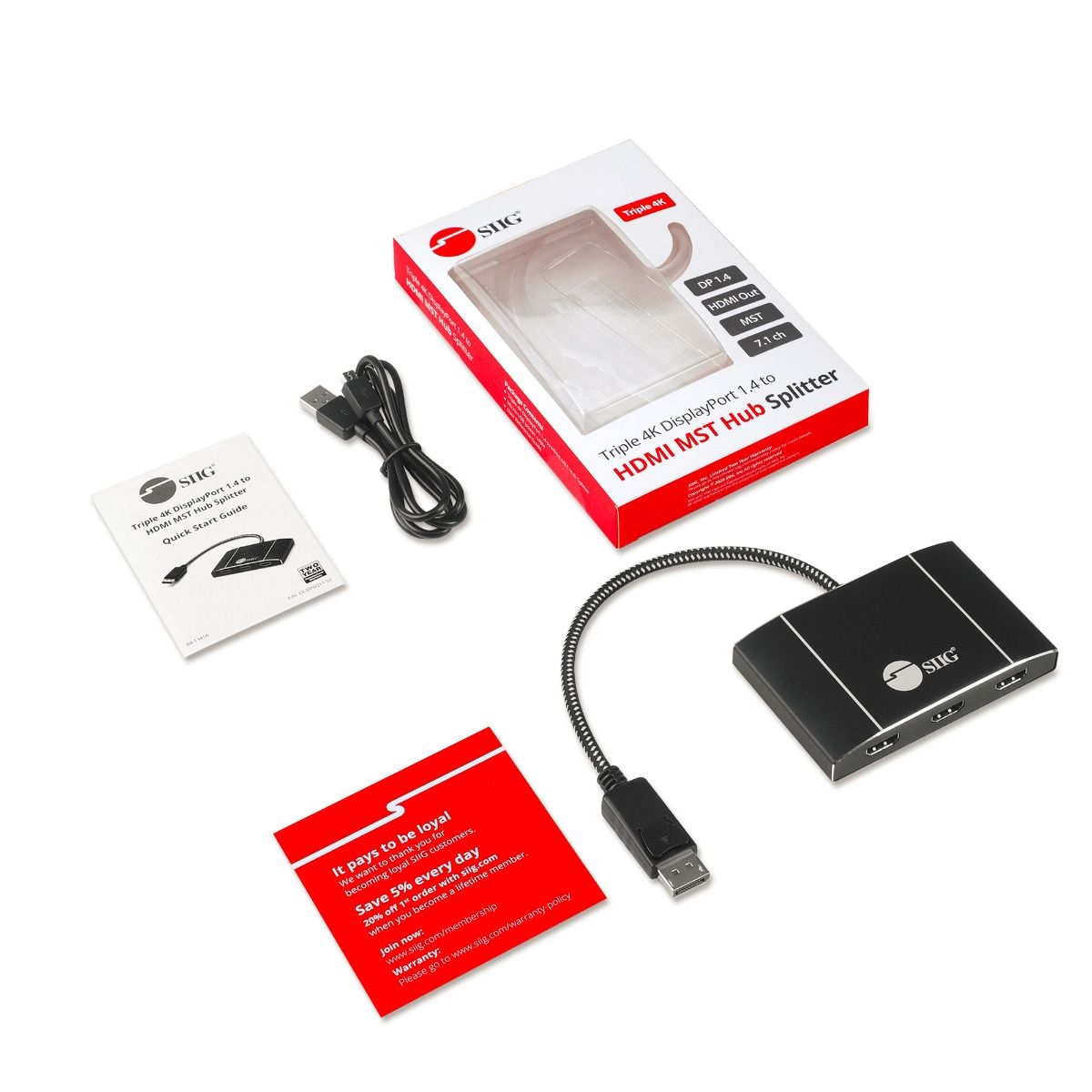

Package contents

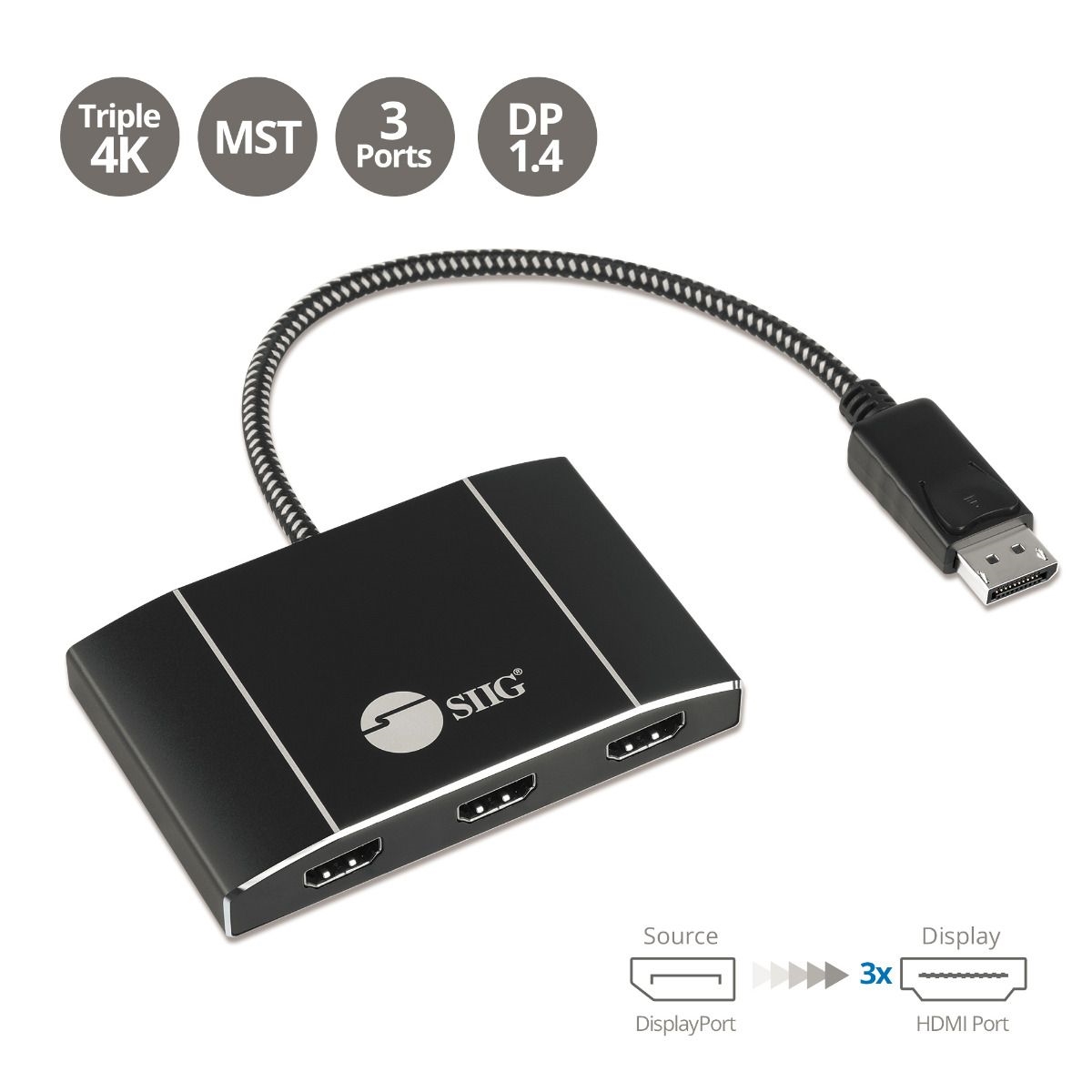

1x3 4K DisplayPort 1.4 to HDMI MST Hub Splitter
Micro-USB power cable
Quick Start Guide
Item Dimension (L inchxW inchxH inch)
5 x 1 x 3

Weight
1.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774043951

SKU

mingleCE-DP0Q11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

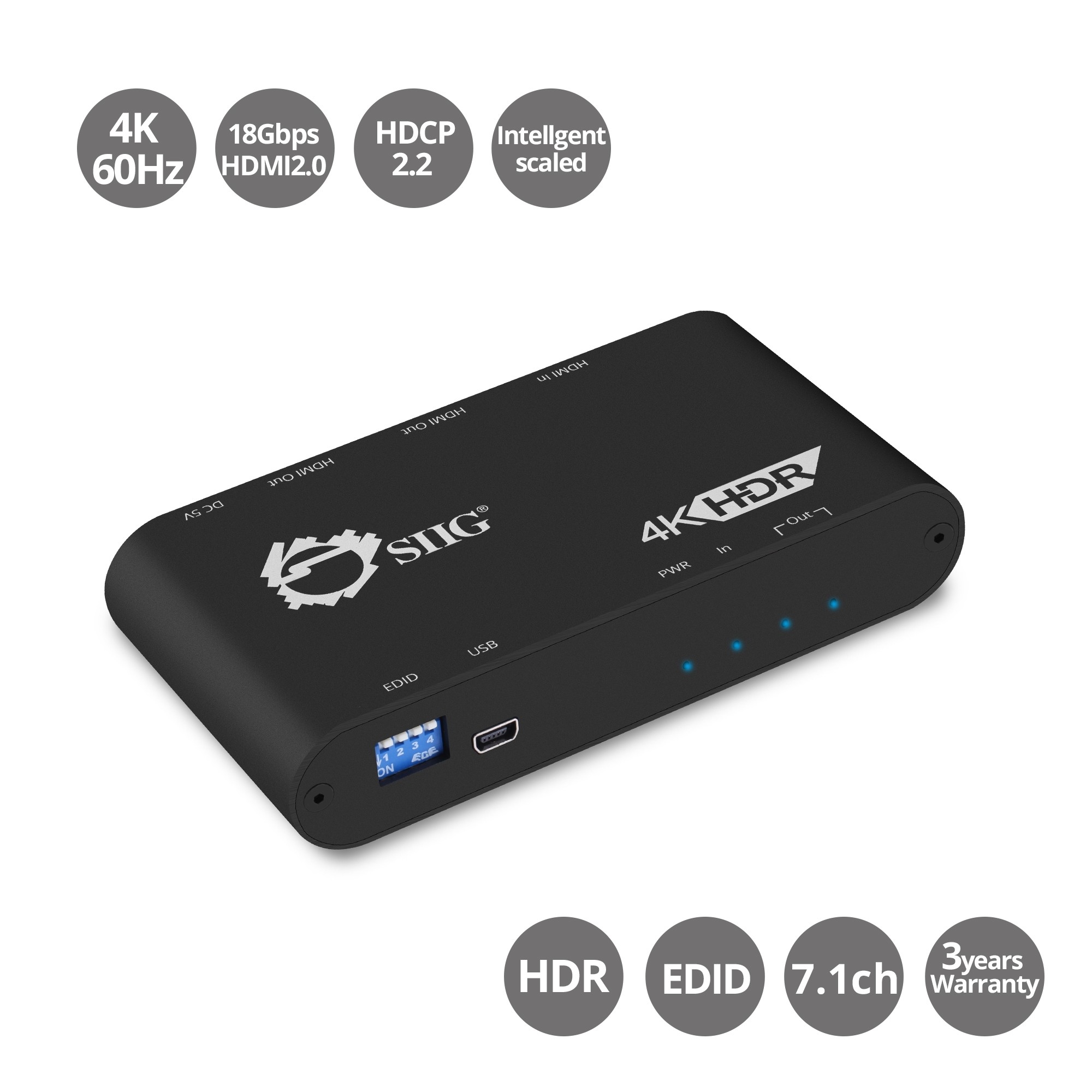

Distributes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously while maintaining signal quality

Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth

Supports up to 4K at 60Hz (YUV 4:4:4 8-bit), HDR 4K at 60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color and Deep Color

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations

EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility

Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance

Easy to cascade multiple splitters for more displays. Supports up to 10 layers

Notes:

Below are limitations associated with 4K content down scaling:

- Down scaling to 720p and 480p is not supported

- YUV 4:2:2 down scaling is not supported

- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported

- 4K at 30Hz monitors will display in 1080p at 60Hz when the source content is 4K at 60Hz

- The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
Chipset
ITE-IT6664
HDMI 2.0a compliant
HDCP 2.2 compliant
Supports 4Kx2K at 60Hz (YUV 4:4:4 8bit)
Supports HDR 4Kx2K at 60Hz (YUV 4:2:0 10bit)
Supports xvYCC, x.v.Color and Deep Color
Video Bandwidth
18Gbps (single-link 600MHz)
Frequency Range
25MHz - 600MHz
Supports resolution down scaling from 4K to 1080p. See Notes below for limitations
Maximum Resolution
3840x2160 at 60Hz (YUV 4:4:4)
HDR 3840x2160 at 60Hz (YUV 4:2:0)
Display Mode
Mirror
Supports embedded EDID and EDID learning via DIP switch
Audio Support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD Protection
+/- 15kV Air / +/-8kV Contact
Supports cascading of multiple splitters for adding more displays, supports up to 10 layers
Built-in firmware update mechanism (via Mini USB port) for expanding compatibility
Sturdy metal housing provides durability and reduces EMI/RFI noise interference
Product
Color: Black
Housing Material
Aluminum

4K at 60Hz: Up to 10m (5m/In 5m/Out)
1080p at 60Hz and 4K at 30Hz: Up to 15m (5m/In 10m/Out)
