Product Description

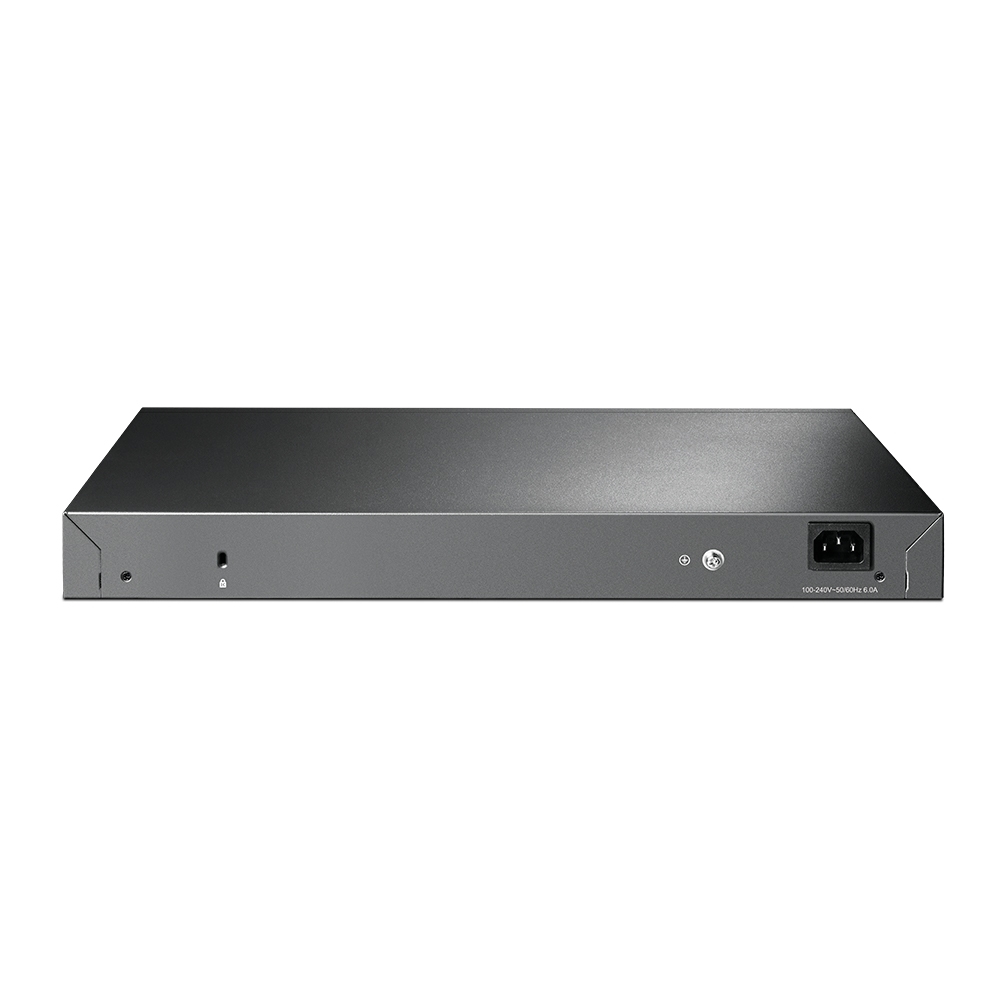

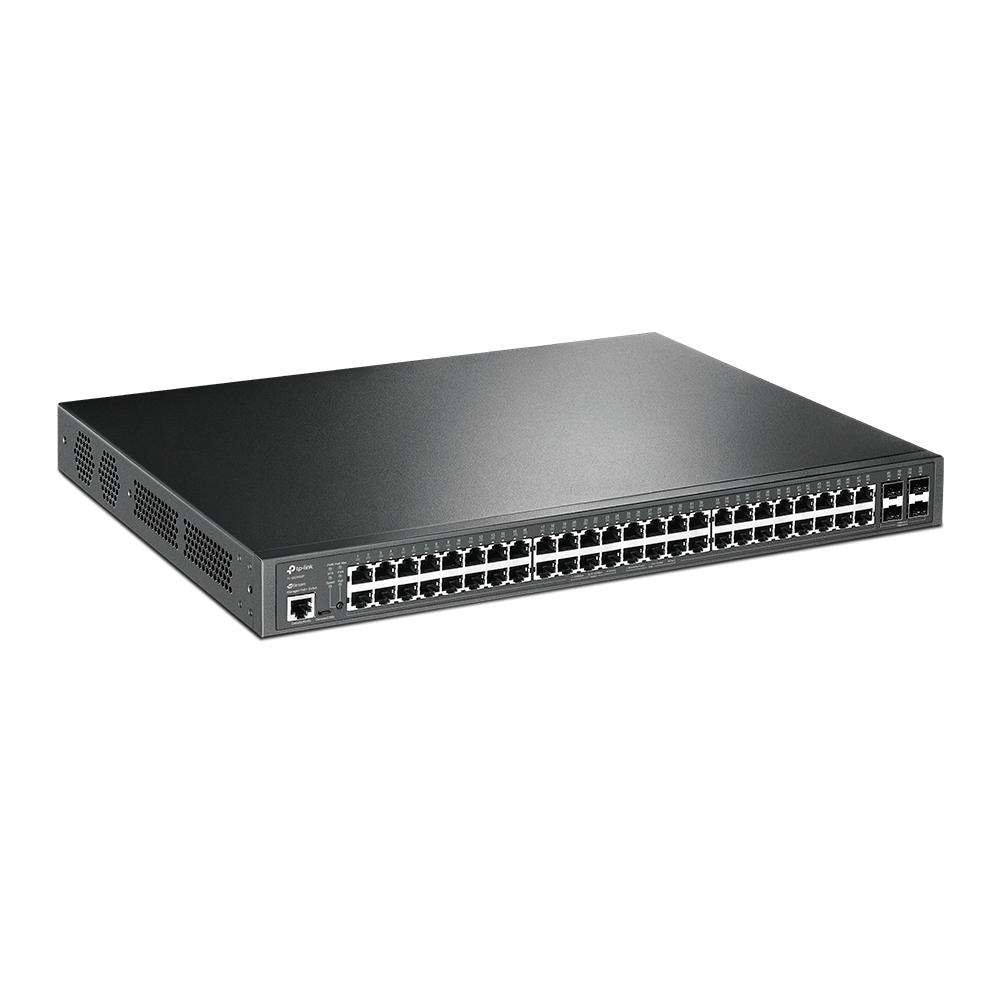

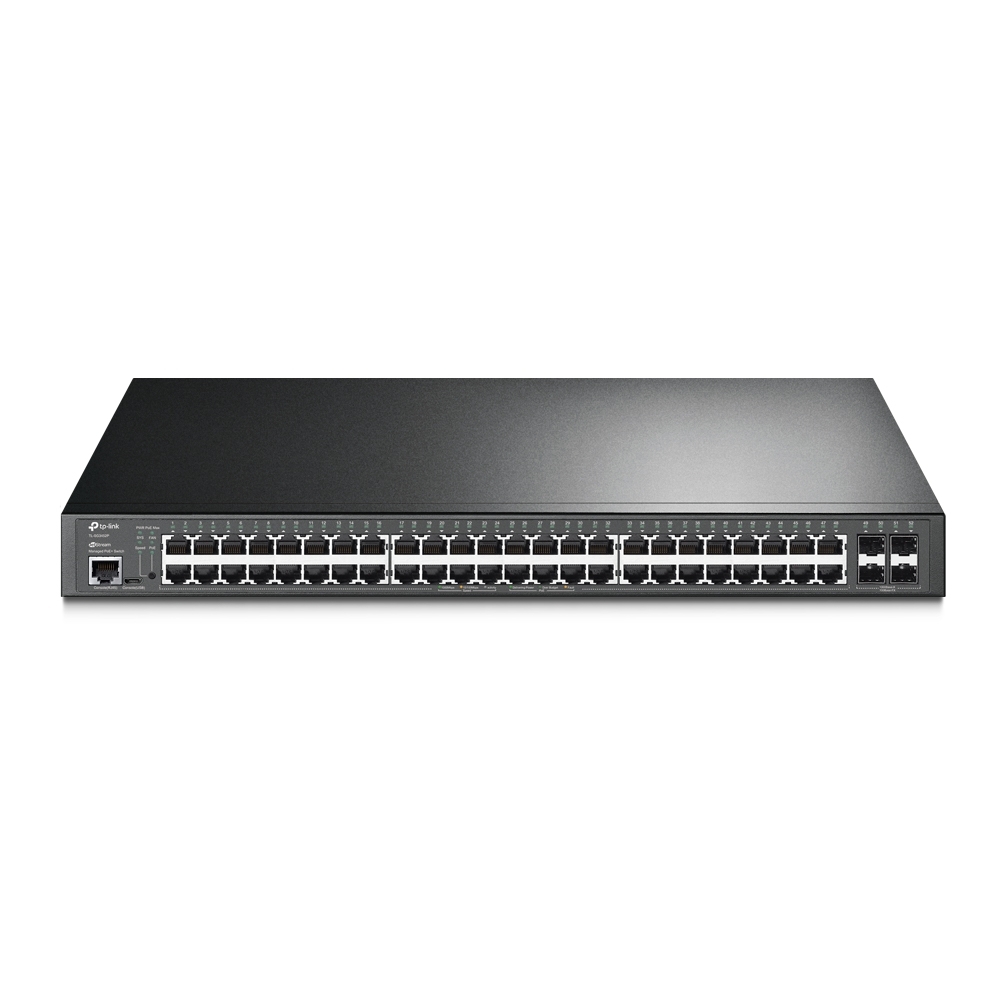

JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

384 W PoE Budget: 48 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

Full Gigabit Ports: 48 gigabit RJ45 ports and 4 gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
HARDWARE FEATURES
Interface
48x 10/100/1000 Mbps RJ45 Ports
4x Gigabit SFP Slots
1x RJ45 Console Port
1x Micro-USB Console Port
Fan Quantity
3
Power Supply
100-240 V AC 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports, up to 30 W per port
Power Budget: 384 W
Mounting
Rack Mountable
Max Power Consumption
52.5 W (no PD connected)
485.4 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation
179.1 BTU/hr (110 V/60 Hz) (no PD connected)
1656.2 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
PERFORMANCE
Switching Capacity
104 Gbps
Packet Forwarding Rate
77.4 Mpps
MAC Address Table
16 K
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
- Port-based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
VLAN Group
- Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Available Quantity

5

UPC

840030702365

SKU

mingleSG3452P

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Integrated into the Omada SDN

Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.



10G Lighting-Fast Uplink

Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.



2.5G PoE+ & PoE++ Ports

8-Port PoE++ and 16-Port PoE+ 2.5 Gbps ports with up to 500W power budget make it ideal for the deployment of Wi-Fi 6 APs.



Abundant L2 and L2+ Features

Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS and IGMP Snooping.



Robust Security Strategies

Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.
HARDWARE FEATURES
Interface
24x 2.5 Gbps RJ45 Ports
4x 10G SFP+ Slots
1x RJ45 Console Port
1x Micro-USB Console Port
Fan Quantity
1
Power Supply
100-240 V AC-50/60 Hz
Mounting
Rack Mountable
Max Power Consumption
45.1 W (110V/60Hz)
Max Heat Dissipation
154.38 BTU/h (110 V/60 Hz)
PERFORMANCE
Switching Capacity
200 Gbps
Packet Forwarding Rate
148.80 Mpps
MAC Address Table
32 K
Packet Buffer Memory
16 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
Querier
- IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
MVR Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features
32 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Advanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
MIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB
MANAGEMENT
Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller

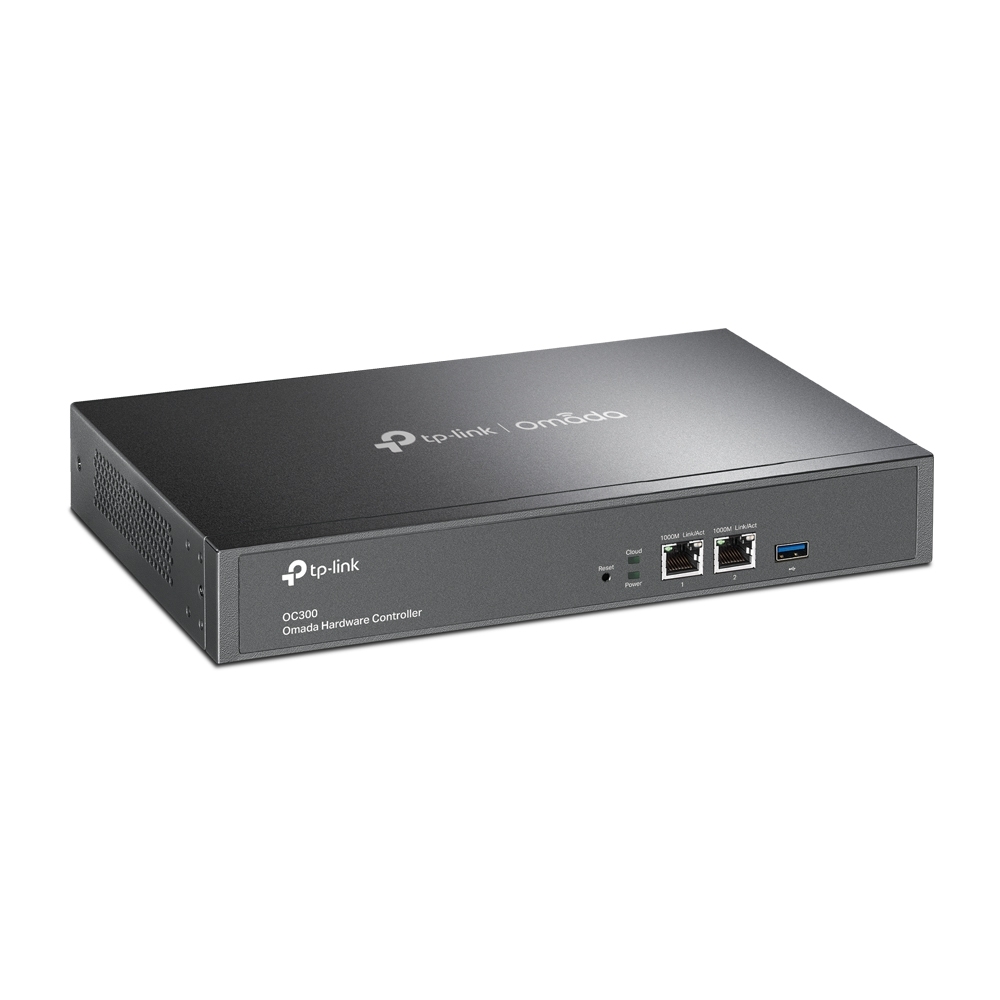

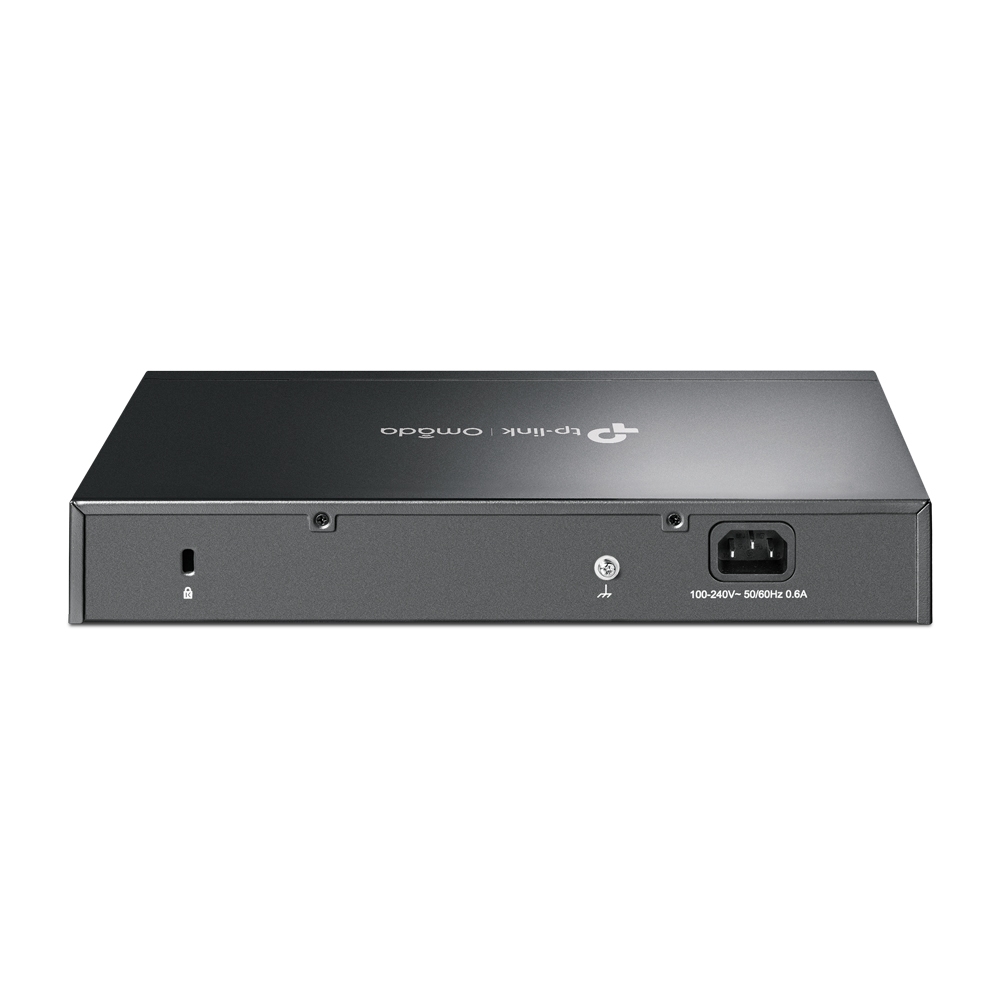

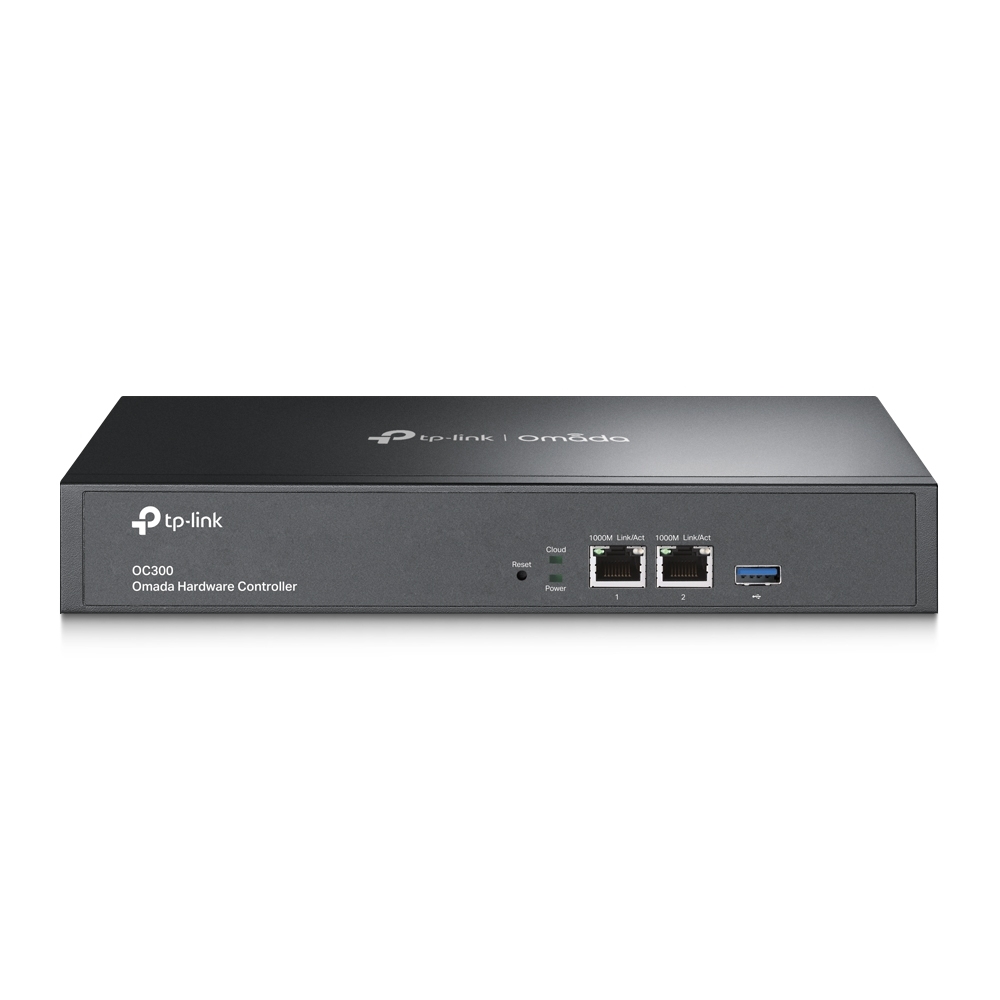

Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG3428X-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0 - 40 ^oC (32 - 104 ^oF)
Storage Temperature: -40 - 70 ^oC (-40 - 158 ^oF)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensing
Item Dimension (L inchxW inchxH inch)
21 x 10 x 4

Weight
7 lbs

Warranty Information
Limited Lifetime

Available Quantity

5

UPC

840030709746

SKU

mingleSG3428X-M2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

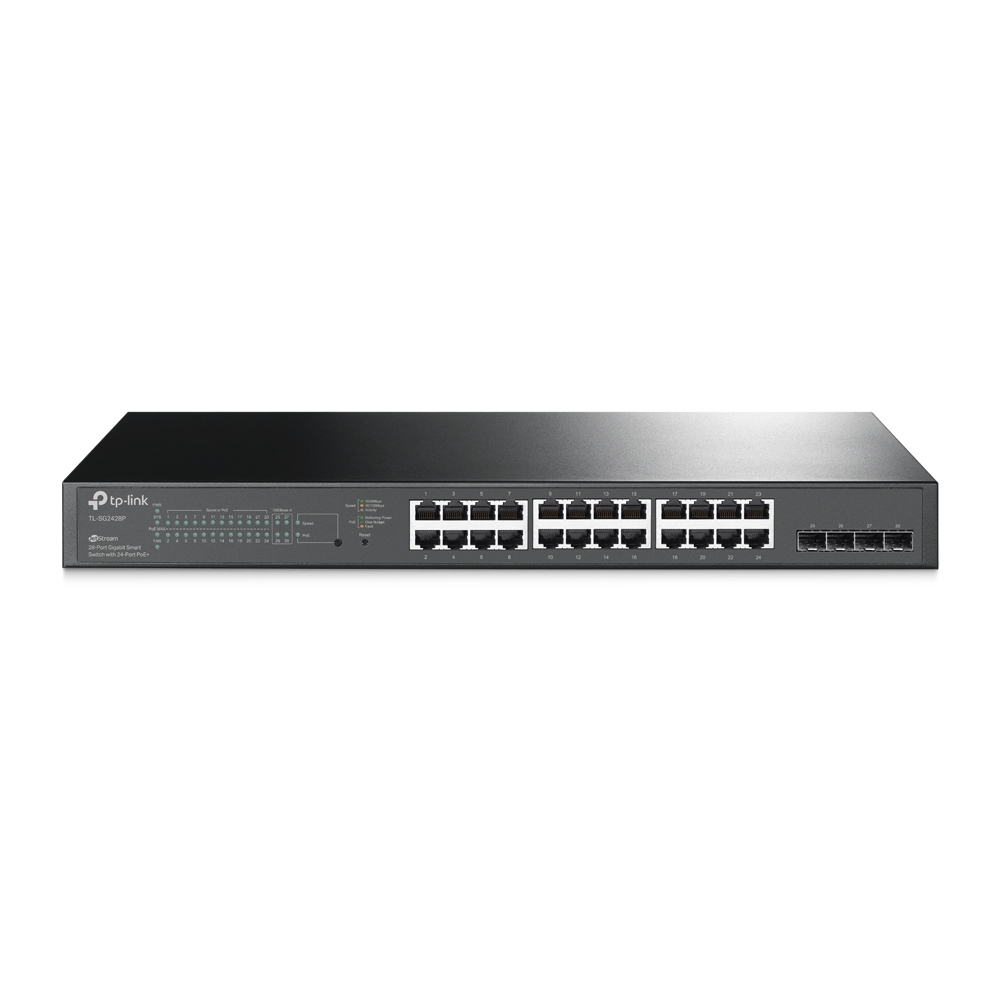

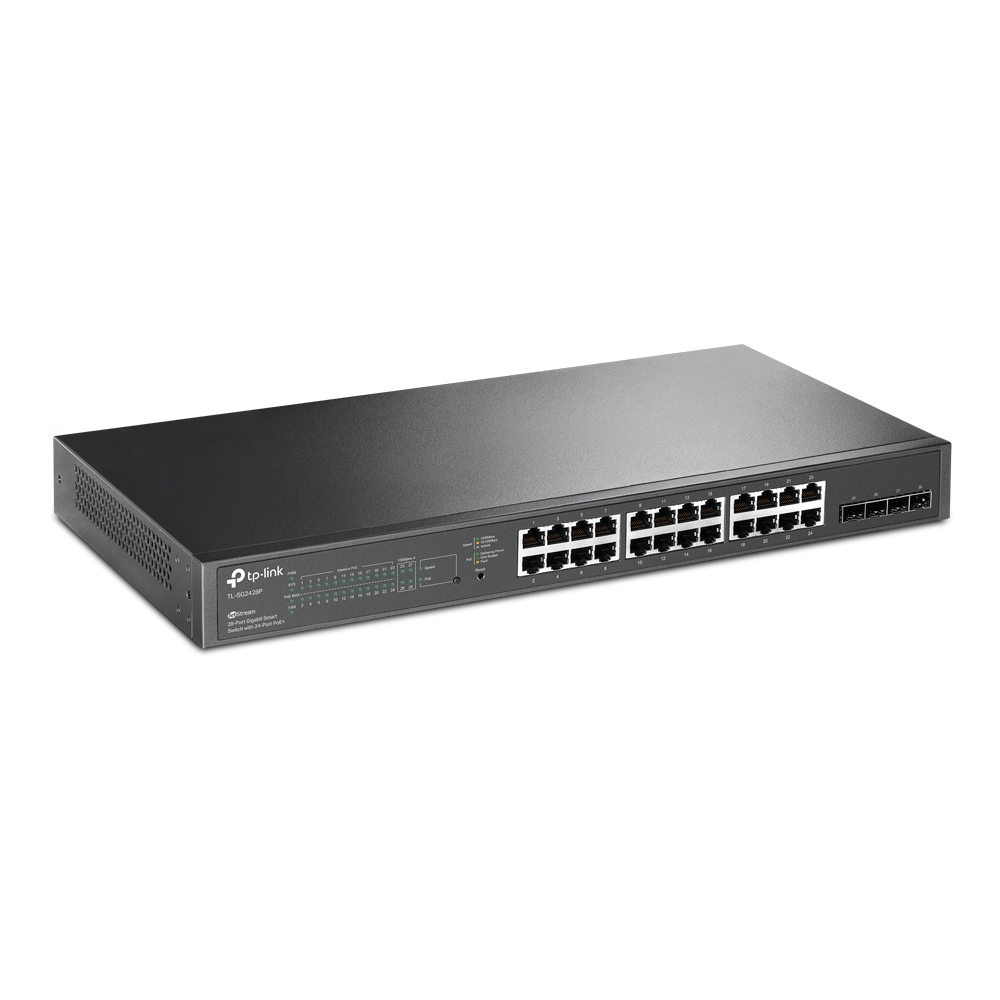

Product Description

250 W PoE Budget: 24 802.3at/af-compliant PoE+ ports with a total power supply of 250 W.

Full Gigabit Ports: 24 gigabit PoE+ ports and 4 gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Software Defined Networking (SDN) with Cloud Access

Omada s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
24 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity
2
PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Mounting
19" 1U rack mountable
Max Power Consumption
32.1 W (with no power device connected)
308.6 W (with 250W power device connected)
Max Heat Dissipation
109.5 BTU/h (with no PD connected)
1,052.9 BTU/h (with 250 W PD connected)
PERFORMANCE
Bandwidth/Backplane
56 Gbps
Packet Forwarding Rate
41.7 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port/Flow based Rating Limit
Smoother Performance
Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
16 IP Interfaces
- Support IPv4/IPv6 Interface
Static Routing
- 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
VLAN
VLAN Group
- Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN
Access Control List
Support up to 230 entries
Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
- Permit/Deny
Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
ACL Rules Binding
- Port Binding
- VLAN Binding
Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security
AAA
802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
IP Source Guard
- 253 Entries
- Source IP+Source MAC
IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
IP/Port/MAC based access control
IPv6
IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller

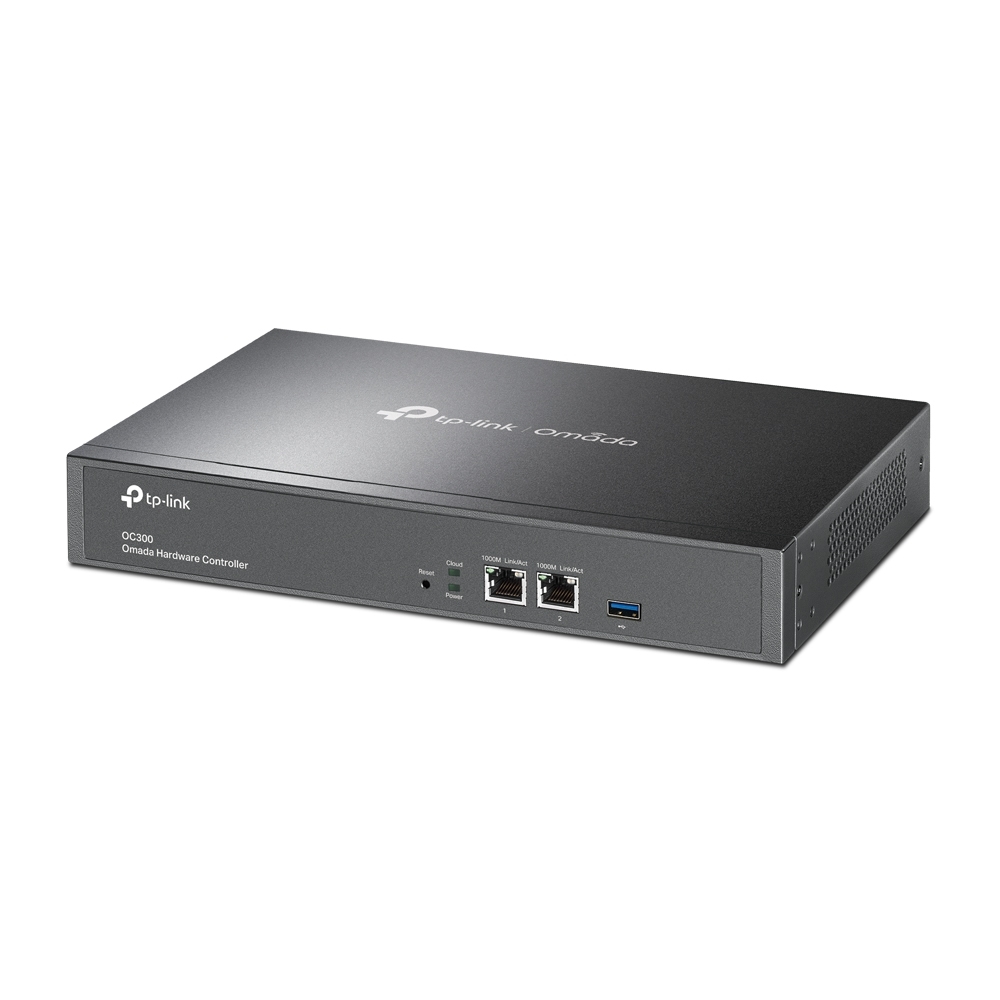

Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents

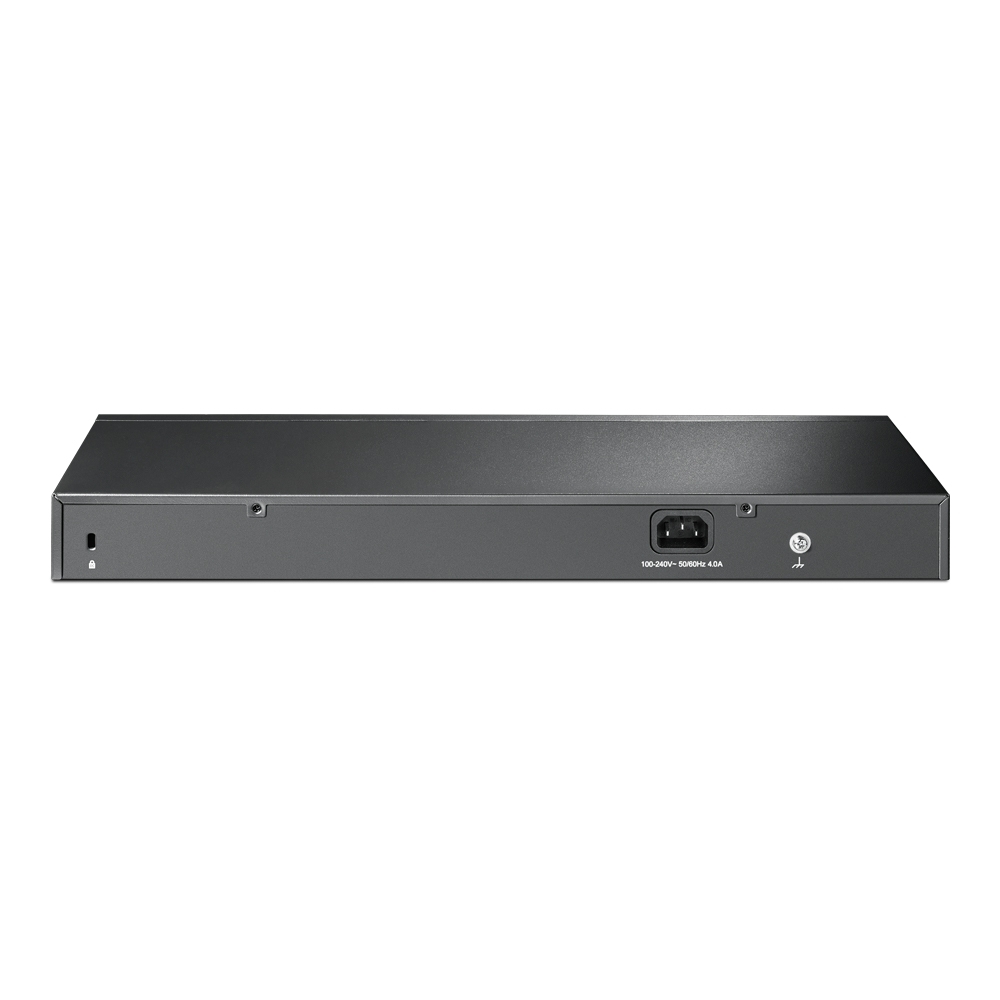

TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements
Microsoft Windows XP, Vista^TM or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0-50 ^oC (32-122 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
21 x 14 x 4
Weight
9.00 LB
Warranty Information
Limited Lifetime

Available Quantity

5

UPC

845973088682

SKU

mingleSG2428P

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

62 W PoE Budget: 4 802.3at/af-compliant PoE+ ports with a total power supply of 62 W.

Full Gigabit Ports: 4 gigabit PoE+ ports and 4 gigabit non-PoE ports provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Multiple Application Scenarios

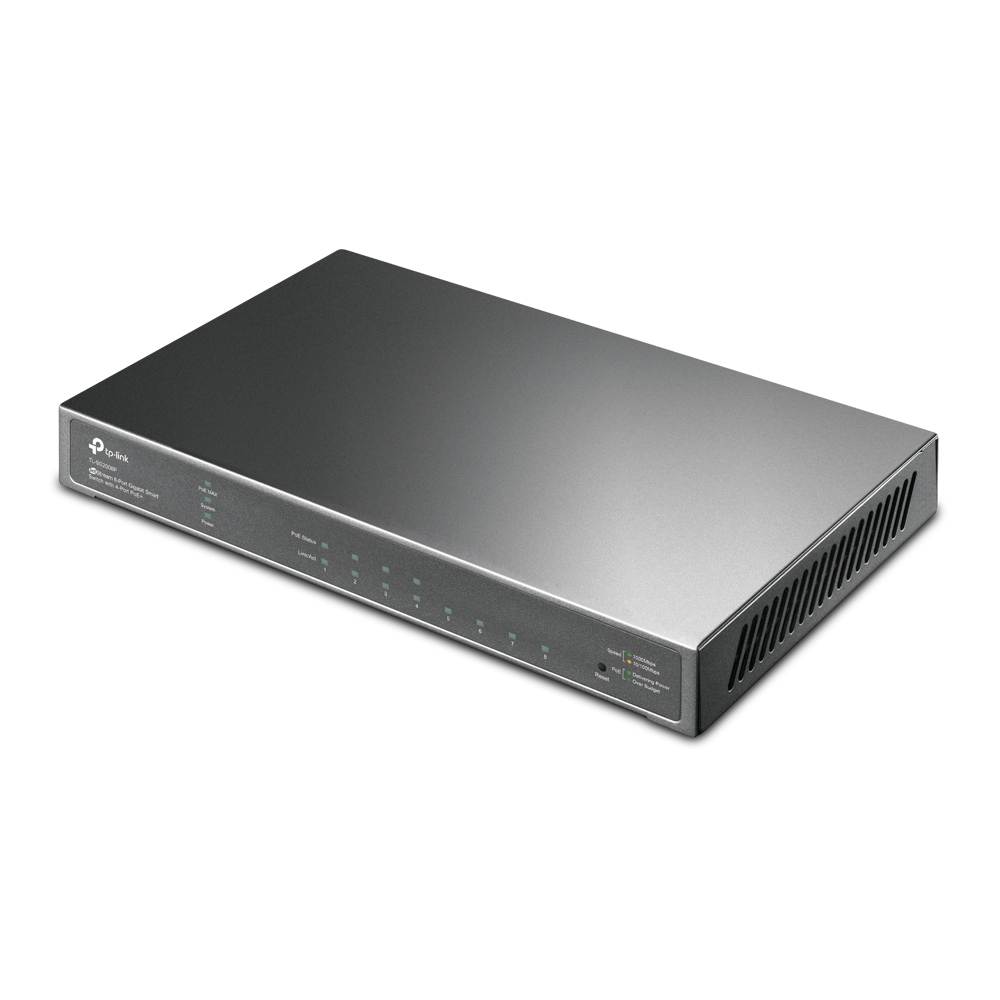

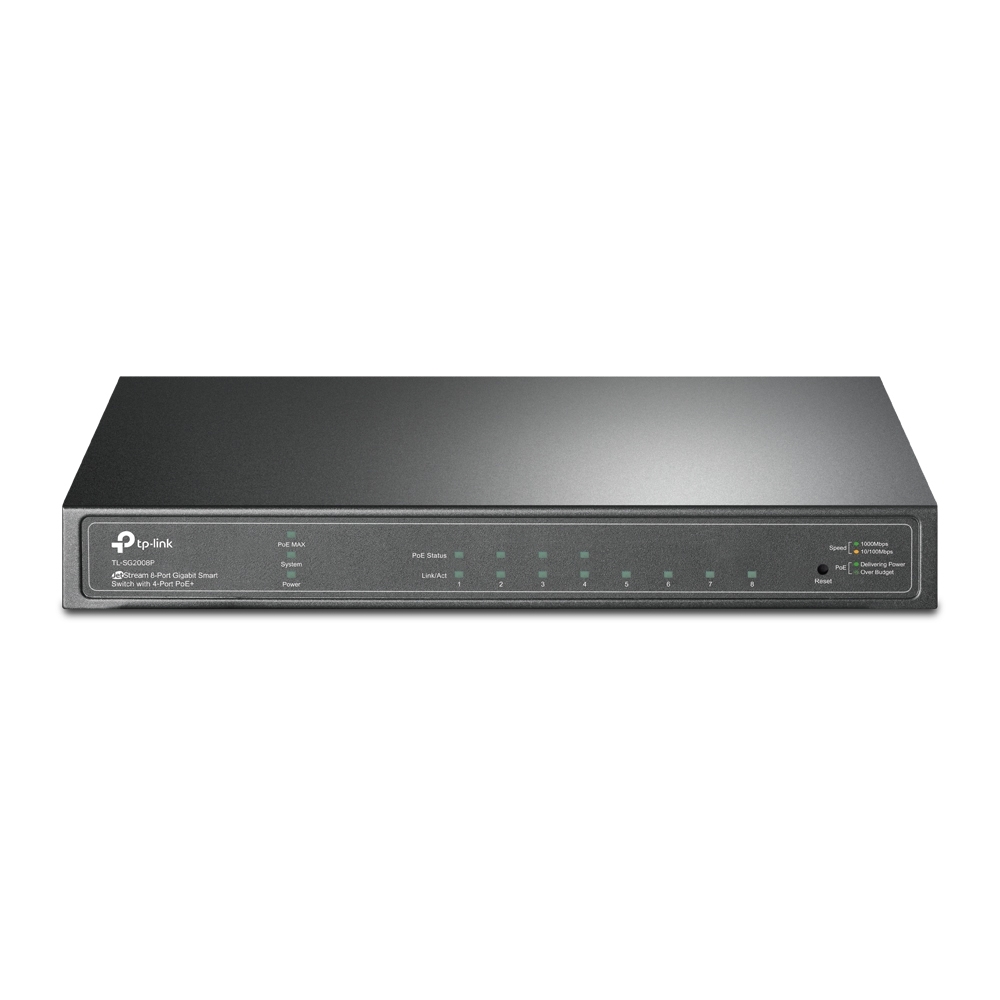

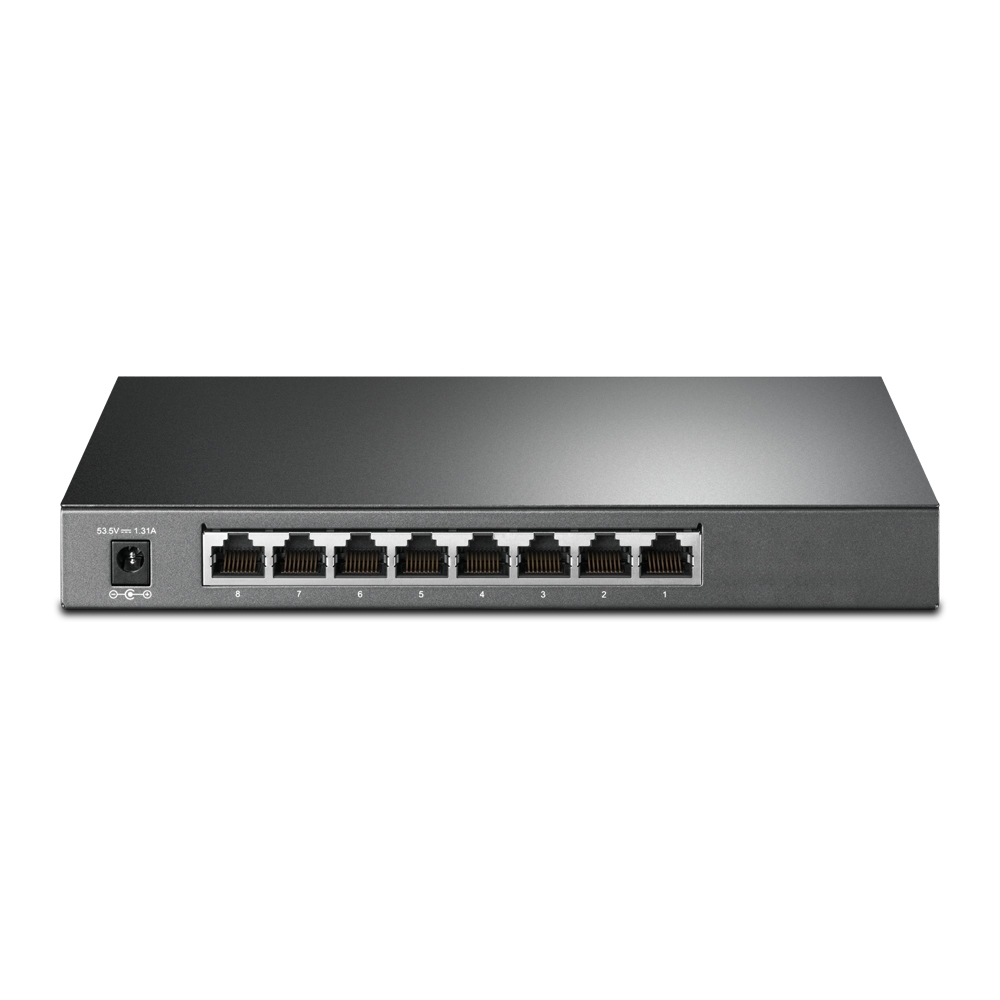

The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Power over Ethernet for Simplified Network Deployment

Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
8x 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at/af PoE+)
Auto-Negotiation/Auto MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Power Supply

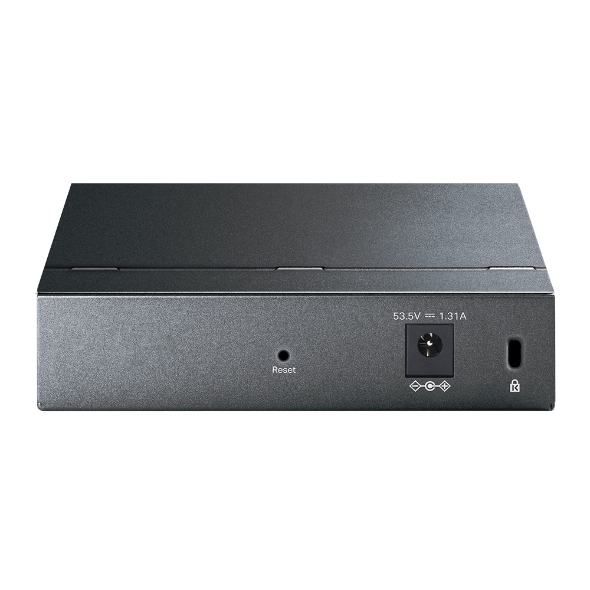

External Power Adapter (Output: 53.5 VDC/ 1.31 A)
Power Consumption
7.9 W (220 V/50 Hz) (no PD connected)
79.2 W (220 V/50 Hz) (with 62 W PD connected)
PoE Ports (RJ45)
Standard: 802.3af/at compliant
PoE Ports: 4 Ports
Power Supply: 62 W
PERFORMANCE
Bandwidth/Backplane
16 Gbps
MAC Address Table
8k
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port/Flow-based Rating Limit
Smoother Performance
Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
DHCP Relay
- DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
L2 Multicast
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN
VLAN Group
- Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN
Access Control List
Support up to 230 entries
Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
- Permit/Deny
Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
ACL Rules Binding
- Port Binding
- VLAN Binding
Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security
AAA
802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
IP Source Guard
- 253 Entries
- Source IP+Source MAC
IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG2008P
Power Adapter
Installation Guide
Rubber Feet
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
13 x 10 x 3
Weight
3.00 LB
Warranty Information
Limited Lifetime

Available Quantity

5

UPC

845973030971

SKU

mingleSG2008P

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

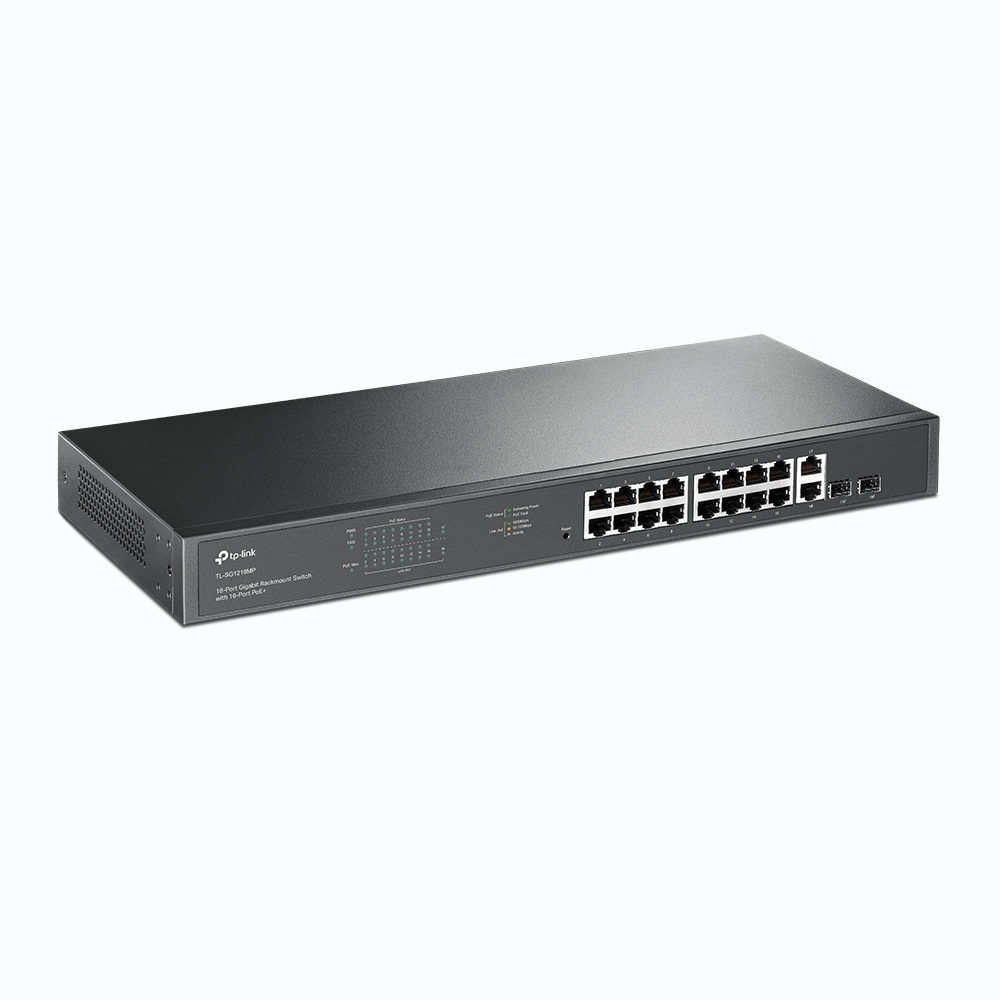

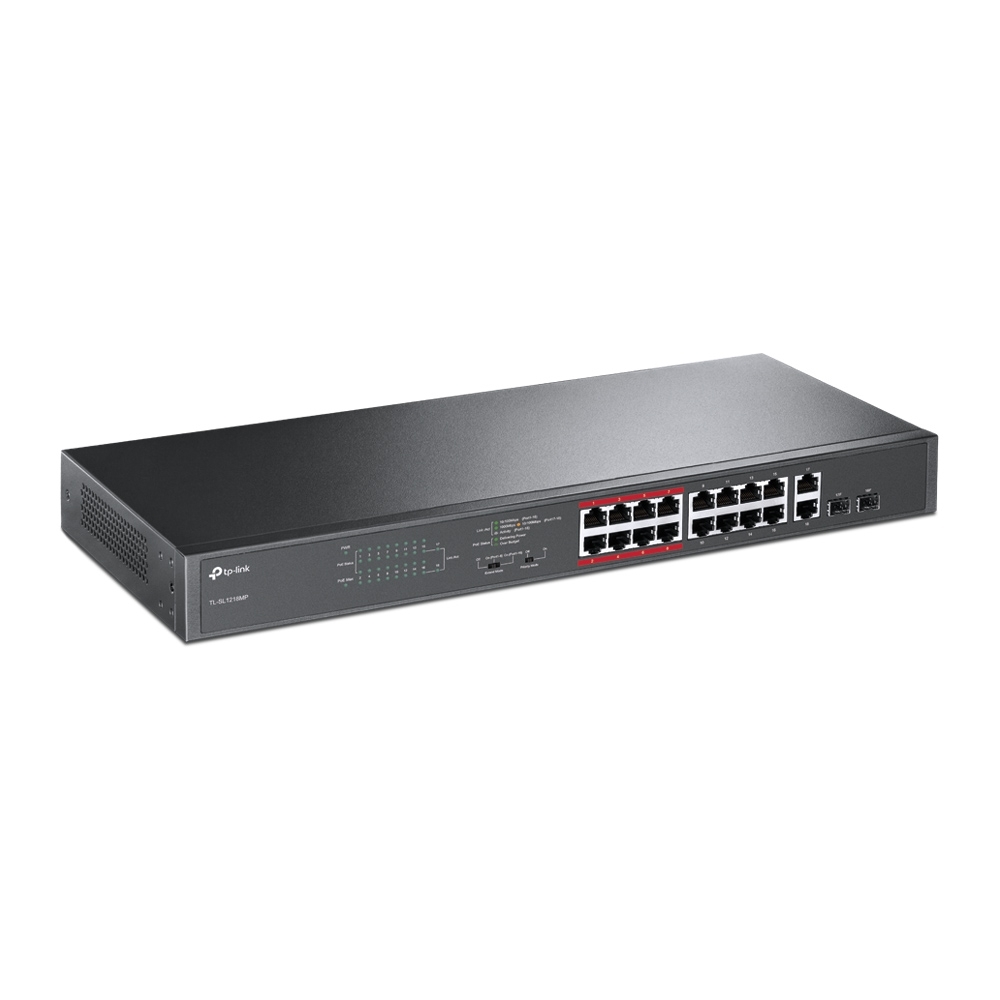

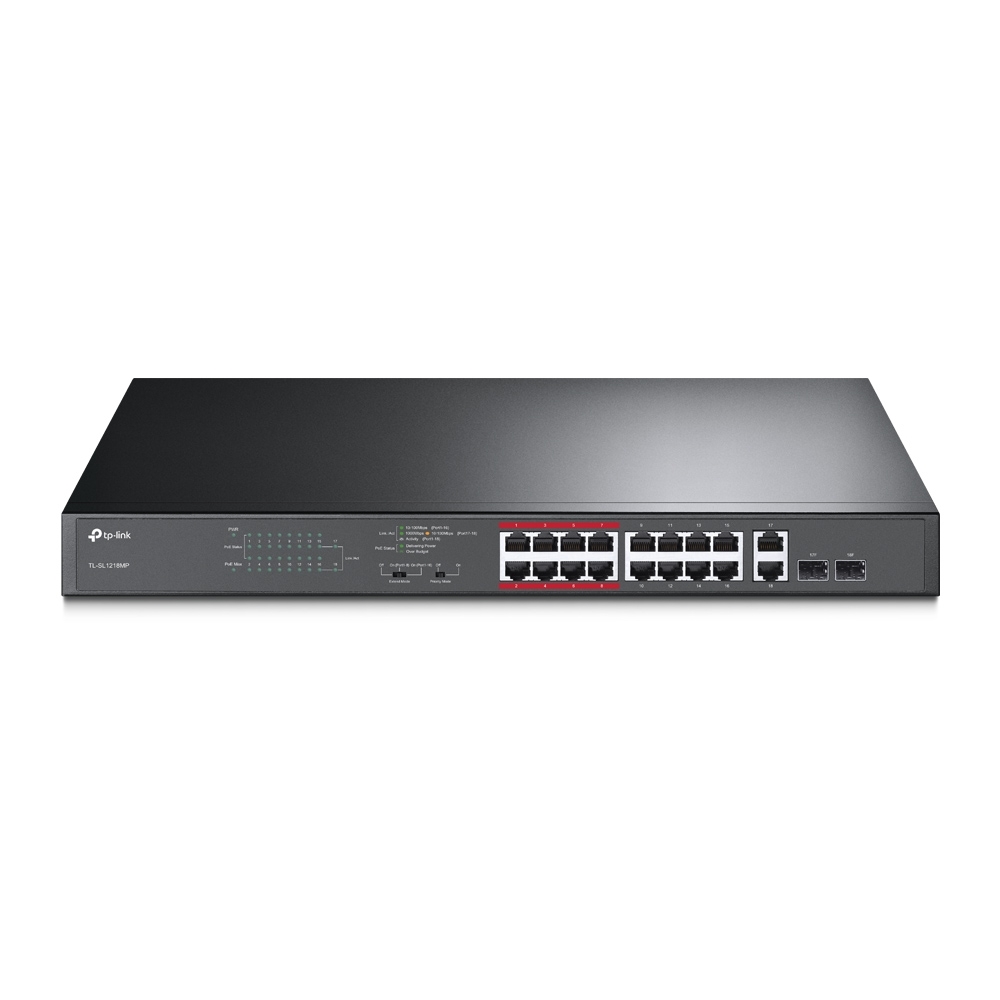

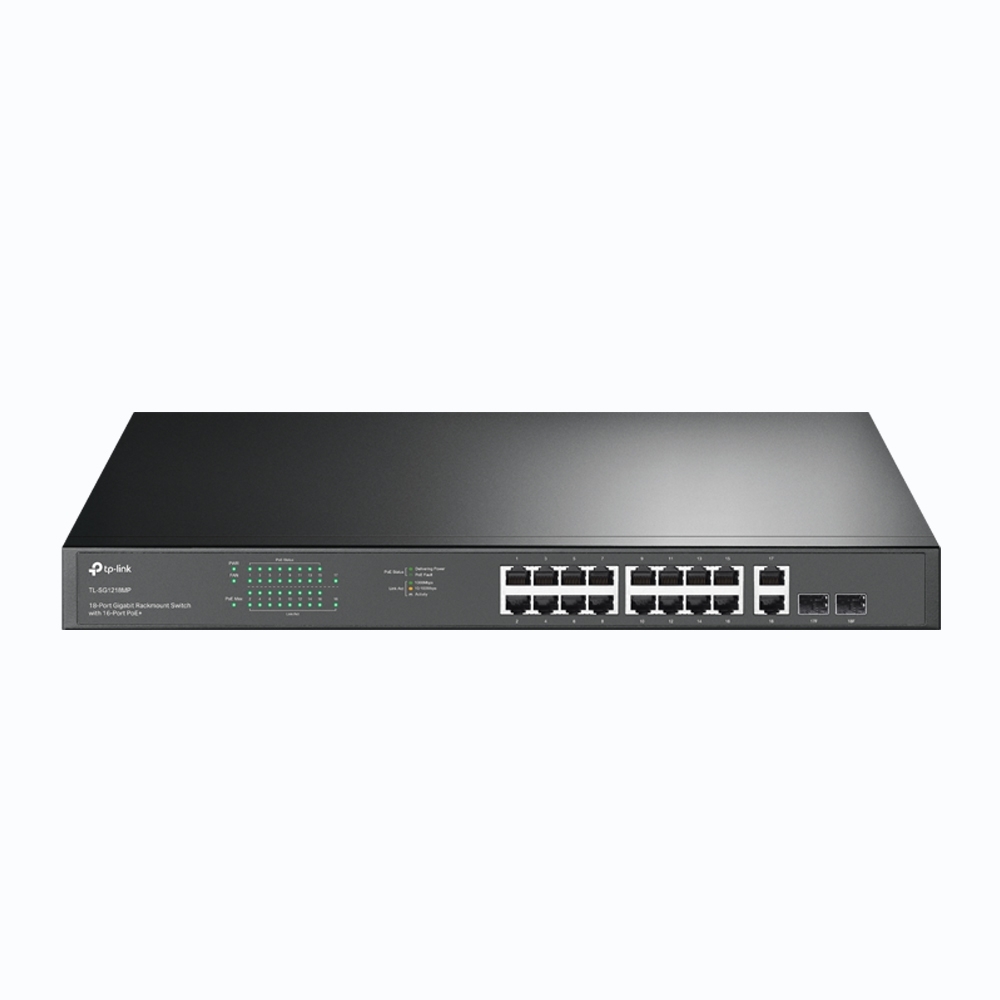

18-Port Gigabit Rackmount Switch with 16 PoE+

16 gigabit PoE+ RJ45 ports, 2 gigabit non-PoE RJ45 ports, and 2 combo gigabit SFP slots

High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

Working with IEEE 802.3af/at compliant PDs

Plug and play, with no configuration and installation needed

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0 50 )


Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16 gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.


QoS for a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).


Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports power to ensure high-priority ports power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.


Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0 50 ) with reliability.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
16x PoE+ gigabit RJ45 ports
2x gigabit non-PoE RJ45 ports
2x combo gigabit SFP slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100OHM STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 OHM STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 OHM STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2
Physical Security Lock
Yes
Power Supply
100 to 240 VAC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1 to 16
PoE Power Budget: 250 W
Mounting
19" 1U rack mountable
Max Power Consumption
21.4 W (no power device connected)
286.6 W (with 250 W power devices connected)
Max Heat Dissipation
73.0 BTU/h (no PD connected)
977.4 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.78 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
802.1p/DHCP QoS
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame
10 KB
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG1218MP
Installation Guide
Power Cord
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0 to 50 ^oC (32 to 122 ^oF)
Storage Temperature: -40 to 70 ^oC (-40 to 158 ^oF)
Operating Humidity: 10 to 90% RH non-condensing
Storage Humidity: 5 to 90% RH non-condensing
Item Dimension (L inchxW inchxH inch)
21 x 10 x 4

Weight
8.18 lb

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973040543

SKU

mingleTL-SG1218MP

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

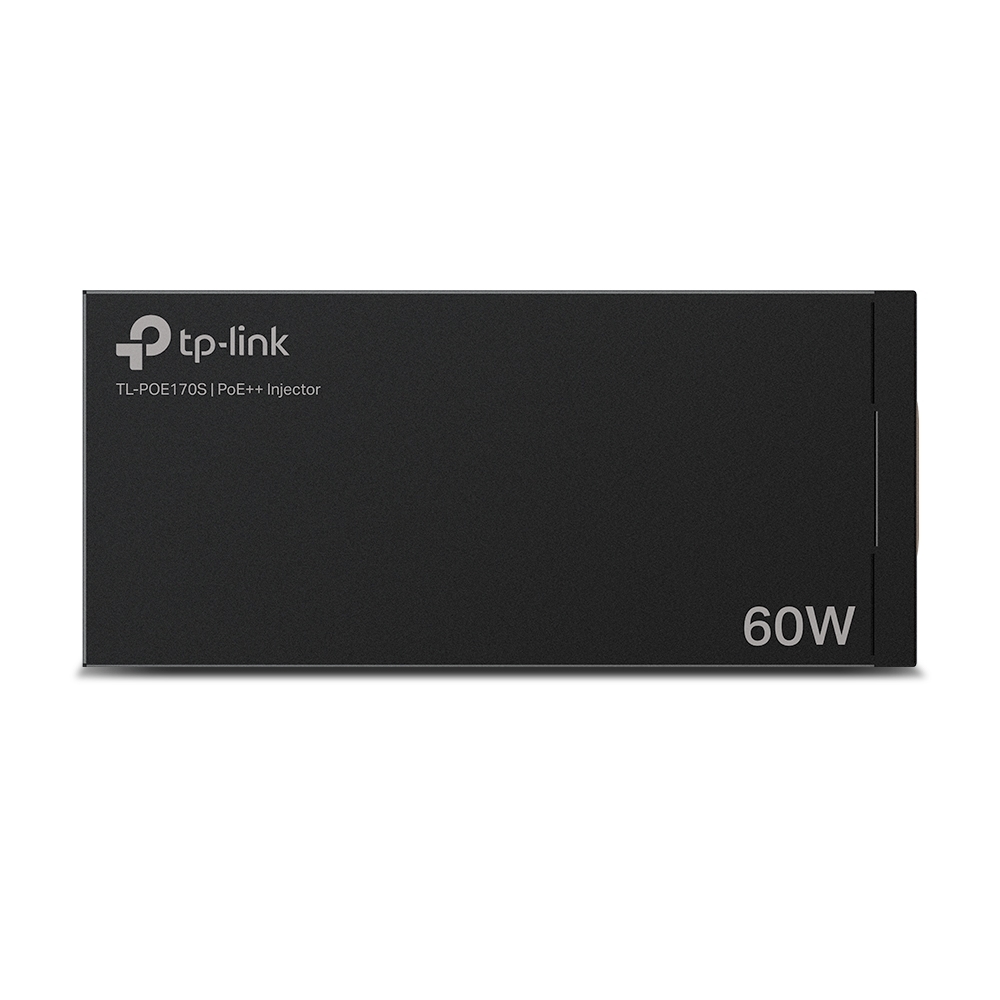

2 Gigabit ports ensure faster transmission

Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Automatically determines and supplies the exact power to meet the device's need

Wall-mounting and desktop design accommodates most installation scenarios

Plug & Play installation, requires no configuration

Integrated power supply

Durable metal casing


What This Product Does

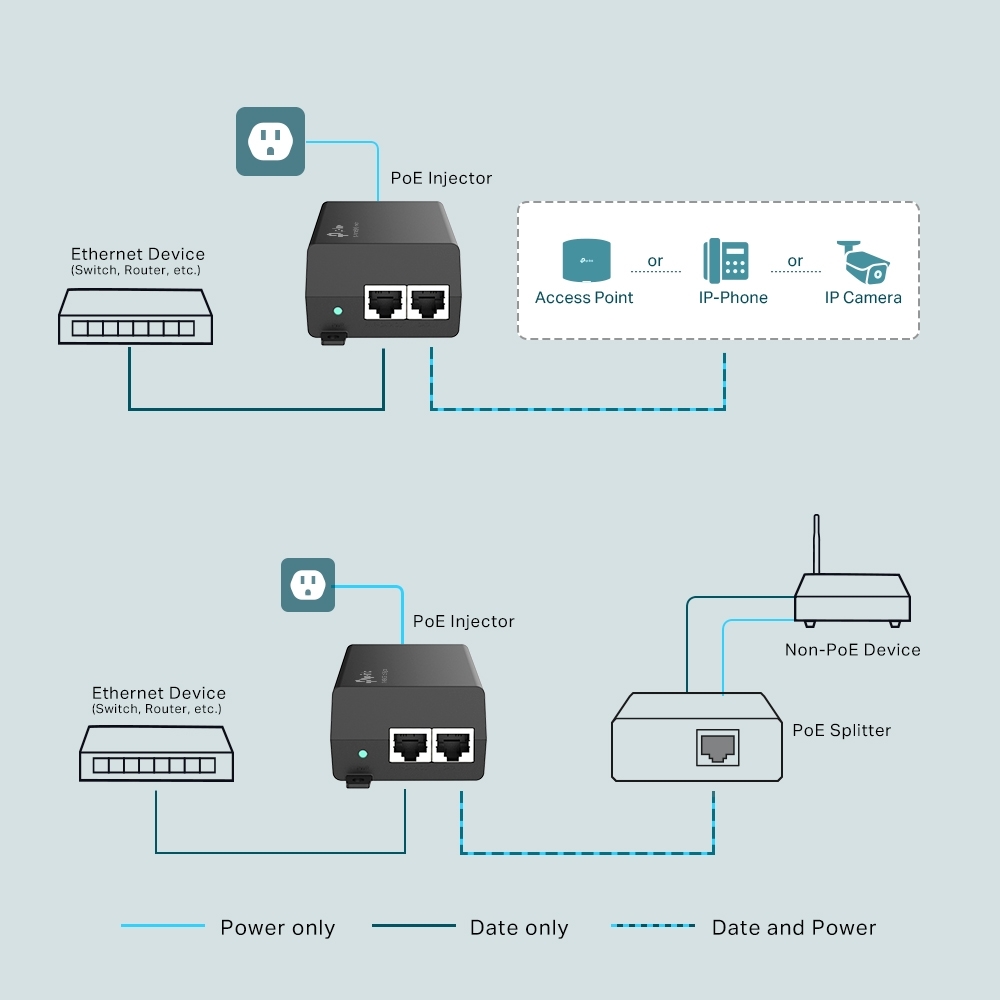

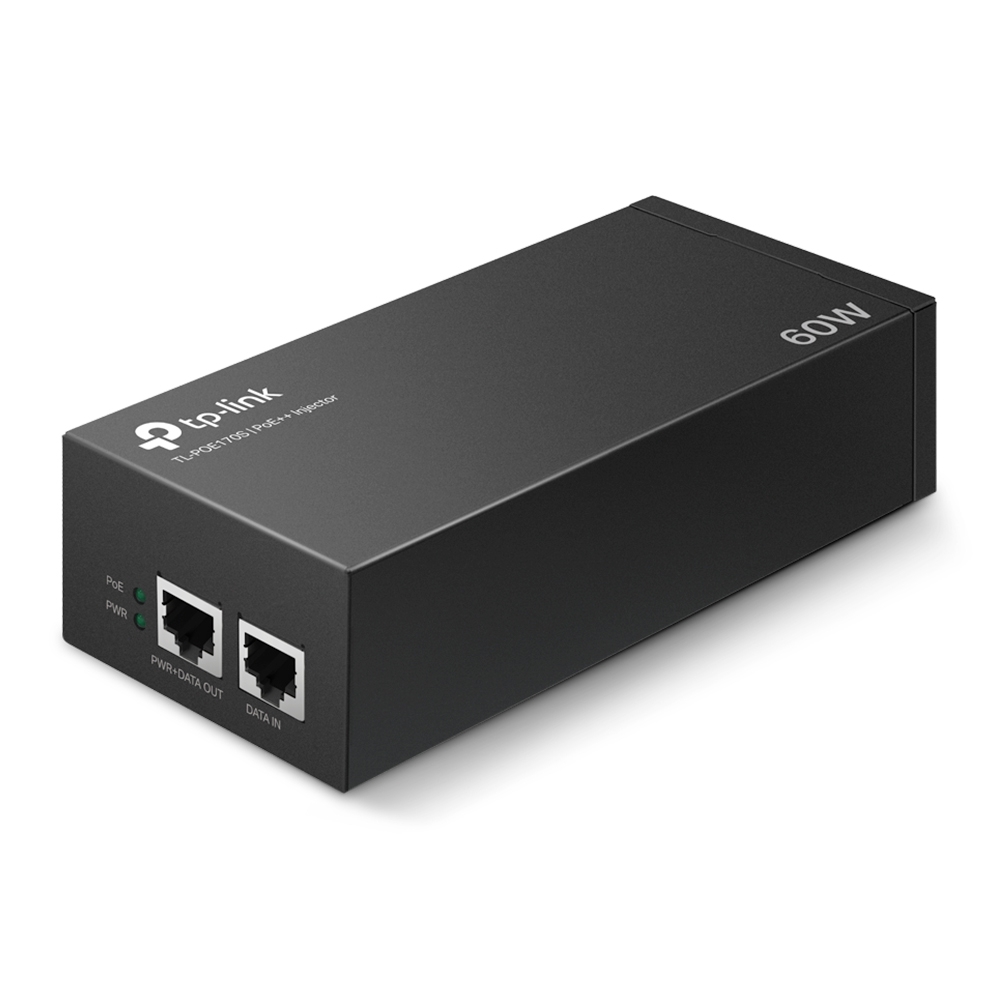

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt* standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt^Notr
GENERAL
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0^oC to 45^oC (32^oF to 113^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
Material
Metal Casing
PACKAGE CONTENTS
Package Contents
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable
HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 Ohm STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 Ohm STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

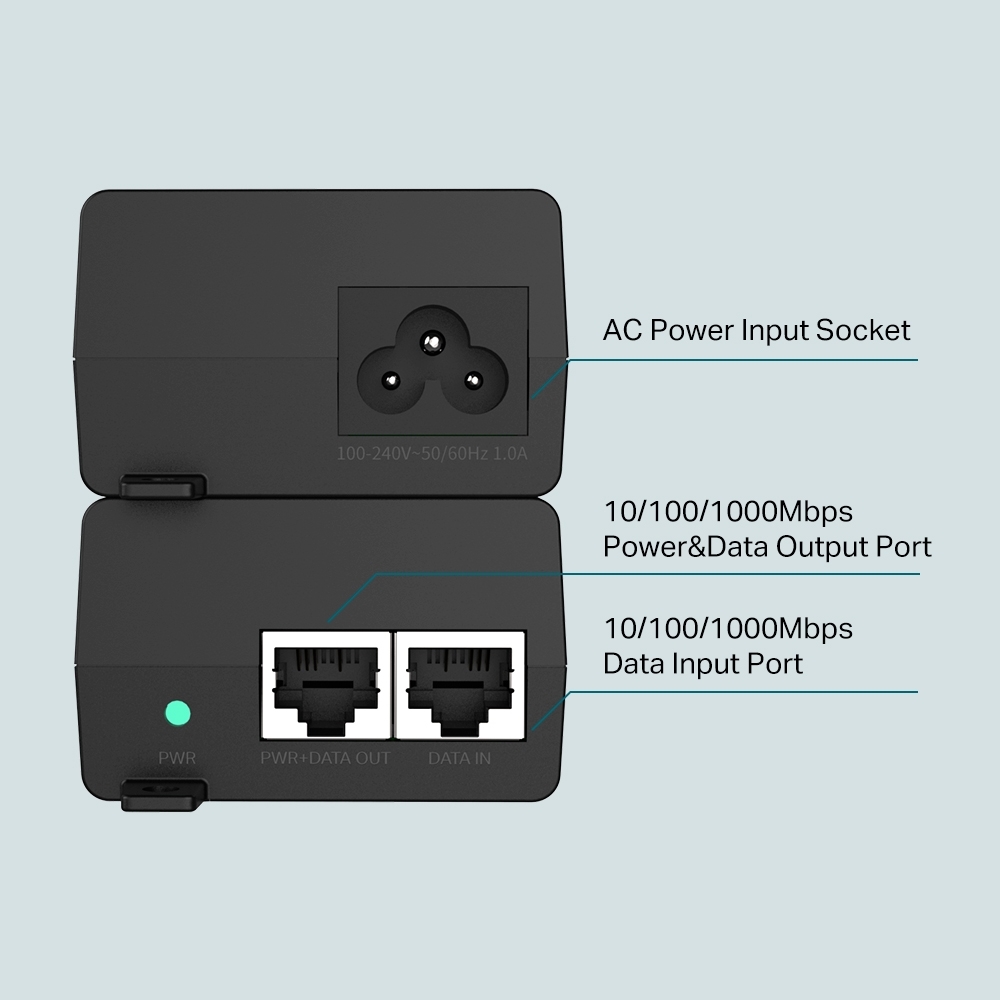

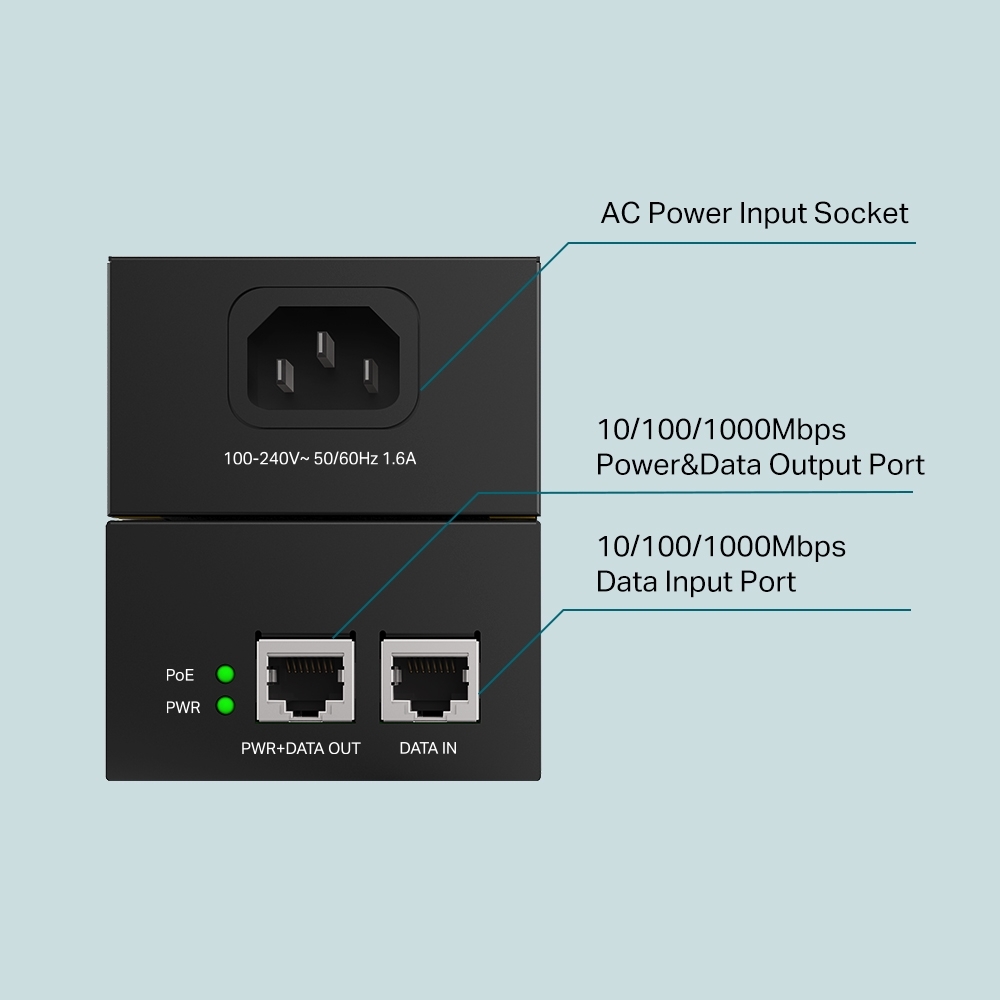

Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A
vOutput: Auto-determine the necessary power requirements (max. 60 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt^Note PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
Note
TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.
Item Dimension (L inchxW inchxH inch)
10 x 8 x 4

Weight
3.00 lb

Warranty Information
2-year

Available Quantity

5

UPC

840030703898

SKU

mingleTL-POE170S

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

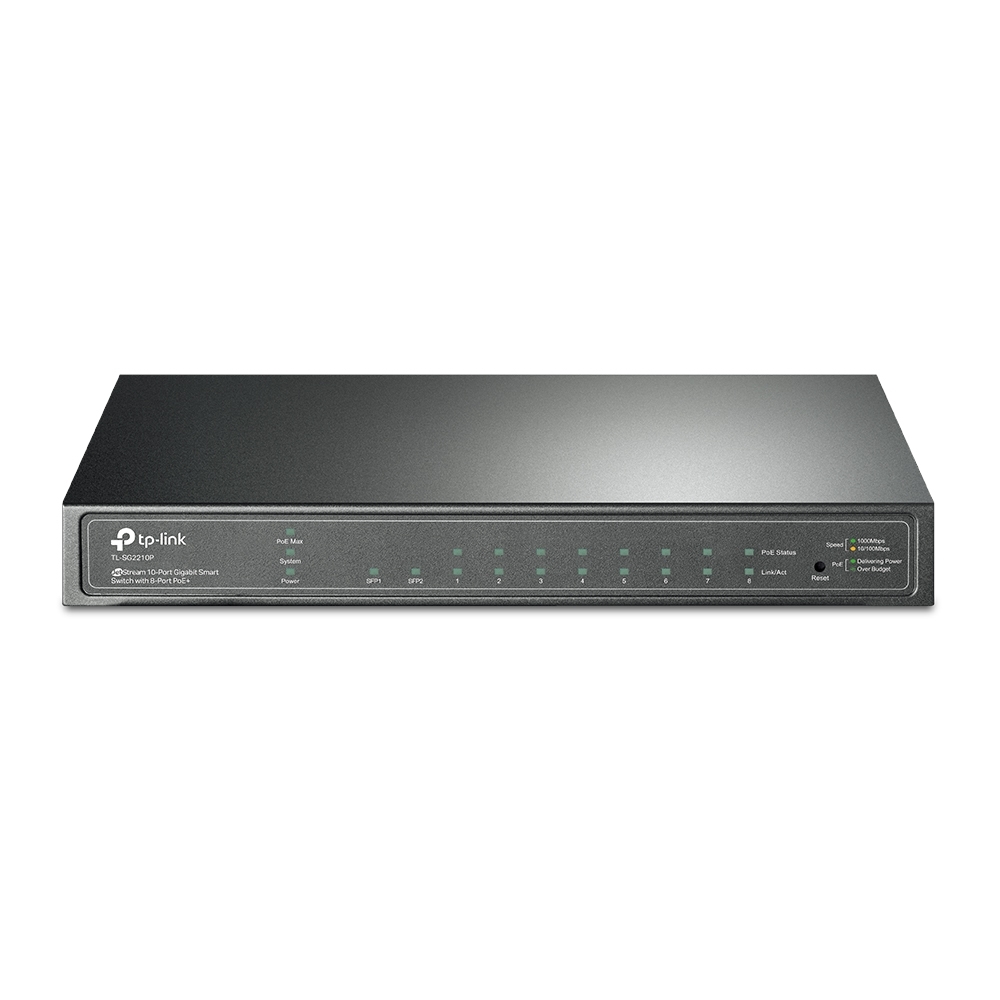

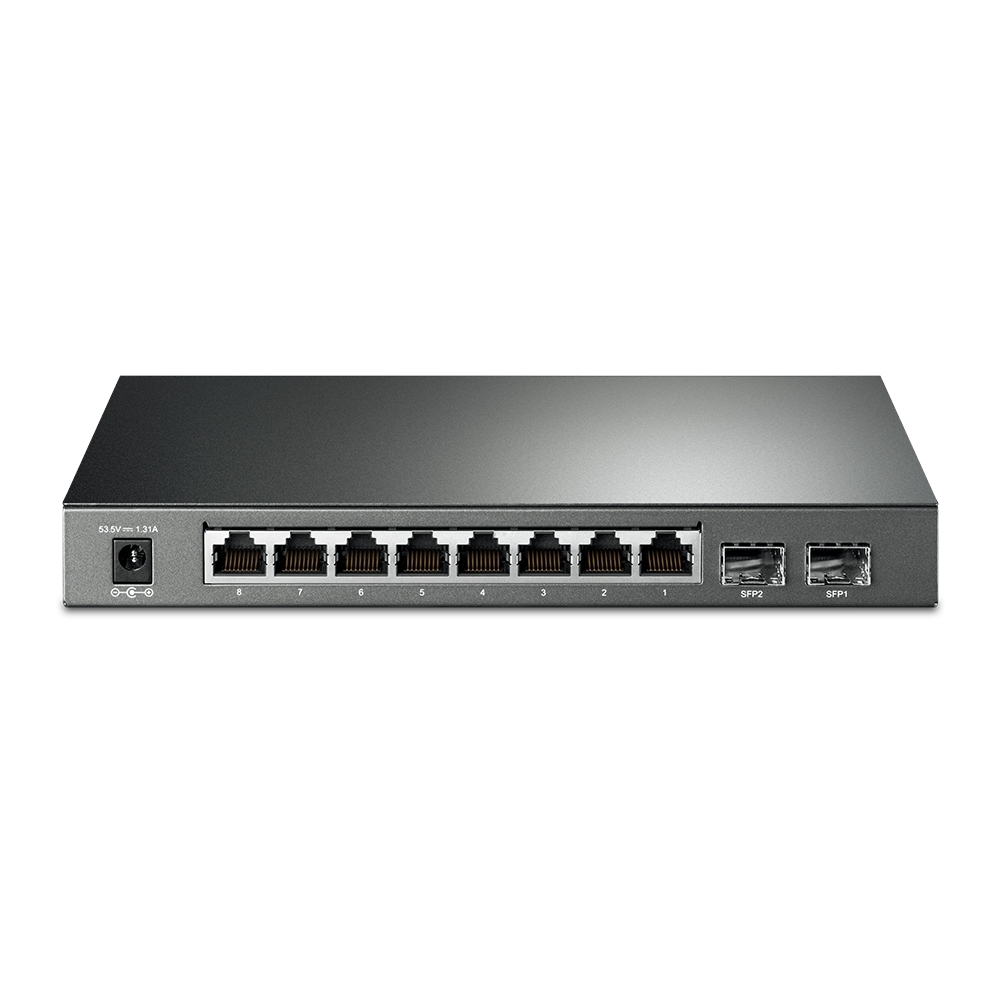

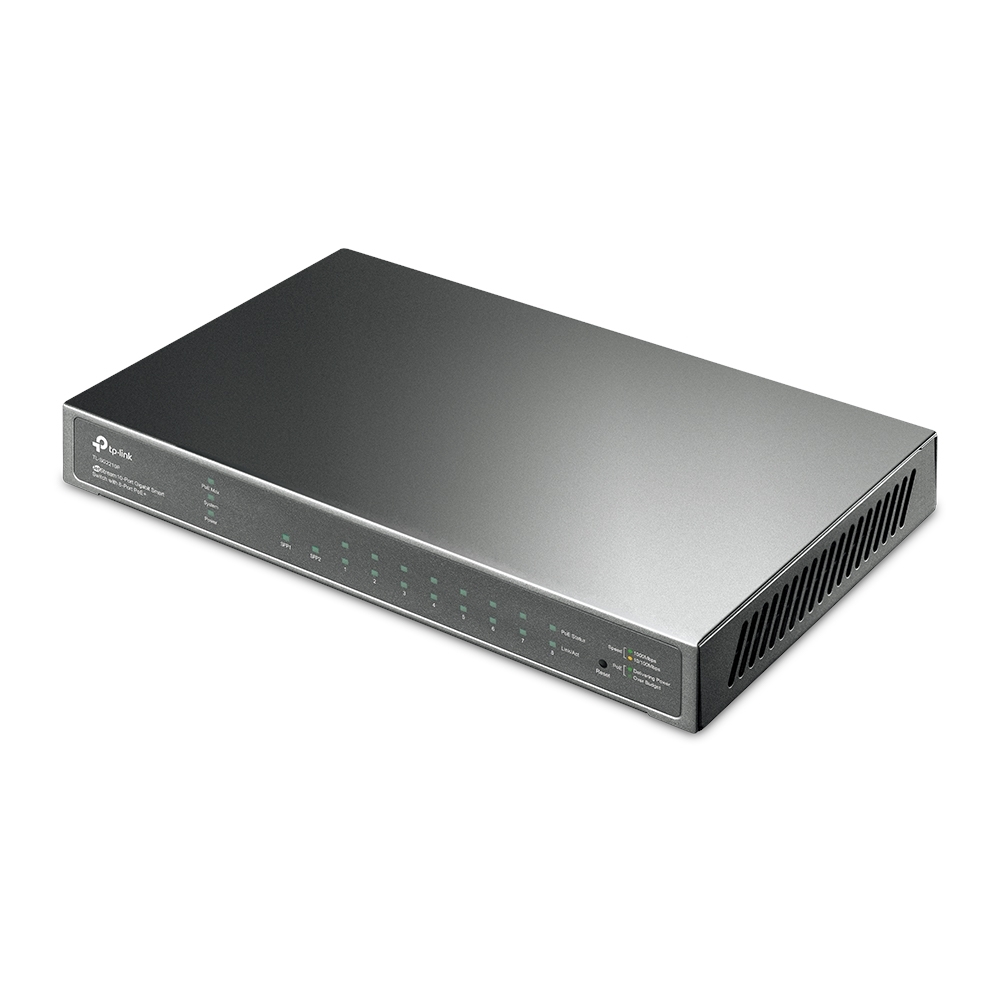

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

61 W PoE Budget: 8 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.

Full Gigabit Ports: 8 gigabit PoE+ ports and 2 gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.


Software Defined Networking (SDN) with Cloud Access

Omada s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity
Fanless
Power Supply
100 to 240VAC, 50/60Hz
External Power Adapter(Output: 54VDC/1.3A)
Power Consumption
10.3W (without POE device connected)
76.5W (with 61W POE devices connected)
PoE Ports (RJ45)
Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 61 W
PERFORMANCE
Bandwidth/Backplane
20 Gbps
Packet Forwarding Rate
14.88 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port/Flow based Rating Limit
Smoother Performance
Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
16 IP Interfaces
- Support IPv4/IPv6 Interface
Static Routing
- 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
VLAN
VLAN Group
- Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN
Access Control List
Support up to 230 entries
Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
- Permit/Deny
Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
ACL Rules Binding
- Port Binding
- VLAN Binding
Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security
AAA
802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
IP Source Guard
- 253 Entries
- Source IP+Source MAC
IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control
Management
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG2210P
Power Adapter
Installation Guide
Rubber Feet

Available Quantity

5

UPC

845973088668

SKU

mingleTL-SG2210P

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

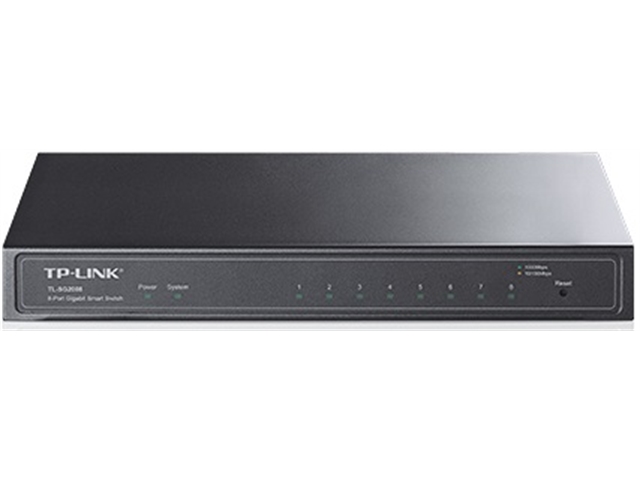

TP-LINK Gigabit Smart Switch TL-SG2008 is equipped with 8 gigabit RJ45 ports. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINK s 8-Port Gigabit Smart Switch TL-SG2008 is especially designed for the small and medium business networks that require efficient network management. TL-SG2008 comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.




Abundant Layer 2 Features


For more application of layer 2 switches, TL-SG2008 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP; Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access
HARDWARE FEATURES:
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Interface
8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Power Supply
100 to 240V AC 50/60 Hz
PERFORMANCE:
Bandwidth/Backplane
16Gbps
MAC Address Table
8k
Packet Forwarding Rate
11.9 Mpps
Jumbo Frame
9216 Bytes
SOFTWARE FEATURES:
Quality of Service
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List
L2L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based
Security
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown Unicast Storm Control
Management
Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP Web
System Diagnose: VCT
SYSLOG Public MIBS
OTHERS:
Certification
CE, FCC, RoHS

Available Quantity

5

UPC

840030702099

SKU

mingleTL-SG2008

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

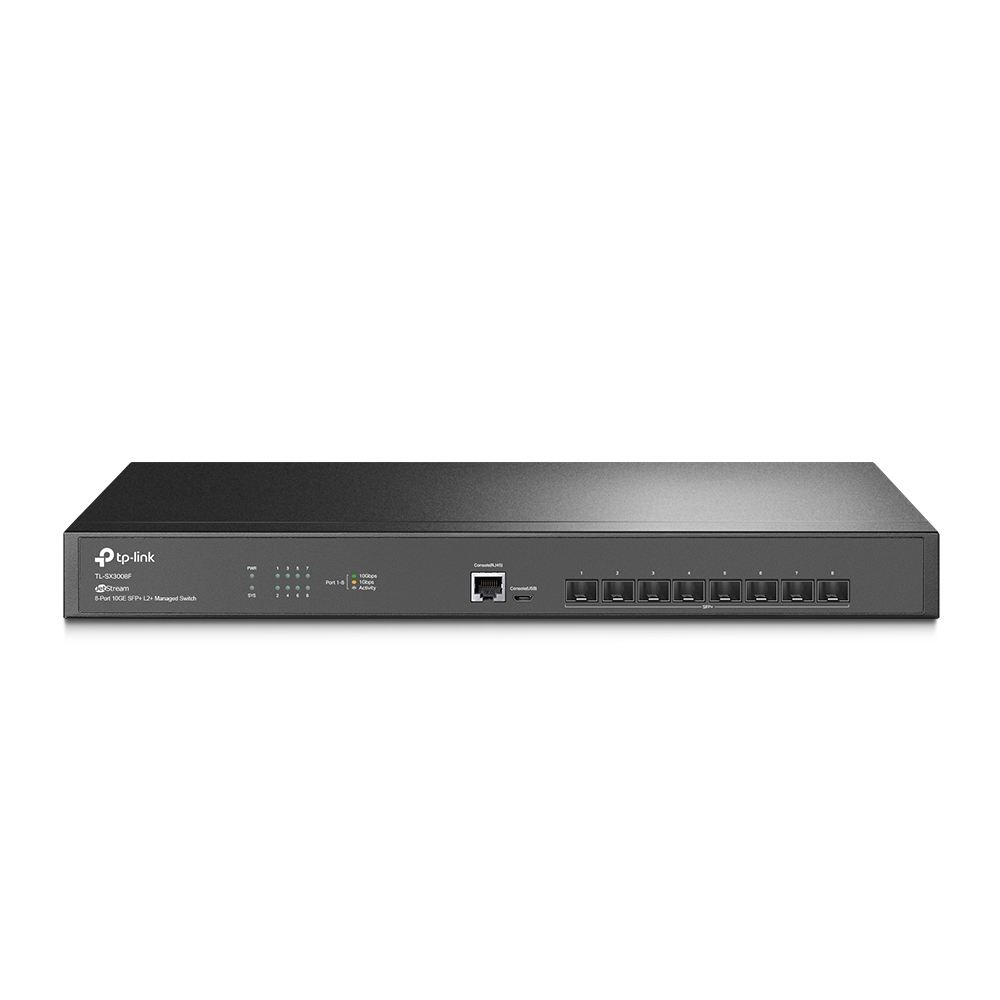

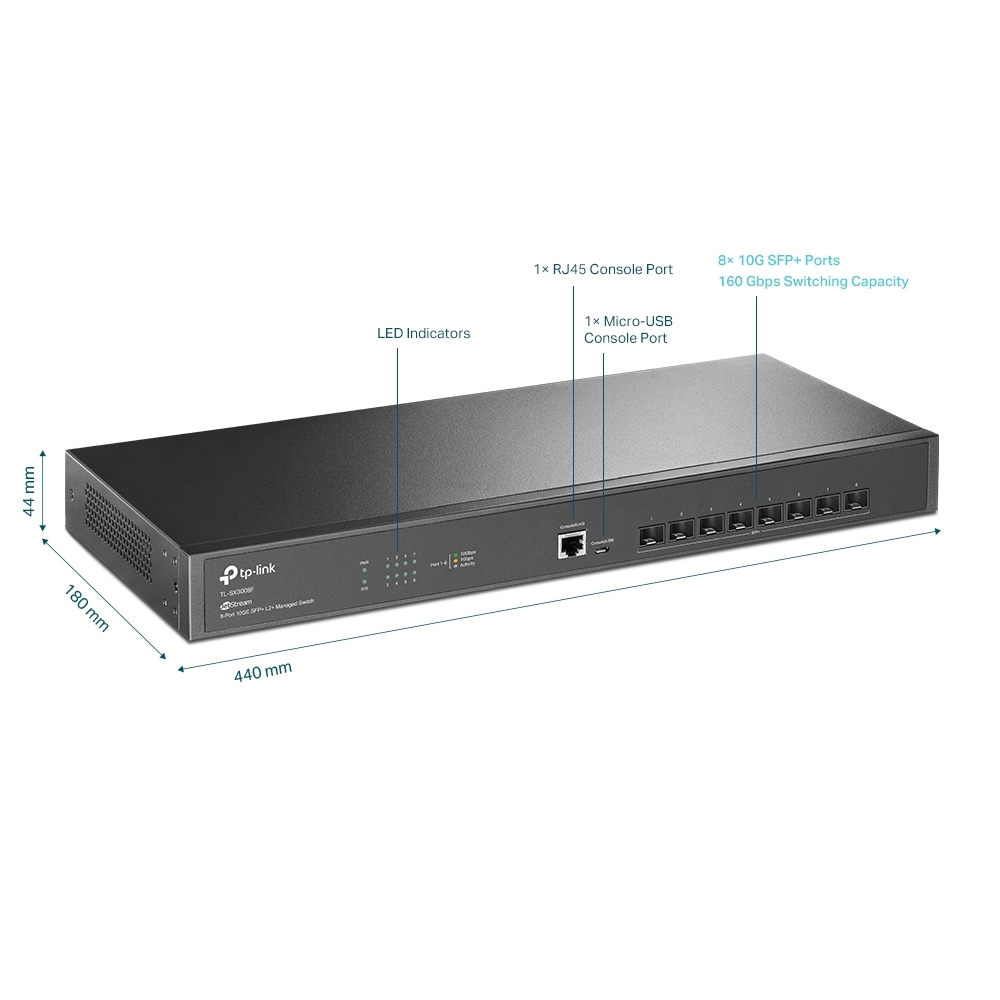

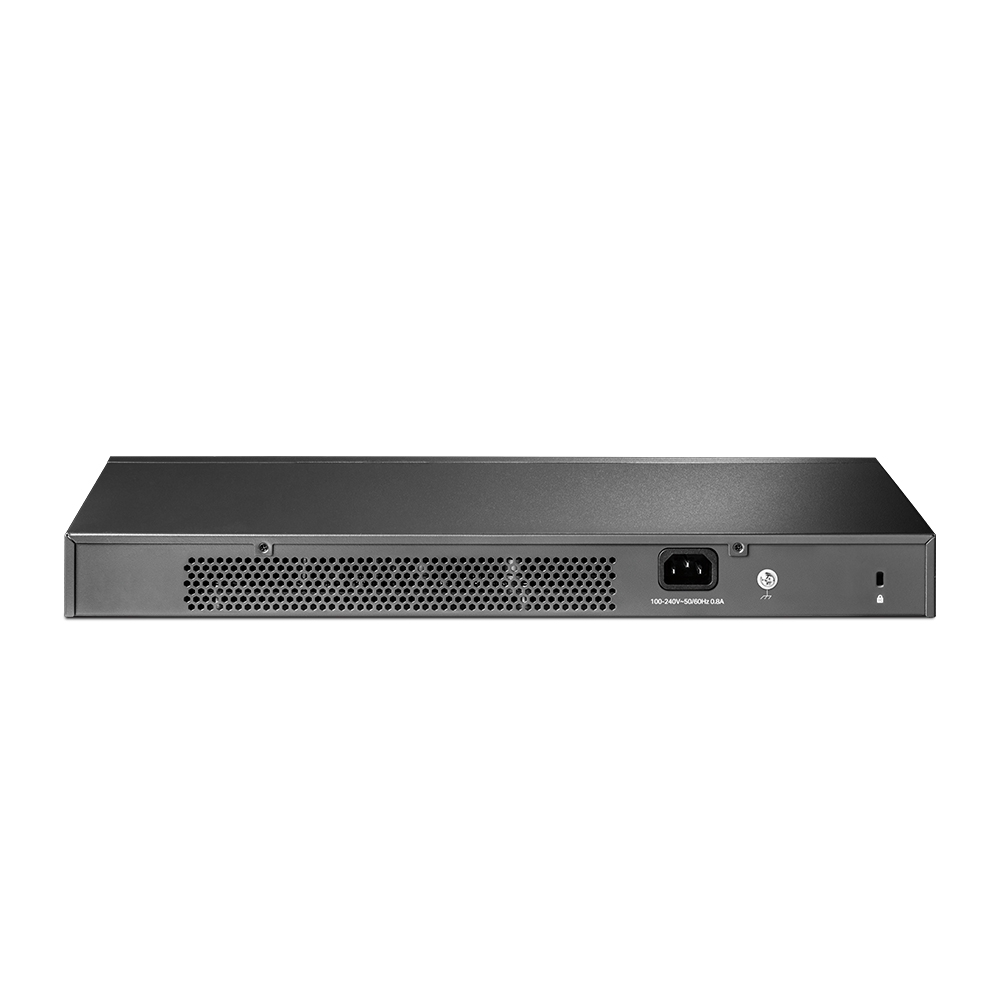

JetStream 8-Port 10GE SFP+ L2+ Managed Switch
10G Lightning-Fast Connections: 8 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Easy and convenient management with cloud access and Omada app.

Static Routing: Route internal traffic for the efficient use of network resources.

Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.

Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities


Full Fiber Switch with Lightning-Fast 10G

Build and expand your lightning-fast network with TP-Link TL-SX3008F a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.


Seamless Integration to Omada Cloud SDN

Omada s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
HARDWARE FEATURES
Interface
8x 10GE SFP+ Slots
1x RJ45 Console Port
1x Micro-USB Console Port
Fan Quantity
Fanless
Power Supply
100-240 V AC 50/60 Hz
Mounting
Rack Mountable
Max Power Consumption
15.46 W (220 V / 50 Hz)
Max Heat Dissipation
52.75 BTU/hr (220 V / 50 Hz)
PERFORMANCE
Switching Capacity
160 Gbps
Packet Forwarding Rate
119.04 Mpps
MAC Address Table
32 K
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN
VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)

Available Quantity

5

UPC

840030702495

SKU

mingleTL-SX3008F

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

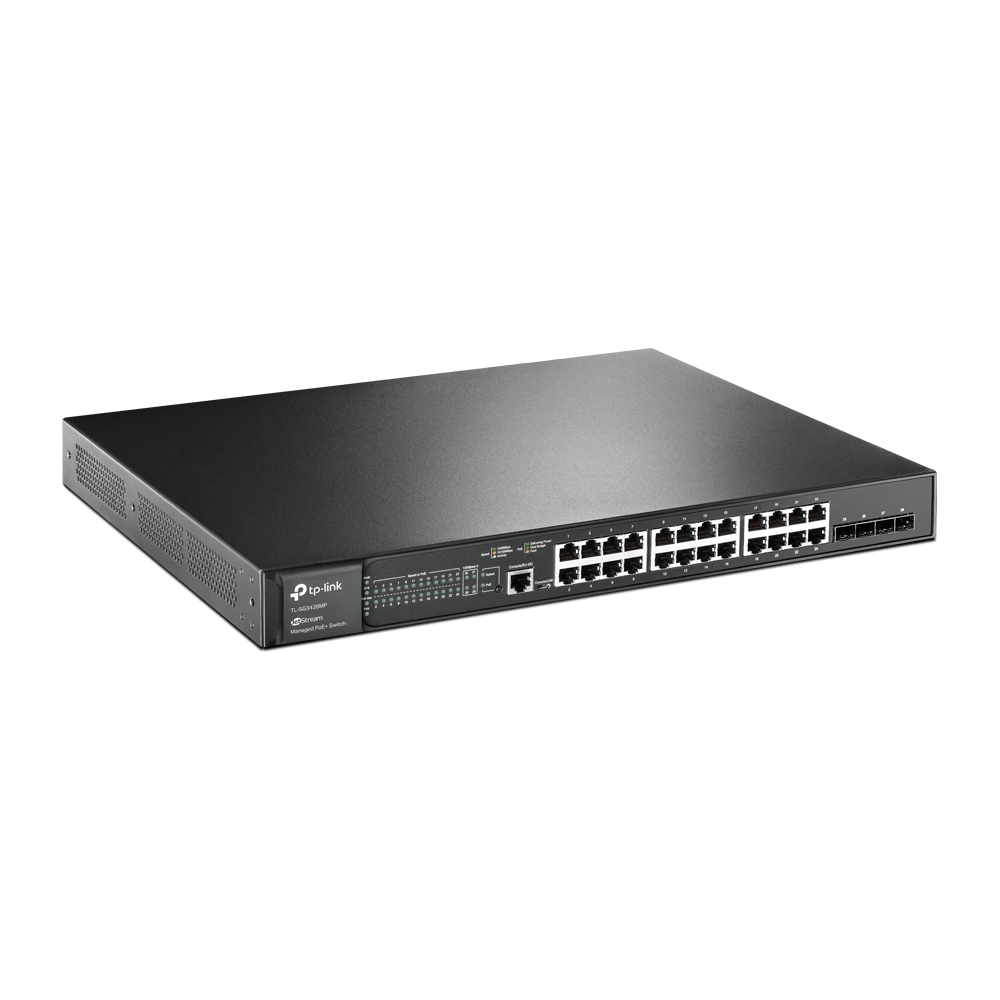

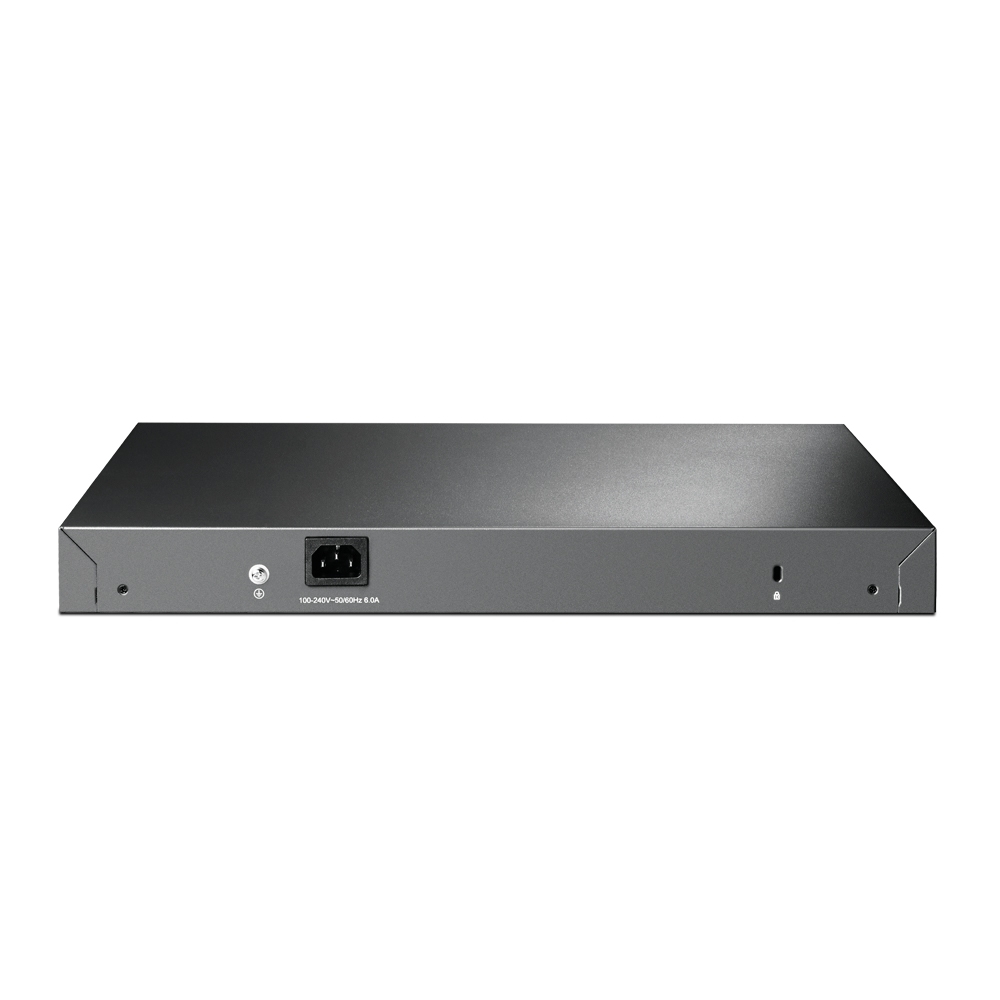

JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

384 W PoE Budget: 24 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

Full Gigabit Ports: 24 gigabit PoE+ ports and 4 gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.


PoE+ Output

24 Gigabit PoE+ Ports with Total 384 W Power Budget*

Centralized Cloud Management

SDN Solutions Integration for a Highly Efficient Network

Robust Security Strategies

LAN Area Investment Protection

Advanced L2+ Features

Static Routing, IGMP Snooping

802.1 Q VLAN and More
HARDWARE FEATURES
Interface
24x 10/100/1000Mbps RJ45 Ports
4x Gigabit SFP Slots
1x RJ45 Console Port
1x Micro-USB Console Port
Fan Quantity
2
Power Supply
100-240 V AC 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports, up to 30 W per port
Power Budget: 384 W
Mounting
Rack Mountable
Max Power Consumption
31.0 W (110 V/60 Hz) (no PD connected)
463.8 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation
105.78 BTU/h (110 V/60 Hz) (no PD connected)
1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)
PERFORMANCE
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.66 Mpps
Packet Forwarding Rate
41.66 Mpps
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
- Port-based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
VLAN Group
- Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Available Quantity

5

UPC

845973010157

SKU

mingleTL-SG3428MP

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

TL-SG1210MPE
10-Port Gigabit Easy Smart Switch with 8-Port PoE+
9 gigabit RJ45 ports and 1 combo gigabit SFP/RJ45 port
Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
Supports PoE power up to 123 W for all PoE ports
Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design lowers energy consumption and eliminates operating noise
What This Product Does
TP-Link TL-SG1210MPE is an easy smart switch with 9x gigabit RJ45 ports and 1x gigabit combo SFP/RJ45 port that requires no configuration. With 8 PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget for the 8 PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface
9x 10/100/1000 Mbps RJ45 Ports
1x 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Omega STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Omega STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Omega STP (maximum 100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
Max Power Consumption
7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation
26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
MAC Address Table
4 K
Jumbo Frame
16 KB
SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE
Extend Mode
PoE Auto Recovery
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet
System Requirements
Microsoft Windows for running Utility
Environment
Operating Temperature: 0^oC-40^oC (32^oF-104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90%RH non-condensing
Storage Humidity: 5%-95%RH non-condensing
Item Dimension (L"xW"xH")
13 x 10 x 3

Weight
3.48 lbs

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973099565

SKU

mingleTL-SG1210MPE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

5-Port 2.5G Desktop Switch

Five 2.5 Gbps Ports. 5 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.

Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.

Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**

Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play. Allows for easy deployment without the need for a technician.

Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.


Unlock the Highest Performance of

2.5G Multi-Gig Bandwidth and Devices

As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.


Powerful Performance for Smooth LAN Parties

Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let s begin the unprecedented smooth game!
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface
5 x100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 12 VDC / 1 A)
LED Indicator
System Power: 1
Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Max Power Consumption
12.11 W
Max Heat Dissipation
41.32 BTU/h
PERFORMANCE
Switching Capacity
25 Gbps
Packet Forwarding Rate
18.6 Mpps
MAC Address Table
16 K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
10 KB
SOFTWARE FEATURES
Advanced Features
802.3X Flow Control
802.1p/DSCP QoS
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC ,RoHS
Package Contents
5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L inchxW inchxH inch)
13 x 10 x 3

Weight
3.00 lb

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973089757

SKU

mingleTL-SG105-M2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Power & Value

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers enabling real network horsepower at a value price.

Easy Maintenance, Less Downtime

The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation. Full Command Line Interface (CLI) functionality enables remote configuration without need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.

Automatic Configuration

The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Power Input
100-240 VAC
CPU Speed
800MHz
DRAM Size
DDR3 2G
Flash Memory Size
64MB
Packet Buffer Size
12MBits
FAN
Yes
Physical Stacking
No
10/100/1000 BASE-T
24
10G SFP + ports
4
Secure Digital (SD) Card Slot
No
USB Port
No
Alarm Port
No
CompactFlash (CF) Card Slot
No
Number of Module Slots
No
1000Base-T Interface
24
10G SFP+ Interface
4
Auto MDI/MDIX
Yes
Console Port
Yes
RJ-45 Management Port
No
Switch Capacity
128 Gbps

Available Quantity

5

UPC

790069458811

SKU

mingleDGS-1250-28X-6KV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Expand SMB and SOHO environments with fast and reliable wired connections for high-bandwidth devices.


Eight high-speed Gigabit Ethernet Ports (10/100/1000Mbps)

Hardwire your heavy-bandwidth devices to ease the burden on Wi-Fi networks and reduce transfer speeds

Convenient Plug & Play Installation with no added configuration required

Metal housing dissipates heat to reduce stress on internal components

Supports desktop and wall mounting

Conserves energy and increases product longevity with D-Link Green Technology


Slim Dimensions, Hefty Performance

The DGS-108GL 8 Port Gigabit Unmanaged Desktop Switch is ideal for home offices or small to medium-sized businesses (SMB) to add a quick and easy Gigabit upgrade to the network. The DGS-108GL packs full functionality and Gigabit performance into a slim yet sturdy metal design.


Better For Your Budget, Better For The Planet

The eco-friendly DGS-108GL is compliant with Energy-Efficient Ethernet (IEEE 802.3az) standards to save energy and reduce heat emissions without sacrificing performance and functionality. When low-traffic or idle interface ports are detected, the DGS-108GL automatically transitions them into a low-power state, substantially reducing overall device power consumption.


Ready To Serve For Years To Come

The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and enhanced reliability by eliminating a common point of failure for an extended product life.


Prioritize What s Important with Quality of Service

Quality of Service (QoS) support enhances your network s efficiency. QoS cleverly prioritizes network traffic so that time-sensitive data such as VoIP or data to and from your NAS is unaffected even during bursts of high-volume traffic. This allows for an all-round smoother, uninterrupted network experience.
Jumbo Frame
9216 Bytes
Number of Queues
8
Store Forwarding
Yes
Storage Temperature
- 10 to 65 ^oC
Operation Temperature
0 to 40 ^oC
Operation Humidity
0% to 95% RH
Storage Humidity
0% to 95% RH
Maximum Power Consumption
4.31W
Standby Power Consumption
0.93W
Switching Capacity
16Gbps
Maximum Heat Dissipation
14.70 BTU/h
MTBF
1,402,428 hours
Power Input
5V DC
8023x Flow Control
Yes
1000Base-T Interface
Yes
MAC Address Table Size
4K
Auto MDIMDIX
Yes
Max Packet Forwarding Rate
11.9 Mpps
FAN
No
Energy Efficiency Ethernet EEE
Yes

Available Quantity

5

UPC

790069458583

SKU

mingleDGS-108GL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots

PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems

Priority Mode helps to guarantee the quality of sensitive application like video monitoring

PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices

QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV

Intelligent power management can protect the switch from overload

Multiple Application Scenarios

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Dedicated 24 PoE+ Ports (250 W Budget) for
Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24 gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Making Management Easy

TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Mounting
Rack Mountable
Max Power Consumption
27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation
92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.7 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLAN
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-Based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0^oC-50^oC (32^oF-122^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5%-90% non-condensing
Item Dimension (L"x W"x H")
21 x 14 x 4
Weight
9.00 LB
Warranty Information
Limited Lifetime

Available Quantity

5

UPC

845973040482

SKU

mingleTL-SG1428PE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

2 Gigabit ports ensure faster transmission

Complies with IEEE802.3af/at standards, supplies up to 30 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Automatically determines and supplies the exact power to meet the device's need

Wall-mounting and desktop design accommodates most installation scenarios

Plug & Play installation, requires no configuration

Integrated power supply

What This Product Does

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
GENERAL
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC power port
Power Consumption
Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
LED Indicator
ON: Supplying power normally
OFF: No power supply
Item Dimension (L"x W"x H")
10 x 7 x 4
Weight
3.00 LB
Warranty Information
2 years

Available Quantity

5

UPC

845973072162

SKU

mingleTL-POE160S

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Centralized management for up to 500 Omada access points, JetStream switches, and SafeStream routers.

Cloud access to manage from anywhere, anytime.

Locally monitor and manage devices with the ultimate security and stability.

The Omada app for convenient management.

Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup.

Batch management, multi-site management, and remote firmware updates benefit network maintenance.

The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.

Network topology helps IT admins quickly see and troubleshoot connections at a glance.

Centralized Management for
Access Points, Switches, and Gateways

OC300, the hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of access points, switches, and gateways all controlled from a single interface.

Hybrid Cloud for Maximum Convenience

Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

Industry-Leading Hardware Design

Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.
HARDWARE FEATURES
Interface
2x 10/100/1000 Mbps Ethernet Ports
1x USB 3.0 Port
Power Supply
100-240 V-50/60 Hz, 0.6 A
MANAGEMENT
Omada App
Yes
Centralized Management
Up to 500 Omada access points, JetStream switches, and SafeStream routers
Up to 15,000 clients
Cloud Access
Yes
L3 Management
Yes
Multi-site Management
Yes
Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
OTHERS
Certification
CE, FCC, RoHS
Package Contents
Omada Hardware Controller OC300
Quick Installation Guide
Ethernet Cable
Power Cord
Rackmount Kit
Environment
Operating Temperature: 0-50 ^oC (32-122 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
16 x 10 x 4
Weight
5.00 LB
Warranty Information
Limited Lifetime

Available Quantity

5

UPC

845973089863

SKU

mingleOC300

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

A variety of port options means there s a suitable switch, whatever the circumstances

Fanless design for a longer product life and silent operation

Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs

Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery

Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security

PD Alive feature automatically reboots malfunctioning connected PoE devices to mitigate downtime

IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic

Innovative energy saving features are good for your budget, as well as the environment

Get up and going quickly with streamlined first-time setup and ongoing management


Smart Switching for your Business

The DGS-1100 Series is a range of smart managed switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Expedited Deployment and Effortless Ongoing Management

The D-Link Network Assistant (DNA) can quickly discover and execute initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management

Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
Port Configuration
8x GE Ports
Fan
Fanless
PoE Power Budget
N/A
Item Dimension (L"x W"x H")
9 x 4 x 6
Weight
2.00 LB
Warranty Information
Lifetime

Available Quantity

5

UPC

790069453304

SKU

mingleDGS-1100-08V2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

A variety of port options means there s a suitable switch, whatever the circumstances

Fanless design for a longer product life and silent operation

Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs

Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery

Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security

PD Alive feature automatically reboots malfunctioning connected PoE devices to mitigate downtime

IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic

Innovative energy saving features are good for your budget, as well as the environment

Get up and going quickly with streamlined first-time setup and ongoing management

Smart Switching for your Business

The DGS-1100 Series is a range of smart managed switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Expedited Deployment and Effortless Ongoing Management

The D-Link Network Assistant (DNA) can quickly discover and execute initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management

Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
Port Configuration
5x GE Ports
Fan
Fanless
PoE Power Budget
N/A
Item Dimension (L"x W"x H")
9 x 4 x 6
Weight
2.00 LB
Warranty Information
Lifetime

Available Quantity

5

UPC

790069453281

SKU

mingleDGS-1100-05V2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

With increased Power over Ethernet (PoE) output and advanced Layer 2 features, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.


Fibre Uplinks
The Fibre Uplinks integrate advanced management as well as security functions that provide performance and scalability making it suitable for business use.


PoE
The DGS-1210 Series includes a range of high power budget PoE-enabled switches for businesses looking to power VoIP phones, wireless access points or network cameras.


Energy Saving
Incorporating D-Link Green technology, the DGS-1210 Series switches are capable of power-saving without sacrificing operational performance or functionality. Taking the approach to green IT one step further this series incorporates a special chipset with advanced silicon technology for efficient use of energy.
Number of 10/100/1000BASE-TX ports
8 ports
Number of SFP ports
2 ports
PoE Supported Models
Standard(s): 802.3af/802.3at
Number of Ports : 8 ports
Maximum Power Budget : 130W
Switch Capacity
20 Gbps
64-Byte Packet Forwarding Rate
14.88 Mpps
MAC Address Table Size
16K (except DGS-1210-26, which support 8K)
Packet Buffer
0.5 MB per device
Jumbo Frame
Up to 9,216 Bytes
Power Consumption (Standby/Maximum)
9.4W / 148.7W (PoE on)
Power Input
10 to 240 VAC, 50/60HZ internal universal power supply
Ventilation
fanless
Heat Dissipation
519.51 BTU per hour
Temperature
Operating: -5^o to 50^oC (23^o to 112^oF)
Storage: -20^o to 70^oC (-4^o to 158^oF )
Humidity
Operating: 0% to 95% non-condensing
Storage: 0% to 95% non-condensing
Certification
CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick
Software Feature
L2 Features:
MAC Address Table: 8K entries
IGMP Snooping:
- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation: Maximum of 8 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame: Up to 9,216 bytes
Spanning Tree Protocol:
- 802.1D STP
- 802.1W RSTP
- 802.1s MSTP (for DGS-1210-28MP only)
Flow Control:
- 802.3x Flow Control
- HOL Blocking Prevention
Port Mirroring:
- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both
Multicast Filtering:
- Forwards all unregistered groups
- Filters all unregistered groups
Configurable MDI/MDIX: MLD snooping v1/v2 (256 groups)
VLAN
802.1Q
VLAN Group: Max. 256 static VLAN groups
Configurable VID from 1 4094
Asymmetric VLAN
Auto Voice VLAN:
- Max. 10 user-defined OUI
- Max. 8 default OUI
Auto Surveillance VLAN
Quality of Service (QoS)
802.1p Quality of Service
8 queues per port
Queue Handling:
- Strict
- Weighted Round Robin (WRR)
Bandwidth Control: Port-based (Ingress/Egress, min granularity 10/100/1000 is 16 Kbps)
QoS based on:
- 802.1p Priority Queues
- DSCP
- MAC address1
- EtherType1
- IP address1
- Protocol type1
- ToS
- IP preference1
- IPv6 Traffic Class
- TCP/UDP port
L3 Features
IP Interface: Support 4 interfaces
IPv6 Neighbor Discovery (ND)
Static Routing: 124/50 IPv4/6 Static Route Entries
Access Control List (ACL)
Max. 50 access list
Max. 768 rules shared by IPv4, MAC and IPv6
Each rule can only be associated with a single port
ACL based on:
- MAC address
- 802.1p priority mask
- VID mask
- Source/destination MAC address mask
- EtherType mask
IP address:
- Source/destination IP address mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
IPv6 address:
- Source/destination IP address mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
- IPv6 traffic class mask

Available Quantity

5

UPC

790069432507

SKU

mingleDGS-1210-10MP

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

What This Product Does

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.


Easy to Use

Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.
Standards and Protocols
IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface
16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
Power Consumption
Maximum: 10.0W
External Power Supply
External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Packet Forwarding Rate
23.8Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1Mb
Jumbo Frame
10KB
Advanced Features
Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store and Forward
Certification
FCC, CE, RoHS
Package Contents
16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet

Environment
Operating Temperature: 0^oC to 40 ^oC (32 ^oF to104^oF)
Storage Temperature: -40^oC to 70 ^oC (-40 ^oF to158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L inchxW inchxH inch)
17 x 7 x 3

Weight
3.00lb

Warranty Information
Limited Lifetime

Available Quantity

5

UPC

845973084325

SKU

mingleTL-SG116

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots

PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems

Port Priority is able to guarantee the quality of sensitive application like video monitor

Intelligent power management can protect the switch from overload

QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.


Ideal for Surveillance

TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.


Intelligent Power Management

When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port s power supply and protect the device from power overload operation.


Making Management Easy

TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
16 10/100/1000 Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE+ Ports: 16 Ports
Power Supply: 192W
Mounting
Rack Mountable
Max Power Consumption
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
23.8 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

Available Quantity

5

UPC

845973086923

SKU

mingleTL-SG1218MPE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

24 10/100/1000Mbps ports

Innovative energy-efficient technology saves power consumption

Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

Plug & play design

What This Product Does

The TL-SG1024S Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024S can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1024S Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024S forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra ffic congestion and make The TL-SG1024S work reliably. It s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Power Supply
100-240VAC, 50/60Hz
Power Consumption
Maximum: 13.1W (220V/50Hz)
PERFORMANCE
Switching Capacity
48Gbps
Packet Forwarding Rate
35.7Mpps
MAC Address Table
8K
Jumbo Frame
10KB
Green Technology
Yes
Transfer Method
Store-and-Forward
OTHERS
Certification
FCC, RoHS
Package Contents
24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment
Operating Temperature: 0^oC-40^oC (32^oF-104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Item Dimension (L"x W"x H")
16 x 10 x 4
Weight
5.00 LB
Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973083540

SKU

mingleTL-SG1024S

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment.
Hardware Version
A1
Number of Ports
5 x 10/100/1000BASE-T ports
Port Functions
IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet
IEEE 802.3ab for Gigabit Ethernet
IEEE 802.3z for Gigabit fiber
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Media Interface Exchange
Auto-MDI/MDIX adjustment for all twisted pair ports
Switching Capacity
10 Gbps
Maximum Forwarding Rate
7.44 Mpps
MAC Address Table Size
Up to 2K entries
Transmission Method
Store-and-forward
Jumbo Frame
9 KB
Advanced Features
Broadcast/Multicast/Unicast Storm Control
IEEE 802.1p Quality of Service (QoS) - 4 hardware queues per port
Diagnostic LEDs
ALM
P1/P2
Link/Activity/Speed
Power Input
12 to 58 V DC terminal block dual input
Power Consumption
Maximum: 3.57 W
Alarm Relay
1 A at 24 V
Heat Dissipation
12.18 BTU/hr
Ventilation
Fanless, passive cooling
Operating Temperature
-40 to 75 ^oC (-40 to 167 ^oF)
Storage Temperature
-40 to 85 ^oC (-40 to 185 ^oF)
Operating Humidity
0% to 95% RH, non-condensing
Storage Humidity
0% to 95% RH, non-condensing
Material
IP30-rated metal casing

Available Quantity

5

UPC

790069437908

SKU

mingleDIS-100G-5W

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

16 x 10/100/1000BASE-T ports

Fanless design for silent operation

Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs

Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery

Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security

IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic

Innovative energy saving features are good for your budget, as well as the environment

Get up and going quickly with streamlined first-time setup and ongoing management
1000Base-T Interface
16
Auto MDI/MDIX
Yes
10/100/1000BASE-T ports
16
Switch Capacity
32 Gbps
Max. Packet Forwarding Rate
23.81Mpps
Power Input
AC: 100-240V
Comply with RoHS 6
Yes
Energy Efficiency Ethernet (EEE)
Yes
Power Saving By Link Status
Yes
Power Saving By LED Shut-Off
Yes
Power Saving By Port Shut-Off
Yes
Power Saving By System Hibernation
Yes
MAC Address Table Size
8K
802.3x Flow Control
Yes
Head-of-line (HOL) Blocking Prevention
Yes
802.1D Spanning Tree (STP)
Yes
802.1w Rapid Spanning Tree (RSTP)
Yes
802.1AX Link Aggregation
Yes
802.3ad Link Aggregation
Yes
Link Aggregation Group Per Device
8
Max Port Per Link Aggregation Group
8
Port Mirroring
Yes
Jumbo Frame
9216 bytes
Loopback Detection (LBD)
Yes
IGMP Snooping
Yes
Max IGMP Snooping Groups
64
802.1Q VLAN
Yes
VLAN Groups
128
Port-based VLAN
Yes
Voice VLAN
Yes
Auto Surveillance VLAN
Yes
Asymmetric VLAN
Yes
Number of Queue
4
Class of Service (CoS)
Yes
Two Rate Three Color Marker (trTCM)
Yes
Rate Limiting
Yes
Queue Handling
Yes
Strict Priority Queue (SPQ)
Yes
Weighted Round Robin (WRR)
Yes
SSL
Yes
Broadcast/Multicast/Unicast Storm Control
Yes
Traffic Segmentation
Yes
D-Link Safeguard Engine
Yes
DoS Attack Prevention
Yes
Port-based Bandwidth Control
Yes
Cable Diagnostics
Yes
Simple Network Time Protocol (SNTP)
Yes
Web-based GUI
Yes
SNMP
Yes
SNMP Trap
Yes

Available Quantity

5

UPC

790069451768

SKU

mingleDGS-1100-16V2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots

Up to 250m data and power transmission under extend mode specially designed for surveillance system

Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor

High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports

Easy to use, with no configuration and installation needed

Easy to Use PoE Switch with Innovative Design

Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance

TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed

Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
HARDWARE FEATURES
Interface
16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Power Supply
100-240V AC, 50/60 Hz
Backup Bandwidth
7.2 Gbps
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table
8K
Max Power Consumption
18.7 W (no PD connected)
217.2 W (with 192W PD connected)
Max Heat Dissipation
63.9 BTU/h (no PD connected)
741.2 BTU/h (with 192W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible with IEEE 802.3at/af compliant devices
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, RoHS
Package Contents
TL-SL1218MP
Power Cable
Installation Guide
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L"xW"xH")
21 x 10 x 4
Weight
7.00 LB
Warranty Information
Limited Lifetime

Available Quantity

5

UPC

845973099824

SKU

mingleTL-SL1218MP

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Five 10/100/1000Mbps RJ45 ports

Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable

Supports PoE power up to 65 W for all PoE ports

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

Multiple Application Scenarios

The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Dedicated 4 PoE+ Ports (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4 gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Making Management Easy

TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface
Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter (Output: 53.5 VDC/1.3 A)
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Max Power Consumption
4.5 W (with no PD connected)
75.2 W (with 65 W PD connected)
Max Heat Dissipation
15.4 BTU/h (with no PD connected)
256.3 BTU/h (with 65 W PD connected)
PERFORMANCE
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
MAC Address Table
2 K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements
Microsoft Windows for Utility Software
Environment
Operating Temperature: 0^oC-40^oC (32^oF-104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90%RH non-condensing
Storage Humidity: 5%-95%RH non-condensing
Item Dimension (L"x W"x H")
8 x 6 x 5
Weight
2.00 LB
Warranty Information
2 years

Available Quantity

5

UPC

845973089986

SKU

mingleTL-SG105PE
