Product Description

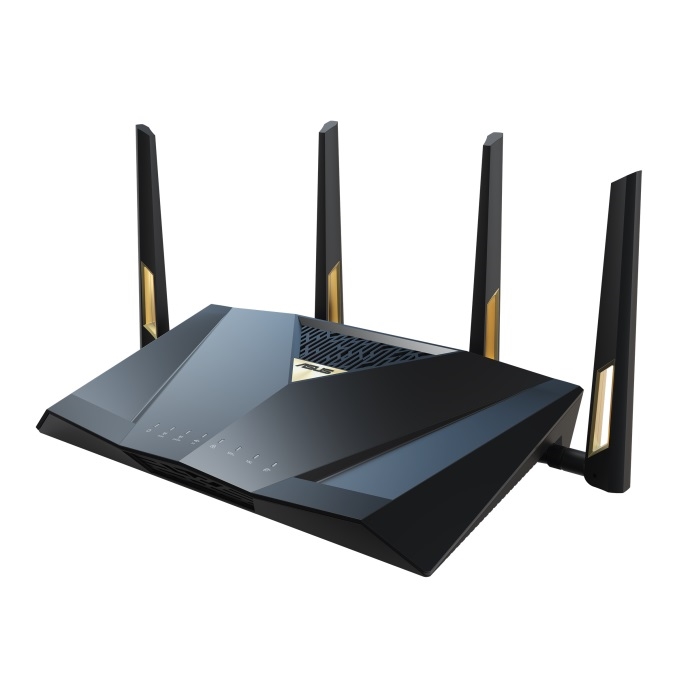

ASUS RT-BE88U Dual-band WiFi 7 AiMesh Extendable Performance Router, 4K-QAM, MLO, Dual 10G ports, SFP+, Four 2.5G ports, Four 1G ports, 34G WAN/LAN capacity, Subscription-free network security, VPNs
Blazing-fast WiFi 7 tech boosts throughput up to 7200Mbps with Multi-Link Operation and 4096-QAM.
Bolster your wired network capacity up to 34G with one cutting-edge 10G SFP+ port and one standard 10G WAN/LAN port.
Establish always-on internet through AI WAN detection, versatile WAN configuration options, and a convenient USB port ready for 4G LTE and 5G Mobile tethering.
Unleash demanding WiFi 7 and 10G network applications with a powerhouse quad-core 2.6GHz 64-bit CPU.
Easily establish up to five SSIDs with Guest Network Pro for easy IoT device setup and management, instant VPN connections, and convenient parental controls.
Stay secure with commercial-grade AiProtection Pro powered by Trend Micro, one-tap security scanning, comprehensive VPN support, and site-to-site VPN.
Ensure seamless connectivity for all devices with a feature-rich whole-home network powered by AiMesh.
RT-BE88U Dual-Band WiFi 7 router
Unparalleled 34G Wired Performance
Dominate your network with the ultimate performance for those who demand the absolute best, today and tomorrow. ASUS RT-BE88U, the successor to the legacy RT-AX88U, powered by next-level WiFi 7, delivers an astounding 7200 Mbps for your connected living. The RT-BE88U boasts a monster 34 Gigabit combined capacity. Its killer combination includes a cutting-edge 10 Gigabit SFP+ next gen connection and up to 9 LAN ports, ensuring seamless hardwiring for all your devices and future-proofing your network.
Model
RT-BE88U
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE7200 ultimate BE performance : 1376+5764 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 4x4
5GHz 4x4
Processor
2.6GHz quad-core processor
Memory
256 MB Flash and 2 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode
I/O Ports
1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ for WAN, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for LAN, USB 3.2 Gen1 x1
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
WAN x1
10G WAN x1
10G SFP+ x1
LAN x1
USB 3.2 Gen 1 x1
2.4GHz x1
5GHz x1
Power x1
Power Supply
AC Input : 110V-240V(50-60Hz)
DC Output : 19 V with max. 2.37 A current 19.5 V with max. 2.31 A current
Package Content
RT-BE88U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
AiMesh
AiMesh
Primary AiMesh Router
AiMesh Node
Game
WTFast
Mobile Game Mode
Gear Accelerator
OpenNAT (Game Profile)
Gaming Port
Parental Control
"Allow you to block access to unwanted websites and apps."
Web and Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
Maximum Parental Control Profile : 64
Maximum Parental Control Content Cilter Rule : 64
Guest Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
Support Guest Network Pro
Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection Time Limit
Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

Available Quantity

5

UPC

197105335660

SKU

mingleRT-BE88U

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

HC220-G5

AC1200 Whole Home Mesh WiFi System

Faster WiFi 5 Connections: Speeds up to 1200 Mbps-867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.*

Boosted Seamless Coverage: Client Steering & Band Steering intelligently connect devices to the mesh AP with the strongest signal ensuring connectivity regardless of physical location. A unified wireless network (SSID) is used throughout the whole home providing a truly seamless wireless experience.***

Enhanced Security: WPA3 encryption, Multi-SSID, VPN, and Parental Controls provide personalized and safer online experience.

EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility.**

Easy Cloud Management: Compatible with TAUC (TP-Link Aginet Unified Cloud) to allow service providers to manage multiple devices remotely.

Whole Home Coverage

Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage.

Want more coverage Simply add another HC220-G5 wherever you want.**

Seamless Roaming with One Wi-Fi Name (SSID)

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.***

HARDWARE FEATURES
Interface
3x Gigabit Ports
Per Unit
1 Port supports WAN/LAN auto-sensing
Button
Reset Button
WPS Button
External Power Supply
12 VDC/1.0 A
WIRELESS FEATURES
Wireless Standards
Wi-Fi 5
IEEE 802.11 a/n/ac 5 GHz
IEEE 802.11 b/g/n 2.4 GHz
Frequency
2.4 GHz and 5 GHz
Signal Rate
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
Transmit Power
FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Wireless Security
WPA-PSK/WPA2-PSK/WPA3 Personal encryptions
Multi-SSID
4 x 5 GHz Multi-SSID
4 x 2.4 GHz Multi-SSID
SOFTWARE FEATURES
Quality of Service
WMM
Advanced Features
Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule
WAN Type
Dynamic IP/Static IP/PPPoE
Management
Local Management, TAUC Cloud Management
Firewall Security
SPI Firewall
Protocols
Supports IPv4 and IPv6
Working Modes
Router Mode
Access Point Mode
OTHERS
Package Contents
1 x HC220-G5 Unit
1 x RJ45 Ethernet Cable
1 x Power Adapter
1 x Quick Installation Guide
Smartphone/Tablet Requirements
Android 4.4 or later
iOS 9.0 or later
Certifications
CE, FCC
Environment
Operating Temperature: 0^oC -40^oC (32^oF -104^oF)
Storage Temperature: -40^oC60^oC (-40^oF -140^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Item Dimension (L"xW"xH")
7 x 5 x 6

Weight
2 lbs

Warranty Information
2-year

Available Quantity

5

UPC

840030704208

SKU

mingleHC220-G5(1-PACK)

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

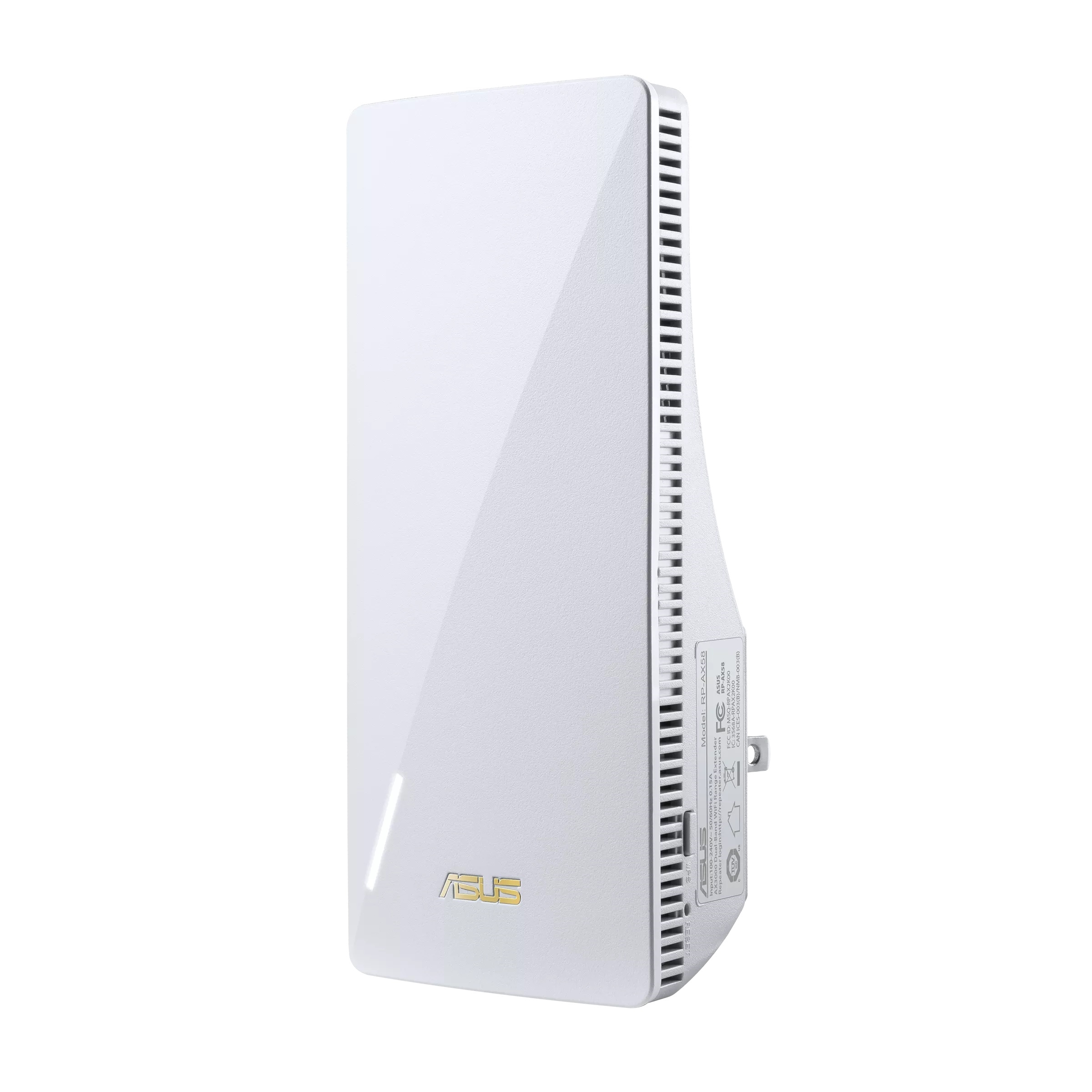

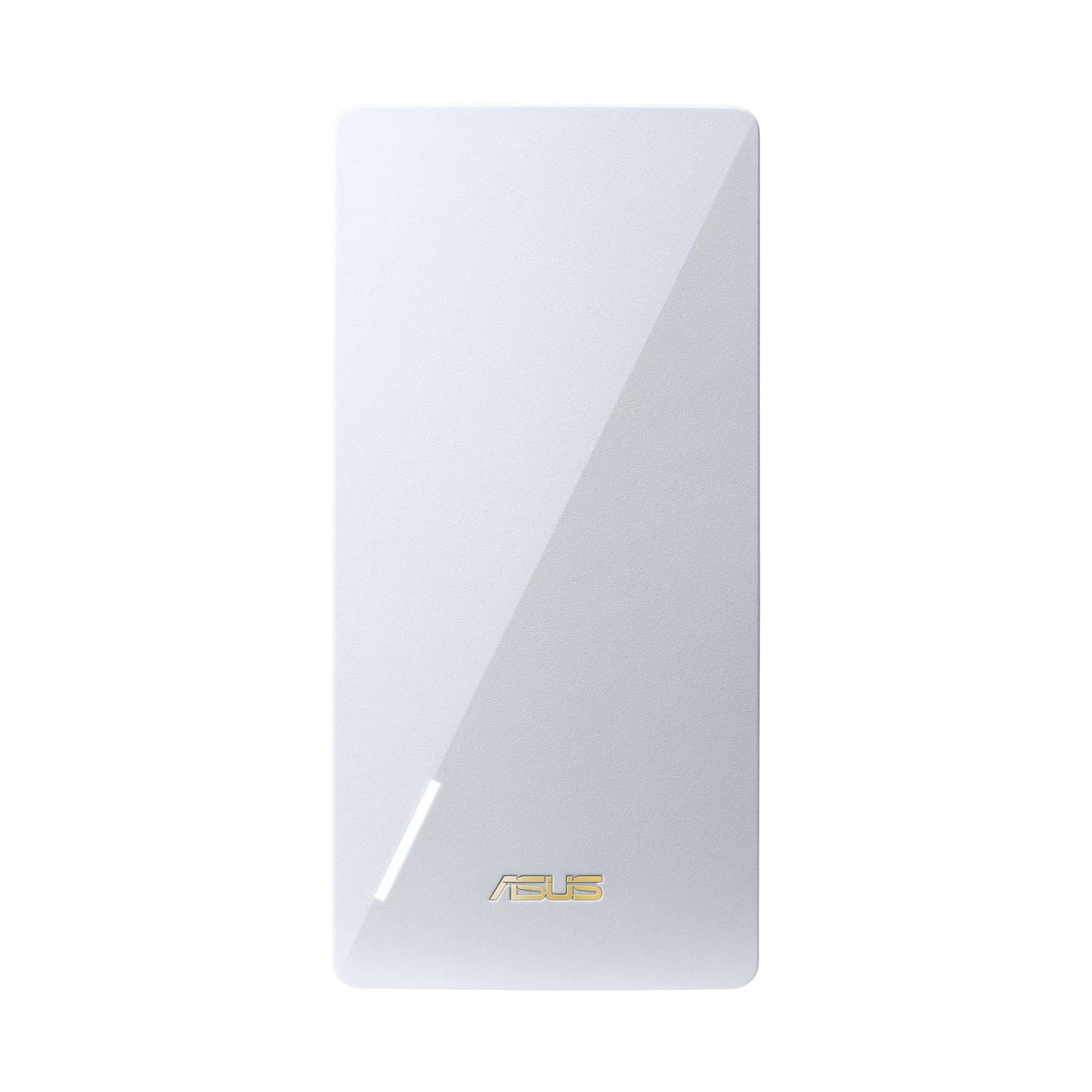

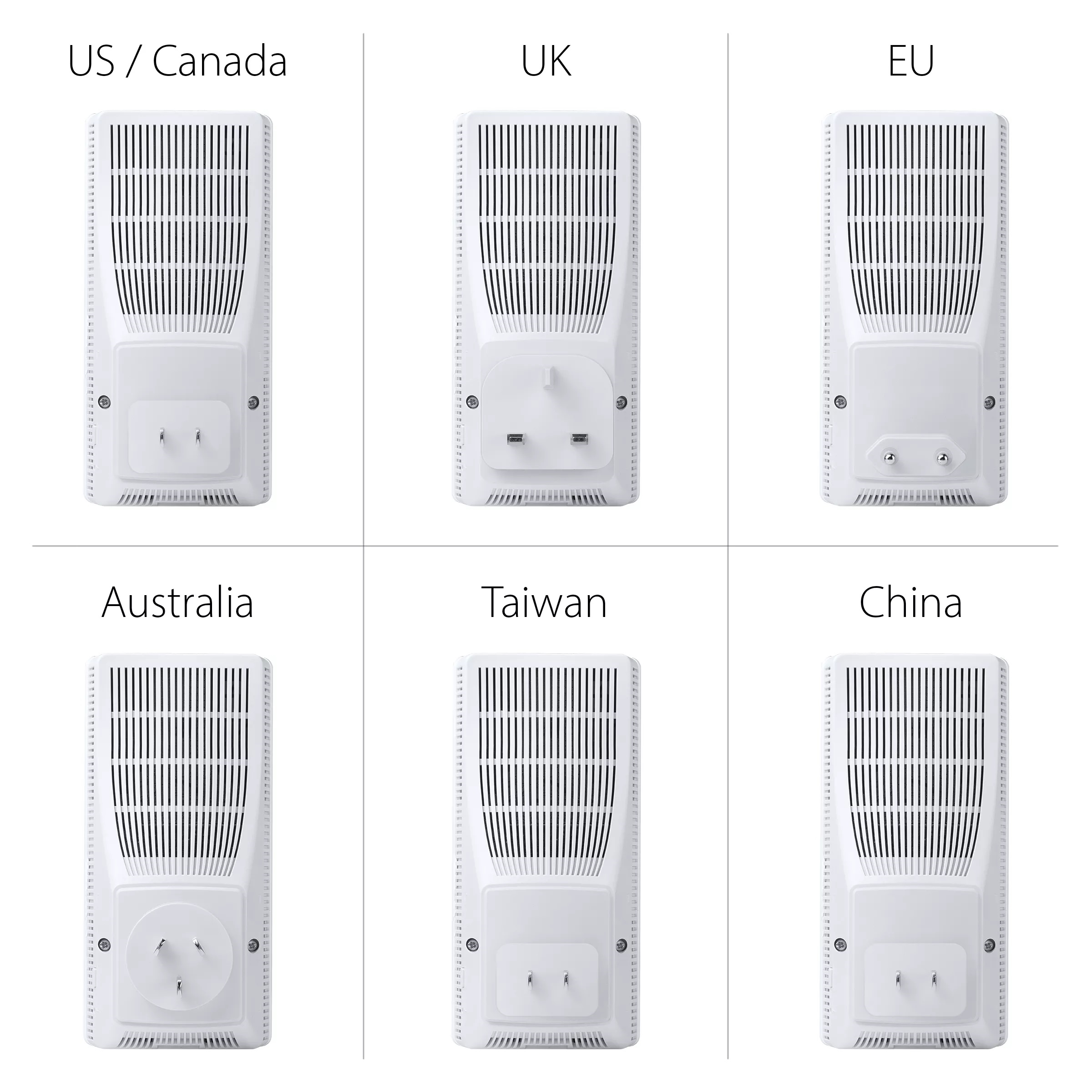

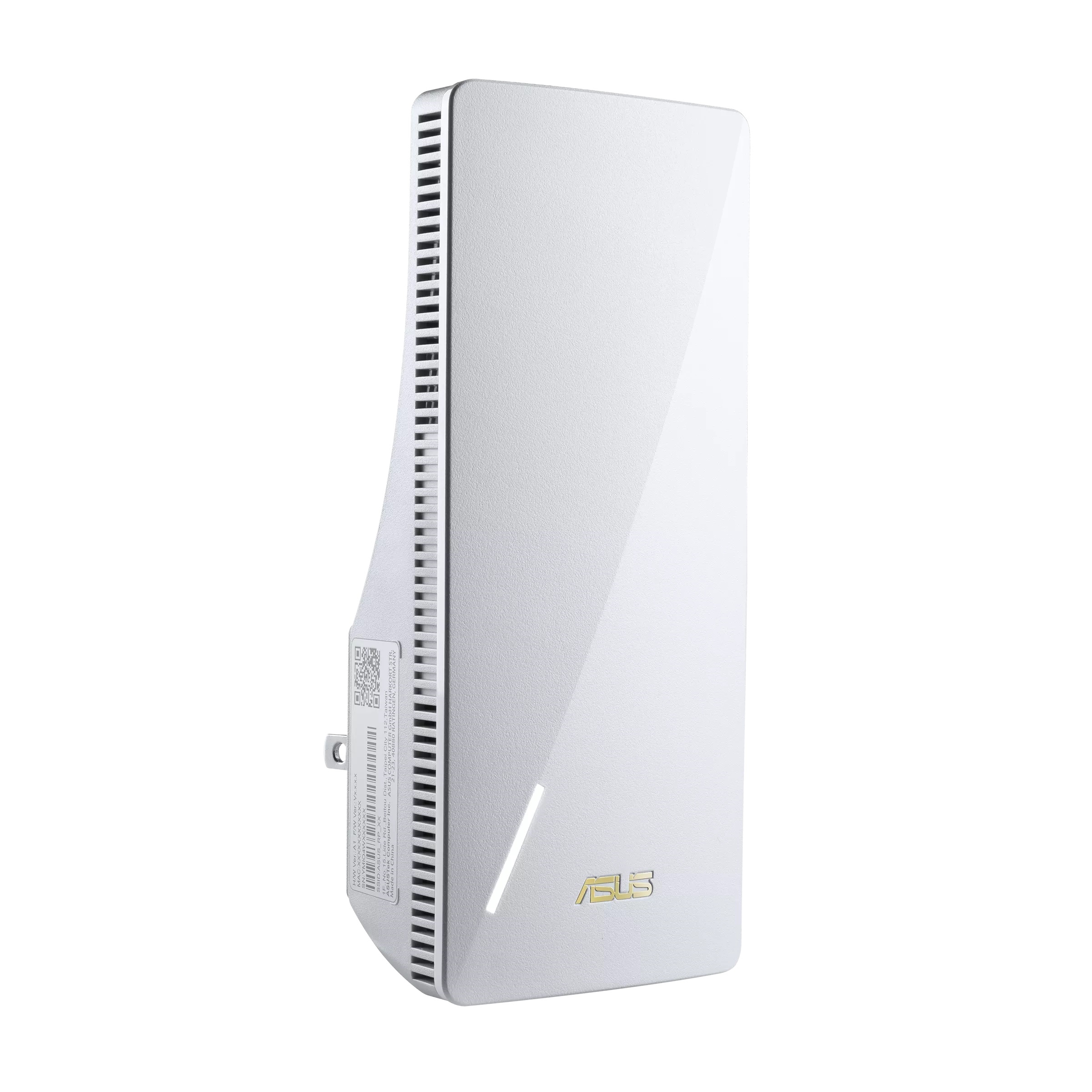

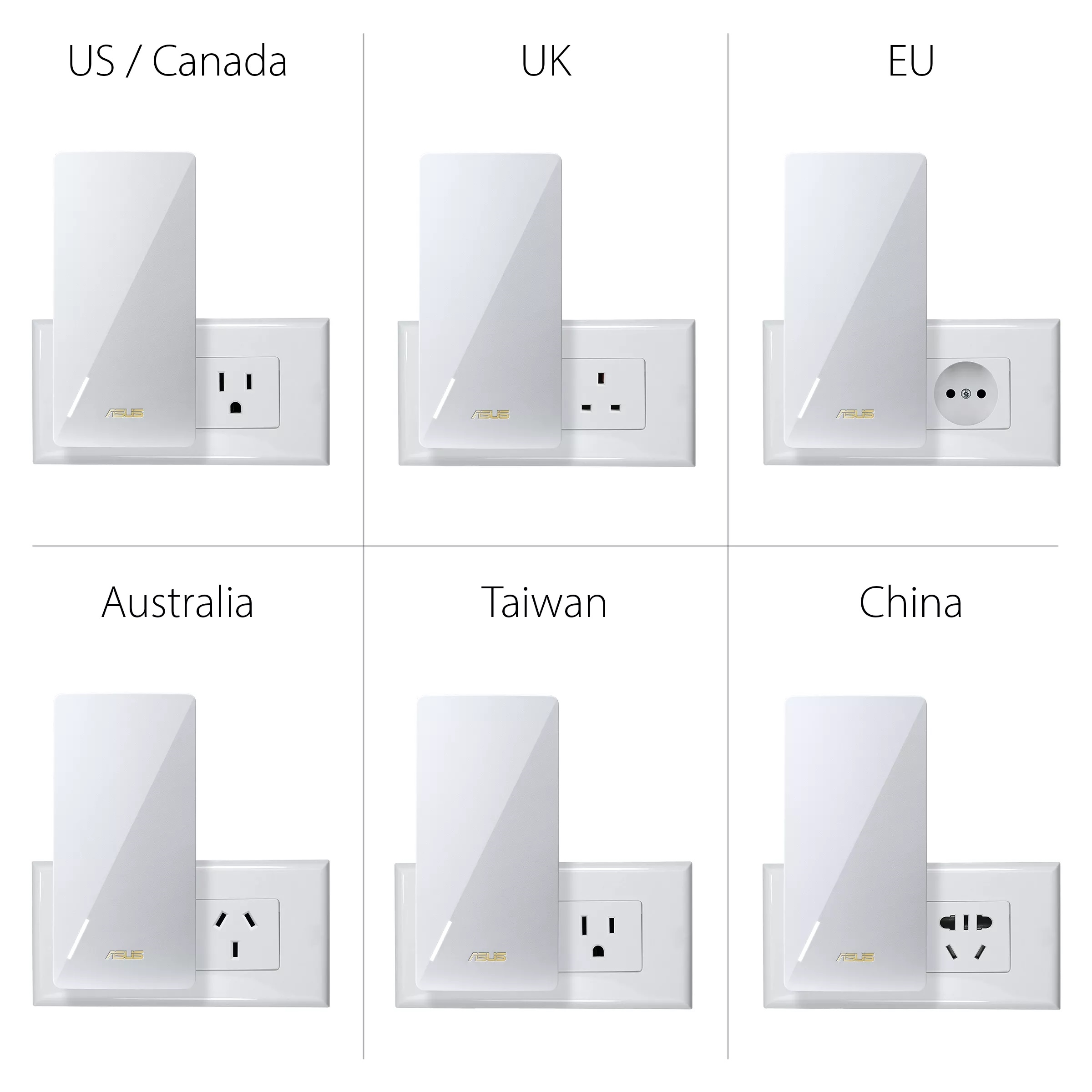

AX3000 Dual-band WiFi 6 (802.11ax) Range Extender/ AiMesh Extender for seamless mesh WiFi; works with nearly any WiFi router


WiFi 6 Standard -
Supporting WiFi 6(802.11ax) standard, RP-AX58 offers better capacity, efficiency, and low latency WiFi. With 160MHz bandwidth on 5GHz channels, RP-AX58 can double your surfing speed.


Extend Seamless AiMesh WiFi System -
RP-AX58 supports AiMesh, which enables you to enjoy a stable, seamless and secure wireless connection with AiMesh compatible devices anywhere in your home.


One or Multiple WiFi Name, the Choice is Yours -
Keep one WiFi name (SSID) for the entire network to enjoy seamless roaming or give individual names to each WiFi band for different usages.


Easy Setup with Mobile App -
Setup RP-AX58 with ASUS Router app or ASUS Extender app with a few taps.


Works Perfectly with Nearly Any WiFi Router -
RP-AX58 is compatible with virtually all WiFi routers, modems and cable routers on the market to expand coverage.
Model
RP-AX58
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX3000 ultimate AX performance: 574+2402 Mbps
Data Rate
WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps
Antenna
Internal antenna x 2
Transmit/Receive
2.4GHz 2x2
5GHz 2x2
Operating Frequency
2.4 GHz / 5 GHz
Ports
RJ45 for Gigabits BaseT for LAN x 1
Button
Reset Button, WPS Button
LED Indicator
LEDX1
Package content
RP-AX58
Quick Start Guide
Warranty Card
AiMesh
AiMesh
AiMesh node
Router APP
ASUS Router APP
Wireless
Wi-Fi Encryption: WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support
Administration
Operating mode: Range extender mode
Access point mode
Media bridge mode
Operating system: Windows 11
Windows 10
Windows 10 64-bit
Windows 8.1
Windows 8
Windows 7
Mac OS
Linux
Free OS upgrade
Notes
1.Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
2.All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
3.Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
4.PCB color and bundled software versions are subject to change without notice.
5.Brand and product names mentioned are trademarks of their respective companies.
6.The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
7.The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
8.Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
9.Quoted network speeds and bandwidth based on current IEEE 802.11ac specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be 802.11ac-compatible for best results.
10.If you use the product in conjunction with a third party service, you are responsible for complying with the third party providers terms and conditions and privacy policy and are also at the risk of such use. ASUS does not provide s
Item Dimension (L inchxW inchxH inch)
8 x 6 x 5

Weight
2 lbs

Warranty Information
2 Years

Available Quantity

5

UPC

195553440387

SKU

mingleRP-AX58

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

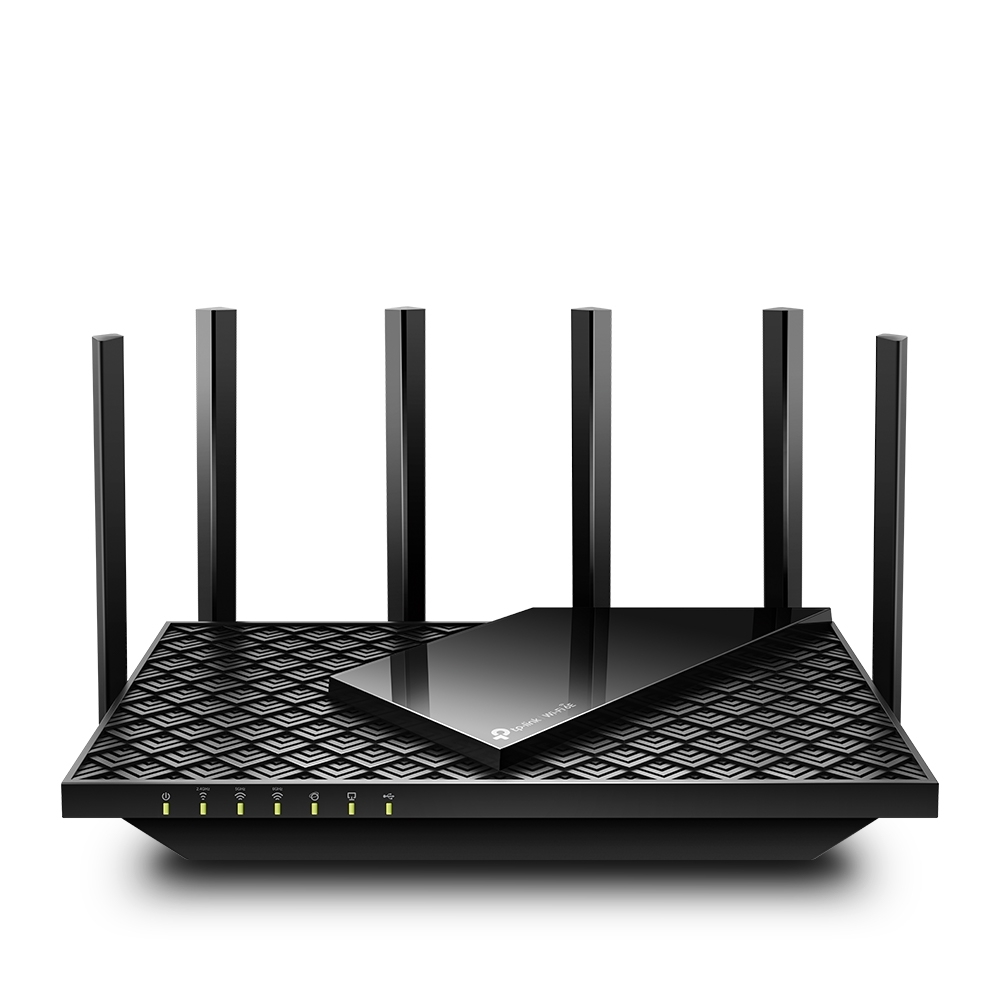

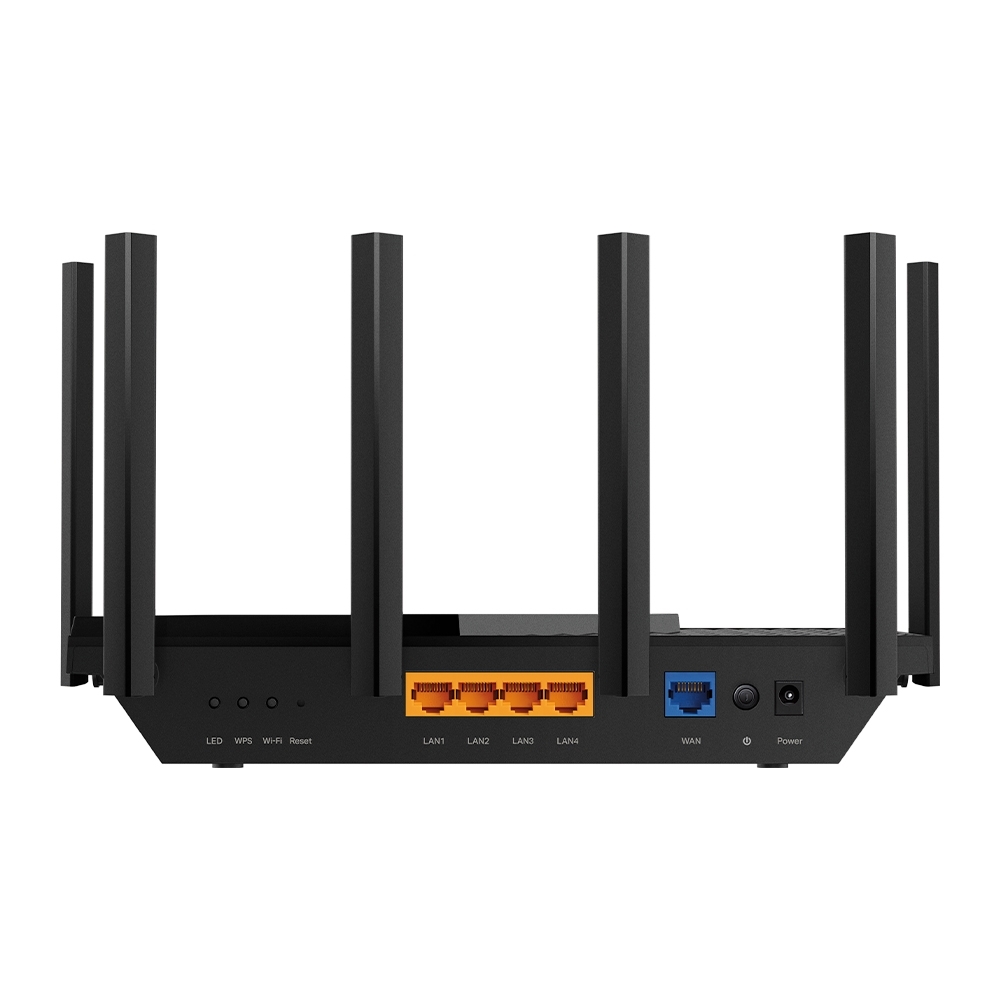

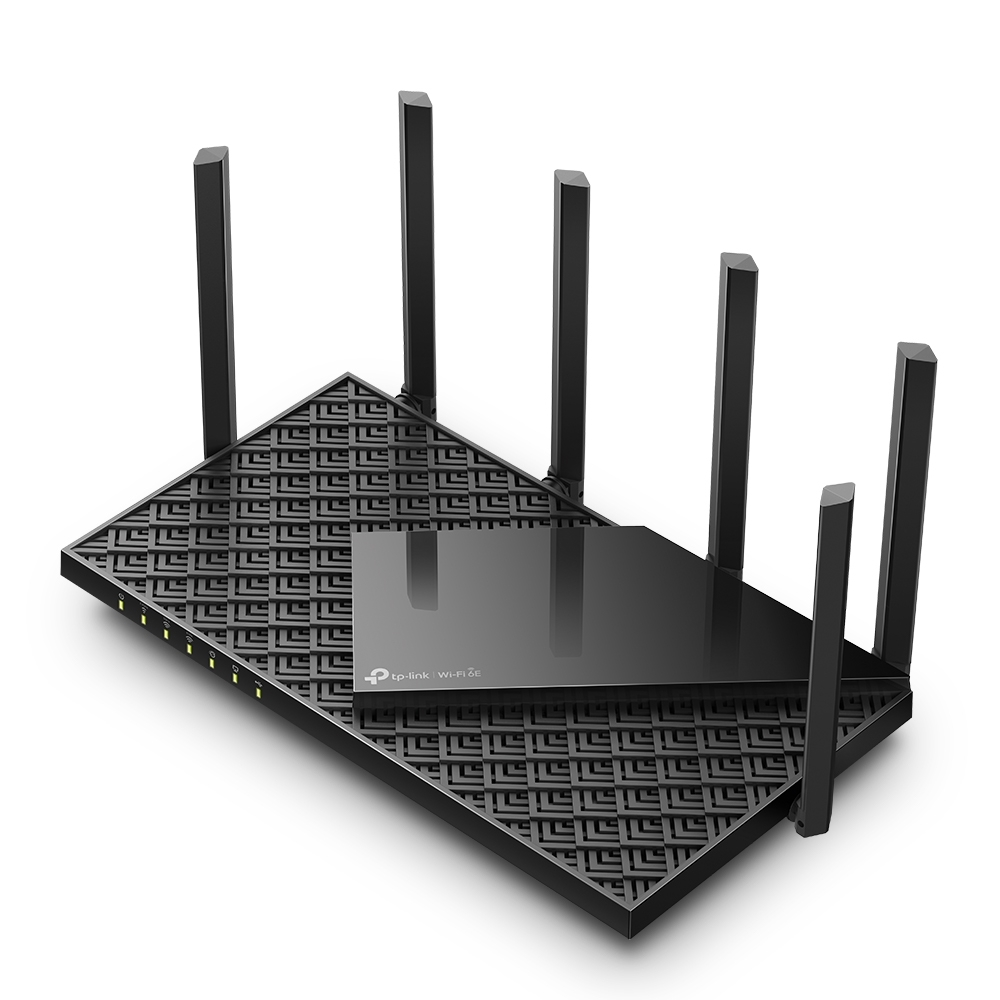

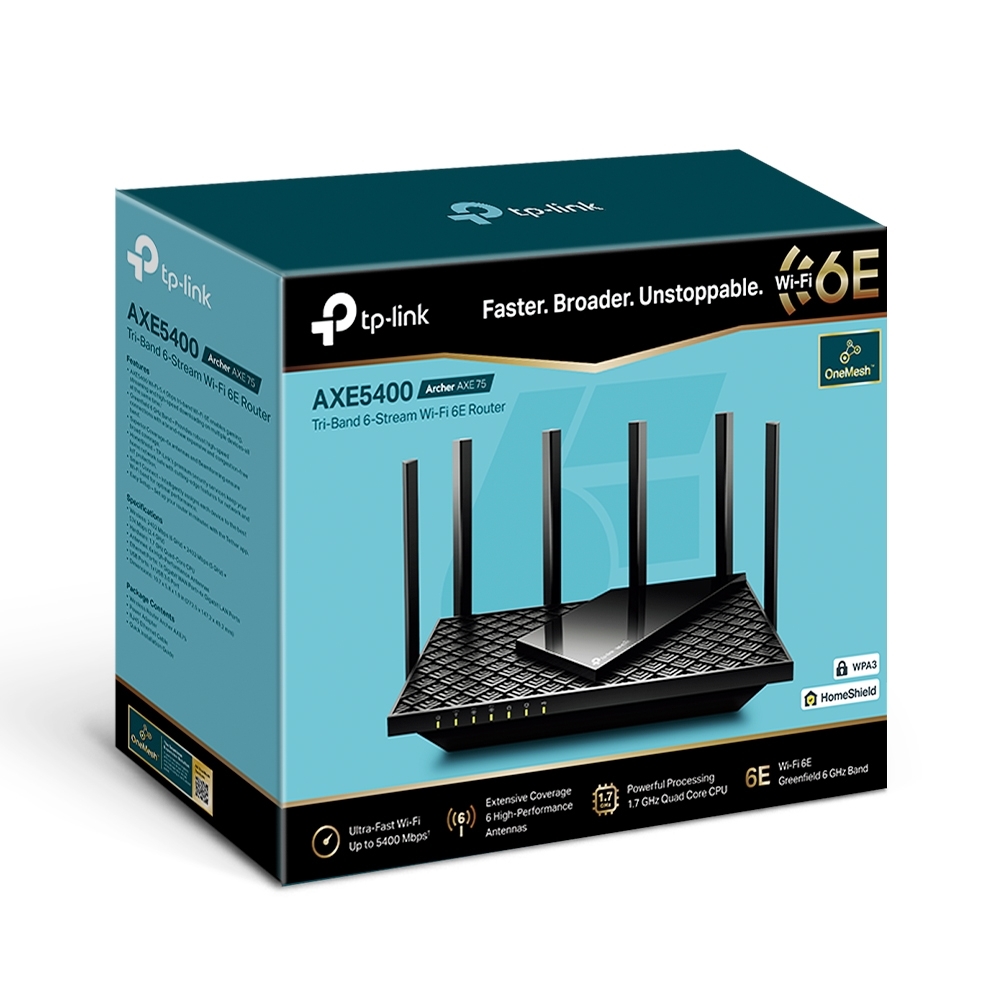

AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

AXE5400 Tri-Band AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.

Cutting-Edge Processing Armed with a 1.7 GHz Quad-Core CPU.

SuperSpeed USB 3.0 Up to 10 faster transfer speeds than USB 2.0.

Wi-Fi 6E Unleashed The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.

HomeShield Customize your home network with enhanced security and control.

OneMesh Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

Connect More Devices OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.

Ultra-Low Latency Enables more responsive gaming and video chatting.

Compatible with Alexa Control your router via voice commands and make your life smarter and easier with Amazon Alexa.


WiFi 6E: A Freer and Faster Future

WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.


Maximize All Your Device Speeds

Archer AXE75 provides WiFi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.


More RAM, Better Processing

With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.
WIRELESS
Standards
IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AXE5400
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
2-3 Bedroom Houses
6x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity
Very High
Tri-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
HARDWARE
Processor
1.7 GHz Quad-Core CPU
Ethernet Ports
1x Gigabit WAN Port
4x Gigabit LAN Ports
USB Support
1x USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power
12 V Direct Current 2.5 A
SECURITY
WiFi Encryption
WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP and MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network
1x 6 GHz Guest Network,
1x 5 GHz Guest Network,
1x 2.4 GHz Guest Network
VPN Server
OpenVPN Server
PPTP VPN Server
L2TP VPN Server
VPN Client
Open VPN Client
PPTP VPN Client
L2TP VPN Client
SOFTWARE
Protocols
IPv4
IPv6
Service Kits
HomeShield
Learn More>https://www.tp-link.com/homeshield/
OneMesh^TM
OneMesh^TM Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh^TM helps you create a more flexible network that covers your entire home with TP-Link OneMesh^TM products.
Learn More>http://tp-link.com/onemesh
All OneMesh Products>https://www.tp-link.com/onemesh/product-list/
Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Available Quantity

5

UPC

840030707483

SKU

mingleARCHER AXE75

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Flexible Wi-Fi Coverage through Business Wired Connectivity

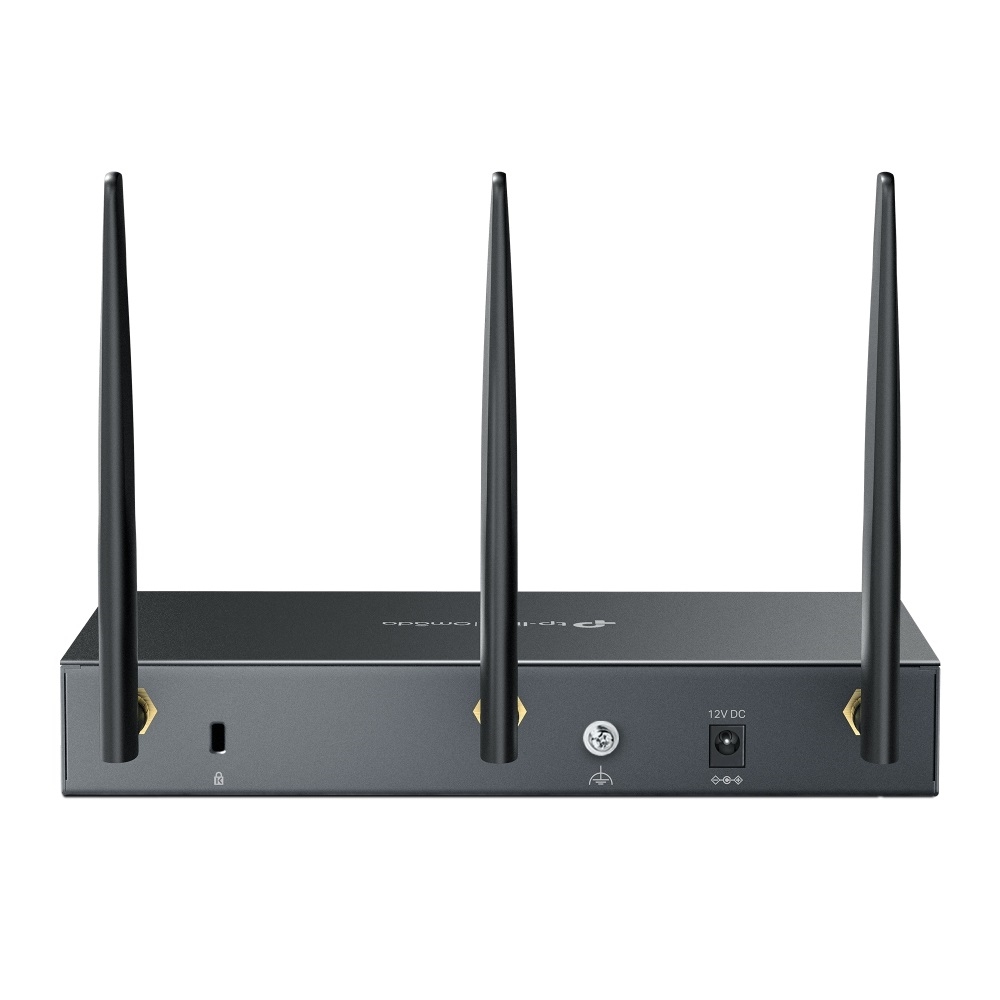

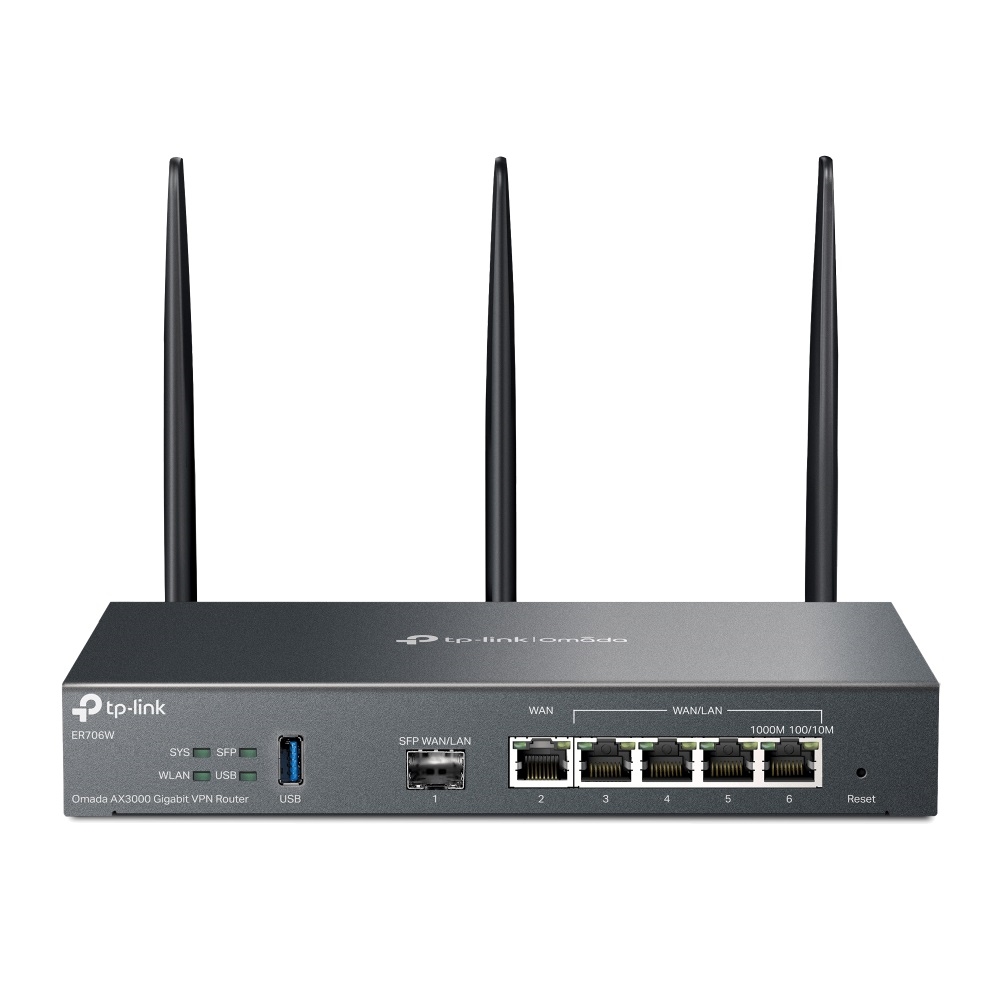

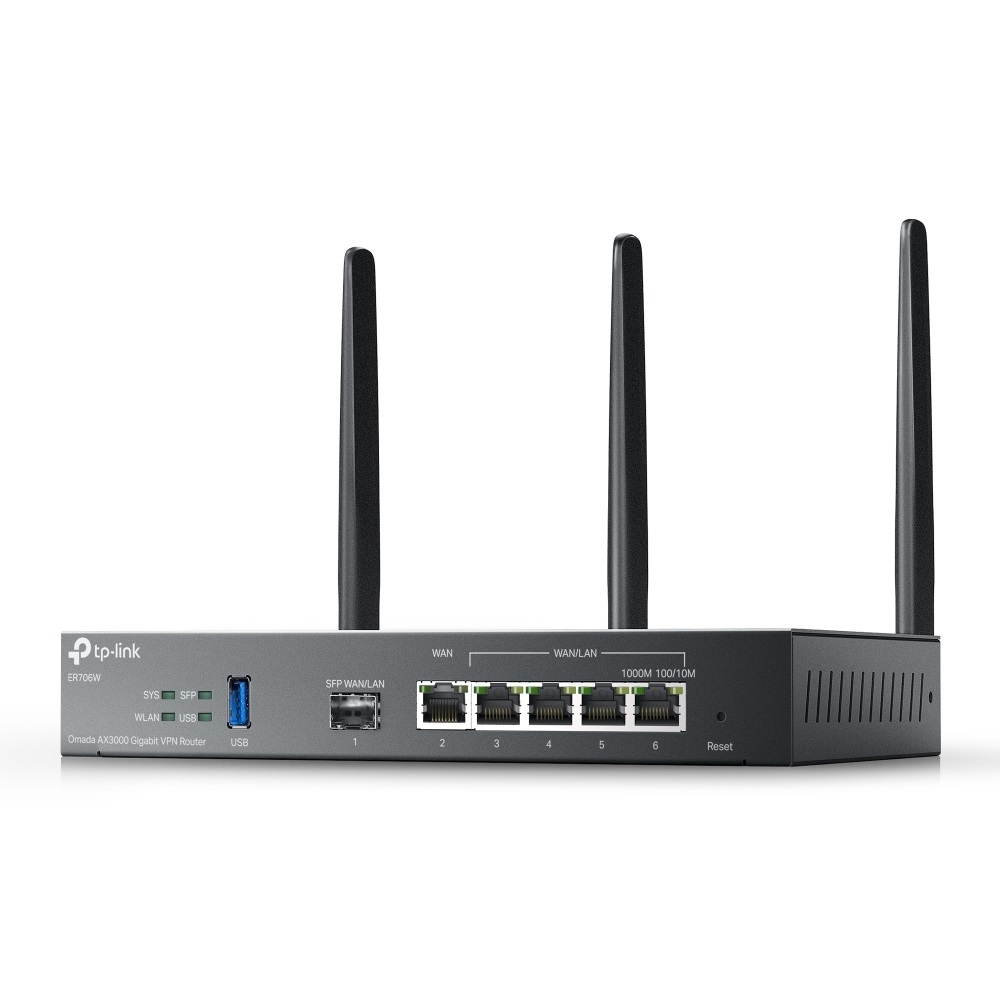

Omada AX3000 Gigabit VPN Router

ER706W


Ubiquitous Connectivity Starts with WiFi 6

ER706W is an enterprise-grade dual-band wireless router. It s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more. Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W s concurrent transmission rate reaches up to 3 Gbps.* Bufferless network experience is at your fingertips.

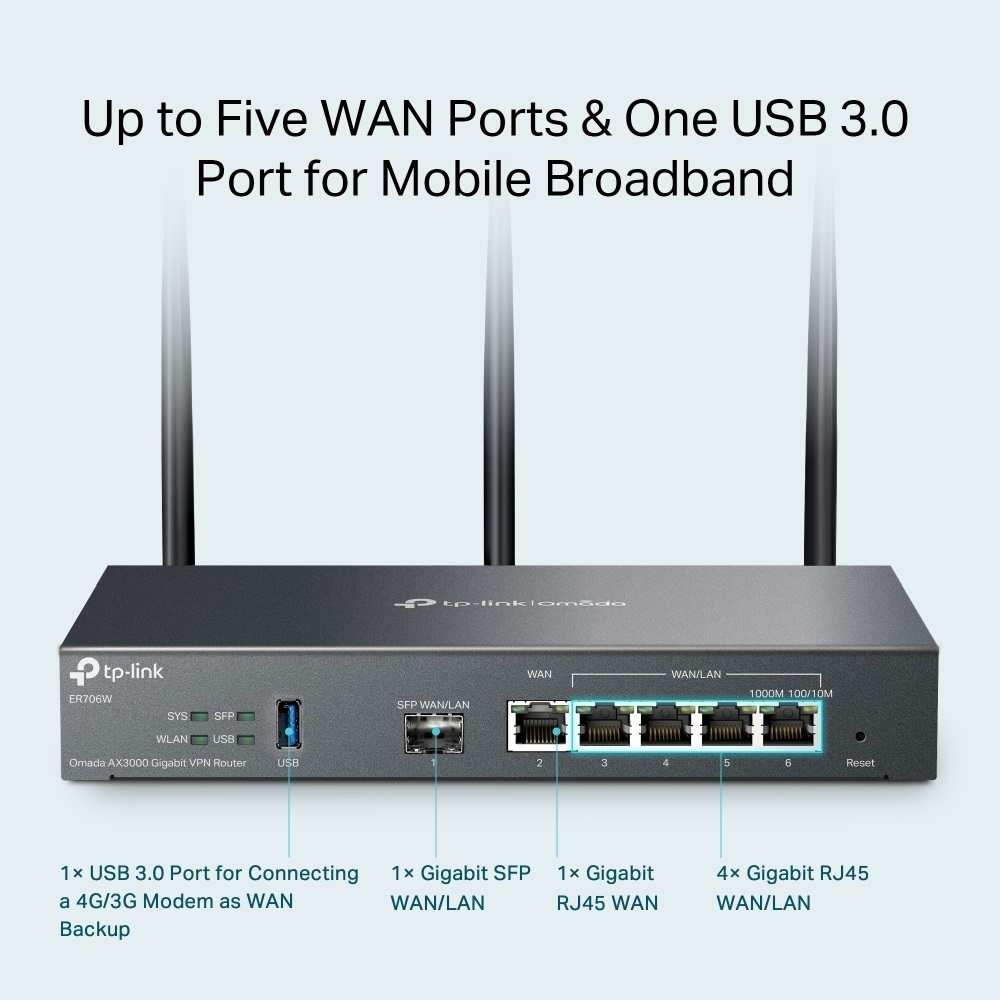

Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband

Up to 5 WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.



Professional Hardware Empowers the Wireless Future

The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It s easier for users to adjust the quantity and angle of antennas to fit various network environments.

ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.



Self-Organizing Network with Omada Access Points

ER706W is able to seamlessly connect to Omada access points that support mesh technology,** ideal for large-scale environments. Intelligent self-organization optimizes the best path between ER706W and Omada Access Points while self-healing ensures you stay online even when one AP is disrupted.
SECURITY
Access Control
Source/Destination IP Based Access Control
Filtering
Web Group Filtering
URL Filtering
Web Security
ARP Inspection
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
Interface
1 Gigabit SFP WAN/LAN Port
1 Gigabit WAN Port
4 Gigabit LAN/WAN Ports
1 USB3.0 (supports USB LTE dongle and USB Storage)
Button
Reset Button
Power Supply
12VDC / 2A Power Adapter
Wi-Fi Frequency and Signal Rate
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160)
Flash
128 MB NAND
DRAM
512 MB DDR4
Antenna
2.4 GHz: 2x 3 dBi dual-band detachable antennas
5 GHz: 3x 4.5 dBi dual-band detachable antennas
Mounting
Desktop/Wall-mounting
Max Power Consumption
EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
PERFORMANCE
GRE
Unencrypted: 624.2Mbps
Encrypted: 301.5Mbps
WireGuard VPN
393.5Mbps
Concurrent Session
150,000
New Sessions /Second
5,100
NAT (Static IP)
937.2 Mbps / 936.1Mbps
NAT(DHCP)
945.8 Mbps / 940.6Mbps
NAT(PPPoE)
942.9 Mbps / 942.9Mbps
NAT (L2TP)
837.4 Mbps / 881.5Mbps
NAT (PPTP)
803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput
ESP-SHA1-AES256: 646.9Mbps
ESP-SHA256-AES256: 642.8Mbps
ESP-SHA384-AES256: 648.9Mbps
ESP-SHA512-AES256: 658.4 Mbps
OpenVPN
129.3Mbps
L2TP VPN Throughput
Unencrypted: 1034.0 Mbps
Encrypted: 570.0 Mbps
PPTP VPN Throughput
Unencrypted: 1165.0 Mbps
Encrypted: 209.0 Mbps
SSL VPN Throughput
126.7Mbps
66 Byte Packet forwarding rate
1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate
81,274 pps / 91,275 pps
WIRELESS FEATURES
Advanced Functions
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network
Support
BASIC FUNCTIONS
WAN Connection Type
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC Clone
Modify WAN Address
DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
RIP
OSPF
Bandwidth Control
IP-Based Bandwidth Control
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit
IP-Based Session Limit
VPN
SSL VPN
50 Tunnels
IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec
OpenVPN
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
MANAGEMENT
Omada App
Yes.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes.
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
Web Management Interface
Remote Management
Export and Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping and Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
OTHERS
Certification
CE, FCC, RoHS
Package Contents
ER706W
Power Adapter
Quick Installation Guide
System Requirement
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux

Environment
Operating Temperature: 0 ^oC to 40 ^oC (32 ^oF to 104 ^oF)
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L inchxW inchxH inch)
15 x 8 x 4

Weight
4 lbs

Warranty Information
Limited Lifetime

Available Quantity

5

UPC

840030705250

SKU

mingleER706W

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AX3000 Dual-Band WiFi 6 (802.11ax) All in One Access Point with Router, Switch and Security Gateway, supports up to 5 SSIDs, VLAN, SDN, customized guest portal, site-to-sit VPN, commercial-grade network security and easy management app


Secure and Segmented Networking Easy business WiFi network settings via Self-Defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.

Customizable Guest Portal Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles

Backup WAN for Stable Connectivity The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection

Commercial-Grade Network Security and VPN Safe Browsing, VPN features to connect easily and securely to public WiFi, and a free subscription to ASUS AiProtection Pro

Accommodate to Any Space The EBR63 comes with a built-in bracket and wall mount hole that can be adjusted to fit into almost any location for space-saving and more flexibility
Model
ASUS ExpertWiFi EBR63
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna
4 External Antenna
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
Processor
1.7GHz quad-core processor
Memory
256MB FLASH
512MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
I/O Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB2.0
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
POWER, WAN, LAN, 5G, 2.4G
Power Supply
AC Input : 110V to 240V(50 to 60Hz)
DC Output : 12V with max. 2A current
Mounting
Wall Mount
Package Content
- ExpertWiFi EBR63
- RJ45 Ethernet Cable
- Power Adapter
- Quick Start Guide
- Warranty Card
AiMesh
AiMesh
- Primary AiMesh Router
- AiMesh Node
Device Access Control
"Allow you to block access to unwanted websites and apps."
Web and Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
- Maximum Device Access Control Profile :12
- Maximum Device Access Control Content Filter Rule :12
Dashboard
Dashboard

Available Quantity

5

UPC

197105004498

SKU

mingleEBR63

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AX3000 Dual-Band WiFi 6 (802.11ax) PoE Access Point, support up to 5 SSIDs and VLAN, Self-defined Network, support PoE & PoE+, easy management app, AiMesh compatible


Seamless and Extendable Connections Enjoy uninterrupted roaming with WiFi 6 speeds of up to 3000 Mbps, support for up to 100 active devices and easy scalability to meet the evolving needs of your business network.

Secure and Segmented Networking Easy WiFi network settings via Self-defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.

Flexible Deployment with PoE Support for both Power over Ethernet (PoE) connection and AC adapters, providing versatile options for installation.

Accommodate to Any Space Supports ceiling and wall mounting to fit into various business environments with more flexibility.

Built for Safety and Reliability Compliant with IEC 60601-1-2 standards, and with the top half of the device made of materials that meet the UL94 5VB plastics flammability standard*, the EBA63 ensures a stable and reliable connection.

*Only the top half of the EBA63 is constructed using UL94 5VB plastics flammability standard material.
Model

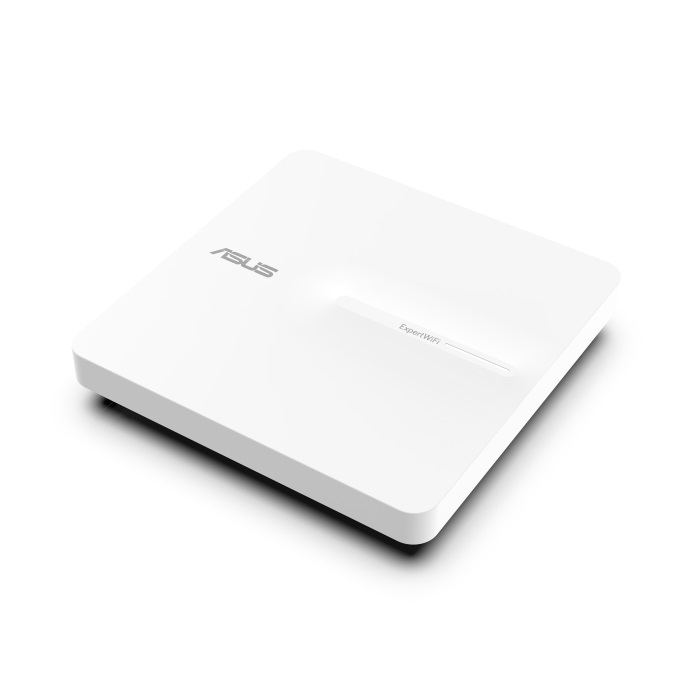

ASUS ExpertWiFi EBA63
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna
Internal antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
Processor
1.7 GHz quad-core processor
Memory
256 MB Flash
512 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Note: The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
AiMesh Node Mode
Access Point Mode
I/O Ports
10/100/1000 Gigabit Ethernet Port (support PoE) x 1
Buttons
Reset Button
LED Indicator
Power x 2
Power Supply
802.3af PoE
12 V with max. 1.5 A current DC (power adapter included)
Power Consumption
US: 10.0W
EU: 9.1W
Mounting
Wall Mount
Ceiling Mount
Package Content
ExpertWiFi EBA63
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Wall-mount kit
AiMesh
AiMesh
- AiMesh Node
Device Access Control
Time Scheduling
Reward
Customized Internet Schedule
- Maximum Device Access Control Profile :12
- Maximum Device Access Control Content Filter Rule :12
Dashboard
Dashboard

Available Quantity

5

UPC

197105003385

SKU

mingleEBA63

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Fast. Stable. Everywhere.

AX3000 Whole Home Mesh WiFi System

HX510


Advanced Mesh Powered by WiFi 6

Armed with WiFi 6 technology, HX510 provides faster speeds up to 3.0 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.


Extensive WiFi Coverage

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.


Whole Home Coverage

Empowered by EasyMesh technology, HX510 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage Simply add another HX510 unit whenever you want.**


Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.


More Connections, No More Buffering

Enhanced by WiFi 6, featuring with OFDMA and 160 MHz bandwidth, HX510 allows you to connect more devices simultaneously. Enjoy a more efficient network that loads faster without dragging down performance.


2-in-1 Router and Access Point

Flexible and multifunctional, HX510 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
HARDWARE FEATURES
External Power Supply
DC 12 V at 1.5 A
Interface
3 Gigabit Ports
Per Unit
1 Port supports WAN/LAN auto-sensing
Button
Reset Button
WPS Button
WIRELESS FEATURES
Frequency
2.4 GHz and 5 GHz

Signal Rate
AX3000
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps

Transmit Power
FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)

Wireless Security
WPA-PSK/WPA2-PSK/WPA3 Personal encryptions
Wireless Standards
Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Multi-SSID
2 5 GHz Multi-SSID
2 2.4 GHz Multi-SSID
SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE
Quality of Service
WMM
Firewall Security
SPI Firewall
Management
Local Management, TAUC Cloud Management, TR-069 (TR-098/TR-181), TR-111, TR-143
Advanced Features
Protocols
IPv4
IPv6
Working Modes
Router Mode
Access Point Mode
OTHERS
HX510 (1-pack)
1 HX510 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
Certifications
CE, FCC, Wi-Fi CERTIFIED 6^TM, Wi-Fi CERTIFIED EasyMesh^TM
Environment
Operating Temperature: 0^oC-4^oC(32^oF -104^oF)
Storage Temperature: -40^oC -60^oC (-40^oF -140^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Smartphone/Tablet Requirements
Android 4.4 or later
iOS 9.0 or later
Item Dimension (L inchxW inchxH inch)
70x 70 x 70

Weight
5 lbs

Warranty Information
3 Years

Available Quantity

5

UPC

840030704574

SKU

mingleHX510(1-PACK)

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Designed for the modern smart home
Wi-Fi 6
Up to 3,000 Mbps wireless speeds
Mesh support
Seamless whole-home Wi-Fi with other Synology routers
Safe internet access
Comprehensive parental controls
2.5GbE WAN/LAN
Support for superfast internet or high-performance devices
"Superior throughput performance, wide signal coverage, and the SRM operating system make the Synology WRX560 an excellent choice among dual-band routers. It comes with strong parental control and network security software and is equipped with a multi-gig WAN/LAN port, and you can use it as part of a whole-home mesh configuration."
Faster Wi-Fi with better coverage
High performance in a space-saving design
Wi-Fi 6 technology combined with high-performance internal antennas bring higher speeds to more devices at greater ranges, all in a compact design.
Mesh Wi-Fi
Say goodbye to Wi-Fi dead zones. Combine multiple Synology routers (WRX560 or other) for consistent and high-speed whole-home coverage under a single Wi-Fi name.
CPU
Quad core 1.4 GHz
Hardware Acceleration Engine
Layer 4 / Layer 7
Memory
512 MB DDR4
Antenna Type
4x4 MIMO high-performance internal antenna (5 GHz)
2x2 MIMO high-performance internal antenna (2.4 GHz)
LAN Port
2.5GbE (RJ-45) x 1
Gigabit (RJ-45) x 3
WAN Port
Gigabit (RJ-45) x 1
2.5 GbE (RJ-45) x 1 (Dual WAN)
External Ports
USB 3.2 Gen 1 x 1 (5V, 0.9A power output)
IEEE 802.11ax
IEEE 802.11a/b/g/n/ac/ax
2.4GHz: 600Mbps
5GHz: 2400Mbps
Simultaneous dual-band Wi-Fi
Wi-Fi Encryption
WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
Button and Switch
WPS, Power, Reset, Wi-Fi On/Off
Temperature
Operating Temperature
5^oC to 40^oC (40^oF to 104^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RH
Certification
FCC
UKCA
CE
BSMI
VCCI
RCM
KC
iDA
TELEC
JATE
IC
Wi-Fi Certification
CE
UKCA
FCC
NCC
RCM
iDA
TELEC
KC
IC
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
10.80 W (Access)
7.94 W (Idle)
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
Item Dimension (L"xW"xH")
10 x 8 x 3

Weight
2.81 lbs

Warranty Information
2 Years

Available Quantity

5

UPC

846504004980

SKU

mingleWRX560

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

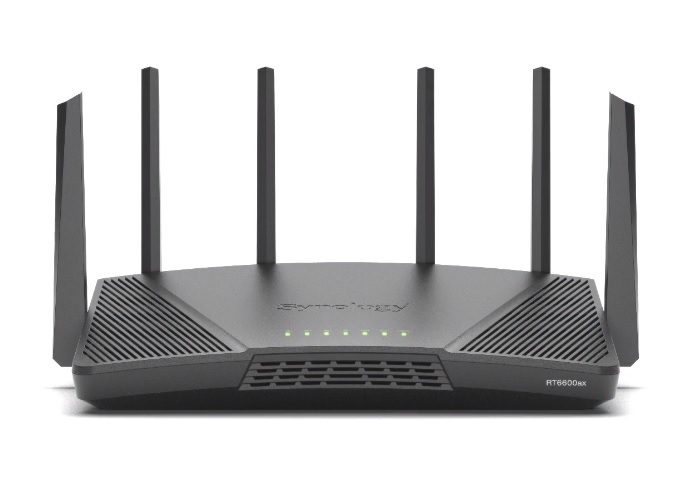

Ultrafast and secure wireless connectivity for your home, office, and everything in between


Tri-band Wi-Fi distributes your devices between radios, optimizing range and performance while avoiding bottlenecks.


Quad-core 1.8 GHz processor for snappy management and fast connection speeds, even with multiple devices connected and all features enabled.


Support for the new 5.9 GHz band, resulting in more dependable high-speed networks using clearer 80 and 160 MHz channels.¹

Note1: Dependent on local wireless regulations.


2.5GbE port configurable for WAN or LAN use supports superfast internet plans or high-performance devices.



Up to five networks

Create up to 5 separate networks and 15 Wi-Fi SSIDs to distribute your devices based on their role or purpose.


Network segmentation

Isolate networks or set one-way access rules to limit connectivity to and from vulnerable devices.


VLAN tagging

Integrate the RT6600ax into existing networks with full VLAN support in router, AP, and mesh configurations.



With safe access to the internet using built-in security and parental controls
CPU
Quad core 1.8 GHz
Hardware Acceleration Engine
Layer 4 / Layer 7
Memory
1 GB DDR3
Antenna Type
4x4 MIMO Omni-directional high-gain dipole (5GHz)
2x2 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)
LAN Port
2.5GbE (RJ-45) x 1
Gigabit (RJ-45) x 3
WAN Port
Gigabit (RJ-45) x 1
2.5 GbE (RJ-45) x 1 (Dual WAN)
External Ports
USB 3.2 Gen 1 x 1 (5V, 0.9A power output)
IEEE 802.11ax
IEEE 802.11a/b/g/n/ac/ax
5GHz-1: 4800Mbps
5GHz-2: 1200Mbps
2.4GHz: 600Mbps
4x4 160MHz
Simultaneous tri-band Wi-Fi
Notes:160 MHz is not supported in Canada and Australia.
Wi-Fi Encryption
WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
Button and Switch
WPS, Power, Reset, Wi-Fi On/Off
Temperature
Operating Temperature:5^oC to 40^oC (40^oF to 104^oF)
Storage Temperature:-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity:5% to 95% RH
Certification
FCC
UKCA
CE
BSMI
VCCI
RCM
KC
iDA
TELEC
JATE
IC
Wi-Fi Certification
CE
UKCA
FCC
NCC
RCM
iDA
TELEC
KC
IC
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
11.11 W (Access)
6.77 W (Idle)
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
Item Dimension (L inchxW inchxH inch)
7 x 13 x 8

Weight
6.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

846504004935

SKU

mingleRT6600AX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

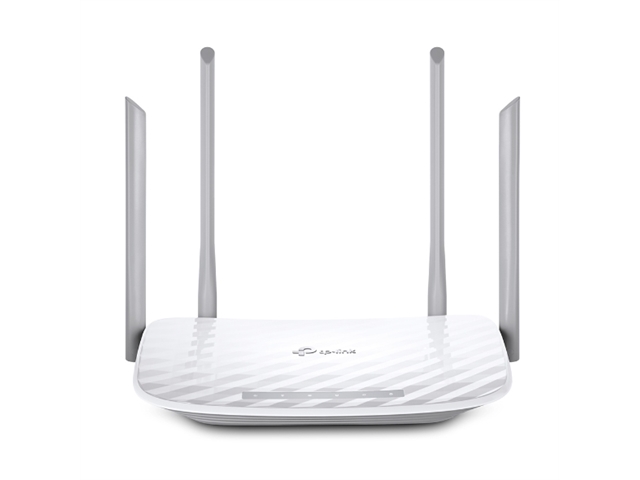

802.11ac - The Next Generation of Wi-Fi
TP-LINKs Archer C5 comes with the next generation Wi-Fi standard 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.2Gbps. With 867Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, the Archer C5 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

1.2Gbps Dual Band Connections for Lag-Free Work and Entertainment
The Archer C5 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band all at the same time.

6 Antennas for Fully Expanded Coverage
With 3 external 5dBi antennas serving the 5GHz band and 3 internal antennas serving the 2.4GHz band combined with higher quality antenna technology, you can maintain high speeds across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10 faster than fast Ethernet connections. The Archer C5 is a powerful hub to support a robust and extremely fast wired network.
HARDWARE FEATURES
Button
WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply
12VDC / 2.5A
Interface
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Ports
Antenna Type
2 dual band detachable antennas (RP-SMA)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz

Frequency
5GHz and 2.4GHz
Signal Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Reception Sensitivity
5GHz:
11a 54Mbps: -74dBm
11ac HT20: -67dBm
11ac HT40: -63dBm
11ac HT80: -59dBm
11n HT20: -71dBm
11n HT40: -69dBm
2.4GHz:
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm

Transmit Power
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access)

Management
Access Control
Local Management
Remote Management

DHCP
Server, Client, DHCP Client List,
Address Reservation

Quality of Service
WMM, Bandwidth Control

Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS
DynDns, Comexe, NO-IP

VPN Pass-Through
PPTP, L2TP, IPSec

Access Control
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management

Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols
Supports IPv4 and IPv6

USB Sharing
Support Samba(Storage)/FTP Server/Media Server/Printer Server

Guest Network
2.4GHz guest network 1
5GHz guest network 1
OTHERS
Certification
CE, FCC, RoHS

Package Contents
AC1200 Wireless Dual Band Gigabit Router Archer C5
2 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows
7, Windows 8, MAC OS, NetWare, UNIX or Linux
Item Dimension (L"xW"xH")
13 x 10 x 3

Weight
2.40 lb

Warranty Information
2 Years

Available Quantity

5

UPC

840030705212

SKU

mingleARCHER C5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

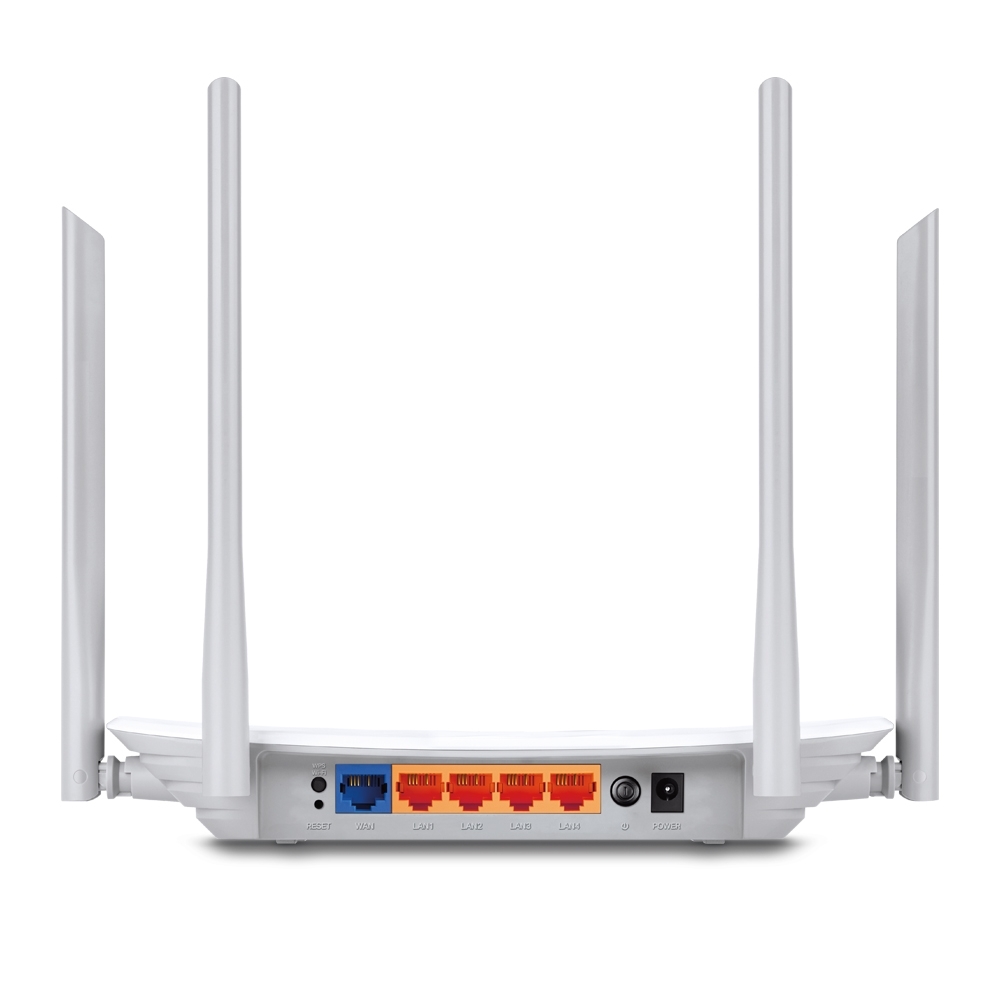

AC1200 Wireless Dual Band Router

Support smooth 4K streaming with AC1200 Wi-Fi

4 external antennas provide stable wireless connections and optimal coverage

Easy network management at your fingertips with TP-Link Tether

Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming

Supports Access Point mode to create a new Wi-Fi access point

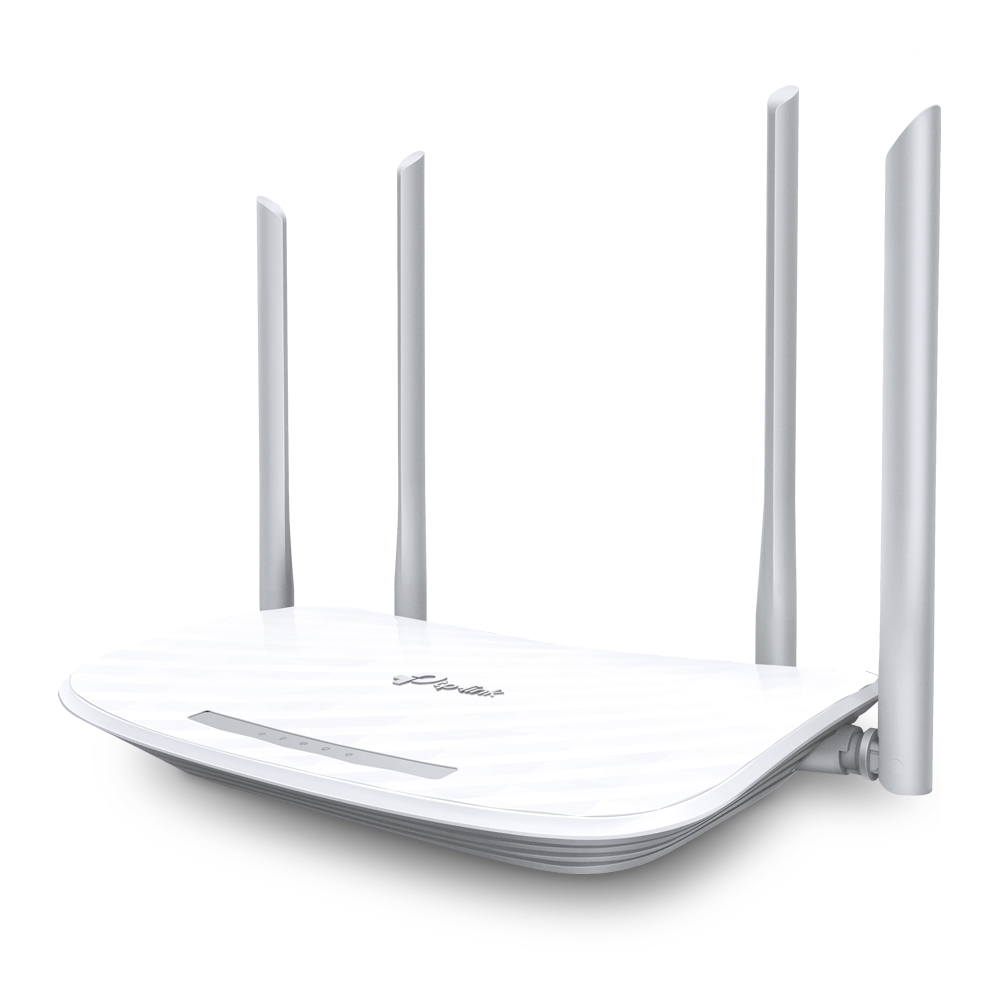

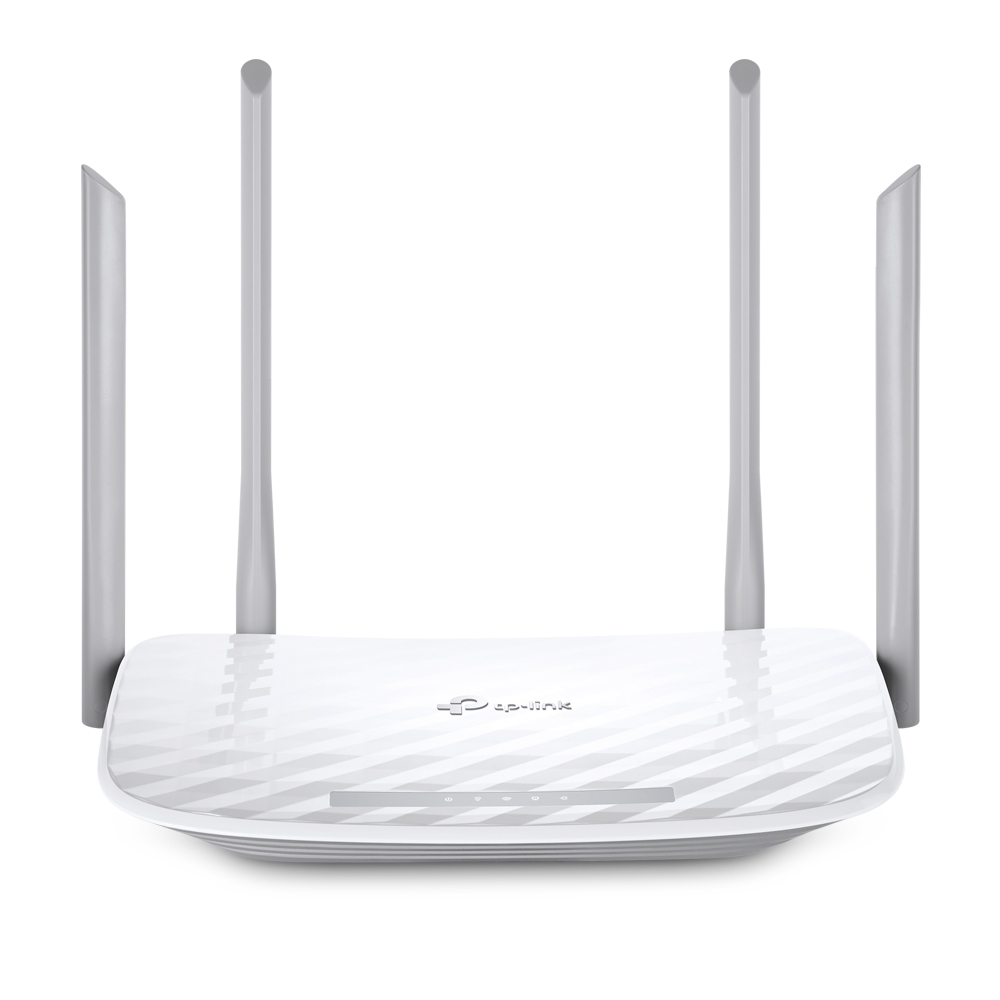

High-Speed Dual Band Wi-Fi for Better Connections

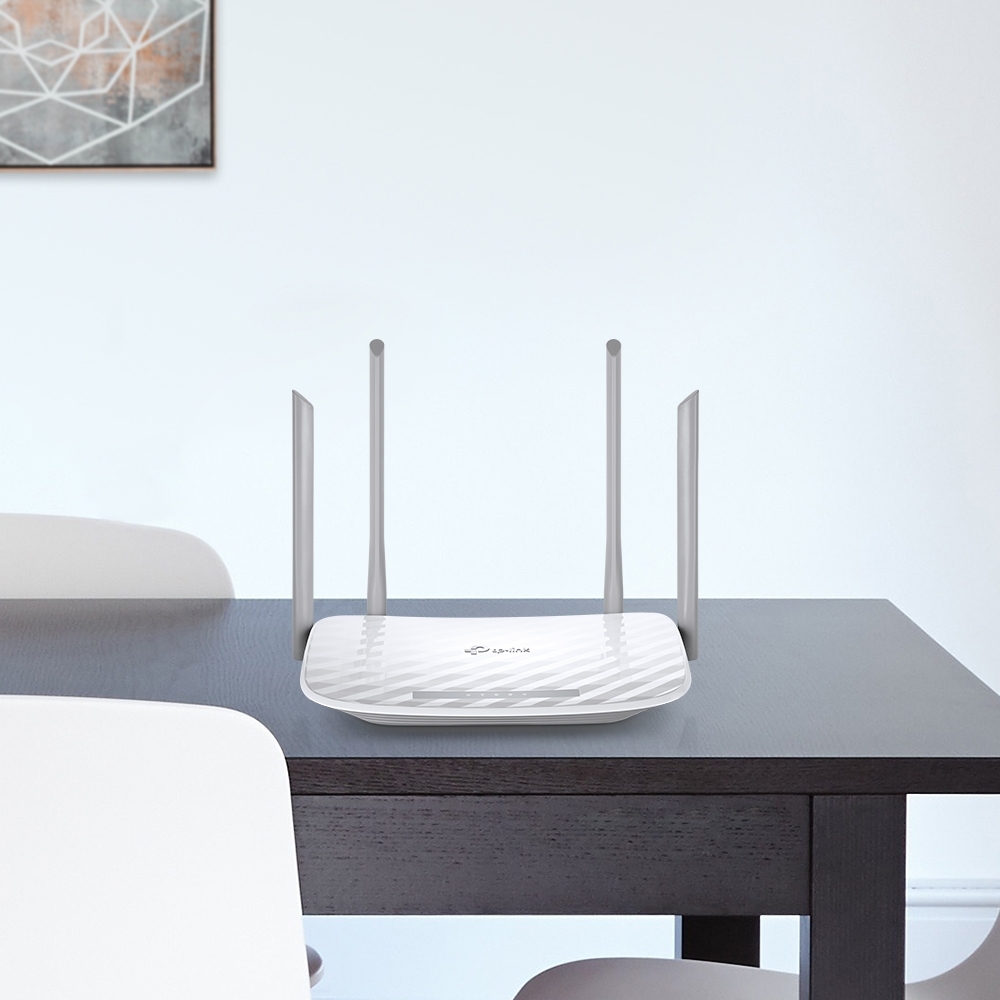

The Archer A54 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology.

With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer A54 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.


1. Router Mode

Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.

2. Access Point Mode

Transform your existing wired network to a wireless one.

3. Range Extender Mode

Boost the existing wireless coverage in your room.


4 Antennas & Beamforming for Maximum Coverage

Equipped with four external antennas, Archer A54 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.
WIRELESS
Standards
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
3 Bedroom Houses
4x Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium
Dual-Band
Allocate devices to different bands for optimal performance
Working Modes
Router Mode
Access Point Mode
Range Extender Mode
HARDWARE
Processor
Single-Core CPU
Ethernet Ports
1x 10/100 Mbps WAN Port
4x 10/100 Mbps LAN Ports
Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power
9 V Direct Current 0.85 A
SECURITY
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP and MAC Binding
Application Layer Gateway
Guest Network
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
NO-IP
DynDNS

Available Quantity

5

UPC

840030702372

SKU

mingleARCHER A54

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

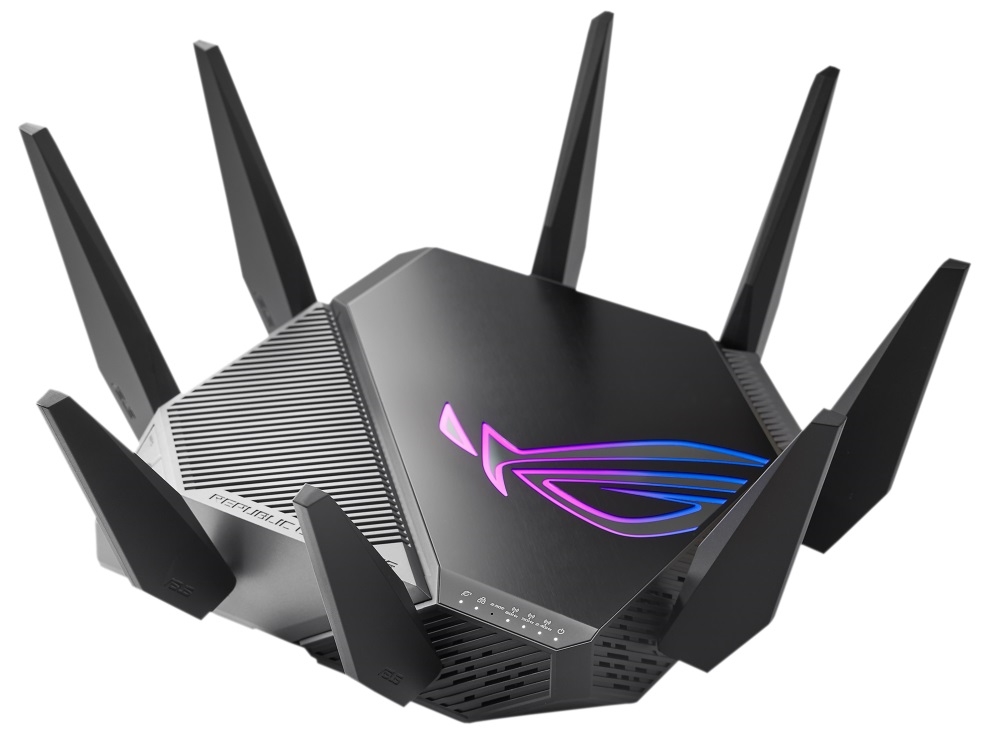

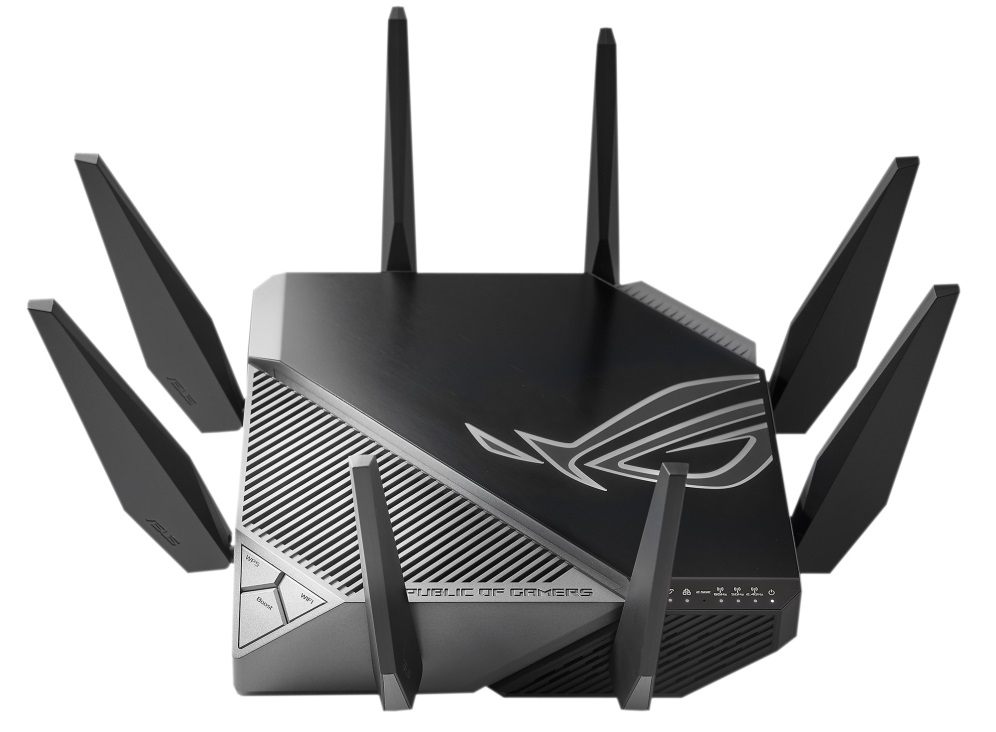

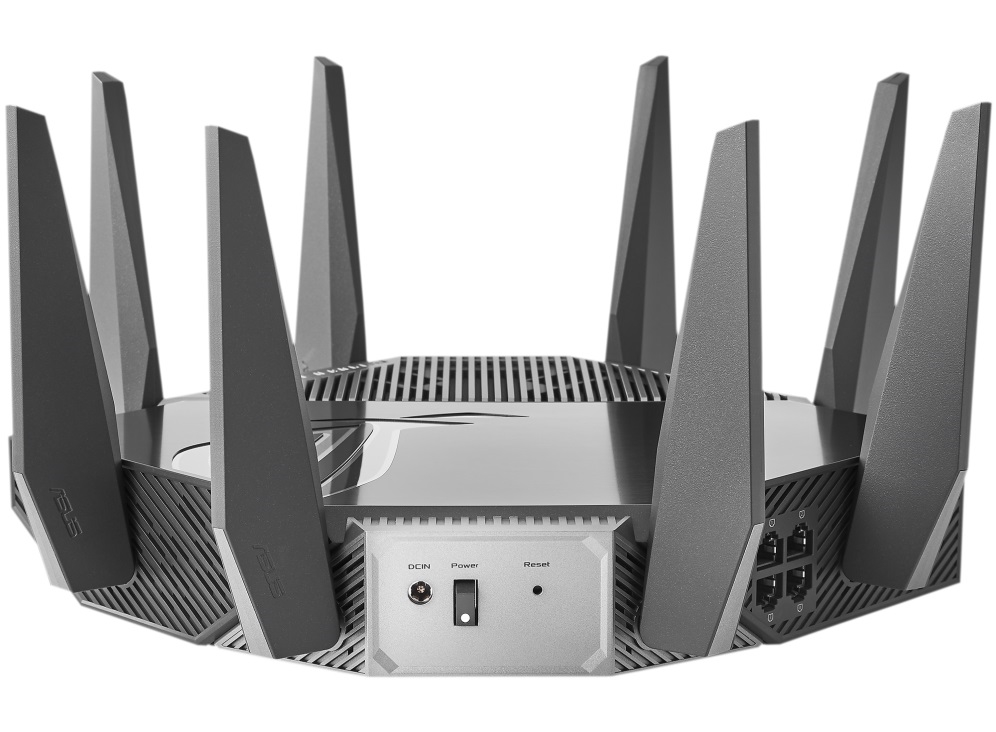

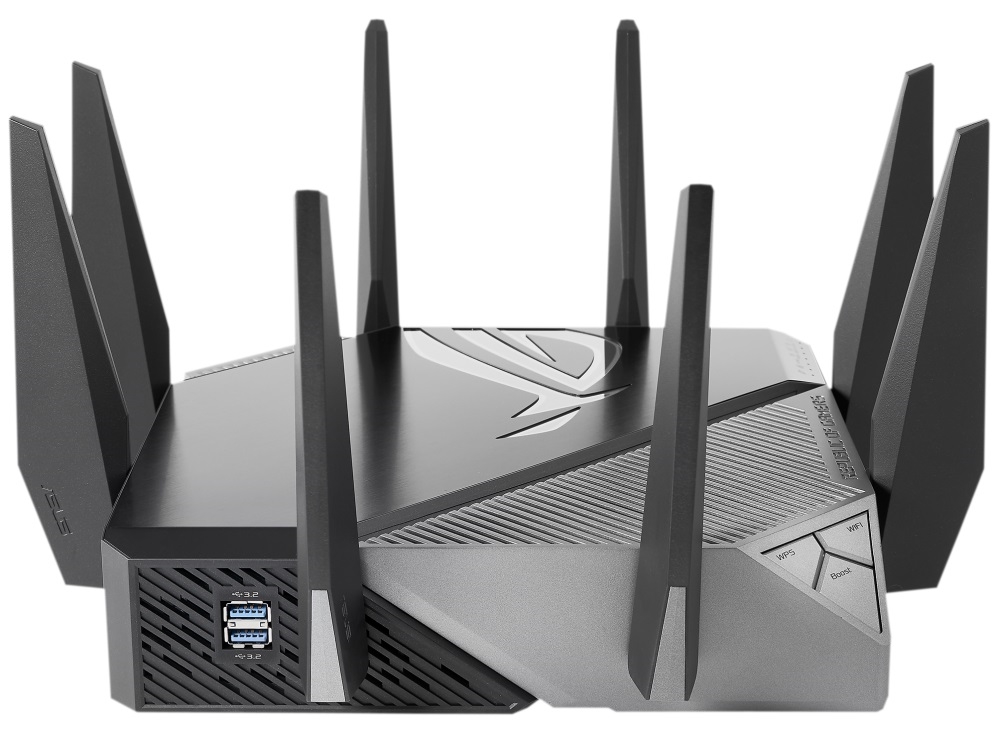

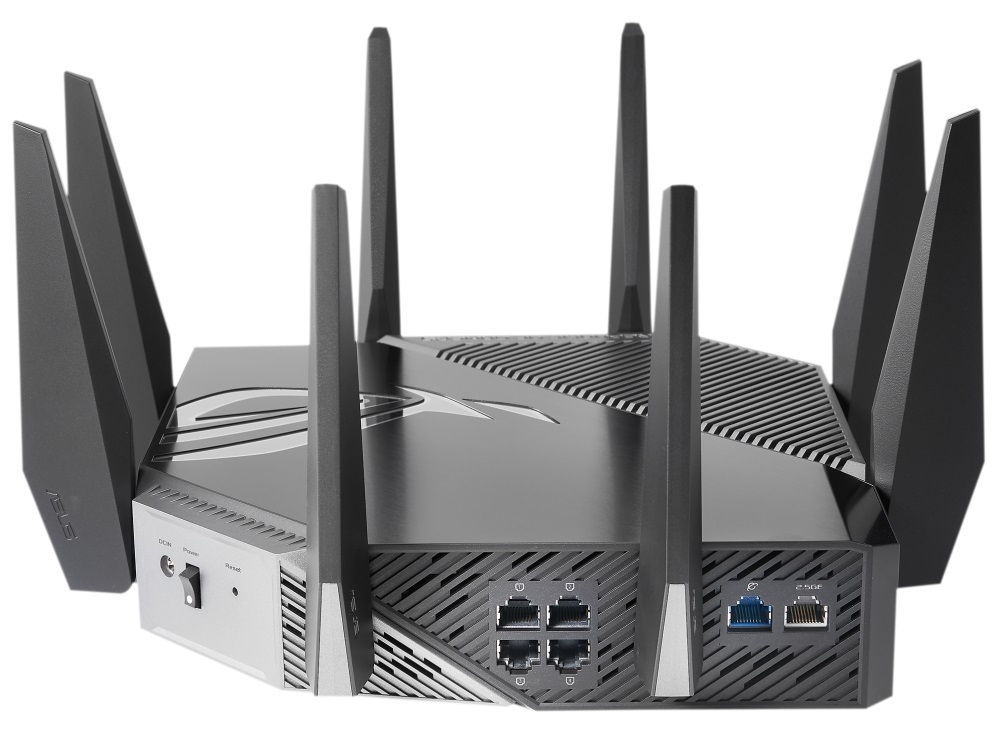

GT-AXE11000 Tri-band WiFi 6E (802.11ax) gaming router, new 6GHz band, 2.5G WAN/LAN port, PS5 compatible, WAN aggregation, VPN Fusion, Triple-level Game Acceleration, free network security and AiMesh support

Next-gen WiFi standard World's first WiFi 6E tri-band router boosts speeds up to 11000Mbps.

New 6GHz frequency band Wider channels and higher capacity delivers higher performance, lower latency, and less interference.

2.5G WAN/LAN Port All network traffic through 2.5G port is given top priority, and 2.5G port unlocks the full potential of WiFi 6.

Performance through engineering Quad-core CPU, advanced cooling system and optimized antenna design for next-level computational capabilities.

Triple-level game acceleration Accelerate game traffic every step of the way, from device to game server.


Massively Expanded Device Capacity

WiFi 6E gives you up to 7* extra high-speed 160MHz channels, for multi-gigabit speeds with stable and consistent connections. It dramatically increases network capacity while reducing bandwidth congestion, delivering higher performance for every WiFi 6E device.


Space-Age Networking for Space-Age Devices

To achieve its magic, WiFi 6E takes advantage of the newly-available unlicensed radio spectrum in the 6GHz band, a band that will be dedicated purely to WiFi 6E-capable devices. This means that older devices won't interfere with WiFi 6E performance at all.


Connect Instantly

As the new 6GHz band is exclusively reserved for WiFi 6E devices, there's no need for Dynamic Frequency Selection, which prevents interference with things like air traffic control radar. This means that devices can connect quicker without the delays imposed by DFS.
Network Standard
Wi-Fi 6E (802.11ax)
Wi-Fi 6 (802.11ax)
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
AXE11000 ultimate AX/AXE performance
AX technology
Yes
Data Rate
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Transmit/Receive
2.4 GHz 4 x 4
5 GHz 4 x 4
6 GHz 4 x 4
AiMesh
AiMesh:Yes
Primary AiMesh router:Yes
AiMesh node:Yes
Router APP
ASUS Router APP:Yes
Game
Game Boost/acceleration:Yes
Game Radar:Yes
WTFast:No
Geforce Now:Yes
UU boost (CN only:No
ROG_First:Yes
OpenNAT (Game Profile:Yes
Gaming port:Yes
Alexa
Support Alexa skill:Yes
IFTTT
Support IFTTT:Yes
AiProtection
AiProtection:AiProtection Pro
Router Security Assessment:Yes
Malicious site blocking:Yes
Two-Way IPS:Yes
Infected Device Prevention and Blocking:Yes
Parental Control
Parental Control:Yes
Parental Control Customized Internet schedule:Yes
Traffic Control
Adaptive QoS:Yes
Bandwidth Monitor:Yes
Bandwidth limiter:Yes
Traditional QoS:Yes
Traffic Monitor:Yes
Real-time traffic monitor:Yes
Wired Traffic Monitor:Yes
Wireless Traffic Monitor:Yes
Traffic Analyzer:Yes
Website history:Yes
Wireless
IPv6:Yes
MU-MIMO:Yes
UTF-8 SSID:Yes
Guest Network:Yes
WPS:Yes
Wi-Fi MAC address filter:Yes
Wireless scheduler:Yes
Wi-Fi Radar:Yes
Airtime fairness:Yes
RADIUS Server:Yes
Universal beamforming:Yes
WAN
Explicit beamforming:Yes
Dual WAN:Yes
WAN Aggregation:Yes
3G/4G LTE dongle:Yes
Android tethering:Yes
Port forwarding:Yes
Port triggering:Yes
DMZ:Yes
DDNS:Yes
LAN
Lets Encrypt:Yes
DHCP Server:Yes
IGMP snooping:Yes
IPTV:Yes
LAN Link Aggregation:Yes
Manually assign IP address:Yes
VPN
VPN Client L2PT:Yes
VPN Client OVPN:Yes
VPN Client PPTP:Yes
VPN Server IPSec:Yes
VPN Server OVPN:Yes
VPN Server PPTP:Yes
VPN Fusion:Yes
USB application
HDD hibernation:Yes
Safely Remove disk:Yes
AiCloud:Yes
Download master:Yes
AiDisk:Yes
Media Server:Yes
Time Machine:Yes
Samba Server:Yes
FTP Server:Yes
Shared Folder privileges:Yes
Administration
Free OS upgrade:Yes
Firewall:Yes
Wake on LAN (WOL):Yes
SSH:Yes
Configuration backup and restore:Yes
Diagnosis tools:Yes
Feedback system:Yes
System log:Yes
Item Dimension (L inchxW inchxH inch)
15 x 16 x 5

Weight
9.00 lb

Warranty Information
2 years warranty

Available Quantity

5

UPC

192876956878

SKU

mingleGT-AXE11000

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

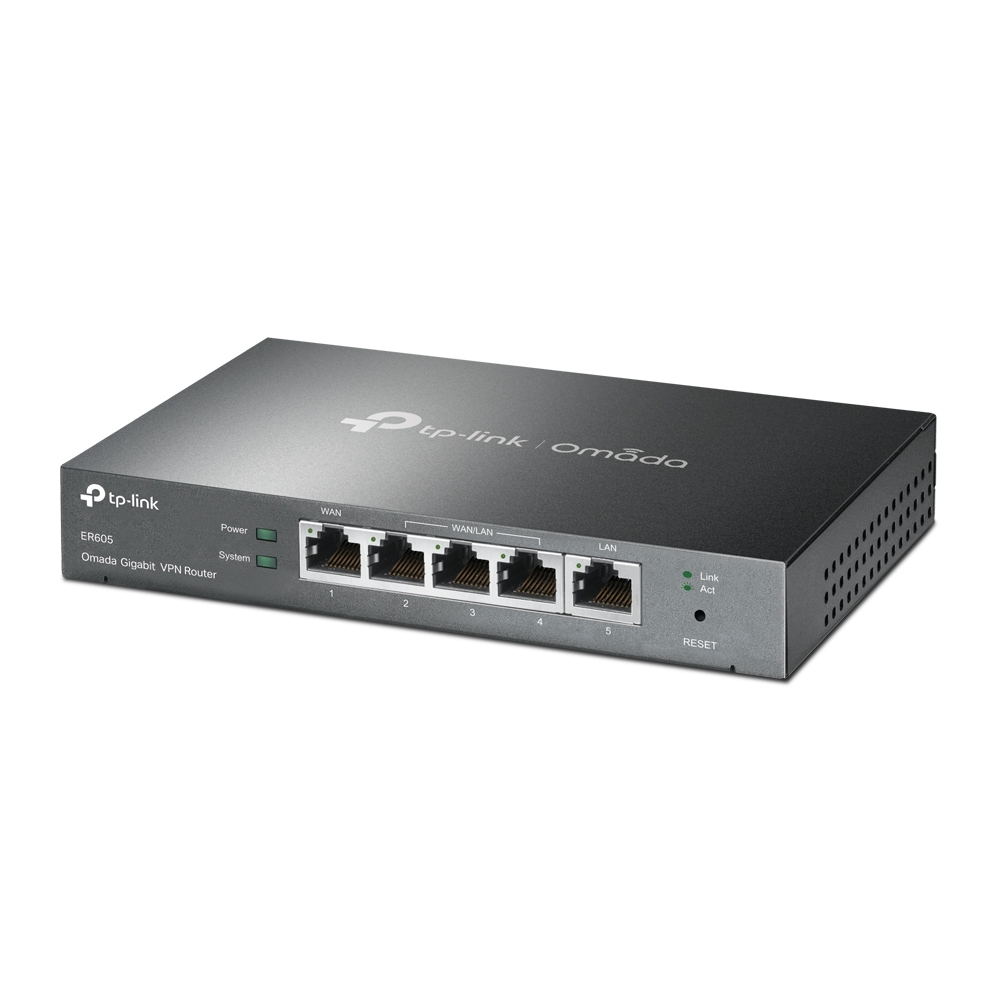

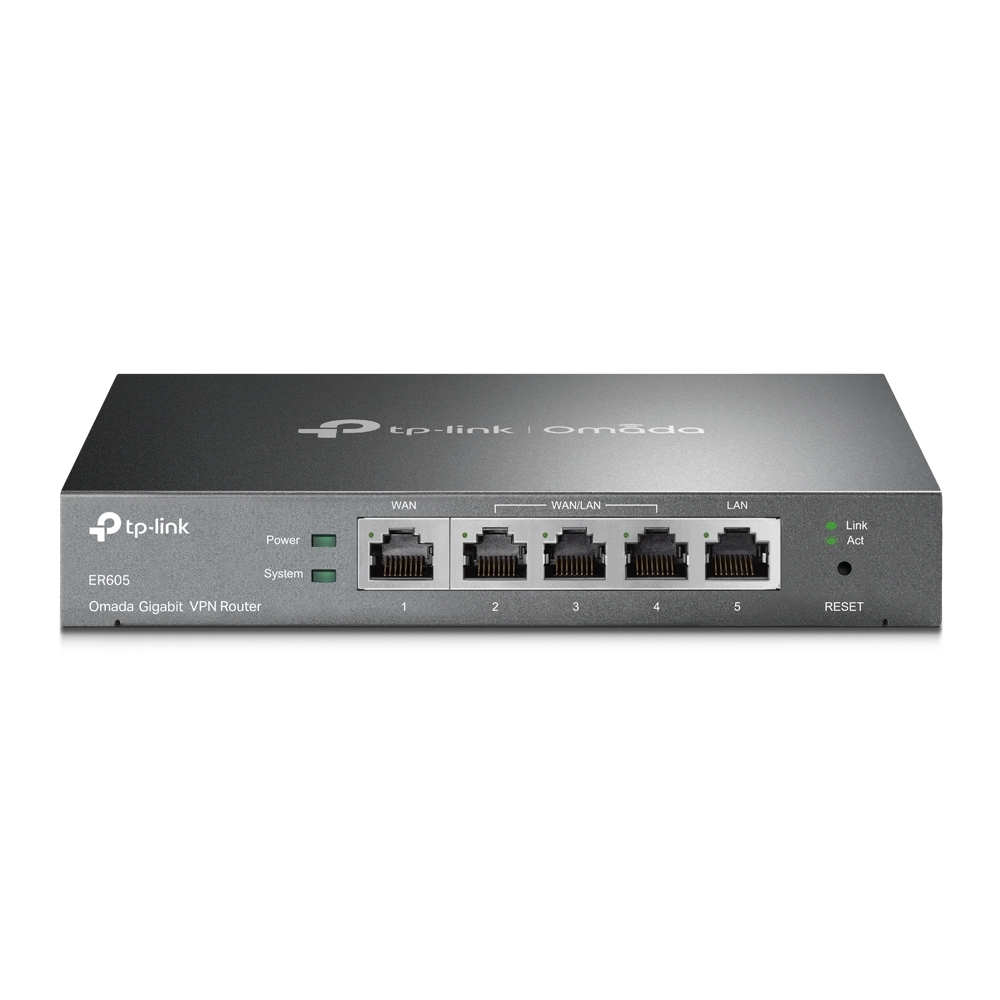

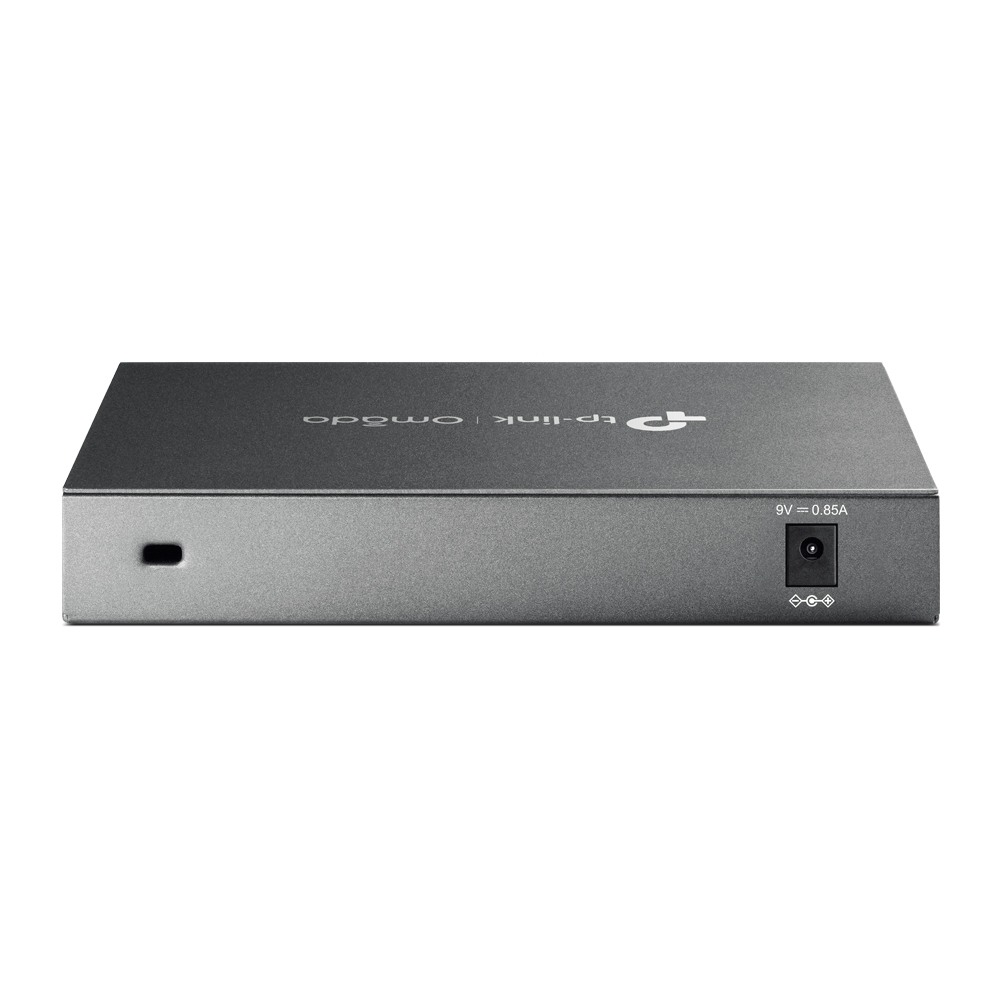

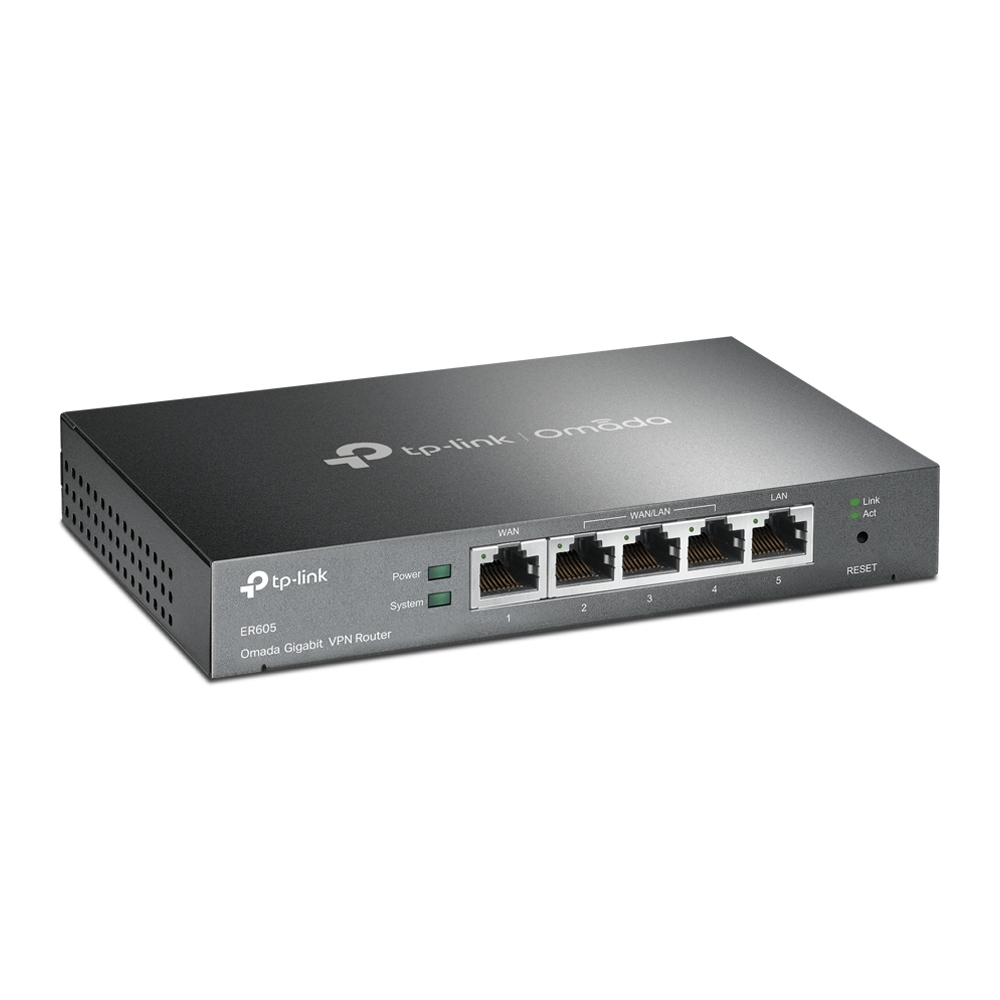

Omada Gigabit VPN Router

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Five Gigabit Ports: High-speed wired connectivity.

Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

Highly Secure VPN: Supports up to 20 LAN-to-LAN IPsec, 16 OpenVPN*, 16 L2TP, and 16 PPTP VPN connections.

Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.


Omada SDN The Smarter Cloud Solution for Business Networking

As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.


Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites all controlled from a single interface anywhere, anytime.

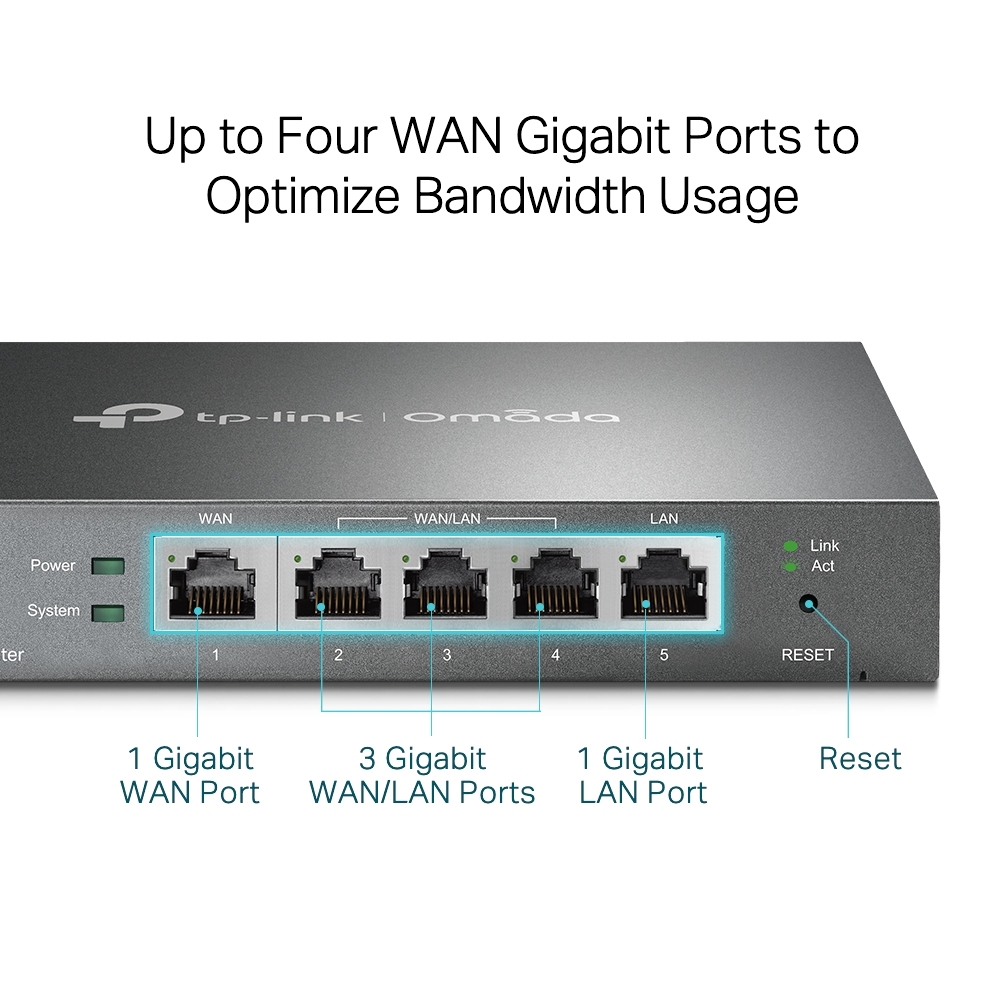

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage

Three freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
1 Fixed Gigabit WAN Port
1 Fixed Gigabit LAN Port
3 Changeable Gigabit WAN/LAN Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100 Ohm STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100 Ohm STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button
Reset Button
Power Supply
External 9V/0.9A DC Adapter
Flash
SPI 16MB
DRAM
128 MB
LED
PWR, SYS, WAN, LAN
PERFORMANCE
Concurrent Session
25,000
IPsec VPN Throughput
41.5 Mbps
BASIC FUNCTIONS
WAN Connection Type
Static/Dynamic IP
PPPoE
PPTP
L2TP
MAC Clone
Modify WAN/LAN MAC Address
DHCP
DHCP Server/Client
DHCP Address Reservation
Multi-net DHCP
Multi-IP Interfaces
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
Advanced Routing
Static Routing
Policy Routing
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
Session Limit
IP-based Session Limit
VPN
IPsec VPN
20 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
- These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
PPTP VPN
PPTP VPN Server
10 PPTP VPN Clients
16 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
10 L2TP VPN Clients
16 Tunnels
L2TP over IPSec

Available Quantity

5

UPC

845973089597

SKU

mingleER605

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

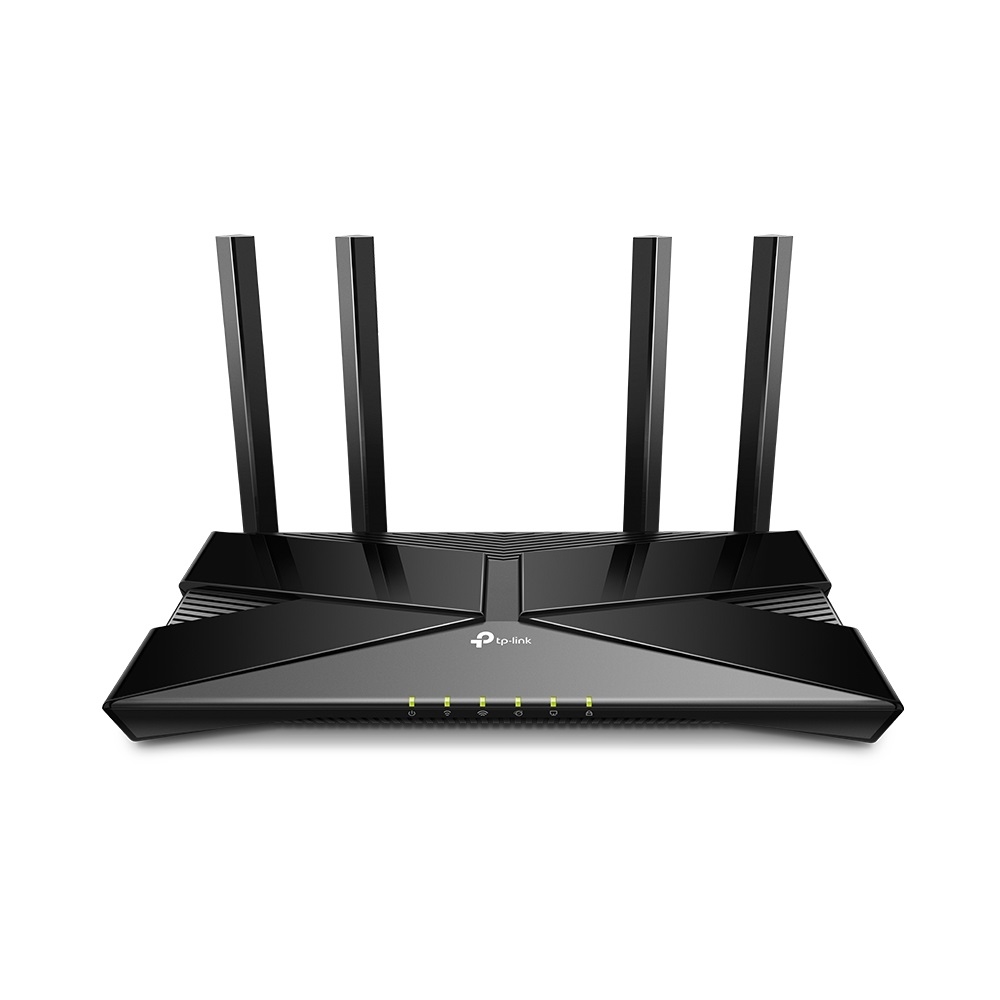

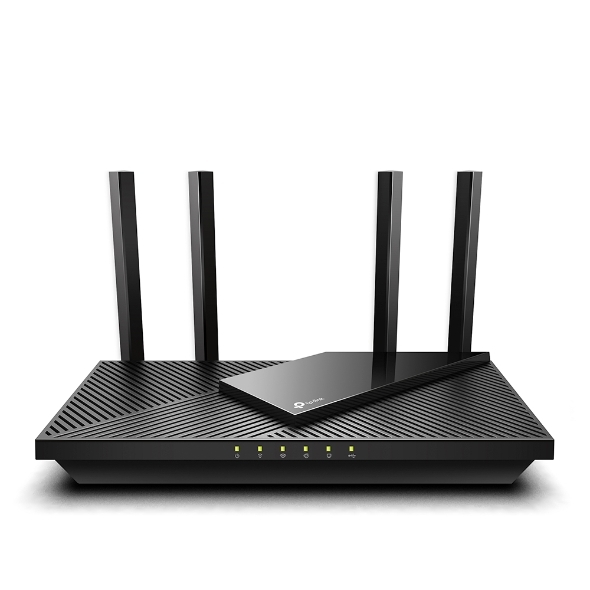

Archer AX55
AX3000 Dual Band Gigabit Wi-Fi 6 Router
Next-Gen Gigabit Wi-Fi 6 Speed2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
Connect More DevicesOFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
Ultra-Low LatencyEnables more responsive gaming and video chatting.
Expanded Wi-Fi CoverageFour high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
Improved Battery LifeTarget Wake Time helps your devices to communicate more while consuming less power. Compatible with AlexaControl your router via voice commands and make your life smarter and easier with Amazon Alexa.
The New Era of Home Connectivity
AX3000 Dual-Band Gigabit Wi-Fi 6 Router
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Incredible Speed
Drastically improved speeds enable streaming, fast downloading, and gamingall at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.
More Responsive Experiences
Less Loading Wheels
Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your WiFi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.
WIRELESS
Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
3 Bedroom Houses
4 Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
HARDWARE
Processor
Dual-Core CPU
Ethernet Ports
1x Gigabit WAN Port
4x Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2 LAN ports
USB Support
1x USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons
Wi-Fi/WPS Button
Power On/Off Button
Reset Button
Power
12 V 2 A
SECURITY
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP and MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
SOFTWARE
Protocols
IPv4
IPv6
Service Kits
HomeShield
OneMesh
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management
Tether App
Webpage
PHYSICAL

Package Contents
Wi-Fi Router Archer AX55
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0^oC-40^oC (32^oF -104^oF)
Operating Humidity: 10%-90% non-condensing
TEST DATA
WiFi Transmission Power
CE:
Less than 20dBm(2.4GHz)
Less than 23dBm(5.15GHz-5.35GHz)
Less than 30dBm(5.47GHz-5.725GHz)
FCC:
Less than 30dBm(2.4GHz and 5.15GHz-5.825GHz)
WiFi Reception Sensitivity
5GHz:
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm
11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm
11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm
2.4GHz:
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm
Item Dimension (L"xW"xH")
13 x 10 x 3

Weight
3 lbs

Warranty Information
2 year

Available Quantity

5

UPC

840030703041

SKU

mingleARCHER AX55

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Ethernet SFP28 Optics are available for customers who would like to deploy Intel Ethernet Network Adapters with an SFP28 optic. The Intel Ethernet Network Adapter XXV710 with SFP28 connectivity delivers a proven, reliable solution for deployment of high density Ethernet.


The Intel Ethernet Network Adapter XXV710 support SFP28 connectors enabling customers to have network connections either direct attach Twinax copper cable, or SR and LR optical modules. The Intel Ethernet 700 series adapters but at 25GbE speed. With 25GbE backward compatibility to 10GbE, it providers a natural upgrade migration path of those customers who need more bandwidth.


Intel supports the ability to use intel Ethernet SFP28 Optics, Intel Ethernet SFP28 Twinaxial Cable, or Intel Ethernet QSFP28-to-SFP28 Twinaxial Breakout Cable. This helps customers create the of their date center environment, while ensuring compatibility.
Module Form Factor
SFP28
Network Standards Physical Layer Interface
10G/25GBASE-SR
Airflow and Temperature Guidelines
Refer to adapter product brief for specific airflow and temperature requirments.
Item Dimension (L inchxW inchxH inch)
5 x 2 x 1
Weight
1.00 lb
Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

735858332187

SKU

mingleE25GSFP28SR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Wi-Fi 6 Technology Archer AX10 comes equipped with latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.

Next-Gen 1.5 Gbps Speeds Archer AX10 dual-band router reaches fast speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)

Connect More Devices than Ever Before Wi-Fi 6 technology simultaneously communicates more data to more devices using OFDMA and MU-MIMO while reducing lag.

Triple-Core Processing The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.

More Reliable Coverage Achieve the strongest, most reliable WiFi coverage with Archer AX10 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.

Increased Battery Life Target Wake Time technology reduces your devices' power consumption to extend their battery life.

Easy Setup Set up your router in minutes with the powerful TP-Link Tether App

Backward Compatible Archer AX10 supports all previous 802.11 standards and all WiFi devices

Advanced, Revolutionary Wi-Fi 6

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest WiFi technology to wipe out all the annoying slowdown, and enjoy the future network that loads faster and connects more.

Beyond Gigabit Speeds

The latest 1024-QAM and higher symbol rate work to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps WiFi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.
HARDWARE FEATURES
Processor
1.5 GHz Triple-Core CPU
Memory
256 MB RAM
16 MB Flash
Interface
1 1000/100/10 Mbps WAN Port
4 1000/100/10 Mbps LAN Ports
Button
WPS/Wi-Fi On/Off Button, Reset Button, Power On/Off Button
External Power Supply
12 V / 1 A
Antenna
4 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Frequency
5 GHz and 2.4 GHz
Signal Rate
1201 Mbps (5 GHz, 11ax)
300 Mbps (2.4 GHz, 11n)
Compatible with 802.11a/b/g/n/ac Wi-Fi standards
Reception Sensitivity
5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm
Transmit Power
FCC:<30dBm(2.4 GHz 5.15 GHz5.825 GHz)
Wireless Functions
Enable/Disable Wireless Radio, WMM
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE
Management
Parental Control
Guest Network
DHCP
Server, DHCP Client List, Address Reservation
Dynamic DNS
DynDns, NO-IP, TP-Link
Guest Network
2.4 GHz guest network 1
5 GHz guest network 1
NAT
Port Forwarding, Port Triggering, UPnP, DMZ
OTHERS
Certification
FCC,RoHS
Package Contents
Wireless Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista^TM/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Item Dimension (L"xW"xH")
13 x 10 x 3
Weight
3.00 LB
Warranty Information
2 year

Available Quantity

5

UPC

840030700415

SKU

mingleARCHER AX10

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

5 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

Green Ethernet technology saves power

IEEE 802.3X flow control provides reliable data transfer

Plastic casing, desktop or wall-mounting design

Plug and play, no configuration needed

Fanless design ensures quiet operation
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface
5x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5VDC/0.6A)
Max Power Consumption
3.7W
Max Heat Dissipation
12.6 BTU/h
PERFORMANCE
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.4 Mpps
MAC Address Table
2K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
Back Pressure
Transfer Method
Store and Forward
OTHERS
Certification
FCC, RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0^oC - 40^oC (32^oF - 104^oF)
Storage Temperature: -40^oC - 60^oC (-40^oF - 140^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing

Available Quantity

5

UPC

845973085469

SKU

mingleLS1005G

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AC1200 Wireless MU-MIMO Gigabit Router
AC1200 Dual-Band Wi-Fi 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
MU-MIMO Technology Simultaneously transfers data to multiple devices for 2 faster performance
Boosted Coverage Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
Access Point Mode Supports AP Mode to transform your wired connection into wireless network
Easy Setup Set up your Wi-Fi in minutes with TP-Link Tether app.
Smooth Entertainment with AC1200 Dual Band Wi-Fi
The Archer A6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to 867Mbps, ideal for HD video streaming and lag-free online gaming.
Advanced Security with WPA3
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Boosted Wi-Fi Coverage Throughout Your Home
Four external antennas send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony. Beamforming technology detects devices, even if they are far-away or low-powered, and concentrates wireless signal strength towards them.
MU-MIMO Brings More Simultaneous Connections
MU-MIMO lets the Archer A6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently
WIRELESS
Standards
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
3 Bedroom Houses
4x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium
Dual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes
Router Mode
Access Point Mode
HARDWARE
Processor
Dual-Core CPU
Ethernet Ports
1x Gigabit WAN Port
4x Gigabit LAN Ports
Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power
12 V 1 A
SECURITY
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP and MAC Binding
Application Layer Gateway
Guest Network
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
SOFTWARE
Protocols
IPv4
IPv6
OneMesh
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
NAT Forwarding
Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management
Tether App
Webpage
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0^oC -40^oC (32^oF -104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF -158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
TEST DATA
WiFi Transmission Power
CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz and 5GHz)
WiFi Reception Sensitivity
5GHz:
11a 6Mbps:-93dBm11a 54Mbps:-78dBm
11ac HT20 mcs8:69dBm11ac HT40 mcs9:-65dBm
11ac HT80 mcs9:-62dBm
2.4GHz:
11g 54Mbps:-78dBm
11n HT20 mcs7:-74dBm
11n HT40 mcs7:-71dbm
PHYSICAL
Package Contents
Wi-Fi Router Archer A6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Item Dimension (L"xW"xH")
NA

Weight
1.92 lbs

Warranty Information
2-year

Available Quantity

5

UPC

845973088910

SKU

mingleARCHER A6

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC.


Blazing Wireless Wave 2 AC Performance
The DAP-2610 delivers reliable, high-speed wireless performance using the latest 802.11ac Wave 2 standard with maximum wireless signal rates of up to 400 Mbps (256-QAM) over the 2.4 GHz band, and 900 Mbps over the 5 GHz band1. This, coupled with support for the Wi-Fi Multimedia (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2610 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2610 web GUI using a drop-down menu to select customized priority rules. Additionally, the DAP-2610 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.


Versatile Access Point Functionality
The DAP-2610 allows network administrators to deploy a highly manageable and extremely robust simultaneous dual-band wireless network. The DAP-2610 can provide optimal wireless coverage over either the 2.4 GHz (802.11b, 802.11g, and 802.11n) or the 5 GHz (802.11a, 802.11n, and 802.11ac) bands. The DAP-2610 can be ceiling mounted, wall mounted, or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2610 has integrated 802.3af Power over Ethernet (PoE) support, allowing the device to be installed in areas where power outlets are not readily available.
Device Interfaces
1 IEEE 802.11a/b/g/n/ac Wave2 wireless
1 Gigabit LAN (supports PoE)
Standards
IEEE 802.11a/b/g/n/ac
IEEE 802.3u/ab
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af Power over Ethernet
Antennas
2 internal dual-band 3dBi omni antennas
Operating Frequency
2.4 GHz band: 2.4 to 2.4835 GHz
5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Maximum Output Power
20 dBm for 2.4 GHz
20 dBm for 5 GHz
Data Signal Rate
2.4 GHz
Up to 400 Mbps
5 GHz
Up to 867 Mbps
Security
WPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server
Network Management
Telnet
Secure Telnet (SSH)
Web (HTTP)
Secure Socket Layer (SSL)
Traffic control
SNMP v1/v2c/v3
D-Link Central Wi-Fi Manager
AP Array
LEDs
Power/status
Power Supply
External power adapter: 12 V/1 A
IEEE 802.3af PoE
Maximum Power Consumption
12 W
Temperature
Operating: 0 to 40^oC (32 to 104^oF)
Storage: -20 to 65^oC (-4 to 149^oF)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF)
> 30,000 hours
Certifications
FCC
IC
CE 4
UL
Wi-Fi Certified
Item Dimension (L inchxW inchxH inch)
7 x 7 x 2

Weight
1.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

790069430909

SKU

mingleDAP-2610

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Finisar's FTLX8574D3BCL 10Gb/s SFP+ optical transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, SFF-8432, IEEE 802.3-2012 10GBASE-SR/SW and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX8574D3BCL is a "limiting module", i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
Distance
400m
Data Rate (max)
10.5 Gb/s
Protocol
10x Fibre Channel Compliant ,10 Gigabit Ethernet Compliant ,Wireless CPRI Compliant
Low End Case Temperature
-5 degree Celsius
High End Case Temperature
70 degree Celsius
Diagnostics
Digital
Transmitter
VCSEL
Receiver
PIN
Voltage Supply
3.3
Connector
LC
Wavelength
850nm Band
Item Dimension (L"xW"xH")
5 x 2 x 1
Weight
1 lb
Warranty Information
Lifetime

Available Quantity

5

UPC

Does not apply

SKU

mingleFTLX8574D3BCL
