Product Description

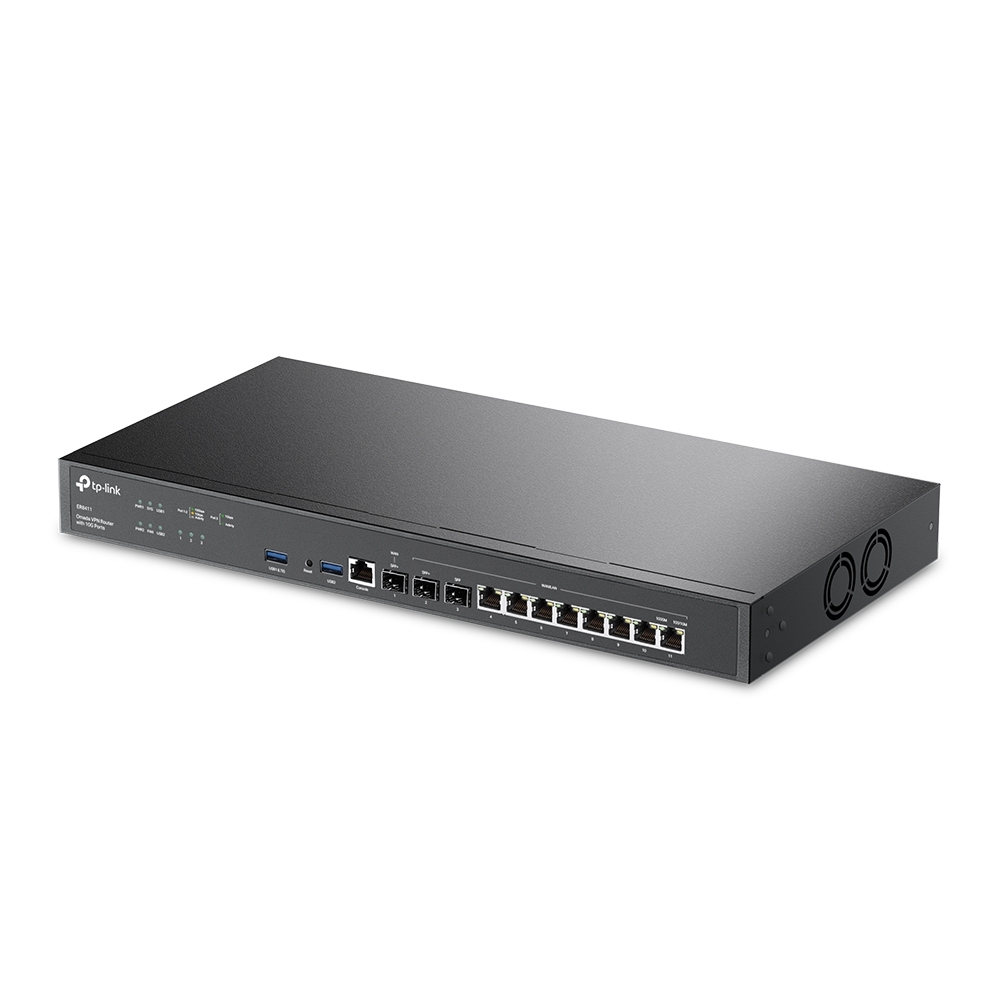

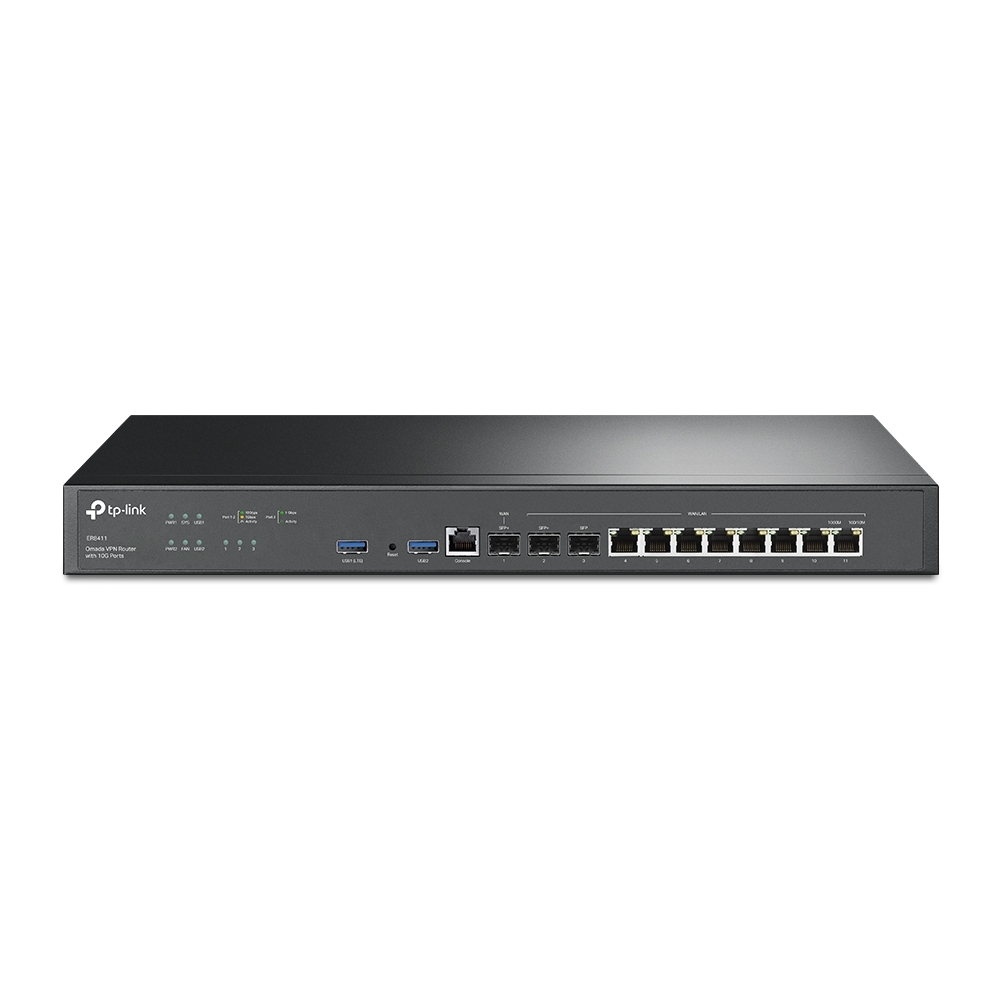

Omada VPN Router with 10G Ports


Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*³, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Two 10GE SFP+ Ports: 1 WAN and 1 WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.

Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband ¹.

Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.

Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.



Note

1. At least one WAN/LAN port needs to function as a LAN port.

3. Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
HARDWARE FEATURES

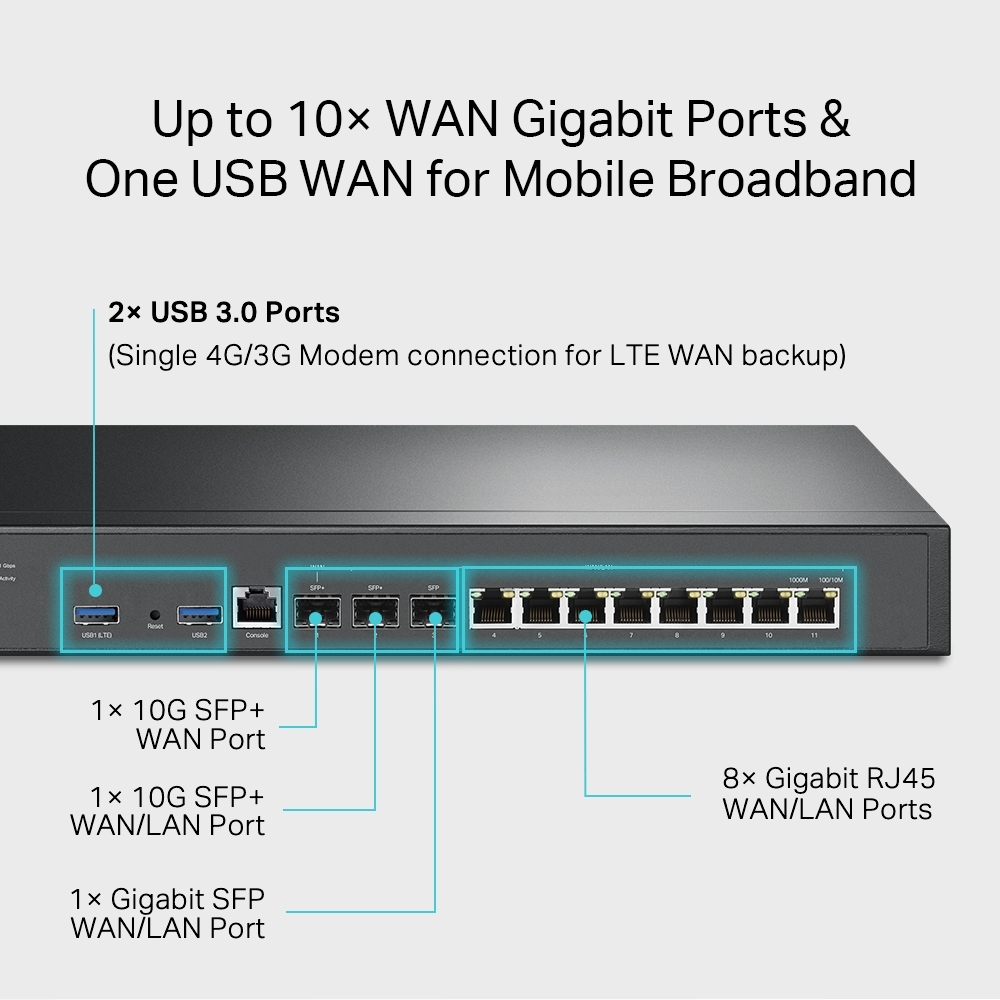

Interface
2x 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
1x 1GE SFP WAN/LAN Ports
8x 1GE RJ45 WAN/LAN Ports
1x RJ45 Console Ports
2x USB Ports (Connecting 4G/3G Modem as WAN Backup)
Button
Reset Button
Power Supply

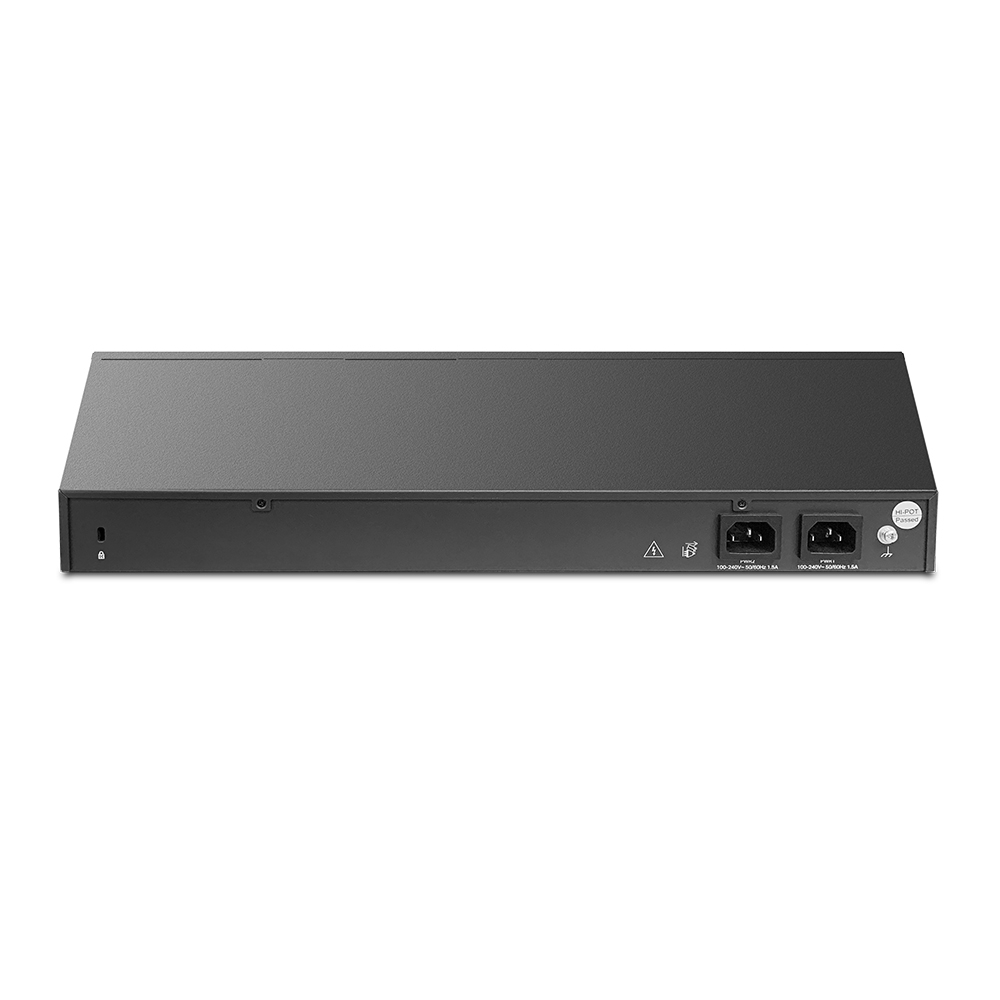

Redundant Dual Power Supplies (100 to 240 VAC, 50/60 Hz)
Flash
4MB SPI NOR + 256 MB NAND
DRAM
4 GB DDR4
LED
PWR, SYS, WAN, LAN, USB, FAN
Max Power Consumption
26.36 W (with USB 3.0 connected)
19.12 W (without USB 3.0 connected)
PERFORMANCE
Concurrent Session
2,300,000
New Sessions /Second
20,000
NAT (Static IP)
Upload: 9445.82 Mbps
Download: 9449.26 Mbps
NAT(DHCP)
Upload: 9426.83 Mbps
Download: 9426.20 Mbps
NAT(PPPoE)
Upload: 9413.96 Mbps
Download: 9102.01 Mbps
NAT (L2TP)
Upload: 4230.62 Mbps
Download: 4169.53 Mbps
NAT (PPTP)
Upload: 3933.86 Mbps
Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate
Upload: 1080 Mbps
Download: 1030 Mbps
IPsec VPN Throughput
SHA1-AES256: 2140.45 Mbps
SHA2-AES256: 2080.20 Mbps
OpenVPN
1665.64 Mbps
L2TP VPN Throughput
Unencrypted: 5013.50 Mbps
Encrypted: 2274.74 Mbps
SSL VPN Throughput
1511.10 Mbps
BASIC FUNCTIONS
WAN Connection Type
Static/Dynamic IP
PPPoE
PPTP
L2TP
6to4 Tunnel
Pass-Through
Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone
Modify WAN/LAN MAC Address⁴
DHCP
DHCP Server/Client
DHCP Address Reservation
Multi-net DHCP
Multi-IP Interfaces
IPv6
WAN Connection
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee and Limited Bandwidth
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing⁵, Failover)
Online Detection
NAT
One-to-One NAT⁵
Multi-Net NAT
Virtual Server
Port Triggering⁵
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
Session Limit
IP-based Session Limit
VPN
SSL VPN
SSL VPN Server
SSL VPN Client
500 OpenVPN Tunnels
IPsec VPN
300 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
IKE v1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
PPTP VPN Client (32)⁶
300 Tunnels (Shared with L2TP)
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
L2TP VPN Client (32)⁶
300 Tunnels (Shared with PPTP)
L2TP over IPSec
OpenVPN
OpenVPN Server
OpenVPN Client (10)⁶
110 OpenVPN Tunnels
SECURITY
Filtering
WEB Group Filtering⁵
URL Filtering
Web Security⁵
ARP Inspection
Sending GARP Packets⁵
ARP Scanning⁵
IP-MAC Binding⁵
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Access Control
Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
No Authentication
Simple Password²
HotspotLocal User / Voucher² / SMS² / Radius²
External Radius Sever
External Portal Sever²
Facebook Check-In²
Instagram Follow²
MANAGEMENT
Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Available Quantity

5

UPC

840030703300

SKU

mingleER8411

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

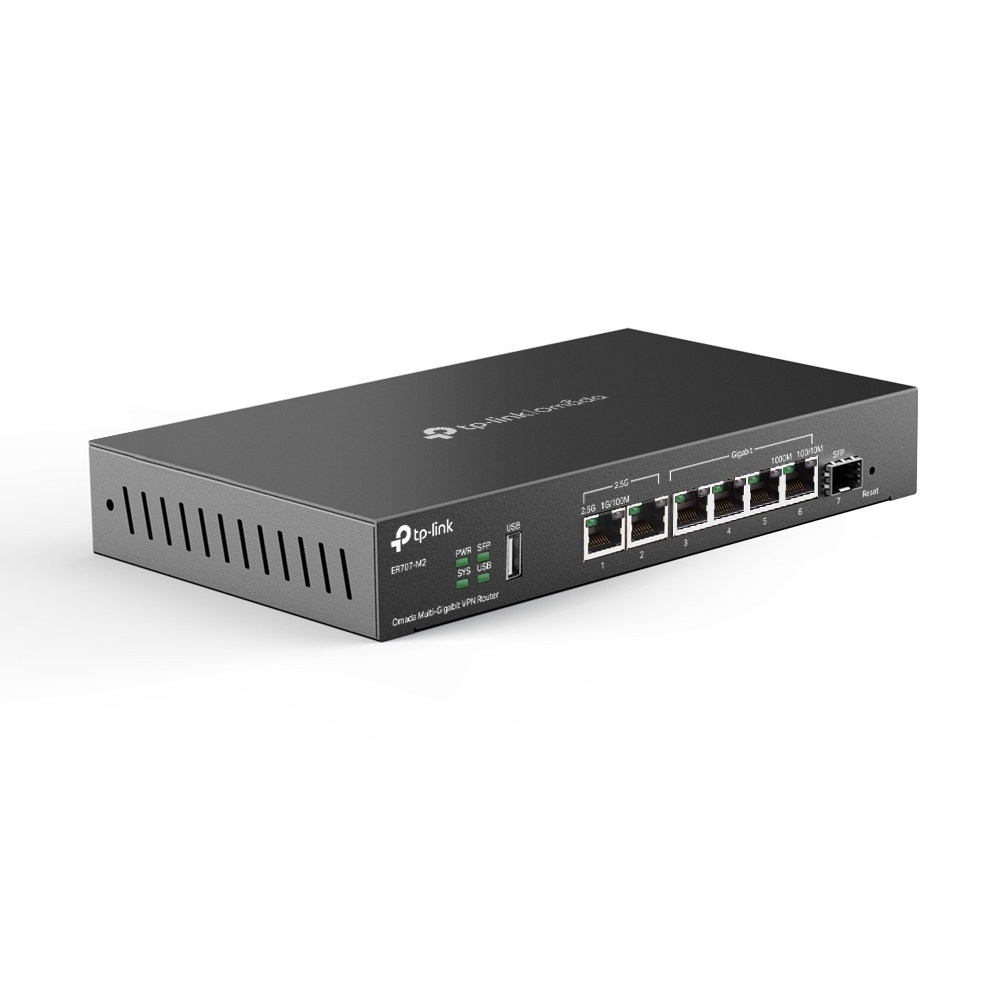

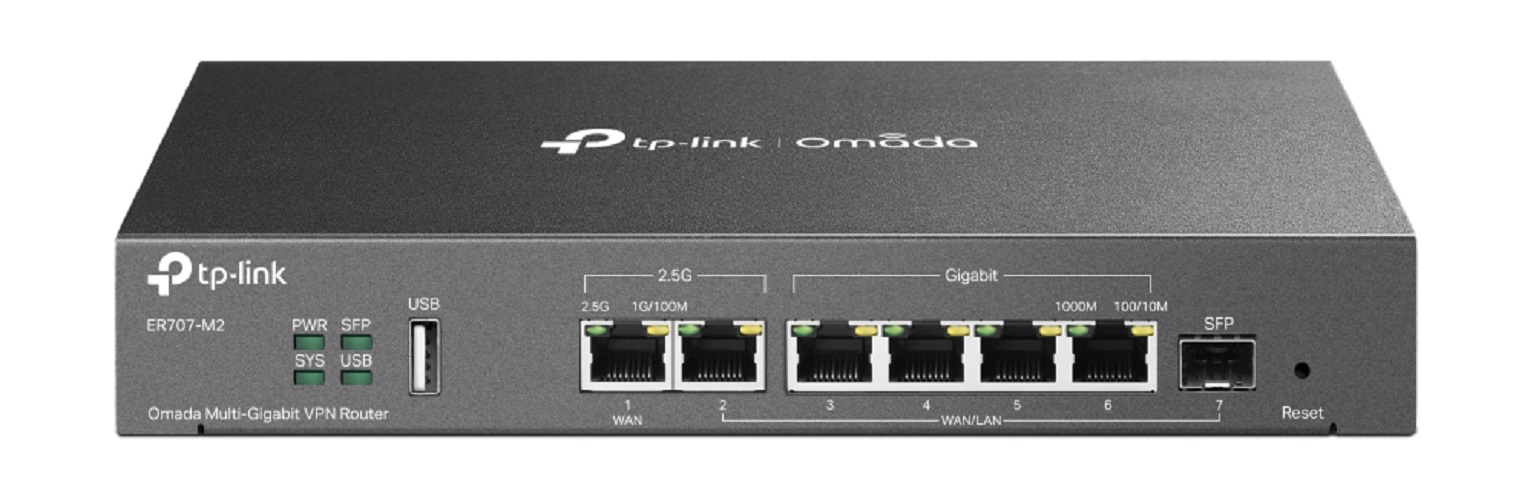

ER707-M2

Omada Multi-Gigabit VPN Router

Two 2.5G Ports: 1 2.5G WAN and 1 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.

Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.

Highly Secure VPN: Enterprise-standard SSL/IPSec/GER /PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.

Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.

Centralized Management: Cloud access and Omada app provide the utmost in management convenience.

Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
1 2.5G RJ45 WAN Port
1 2.5G RJ45 WAN/LAN Port
1 Gigabit SFP WAN/LAN Port
4 Gigabit RJ45 WAN/LAN Ports
1 USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100 STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100 STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity
Fanless
Button
Reset Button
Power Supply

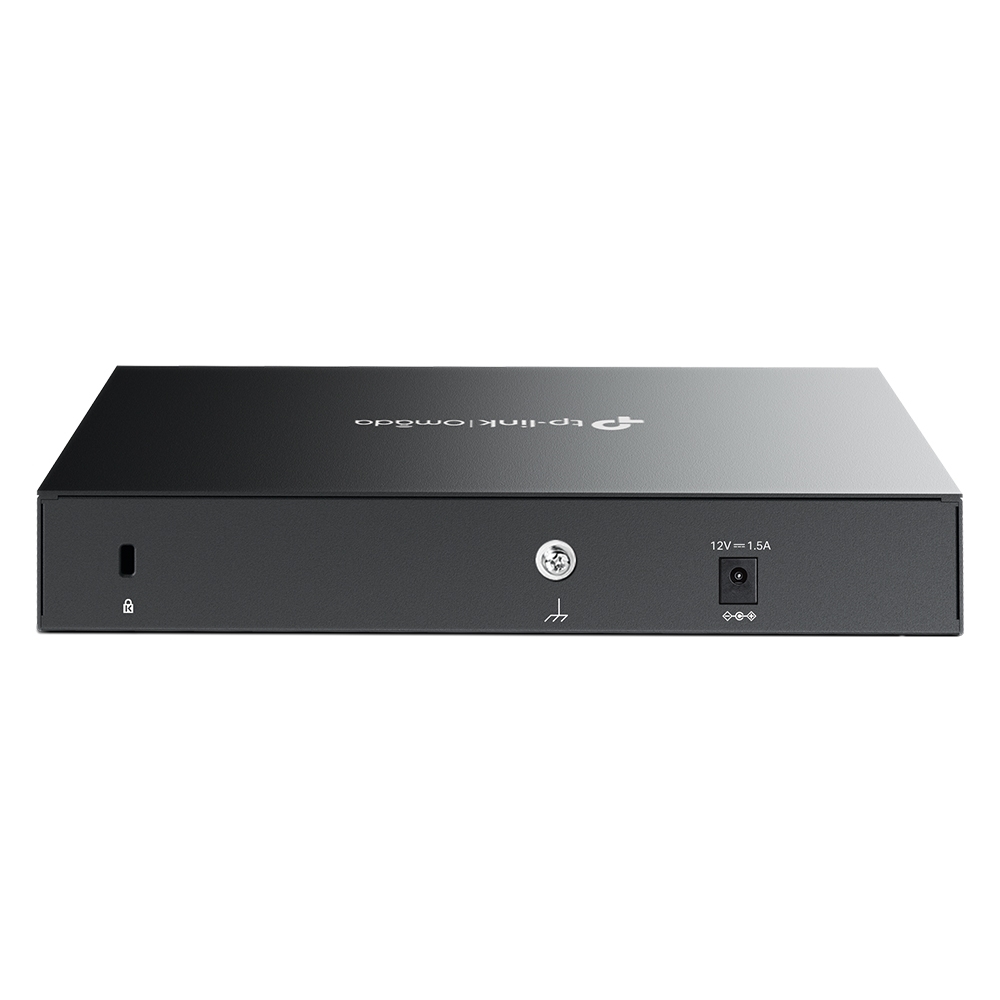

12V/1.5A Adapter
PoE Budget
-
Flash
128MB NAND
DRAM
1 GB DDR4
LED
PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Protection
4 kV surge protection
Enclosure
Steel
Mounting
Desktop/Wall Mounting
Max Power Consumption
14.2 W (with USB2.0 connected)
7.1 W (without USB2.0 connected)
PERFORMANCE
Concurrent Session
500,000
New Sessions /Second
4,200
NAT (Static IP)
2364.45 Mbps / 2343.28 Mbps
NAT(DHCP)
2364.24 Mbps / 2326.21 Mbps
NAT(PPPoE)
2350.93 Mbps / 2125.83 Mbps
NAT (L2TP)
1249.04 Mbps / 831.12 Mbps
NAT (PPTP)
1169.23 Mbps / 1175.52 Mbps
IPsec VPN Throughput
ESP-MD5-AES256: 537.12 Mbps
ESP-SHA1-AES256: 754.65 Mbps
L2TP VPN Throughput
Unencrypted: 1442.65 Mbps
Encrypted: 346.43 Mbps
SSL VPN Throughput
142.99 Mbps
66 Byte Packet forwarding rate
1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate
2461.18 Mbps / 2457.32 Mbps
BASIC FUNCTIONS
WAN Connection Type
IPv4_Static IP
IPv4_Dynamic IP
IPv4_PPPOE
IPv4_L2TP
IPv4_PPTP
IPv6_PPP
IPv6_DHCPv6
IPv6_Static IP
IPv6_6in4
IPv6_Pass-Through
Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone
Modify WAN/LAN MAC Address
(LAN MAC Address can be modified only in Standalone Mode.)
DHCP
DHCP Server/Client
DHCP Address Reservation
Multi-IP Interfaces
(These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
Multi-Net DHCP
(These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
IPv6
WAN Connection
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
Advanced Routing
Static Routing
Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee and Limited Bandwidth
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing^Note, Failover)
Online Detection
NAT
One-to-One NAT^Note
Multi-Net NAT
Virtual Server
Port Triggering^Note
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Security
Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering
Web Group Filtering
URL Filtering
Web Security
ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Access Control
Source/Destination IP Based Access Control
Session Limit
IP-based Session Limit
VPN
IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation ode
DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
PPTP VPN Clients (12)
60 Tunnels (Shared with L2TP)
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
L2TP VPN Clients (12)
60 Tunnels (Shared with PPTP)
L2TP over IPSec
OpenVPN
OpenVPN Server
OpenVPN Clients (6)
66 OpenVPN Tunnels (These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
SECURITY
Filtering
WEB Group Filtering^Note
URL Filtering
Web Security^Note
ARP Inspection
Sending GARP Packets^Note
ARP Scanning^Note
IP-MAC Binding^Note
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Access Control
Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
No Authentication
Simple Password
(These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
Hotspot (Local User/Voucher /SMS/Radius)
(These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
External Radius Sever
External Portal Sever
(These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
Facebook
(These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
MANAGEMENT
Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
Web Management Interface
Remote Management
Export and Import Configuration
SNMP v1/v2c/v3
(These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.)
Diagnostics (Ping and Traceroute)^Note
NTP Synchronize^Note
Syslog Support
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
OTHERS
Certification
CE, FCC, RoHS
Package Contents
ER707-M2
Power Adapter
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: 0 - 40 ^oC (32-104 ^oF)
Storage Temperature: -40 - 70 ^oC (-40-158 ^oF)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% non-condensing
Note: These functions are supported only in Standalone Mode.
Item Dimension (L inchxW inchxH inch)
13 x 10 x 3

Weight
3 lbs

Warranty Information
Limited Lifetime

Available Quantity

5

UPC

840030705274

SKU

mingleER707-M2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

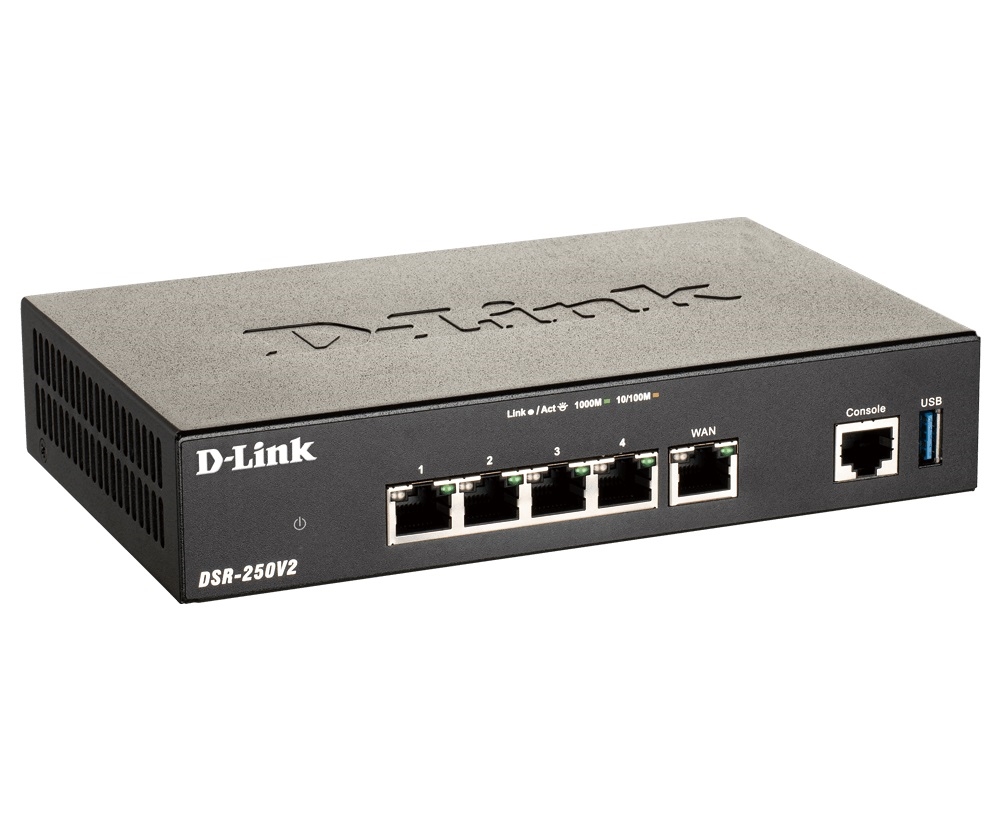

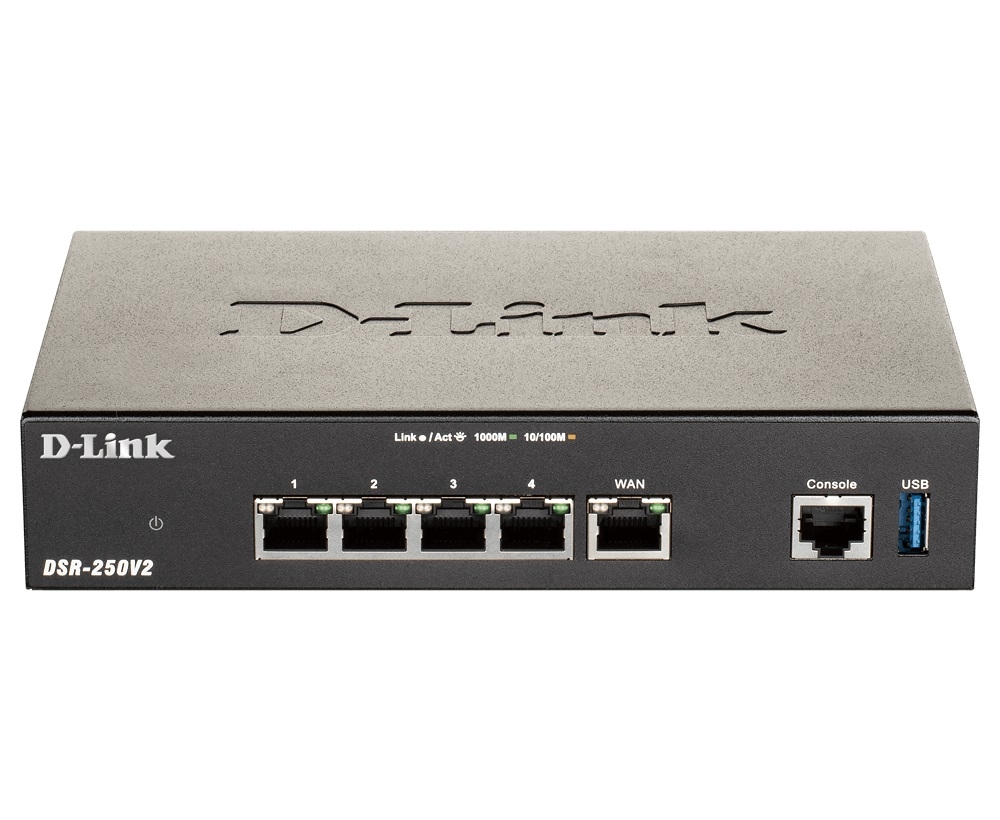

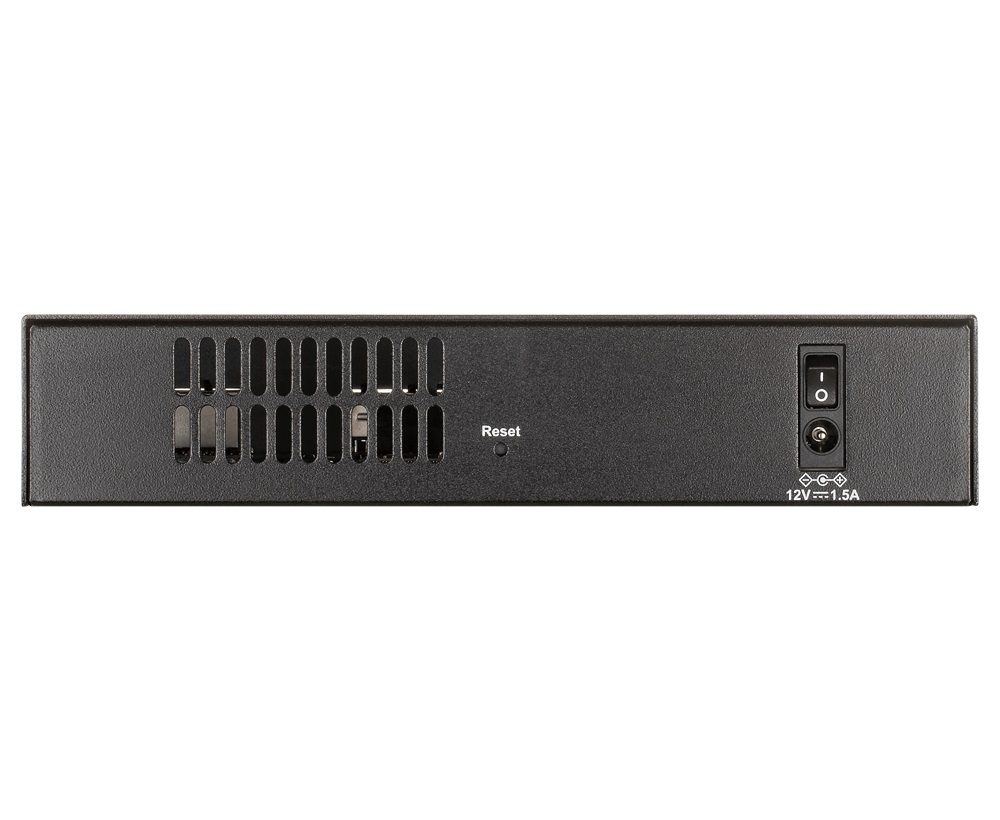

5-Gigabit Port VPN Router

The D-Link DSR-250v2 Series Unified Services Routers provide highly secure, multifunctional networking solutions to small and medium businesses users.


Automatic failover to another link from available ISP when primary line is lost.

Support 1 x GE WAN, 3 x GE LAN, 1 GE Configurable LAN/WAN and 1 x USB 3.0 port.

900/200 Mbps firewall/VPN throughput, 50,000 Concurrent Sessions, and 50/20 IPsec/SSL VPN Tunnels.

Advanced routing, VLAN and IPsec/PPTP/L2TP/OpenVPN VPN Server/Client

Value-added office utilities to reduce OpEx/CAPEX

Traffic load balancing and Avoid complicated maintenance issues


Secure VPN

This affordable, high-performance router also enables businesses to secure their network whether in the office, at home or out on the road. You and your colleagues can stay connected to the office anywhere, anytime. Complete VPN features, as well as IPSec Hub and Spoke technology, ensures secure communication between mobile employees and offices.


OpenVPN

OpenVPN relies on SSL / TLS for authentication and encryption. Creating secure, remote site-to-site or peer-to-peer connections is a standard security technology. SSL is widely used to protect financial transactions, data transfers, emails, etc.


Web Content Filtering

The DSR series web content filtering feature to help administrators monitor, manage and control employees Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword. Dynamic web content filtering, which requires a license subscription, allows administrators to filter content from a list of categories. Multiple global index servers, with millions of URLs and real-time website data, enhance performance and maximize service availability.
Ethernet Interface
1 x 10/100/1000 Mbps WAN port, 3 x 10/100/1000 Mbps LAN ports, 1 x 10/100/1000 Mbps configurable port
USB Port
1 x USB 3.0
Console Port
RJ-45
Firewall Throughput
950 Mbps
VPN Throughput (3DES)
200 Mbps
Concurrent Sessions
50,000
New Sessions (per second)
2000
Firewall Policies
300
Static/Dynamic IP
Yes
Static Route
Yes
Dynamic Route
RIP v1/v2, OSPF, OSPFv3
Authentication
Internal User Database, Radius, POP3, LDAP, AD, NT Domain
Application Control
Well-known Application Control (license required)
DHCP Server/Client
1024 clients
DHCP Relay
Yes
IEEE 802.11q VLAN
Yes
Number of VLANs
16
IP Multicast
IGMP Proxy, IGMP Snooping
IPv6
Yes
Route Failover
Yes

Available Quantity

5

UPC

790069461828

SKU

mingleDSR-250V2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

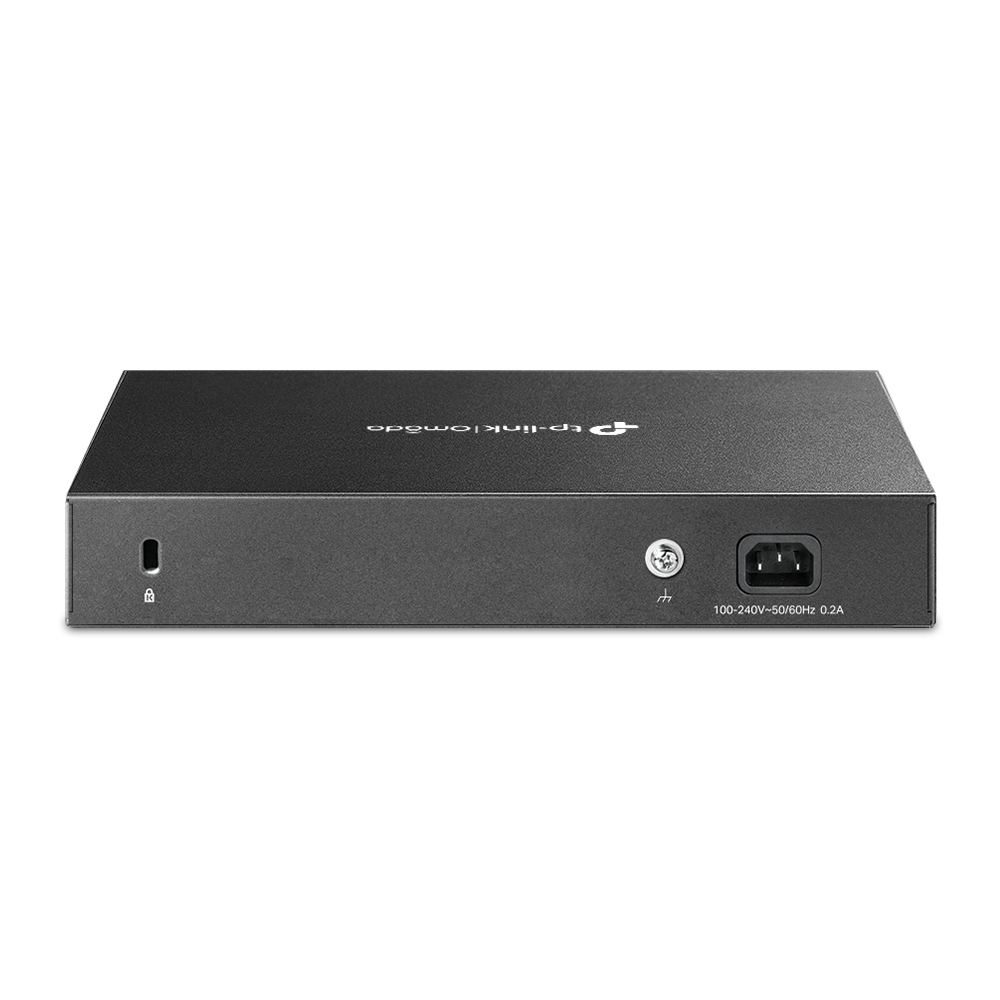

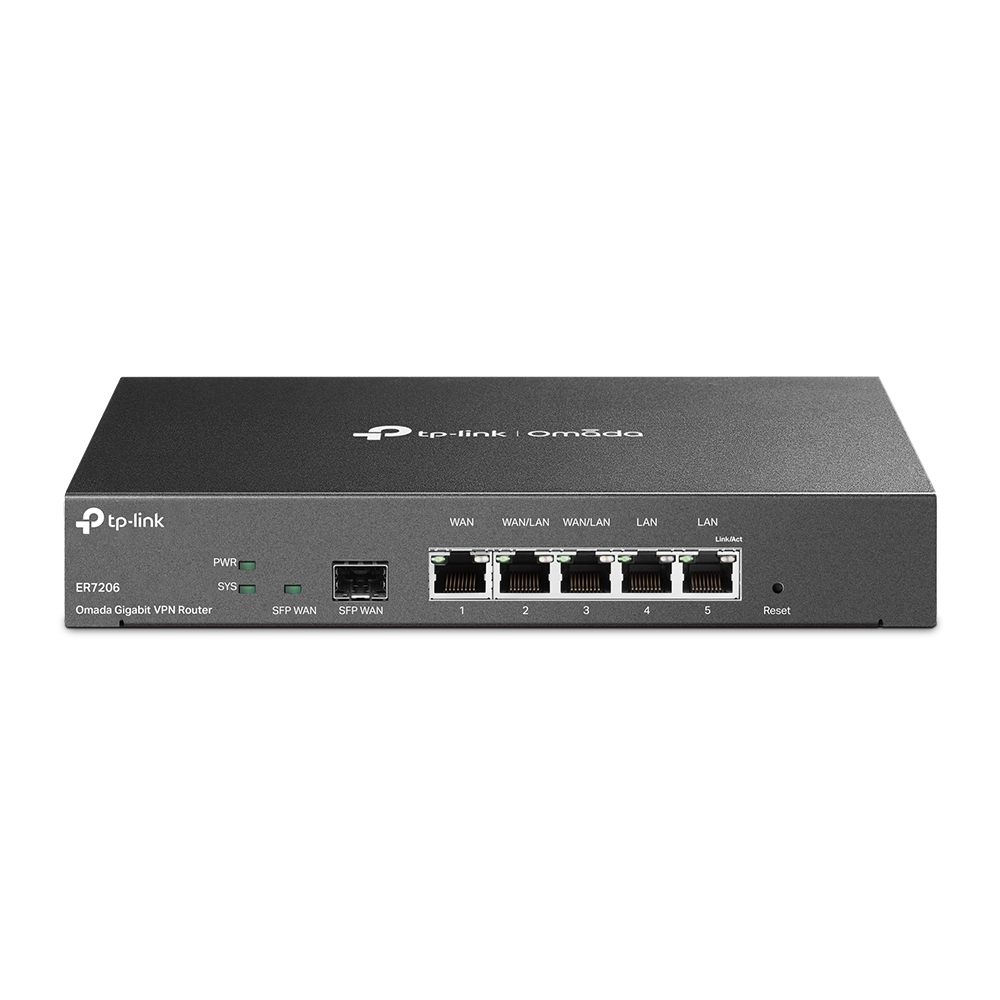

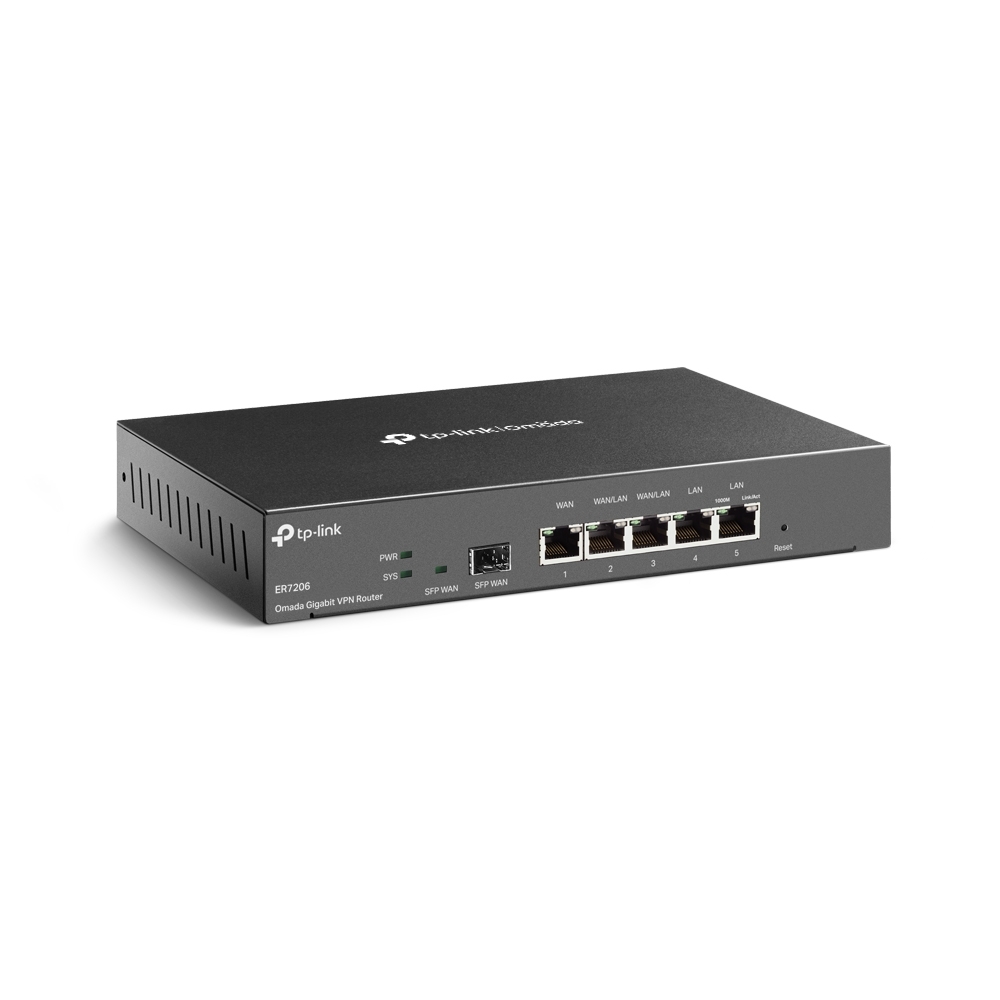

Omada Gigabit VPN Router

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.

Highly Secure VPN: Supports up to 100 LAN-to-LAN IPsec, 50 OpenVPN*, 50 L2TP, and 50 PPTP VPN connections.

Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.


Omada SDN The Smarter Cloud Solution for Business Networking

As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.


Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites all controlled from a single interface anywhere, anytime.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100OHM STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100OHM STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button
Reset Button
Power Supply
100 to 240 V 50/60 Hz
Flash
SPI 4MB + NAND 128MB
DRAM
512MB
LED
PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
PERFORMANCE
Concurrent Session
150,000
IPsec VPN Throughput
291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type
Static/Dynamic IP
PPPoE
PPTP
L2TP
MAC Clone
Modify WAN/LAN MAC Address
DHCP
DHCP Server
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee and Limited Bandwidth
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management

Available Quantity

5

UPC

840030701474

SKU

mingleER7206
