Product Description

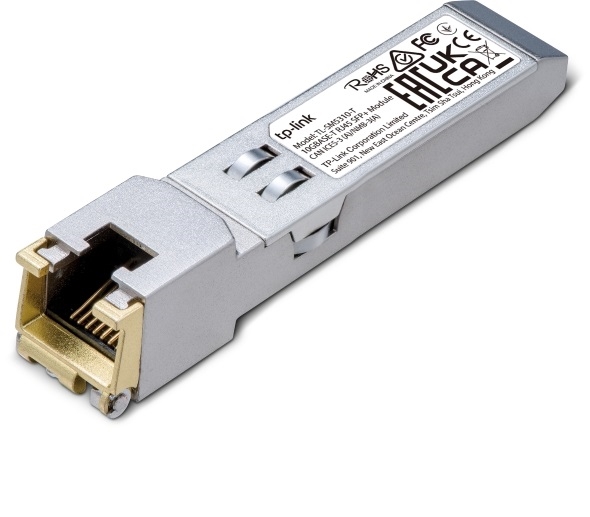

TL-SM5310-T

10G BASE-T RJ45 SFP+ Module

Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX

Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)

Support DDM (Temperature and Voltage)

Hot-Pluggable SFP+ Footprint Features

Support TX Disable function

Commercial Product Operating Temperature Range: 0-70^oC

Fully Metallic Enclosure for Low EMI

10GBASE-T RJ45 SFP+ Module

Direct and Lightning-Fast 10G, from Fiber to RJ45 Port
Superior 10G Performance to Convert SFP+ to RJ45

Insert TL-SM5310-T for an easy and quick conversion between SFP+ fiber and 10G Ethernet. It covers up to 30m* for various applications.

Plug and Play

A plug-and-play design makes for easy deployment, no technician needed.
Durable Metal Casing

High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.
High Compatibility

Connect your devices with fewer concerns. Our product is perfectly compatible with various optic fiber equipment from different vendors.**

*Data measured in a laboratory environment under specific conditions. The actual transmission distance may vary due to transmission speed or the cable quality and type.

**Check the compatibility list of TL-SM5310T and enjoy the connection.
PACKAGE CONTENTS
Package Contents
10G BASE-T RJ45 SFP+ Module TL-SM5310-T
Installation Guide
HARDWARE FEATURES
Hot Swappable
Yes
TRANSCEIVER
Standards and Protocols
IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply
3.3V
Max. Cable Length
100BASE-TX: UTP cat .5 or above (max. 100m)
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate
10.3 Gbps
Port Type
1x 10G RJ45 Port
Safety and Emission
FCC, CE, RoHS
Environment
Operating Temperature: 0-70 ^oC (32-158 ^oF)
Storage Temperature: -40-85 ^oC (-40-185 ^oF)
Item Dimension (L"xW"xH")
5 x 4 x 2

Weight
1 lb

Warranty Information
2-year

Available Quantity

5

UPC

840030707759

SKU

mingleSM5310-T

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

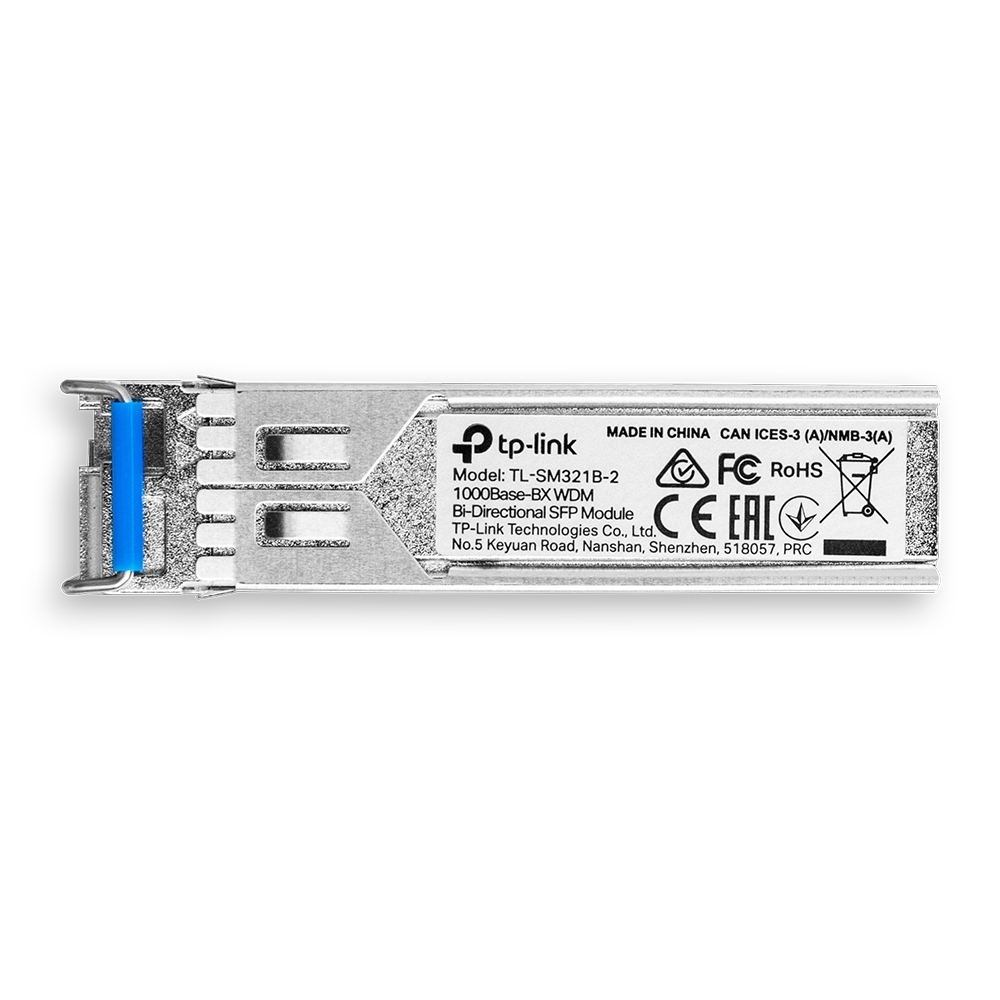

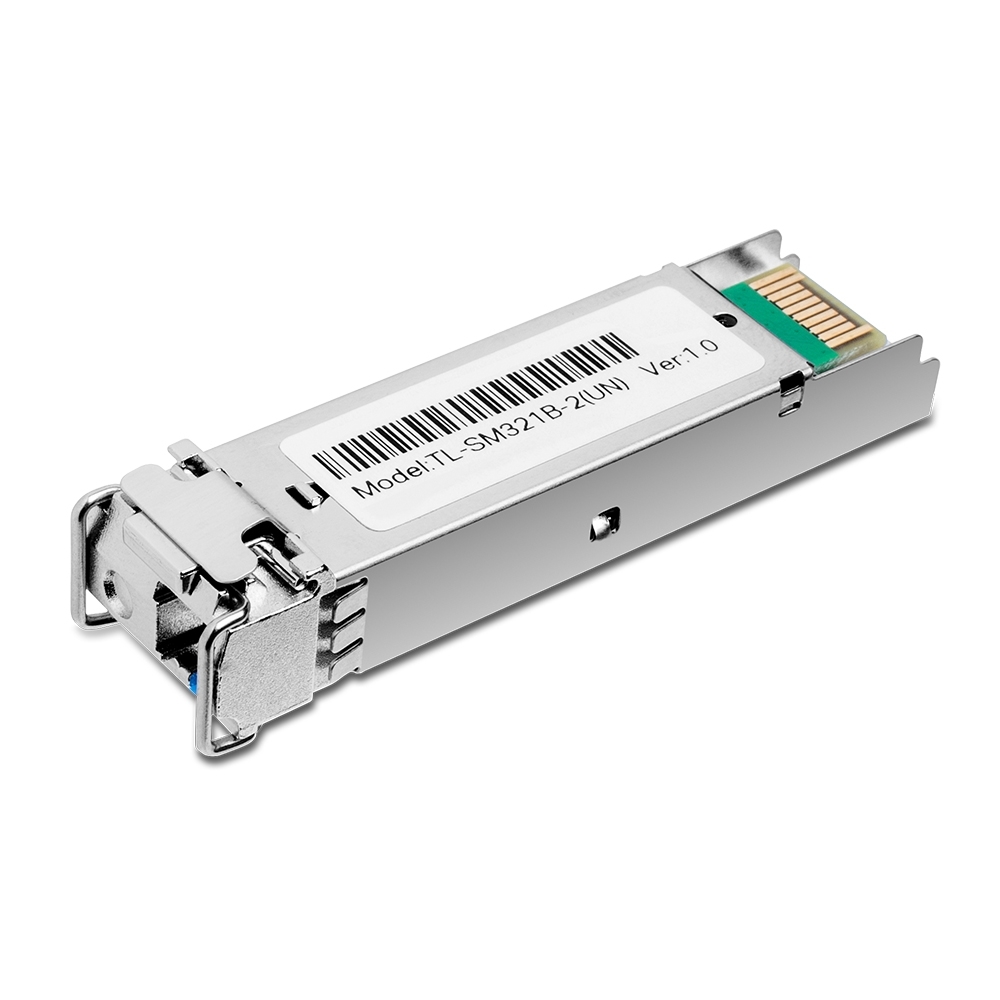

1000Base-BX WDM Bi-Directional SFP Module

Designed for on-site gigabit fiber communication

Up to 2 km transmission distance with 9/125 m SMF (Single-Mode Fiber)

Bidirectional WDM communication on a single fiber

Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)

Supports Digital Diagnostic Monitoring (DDM)

Hot-swappable module design

Work with TL-SM321A-2 as a pair


What This Product Does

TP-LINK s TL-SM321B-2 and TL-SM321A-2 is designed to work in a pair to create an on-site gigabit fiber communication up to 2km (2,000 meters). With one single-mode fiber, the pair of modules can create a full-duplex gigabit path between your switches, storage devices, and server.


The TP-LINK s TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 m SMF (Single-Mode Fiber).


Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.


TP-Link's TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
Package Contents
SFP Module TL-SM321B-2
Installation Guide
HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
MEDIA CONVERTER and MODULE
Standards and Protocols
IEEE 802.3z, TCP/IP
Wave Length
Tx: 1310 nm
Rx: 1550 nm
Power Supply
3.3V
Safety and Emission
FCC, CE
Cabel
Single-Mode Fiber
Fiber Type
9/125 micro meter Single-Mode
Max. Cable Length
2 KM
Data Rate
1.25 Gbps
Port Type
LC Simplex
Environment
Operating Temperature: 0 - 70 ^oC (32 - 158 ^oF)
Storage Temperature: -40 - 85 ^oC ( -40 - 185 ^oF)
Operating Humidity: 10 - 90% RH, Non-Condensing
Storage Humidity: 5 - 90% RH, Non-Condensing
Item Dimension (L inchxW inchxH inch)
11 x 11 x 9

Weight
8.00 lb

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973030964

SKU

mingleTL-SM321B-2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

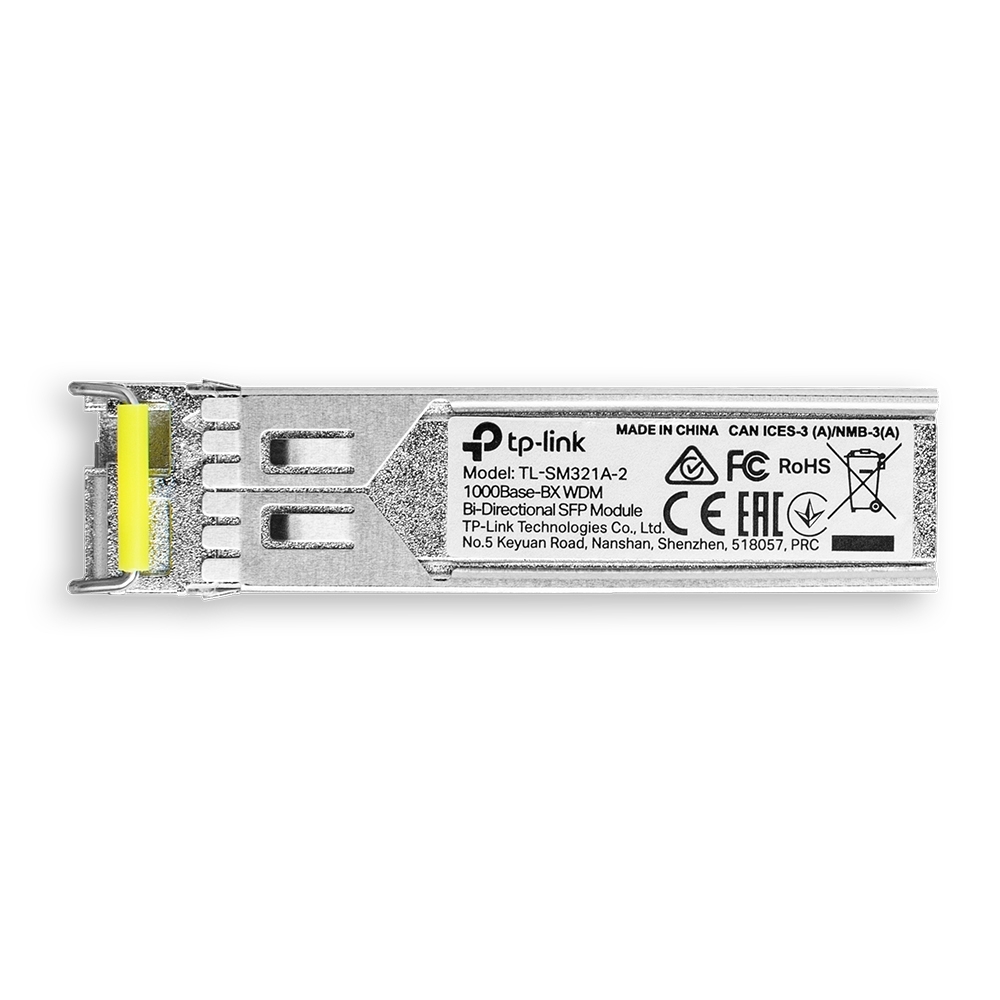

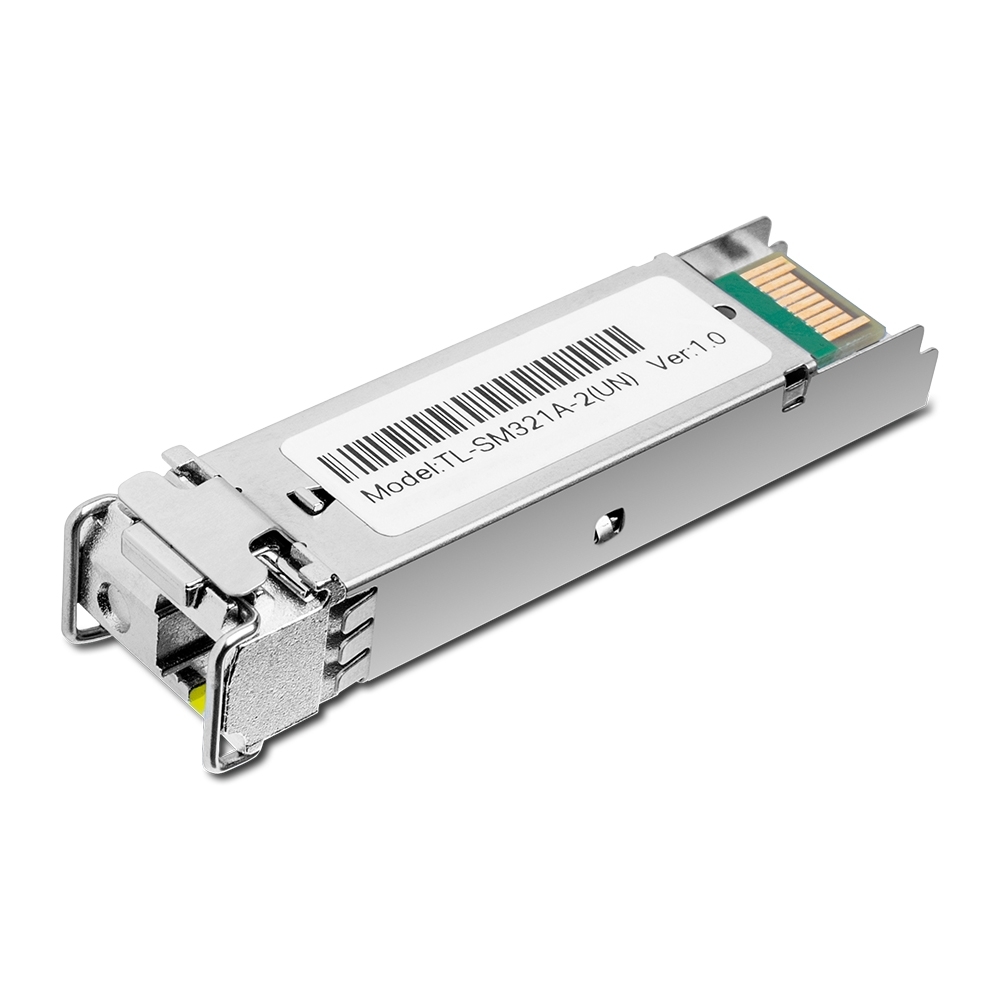

1000Base-BX WDM Bi-Directional SFP Module

Designed for on-site gigabit fiber communication

Up to 2 km transmission distance with 9/125 m SMF (Single-Mode Fiber)

Bidirectional WDM communication on a single fiber

Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)

Supports Digital Diagnostic Monitoring (DDM)

Hot-swappable module design

Work with TL-SM321B-2 as a pair


What This Product Does

TP-LINK s TL-SM321A-2 and TL-SM321B-2 is designed to work in a pair to create an on-site gigabit fiber communication up to 2km (2,000 meters). With one single-mode fiber, the pair of modules can create a full-duplex gigabit path between your switches, storage devices, and server.

The TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 m SMF (Single-Mode Fiber).

Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TP-Link's TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
Package Contents
SFP Module TL-SM321A-2
Installation Guide
HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
Yes
MEDIA CONVERTER and MODULE
Standards and Protocols
IEEE 802.3z, TCP/IP
Wave Length
TX: 1550 nm
RX: 1310 nm
Power Supply
3.3 V
Safety and Emission
FCC, CE
Cabel
Single-Mode Fiber
Fiber Type
9/125 micro meter Single-Mode
Max. Cable Length
2 KM
Data Rate
1.25 Gbps
Port Type
LC Simplex
Environment
Operating Temperature: 0 - 70 ^oC (32 - 158 ^oF)
Storage Temperature: -40 - 85 ^oC ( -40 - 185 ^oF)
Operating Humidity: 10 - 90% RH, Non-Condensing
Storage Humidity: 5 - 90% RH, Non-Condensing
Item Dimension (L inchxW inchxH inch)
11 x 11 x 9

Weight
8.00 lb

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973030957

SKU

mingleTL-SM321A-2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

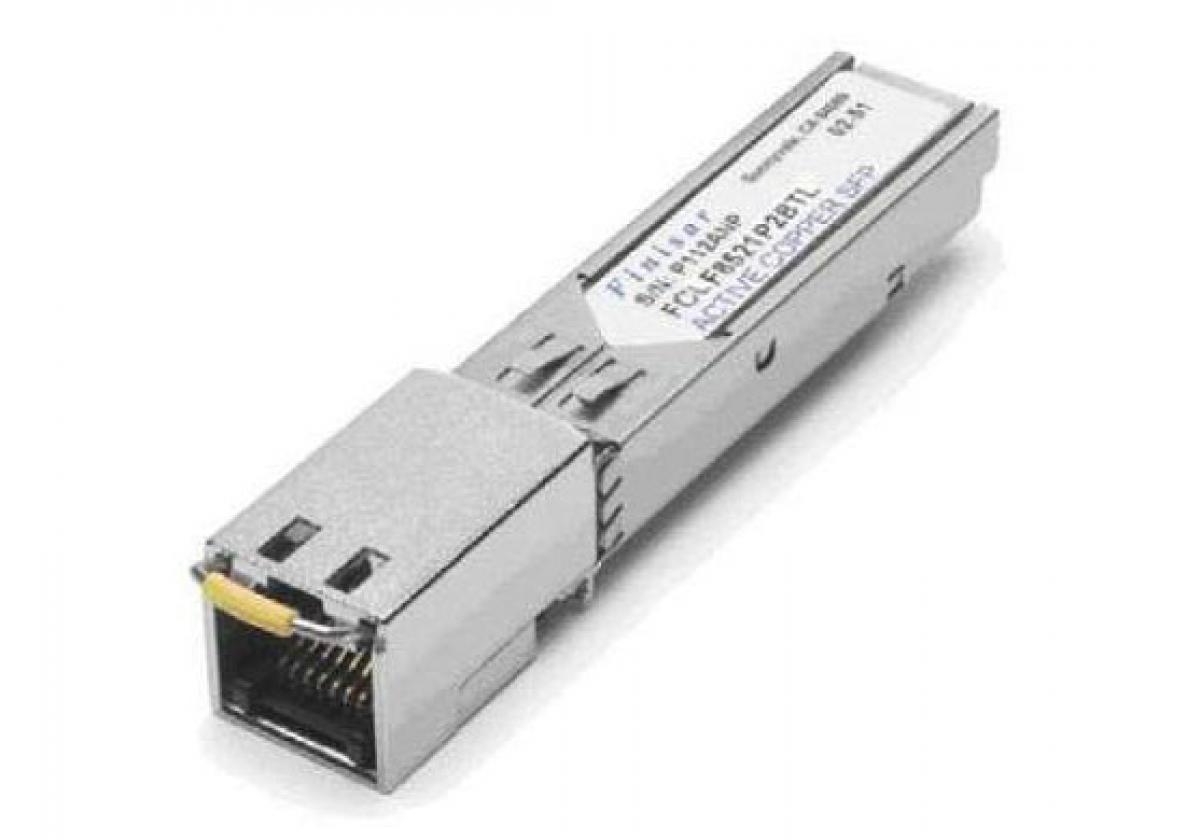

Finisar's FCLF8520P2BTL, FCLF8521P2BTL and FCLF8522P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. They are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.


Features:



Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

Fully metallic enclosure for low EMI

RoHS compliant and Lead Free

Low power dissipation (1.05 W typical)

Compact RJ-45 connector assembly

Access to physical layer IC via 2-wire serial bus

10/100/1000 BASE-T operation in host systems with SGMII interface

Extended case temperature range: -40 C to 85 C
Distance
100 m
Data Rate (Max)
1.25 Gb/s
Protocol
1000 Base-T Compliant
Low End Case Temperature
-40 C
High End Case Temperature
85 C
Diagnostics
NA
Transmitter
NA
Receiver
NA
Voltage Supply
3.3
Connector
RJ-45
Item Dimension (L"xW"xH")
3 x 1 x 1

Weight
1.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleFCLF8521P2BTL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Industrial Temperature 1.25 Gb/s RoHS Compliant Long-Wavelength Pluggable SFP Transceiver


Finisar's FTLF1318P3BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 8.00. They are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Appl. Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.


Features



Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

Build-in digital diagnostic functions

1310nm Fabry-Perot laser transmitter

Duplex LC connector

RoHS compliant and Lead Free

Up to 10 km on 9/125 m SMF

Metal enclosure for lower EMI

Single 3.3V power supply

Low power dissipation <600mW typical

Industrial operating temperature range: -40 C to 85 C
Form Factor
SFP
Distance
10 km
Protocol
Optical Gigabit Ethernet Compliant1 Gb/s Fibre Channel Compliant
Data Rate (Max)
1.25 Gb/s
Low End Case Temperature
-40 C
High End Case Temperature
85 C
Diagnostics
Digital
Transmitter
Fabry-Perot Laser
Receiver
PIN
Voltage Supply
3.3
Connector
LC
Item Dimension (L"xW"xH")
2.5 x 0.5 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

Does not apply

SKU

mingleFTLF1318P3BTL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

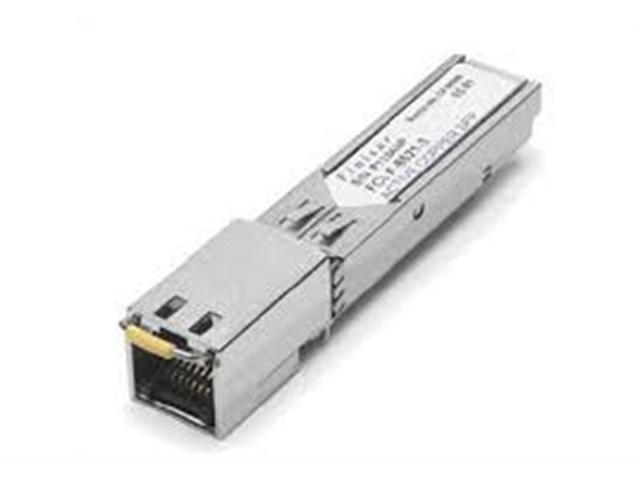

Finisars FCLF8522P2BTL 1000BASE-T Copper SmallForm Pluggable (SFP) transceivers is based on the SFP Multi Source Agreement (MSA)1. It iscompatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std802.32. It is RoHS compliant and lead-free per Directive 2002/95/EC3 and Finisar ApplicationNote AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowingaccess to all PHY settings and features. The FCLF8522 shall support both RX_LOS pin for linkindication and 1000BASE-X auto-negotiation.
Lead Free
Yes

EU RoHS Compliant
Yes

Status
ACTIVE
Body Height
8.46 mm

Body Breadth
13.27 mm

Connection Type
SFP CONNECTOR
Terminal Finish
NOT SPECIFIED

Body Length or Diameter
47.7 mm

Operating Temperature-Max
85 Cel
Operating Temperature-Min
-40 Cel

Data Rate (Rx)
1250 Mbps

Data Rate (Tx)
1250 Mbps
Item Dimension (L"xW"xH"):
2.5 x 0.5 x 1

Weight:
1 lb

Warranty Information:
Lifetime

Available Quantity

5

UPC

Does not apply

SKU

mingleFCLF8522P2BTL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Form Factor: SFP28

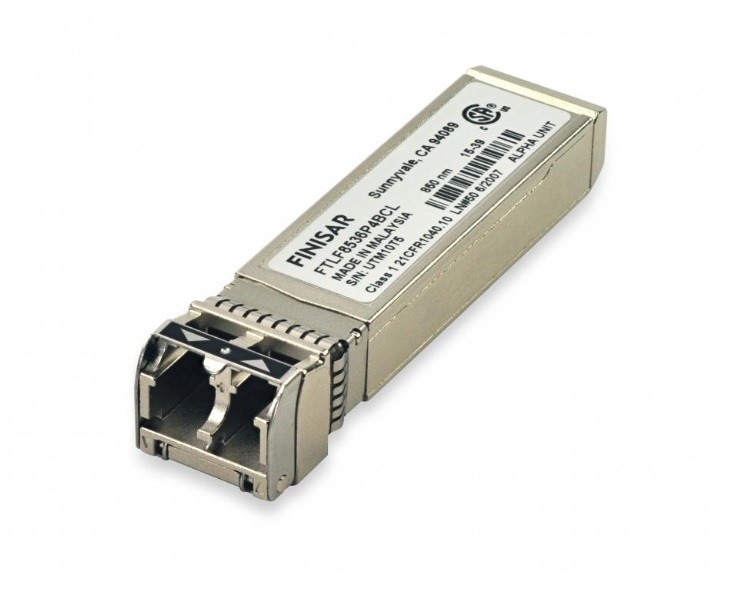

Finisar's FTLF8536P4BCL SFP+ optical transceivers are designed for use in 25 Gb/s data rate over multimode fiber. They are compliant to IEEE 802.3by, SFF-8472 Rev 12.2 and SFF-8402, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.

Key Features

Up to 25.78 Gb/s bi-directional data links

Hot-pluggable SFP+ footprint

Built-in digital diagnostic functions

850nm Oxide VCSEL laser transmitter

Duplex LC connector

RoHS compliant

100m over M5F MMF (50/125 m OM4)

70m over M5E MMF (50/125 m OM3)

20m on MMF (50/125 m OM2)

Metal enclosure, for lower EMI

1.2W maximum power consumption

Single 3.3V power supply

Operating temperature range: 0 C to 70 C
Distance:
100 m
Data Rate (max):
25.78 Gb/s
Protocol:
25G Ethernet Compliant
Low End Case Temperature (^oC):
0
High End Case Temperature (^oC):
70
Diagnostics:
Digital
Transmitter:
VCSEL
Receiver:
PIN
Voltage Supply:
3.3
Connector:
LC
Wavelength:
850nm Band
Item Dimension (L"xW"xH")
NA

Weight
1 lb

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleFTLF8536P4BCL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

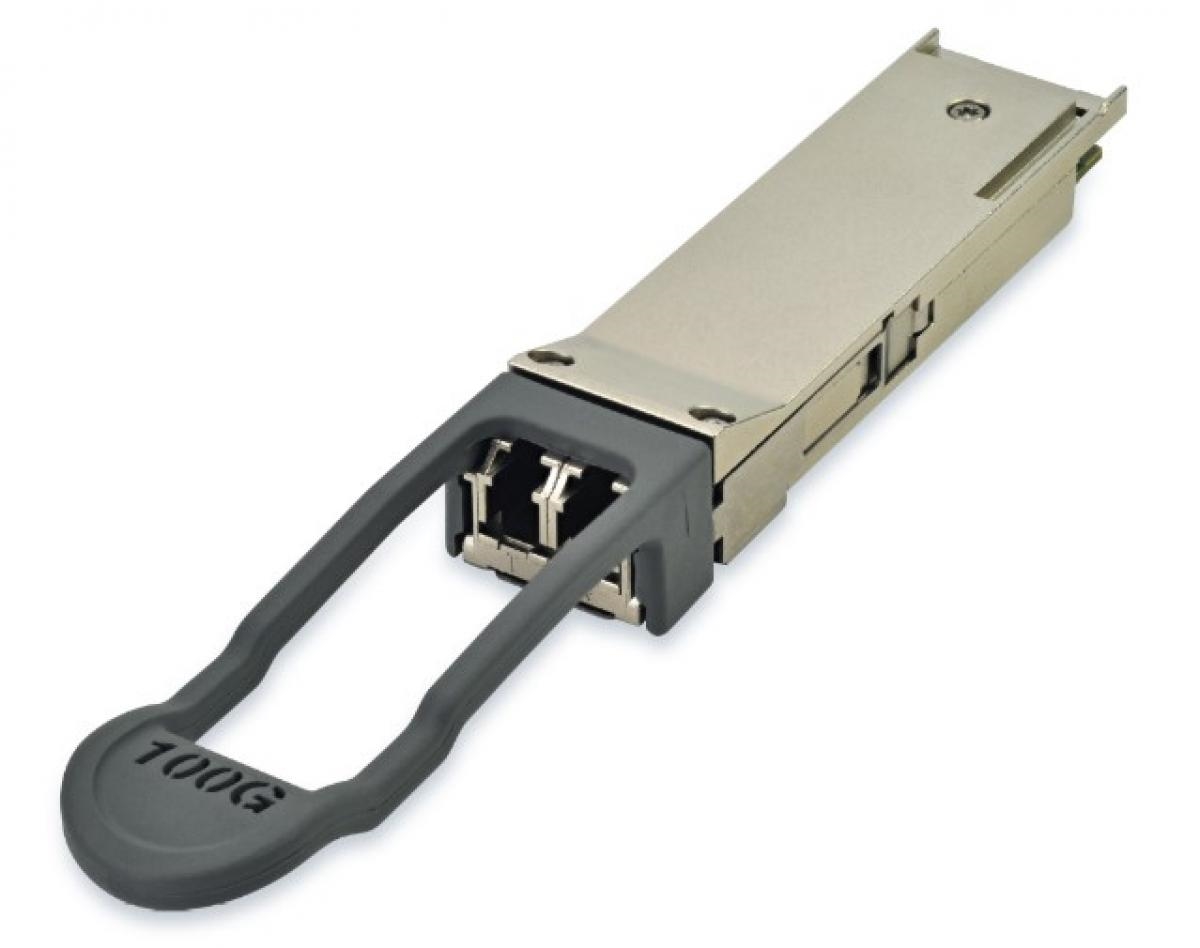

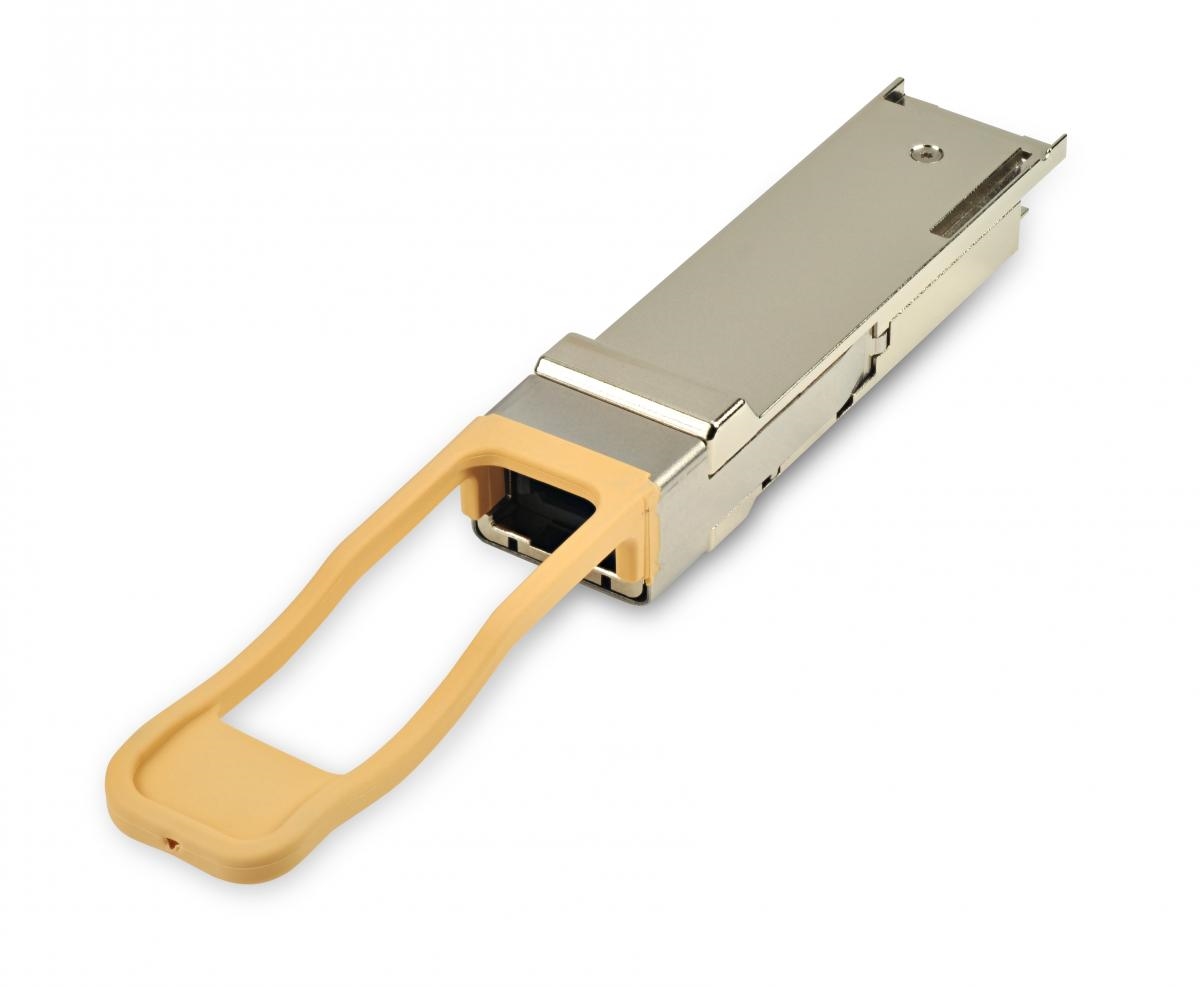

Form Factor: QSFP28

FTLC9152RGPL 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Note AN-2171. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

If you require a longer-reach 100G SWDM4 solution, contact us about our FTLC9154RGPL transceiver.

Hot-pluggable QSFP28 form factor

Supports 103.1Gb/s aggregate bit rate

Power dissipation <3.5W

RoHS compliant

Commercial case temperature range of 0 C to 70 C

Single 3.3V power supply

Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)

4x25Gb/s 850nm VCSEL-based transmitter

4x25G CAUI-4 electrical interface

Duplex LC receptacles

I2C management interface
Distance:
100 m
Data Rate (max):
103.1 Gb/s
Protocol:
100G Ethernet Compliant
Low End Case Temperature (^oC):
0
High End Case Temperature ((^oC):
70
Diagnostics:
Digital
Transmitter:
4x SWDM VCSEL
Receiver:
PIN
Voltage Supply:
3.3
Connector:
LC
Wavelength:
850nm Band
Item Dimension (L"xW"xH")
NA

Weight
1 lb

Warranty Information
NA

Available Quantity

5

UPC

Does not apply

SKU

mingleFTLC9152RGPL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

PRODUCT FEATURES

Hot-pluggable SFP+ footprint

Supports 9.95 to 10.5 Gb/s bit rates

Power dissipation < 1W

RoHS-6 compliant (lead-free)

Commercial temperature range -5 C to 70 C

Single 3.3V power supply

Maximum link length of 10km

Uncooled 1310nm DFB laser

Limiting electrical interface receiver.

Duplex LC connector

Built-in digital diagnostic functions

APPLICATIONS

10GBASE-LR/LW 10G Ethernet

1200-SM-LL-L 10G Fibre Channel

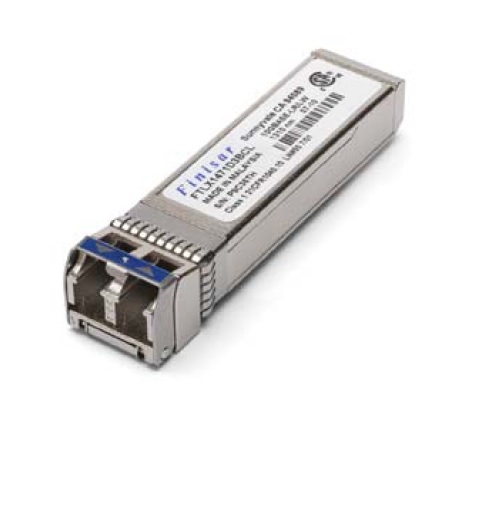

Finisar s FTLX1475D3BCL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311, SFF-84322 and IEEE 802.3ae 10GBASELR/ LW3, and 10G Fibre Channel 1200-SM-LL-L4. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-84725. The FTLX1475D3BCL employs a limiting receiver.
Item Dimension (L"xW"xH")
NA

Weight
0.50 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleFTLX1475D3BCL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

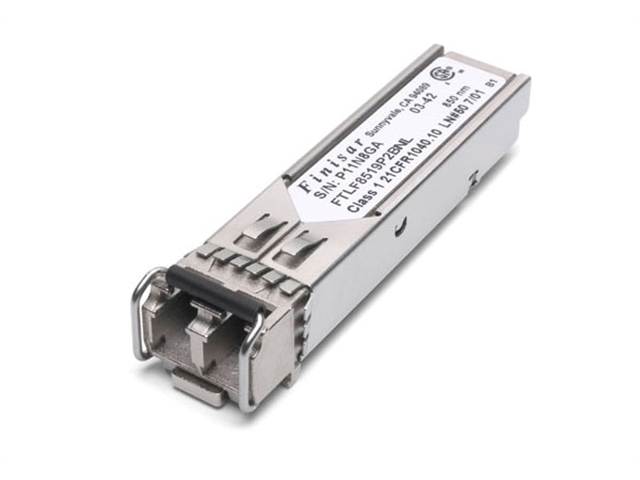

Finisars FTLF8519P3BNL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. They are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
Form Factor
SFP

Distance
500 m

Protocol
Optical Gigabit Ethernet Compliant
1 Gb/s Fibre Channel Compliant
2 Gb/s Fibre Channel Compliant
Data Rate (max)
2.125 Gb/s

Diagnostics
Digital

Transmitter
VCSEL

Receiver
PIN

Voltage Supply
3.3

Connector
LC
Weight:
.0.07 lb

Warranty Information:
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleFTLF8519P3BNL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Four-channel full-duplex transceiver module

Hot-pluggable QSFP+ form factor

Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF

Multirate capability: 1.06Gb/s to 10.5Gb/s per channel

Unretimed XLPPI electrical interface

Maximum power dissipation < 1W

Reliable VCSEL array technology

Built-in digital diagnostic functions, including optical power monitoring

Commercial temperature range 0 C to 70 C

Single 1x12 MPO receptacle

RoHS compliant
Distance:
150 m
Data Rate (max):
41.2 Gb/s
Protocol:
10x Fibre Channel Compatible ,40G Ethernet Compliant ,IB QDR Compatible
Low End Case Temperature (^oC):
0
High End Case Temperature (^oC):
70
Diagnostics:
N/A
Transmitter:
4x VCSEL
Receiver:
PIN
Voltage Supply:
3.3
Connector:
MPO
Wavelength:
850nm Band
Item Dimension (L"xW"xH")
NA

Weight
0.5 lbs

Warranty Information
1 year

Available Quantity

5

UPC

Does not apply

SKU

mingleFTL410QE4C

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

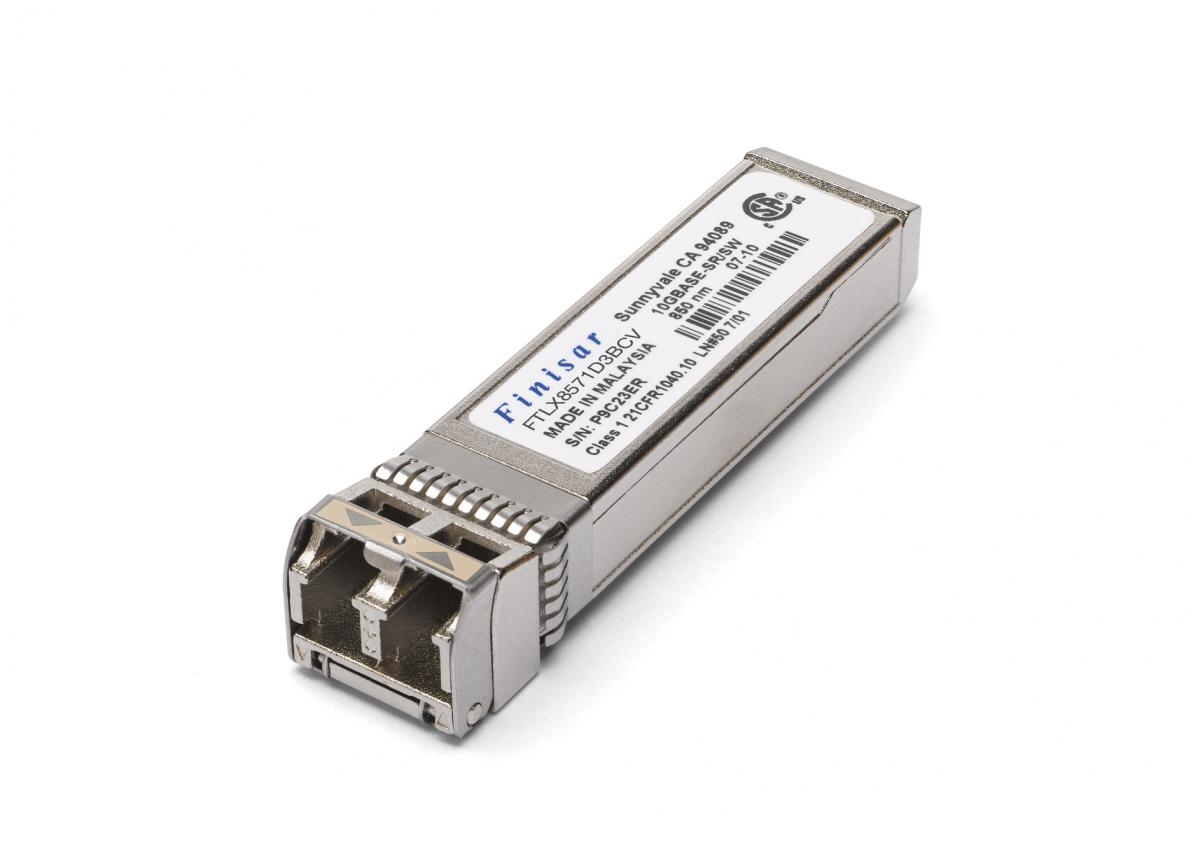

Finisar's FTLX8574D3BCV 1G/10G Dual-Rate SFP+ optical transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, IEEE 802.3-2012 10GBASE-SR/SW and 1000BASE-SX. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX8574D3BCV is a "limiting module", i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperability with an SFP+ limiting module. This product is for applications specifically designed for 10G SFP+ ports and 1G/10GSFP+ ports and not native 1G SFP ports. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
Distance
400m
Data Rate (max)
10.3 Gb/s
Protocol
Optical Gigabit Ethernet Compliant ,10 Gigabit Ethernet Compliant ,Wireless CPRI Compliant
Low End Case Temperature
0 degree Celsius
High End Case Temperature
70 degree Celsius
Diagnostics
Digital
Transmitter
VCSEL
Receiver
PIN
Voltage Supply
3.3
Connector
LC
Wavelength
850nm Band
Item Dimension (L"xW"xH")
5 x 3 x 1
Weight
1 lb
Warranty Information
1 Year Replacement

Available Quantity

5

UPC

Does not apply

SKU

mingleFTLX8574D3BCV
