Product Description

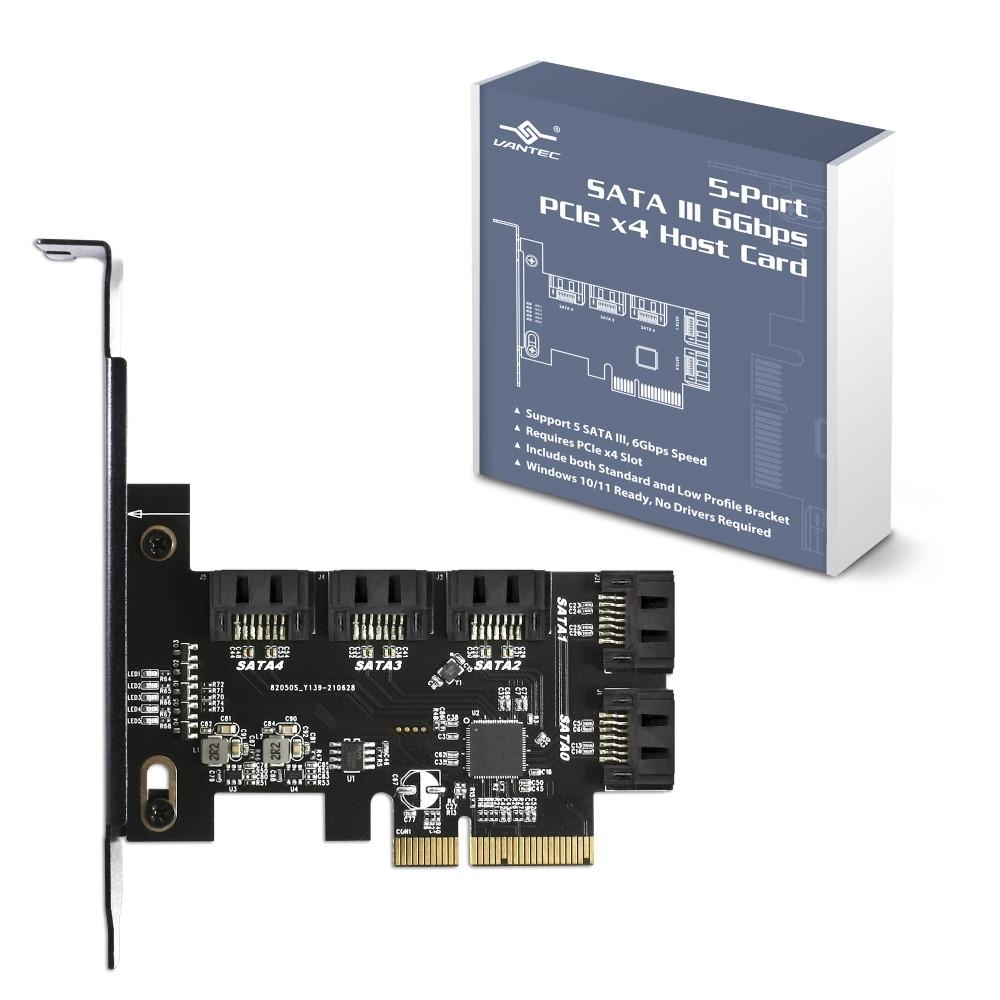

5-Port SATA III 6Gbps PCIe X4 Host Card
UGT-ST655
A PCIe card that give more SATA port.
Support 5 SATA Ports for Read/Write Simultaneously
Support SATA III 6Gbps Transfer Speed
Support SATA III SSD, HDD, Optical Drive
Support PCIe v3.0, requires x4 Slot
Standard and Low Profile Bracket included
Windows 11/10/8/7 Ready, Compatible with Linux, No Drivers Required
SATA cable not included
Optical drive support for data read/write, but not for booting
Highlight
This 5-Ports SATA III 6Gbps PCIe x4 Host card is designed for adding additional SATA III ports to your system. This small card will fit regular and slim or low profile chassis, ideal for any system with a PCIe x4 slot. When installing into Windows 10, not drivers are required, just plug and it is ready to add your drives like SSD, HDD, and Optical Drive. You can use it for HDD, SSD, Optical drive, and more. The wide PCIe path will allow for a fast transfer speed. It is will support your new system with PCIe v3.0.
Note: Optical drive support for data read/write, but not for booting
Model:
UGT-ST655
PCIe Standard Support:
PCIe v3.0
PCIe Slot Support:
PCIe x4/x8/x16
SATA interface:
5 Standard SATA III for SSD, HDD, Optical Drive
Power:
PCIe Bus powered
OS support:
Windows 7/8/8.1/10/11, or Linux
Note: Optical drive support for data read/write, but not for booting
System Requirements:
Available system board PCIe x4 or x8 or x16 slot
OS support like Windows 7/8/8.1/10/11, or Linux
SATA cable(s)
SATA cable not provided
Package Contents:
5-Port SATA III 6Gbps PCIe x4 Host Card
Quick Installation Guide
Standard and Low profile bracket
Country of Origin:
Taiwan
Environmental:
Operating Temperature 0 ^oC to +45^oC
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10^oC to +70^oC
Storage Humidity 5% to 90% RH (no condensation)
Item Dimension (L"xW"xH")
4 x 3 x 1

Weight
1 lb

Warranty Information
1-Year

Available Quantity

5

UPC

844767023632

SKU

mingleUGT-ST655

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

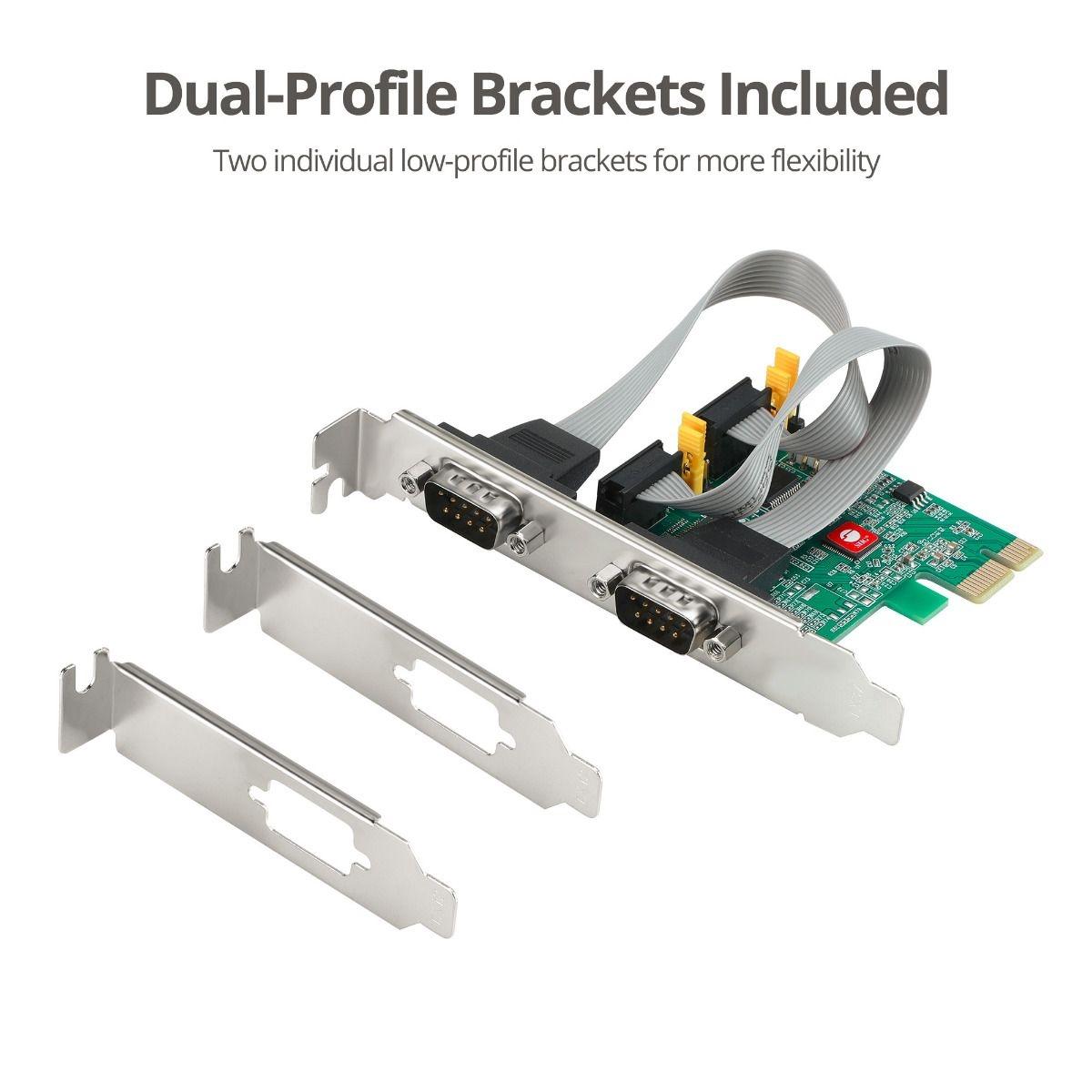

Features

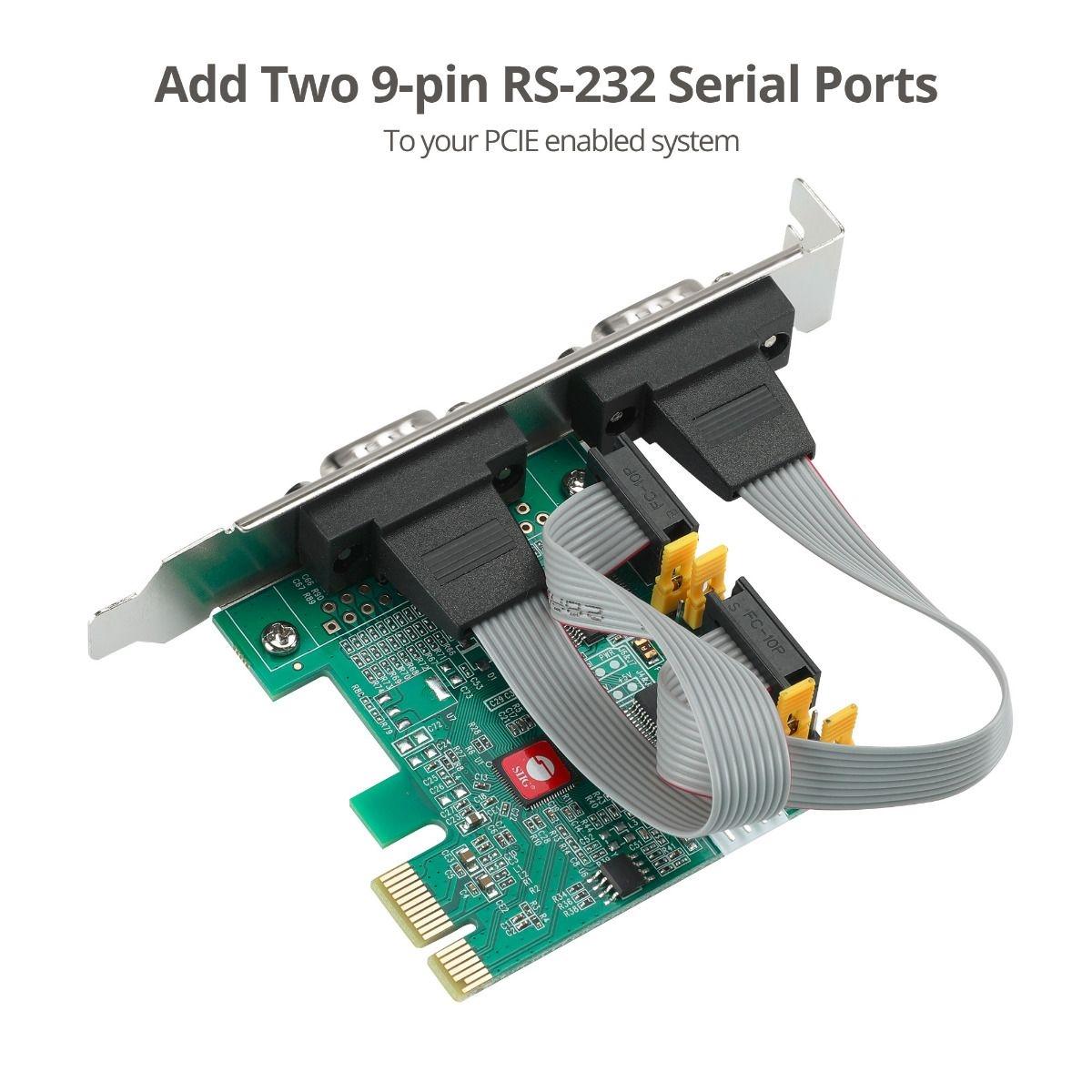

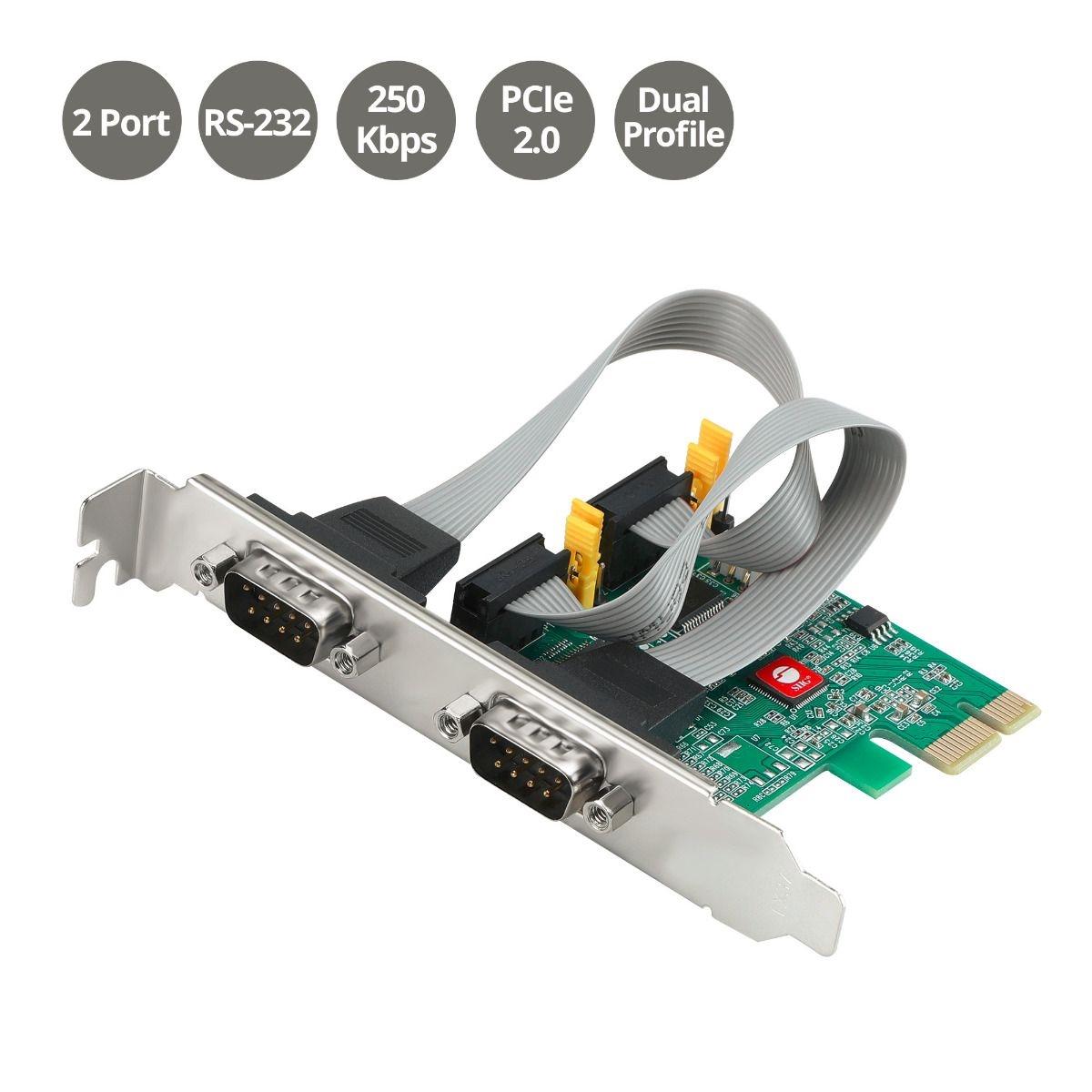

Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers

Two 16C650 UART serial ports support data transfer rate up to 250Kbps

Compliant with PCI Express 2.0 Gen 1

Single-lane (x1) PCI Express End-point Controller with PHY integrated

Full serial modem control with hardware and software flow control

Supports 5, 6, 7, 8 and 9-bit serial formats

Supports Even, Odd, None, Space and Mark parity

On chip 256-byte FIFO buffers in transmit and receive path for each serial port

Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers

Supports PCI Bus Power Management Interface Specification Revision 1.2

Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets

Installs into any PCI Express slot of any lane width

Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
Chipset:
ASIX AX99100
Compliant with PCI Express Base Specification 2.0
Bus type:
One lane (x1) PCI Express
Data transfer rate:
Up to 250Kbps
Flow control:
Hardware and software
Serial format:
5, 6, 7, 8 and 9-bit
On chip 256-byte transmit and receive FIFO buffers for each serial port
Serial power output:
0V / 5V / 12V configured by jumpers
Power consumption:
3W
PCB form factor:
Full and low profile (full height and low profile brackets included)
Color:
Green
Connectors:
2x, 9-pin RS-232 Serial, Male
1x, 4-pin, Molex mini, Power connector
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
China
Item Dimension (L inchxW inchxH inch)
5 x 1 x 3

Weight
1.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774044095

SKU

mingleJJ-E20711-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

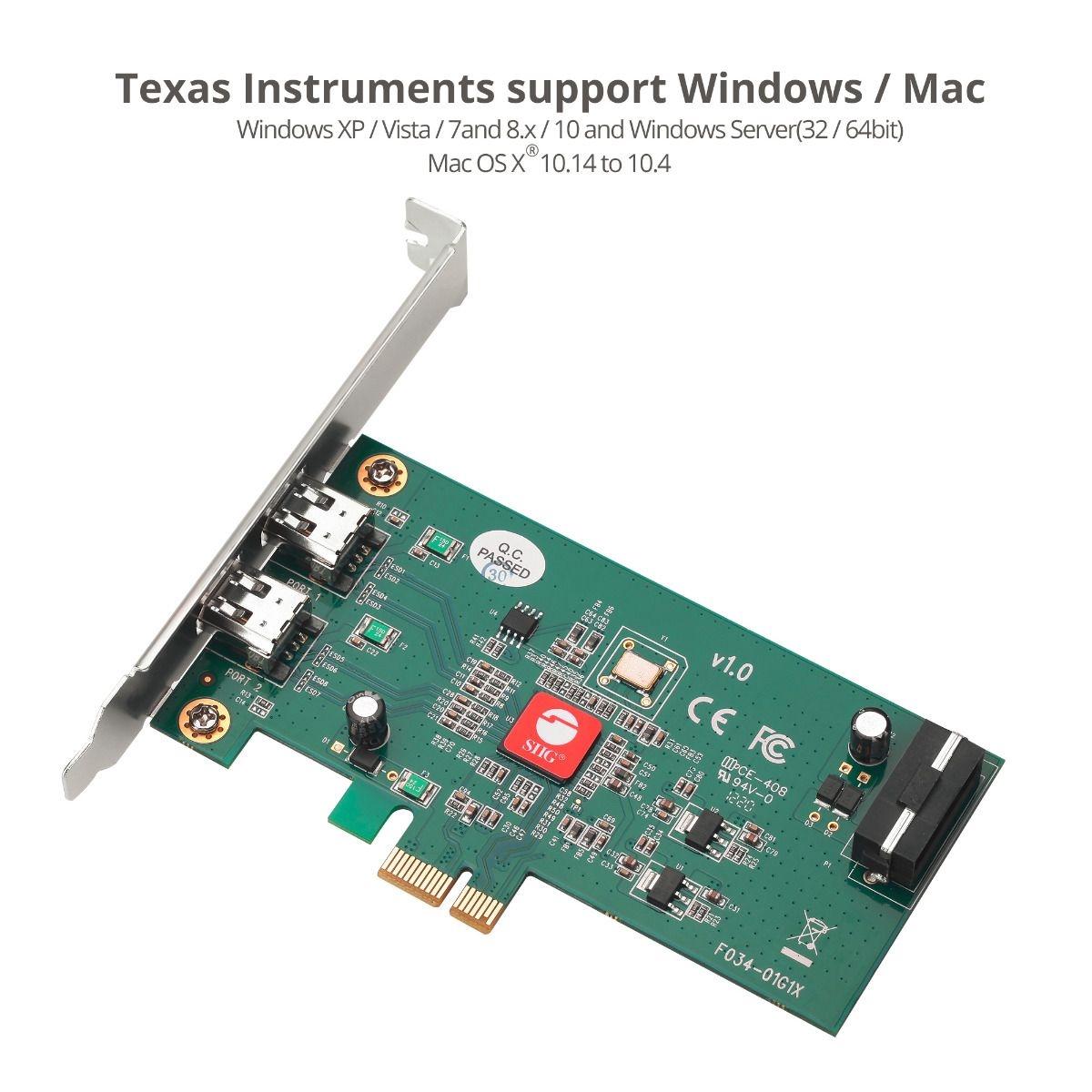

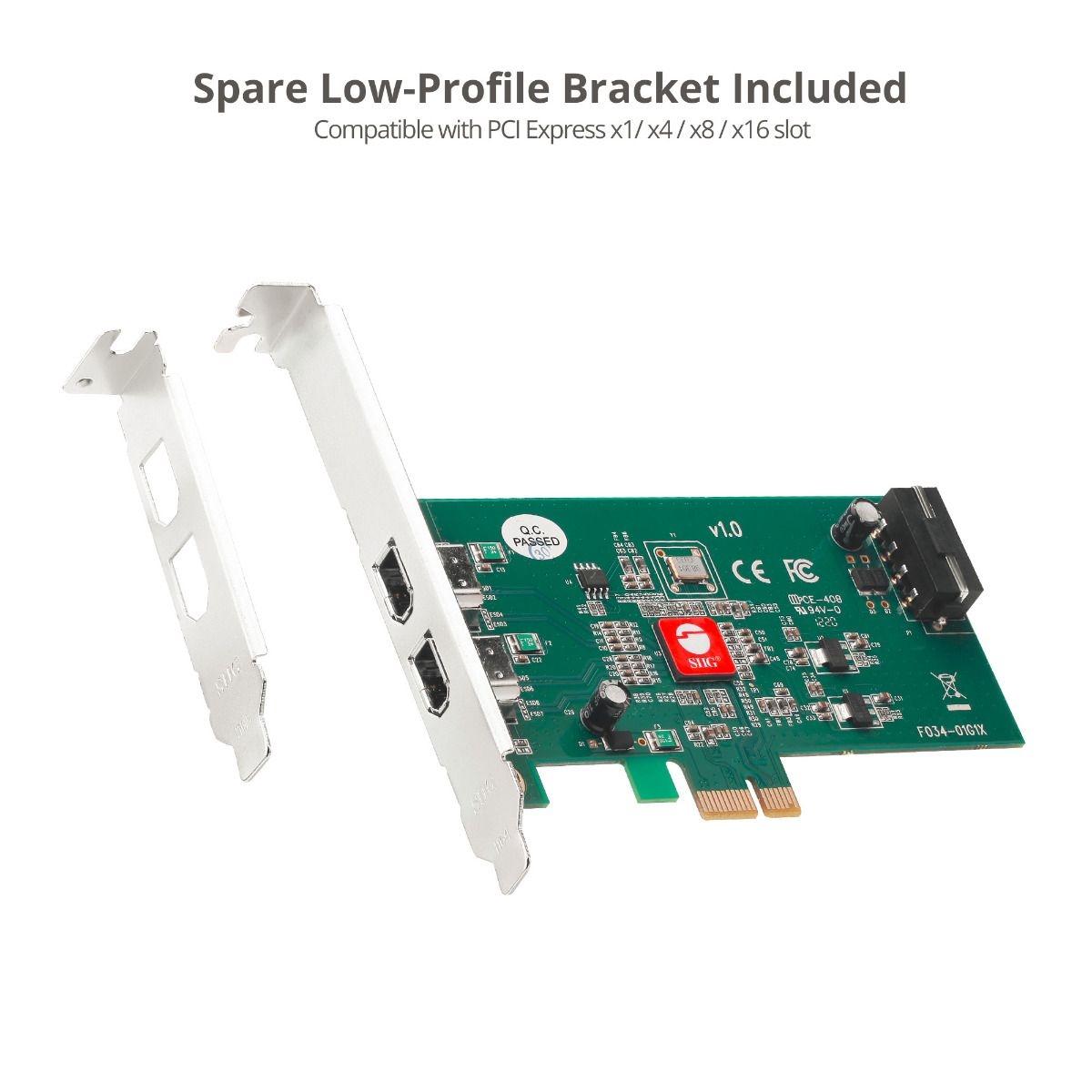

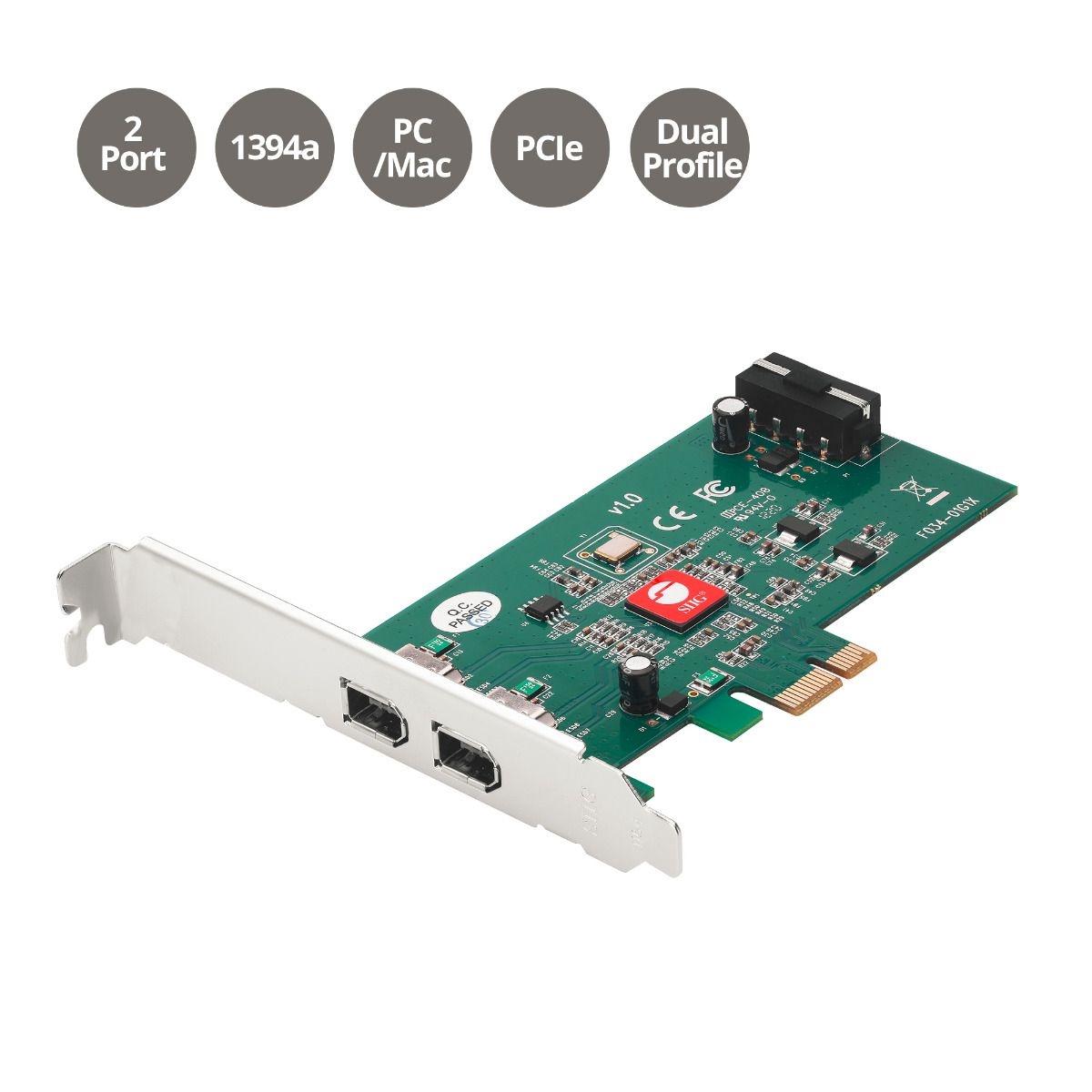

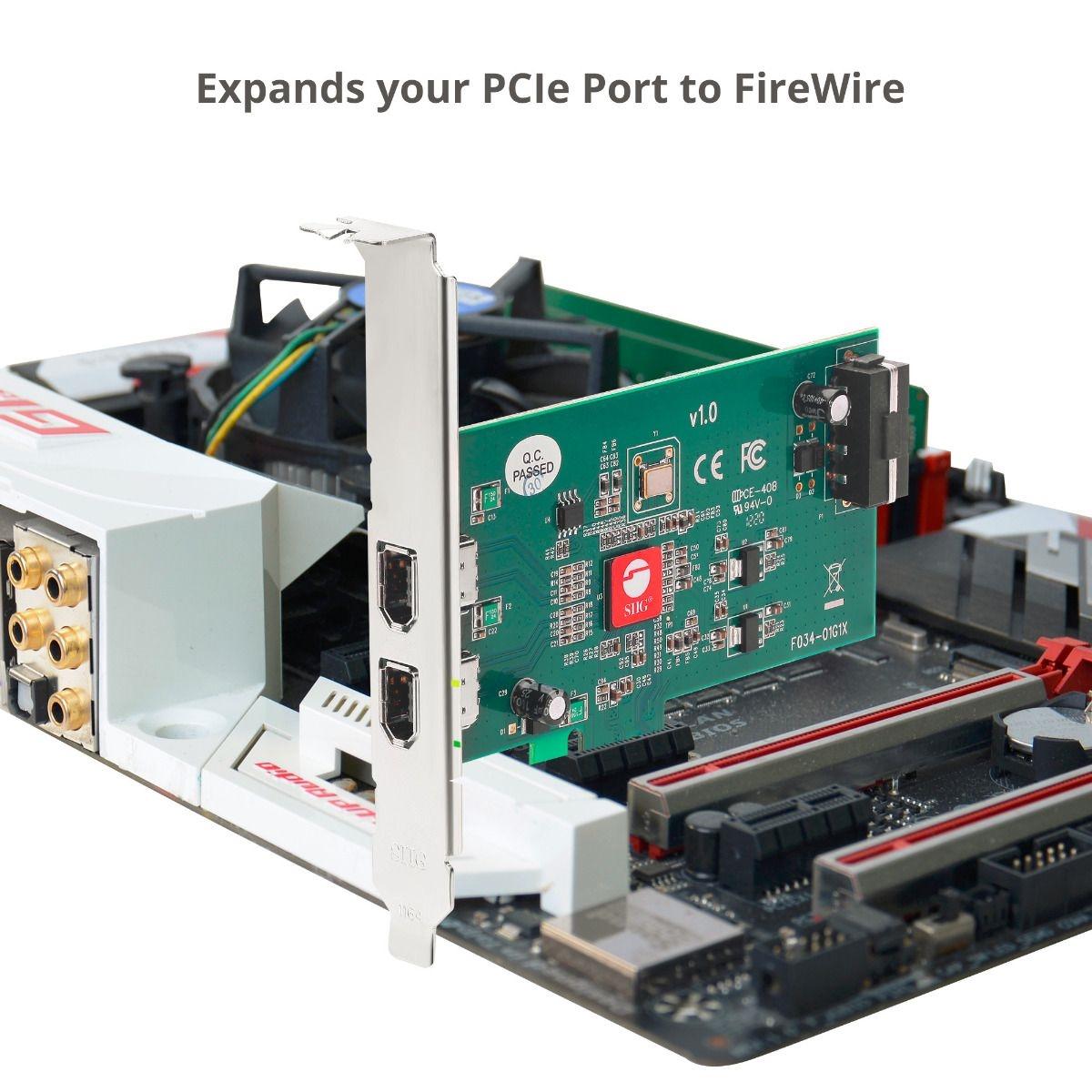

PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots of different lane widths

Installs in any available PCI Express slot

Supports data rates up to 400Mbps

The included standard height and low-profile brackets allow the adapter to be installed into either full-height and low-profile system chassis

Works with FireWire (1394a) devices including DV camcorders, CD-RW/DVD-ROMs, portable hard disk enclosures, digital cameras, and many other audio/video devices

Plug-and-play installation no driver installation is required
Specifications
Chipset:
TI XIO2213BZAY
Bus type:
PCI Express x1
Compliant with PCI Express Base Specification Revision 1.0a
Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
Port type:
Two, 6-pin, External, FireWire 400 (1394a), Female
Power output:
12V/1A (per port), Onboard power connector optional
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Supports Firewire serial bus data transfer rates of 100, 200 and 400Mb/sec and supports up to 63 devices
Onboard power connector is included to provide reliable power source
Product:
Color:
Green
Environmental conditions:
Operating temperature:
32 to 122 degrees F
Storage temperature:
-4 to 140 degrees F
Relative humidity:
10 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
System Requirements
PCI Express enabled PC or Mac computer with an available PCI Express slot
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 and 2008 (32-/64-bit) / Server 2008 R2 / 2000
Mac OS X 10.4 to 10.15
Package contents
DP Firewire 2-Port PCIe
Spare low-profile bracket
Y-split power cable
User reference guide
Item Dimension (L inchxW inchxH inch)
5 x 1 x 6

Weight
1.00lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774043784

SKU

mingleNN-E20211-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width. Installs in any available PCI Express slot and supports data rates up to 800Mbps. Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices. Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing.
Regulatory approval(s) - FCC Class B (DoC) CE
RoHS compliant
Chipset - Texas Instruments
Bus type - PCI Express x1
Port type - Two 9-pin and one 6-pin external FireWire ports
Compliant with PCI Express Base Specification Revision 1.0a
Supports IEEE P1394b and backwards compatible with 1394a-2000 and 1394-1995 standards
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Supports serial bus data transfer rates of 100, 200, 400 and 800 Mb/sec and supports up to 63 devices
Onboard power connector to provide reliable power source
Weight - 1.45lbs

Available Quantity

5

UPC

662774005614

SKU

mingleNN-FW0012-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

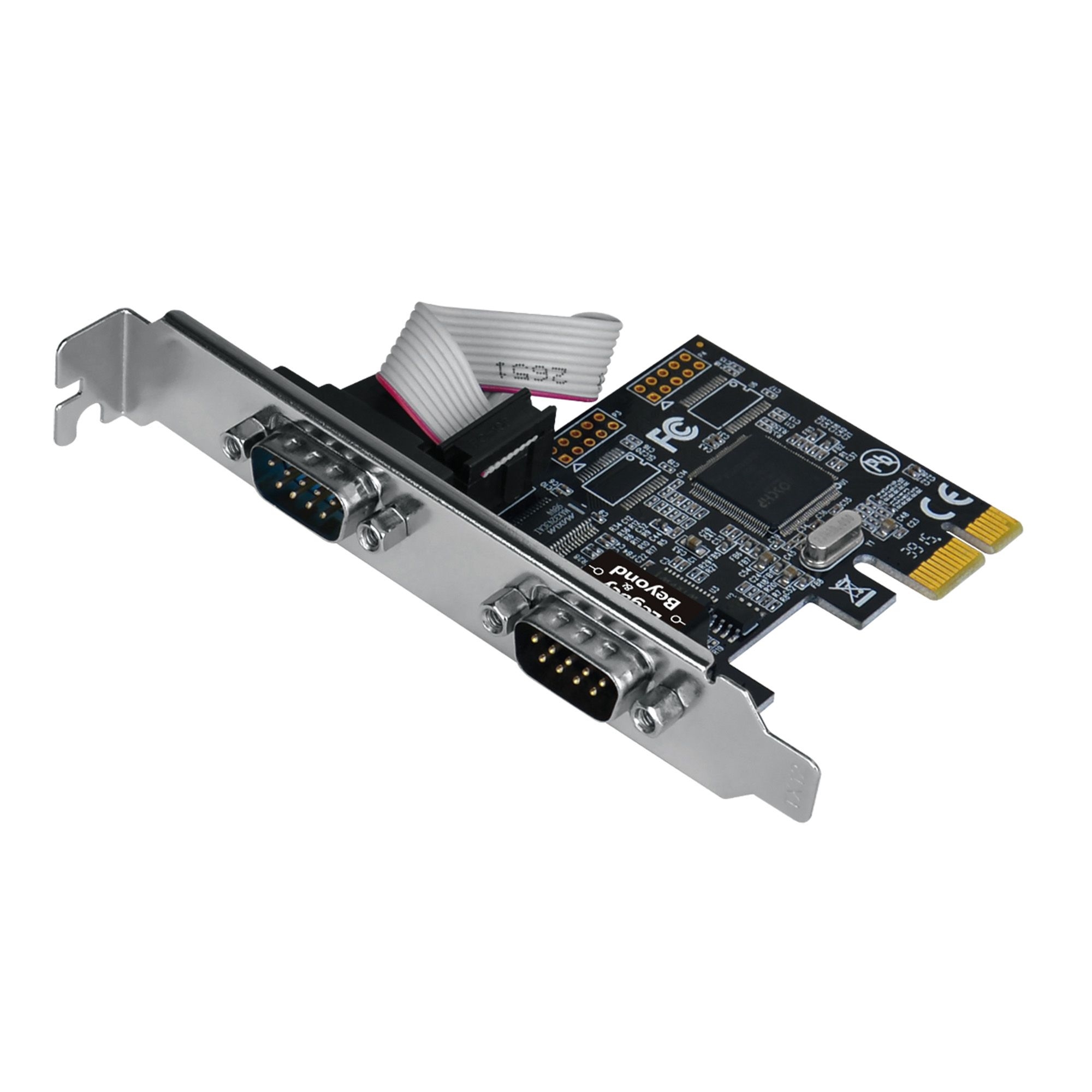

Features

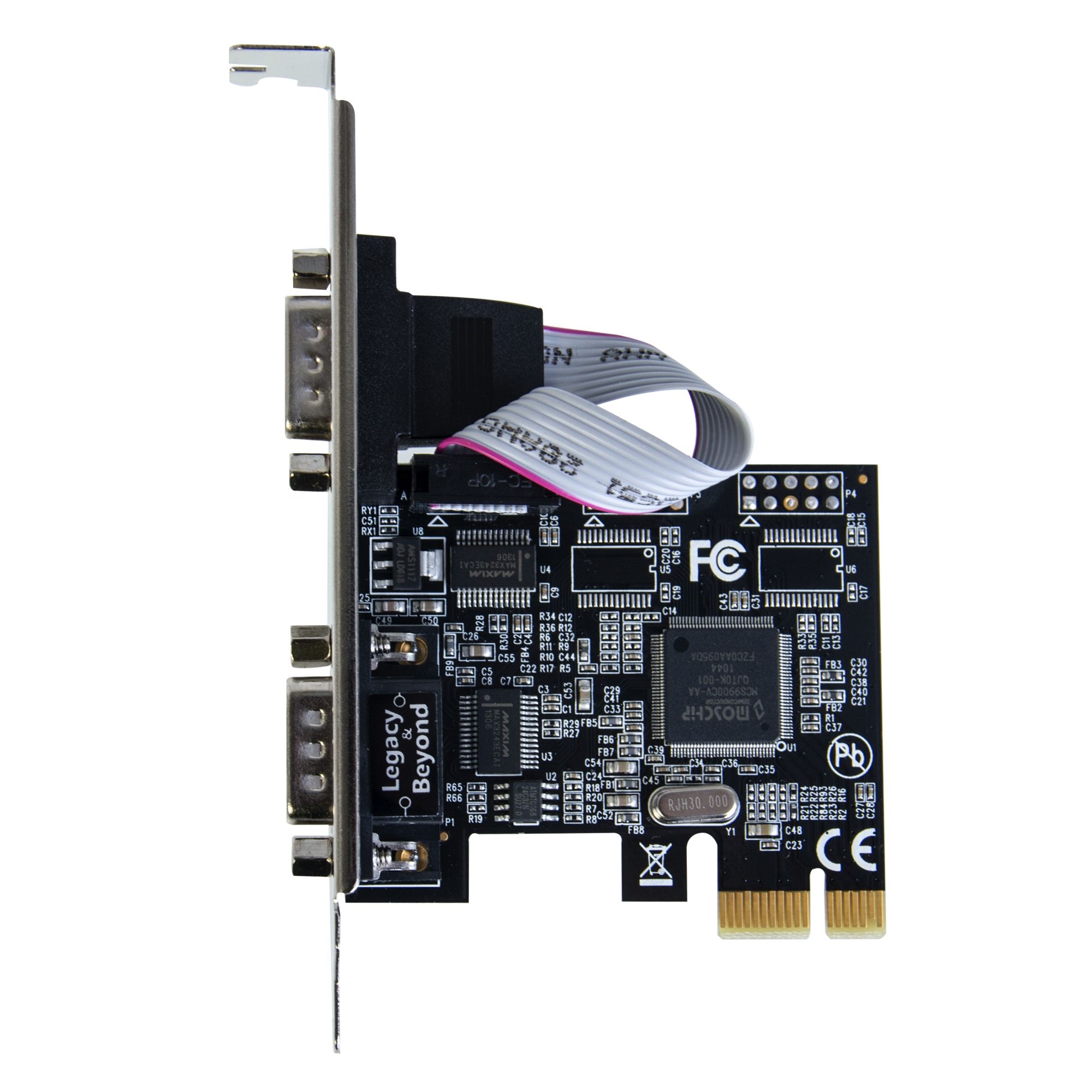

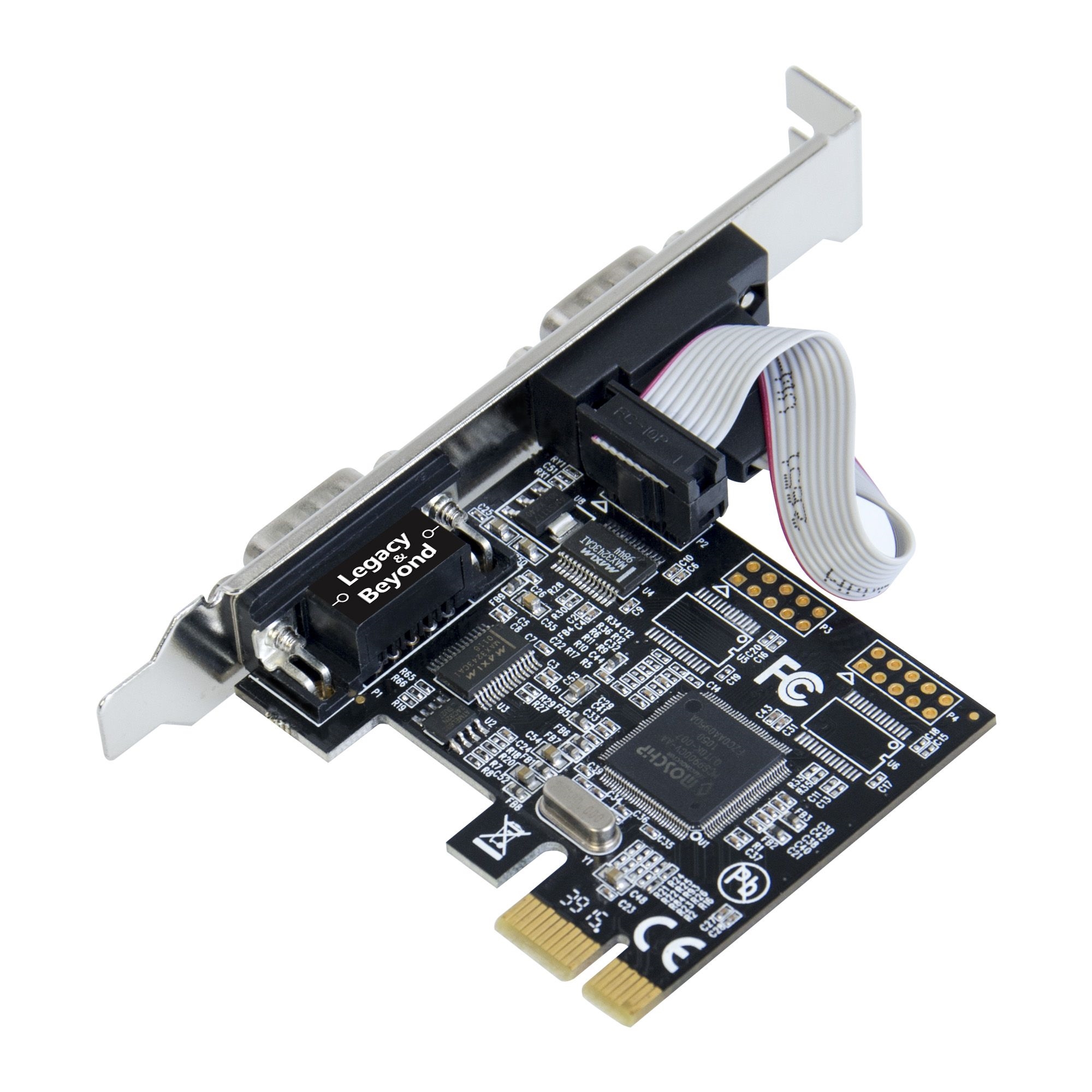

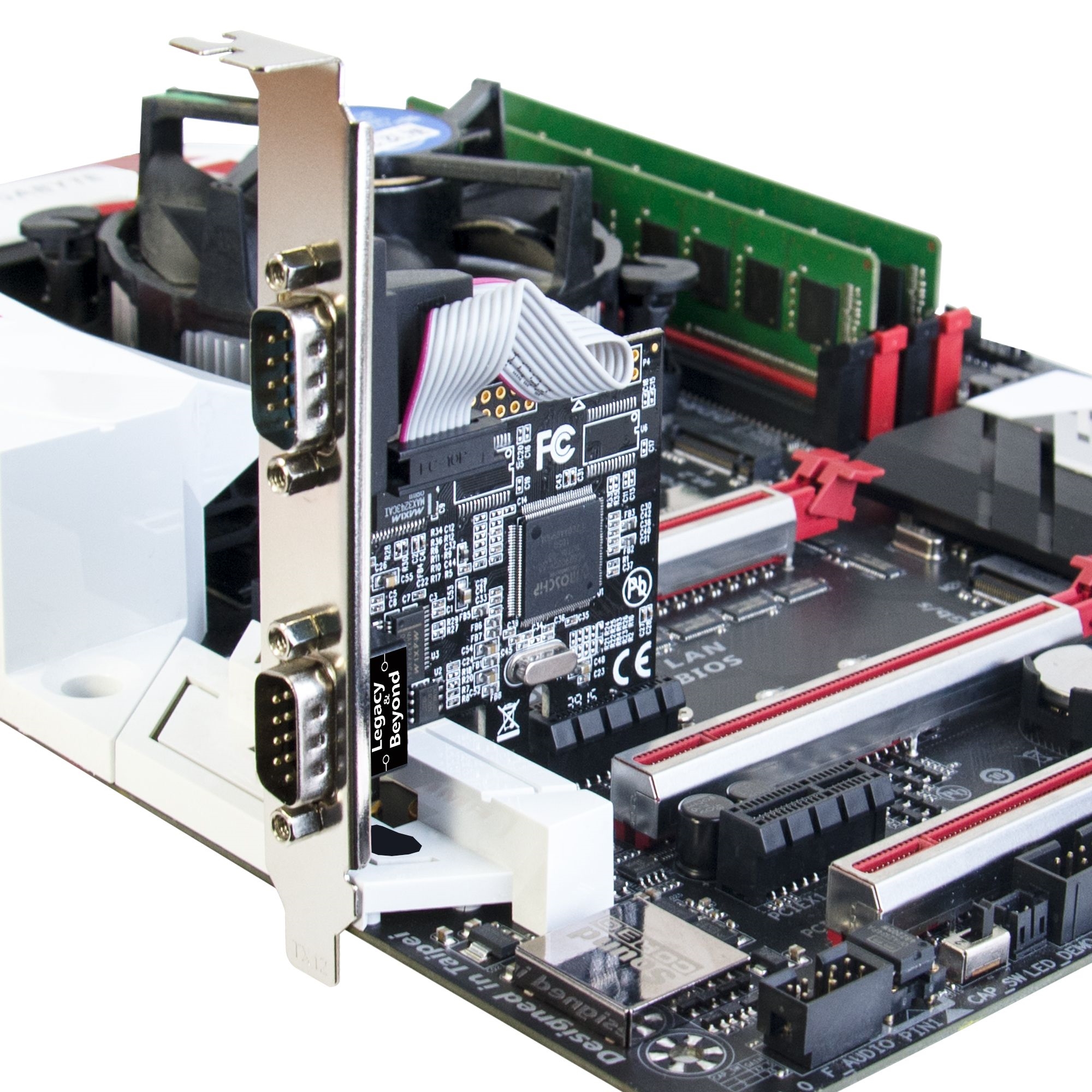

Quickly adds two serial ports through an available PCI Express slot

Supports serial port data transfer rates up to 115.2 Kbps, compatible with 16C550 UART

256-byte depth FIFO buffer supports fast data transfer especially in a multitasking environment

Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, etc.

Compatibility Notes:

The chipset uses 30MHz crystal, it is not compatible with 25MHz crystal
Chipset:
ASIX/MosChip MCS9900CV-AA
Bus connector:
PCI Express x1
Version:
PCI Express 1.1
Baud rate:
Up to 115.2 Kbps
FIFO:
256 Bytes
UART:
16C550
Connectors:
2 x 9-pin RS-232, Male
Product:
Color: Black
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
5 x 1 x 4
Weight
1.00 LB
Warranty Information
1 Year

Available Quantity

5

UPC

662774040110

SKU

mingleLB-S00014-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

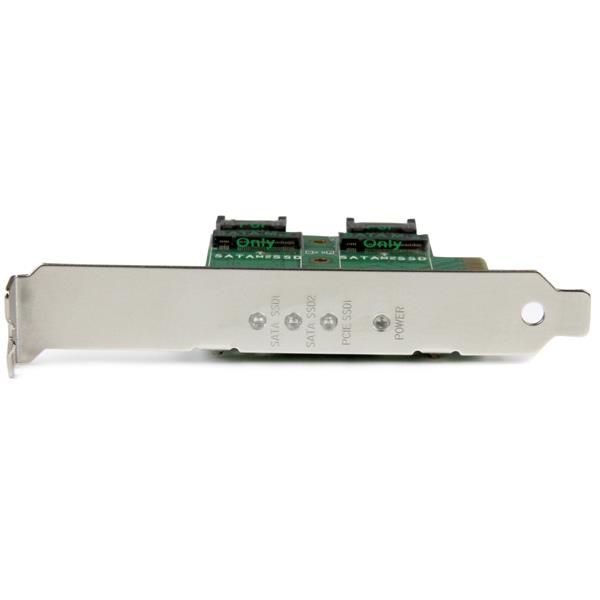

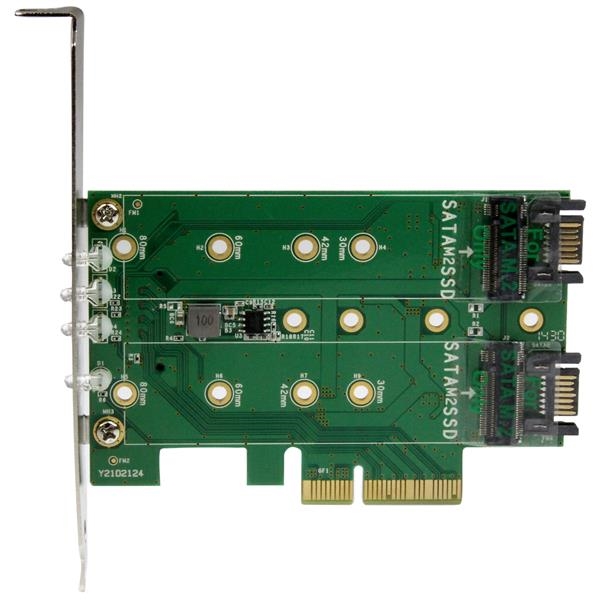

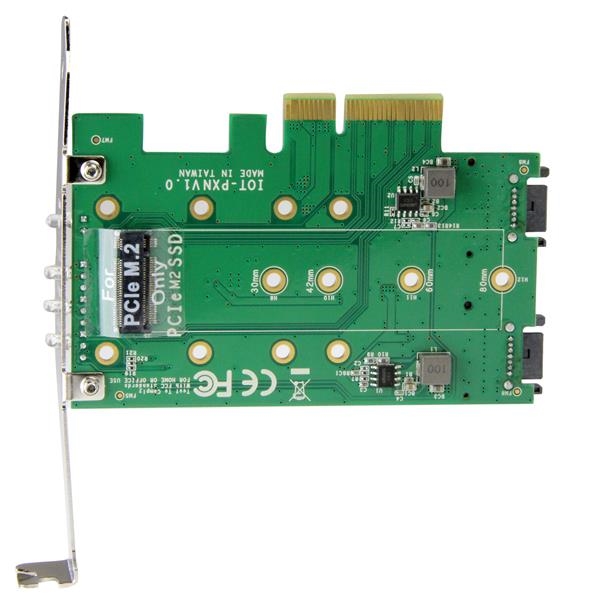

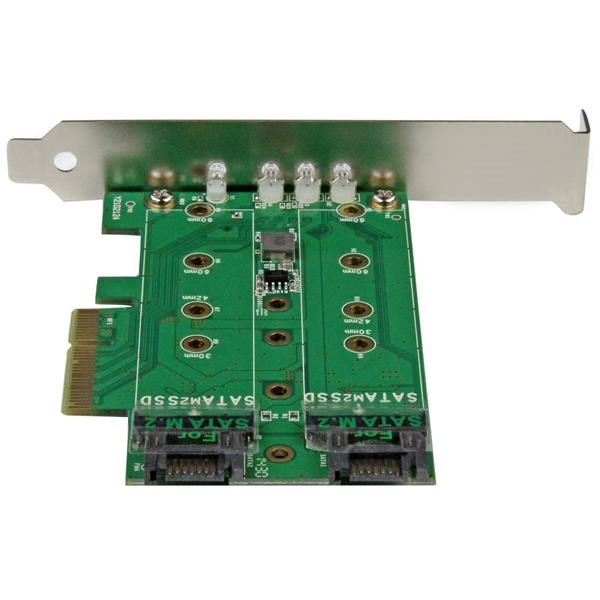

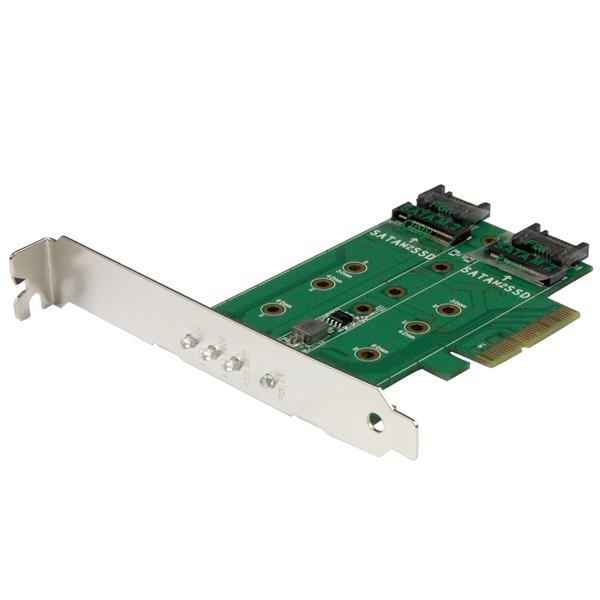

This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). Its a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.

Increase the storage of your desktop PC
If you need a simple and discreet way to expand your computers storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.

Optimize your computers performance
When you couple this card with a PCI Express based M.2 drive, you can give your computers performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.

Peace of mind, with simple and cost-effective data recovery
Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.
Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express 3.0
Interface
M.2 SATA (NGFF)
SATA
M.2 PCIe (NVMe)
Port Style
Integrated on Card
Ports
3
Performance
ATAPI Support
Yes
Bootable
Yes
MTBF
50,000 Hours
Port Multiplier
No
RAID
No
Type and Rate
SATA III (6 Gbps)
Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
Internal Ports
3 - M.2 (NGFF, B-Key) Receptacle
2 - SATA (7 pin Data) Plug
Software
OS Compatibility
OS Independent No additional drivers or software required
Note: When installed in a compatible operating system, the card is natively supported and doesnt require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express).
Special Notes / Requirements

Available Quantity

5

UPC

065030865708

SKU

minglePEXM2SAT32N1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

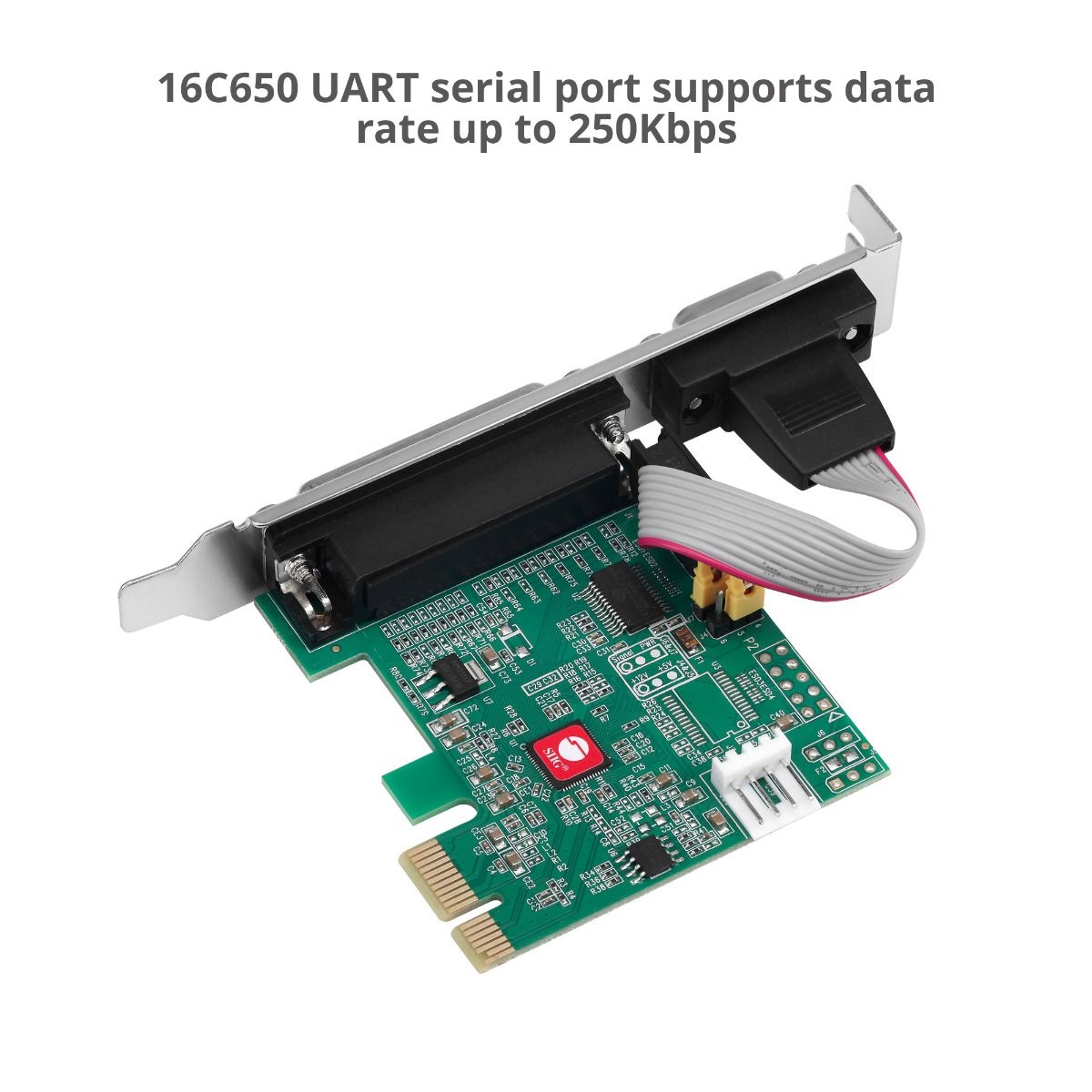

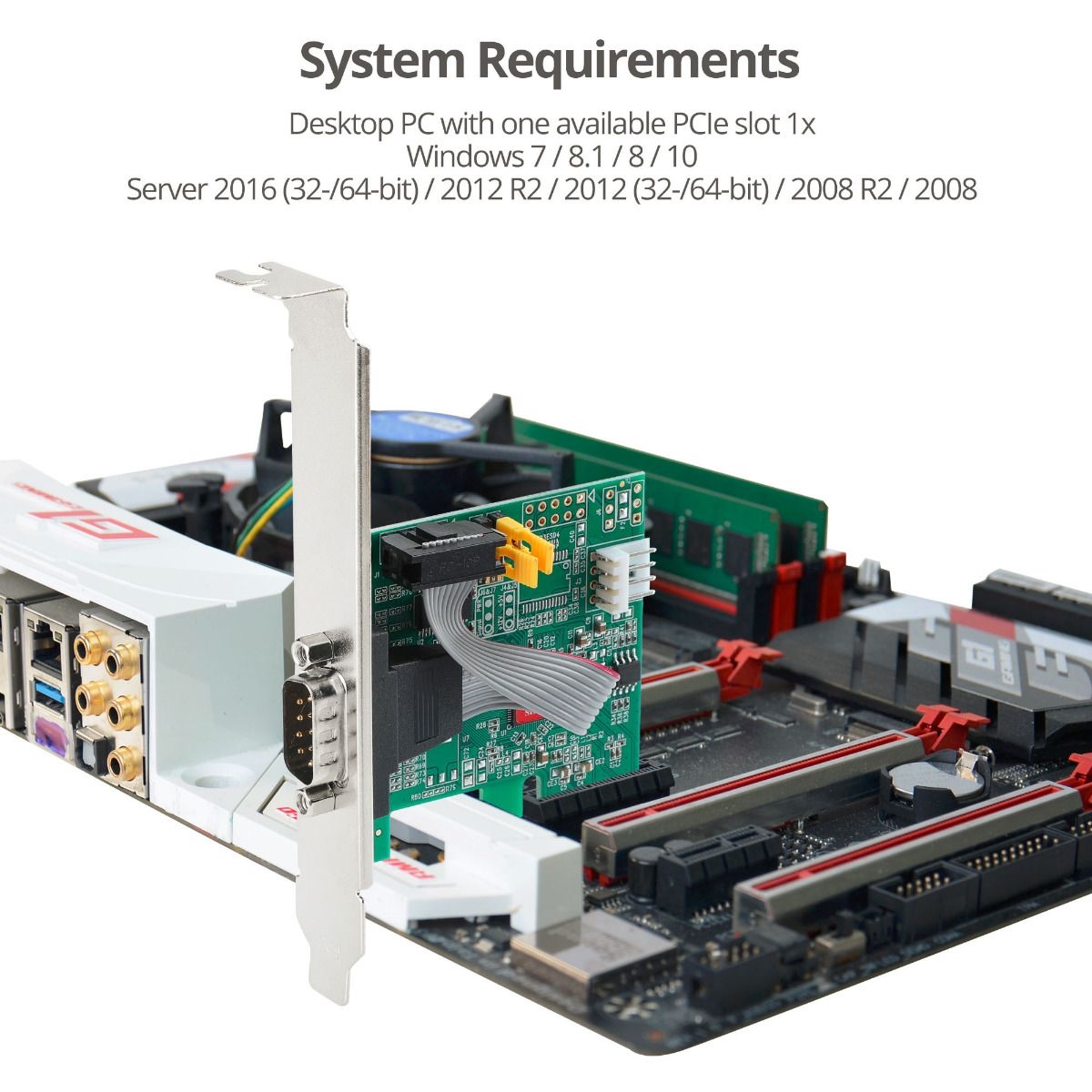

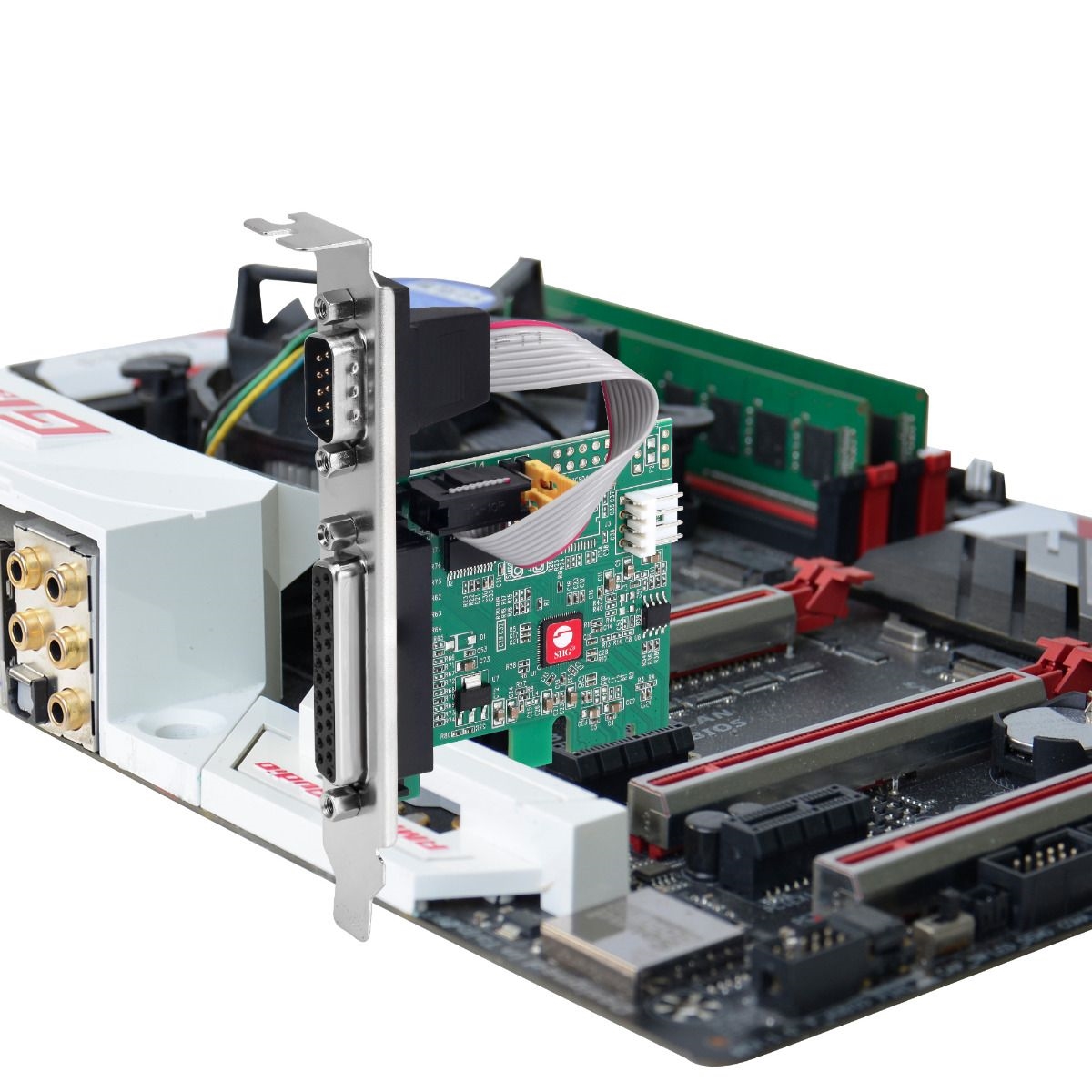

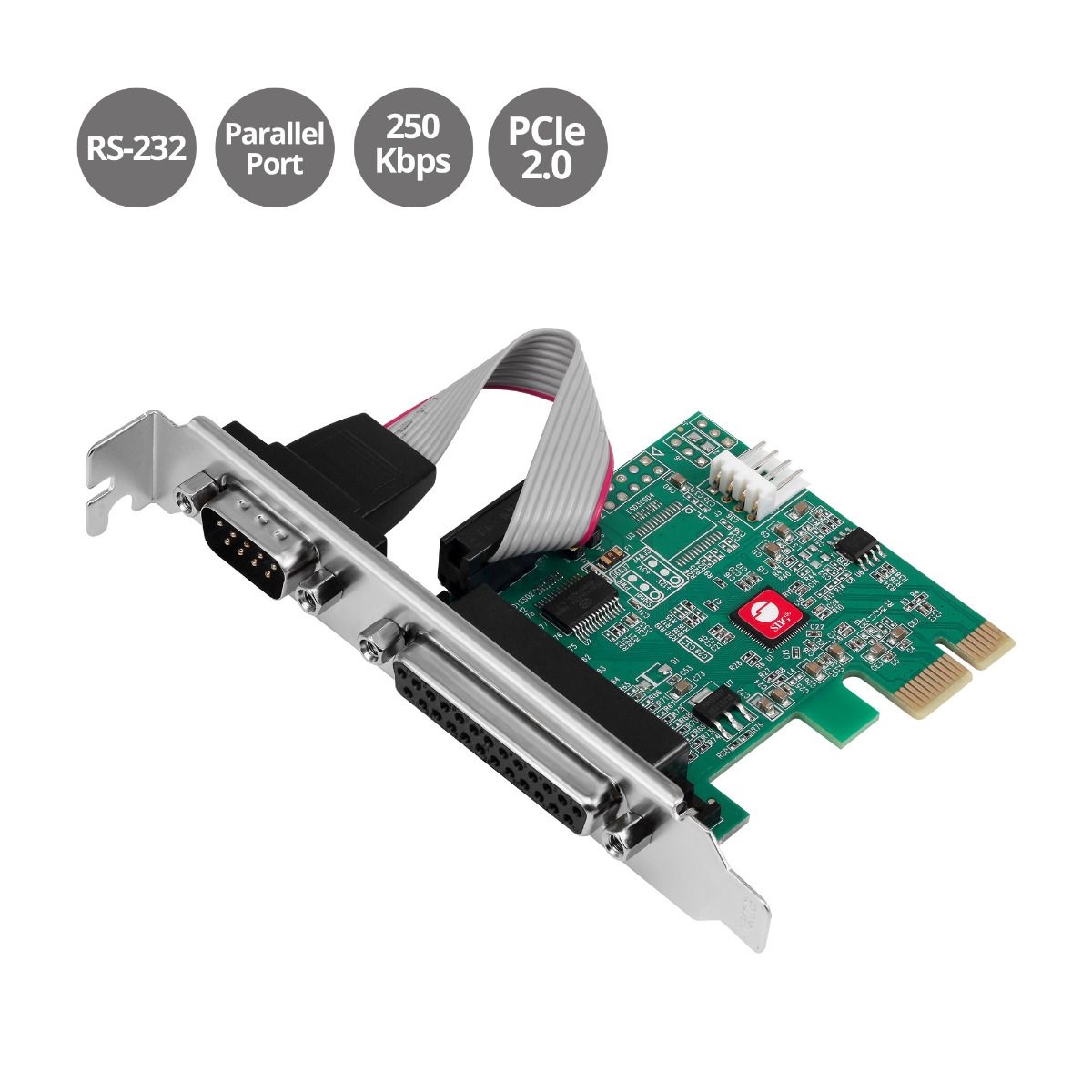

oEasily adds one serial port and one parallel port through an available PCI Express slot

o16C650 UART serial port with data transfer rate up to 250Kbps

oCompliant with PCI Express 2.0 Gen 1

oCompatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode

oSingle-lane (X1) PCI Express end-point controller with PHY integrated

oFull serial modem control

oHardware and software flow control

o5, 6, 7, 8 and 9-bit serial format

oEven, odd, none, space and mark parity

oOn chip 256 byte FIFO buffers in transmit, receive path

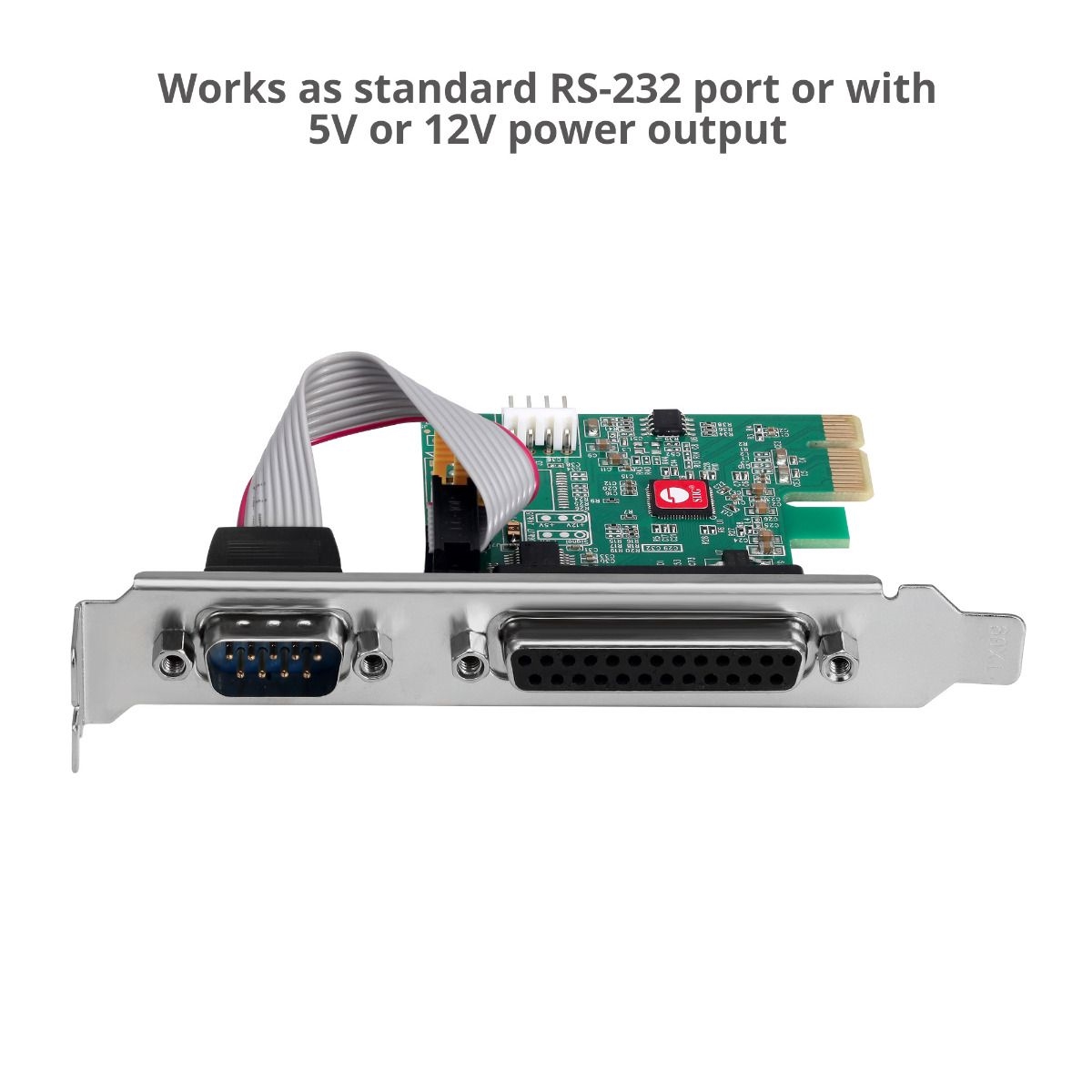

oWorks as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers

oSupports PCI bus Power Management Interface Specification Revision 1.2

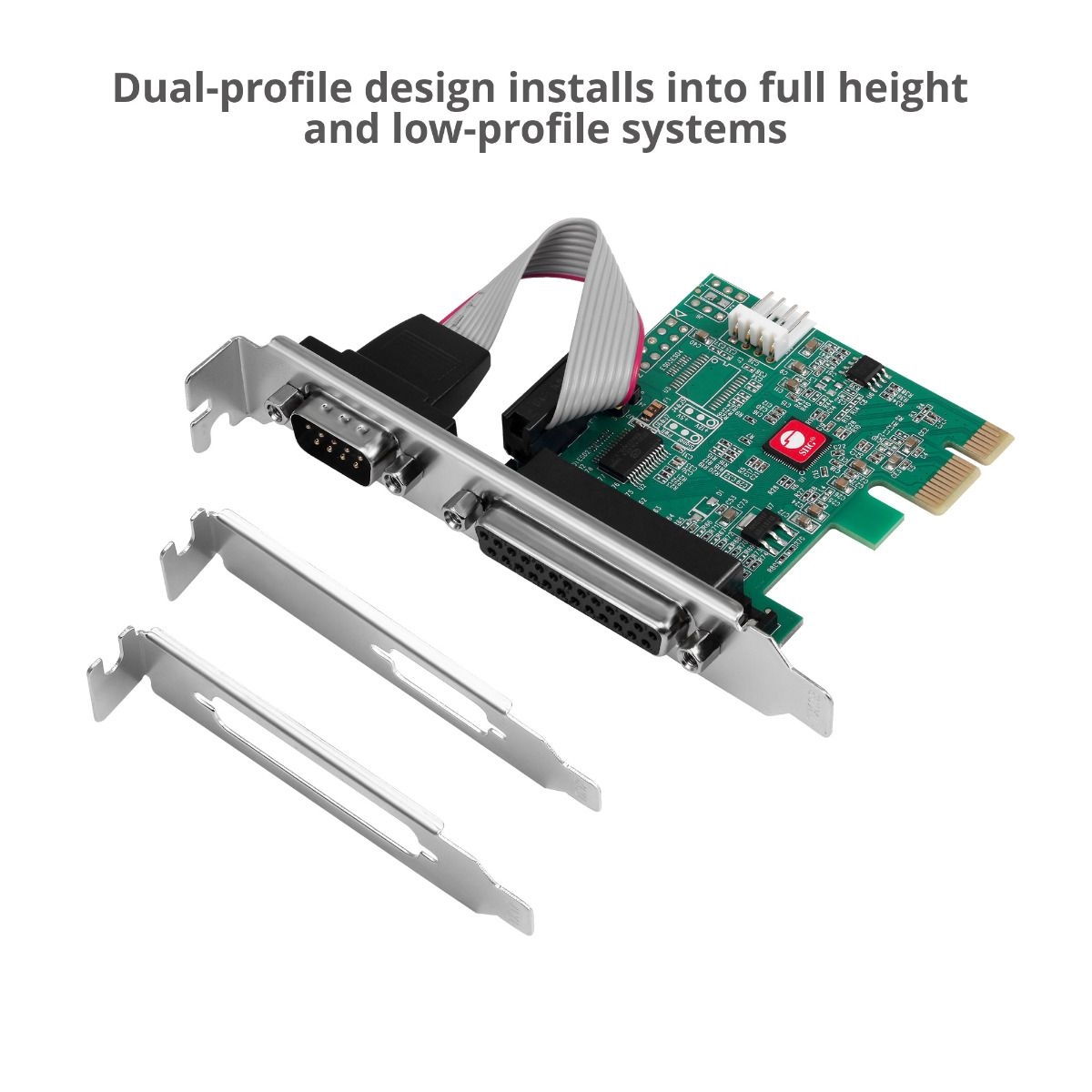

oDual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets

oPerfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.
Chipset:
ASIX AX99100
Compliant with PCI Express Base Specification 2.0
Compliant with PCIe Bus Power Management Interface Revision 1.2
Data transfer rate:
Serial port: Up to 250Kbps
Parallel port: Up to 1.5Mbps
Flow control:
Hardware and software
Serial format:
5, 6, 7, 8 and 9-bit
Parity:
Even, Odd, None, Space, and Mark
On chip 256 Byte FIFO buffer (Transmit, Receive)
Serial power output: 0V / 5V / 12V by Jumper.
Note: Y-Split power cable connection is required for 5V and 12V output.
Power consumption:
3W
System chassis form factor:
Full height and Low-profile
Product:
Color: Green
1x, 9-pin RS-232 Serial, Male
1x, 25-pin Parallel, Female
1x, 4-pin, Molex mini power connector
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
3 x 5 x 1
Weight
1.00 LB
Warranty Information
2 years

Available Quantity

5

UPC

662774043463

SKU

mingleJJ-E20311-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

1.Three external IEEE 1394 (FireWire) ports support DV camcorders, hard disk, removable drives, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s.2.Supports both PC and Mac.3.Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing.
Regulatory approval(s) - FCC Class B (DoC) and CE
Chip - TSB43AB23 (TI single chip)
Bus type - 32-bit PCI
Port type - 3 IEEE external 1394 ports
Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
Compliant with PCI Plug-n-Play 2.2
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Supports serial bus data transfer rates of 100, 200 and 400Mb/sec
Adds 3 IEEE 1394 ports to your PC for high-speed I/O connection and supports up to 63 devices
System Requirements(PC)
- Pentium or equivalent computer with one available PCI slot
- Windows 98SE/ME/2000/XP/Server 2003
System Requirements(MAC )
- Power Mac computer with an available PCI slot
- Mac OS 8.6 or later
Package Contents - 1394 3-Port PCI , Quick Installation Guide

Available Quantity

5

UPC

662774026817

SKU

mingleNN-400012-S8

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

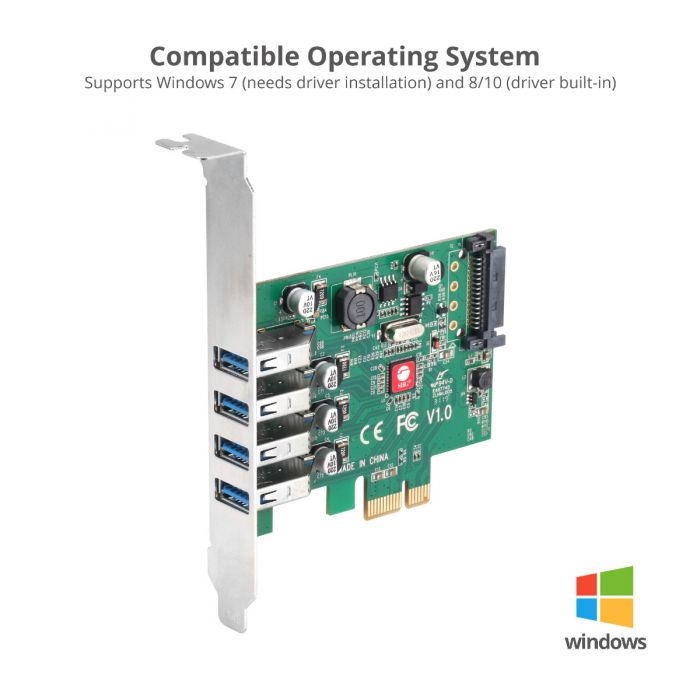

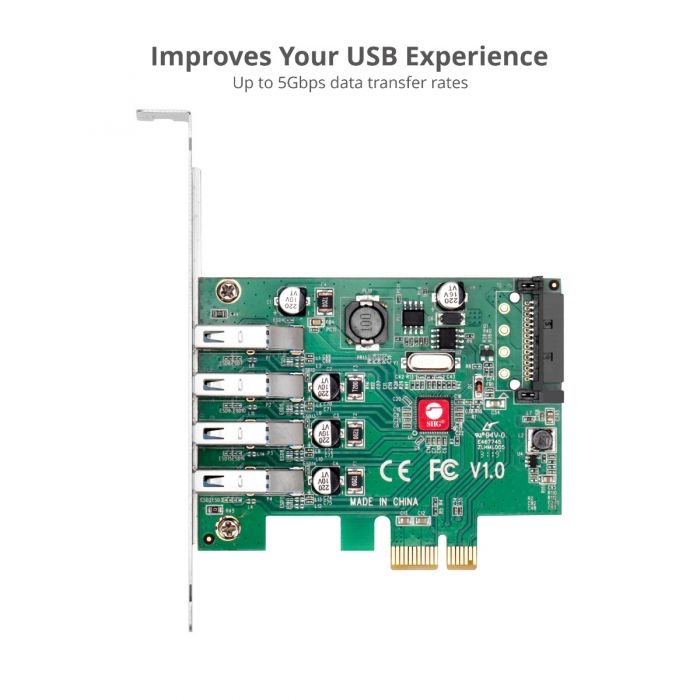

Product Description

Features

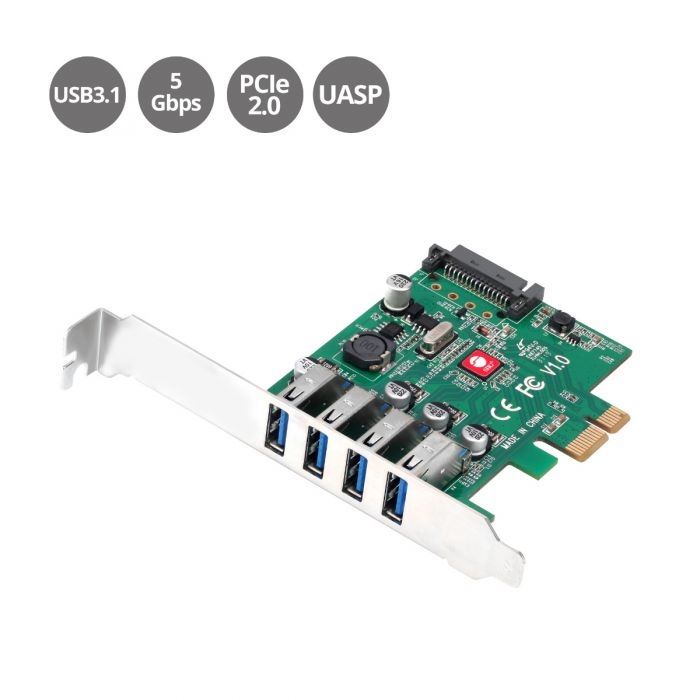

Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system

Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset

Compliant with USB data transfer rates - Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps)

Compliant with Intel s eXtensible Host Controller Interface (xHCI) Revision 1.0 specification

Compliant with USB legacy and UASP mode (UASP requires Windows 10 and 8 native USB 3.0 host drivers only)

PCI Bus Power Management Interface Specification Revision 1.2

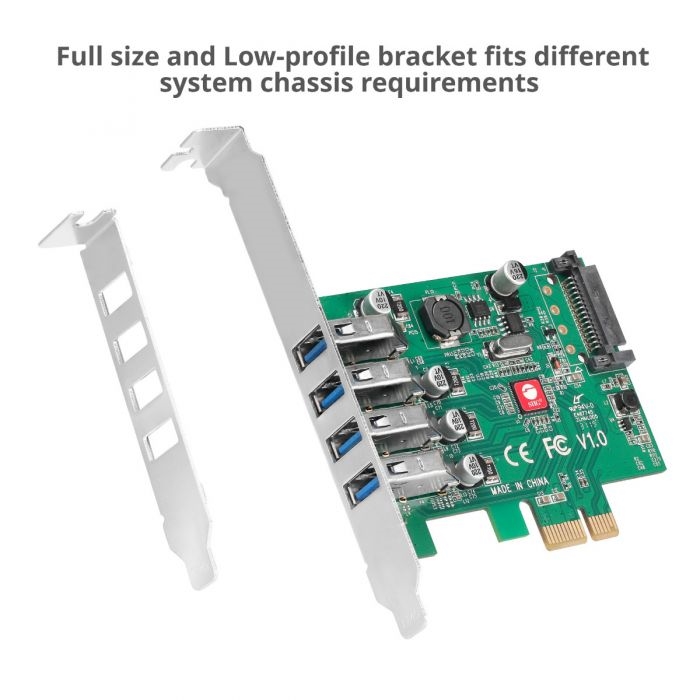

Dual-profile design installs into different system form factor chassis with the included full and low profile brackets

Each USB port features over-current protection to protect your connected device from power surges
Chipset:
Renesas uPD720201
Compliant with USB 3.0 Specification
Bus connecto:
PCI Express 1x
Version:
PCI Express 2.0
USB data transfer rate:
Up to 5Gbps
Per port over-current protection
USB power output:
Up to 5V/900mA
Product:
PCB Color:
Green
Connectors:
4x 9-pin USB 3.0 Type A, Female
1x 15-pin SATA power connector
SATA power connection is required
Environmental conditions:
Operating temperature:
32 to 140 degrees F
Storage temperature:
14 to 158 degrees F
Relative humidity:
5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS

System Requirements
Desktop PC with one available PCI Express (PCIe) slot
SATA power connection is required
Windows 10 / 8.x / 7
Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Package contents
DP USB 3.0 4-Port PCIe Host Card
Low profile bracket
Driver CD
Quick Start Guide
Item Dimension (L"xW"xH")
4 x 1 x 3
Weight
1.00lb
Warranty Information
2 years

Available Quantity

5

UPC

662774042688

SKU

mingleJU-P40A11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features
Quickly adds four RS-232 serial ports through an available PCI Express slot
Supports serial port data transfer rates up to 115.2 Kbps, compatible with 16C550 UART
256-byte depth FIFO buffer supports fast data transfer especially in a multitasking environment
Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, etc.
Specifications
Chipset: ASIX/MosChip MCS9900CV-AA
Bus connector: PCI Express x1
Version: PCI Express 1.1
Baud rate: Up to 115.2 Kbps
FIFO: 256 Bytes
UART: 16C550
Connectors:
4 x 9-pin RS-232, Male
Product:
Color: Black
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
System Requirements
Desktop PC with one available PCI Express (PCIe) slot
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 and 2003 (32-/64-bit)
Linux kernel 2.6 and later
Works with Linux but not supported
Package contents
Quad-Serial Port / RS-232 PCIe Card
Driver CD
Installation guide
Item Dimension (L"xW"xH")
5 x 1 x 4

Weight
1 lb

Warranty Information
1 Year

Available Quantity

5

UPC

662774040127

SKU

mingleLB-S00114-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features
Quickly adds one parallel port through an available PCI Express slot
Compliant with PCI Express Base Specification revision 1.1 and IEEE 1284 standard
Supports Enhanced Capability Port (ECP), Enhanced Parallel Port (EPP) and Standard Parallel Port (SPP)
Works with most parallel port peripherals such as printers, scanners, memory card readers, etc.
Specifications
Chipset: ASIX/MosChip MCS9900CV-AA
Bus connector: PCI Express x1
Version: PCI Express 1.1
Data transfer rate: Up to 1.5 Mbps
Connectors:
1 x 25-pin Parallel Port, Female
Product:
Color: Black
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
System Requirements
Desktop PC with one available PCI Express (PCIe) slot
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 and2003 (32-/64-bit)
Linux kernel 2.6 and later version
Package contents
Single Parallel Port PCIe Card
Driver CD
Installation guide
Item Dimension (L"xW"xH")
5 x 1 x 4

Weight
1 lb

Warranty Information
1 Year

Available Quantity

5

UPC

662774040103

SKU

mingleLB-P00014-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

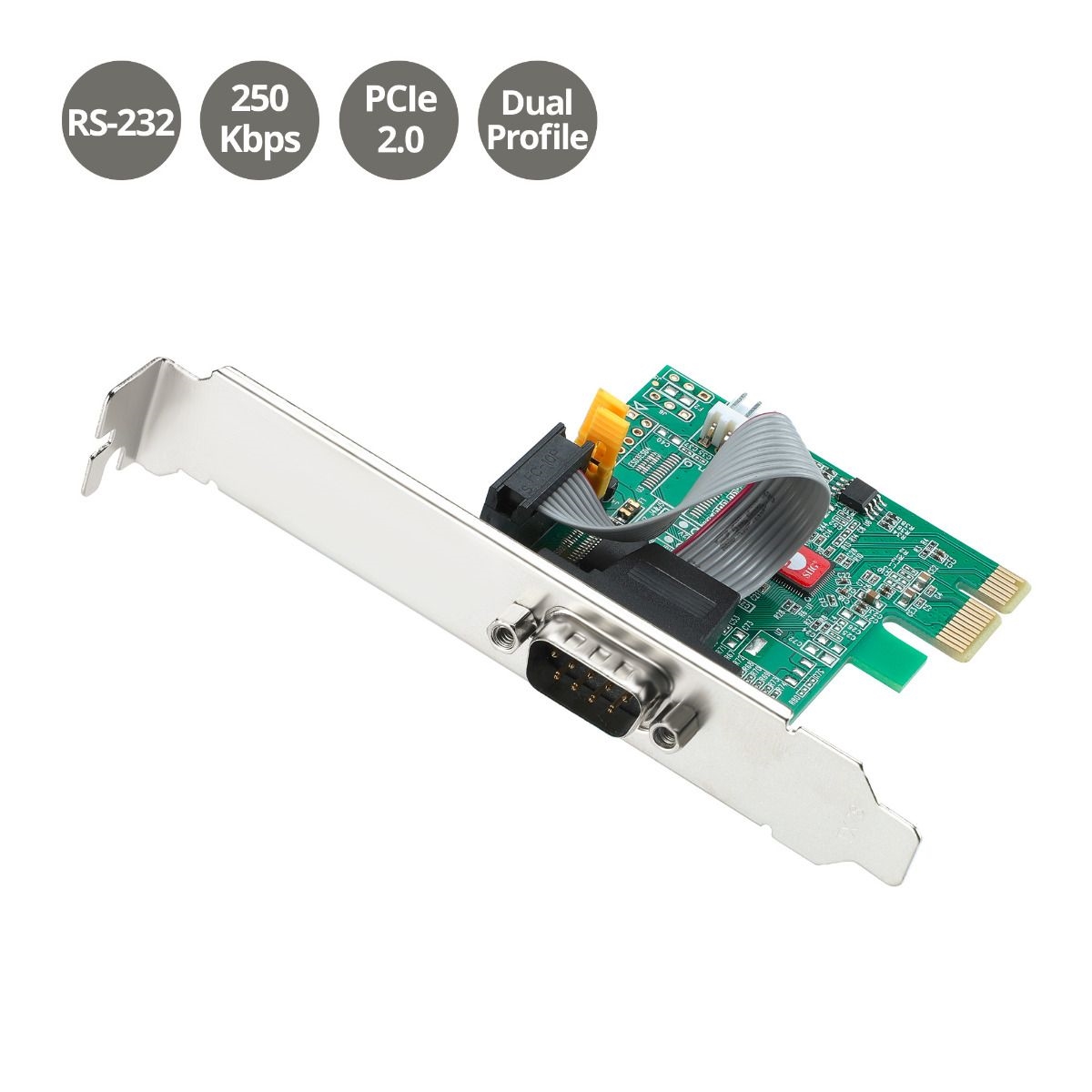

Product Description

Features

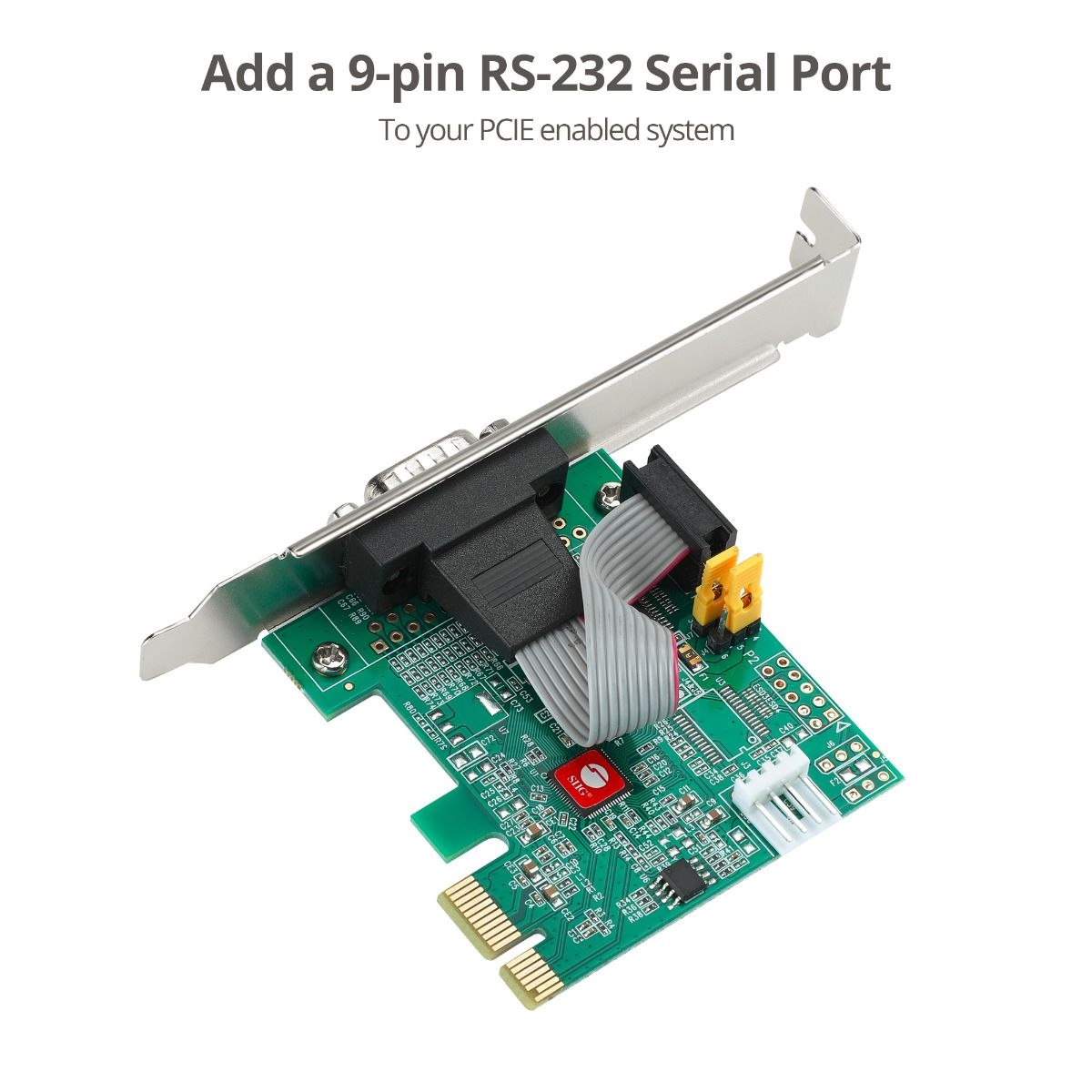

Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers

One 16C650 UART serial port supports data transfer rate up to 250Kbps

Compliant with PCI Express 2.0 Gen 1

Single-lane (x1) PCI Express End-point Controller with PHY integrated

Full serial modem control with hardware and software flow control

Supports 5, 6, 7, 8 and 9-bit serial formats

Supports Even, Odd, None, Space and Mark parity

Supports on chip 256-byte FIFO buffers in transmit and receive path

Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers

Supports PCI Bus Power Management Interface Specification Revision 1.2

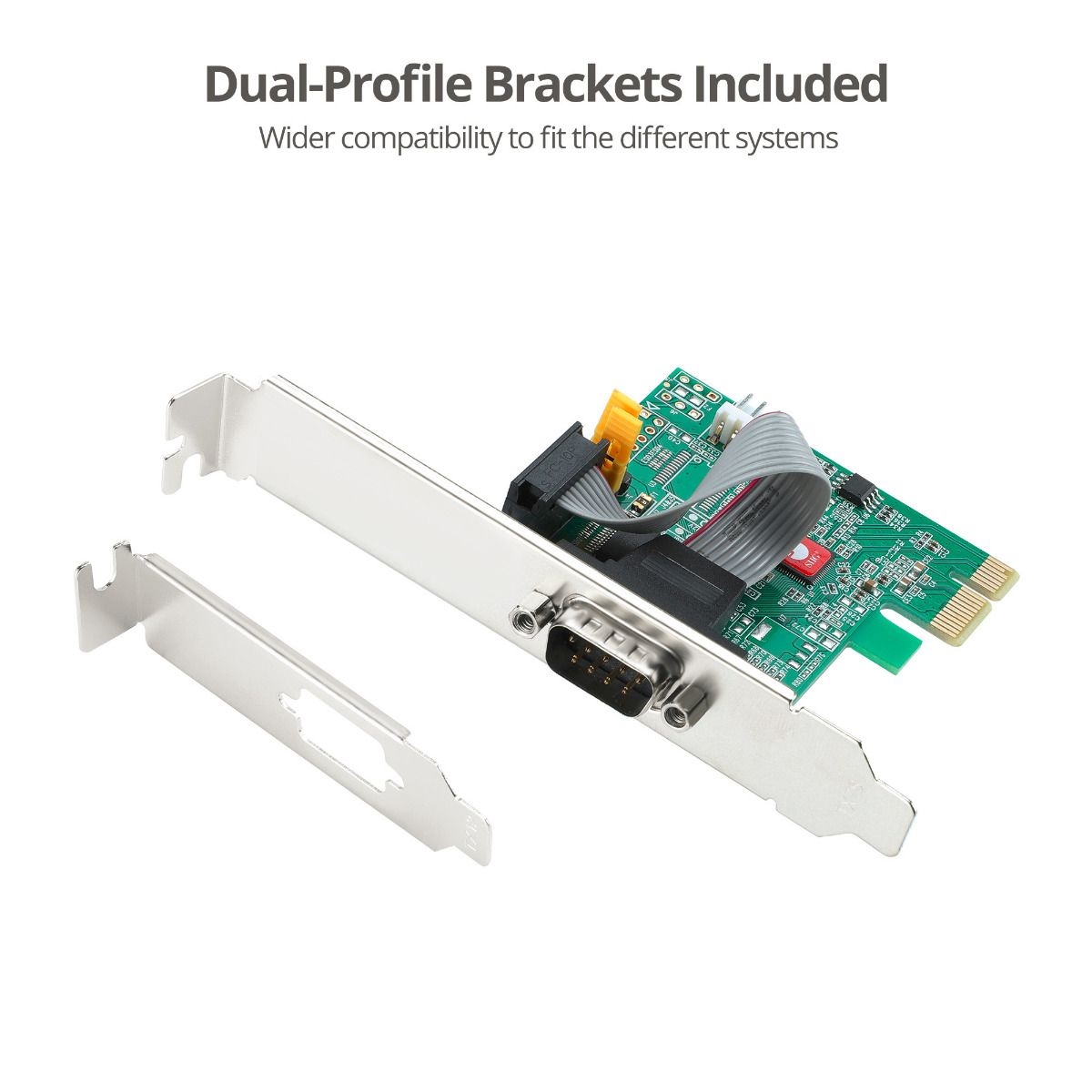

Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets

Installs into any PCI Express slot of any lane width

Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
Chipset:
ASIX AX99100
Compliant with PCI Express Base Specification 2.0
Bus type:
One lane (x1) PCI Express
Data transfer rate:
Up to 250Kbps
Flow control:
Hardware and software
Serial format:
5, 6, 7, 8 and 9-bit
FIFO buffers:
On-chip 256-byte transmit and receive

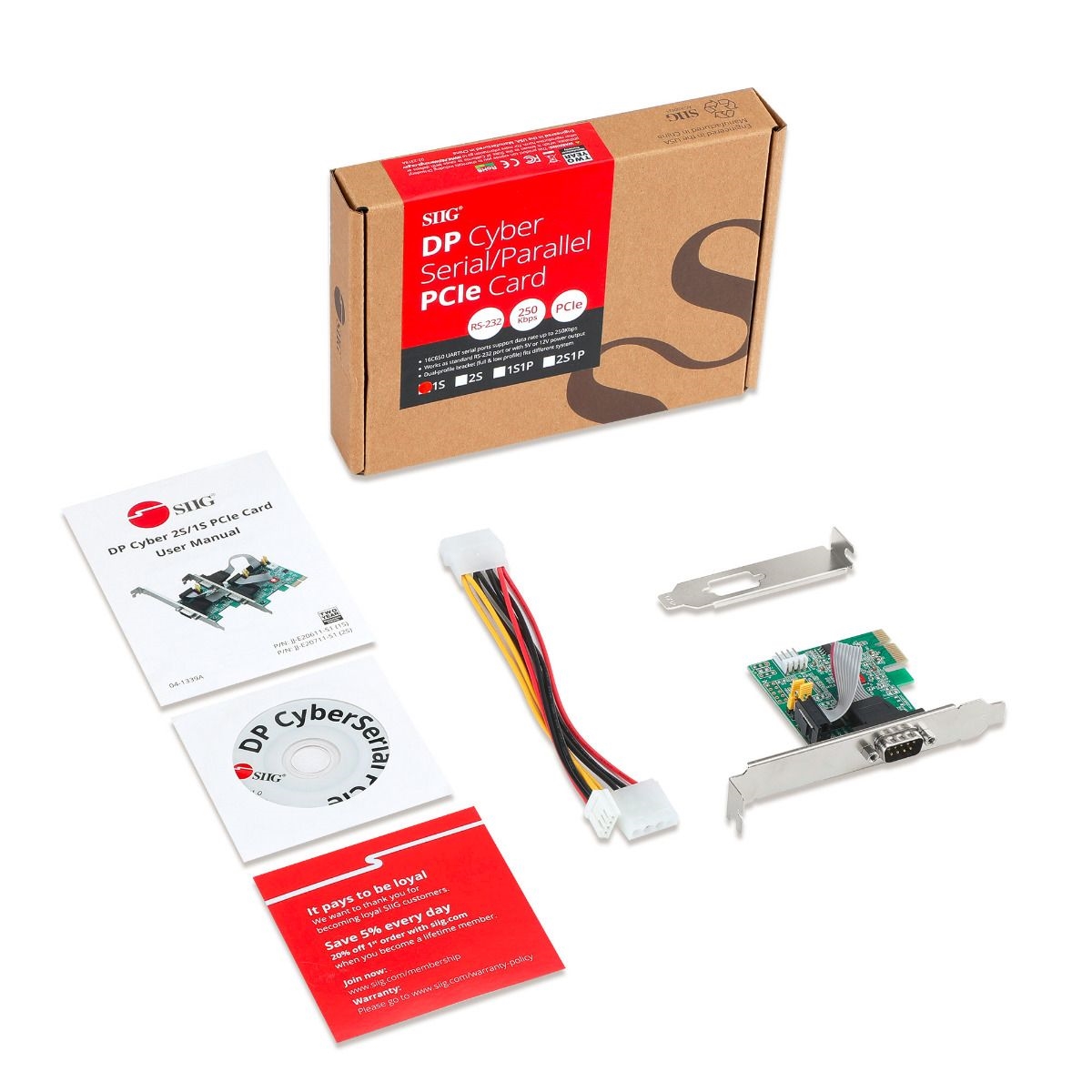

Serial power output:
0V / 5V / 12V configured by jumpers
Power consumption:
3W
PCB form factor:
Full and low profile (full height and low profile brackets included)
Color:
Green
Connectors:
1x, 9-pin RS-232 Serial, Male
1x, 4-pin, Molex mini, Power connector
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
China
Item Dimension (L inchxW inchxH inch)
5 x 1 x 3

Weight
1.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774044088

SKU

mingleJJ-E20611-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

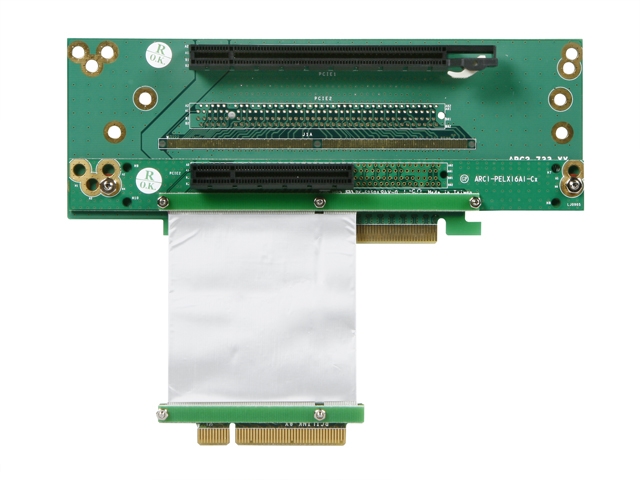

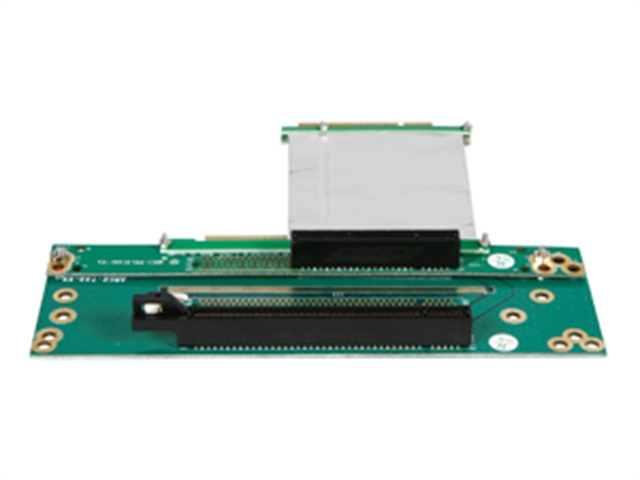

iStarUSA Accessory DD-603605-C7 1x PCI-Express 16 2x PCI-Express 8 Riser Card Retail
RoHS Compliance Version
Yes
Standard Drive Bays
None
MB Slot Position : 6,5, and 4
Weight
1.00
Item Dimension
6 x 6 x 4
Warranty Information
1 Year

Available Quantity

5

UPC

846813033442

SKU

mingleDD-603605-C7

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

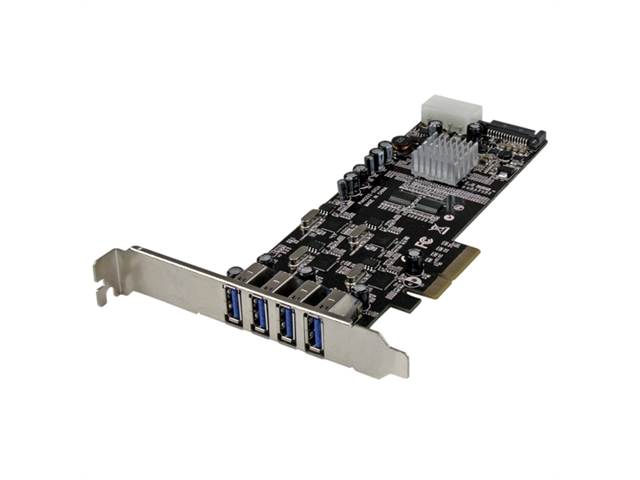

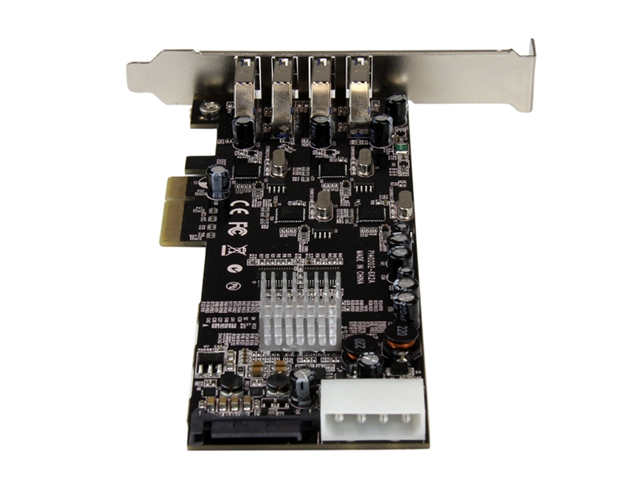

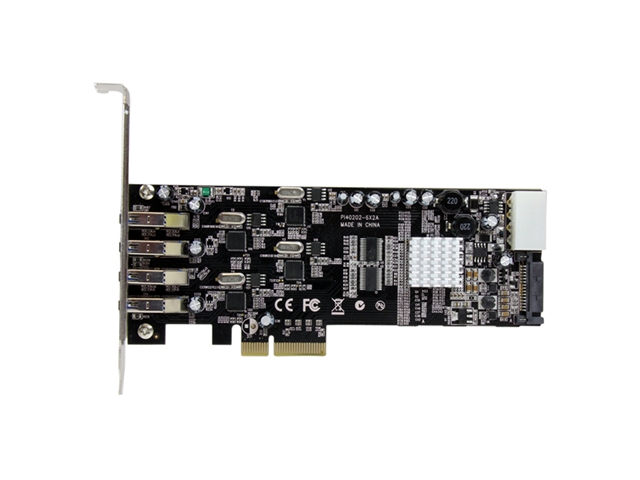

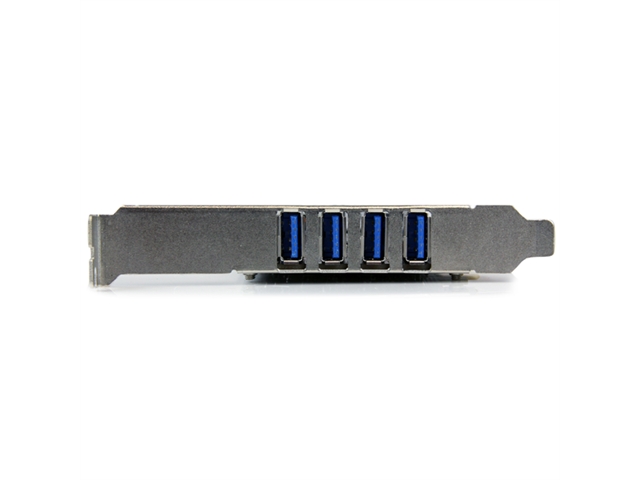

The PEXUSB3S44V 4-Port PCI Express USB 3.0 Card lets you add four quad bus USB 3.0 ports to your PCIe x4-enabled PC. Quad bus architecture improves USB 3.0 performance by transferring data on independent channels to your computer, giving you faster file transfers.

When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Allocating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).The controller card is compliant with USB 3.0 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.0 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
4 x Renesas/NEC - PD720202
Industry Standards
USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Interface
USB 3.0
Port Style
Integrated on Card
Ports
4
Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
4 - USB 3.0 A (9 pin SuperSpeed) Female
Internal Ports
1 - LP4 (4 pin Molex Large Drive Power) Female
Internal Ports
1 - SATA Power (15 pin) Plug
Performance
Maximum Cable Length
9.8 ft 3 m
Maximum Data Transfer Rate
5Gbps per port - 20Gbps Total
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Software
OS Compatibility
Windows 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server 2012, 2008 R2, 2003 (32/64)
Linux Kernel 2.6.31 or later
System and Cable Requirements
Available PCI Express x4 or greater slot
Included in Package
1 - 4 Port PCIe USB Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
Weight
1 lb
Item Dimension
6.57 x 5.51 x 1.10
Warranty Information
2 Year Warranty

Available Quantity

5

UPC

065030854627

SKU

minglePEXUSB3S44V

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

This 4 Port (3 External/1 Internal) PCI 1394 FireWire Adapter Card lets you connect iPods, MP3 players, portable drives, digital camcorders and more to your desktop computer.

The FireWire adapter card supports hot-swapping, so you ll be able to plug, unplug, and swap your FireWire peripherals with ease.

Guaranteed to work with both PCs and Macs, the 4 port PCI FireWire Adapter Card is backed by StarTech.com s Lifetime Warranty and FREE LIFETIME tech support. Plus, the adapter provides both standard and low profile brackets for adapting to slimline or small form factor system applications.


Please Note: If you require digital video editing software, StarTech.com offers a complete FireWire kit with our PCI1394_4, PCI1394_2 and PCI1394_2LP cards. This software is compatible with Windows operating systems only.


WHQL Certified - Designed to work with Microsoft Windows XP .
Technical Specifications
Warranty : Lifetime warranty
Bus Type : PCI (5 Volt)
Chipset ID : TSB 12LV26
External Ports : 3 - FireWire 6-pin Female
Internal Ports : 1 - FireWire 6-pin Female
Number of Ports : 3
Industry Standards : PCI 2.1
Industry Standards : IEEE 1394a
Industry Standards : OHCI
Package Weight : 0.24 lb (0.11 kg)
Microsoft WHQL Certified : Yes
OS Compatibility : Windows 98SE/ ME/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit), Linux, and Mac OS 8.6 and up
Package Dimension (LxWxH) : 5.98 x 1.02 x 5.51 inch
Features
An internal connector allows for the easy connection of internal FireWire peripherals
High speed data transfer rates of up to 400 Mbits/sec.
Hot swap capabilities allows you to connect or disconnect devices without turning off your computer
Applications
iPods/MP3 players

Available Quantity

5

UPC

065030789950

SKU

minglePCI1394MP

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

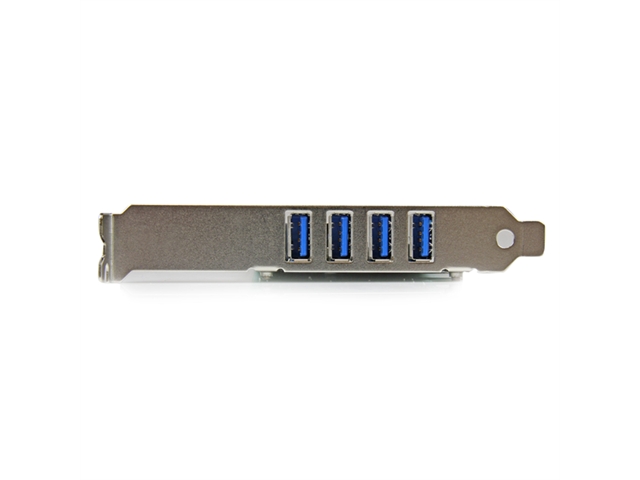

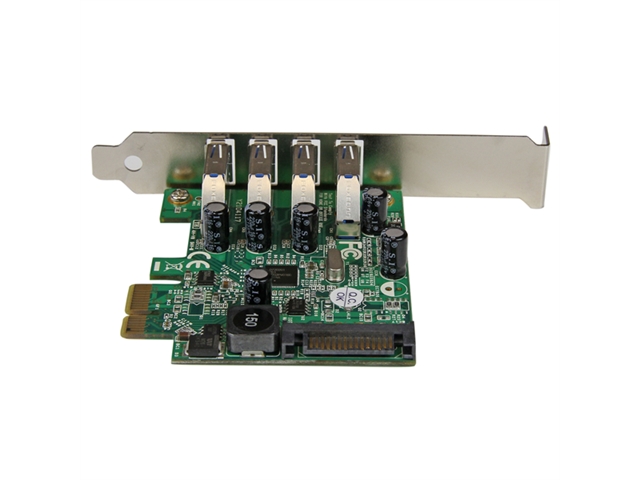

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system. SuperSpeed USB 3.0 provides up to 5 Gbps of data bandwidth, while remaining backward compatible with existing USB 2.0 devices at 480Mbps.

Using a "stacked" port layout that places the ports one on top of the other, more ports are able to fit into a smaller space. This 4-port PCIe USB 3.0 adapter enables all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system.

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Hardware
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Chipset ID:NEC uPD720201
Interface:PCI Express
Port Style:Integrated on Card
Ports:4
Connector(s)
Connector Type(s):1 - PCI Express x1 Male
External Ports:4 - USB 3.0 A (9 pin SuperSpeed) Female
Internal Ports:1 - SATA Power (15 pin) Plug

Performance
Type and Rate:USB 3.0 - 5 Gbit/s
OS Compatibility
Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)

System and Cable Requirements
Available PCI Express expansion slot
Included in Package
1 - PCI Express USB 3.0 Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
Item Dimension (L"xW"xH"):
6.5 x 5.12 x 1.18

Weight:
1 lb

Warranty Information:
2 Year Warranty

Available Quantity

5

UPC

065030848961

SKU

minglePEXUSB3S4V

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

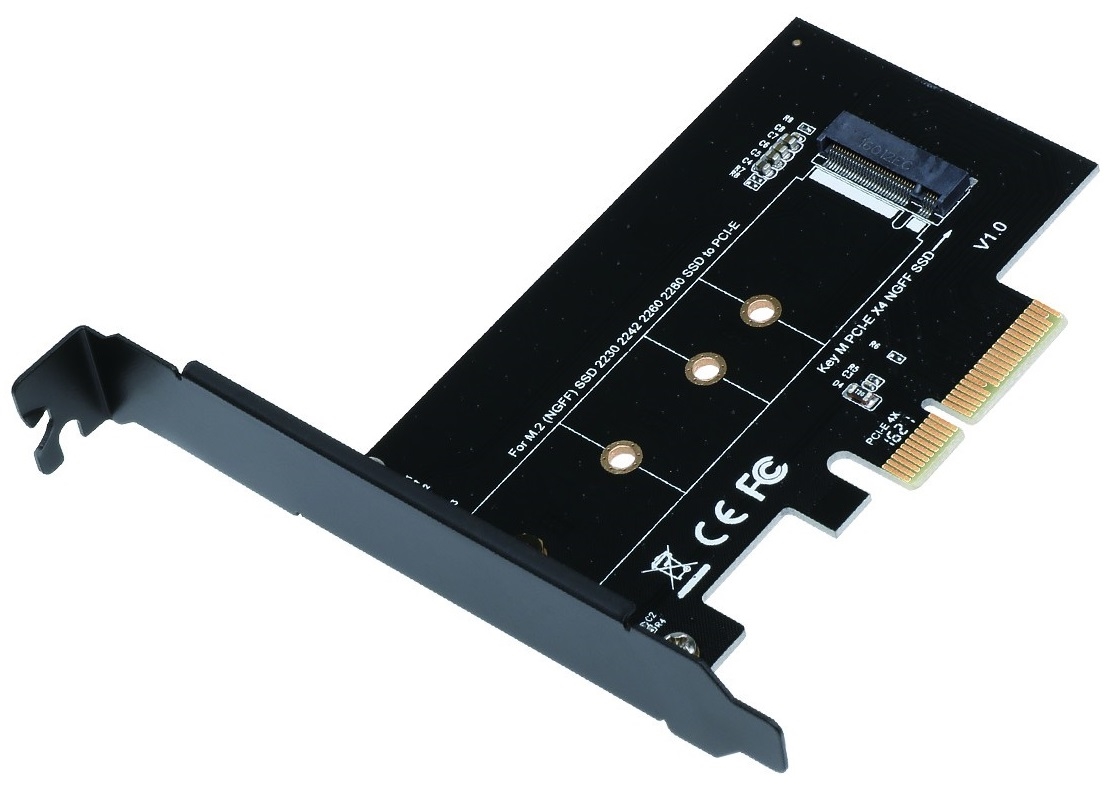

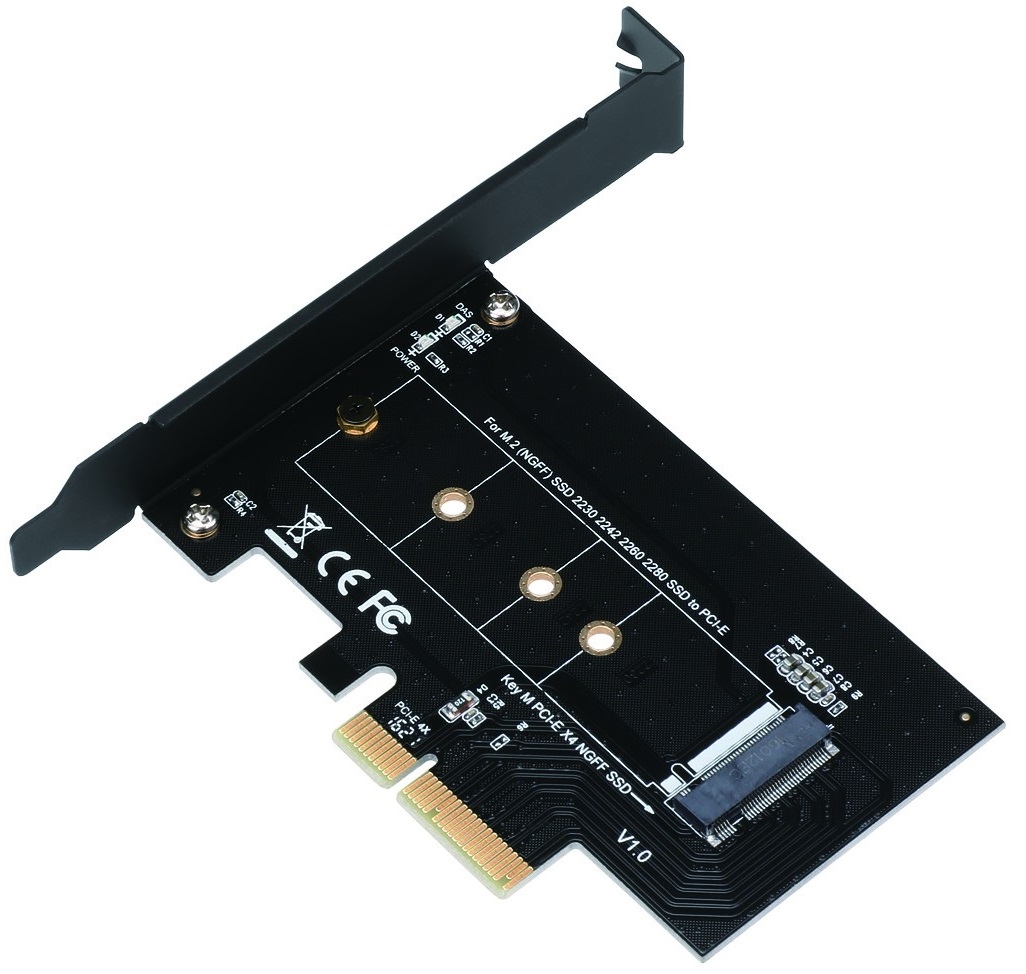

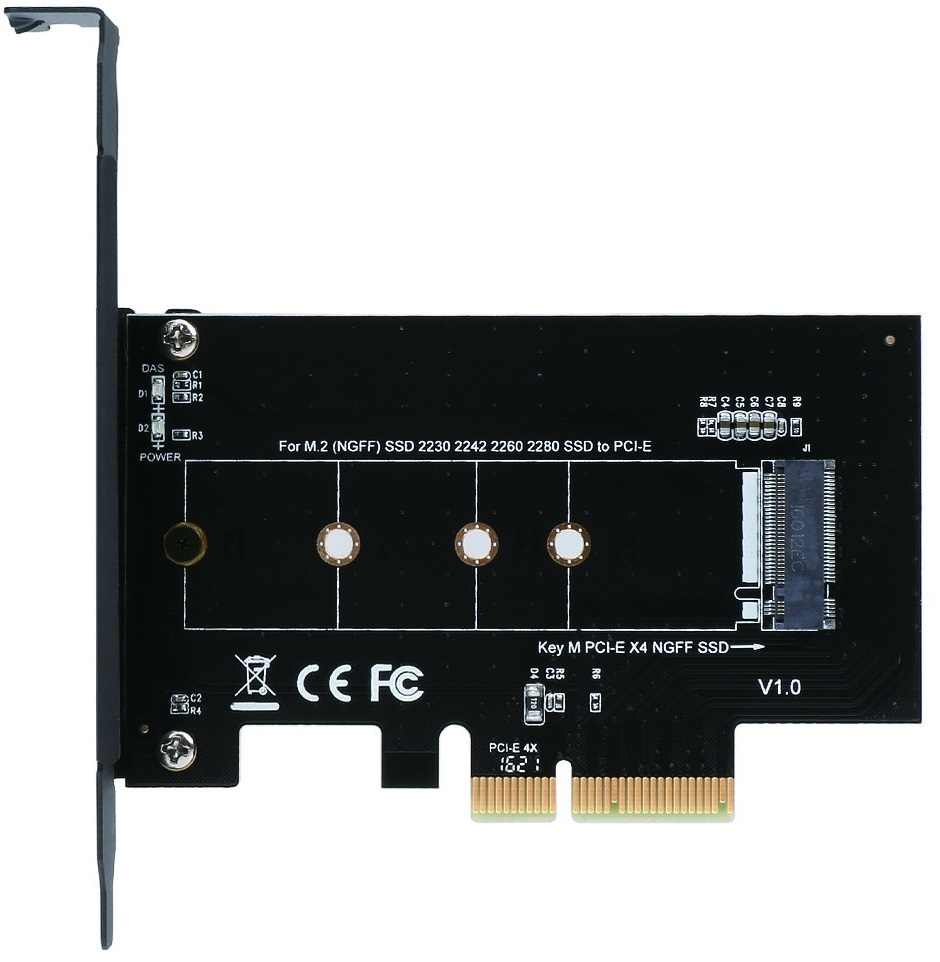

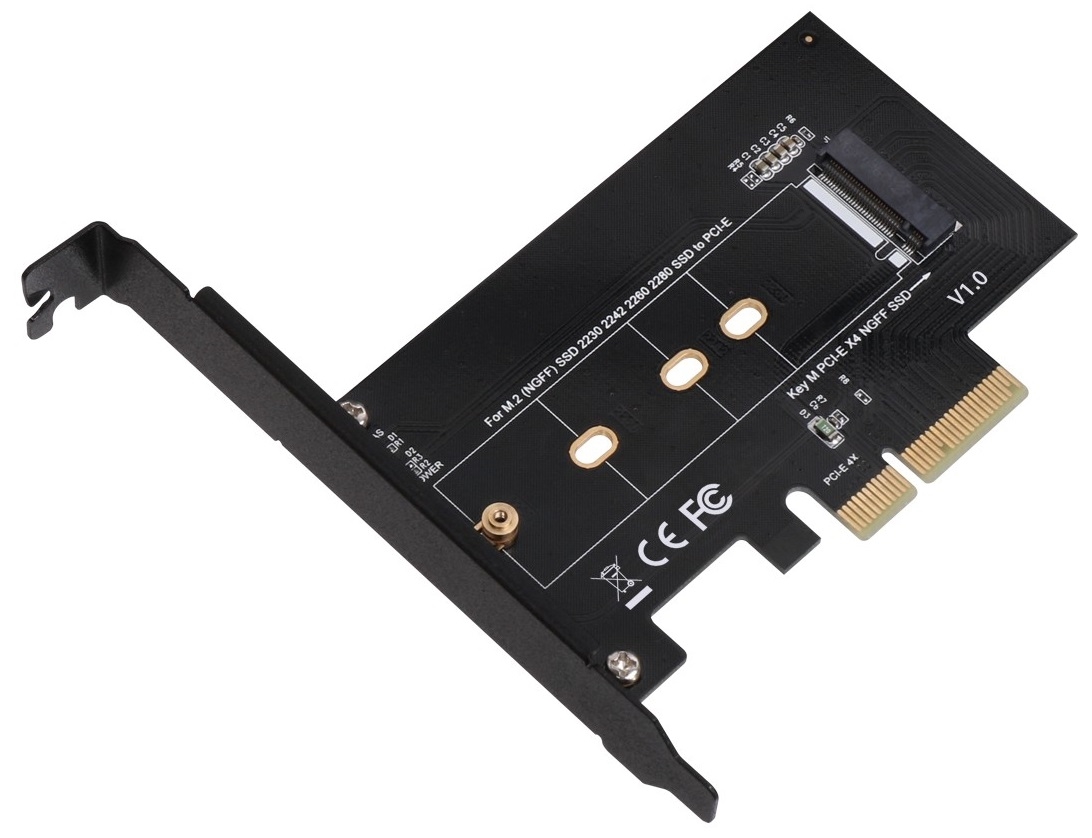

SIIG s M.2 NGFF SSD PCIe Card Adapter adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer, dramatically increasing speed and performance. This M.2 NGFF SSD PCIe adapter card accommodates various form factor high performance M.2 PCIe (M key) SSDs via multiple mounting options. It is PCIe 3.0 compliant and installs into PCIe x4 or larger bus slots. With the included spare low-profile bracket, this adapter card can be installed into both standard-height and low-profile system chassis for the utmost versatility in system chassis installation. The M.2 NGFF SSD PCIe Card Adapter is the perfect high performance upgrade significantly enhancing system performance by adding M.2 PCIe (M key) SSD capability to your PCIe equipped desktop computer.


Features
Adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer to dramatically increase speed and performance

(Note: This adapter is not compatible with B key M.2 PCIe SSDs or B key M.2 SATA SSDs)

Accommodates 2230, 2242, 2260 and 2280 form factor M.2 SSDs (NVMe or AHCI) via multiple mounting holes

Supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0

Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot

Built-in LEDs indicate power and data transfer status

Includes both low-profile and full-profile slot brackets for flexible system chassis installation

No driver installation require
Specifications
PCIe 3.0 compliant
Bus type
PCIe (x4)
Drive type (not included)
M key M.2 PCIe SSD (NVMe or AHCI)
(Note: Systems released prior to 2015 may not support NVMe SSDs. Please check with your system provider for compatible SSD.)
Compatible drive length
30 / 42 / 60 / 80 (mm)
Color
Black
Connector
Host bus connector: PCI Express x4
SSD: M.2 connector (M key)
Environmental conditions
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 10% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop PC with an available x4 (or larger) PCIe slot
M.2 PCIe (M key) SSD
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Server 2012 R2 / 2008 R2

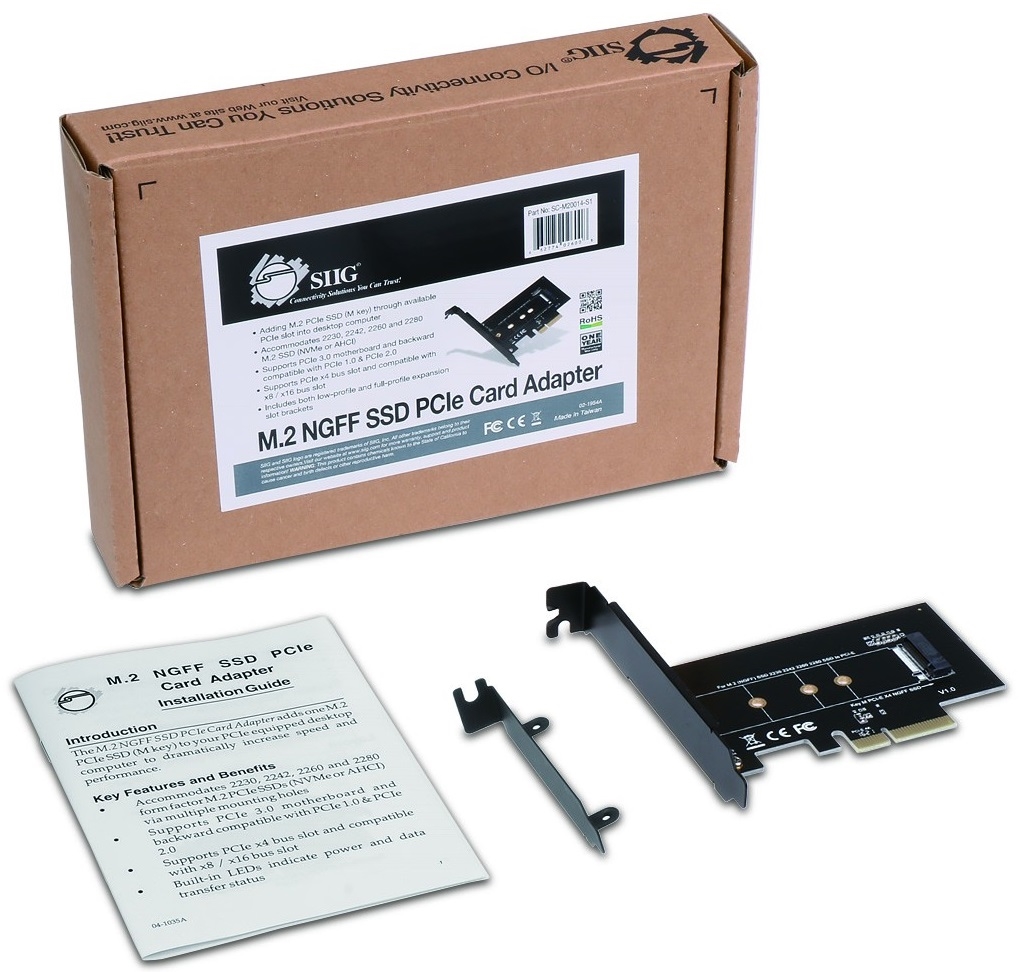

Package Contents
M.2 NGFF SSD PCIe Card Adapter
Spare Low Profile bracket
User Reference Guide
Item Dimension (L inchxW inchxH inch)
13 x 10 x 2

Weight
2.00 lb

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

662774026008

SKU

mingleSC-M20014-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

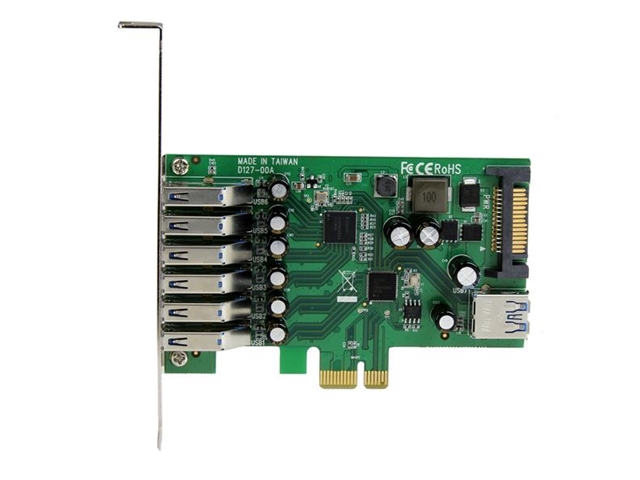

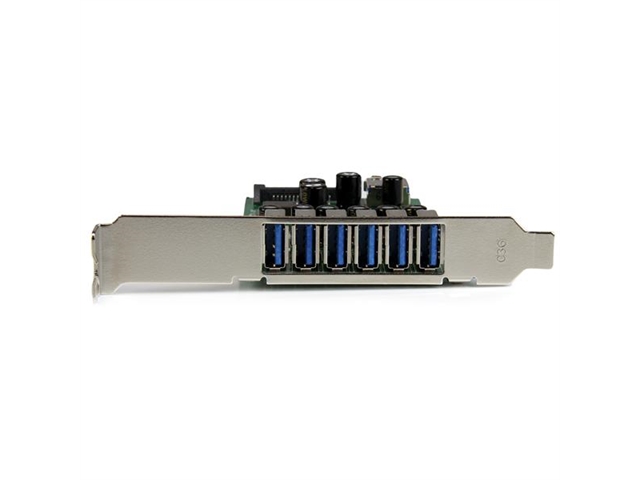

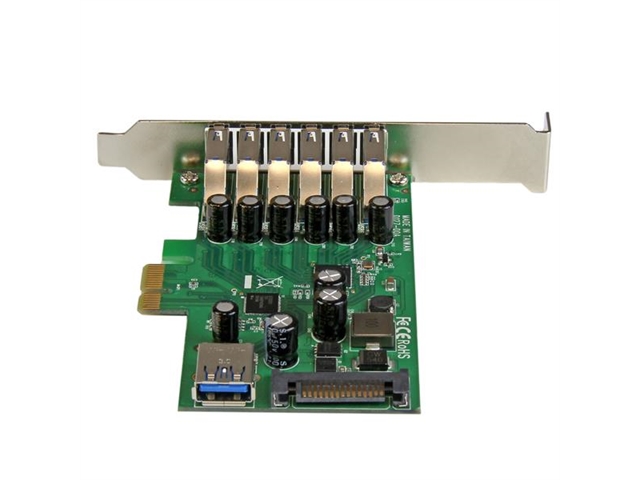

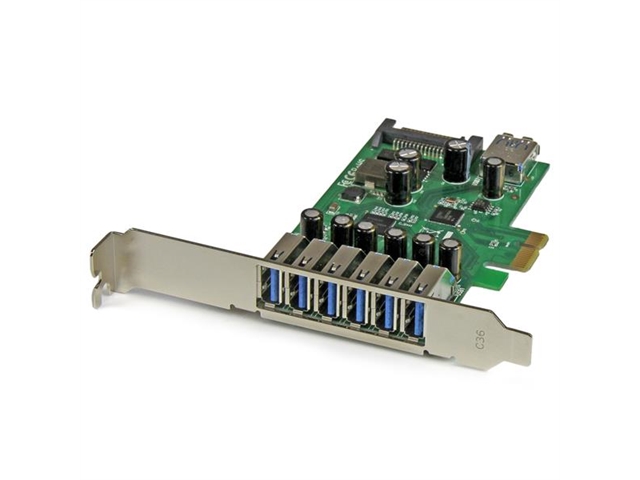

Handle your workload more efficiently. This USB 3.0 card expands your computers capabilities by giving you seven extra USB 3.0 ports. Its engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.

Greater port count. Greater scalability.
More ports means you can add USB devices as you need them. This robust USB 3.0 card gives you seven USB 3.0 ports six external and one internal so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so theyre ready to use when you need them. Its also economical by being able to connect so many devices, you save the cost of extra hubs or cards.

The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.

Unique dual-profile design
This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

Easy driver installation
Youll be up and running in no time. The card automatically installs in Windows 8.1 and 8, with native operating system support. Its also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.
Hardware
Bus Type
PCI Express

Card Type
Standard Profile (LP bracket incl.)

Chipset ID
Renesas / NEC - PD720201 PD720210

Industry Standards
USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0

Interface
USB 3.0

Port Style
Integrated on Card

Ports
7
Performance
Maximum Cable Length
9.8 ft 3 m

Maximum Data Transfer Rate
5 Gbps

MTBF
1,920,042 Hours

Type and Rate
USB 3.0 - 5 Gbit/s

UASP Support
Yes
Connector(s)
Connector Type(s)
1 - PCI Express x1 Male

External Ports
6 - USB 3.0 A (9 pin SuperSpeed) Female
Connector(s)
Connector Type(s)
1 - PCI Express x1 Male

External Ports
6 - USB 3.0 A (9 pin SuperSpeed) Female

Internal Ports
1 - SATA Power (15 pin) Plug
1 - USB 3.0 A (9 pin SuperSpeed) Female
Software
OS Compatibility
Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server 2012, 2008 R2
Linux 2.6.31 and up (Tested up to 3.5)
Special Notes / Requirements
Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

System and Cable Requirements
PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)

SATA power connector (recommended, but optional)

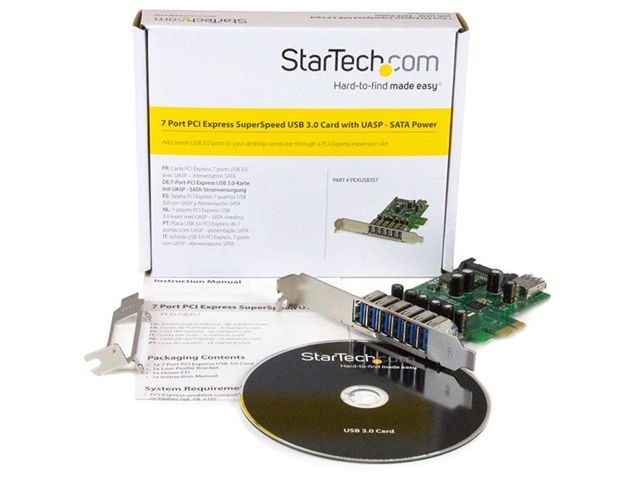

Included in Package
1 - 7 Port PCI Express USB 3.0 Card
1 - Low-Profile Bracket
1 - Driver CD
1 - Instruction Manual
Weight
0.33
Item Dimension
6.69 x 5.59 x 1.18
Warranty Information
2 Year Warranty

Available Quantity

5

UPC

065030860345

SKU

minglePEXUSB3S7

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

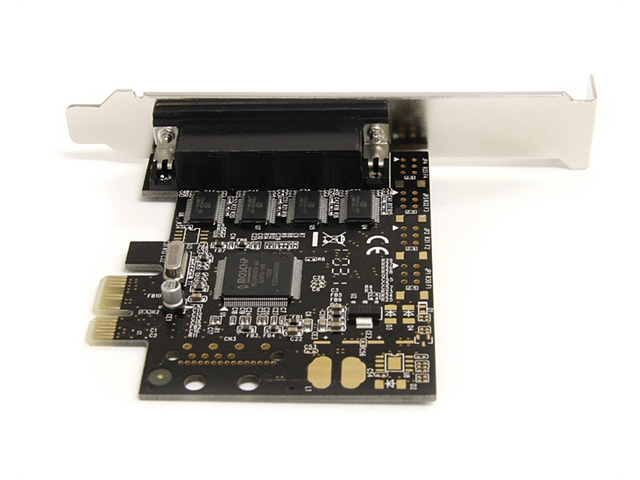

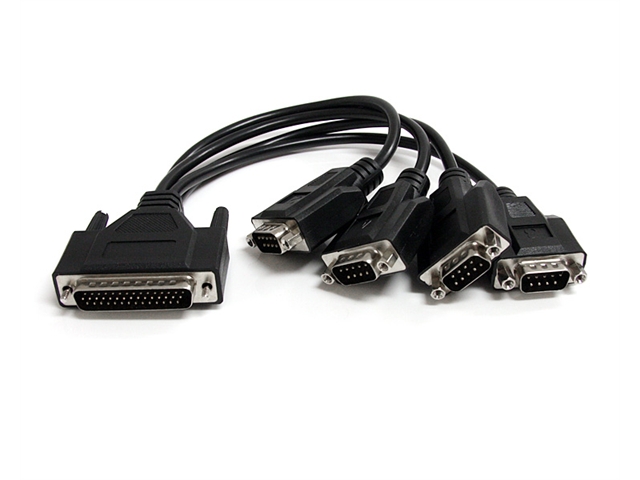

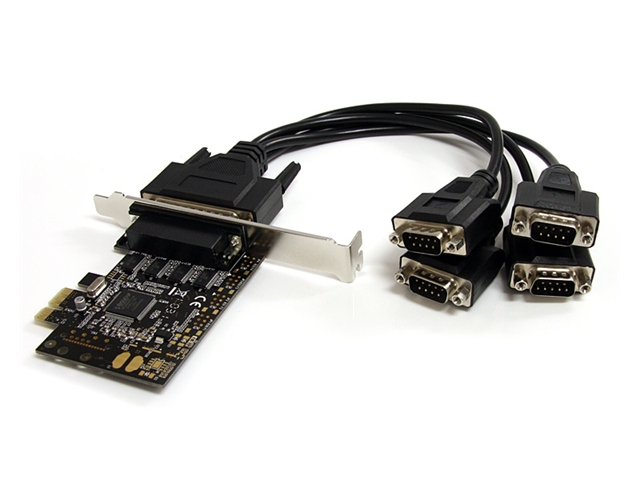

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot. The PCIe Serial Card includes a 1-to-4 break out cable, which enables you to add 4 serial ports to a single low profile slot.

The serial adapter card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

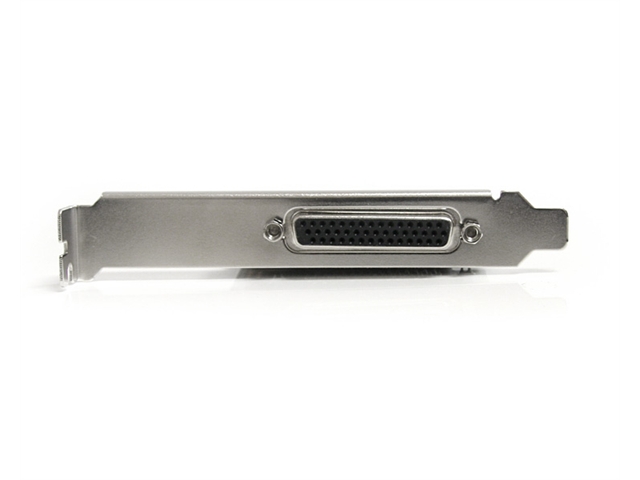

The multi-port serial adapter includes both full profile/height and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows 7/Server 2008 R2, 2003/Vista/XP (32 and 64 bit), Linux Kernel 2.6.11 and up, as well as MAC OS 10.5 and above.

This product is a replacement for our PEX4S552B card.
Warranty :
Lifetime

Bus Type :
PCI Express

Carton Quantity :
50
Chipset ID :
MosChip MCS9901

External Ports :
4 - DB 9-pin Serial Male

Interface/Bridge :
Serial
Maximum Data Transfer Rate :
250Kbps

Microsoft WHQL Certified :
Yes

Number of Ports :
4
Item Dimension (L"xW"xH") :
6.97 x 1.57 x 5.71

Shipping (Package) Weight :
1.5 lb 0.68 kg

Data Bits :
5, 6, 7, 8
FIFO :
256 Byte

Parity :
Even, Odd, None, Space and Mark
OS Compatibility :
DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, and Mac OS 10.4.x and up/ Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0

Available Quantity

5

UPC

065030842556

SKU

minglePEX4S553B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

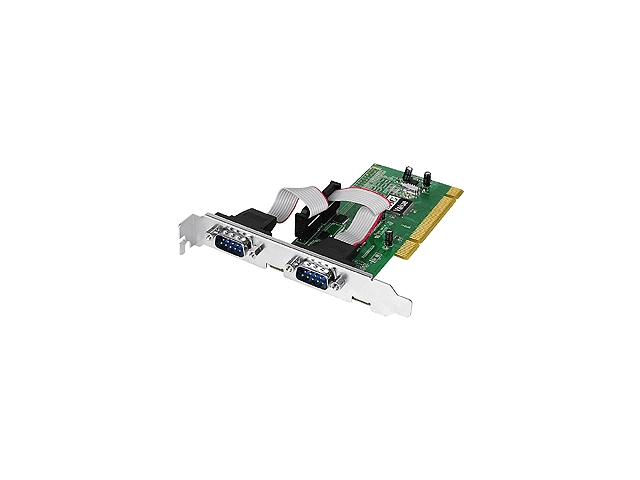

Adds 2 (9-pin) serial ports to your PCI enabled system

Can be installed in 32-/64-bit, 3.3V/5V PCI and PCI-X slots

Works with modems, PDAs, and high-speed serial devices
1. Compliant with PCI Local Bus Specification, Revision 2.3
2. Chip: Moschip MCS9865
3. Full support for DOS and Windows based software
4. PCI IRQ sharing feature reduces IRQ conflicts
5. Ports: 2x serial ports (9-pin, RS-232, 16550 UART)
6. RoHS compliant
7. Pentium or equivalent computer with an available PCI slot
8. Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 2008 (32-/64-bit) / 2000 / ME / 98SE / 98 / 95, DOS
Item Dimension (L"xW"xH")
1.5 x 8.66 x 6.18

Weight
0.42

Warranty Information
2 Years

Available Quantity

5

UPC

662774008707

SKU

mingleJJ-P20511-S3
