Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

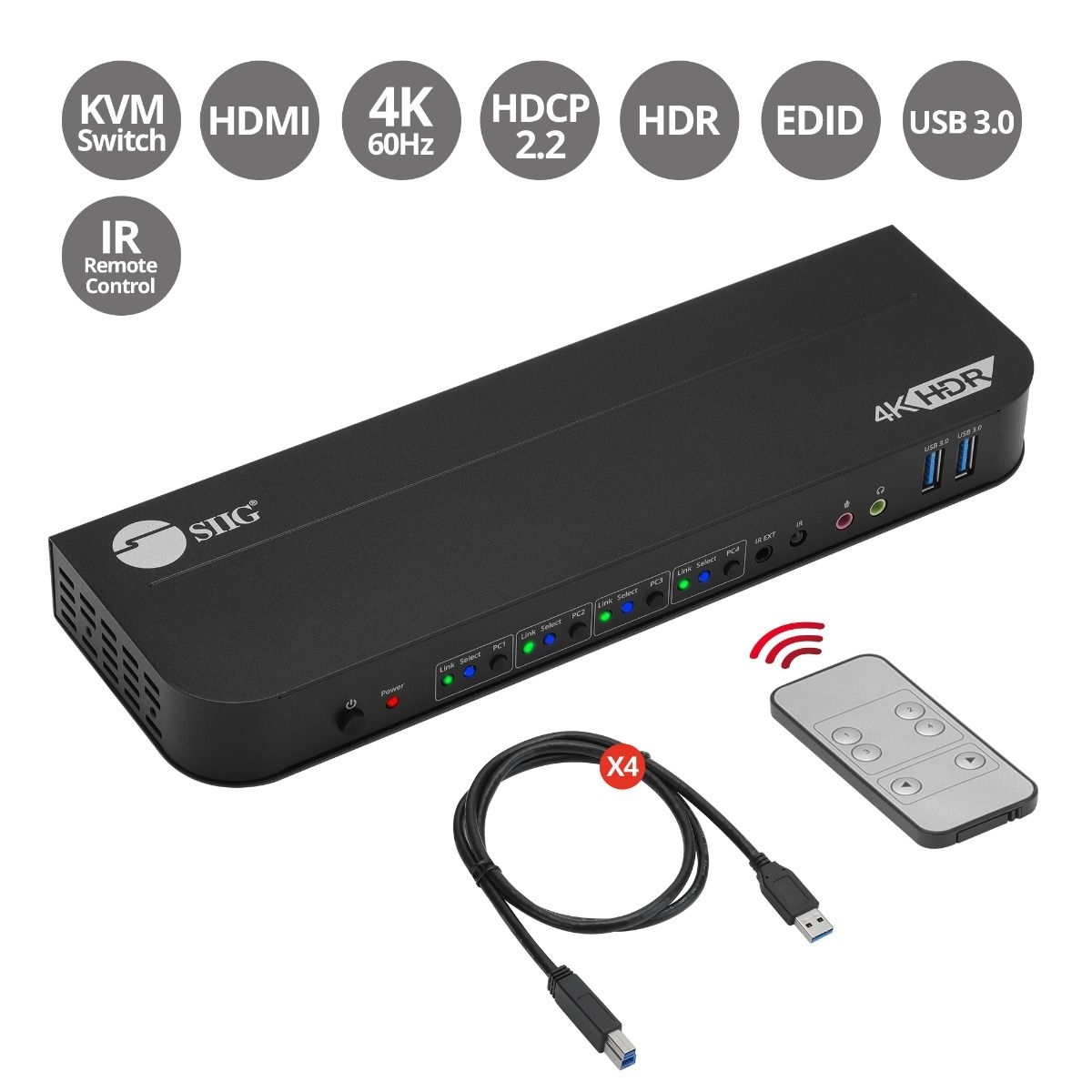

4x1 HDMI KVM Switch, allows you to control 4 HDMI 4K computers using one keyboard and mouse - HDMI 4K@60, USB 3.2 Gen 1 ports, Microphone Input, and Stereo Audio Output, Switch Button, Hotkeys, Remote Control

Features

Easily control 4 HDMI computers and switch a HDMI display/monitor with one set of keyboard & mouse improve your work efficiently

Effortlessly Switch

Easily switching between computer/device via the front panel push button, USB keyboard hotkeys or IR remote control make this 4x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control user-friendly to operate

4K Ultra HD Resolution

Allows you to connect a single UHD 4K (3840x2160) @60Hz through a HDMI port to display the crystal-clear video quality. HDR, 3D and deep color are supported. Compliant with 18Gbps video bandwidth

High Performance

Offers a true 18Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI or 3.5mm PCM 2-ch stereo audio

Multiple Connectivity Port

Comes with four HDMI video input ports, four USB 3.2 Gen 1 Type-B ports (Host), twelve 3.5mm phone jacks to connect stereo speakers/earphones and microphones, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, two switch buttons, one power button, and one DC power jack (5V/3A)
Software
OS Compatibility
Windows 11, mac OS 12.x or new
Video
HDMI
HDCP 2.2, resolution: up to 4K (3840x2160)30Hz, video bandwidth: 18Gbps
USB data transfer rate
USB 3.2 Gen 1
2x Type-A, up to 5Gbps, 5V/900mA
USB 2.0
2x Type-A, up to 480Mbps
Audio
7.1 channel surround sound from HDMI port
PCM 2.1 channel stereo digital audio for 3.5mm audio jack
Power Adapter
Input
AC 100-240V / 50-60Hz
Output
DC 5V/3A
ETL P/N
4006448
Environmental conditions
Operating temperature
32 to 114 degrees F
Storage temperature
14 to 178 degrees F
Relative humidity:
5% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
Metal
Certifications/Standards
FCC, CE, RoHS, REACH
Country of origin: China
Item Dimension (L"xW"xH")
12 x 3 x 8

Weight
3 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

662774045177

SKU

mingleCE-KV0F11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

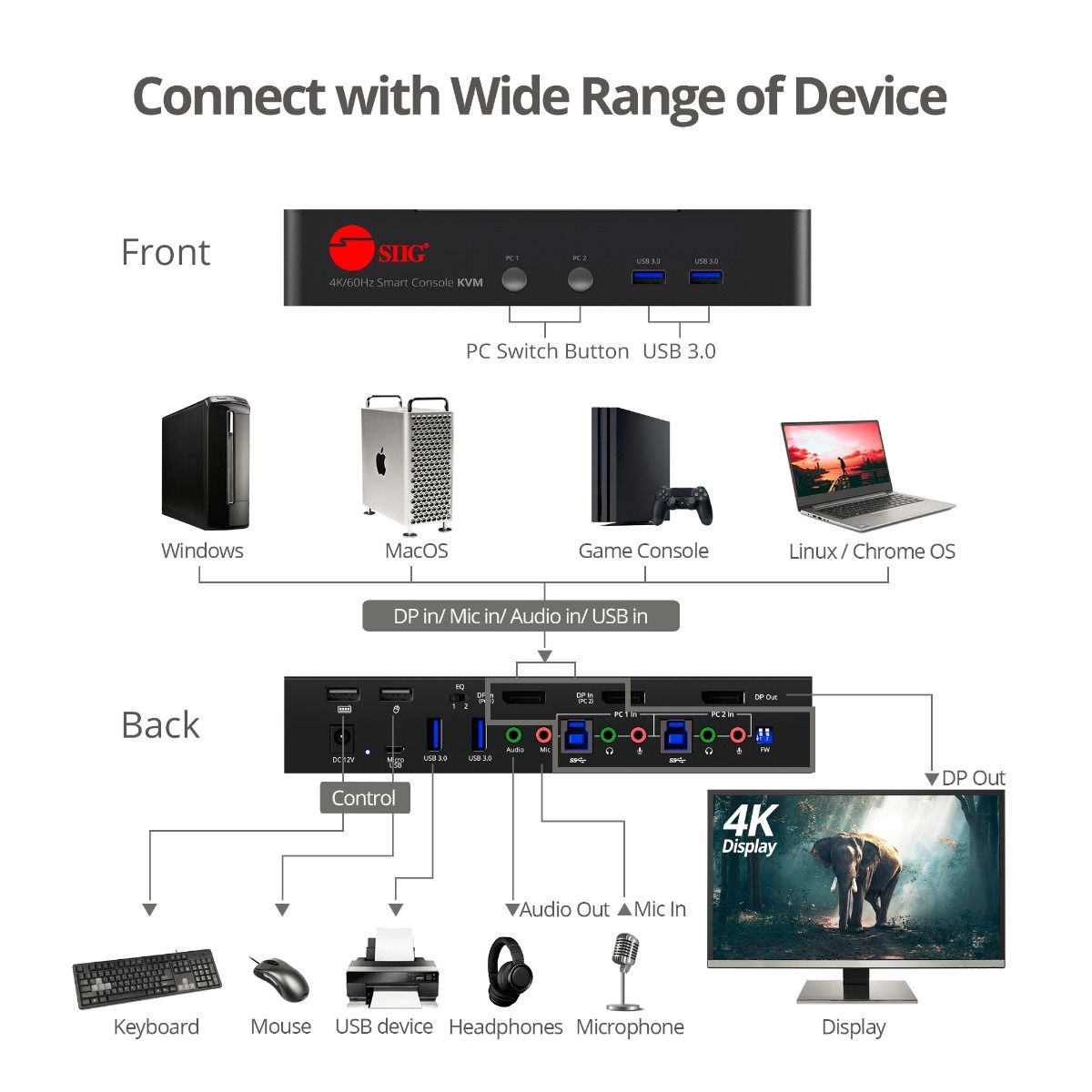

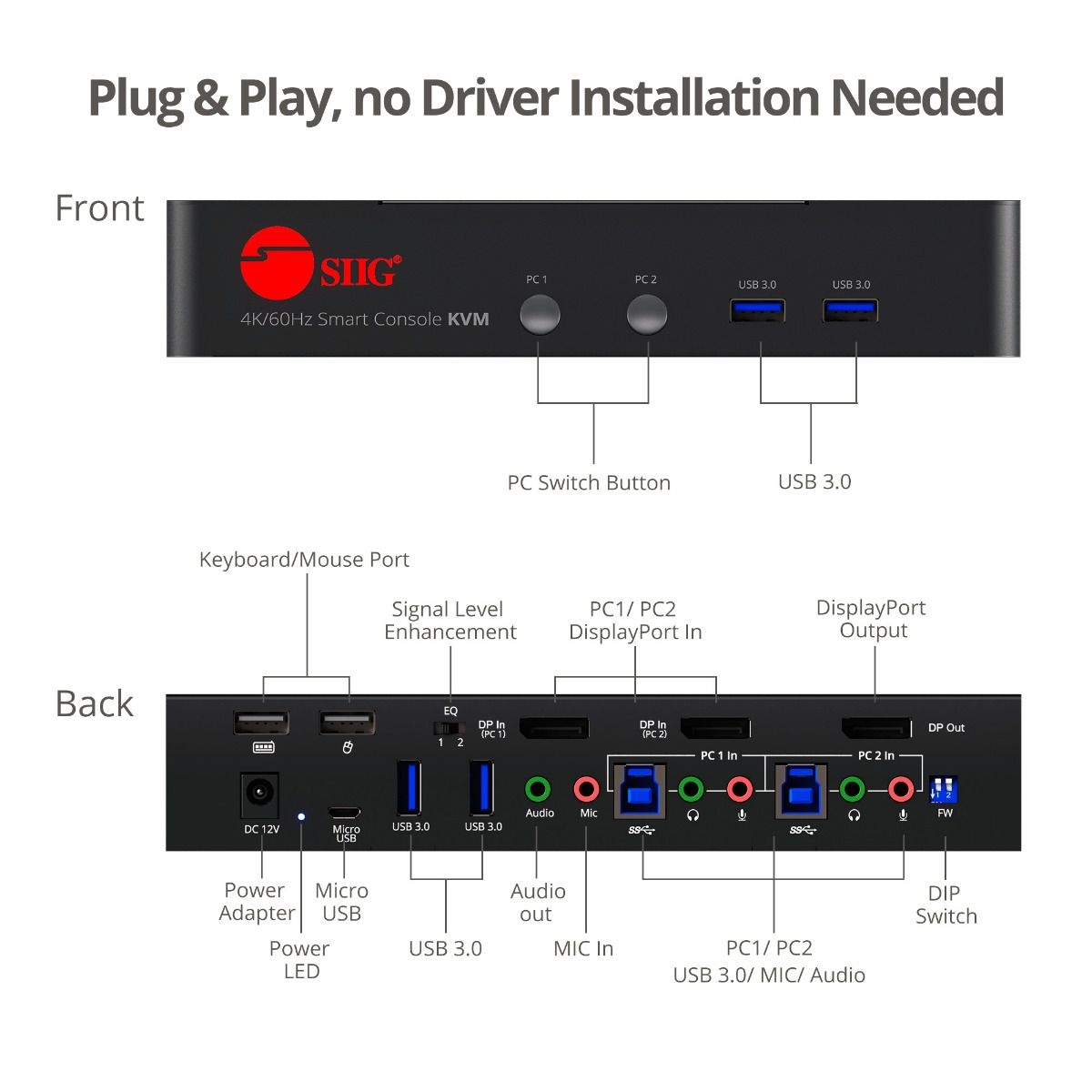

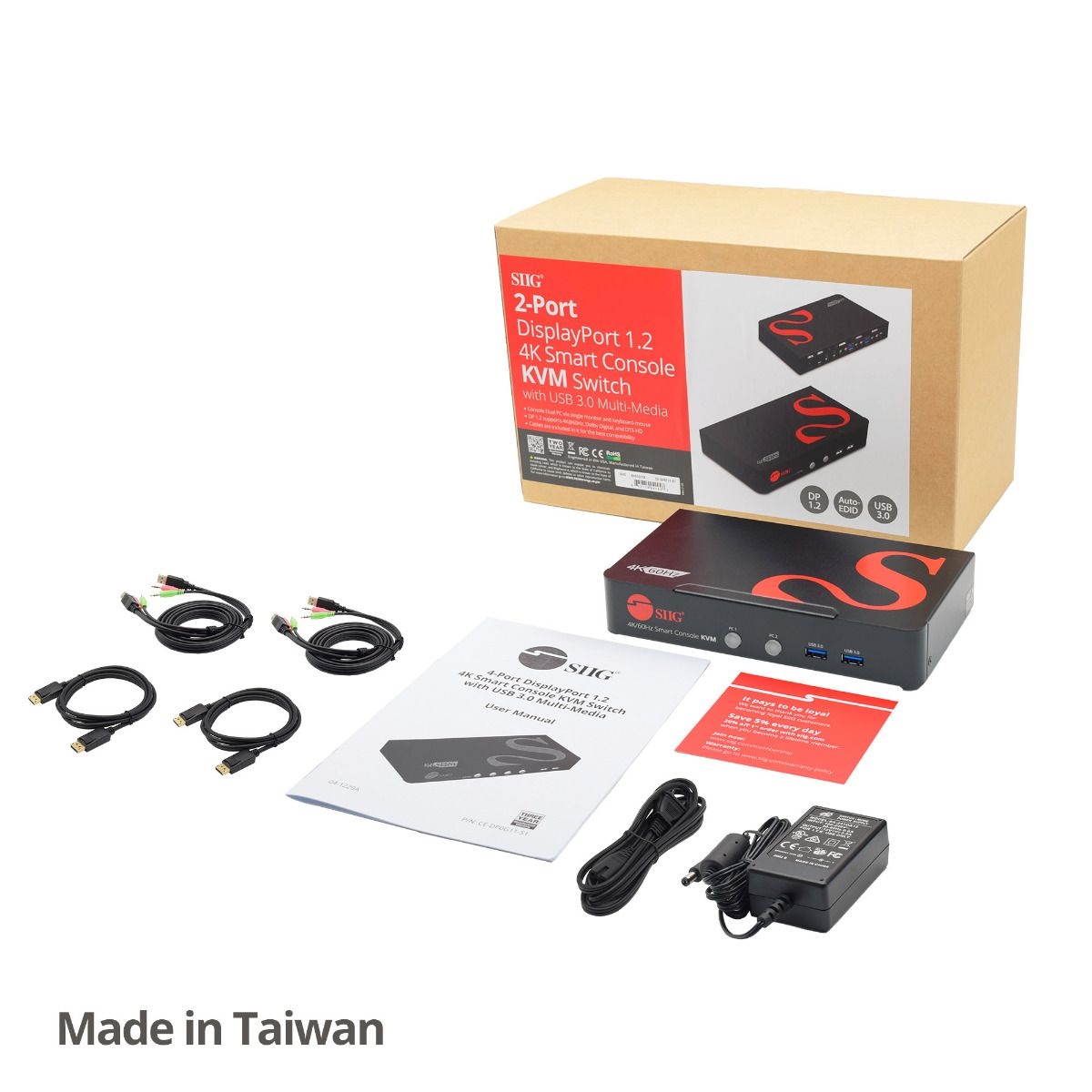

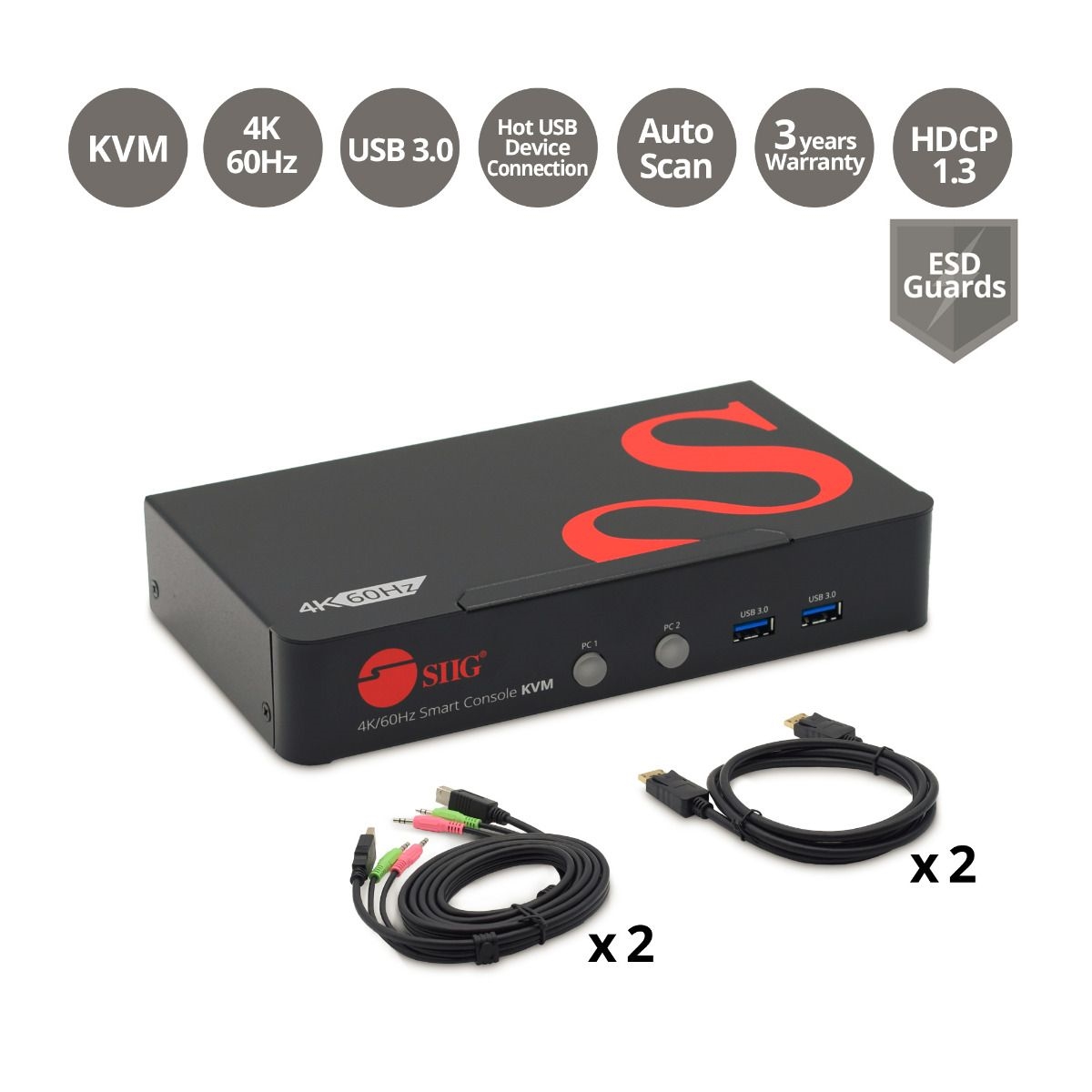

Control two computers with 4K@60Hz DisplayPort 1.2 video system via one keyboard, mouse, and display

Offers true 21.6Gbps Ultra-HD 4K@60Hz

Features Auto-EDID detection which ensures easy display detection

Easy system selection via front panel selection buttons or keyboard hot-key commands

Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports for connecting multiple USB peripherals such as flash drives, printers, and more simultaneously

Includes 3.5mm jack for microphone input and stereo speakers/headphones

Auto-scan feature for quick browsing and system monitoring

Firmware upgrade feature via Micro USB port for future compatibility

Plug-n-play, no driver installation


Compatibilty:

- not DDM fast switching compliant

- 4K@60Hz HDR is not supported
Version:
DisplayPort 1.2 specification
Video bandwidth:
Up to 21.6Gbps
Video resolution:
3840x2160 at 60Hz YUV 4:4:4 8-bit
Audio support:
Surround sound (up to 7.1ch) or stereo digital audio
DisplayPort: PCM, Dolby Digital, DTS-HD and Dolby True-HD audio
3.5mm: PCM 2-ch stereo Audio
USB data transfer rate:
USB 1.1: up to 12Mbps
USB 3.0: up to 5Gbps
Color:
Black
Housing material:
Metal
Connector:
Source:
2x 20-pin DisplayPort, Female
2x 9-pin USB 3.0 Type-B, Female
4x 3.5mm phone jack for Microphone and Stereo audio, Female
1x 5-pin Micro USB, FW update, Female
2x 2-pin DIP Switch
Device:
1x 20-pin, DisplayPort, Female, Output
1x 3.5mm jack, Microphone, Female, Input
1x 3.5mm jack, Stereo audio, Female, Output
4x 9-pin USB 3.0 Type-A, Female
2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse)
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 12V/2A
UL Listed: E163743 8F35/Level:VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: <85% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Compatibilty:
- not DDM fast switching compliant
- 4K at 60Hz HDR is not supported
Item Dimension (L inchxW inchxH inch)
8 x 2 x 5

Weight
1.54 lb

Warranty Information
3 Years

Available Quantity

5

UPC

662774042947

SKU

mingleCE-DP0F11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

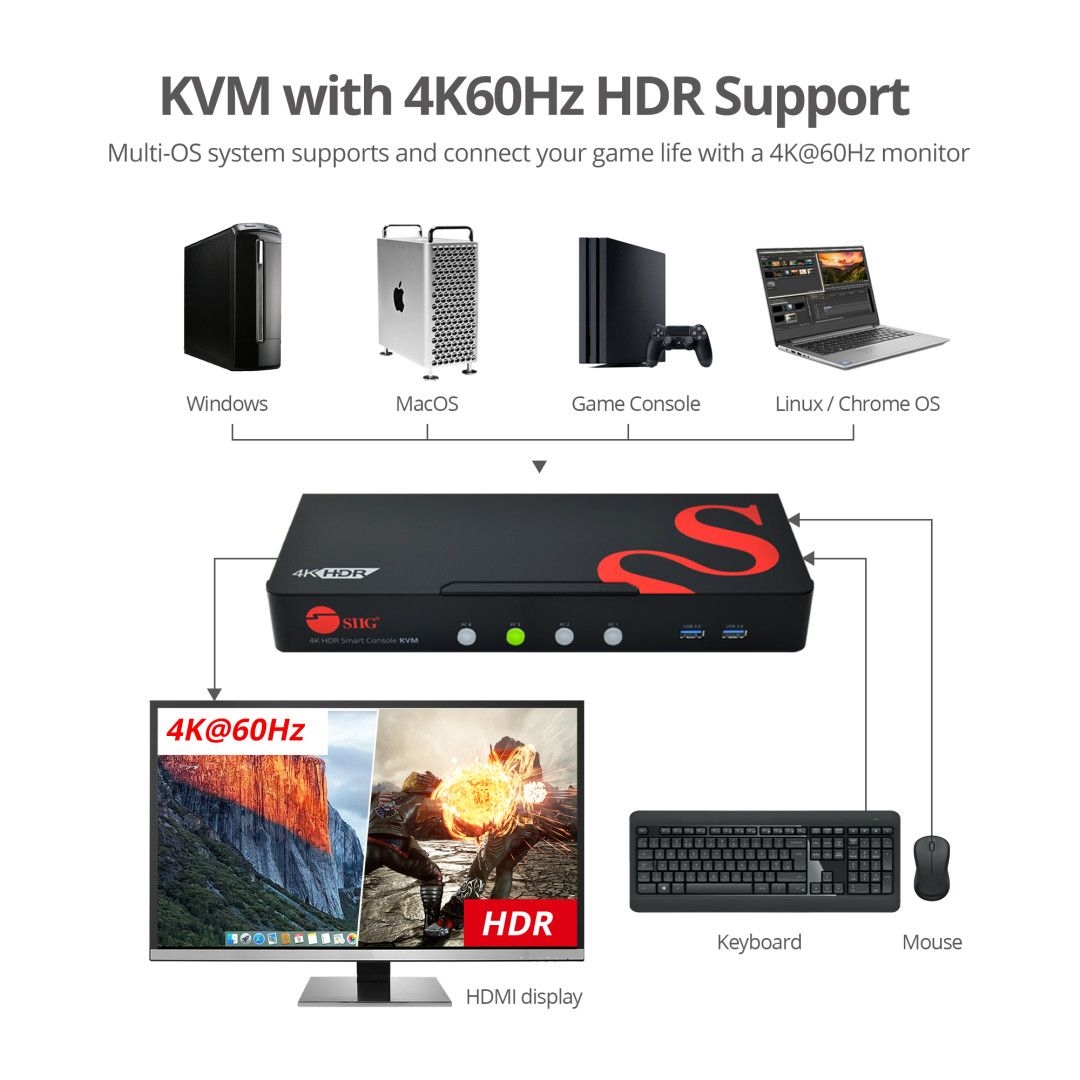

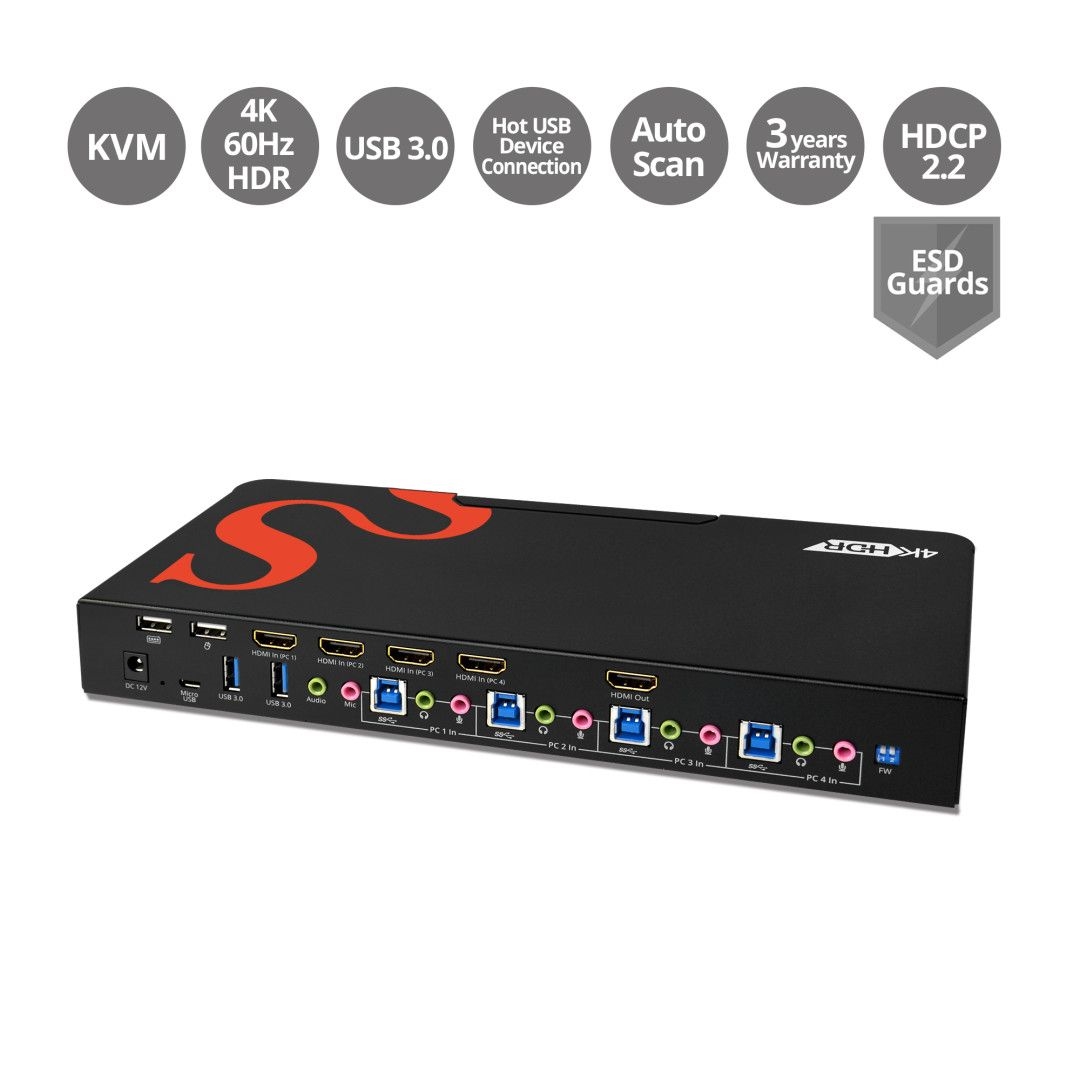

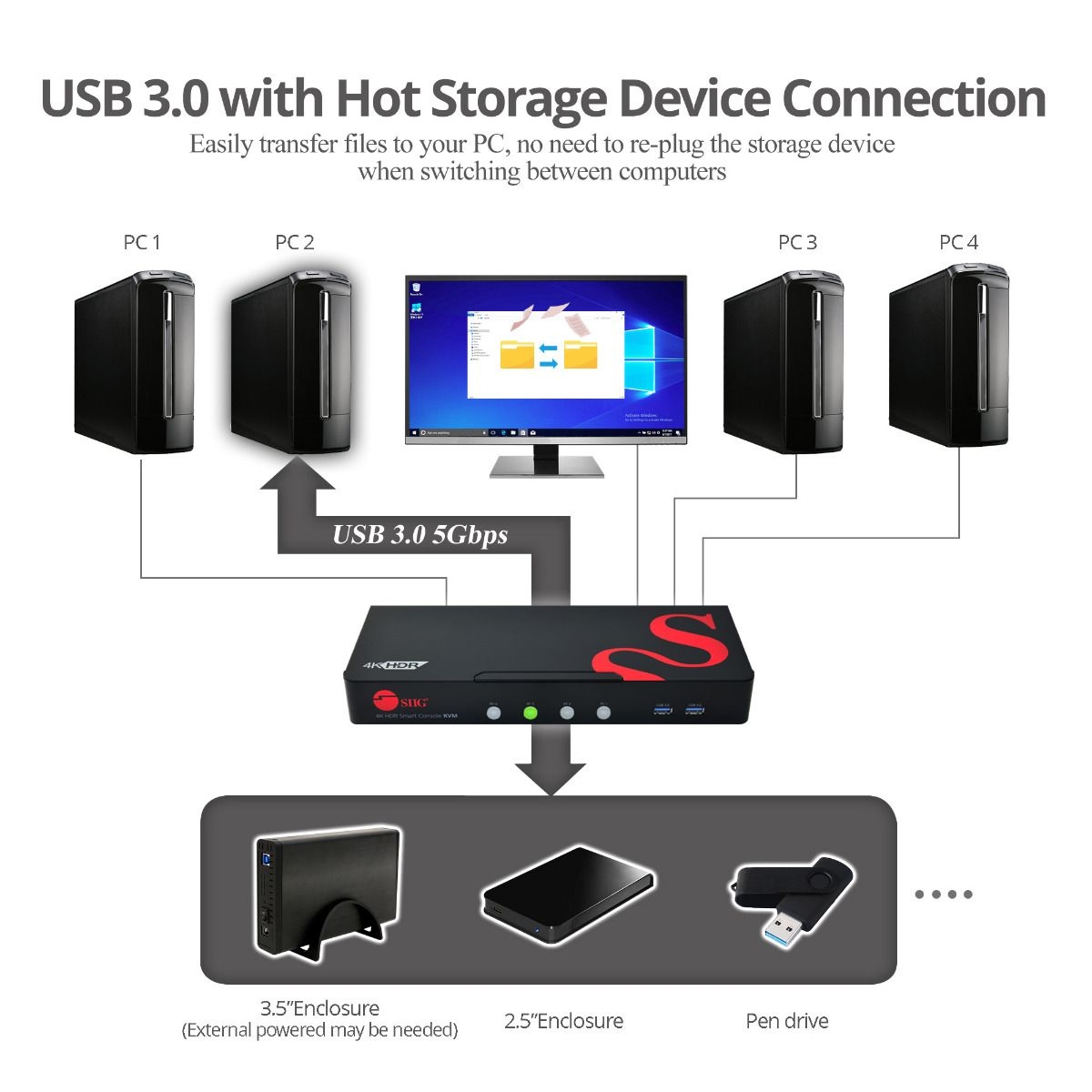

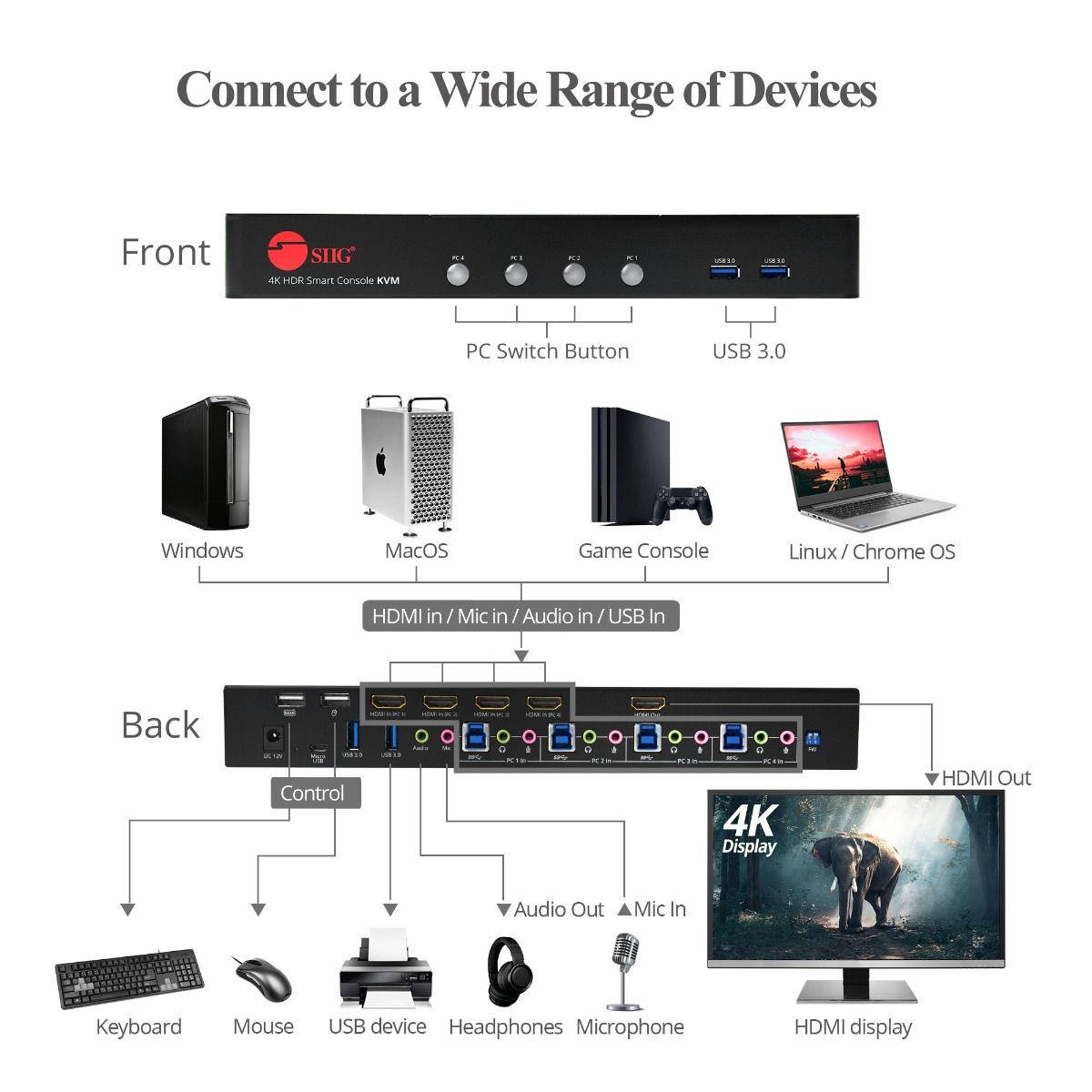

Control up to 4 computers with 4K HDMI video with one keyboard, mouse and display

Compatible with resolutions up to Ultra-HD 4K 60Hz with HDR, and 18Gbps video bandwidth

Features Auto-EDID detection for easy display detection

Easy system selection via front panel selection buttons or keyboard hot-key commands

Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously

Includes 3.5mm jack for microphone input and stereo speakers/headphones

Auto-scan feature for quick browsing and system monitoring

Firmware upgrade feature via Micro USB port for future compatibility

Plug-n-play, no driver installation

Compatibility Notes:

- Not DDM fast switching compliant
Compatibility:
HDMI 2.0, HDCP 2.2, 3D, Deep color
Video bandwidth:
Single-link 594MHz, Up to 18Gbps
Resolution:
Up to 3840x2160 at 60Hz YUV 4:4:4 8-bit and 3840x2160 at 60Hz YUV 4:2:0 10-bit HDR
Audio:
Surround sound (up to 7.1ch) or stereo digital audio
HDMI: PCM, Dolby Digital, DTS-HD and Dolby True-HD audio
3.5mm Jack: PCM 2-CH stereo Audio
USB data transfer rate:
USB 1.1: up to 12Mbps
USB 3.0: up to 5Gbps
Product:
Color: Black
Housing material: Metal
Connector:
4x 19-pin HDMI, Female, PC Input
4x 9-pin USB 3.0 Type-B, Female
4x 3.5mm jack for Mic and Stereo audio, Female, PC Input
1x 19-pin, HDMI, Female, Output
1x 3.5mm jack for Mic and Stereo audio, Female, Output
1x 5-pin Micro USB, FW update, Female
4x 9-pin USB 3.0 Type-A, Female
2x 4-pin USB 1.1 Type-A, Female for Keyboard and Mouse
1x 2-pin DIP Switch, Control FW
1x Power Jack
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 12V/2A
UL listed: E163743 8F35/Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: <85% RH (non-condensing)
TAA compliant
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
12 x 3 x 5
Weight
2.09 LB
Warranty Information
3 years

Available Quantity

5

UPC

662774042916

SKU

mingleCE-H25611-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

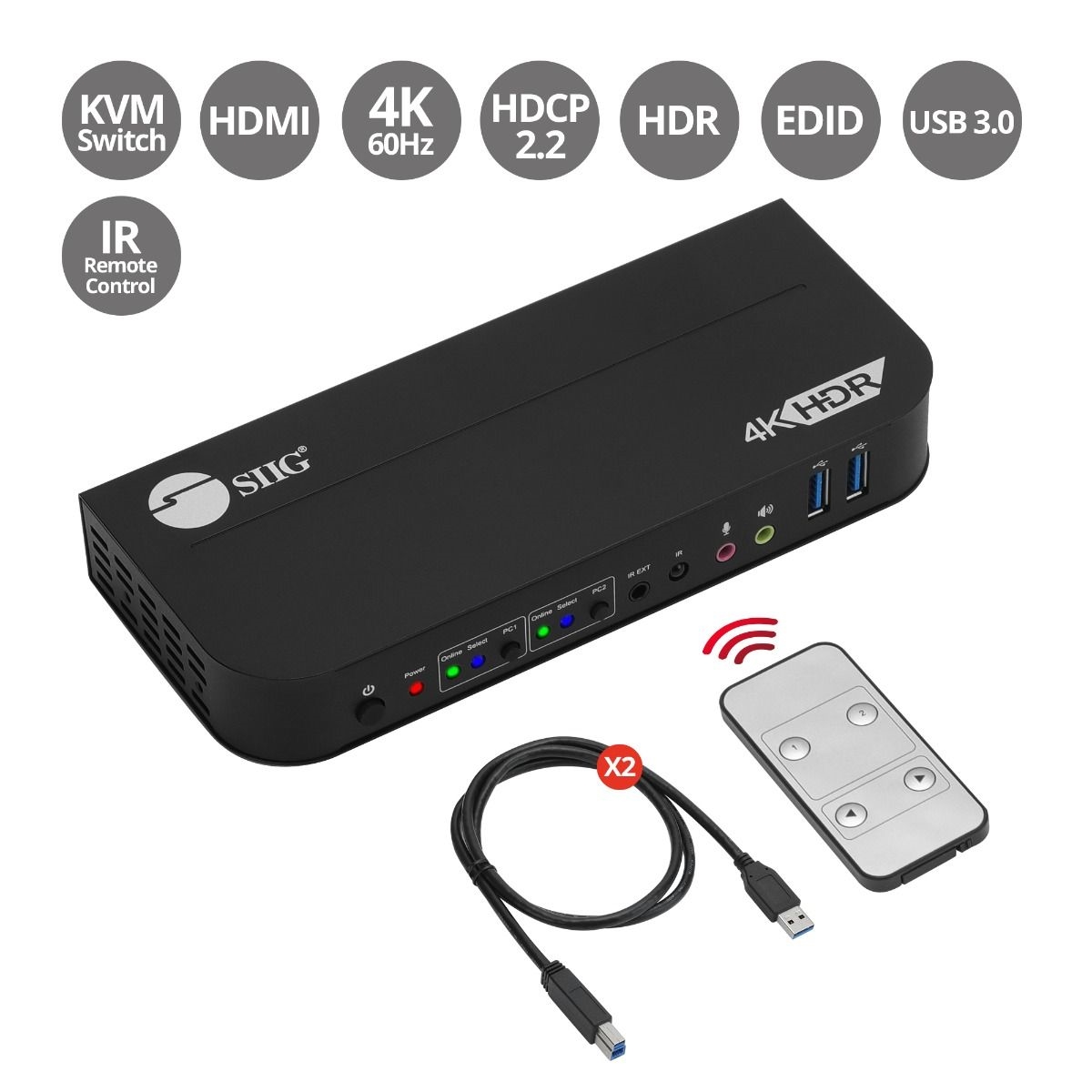

2x1 HDMI KVM Switch, allows you to control 2 HDMI 4K computers using one keyboard and mouse - HDMI 4K@60, USB 3.2 Gen 1 ports, Microphone Input, and Stereo Audio Output, Switch Button, Hotkeys, Remote Control

Features

Easily control 2 HDMI computers and switch a HDMI display/monitor with one set of keyboard & mouse improve your work efficiently

Effortlessly Switch

Easily switching between computer/device via the front panel push button, USB keyboard hotkeys or IR remote control make this 2x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control user-friendly to operate

4K Ultra HD Resolution

Allows you to connect a single UHD 4K (3840x2160) @60Hz through a HDMI port to display the crystal-clear video quality. HDR, 3D and deep color are supported. Compliant with 18Gbps video bandwidth

High Performance

Offers a true 18Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI or 3.5mm PCM 2-ch stereo audio

Multiple Connectivity Port

Comes with two HDMI video input ports, two USB 3.2 Gen 1 Type-B ports (Host), eight 3.5mm phone jacks to connect stereo speakers/earphones and microphones, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, two switch buttons, one power button, and one DC power jack (5V/3A)
Software
OS Compatibility
Windows 11, mac OS 12.x or new
Video
HDMI
HDCP 2.2, resolution: up to 4K (3840x2160)30Hz, video bandwidth: 18Gbps
USB data transfer rate
USB 3.2 Gen 1
2x Type-A, up to 5Gbps, 5V/900mA
USB 2.0
2x Type-A, up to 480Mbps
Audio
7.1 channel surround sound from HDMI port
PCM 2.1 channel stereo digital audio for 3.5mm audio jack
Power Adapter
Input
AC 100-240V / 50-60Hz
Output
DC 5V/3A
ETL P/N
4006448
Environmental conditions
Operating temperature
32 to 114 degrees F
Storage temperature
14 to 178 degrees F
Relative humidity:
5% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
Metal
Certifications/Standards
FCC, CE, RoHS, REACH
Country of origin: China
Item Dimension (L"xW"xH")
10 x 3 x 8

Weight
2 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

662774045160

SKU

mingleCE-KV0E11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

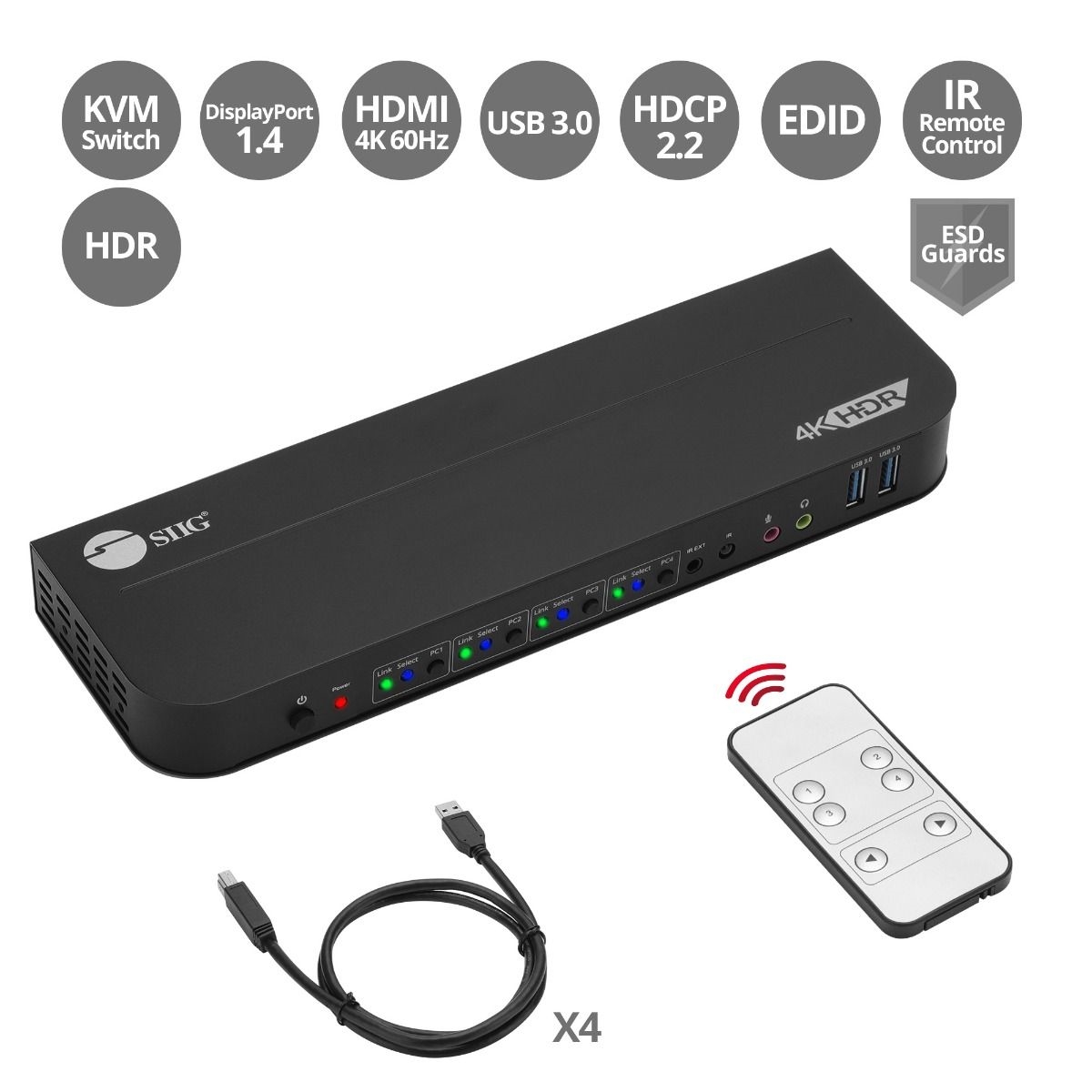

4x1 DisplayPort KVM Switch, allows you to control 4 DisplayPort 1.4 computers using one keyboard and mouse, DP 1.4/8K@30 or HDMI 4K@60, USB 3.2 Gen1 ports, Microphone input, and Stereo audio output, Switch button, Hotkeys, Remote control

Features

Easily control 4 DisplayPort 1.4 computers and switch a DisplayPort or HDMI display/monitor with one set of keyboard & mouse improve your work efficiently

Effortless Switch

Easily switching between computer/device via the front panel push button, USB keyboard hotkeys or IR remote control make this 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control user-friendly to operate

4K/8K Ultra HD Resolution

Allows you to connect either a single UHD 8K (7680x4320) @30Hz resolution through a DisplayPort 1.4 port or a single UHD 4K (3840x2160) @60Hz through a DisplayPort 1.2 or HDMI port to display the crystal-clear video quality. Supports 3D and deep color

High Performance

Comes with four DisplayPort video input ports, four USB 3.2 Gen 1 Type-B ports (Host), twelve 3.5mm phone jacks to connect stereo speakers/earphones and microphones, one DisplayPort video output port, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, four switch buttons, one power button, and one DC power jack (5V/3A)

USB Data Transfer

Delivers two SuperSpeed USB 3.2 Gen 1 Type-A ports up to 5Gbps data transfer rate on the front side for Flash drive, Printer, and other USB peripheral devices. And two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse
Software
OS Compatibility
Windows 11, mac OS 12.x or new
Video
DisplayPort 1.4
Resolution: up to 8K (7680x4320) at 30Hz, video bandwidth:32.4Gbps
DisplayPort 1.2
Resolution: up to 4K (3840x2160) at 60Hz, video bandwidth: 21.6Gbps
HDMI
HDCP 2.2, Resolution: 4K (3840x2160) at 60Hz, video bandwidth: 18Gbps
USB data transfer rate
USB 3.2 Gen 1
2x Type-A, up to 5Gbps, 5V/900mA
USB 2.0
2x Type-A, up to 480Mbps
Audio
7.1 channel surround sound from DisplayPort/HDMI port
PCM 2.1 channel stereo digital audio for 3.5mm audio jack
Power Adapter
Input
AC 100-240V / 50-60Hz
Output
DC 5V/3A
ETL P/N
4006448
Environmental conditions
Operating temperature
32 to 114 degrees F
Storage temperature
14 to 178 degrees F
Relative humidity:
5% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
Metal
Certifications/Standards
FCC, CE, RoHS, REACH
Country of origin: China
Item Dimension (L"xW"xH")
12 x 3 x 8

Weight
3 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

662774045153

SKU

mingleCE-KV0D11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

2x1 DisplayPort KVM Switch, allows you to control 2 DisplayPort 1.4 computers using one keyboard and mouse, DP 1.4/8K@30 or HDMI 4K@60, USB 3.2 Gen 1 ports, Microphone input, and Stereo audio output, Switch Button, Hotkeys, Remote Control

Features

Easily control 2 DisplayPort 1.4 computers and switch a DisplayPort or HDMI display/monitor with one set of keyboard & mouse to improve your work efficiently

Effortlessly Switch

Easily switching between computer/device via the front panel push button, USB keyboard hotkeys or IR remote control make this 2x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control user-friendly to operate

4K/8K Ultra HD Resolution

Allows you to connect either a single UHD 8K (7680x4320) @30Hz resolution through a DisplayPort 1.4 port or a single UHD 4K (3840x2160) @60Hz through a DisplayPort 1.2 or HDMI port to display the crystal-clear video quality. Supports 3D and deep color

High Performance

Offers a true 32.4Gbps video bandwidth and supports 7.1-ch. surround sound from DisplayPort / HDMI or 3.5mm PCM 2-ch stereo audio

Multiple Connectivity Port

Comes with two DisplayPort video input ports, two USB 3.2 Gen 1 Type-B ports (Host), eight 3.5mm phone jacks to connect stereo speakers/earphones and microphones, one DisplayPort video output port, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, two switch buttons, one power button, and one DC power jack (5V/3A)

USB Data Transfer

Delivers two SuperSpeed USB 3.2 Gen 1 Type-A ports up to 5Gbps data transfer rate on the front side for Flash drive, Printer, and other USB peripheral devices. And two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse
Software
OS Compatibility
Windows 11, mac OS 12.x or new
Video
DisplayPort 1.4
Resolution: up to 8K (7680x4320) at 30Hz, video bandwidth: 32.4Gbps
DisplayPort 1.2
Resolution: up to 4K (3840x2160) at 60Hz, video bandwidth: 21.6Gbps
HDMI
HDCP 2.2, Resolution: up to 4K (3840x2160) at 60Hz, video bandwidth: 18Gbps
USB data transfer rate
USB 3.2 Gen 1
2x Type-A, up to 5Gbps, 5V/900mA
USB 2.0
2x Type-A, up to 480Mbps
Audio

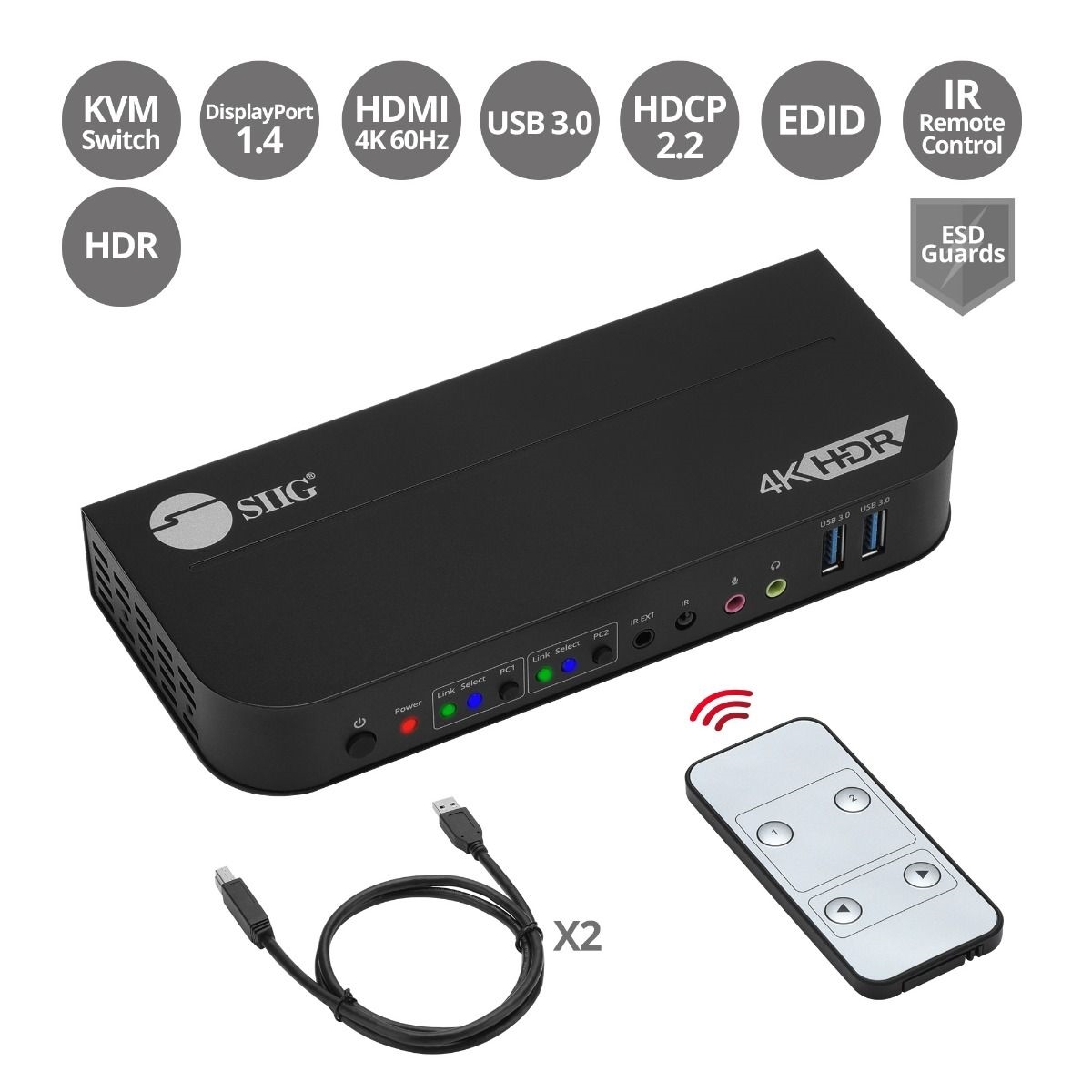

7.1 channel surround sound from DisplayPort/HDMI port
PCM 2.1 channel stereo digital audio for 3.5mm audio jack
Power Adapter
Input
AC 100-240V / 50-60Hz
Output
DC 5V/3A
ETL P/N
4006448
Environmental conditions
Operating temperature
32 to 114 degrees F
Storage temperature
14 to 178 degrees F
Relative humidity:
5% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
Metal
Certifications/Standards
FCC, CE, RoHS, REACH
Country of origin: China
Item Dimension (L"xW"xH")
10 x 3 x 8

Weight
2 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

662774045146

SKU

mingleCE-KV0C11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

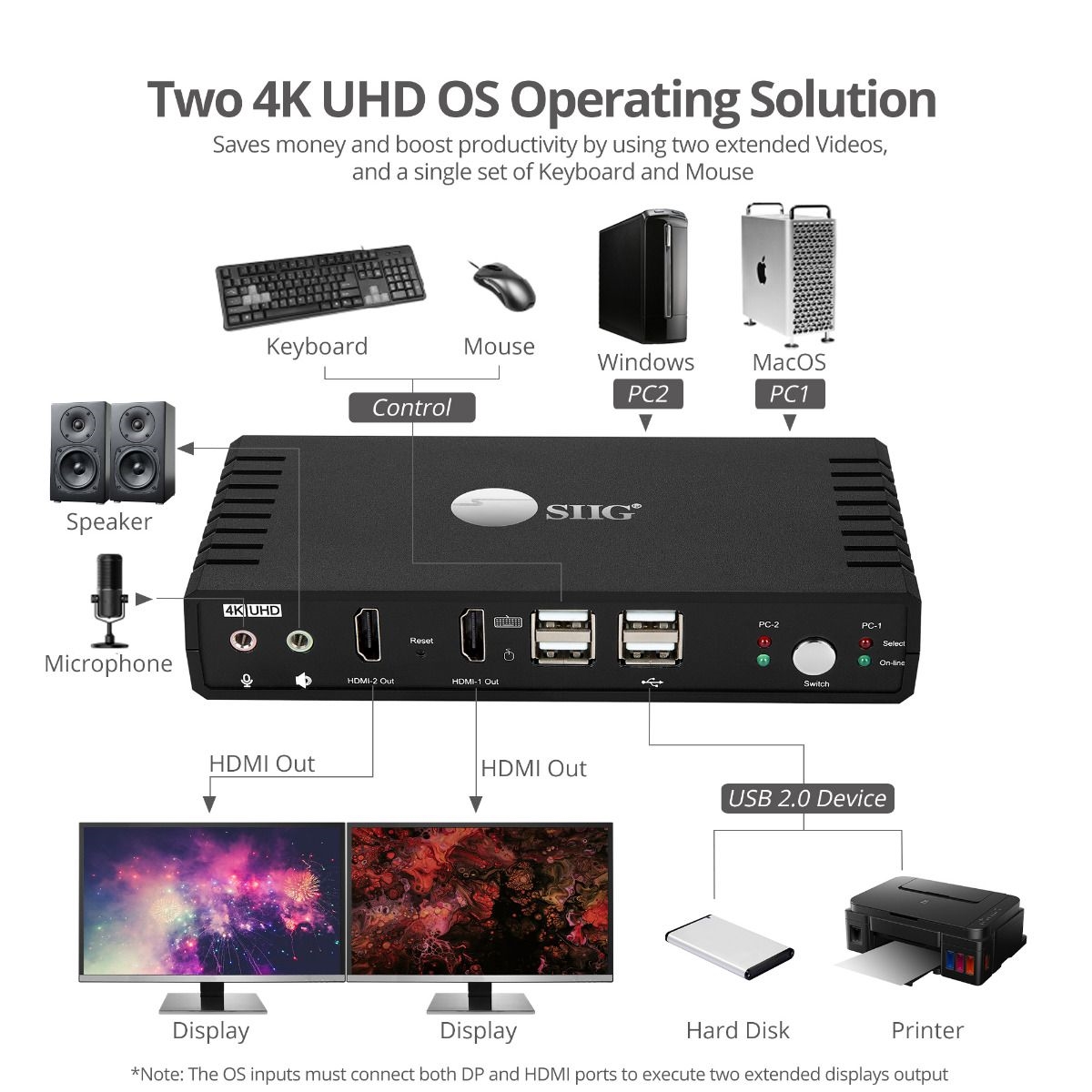

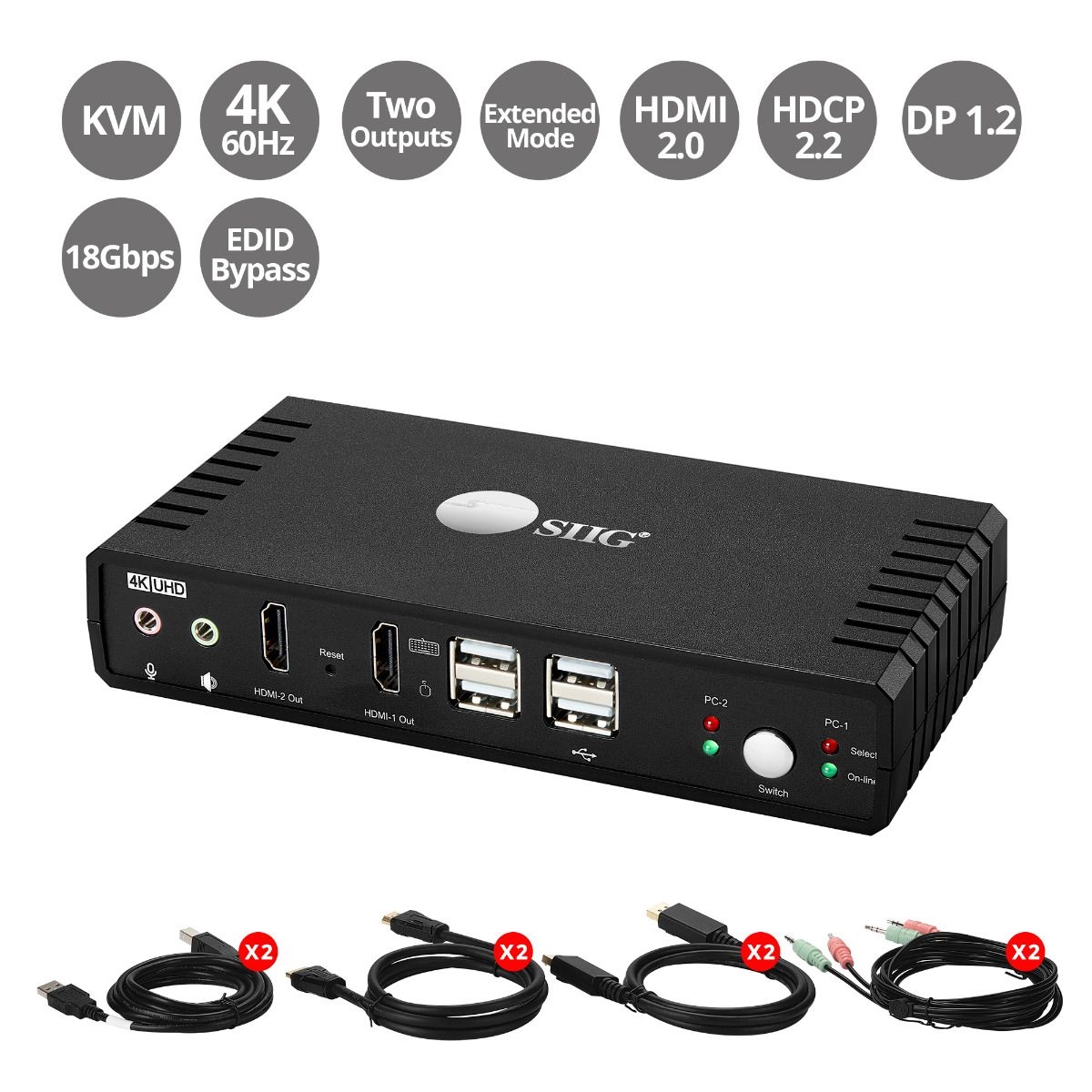

Device Control- Allows you to control two 4K computers with one USB keyboard, USB mouse, Dual 4K HDMI displays, adds microphone input and speaker out connection, plus dual USB 2.0 ports for connecting USB 2.0 peripheral devices and share them between the 2 computers

UHD 4K Resolution- This HDMI KVM switcher offers true Ultra-HD 4K at 60Hz resolution; it features EDID bypass which ensures visual workspace and high screen resolutions that are easy to connect and configure for most any system.

Advanced Dual-Head Design
- Allows you to connect one 4K HDMI video input port and one 4K DisplayPort video input port on the same source/computer

Dual Displays
- Dual 4K HDMI outputs allow for Extended, Mirror, or Primary display mode configuration

Compliance- HDMI 2.0 and HDCP 2.2

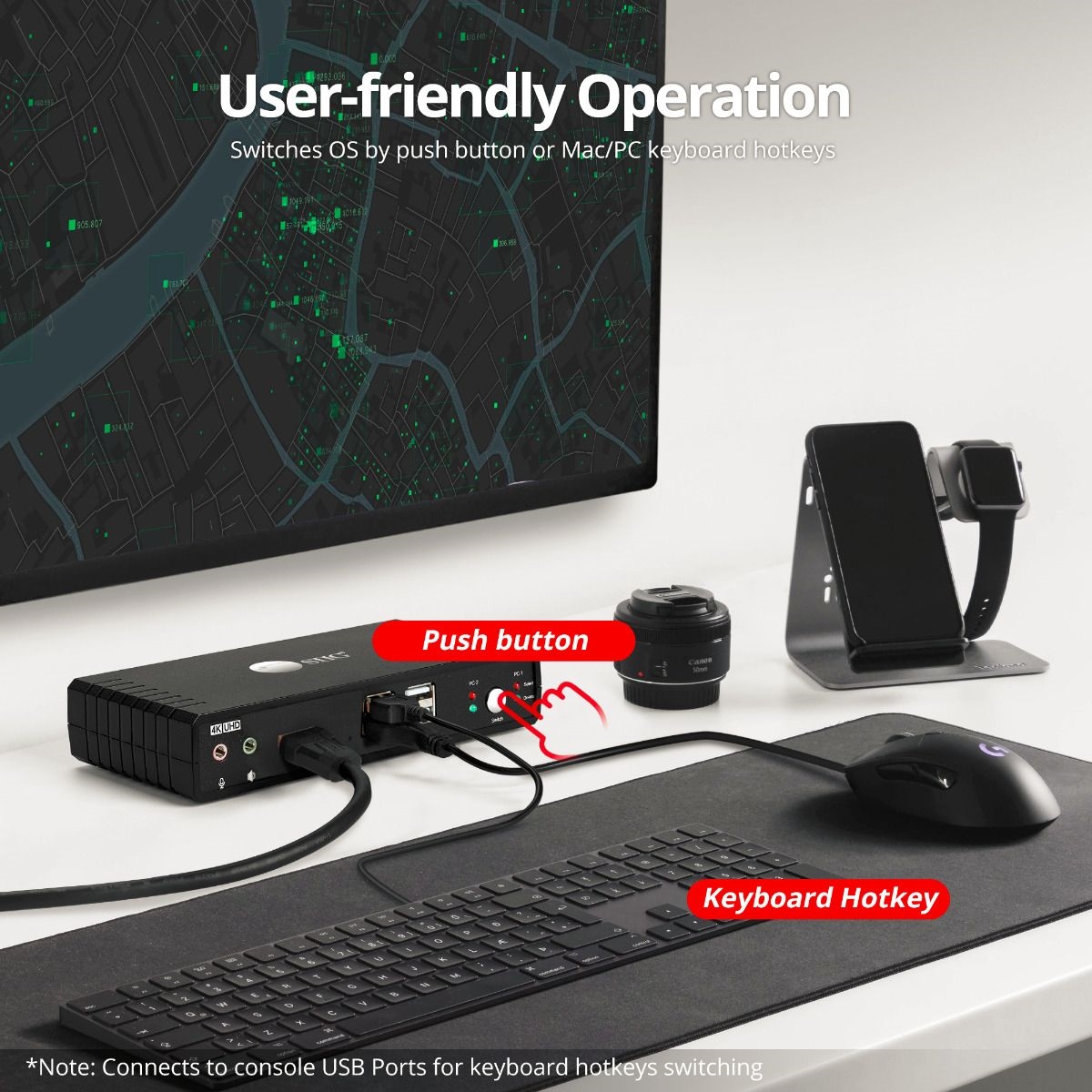

Easy Device Switching

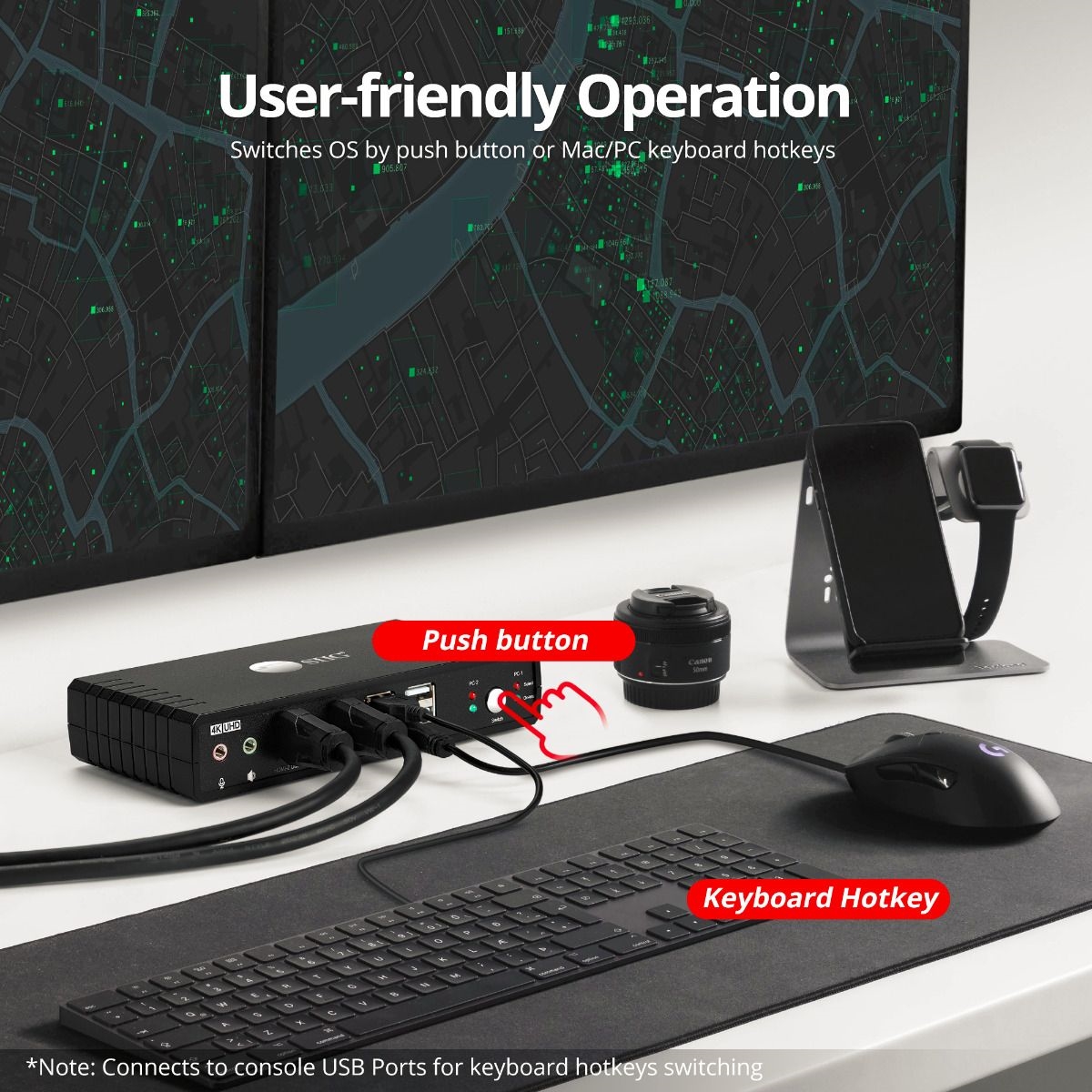

- Convenient front panel select button or keyboard hot-key commands

USB 2.0 Hub- Includes 2-port USB 2.0 HID Hub for Keyboard and Mouse connection, plus another 2 USB 2.0 ports for connecting USB flash drives or any USB devices to the KVM Switch allowing the connected computers to access them

Multimedia Connections- Includes 3.5mm jack for microphone and stereo audio connections

Display Auto Scan- Supports auto scanning feature between each display

LED Indicators- Displays KVM connections and status

Easy Installation
- Plug-n-play, no driver installation needed
Compliance:
HDMI 2.0, HDCP 2.2
Resolution:
3840x2160 at 60Hz YUV 4:4:4 8-bit and 3840x2160 at 60Hz YUV 4:2:0
Video Bandwidth:
Up to 18Gbps
USB data transfer rate:
USB 2.0 up to 480Mbp
3.5mm audio jack:
PCM 2-CH stereo
Power adapter:
5V/2A
Product:
Color: Black
Housing material: Plastic

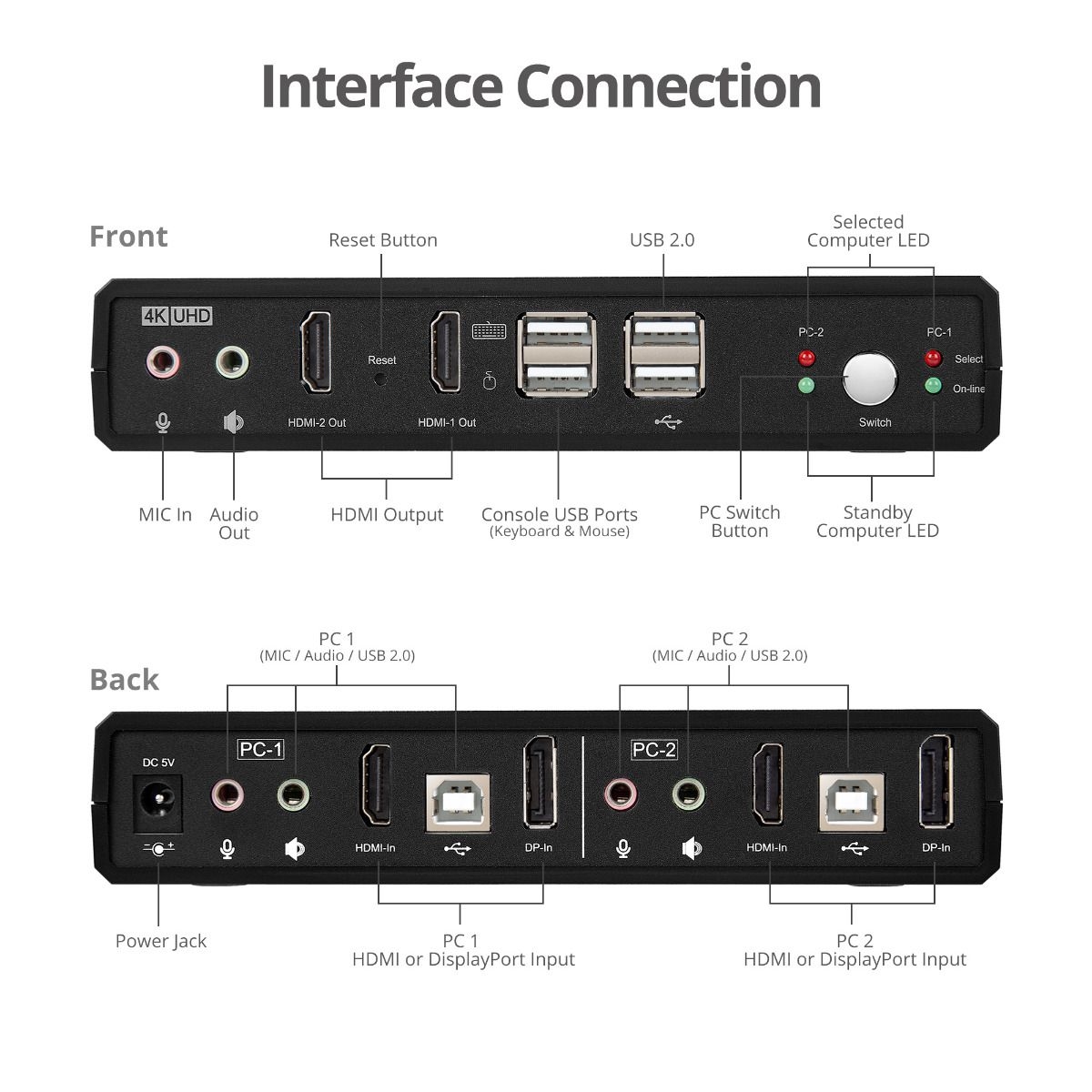

Interfaces/Ports:
2x 19-pin HDMI 2.0, Female, Input
2x 20-pin, DisplayPort 1.2, Female, Input
2x 4-pin USB 2.0 Type-B, Female, Input
2x 3.5mm jack for Microphone, Female, Input
2x 3.5mm jack for Stereo audio, Female, Output
2x 19-pin, HDMI 2.0, Female, Output
2x 3.5mm Microphone Stereo Audio, Female, Output
2x 4-pin USB 2.0 Type-A, HID Devices, Female
2x 4-pin USB 2.0 Type-A, Hub, Female
1x Push button for device switching
1x Power jack
Power Adapter:
Input: 100-240V, 50-60Hz
Output: DC 5V/2A
UL listed: E168210 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degree F
Relative Humidity: 0% to 80% non-condensing
Certifcations/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L"x W"x H")
7 x 2 x 4
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044514

SKU

mingleCE-KV0911-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

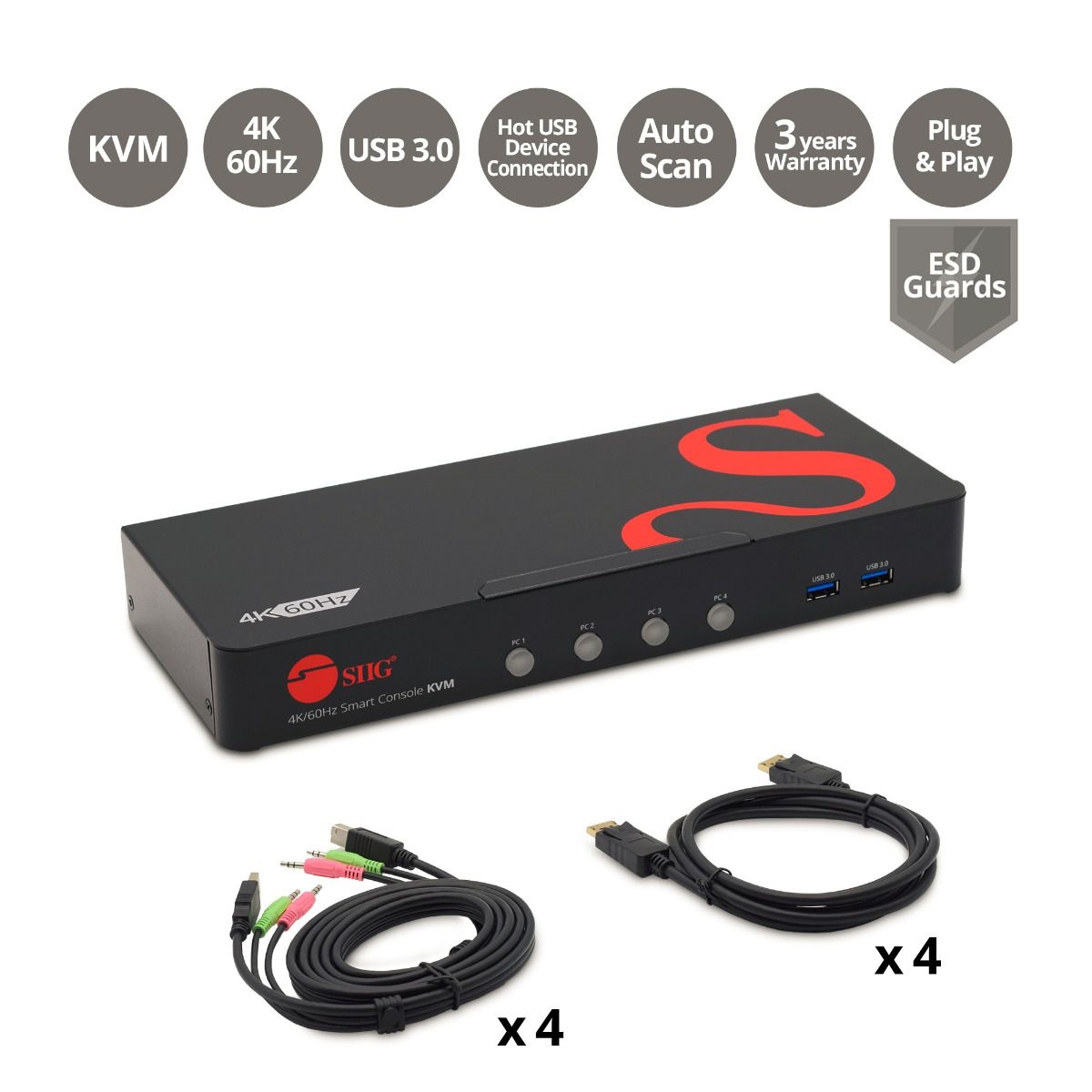

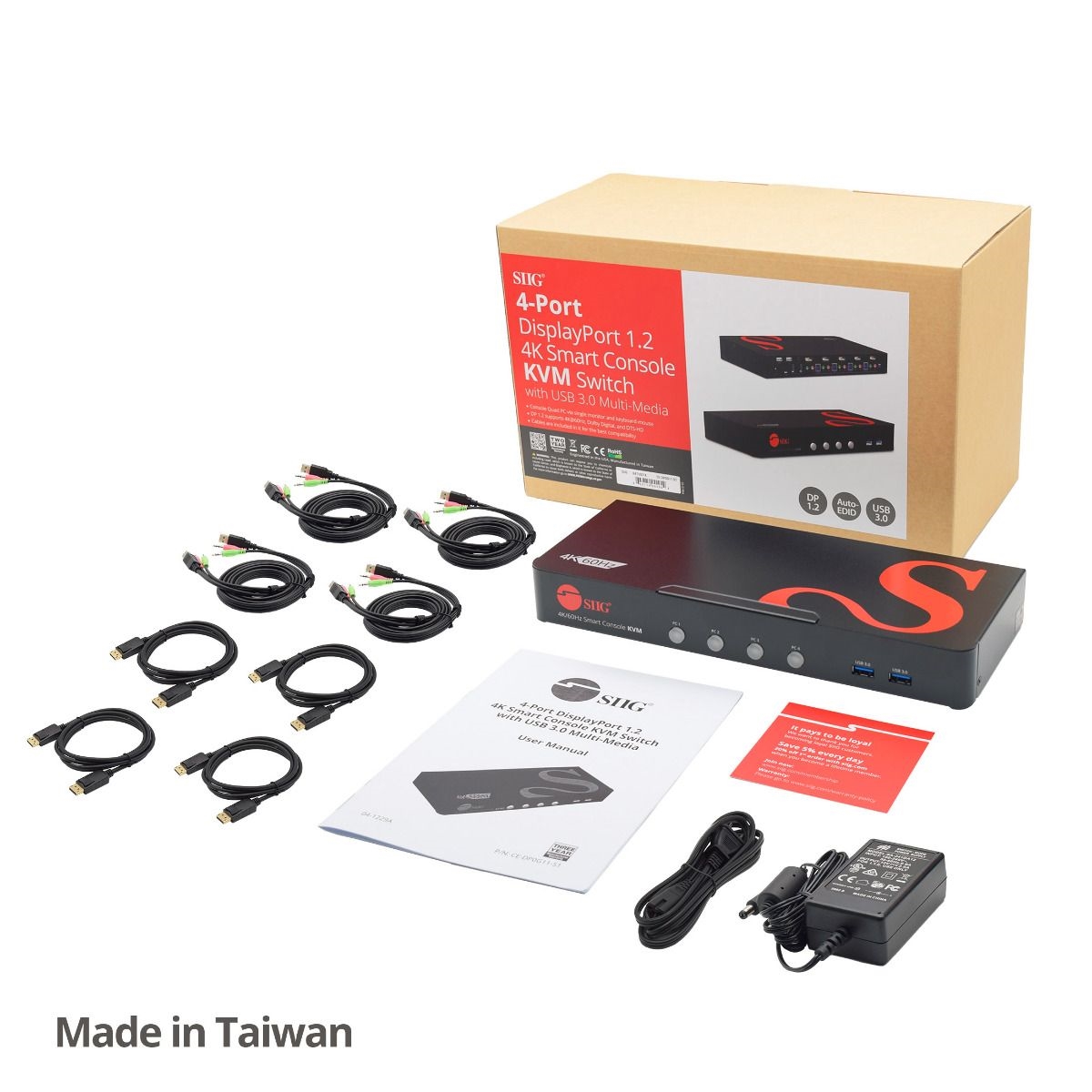

Control four computers with 4K@60Hz DisplayPort 1.2 video system via one keyboard, mouse, and display

Offers true 21.6Gbps Ultra-HD 4K@60Hz

Features Auto-EDID detection which ensures easy display detection

Easy system selection via front panel selection buttons or keyboard hot-key commands

Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports to connect multiple USB peripherals such as flash drives, printers and more simultaneously

Includes 3.5mm jack for microphone input and stereo speakers/headphones

Auto-scan feature for quick browsing and system monitoring

Firmware upgrade feature via Micro USB port for future compatibility

Plug-n-play, no driver installation


Compatibility:

- not DDM fast switching compliant

- 4K@60Hz HDR is not supported
Version:
DisplayPort 1.2 specification
Video bandwidth:
Up to 21.6Gbps
Video resolution:
3840x2160 at 60Hz YUV 4:4:4 8-bit
Audio support:
Surround sound (up to 7.1ch) or stereo digital audio
DisplayPort: PCM, Dolby Digital, DTS-HD and Dolby True-HD audio
3.5mm: PCM 2-ch stereo Audio
USB data transfer rate:
USB 1.1: up to 12Mbps
USB 3.0: up to 5Gbps
Color:
Black
Housing material:
Metal

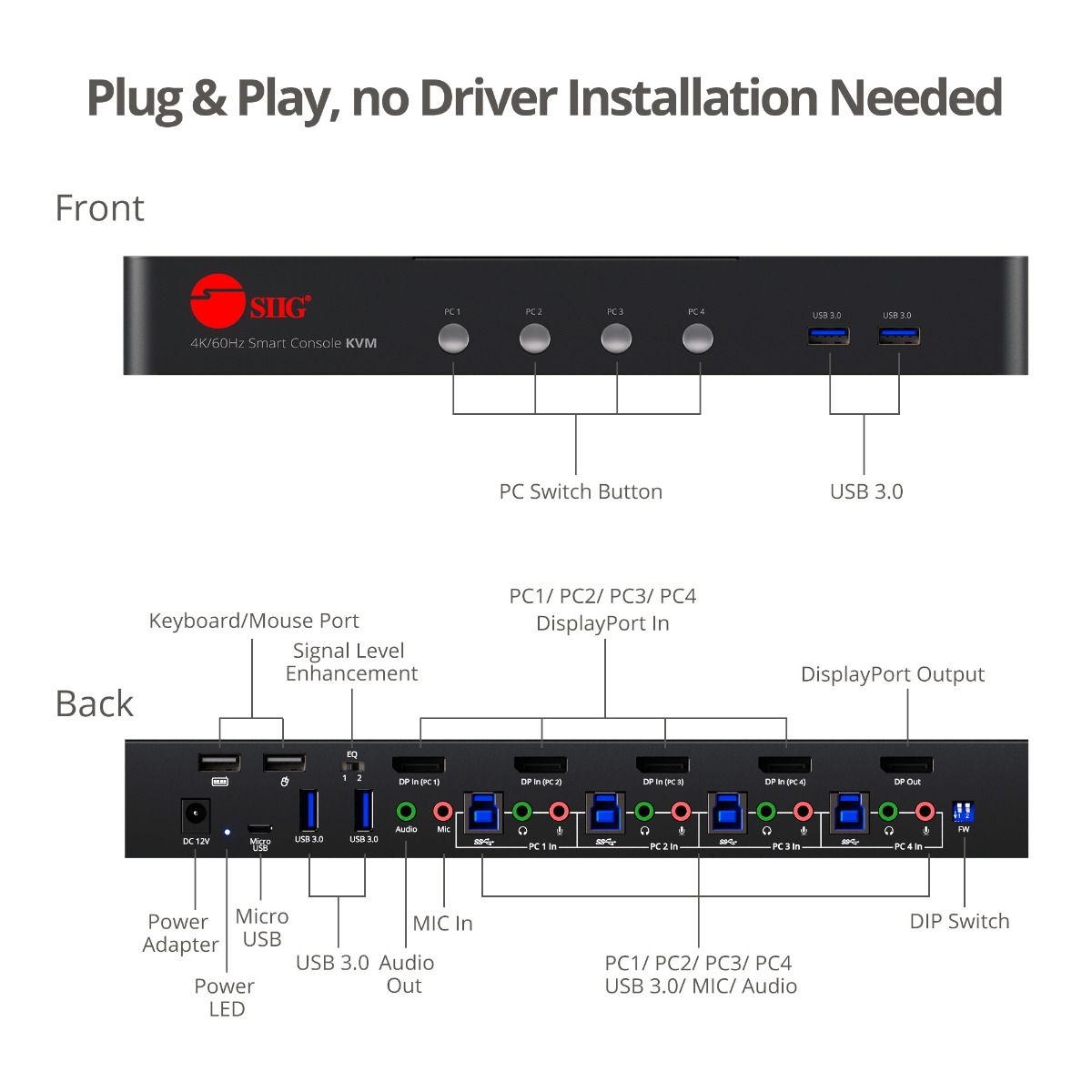

Connector:
Source:
4x 20-pin DisplayPort, Female
4x 9-pin USB 3.0 Type-B, Female
8x 3.5mm phone jack for Microphone and Stereo audio, Female
1x 5-pin Micro USB, Firmware update, Female
2x 2-pin DIP Switch, Control
Device:
1x 20-pin, DisplayPort, Female
2x 3.5mm phone jack for Microphone and stereo audio, Female
4x 9-pin USB 3.0 Type-A, Female
2x 4-pin USB 1.1 Type-A, Female (for Keyboard and Mouse)
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: DC 12V/2A
UL Listed: E163743 8F35/Level:VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: <85% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Compatibility:
- not DDM fast switching compliant
- 4K at 60Hz HDR is not supported
Item Dimension (L inchxW inchxH inch)
12 x 2 x 5

Weight
2.09 lb

Warranty Information
3 Years

Available Quantity

5

UPC

662774042954

SKU

mingleCE-DP0G11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

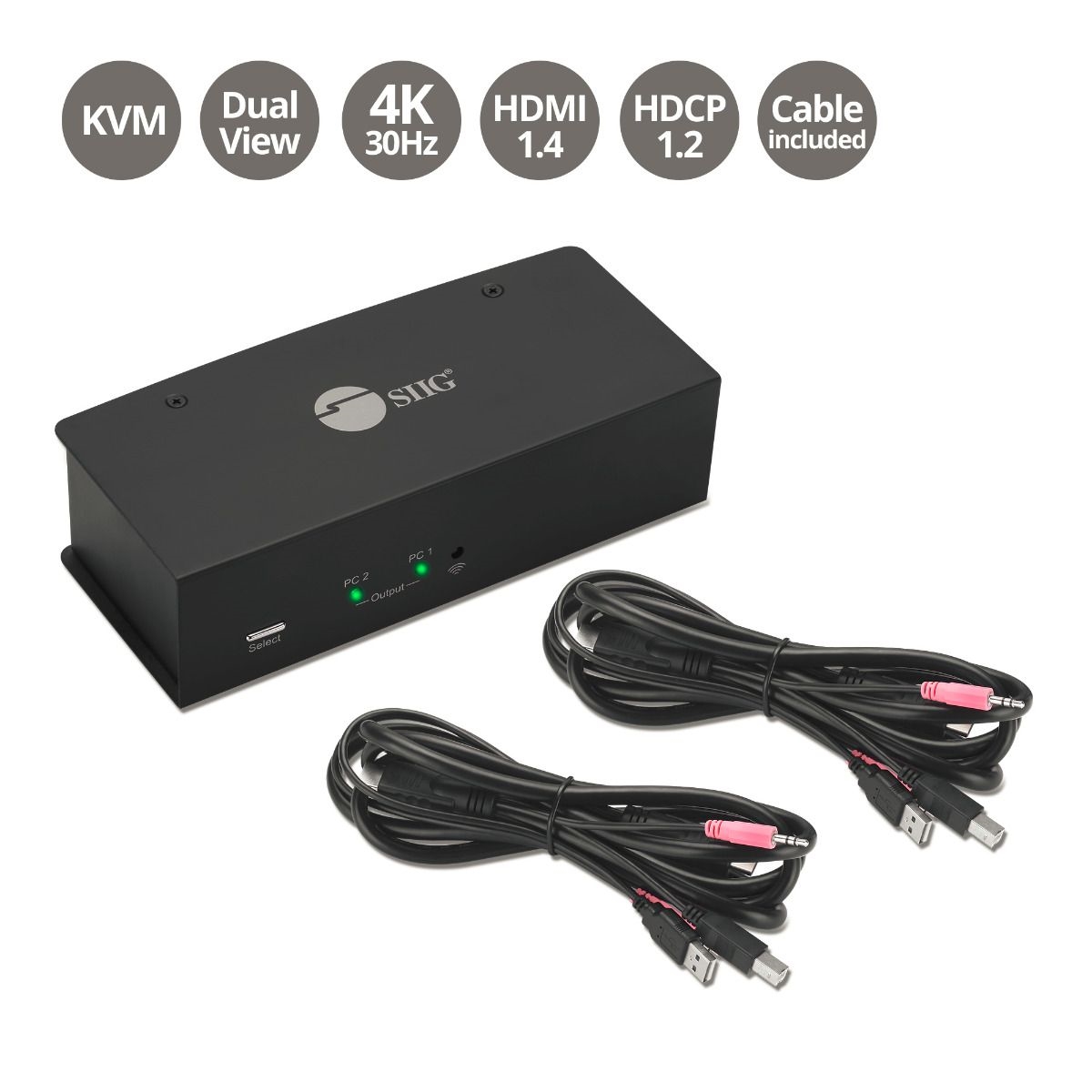

Product Description

Control two 4K HDMI computers with one keyboard, mouse, with microphone input and dual display output for extended or dual display function

Supports high definition 4K@30Hz video resolution to deliver stunning and crystal clear images/videos

Dual display output allows single computer extended display to extended your desktop or dual display output to display both connected computers, one on each display, simultaneously

Easily switch between computer/device via the on-board front panel select button, the included IR remote control or keyboard hot key commands makes this USB HDMI KVM Switch user-friendly to operate

High-quality circuit design with external power adapter provide smooth and reliable performance

Built-in USB 2.0 port allows connecting one USB peripheral such as flash drive or printer and share it between your computers

Premium metal housing effectively reduces electromagnetic interference while offering rapid heat dissipation for stable operation and long life
Specifications
Standard:
HDMI 1.4, HDCP, 3D
Resolution:
4K30Hz / 1080p / 1080i / 720p / 576i / 480p / 480i
Video Bandwidth:
Up to 10.2Gbps
HDMI frequency:
up to 300MHz (up to 3Gbps)
Video color depth:
Up to 48bit (12bit per channel)
Remote control distance:
Up to 5 meters
HDMI cable length:
4K:
up to 2 meters
1080p:
up to 5 meters
Product:
Color:
Black
Housing material:
Metal

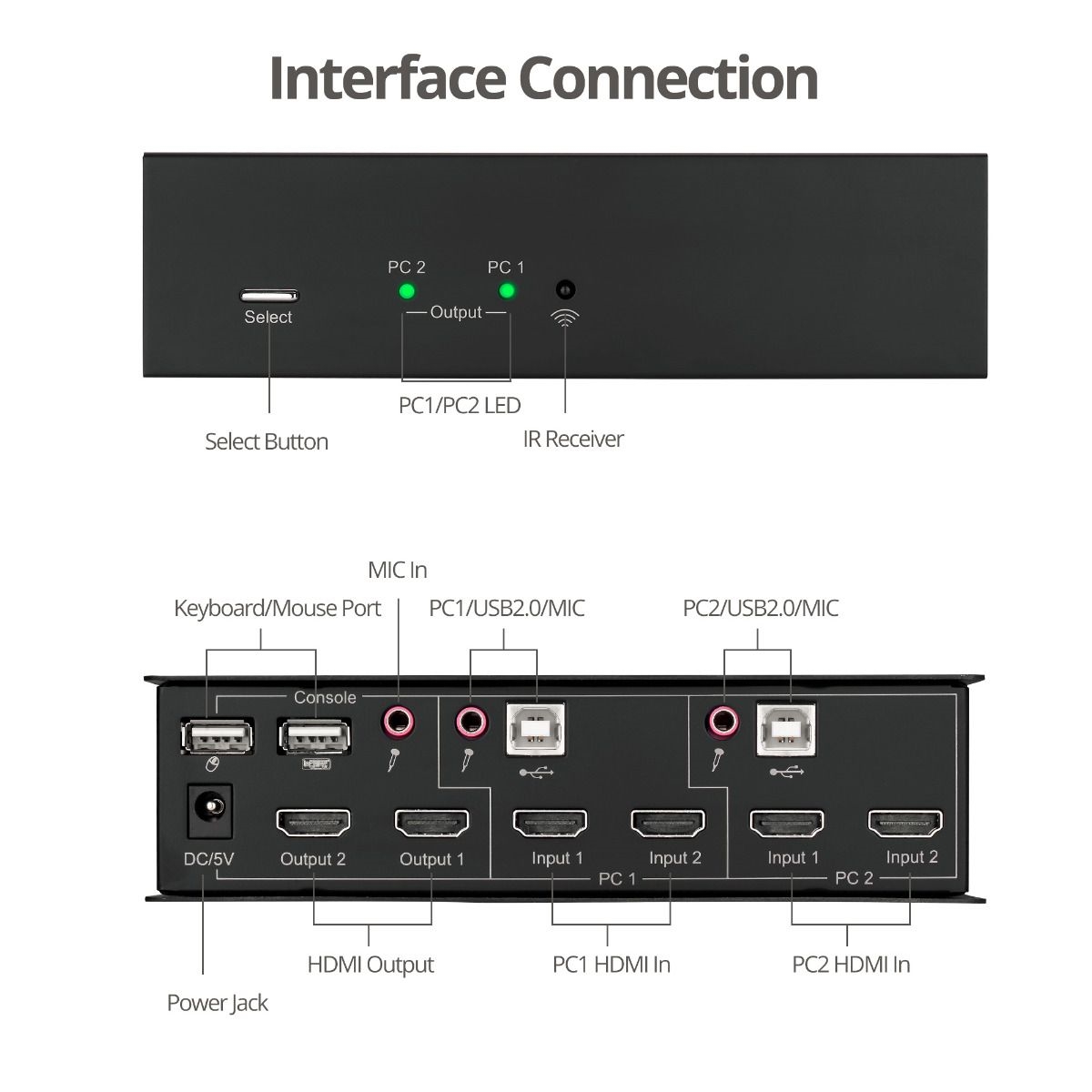

Interfaces/Ports:
4x 19-pin HDMI, Input
2x 19-pin HDMI, Output
2x 4-pin, USB Type-A, for keyboard and mouse
1x 4-pin, USB 2.0, Type-A, USB device connection
2x 4-pin, USB 2.0, Type-B, Input, USB source connection
2x 3.5mm jack, Microphone, Source connection
1x 3.5mm jack, Microphone, Input
Power Adapter
Input:
100-240V, 50-60Hz
Output:
DC 5V/3A
Environmental conditions:
Operating temperature:
32 to 122 degrees F
Storage temperature:
14 to 158 degrees F

Available Quantity

5

UPC

662774043890

SKU

mingleCE-KV0711-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

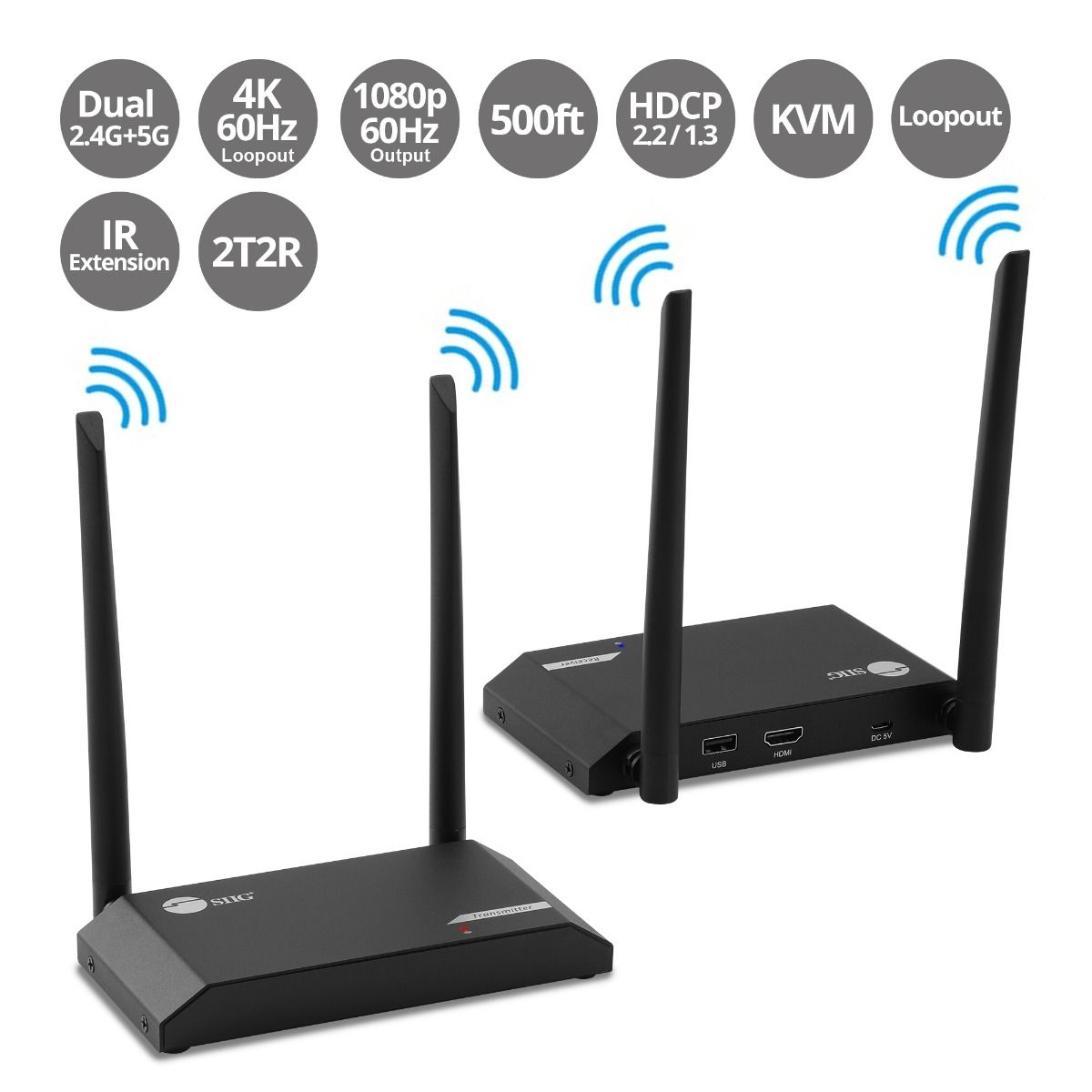

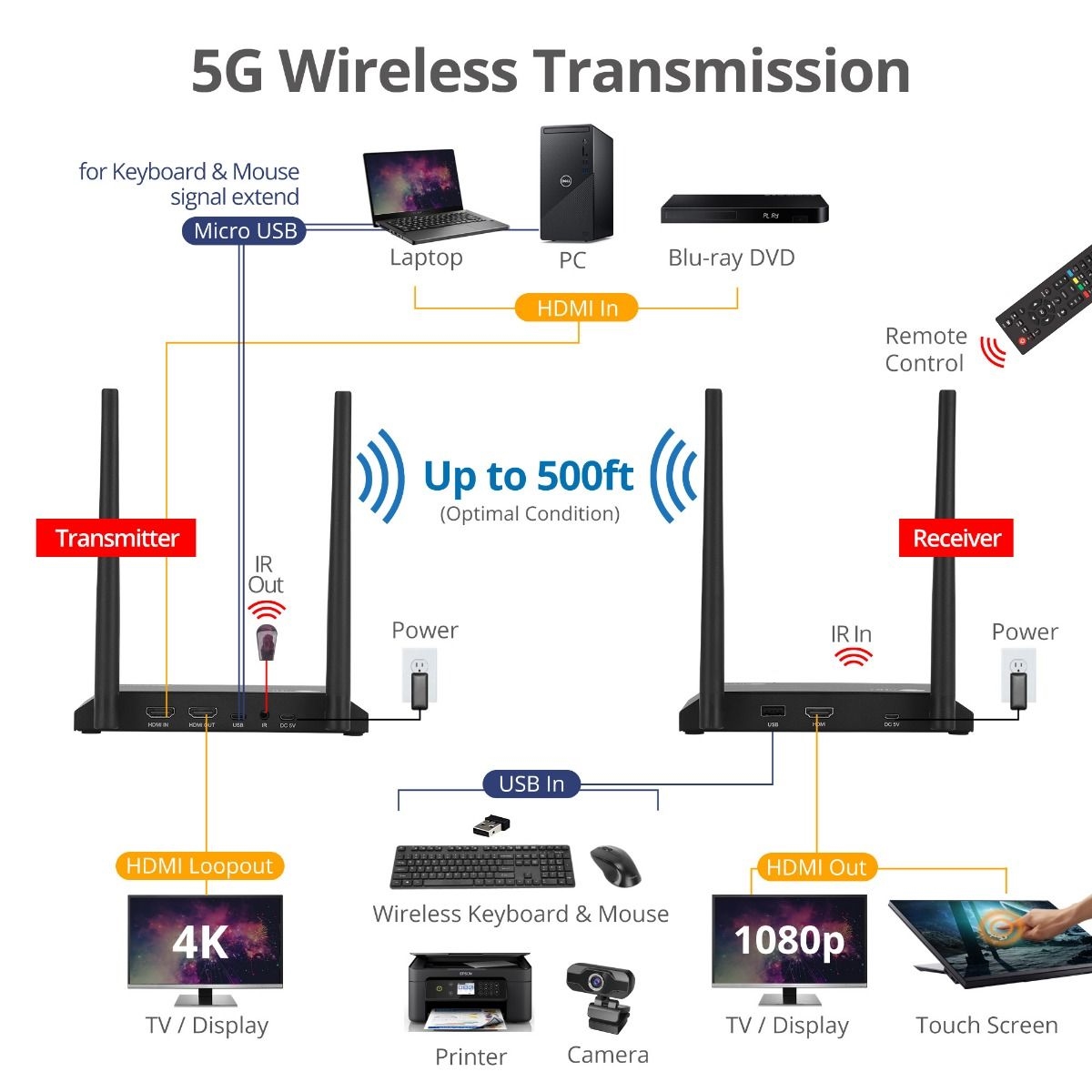

The device utilizes 2.4G wireless technology to transmit HDMI and USB signals up to 500ft through line-of-sight, allowing you to enjoy cable-free freedom.



With the HDMI loop-out feature, video monitoring becomes effortless, while the built-in IR signal extension allows you to control your playback devices remotely.



Our Transmitter unit accommodates HDMI input and loop-out, supporting video up to 4K 60Hz.

Meanwhile, the Receiver unit flawlessly streams Full HD video up to 1080p 60Hz.



With the built-in USB extension, you can conveniently connect a keyboard and mouse to the extended location.

Enabling you to operate your PC system remotely.
HDCP version:
TX: HDCP 2.2 compatible
RX: HDCP 1.3 compatible

Supported Resolutions:
HDMI Loopout: Up to 4K60Hz HDR
RX HDMI output: Up to 1080p 60Hz

Wireless:
IEEE 802.11b/g/n/ac, 2.4G/5GHz, 2T2R

Transmission Distance:
150m (500ft) line-of-sight
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum

HDMI cable length:
Up to 2m (Input and Output)

Latency:
About 100ms

Audio format:
PCM 2-channel stereo audio, 44.1KHz

IR Remote Control:
20-60Hz Frequency Range

Product
Color: Black
Housing: Metal

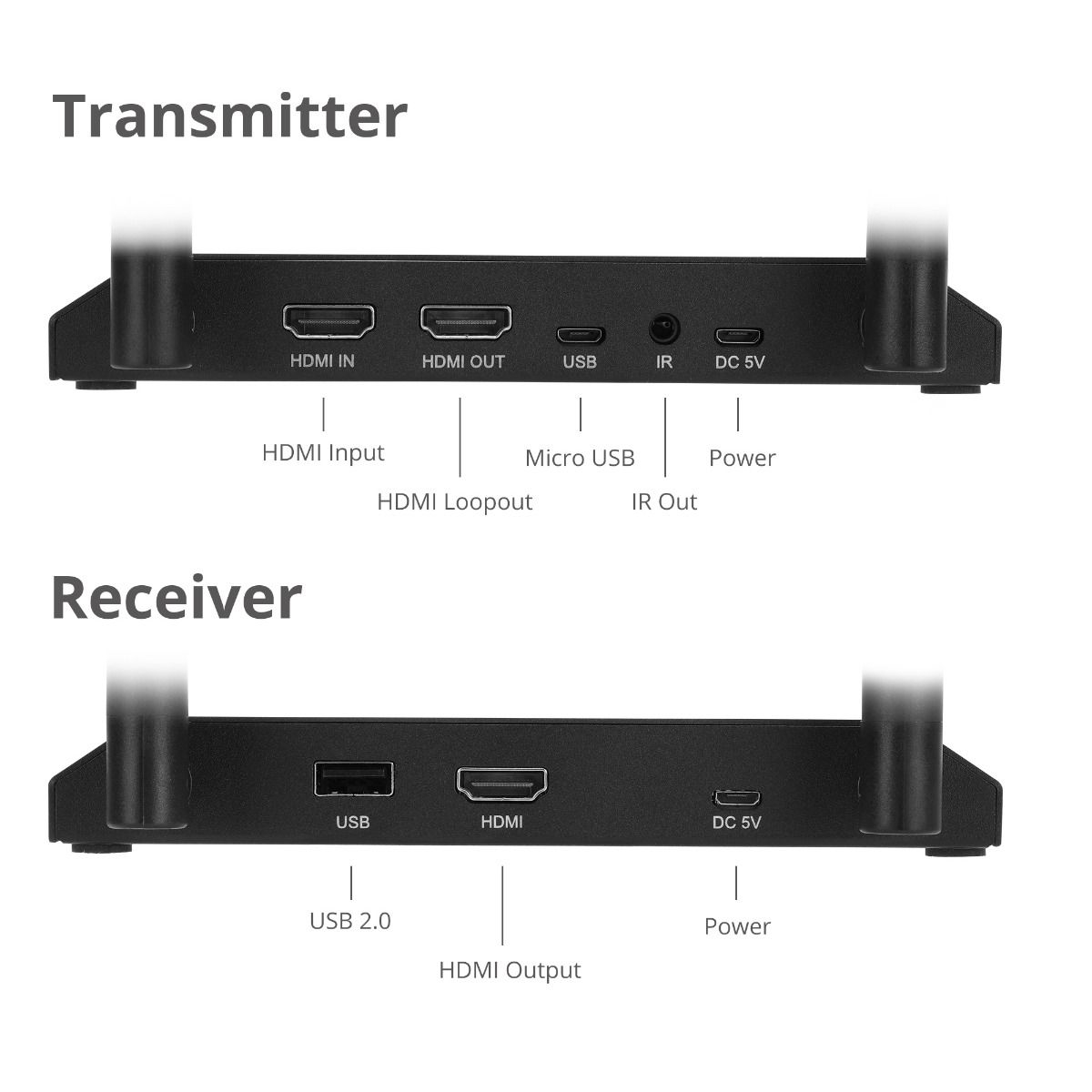

Transmitting unit (TX):
Connector:
1x 19-pin HDMI, Female, Input
1x 19-pin HDMI, Female, Loop Out
1x 3.5mm IR jack (IR or reset button)
1x 5-pin Micro USB for USB 2.0 Source
1x 5-pin Micro USB for DC power input
2x Antenna port
Receiving unit (RX):
Connector:
1x 19-pin HDMI, Female, Output
1x USB-A HID for Keyboard or Mouse devices
1x 5-pin Micro USB for DC power input
2x Antenna port
Power Adapter
Input: AC 100-240V/50-60Hz
Output: DC 5V/1A
UL Listed: E336751/ Class: VI

Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 10% to 80% RH (non-condensing)

Certifications/Standards:
FCC, CE, RoHS

Country of origin:
Engineered in USA, Manufactured in China

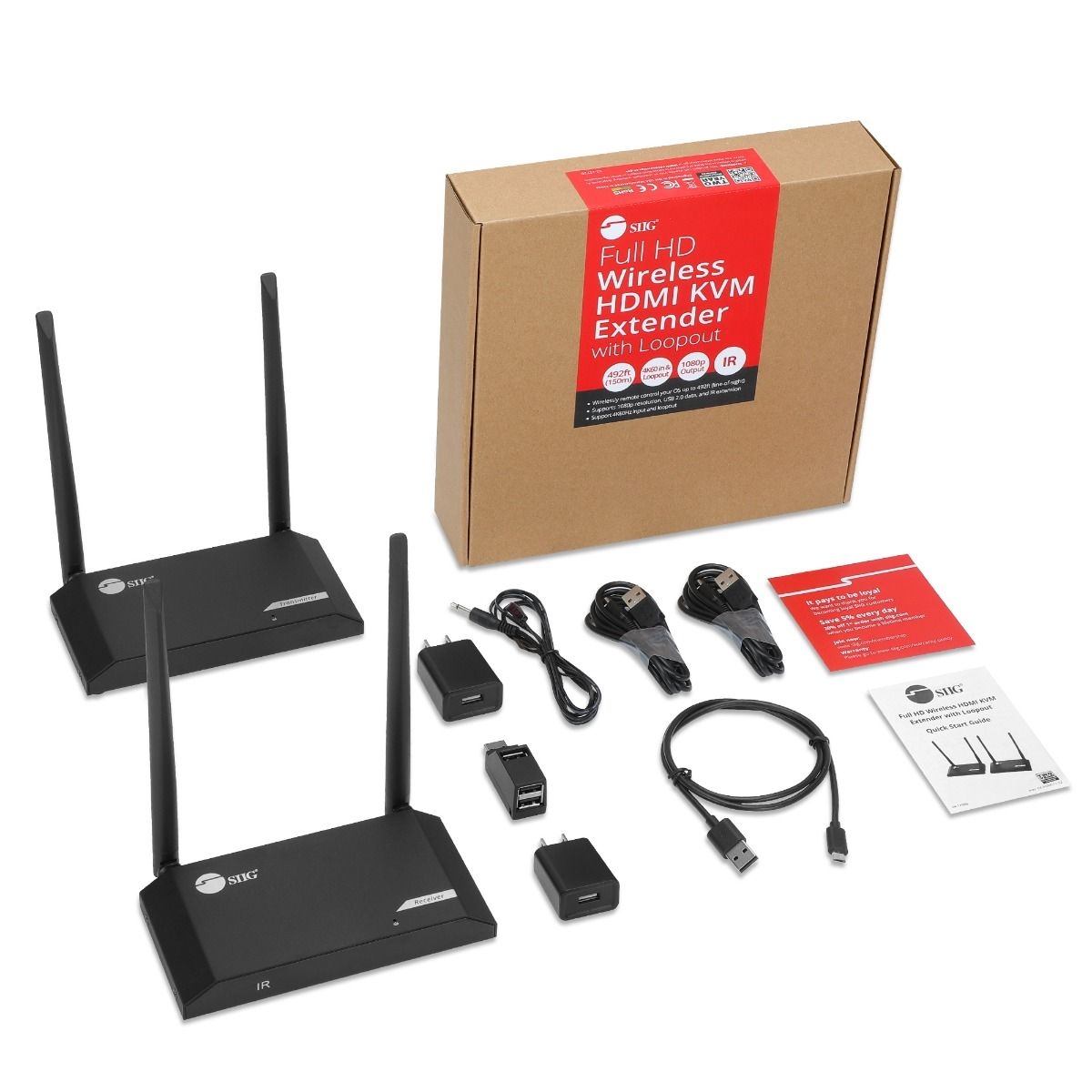

Package contents
1x Full HD Wireless HDMI KVM Extender with Loopout- TX
1x Full HD Wireless HDMI KVM Extender with Loopout- RX
1x IR emitter cable (for TX)
2x Power adapter, 5V/1A
2x USB A to Micro USB power cable (150cm)
1x USB 2.0 hub (for KVM)
1x USB A to Micro USB cable (80cm, for USB 2.0 hub. ^noteBefore using a USB 2.0 hub, please connect this cable)
1x User reference guide
Item Dimension (L inchxW inchxH inch)
11 x 3 x 10

Weight
3 lbs

Warranty Information
2 Years Limited

Available Quantity

5

UPC

662774045696

SKU

mingleCE-H26G11-S2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Overview

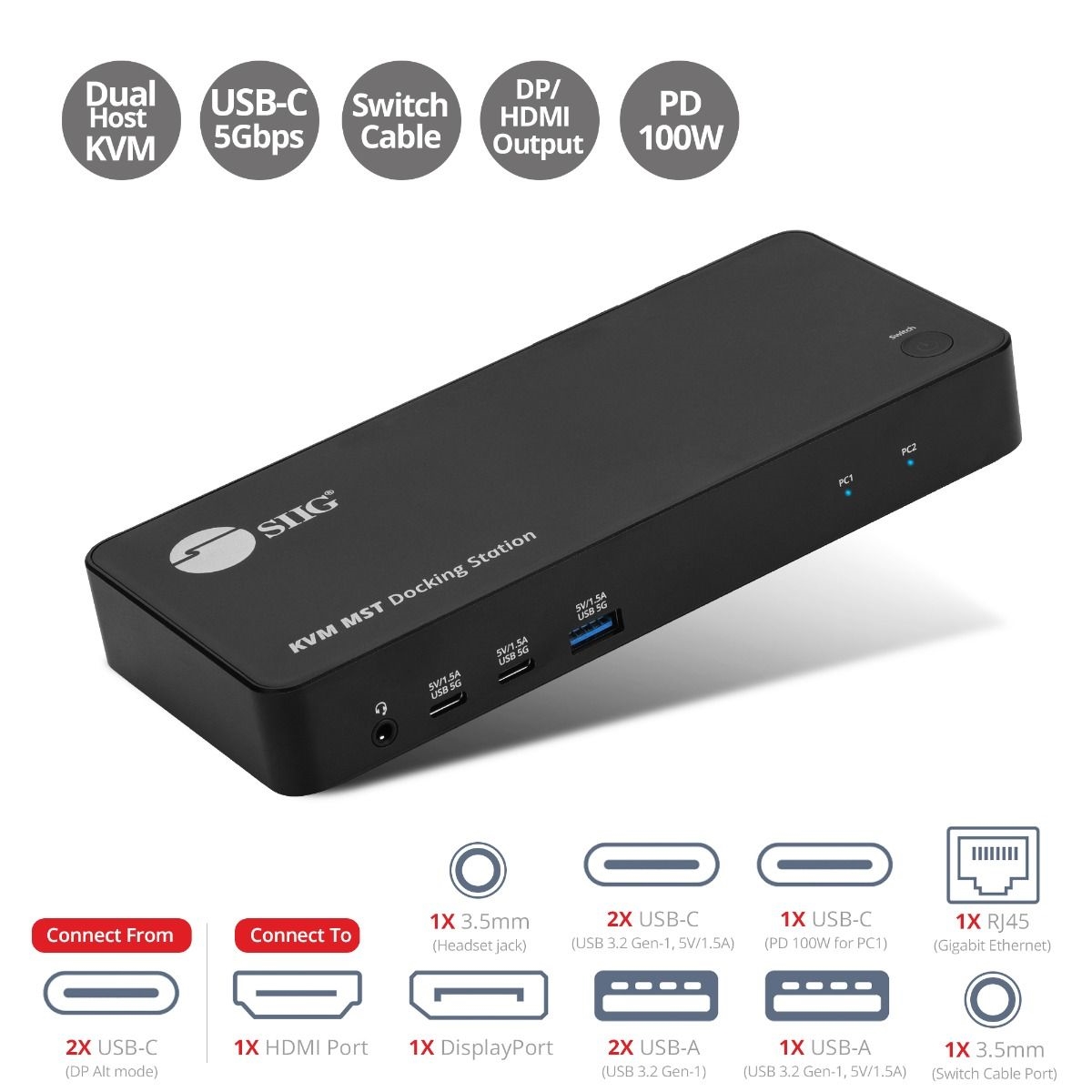

USB-C Docking Station, allows you to connect two laptops of Windows, Mac, or Chromebook to up to dual displays with DisplayPort and HDMI, dual Host, two USB-C 5Gbps, one USB-A 5Gbps with 5V/1.5A, two USB-A 5Gbps, one Gigabit Ethernet, one 3.5mm Headset (Audio/MIC) port. Power Delivery charging up to 65W from the power adapter and 100W via USB-C PD pass through to two Laptop system

Features

Create a dual displays (DisplayPort/HDMI) workstation with one set of keyboard & mouse and MST technology, 100W PD, and multiple connections via 2 computers with USB-C input ports and DP 1.4 Alt mode to increase your work productivity

Video Resolution

Supports one single display via 4K (3840x2160) @60Hz with DP 1.4 alt mode Ultra HD video resolution or dual displays via one 4K (3840x2160) @30Hz+one 1080p (2160x1080) @60Hz with DP 1.4 alt mode video resolution and 5.1-ch. surround sound

*Note: With DP 1.2 alt mode: supports single 4K @30Hz and dual 1080p @60Hz resolution

Effortlessly Switch

Easily control/switch between two computers via the top power/switch button or 3.5mm switch cable

Security Lock

Keep your laptop safe and secure with a security lock when you work in a public place

3 Display Modes

Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays

* Note: macOS only supports Mirror mode
Hardware
Chipset
RTD2142+GL3510+AX88179A+VL170
Compliant with Universal Serial Bus 3.2, 3.1, 3.0 and 2.0 specifications
Software
OS Compatibility
Windows 11, mac OS 12 or new
macOS 10.13.4 to 10.13.6 is not supported
Video
DisplayPort
x1, with MST technology, 4K at 60Hz (with DP 1.4)
HDMI
x1, with MST technology, 4K at 60Hz (with DP 1.4)
Dual view
one 4K at 30Hz (with DP 1.4)+one 1080p at 60Hz
Display Mode
Mirror, Extended, Primary video modes. ( MacOS only supports Mirror mode)
USB
USB-C 3.2 Gen 1
x2, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x1, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x2, data transfer rate up to 5Gbps, 5V/900mA
Fast Charging Port
Yes
Audio
5.1 channel surround sound from DisplayPort/HDMI output
2 channel stereo audio and microphone from 3.5mm headset jack
Power Adapter
Power Delivery 3.0
up to 100W via USB-C port (Host)
Power Adapter
Input: AC 100-240V/50-60Hz, Output: DC 20V/6A, UL listed: E361658/ Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 158 degrees F
Relative humidity:
0% to 85% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS/Aluminum
Certifications/Standards
FCC, CE, RoHS 2.0, REACH
Country of origin: China
Item Dimension (L"xW"xH")
10 x 2 x 9

Weight
2.4 lbs

Warranty Information
2-Year

Available Quantity

5

UPC

662774045504

SKU

mingleCE-DK0111-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Features

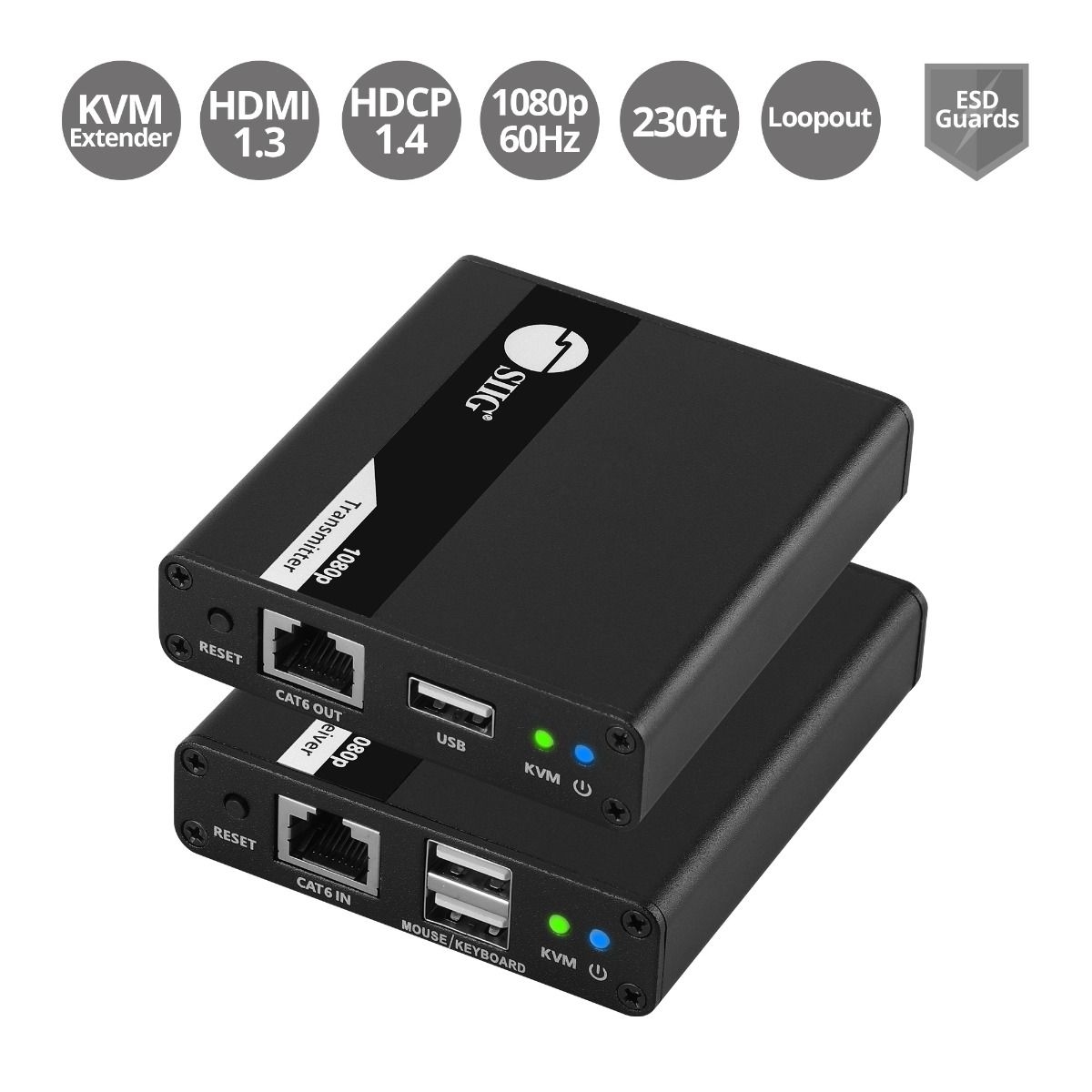

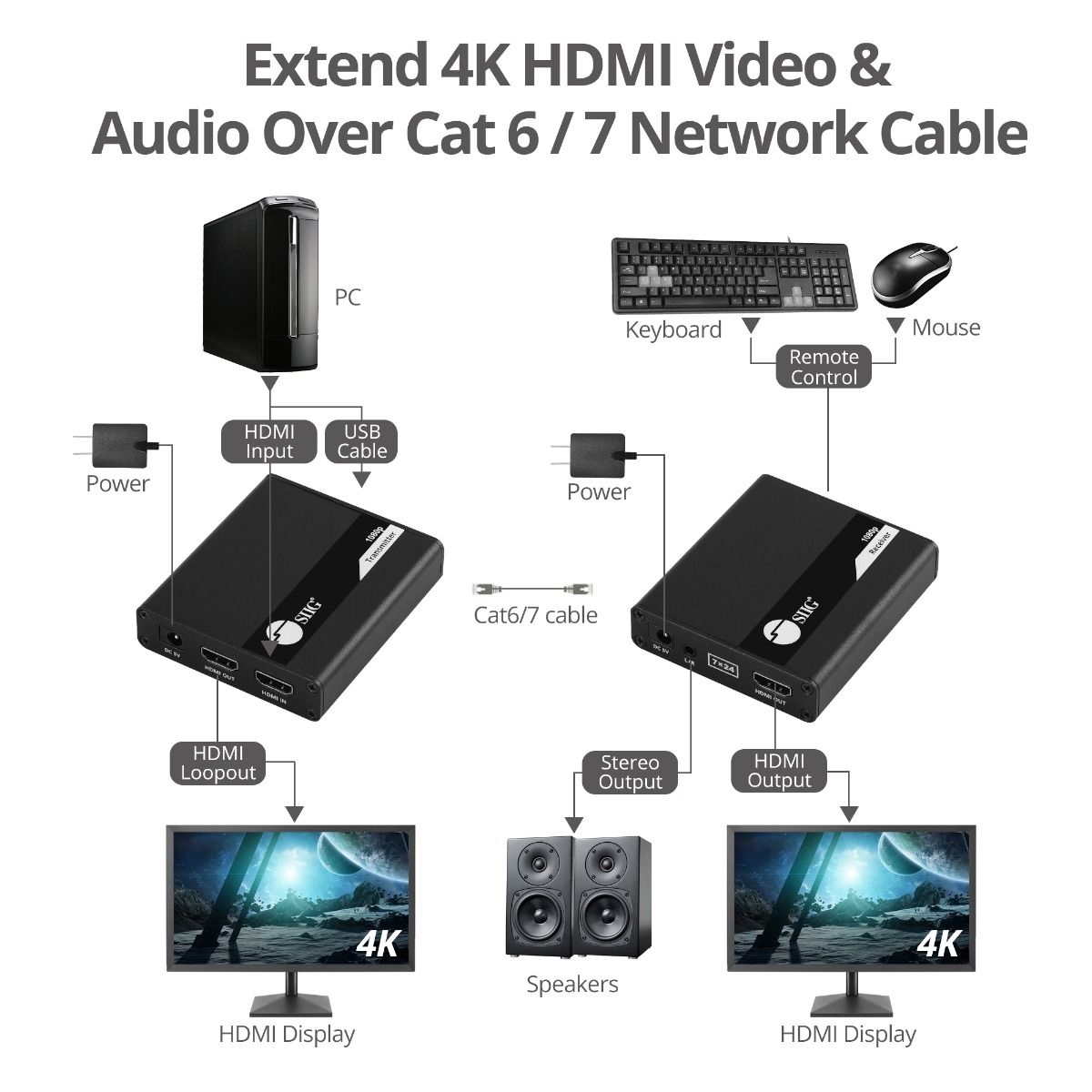

Extends and transmits HDMI 1080p@60Hz video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency

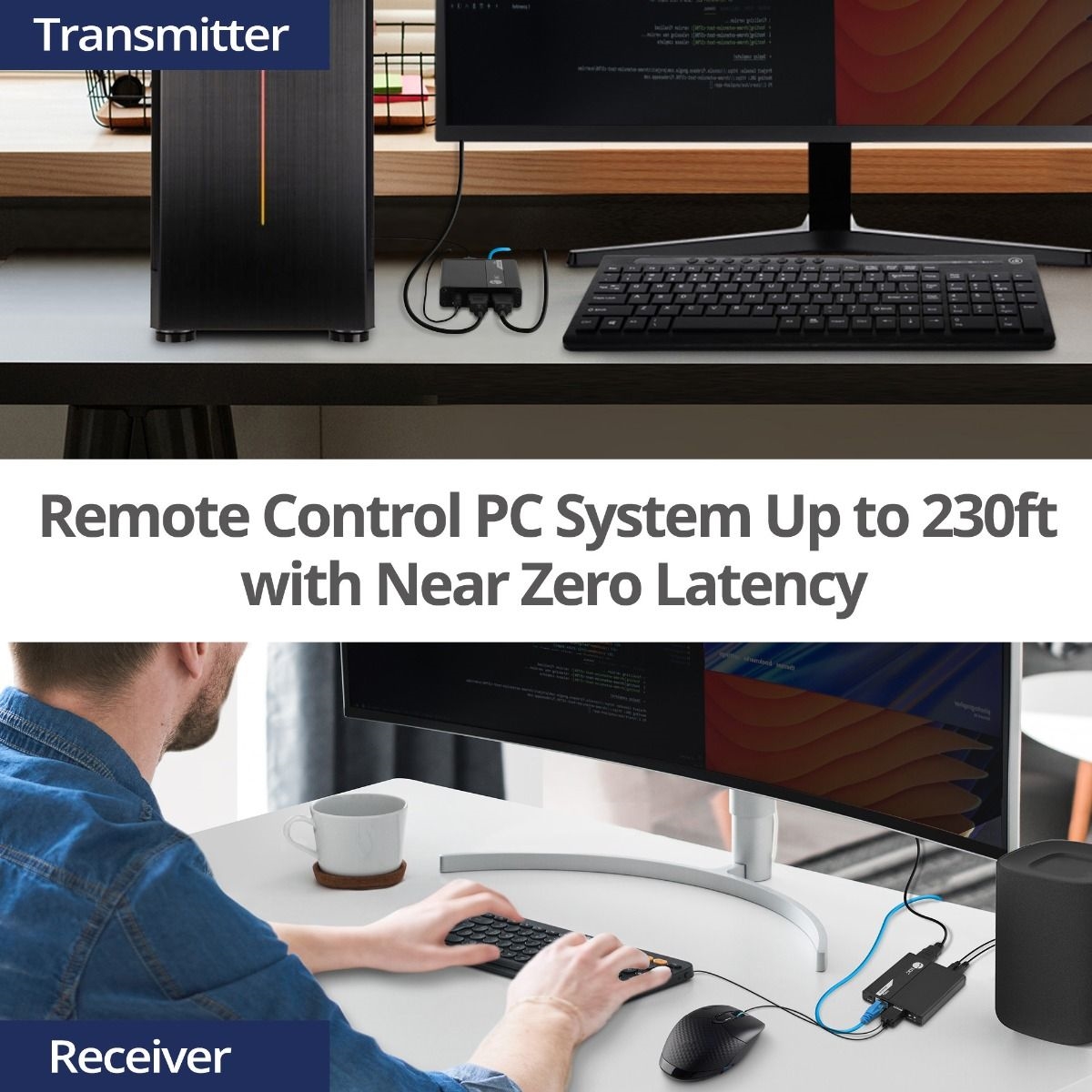

Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard and mouse at the extended location for remotely operate your PC system

Supports PCM 2/5.1/7.1, Dolby & DTS 5.1 and audio extraction to 3.5mm stereo

The transmitter's HDMI loop-out allows for local monitoring of the extended display

The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device

Lightning protection, surge protection, ESD protection

High quality metal housing improve heat dissipation and ensure system stability during long hours of operation

Plug and play, no driver installation required
Compliant with HDCP 1.4
Resolution:
1080p / 1080i / 720p / 480p
Transmission Distance:
1080p up to 70m via Cat6/6a/7 cable
HDMI Audio format:
PCM 2/5.1/7.1, Dolby and DTS 5.1 CH
3.5mm Audio format:
PCM 2CH
Product:

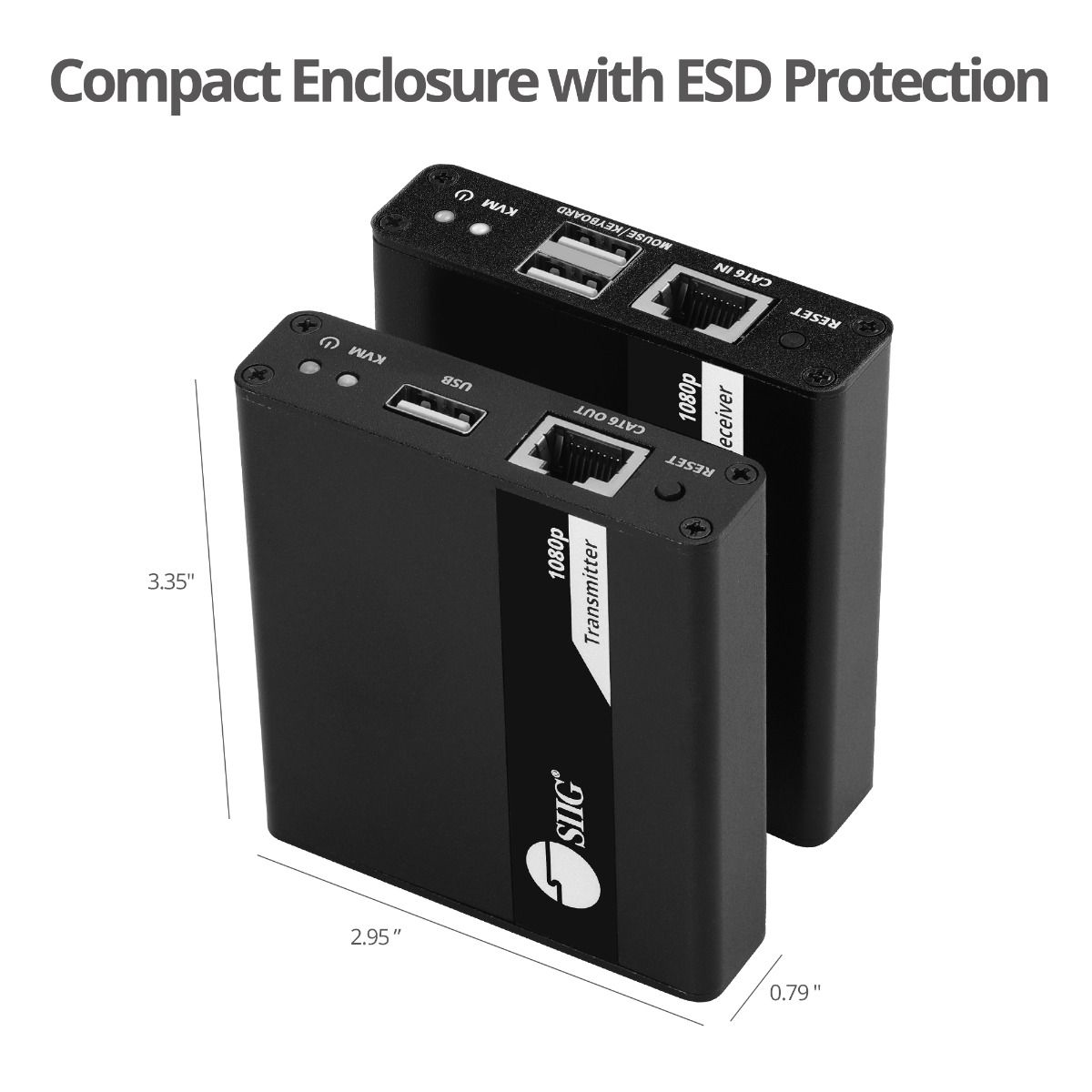

Housing material:
Aluminum alloy with crystal panel
Color:
Black

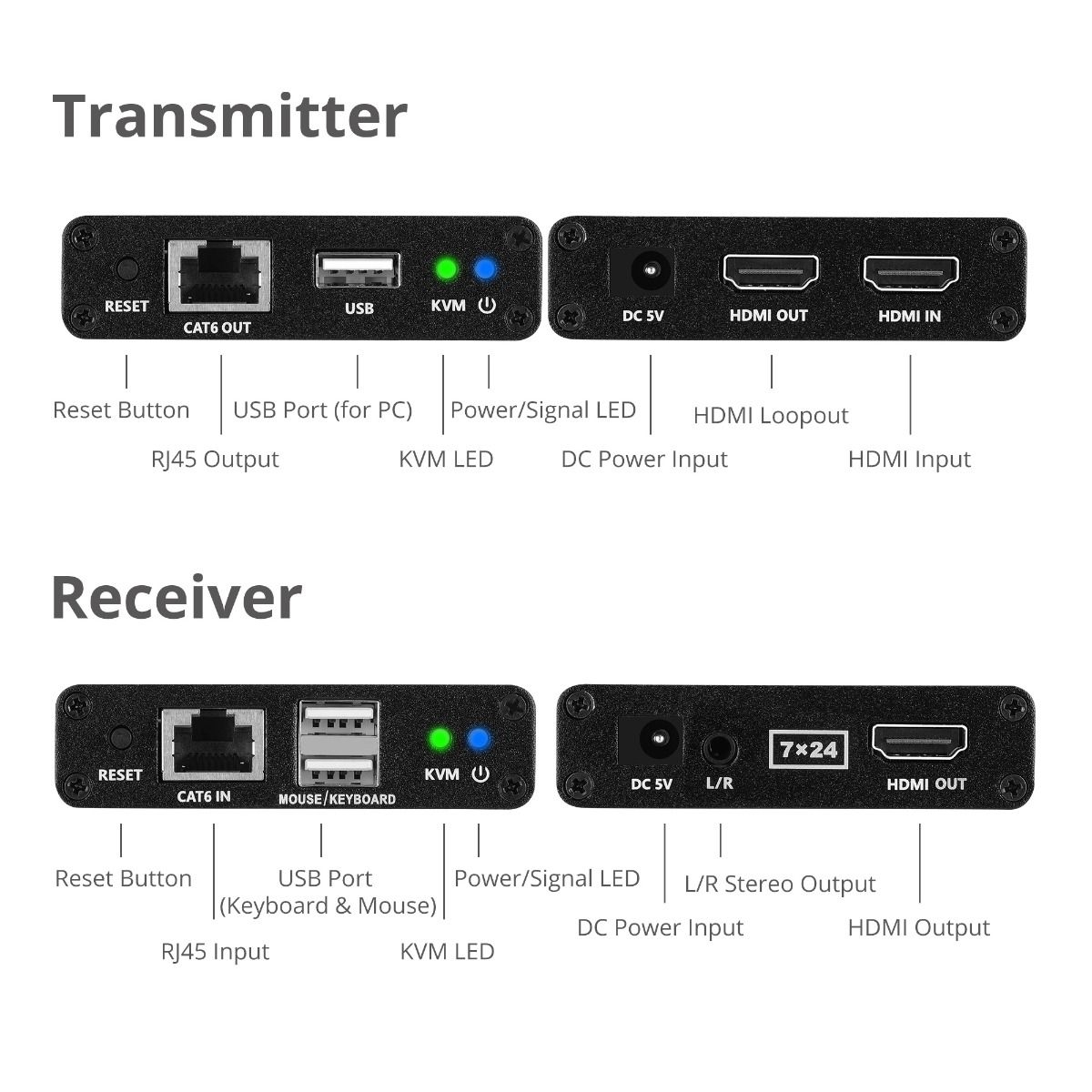

Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop-out
1x 4-pin USB 2.0 Type-A, Female, for Host connection
1x 8-pin, RJ45, Output
1x Reset button
1x Power jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse
1x 8-pin, RJ45, Input
1x 3.5mm L/R, Audio
1x Reset button
1x Power jack
Power adapter:
Input:
100-240V / 50-60Hz
Output:
DC 5V/1A
UL listed:
E335801 / Level: VI
Environmental conditions:
Operating temperature:
-20 to 60^oC
Storage temperature:
-30 to 70^oC
Relative humidity:
0% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Country of origin:
China
Package contents
HDMI USB KVM Over Cat6 Extender-70m
2x Power adapter
USB 2.0 Type-A to Type-A cable
User manual
Item Dimension (L inchxW inchxH inch)
8 x 4 x 6

Weight
2.00 lb

Warranty Information
2 Years

Available Quantity

5

UPC

662774045023

SKU

mingleCE-H27411-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

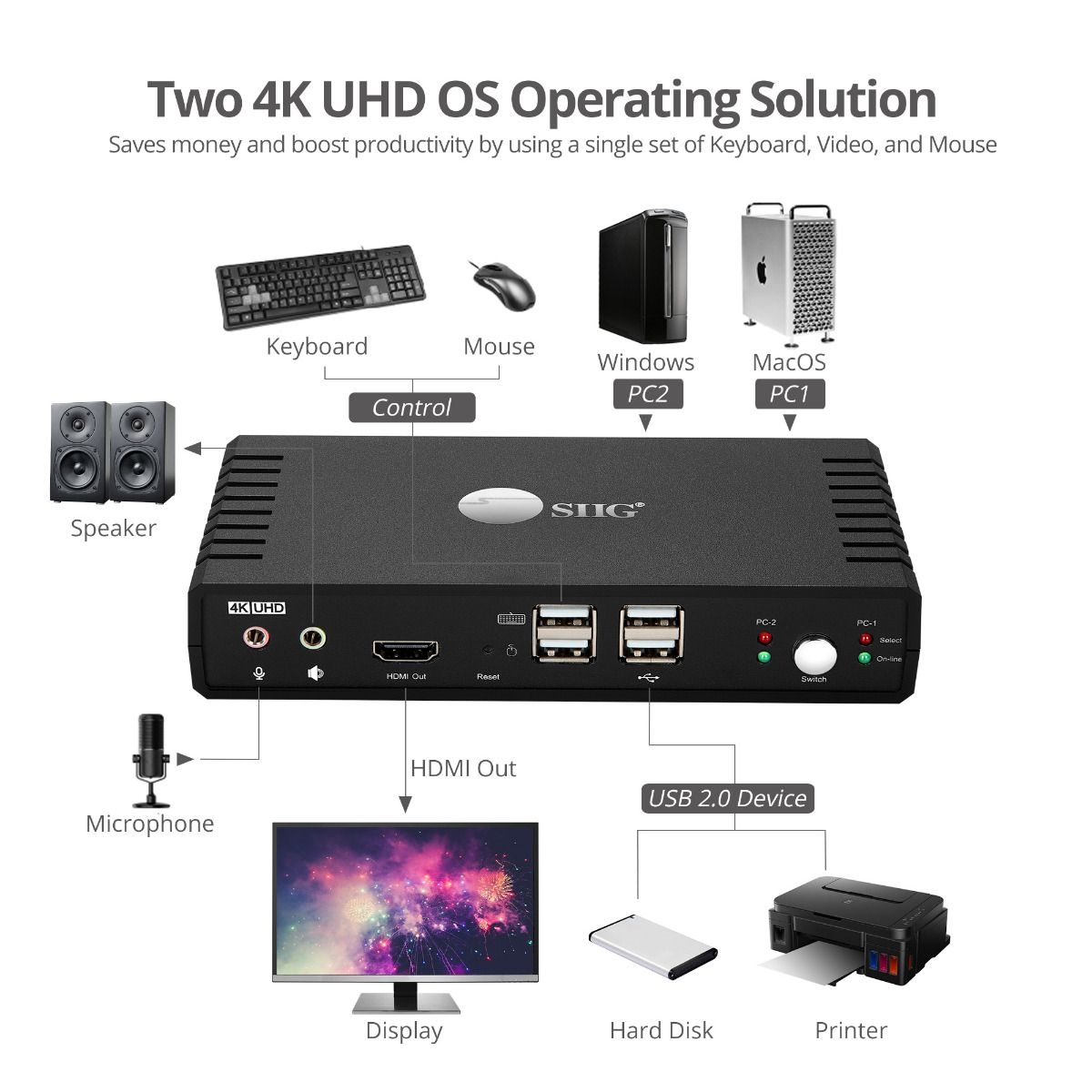

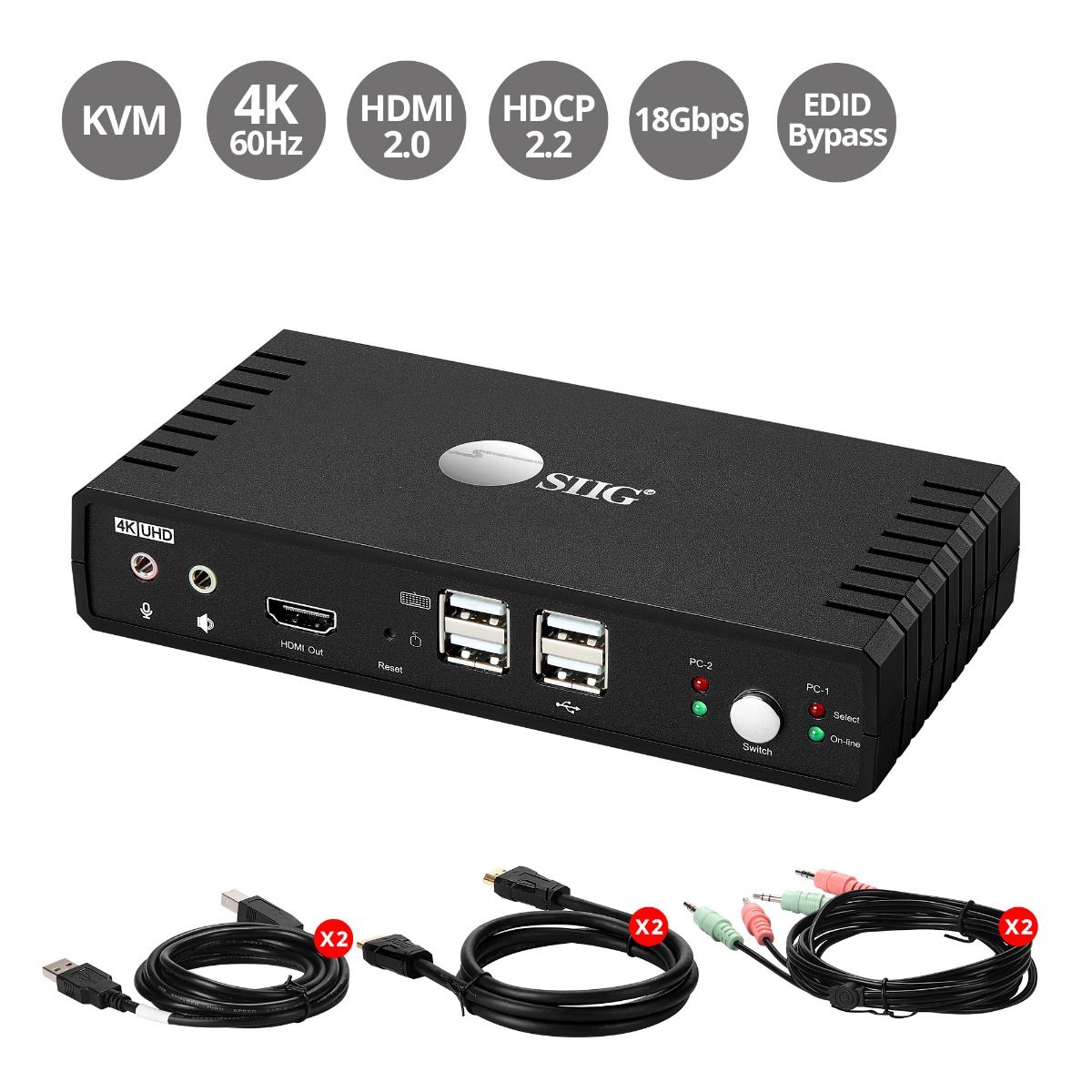

Device Controls - Allows you to control two 4K HDMI computers with one USB keyboard, USB Mouse, and HDMI display, adds USB Hub, microphone, stereo speaker/headphone connections

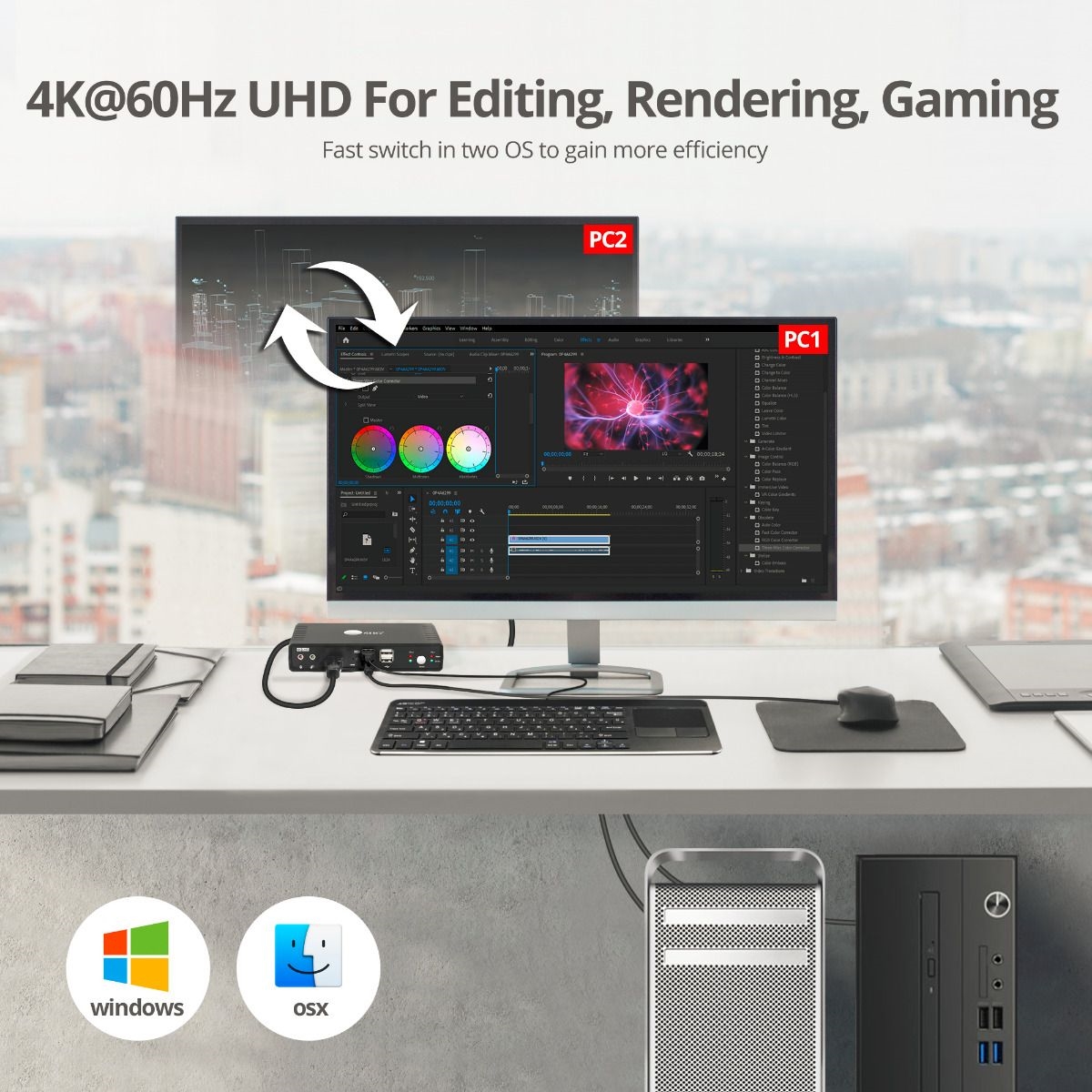

UHD 4K Resolution - Advanced HDMI KVM switcher on the market to offer true 18Gbps Ultra-HD 4K at 60Hz, it features EDID bypass which ensures visual workspaces and screen resolutions that are easy to connect and configure

Compliance - Compliant with HDMI 2.0 and HDCP 2.2 specification

Easy Device Switching - Convenient front panel select buttons or keyboard hot-key commands

USB 2.0 Hub - Includes 2-port USB 2.0 HID Hub for Keyboard and Mouse connection, plus another 2 USB 2.0 ports for connecting USB flash drives or any USB devices to the KVM Switch allowing the connected computers to access them

Multimedia Connections - Includes 3.5mm audio jack for microphone and stereo audio connections

Display Auto Scan - Supports screen auto scan between the devices

LED Indicators - Displays KVM connection and status

Easy Installation - Plug-n-play, no driver installation needed
Compliance:
HDMI 2.0, HDCP 2.2
Resolution:
3840x2160 at 60Hz YUV 4:4:4 8-bit and 3840x2160 at 60Hz YUV 4:2:0
Video bandwidth:
Up to 18Gbps
USB data transfer rate:
Up to 480Mbps (USB 2.0)
3.5mm audio jack:
PCM 2-CH stereo
Power Adapter:
5V/2A
Product:
Color: Black
Housing material: Plastic

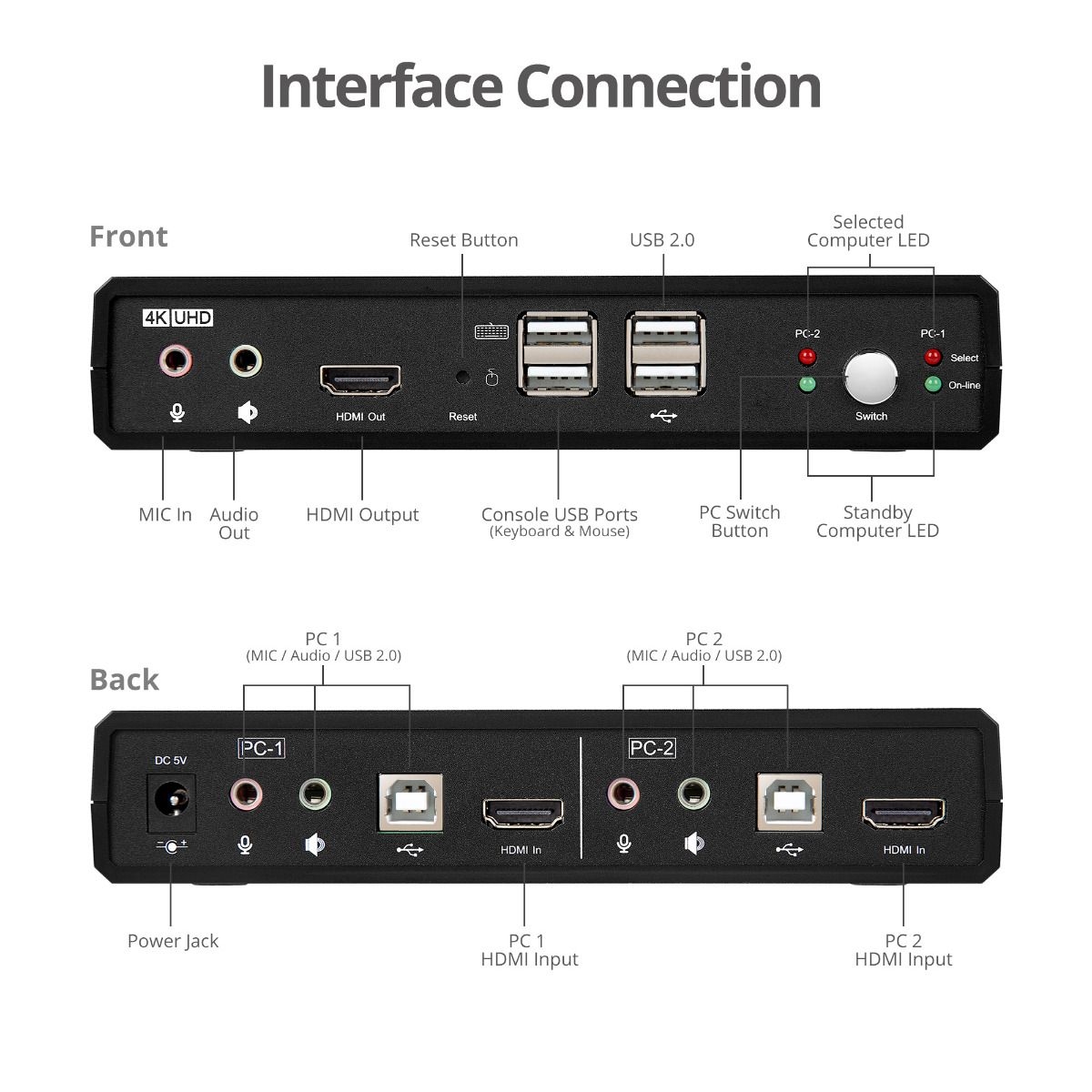

Interfaces/Ports:
2x 19-pin HDMI 2.0, Female, Input
2x 4-pin USB 2.0 Type-B, Female, Input
2x 3.5mm jack for Microphone, Female
2x 3.5mm jack for Stereo audio, Female
1x 19-pin, HDMI 2.0, Female, output
2x 3.5mm Microphone and Stereo Audio, Female, Output
2x 4-pin USB 2.0 Type-A, HID Devices, Female
2x 4-pin USB 2.0 Type-A, Hub, Female
1x Push button for KVM device switching
1x Power Jack
Power adapter:
Input: 100-240V, 50-60Hz
Output: DC 5V/2A
UL listed: E168210 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degree F
Relative Humidity: 0% to 80% non-condensing
Certifcations/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L"x W"x H")
7 x 2 x 4
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

662774044507

SKU

mingleCE-KV0811-S1
