Product Description

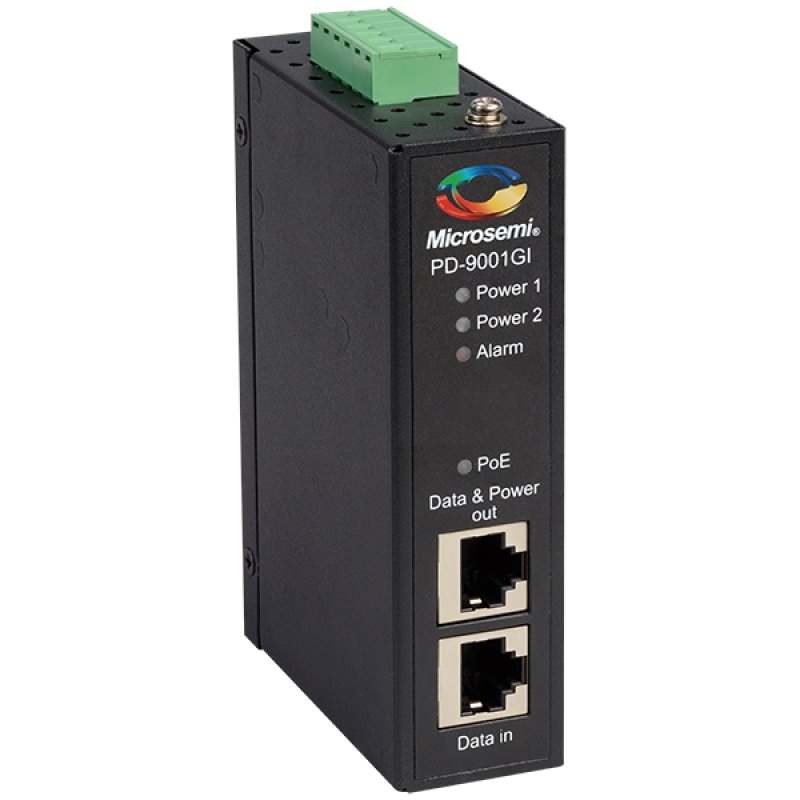

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GI enables remote power for a new range of applications including 802.11n access points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The midspan is designed for industrial applications and outdoor applications from temperature point of view.


Product Features

Number of ports: 1

PoE output: 30W

Data rates: 10/100/1000 Mbps

Power input: DC

Industrial rated: IP30

Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE

EMI: EN50522 Class A, EN55024

Safety: UL 508

Shock: IEC 60068-2-27 15g, 11 ms duration

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6, 3, 5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min, 1g, 9 Hz 150 Hz, 10 cycles 1 octave/min

Compact design
Data Rate
1 Gbps
Input Power
DC
Managed
No
Number of Ports
1
Operating Environment
Industrial
Operating Humidity (%)
90
Operating Temperature (^oC)
-40 to 75
PoE Standard
IEEE 802.3at
PoE Systems Type
Midspan
Power Per Port
30W
Product Type
30W PoE
Rack Mountable
No
Item Dimension (L inchxW inchxH inch)
7 x 5 x 2

Weight
1.41 lb

Warranty Information
3 Years

Available Quantity

5

UPC

844117002096

SKU

minglePD-9001GI/DC

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

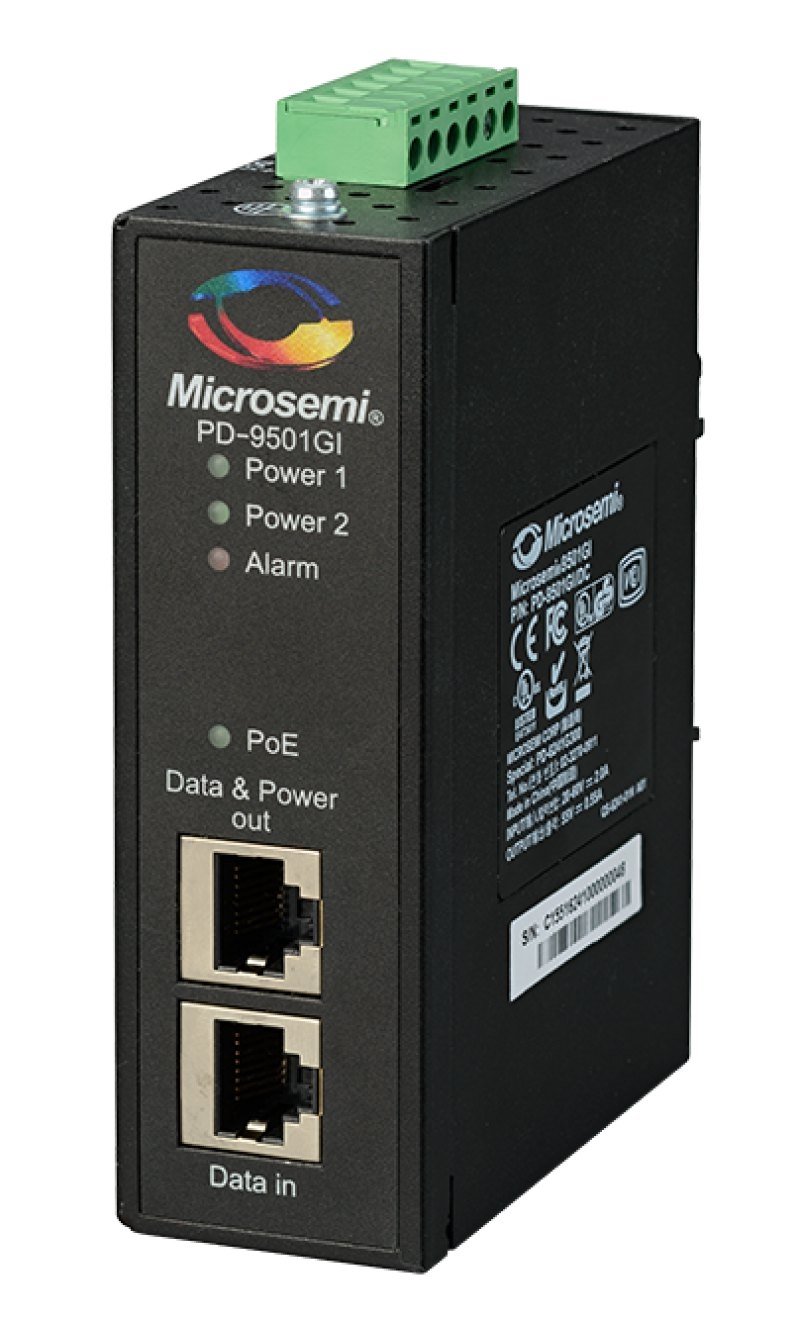

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9501GI enables remote power for a new range of applications including 802.11n access points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100/1000Base-T network devices and 1000BaseT devices such as wireless IEEE 802.11ac access points. The midspan is designed for industrial applications and outdoor applications from temperature point of view.


Product Features

Number of ports: 1

PoE output: 60W

Data rates: 10/100/1000 Mbps

Power input: DC

Industrial rated: IP30

Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE

EMI: FCC Part 15, Class A, EN50522 Class A (emissions), EN55024 (immunity)

Safety: UL 508

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-31

Vibration: IEC 60068-2-6

Compact design
Data Rate
1 Gbps
Input Power
DC
Managed
No
Number of Ports
1
Operating Environment
Industrial
Operating Humidity (%)
90
Operating Temperature (^oC)
-40 to 75
PoE Standard
IEEE 802.3at
PoE Systems Type
Midspan
Power Per Port
60W
Product Type
60W PoE
Rack Mountable
No
Item Dimension (L inchxW inchxH inch)
8 x 3 x 2

Weight
1.59 lb

Warranty Information
3 Years

Available Quantity

5

UPC

844117002225

SKU

minglePD-9501GI/DCF
