Product Description

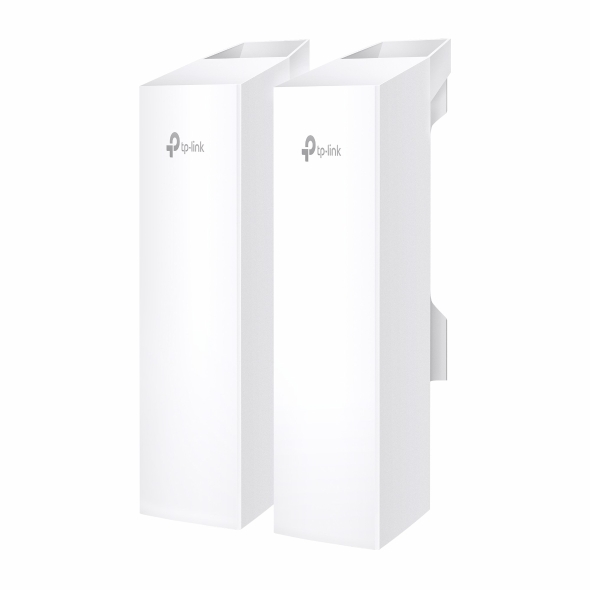

EAP211-Bridge KIT
Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point
802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
Ideal for long-range wireless transmission up to 1 km.
Auto-pairing and agile LEDs for efficient deployment.
3x Gigabit Ethernet ports for more high-speed IP camera connections.
Supports Omada SDN for remote and centralized management.
IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
Supports Passive PoE for flexible deployment (adapter included).
HARDWARE FEATURES
Interface
3x Gigabit Ethernet Ports x6
Button
Reset
Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption
11.5W
Antenna Type
Internal 2x2 Dual-polarized directional MIMO antennas
5 GHz: 7.0 dBi
Horizontal:70^o, Vertical: 70^o
Weatherproof EnclosureI
IP65
Mounting
Pole Mounting (Accessories included)
WIRELESS FEATURES
Coverage
1000m(3280ft)
Wireless Standards
IEEE 802.11 a/b/g/n/ac
Frequency
5 GHz
Signal Rate
5 GHz: Up to 867 Mbps
Wireless Functions
Mesh x4
MU-MIMO: 5G 2x2 MU-MIMO DL
Load Balance
Seamless Roaming(802.11r)
Beamforming
Airtime Fairness
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Wireless Security
VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power
CE:
<23dBm (5 GHz, band 1/2, EIRP)
<30dBm (5 GHz band3, EIRP)
FCC:
<22dBm (5 GHz band1/4)
MANAGEMENT
Omada App
Yes
Restore and Backup
Yes
Firmware update via Web
Yes
NTP
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
SSH
Yes
Web-based Management
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP211-Bridge KIT
Passive PoE Adapter
Power Cord
Installation Guide
Mounting Kit
Environment
Operating Temperature: -40 ^oC70 ^oC (-40 ^oF158 ^oF)
Storage Temperature: -40 ^oC70 ^oC (-40 ^oF158 ^oF)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
Item Dimension (L"xW"xH")
11 x 10 x 4

Weight
4 lbs

Warranty Information
2-year

Available Quantity

5

UPC

810142823371

SKU

mingleEAP211-BRIDGE KIT

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

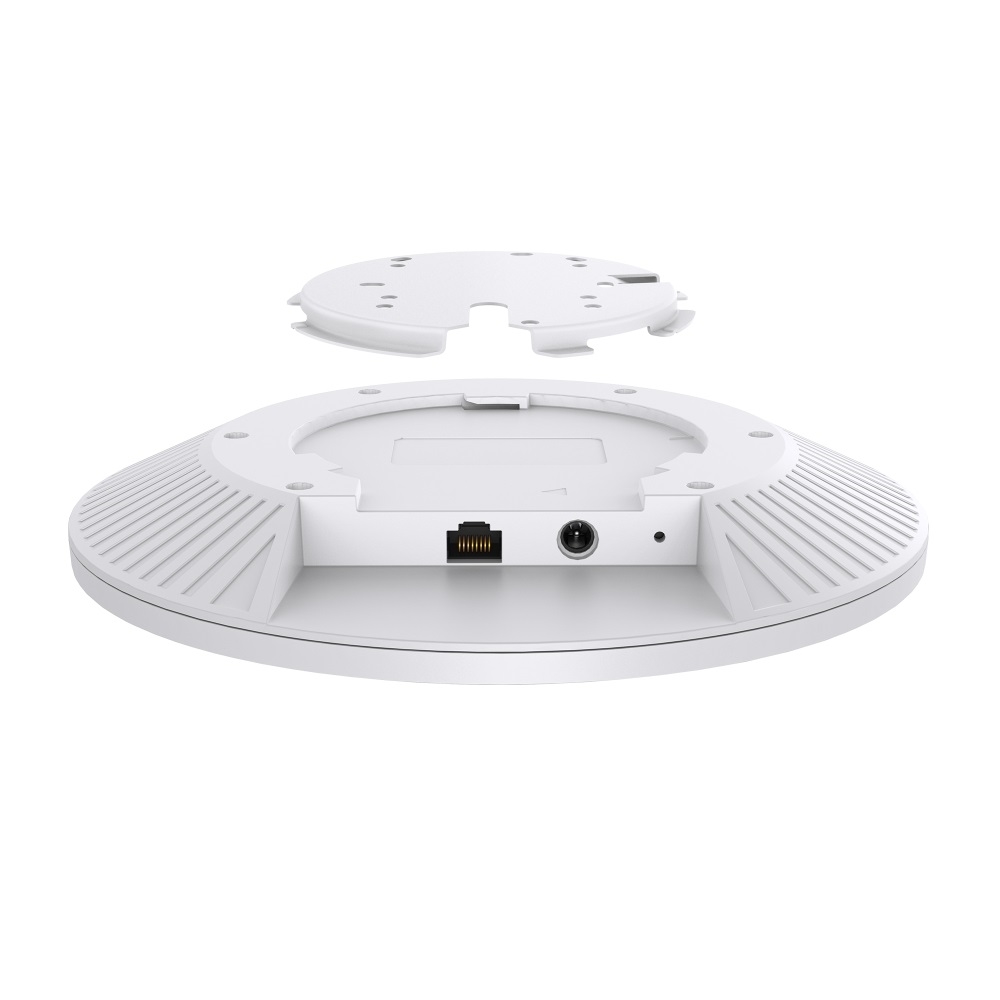

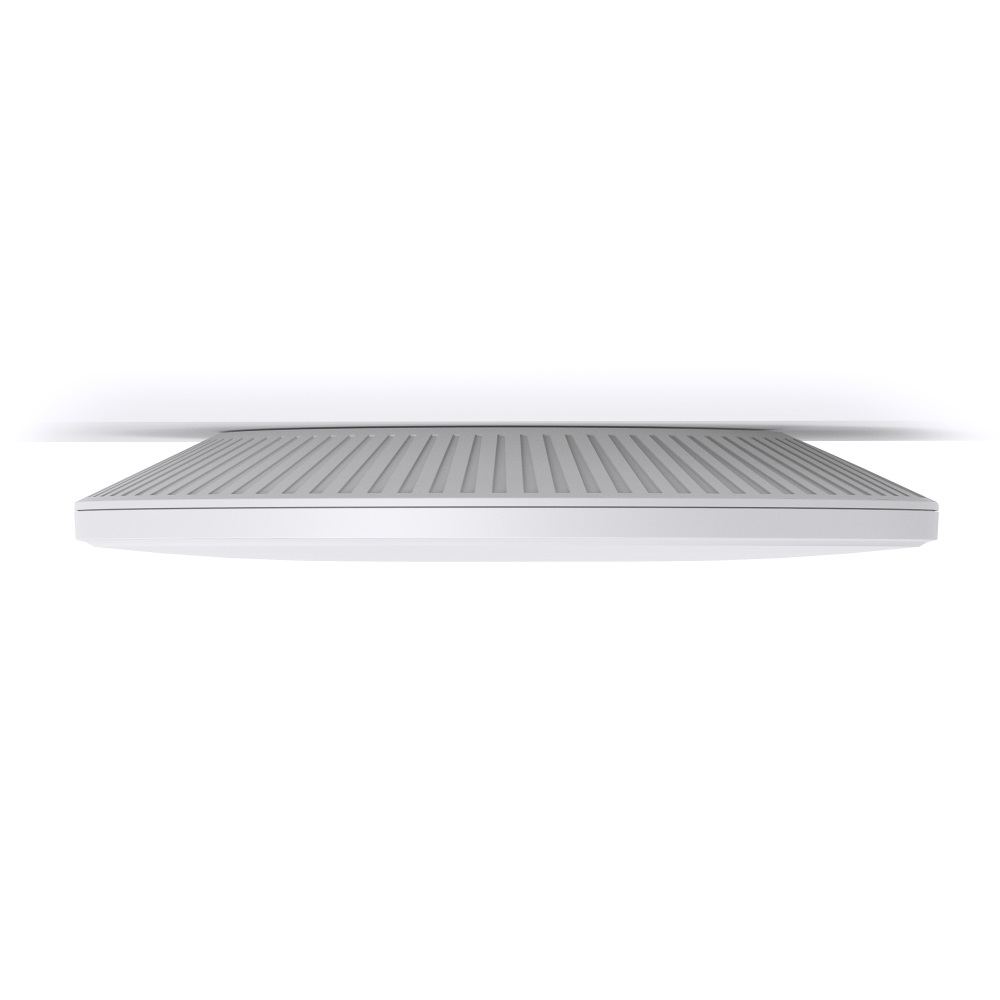

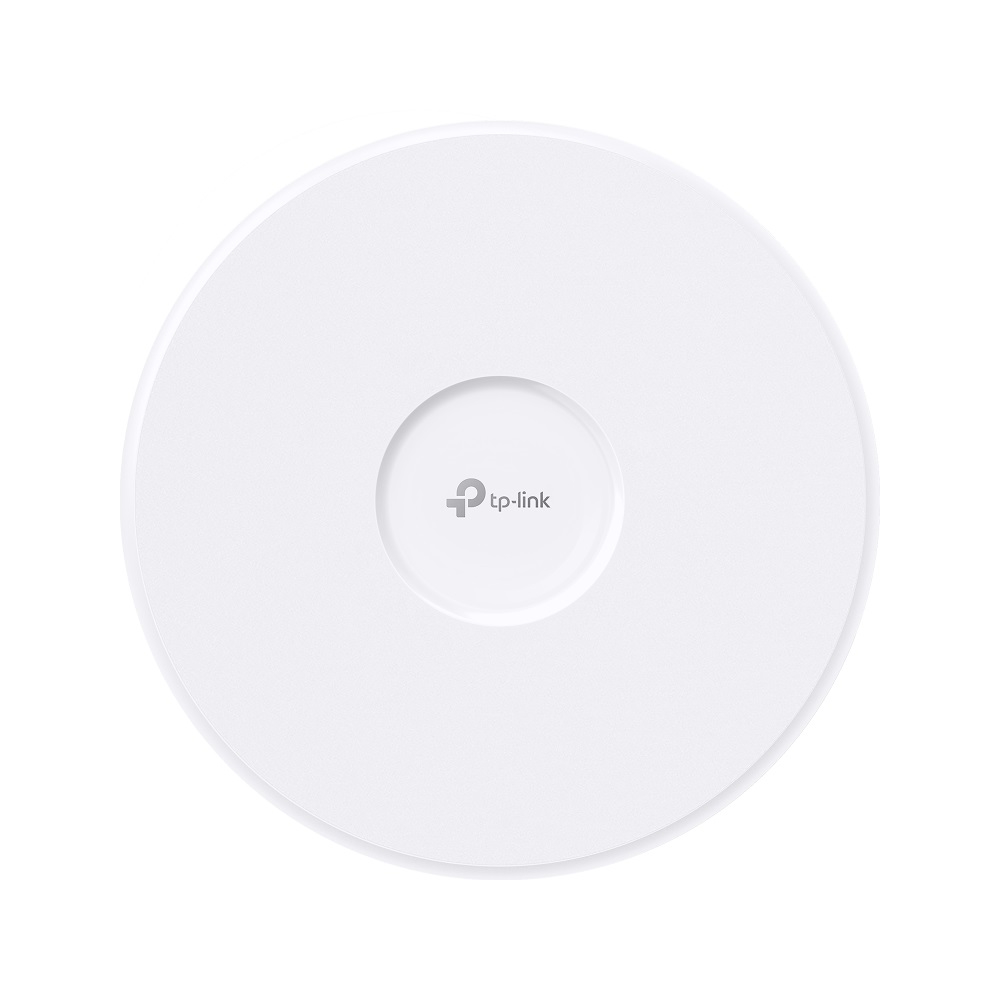

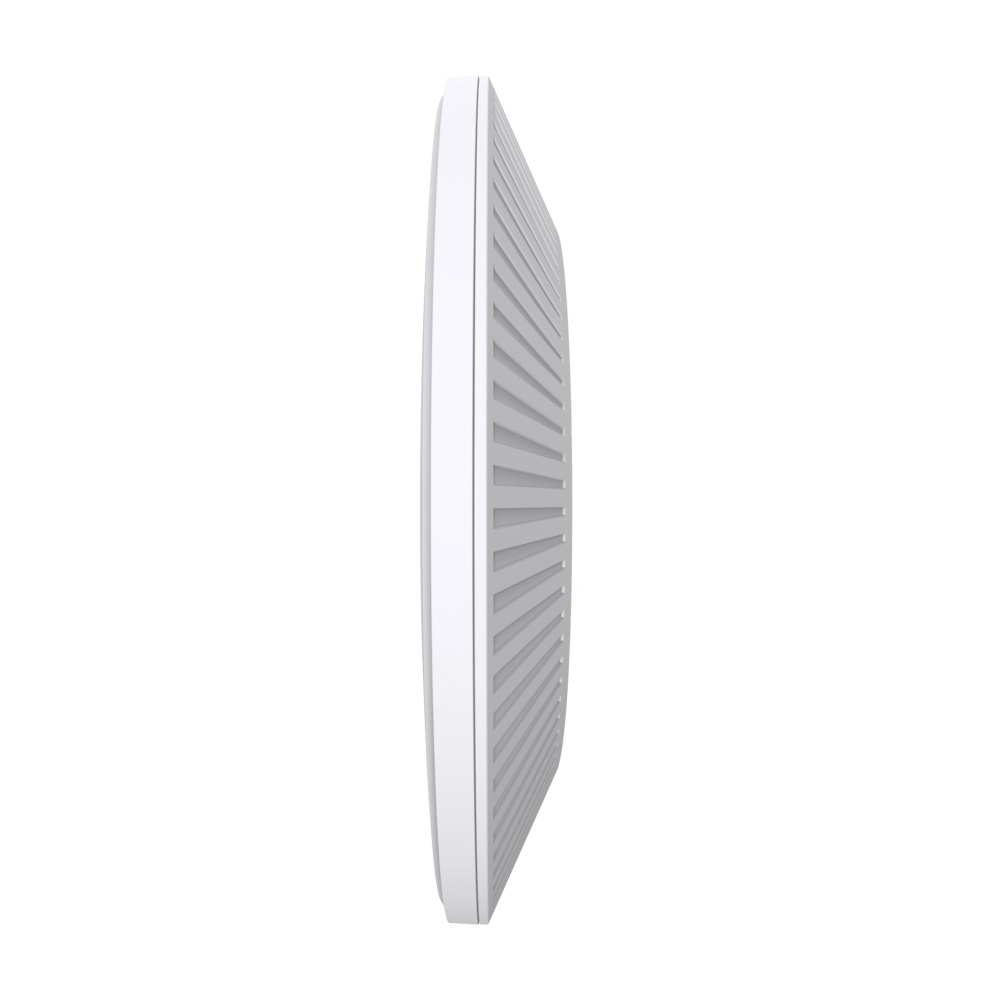

Ultra-Thin Enterprise WiFi 7 Access Point to Redefine Your Business Network


Wi-Fi 7: Swifter, Smoother, Stronger

Supersized Throughput for Better Experiences

With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. Making full use of these new resources, the throughout of EAP773 reaches up to 11 Gbps.



Higher Capacity for Increased Traffic Demands

WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6 s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.



Lower Latency for Boosted Network Reliability

EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.




Optimized Wired Performance with 10G PoE Port

With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.
HARDWARE FEATURES
Interface
1x 10G Ethernet Port
Button
Reset
Power Supply
802.3at PoE or 12V/2.5A DC
Power Consumption
Support Smart Power Comsuption Management
25.94 W (802.3bt, full functionality)
22.57 W (12/2.5A, full functionality)
23.4 W (802.3at decrease 6GHz Power)
10.1 W (802.3af, radio off, only main chip and LAN working)
Antenna Type
2.4 GHz: 2x 3.0 dBi
5 GHz: 2x 3.0 dBi
6 GHz: 2x 3.0 dBi
Bluetooth
1 x 4.0 dBi, Bluetooth 5.2
Firmware update may be required.
Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage
140 m²(1500 ft²)
Concurrent Clients
380+
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
6 GHz, 5 GHz, and 2.4 GHz
Signal Rate
574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Functions
MLO
4K-QAM
MU-MIMO
HE320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
< 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
Web-based Management
Yes
OTHERS
Certification
CE, FCC, RoHS, IC
Package Contents
EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment
Operating Temperature: 0 ^oC to 40 ^oC (32 ^oF to 104 ^oF)
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L inchxW inchxH inch)
12 x 11 x 4

Weight
4 lbs

Warranty Information
Limited Lifetime

Available Quantity

5

UPC

840030711916

SKU

mingleEAP773

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

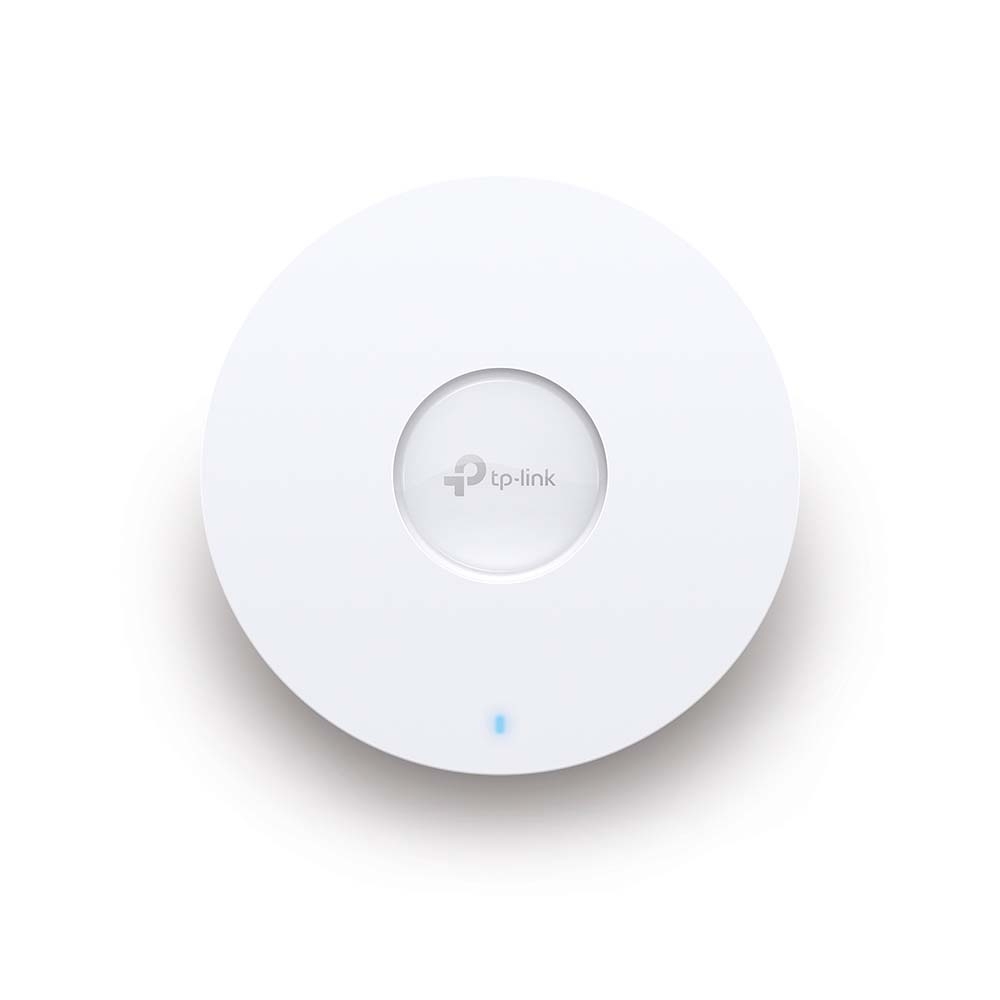

EAP613

AX1800 Ceiling Mount WiFi 6 Access Point

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.

Ultra-Slim Design: 160 mm x 33.6 mm elegant design brings more agility.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port
Button
Reset
Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1 A DC (Power Adapter IS NOT included)
Power Consumption
11.0W (For PoE)
9.9W (For DC)
Antenna TypeI
nternal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller
Cloud Access
Yes, through
OC300
OC200
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP613
Ceiling/ Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"xW"xH")
10 x 9 x 3

Weight
2 lbs

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

840030704307

SKU

mingleEAP613

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

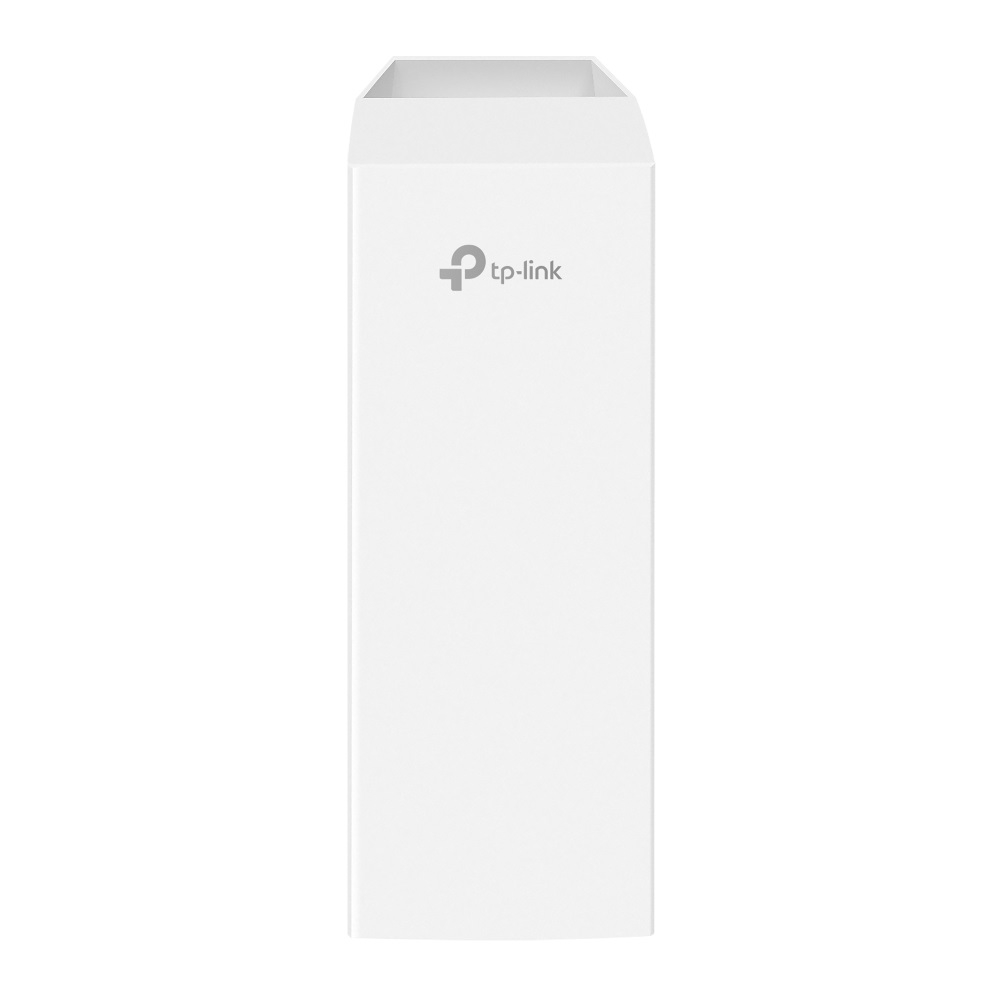

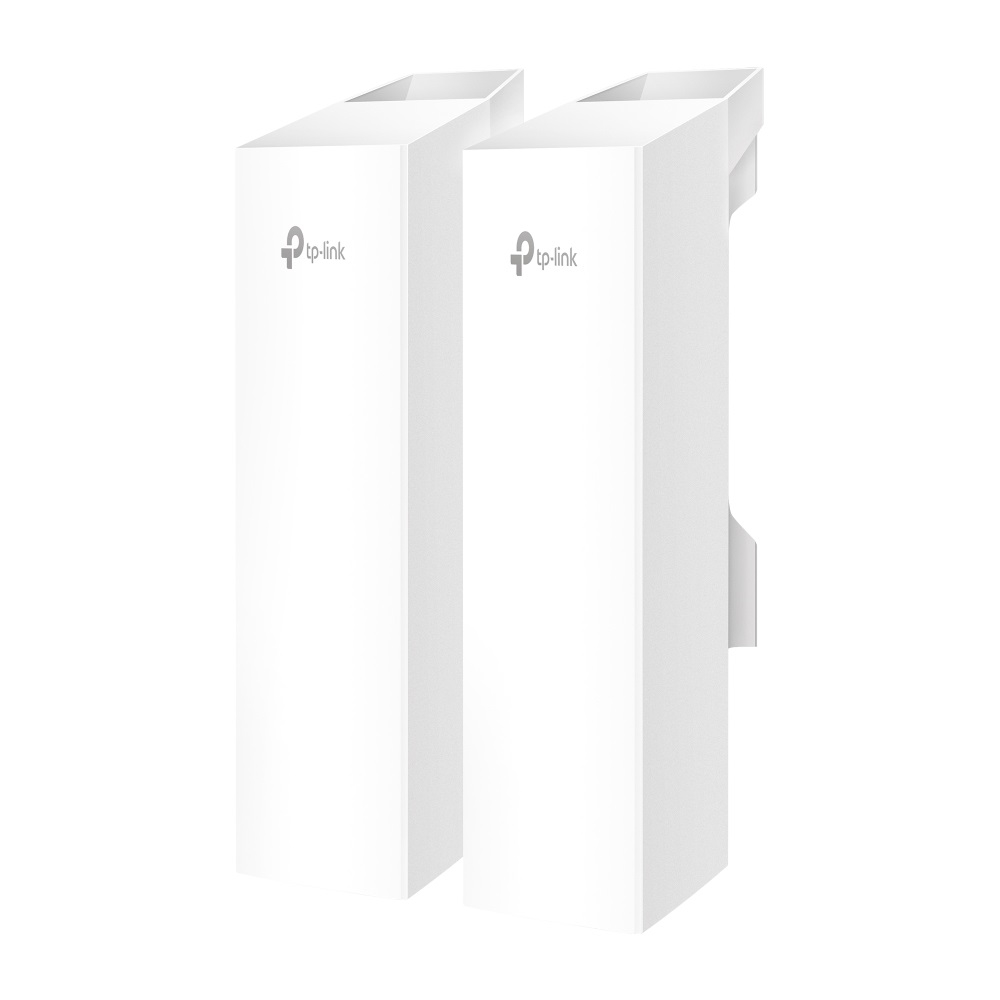

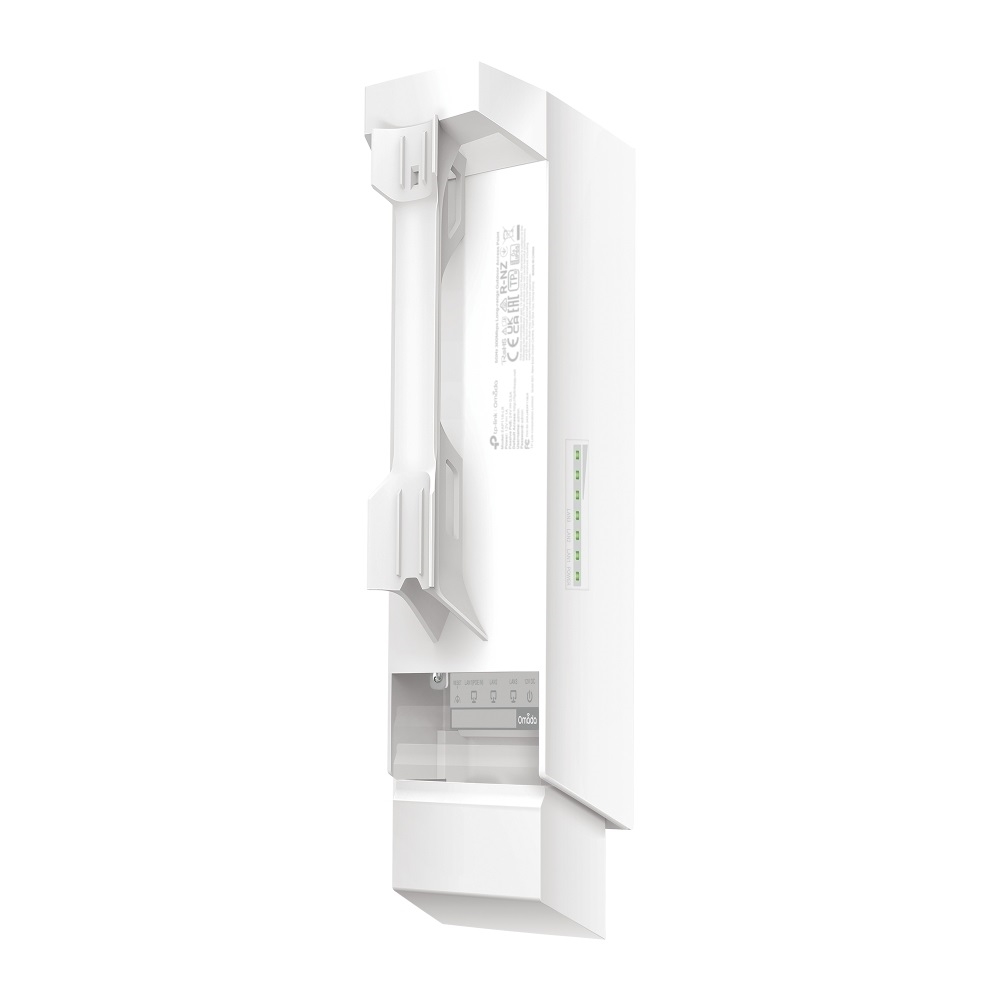

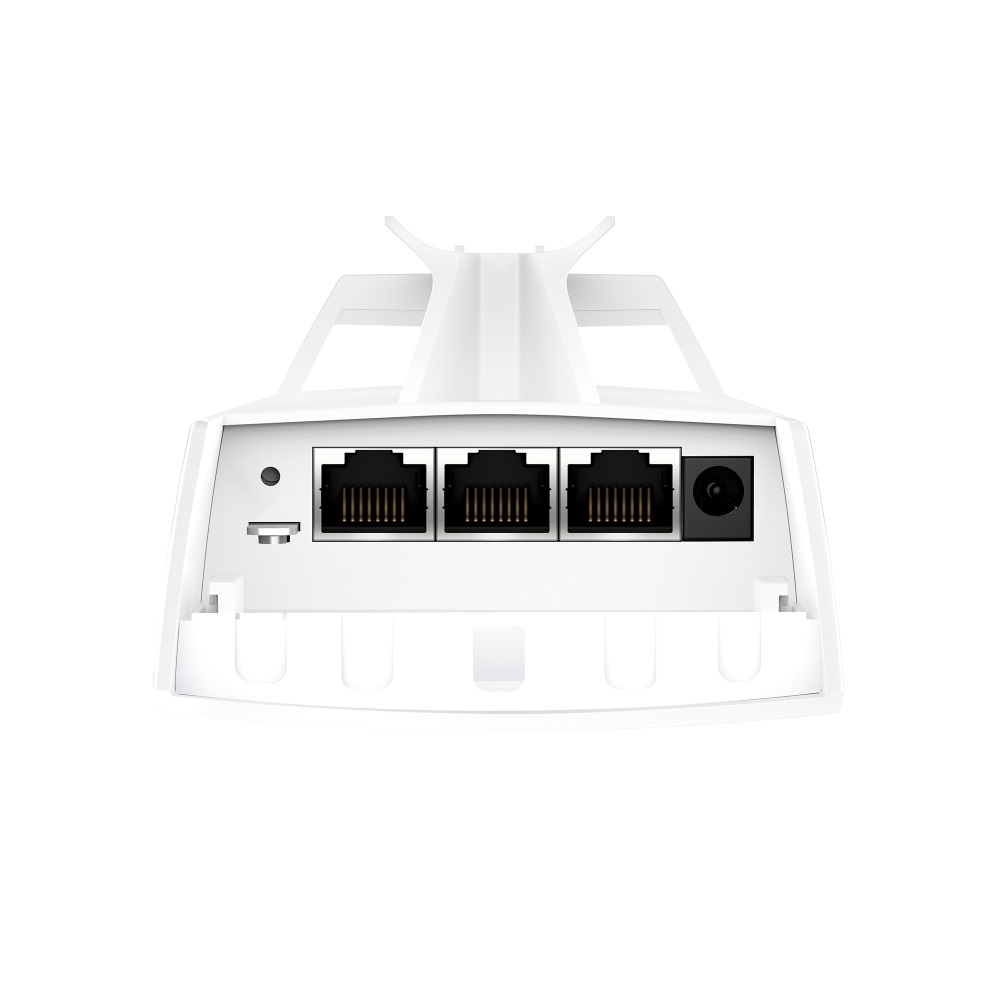

EAP215-Bridge KIT

Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point



802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.

Ideal for long-range wireless transmission up to 5 km.

Auto-pairing and agile LEDs for efficient deployment.

3 Gigabit Ethernet ports for more high-speed IP camera connections.

Supports Omada SDN for remote and centralized management.

IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.

Supports Passive PoE for flexible deployment (adapter included).
HARDWARE FEATURES
Interface
3x Gigabit Ethernet Ports
Button
Reset
Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption
11.5W
Antenna Type
Internal 2x2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi
Horizontal:35^o, Vertical: 35^o
Weatherproof Enclosure
IP65
Mounting
Pole mounting (Accessories included)
WIRELESS FEATURES
Coverage
5000m(16400ft)
Wireless Standards
IEEE 802.11 a/b/g/n/ac
Frequency
5 GHz
Signal Rate
5 GHz: Up to 867 Mbps
Wireless Functions
Mesh
MU-MIMO: 5G 2x2 MU-MIMO DL
Load Balance
Beamforming
Seamless Roaming (802.11r)
Airtime Fairness
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Wireless Security
VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power
CE:
<23dBm (5 GHz, band 1/2, EIRP)
<30dBm (5 GHz band3, EIRP)
FCC:
<22dBm (5 GHz band1/4)
MANAGEMENT
Omada App
Yes
Restore and Backup
Yes
Firmware update via Web
Yes
NTP
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
SSH
Yes
Web-based Management
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP215-Bridge KIT
Passive PoE Adapter
Power Cord
Installation Guide
Mounting Kit
Environment
Operating Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L inchxW inchxH inch)
11 x 10 x 4

Weight
4 lbs

Warranty Information
2-year

Available Quantity

5

UPC

810142823388

SKU

mingleEAP215-BRIDGE KIT

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

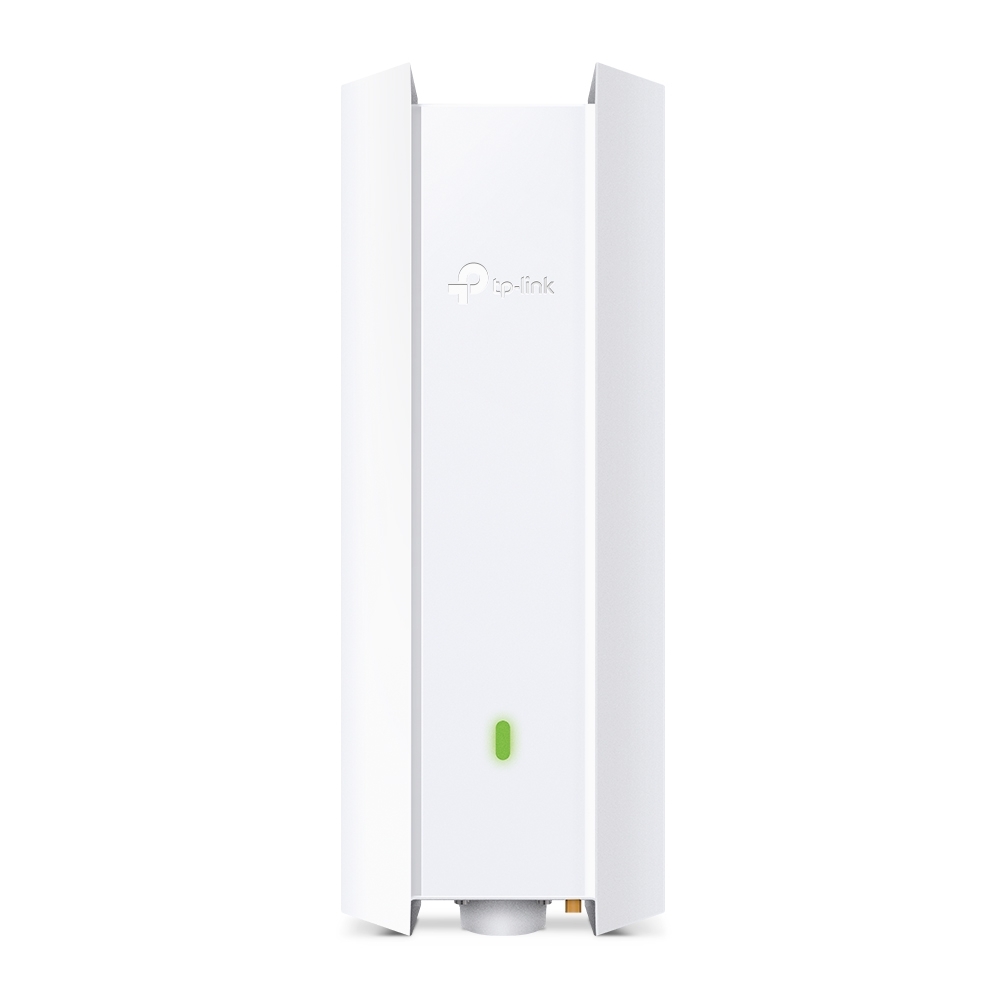

AX1800 Indoor/Outdoor WiFi 6 Access Point

Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology

Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO

Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure

Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**

Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Note:

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.
HARDWARE FEATURES
Interface

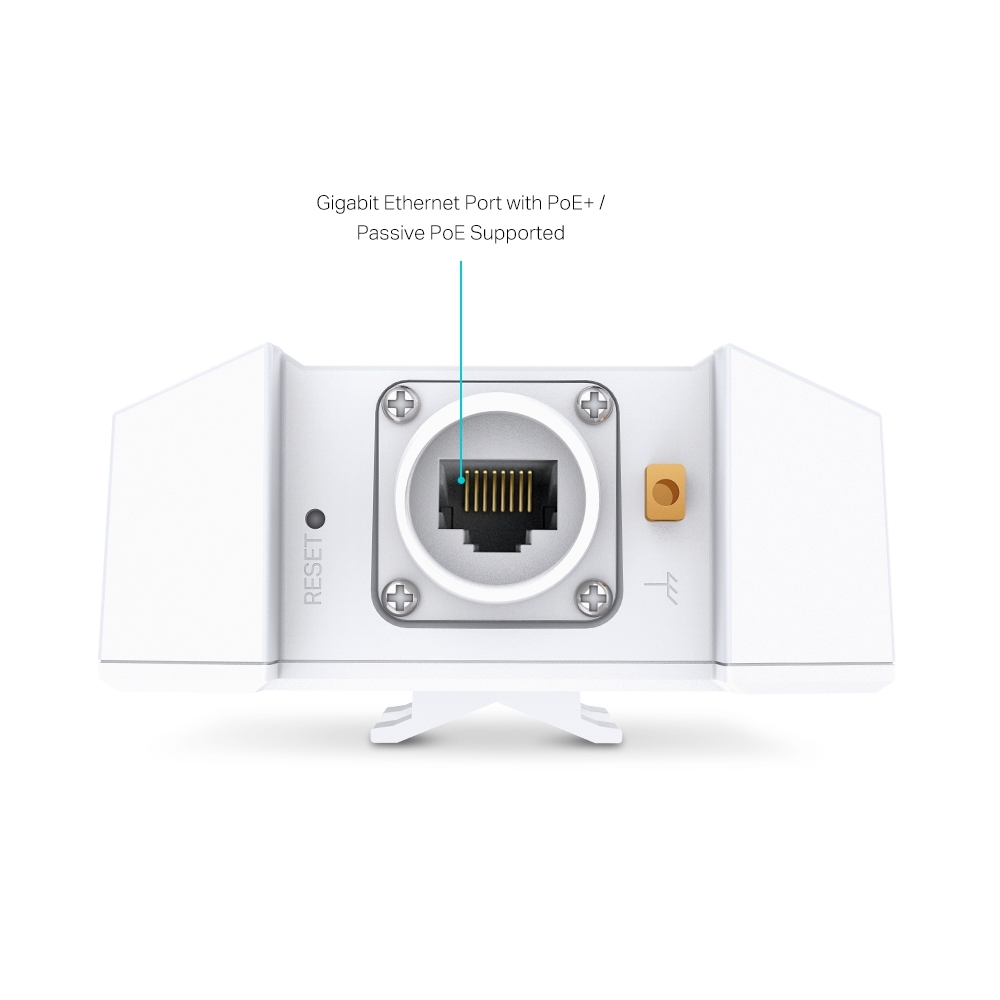

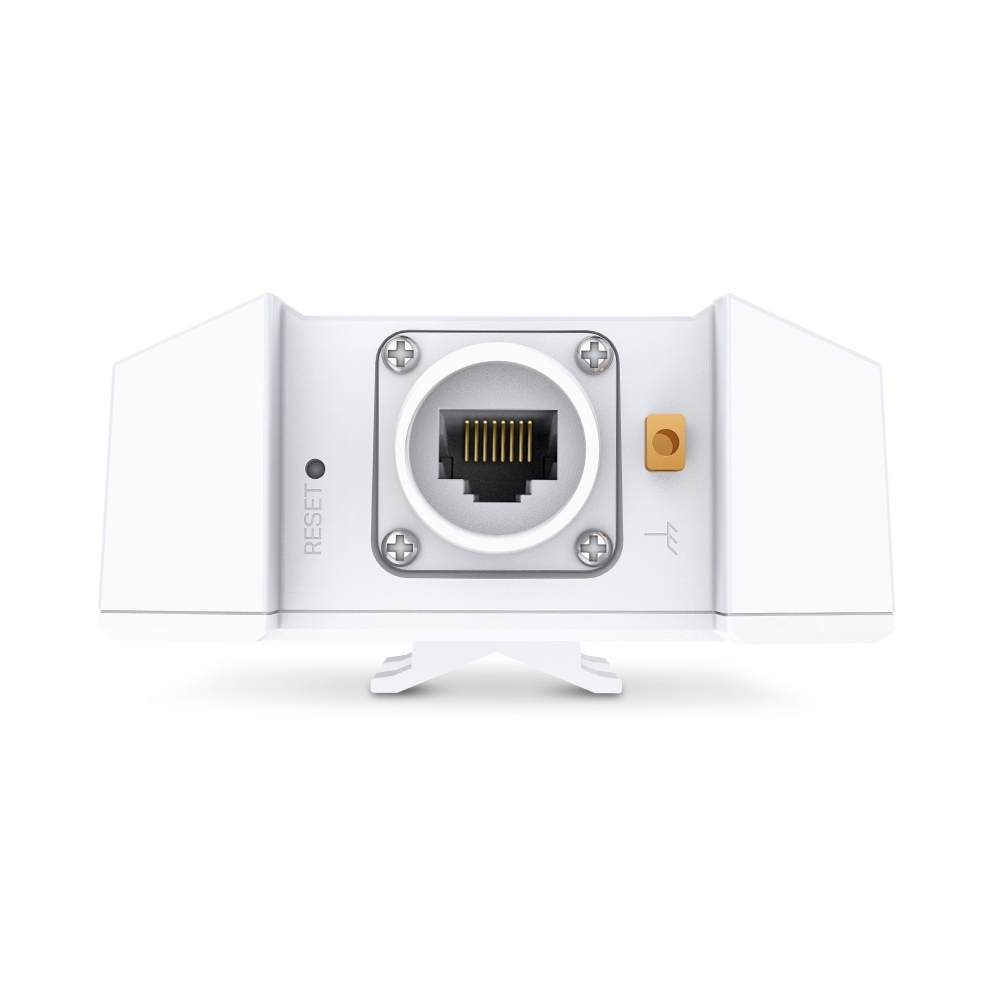

1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption
EU: 12.5W (802.3at PoE or Passive PoE)
US: 14.7W (802.3at PoE or Passive PoE)
Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Weatherproof Enclosure
IP67

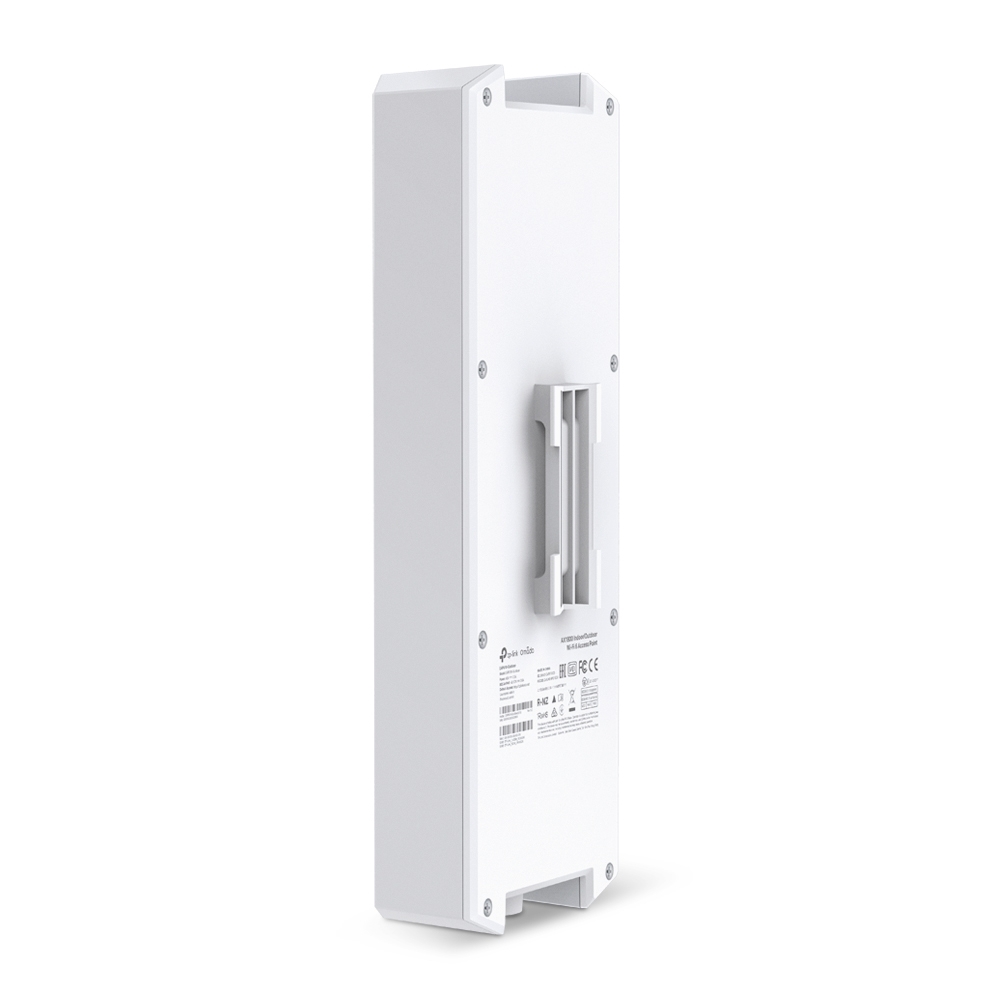

Mounting
Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz, 5 GHz
Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS is equal to 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS is equal to 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
CE: less than 20 dBm (2.4 GHz, EIRP), less than 30 dBm(5 GHz, EIRP)
FCC: less than 25 dBm (2.4 GHz), less than 25 dBm(5 GHz)
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh^Note
Seamless Roaming^Note
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication^Note
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Yes

Available Quantity

5

UPC

845973073145

SKU

mingleEAP610-OUTDOOR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

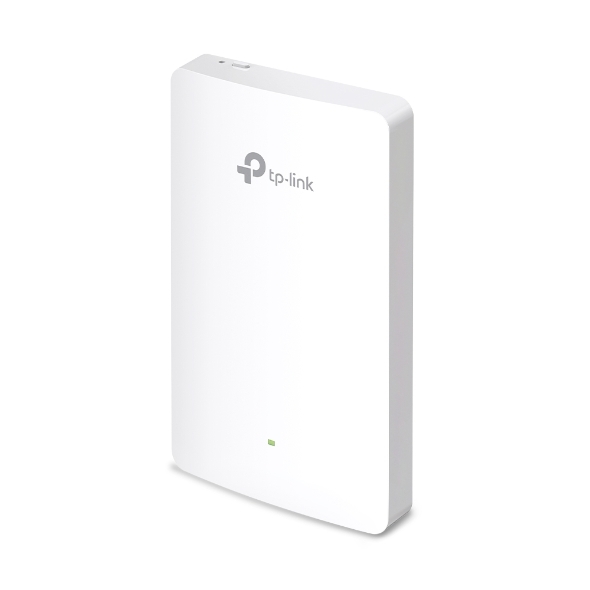

EAP615-Wall
AX1800 Wall Plate WiFi 6 Access Point
Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
Four Gigabit Ports: 4 Gigabit Ethernet ports (1x uplink + 3x downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Centralized Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm EU US standard junction box, and 802.3af/at PoE support.
New Experience of Room Coverage with WiFi 6
Omada
Wi-Fi 6
Superior WiFi 6 Speeds
Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps.
High-Performance Connectivity for Better User Experience
The latest WiFi 6 features and advanced wireless techniques guaranteee higher network efficiency and lower latency.
HARDWARE FEATURES
Interface
Uplink: 1x 10/100/1000 Mbps Ethernet Port
Downlink: 3x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3af/at PoE
Power Consumption
EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Antenna
2 Dual-Band Antennas
2.4 GHz: 2x 3 dBi
5 GHz: 2x 4 dBi
Mounting
Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
MU-MIMO
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
Less than 20 dBm (2.4 GHz, EIRP)
Less than 23 dBm (5 GHz, EIRP)
FCC:
Less than 21 dBm (2.4 GHz)
Less than 21 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
Installation Guide
Mounting Kits
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
Operating Temperature: 040 ^oC (32104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"xW"xH")
8 x 5 x 2

Weight
1 lb

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

840030703607

SKU

mingleEAP615-WALL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

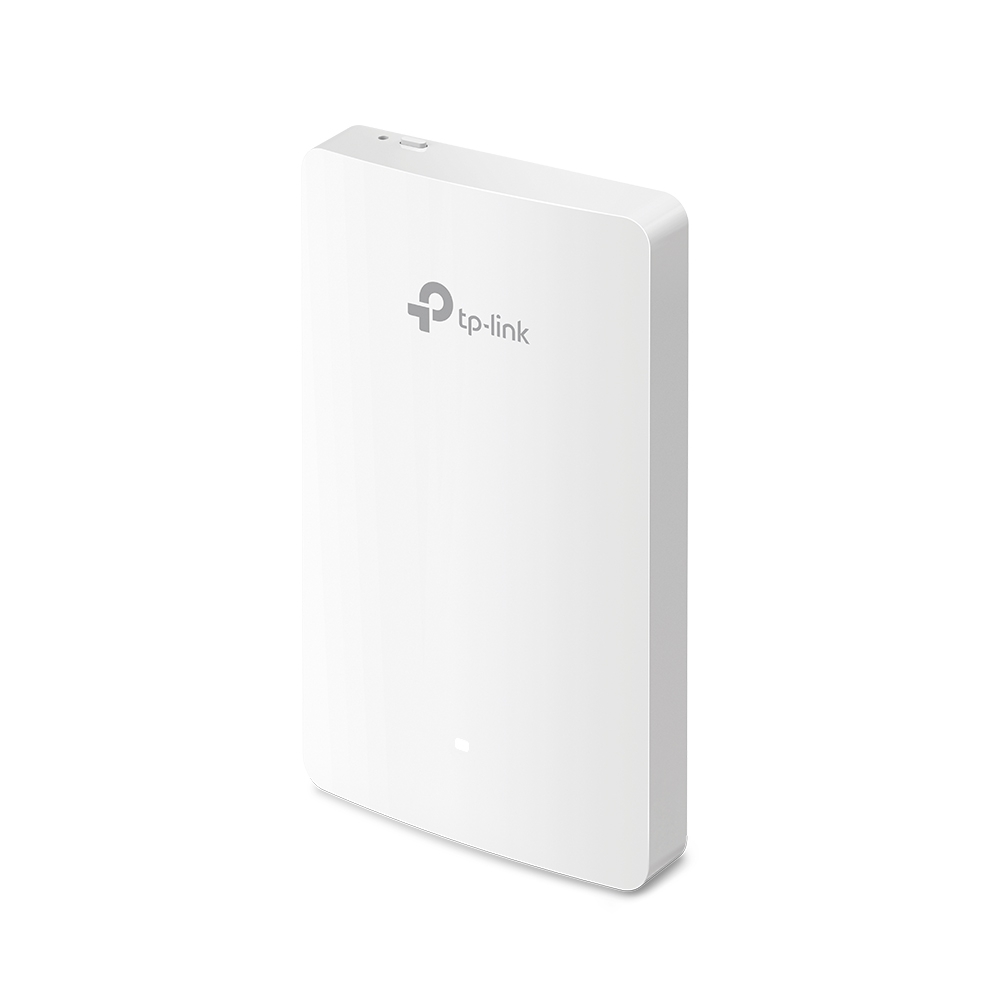

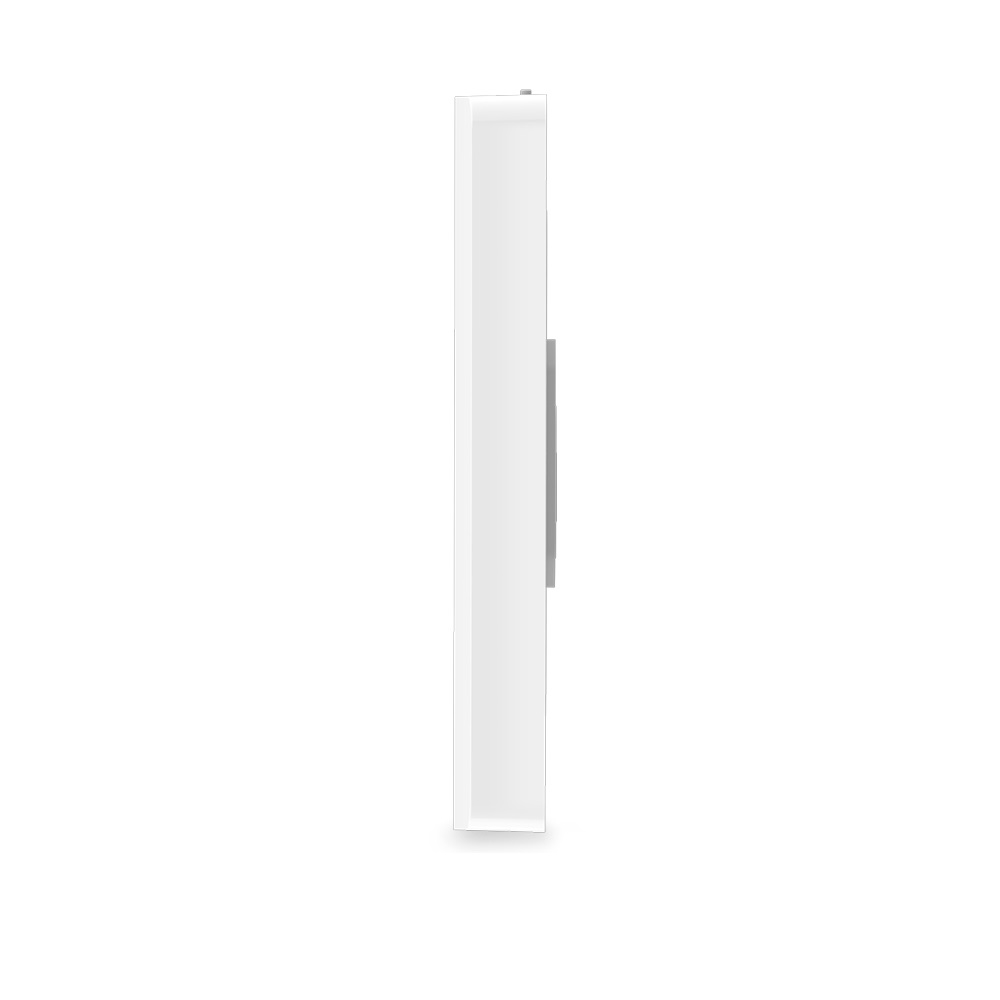

Product Description

Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.

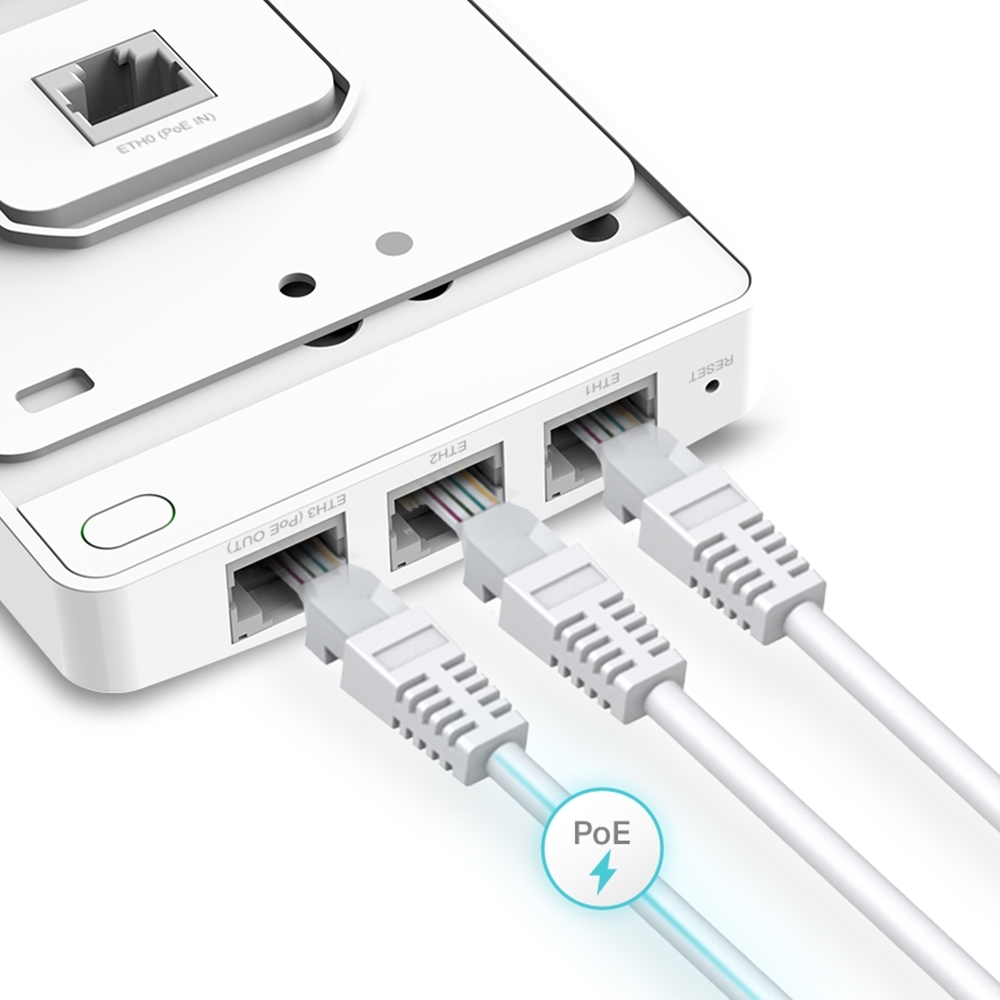

Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.

Centralized Management: Cloud access and Omada app for mobility and easy management.

Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.

Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.

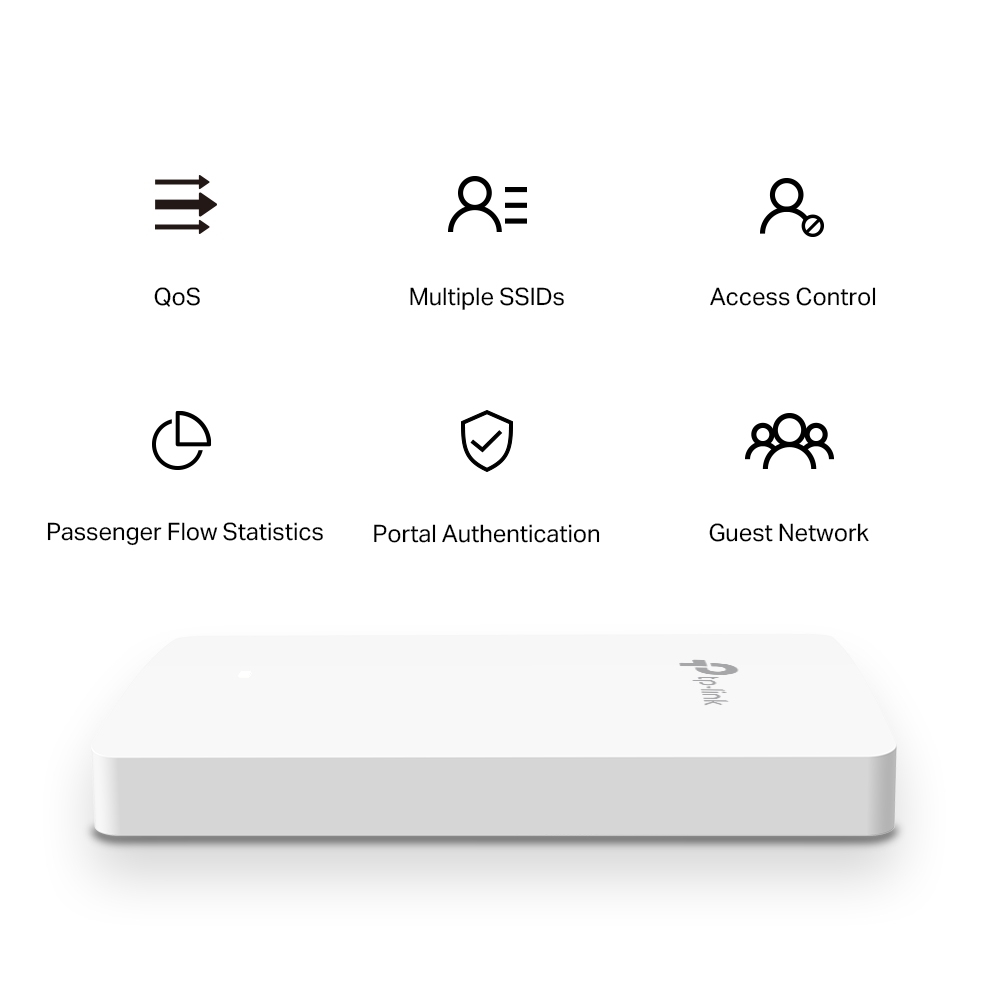

Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.

Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.

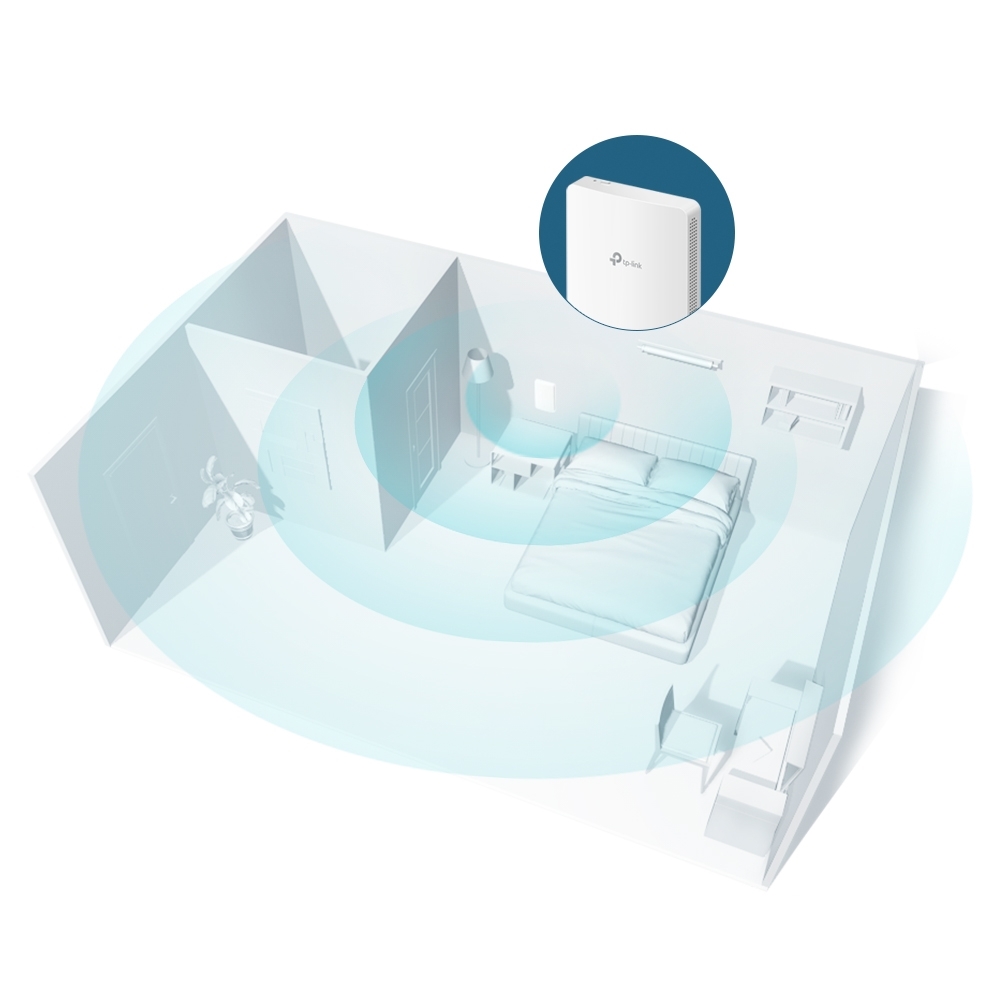

Dedicated Complete, Private Wi-Fi Network in Each Room

An EAP in each room allows guests to enjoy their own private Wi-Fi network that s fast, delivering a strong signal, and providing corner to corner coverage.

Absolute Thinnest, Inconspicuous Design

The thinnest wall plate AP available only 15 mm featuring a sleek, minimalist appearance. Designed to blend in with the d cor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered

With 802.3af/802.3at Power over Ethernet supported there s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you re ready to go.
HARDWARE FEATURES
Interface
Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE
Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3af/802.3at PoE
Power Consumption
9.8 watts
24.4 watts with 13w PoE output
Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 4 dBi
Mounting
Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/b/g/n/ac
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/ disable SSID broadcast
Automatic channel assignment
Transmit power control (adjustable in 1 dBm step)
QoS (WMM)
Band steering
Beamforming
Load balance
Rate limit
Scheduled reboot
Wireless scheduled on/off
Wireless Statistics based on SSID, access point, or client
Wireless Security
Captive portal authentication
Access control list
Wireless MAC address filtering
Wireless isolation between clients
SSID to VLAN Mapping
LAN port-based VLAN
Rogue AP detection
802.1X EAP support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power
is less than or equal to 21 dBm (2.4 GHz)
is less than or equal to 21 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Local/ remote syslog
SSH
Yes
Web-based Management
HTTP/ HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
OTHERS
Certification
FCC, RoHS
Package Contents
Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall
Installation guide
Mounting screw
Environment
Operating temperature: 0-40 ^oC (32-104 ^oF)
Storage temperature: -40-70 ^oC (-40-158 ^oF)
Operating humidity: 10-90% RH non-condensing
Storage humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
8 x 5 x 2
Weight
1.00 LB
Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973088972

SKU

mingleEAP235-WALL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Product Highlights

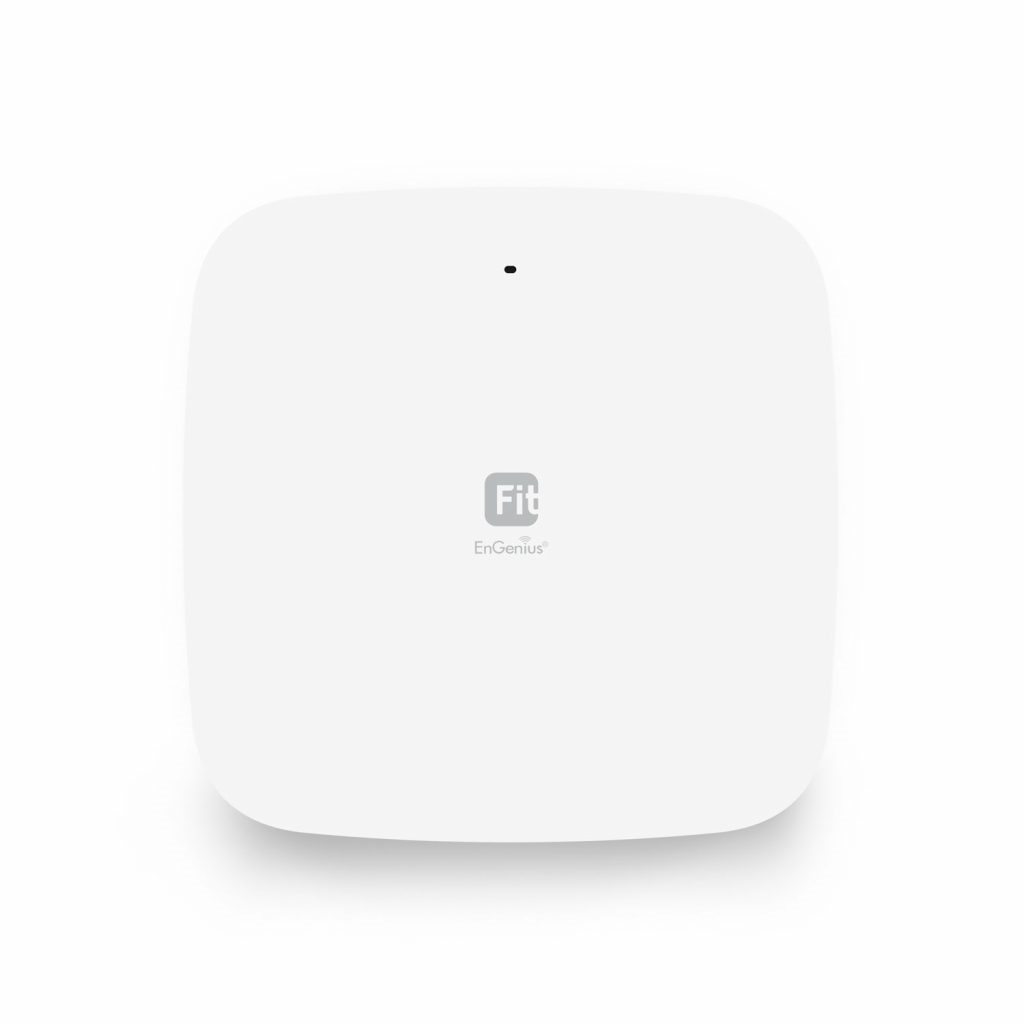

The EnGenius Fit Managed EWS356-FIT Wi-Fi 6 2x2 indoor wireless access point is a business-class device that provides secure and reliable high performance while reducing capital and operating expenses for cost-conscious small businesses. With support for the latest 802.11ax technology, this access point can deliver maximum speeds of 574 Mbps (2.4 GHz) and 2,400 Mbps (5 GHz). Additionally, it features an easy-to-use web interface for cloud or on-premises management options based on network architecture and technical aptitude.

Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna

Supports up to 2,400 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band

Select cloud or on-premises management options based on network architecture, administrative permissions

From anywhere cloud visibility and control

Setup in minutes with app-based step by step instructions

Quick-scan device register, remote monitoring, and troubleshooting

Real-time system metrics, analytics, and remote configurations

No access point licensing or subscription fees

Uplink and downlink of OFDMA improves transmission to APs and client devices

Target wake time for power-saving of client & IoT devices

Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices

BSS coloring for tagging packets with a color to differentiate between adjacent basic service sets
Technical Specifications
Standards
802.11a/b/g/n/ac/ax
Antenna - 2.4GHz
4dBi
Antenna - 5GHz
5dBi
Physical Interfaces
1 x 10/100/1000 BASE-T
DC12V
Reset/Reboot button
LED indicators
1 x Multi-color LED
Power Source
PoE 802.3af
DC12V
Maximum Power Consumption
10.7W
Wireless and Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz and 5 GHz
Operation Modes
Managed mode: AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz - 2482 MHz
5 GHz: 5150 MHz - 5250 MHz, 5250 MHz - 5350 MHz, 5470 MHz - 5725 MHz,
5725 MHz - 5850 MHz
Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Radio Chains
2 x 2:2
SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2x2 wireless client device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE160 to a 2x2 wireless device under the 5GHz radio.
MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously
Supported Data Rates
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS 1 to 2)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS 1 to 2)
Supported Radio Technology
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11ax supports high efficiency throughput (HE) -HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) -VHT 20/40/80 MHz
802.11n supports high throughput (HT) -HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio -HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Max Concurrent User
128 per radio
Environmental and Physical
Operating Temperature
32^oF-104^oF (0 ^oC-40 ^oC)
Storage Temperature
-40 ^oF-176 ^oF (-40 ^oC-80 ^oC)
Storage Humidity
Storage: 90% or less
Package Contents
1 EWS356-FIT Indoor Access Point
1 - Ceiling Mount Base (9/16 Trail)
1 - Ceiling Mount Base (15/16 Trail)
1 - Ceiling and Wall Mount Screw Kit
1 - Quick Installation Guide
Compliance
Safety Compliance
CB
WEEE
Yes
RoHS
Yes
Regulatory Compliance
FCC
CE
IC
UKCA
Item Dimension (L"xW"xH")
11 x 7 x 2

Weight
2 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

655216011168

SKU

mingleEWS356-FIT

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

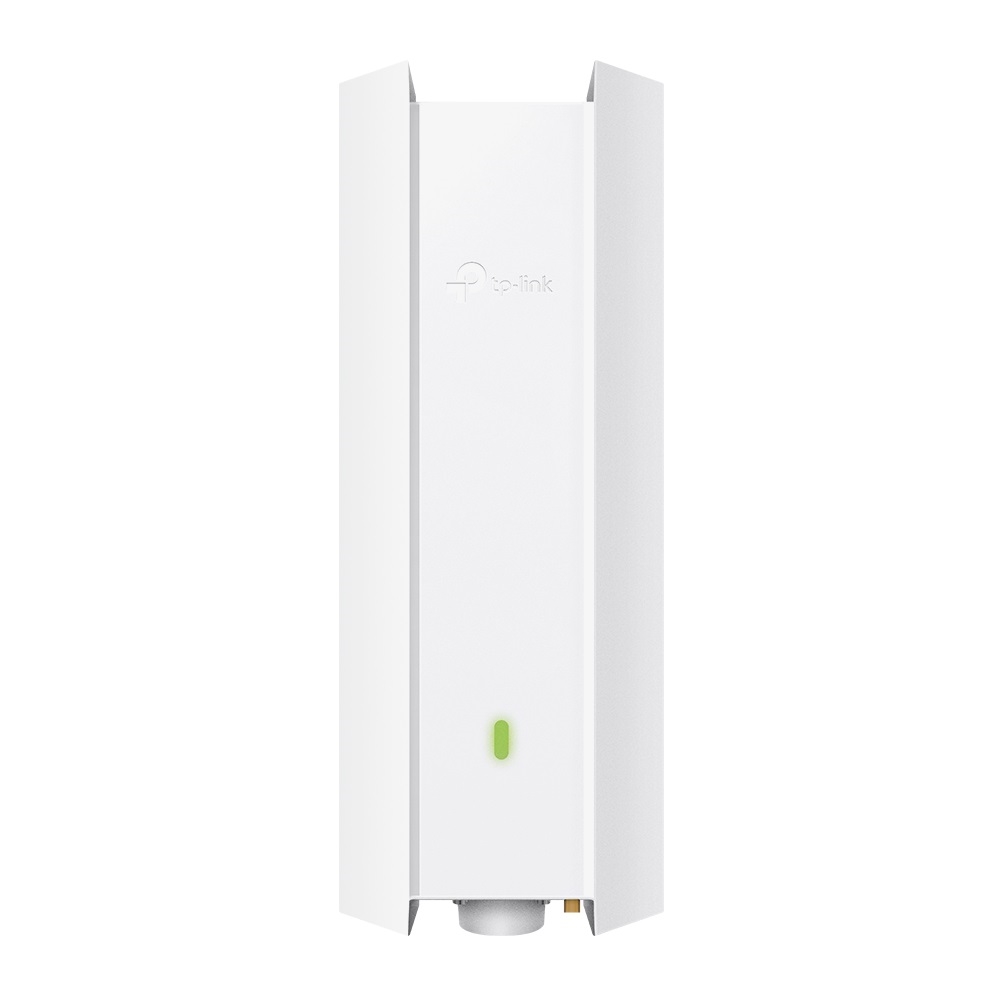

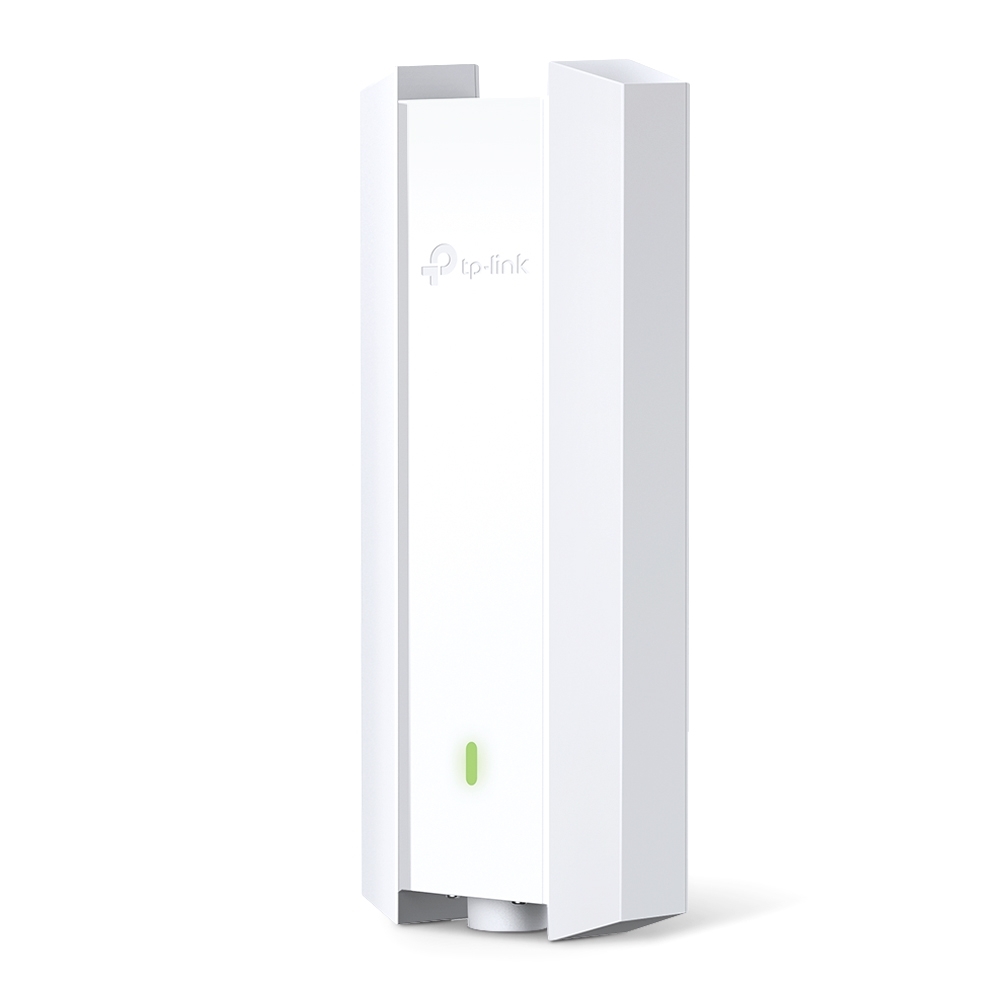

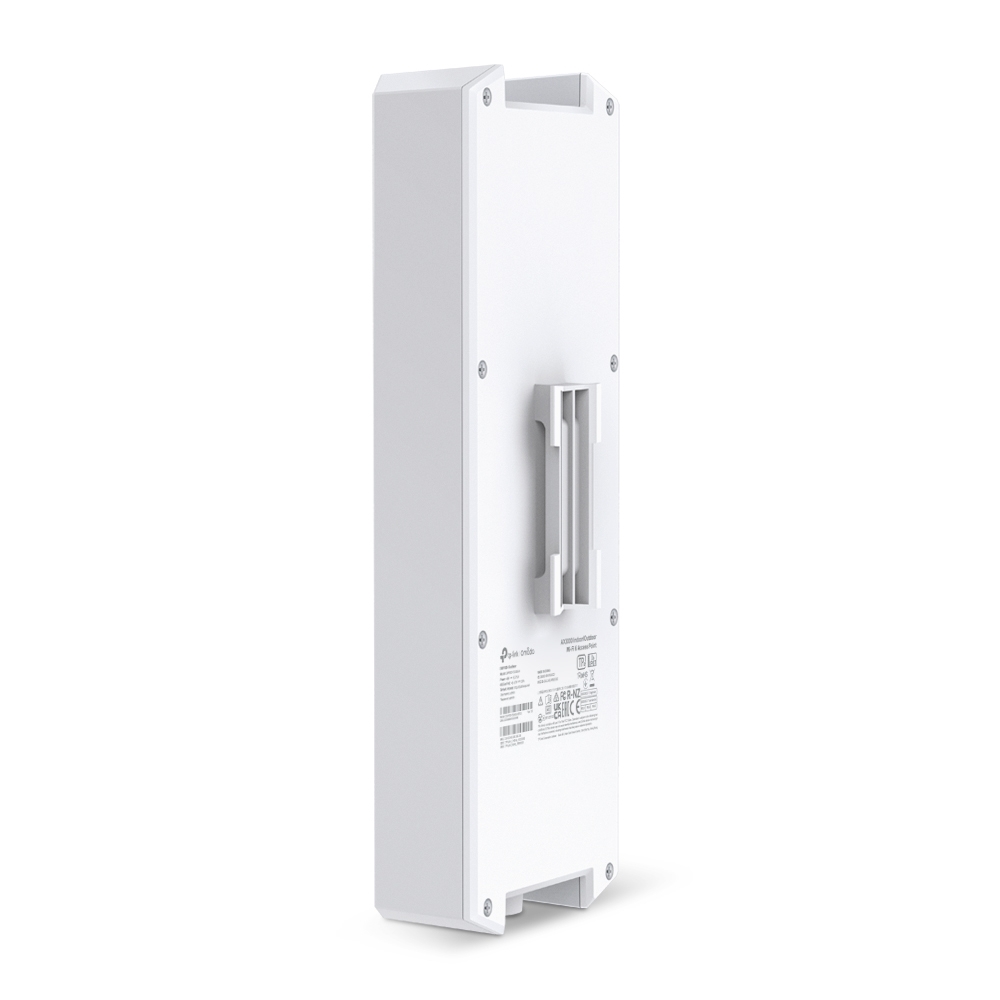

EAP650-Outdoor

AX3000 Indoor/Outdoor WiFi 6 Access Point



Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.

Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.

160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.

Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.

Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.

Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.

PoE Powered: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.

Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48V Passive PoE (PoE Adapter Included)
Power Consumption
EU: 12.5W (802.3at PoE or Passive PoE)
US: 14.7W (802.3at PoE or Passive PoE)
Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Weatherproof Enclosure
IP67
Mounting
Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity
250+
(The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.)
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz, 5 GHz
Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS equals 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS equals 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh³
Seamless Roaming ³
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication ³
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada AppYes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes, through
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller
Email Alerts
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification
CE, FCC, RoHS
Package Contents
Access Point EAP650-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: -30 - 70^oC (-22 - 158 ^oF)
Storage Temperature: -40 - 70 ^oC (-40 - 158 ^oF)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensing
Note
3. Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.
Item Dimension (L inchxW inchxH inch)
15 x 10 x 11

Weight
6 lbs

Warranty Information
1 Year Limited

Available Quantity

5

UPC

840030703553

SKU

mingleEAP650-OUTDOOR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

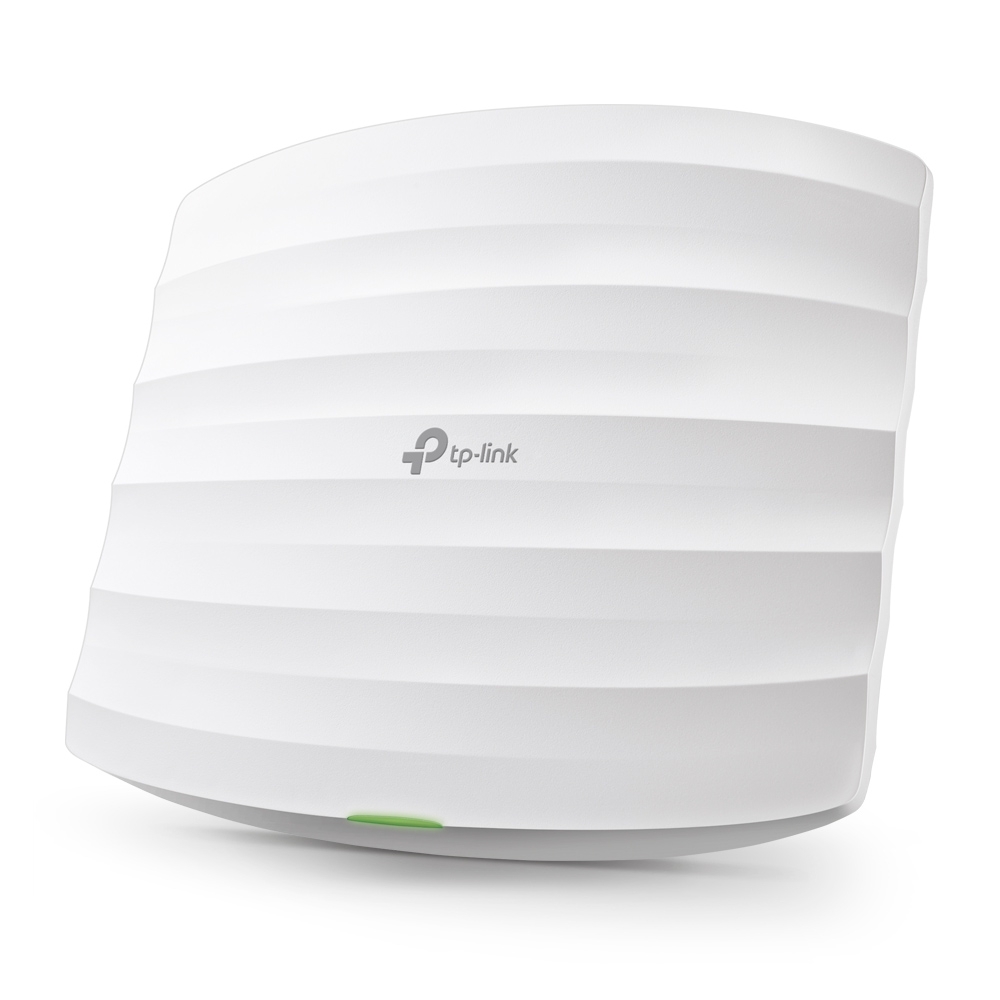

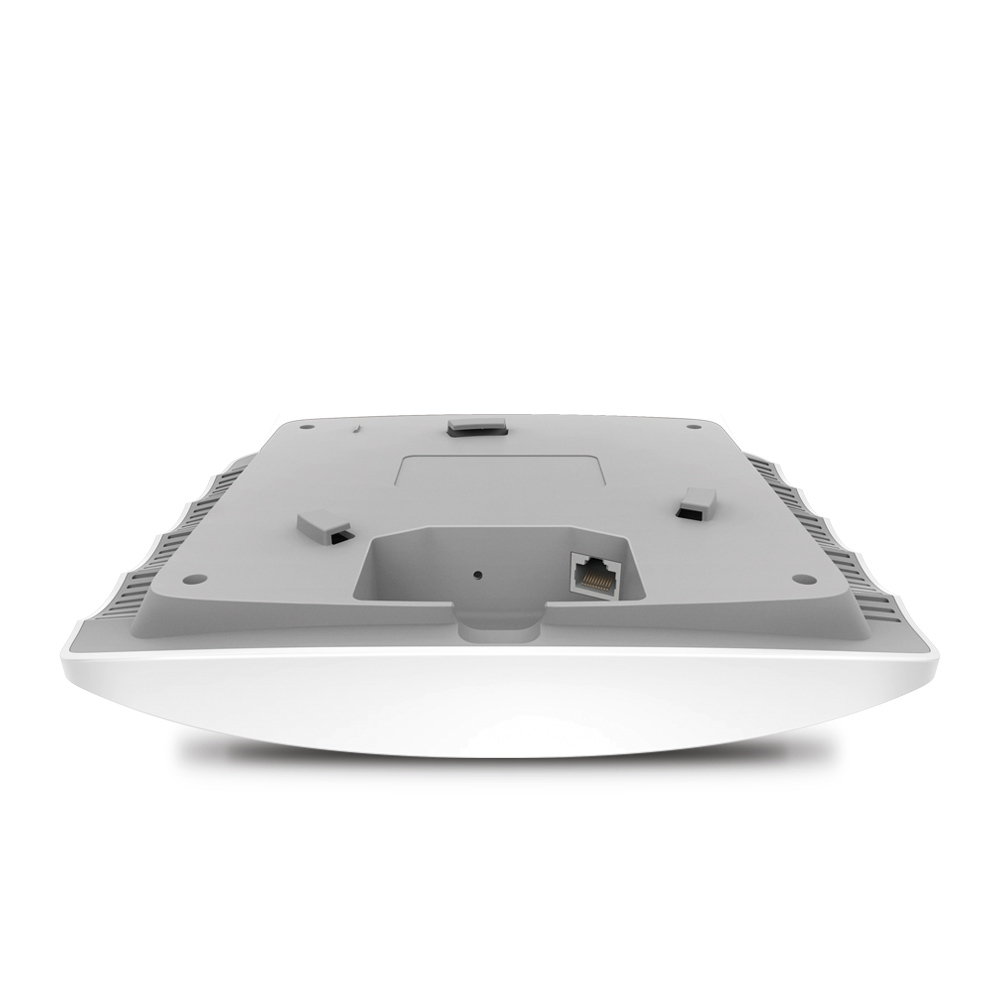

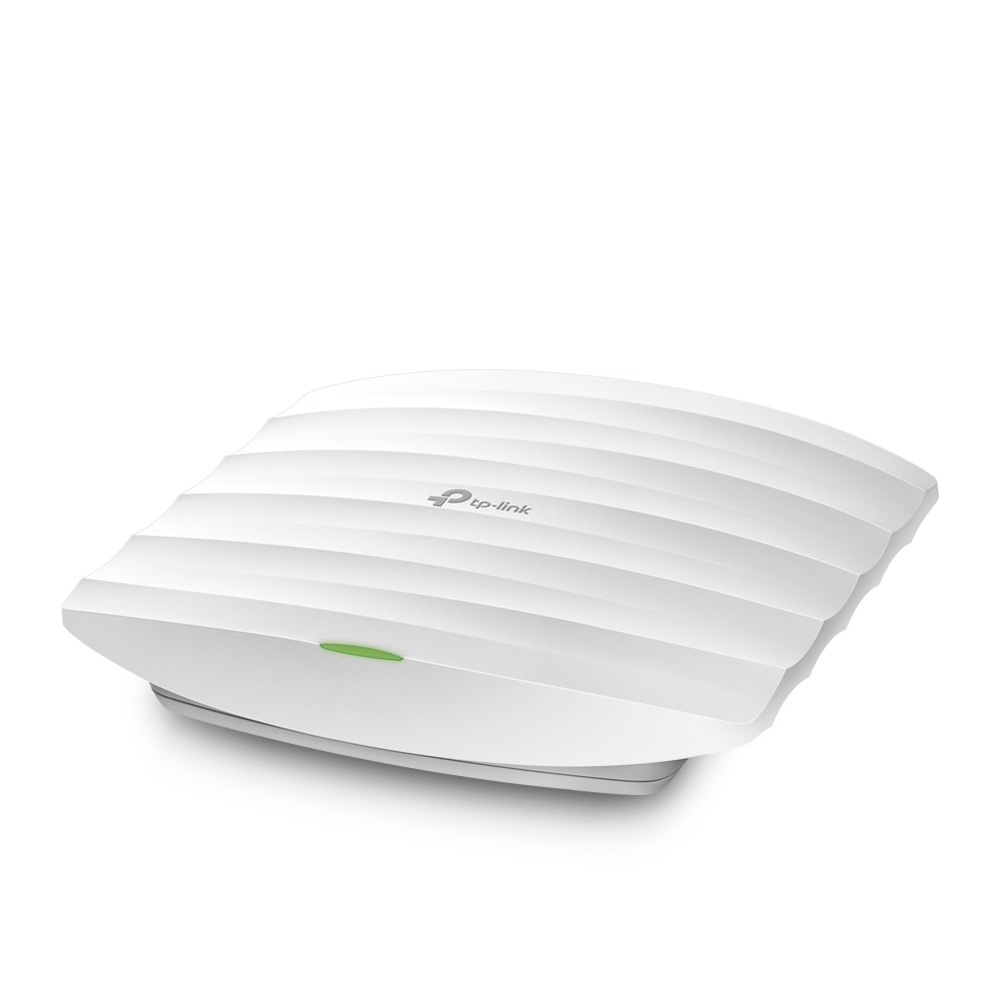

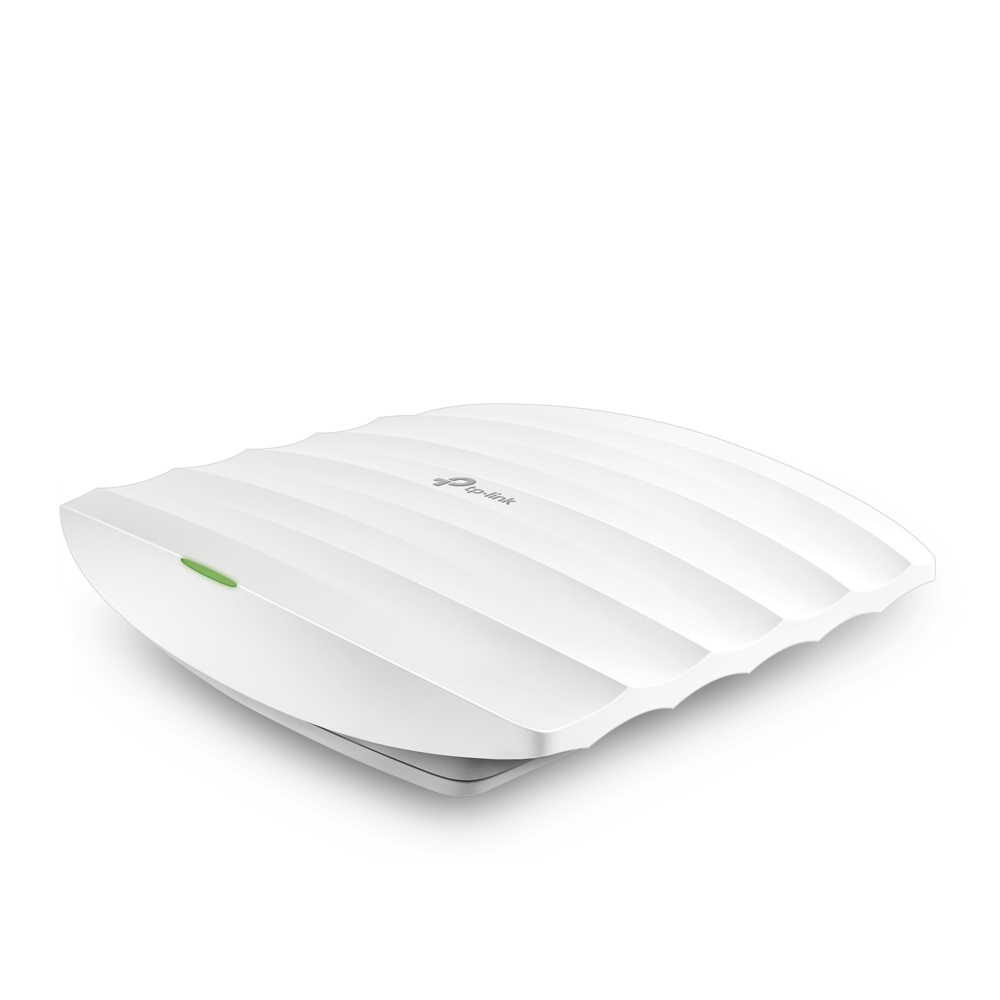

Product Description

Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds

Free EAP Controller Software lets administrators easily manage hundreds of EAPs

Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible

Captive portal provides a convenient method for guest authentication

Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections

Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience

Supports management VLAN for an enhanced network management

Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose


Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.


Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.


Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
HARDWARE FEATURES
Interface
Gigabit Ethernet (RJ-45) Port x1 (Support IEEE802.3af PoE and Passive PoE)
Button
Reset
Power Supply
802.3af PoE or passive PoE
Power Consumption
12.6W
Antenna Type
3 Internal Omni
2.4GHz: 4dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Physical Security Lock
Yes
Hardware Watch Dog
Yes
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/g/b/a
Frequency
2.4GHz and 5GHz
Signal Rate
5GHz:Up to 867Mbps
2.4GHz:Up to 450Mbps
Wireless Functions
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power
less than or equal to24dBm(2.4GHz)
less than or equal to22dBm(5GHz)
MANAGEMENT
EAP Controller Software
Yes
Email Alerts
Yes
LED ON/OFF Control
Yes

Available Quantity

5

UPC

845973093006

SKU

mingleEAP225

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel Networking AX211.NGWG Wi-Fi 6E AX211 (Gig+) 2230 2x2 AX R2 (6GHz)+BT vPro Brown Box
Essentials
Product Collection
Intel Wi-Fi 6E (Gig+) Series
Code Name
Products formerly Garfield Peak
Operating Temperature Range
0^oC to 80^oC
Max Operating Temperature
80 ^oC
Minimum Operating Temperature
0 ^oC
Supported Operating Systems
Windows 11, 64-bit, Windows 10, 64-bit, Linux, Chrome OS
Antenna
2x2
Networking Specifications
TX/RX Streams
2x2
Bands
2.4, 5, 6 GHz (160MHz)
Max Speed
2.4 Gbps
Wi-Fi CERTIFIED
Wi-Fi 6E (802.11ax)
Compliance
FIPS, FISMA
Integrated Bluetooth
Yes
Bluetooth Version
5.3
Package Specifications
Board Form Factor
M.2 2230, M.2 1216
System Interface Type
M.2: CNVio2
Advanced Technologies
MU-MIMO
Yes
Orthogonal Frequency-Division Multiple Access (OFDMA)
Yes
Supported Under Intel vPro Technology
Yes
Item Dimension (L"xW"xH")
11 x 9 x 2

Weight
2 lbs

Warranty Information
1 Year Limited

Available Quantity

5

UPC

735858480482

SKU

mingleAX211.NGWG

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

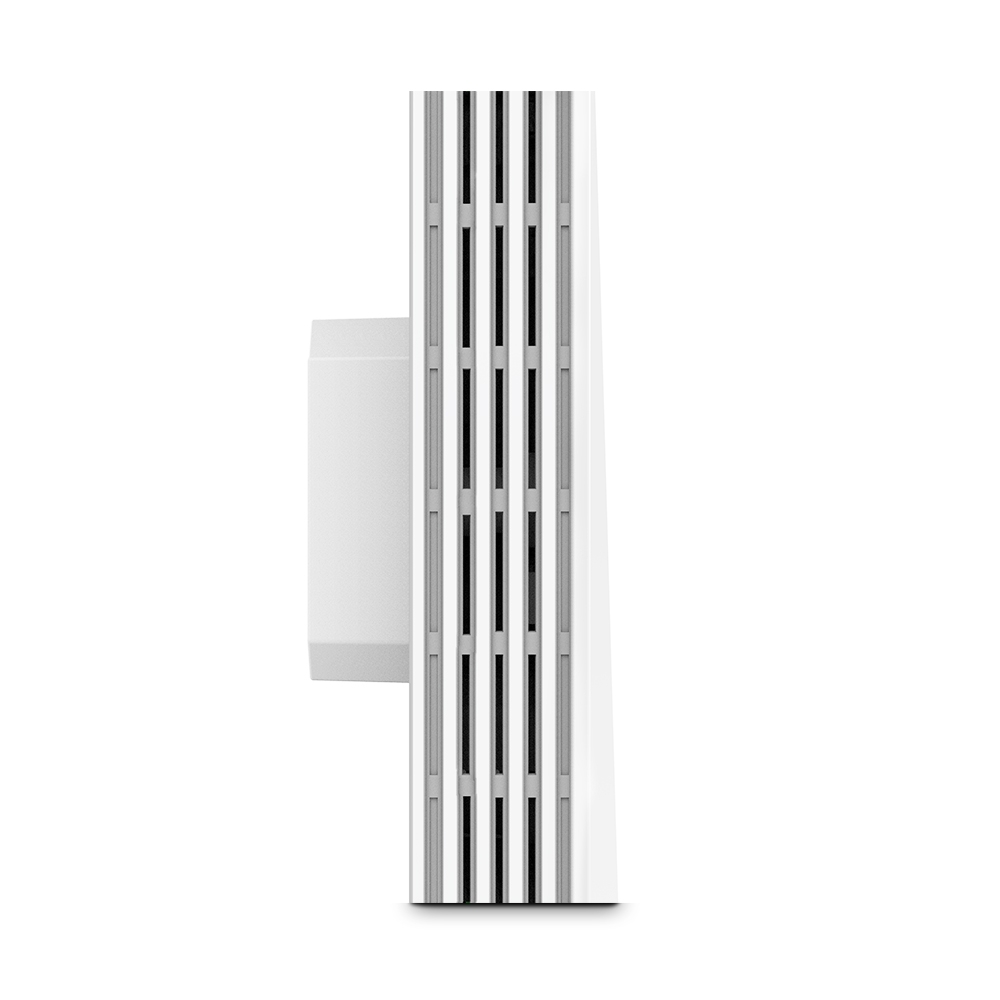

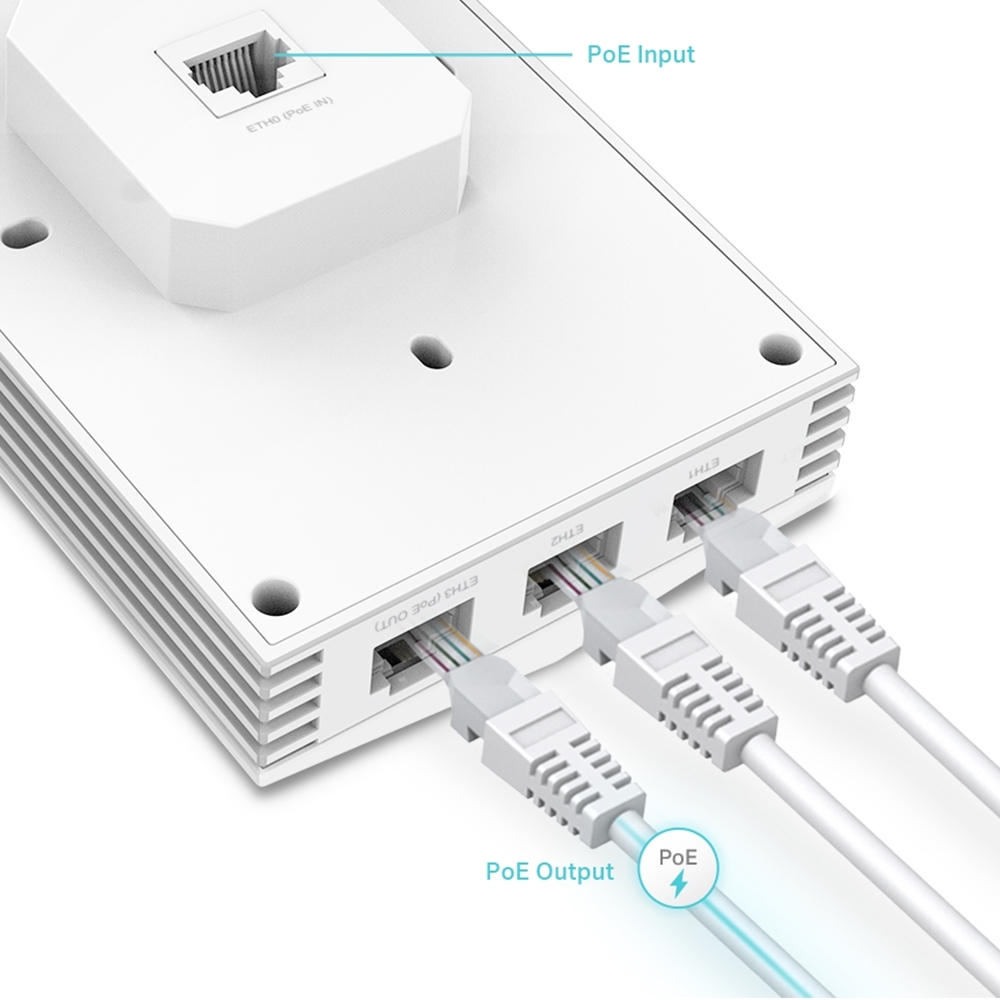

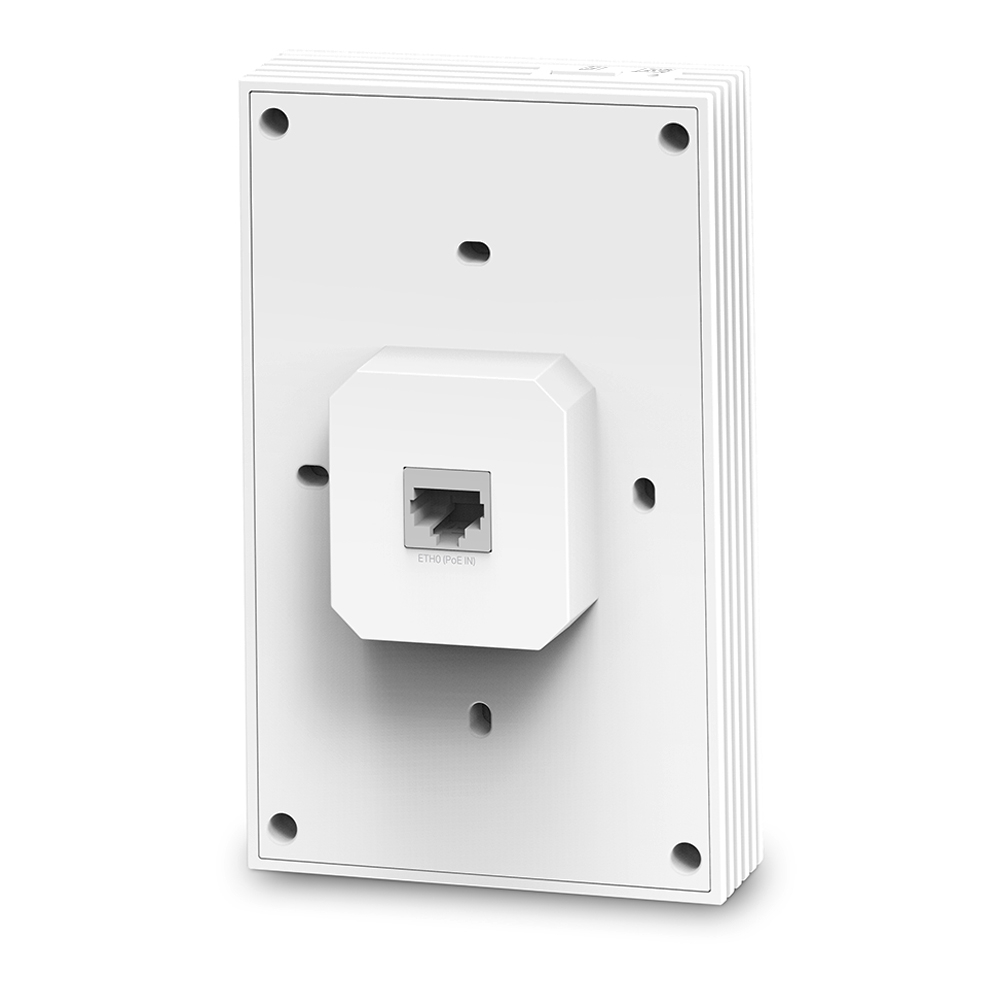

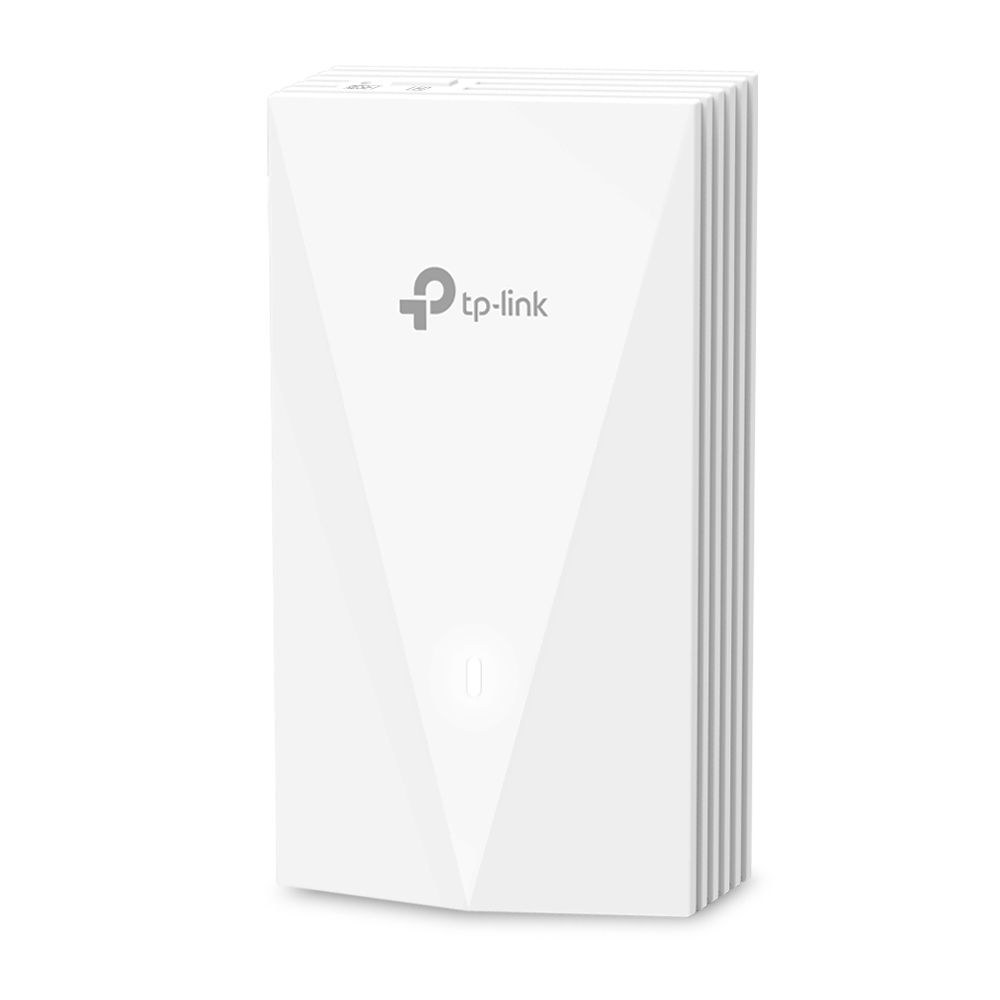

AX3000 Wall Plate WiFi 6 Access Point

Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

Higher Network Efficiency: Deliver data to more devices at the same time with less lag.

Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.

Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.

Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.


Note:

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.

Omada Mesh, Seamless Roaming, and Captive Portal require Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
HARDWARE FEATURES
Interface
Uplink: 1x 10/100/1000 Mbps Ethernet Port
Downlink: 3x 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical Security Lock
No
Button
Reset, LED
Power Supply
802.3af/at PoE
Power Consumption
EU: 12W (802.3at PoE, PoE Out off)
US: 12.6W (802.3at PoE, PoE Out off)
Antenna
2 Dual-Band Antennas
2.4 GHz: 2x 3 dBi
5 GHz: 2x 5 dBi
Mounting
Wall Plate Mounting (Kits included)
WIRELESS FEATURES
Concurrent Clients
100+
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming^Note
Beamforming
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication^Note
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
less than 20 dBm (2.4GHz, EIRP)
less than 23 dBm (5GHz band1 and 2, EIRP)
less than 26 dBm (5GHz band3, EIRP)
FCC:
less than 21 dBm (2.4 GHz)
less than 21 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes

Available Quantity

5

UPC

840030703577

SKU

mingleEAP655-WALL

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

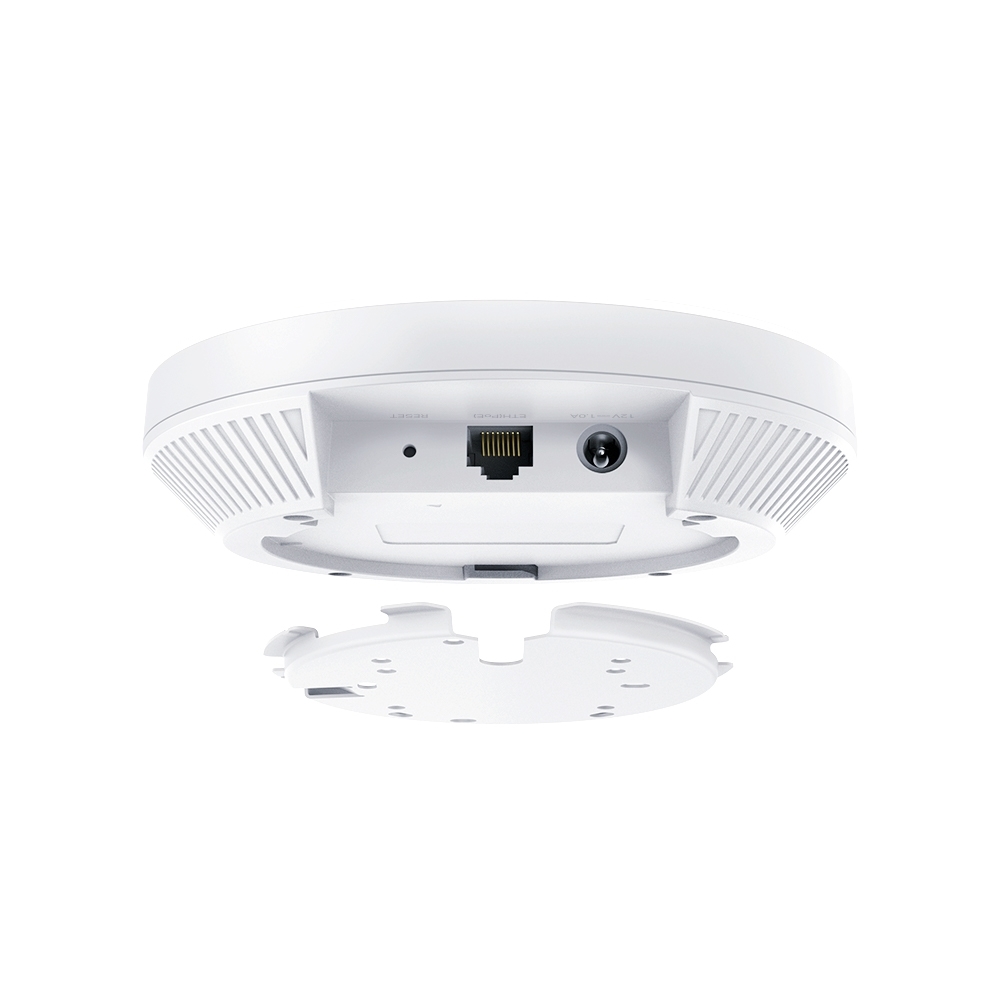

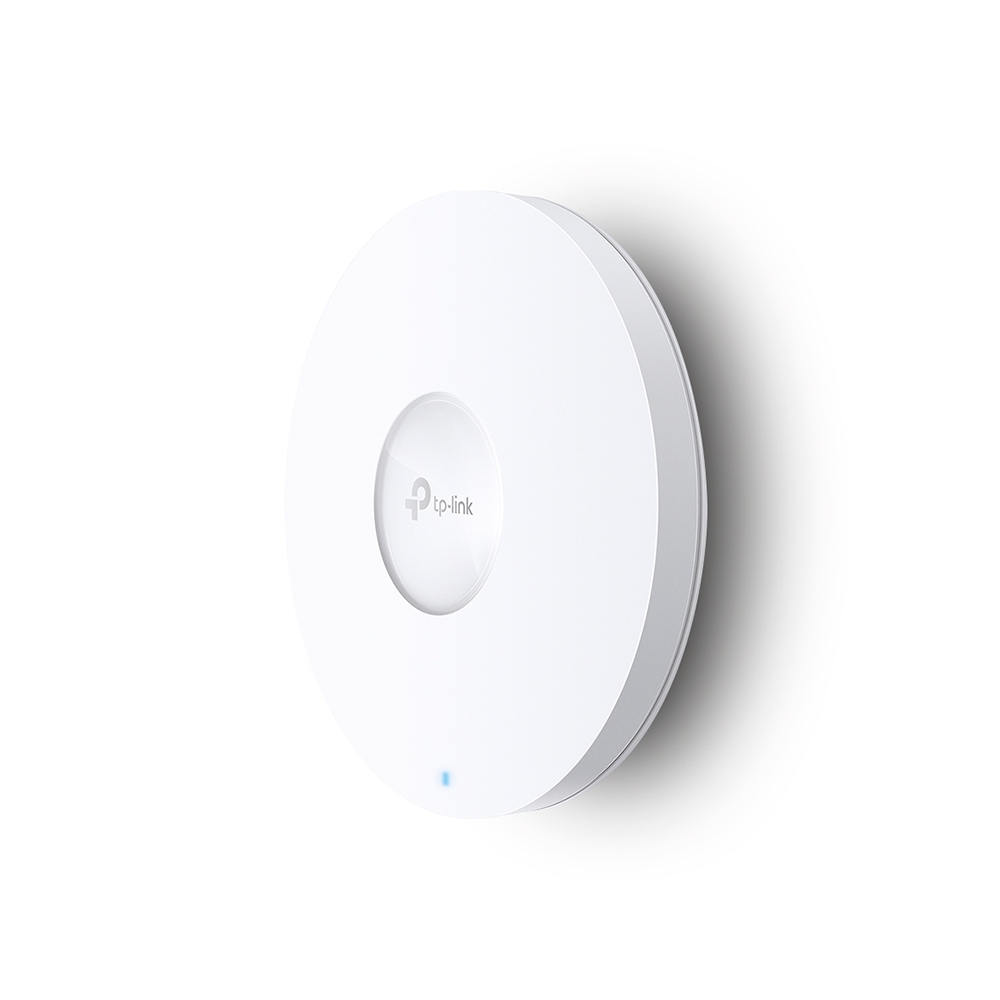

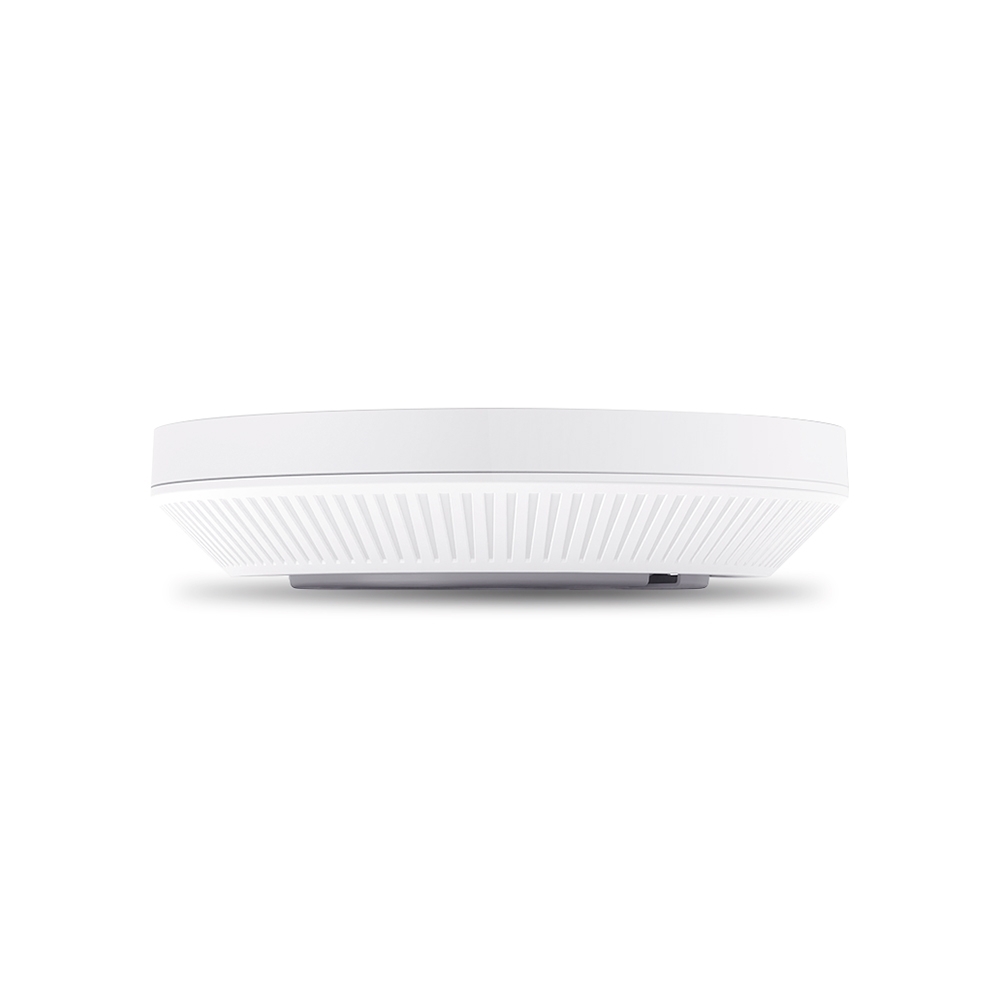

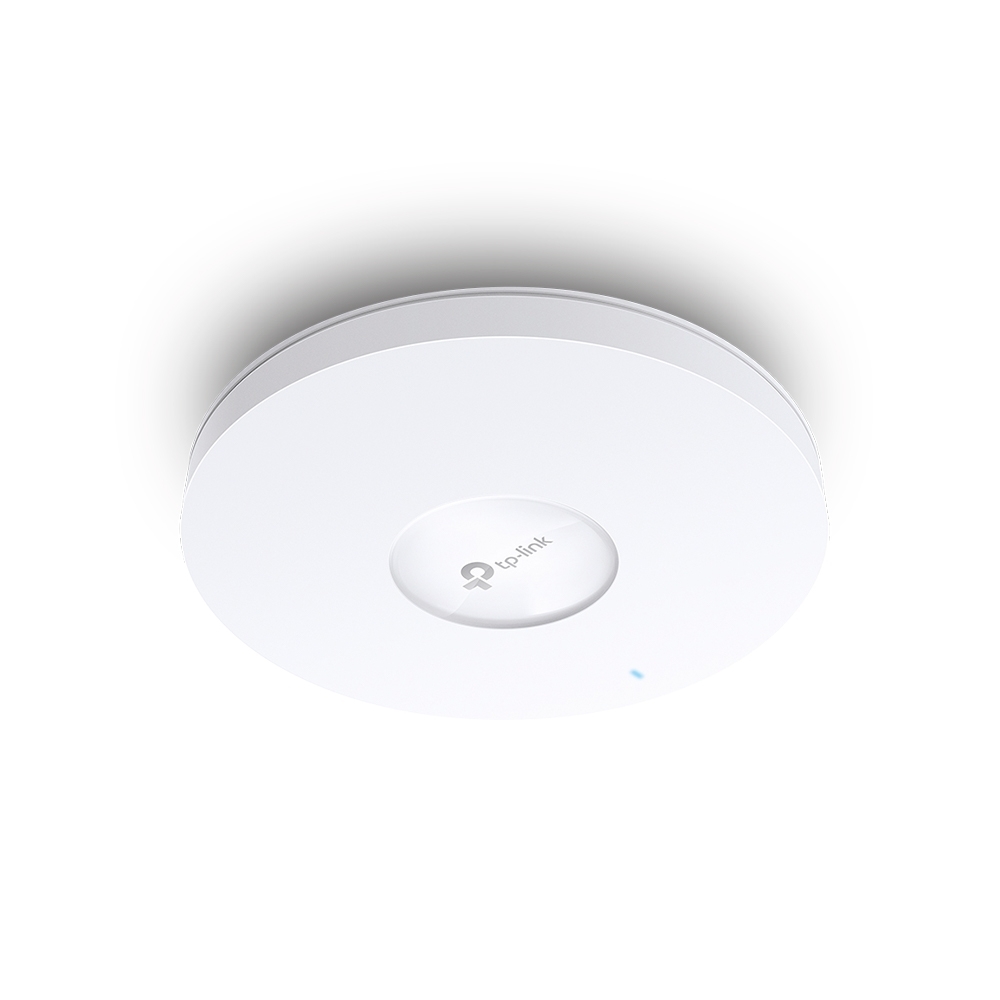

AX3000 Ceiling Mount WiFi 6 Access Point

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.

Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.


Note:

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12V DC
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
Note: DC adapter is not included in the package, and is sold separately.
Power Consumption
EU: 13.5 W
US: 14.7 W
Antenna Type
Internal Omni
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
less than 20 dBm(2.4 GHz, EIRP)
less than 23 dBm(5 GHz, Band1 and Band2, EIRP)
less than 30 dBm(5 GHz, Band3, EIRP)
FCC:
less than 25 dBm (2.4 GHz)
less than 25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog

Available Quantity

5

UPC

840030705236

SKU

mingleEAP653

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

EAP670
AX5400 Ceiling Mount WiFi 6 Access Point
Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
High-End Business WiFi 6 to Power Up Your Business
AX5400 Ceiling Mount Wi-Fi 6 Access Point
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment
Seamless Roaming
Uninterrupted streaming when moving between APs
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
HARDWARE FEATURES
Interface
1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12 V / 1.5 A DC
Power Consumption
EU: 18.1 W
US: 19.8 W
Antenna Type
Internal Omni
2.4 GHz: 2x 4 dBi
5 GHz: 4x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
Less than 20 dBm(2.4 GHz, EIRP)
Less than 23 dBm(5 GHz, , band1 and band2, EIRP)
Less than 30 dBm(5 GHz, , band3, EIRP)
FCC:
Less than 25 dBm (2.4 GHz)
Less than 28 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP670
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"xW"xH")
12 x 12 x 4

Weight
5 lbs

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

840030711671

SKU

mingleEAP670

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.

High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) , Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

High-Density Connectivity with 4 Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4 versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
HARDWARE FEATURES
Interface
1x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE or 12 V DC
Power Consumption
21.5 W
Antenna Type
Internal Omni
2.4 GHz: 4x 4 dBi
5 GHz: 4x 5 dBi
Mounting
Ceiling or wall mount
(kits included)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 1148 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
is less than 26 dBm (2.4 GHz)
is less than 26 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP660 HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
12 x 12 x 4
Weight
5.00 LB
Warranty Information
Limited Lifetime

Available Quantity

5

UPC

840030711664

SKU

mingleEAP660 HD

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AX1800 Ceiling Mount WiFi 6 Access Point

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Density Connectivity: 4x increased capacity to connect more devices simultaneously.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) , Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Ultra-Slim Design: 6.3 in. x 1.3 in. elegant design brings more agility.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1.5 A DC
Power Consumption
EU: 14.4 W (For PoE) 13.1 W (for DC)
US: 14.9 W (For PoE) 13.4 W (for DC)
Antenna Type
Internal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
Less than 20 dBm(2.4 GHz, EIRP)
Less than 23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
FCC:
Less than 25 dBm (2.4 GHz)
Less than 25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP620 HD
Power Adapter
Ceiling / Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"xW"xH")
10 x 9 x 3

Weight
2 lbs

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

840030707766

SKU

mingleEAP620 HD

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

Note1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.^Note2

Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment. ^Note2

PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.

Noe2: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1.5 A DC
Power Consumption
EU: 13.7 W (For PoE), 12.3 W (for DC)
US: 14.2 W (For PoE), 12.8 W (for DC)
Antenna Type
Internal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
less than 20 dBm(2.4 GHz, EIRP)
less than 23 dBm(5 GHz band1/2, EIRP), less than 25 dBm (5 GHz band3)
FCC:
less than 25 dBm (2.4 GHz)
less than 25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog

Available Quantity

5

UPC

840030707773

SKU

mingleEAP610

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Product Highlights



EnGenius EnJet EnStationAC 5 GHz Outdoor 802.11ac Wave 2 Wireless Client Bridge/AP, featuring Time Division Multiple Access, cuts through RF-congested environments within Point-to-Point/MultiPoint applications. EnJet enabled the EnStationAC assigns time slots to each station, providing faster and more stable performance and avoiding the hidden node issue. With a high-gain 19 dBi dual-polarized directional antenna that extends the network up to 5 miles point-to-point. Use the EnStationAC s secondary PoE pass through Gigabit port to power an additional PoE-compliant device such as an IP surveillance camera.

EnJet technology features Time Division Multiple Access, cutting through RF-congested environments

11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz

MU-MIMO improves performance & increases user device capacities

Beamforming optimizes antenna signal, reception & reliability for device

High 26 dBm transmit power extends and high Gain 19 dBi Directional Antennas

IP55-Rated weatherproof & dustproof housing

GigE PoE port & adapter included

EnWiFi app - Simple, Intuitive interface for AP configuring & monitoring & management
Technical Specifications
Standards
IEEE 802.11ac wave2/a/n on 5 GHz
Processor
Powerful Qualcomm CPU
Antenna
High-Gain 19 dBi Integrated Directional Antennas
5 GHz (Port 1)
Average Antenna Gain: 19 dBi
Polarization: Linear
Azimuth Beam Width: 30^o
Elevation Beam-Width: 18^o
VSWR: 1:2.0
5 GHz (Port 2)
Average Antenna Gain: 19 dBi
Polarization: Linear
Azimuth Beam Width: 18^o
Elevation Beam-Width: 30^o
VSWR: 1:2.0
Physical Interface
2 x 10/100/1000 Base-TX, RJ-45 Gigabit Ethernet Ports
1 x Reset Button
LED Indicators
Power
LAN1
LAN2
WLAN
Signal
Power Source
Power-over-Ethernet: Proprietary 24V PoE
Maximum Power Consumption
9W
Surge Protection
Line to Line: 1 KV
Line to Ground: 2 KV
ESD Protection
Contact: 4 KV
Air: 8 KV
Wireless and Radio Specifications
Operating Frequency
5 GHz
Operation Modes
EnJet Enabled:
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Station
EnJet Disabled:
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station
Frequency Radio
5 GHz: 5180 MHz, 5200 MHz, 5220 MHz, 5240 MHz, 5260 MHz, 5280 MHz, 5300 MHz, 5320 MHz, 5500 MHz, 5520 MHz, 5540 MHz, 5560 MHz, 5580 MHz, 5600 MHz, 5620 MHz, 5640 MHz, 5640 MHz, 5680 MHz, 5745 MHz, 5765 MHz, 5785 MHz, 5805 MHz
Support radios and channels will be varied on the configured regulatory domain
Transmit Power
Up to 26 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) Spatial Stream SU-MIMO up to 867 Mbps to a single client
MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously
Supported Data Rates (Mbps):
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS is 1 to 2)
Supported Radio Technologies
802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
Channelization
802.11ac Supports Very High Throughput (VHT) - VHT 20/40/80 MHz
802.11n Supports High Throughput (HT) - HT 20/40 MHz
802.11n/ac Packet Aggregation: AMPDU, ASPDU
Supported Modulation
802.11a/n: OFDM16-QAM, 64-QAM
802.11ac: OFDM 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID
EnJet Enabled: Supports 1 SSIDs
EnJet Disabled: Supports 8 SSIDs
Management Interface
Management SSID allows your mobile device such as smart phone, connect to SSID and easily configuring and monitoring through EnGenius EnWiFi App.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Management Features
Deployment Options
Stand-Alone (Individually Managed/EnWiFi App)
Managed Mode (w/ezMaster/Neutron Series Switch)
Stand-Alone Management Features
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network (Only supported when EnJet Disabled)
Fast Roaming (802.11k and 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Traffic Shaping
VLANs for Access Point Multiple SSIDs
Backup/Restore Settings
Auto Reboot
Email Alert
Site Survey
Save Configuration as Users Default
Control Features
Operation Mode
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting
Power Save Mode (U-APSD Support)
CLI Support
HTTPS
Wireless Security
WPA2 PSK and Enterprise (AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Wireless Management Features
ezMaster / EnGenius EWS Switch/ SkyKey
Supported when EnJet Disabled
Monitor only when EnJet Enabled
AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Traffic Shaping
Fast Roaming (802.11k and 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP - Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic and Usage Statistics
Real-time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Environmental and Physical
Temperature Range
Operating: -4 ^oF-140 ^oF (-20 ^oC-60 ^oC)
Storage: -22 ^oF-176 ^oF (-30^oC-80 ^oC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Waterproof
IP55-Rated Enclosure
Package Contents
1 - EnStationAC Outdoor Access Point
1 - PoE Adapter (EPA2406GR)
2 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
1 - Pole-Mounting Strap
1 - Power Cord
1 - Quick Installation Guide
Certifications
FCC
CE
CB
IC
Item Dimension (L"xW"xH")
13 x 10 x 4

Weight
4.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

655216007758

SKU

mingleENSTATIONAC

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor

Durable, weatherproof enclosure for outdoor Wi-Fi applications

Up to 1200Mbps with 22 MIMO technology

High transmission power and high gain antennas provide a long-range coverage area

Free Omada Controller software enables administrators easily manage hundreds of EAPs

Captive portal provides a convenient method for guest authentication

Facebook Wi-Fi and SMS anthentication help to boost your business

802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Hardware Features
Interface: Gigabit Ethernet (RJ-45)Port x 1(Support 802.3af PoE and Passive PoE)
Button: Reset
Power Supply: 802.3af PoE and 24 Passive PoE(PoE Adapter Included)
Power Consumption: 10.5W
Antenna: 2.4GHz: 2 x 3dBi, 5GHz: 2 x 4dBi
Mounting: Pole/Wall Mounting (Kits included)
Hardware Watch Dog: Yes
Wireless Features
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz
Signal Rate:
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS equal 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS equal 1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions:
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power:
CE: less than 20dBm(2.4GHz,EIRP), less than 23dBm(5GHz,EIRP)
FCC: less than 30dBm(2.4GHz, EIRP), less than 30dBm(5GHz, EIRP)
Management
Omada Controller Software: Yes
Email Alerts: Yes
Management MAC Access Control: Yes
System Logging Local/Remote Syslog: Yes
Web-based Management: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Others
Certification: CE, FCC, RoHS
Package Contents:
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
Environment:
Operating Temperature: -30^oC-70^oC (-22^oF-158^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%90% non-condensing
Item Dimension (L"xW"xH")
6 x 4 x 11

Weight
2 lbs

Warranty Information
Limited Lifetime Warranty

Available Quantity

5

UPC

845973083571

SKU

mingleEAP225-OUTDOOR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

802.11ac for up to 867Mbps on 5GHz wireless data rate

23dBi high-gain directional 2 2 MIMO, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability

Pharos Control gives administrators a free, centralized management system

Passive PoE supports to allow flexible deployment and convenient installation


Blazing Speed without Wait

256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3 faster than 802.11n Wi-Fi.


Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
HARDWARE FEATURES
Processor
Qualcomm 750MHz CPU, MIPS 74Kc
Memory
128 MB DDR2 RAM, 16 MB Flash
Interface
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply
Passive Power over Ethernet via LAN (+4,5pins, -7,8pins)
Voltage range: 16-27V DC
Antenna Gain
23 dBi
Antenna Beamwidth
9^o (Azimuth)/7^o (Elevation)
Protection
15 KV ESD Protection
6 KV Lightning Protection
Enclosure
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac
Wireless Speeds
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency
5.15-5.85 GHz
Transmit Power
Max. 27 dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
Network Configuration
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP and MAC Binding
Wireless Configurations
Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM
Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP
Management
Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools
Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
System-level Optimizations
Optimized IGMP Snooping / Proxy for multicast applications
POE ADAPTER FEATURES
Interfaces
1 AC Jack with Earth Ground
1x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1x 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button
Remote Reset Button
Power Status LEDs
Green
Input
100-240VAC, 50/60Hz
Output
24VDC, 0.6A Max
+4, 5pins, -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency
>84.29%
Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification
CE, FCC, RoHS, IP65, IC
Package Contents
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment
Operating Temperature: -40^oC-70^oC (-40^oF-158^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-95% non-condensing
Item Dimension (L inchxW inchxH inch)
13 x 7 x 6

Weight
4.00lb

Warranty Information
2 years

Available Quantity

5

UPC

845973089702

SKU

mingleCPE710
