Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

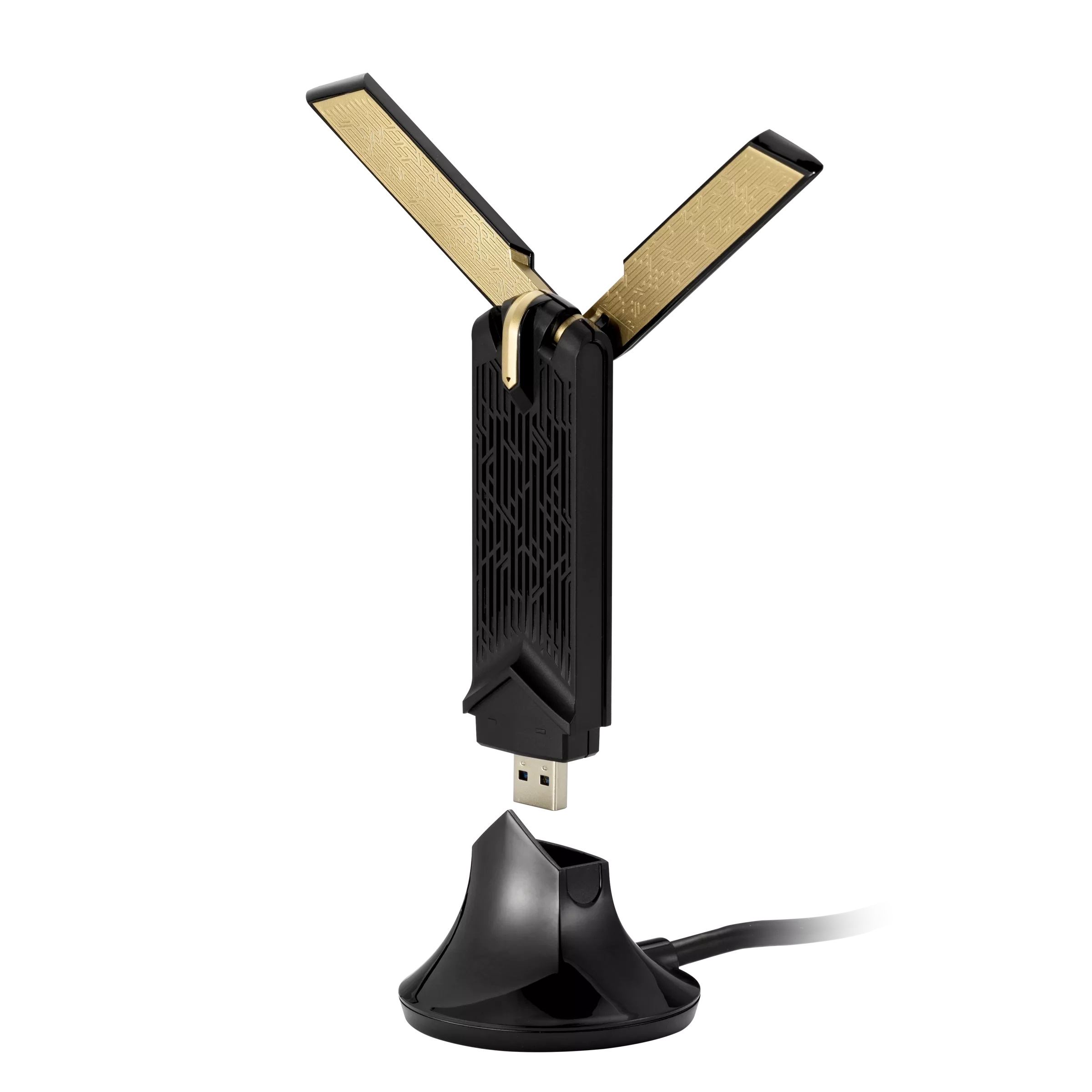

Dual Band AX1800 USB WiFi Adapter
Instant upgrade to WiFi 6 - Boost your PC to 802.11ax standard via USB with speeds up to 1800 Mbps.
Ultra-high efficiency - Enable faster transmission in high density environments with OFDMA, MU-MIMO and BSS Coloring.
Amplified signal - External antenna and cradle ensures powerful WiFi signal.
Supports WPA3 security - For enhanced WiFi security and more robust authentication.
Plug-and-play - Easy to use with wide operating system support.
Instant Upgrade to WiFi 6
The WiFi 6 standard delivers efficient connectivity that meets the demands of the growing number of connected personal and IoT devices. The USB-AX56 USB adapter gives your laptop or PC an instant plug-and-play upgrade to WiFi 6.
Ultrafast WiFi Speed
USB-AX56 is a 2x2 dual-band WiFi 6 client that lets you take full advantage of WiFi 6 routers. It offers a total wireless bandwidth of up to 1800 Mbps 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band. That makes USB-AX56 up to 1.5X faster than a WiFi 5 client
Comparing the speed of 2x2 802.11ax on 5 GHz / 80 MHz channels with 1024QAM modulation to speed of 2x2 802.11ac on 5 GHz / 80 MHz channels with 256QAM modulation.
4X More Efficient Connections
OFDMA and MU-MIMO greatly increase connection efficiency, giving improved network capacity.
A WiFi 6-compatible router is required to enjoy all the benefits of the WiFi 6 standard.
OFDMA divides frequency channels into smaller sub-channels, which means they can travel further.
80% Longer Range
OFDMA divides frequency channels into smaller sub-channels, which means they can travel further.
Refers to uplink OFDMA performance.
Target Wake Time allows devices to sleep when they are not active, reducing power consumption.
Model
USB-AX56
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Product Segment
AX1800 ultimate AX performance: 1201Mbps+574Mbps
Interface
1 x USB 3.2 Gen1
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 400 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Encryption
64/128 bit WEP, WPA, TKIP, AES, WPA-PSK, WPA2-PSK, WPA3-Personal/Enterprise
Operating Frequency
Dual band 2.4GHz and 5GHz
OS Support
OS Support : Windows 10
Windows 11
Item Dimension (L"xW"xH")
6 x 6 x 3

Weight
1 lb

Warranty Information
2 years warranty

Available Quantity

5

UPC

195553022163

SKU

mingleUSB-AX56/US

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

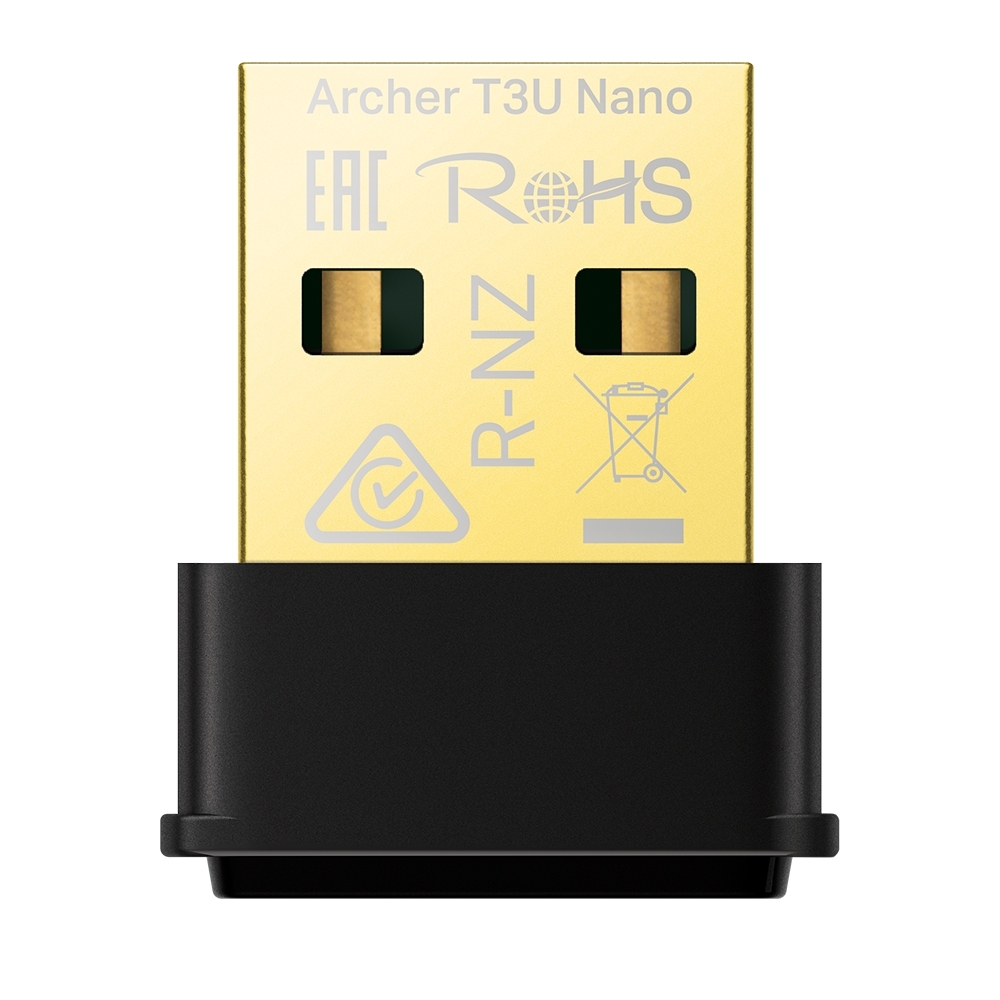

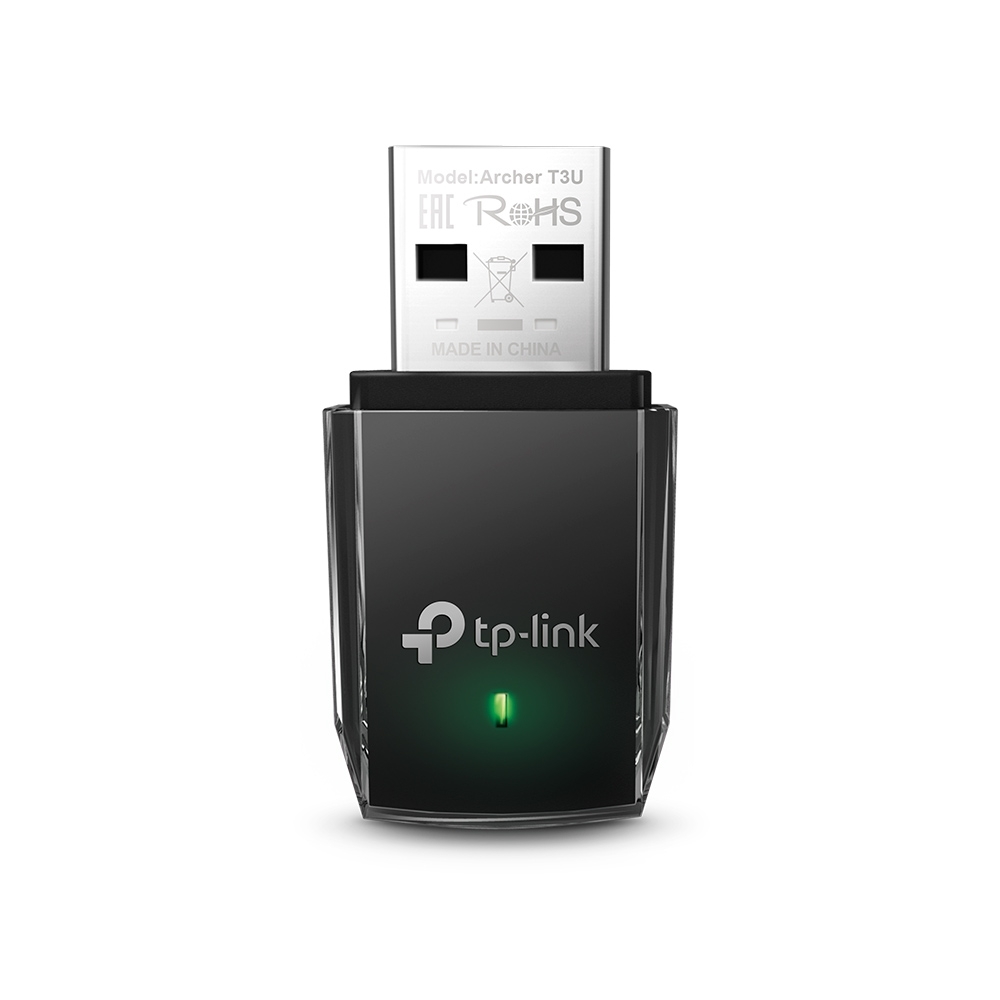

Archer T3U Nano
AC1300 Nano Wireless MU-MIMO USB Adapter
Ultimate Wi-Fi Speed - Up to 1300 Mbps speeds with 400 Mbps on 2.4GHz and 867 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.
Dual Band Connection - 2.4 GHz and 5 GHz band for flexible connectivity, enables your devices to work with the latest dual-band WiFi router for faster speed and extended range.
MU-MIMO Technology - Delivers highly efficient wireless connection
Nano Design - Small, unobtrusive design allows you to plug it in and forget it is even there
System Compatibility - Supports Windows 11/10/8.1/8/7, Mac OS 10.15 and earlier
Tiny in Size,
Mightly in Performance
AC1300 Nano Wireless MU-MIMO USB Adapter
Archer T3U Nano
Immersive Experience with Dual Band Connection
Receive WiFi signals on two separate bands for all your online needs. High-speed dual band WiFi up to 1300 Mbps means Archer T3U Nano is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
Boosted Throughput with MU-MIMO
Archer T3U Nano that supports MU-MIMO technology boosts the throughput and efficiency of the entire network when works with MU-MIMO routers, which provide multiple data streams simultaneously.
Advanced Security with WPA3
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Miniature Design Brings Infinite Convenience
Archer T3U Nano is designed to be as convenient as possible. With its miniature size and sleek design, you can connect the nano adapter to any USB port and leave it there, whether you are traveling or at home.
HARDWARE FEATURES
Interface
USB 2.0
LED
Status
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Frequency
2.4 GHz, 5 GHz
Wireless Modes
Ad-Hoc / Infrastructure Mode
Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK, WPA3-SAE
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
FCC, CE, RoHS
Package Contents
AC1300 Nano Wireless MU-MIMO USB Adapter Archer T3U Nano
Quick Installation Guide
Resource CD
System Requirements
Supported operating systems include Windows 11/10/8.1/8/7, Mac OS 10.15 and earlier
Environment
Operating Temperature: 0^oC-40^oC (32^oF -104^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Item Dimension (L"xW"xH")
6 x 6 x 2

Weight
1 lb

Warranty Information
2 years

Available Quantity

5

UPC

840030701542

SKU

mingleARCHER T3U NANO

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

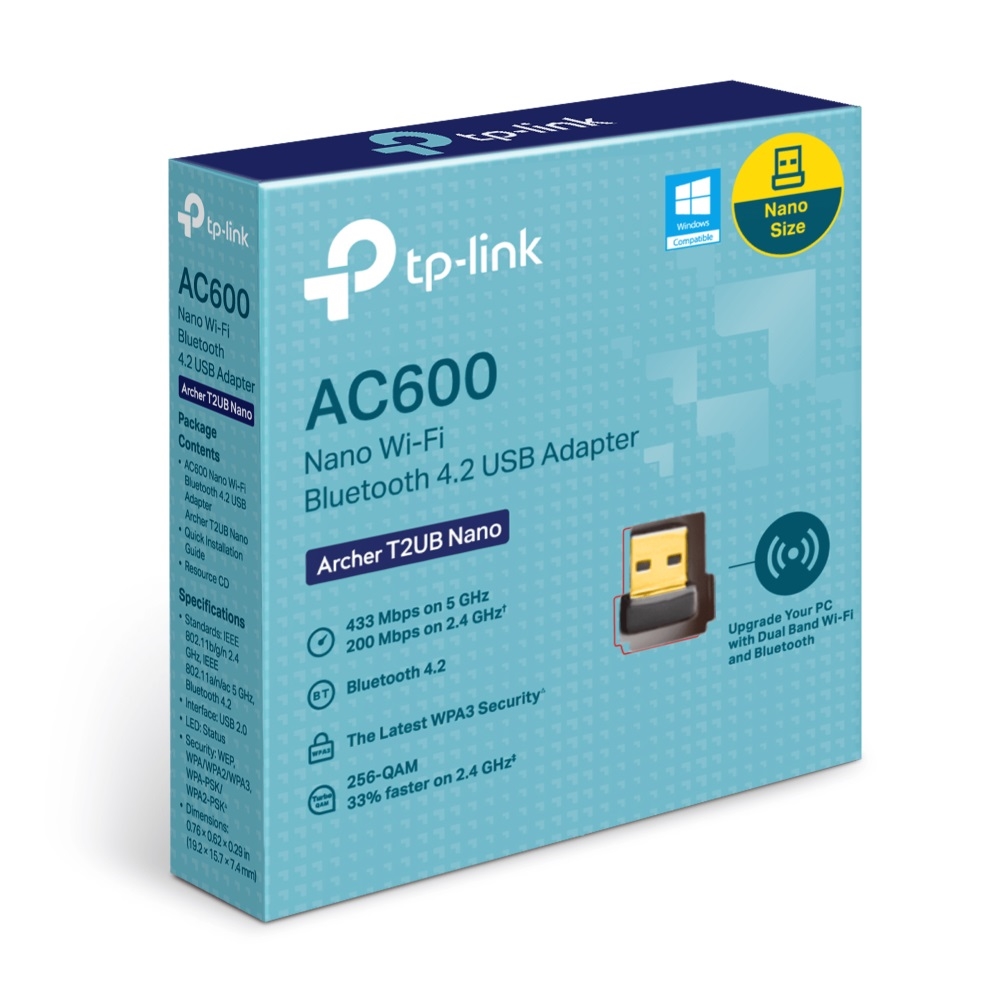

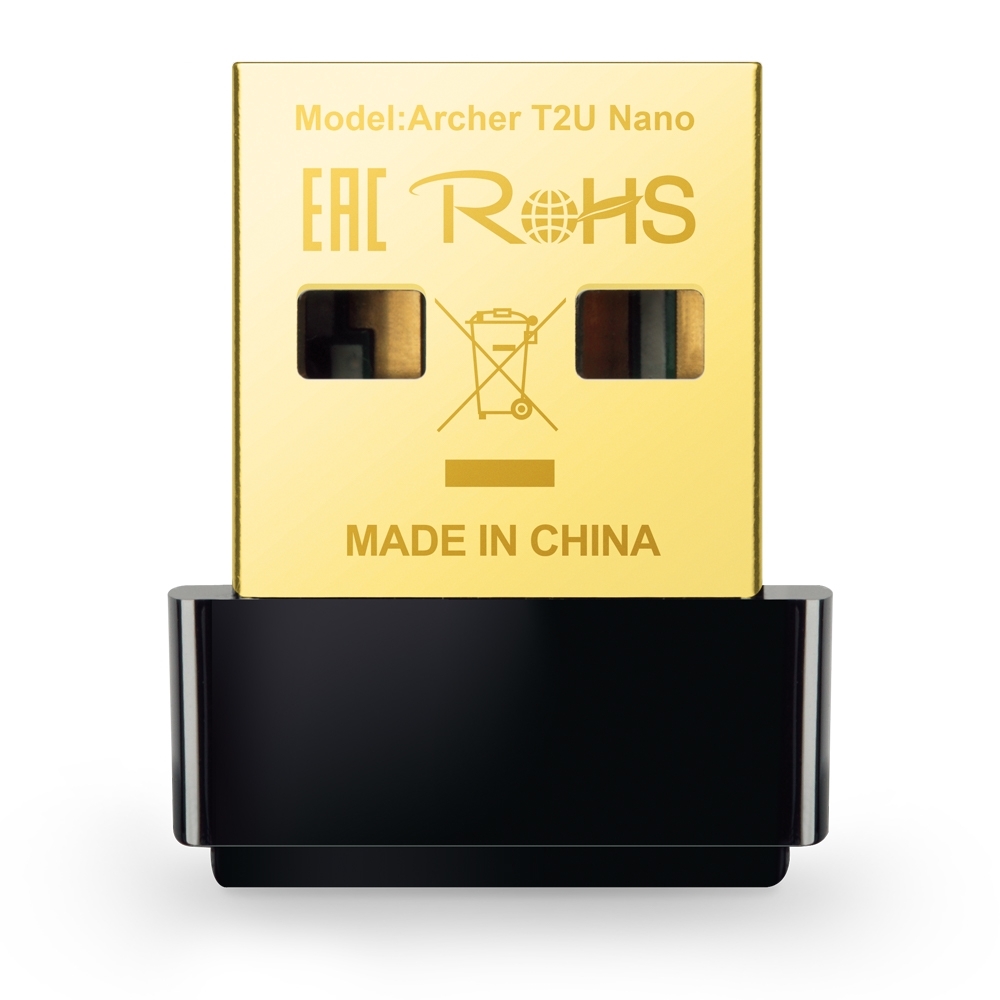

AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter

High Speed WiFi Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.

Dual Band Wireless 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.

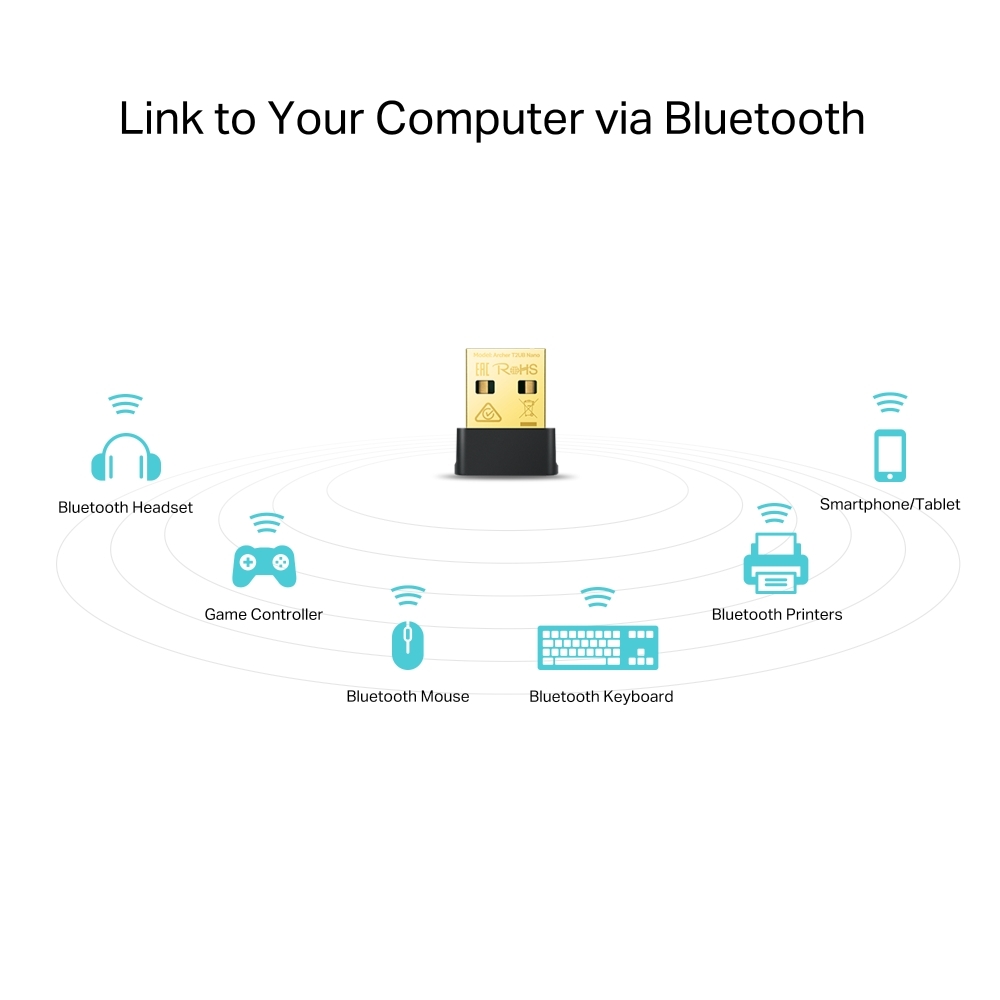

Bluetooth 4.2 - Turns your non-bluetooth PC or laptop into bluetooth-capable

Nano design Small, unobtrusive design allows you to plug it in and forget it is even there

Operating System Supports Windows 11/10/8.1/8/7 for WiFi, Windows 11/10/8.1/7 for bluetooth

Advanced Security Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
HARDWARE FEATURES
Interface
USB 2.0
Antenna Type
Omni Directional
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
5GHz
2.4GHz
Signal Rate
5GHz
11ac : Up to 433Mbps(dynamic)
11n : Up to 150Mbps(dynamic)
11a : Up to 54Mbps(dynamic)
2.4GHz
11n : Up to 200Mbps(dynamic)
11g : Up to 54Mbps(dynamic)
11b : Up to 11Mbps(dynamic)
Reception Sensitivity
5GHz :
11a 6Mbps : -90dBm
11a 54Mbps : -73dBm
11n HT20 MCS0 : -89dBm
11n HT20 MCS7 : -70dBm
11n HT40 MCS0 : -86dBm
11n HT40 MCS7 : -67dBm
11ac VHT80 MCS0 : -82dBm
11ac VHT80 MCS9 : -56dBm
2.4GHz :
11b 1Mbps : -96dBm
11b 11Mbps : -88dBm
11g 6Mbps : -89dBm
11g 54Mbps : -74dBm
11n HT20 MCS0 : -89dBm
11n HT20 MCS7 : -72dBm
11n HT40 MCS0 : -86dBm
11n HT40 MCS7 : -66dBm
Wireless Modes
Ad-Hoc / Infrastructure mode
Wireless Security
WPA/WPA2/WPA3 encryption standards
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
CE, FCC, RoHS
System Requirements
WiFi : Win 11/10/8.1/8/7
Bluetooth : Win 11/10/8.1/7
Certifications
AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter Archer T2UB Nano
Resource CD
Quick Installation Guide
Environment
Operating Temperature : 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature : -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity : 10% to 90% non-condensing
Storage Humidity : 5% to 90% non-condensing
Item Dimension (L inchxW inchxH inch)
6 x 6 x 2

Weight
1.00 lb

Warranty Information
2 years

Available Quantity

5

UPC

840030702600

SKU

mingleARCHER T2UB NANO

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

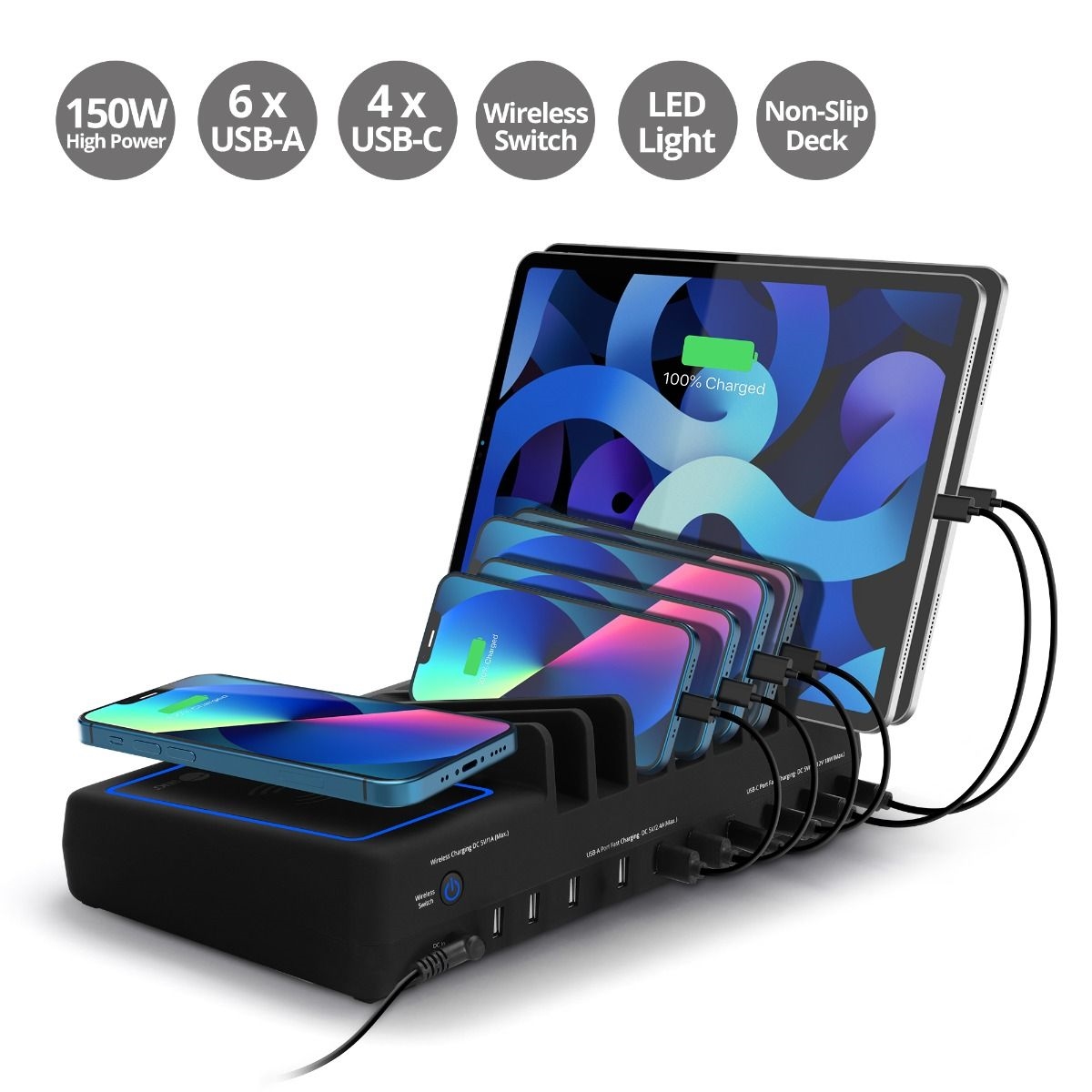

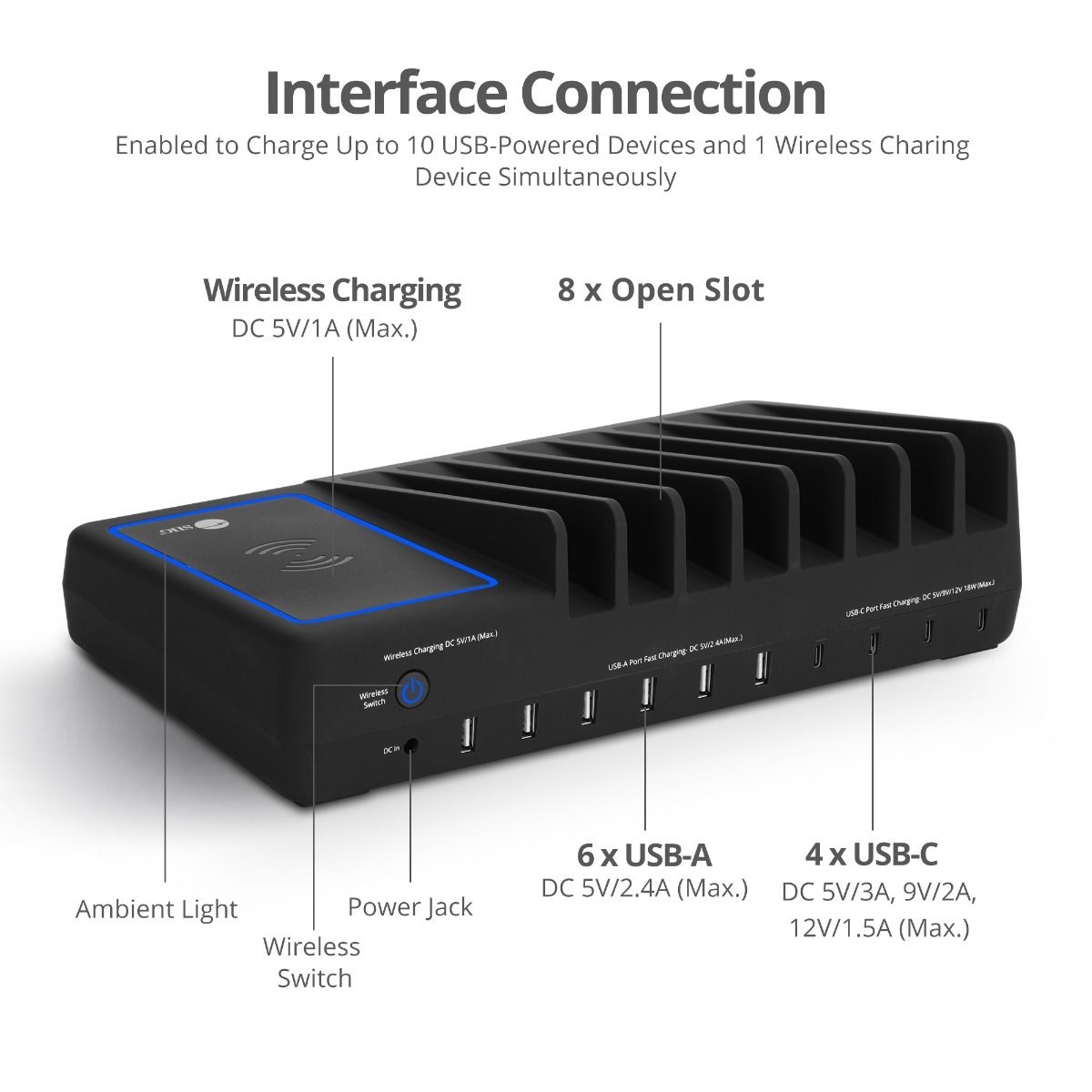

Allows you to power and charge up to 6 USB-A & 4 USB-C devices and Wireless charging enabled phone simultaneously, total Charging output 150W, 6 USB-A up to 2.4A per port, 4 USB-C supports PD charge up to 18W of 5V, 9V or 12V per port.


Features

Allows you to organize with messy cords and clutter, charge 10 USB-A/C devices, and Wireless power devices simultaneously, such as Apple iPhone, iPad, Samsung Galaxy, Samsung Note, Surface, Google Nexus


3-in-1 Charging Station

This 10-Port USB-A/C & Wireless Charging Station with USB-A charging ports, USB-C charging ports, and Wireless charging make your power station more efficiency


Organized Design

8 individual open slots accommodate most tablets or smartphone to save space and keep your desk clutter-free


USB Fast Charging

Comes with 6 USB-A charging ports and 4 USB-C charging ports enable fully charge smartphones and tablets simultaneously


Smart Charging IC

Built-in the smart charging IC to automatically detect your devices and provides the best power outputs. The integrated 150W power adapter provides reliable power for USB-A (Max. 12W), USB-C (Max. 18W), and Wireless charging (up to 5W) power devices


Wireless Charging

Provides up to 5W Wireless charging for Wireless charging enabled devices, such as Apple iPhone 8/ 8 Plus/ X, Samsung Galaxy S9/ S9 Plus, Samsung Galaxy Note 8/ S8 /S8 Plus, Google Nexus 4/5/6


Safe/Smooth

Safety non-slip padded deck to protect device chargers and LED light radiates smoothing comfortable ambient light with power on/off switch to control the light output
Power
Power adapter
Input: AC 100-240V / 50-60Hz, Output: DC 19V / 7.8A
USB-A charging ports
x6, DC 5V/2.4A (Max. 12W)
USB-C charging ports
x4, DC 5V/3A, 9V/2A, 12V/1.5A (Max. 18W)
Wireless charging area
DC 5V/1A (Max. 5W)
Protection circuit module
Over-Current, Over-Voltage, Over-Charge, and Short-Circuit protection
Ambient light
Green
Wireless charging power on or complete charging
Blue
Wireless is charging
None
Wireless standby
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
4 to 165 degrees F
Relative humidity:
10% to 95% RH (non-condensing)
Color
Black
Housing material
Plastic
Certifications/Standards
FCC, CE, RoHS 2.0, REACH
Interface
Input:
1x Wireless switch button, on/off
8x Open slot
1x DC power jack (19V/7.8A)
Output:
4x 24-pin, USB-C charging, Female
6x 4-pin, USB-A charging, Female
1x Wireless charging area
Package contents

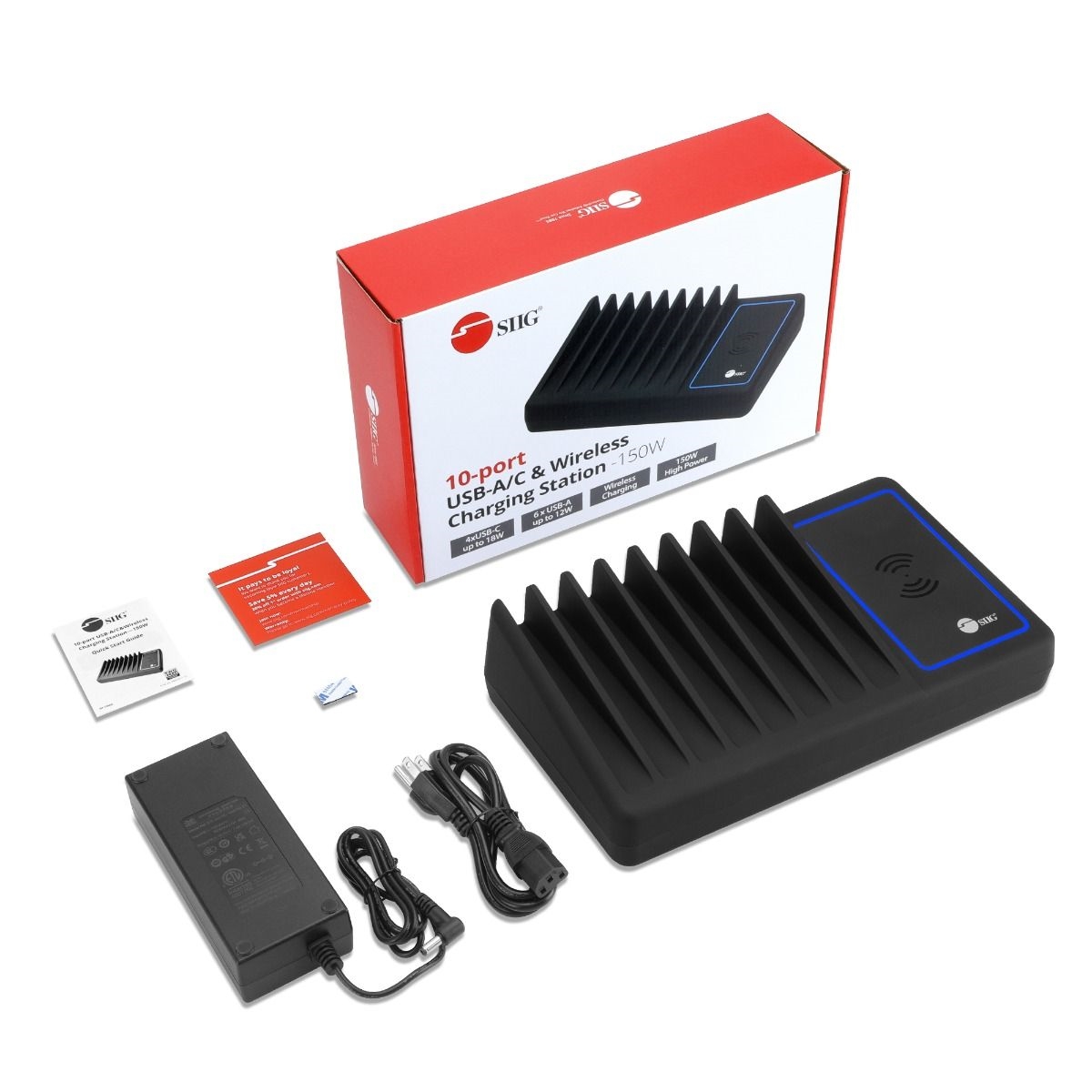

1x 10-port USB-A/C and Wireless Charging Station - 150W
1x DC Power Adapter, 19V/7.8A
1x User reference guide
Item Dimension (L inchxW inchxH inch)
14 x 4 x 9

Weight
4.00 lb

Warranty Information
1 years limited

Available Quantity

5

UPC

662774044866

SKU

mingleAC-PW1R11-S1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The next generation 802.11ac wireless standard is set to revolutionize Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your wireless device to dual-band 802.11ac with the fastest possible USB 2.0 connectivity for blistering Wi-Fi speeds on the interference free 5Ghz frequency band.



Next Generation Wi-Fi Standard

The Edimax EW-7811UTC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PCs and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.



Dual-Band Connectivity

Enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7811UTC provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5Ghz band at speeds of 433Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming
Hardware
1 x USB 2.0 Type A
1 x Hardware WPS Button
1 x Link/Activity LED
Standards
2.4GHz: IEEE 802.11b, 802.11g, 802.11n
5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n
Frequency Band
2.4000 - 2.4835GHz (subject to local regulations)
5.150 - 5.825GHz (subject to local regulations)
Output Power
2.4GHz
11b (11Mbps): 17dBm +/-1.5dBm
11g (54Mbps): 15dBm +/-1.5dBm
11n (20MHz, MCS7): 14dBm +/-1.5dBm
11n (40MHz, MCS7): 14dBm +/-1.5dBm

5GHz
11a (54Mbps): 14dBm +/-1.5dBm
11n (20MHz, MCS7): 13dBm +/-1.5dBm
11n (40MHz, MCS7): 13dBm +/-1.5dBm
11ac (80MHz, MCS7): 12dBm +/-1.5dBm
Installation
Easy setup wizard
Hardware WPS Button for Easy Wireless Connections
Operating Range
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-7 (up to 72Mbps)
11n (40MHz): MCS0-7 (up to 144Mbps)
11ac (80MHz): MCS0-9 (up to 433Mbps)
LED
Link/Activity

Security
WEP 64/128-bit, WPA, WPA2, 802.1x
Hardware and Software WPS Configuration

Certifications
CE/FCC
Package Contents
Wireless USB adapter (1 pcs)
Quick installation guide (1 pcs)
CD with setup wizard, driver and multi-language QIG (1 pcs)
Item Dimension (L"xW"xH"):
6.5 x 4 x 1.2

Weight:
0.19 lb

Warranty Information:
2 years

Available Quantity

5

UPC

649659022980

SKU

mingleEW-7811UTC

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

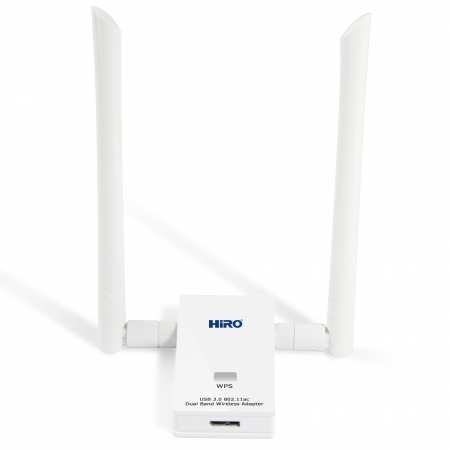

HiRO H50317 USB 3.0 802.11ac Wireless Adapter w/ 2x 5dBi Dual Band Dipole Antenna is adapting the latest USB 3.0 interface w/ the latest 802.11ac wireless technology.
Avoid operating at already crowded 2.4GHz frequency and help deliver faster and larger data wirelessly, it allows users to connect to the less interference 5GHz bandwidth w/ higher data transmission speed up to 867Mbps.
Compatible with Windows 10 8.1 8 7 32-bit 64-bit

The external 2x Dual Band 5dBi antenna helped delivery better signal strength and link quality to connect to your router under all circumstances.
HARDWARE
1 x USB 3.0 connector with cable
1 x Hardware WPS Button
1 x Link/Activity LED
2 x External Dual Band 5dBi Antennas
STANDARDS
2.4GHz: IEEE 802.11b, 802.11g, 802.11n
5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n
FREQUENCY
2.4000 - 2.4835GHz (subject to local regulations)
5.150 - 5.825GHz (subject to local regulations)
OUTPUT POWER
2.4GHz:
11b (11Mbps): 17dBm +/-1.5dBm
11g (54Mbps): 15dBm +/-1.5dBm
11n (20MHz, MCS7): 14dBm +/- 1.5dBm
11n (40MHz, MCS7): 14dBm +/- 1.5dBm
5GHz :
11a (54Mbps): 15dBm +/- 1.5dBm
11n (20MHz, MCS7): 14dBm +/- 1.5dBm
11n (40MHz, MCS7): 14dBm +/- 1.5dBm
11ac (80MHz, MCS7): 13dBm +/- 1.5dBm
OPERATING RANGE
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15 (up to 144Mbps)
11n (40MHz): MCS0-15 (up to 300Mbps)
11ac (40MHz): MCS0-9 (up to 400Mbps)
11ac (80MHz): MCS0-9 (up to 867Mbps)
LED
Link/Activity
Item Dimension (L"xW"xH")
8 x 5 x 2
Weight
1 lb
Warranty Information
1 year

Available Quantity

5

UPC

649258503170

SKU

mingleH50317

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

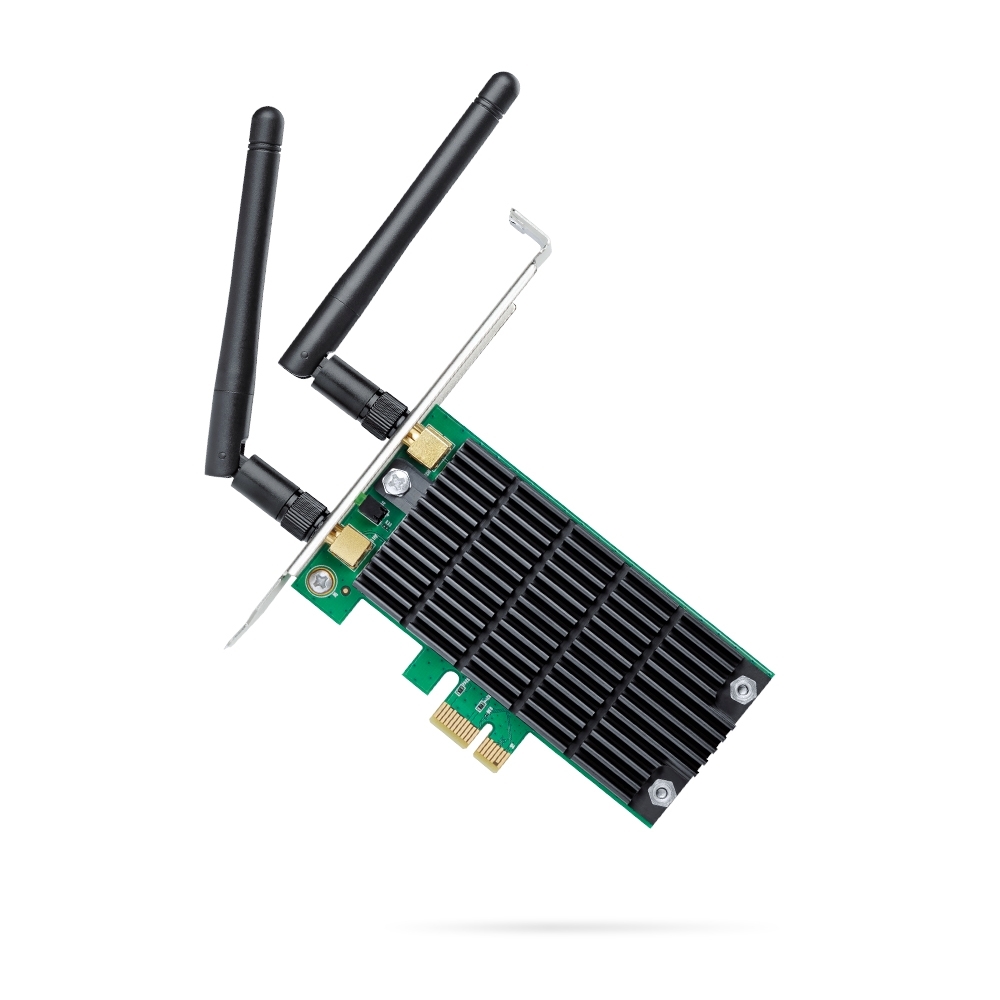

802.11ac - Dual Band Wi-Fi for Faster Connections
TP-LINKs Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

Easy Setup
Simple software installation with the intuitive Utility on the provided CD

Advanced Security
WAP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption standards ensure your data is safe from intruders

Operating System
Supports Windows 10/8.1/8/7/XP(32/64 bit)

Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases
HARDWARE FEATURES
Interface
PCI Express
Antenna Type
2 Dual Band Detachable Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity
5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm
2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm
Transmit Power
5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes
Ad-Hoc / Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
CE, FCC, RoHS
Package Contents
AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
Environment
Operating Temperature: 0^oC - 40^oC (32^oF - 104^oF)
Storage Temperature: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing
Item Dimension (L"xW"xH")
9 x 6 x 2

Weight
1 lb

Warranty Information
2 Years

Available Quantity

5

UPC

840030700040

SKU

mingleARCHER T4E

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

High-Speed Wi-Fi: 256QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps, 200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, ensure you fully enjoy fast AC Wi-Fi.

Dual Band Wireless: 2.4 GHz and 5 GHz band provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range

High-Gain Antenna: A 5dBi high-gain antenna greatly enhances the reception and transmission signal strength of the USB adapter

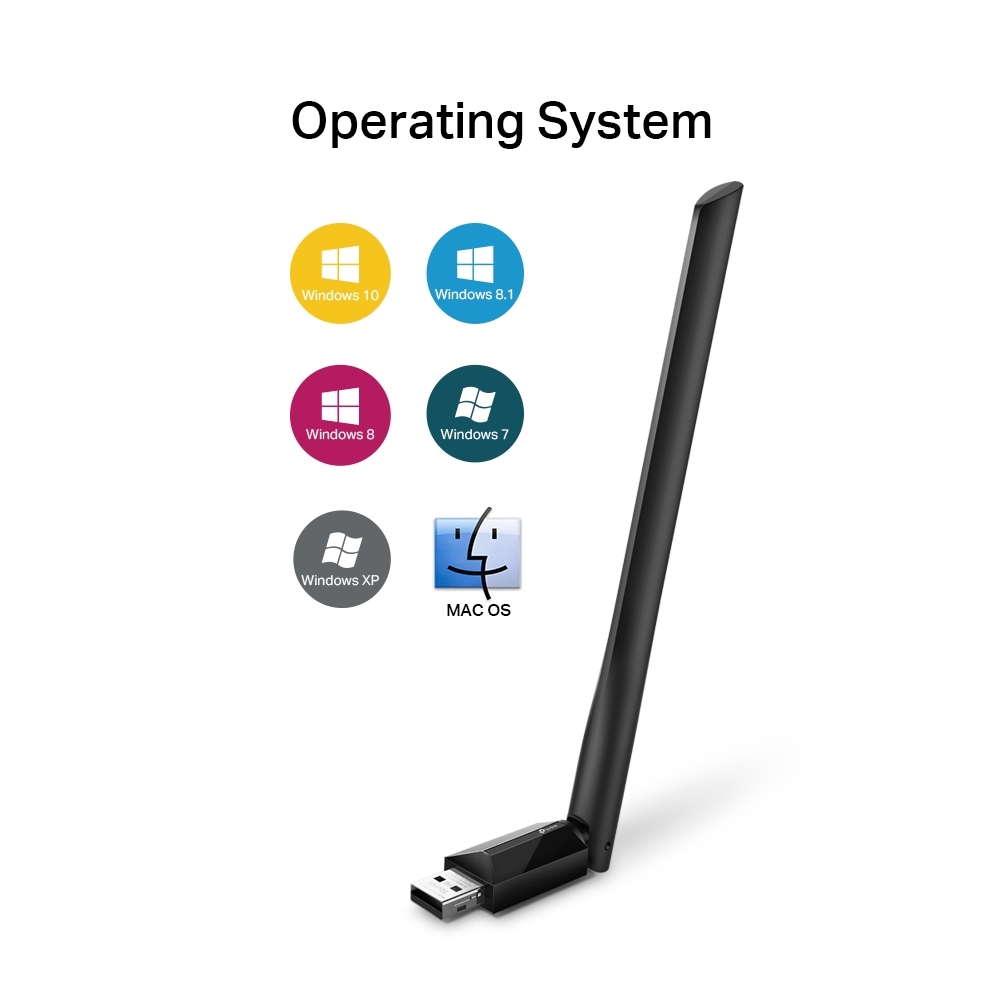

Supports the Latest Operating Systems: Fully compatible with Windows 10/8.1/8/7/XP and Mac OS X

High Gain, High Performance

Increased Range for a Smooth Online Experience

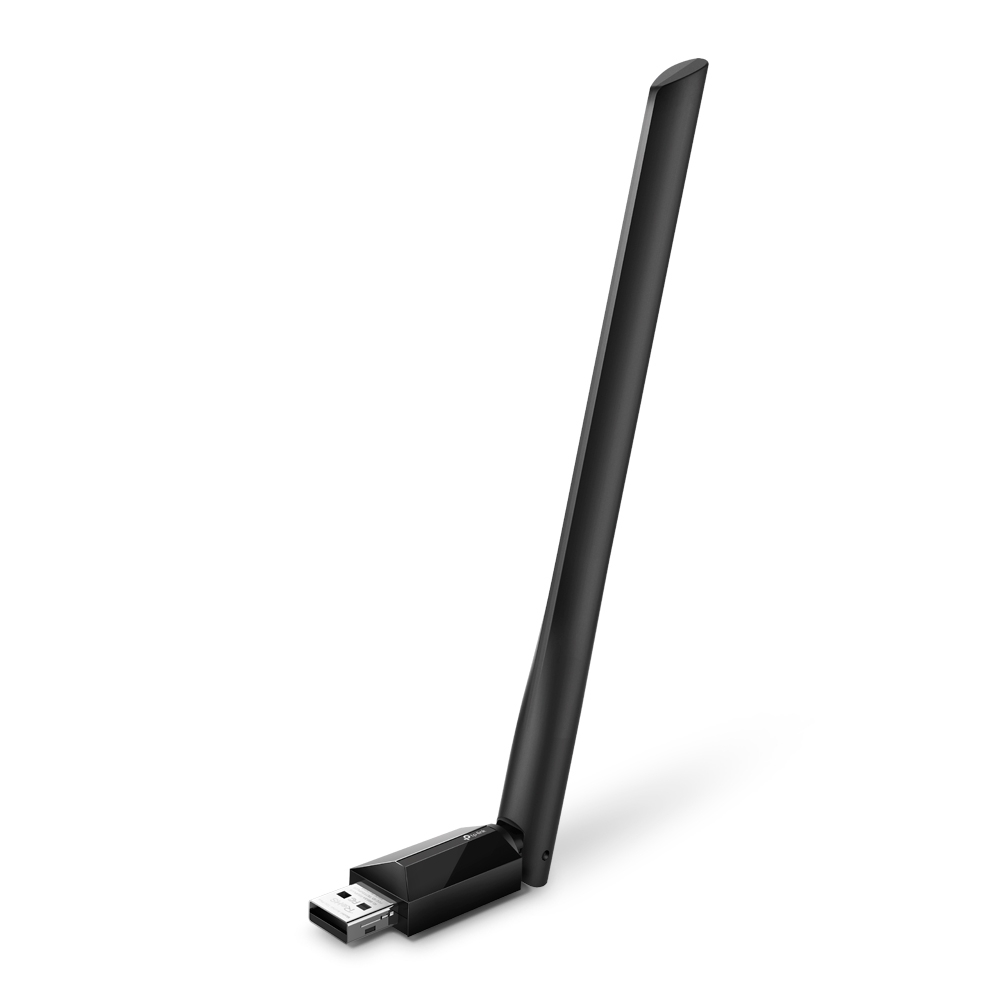

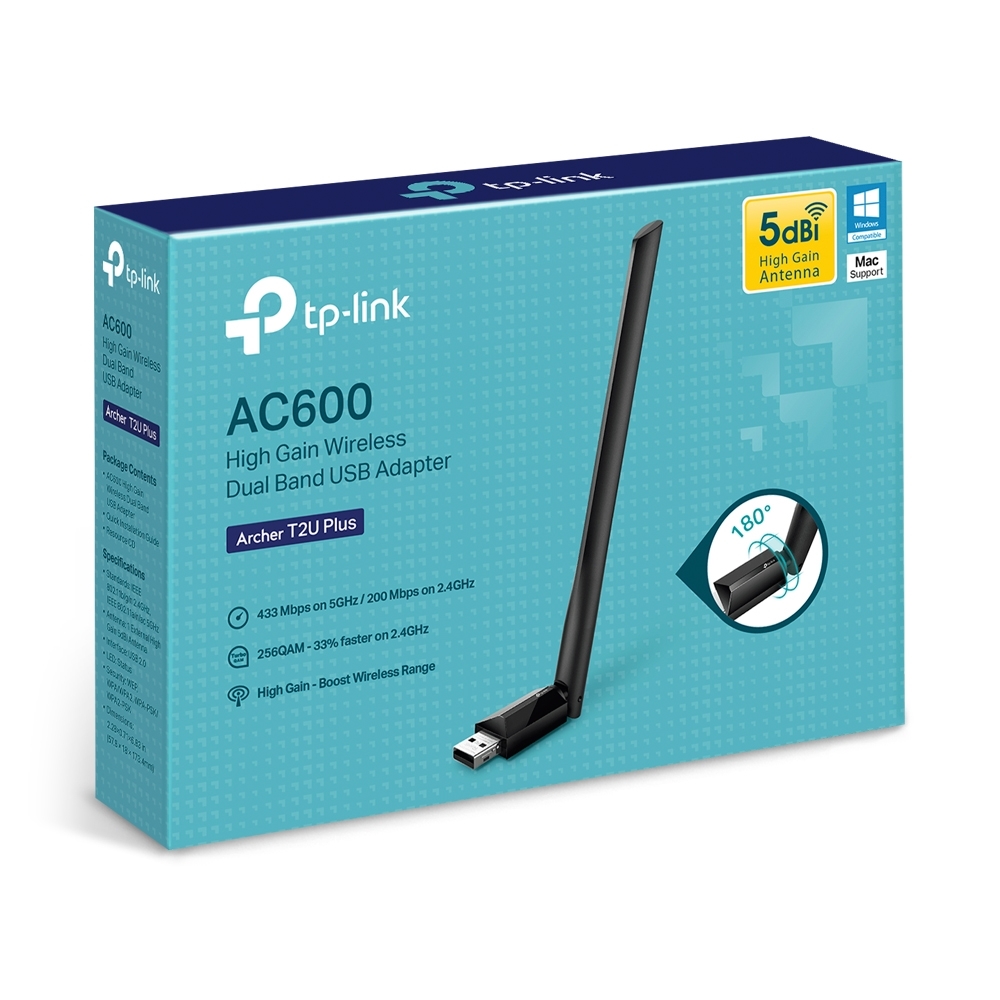

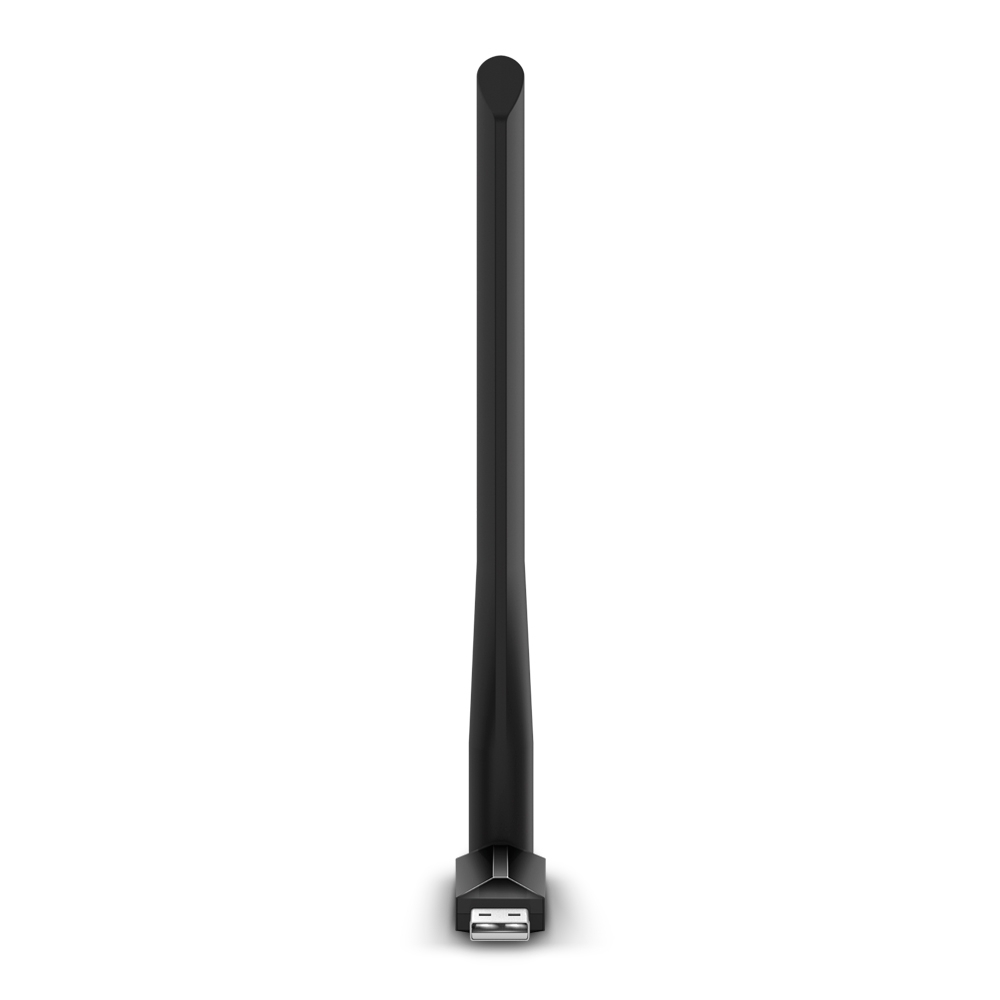

AC600 High Gain Wireless Dual Band USB Adapter T2U Plus

High-Speed Dual-Band Adapter for Better Connections

The Archer T2U Plus receives Wi-Fi signals on two separate bands. 256QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps, delivering 33% faster performance. 200 Mbps speeds on the 2.4 GHz band is perfect for normal use, such as web surfing with legacy devices.433 Mbps speeds on the 5 GHz band is ideal for HD streaming and lag-free online gaming.

Increased Range

Archer T2U Plus has one 5dBi high-gain external antenna to ensure stronger signal transmission and reception. Enjoy a stable Wi-Fi connection throughout your home.

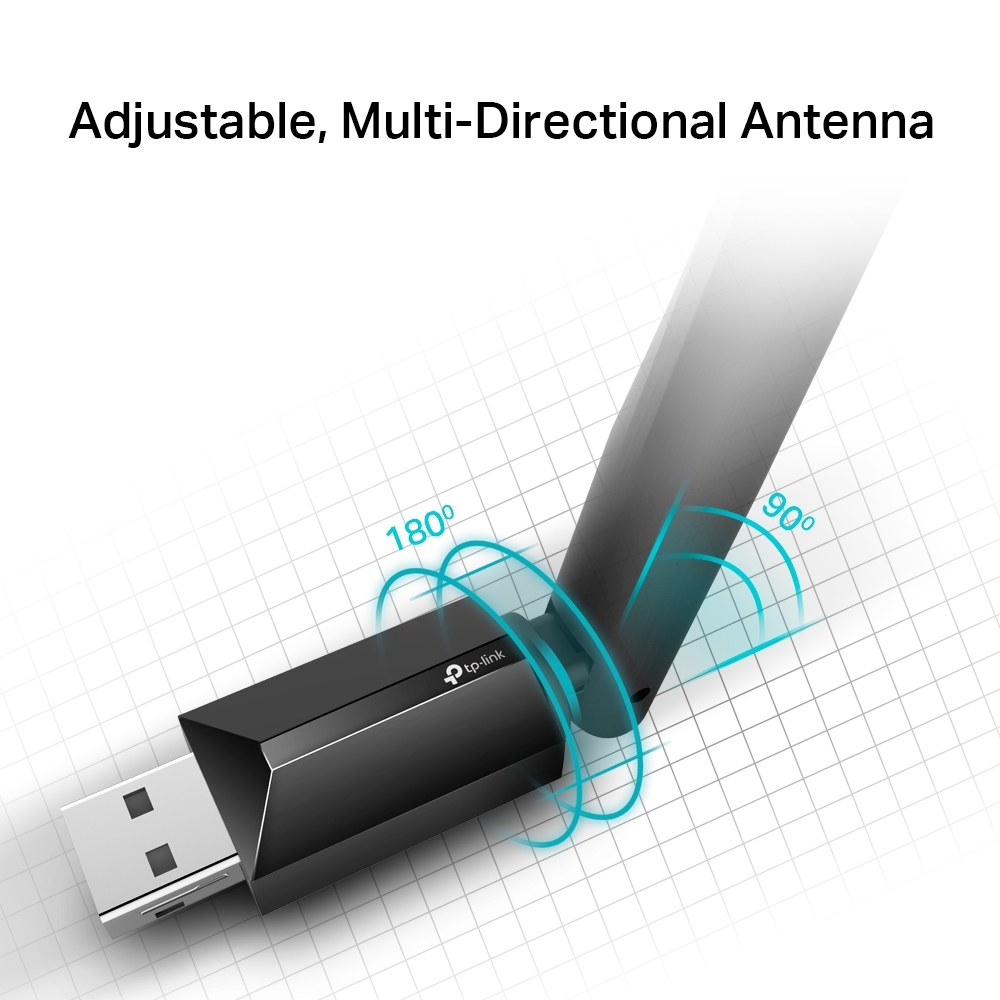

Adjustable, Multi-DirectionalAntenna

Rotate and adjust the antenna in multi-direction to improve using experience and performance in different environments.
HARDWARE FEATURES
Interface
USB 2.0
LED
Status
Antenna
5dBi
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Wireless Speeds
600 Mbps (200 Mbps on 2.4 GHz, 433 Mbps on 5 GHz)
Frequency
2.4 GHz, 5 GHz
Wireless Modes
Ad-Hoc / Infrastructure Mode
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
FCC, CE, RoHS
Package Contents
AC600 High Gain Wireless Dual Band USB Adapter Archer T2U Plus
Quick Installation Guide
Resource CD
System Requirements
Windows10/8.1/8/7/XP, Mac OS X 10.9-10.13(beta for 10.14)
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L"xW"xH")
9 x 6 x 2
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

840030700033

SKU

mingleARCHER T2U PLUS

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

High Speed WiFi Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.

Dual Band Wireless 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.

Nano design Small, unobtrusive design allows you to plug it in and forget it is even there

Operating System Supports Windows 10/8.1/8/7/XP, Mac OS X

Advanced Security Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards

High-Speed Dual Band Adapter for Better Connections

The Archer T2U Nano receives Wi-Fi signals on two separate bands. Supporting 256QAM technology increases 2.4GHz data rate from 150Mbps to 200Mbps for 33% faster performance. 433Mbps on 5GHz is ideal for HD video streaming and lag-free online gaming, while 200Mbps on 2.4GHz is perfect for normal use such as web surfing with legacy devices.

Miniature Design -
Plug in and forget

With its miniature size and sleek design, users can insert the nano adapter into any USB port and leave it there, no matter when they are traveling or at home.



Travel size and Wi-Fi Roaming - Great Choice for mobile surfing

Growing public Wi-Fi services comes with one inconvenience you might have to repeatedly select and connect to different Wi-Fi networks while moving.


Archer T2U Nano supports Wi-Fi Roaming that helps your devices connect to the most suitable Wi-Fi automatically as you move, ensure your network is uninterrupted, and with its small, travel-size, Archer T2U Nano is undoubtedly a great choice for mobile surfing.
HARDWARE FEATURES
Interface
USB 2.0
Antenna Type
Omni Directional
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
5GHz
2.4GHz
Signal Rate
5GHz
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 200Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
5GHz
11a 6Mbps: -90dBm
11a 54Mbps: -73dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -70dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -67dBm
11ac VHT80 MCS0: -82dBm
11ac VHT80 MCS9: -56dBm
2.4GHz:
11b 1Mbps: -96dBm
11b 11Mbps: -88dBm
11g 6Mbps: -89dBm
11g 54Mbps: -74dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -72dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -66dBm
Transmit Power
<20dBm (EIRP)
Wireless Modes
Ad-Hoc / Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
CE, FCC, RoHS
Package Contents

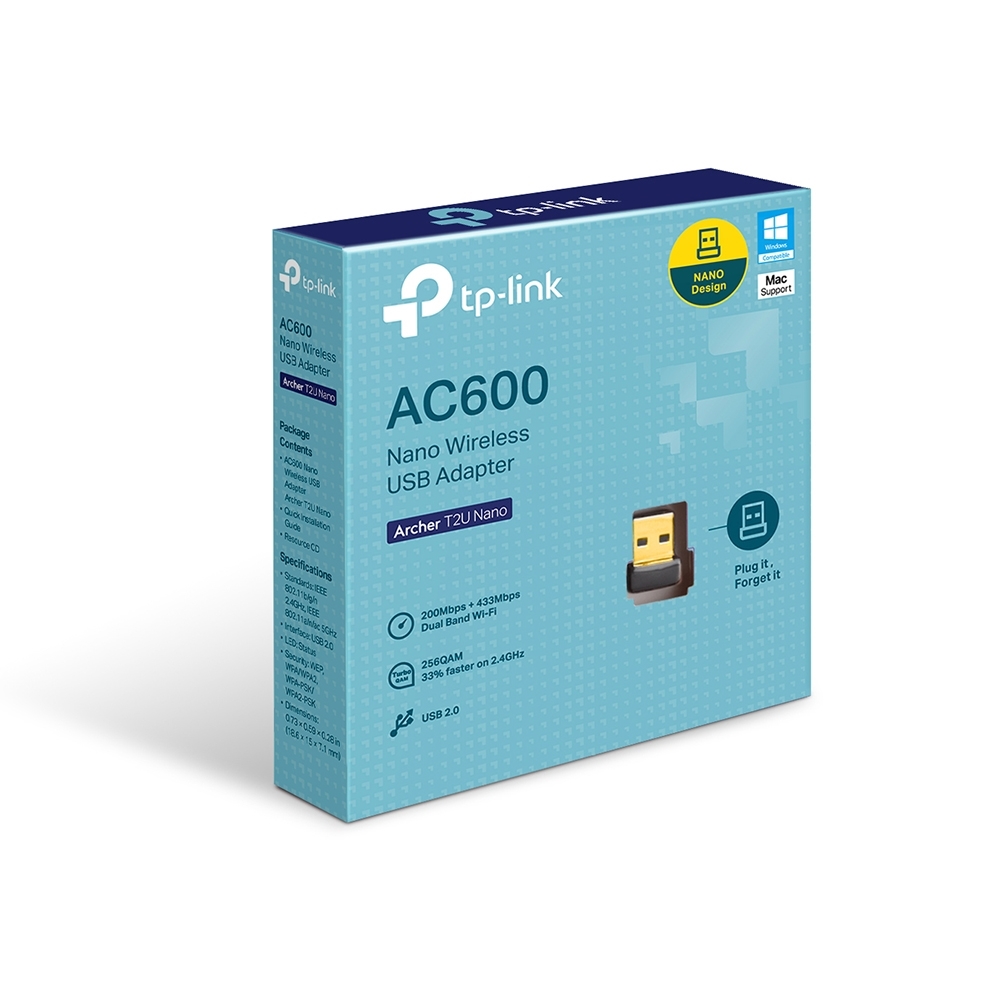

AC600 Nano Wireless USB Adapter Archer T2U Nano
Resource CD
Quick Installation Guide
System Requirements
Windows 10/8.1/8/7/XP (32/64bits),
Mac OS X 10.9-10.13
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L"xW"xH")
6 x 6 x 2
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

840030700019

SKU

mingleARCHER T2U NANO

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Ultimate Wi-Fi Speed AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac

Dual Band Wireless 2.4GHz and 5GHz band for flexible connectivity

Mini design Mini-sized design for convenient portability with a reliable high performance

Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0

MU-MIMO - Delivers highly efficient wireless connection

Supported Operating System Windows 10/8.1/8/7/XP, Mac OS X

High-Speed Dual Band Adapter for Better Connections

Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.

Miniature Design - Makes It Easy to Take

Archer T3U has a smart design that is tinier than a usual USB adapter. Not only could it be inserted into any USB port, but is quite easy to carry, which is convenient for most usage scenarios.

USB 3.0 for Superior Transfer Speeds

Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.
HARDWARE FEATURES
Interface
USB 3.0
Antenna Type
Omni Directional
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
5GHz
2.4GHz
Signal Rate
5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
5GHz
11a 6Mbps: -91dBm
11a 54Mbps: -76dBm
11n HT20-71dBm
11n HT40-70dBm
11ac HT20: -68dBm
11ac HT40: -64dBm
11ac HT80: -62dBm
2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -73dBm
11n HT20: -71dBm
11n HT40: -70dBm
Transmit Power
<23dBm (EIRP)
Wireless Modes
Ad-Hoc / Infrastructure Mode
Wireless Security
Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
CE, FCC, RoHS
Package Contents

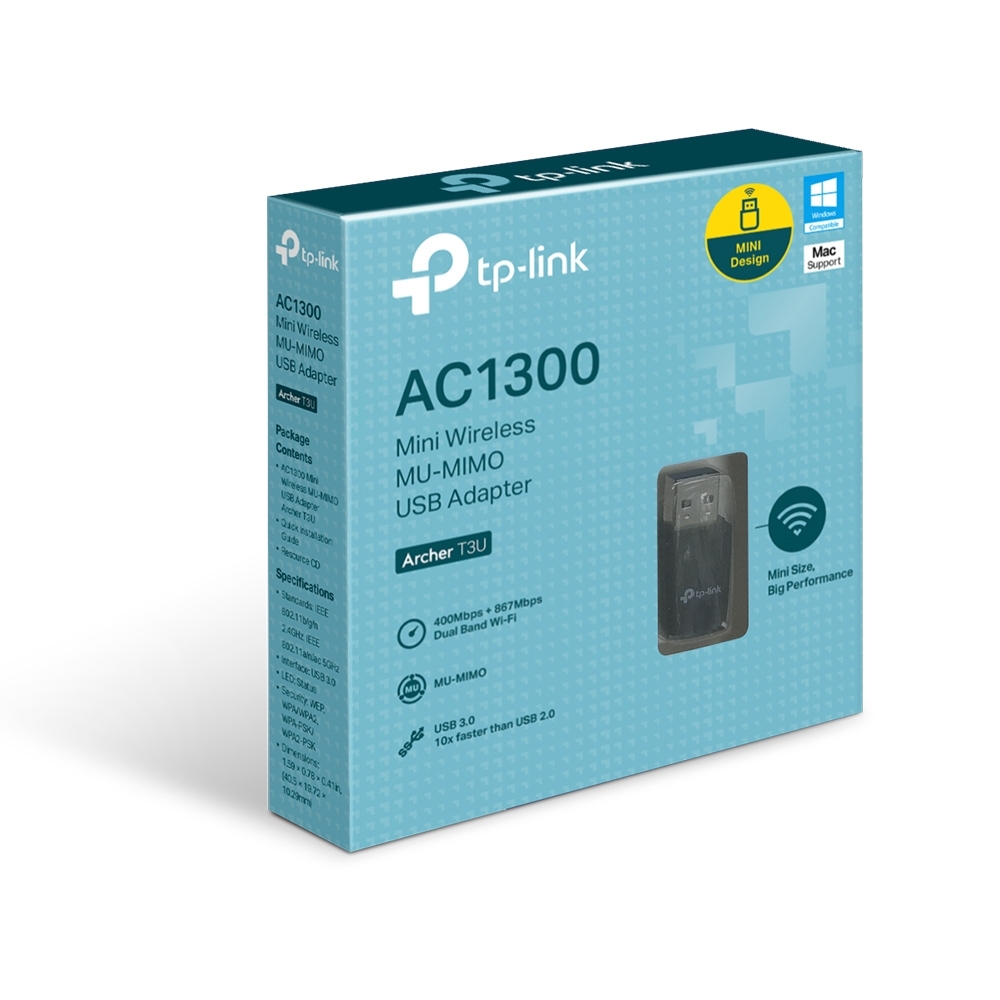

AC1300 Mini Wireless MU-MIMO USB Adapter Archer T3U
Quick Installation Guide
Resource CD
System Requirements
Windows 10/8.1/8/7/XP, Mac OS X
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Item Dimension (L"xW"xH")
6 x 6 x 2
Weight
1.00 LB
Warranty Information
2 Years

Available Quantity

5

UPC

840030700026

SKU

mingleARCHER T3U

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

IEEE 802.11ac/n/g/a compliant


Dual-band works with 2.4GHz or 5GHz networks


802.11ac Wave 2 with MU-MIMO technology


Speeds up to 400Mbps (2.4GHz) or 867Mbps (5GHz)

Easy Connection to Wi-Fi

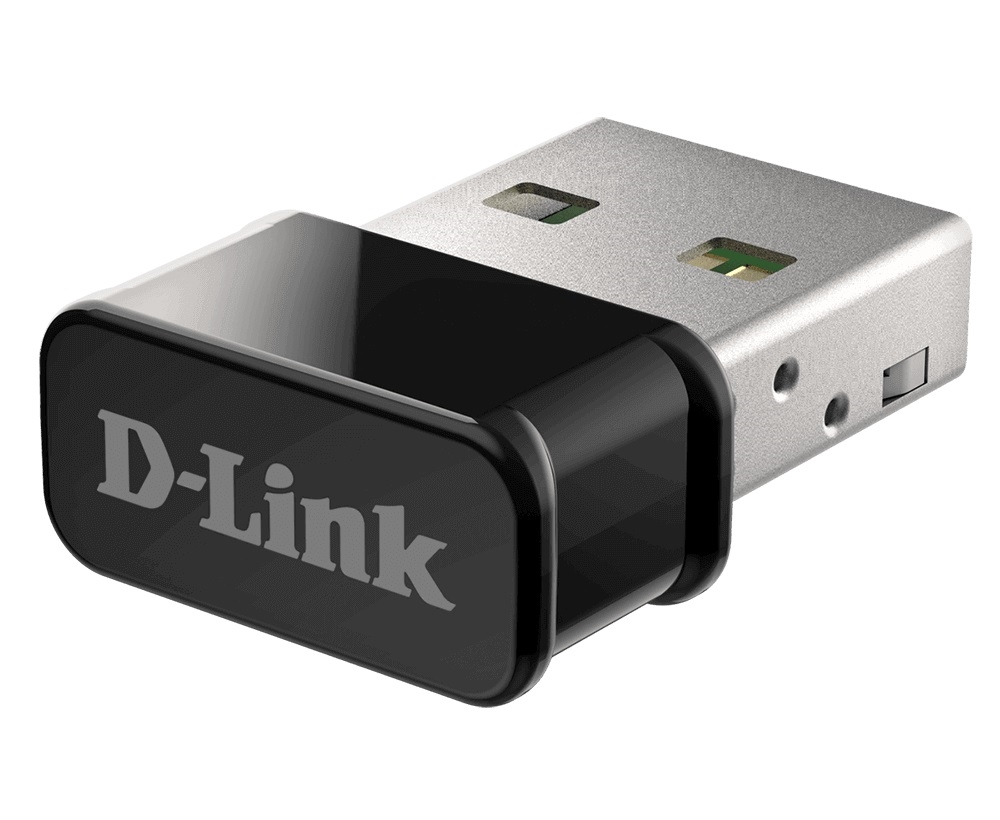

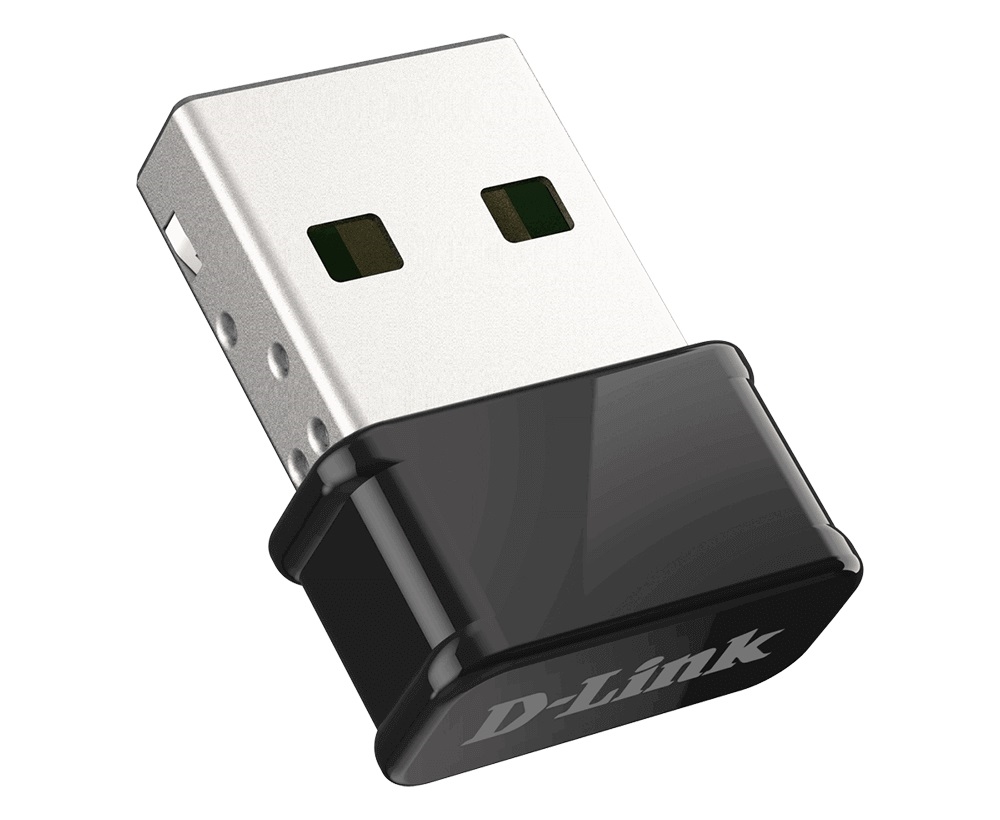

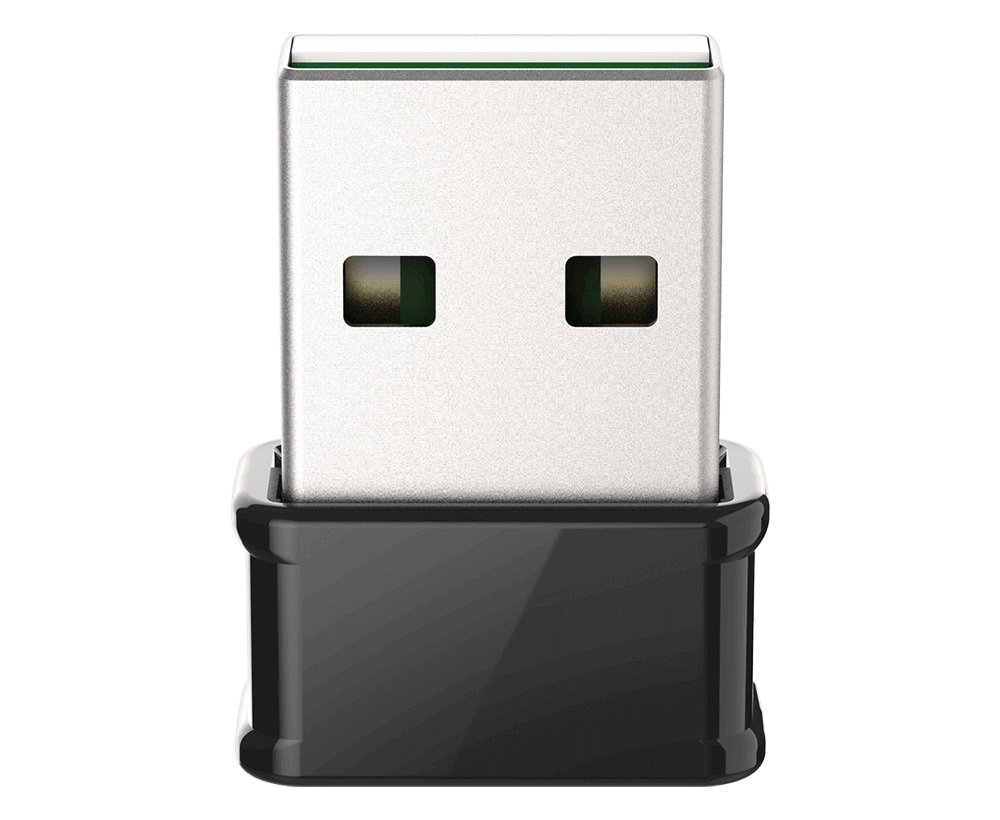

Any high-speed wireless network is now within reach of your devices with the D-Link AC1300 MU-MIMO Wi-Fi Nano USB Adapter. It uses wireless AC1300 technology, giving you speeds of up to 867Mbps (5GHz) or 400Mbps (2.4GHz).

Add Wi-Fi On the Fly

The AC1300 MU-MIMO Wi-Fi Nano USB Adapter plugs into any USB port for plug-and-play convenience. Its small size ensures your devices get wireless access without bulky antennas or large dongles. And with a simple installation process, any device can be turned into a wireless online device. Add Wi-Fi to computers without hassle.

More Compatibility, Less Hassle

While the AC1300 MU-MIMO Wi-Fi Nano USB Adapter allows you to connect to wireless networks at cutting-edge 802.11ac speeds, it s also backwards-compatible with older 802.11n/g/b/a wireless so you'll always be able to get connected no matter where you are.

Portable Design

Whether you re at home using a desktop computer or out and about with a notebook, the DWA-181 s sleek design is perfect for mobility and convenience, so that you can take advantage of Wireless AC s super-fast speed wherever you are.

What is Wireless AC Wave 2

802.11ac Wave 2 is a networking standard that produces higher wireless speeds on the 5 GHz band. This means that you can enjoy clear, smooth streaming HD video from your favorite websites and services, lag-free online gaming, and clear audio and video calls over the Internet.
Item Dimension (L"xW"xH")
4 x 2 x 1
Weight
1.00 LB
Warranty Information
1-Year Limited

Available Quantity

5

UPC

790069448485

SKU

mingleDWA-181-US

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

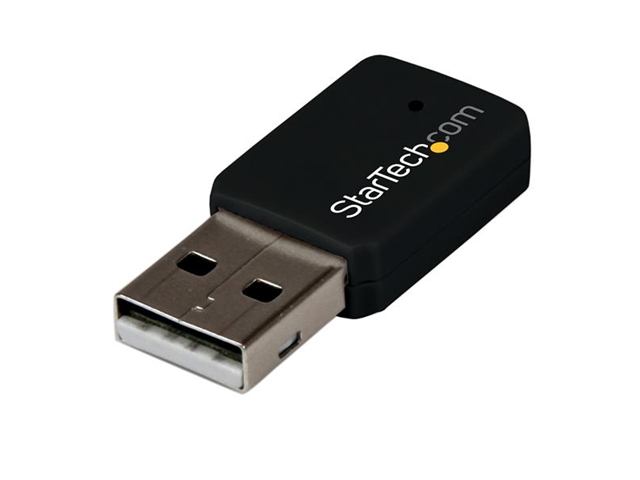

The USB433WACDB USB 2.0 Mini AC600 Wireless Network Adapter lets you add Wireless-AC connectivity to a desktop or laptop computer, through a conveniently small USB adapter.

With bandwidth-intensive applications like streaming HD video, online conferencing, file transfers and gaming becoming more demanding, this Wireless-AC adapter gives you added speed and range for your office or home wireless network when paired with an 802.11ac router. The dual-band USB WiFi adapter supports maximum data rates of up to 433 Mbps on the 5GHz band, plus up to 150 Mbps on the 2.4GHz band.

This versatile network adapter features a 1T1R (1 transmitter, 1 receiver) antenna design, with a physical WPS button for secure, one-touch device registration. To integrate with all of your networking devices, the 802.11ac USB adapter is backward compatible with 802.11a/b/g/n networks.
Hardware
Interface:Wireless Ethernet
Bus Type:USB 2.0
Antenna Configuration:1x1:1 (TxR:S)
Industry Standards:IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Chipset ID:Realtek - RTL8811AU

Connector(s)
Connector Type(s):
1 - USB A (4 pin) Male
1 - Wireless AC (IEEE 802.11ac)
Performance
Maximum Data Transfer Rate:
433 Mbps (5 GHz)
150 Mbps (2.4 GHz)
Full Duplex Support:Yes

Frequency Range:
2.4000-2.4835GHz
5.150-5.825GHz

Modulation:DSSS with DBPSK and DQPSK, CCK with long and short preamble, OFDM with BPSK, QPSK, 16QAM and 64QAM, 256QAM

Security Features:
WEP Data Encryption
WPA Data Encryption
TKIP/AES
Software
OS Compatibility:
Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS 10.7 and up (Tested up to 10.9)

Special Notes / Requirements
System and Cable Requirements:Available USB port
Color
Black

Enclosure Type
Plastic

Indicators
LED Indicators:1 - Link / Activity

Power
Power Adapter Included:USB-Powered

Included in Package
1 - USB Wireless Adapter
1 - Driver CD
1 - Instruction Manual
Item Dimension (L"xW"xH"):
6.5 x 5.31 x 1.1

Weight:
1 lb

Warranty Information:
2 Year Warranty

Available Quantity

5

UPC

065030858212

SKU

mingleUSB433WACDB

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

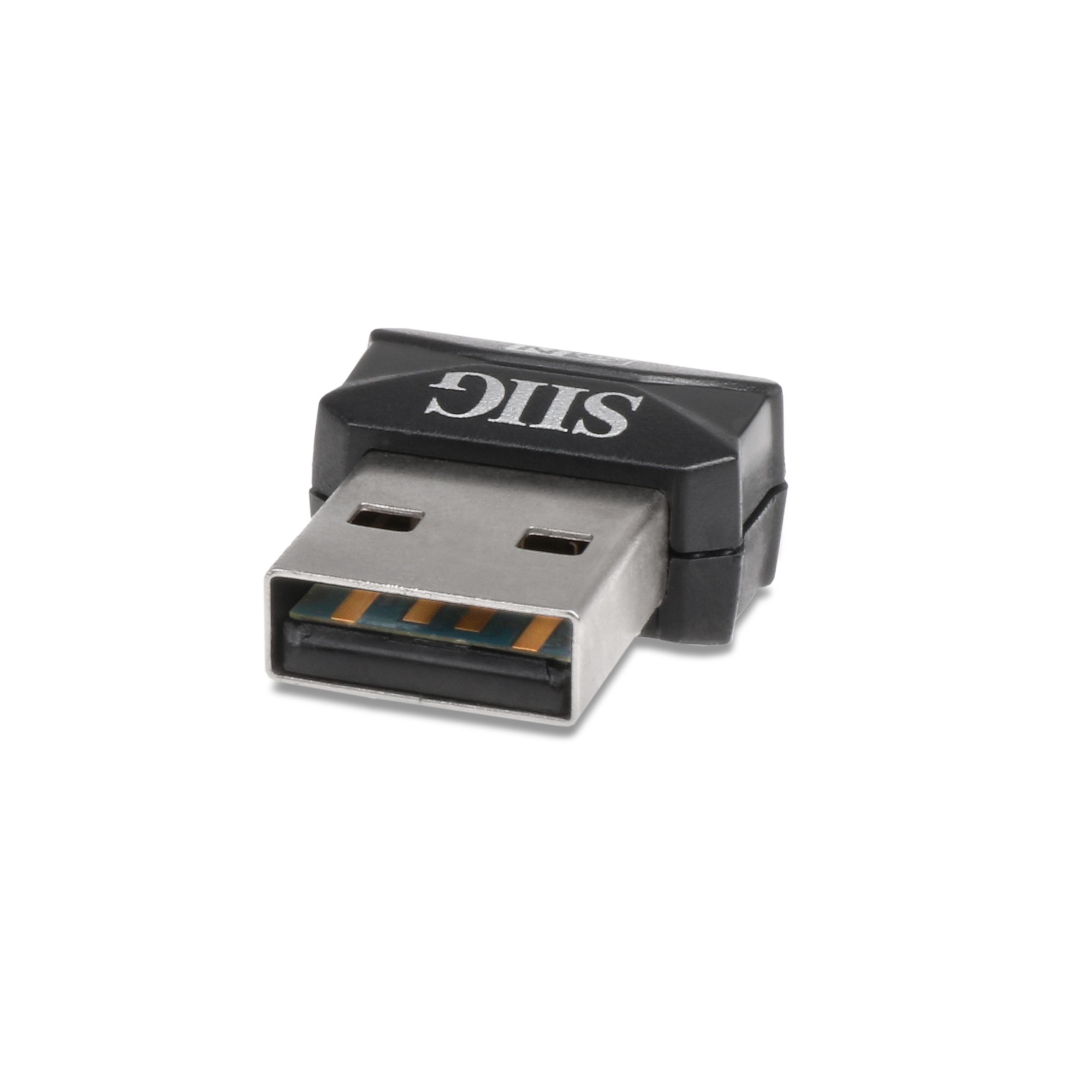

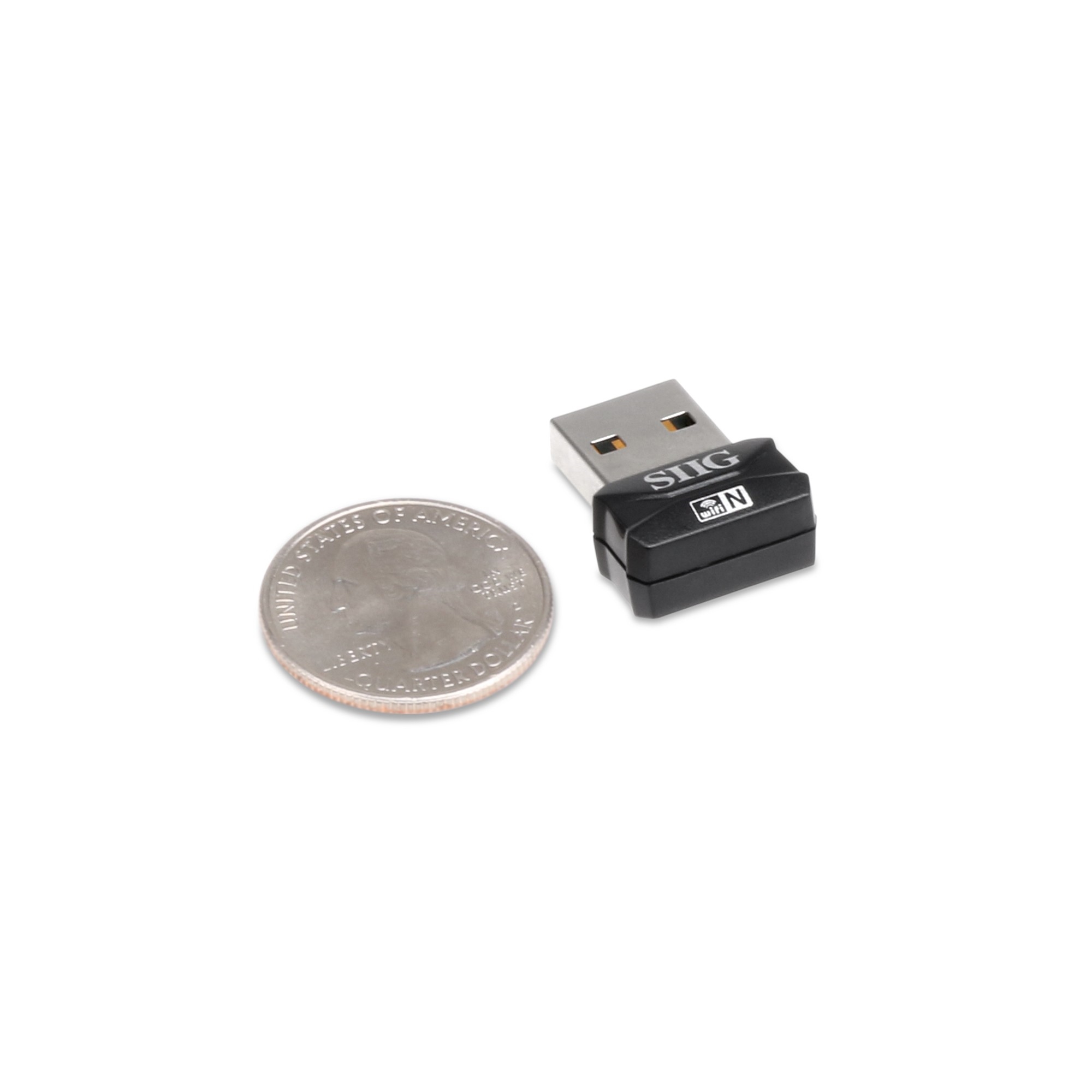

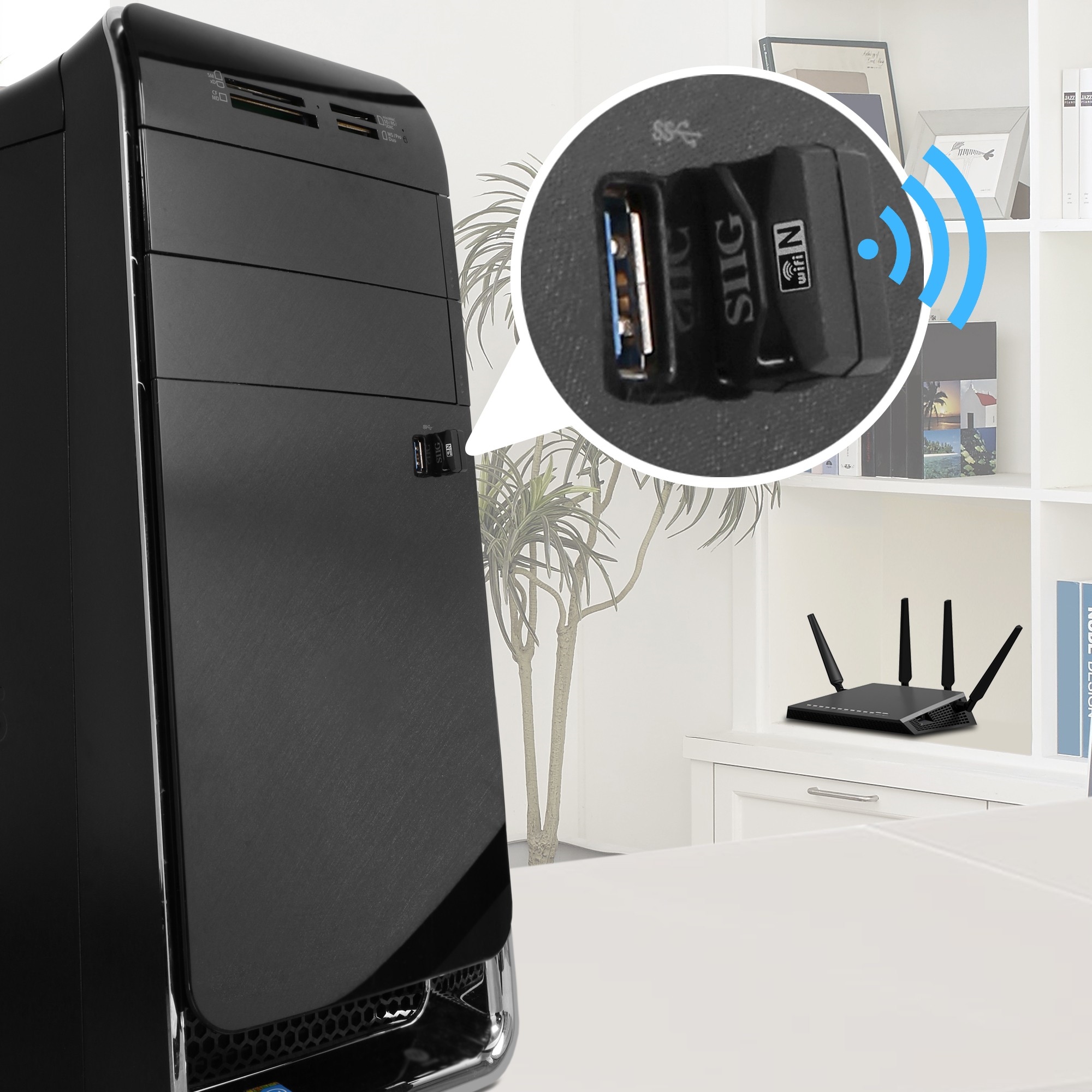

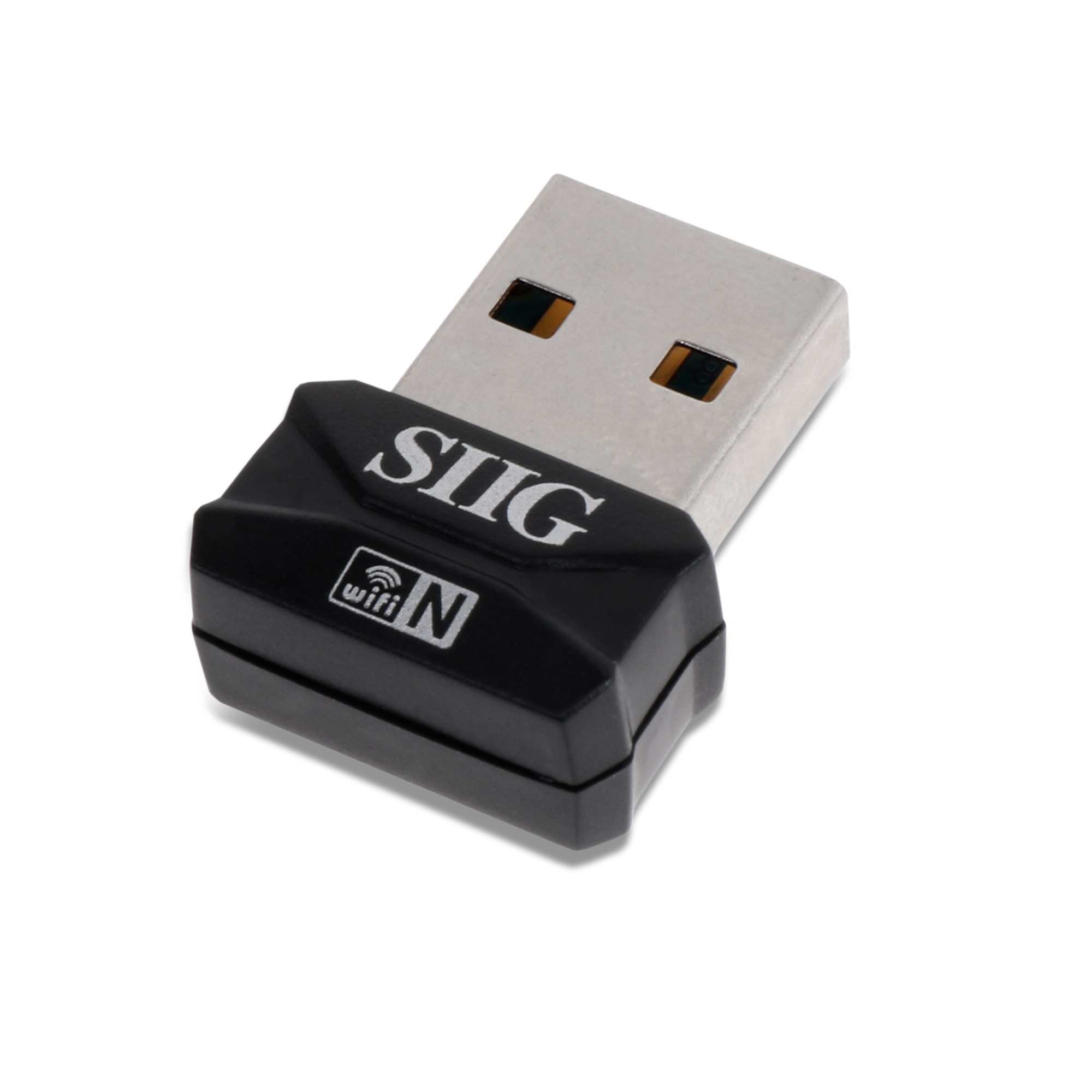

SIIG s Wireless-N Mini USB Wi-Fi Adapter enables you to connect your desktop or notebook computer to high speed wireless-N network via an USB port. This Wireless-N Mini USB Wi-Fi Adapter delivers high data transmission rate for high-speed internet accessing, online gaming, music or movie downloading etc. And it provides greater operating distance coverage than Wireless-G network connection throughout your home or office minimizing hard-to-reach areas. This mini adapter is a simple and easy solution to upgrade your computer s networking capability to Wireless-N technology and allows you to instantly utilize high speed internet access in no time.
Chipset:
RTL8188EUS
Compliant with USB 2.0 specification and backward compatible with USB 1.1
Enhanced WEP and WPA wireless security for protected Internet access
Complant with IEEE 802.11n (draft), 802.11g, 802.11b standards
WiFi Protected Setup (WPS) simplifies setup and operation
Frequency Band:
2.4GHz ISM (Industrial Scientific Medical) Band
RF Frequency:
2.412 GHz to 2.484 GHz
Radio Channel:
1 to 14 channels (Universal Domain Selection)
RF Output Power:
13 to 17 dBm (Typical)
Modulation:
11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Security:
64/128-bit WEP encryption
WPA/WPA2, WPA-PSK/WPA2-PSK encryptions, TKIP/AES
Wi-Fi Protected Setup (WPS)
Data Rate:
802.11n: up to 150Mbps downlink and uplink
802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Media Access Control:
CSMA/CA with ACK
LED Indicator:
Link/Active (Blue)
Product:
Color: Black
Housing: Plastic
Interface: USB 2.0 Type A
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 10 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Requirements
Laptop or desktop computer with an available USB port
Windows 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
Windows Server 2016 / Server 2012 (32-/64-bit) / 2008 R2 / Server 2008 2003 (32-/64-bit)
Mac OS X 10.4 to 10.8.x
Package Contents
Wireless-N Mini USB Wi-Fi Adapter
Driver CD
Installation guide
Item Dimension (L inchxW inchxH inch)
1 x 1 x 1

Weight
1.00 lb

Warranty Information
2 years

Available Quantity

5

UPC

662774026282

SKU

mingleJU-WR0112-S2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Super-Fast Speed: Make full use of your network with AC1200 WiFi speeds (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band).

Bluetooth 4.2: Achieve 2.5 faster speed and 10 more packet capacity than Bluetooth 4.0.

Broad Wireless Range: Connect to your WiFi from further away with two external high-gain antennas ensuring greater range and enhanced stability.

Easy Installation: Plug the adapter into an available PCI-E slot and install the drivers with the included CD.

Windows Compatibility: Supports Windows 10, 8.1, 8, and 7 (32/64-bit).

If you do not have a CD Rom or having difficulty with the CD please visit our homepage and search Archer T5E Driver is available for download on the support page for Archer T5E

Dual Band WiFi for Faster Connections

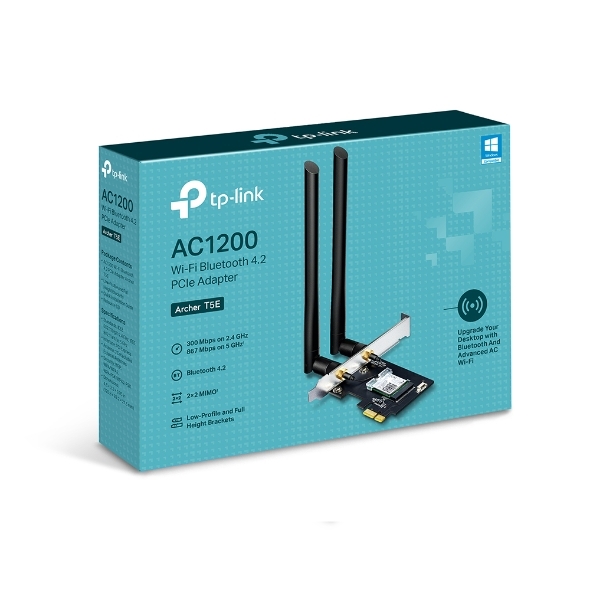

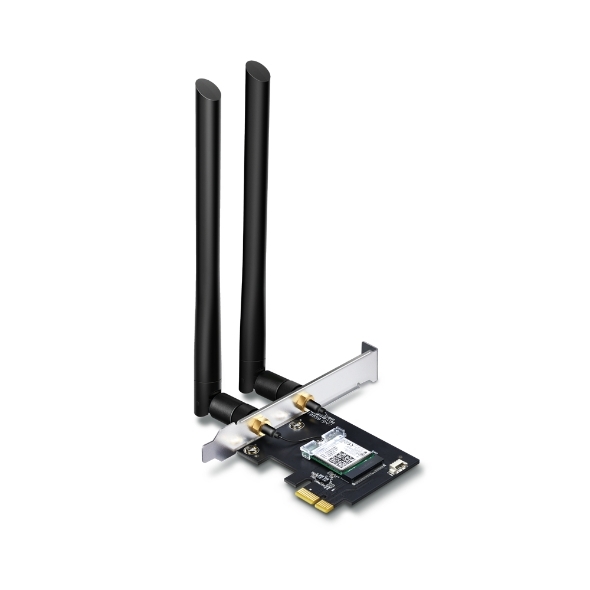

Archer T5E is an 802.11ac dual-band WiFi PCI Express adapter with speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), providing WiFi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for surfing, emailing, and social media, or switch to 5 GHz band for gaming, streaming, and large file downloads.

Arm Your PC with Bluetooth 4.2


Archer T5E is compatible with advanced Bluetooth 4.2 technology, achieving 2.5 faster speed and 10 more packet capacity than Bluetooth 4.0 to turn non-Bluetooth PCs into Bluetooth-Capable. Just connect your Bluetooth devices to your computer and enjoy.
HARDWARE FEATURES
Interface
PCI Express
Antenna
2 Detachable External Antennas
BLUETOOTH FEATURES
Standards and Protocols
Bluetooth 4.2, Bluetooth 4.0
Interface
USB 2.0
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity
5 GHz:
11ac HT80: -59.0dBm
11n HT40: -68.5dBm
11a 54Mbps: -73.5dBm
11a 6Mbps: -91dBm
2.4 GHz:
11n HT40: -69.5dBm
11g 54Mbps: -74dBm
11b 11Mbps: -87dBm
Transmit Power
5 GHz: 21.5dBm(FCC)
2.4 GHz : 20.5dBm(FCC)
Wireless Modes
Infrastructure mode
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
FCC, RoHS
Package Contents
AC1200 WiFi Bluetooth 4.2 PCIe Adapter Archer T5E
Low-Profile and Full Height Brackets
Quick Installation Guide
Bluetooth USB Cable
Resource CD
System Requirements
Windows 10/8.1/8/7 (32/64 bit)
Environment
Operating Temperature: 0^oC - 40^oC (32^oF - 104^oF)
Storage Temperature: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing
Item Dimension (L"x W"x H")
8 x 6 x 2
Weight
1.00 LB
Warranty Information
2 years

Available Quantity

5

UPC

840030700477

SKU

mingleARCHER T5E
