Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

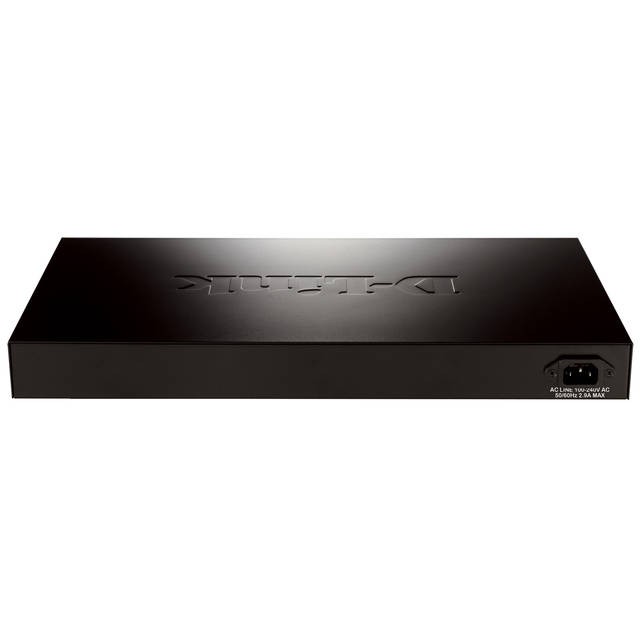

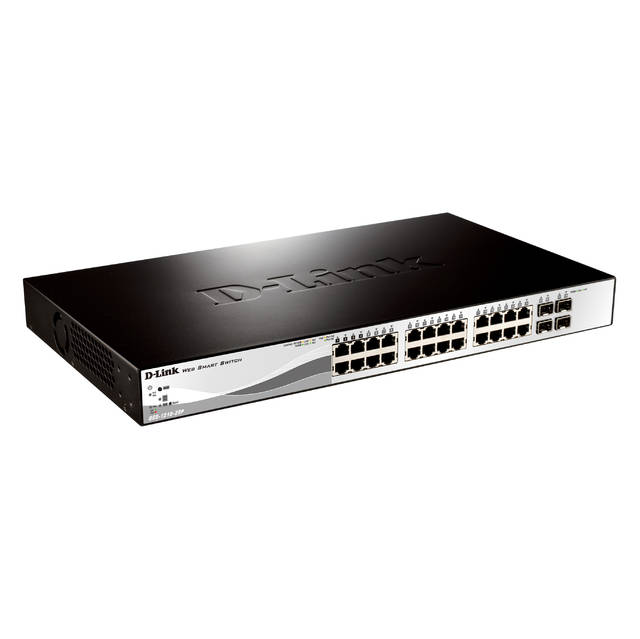

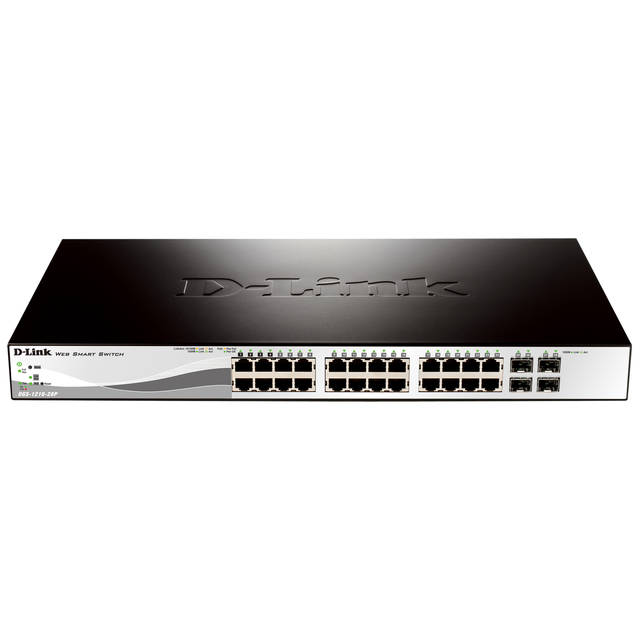

• Mfr Part Number: DGS-1210-28P
• Features:
  • Access Control List
  • D-Link Safeguard Engine
  • Port Security
  • ARP Spoofing Prevention
  • Smart IP-MAC-Port Binding
• General:
  • Port Standards & Functions:
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX (Fast Ethernet)
    • IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
    • IEEE 802.3x Flow Control for Full-Duplex Mode
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.3af Compliance
    • IEEE 802.3at Compliance
    • Auto-negotiation
  • Ports: 24x 10/100/1000 Mbps PoE Compatible, 4x SFP
  • Network Cables: UTP Cat. 5, Cat. 5e, Cat 6 (100m max.); EIA/TIA-568 100-ohm STP (100m max.)
  • Full/Half Duplex: Full/half duplex for 10/100 Mbps speeds; Full duplex for Gigabit speed
  • Media Interface Exchange: Auto or configurable MDI/MDIX
• Performance:
  • Switching Capacity: 56 Gbps
  • Transmission Method: Store-and-forward
  • MAC Address Table: 16,000 entries per device
  • MAC Address Update: Up to 256 static MAC entries; Enable/disable auto-learning of MAC addresses
  • Maximum 64 Bytes Packet Forwarding Rate: 41.7 Mbps
  • Packet Buffer Memory: 1 MB per device
• PoE:
  • PoE Standard: IEEE 802.3af and IEEE 802.3at
  • PoE Capable Ports: Ports 1 to 4 - Up to 30 W; Ports 5 to 24 - Up to 15.4 W
  • PoE Power Budget: 185 W (max)
• Green Technology:
  • IEEE 802.3az Energy Efficient Ethernet
  • D-Link Green 3.0 power-s!aving features
  • LED and Port Shutoff
  • Port Standby
  • System Hibernation
  • Cable Length Detection
  • Link Status Detection
  • Time-based PoE (PoE model only)
• Intuitive Management:
  • IPv4/ IPv6 Dual Stack1
  •  Web GUI (supports 10 languages)
  • SmartConsole utility
  • SNMP and RMON
  • Simplified CLI through Telnet
• QoS :
  • Supports IEEE 802.1p QoS
  • Supports DSCP
• Advanced Features:
  • Auto Surveillance VLAN
  • Auto Voice VLAN
  • Port or VLAN-based Loopback Detection
  • Cable Diagnostics
  • LLDP/LLDP-MED
• Trap & Logs:
  • SNMP Trap
  • Trap for SmartConsole Utility
  • System Log
• Physical & Environment:
  • AC Input: 100 to 240 VAC 50/60Hz internal power supply
  • Maximum Power Consumption: 238.4 W (PoE on), 27.4 W (PoE off)
  • Form Factor: 1U height, 19" standard rack mounting width
  • Dimensions: 17.32 x 9.84 x 1.73 inch / 440.0 x 250.0 x 44.0 mm

Available Quantity

5

UPC

790069373046

SKU

mingleDGS-1210-28P

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

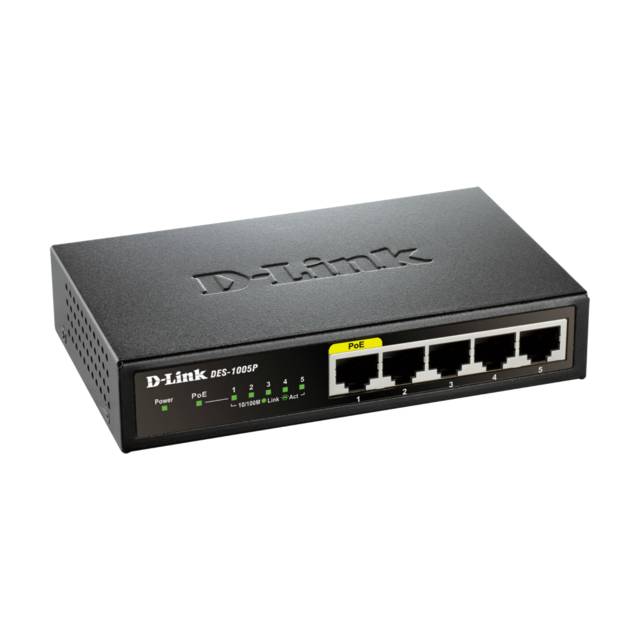

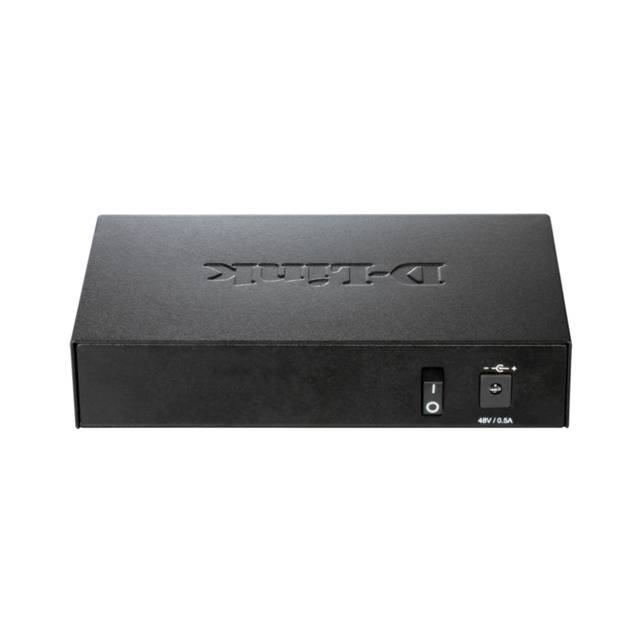

• Mfr Part Number: DES-1005P
• Features:
  • Five 10/100 Mbps Fast Ethernet ports with one PoE enabled port
  • Auto MDI/MDIX Crossover for all ports
  • Store-and-forward Switching Scheme
  • Full/half-duplex for Ethernet/Fast Ethernet Speeds
  • IEEE 802.3x Flow Control
  • Plug-and-play Installation
  • Built-in D-Link Green Technology
  • IEEE 802.1p QoS (4 Queues, Strict Mode)
• Ports: 5x 10/100Mbps RJ45 Ethernet Ports w/ 1x PoE Enabled Port
• Standards:
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • ANSI/IEEE 802.3 NWay Auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
• Switching Capacity: 1Gbps
• PoE Features:
  • Supports IEEE 802.3af
  • Supplies up to 15.4 watts of power to PD
• Data Transfer Rates:
  • Ethernet: 10 Mbps (Half-duplex), 20 Mbps (Full-duplex)
  • Fast Ethernet: 100 Mbps (Half-duplex), 200 Mbps (Full-duplex)
• Topology: Star
• Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
• Network Cables:
  • 10BASE-T: UTP CAT 3/4/5/5e (100m max), EIA/TIA-586 100-ohm STP (100m max)
  • 100BASE-TX: UTP CAT 5/5e (100m max), EIA/TIA-568 100-ohm STP (100m max)
• LED Indicators:
  • Per Port: Link/Activity/Speed/PoE Status-T
  • Per device: Power/PoE Max
• Transmission Method: Store-and-forward
• MAC Address Table: 2K Entries per device
• MAC Address Learning: Automatic update
• Packet Filtering/Forwarding Rates:
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
• RAM Buffer: 64KB per device
• Power Consumption:
  • DC Input: 0.90 Watts (Power On - Standby), 2.05 Watts (Maximum - PoE Off), 17.29 Watts (Maximum - PoE On)
  • AC Input: 1.8 Watts (Power On - Standby), 2.7 Watts (Maximum - PoE Off), 20.2 Watts (Maximum - PoE On)
• Power Adapter: Switching 48 V/0.5 A Level V power adapter
• MTBF: 324,616 hours
• Certifications: FCC Class B, ICES-003 Class B, cUL
• Dimensions (WxDxH): 5.5 x 3.3 x 1.1 inch / 140.0 x 85.0 x 28.0 mm
• RoHS Compliant

Available Quantity

5

UPC

790069368806

SKU

mingleDES-1005P

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

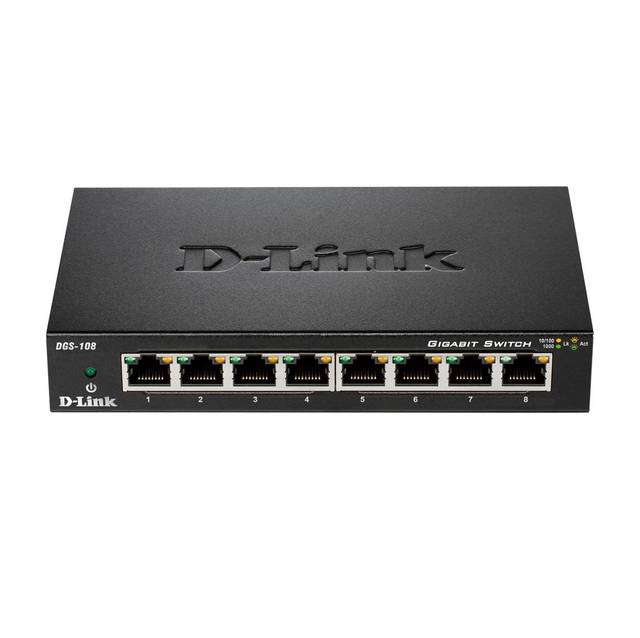

• Mfr Part Number: DGS-108
• Features:
• 8 Port Gigabit Ethernet Switch
• Plug-n-Play Installation
• Speeds Up to 10x Faster than 10/100 Ethernet
• Dlink Green Eco-Friendly Power Design
• IEEE 802.1P QoS Support for Superior Traffic Prioritization
• Intelligent cable diagnostics for efficient troubleshooting
• Gigabit Ports for Incredible Wired Network Speeds
• High reliability with Rugged Metal Case and High MTBF
• Standards: IEEE 802.1p
• Ports: 8x Gigabit Ethernet Ports
• Certifications: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, C-Tick, cUL + CB, RoHS
• Package Contents: Rubber Foot 12.0x12.0x3.0 (4pcs/bag) G, Tap Screw for COREGA APM-11, ADP 100-240VAC 5VDC/1A US, QIG DGS-108 V.1.00(B), Warranty Guide_DWUSCASW0K0012, Insert for USA_DWUS00000T0010
• Dimensions(WxLxH): 4.02 x 6.38 x 1.10 inch
• Weight: 0.97 pounds

Available Quantity

5

UPC

790069285998

SKU

mingleDGS-108

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

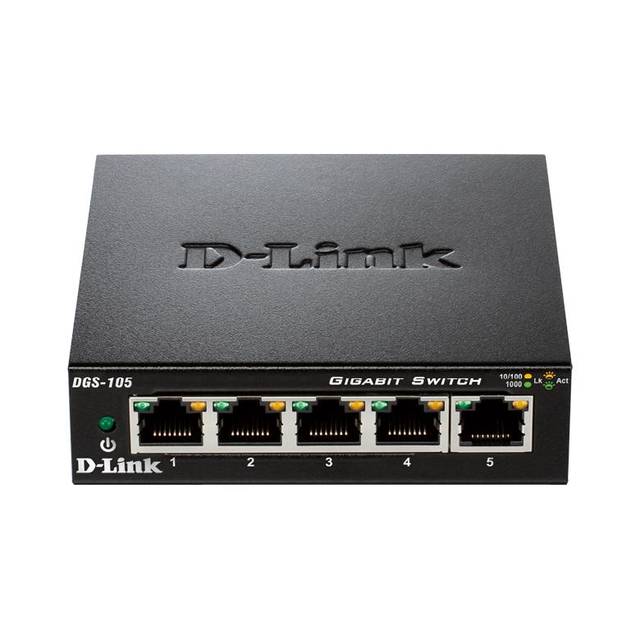

• Mfr Part Number: DGS-105
• Features:
• 5 Port Gigabit Ethernet Switch
• Plug-n-Play Installation
• Speeds Up to 10x Faster than 10/100 Ethernet
• Dlink Green Eco-Friendly Power Design
• IEEE 802.1P QoS Support for Superior Traffic Prioritization
• Intelligent cable diagnostics for efficient troubleshooting
• Gigabit Ports for Incredible Wired Network Speeds
• High reliability with Rugged Metal Case and High MTBF
• Standards: IEEE 802.1p
• Ports: 5x Gigabit Ethernet Ports
• Certifications: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, C-Tick, cUL + CB, RoHS
• Package Contents: ADP 100-240VAC 5VDC/1A US, DGS-105 B1 QIG, Warranty Guide_DWUSCASW0K0012, Rubber Foot 12.0x12.0x3.0 (4pcs/bag) G, Tap Screw for COREGA APM-11, Insert for USA_DWUS00000T0010
• Dimensions(WxLxH): 3.86 x 3.94 x 1.10 inch
• Weight: 0.63 pounds

Available Quantity

5

UPC

790069285981

SKU

mingleDGS-105

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: DGE-530T
• DGE-530T: Single Port 32bit/33MHz 10/100/1000Mbps PCI Adapter
• QoS: Support For 802.1p Priority Tagging
• VLANs: Support For 802.1q VLANs
• Cable Diagnostics: Advanced Cable Diagnostics (Windows Utility)
• Power Management: Wake-On-LAN (WoL) and ACPI 2.0
• Universal BUS Support: 3.3V and 5.0V
• PCI Local: BUS Master Supports 2.1/2.2
• Network Management: SNMPv1 Support
• Supported Operating Systems: Windows XP/ 2000/2003, Novell Netware 4.2/5.x/6.x, Red Hat Linux 7.3 & Later (Kernel 2.4.18-3 and later)
• Interface Options: RJ-45: 10BASE-T, 100BASE-TX & 1000BASE-T
• Network Management: SNMPv1 & Integrated Cable Diagnostics Control
• Network Protocols and Standards:
  • IEEE: 802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet, 802.1p Priority Tagging, 802.1q VLANs, 802.3x Flow Control
• Dimensions (W x D x H): 124mm x 51mm (4.88 x 2.01) Inches
• Weight: 0.23kg (0.51) Pounds

Available Quantity

5

UPC

790069251610

SKU

mingleDGE-530T

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: DES-108
• Features:
• 8 Port 10/100 Fast Ethernet Ports
• Plug-n-Play Installation
• 802.1P QoS Support for Superior Traffic Prioritization
• High reliability with Rugged Metal Case
• Fast Ethernet solution for SOHO, Small, and Medium Businesses
• Auto MDI/MDIX Crossover for all ports
• Store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Dlink Green Eco-Friendly Power Design
• IEEE 802.3x Flow Control
• RoHS compliant
• Standards: IEEE 802.3x, IEEE 802.1p
• Ports: 8x 10/100 Fast Ethernet Ports
• Certification: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, C-Tick, cUL + CB, RoHS
• Package Contents: DES-108 device, Power Adapter, Rubber feet set(4), D-Link Installing(DWUS00000T0010), Warranty Card, Paper Foam, Gift Box, QIG
• Dimensions(WxLxH): 4.02 x 6.38 x 1.10 inch
• Weight: 0.91pounds

Available Quantity

5

UPC

790069285974

SKU

mingleDES-108

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: DES-105
• Features:
• 5 Port 10/100 Fast Ethernet Ports
• Plug-n-Play Installation
• 802.1P QoS Support for Superior Traffic Prioritization
• High reliability with Rugged Metal Case
• Fast Ethernet solution for SOHO, Small, and Medium Businesses
• Auto MDI/MDIX Crossover for all ports
• Store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Dlink Green Eco-Friendly Power Design
• IEEE 802.3x Flow Control
• RoHS compliant
• Standards: IEEE 802.3x, IEEE 802.1p
• Ports: 5x 10/100 Fast Ethernet Ports
• Certification: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, C-Tick, cUL + CB, RoHS
• Package Contents: DES-105 device, Power Adapter, Rubber feet set(4), D-Link Installing(DWUS00000T0010), Warranty Card, Paper Foam, Gift Box, QIG
• Dimensions(WxLxH): 3.86 x 3.94 x 1.10 inch
• Weight: 0.58 pounds

Available Quantity

5

UPC

790069285967

SKU

mingleDES-105

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

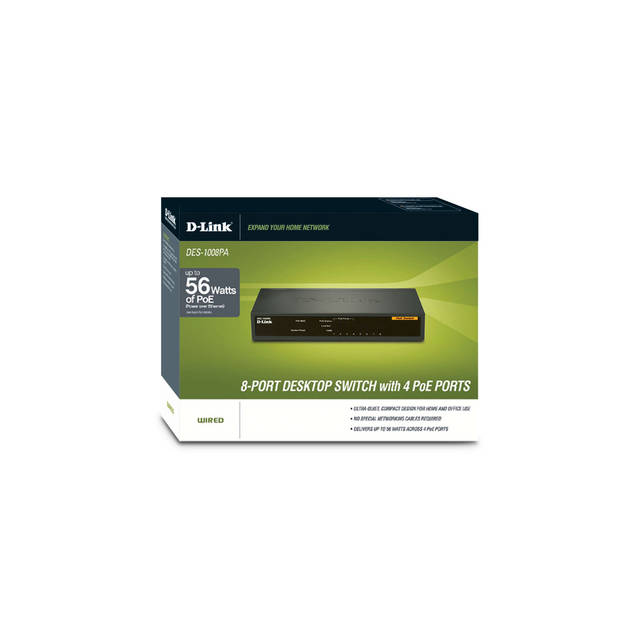

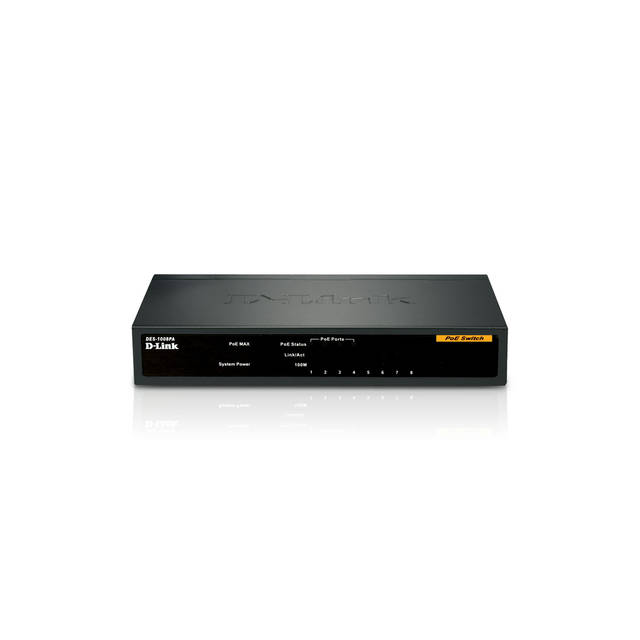

• Mfr Part Number: DES-1008PA
• Ports: 8x 10/100Mbps RJ45 Ethernet Ports
• Standards:
  • IEEE 802.3 Ethernet
  • IEEE 802.3u
  • IEEE 802.3x Flow Control
  • IEEE 802.3af (Power over Data Pairs)
• Interface: RJ45 - 10BASE-T, 100BASE-TX
• Performance:
  • MAC Address Table: 1K
  • Switch Fabric: 1.6Gbps
  • Transmission Method: Store and Forward
  • Packet Buffer Memory: 96KB
• Diagnostic LEDs:
  • Per Unit: Power / PoE Max
  • Per Port: Activity / Link & Speed
  • PoE Port: Power / Status
• Power:
  • Power Supply: 48V DC / 1.45A
  • Power Consumption: 69 Watts (Max)
  • PoE Budget: Up to 15.4 Watts Max per Port, for Ports 1-4 Only. 56 Watts Total
• Minimum System Requirements:
  • Devices Supporting 802.3 Ethernet or 802.3u Fast Ethernet
  • CAT5 Ethernet Cable
  • Network Interface Card for Each Computer
  • CD-ROM Drive to View Product Documentation
• Certifications: FCC Class B, CE, RoHS
• Dimensions (WxDxH): 6.8 x 3.9 x 1.1 inch / 172.0 x 98.0 x 27.9 mm
• Weight: 1.0 lbs / 0.5 kg
• Package Contents: 8-Port Desktop Switch with 4x PoE Ports, Power Adapter, CD-ROM with Product Documentation

Available Quantity

5

UPC

790069298172

SKU

mingleDES-1008PA

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

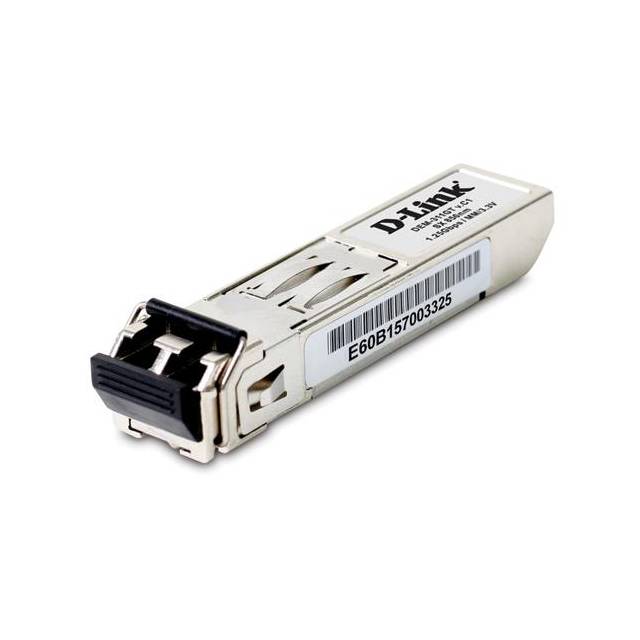

• Mfr Part Number: DEM-311GT
• Features:
• Gigabit Speeds on Multimode Fiber
• Hot Pluggable
• Multi Vendor/ Device Support
• Optical Receiver Sensitivity: -18dBm (max)
• Connector Type: LC
• Support Voltage: 3.1 ~ 3.5 V
• Max Voltage: 6.0 V
• Max Current: 300 mA
• Class 1 Laser: EN 60825-1
• FDA 21: 1040.10 & 1040.11
• Dimensions (WxDxH): 1.19 x 0.47 x 2.25 inch / 3.02 x 1.19 x 5.71 cm
• 1000BASE-SX SFP Up to 220/550m

Available Quantity

5

UPC

790069248153

SKU

mingleDEM-311GT

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

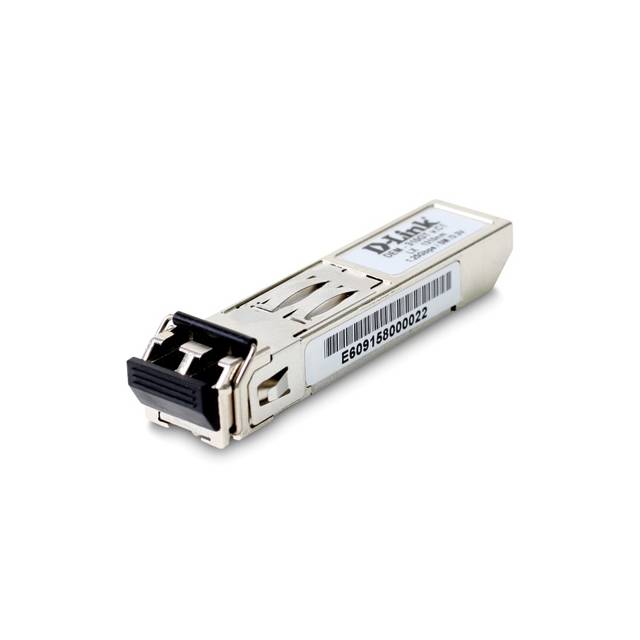

• Mfr Part Number: DEM-310GT
• Features:
• Gigabit Speeds on Multimode/ Singlemode Fiber for distances of upto 550m/ 550m/ 10km on 62.5 m/ 50 m/ 9 m respectively
• Hot Pluggable
• Multi Vendor/ Device Support
• Optical Receiver Sensitivity: -20 dBm (max)
• Connector Type: LC
• Operational Ranges:
• Support Voltage: 3.1 ~ 3.5 V
• Max Voltage: 6.0 V
• Max Current: 300 mA
• Safety Certifications:
• Class 1 Laser: EN 60825-1
• FDA 21: 1040.10 & 1040.11
• Dimensions (WxDxH): 1.19 x 0.47 x 2.25 inch / 3.02 x 1.19 x 5.71 cm

Available Quantity

5

UPC

790069248146

SKU

mingleDEM-310GT

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

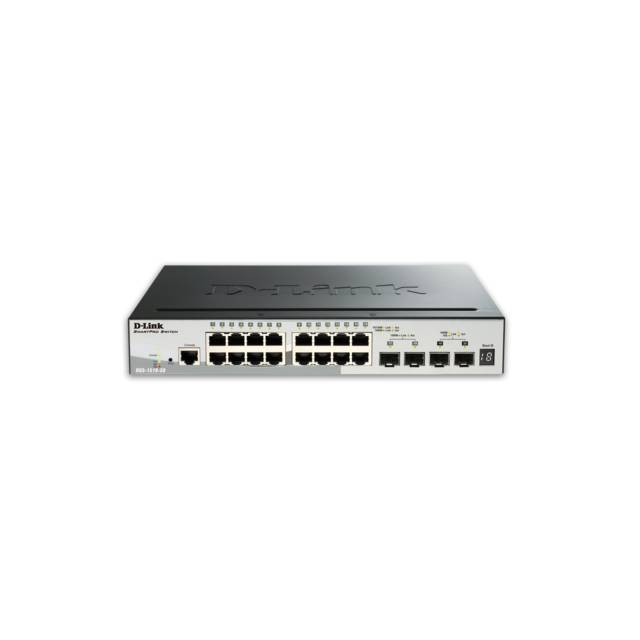

Available Quantity

5

UPC

790069399459

SKU

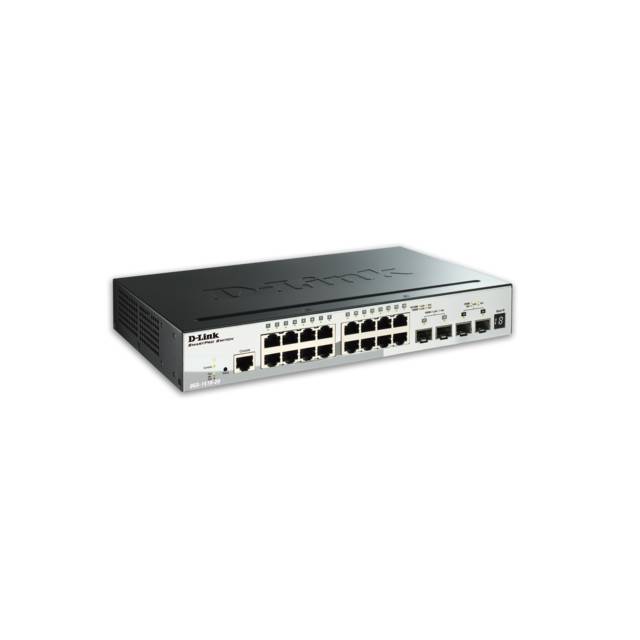

mingleDGS-1510-20

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

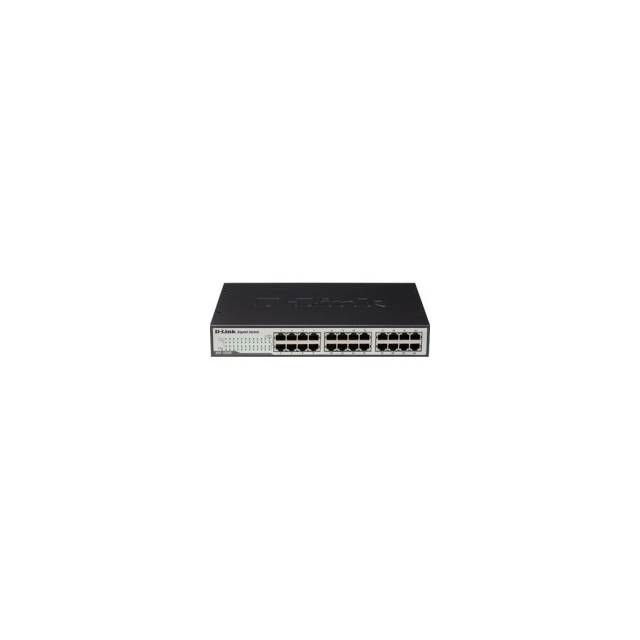

• Mfr Part Number: DGS-1024D
• Features:
  • High-performance Wire-Speed Architecture:
    • 48Gbps switching capacity
    • Non-blocking architecture
    • 8K MAC Address Table
  • Operational Simplicity:
    • True plug & play
    • Auto-sensing
    • Auto cable detection
    • Automatic cable diagnostic to help detect cable problems
    • Auto-configuration
    • Clear, at a glance per port LEDs indicators
    • Rack mountable or Desktop
• Performance: 24x 10/100/1000Mbps ports
• MAC Address Table Size: 8K
• Switch Fabric: 48Gbps Forwarding Capacity
• Transmission Method: Store-and-forward
• Diagnostic LEDs:
  • Per Unit: Power
  • Per Port: Activity/Link, Speed
• Packet Buffer Memory: On chip 512Kbytes Buffer Memory per device
• Max Power Consumption: 27.5 Watts
• Interface: RJ-45 Supports 10BASE-T, 100BASE-TX & 1000BASE-T
• Network Protocols and Standards: IEEE 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet
• Emissions: CE Mark A, FCC Class A
• Power Supply: 100- 240VAC, 50/60Hz Internal Universal Power
• Safety: CSA + NRTL/C
• Dimensions(WxDxH): 11.02 x 7.09 x 1.73 inch / 280 x 180 x 44 mm
• Weight: 3.99 lbs / 1.81 Kg

Available Quantity

5

UPC

790069268298

SKU

mingleDGS-1024D

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: X710DA2
• Features:
  • Intel X710 10 Gigabit Ethernet Controller
  • SFP+ Connectivity
  • Low-profile
  • Load balancing on multiple CPUs
  • iSCSI remote boot support
  • Fibre Channel over Ethernet (FCoE) support
  • Support for most network operating systems
  • Intel PROSet Utility for Windows Device Manager
  • Time Sync (IEEE 1588, 802.1as)
• I/O Features for Multi-Core Processor Servers:
  • Intel Flow Director
  • MSI-X support
  • Multiple Queues-1,536 Tx and Rx queues per port
  • Tx/Rx IP, SCTP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities
• Virtualization Features:
  • Next-Generation VMDq
  • PCI-SIG SR-IOV Implementation (128 per device)
  • Virtual Machine Load Balancing (VLMB)
  • Advanced Packet Filtering
  • VLAN support with VLAN tag inser- tion, stripping and packet filtering for  up to 4096 VLAN tags
  • VXLAN and NVGRE Support
• Manageability Features:
  • Preboot eXecution Environment (PXE) Suppor
  • Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters
  • iSCSI Boot
  • Watchdog Timer
• Adapter Product Features:
  • Intel PROSet Utility
  • Plug and play specification support
  • Receive Side Scaling
• Advanced Software Features:
  • Adapter fault tolerance (AFT)
  • Switch fault tolerance (SFT)
  • Adaptive load balancing (ALB)
  • Teaming Support
  • IEEE 802.3ad (link aggregation control protocol)
  • PCIe Hot Plug/Active peripheral component interconnect (PCI)
  • IEEE 802.1Q VLANs
  • IEEE 802.3 2005 flow control support
  • Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP)
  • IEEE 802.1p
  • TCP segmentation/large send offload
  • MSI-X supports Multiple Independent Queues
  • Interrupt moderation
  • IPv6 offloading - Checksum and segmentation capability extended to new standard packet type
• Controller Processor: Intel Ethernet Controller X710-AM2
• Connectors: 2
• Data Rate(per port): Optical-1 Gbps/10 Gbps, Direct Attach-10 Gbps
• Bus Type: PCI-Express 3.0 (8 GT/s)
• Interrupt Levels: INTA, MSI, MSI-X
• Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
• Dimensions: 6.578 x 2.703 inch
• RoHS Compliant

Available Quantity

5

UPC

735858282130

SKU

mingleX710DA2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Available Quantity

5

UPC

735858286343

SKU

mingleI350T4V2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: E10GSFPLR
• Application/Usage: Optical Network;Data Networking
• Interfaces/Ports Details: 1x LC Duplex 10GBase-LR Network; 1x 10GBase-LR
• Compatibility: This XFP is Multi Source Agreement Compliant
• Intel Ethernet Converged Network Adapters: X520-DA2; X520-SR1; X520-SR2; X520-LR1
• Green Compliance Certificate/Authority: RoHS-6
• Weight (Approximate): 8.0 oz

Available Quantity

5

UPC

735858211963

SKU

mingleE10GSFPLR

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

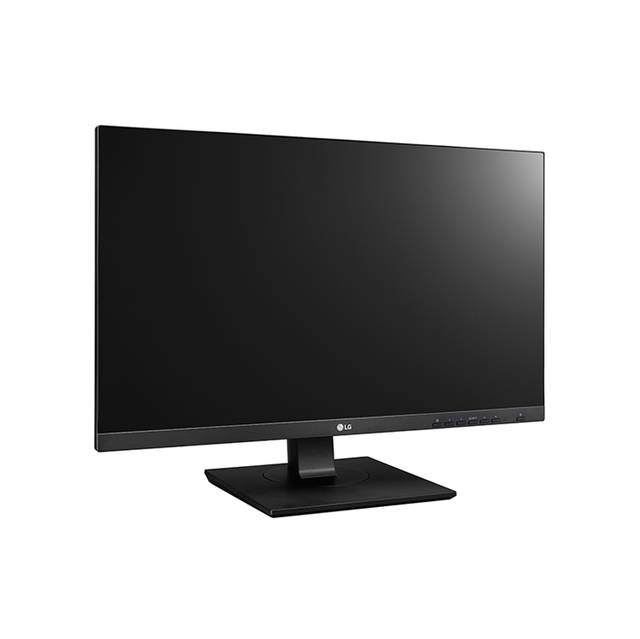

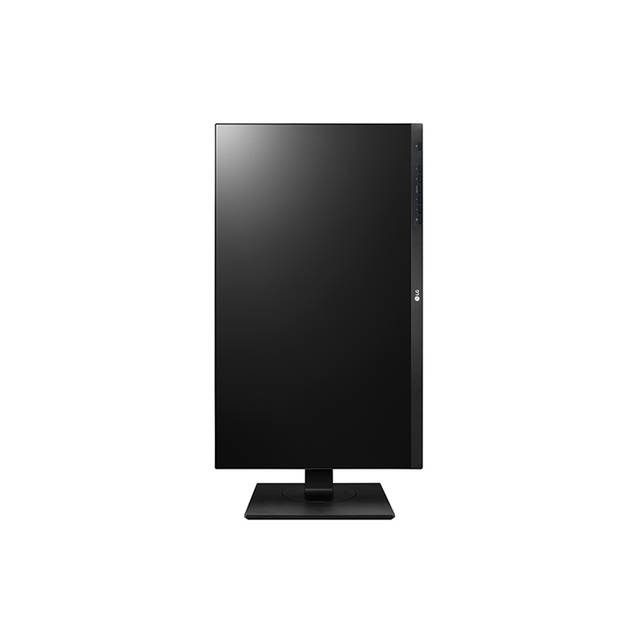

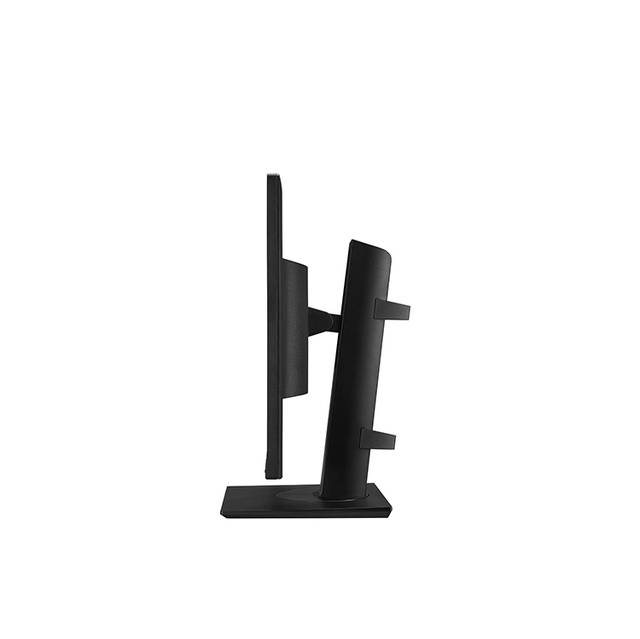

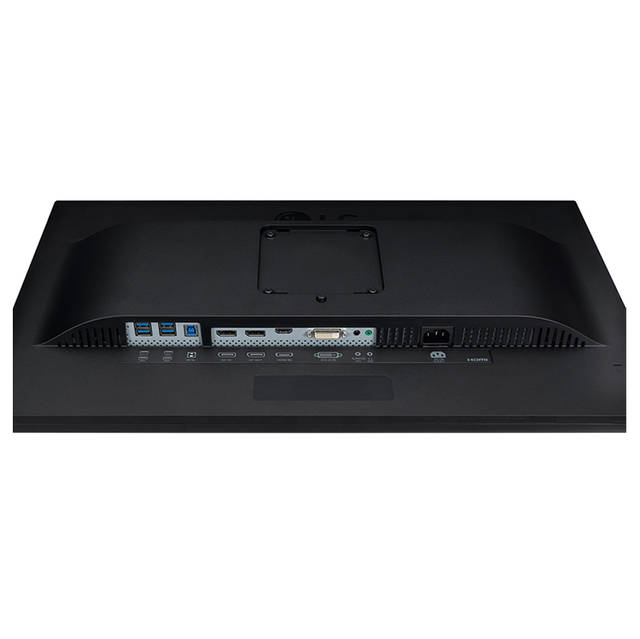

• Mfr Part Number: 24BK750Y-B
• Display Type: IPS Anti-Glare 3H LCD w/ LED Backlight
• Display Area: 24" (23.8" Diagonal)
• Display Colors: 16.7 Million
• Pixel Pitch (H/V): 0.2745 x 0.2745 mm
• Brightness: 250 cd/m2
• Contrast Ratio: 1,000:1 (Original), 5,000,000:1 (DFC)
• Viewing Angle (H/V): 178 / 178
• Response Time: 5 ms (Gray-to-Gray)
• Max Resolution: 1920 x 1080
• Interface: 5x USB 3.0 Ports (1 up, 4 down), 1x DVI Port, 1x Display Port, 1x HDMI Port, 1x DisplayPort Out, 1x PC Audio In, 1x Headphone Out
• Horizontal Frequency: 30 ~ 83 kHz (DVI-D & HDMI & DisplayPort)
• Vertical Frequency: 56 ~ 75 Hz (DVI-D & HDMI (PC) & DisplayPort); 50 ~ 61 Hz (HDMI (AV))
• Power:
  • Input: 100 - 240V, 50/60Hz
  • Output: 52W
  • Normal On: 17.1W (EPA), 23.0W (Typical)
  • Sleep Mode: 0.5W (Max)
  • DC Off: 0.003W (Max)
• Speakers: Built-in 2x 1.2W 2ch stereo Speakers
• Stand Function:
  • Base Detchable: Yes
  • Tilt (Angle): -5 ~ 25
  • Swivel (Angle): Yes ( 45 )
  • Height Range: 150 mm
  • Down Heigh: 70mm
  • Pivot: 90 (Bi-directional)
• VESA Wall Mounting: 100 x 100 mm
• Color: Black
• Dimensions: 21.2 x 10.9 x 20.6 inch (w/ Stand); 21.2 x 2.3 x 12.9 inch (w/o Stand)
• Weight: 13.7 lbs (w/ Stand); 7.5 lbs (w/o Stand)

Available Quantity

5

UPC

719192609099

SKU

mingle24BK750Y-B

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Available Quantity

5

UPC

735858257817

SKU

mingleI210T1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

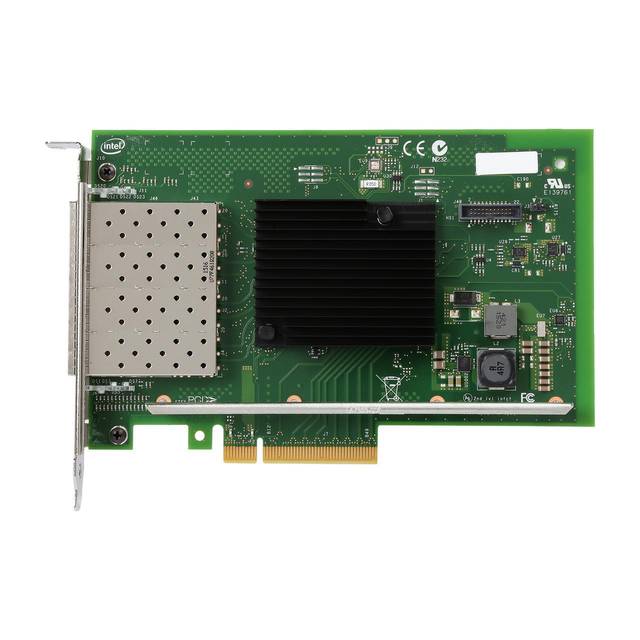

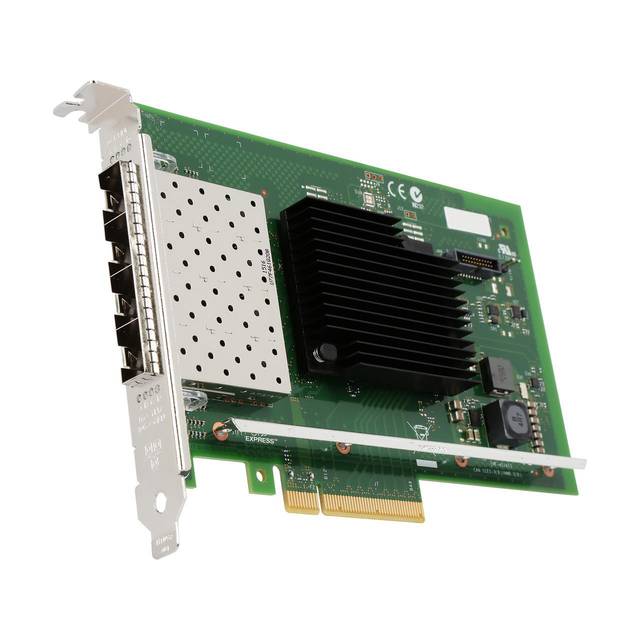

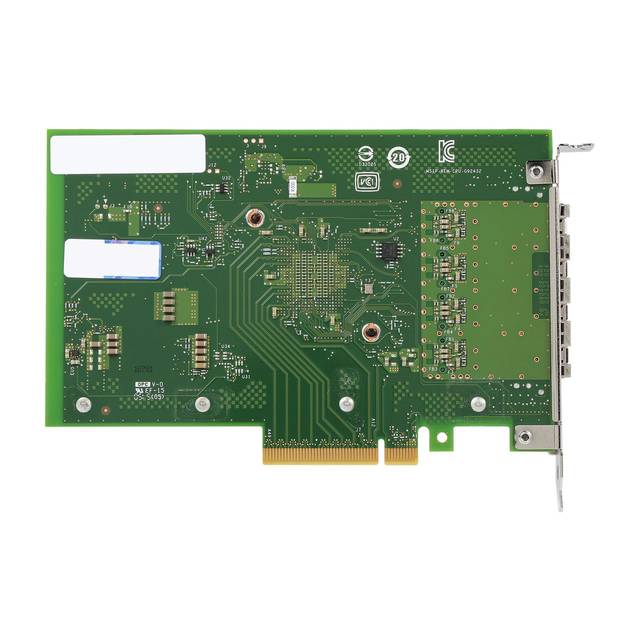

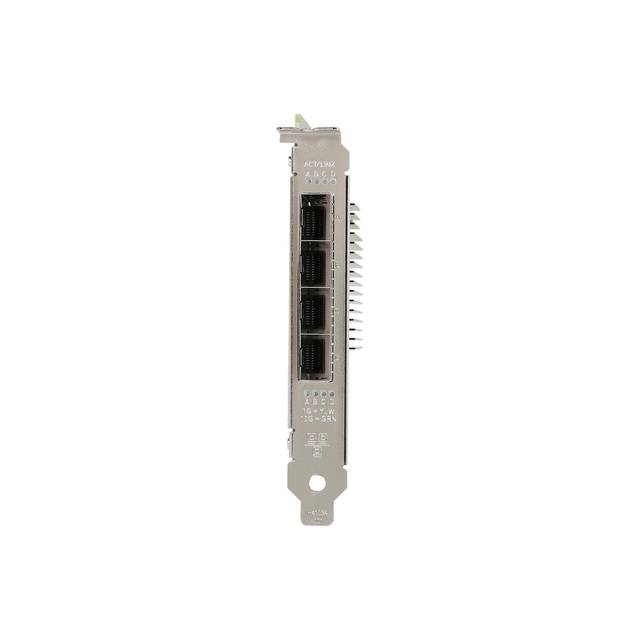

• Mfr Part Number: X710DA4FH
• Features:
  • Intel X710 10 Gigabit Ethernet Controller

  • SFP+ Connectivity

  • Low-profile
  • Low-profile (non-compliance)
  • Full-height

  • Load balancing on multiple CPUs
  • iSCSI remote boot support
  • Support for most network operating systems
  • Intel PROSet Utility for Windows Device Manager
  • Time Sync (IEEE 1588, 802.1as)
• I/O Features for Multi-Core Processor Servers:
  • Intel Flow Director
  • MSI-X support
  • Multiple Queues-1,536 Tx and Rx queues per port
  • Tx/Rx IP, SCTP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities
• Virtualization Features:
  • Next-Generation VMDq
  • PCI-SIG SR-IOV Implementation (128 per device)
  • Virtual Machine Load Balancing (VLMB)
  • Advanced Packet Filtering
  • VLAN support with VLAN tag inser- tion, stripping and packet filtering for  up to 4096 VLAN tags
  • VXLAN and NVGRE Support
• Manageability Features:
  • Preboot eXecution Environment (PXE) Suppor
  • Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters
  • iSCSI Boot
  • Watchdog Timer
• Adapter Product Features:
  • Intel PROSet Utility
  • Plug and play specification support
  • Receive Side Scaling
• Advanced Software Features:
  • Adapter fault tolerance (AFT)
  • Switch fault tolerance (SFT)
  • Adaptive load balancing (ALB)
  • Teaming Support
  • IEEE 802.3ad (link aggregation control protocol)
  • PCIe Hot Plug/Active peripheral component interconnect (PCI)
  • IEEE 802.1Q VLANs

  • IEEE 802.3 2005 flow control support
  • Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP)

  • IEEE 802.1p
  • TCP segmentation/large send offload
  • MSI-X supports Multiple Independent Queues
  • Interrupt moderation
  • IPv6 offloading - Checksum and segmentation capability extended to new standard packet type

• Controller Processor: Intel Ethernet Controller X710-DA4

• Connectors: 4x SFP+
• Data Rate(per port): Optical - 1 Gbps/10 Gbps; Direct Attach - 10 Gbps
• Bus Type: PCI-Express 3.0 (8 GT/s)
• Interrupt Levels: INTA, MSI, MSI-X
• Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC

• Dimensions: 6.578 x 4.372 inch

• RoHS Compliant

Available Quantity

5

UPC

735858281836

SKU

mingleX710DA4FH

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Available Quantity

5

UPC

735858286367

SKU

mingleI350T4V2BLK

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: BXTS15A
• CPU Socket Type: LGA 1150/ 1151/ 1156
• Compatibility: Intel Core i7

Available Quantity

5

UPC

735858300735

SKU

mingleBXTS15A

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: TPM-M R2.0
• Asus TPM-M R2.0 14-1 Pin TPM Module

Available Quantity

5

UPC

889349230404

SKU

mingleTPM-M R2.0

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: M393A2K40CB2-CTD6Q
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 2G x 4
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Single Rank x4
• CL 19, 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleM393A2K40CB2-CTD

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

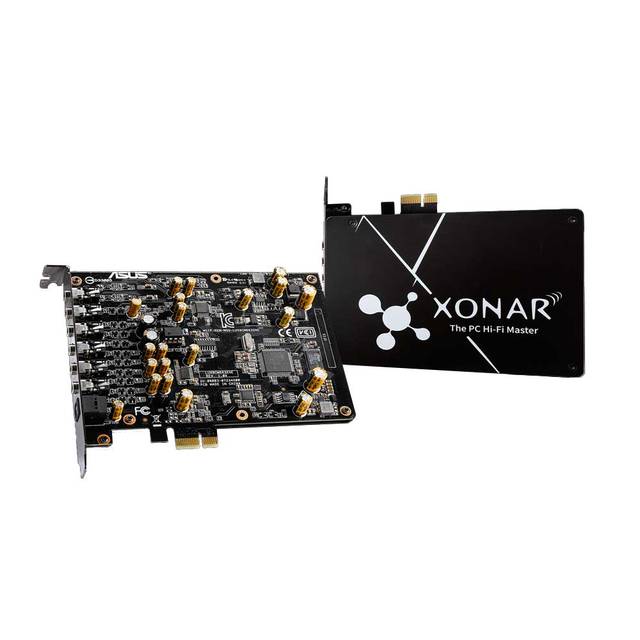

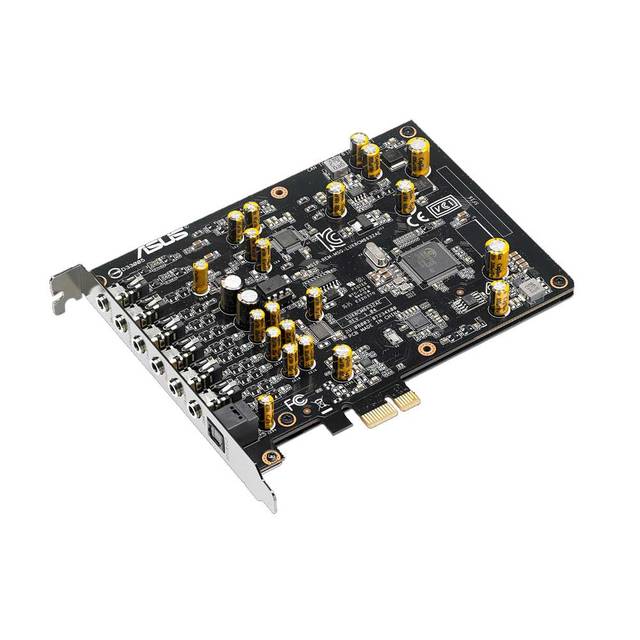

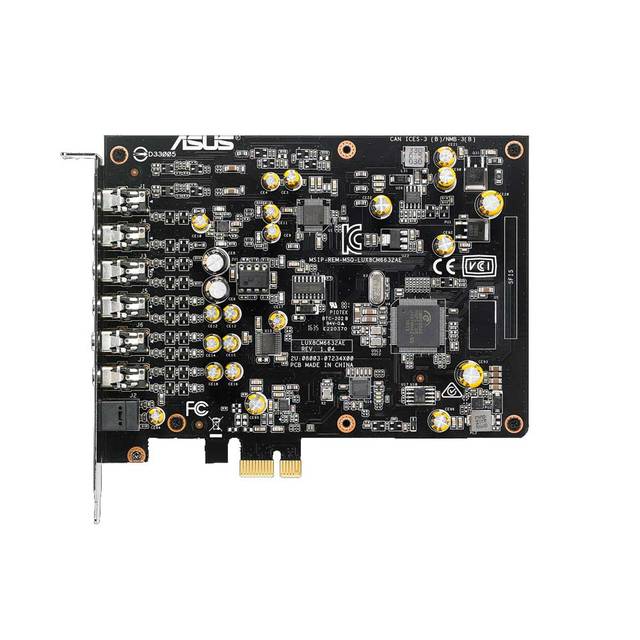

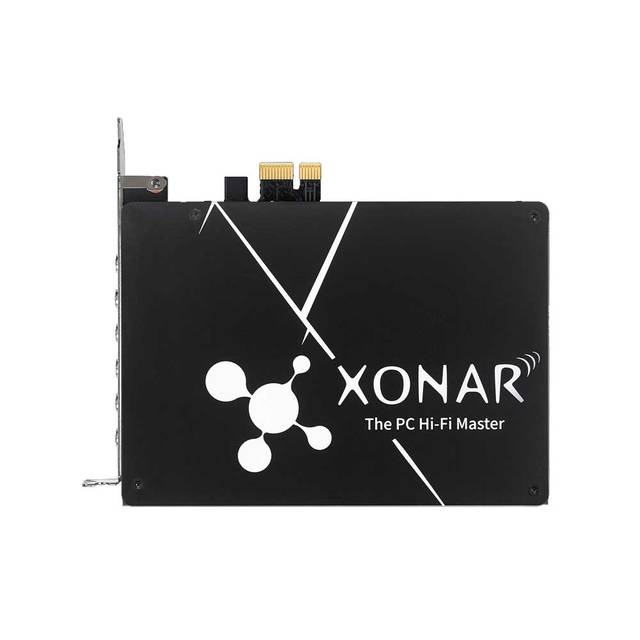

• Mfr Part Number: XONAR AE
• Features:
  • 192kHz/24-bit Hi-Res audio and 7.1-channel, 150ohm headphone amp
  • High-quality ESS DAC with 110dB signal-to-noise ratio (SNR)
  • Exclusive EMI back plate provides noise shielding for exceptionally clear audio
  • Sonic Studio enables full audio control via an intuitive, one-page interface
  • Perfect Voice technology eliminates background noise for clear in-game communication
• Audio Interface: PCI Express
• Audio Performance:
  • Output Signal-to-Noise Ratio (A-Weighted): 110dB (Front-out), 108 dB (Headphone-out)
  • Input Signal-to-Noise Ratio (A-Weighted): 103 dB
  • Output THD+N at 1kHz (Front-out): <0.00158% (-96dB)
  • Input THD+N at 1kHz: <0.0022% (-93dB)
  • Frequency Response (-3dB, 24-bit/192kHz input): 10Hz to 65KHz
• Chipset:
  • Audio Processor: C-Media USB2.0 6632AE High-Definition Sound Processor (Max 192KHz/24bit)
• Digital-to-analog Converter(DAC) : ESS ES9023P (112dB DNR, Max. 192KHz/24bit), Cirrus Logic CS4245 (104dB DNR, Max. 192KHz/24bit), Cirrus Logic CS4361 (103dB DNR, Max. 192KHz/24bit)
• Sample Rate and Resolution:
  • Analog Playback Sample Rate and Resolution: 44.1K/ 48K/ 88.2K/ 96K/ 176.4K/ 192KHz @ 16/24bit
  • Analog Recording Sample Rate and Resolution: 44.1K/ 48K/ 88.2K/ 96KHz @ 16/24bit
  • S/PDIF Digital Output: 44.1K/ 48K/ 88.2K/ 96K/ 176.4K/ 192KHz @ 16/24bit
  • ASIO 2.2 Driver Support : 44.1K/ 48K/ 96K/ 192KHz @ 24/32bit
• Connectivity:
  • Analog Output: 5x 3.5mm jack (1/8") (Headphone out / Front out/ Side out/ Center-Subwoofer out/ Rear out)
  • Analog Input: 1x 3.5mm jack (1/8") (Line-in/ Mic-in combo)
  • Digital: 1x S/PDIF out (1 x Optical (Toslink))
• Special Features: Sonic Studio
• Operating System:  Windows 10/ 8.1/ 7 ( 32-bit/ 64-bit)
• Accessories:
  • 1x S/PDIF optical adaptor
  • 1x Driver CD
  • 1x Quick start guide

Available Quantity

5

UPC

889349633601

SKU

mingleXONAR AE

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: BX80684I58400
• Model: Intel Core i5-8400 Processor
• Core Name: Coffee Lake
• Core Count: 6
• Thread Count: 6
• Clock Speed: 2.8 GHz
• Max Turbo Frequency: 4.0 GHz
• Cache: 9 MB
• DMI3: 8.0 GT/s
• Lithography: 14 nm
• Socket: LGA 1151
• Max Thermal Design Power: 65 W
• Memory Type: DDR4-2666
• Processor Graphics: Intel UHD Graphics 630
• Graphics Base Frequency: 350 MHz
• Graphics Max Dynamic Frequency: 1.05 GHz
• Max CPU Configuration: 1
• Advanced Technologies:
  • Intel Optane Memory Supported
  • Intel Turbo Boost Technology 2.0
  • Intel Virtualization Technology (VT-x)
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Intel VT-x with Extended Page Tables (EPT)
  • Intel 64
  • Instruction Set 64-bit
  • Instruction Set Extensions SSE4.1/4.2, AVX2
  • Idle States
  • Enhanced Intel SpeedStep Technology
  • Thermal Monitoring Technologies
  • Intel Identity Protection Technology
  • Intel AES New Instructions
  • Secure Key
  • Intel Software Guard Extensions (Intel SGX)
  • Intel Memory Protection Extensions (Intel MPX)
  • Intel OS Guard
  • Execute Disable Bit
  • Intel Boot Guard

Available Quantity

5

UPC

735858350488

SKU

mingleBX80684I58400

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

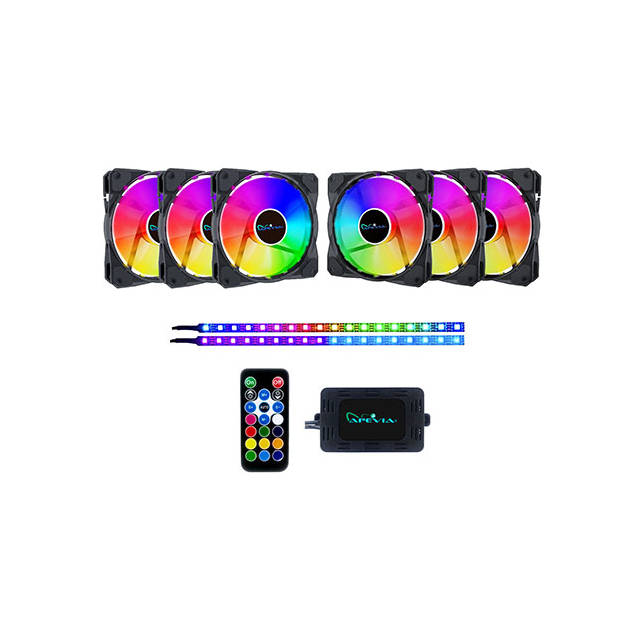

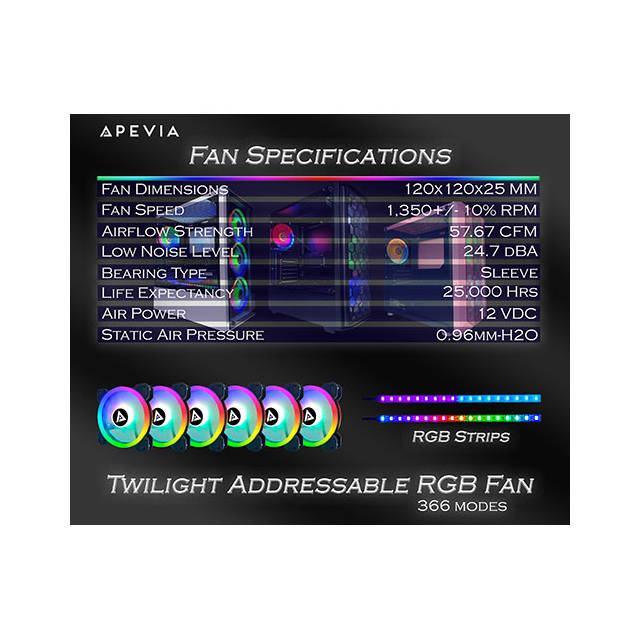

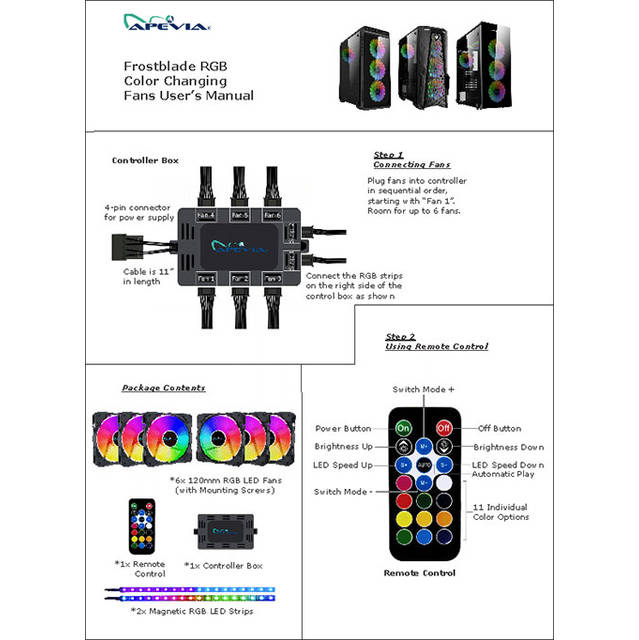

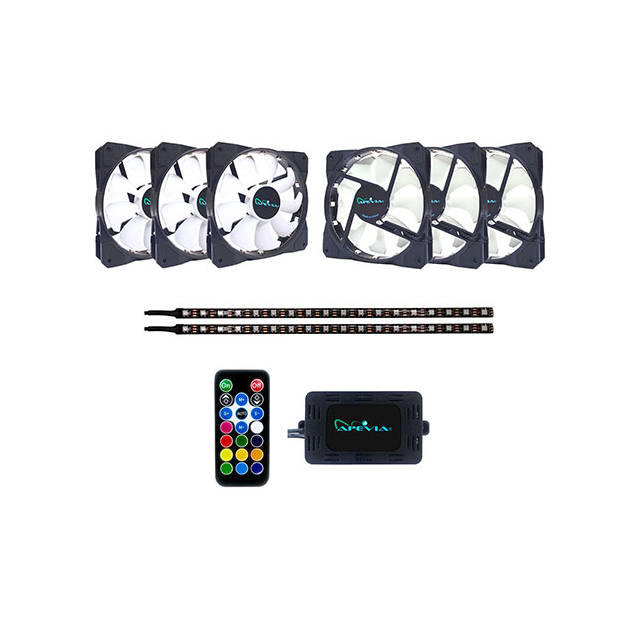

• Mfr Part Number: FR612L2S-RGB
• Material:Black PU plastic
• Fan Speed: 1350 10% RPM
• Air Power: 12 VDC
• Air Flow: 57.67 CFM
• Noise Level: 24.7 dBA
• Operation Voltage Range: 9VDC ~ 13.5 VDC
• Start-up Voltage: 9 VDC
• Rated Voltage: 12 VDC
• Rated Current: 0.2 A
• Lock Rotor Current: 0.21  A
• Static Air Pressure: 0.96mm-H2O
• Connector: 4-pin
• Life Expectation: 25,000 hours
• Dimension: 120.0 x 120.0 x 25.0 mm
• Weight: 21 lbs / carton
• Packing Retail, 10 pcs/carton

Available Quantity

5

UPC

837344006692

SKU

mingleFR612L2S-RGB

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

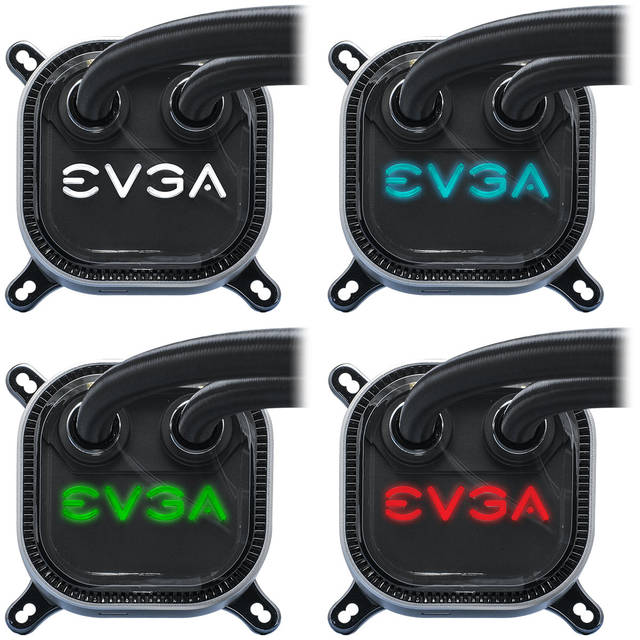

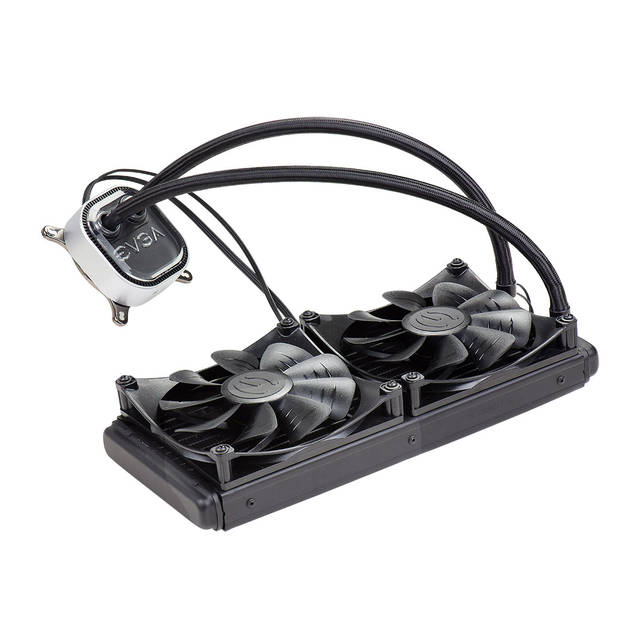

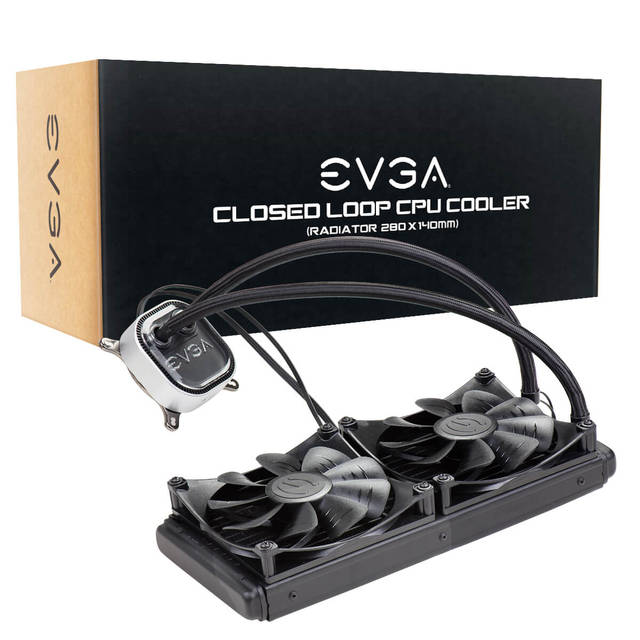

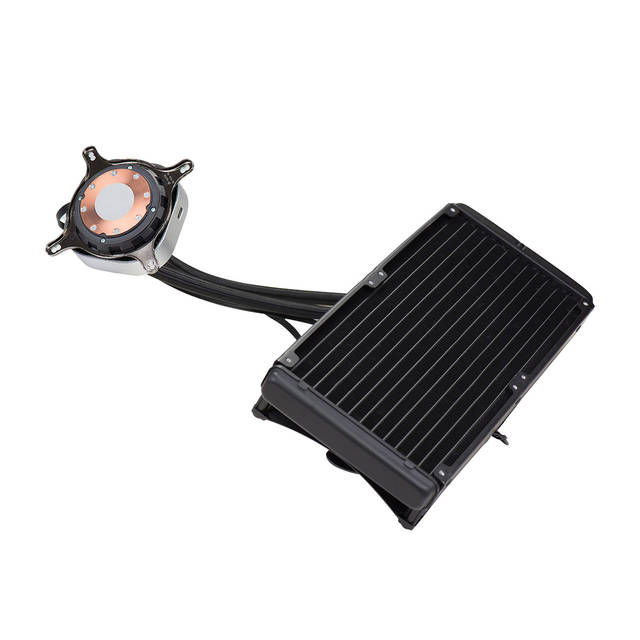

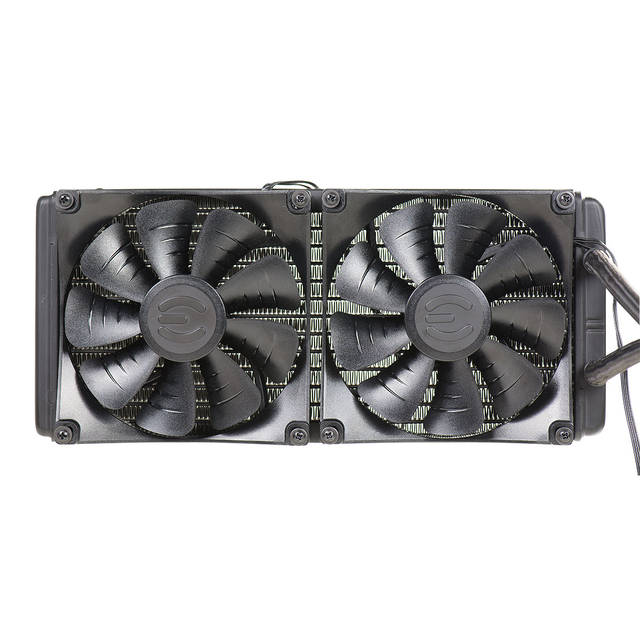

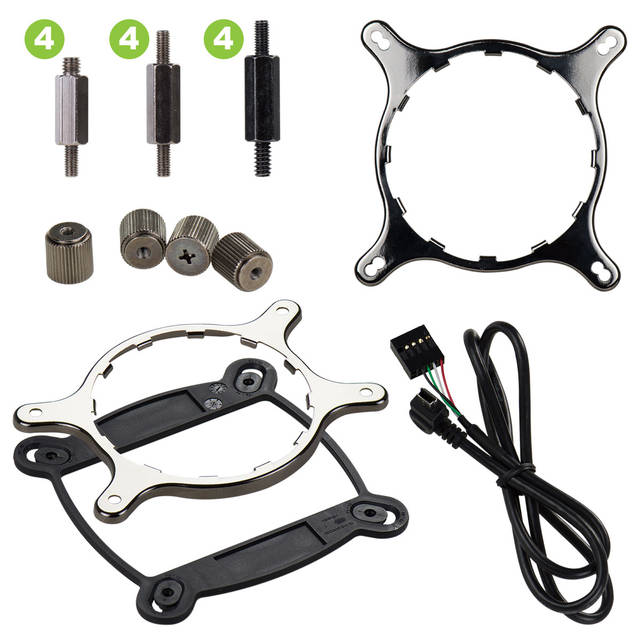

• Mfr Part Number: 400-HY-CL28-V1
• Socket Type:
  • Intel Socket: LGA2066/ 2011-v3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
  • AMD Socket: AM2/ AM3/ AM4/ FM1/ FM2/ TR4
• Waterblock:
  • 100% Copper
  • Fully controllable RGB LED
  • Noise Level: 20dB(A) (MAX)

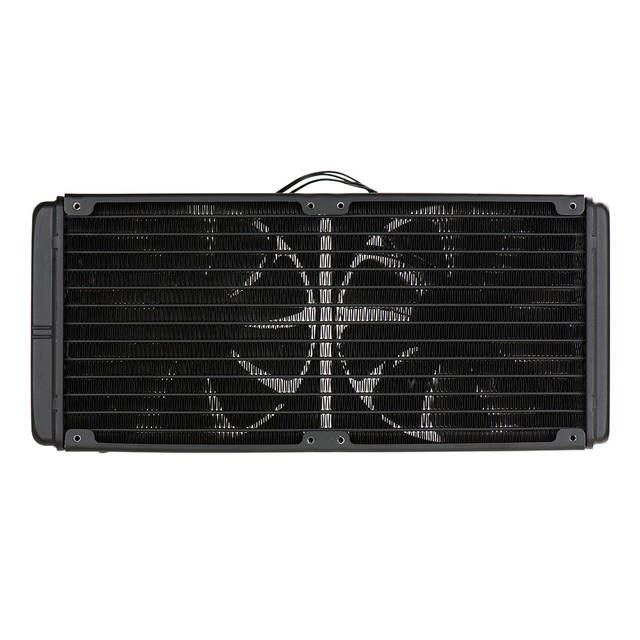

• Radiator:
  • Material: Aluminum
  • Dimensions: 280.0 x 140.0 x 27.0 mm
• Fan:
  • Teflon Nano Bearing
  • Speed: 600 ~ 2200 RPM
  • Air Flow: 113.50 CFM (Max)
  • Static Pressure: 4.20 mmAq (MAX)
  • Noise Level: 16.0 ~ 39.5 dB(A)
  • Dimensions: 140.0 x 140.0 x 25.0 mm (x2)

Available Quantity

5

UPC

843368045937

SKU

mingle400-HY-CL28-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

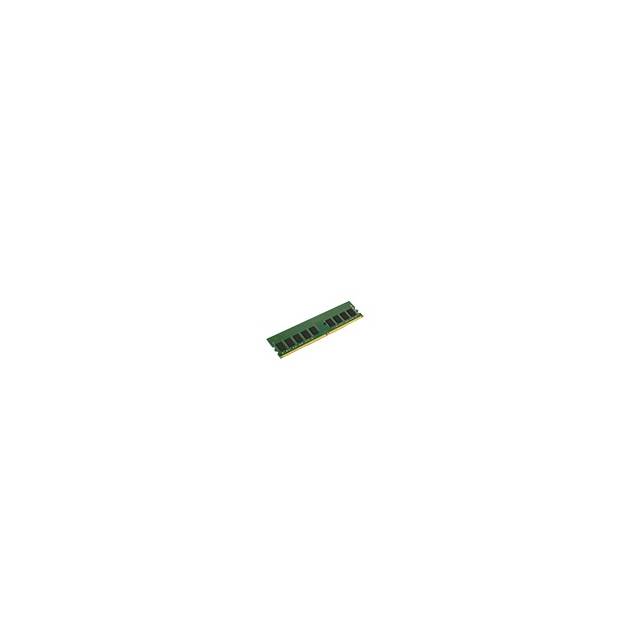

• Mfr Part Number: KSM26ED8/16HD
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 2G x 72
• Pins: 288-pin
• ECC: Yes
• Registered: No
• Dual Rank x 8
• CL19, 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleKSM26ED8/16HD

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

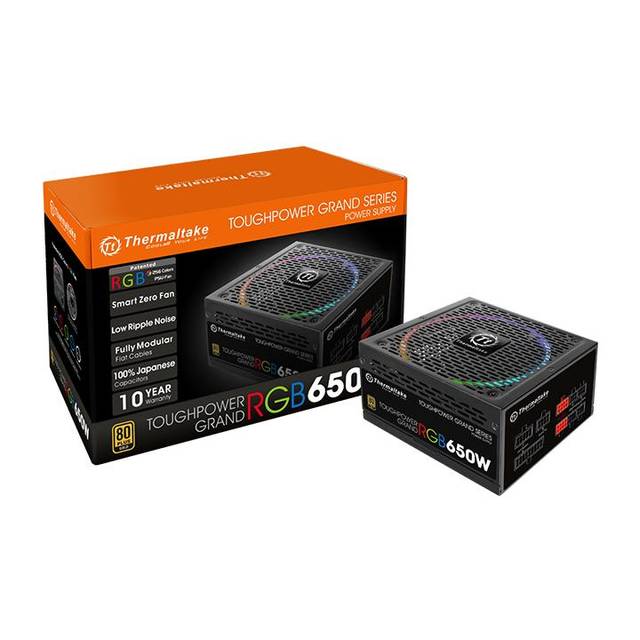

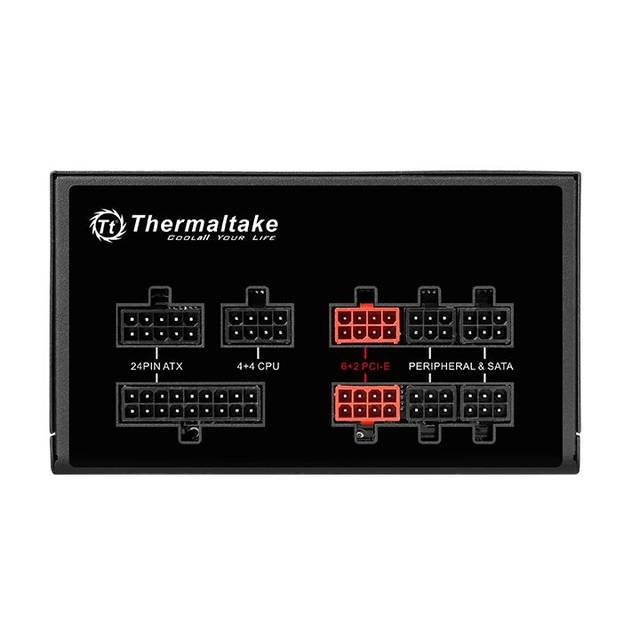

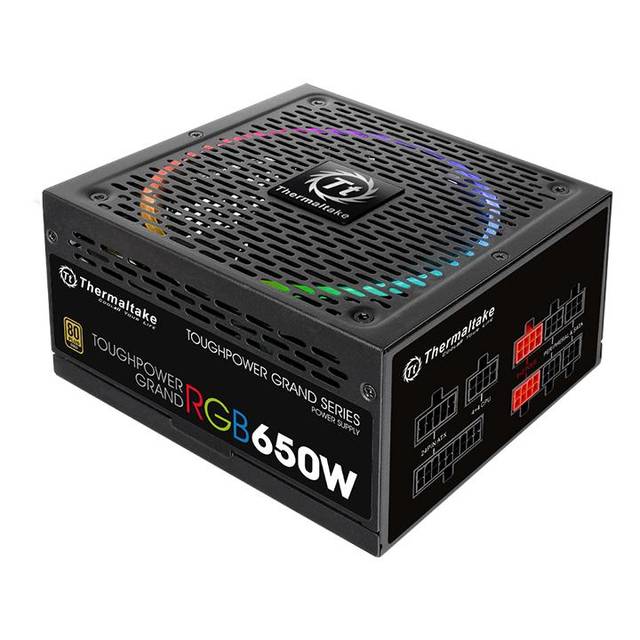

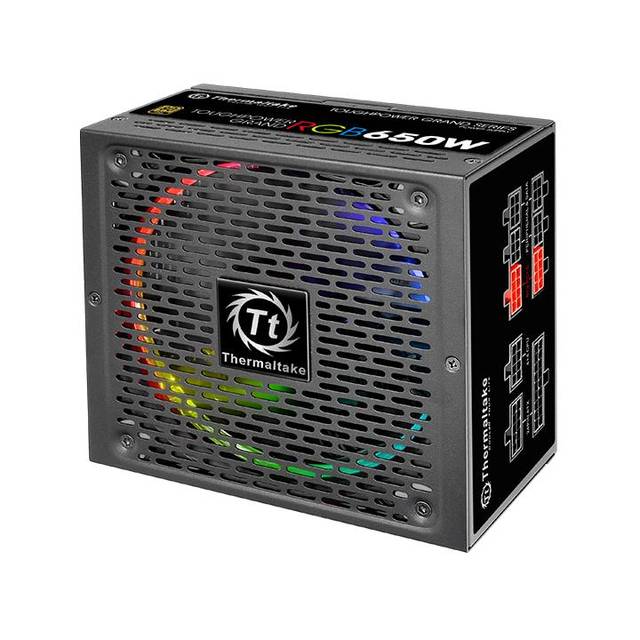

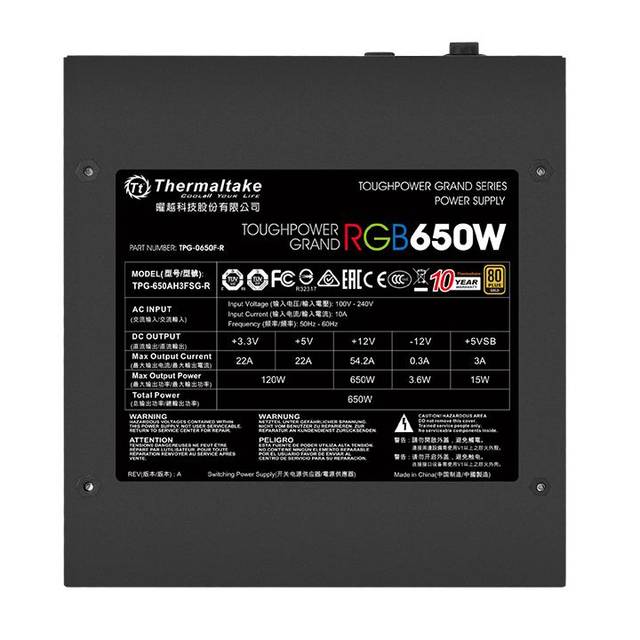

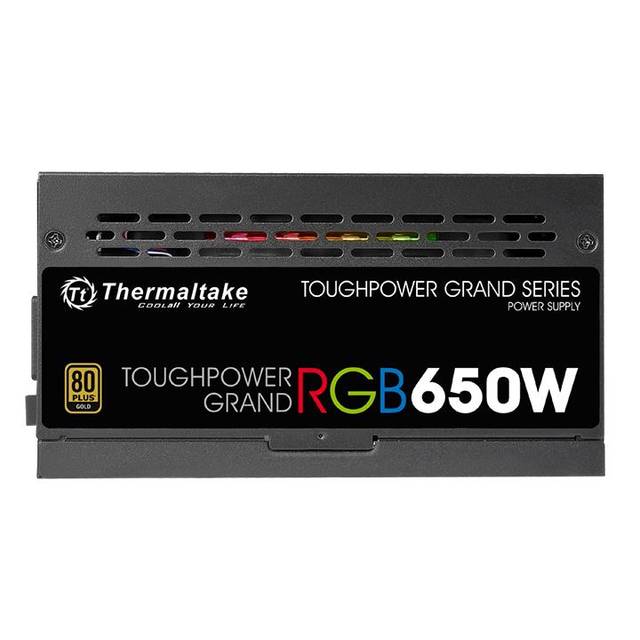

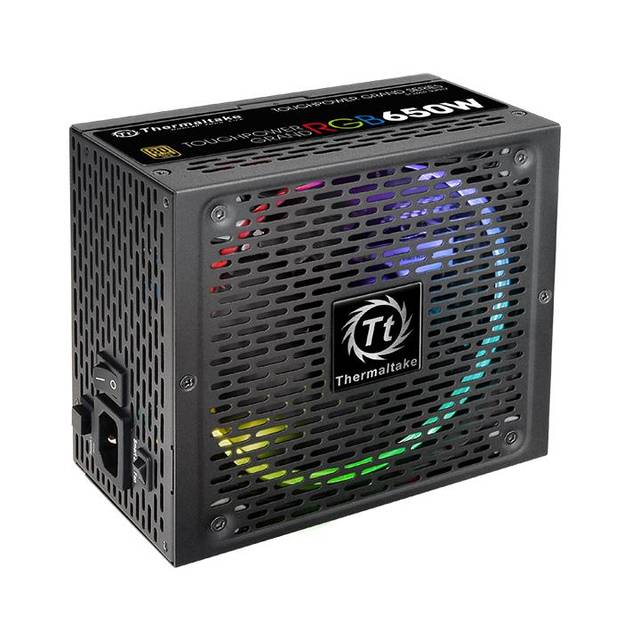

• Mfr Part Number: PS-TPG-0650FPCGUS-R

• Features:
  • Toughpower Grand RGB 650W Gold Fully Modular

  • One Button to Your Desired Color

  • Power Supply Fan Face-Up Placement for Better Cooling
  • Riing 14 RGB Fan with Concentrated Compression Fan Blade
  • Ultra Quiet Smart Zero Fan
  • < 30 mV Low Ripple Noise
  • Extremely Strict Voltage Regulation < 2%

  • 100% High Quality Japanese 105 C/221 F Capacitors

  • High Amperage Single +12V Rail & DC to DC Design

  • Fully Modular Low-Profile Flat Cable

  • 80 PLUS Gold Certified and Skylake Ready

  • RGB Lighting Provides Best Aesthetics for All Chassis

• Maximum Power: 650 Watts

• Input:
  • Voltage: 100 VAC ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz

• Form Factor: Intel ATX 12V 2.4 & EPS 12V 2.92

• Efficiency: Meet 80 PLUS Gold at 115Vac input

• Hold-up Time: > 16msec at 100% of full load

• Power Good Signal: 100 ~ 500 ms

• Power Factor Correction: Active PFC

• Fan: 140mm Hydraulic Bearing Fan

• MTBF: 120,000 hours

• Output: +3.3V @ 22A; +5V @ 22A; +12V @ 54.2A; -12V @ 0.3A; +5VSB @ 3.0A

• Connectors: 1x 24-pin Main Power Connector, 1x 4+4-pin ATX 12V Connector, 4x 6+2-pin PCI-Express Connectors, 9x 5-pin SATA Connectors, 4x 4-pin Peripheral Connectors, 1x Floppy Connector

• Safety Approval: CE, cTUVus, TUV SUD, FCC, CCC, BSMI, EAC

• Protection: OVP, SCP, OPP, UVP, OTP, OCP

• Color: Black

• Dimension (WxDxH): 150.0 x 160.0 x 86.0 mm


Available Quantity

5

UPC

841163066737

SKU

minglePS-TPG-0650FPCGUS-R

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 2DP98AA#ABC
• Capacity: 250GB
• Form Factor: 2.5 inch
• Interface: SATA 1.5 Gb/s ,3 Gb/s and 6 Gb/s
• NAND Flash: 3D TLC
• Latency: Read - 0.026ms; Write - 0.223ms
• Performance:
  • Sequential Read Speed: Up to 562 MB/s
  • Sequential Write Speed: Up to 516 MB/s
  • 4K Random Read Speed: Up to 85K IOPS
  • 4K Random Write Speed: Up to 90K IOPS
• MTBF: 2.0 Million Hours
• Power Consumption:
  • Idle: 340 mW (typ)
  • Max: 1.38 W (typ)
• Shock:
  • Operating: 100 G/6 msec
  • Non-operating: 100 G/6 msec
• Vibration:
  • Operating: 3.1G RMS (2-500 Hz)
  • Non-operating: 3.1G RMS (2-500 Hz)
• Temperature: 0 C to 70 C (Operating); -4 C to 85 C (Non-Operating)
• Thickness: 7 mm
• Dimensions: 100.2 x 69.8 mm
• Weight: 80.0 g

Available Quantity

5

UPC

191628457236

SKU

mingle2DP98AA#ABC

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

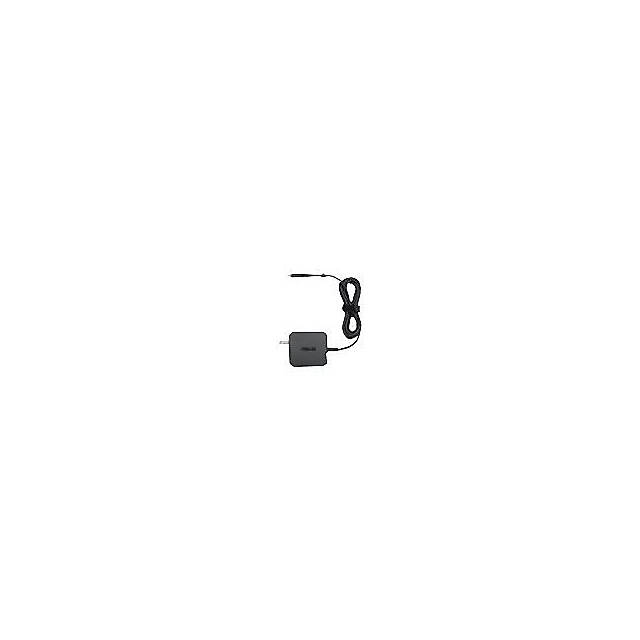

• Mfr Part Number: 90XB05TN-MPW010
• Features:
  • Plug:  4.0mm 45W
  • Weight: 0.3lbs
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Available Quantity

5

UPC

192876150368

SKU

mingle90XB05TN-MPW010

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

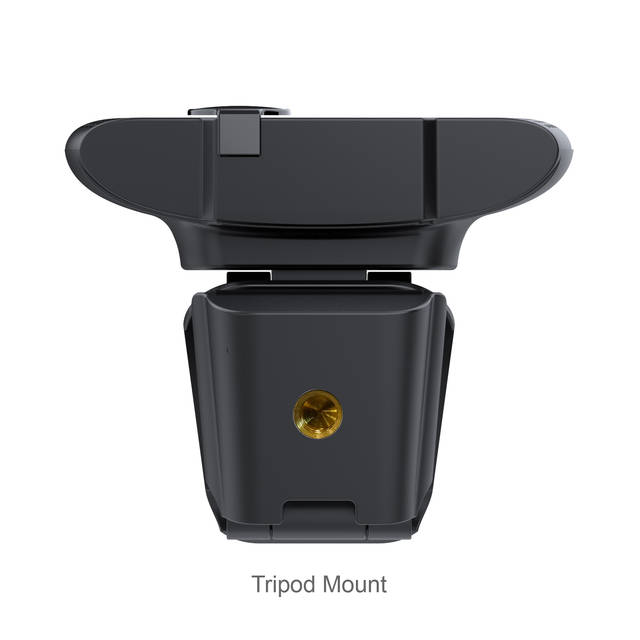

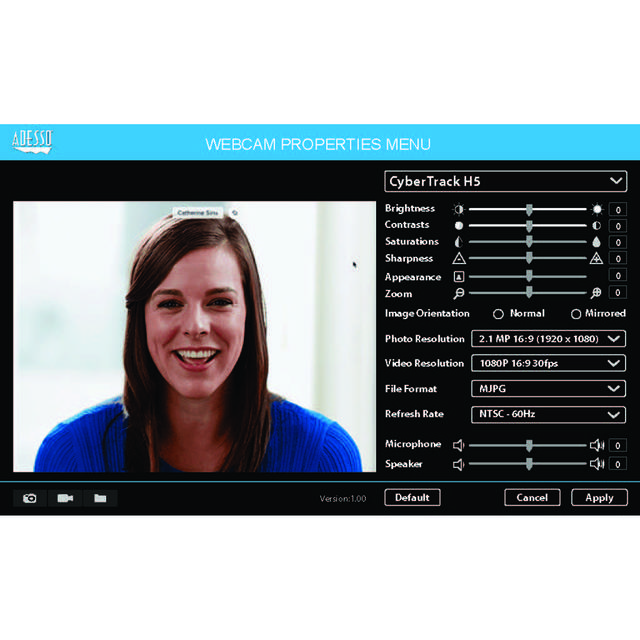

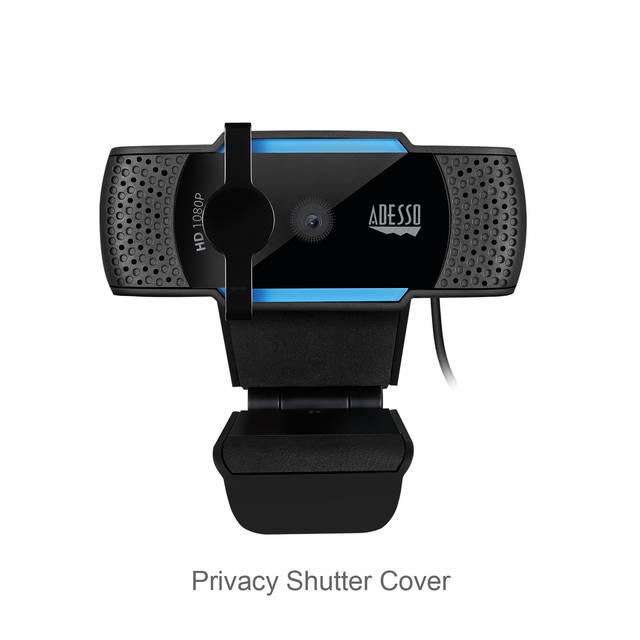

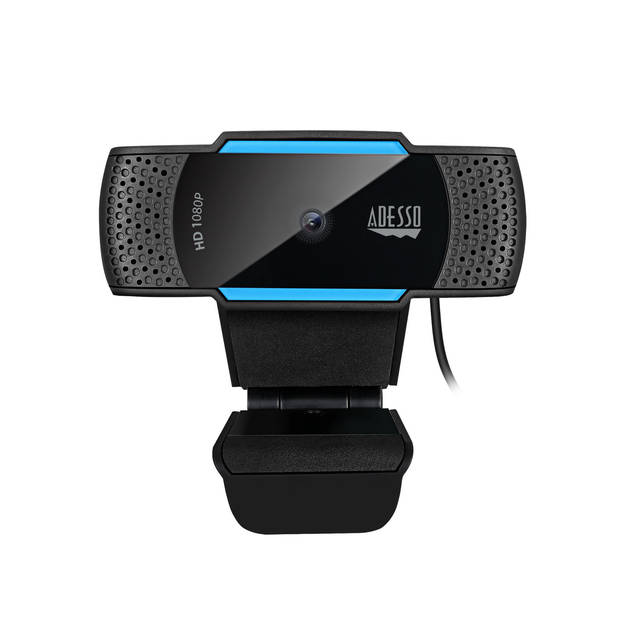

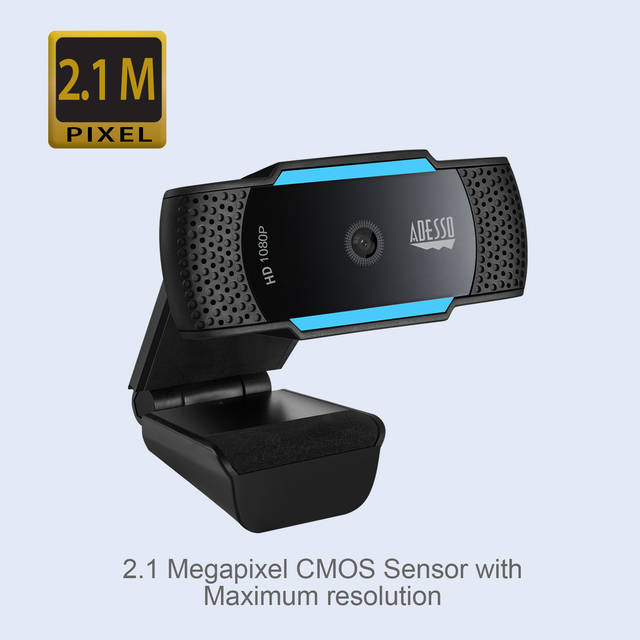

• Mfr Part Number: CYBERTRACK H5
• Features:
  • Auto Focus 1080P High Definition
  • H.264 Advanced Video Compression
  • 2.1 Megapixel CMOS Sensor with Maximum resolution
  • Built-In Dual Microphone with Noise Cancellation
  • Privacy Shutter Cover & Tripod Mount
• Image Sensor: 2.1 Megapixels CMOS Color Sensor
• Resolution: 1920 x 1080
• File Format: H.264, YUY2, MJPG
• Interface: USB 2.0
• Frame Rate: 30 fps
• Dynamic Range: >72db
• Focus: AutoFocus
• Features: Saturation, Contrast, Acutance, White Balance, Exposure
• Dimensions: 2.17 x 2.17 x 1.97 inches
• Weight: 84g

Available Quantity

5

UPC

783750010788

SKU

mingleCYBERTRACK H5

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

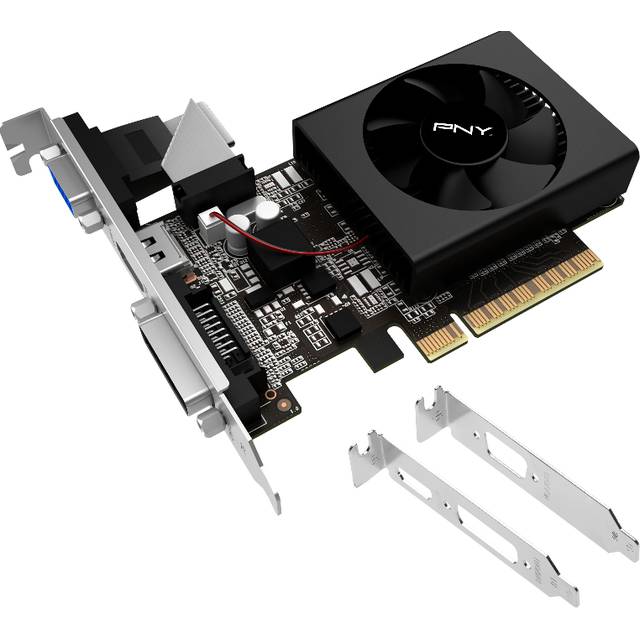

• Mfr Part Number: VCGGT7102XPB
• Chipset: NVIDIA GeForce GT 710
• Core Clock: 954 MHz
• Video Memory: 2GB DDR3
• Memory Clock: 1.6 Gbps
• Memory Interface: 64-bit
• Memory Bandwidth: 12.8 GB/s
• Bus: PCI-Express 2.0 x8
• CUDA Cores: 192
• RAMDAC: 400 MHz
• Max Resolution: 3840 x 2160 (Digital), Support 3x Display Monitors
• Connectors: DVI-D Dual Link, HDMI, VGA
• Thermal: Fansink
• Dimensions (LxH): 4.500 x 2.713 inch (Low Profile & Single-slot)
• This Video Card Supports:
  • Microsoft Windows 10/ 8/ 7/ Vista (32 or 64-bit)
  • NVIDIA PhysX technology
  • NVIDIA Adaptive Vertical Sync
  • NVIDIA FXAA Technology
  • NVIDIA CUDA Technology
  • Microsoft DirectX 12, OpenGL 4.5 and OpenCL
• Minimum 300W or Greater System Power Supply
• Low Profile Design

Available Quantity

5

UPC

751492591704

SKU

mingleVCGGT7102XPB

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

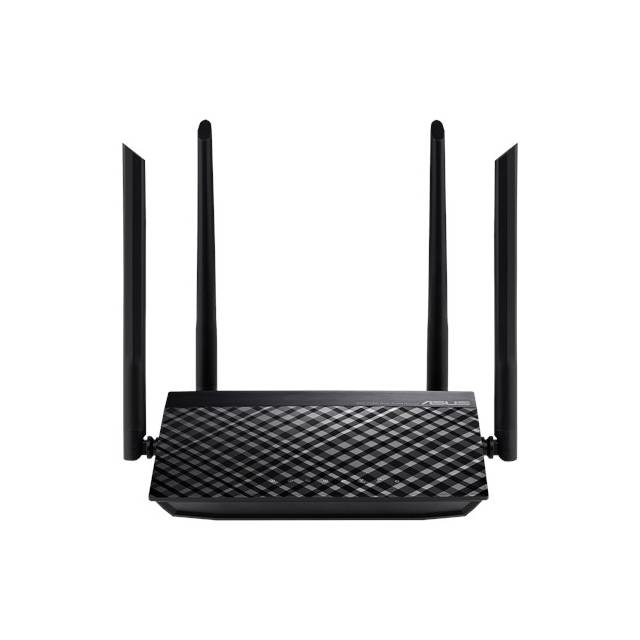

• Mfr Part Number: RT-AC1200_V2
• Features:
  • Concurrent 300 Mbps(2.4GHz) and 867 Mbps (5GHz) throughput for high-speed wireless performance.

  • Enjoy the ASUSWRT dashboard UI for easy setup and manage your router.

  • Improved coverage and multi-device performance with four external antennas two each for the 2.4 GHz and 5 GHz bands.

  • Advanced parental control helps you protect your children from Internet addiction. You can restrict the times that each device can access the internet by applying scheduled time limits.

  • ASUS Router App makes your connected life easier!

  • Dual WAN function can connect two WAN connections at the same time, to avert network downtime that is caused by ISP.
• Network Standard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
• Data Rate:
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n: up to 300 Mbps
  • 802.11ac: up to 867 Mbps
• Antenna: 4x External dBi Antennas
• Operating Frequency: 2.4GHz / 5GHz
• Encryption: 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
• Firewall & Access Control:
  • Firewall: SPI intrusion detection, DoS protection
  • Access Control: Parental control, Network service filter, URL filter, Port filter
• Management: UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, DMZ, System Event Log
• Ports: 4x RJ45 for 10/100 BaseT for LAN, 1x RJ45 for 10/100 BaseT for WAN
• Button: WPS Button, Reset Button, Power Button
• LED Indicator: 1x Power, 2x Wi-Fi, 4x LAN, 1x WAN
• Power Supply:
  • AC Input: 110V~240V (50~60Hz)
  • DC Output: 12 V with max. 0.5 A current
• OS Support:
  • Windows 10/ 8.1/ 8/ 7/ XP/ ME
  • Mac OS X 10.6/ 10.7/ 10.8/ 10.9  or above
• Dimensions (WxDxH): 177.0 x 126.0 x 34.0 mm
• Weight: 271.0 g
• Package Contents: RT-AC1200 V2 Wi-Fi Router, RJ-45 Cable, Power Adapter, Warranty Card, Quick Start Guide
• All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers

Available Quantity

5

UPC

192876392751

SKU

mingleRT-AC1200_V2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

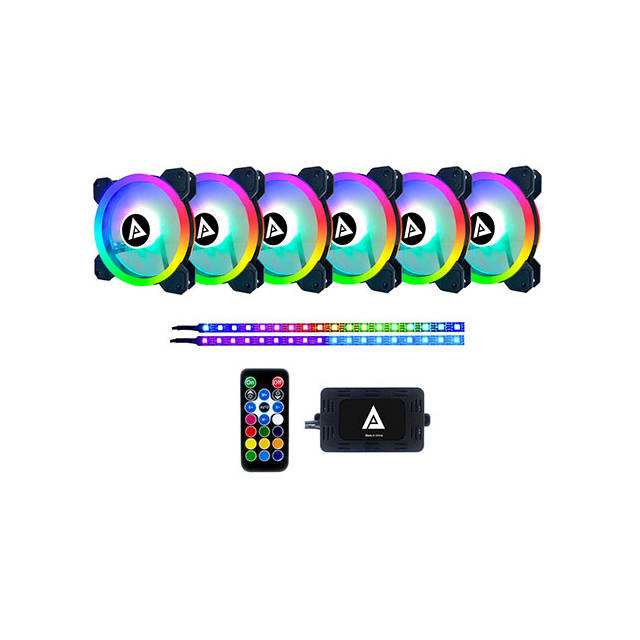

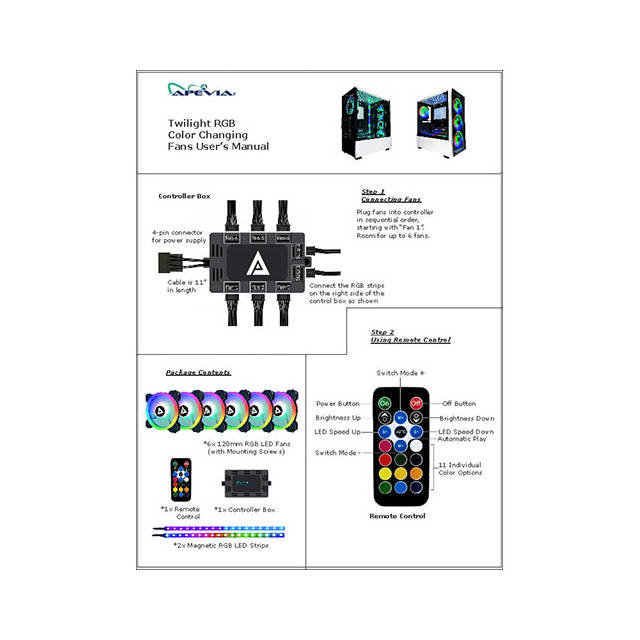

• Mfr Part Number:TL612L2S-RGB
• Fan Speed : 1350 10% RPM
• Air Power : 12 VDC
• Noise Level : 24.7 dBA
• Operation Voltage Range : 9 VDC ~ 13.5 VDC
• Start-up Voltage : 9 VDC
• Rated Voltage : 12 VDC
• Rated Current : 0.20 A
• Lock Rotor Current : 0.21 A
• Air Flow : 57.67CFM
• Static Air Pressure : 0.96mm-H2O
• Connector : 4-pin
• Life Expectancy : 25,000 hours
• Packing : Retail, 10 pcs/carton
• Weight : 24 lbs/carton
• Cu'ft : 2.00

Available Quantity

5

UPC

837344006968

SKU

mingleTL612L2S-RGB

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

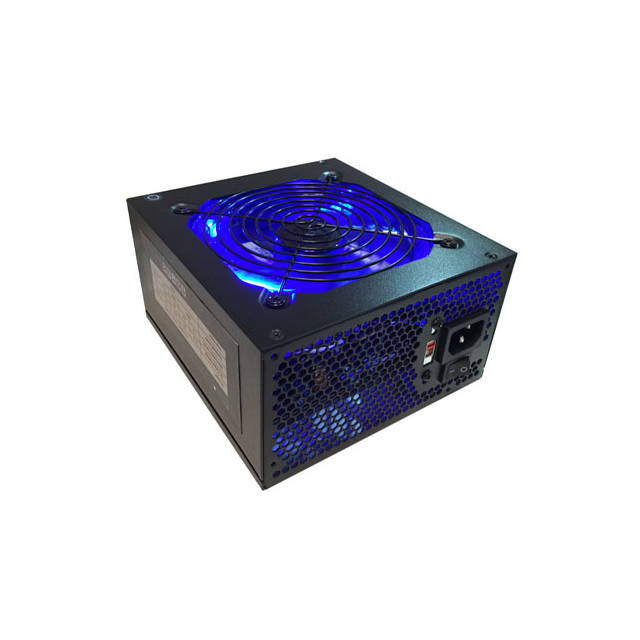

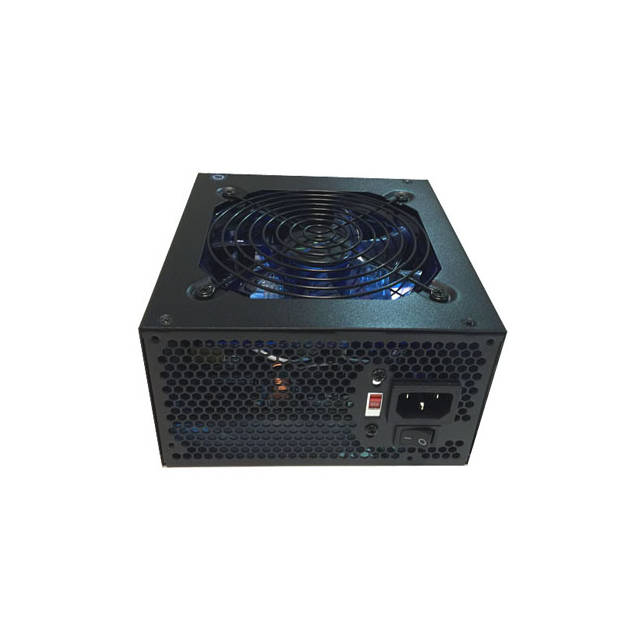

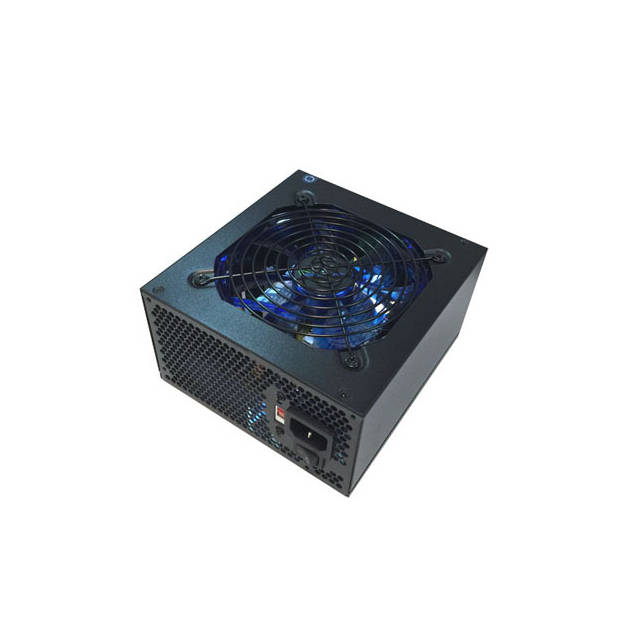

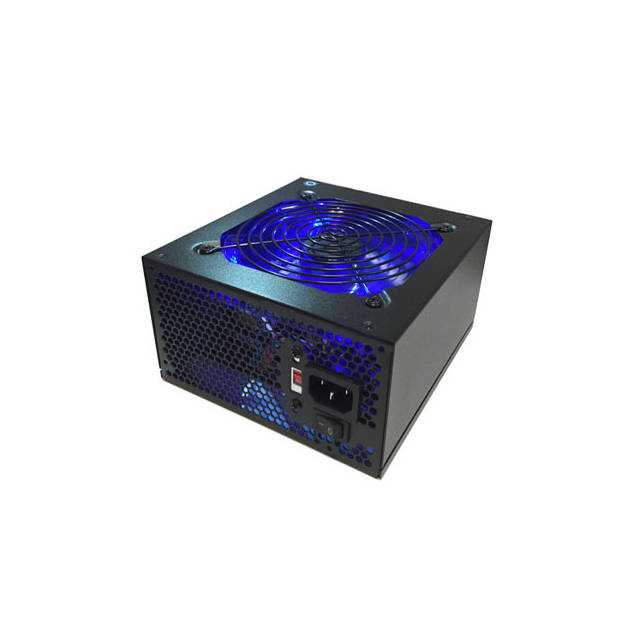

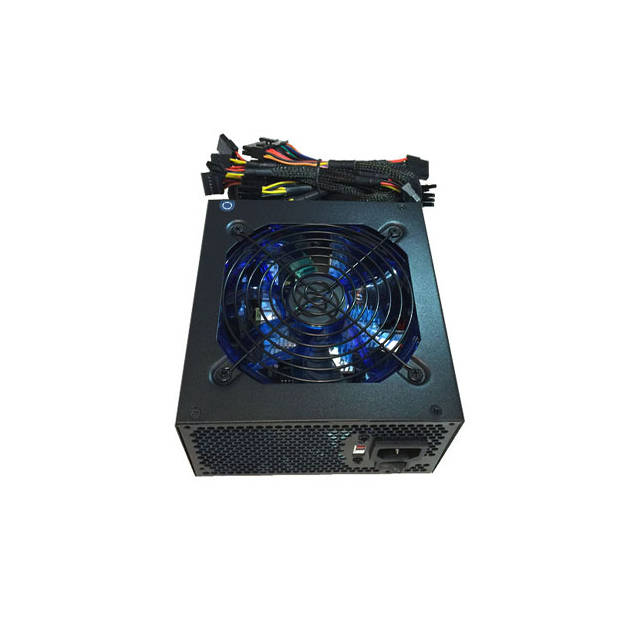

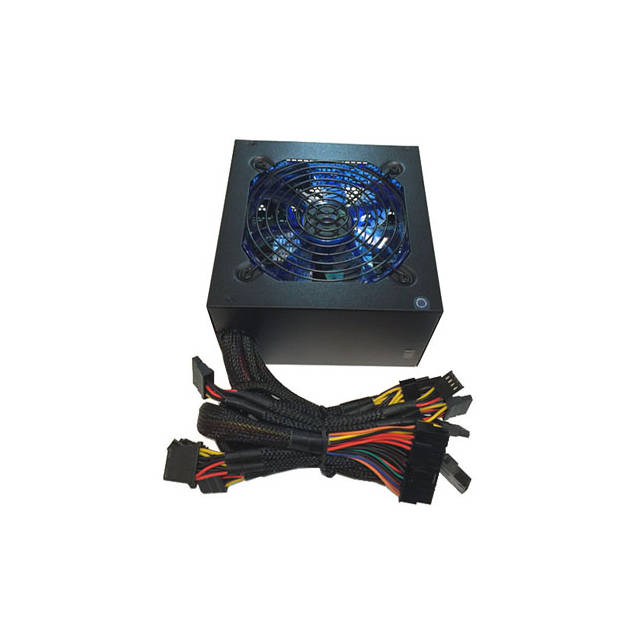

• Mfr Part Number: ATX-BT650W

• Features:
  • 650W Power with 12cm blue LED fan

  • High stability with 5% tolerance of 5V, 3.3V & 12V output

  • High quality components and housing

  • Low noise auto-thermally control 120mm fan

  • Supports single 12v output for higher power usage
  • Supports SLI, Crossfire & Haswell

  • Supports Dual/Quad Core CPUs

  • Supports ATX 12v 2.3 version
• Maximum Power: 650 W

• Input:
  • Voltage Range: 115 - 230V
  • Frequency: 50 - 60Hz

  • Current: 8A for 115VAC, 4A for 230VAC
• Type: ATX 12v 2.3

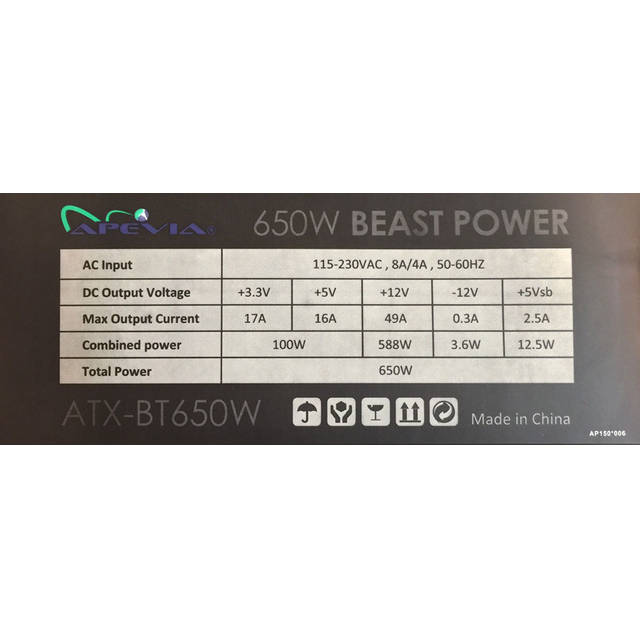

• Output: +3.3V @ 17A, +5V @ 16A, +12V @ 49A, -12V @ 0.3A, +5Vsb @ 2.5A

• Connectors: 1x 20/24pin Main Connector, 1x 4/8pin ATX 12V & EPS Connector, 2x 6+2pin PCI Express Connectors, 4x SATA Connectors, 4x Peripheral Connectors, 1x Floppy Connector

• Fan: Forced air ventilation by 1 x 120mm blue LED fan

• Color: Black sandblasting coated case

• Dimensions (WxLxH): 5.9 x 6.2 x 3.4 inch / 150.0 x 158.0 x 86.0 mm

• Weight: 3.5 lbs

Available Quantity

5

UPC

837344004599

SKU

mingleATX-BT650W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

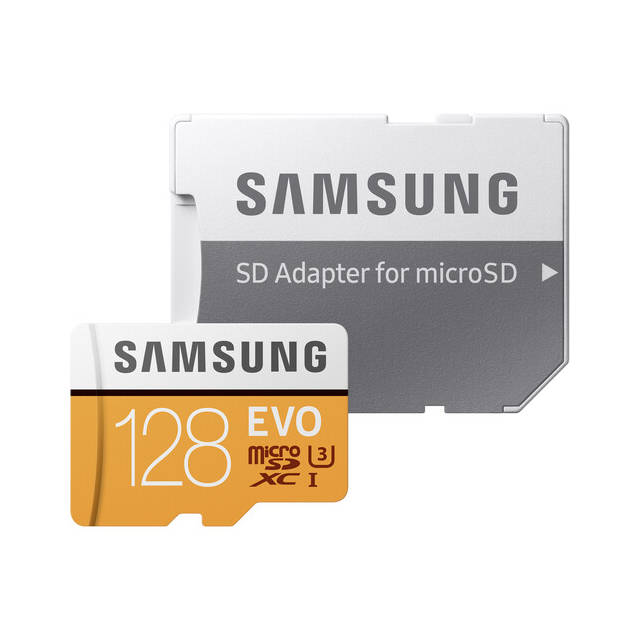

• Mfr Part Number: MB-MP128HA/AM
• Features:
  • Up to 100MB/s Transfer speed with Class 10 and U3 compatibility
  • Includes Full-Size SD Adapter
  • Excellent performance for 4K UHD video and broad compatibility across multiple applications
• Capacity: 128 GB
• Speed: Up to 100MB/s transfer speed with UHS-I interface
• Speed Class: Grade 3, Class 10
• Family Line: EVO
• Interface: UHS-I, compatible to HS interface
• Accessory: SD adapter
• Application: Mobile phone, Smartphone, Tablet, etc
• Operating Voltage: 2.7~3.6V
• Storage Temperature: -40 to 85
• Operating Temperature: -25 to 85 C
• Durability: 10,000 mating cycles
• Certification: FCC, CE, VCCI, RCM
• Dimensions(WxHxD): 0.59" x 0.43" x 0.04"
• Weight: Approx. 0.25g

Available Quantity

5

UPC

887276373317

SKU

mingleMB-MP128HA/AM

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

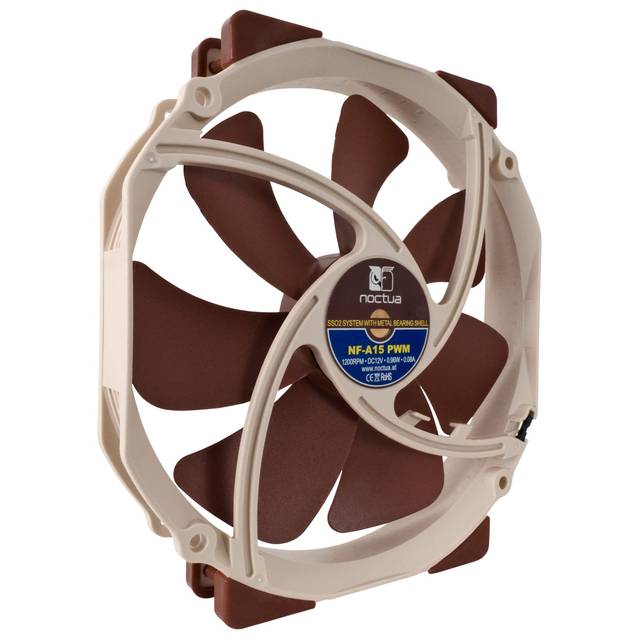

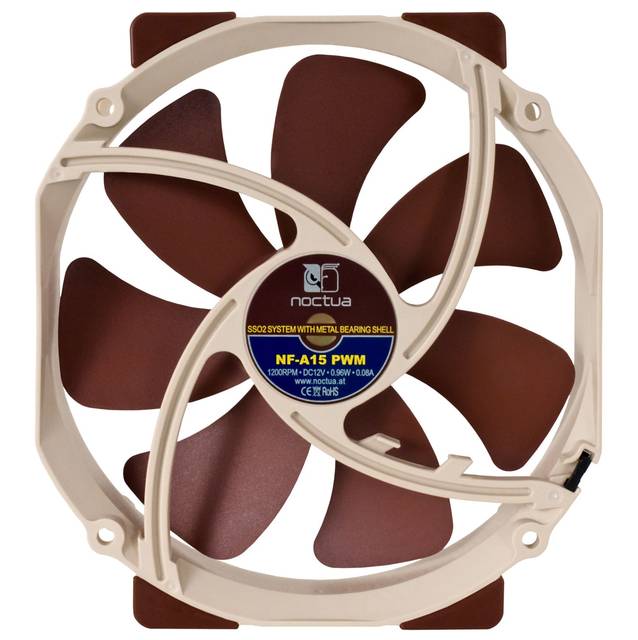

• Mfr Part Number: NF-A15 PWM
• Mounting hole spacing: 105x105 mm
• Connector & pin-configuration: 4-pin PWM
• Cable length: 20cm + 30cm NA-EC1 extension cable
• Bearing: SSO2
• Blade geometry: A-Series with Flow Acceleration Channels
• Frame technology: AAO (Advanced Acoustic Optimisation)
• Rotational Speed (+/- 10%): 1200 RPM
• Rotational Speed with L.N.A. (+/- 10%): 900 RPM
• Min. rotational speed (PWM, +/-20%): 300 RPM
• Airflow: 115.5 m /h
• Airflow with L.N.A.: 88.7 m /h
• Acoustical Noise: 19.2 dB(A)
• Static pressure: 1.51 mm H O
• Static pressure L.N.A.: 0.89 mm H O
• Max. input power: 0.96 W
• Max. input current: 0.08 A
• Operating Voltage : 12 V
• MTTF: > 150.000 h
• Scope of delivery:
  • Low-Noise Adaptor (L.N.A.)
  • 4-Pin Y-Cable
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
• Size: 140x150x25 mm
• Warranty: 6 Years
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
