Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

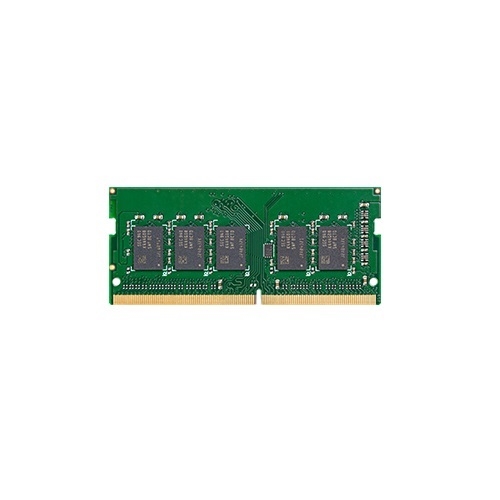

Synology Memory D4ES01-16G 16GB DDR4 ECC Unbuffered SODIMM Retail
Detail Specifications
16GB DDR4 ECC Unbuffered SODIMM
Applied Models:
22 series:DS3622xs+, DS2422+
Item Dimension (L inchxW inchxH inch)
2 x 4 x 1

Weight
1.00 lb

Warranty Information
5 Years

Available Quantity

5

UPC

846504004409

SKU

mingleD4ES01-16G

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

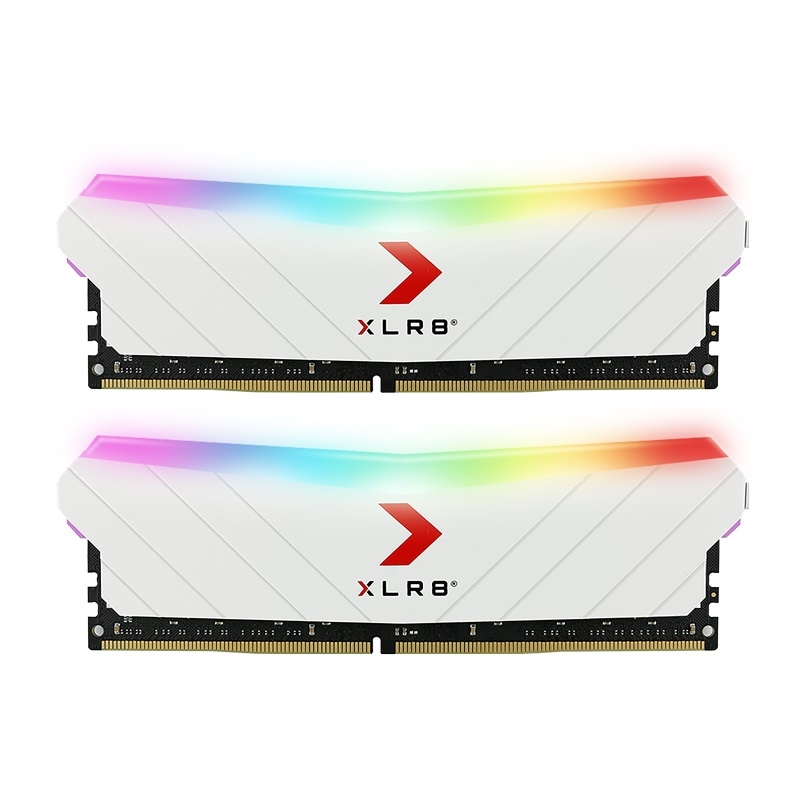

UNPARALLELED PERFORMANCE MEETS RADIANT RGB STYLE
A PNY XLR8 Gaming EPIC-X RGB Memory Upgrade offers a brilliant RGB design combined with extreme overclocked performance, taking your PC to the extreme. Not only can you destroy the competition, but your system can look good while doing so. PNYs premium XLR8 modules combine top-tier components and select ICs for aggressive speed, low latency, bullet-proof reliability, and the extreme overclocking capabilities that serious gamers demand. Overclocking is made easier with Intel XMP compatibility. Customize your PCs color and lighting effects, without the need for additional cables or connectors using the supported Asus Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome Sync software.
For more than 30 years, PNY has been rigorously sourcing, testing, and manufacturing memory upgrades for thousands of the most popular PC platforms. Get your custom PC dressed and ready for battle with an XLR8 Gaming EPIC-X RGB DDR4 3600MHz CL18 upgrade from PNY and watch the world blaze.
DDR4 3600MHz Performance
PNYs premium XLR8 memory features our most aggressive speeds, highest bandwidth, lowest latency and power consumption, and most advanced thermal performance for maximum PC stability and responsiveness during memory-intensive gaming and application use. PNY XLR8 DDR4 memory modules are rigorously engineered and tested to ensure peak performance in even the most challenging gaming environments.
Item Dimension (L"xW"xH")
10 x 7 x 3

Weight
2 lbs

Warranty Information
Lifetime

Available Quantity

5

UPC

751492641522

SKU

mingleMD16GK2D4360018XWRGB

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Kingston's KSM32ED8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Dual-rank

On-board I2 serial presence-detect (SPD) EEPROM

Temperature sensor with integrated SPD

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
https://www.kingston.com/dataSheets/KSM32ED8_16HD.pdf
UL Rating
94 V - 0
Operating Temperature
0 ^o C to +85 ^o C
Storage Temperature
-55 ^o C to +100 ^o C
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00 lb

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617312225

SKU

mingleKSM32ED8/16HD

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

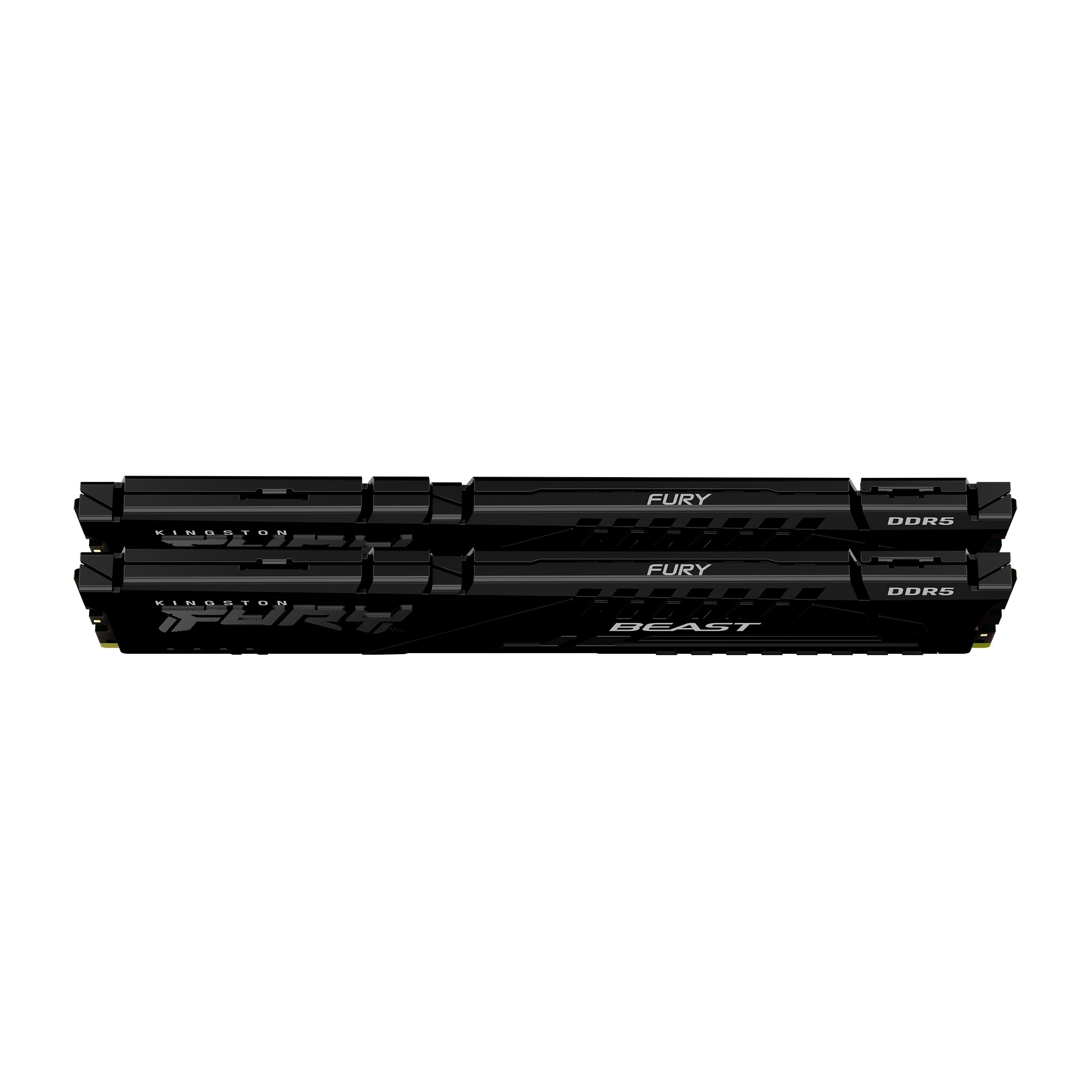

Kingston FURY Beast DDR5 Memory
16GB capacities up to 5200MHz
Kingston FURY Beast DDR5 memory brings the latest cutting-edge technology for next-gen gaming platforms. Taking speed, capacity and reliability even further, DDR5 arrives with an arsenal of enhanced features, like on-die ECC (ODECC) for improved stability at extreme speeds, dual 32-bit subchannels for increased efficiency and an on-module power management integrated circuit (PMIC) to provide juice where its needed most.
Superior speed advancements with double the banks from 16 to 32 and double the burst length from 8 to 16 take DDR5 memory, your gaming experience and your overall system applications to the next level of performance.
Whether youre pushing the limits in your gaming with the most extreme settings, live streaming at 4K+ or pushing large animations and 3D rendering, Kingston FURY Beast DDR5 memory is the level-up needed, while seamlessly bridging style and unleashing performance.
Additionally, it utilises Intel XMP 3.0, a new overclock spec that includes two customisable profiles for speeds and timings.
Features
Greater performance starting at 4800MHz
Improved stability for overclocking
Increased efficiency
Intel XMP 3.0-Ready and Certified
Qualified by the worlds leading motherboard manufacturers
Plug N Play at 4800MHz
Low-profile heat spreader design
Capacities
Kits of 2 32GB
Frequencies
5200MHz
Latencies
CL40
Voltage
1.1V, 1.25V
Operating temperature
0^oC to 85^oC
Item Dimension (L"xW"xH")
6 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime

Available Quantity

5

UPC

740617324358

SKU

mingleKF552C40BBK2-32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

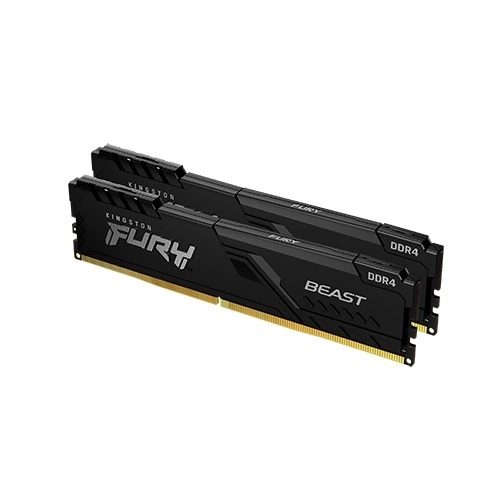

KF432C16BBK2/16

16GB (8GB 1G x 64-Bit x 2 pcs.)

DDR4-3200 CL16 288-Pin DIMM Kit

DESCRIPTION

FURY KF432C16BBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V

XMP Profile #1: DDR4-3200 CL16-18-18 @ 1.35V

XMP Profile #2: DDR4-3000 CL15-17-17 @ 1.35V
CL(IDD)
17 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617319903

SKU

mingleKF432C16BBK2/16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

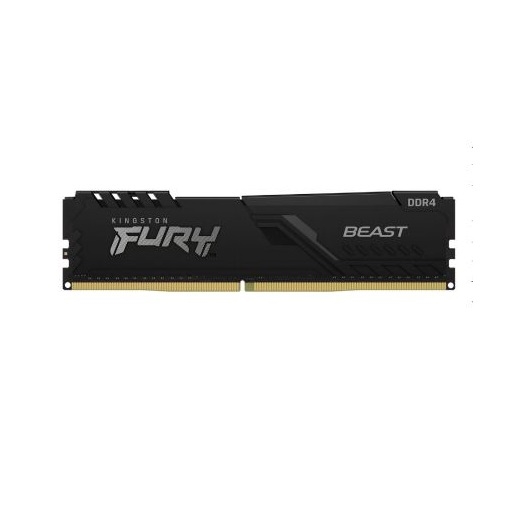

KF432C16BB/8

8GB 1G x 64-Bit

DDR4-3200 CL16 288-Pin DIMM

DESCRIPTION

FURY KF432C16BB/8 is a 1G x 64-bit (8GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V

XMP Profile Number 1: DDR4-3200 CL16-18-18 @ 1.35V

XMP Profile Number 2: DDR4-3000 CL15-17-17 @ 1.35V
CL(IDD)
17 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617319910

SKU

mingleKF432C16BB/8

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

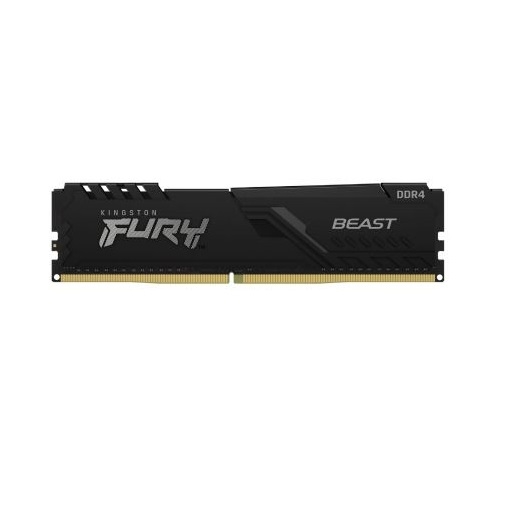

KF432C16BB/32

32GB 4G x 64-Bit

DDR4-3200 CL16 288-Pin DIMM

DESCRIPTION

FURY KF432C16BB/32 is a 4G x 64-bit (32GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V

XMP Profile #1: DDR4-3200 CL16-20-20 @ 1.35V

XMP Profile #2: DDR4-3000 CL16-19-19 @ 1.35V
CL(IDD)
17 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617319828

SKU

mingleKF432C16BB/32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

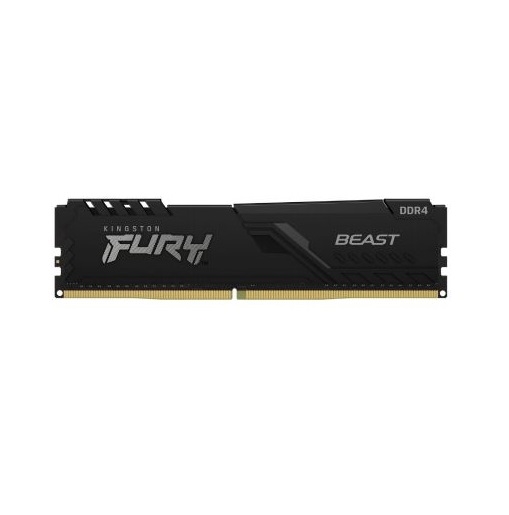

KF432C16BB/16

16GB 2G x 64-Bit

DDR4-3200 CL16 288-Pin DIMM

DESCRIPTION

FURY KF432C16BB/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V

XMP Profile #1: DDR4-3200 CL16-20-20 @ 1.35V

XMP Profile #2: DDR4-3000 CL16-19-19 @ 1.35V
CL(IDD)
17 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617319859

SKU

mingleKF432C16BB/16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

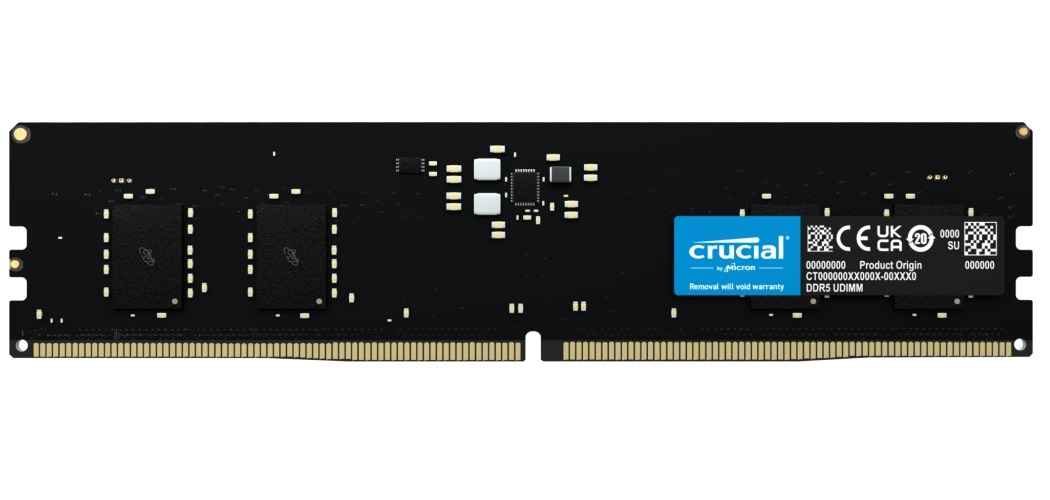

Faster load times and file transfers
Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time. Due to higher bus efficiency, DDR5 technology is not just faster than the previous generation, its better.
More responsive multitasking
Crucial DDR5 offers 50% faster speeds than DDR4 at launch, empowering users with extreme performance right out of the box. Even more impressive, Crucial DDR5 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever.
Extreme innovation for stable performance
Crucial DDR5 takes an extreme step forward in engineering over the previous generation with two independent 32-bit channels per module for optimized performance. Designed with on-die ECC (ODECC) at the component level for long-term stability, Crucial DDR5 is engineered to maintain the same reliability as the previous generation, even with the rigorous demands of next-gen computing.
Optimized power efficiency
For improved efficiency and stability, Crucial DDR5 introduces on-module voltage regulation with a power management integrated circuit (PMIC), which was on the motherboard with older memory technologies. This results in improved signaling and cleaner power for the modules (DIMMs). Moreover, DDR5s on-module operating voltage is only 1.1V compared to DDR4s 1.2V.
Speed
- DDR5-4800
CAS latency
- 40
DRAM family
- Crucial
Density
- 8GB
Brand
- Crucial
Module type
- UDIMM
Extended timings
- 40-39-39
Technology
- DDR5
Voltage
- 1.1V
PC speed
- PC5-38400
Kit Qty
1
Specs
- DDR5 PC5-38400
CL equal 40
Single Ranked
x16 based
Unbuffered
NON-ECC
DDR5-4800
1.1V
DIMM type
- Unbuffered
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
lifetime

Available Quantity

5

UPC

649528905611

SKU

mingleCT8G48C40U5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

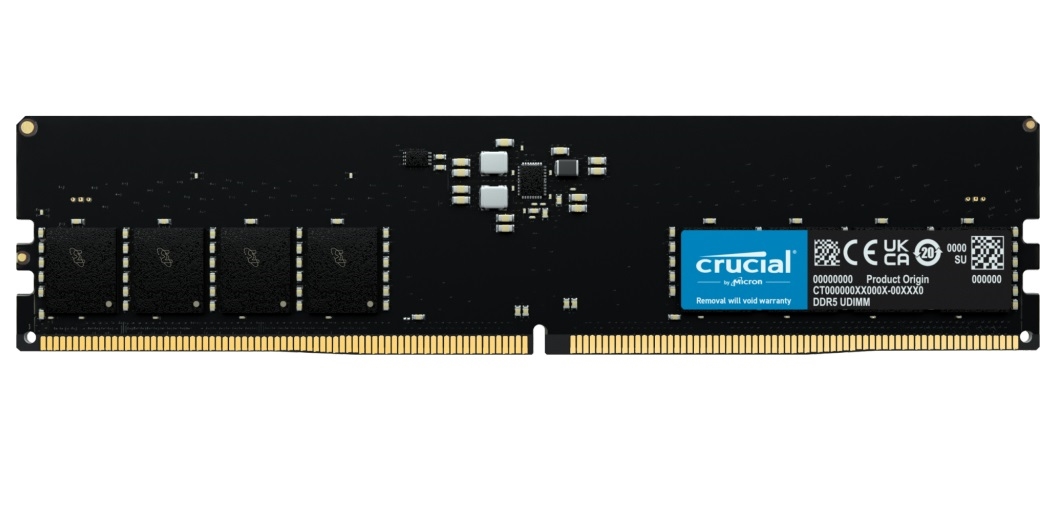

Product Description

Faster load times and file transfers
Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time. Due to higher bus efficiency, DDR5 technology is not just faster than the previous generation, its better.
More responsive multitasking
Crucial DDR5 offers 50% faster speeds than DDR4 at launch, empowering users with extreme performance right out of the box. Even more impressive, Crucial DDR5 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever.
Extreme innovation for stable performance
Crucial DDR5 takes an extreme step forward in engineering over the previous generation with two independent 32-bit channels per module for optimized performance. Designed with on-die ECC (ODECC) at the component level for long-term stability, Crucial DDR5 is engineered to maintain the same reliability as the previous generation, even with the rigorous demands of next-gen computing.
Optimized power efficiency
For improved efficiency and stability, Crucial DDR5 introduces on-module voltage regulation with a power management integrated circuit (PMIC), which was on the motherboard with older memory technologies. This results in improved signaling and cleaner power for the modules (DIMMs). Moreover, DDR5s on-module operating voltage is only 1.1V compared to DDR4s 1.2V.
Speed
- DDR5-4800
CAS latency
- 40
DRAM family
- Crucial
Density
- 32GB
Brand
- Crucial
Module type
- UDIMM
Extended timings
- 40-39-39
Technology
- DDR5
Voltage
- 1.1V
PC speed
- PC5-38400
Kit Qty
1
Specs
- DDR5 PC5-38400
CL equal 40
Dual Ranked
x8 based
Unbuffered
NON-ECC
DDR5-4800
1.1V
DIMM type
- Unbuffered
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
lifetime

Available Quantity

5

UPC

649528905635

SKU

mingleCT32G48C40U5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Faster load times and file transfers
Crucial DDR5 Desktop Memory can empower your computer to transfer 50% more data than DDR4 at launch, resulting in faster load times, file transfers, downloads, refresh rates and less lag time. Due to higher bus efficiency, DDR5 technology is not just faster than the previous generation, its better.
More responsive multitasking
Crucial DDR5 offers 50% faster speeds than DDR4 at launch, empowering users with extreme performance right out of the box. Even more impressive, Crucial DDR5 is optimized for enhanced performance and multitasking, not just during testing, but in real-world conditions. Opening more browser tabs and switching between apps now feels more responsive than ever.
Extreme innovation for stable performance
Crucial DDR5 takes an extreme step forward in engineering over the previous generation with two independent 32-bit channels per module for optimized performance. Designed with on-die ECC (ODECC) at the component level for long-term stability, Crucial DDR5 is engineered to maintain the same reliability as the previous generation, even with the rigorous demands of next-gen computing.
Optimized power efficiency
For improved efficiency and stability, Crucial DDR5 introduces on-module voltage regulation with a power management integrated circuit (PMIC), which was on the motherboard with older memory technologies. This results in improved signaling and cleaner power for the modules (DIMMs). Moreover, DDR5s on-module operating voltage is only 1.1V compared to DDR4s 1.2V.

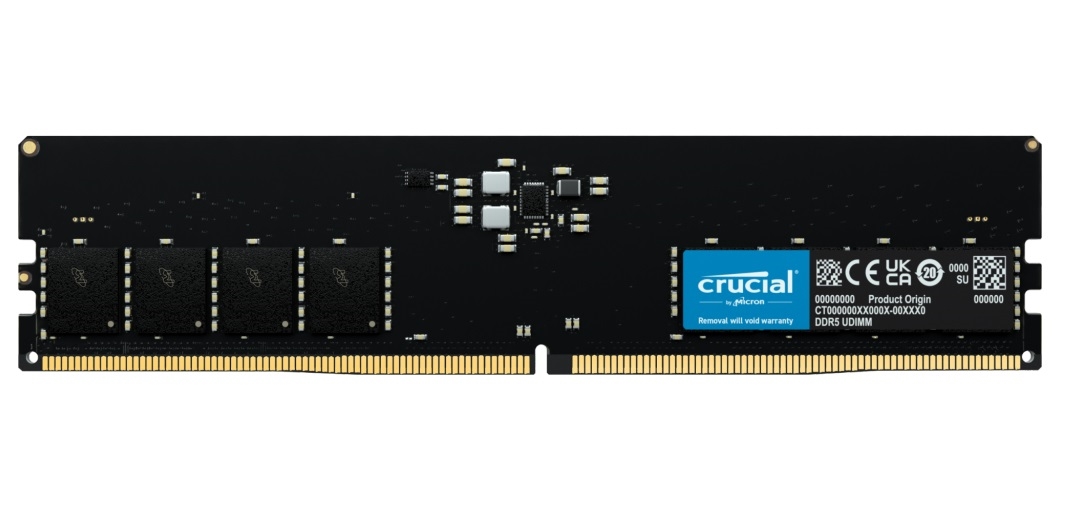

Speed
- DDR5-4800
CAS latency
- 40
DRAM family
- Crucial
Density
- 16GB
Brand
- Crucial
Module type
- UDIMM
Extended timings
- 40-39-39
Technology
- DDR5
Voltage
- 1.1V
PC speed
- PC5-38400
Kit Qty
1
Specs
- DDR5 PC5-38400
CL equal 40
Single Ranked
x8 based
Unbuffered
NON-ECC
DDR5-4800
1.1V
DIMM type
- Unbuffered
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
lifetime

Available Quantity

5

UPC

649528905628

SKU

mingleCT16G48C40U5

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

This document describes ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.18 (30.00mm)

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"x W"x H")
7 x 3 x 1
Weight
1.00 LB
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617310894

SKU

mingleKVR32S22S8/16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

This document describes ValueRAM's KVR32S22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Dual-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.18 (30.00mm)

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L"x W"x H")
7 x 3 x 1
Weight
1.00 LB
Warranty Information
Lifetime

Available Quantity

5

UPC

740617310924

SKU

mingleKVR32S22D8/32

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

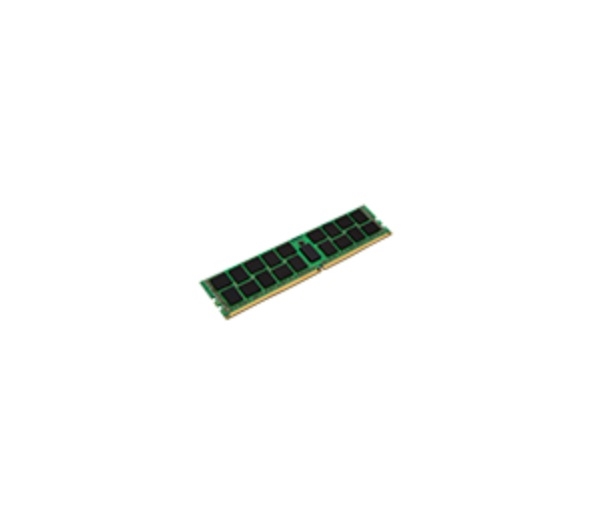

Kingston's KSM32RD8/16HDR is a 2G x 72-bit (16GB)
DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx8, ECC, memory module, based on eighteen 1G x
8-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each
288-pin DIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:


FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available

Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supported
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
IDD Specifications
IDD
Symbol 3200 Units
IDD0 1019 mA
IDD0A 1019 mA
IDD1 1125 mA
IDD1A 1151 mA
IDD2N 960 mA
IDD2NA 961 mA
IDD2NT 1052 mA
IDD2NL 826 mA
IDD2NG 957 mA
IDD2ND 938 mA
IDD2NP 970 mA
IDD2P 626 mA
IDD2Q 893 mA
IDD3N 992 mA
IDD3NA 992 mA
IDD3P 693 mA
IDD4R 1787 mA
IDD4RA 1814 mA
IDD4RB 1803 mA
IDD4W 1775 mA
IDD4WA 1823 mA
IDD4WB 1717 mA
IDD4WC 1767 mA
IDD4WP 1982 mA
IDD5B 2475 mA
IDD5F2 1982 mA
IDD5F4 1830 mA
IDD6N 322 mA
IDD6E 451 mA
IDD6R 203 mA
IDD6A 451 mA
IDD7 1930 mA
IDD8 157 mA
IPP
Symbol 3200 Units
IPP0 56 mA
IPP1 60 mA
IPP2N 41 mA
IPP2P 33 mA
IPP3N 197 mA
IPP3P 193 mA
IPP4R 149 mA
IPP4W 147 mA
IPP5B 507 mA
IPP5F2 344 mA
IPP5F4 285 mA
IPP6N 73 mA
IPP6E 104 mA
IPP6R 50 mA
IPP6A 102 mA
IPP7 161 mA
IPP8 35 mA
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Module Assembly
DRAM:
HYNIX (D-DIE)
RCD:
Rambus
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.00lb
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617308112

SKU

mingleKSM32RD8/16HDR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

This document describes ValueRAM's KVR26N19S8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
19 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L"x W"x H")
7 x 3 x 1
Weight
1.00 LB
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617311495

SKU

mingleKVR26N19S8/16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

This document describes ValueRAM's KVR32N22S6/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

8 internal banks; 2 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L"x W"x H")
7 x 3 x 1
Weight
1.00 LB
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617310870

SKU

mingleKVR32N22S6/8

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION
Kingston's KSM26RS8/8HDI is a 1G x 72-bit (8GB) DDR4-2666
CL19 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8,
ECC, memory module, based on nine 1G x 8-bit FBGA
components. The SPD is programmed to JEDEC standard
latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin
DIMM uses gold contact fingers.


FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available

Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supported
CL(IDD)
19 cycles
Row Cycle Time (tRCmin)
46.25ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
See IDD Table
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC

IDD Specifications
IDD
Symbol
2400
IDD0
746mA
IDD0A
746mA
IDD1
845mA
IDD1A
866mA
IDD2N
6844mA
IDD2NA
688mA
IDD2NT
729mA
IDD2NL
622mA
IDD2NG
686mA
IDD2ND
677mA
IDD2NP
691mA
IDD2P
443mA
IDD2Q
665mA
IDD3N
698mA
IDD3NA
698mA
IDD3P
477mA
IDD4R
1378mA
IDD4RA
1408mA
IDD4RB
1394mA
IDD4W
1379mA
IDD4WA
1409mA
IDD4WB
1319mA
IDD4WC
1367mA
IDD4WP
1530mA
IDD5B
2218mA
IDD5F2
1713mA
IDD5F4
1551 mA
IDD6N
174mA
IDD6E
239mA
IDD6R
115mA
IDD6A
239mA
IDD7
1641 mA
IDD8
92mA
IPP
Symbol
2400
IPP0
36 mA
IPP1
40mA
IPP2N
21 mA
IPP2P
17mA
IPP3N
100mA
IPP3P
98 mA
IPP4R
128mA
IPP4W
126mA
IPP5B
490mA
IPP5F2
323mA
IPP5F4
260mA
IPP6N
37 mA
IPP6E
52mA
IPP6R
25mA
IPP6A
52 mA
IPP7
142mA
IPP8
18mA
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00 LB

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617308204

SKU

mingleKSM26RS8/8HDI

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

Kingston's KSM32RS4/16HDR is a 2G x 72-bit (16GB)
DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 1Rx4, ECC, memory module, based on eighteen 2G x
4-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each
288-pin DIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:


FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available

Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supported
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
IDD Specifications
IDD
Symbol 3200 Units
IDD0 1081 mA
IDD0A 1081 mA
IDD1 1241 mA
IDD1A 1309 mA
IDD2N 963 mA
IDD2NA 964 mA
IDD2NT 1053 mA
IDD2NL 829 mA
IDD2NG 959 mA
IDD2ND 941 mA
IDD2NP 973 mA
IDD2P 627 mA
IDD2Q 894 mA
IDD3N 995 mA
IDD3NA 994 mA
IDD3P 696 mA
IDD4R 2215 mA
IDD4RA 2267 mA
IDD4RB 2226 mA
IDD4W 2236 mA
IDD4WA 2330 mA
IDD4WB 2054 mA
IDD4WC 2239 mA
IDD4WP 2608 mA
IDD5B 3998 mA
IDD5F2 3010 mA
IDD5F4 2707 mA
IDD6N 325 mA
IDD6E 454 mA
IDD6R 206 mA
IDD6A 454 mA
IDD7 4083 mA
IDD8 159 mA
IPP
Symbol 3200 Units
IPP0 71 mA
IPP1 80 mA
IPP2N 42 mA
IPP2P 34 mA
IPP3N 200 mA
IPP3P 193 mA
IPP4R 260 mA
IPP4W 256 mA
IPP5B 974 mA
IPP5F2 646 mA
IPP5F4 529 mA
IPP6N 73 mA
IPP6E 104 mA
IPP6R 50 mA
IPP6A 102 mA
IPP7 521 mA
IPP8 36 mA
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Module Assembly
DRAM:
HYNIX (D-DIE)
RCD:
Rambus
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.00lb
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617308105

SKU

mingleKSM32RS4/16HDR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

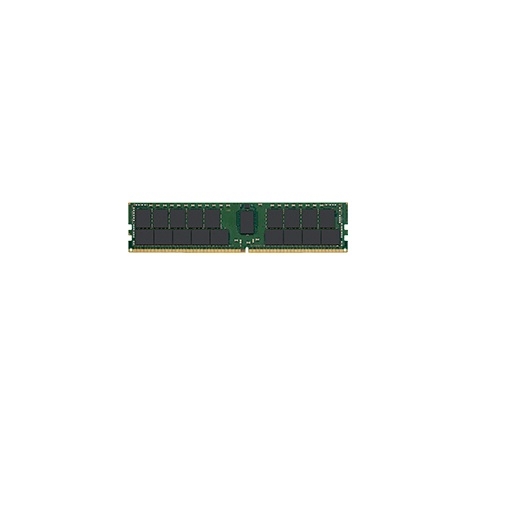

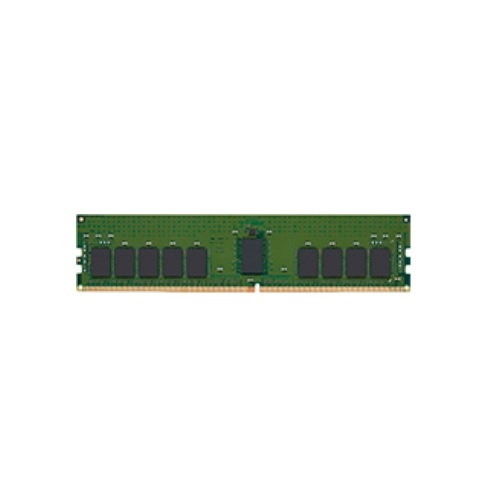

Kingston's KSM32RD4/32HDR is a 4G x 72-bit (32GB)
DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 2G x
4-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each
288-pin DIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:


FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available

Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supported
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
IDD Specifications
IDD
Symbol 3200 Units
IDD0 1548 mA
IDD0A 1549 mA
IDD1 1708 mA
IDD1A 1777 mA
IDD2N 1431 mA
IDD2NA 1431 mA
IDD2NT 1609 mA
IDD2NL 1161 mA
IDD2NG 1422 mA
IDD2ND 1385 mA
IDD2NP 1450 mA
IDD2P 925 mA
IDD2Q 1296 mA
IDD3N 1494 mA
IDD3NA 1490 mA
IDD3P 1062 mA
IDD4R 2680 mA
IDD4RA 2733 mA
IDD4RB 2691 mA
IDD4W 2702 mA
IDD4WA 2797 mA
IDD4WB 2520 mA
IDD4WC 2704 mA
IDD4WP 3074 mA
IDD5B 4464 mA
IDD5F2 3476 mA
IDD5F4 3173 mA
IDD6N 624 mA
IDD6E 882 mA
IDD6R 384 mA
IDD6A 882 mA
IDD7 4544 mA
IDD8 290 mA
IPP
Symbol 3200 Units
IPP0 112 mA
IPP1 121 mA
IPP2N 84 mA
IPP2P 67 mA
IPP3N 398 mA
IPP3P 384 mA
IPP4R 300 mA
IPP4W 297 mA
IPP5B 1014 mA
IPP5F2 687 mA
IPP5F4 570 mA
IPP6N 146 mA
IPP6E 207 mA
IPP6R 99 mA
IPP6A 204 mA
IPP7 562 mA
IPP8 70 mA
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Module Assembly
DRAM:
HYNIX (D-DIE)
RCD:
Rambus
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.00lb
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617308099

SKU

mingleKSM32RD4/32HDR

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

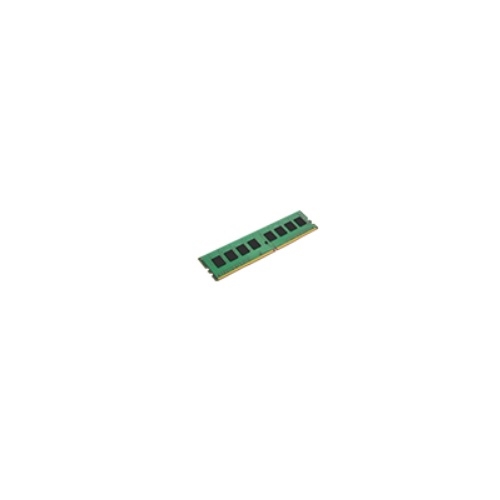

This document describes ValueRAM's KVR32N22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.


FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00LB

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617310863

SKU

mingleKVR32N22S8/16

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

This document describes ValueRAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

8 internal banks; 2 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.18 (30.00mm)

RoHS Compliant and Halogen-Free
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"x W"x H")
7 x 3 x 1
Weight
1.00 LB
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617310887

SKU

mingleKVR32S22S6/8

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

This document describes ValueRAM's KVR26N19S6/8 is a 1G x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

8 internal banks; 2 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
19 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"x W"x H")
7 x 3 x 1
Weight
1.00 LB
Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617311310

SKU

mingleKVR26N19S6/8

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

DESCRIPTION

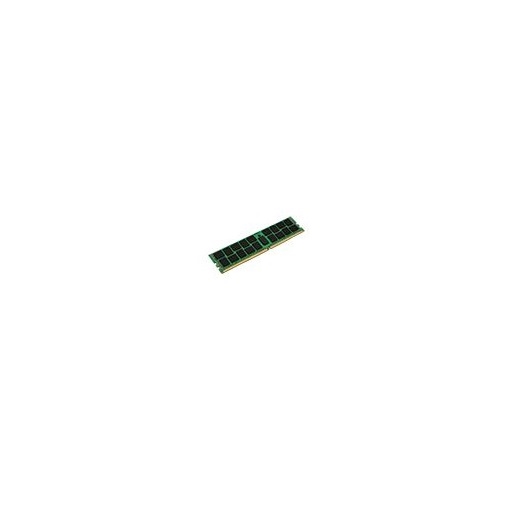

Kingston's KSM26RD4/32HDI is a 4G x 72-bit (32GB)
DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 2G x
4-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each
288-pin DIMM uses gold contact fingers.


FEATURES

Power Supply: VDD = 1.2V

VDDQ = 1.2V

VPP = 2.5V

VDDSPD = 2.41V to 2.75V

Functionality and operations comply with the DDR4 SDRAM datasheet

16 internal banks

Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available

Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Supports ECC error correction and detection

On-Die Termination (ODT)

Temperature sensor with integrated SPD

This product is in compliance with the RoHS directive.

Per DRAM Addressability is supported

Internal Vref DQ level generation is available

Write CRC is supported at all speed grades

CA parity (Command/Address Parity) mode is supported
CL(IDD)
19 cycles
Row Cycle Time (tRCmin)
46.25ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
See IDD Table
UL Rating
94 V - 0
Operating Temperature
0^oC to +85^oC
Storage Temperature
-55^oC to +100^oC

IDD Specifications
IDD
Symbol
2933
IDD0
1493mA
IDD0A
1493mA
IDD1
1651mA
IDD1A
1709mA
IDD2N
1375mA
IDD2NA
1376mA
IDD2NT
1546mA
IDD2NL
1109mA
IDD2NG
1368mA
IDD2ND
1340mA
IDD2NP
1393mA
IDD2P
870mA
IDD2Q
1263mA
IDD3N
1438mA
IDD3NA
1438mA
IDD3P
1005 mA
IDD4R
2529mA
IDD4RA
2579mA
IDD4RB
2546mA
IDD4W
2565mA
IDD4WA
2635 mA
IDD4WB
2381mA
IDD4WC
2556 mA
IDD4WP
2892mA
IDD5B
4424mA
IDD5F2
3425mA
IDD5F4
3111 mA
IDD6N
623mA
IDD6E
882mA
IDD6R
384 mA
IDD6A
882 mA
IDD7
4243 mA
IDD8
290mA
IPP
Symbol
2933
IPP0
112 mA
IPP1
121 mA
IPP2N
84 mA
IPP2P
67mA
IPP3N
398 mA
IPP3P
384 mA
IPP4R
297mA
IPP4W
293 mA
IPP5B
1017 mA
IPP5F2
687mA
IPP5F4
567 mA
IPP6N
146 mA
IPP6E
207mA
IPP6R
99 mA
IPP6A
204 mA
IPP7
521mA
IPP8
70mA

Item Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00 LB

Warranty Information
Lifetime Warranty

Available Quantity

5

UPC

740617308174

SKU

mingleKSM26RD4/32HDI

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The fast, easy way to improve your desktop s performance

There s an easy cure for a slow computer: more memory. Designed to help your system run faster and smoother, Crucial Desktop Memory is one of the easiest and most affordable ways to improve your system s performance. Load programs faster. Increase responsiveness. Run data-intensive applications with ease, and increase your desktop s multitasking capabilities.



Make everything on your computer faster

Memory is a component in your computer that allows for short-term data access. Since your system s moment-to-moment operations rely on short-term data access loading applications, browsing the Web or editing a spreadsheet the speed and amount of memory in your system plays a critical role. Load apps in seconds by increasing the speed of your memory and installing more of it.



Multitask with ease

If you re like us, you use your computer to do a lot of things at once. You might be editing a document, while also looking at pictures and browsing the Internet. This naturally leads to a performance problem: every app you re running requires memory and competes for a limited pool of resources. Overcome this by installing high-density modules in each memory slot for seamless multitasking.



Install with ease no computer skills required

With just a screwdriver, your owner s manual, and a few minutes of time, you can install memory no computer skills necessary. Just watch one of our three-minute install videos, and we ll walk you step-by-step through the process. Don t pay a computer shop to do something you can do in minutes!
Speed
- DDR4-3200
CAS latency
- 22
DRAM family
- Crucial
Density
- 8GB
Brand
- Crucial
Module type
- UDIMM
Extended timings
- 22-22-22
Technology
- DDR4
Voltage
- 1.2V
PC speed
- PC4-25600
Kit Qty
- 1
Specs
- DDR4 PC4-25600, CL equal to 22, Unbuffered, NON-ECC, DDR4-3200, 1.2V, 1024Meg x 64,
DIMM type
- Unbuffered
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.00 lb
Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528903549

SKU

mingleCT8G4DFRA32A

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The fast, easy way to improve your laptop s performance

There s an easy cure for a slow computer: more memory. Designed to help your system run faster and smoother, Crucial Laptop Memory is one of the easiest and most affordable ways to improve your system s performance. Load programs faster. Increase responsiveness. Run data-intensive applications with ease, and increase your laptop s multitasking capabilities.


Make everything on your computer faster

Memory is a component in your computer that allows for short-term data access. Since your system s moment-to-moment operations rely on short-term data access loading applications, browsing the Web or editing a spreadsheet the speed and amount of memory in your system plays a critical role. Load apps in seconds by increasing the speed of your memory and installing more of it.


Multitask with ease

If you re like us, you use your computer to do a lot of things at once. You might be editing a document, while also looking at pictures and browsing the internet. This naturally leads to a performance problem: every app you re running requires memory and competes for a limited pool of resources. Overcome this by installing high-density modules in each memory slot for seamless multitasking.


Install with ease no computer skills required

With just a screwdriver, your owner s manual, and a few minutes of time, you can install memory no computer skills necessary. Just watch one of our three-minute install videos, and we ll walk you step-by-step through the process. Don t pay a computer shop to do something you can do in minutes!
Speed
- DDR4-2666
CAS Latency
- 19
DRAM Family
- Crucial
Density
- 8GB
Brand
- Crucial
Module Type
- SODIMM
Extended Timings
- 19-19-19
Technology
- DDR4
Voltage
- 1.2V
PC Speed
- PC4-21300
Kit Qty
- 1
Specs
- DDR4 PC4-21300, CL equal to 19, Unbuffered, NON-ECC, DDR4-2666, 1.2V, 1024Meg x 64,
DIMM Type
- Unbuffered
Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.00lb
Warranty Information
Lifetime Manufacture Warranty

Available Quantity

5

UPC

649528903488

SKU

mingleCT8G4SFRA266

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT4G4SFS6266
• Type: DDR4 SODIMM
• Capacity: 4GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 512Mx64
• Pins: 260pin
• ECC: No
• Registered: No
• Single Rank x16
• CL 19, 1.2V

Available Quantity

5

UPC

649528782366

SKU

mingleCT4G4SFS6266

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: D4ES01-4G
• Type: DDR4 ECC Unbuffered SODIMM
• Capacity: 4GB
• Size & Bit: N/A
• ECC: Yes
• Registered: No
• 1.2V
• Compatibility:
  • Synology RackStation: DS1621+

Available Quantity

5

UPC

846504004034

SKU

mingleD4ES01-4G

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MTA18ASF2G72PDZ-3G2E1
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-25600 3200MHz
• Size & Bit: 2G x 72
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Dual Rank
• CL 22, 1.2V

Available Quantity

5

UPC

649528788658

SKU

mingleMTA18ASF2G72PDZ-3G2E1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT16G4DFRA32A
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-25600 3200MHz
• Module type: UDIMM
• Size & Bit: N/A

• Pins: 288pin
• ECC: No
• Registered: No
• DIMM Type: Unbuffered
• CL 22, 1.2V

Available Quantity

5

UPC

649528903624

SKU

mingleCT16G4DFRA32A

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT8G4SFRA32A
• Type: DDR4 SODIMM
• Capacity: 8GB
• Speed: PC4-25600 3200MHz
• Size & Bit: 1Gx64
• Pins: 260pin
• ECC: No
• Registered: No
• CL 22, 1.2V

Available Quantity

5

UPC

649528903525

SKU

mingleCT8G4SFRA32A

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT8G4DFRA266
• Type: DDR4 UDIMM
• Capacity: 8GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 1Gx64
• Pins: 288pin
• ECC: No
• Registered: No
• CL 19, 1.2V

Available Quantity

5

UPC

649528903501

SKU

mingleCT8G4DFRA266

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT16G4DFRA266
• Type: DDR4 UDIMM
• Capacity: 16GB
• Speed: PC4-21300 2666MHz
• Size & Bit: N/A
• Pins: 288pin
• ECC: No
• Registered: No
• CL 19, 1.2V

Available Quantity

5

UPC

649528903587

SKU

mingleCT16G4DFRA266

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT16G4SFRA32A
• Type: DDR4 SODIMM
• Capacity: 16GB
• Speed: PC4-25600 3200MHz
• Size & Bit: 2Gx64
• Pins: 260pin
• ECC: No
• Registered: No
• CL 22, 1.2V

Available Quantity

5

UPC

649528903600

SKU

mingleCT16G4SFRA32A

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT16G4SFS8266
• Type: DDR4 SODIMM
• Capacity: 16 GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 2G x 64
• Pins: 260pin
• ECC: No
• Registered: No
• Single Rank x8
• CL 19, 1.2V

Available Quantity

5

UPC

649528790149

SKU

mingleCT16G4SFS8266

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: M471A2K43DB1-CTD
• Type: DDR4 SODIMM
• Capacity: 16 GB
• Speed: PC4-21300 2666 Mbps
• Size & Bit: (1G x 8) x 16
• Pins: 260pin
• ECC: No
• Registered: No
• 2R x 8
• 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleM471A2K43DB1-CTD

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: HX432C16FB4/16
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-25600 3200MHz
• Size & Bit: 2G x 64-Bit
• Pins: 288-Pin
• ECC: No
• Registered: No
• Single Rank x 8
• CL16, 1.35V

Available Quantity

5

UPC

740617308464

SKU

mingleHX432C16FB4/16

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MTA18ADF2G72AZ-2G6E1
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 2G x 72
• Pins: 288pin
• ECC: Yes
• Registered: No
• Dual Rank
• CL 19, 1.2V

Available Quantity

5

UPC

649528786234

SKU

mingleMTA18ADF2G72AZ-2G6E1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: M378A1K43DB2-CTD
• Type: DDR4
• Capacity: 8GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 1G x 8
• Pins: 288pin
• ECC: No
• Registered: No
• Single Rank x8
• 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleM378A1K43DB2-CTD

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: CT16G4SFD824A
• Type: DDR4 SODIMM
• Capacity: 16GB
• Speed: PC4-19200 2400MHz
• Size & Bit: 2G x 64
• Pins: 260pin
• ECC: No
• Registered: No
• Dual Rank x8
• CL 17, 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleCT16G4SFD824A

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: D4ES01-8G
• Type: DDR4
• Capacity: 8GB
• Speed: PC4-21300 2666MHz

• Size & Bit: N/A
• ECC: Yes
• Registered: No
• 1.2V
• Compatibility:
  • Synology RackStation: DS1621xs+

Available Quantity

5

UPC

846504004058

SKU

mingleD4ES01-8G

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: M393A2K43DB3-CWE
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-25600 3200MHz
• Size & Bit: 1G x 8
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• 2R x8
• 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleM393A2K43DB3-CWE

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MTA9ASF1G72PZ-3G2E2
• Type: DDR4
• Capacity: 8GB
• Speed: PC4-25600 3200MHz
• Size & Bit: 1G x 72
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Single Rank
• CL 22, 1.2V

Available Quantity

5

UPC

649528821409

SKU

mingleMTA9ASF1G72PZ-3G2E2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: D4EC-2666-8G

• Type: DDR4

• Capacity: 8GB

• Speed: PC4-21300 2666MHz

• Size & Bit: N/A

• Pins: 288 pin

• ECC: Yes

• Registered: No

• 1.2V

• Compatibility:
  • Synology RackStation: RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, RS1619xs+


Available Quantity

5

UPC

846504003754

SKU

mingleD4EC-2666-16G

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MTA9ASF1G72PZ-2G9E1
• Type: DDR4
• Capacity: 8GB
• Speed: PC4-23400 2933MHz
• Size & Bit: 1G x 72
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Single Rank
• CL 21, 1.2V

Available Quantity

5

UPC

649528786678

SKU

mingleMTA9ASF1G72PZ-2G9E1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MTA36ASF4G72PZ-2G9E2
• Type: DDR4
• Capacity: 32GB
• Speed: PC4-23400 2933MHz
• Size & Bit: 4G x 72
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Dual Rank
• CL 21, 1.2V

Available Quantity

5

UPC

649528786227

SKU

mingleMTA36ASF4G72PZ-2G9E2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: M393A8G40AB2-CWE
• Type: DDR4
• Capacity: 64GB
• Speed: PC4-25600 3200Mbps
• Size & Bit: 8G x 72
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Dula Rank x4
• N/A

Available Quantity

5

UPC

Does not apply

SKU

mingleM393A8G40AB2-CWE

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: HMA84GR7CJR4N-XN
• Type: DDR4
• Capacity: 32GB
• Speed: PC4-25600 3200MHz
• Size & Bit: 4G x 72
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Dual Rank x4
• CL 22, 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleHMA84GR7CJR4N-XN

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: HMA82GR7CJR4N-WM
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-23400 2933MHz
• Size & Bit: 2G x 72
• Pins: 288pin
• ECC: Yes
• Registered: Yes
• Single Rank x4
• CL 21, 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleHMA82GR7CJR4N-WM

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: M391A4G43MB1-CTD
• Type: DDR4
• Capacity: 32GB
• Speed: PC4-21300 2666MHz
• Size & Bit: 2G x 8
• Pins: 288pin
• ECC: Yes
• Registered: N/A
• Dual Rank x8
• CL 19, 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleM391A4G43MB1-CTD

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: M393A2K40DB2-CVF
• Type: DDR4
• Capacity: 16GB
• Speed: PC4-23400 2933MHz
• Size & Bit: 2G x 4
• Pins: 288pin
• ECC: N/A
• Registered: Yes
• Single Rank x4
• 1.2V

Available Quantity

5

UPC

Does not apply

SKU

mingleM393A2K40DB2-CVF
