Product Description

Key Features

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel C252

Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots

1 PCI-E 4.0 x16

M.2 Interface: 1 PCI-E 3.0 x4

M.2 Form Factor: 2280

M.2 Key: M-Key

Dual LAN with Intel i210 Gigabit Ethernet Controller

Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 VGA D-Sub Connector port

2 SuperDOM with built-in power

4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)
Form Factor
Mini-ITX
Processor
CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
Up to 8 cores
System Memory
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
3200/2933/2666MHz SDRAM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C252
SATA
Intel C252 controller for 6 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller
Input / Output
SATA
6 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 port(s) (2 rear, 2 via header)
4 USB 3.2 Gen1 port(s) (2 via header, 2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 4.0 x16
M.2
M.2 Interface:
1 PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 3.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
SuperDoctor 5, SUM, SPM, SSM, IPMI2.0, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
4x 4-pin fan headers (up to 4 fans)
Thermal control tachometer fan connectors
Fan speed control
4 fans with tachometer monitoring
Overheat LED indication
Other Features
WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range

0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-20^oC - 60^oC (-4^oF - 140^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
Weight
3.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12STL-IF-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

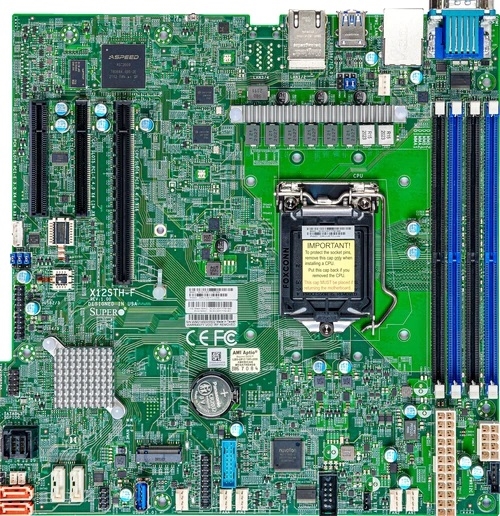

Key Features

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel C256

Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

1 PCI-E 4.0 x16

1 PCI-E 4.0 x4 (in x8 slot)

1 PCI-E 3.0 x4 (in x8 slot)

M.2 Interface: PCI-E 3.0 x4

M.2 Form Factor: 2280, 22110

M.2 Key: M-Key

Dual LAN with Intel Ethernet Controller I210

Intel C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

2 SuperDOM with built-in power

I/O: 1 VGA, 2 COM, 1 TPM header

5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)

Gen12 iGPU support
Physical Stats
Form Factor
Micro-ATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
Up to 8 cores, 16 threads
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
3200/2933/2666MHz SDRAM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C256
SATA
Intel C256 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel Ethernet Controller I210
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 port(s) (4 via header 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header 2 rear 1 type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
SuperDoctor 5, NMI, SUM, SPM, Intel Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
6x 4-pin fan headers (up to 6 fans)
Thermal control tachometer fan connectors
Fan speed control
6 fans with tachometer status monitoring
Overheat LED indication
Other Features
WOL
UID
Node Manager Support
M.2 NGFF connector
Dual Cooling Zones
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion header
Chassis intrusion detection
ACPI power management
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12STH-F-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Key Features
10th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Intel Q470
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x4
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
Intel Q470 controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
Physical Stats
Form Factor
microATX
Processor
CPU
10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Core
Up to 10 cores
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
Memory Type
2933/2666/2400/2133MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel Q470
SATA
Intel Q470E controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500 BMC
Audio
ALC 888S HD Audio
Graphics
Intel HD Graphics
ASPEED AST2500 BMC
Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Input / Output
SATA
4 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 3.1 Gen2 port(s) (2 via header 4 rear type A)
6 USB 3.2 Gen2 port(s) (4 rear type A 2 via header)
6 USB 2.0 port(s) (6 via header)
Video Output
1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
1 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header and Chip both
Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4 1 CNVi/PCI-E 3.0 x1
Form Factor: 2280/22110, 2230
Key: M-Key, E-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor 5, SUM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
VBAT, Memory, CPU, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
UID/Remote UID
Power LED
BMC/IPMI Heartbeat LED
Temperature
Thermal Control for 5 Fan Connectors
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Dual Cooling Zone
5 fans with tachometer status monitoring
Other Features
UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range
0^oC - 60^oC (32^oF - 140^oF)
Non-Operating Temperature Range
-40^oC - 85^oC (-40^oF - 185^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Item Dimension (L"xW"xH")
10 x 10 x 2

Weight
3 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12SCZ-QF-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

H670M-ITX/ax
Supports 12th Gen Intel Core Processors (LGA1700)
8 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 and SATA3)
1 Rear USB 3.2 Gen2x2 Front Type-C
2 Rear USB 3.2 Gen2
3 USB 3.2 Gen1 (2 Front, 1 Front Type-C)
Dragon 2.5G LAN, Intel Gigabit LAN
802.11ax (WiFi 6E) + Bluetooth
Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Unique Feature
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 8 Layer PCB
2.5G LAN
802.11ax Wi-Fi 6E
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports 12th Gen Intel Core Processors (LGA1700)
- Digi Power design
- 8 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel H670
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
Supports DDR4 3200 natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
- 1 x PCIe Gen5x16 Slot
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) modes
Supports Intel Optane Technology
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Requires additional M.2 NVMe expansion cards to support RAID 5
Connector
- 1 x RGB LED Header
- 1 x Addressable LED Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Supports in total up to 12V/3A, 36W LED Strip
Supports in total up to 5V/3A, 15W LED Strip
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
These utilities can be downloaded from ASRock Live Update and APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets
Hardware Monitor
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8 Layer PCB
OS
- Microsoft Windows 10 64-bit / 11 64-bit

Available Quantity

5

UPC

Does not apply

SKU

mingleH670M-ITX/AX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Micro-ATX (9.6" x 9.6")

Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors

4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM

1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1

Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x4)

8 SATA 6Gb/s

2 RJ45 (10GbE) by Intel X710-AT2

2 RJ45 (1GbE) by Intel i210

VGA, HDMI

Remote Management (IPMI)
Physical Status
Form Factor
Micro-ATX
Dimensions
9.6inch x 9.6inch (244 mm x244 mm)
Processor System
CPU
Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors
Socket
Single Socket H5 (LGA1200)
Chipset
Intel C256
System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
Supports DDR4 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
ECC/non-ECC UDIMM: up to 32GB
DIMM Frequency
ECC/non-ECC UDIMM: max. 3200^NoteMHz
Note: Up to DDR4 2666MHz when installing 10th Gen Intel Pentium Series Processors
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe4.0^Note1 x16 (CPU)
Note1: When installing 10th Gen Intel Pentium Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function
PCIe x 4
SLOT4: PCIe4.0^Note1 x4 (CPU)
PCIe x 1
SLOT7: PCIe3.0 x1 (PCH)
Other PCIe Expansion Connectors
M.2 slot
1 M-key^Note (PCIe3.0 x4 or SATA 6Gb/s), support 22110/2280/2260 form factor (PCH)
1 M-key (PCIe3.0 x4), support 2280/2260 form factor (PCH)
Note: SATA0 will be disabled when M2_1 populated with SATA device
SATA/SAS Storage
PCH Built-in Storage
Intel C256 (8 SATA 6Gb/s, RAID 0/1/5/10):
7 SATA 7-pin, 1 SATA DOM or 1 M.2
Ethernet
Additional GbE Controller
Intel X710-AT2: 2 RJ45 (10GbE)
Intel i210: 2 RJ45 (1GbE)
Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500
VRAM
DDR4 256MB
Rear I/O
UID Button/LED
1 button w/ LED
VGA Port
1 DB15
Serial Port
1 DB9
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE), 2 RJ45 (1GbE)
Dedicate LAN
1 dedicated IPMI LAN port
HDMI
1 HDMI
Internal Connector/Headers
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Video output
1
Speaker Header
1
Buzzer
1
Fan Header
7 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMB header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Front Lan LED Connector
1
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 (9-pin, 2 USB2.0)
NMI Header
1
Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)
ME/SPS Recovery
1
LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1
System BIOS
BIOS Type
AMI UEFI BIOS, 256 Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.2 compliance wake up events, SMBIOS 3.3, ASRock Rack instant flash
Hardware Monitor
Temperature
CPU, MB, Card side, TR1
Fan
Fan Tachomete, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Multi-Speed Control
Voltage
+12V, +5V, +3.3V, CPU Vcore, DRAM,V1.0M,+BAT, 3VSB, 5VSB
Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)
Item Dimension (L inchxW inchxH inch)
12 x 12 x 3

Weight
4.00 lb

Warranty Information
36M

Available Quantity

5

UPC

Does not apply

SKU

mingleE3C256D4U-2L2T

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Supports 12th Gen Intel Core Processors (LGA1700)

6 Phase Power Design

Supports DDR4 5066MHz (OC)

1 PCIe 4.0 x16, 2 PCIe 3.0 x1

1 M.2 Key-E for WiFi

Graphics Output Options: HDMI, DisplayPort, D-Sub

Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio

4 SATA3

1 Hyper M.2 (PCIe Gen4 x4)

1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)

5 USB 2.0 (2 Rear, 3 Front)

Intel Gigabit LAN


Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.


High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.


Intel Gigabit LAN

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Unique Feature
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports 12th Gen Intel Core^TM Processors (LGA1700)
- Digi Power design
- 6 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel B660
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)^Note
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
Note: Supports DDR4 3200 natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
- Supports D-Sub with max. resolution up to 1920x1200 at 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Note: Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
- Supports Surge Protection
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Slots
- 1 x PCIe Gen4x16 Slot^Note
- 2 x PCIe Gen3x1 Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Note: Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors^Note1
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode^Note2
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s and PCIe Gen3x4 (32 Gb/s) modes^Note2
Note1: If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
Note2: Supports Intel Optane^TM Technology (M2_2 only)
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)^Note1
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ^Note2
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) ^Note3
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Note1: The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Note2: The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
Note3: The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP and CHA_FAN12/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
Note: These utilities can be downloaded from ASRock Live Update and APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- Solid Capacitor design
OS
- Microsoft Windows 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Available Quantity

5

UPC

Does not apply

SKU

mingleB660M-HDV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+

Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology

Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware


DURABLE. STABLE. RELIABLE.

TUF Gaming A520M-Plus WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.


ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus WIFI is the perfect foundation for your next high-core-count battle rig.


EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
CPU
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
AMD A520 Chipset
Memory
4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
- ECC Memory (ECC mode) support varies by CPU.
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.2
1 x D-Sub
- Graphics specifications may vary between CPU types.
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Ethernet
1 x Realtek 1Gb Ethernet
TUF LANGuard
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 5 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
-A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub
1 x ASUS Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack^TM button
1 x PS/2 Keyboard/Mouse combo port
Intrernal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
Y
ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^TM button
- BIOS FlashBack^TM LED
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual
Form Factor
microATX
24.4cm x 24.4cm
Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years

Available Quantity

5

UPC

195553154284

SKU

mingleTUF GAMING A520M-PLUS WIF

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.


M.2 SHIELD FROZR

World s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.


FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.


OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market, a dedicated water pump PIN header gives you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.


HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel Z690 Chipset
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
3
PCI-E X1
1
SATAIII
6
M.2 SLOT
4
RAID
0/1/5/10
TPM (HEADER)
1
LAN
1x Intel I225-V 2.5Gbps LAN
WIFI and BLUETOOTH
Intel Wi-Fi 6E module
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 4(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC897 Codec
DISPLAYPORT
1

Available Quantity

5

UPC

824142270370

SKU

minglePROZ690AWIFI

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

micro-ATX (9.6"x 9.6")

supports AMD Ryzen 4000 Series Desktop Processors with Radeon Graphics

4 DIMMs

1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1

Dual 1 GbE RJ45

2 M.2 (PCIe4.0x4/ SATA)

8 SATA 6Gb/s

HDMI

AST2500 Remote management (IPMI)
Physical Status
Form Factor
micro-ATX
Processor System
CPU
supports:
AMD Ryzen^TM 4000 G-Series Desktop Processors with Radeon^TM Graphics
AMD Ryzen^TM PRO 4000 and 3000 Series Desktop Processors
3rd Gen AMD Ryzen^TM Desktop Processors
2nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
Socket
AM4 PGA 1331
Power Design
105W
Chipset
AMD X570
System Memory
Capacity
4 DIMM slots (2DPC)
Type
288-pin DDR4 ECC and non-ECC UDIMM
ECC support varies by CPU
DIMM Size Per DIMM
up to 32GB per DIMM
DIMM Frequency
AMD Ryzen^TM 4000 Series Desktop Processors with Radeon^TM Graphics/ 3^rd Gen AMD Ryzen^TM Processors :
up to 3200 MHz
2nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics:
up to 2666 MHz
Voltage
1.2V
Expansion Slot
PCIe 4.0 x 16
SLOT6: Latch PCIe x16 (PCIe 4.0 x16) (CPU), auto switch to PCIe4.0 x8 when SLOT4 is occupied
Supports PCIe3.0 x8 when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
PCIe 4.0 x 8
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) (CPU)
Disabled when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
PCIe 4.0 x 1
SLOT5: PCIe 4.0 x1
Supports PCIe3.0 when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
M.2
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570)
Supports PCIe3.0 when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
Storage
SATA Controller
X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device
Ethernet
Additional GbE Controller
2 RJ45 (1GbE) by Intel i210
Management
BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
AMD Ryzen^TM 4000 Series Desktop Processors with Radeon^TM Graphics/ 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics:
1 HDMI
Rear Panel I/O
HDMI
1
VGA Port
1
USB 3.2 Gen2 Port
2
Lan Port
2 RJ45(1GbE)
Dedicate LAN
1
Serial Port
1
UID Button/UID LED
1
Internal Connector
Front Lan LED Connector
1 for LAN3/LAN4
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TR1 Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
IPMB Header
1
VGA Header
1
PMBus CONN
1
Buzzer
1
Fan Header
3 (6-pin), 3 (4-pin)
Front Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1
BMC_SMB Header
1
Power Connector
1 ATX main power (24-pin), 1 ATX 12V (8-pin)
Clear CMOS
1 contact pads
Onboard LED
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU/ DRAM/ MB/ Card Side/X570 temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Item Dimension (L"x W"x H")
12 x 12 x 3
Weight
4.00 LB
Warranty Information
3 Years

Available Quantity

5

UPC

Does not apply

SKU

mingleX570D4U

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

1. 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium /Celeron Processor, Intel Xeon W-1200 Processors

Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

2. Intel W480

3. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

4. 1 PCI-E 3.0 x4,

2 PCI-E 3.0 x16 slots (16/NA or 8/8)

1 - 5V PCI 32bit

M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1

M.2 Form Factor: 2280/22110

M.2 Key: M-Key

5. 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,

VGA port is dedicated for IPMI

6. Intel W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

7. Single LAN with Intel PHY I219LM LAN controller for AMT/vPro

Single LAN with Intel Ethernet i225LM
Form Factor
ATX
Processor/Cache
CPU
10th Generation Intel Core^TM i9/Core^TM i7/Core^TM i5/Core^TM i3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Cores / Cache
Up to 10 cores
System Memory
Memory Capacity
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel W480
SATA
Intel W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Dedicated IPMI LAN Port
Network Controllers
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
Single LAN with Intel Ethernet i225LM
Audio
ALC 888S HD Audio
Graphics
VGA port is dedicated for IPMI
Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
2 USB 2.0 ports (2 via headers)
3 USB 3.2 Gen1 ports (1 via header + 2 Type A)
5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header)
Video Output
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,
VGA port is dedicated for IPMI
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x4,
2 PCI-E 3.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 and 1
Form Factor: 2280/22110
Key: M-Key

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12SCA-F-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Socket LGA 1151 for Intel Core i7/i5/i3/Celeron

Supports Dual Channel DDR4 4x Long-DIMM 2400/2666MHz, up to 64GB

1 x VGA, 1 x DVI-D, 1 x DP, 1 x HDMI, 1 x LVDS

6 x USB 3.1, 6 x USB 2.0, 8 x SATA3, 6 x COM

1 x PCIe x16, 1 x PCIe x8, 2 x PCIe x4, 1 x Mini-PCIe

1 x M.2 Key M, 1 x M.2 Key E

2 x Intel LAN

1 x TPM 2.0 IC

ATX PWR Con. (24+8-pin )

Support RAID 0,1,5,10
Form Factor
Dimensions
- Micro ATX (9.6-in x 9.6-in)
Processor System
CPU
- Socket LGA 1151 for Intel Core i7/i5/i3/Celeron (Supports up to 95W)
Chipset
- Intel Q370
Expansion Slot
PCIe
- 1x PCIe x16, 1x PCIe x8, 2x PCIe x4
Slot1: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied.
Mini-PCIe
- 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2
- 1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
- 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
Memory
Technology
- Dual Channel DDR4 2400/2666MHz
Max.
- 64GB
Socket
- 4 x Long-DIMM
Graphics
Controller
- Intel HD Graphics (By CPU)
VGA
- Supports max resolution up to 1920x1200
DVI
- Max resolution up to 4096x2304 at60Hz
LVDS
- Supports max resolution up to 1920x1200 at60Hz
HDMI
- Max resolution up to 4096x2160 at24Hz
DisplayPort
- Max resolution up to 4096x2304 at60Hz
MultiDisplay
- Triple Display
eDP
- N/A
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- 1 x Intel I210, 1 x Intel I219LM
Rear I/O
VGA
- 1
DVI
- 1 x DVI-D
HDMI
- 1 x HDMI 1.4
DisplayPort
- 1 x DP1.2++
Ethernet
- 2
USB
- 4 x USB3.1
Audio
- 3 (Mic-in. Line-in. Line-out)
Serial
- 1 x COM (RS-232/422/485)
PS2
- 1x PS/2 combo
Internal Connector
USB
- 6 x USB2.0, 2 x USB3.1
LVDS / inverter
- 1
eDP
- N/A
VGA
- N/A
Serial
- 5 x COM(RS-232)
SATA
- 8x SATA3 (6.0Gb/s), one is shared with M.2 Key M
Parallel
- 1 (shared with GPIO)
GPIO
- 8 x GPI, 8 x GPO
SATA PWR Output
- N/A
Speaker Header
- 1
TPM
- 1 x Onboard IC
Watchdog Timer
Output
- From Super I/O to drag RESETCON
Interval
- 256 segments, 0,1,2255sec
Power Requirements
Input PWR
- 24+4-pin ATX PWR Con.
Power On
-AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power input ready
Environment
Operating Temp
- 0^oC to 60^oC
Storage Temp
- 20^oC to 80^oC
Operating Humidity
- 5% to 90%
Storage Humidity
- 5% to 90%
Item Dimension ( L inchxW inchxH inch)
12 x 9 x 3
Weight
3 lb
Warranty Information
NA

Available Quantity

5

UPC

Does not apply

SKU

mingleIMB-1312

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Key Features

1.8th/9th Generation Intel Core i3/Pentium /Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

2.Intel C242 chipset

3.Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots

4.Expansion slots:

1 PCI-E 3.0 x8 (in x16),

2 PCI-E 3.0 x4 (in x8)

5.Dual GbE LAN with Intel i210-AT

6.6 SATA3 (6Gbps) ports;

RAID 0, 1, 5, 10

7.M.2 NGFF connector

8.M.2 Interface: 1 PCI-E 3.0 x4

Form Factor: 2280/22110

Key: M-Key

Double Height Connector

9.I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
Physical Stats
Form Factor
microATX
Processor/Cache
CPU
8th/9th Generation Intel Corei3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Cores / Cache
6 cores, 12 threads
Note
BIOS version 1.0b or above is required to support Intel Xeon E-2200 and 9th Generation Intel Core i3/Pentium/Celeron Processors
System Memory
Memory Capacity
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C242
SATA
Intel C242 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 1GbE with Intel I210
Graphics
Aspeed AST2500 BMC
Input / Output
USB
6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x8 (in x16 slot),
2 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature
Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
LED
CPU / System Overheat LED, UID/Remote UID
Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Item Dimension (L"xW"xH")
16 x 12 x 4

Weight
6 lbs

Warranty Information
1 year

Available Quantity

5

UPC

672042327652

SKU

mingleMBD-X11SCL-F-O

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Replacement motherboard for Pegatron E15K notebook. Includes Intel Core i7-7500U processor
Item Dimension (L"xW"xH")
15 x 12 x 3

Weight
4 lbs

Warranty Information
6 Months

Available Quantity

5

UPC

Does not apply

SKU

mingle9C-N0FZM1600

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

micro-ATX (9.6"x 9.6")

Supports 3rd Gen AMD Ryzen Processors

4 DIMMs

1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1

Dual 10 GbE RJ45

Dual 1 GbE RJ45

2 M.2 (PCIe4.0x4/ SATA)

8 SATA 6Gb/s

HDMI

AST2500 Remote management (IPMI)
MB Physical Status
Form Factor
micro-ATX
Processor System
CPU
supports 3^rd Gen AMD Ryzen^TM Processors and 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
Socket
AM4 PGA 1331
Power Design
105W
Chipset
AMD X570
System Memory
Capacity
4 DIMM slots (2DPC)
Type
288-pin DDR4 ECC and non-ECC UDIMM
ECC support varies by CPU
DIMM Size Per DIMM
up to 32GB per DIMM
DIMM Frequency
3rd Gen AMD Ryzen^TM Processors : up to 3200 MHz
2nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics: up to 2666 MHz
Voltage
1.2V
Expansion Slot
PCIe 4.0 x 16
SLOT6: Latch PCIe x16 (PCIe 4.0 x16) (CPU), auto switch to PCIe4.0 x8 when SLOT4 is occupied
Supports PCIe3.0 x8 when using 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
PCIe 4.0 x 8
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) (CPU)
Disabled when using 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
M.2
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570)
Supports PCIe3.0 when using 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
Storage
SATA Controller
X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device
Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X550-AT2
2 RJ45 (1GbE) by Intel i210
Management
BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
2nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics:
1 HDMI
Rear Panel I/O
HDMI
1
VGA Port
1
USB 3.1 Gen2 Port
2
Lan Port
2 RJ45(1GbE), 2 RJ45 (10GbE)
Dedicate LAN
1
Serial Port
1
UID Button/UID LED
1
Internal Connector
Front Lan LED Connector
1 for LAN3/LAN4
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TR1 Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
IPMB Header
1
VGA Header
1
PMBus CONN
1
Buzzer
1
Fan Header
3 (6-pin), 3 (4-pin)
Front Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1
BMC_SMB Header
1
Power Connector
1 ATX main power (24-pin), 1 ATX 12V (8-pin)
Clear CMOS
1 contact pads
Onboard LED
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Item Dimension (L"x W"x H")
12 x 12 x 3
Weight
4.00 LB
Warranty Information
3 years

Available Quantity

5

UPC

Does not apply

SKU

mingleX570D4U-2L2T

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Replacement motherboard for Pegatron E15K notebook. Includes Intel Core i5-7200U processor
Item Dimension (L"xW"xH")
15 x 12 x 3

Weight
4 lbs

Warranty Information
6 Months

Available Quantity

5

UPC

Does not apply

SKU

mingle9C-N0FZM1500

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

1.10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium /Celeron Processor, Intel Xeon W-1200 ProcessorsSingle Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP

2.Intel W480

3.128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

4.1 PCI-E 3.0 x4,2 PCI-E 3.0 x16 slots (16/NA or 8/8),1 PCI-E 3.0 x11 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

5.1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port

6.Intel W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

7.Single LAN with Intel PHY I219LM LAN controllerfor AMT/vProSingle LAN with Intel Ethernet i225V
Physical Stats
Form Factor
ATX
Processor/Cache
CPU
10th Generation Intel Core^TM i9/Core^TM i7/Core^TMi5/Core^TMi3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
Cores / Cache
Up to 10 cores
System Memory
Memory Capacity
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel W480
SATA
Intel W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
Network Controllers
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
Single LAN with Intel Ethernet i225V
Audio
ALC 888S HD Audio
Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
2 USB 2.0 ports (2 via headers)
3 USB 3.2 Gen1 ports (1 via header + 2 Type A)
5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header)
Video Output
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header

Expansion Slots
PCI-E
1 PCI-E 3.0 x4,
2 PCI-E 3.0 x16 slots (16/NA or 8/8),
1 PCI-E 3.0 x1
1 - 5V PCI 32bit
M.2
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 and 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
256Mb SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
AMT, SSM, SUM, SuperDoctor 5, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
Power button override mechanism
Power supply monitoring
Wake-on-LAN
PC Health Monitoring
Voltage
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, CPU temperature, CPU thermal trip support, LAN temperature, Memory temperature, PCH temperature, System temperature, VBAT, VRM temperature
FAN
5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Single cooling zone
Temperature
N/A
LED
BMC/IPMI Heartbeat LED, Power LED, Catastrophic Error LED
Other Features
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, WOL
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Weight
3.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12SAE-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Add-on-ModuleThe Supermicro AOM-TPM-9655V is a security hardware device on the system board that will hold computer generated keys for encryption. Supermicros outstanding hardware base solution ensures that the information like keys, password and digital certificates stored within is made more secure from external software attacks and physical theft. With the handful of keys it stores, all cryptographic functions are performed on the chip. AOM-TPM-9655V is an ideal tool for customers who are looking for additional layer of security to their super servers.


Features
- TCG 1.2 compliant trusted platform module (TPM)

- Compliant embedded software Advanced Crypto Engine (ACE) with RSA support up to 2048 bit key length

- Tick counter with tamper detection

- Protection against Dictionary Attack

- Intel Trusted Execution Technology Support (TXT)

- AMD Secure Virtual Machine Architecture Support

- Full personalization with Endorsement Key (EK) and EK certificate

- Power saving sleep mode 3.3 V power supply WHQL dual mode 1.1b + 1.2 TPM Windows Kernel Mode Driver
Security Features
Over/Under voltage Detection
Low frequency sensor
High frequency filterbr
Reset filter
Memory Encryption/Decryption (MED)
Application Supports
Microsoft Outlook and Outlook Express
Microsoft Office 2010, Office 2000, Office XP and Office 2003
Microsoft Internet Explorer
Mozilla Firefox
Mozilla Thunderbird
Netscape Communicator
Microsoft Encrypted File System
RSA Secure ID
Check Point SecuRemote/SecureClient
Check Point VPN-1/FireWall-1 NG
Entrust Desktop Manager Solutions
Adobe Acrobat 6.0 Professional
Supported Platforms
Supermicro motherboards with 20-pin TPM connectors
Operating Conditions
Operating temperature range:
20C to 80C (-4F to 176F)
40C to 85C (-40F to 185F)
Item Dimension (L inchxW inchxH inch)
NA

Weight
0.05lb

Warranty Information
1 Year

Available Quantity

5

UPC

672042178209

SKU

mingleAOM-TPM-9655V-S

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

IMB-1711

ATX Motherboard

Intel 10th Gen (Cometlake-S) Core Processors with Q470E chipset

4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB

1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 3 x PCIe x4 Gen3, 2 x PCI

4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0

1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 6 x SATA3

1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN

Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x HDMI 2.0a

TPM 2.0 onboard

ATX-PWR (24+8-pin)
Processor System
CPU
Intel 10th Gen (Cometlake-S) Core Processors, up to 125 W
Chipset
Intel Q470E
Socket
LGA1200
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity
128GB
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0a, Max resolution up to 4096 x 2160 at 60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096 x 2160 at 60Hz
VGA
Max resolution up to 1920 x 1200 at 60Hz
MultiDisplay
Triple Display
Expansion Slot
PCIe
3 x PCIe Gen3 Slots (PCIE1 / PCIE2 / PCIE3: Single at x16 (PCIE1) Dual at x8 (PCIE1) / x8 (PCIE3) Triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3))
2 x PCIe x4 (Gen3)
PCI
2 x PCI
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 and SIM socket for 4G / 5G
SIM Socket
1 x SIM socket connected to M.2 Key B
Audio
Interface
Realtek ALC887 HD, High Definition Audio. Line-In / Line-Out / Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.2
VGA
1
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
4 x USB 3.2 Gen2, 2 x USB 2.0
Audio
3 ( Line-In, Line-Out, Mic-In )
COM
2 x COM (RS-232/422/485)
PS2
1
Internal Connector
USB
4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM
4 x COM (RS-232)
Parallel
1
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
TPM
TPM 2.0 onboard
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD
Shared with SATA3_5 / SATA3_6 Ports
- When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled
- When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available
SATA
6 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON
Interval
256 segments, 0,1,2255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0^oC - 60^oC
Storage Temp
-40^o C 85^o C
Operating Humidity
5% - 90%
Storage Humidity
5% - 90%
Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
3 years

Available Quantity

5

UPC

Does not apply

SKU

mingleIMB-1711

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Supports single Intel Xeon Scalable Processors/2nd Gen. Intel Xeon Scalable Processors

Supports 4 Channel, DDR4 2666/2400/2133 SO-RDIMM, *ECC SO-DIMM, 4 DIMM slots.


IntelC621:7x SATA3

Supports dual GLAN by Intel integrated MAC X722 + Marvell 88E1514

Supports 1 x PCIe 3.0 x16

2 x USB 3.0 ports
MB Physical Status
Form Factor
- Mini ITX
Processor System
CPU
- Intel Xeon Scalable Processors
Socket
- Single Socket LGA3647 (Socket P)
Chipset
- Intel C621
System Memory
Capacity
- 4 x 260-pin DDR4 DIMM slots
- Support up to 64GB DDR4 SO-RDIMM, ECC SO-DIMM.
Type
- Four Channel DDR4 memory technology
- Support DDR4 2933/2666/2400/2133, SO-RDIMM, SO-ECCDIMM
DIMM Size Per DIMM
- SO-RDIMM, SO-ECC DIMM: 32GB, 16GB, 8GB, 4GB
DIMM Frequency
- SO-RDIMM, SO-ECC DIMM: 2933/2666/2400/2133 MHz
DDR4 2933 memory is supported only when using the Intel Cascade Lake CPU and Intel Cascade Lake BIOS.
Voltage
- 1.2V
Expansion Slot
PCIe 3.0 x 16
- PCIE3: Gen3 x16 link (from CPU1)
Storage
SATA Controller
- Intel C621: 7 x SATA3 6Gb/s (4 from mini-SAS HD, 1 x SATA DOM 6Gb/s and 2 x M.2 on bottom)), support RAID 0, 1, 5, 10
M.2 slot
- 2 X2280, (PCIE(x4)/SATA3)
Ethernet
Interface
- 1000 /100 /10 Mbps
LAN Controller
- 2 x 1GbE RJ45 via Intel integrated MAC X722 + Marvell Alaska 88E1514
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
Management
BMC Controller
- ASPEED AST2500
Features
- Watch Dog
- NMI
Graphics
Controller
- ASPEED AST2500
VRAM
- DDR4 256MB
Rear Panel I/O
VGA Port
- 1 x D-Sub
USB 3.1 Gen2 Port
- 2
Lan Port
- 2 x RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Internal Connector
COM Header
- 1 (from BMC)
TPM Header
- 1
NVME support
- 1 x MINISASHD from PCH
Fan Header
- 3Fans x 4-pin (CPU/2System)
ATX Power
- 1 (24-pin) + 1 (8-pin)
USB 2.0 Header
- 1 ( support 2 USB 2.0)
PSU SMB Header
- 1
Front Panel
- 1
BMC_SMB Header
- 1
ME/SPS Recovery
- 1
Clear CMOS
- 1 (short pad)
System BIOS
BIOS Type
- 256Mb AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature
- CPU Temperature Sensing
- System Temperature Sensing
Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS
Microsoft Windows (Server OS)
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- Red Hat Enterprise Linux Server 6.9 (64 bit) / 7.6 (64 bit)
- CentOs 6.9 (64 bit) / 7.6 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP4 (64 bit)
- FreeBSD 11.2 (64 bit)
- Ubuntu 16.04 (64 bit) / 18.04 (64 bit)
Virtual
- VMWare ESXi 6.5 u1/ vSphere 6.5 u1
- Citrix XenServer 7.5
Please refer to our website for the latest OS support list.
On the Ubuntu 16.04(64bit)/ 18.04 (64 bit) only support UEFI BOOT
On the SUSE Enterprise Linux Server 11 SP4 ( 64 bit)/ 12 SP4 ( 64 bit) only support UEFI BOOT
Cascade Lake CPU supports Red Hat 7.6 / CentOS 7.6.
Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Weight
3.00 LB
Warranty Information
3 years

Available Quantity

5

UPC

Does not apply

SKU

mingleEPC621D4I-2M

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Supports 3rd Gen AMD Ryzen Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

Direct 16 Phases Digital VRM Solution with 70A Power Stage

Advanced Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Baseplate

Ultra Durable PCIe 4.0 Ready x16 Slot

Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards

Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna

AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR

Blazing Fast 2.5GbE LAN with Bandwidth Management

USB 3.2 Gen2 Type-C & HDMI Support

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Pre-installed IO Shield for Easy and Quick Installation


DESIGN CONCEPT

DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.
CPU
AMD Socket AM4, support for: 3rd Generation AMD Ryzen^TM processors/ New Generation AMD Ryzen^TM with Radeon^TM Graphics processors
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen^TM Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen^TM with Radeon^TM Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated in the New Generation AMD Ryzen^TM with Radeon^TM Graphics processors:

1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Note: Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB
Audio
Realtek ALC1220-VB codec
Note: The back panel line out jack supports DSD audio.
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel Wi-Fi 6 AX200

WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Note: Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

3rd Generation AMD Ryzen^TM processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen^TM with Radeon^TM Graphics processors support PCIe 3.0 x16 mode
Note: For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Note: The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.

2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode
Note: The PCIEX4_2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX4_2 slot operates at up to x2 mode when a device is installed in the SATA3 4 or SATA3 5 connector.
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

3rd Generation AMD Ryzen^TM processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen^TM with Radeon^TM Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
3rd Generation AMD Ryzen^TM processors support PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen^TM with Radeon^TM Graphics processors support PCIe 3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10
USB
CPU:

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:

1 x USB Type-C^TM port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Thunderbolt header
Back Panel Connectors
2 x SMA antenna connectors (2T2R)
1 x HDMI port
6 x USB 2.0/1.1 ports
5 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C^TM port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
Note: Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS^TM
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Note: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
At BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
XSplit Gamecaster + Broadcaster (12 months license)
Realtek 8125 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor, 30.5cm x 24.4cm

Available Quantity

5

UPC

889523022603

SKU

mingleB550 AORUS MASTER

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Intel H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 8 power stages, HDMI , DVI, SATA 6 Gbps, Front USB 3.2 Gen 1, Intel 1 Gb Ethernet, Intel Optane Memory Ready, ASUS OptiMem, FAN Xpert, Armoury Crate, 5X PROTECTION III

Intel LGA 1200 socket: Ready for 11th and 10th gen Intel Core processors

Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery

Comprehensive cooling: PCH heatsink, hybrid fan headers and Fan Xpert

ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, Front USB 3.2 Gen 1


PRIME

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B460M-A R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.


Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work maximizing your productivity.


UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
CPU
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Refer to www.asus.com for CPU support list.
-- Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H470 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
- 10th Gen Intel Core^TM i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
- 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DVI-D
- Graphics specifications may vary between CPU types.
- Only Intel 11th Gen processors support HDMI^TM 2.0 with max. resolution of 4K at 60Hz, others will only support HDMI^TM 1.4 with max. resolution of 4K at 30Hz .Please refer to www.intel.com for any updates.
Expansion Slots
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel 11th and 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel11th Gen processors support PCIe 4.0 x16 mode
- Intel10th Gen processors support PCIe 3.0 x16 mode
Intel H470 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H470 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports Raid 0,1,5,10
Intel Optane^TM Memory Ready
Ethernet
ASUS LANGuard
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- LED-illuminated audio trace path design
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
-- A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DVI-D port
1 x HDMI port
1 x Intel I219V 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Intrernal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
FAN Xpert
- EZ update
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
DAEMON Tools
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
Form Factor
microATX
24.4cm x 24.4cm
Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years

Available Quantity

5

UPC

195553241380

SKU

minglePRIME B460M-A R2.0

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: B450M DS3H V2
• CPU: AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
• Chipset: AMD B450
• Memory:
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
  • Integrated Graphics Processor:
    - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.2
  • Maximum shared memory of 16 GB
  • Actual support may vary by CPU
• Audio:
  • Realtek ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    - To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • Support for S/PDIF Out
• LAN: Realtek GbE LAN chip (1000/100 Mbit)
• Expension Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    - For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x1 slot
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
    Actual support may vary by CPU
• Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
• Storage Interface:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
    - Actual support may vary by CPU
    - Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU
  • 4 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10

• USB:
  • Chipset:
    - 2 x USB 3.1 Gen 1 ports available through the internal USB header
    - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • CPU:
    - 4 x USB 3.1 Gen 1 ports on the back panel
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 1 x USB 3.1 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
• Back Panel Connectors:
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.1 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller: iTE I/O Controller Chip
• H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
• BIOS:
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
  • Support for APP Center
    - @BIOS
    - EasyTune
    - Fast Boot
    - Game Boost
    - ON/OFF Charge
    - RGB Fusion
    - Smart Backup
    - System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software:
  • Norton Internet Security (OEM version)
  • cFosSpeed
• Operating System: Support for Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 24.4cm x 21.5cm
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Available Quantity

5

UPC

889523024393

SKU

mingleB450M DS3H V2

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: B450APROMAX
• CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics/ 2nd Gen AMD Ryzen with Radeon Graphics Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
• Chipset: AMD B450 Chipset
• Memory:
  • 4 x DDR4 memory slots, support up to 64GB
    - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    - For AMD Ryzen Gen3 (R5/R7/R9)
    *Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz(by A-XMP OC MODE)
    - For AMD Other CPU
    *Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
• Slots:
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    - 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode
    - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode
    - Athlon with Radeon Vega Graphics support x4 mode
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
  • 4 x PCIe 2.0 x1 slots
• Onboard Graphics:
  • 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz
  • 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
  • 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
• Multi-GPU: Supports 2-Way AMD CrossFire Technology
• Storage:
  • AMD CPU
    - 2 x SATA 6Gb/s ports
    - 1 x M.2 slot (Key M)
    *Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device
  • AMD B450 Chipset
    - 4 x SATA 6Gb/s ports
• RAID:
  • AMD B450 Chipset
    - Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
• USB:
  • AMD B450 Chipset
    - 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
    - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
    - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
  • AMD CPU
    - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
• Audio:
  • Realtek ALC892 Codec
    - 7.1-Channel High Definition Audio
• LAN: 1 x Realtek 8111H Gigabit LAN controller
• Internal Connectors:
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x 5050 RGB LED strip 12V connector
• Back Panel Ports:
  • Flash BIOS Button
  • PS/2 Combo Port
  • VGA Port
  • USB 3.2 Gen1
  • LAN Port
  • HD Audio Connectors
  • USB 2.0 ports
  • DVI-D Port
  • HDMI Port
  • USB 3.2 Gen2
• Dimension:
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
• Mounting: 9 mounting holes
• Operating System:
  • Support for Windows 10 64-bit
  • Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Available Quantity

5

UPC

824142194447

SKU

mingleB450APROMAX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: B450GPLMAX

• CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
• Chipset: AMD B450 Chipset
• Memory:
  • 4 x DDR4 memory slots, support up to 64GB
    - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    - For AMD Ryzen Gen3 (R5/R7/R9)
    *Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000 /4133 MHz(by A-XMP OC MODE)
    - For AMD Other CPU
    *Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)

  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)

• Slots:
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    - 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode
    - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode
    - Athlon with Radeon Vega Graphics support x4 mode
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
  • 4 x PCIe 2.0 x1 slots

• Onboard Graphics:
  • 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
  • 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
• Multi-GPU: Supports 2-Way AMD CrossFire Technology
• Storage:
  • AMD CPU
    - 2 x SATA 6Gb/s ports
    - 1 x M.2 slot (Key M)
    *Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

  • AMD B450 Chipset
    - 4 x SATA 6Gb/s ports
• RAID:
  • AMD B450 Chipset
    - Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
• USB:
  • AMD B450 Chipset
    - 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
    - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
    - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
  • AMD CPU
    - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
• Audio:
  • Realtek ALC892 Codec
    - 7.1-Channel High Definition Audio
• LAN: 1 x Realtek 8111H Gigabit LAN controller
• Internal Connectors:
  • 1x 24-pin ATX main power connector

  • 1x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial Port connector
  • 1 x Parallel port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 2 x 5050 RGB LED strip 12V connectors

• Back Panel Ports:
  • PS/2 Combo Port
  • USB 3.2 Gen1
  • LAN Port
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0 port
  • DVI-D Port
  • HDMI Port
  • USB 3.2 Gen2
• Dimension:
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

  • ATX Form Factor
• Mounting: 9 mounting holes
• Operating System:
  • Support for Windows 10 64-bit

  • Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Available Quantity

5

UPC

824142189696

SKU

mingleB450GPLMAX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: B550 PHANTOM GAMING 4 AC
• Gaming Armor:
  • Memory
    - 15 Gold Contact in DIMM Slots
  • Cooling
    - XXL Aluminum Alloy Heatsink
  • Audio
    - Nahimic Audio
• Unique Feature:
  • ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB
  • Intel 802.11ac WiFi
  • ASRock Steel Slot Gen4
  • ASRock Hyper M.2 (PCIe Gen4x4)
  • ASRock POST Status Checker (PSC)
  • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  • ASRock Live Update & APP Shop
• CPU:
  • Supports 3rd Gen AMD AM4 Ryzen/ future AMD Ryzen Processors
  • Digi Power design
  • 8 Power Phase design
• Chipset: AMD B550
• Memory:
  • Dual Channel DDR4 Memory Technology
  • 4 x DDR4 DIMM Slots
  • AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) memory modules
  • 15 Gold Contact in DIMM Slots
• BIOS:
  • 256Mb AMI UEFI Legal BIOS with GUI support
  • Supports "Plug and Play"
  • ACPI 5.1 compliance wake up events
  • Supports jumperfree
  • SMBIOS 2.3 support
  • CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
• Graphics:
  • Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
  • DirectX 12, Pixel Shader 5.0
  • Shared memory default 2GB. Max Shared memory supports up to 16GB.
  • Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
  • Supports HDR (High Dynamic Range) with HDMI 2.1
  • Supports HDCP 2.3 with HDMI 2.1 Port
  • Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
  • Supports Microsoft PlayReady
• Audio:
  • 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
  • Premium Blu-ray Audio support
  • Supports Surge Protection
  • PCB Isolate Shielding
  • Individual PCB Layers for R/L Audio Channel
  • Nahimic Audio
• LAN:
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
• Wireless LAN:
  • Intel 802.11ac WiFi Module
  • Supports IEEE 802.11a/b/g/n/ac
  • Supports Dual-Band (2.4/5 GHz)
  • Supports high speed wireless connections up to 433Mbps
  • Supports Bluetooth 4.2 + High speed class II
• Slots:
  • AMD Ryzen series CPUs (Matisse)
    - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
  • AMD Ryzen series APUs (Renoir)
    - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
    - 2 x PCI Express 3.0 x1 Slots
    - Supports AMD Quad CrossFireX and CrossFireX
    - 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module
• Storage:
  • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)
  • 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
• Connector:
  • 1 x COM Port Header
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 2 x RGB LED Headers
  • 2 x Addressable LED Headers
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x 4 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• Rear Panel I/O:
  • 2 x Antenna Ports
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  • Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Polychrome SYNC
    - ASRock Key Master
    - ASRock XFast LAN
  • UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash
• Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories:
  • Quick Installation Guide, Support CD, I/O Shield
  • 2 x SATA Data Cables
  • 2 x ASRock WiFi 2.4/5 GHz Antennas
  • 1 x Screw for M.2 Socket
• Hardware Monitor:
  • Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
• Form Factor:
  • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • Solid Capacitor design
  • 2oz Copper PCB
• OS: Microsoft Windows 10 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
