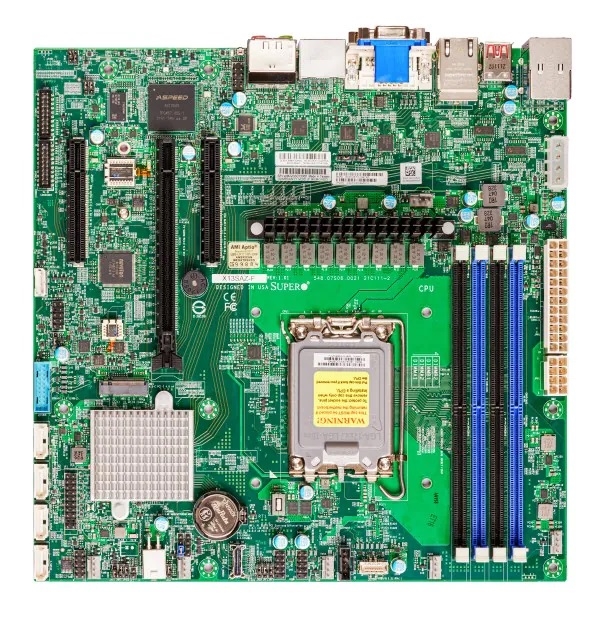

Product Description

Key Features
12th Generation Intel Core i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
Intel R680E
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
1 PCI-E 5.0 x16 slot,
2 PCI-E 4.0 x4 slots,
1 PCI-E 4.0 x4 OCulink port
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Dual 2.5 Gigabit LAN with Intel Ethernet i225LM LAN controller AMT/vPro
1 VGA port, 2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port
Intel R680E Controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
Supports 12V DC power input
Onboard TPM2.0
Physical Stats
Form Factor
Micro-ATX
Processor
CPU
12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1700 supported
Core
Up to 16 cores
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB ECC/non-ECC UDIMM, DDR5-4400MHz
Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
Memory Type
4400/4000/3600MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel R680E
SATA
Intel R680E controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
Audio
ALC 888S HD Audio
Network Controllers
Dual LAN with Intel Ethernet i225LM
Input / Output
SATA
4 SATA3 (6Gbps) port(s)
USB
2 USB 2 port(s) (2 via header)
6 USB 3.1 Gen2 port(s) (2 via header 4 rear type A)
2 USB 3.1 Gen1 port(s) (2 via header)
Video Output
1 VGA port(s), 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
Serial Port
4 COM Port(s) (2 header RS232/422/485 2 header RS232)
TPM
TPM Header andChip both
Expansion Slots
PCI-E
1 PCI-E 5.0 x16,
2 PCI-E 4.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.0 or later
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor 5, SUM, AMT, vPro, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
System Management Software
Wake-on-LAN, Watchdog, KVM with dedicated LAN
Power Configurations
ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
VBAT, Memory temperature, CPU temperature, Chipset Voltage, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, 5 fans with tachometer status monitoring, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID
LED
Power LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Other Features
RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
FAN
5x 4-pin fan headers (up to 5 fans)
Operating Environment
Operating Temperature Range
0^oC - 60^oC (32^oF - 140^oF)
Non-Operating Temperature Range
-40^oC - 85^oC (-40^oF - 185^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X13SAZ-F-O

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

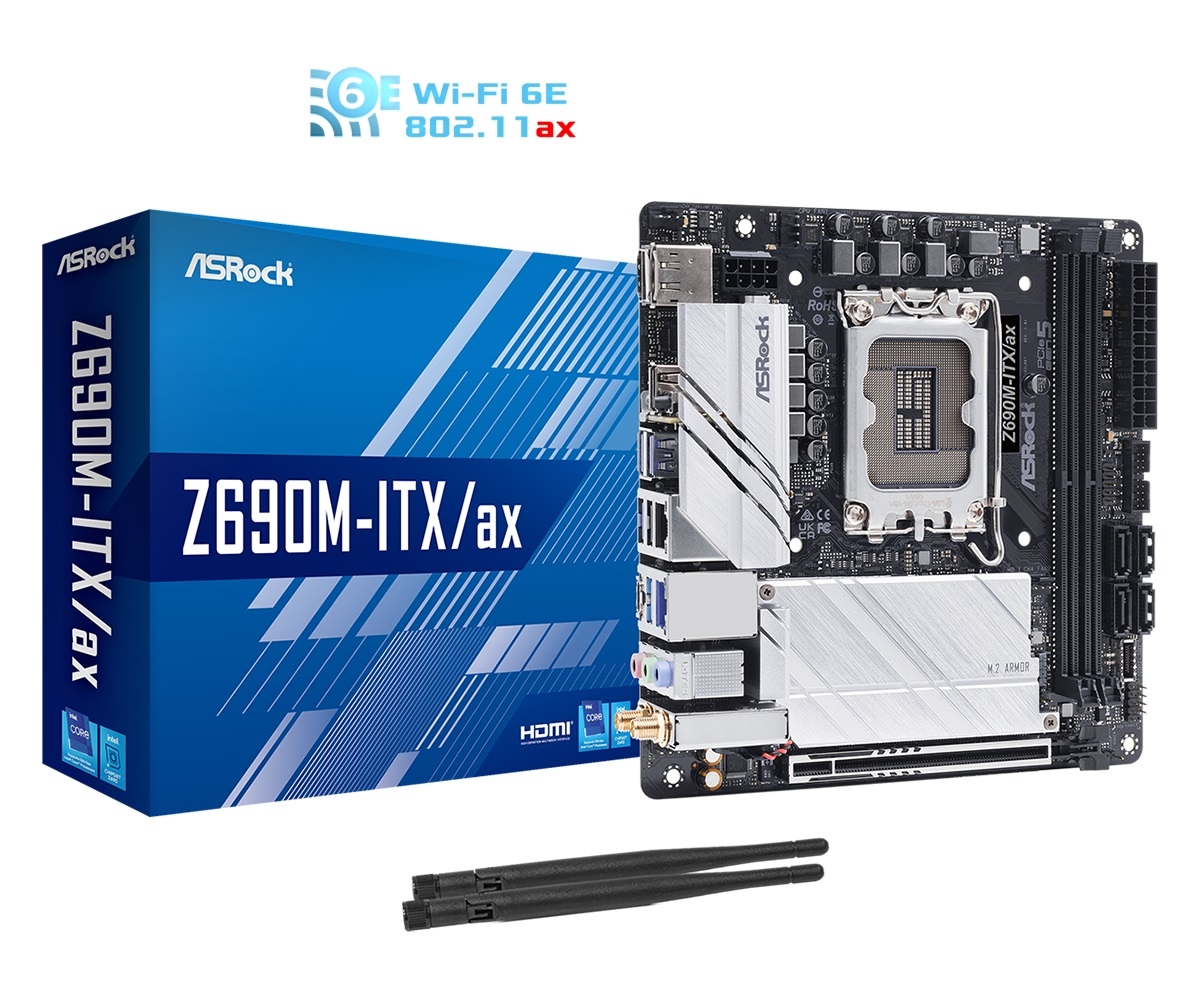

Z690M-ITX/ax

Supports 12th Gen Intel Core Processors (LGA1700)

8 Phase Dr.MOS Power Design

Supports DDR4 5000MHz (OC)

1 PCIe 5.0 x16

Graphics Output Options: HDMI, DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

4 SATA3

1 Hyper M.2 (PCIe Gen4 x4)

1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

2 USB 3.2 Gen2x2 Type-C (1 Front, 1 Rear)

4 USB Rear 3.2 Gen2

2 USB Front 3.2 Gen1

Dragon 2.5G LAN, Intel Gigabit LAN

802.11ax (WiFi 6E) + Bluetooth
Unique Feature
ASRock USB 3.2 Gen2
- ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s)
- ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 8 Layer PCB
2.5G LAN
802.11ax Wi-Fi 6E
ASRock Auto Driver Installer
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports 12th Gen Intel Core Processors (LGA1700)
- Digi Power design
- 8 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel Z690
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
Supports DDR4 3200 natively.
BIOS
- 256Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) modes
- 4 x SATA3 6.0 Gb/s Connectors
Supports Intel Optane Technology (M2_2 only)
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Requires additional M.2 NVMe expansion cards to support RAID 5
Connector
- 1 x RGB LED Header
- 1 x Addressable LED Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (Supports ESD Protection)
Actual speed depends on USB devices and extension Cable in the chassis.
Supports in total up to 12V/3A, 36W LED Strip
Supports in total up to 5V/3A, 15W LED Strip
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
These utilities can be downloaded from ASRock Live Update and APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets
Hardware Monitor
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8 Layer PCB
OS
- Microsoft Windows 10 64-bit / 11 64-bit

Available Quantity

5

UPC

Does not apply

SKU

mingleZ690M-ITX/AX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

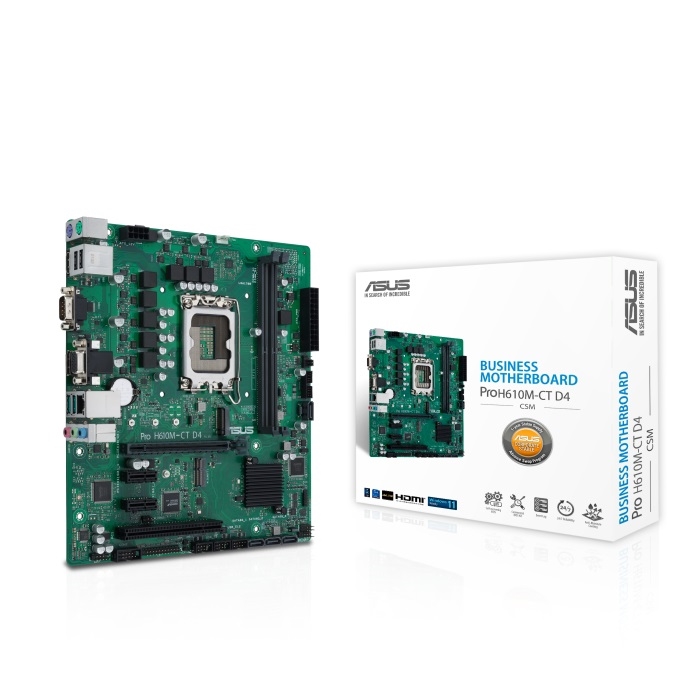

Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability
Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the worlds biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
Supports 4K at 60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot
Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless and Bluetooth
M.2 slot only (Key E, CNVi and PCIe)
Wi-Fi module is sold separately.
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 8 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design and Business Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
TPM IC Onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22 cm )
Including below info in 600 series refreshed NPI:
Supports 13th gen Intel Core^TM desktop processors.
BIOS update may be required to boot the 13th gen Intel Core^TM desktop processors

Available Quantity

5

UPC

195553687652

SKU

minglePRO H610M-CT D4-CSM

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

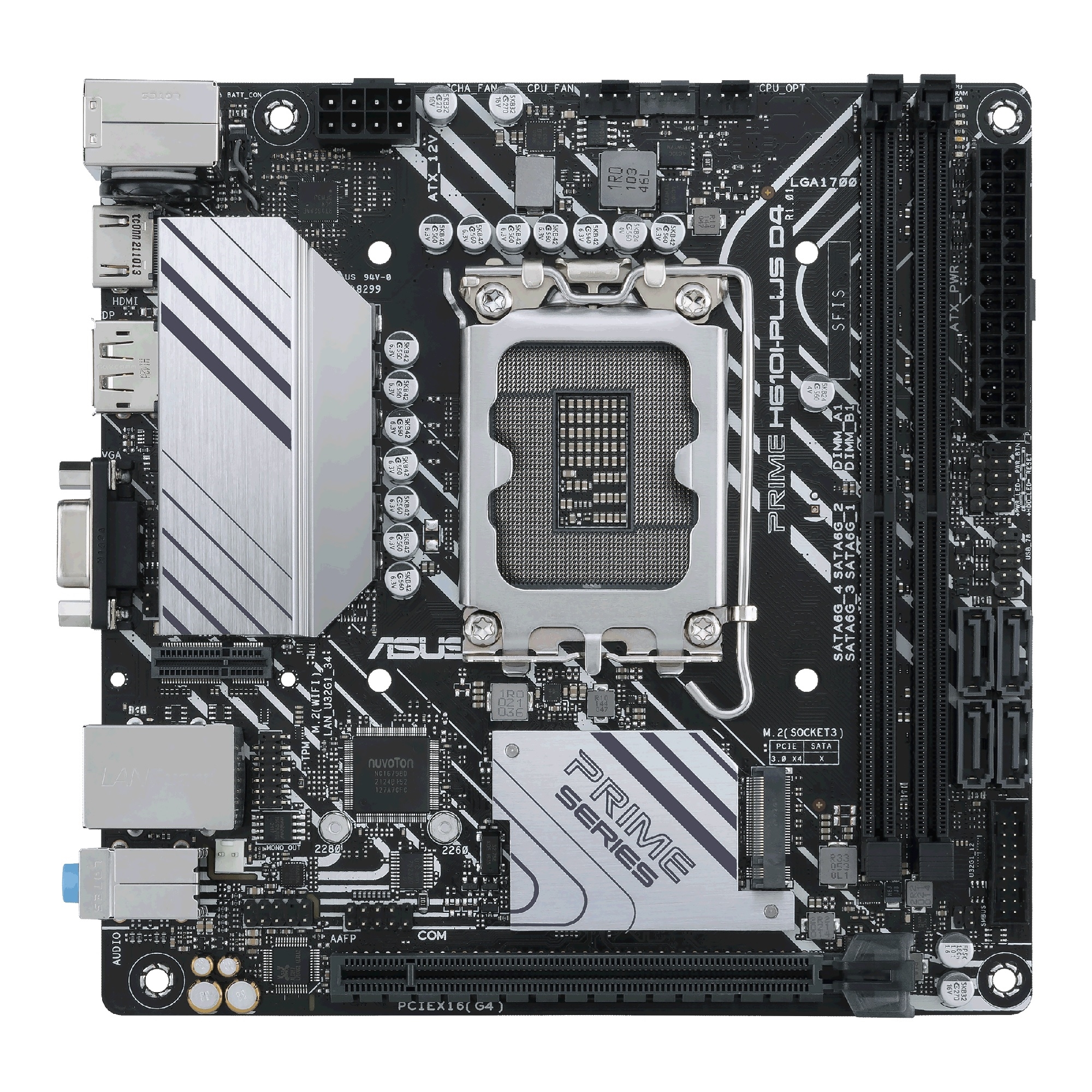

Product Description

1.Intel LGA 1700 socket: Ready for 12th Gen Intel processors

2.Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert

3.Ultrafast connectivity: PCIe 4.0, DDR4, 32Gbps M.2 slot, Realtek 1 Gb Ethernet, USB 3.2 Gen 1 and V-M.2 Key E slot for Wi-Fi
CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors^Note1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0^Note2
Note1: Refer to www.asus.com for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort 1.4^Note2
1 x D-Sub
1 x HDMI port^Note3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note1: Support DisplayPort 1.4 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates.
Note3: Support HDMI 2.1 with max. resolution of 4K60Hz. Please refer to www.intel.com for any updates.
Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
Wireless and Bluetooth
M.2 slot only (Key E, CNVi and PCIe)
Note: Wi-Fi module is sold separately.
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Mono-out header(with Amp IC)
1 x SMBUS header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Screw Package
Installation Media
1 x Support DVD
Documentation
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Mini ITX Form Factor
Including below info in 600 series refreshed NPI:
Supports 13th gen Intel Core^TM desktop processors.
BIOS update may be required to boot the 13th gen Intel Core^TM desktop processors

Available Quantity

5

UPC

195553755757

SKU

minglePRIME H610I-PLUS D4-CSM

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

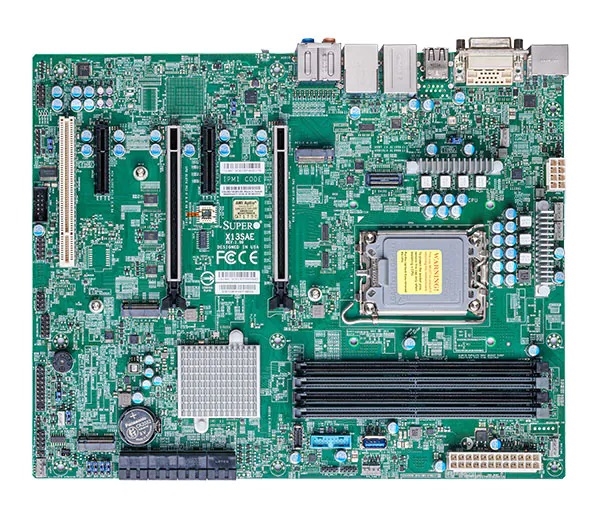

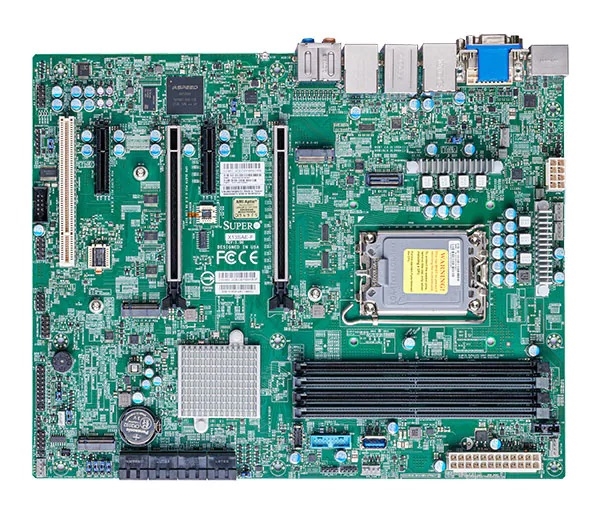

Product Description

12th Generation Intel Core i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP

Intel W680

Single LAN with Intel Ethernet i225LM

Single LAN with Intel PHY I219LM LAN controller

for AMT/vPro

Single LAN with RTL8211

Dedicated LAN for IPMI

2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4

1 - 5V PCI 32bit

M.2 Interface: 3 PCI-E 4.0 x4, RAID 0,1,5

M.2 Form Factor: 2280

M.2 Key: M-Key

128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots

Intel W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D port
Form Factor
ATX
Processor
CPU
12th Generation Intel Core^TM i3/i5/i7/i9 Processors
Single Socket LGA-1700 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
Up to 16(8+8) cores
System Memory
Memory Capacity
4 DIMM slots
128GB ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type
128GB
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
On-Board Devices
Chipset
Intel W680
SATA
Intel W680 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel PHY I219LM LAN controller, for AMT/vPro
Single LAN with Intel Ethernet i225LM
Single LAN with Realtek RTL8211F PHY (dedicated IPMI), Dedicated LAN for IPMI
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
4 USB 2 port(s) (2 via header, 2 rear)
4 USB 3.2 Gen2 port(s) (4 rear type A)
3 USB 3.2 Gen1 port(s) (2 via header, 1 Vertical)
2 USB 3.2 Gen2x2 port(s) (1 rear type C, 1 via header)
Video Output
1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.1 port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 3.0 x4,
2 PCI-E 5.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
SuperDoctor 5, SUM, SSM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X13SAE-F-O

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

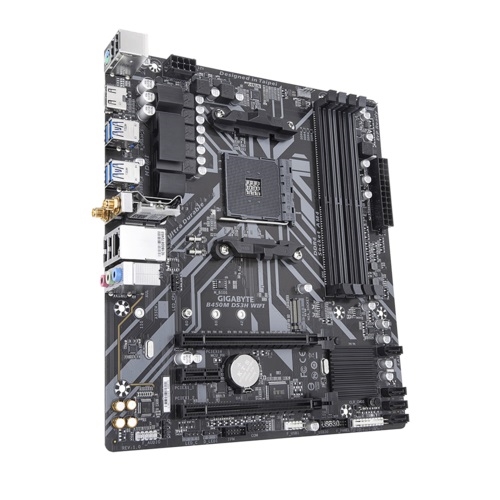

Product Description

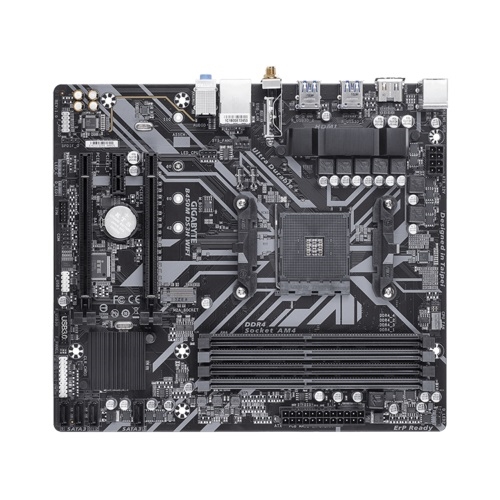

AMD B450 Ultra Durable Motherboard with Realtek GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel Dual Band 802.11ac WIFI, CEC 2019 ready


Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel Dual Band 802.11ac WIFI & BT 4.2

Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

High Quality Audio Capacitors and Audio Noise Guard Design

RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support

Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software

Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP

APP Center Including EasyTune and Cloud Station Utilities

CEC 2019 Ready, Save Power with a Simple Click


GET READY FOR AMD RYZEN 5000 SERIES

GIGABYTE motherboards are ready to support the latest AMD Ryzen 5000 Series Processors and are backwards compatible with AMD Ryzen 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable Armor for PCIe/ memory slots, USB Type-C interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
CPU
AM4 Socket: Supports AMD Ryzen^TM 5000 series / Ryzen^TM 5000 G-Series/ 3rd Gen Ryzen^TM/ 2nd Gen Ryzen^TM/ 1st Gen Ryzen^TM/ 2nd Gen Ryzen^TM with Radeon^TM Vega Graphics/ 1st Gen Ryzen^TM with Radeon^TM Vega Graphics/ Athlon^TM with Radeon^TM Vega Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD B450
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Dual channel memory architecture
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note)
Note: Support for HDMI 2.0 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB
(Note) Actual support may vary by CPU.
Audio
RealtekAudio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Note: To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
Note: Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
Note: For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
1 x PCI Express x1 slot
(The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
(Note) Actual support may vary by CPU.
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Note: Actual support may vary by CPU.
Note: Supports only M.2 SATA SSDs when using an AMD Athlon^TM-series/ 7th Gen. A-series or Athlon^TM X4 APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Note: Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
USB
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB LED strip header
2 x addressable LED strip headers
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers

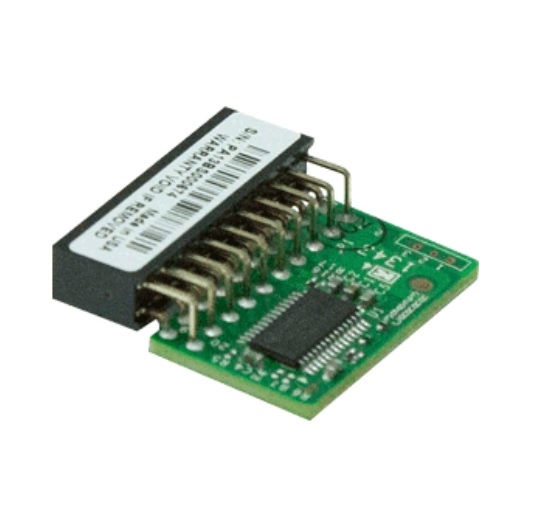

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

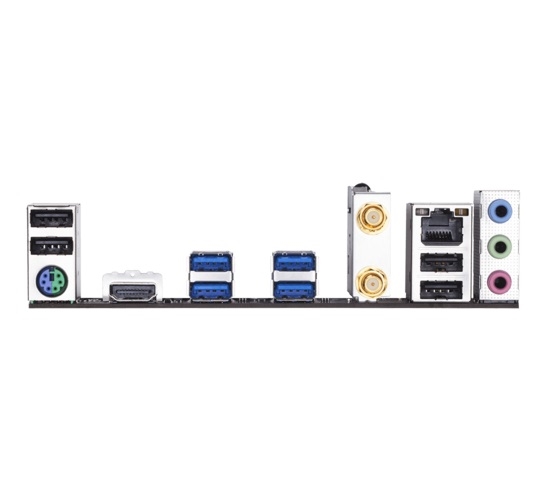

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Note: Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Note: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
At BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Support for Windows 7 64-bit
Note: To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge and Summit Ridge CPU.
Note: Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor 24.4cm x 21.5cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Available Quantity

5

UPC

889523017265

SKU

mingleB450M DS3H WIFI

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

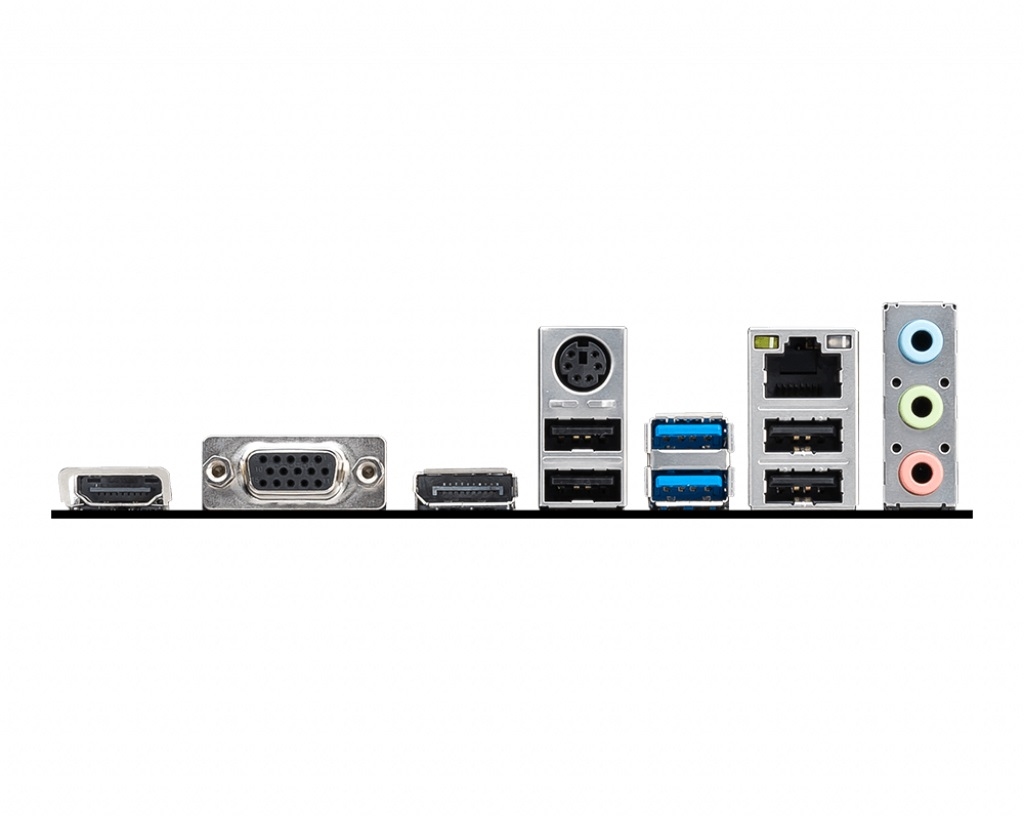

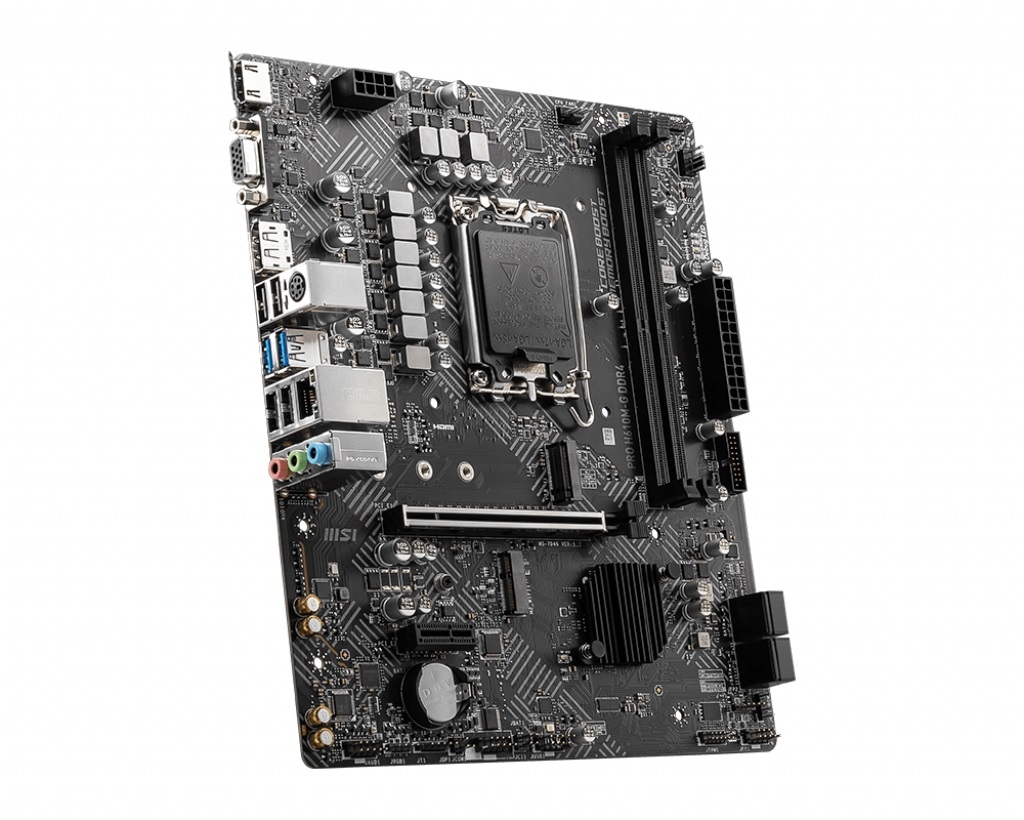

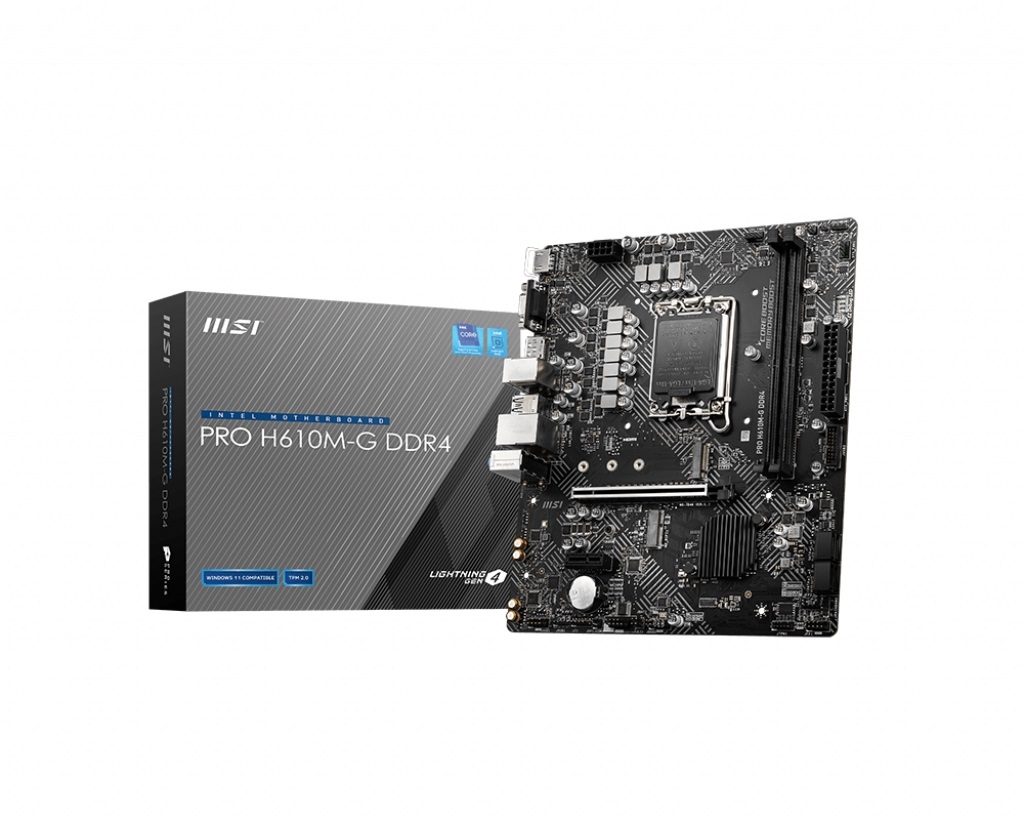

Product Description

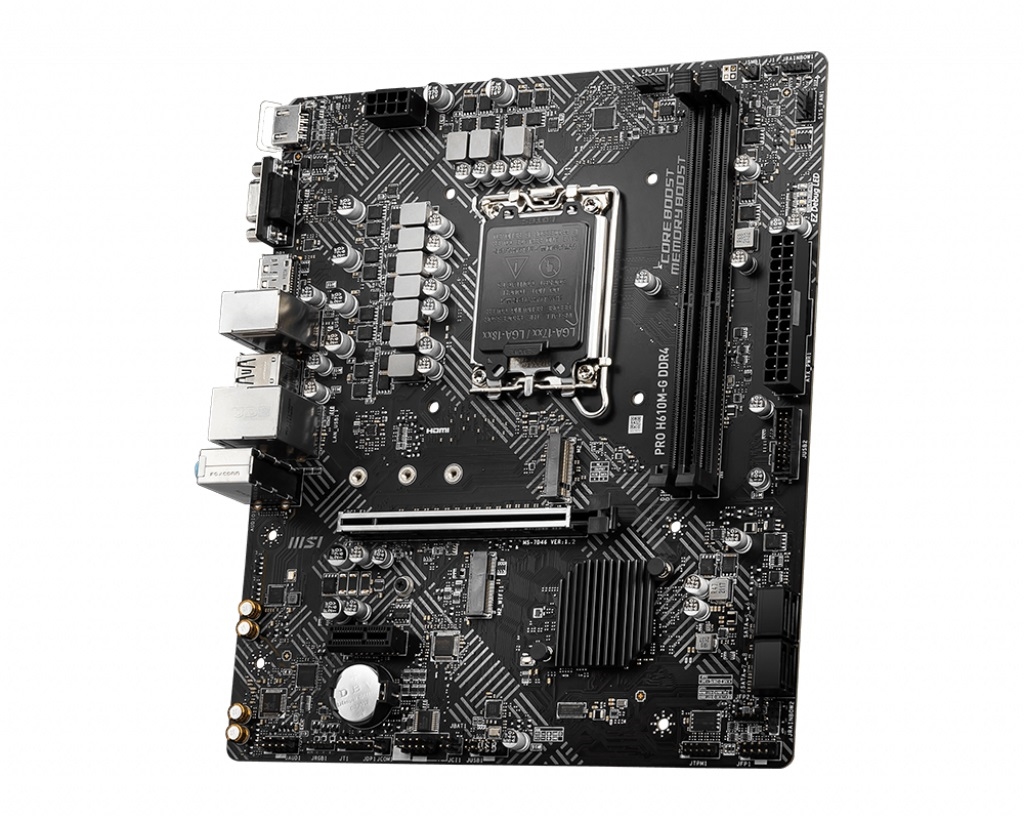

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.


FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


LOW LATENCY GAMING LAN POWERED BY INTEL

Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.


OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.


MSI LAN MANAGER

- Allows you to change applications' traffic priority -

- Allows you to customize bandwidth for each application


LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel H610 Chipset
DDR4 MEMORY
3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
2
MAX MEMORY (GB)
64
PCI-E X16
1
SATAIII
4
PCI-E X1
1
M.2 SLOT
1
TPM (HEADER)
1
LAN
1x Intel I219V Gigabit LAN controller
USB 3.2 PORTS (FRONT)
2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
2
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC892/ ALC897 Codec
DISPLAYPORT
1
VGA
1

Available Quantity

5

UPC

824142278789

SKU

minglePROH610MGD4

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

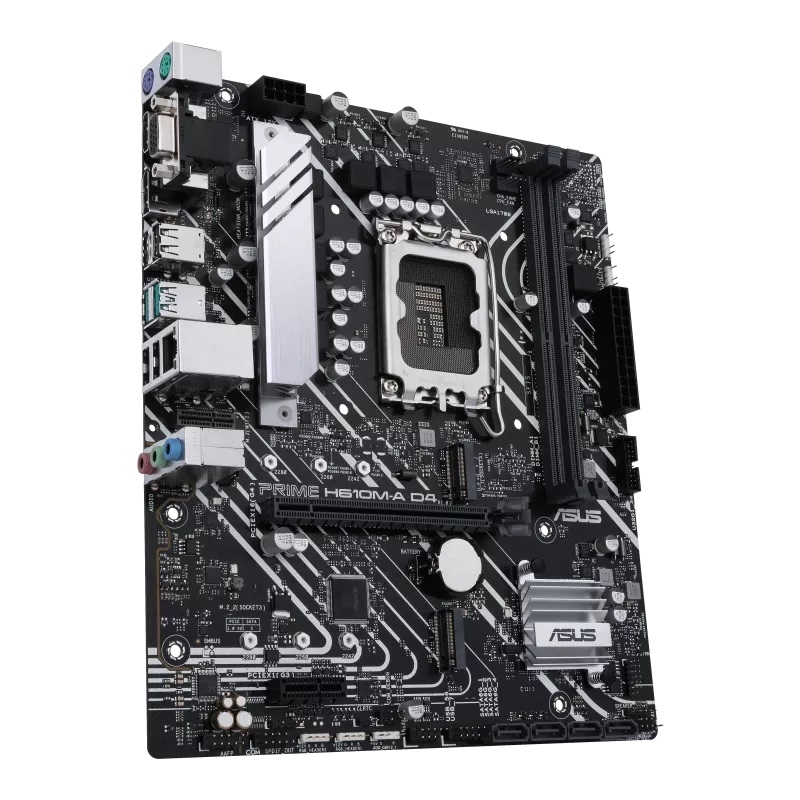

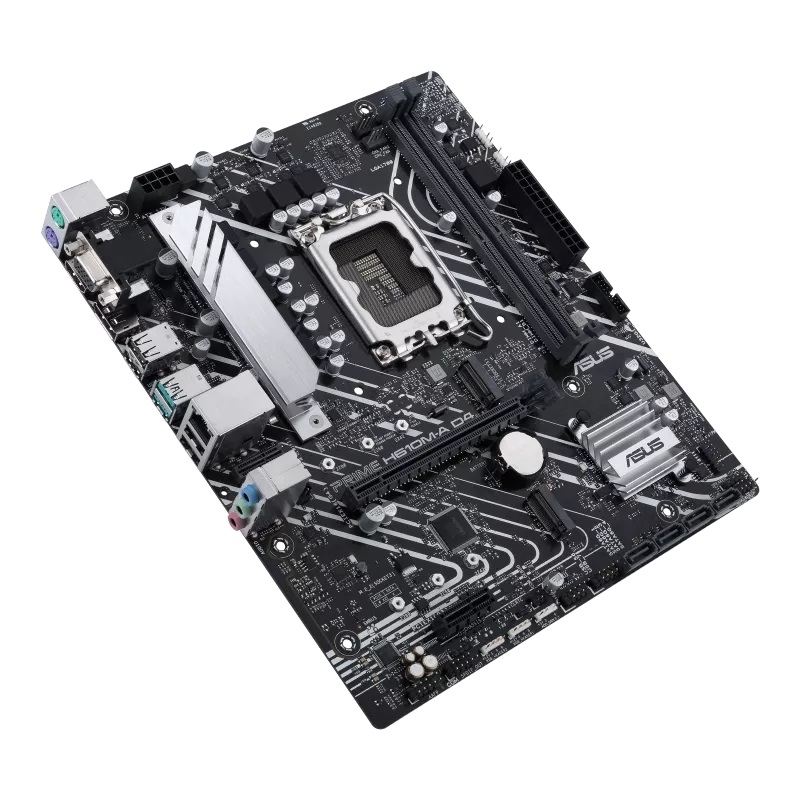

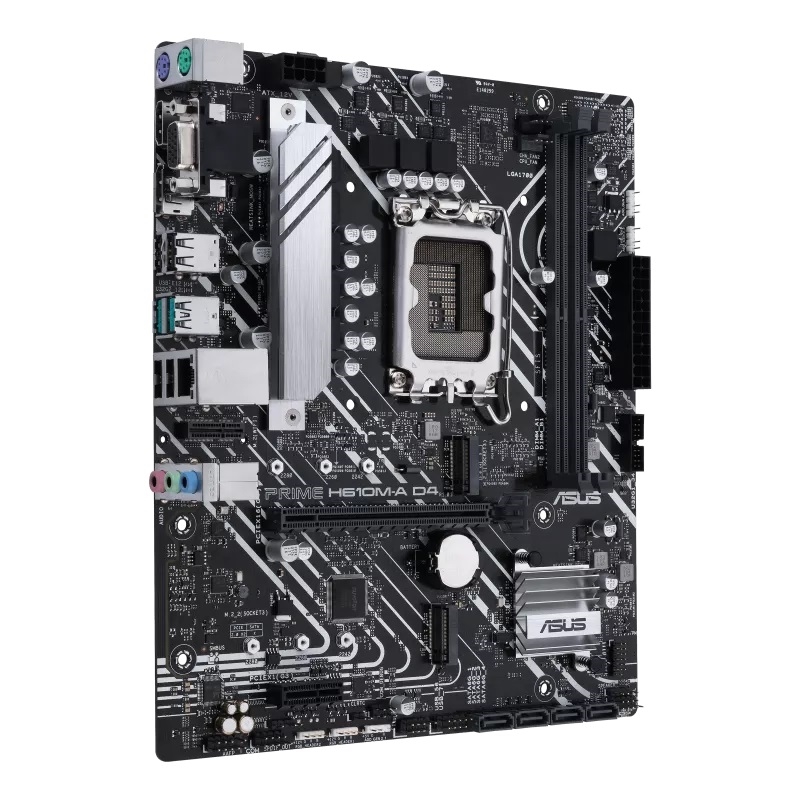

Product Description

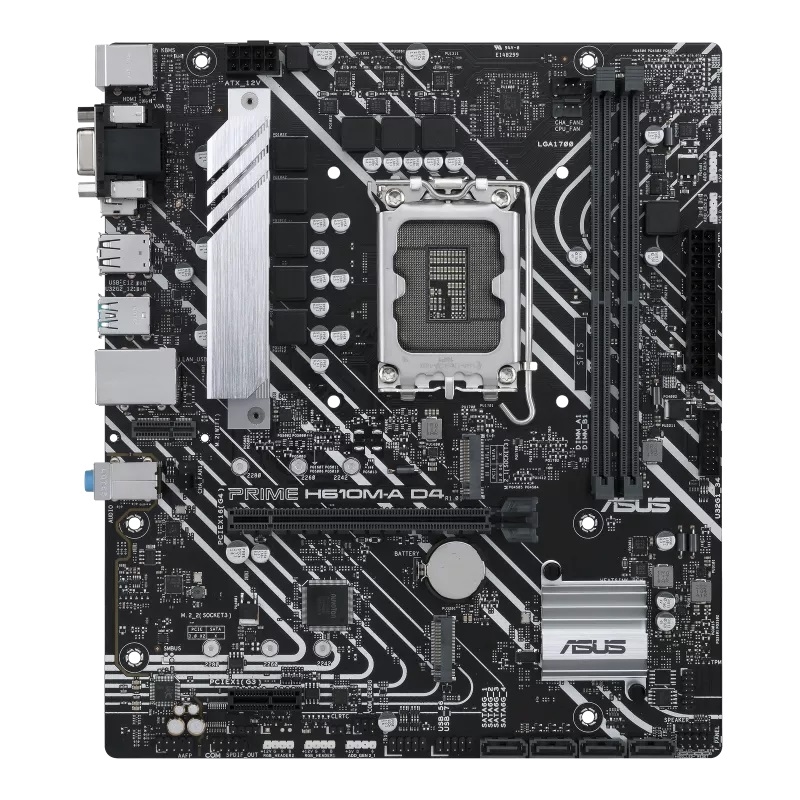

Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel 1 Gb Ethernet, DisplayPort, HDMI , D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync

Intel LGA 1700 socket: Ready for 12th Gen Intel processors

Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+

Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 2 ports

Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

ASUS Control Center Express (ACCE) for easier IT endpoint management


PRIME

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.


FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.


All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors^Note1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0^Note2
Note1: Refer to www.asus.com for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory^Note
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort^Note2
1 x D-Sub port
1 x HDMI port^Note3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports max. 4K60Hz as specified in DisplayPort 1.4.
Note3: Supports 4K60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet
Wireless and Bluetooth
V-M.2 slot only (Key E, CNVi and PCIe) ^Note
Note: Wi-Fi module is sold separately.
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC^Note
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

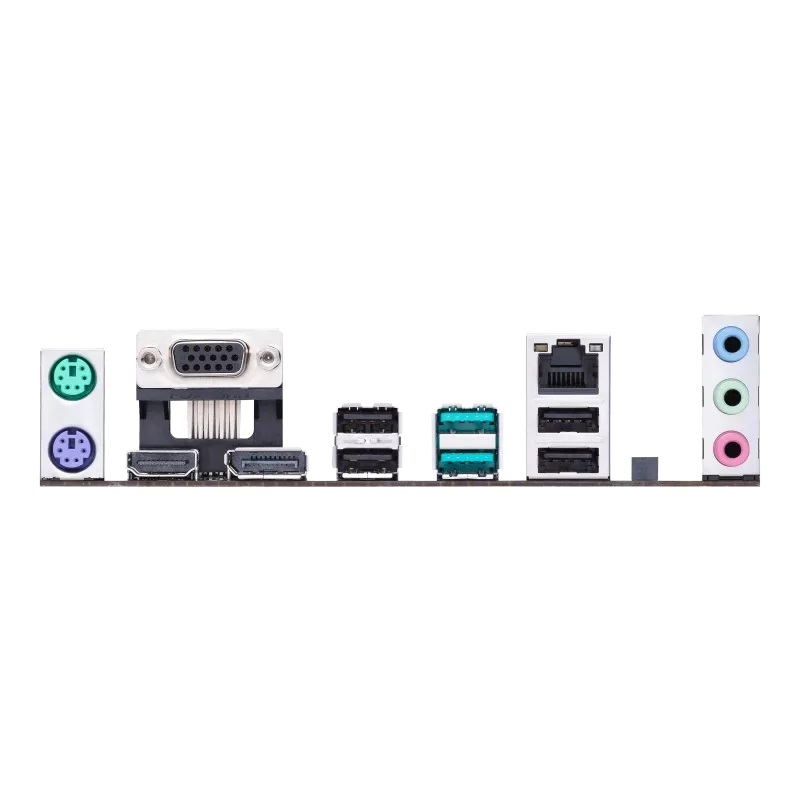

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub port
1 x V-M.2 slot (Key E)
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
Including below info in 600 series refreshed NPI:
Supports 13th gen Intel Core^TM desktop processors.
BIOS update may be required to boot the 13th gen Intel Core^TM desktop processors

Available Quantity

5

UPC

195553514446

SKU

minglePRIME H610M-A D4-CSM

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

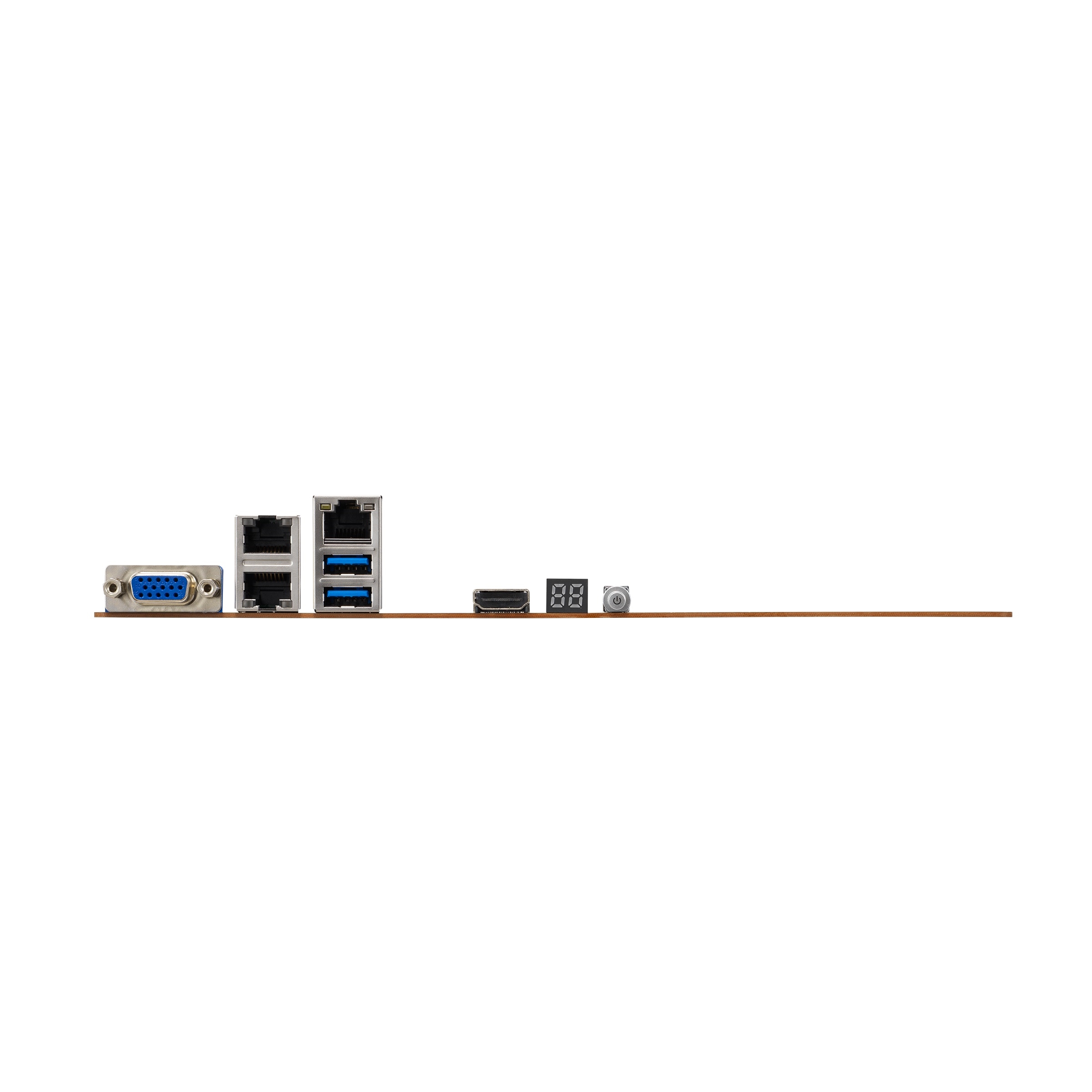

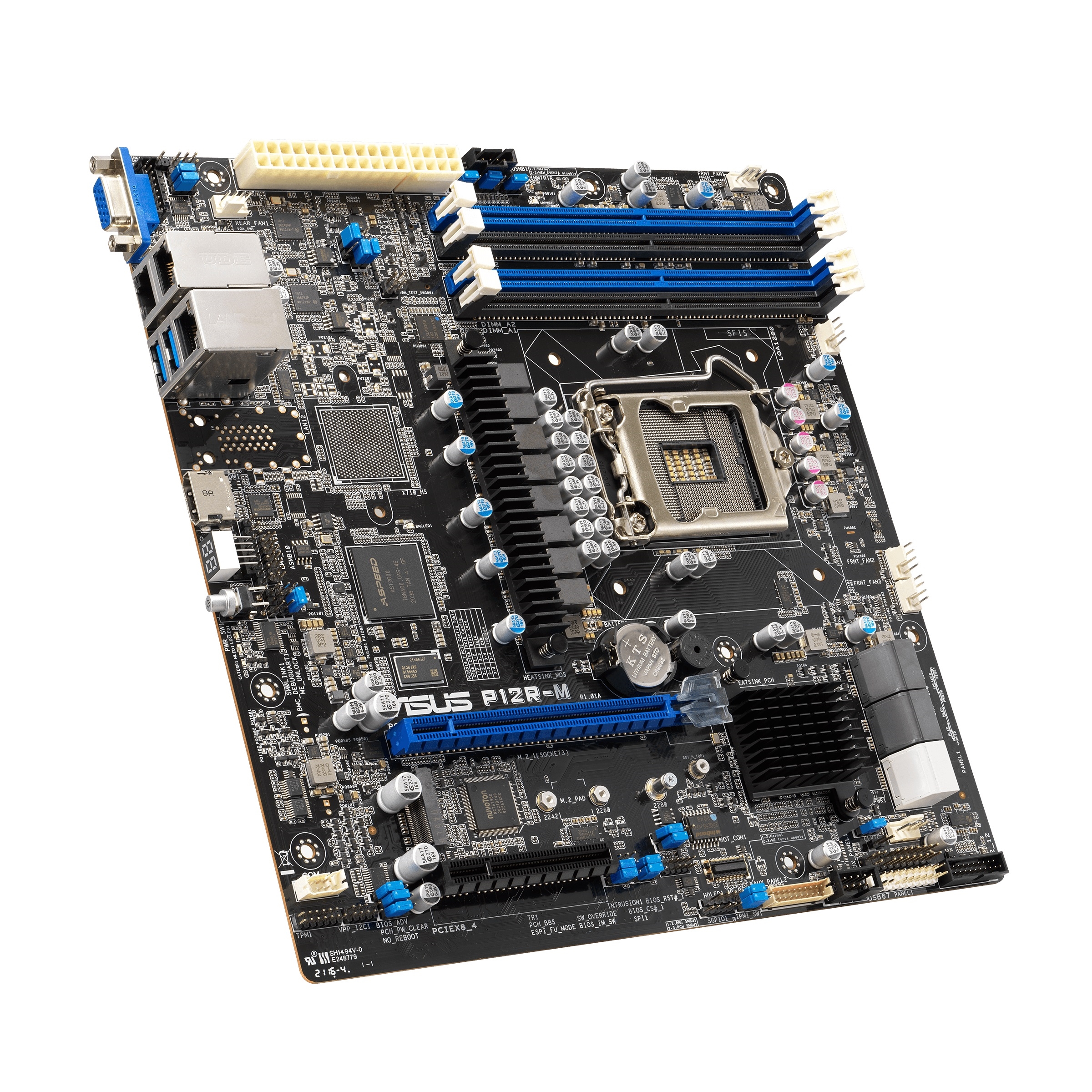

Product Description

KEY FEATURES

Ideal for remote office/branch office (ROBO) use and everyday business environments

Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP

Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots

Dual Intel I210AT Gigabit Ethernet with teaming support

One M.2 for up to 32 Gbps performance for faster OS booting

HDMI 1.4 support for high-resolution display maintenance and monitoring

Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management

Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency


PCIe 4.0 Ready

PCI Express (PCIe ) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking enabling flexible scalability for demanding or increasing workloads.


Intel Xeon E-2300 processors

Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.


High-resolution HDMI monitoring

ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Processor / System Bus
1 x Socket LGA1200
Intel Pentium^TM processors
Intel Xeon E Processors
Core Logic
Intel C252 Chipset
Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB
Note: Refer to support page for more information
Expansion Slots
Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link)
Form Factor
U ATX (9.6"x9.6", 244mm x 244mm)
Storage
Storage Controller :
6 x SATA3 6Gb/s ports
1 x M.2 connector (2280/2260/2242)
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking
2 x Intel I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card
Back I/O Ports
2 x USB 3.2 Gen 2
1 x VGA Port (VGA from BMC)
1 x HDMI Port (useable only with iGPU)
2 x GbE LAN + 1 x Mgmt LAN
Management Solution
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet
Environment
Operation temperature: 10^oC to 50^oC
Non operation temperature: -40^oC to 70^oC
Non operation humidity: 20% to 90% ( Non condensing)
Note: The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Accessories
Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
4 x Plate for LGA1200
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1200
Monitoring
CPU Temperature
Fan RPM
Note
1.VGA from BMC
2.HDMI (useable only with iGPU)
Item Dimension (L inchxW inchxH inch)
13 x 11 x 3

Weight
4.00 lb

Warranty Information
3 Years with ARS

Available Quantity

5

UPC

195553384575

SKU

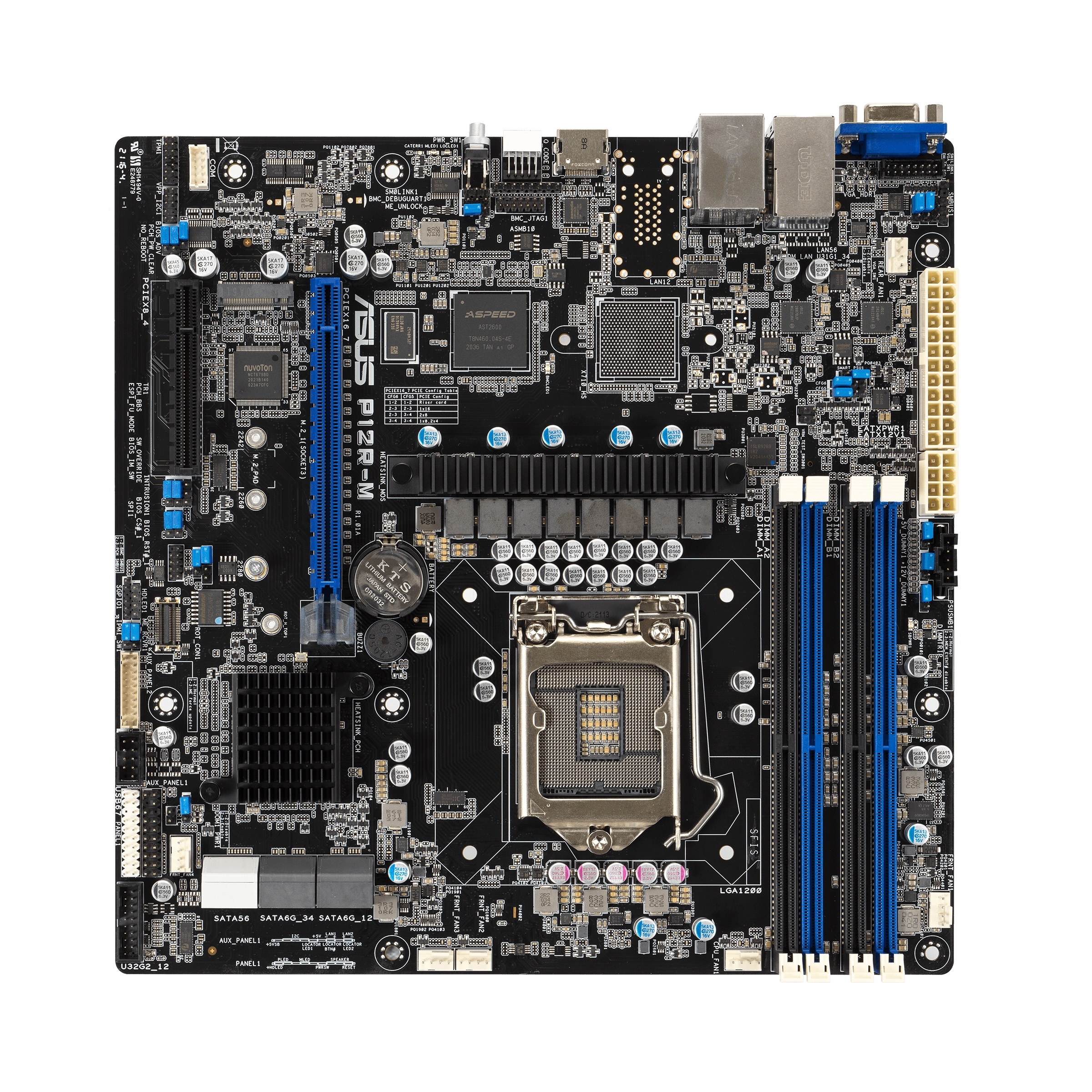

mingleP12R-M

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Key Features
12th Generation Intel Core i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
Single LAN with Intel Ethernet i225V
Single LAN with Intel PHY I219LM LAN controller
for AMT/vPro
Intel W680
2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4
1 - 5V PCI 32bit
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0,1,5
M.2 Form Factor: 2280
M.2 Key: M-Key
128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
Intel W680 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D port
Physical Stats
Form Factor
ATX
Processor
CPU
12th Generation Intel Core i3/i5/i7/i9 Processors
Single Socket LGA-1700 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
Up to 16(8+8) cores
System Memory
Memory Capacity
4 DIMM slots
128GB ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type
128GB
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
On-Board Devices
Chipset
Intel W680
SATA
Intel W680 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet i225V
Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
3 USB 3.2 Gen1 port(s) (2 via header 1 Vertical)
3 USB 3.2 Gen2 port(s) (3 rear type A)
2 USB 3.2 Gen2x2 port(s) (1 rear type C 1 via header)
4 USB 2 port(s) (4 via header)
Video Output
1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.1 port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 3.0 x4,
2 PCI-E 5.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
SuperDoctor 5, SUM, SSM, AMT, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
PC Health Monitoring
Voltage
VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
Power LED
Catastrophic Error LED
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Overheat LED indication
Other Features
CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-20^oC - 60^oC (-4^oF - 140^oF)
Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X13SAE-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

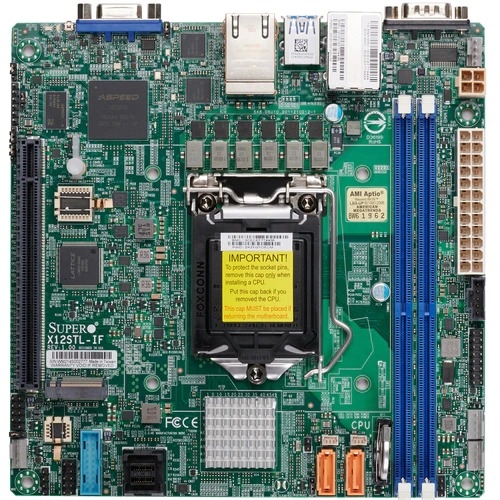

Product Description

Key Features

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel C252

Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots

1 PCI-E 4.0 x16

M.2 Interface: 1 PCI-E 3.0 x4

M.2 Form Factor: 2280

M.2 Key: M-Key

Dual LAN with Intel i210 Gigabit Ethernet Controller

Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 VGA D-Sub Connector port

2 SuperDOM with built-in power

4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)
Form Factor
Mini-ITX
Processor
CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
Up to 8 cores
System Memory
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
3200/2933/2666MHz SDRAM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C252
SATA
Intel C252 controller for 6 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller
Input / Output
SATA
6 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 port(s) (2 rear, 2 via header)
4 USB 3.2 Gen1 port(s) (2 via header, 2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 4.0 x16
M.2
M.2 Interface:
1 PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 3.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
SuperDoctor 5, SUM, SPM, SSM, IPMI2.0, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
4x 4-pin fan headers (up to 4 fans)
Thermal control tachometer fan connectors
Fan speed control
4 fans with tachometer monitoring
Overheat LED indication
Other Features
WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range

0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-20^oC - 60^oC (-4^oF - 140^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
Weight
3.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12STL-IF-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

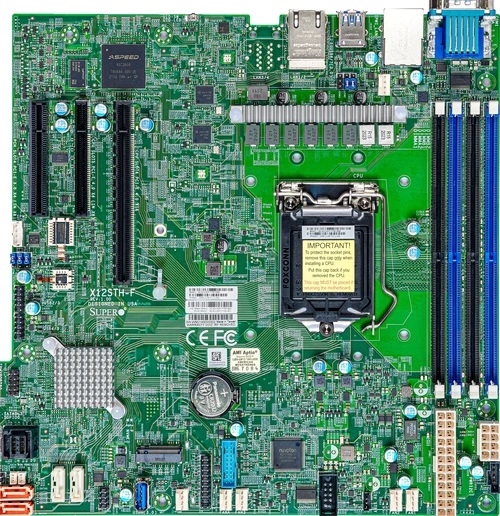

Product Description

Key Features

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel C256

Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

1 PCI-E 4.0 x16

1 PCI-E 4.0 x4 (in x8 slot)

1 PCI-E 3.0 x4 (in x8 slot)

M.2 Interface: PCI-E 3.0 x4

M.2 Form Factor: 2280, 22110

M.2 Key: M-Key

Dual LAN with Intel Ethernet Controller I210

Intel C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

2 SuperDOM with built-in power

I/O: 1 VGA, 2 COM, 1 TPM header

5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)

Gen12 iGPU support
Physical Stats
Form Factor
Micro-ATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
Up to 8 cores, 16 threads
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
3200/2933/2666MHz SDRAM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C256
SATA
Intel C256 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel Ethernet Controller I210
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 port(s) (4 via header 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header 2 rear 1 type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
SuperDoctor 5, NMI, SUM, SPM, Intel Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
6x 4-pin fan headers (up to 6 fans)
Thermal control tachometer fan connectors
Fan speed control
6 fans with tachometer status monitoring
Overheat LED indication
Other Features
WOL
UID
Node Manager Support
M.2 NGFF connector
Dual Cooling Zones
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion header
Chassis intrusion detection
ACPI power management
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12STH-F-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

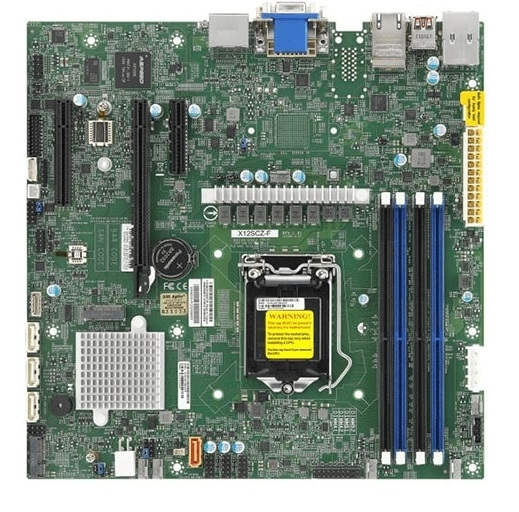

Product Description

Key Features
10th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Intel Q470
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x4
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
Intel Q470 controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
Physical Stats
Form Factor
microATX
Processor
CPU
10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Core
Up to 10 cores
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
Memory Type
2933/2666/2400/2133MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel Q470
SATA
Intel Q470E controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500 BMC
Audio
ALC 888S HD Audio
Graphics
Intel HD Graphics
ASPEED AST2500 BMC
Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Input / Output
SATA
4 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 3.1 Gen2 port(s) (2 via header 4 rear type A)
6 USB 3.2 Gen2 port(s) (4 rear type A 2 via header)
6 USB 2.0 port(s) (6 via header)
Video Output
1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
1 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header and Chip both
Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4 1 CNVi/PCI-E 3.0 x1
Form Factor: 2280/22110, 2230
Key: M-Key, E-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor 5, SUM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
VBAT, Memory, CPU, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
UID/Remote UID
Power LED
BMC/IPMI Heartbeat LED
Temperature
Thermal Control for 5 Fan Connectors
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Dual Cooling Zone
5 fans with tachometer status monitoring
Other Features
UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range
0^oC - 60^oC (32^oF - 140^oF)
Non-Operating Temperature Range
-40^oC - 85^oC (-40^oF - 185^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Item Dimension (L"xW"xH")
10 x 10 x 2

Weight
3 lbs

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12SCZ-QF-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

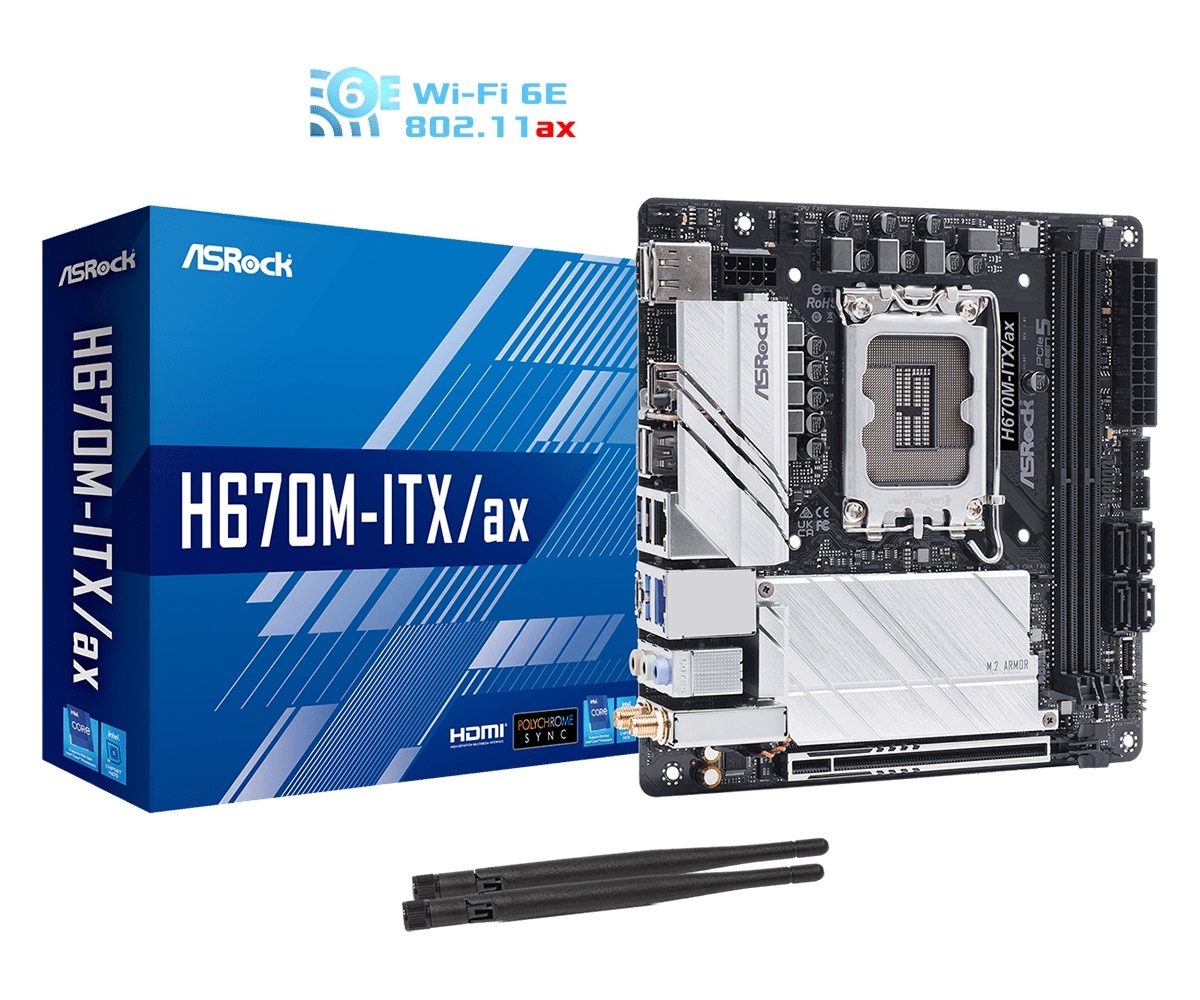

H670M-ITX/ax
Supports 12th Gen Intel Core Processors (LGA1700)
8 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 and SATA3)
1 Rear USB 3.2 Gen2x2 Front Type-C
2 Rear USB 3.2 Gen2
3 USB 3.2 Gen1 (2 Front, 1 Front Type-C)
Dragon 2.5G LAN, Intel Gigabit LAN
802.11ax (WiFi 6E) + Bluetooth
Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Unique Feature
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 8 Layer PCB
2.5G LAN
802.11ax Wi-Fi 6E
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports 12th Gen Intel Core Processors (LGA1700)
- Digi Power design
- 8 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel H670
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
Supports DDR4 3200 natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
- 1 x PCIe Gen5x16 Slot
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) modes
Supports Intel Optane Technology
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Requires additional M.2 NVMe expansion cards to support RAID 5
Connector
- 1 x RGB LED Header
- 1 x Addressable LED Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Supports in total up to 12V/3A, 36W LED Strip
Supports in total up to 5V/3A, 15W LED Strip
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
These utilities can be downloaded from ASRock Live Update and APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets
Hardware Monitor
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8 Layer PCB
OS
- Microsoft Windows 10 64-bit / 11 64-bit

Available Quantity

5

UPC

Does not apply

SKU

mingleH670M-ITX/AX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

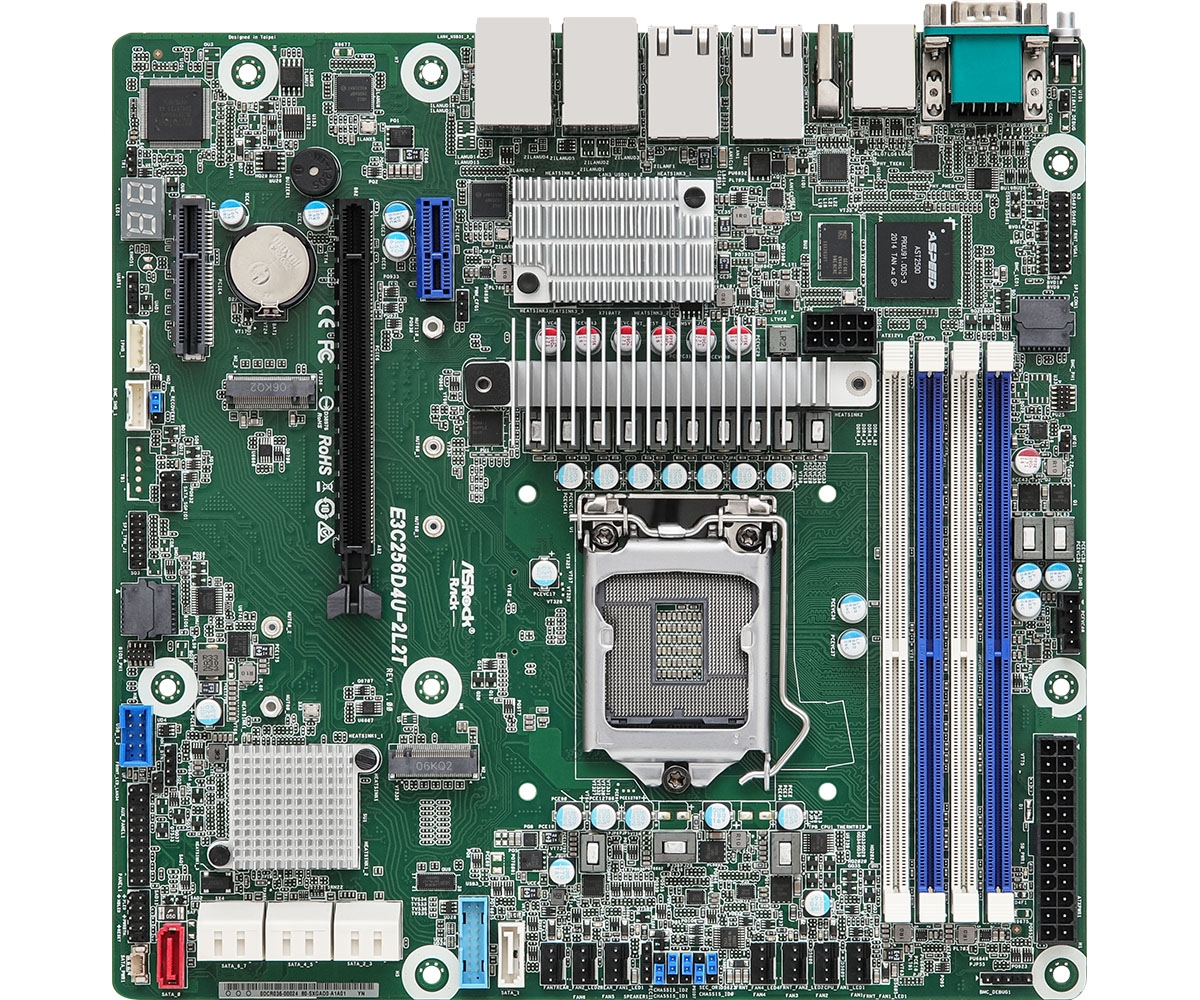

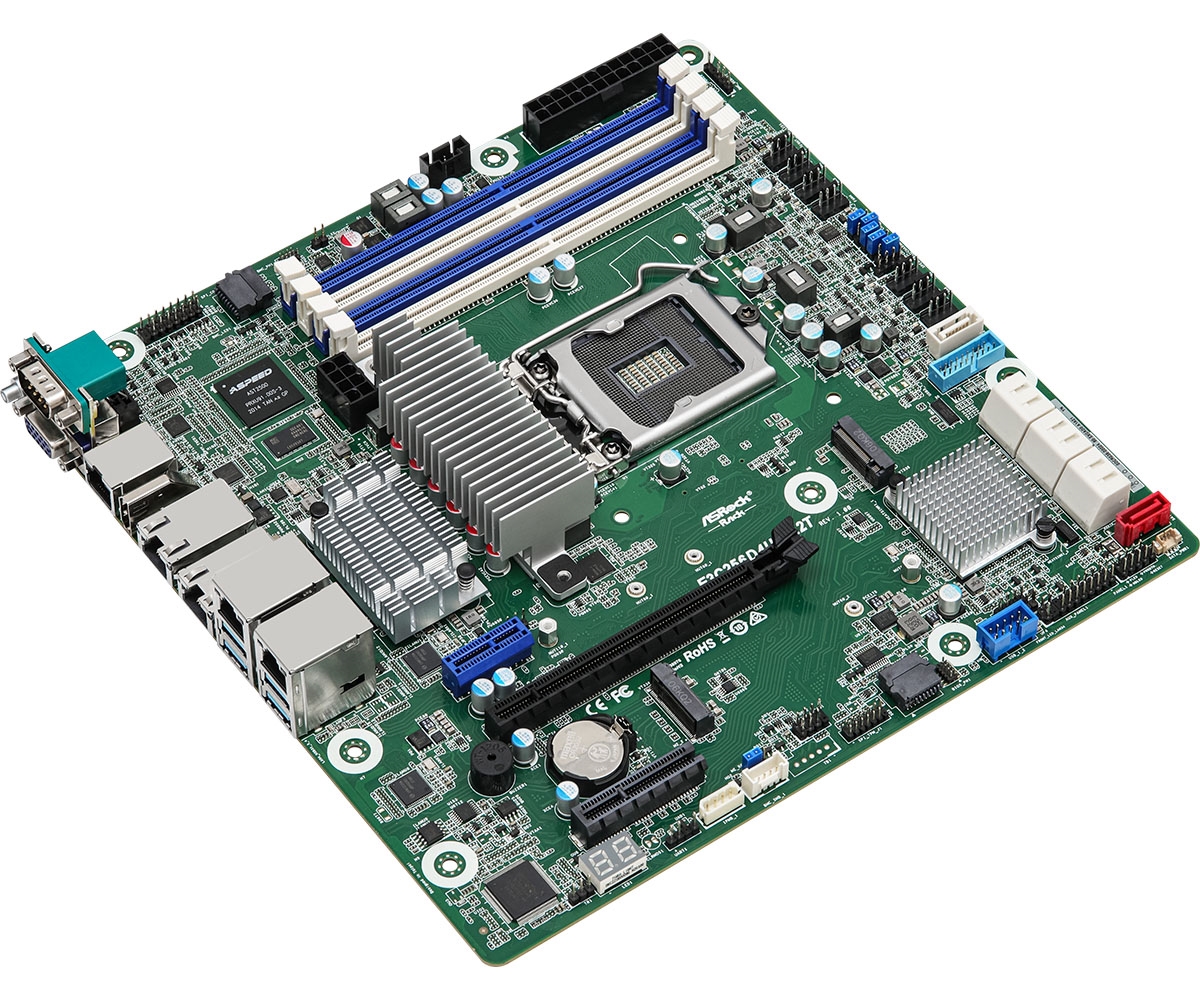

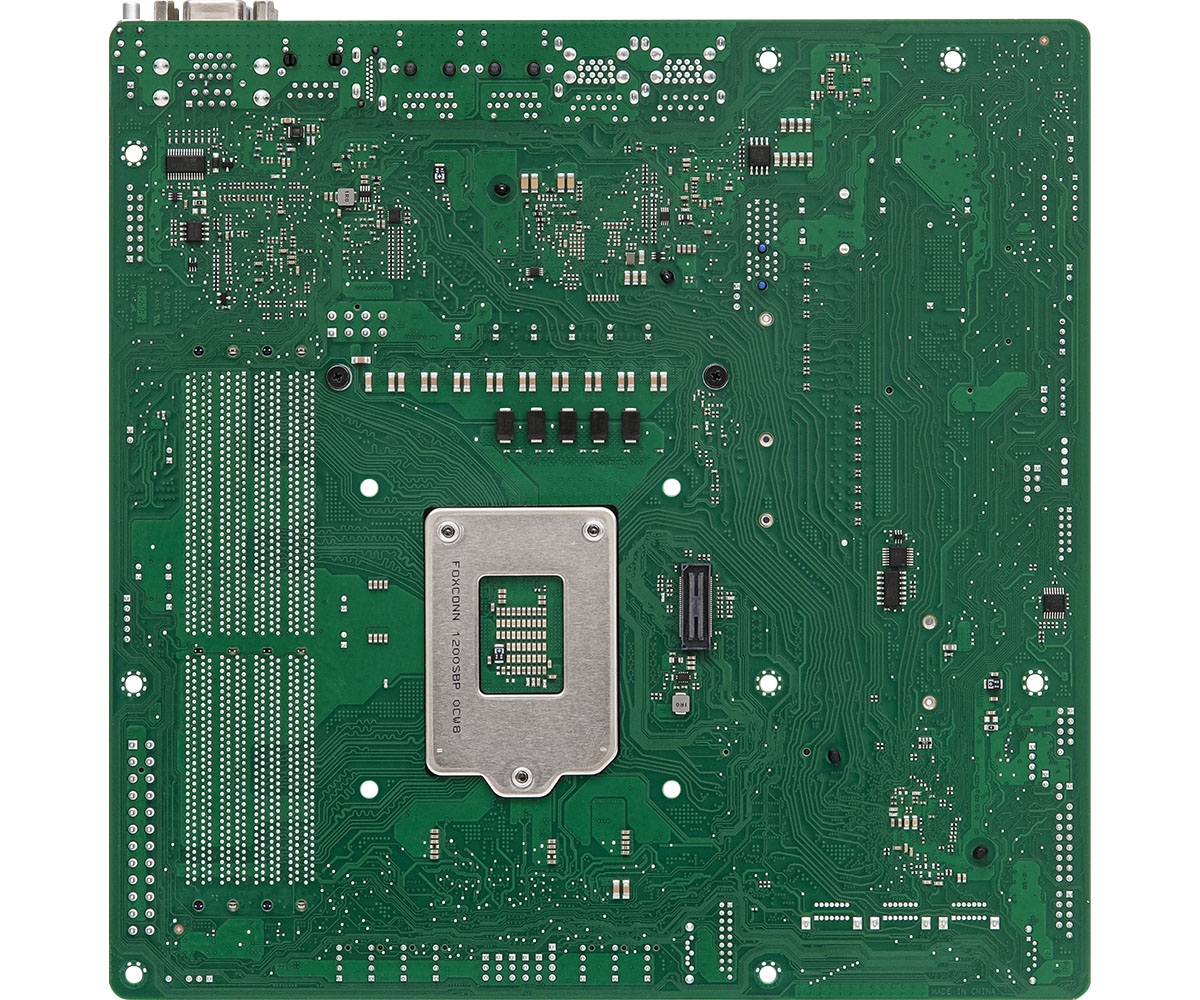

Micro-ATX (9.6" x 9.6")

Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors

4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM

1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1

Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x4)

8 SATA 6Gb/s

2 RJ45 (10GbE) by Intel X710-AT2

2 RJ45 (1GbE) by Intel i210

VGA, HDMI

Remote Management (IPMI)
Physical Status
Form Factor
Micro-ATX
Dimensions
9.6inch x 9.6inch (244 mm x244 mm)
Processor System
CPU
Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors
Socket
Single Socket H5 (LGA1200)
Chipset
Intel C256
System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
Supports DDR4 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
ECC/non-ECC UDIMM: up to 32GB
DIMM Frequency
ECC/non-ECC UDIMM: max. 3200^NoteMHz
Note: Up to DDR4 2666MHz when installing 10th Gen Intel Pentium Series Processors
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe4.0^Note1 x16 (CPU)
Note1: When installing 10th Gen Intel Pentium Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function
PCIe x 4
SLOT4: PCIe4.0^Note1 x4 (CPU)
PCIe x 1
SLOT7: PCIe3.0 x1 (PCH)
Other PCIe Expansion Connectors
M.2 slot
1 M-key^Note (PCIe3.0 x4 or SATA 6Gb/s), support 22110/2280/2260 form factor (PCH)
1 M-key (PCIe3.0 x4), support 2280/2260 form factor (PCH)
Note: SATA0 will be disabled when M2_1 populated with SATA device
SATA/SAS Storage
PCH Built-in Storage
Intel C256 (8 SATA 6Gb/s, RAID 0/1/5/10):
7 SATA 7-pin, 1 SATA DOM or 1 M.2
Ethernet
Additional GbE Controller
Intel X710-AT2: 2 RJ45 (10GbE)
Intel i210: 2 RJ45 (1GbE)
Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500
VRAM
DDR4 256MB

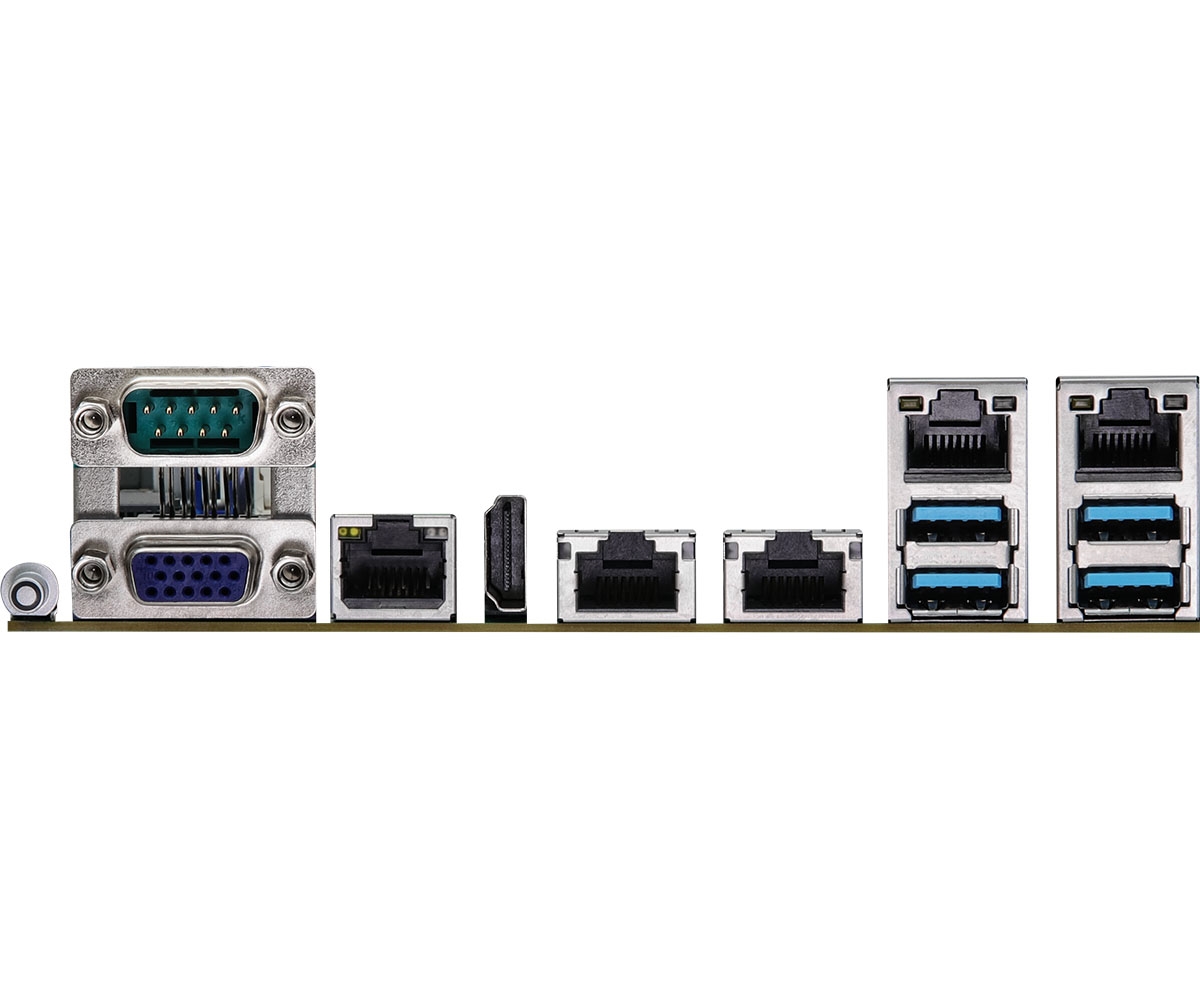

Rear I/O
UID Button/LED
1 button w/ LED
VGA Port
1 DB15
Serial Port
1 DB9
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE), 2 RJ45 (1GbE)
Dedicate LAN
1 dedicated IPMI LAN port
HDMI
1 HDMI
Internal Connector/Headers
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Video output
1
Speaker Header
1
Buzzer
1
Fan Header
7 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMB header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Front Lan LED Connector
1
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 (9-pin, 2 USB2.0)
NMI Header
1
Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)
ME/SPS Recovery
1
LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1
System BIOS
BIOS Type
AMI UEFI BIOS, 256 Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.2 compliance wake up events, SMBIOS 3.3, ASRock Rack instant flash
Hardware Monitor
Temperature
CPU, MB, Card side, TR1
Fan
Fan Tachomete, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Multi-Speed Control
Voltage
+12V, +5V, +3.3V, CPU Vcore, DRAM,V1.0M,+BAT, 3VSB, 5VSB
Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)
Item Dimension (L inchxW inchxH inch)
12 x 12 x 3

Weight
4.00 lb

Warranty Information
36M

Available Quantity

5

UPC

Does not apply

SKU

mingleE3C256D4U-2L2T

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

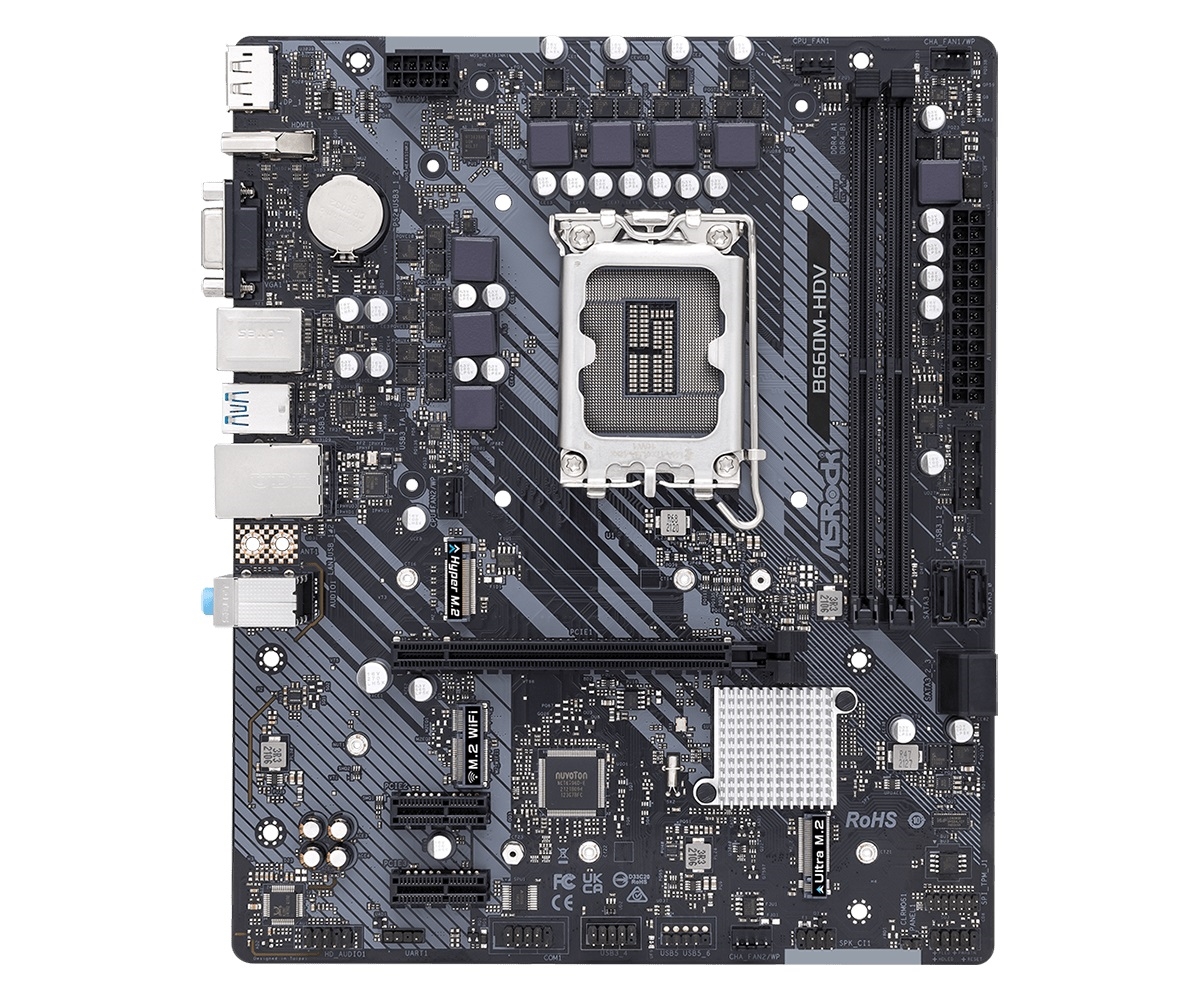

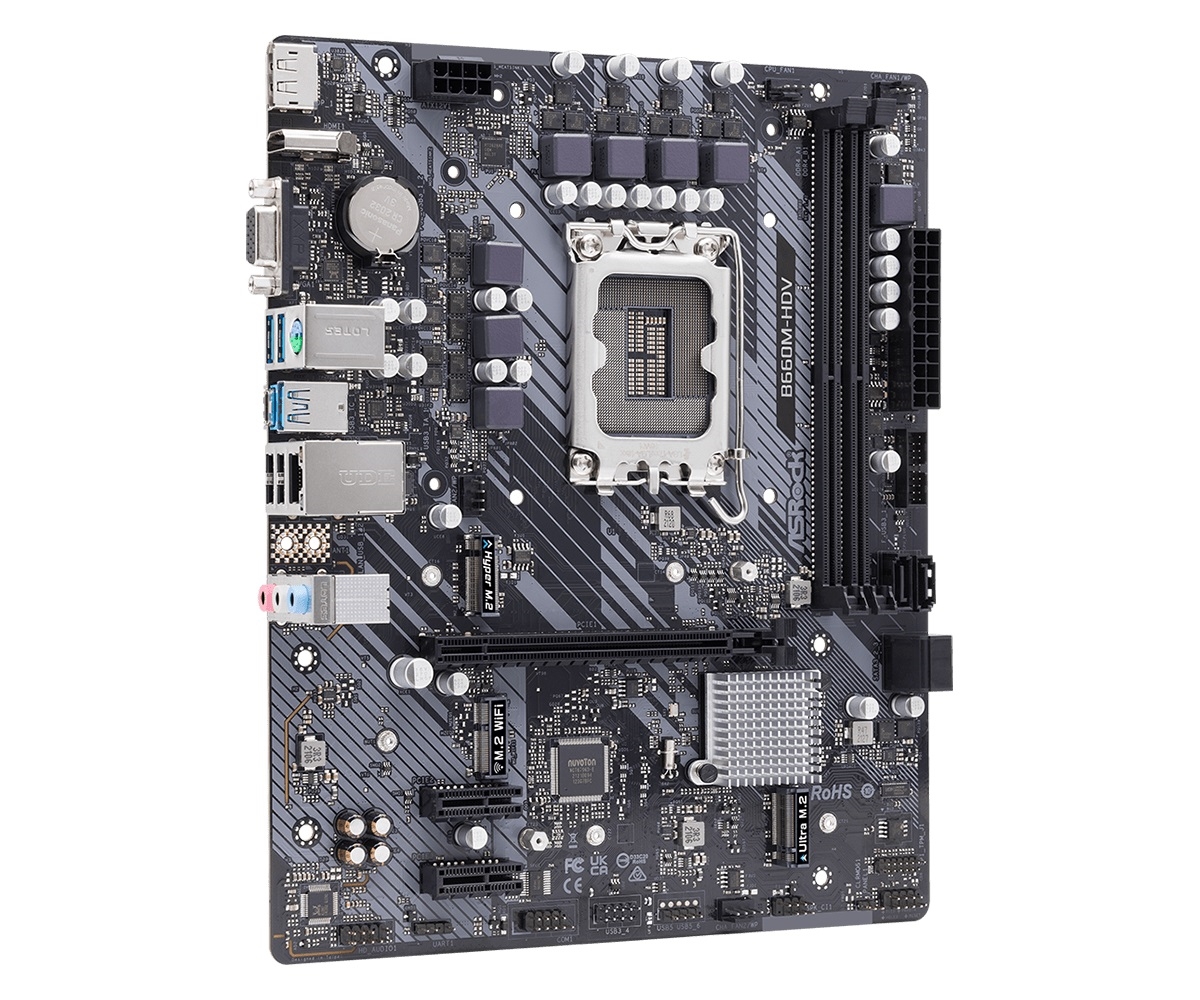

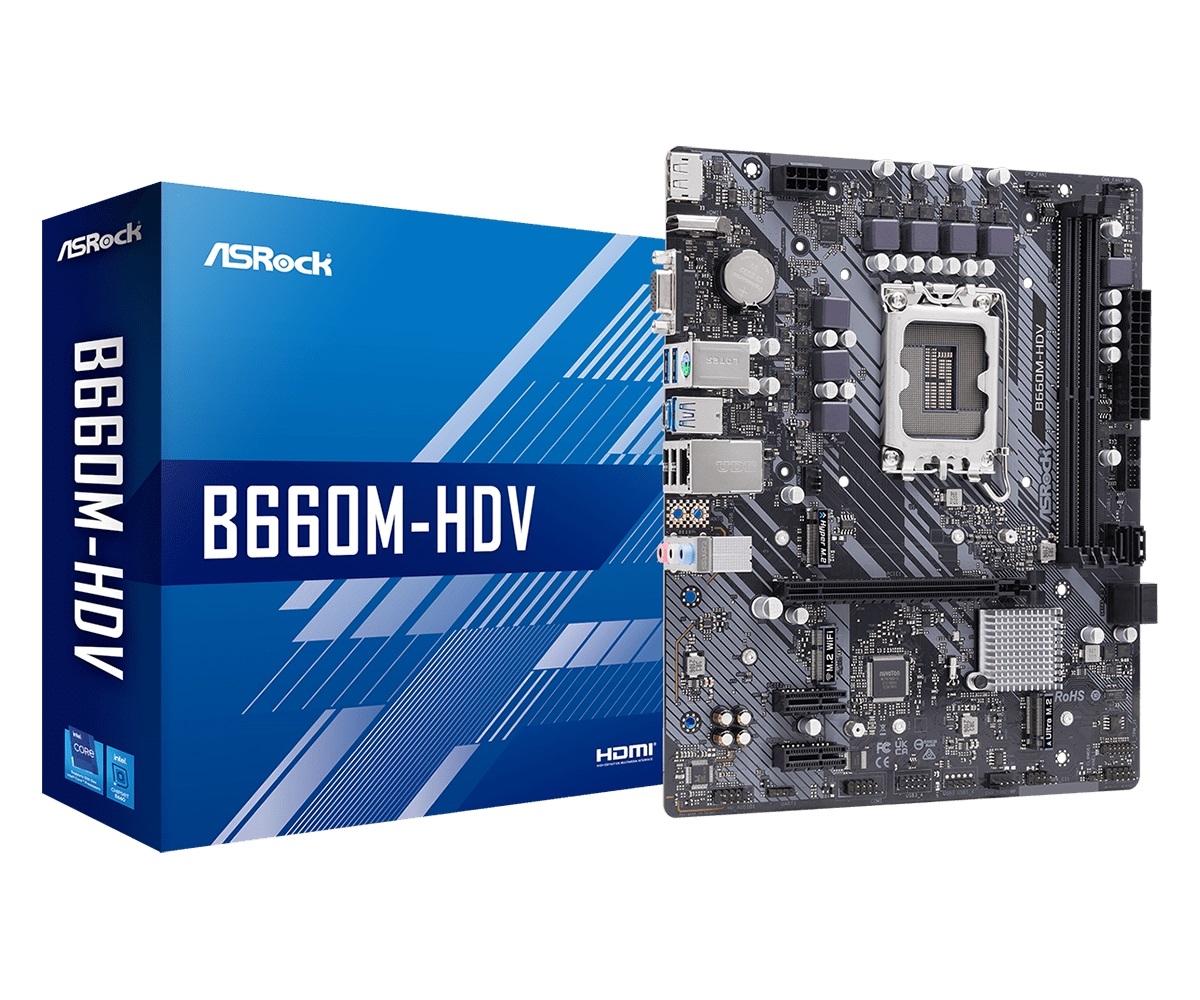

Product Description

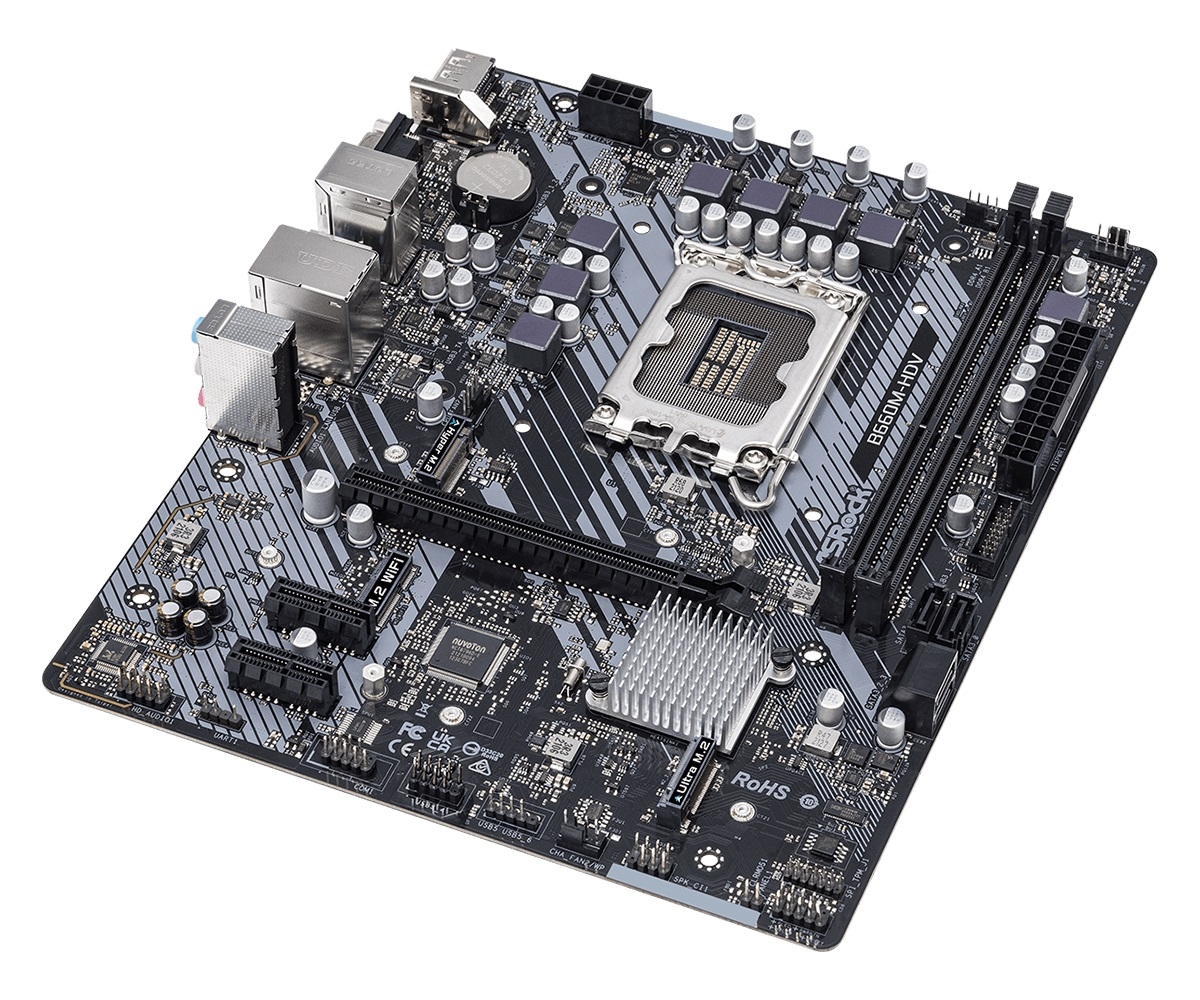

Supports 12th Gen Intel Core Processors (LGA1700)

6 Phase Power Design

Supports DDR4 5066MHz (OC)

1 PCIe 4.0 x16, 2 PCIe 3.0 x1

1 M.2 Key-E for WiFi

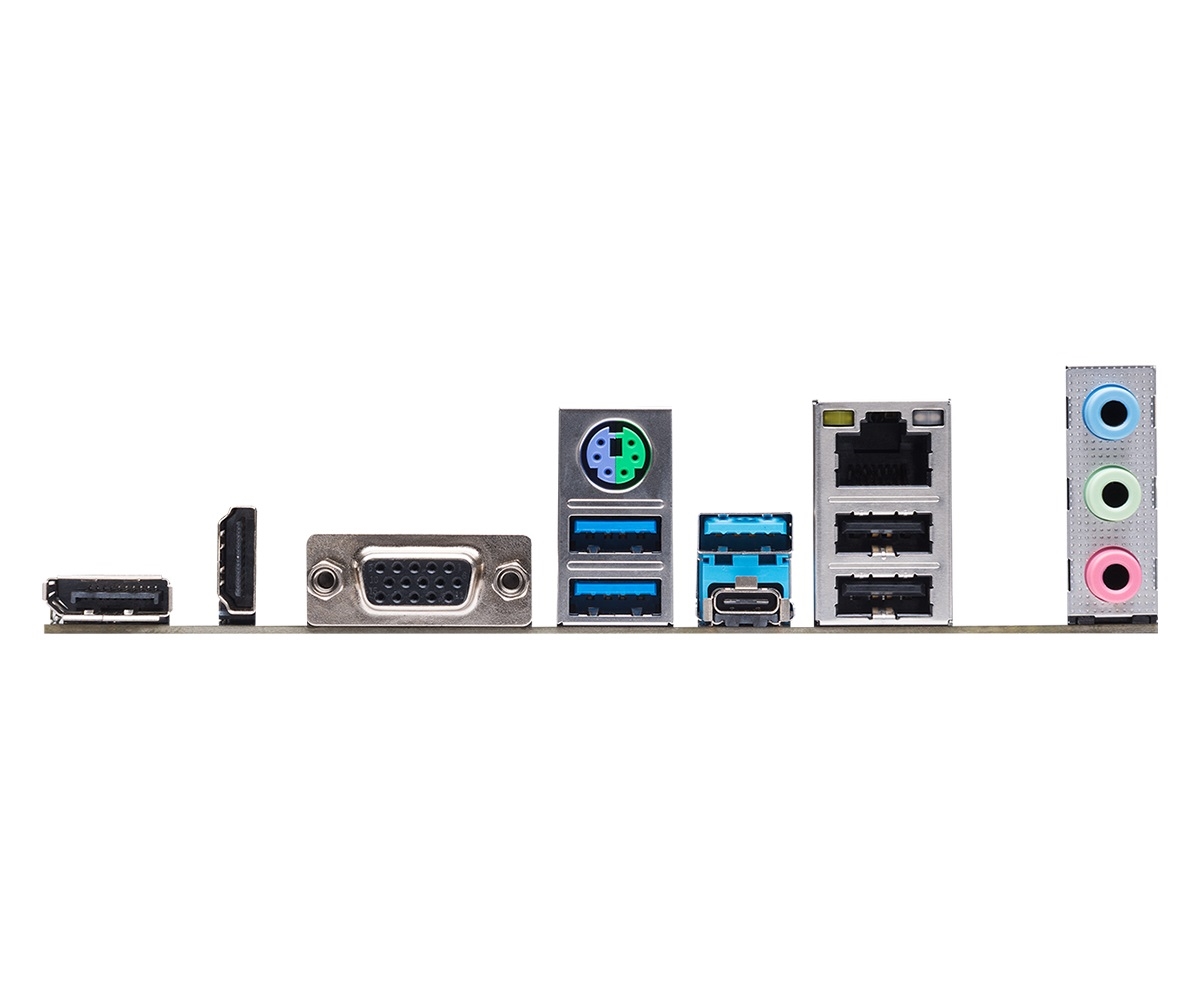

Graphics Output Options: HDMI, DisplayPort, D-Sub

Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio

4 SATA3

1 Hyper M.2 (PCIe Gen4 x4)

1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)

5 USB 2.0 (2 Rear, 3 Front)

Intel Gigabit LAN


Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.


High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.


Intel Gigabit LAN

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Unique Feature
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports 12th Gen Intel Core^TM Processors (LGA1700)
- Digi Power design
- 6 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel B660
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)^Note
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
Note: Supports DDR4 3200 natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
- Supports D-Sub with max. resolution up to 1920x1200 at 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Note: Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
- Supports Surge Protection
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Slots
- 1 x PCIe Gen4x16 Slot^Note
- 2 x PCIe Gen3x1 Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Note: Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors^Note1
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode^Note2
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s and PCIe Gen3x4 (32 Gb/s) modes^Note2
Note1: If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
Note2: Supports Intel Optane^TM Technology (M2_2 only)
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)^Note1
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ^Note2
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) ^Note3
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Note1: The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Note2: The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
Note3: The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP and CHA_FAN12/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
Note: These utilities can be downloaded from ASRock Live Update and APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- Solid Capacitor design
OS
- Microsoft Windows 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Available Quantity

5

UPC

Does not apply

SKU

mingleB660M-HDV

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

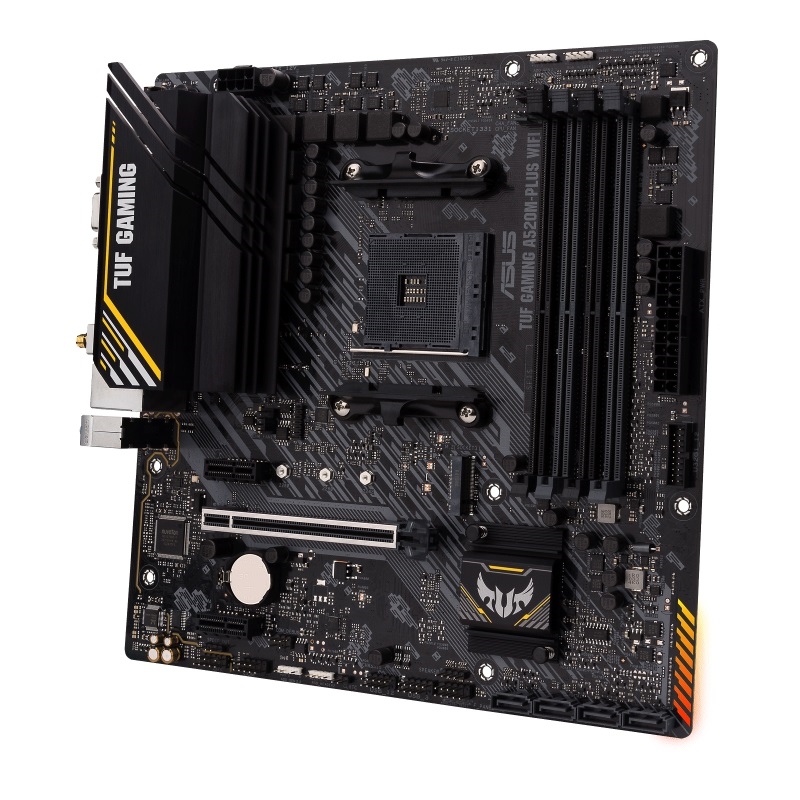

Product Description

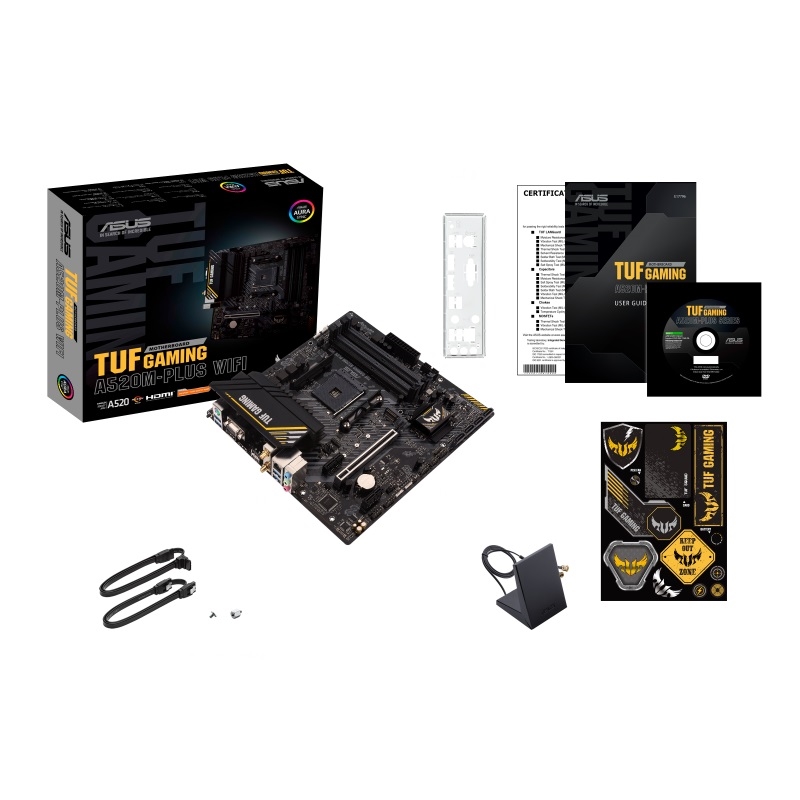

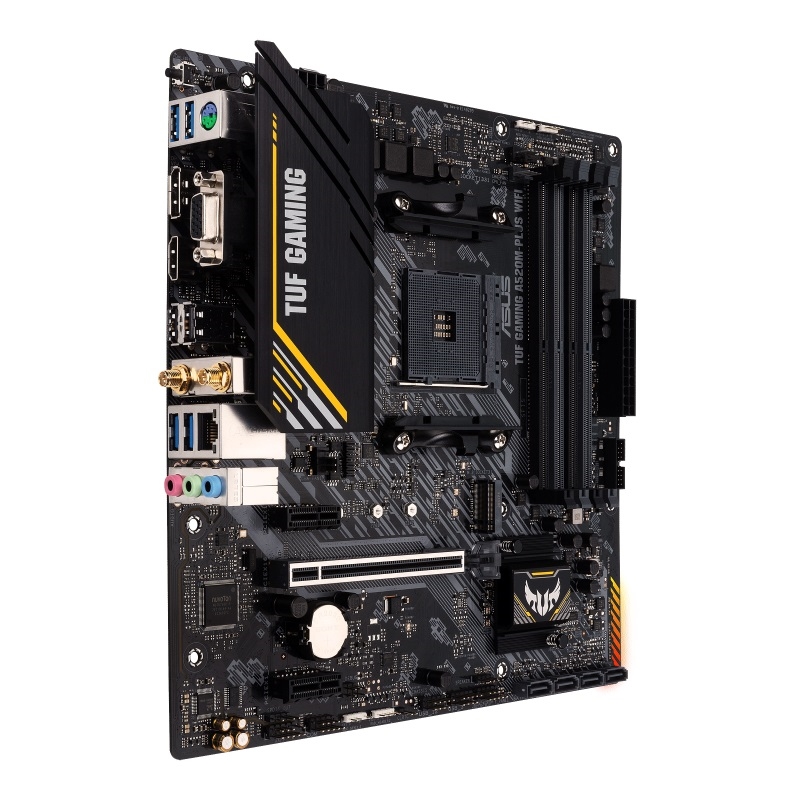

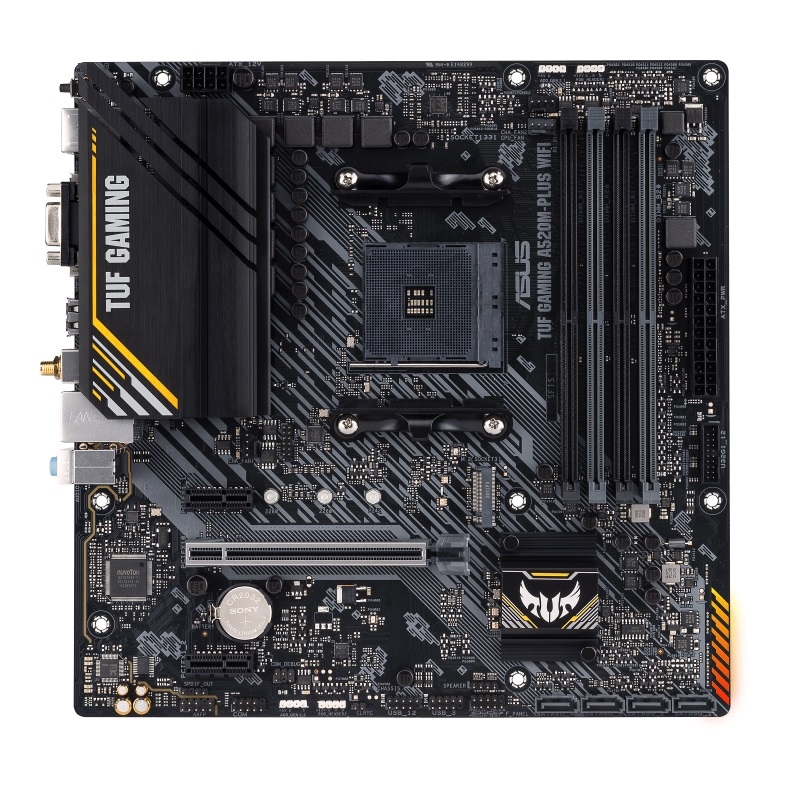

AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+

Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology

Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware


DURABLE. STABLE. RELIABLE.

TUF Gaming A520M-Plus WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.


ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus WIFI is the perfect foundation for your next high-core-count battle rig.


EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
CPU
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
AMD A520 Chipset
Memory
4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
- ECC Memory (ECC mode) support varies by CPU.
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.2
1 x D-Sub
- Graphics specifications may vary between CPU types.
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen^TM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Ethernet
1 x Realtek 1Gb Ethernet
TUF LANGuard
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 5 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
-A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

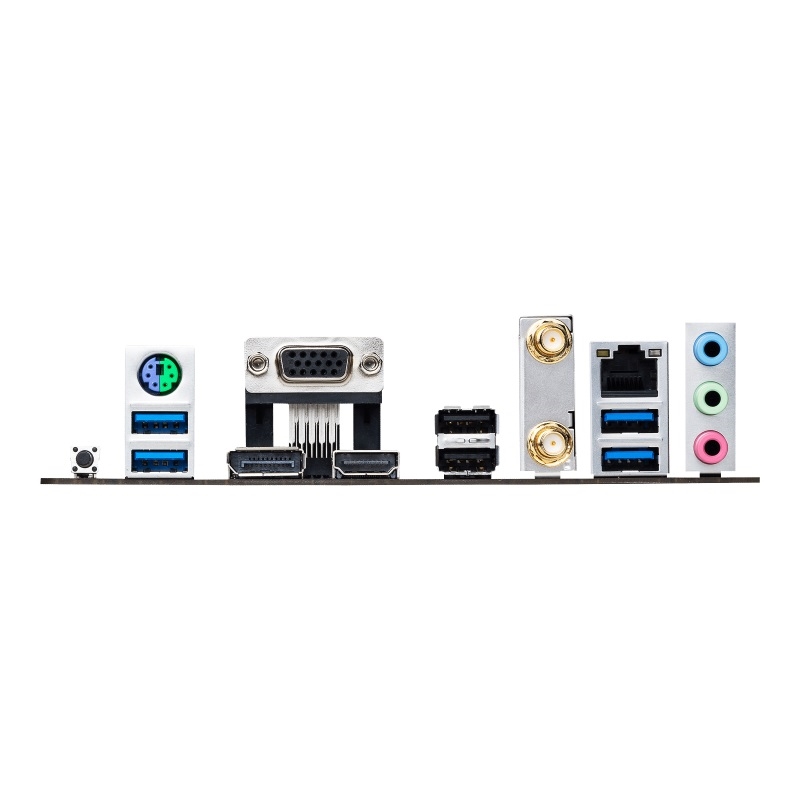

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub
1 x ASUS Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack^TM button
1 x PS/2 Keyboard/Mouse combo port
Intrernal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
Y
ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^TM button
- BIOS FlashBack^TM LED
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual
Form Factor
microATX
24.4cm x 24.4cm
Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years

Available Quantity

5

UPC

195553154284

SKU

mingleTUF GAMING A520M-PLUS WIF

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

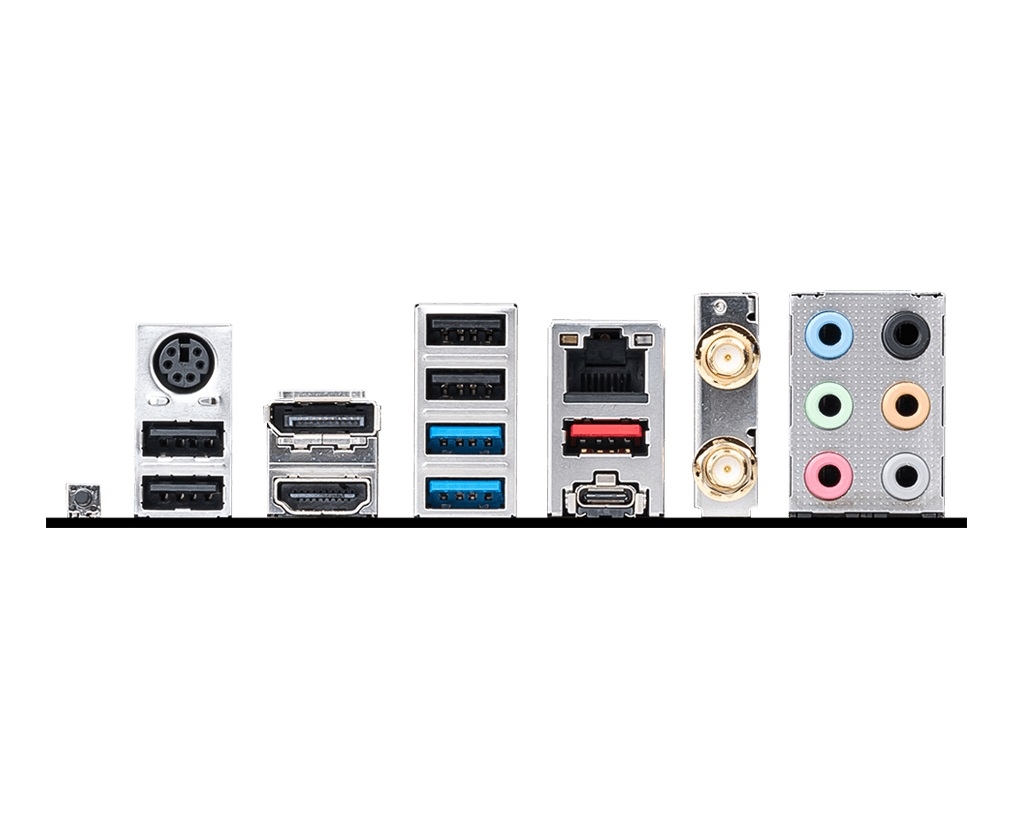

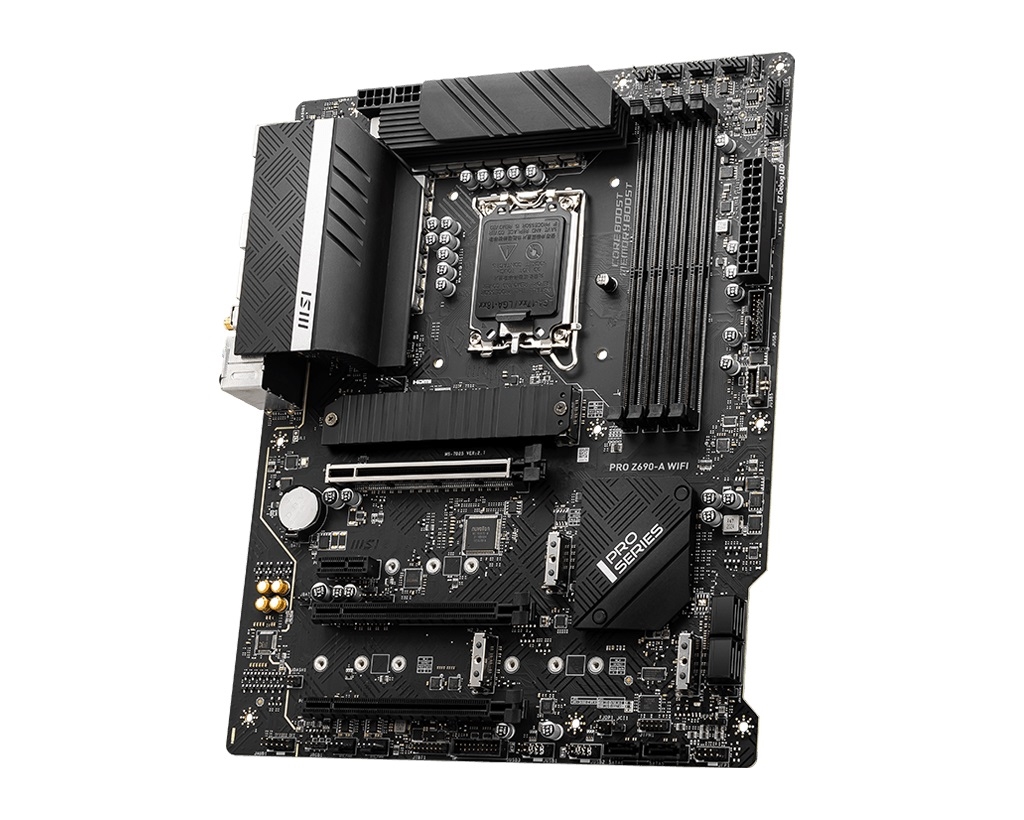

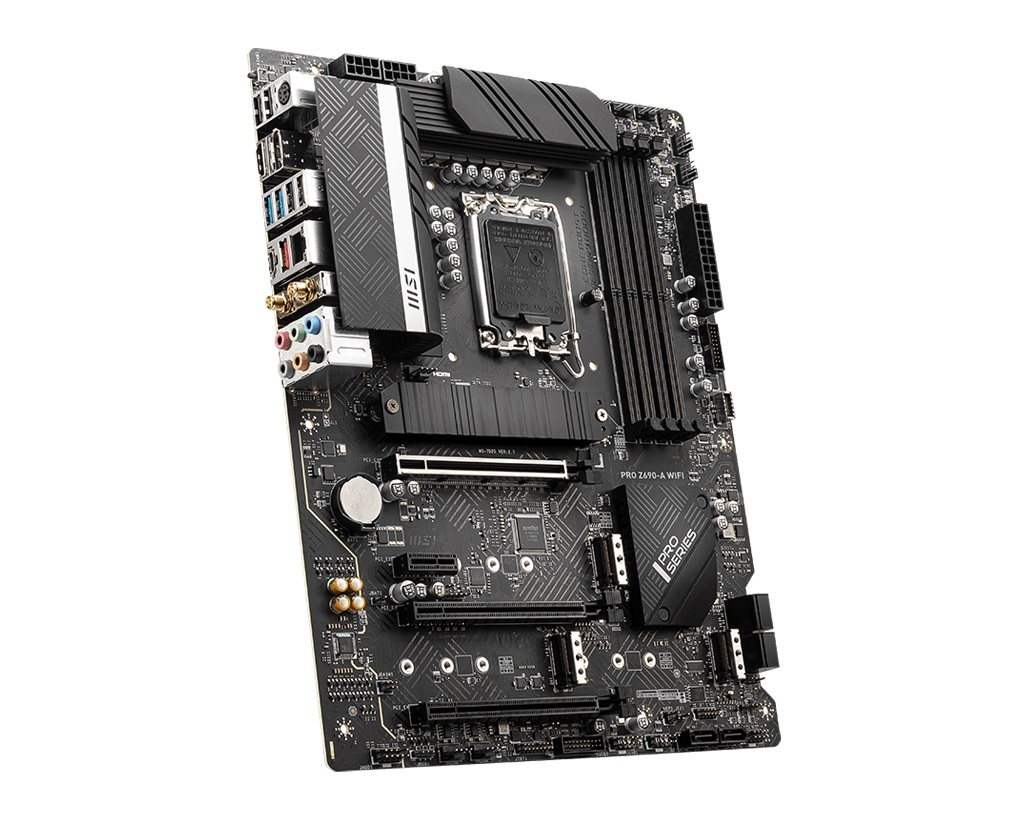

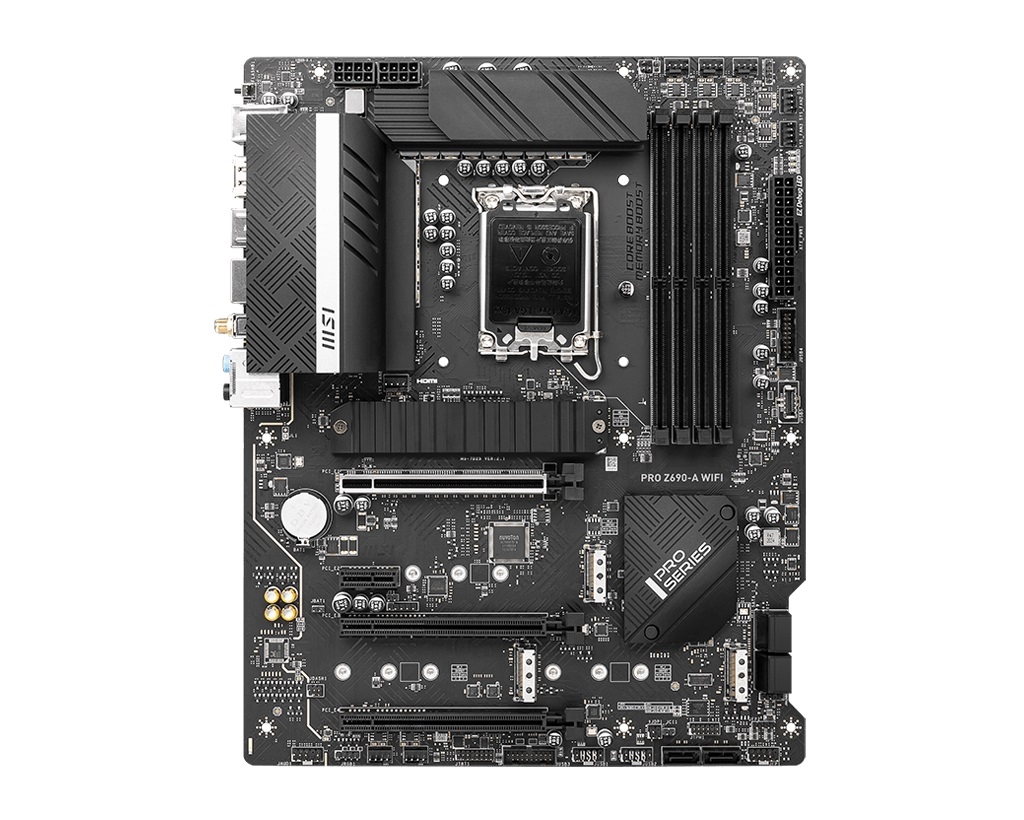

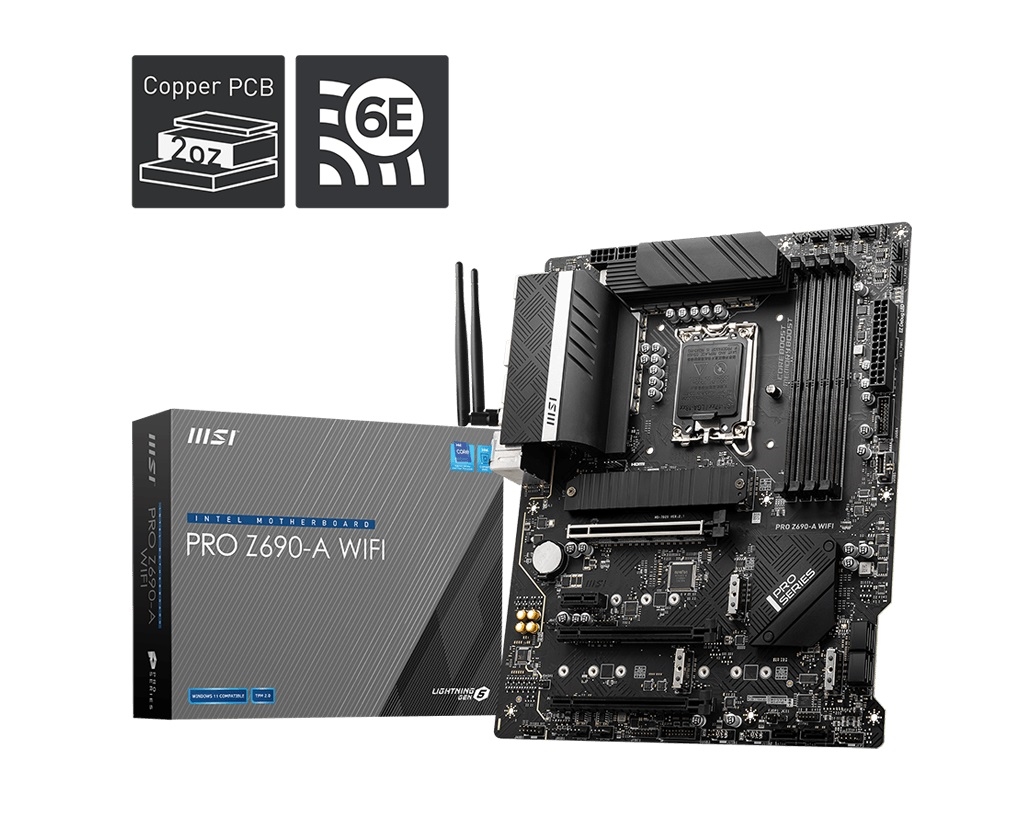

Product Description

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.


M.2 SHIELD FROZR

World s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.


FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.


OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market, a dedicated water pump PIN header gives you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.


HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel Z690 Chipset
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
3
PCI-E X1
1
SATAIII
6
M.2 SLOT
4
RAID
0/1/5/10
TPM (HEADER)
1
LAN
1x Intel I225-V 2.5Gbps LAN
WIFI and BLUETOOTH
Intel Wi-Fi 6E module
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 4(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC897 Codec
DISPLAYPORT
1

Available Quantity

5

UPC

824142270370

SKU

minglePROZ690AWIFI

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

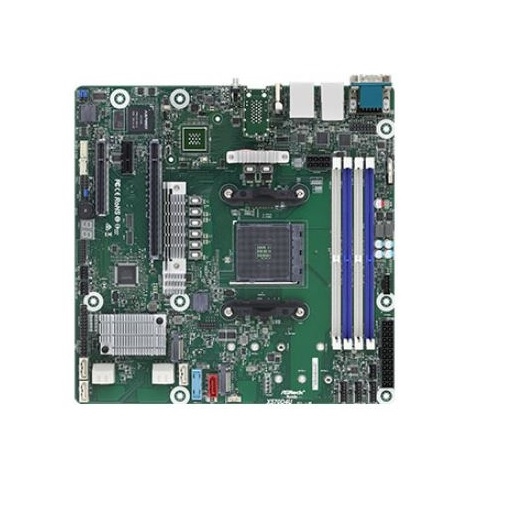

Product Description

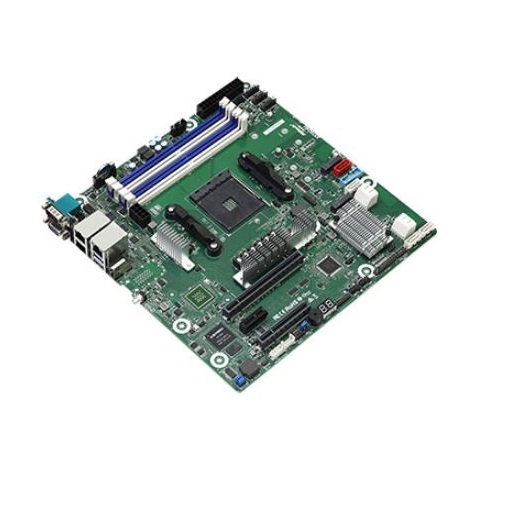

micro-ATX (9.6"x 9.6")

supports AMD Ryzen 4000 Series Desktop Processors with Radeon Graphics

4 DIMMs

1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1

Dual 1 GbE RJ45

2 M.2 (PCIe4.0x4/ SATA)

8 SATA 6Gb/s

HDMI

AST2500 Remote management (IPMI)
Physical Status
Form Factor
micro-ATX
Processor System
CPU
supports:
AMD Ryzen^TM 4000 G-Series Desktop Processors with Radeon^TM Graphics
AMD Ryzen^TM PRO 4000 and 3000 Series Desktop Processors
3rd Gen AMD Ryzen^TM Desktop Processors
2nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
Socket
AM4 PGA 1331
Power Design
105W
Chipset
AMD X570
System Memory
Capacity
4 DIMM slots (2DPC)
Type
288-pin DDR4 ECC and non-ECC UDIMM
ECC support varies by CPU
DIMM Size Per DIMM
up to 32GB per DIMM
DIMM Frequency
AMD Ryzen^TM 4000 Series Desktop Processors with Radeon^TM Graphics/ 3^rd Gen AMD Ryzen^TM Processors :
up to 3200 MHz
2nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics:
up to 2666 MHz
Voltage
1.2V
Expansion Slot
PCIe 4.0 x 16
SLOT6: Latch PCIe x16 (PCIe 4.0 x16) (CPU), auto switch to PCIe4.0 x8 when SLOT4 is occupied
Supports PCIe3.0 x8 when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
PCIe 4.0 x 8
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) (CPU)
Disabled when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
PCIe 4.0 x 1
SLOT5: PCIe 4.0 x1
Supports PCIe3.0 when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
M.2
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570)
Supports PCIe3.0 when using 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics
Storage
SATA Controller
X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device
Ethernet
Additional GbE Controller
2 RJ45 (1GbE) by Intel i210
Management
BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
AMD Ryzen^TM 4000 Series Desktop Processors with Radeon^TM Graphics/ 2^nd Gen AMD Ryzen^TM Desktop Processors with Radeon^TM Vega Graphics:
1 HDMI

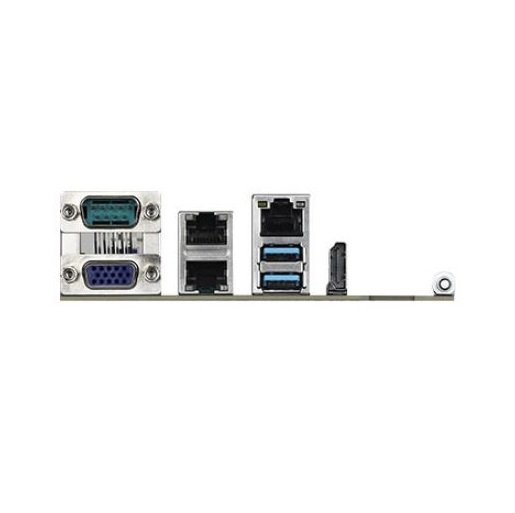

Rear Panel I/O
HDMI
1
VGA Port
1
USB 3.2 Gen2 Port
2
Lan Port
2 RJ45(1GbE)
Dedicate LAN
1
Serial Port
1
UID Button/UID LED
1
Internal Connector
Front Lan LED Connector
1 for LAN3/LAN4
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TR1 Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
IPMB Header
1
VGA Header
1
PMBus CONN
1
Buzzer
1
Fan Header
3 (6-pin), 3 (4-pin)
Front Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1
BMC_SMB Header
1
Power Connector
1 ATX main power (24-pin), 1 ATX 12V (8-pin)
Clear CMOS
1 contact pads
Onboard LED
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU/ DRAM/ MB/ Card Side/X570 temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Item Dimension (L"x W"x H")
12 x 12 x 3
Weight
4.00 LB
Warranty Information
3 Years

Available Quantity

5

UPC

Does not apply

SKU

mingleX570D4U

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

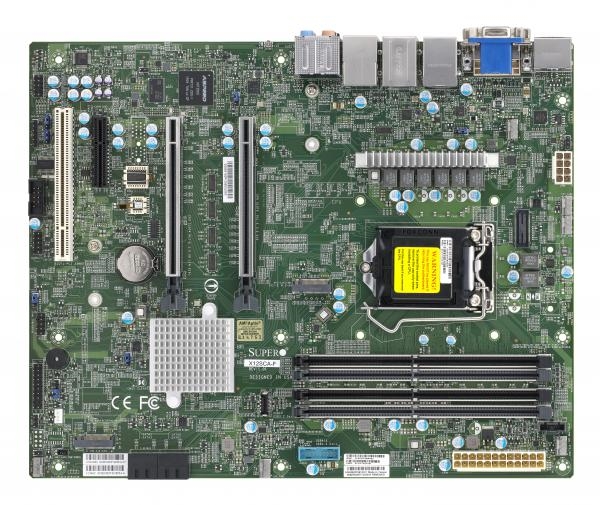

1. 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium /Celeron Processor, Intel Xeon W-1200 Processors

Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

2. Intel W480

3. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

4. 1 PCI-E 3.0 x4,

2 PCI-E 3.0 x16 slots (16/NA or 8/8)

1 - 5V PCI 32bit

M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1

M.2 Form Factor: 2280/22110

M.2 Key: M-Key

5. 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,

VGA port is dedicated for IPMI

6. Intel W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

7. Single LAN with Intel PHY I219LM LAN controller for AMT/vPro

Single LAN with Intel Ethernet i225LM
Form Factor
ATX
Processor/Cache
CPU
10th Generation Intel Core^TM i9/Core^TM i7/Core^TM i5/Core^TM i3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Cores / Cache
Up to 10 cores
System Memory
Memory Capacity
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel W480
SATA
Intel W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Dedicated IPMI LAN Port
Network Controllers
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
Single LAN with Intel Ethernet i225LM
Audio
ALC 888S HD Audio
Graphics
VGA port is dedicated for IPMI
Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
2 USB 2.0 ports (2 via headers)
3 USB 3.2 Gen1 ports (1 via header + 2 Type A)
5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header)
Video Output
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,
VGA port is dedicated for IPMI
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x4,
2 PCI-E 3.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 and 1
Form Factor: 2280/22110
Key: M-Key

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12SCA-F-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

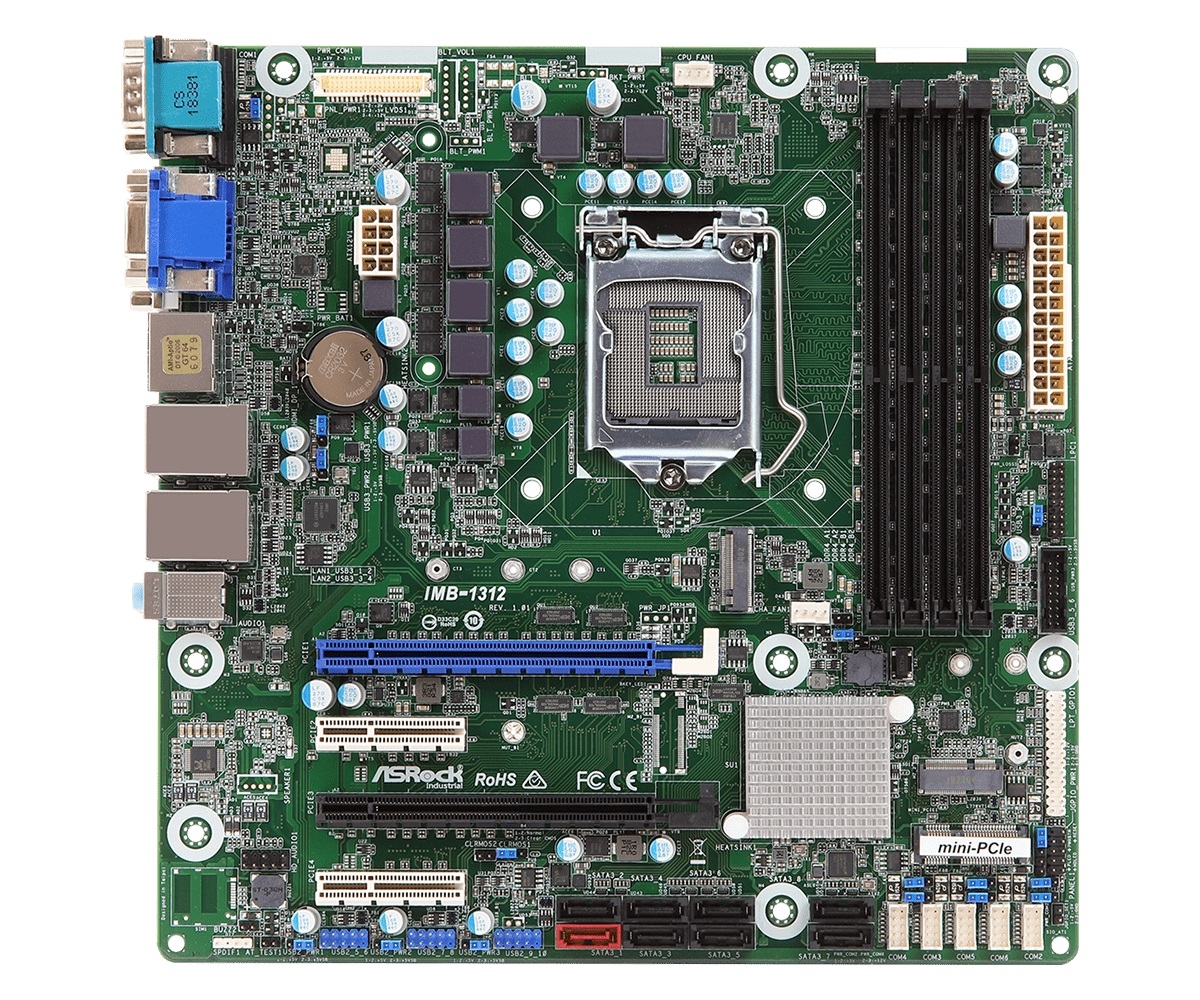

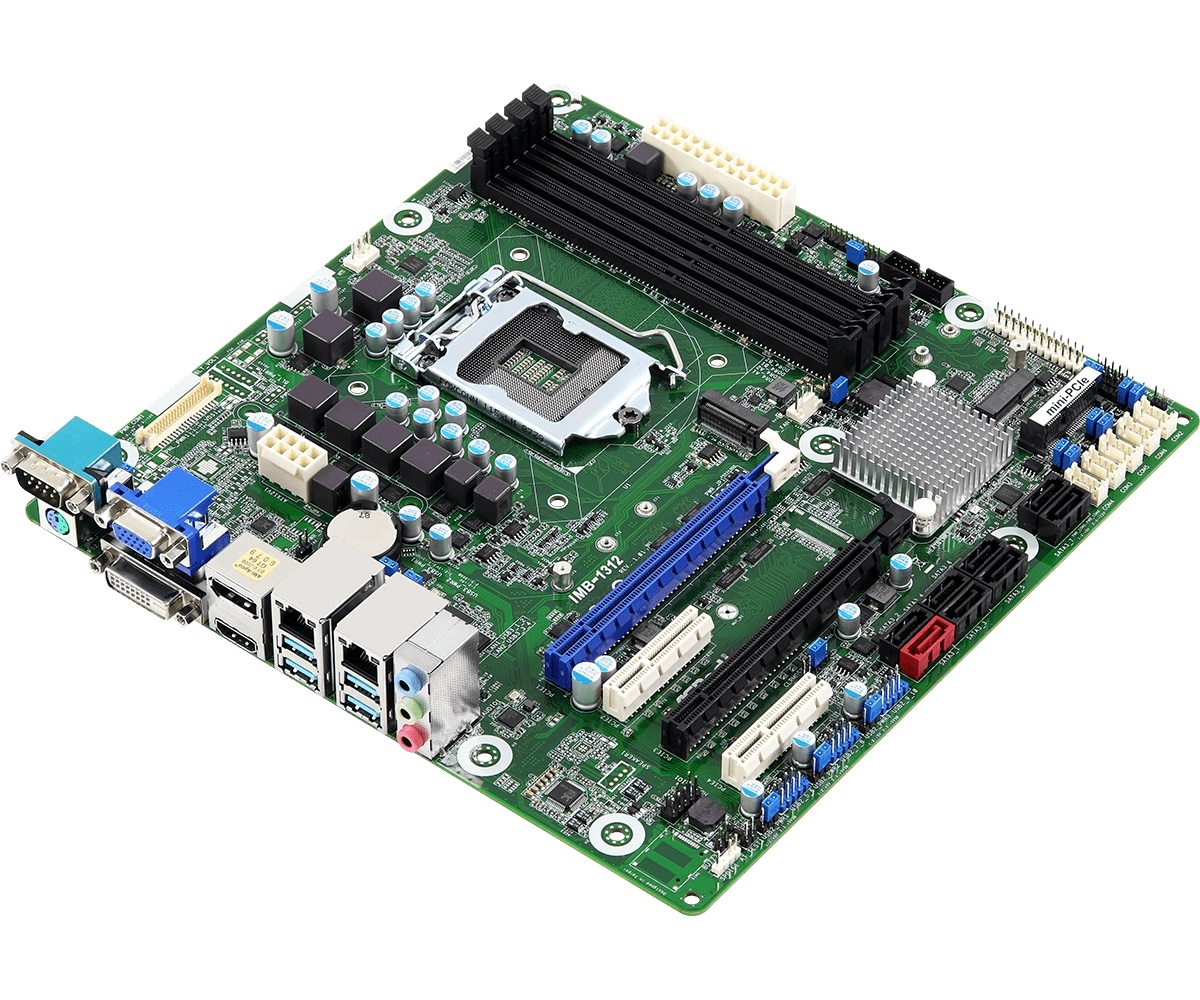

Product Description

Socket LGA 1151 for Intel Core i7/i5/i3/Celeron

Supports Dual Channel DDR4 4x Long-DIMM 2400/2666MHz, up to 64GB

1 x VGA, 1 x DVI-D, 1 x DP, 1 x HDMI, 1 x LVDS

6 x USB 3.1, 6 x USB 2.0, 8 x SATA3, 6 x COM

1 x PCIe x16, 1 x PCIe x8, 2 x PCIe x4, 1 x Mini-PCIe

1 x M.2 Key M, 1 x M.2 Key E

2 x Intel LAN

1 x TPM 2.0 IC

ATX PWR Con. (24+8-pin )

Support RAID 0,1,5,10
Form Factor
Dimensions
- Micro ATX (9.6-in x 9.6-in)
Processor System
CPU
- Socket LGA 1151 for Intel Core i7/i5/i3/Celeron (Supports up to 95W)
Chipset
- Intel Q370
Expansion Slot
PCIe
- 1x PCIe x16, 1x PCIe x8, 2x PCIe x4
Slot1: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied.
Mini-PCIe
- 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2
- 1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
- 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
Memory
Technology
- Dual Channel DDR4 2400/2666MHz
Max.
- 64GB
Socket
- 4 x Long-DIMM
Graphics
Controller
- Intel HD Graphics (By CPU)
VGA
- Supports max resolution up to 1920x1200
DVI
- Max resolution up to 4096x2304 at60Hz
LVDS
- Supports max resolution up to 1920x1200 at60Hz
HDMI
- Max resolution up to 4096x2160 at24Hz
DisplayPort
- Max resolution up to 4096x2304 at60Hz
MultiDisplay
- Triple Display
eDP
- N/A
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- 1 x Intel I210, 1 x Intel I219LM

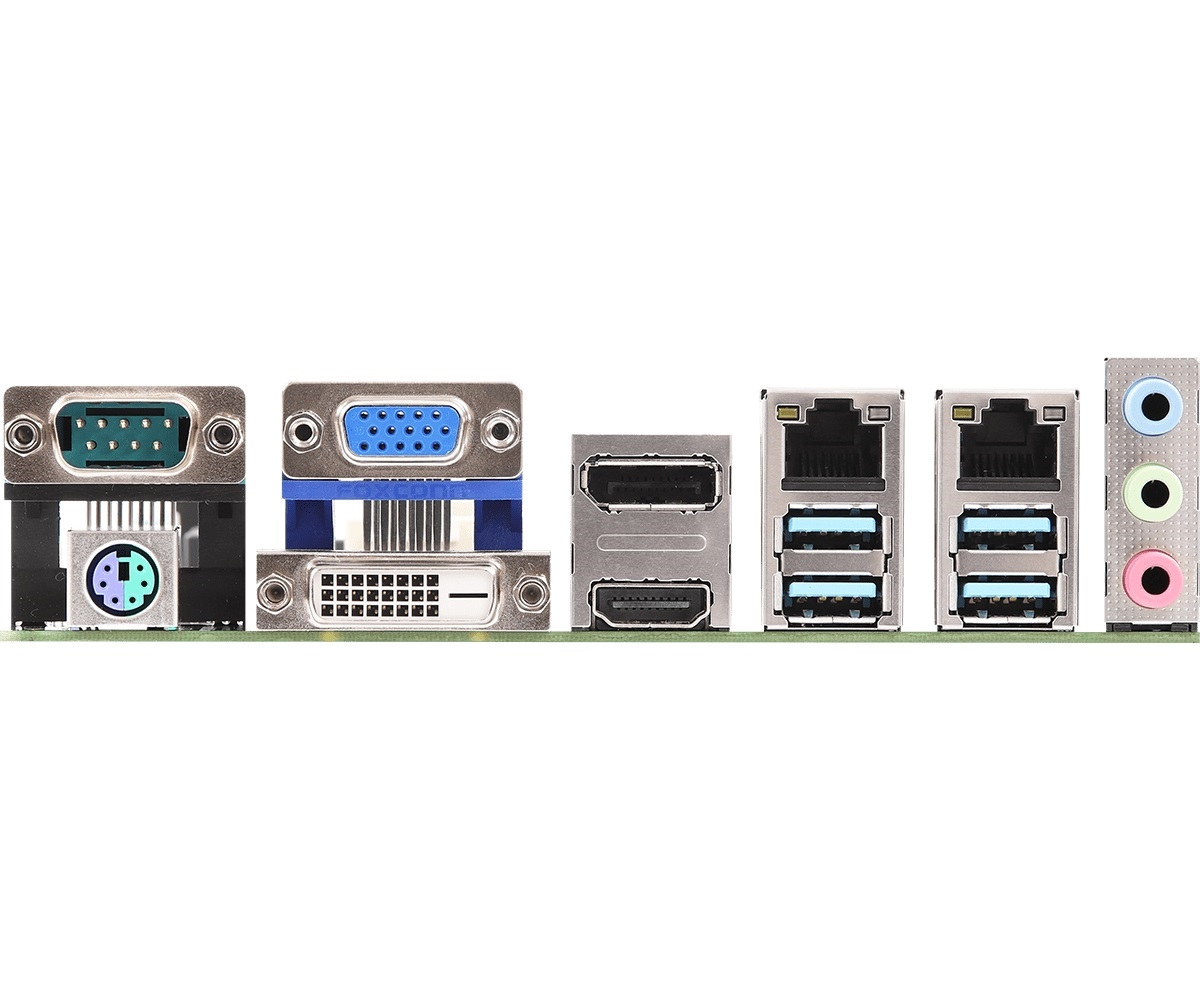

Rear I/O
VGA
- 1
DVI
- 1 x DVI-D
HDMI
- 1 x HDMI 1.4
DisplayPort
- 1 x DP1.2++
Ethernet
- 2
USB
- 4 x USB3.1
Audio
- 3 (Mic-in. Line-in. Line-out)
Serial
- 1 x COM (RS-232/422/485)
PS2
- 1x PS/2 combo
Internal Connector
USB
- 6 x USB2.0, 2 x USB3.1
LVDS / inverter
- 1
eDP
- N/A
VGA
- N/A
Serial
- 5 x COM(RS-232)
SATA
- 8x SATA3 (6.0Gb/s), one is shared with M.2 Key M
Parallel
- 1 (shared with GPIO)
GPIO
- 8 x GPI, 8 x GPO
SATA PWR Output
- N/A
Speaker Header
- 1
TPM
- 1 x Onboard IC
Watchdog Timer
Output
- From Super I/O to drag RESETCON
Interval
- 256 segments, 0,1,2255sec
Power Requirements
Input PWR
- 24+4-pin ATX PWR Con.
Power On
-AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power input ready
Environment
Operating Temp
- 0^oC to 60^oC
Storage Temp
- 20^oC to 80^oC
Operating Humidity
- 5% to 90%
Storage Humidity
- 5% to 90%
Item Dimension ( L inchxW inchxH inch)
12 x 9 x 3
Weight
3 lb
Warranty Information
NA

Available Quantity

5

UPC

Does not apply

SKU

mingleIMB-1312

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

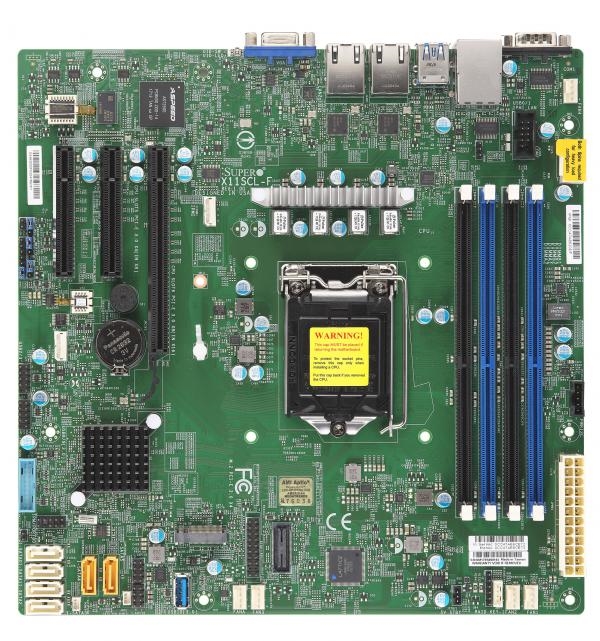

Product Description

Key Features

1.8th/9th Generation Intel Core i3/Pentium /Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

2.Intel C242 chipset

3.Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots

4.Expansion slots:

1 PCI-E 3.0 x8 (in x16),

2 PCI-E 3.0 x4 (in x8)

5.Dual GbE LAN with Intel i210-AT

6.6 SATA3 (6Gbps) ports;

RAID 0, 1, 5, 10

7.M.2 NGFF connector

8.M.2 Interface: 1 PCI-E 3.0 x4

Form Factor: 2280/22110

Key: M-Key

Double Height Connector

9.I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
Physical Stats
Form Factor
microATX
Processor/Cache
CPU
8th/9th Generation Intel Corei3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Cores / Cache
6 cores, 12 threads
Note
BIOS version 1.0b or above is required to support Intel Xeon E-2200 and 9th Generation Intel Core i3/Pentium/Celeron Processors
System Memory
Memory Capacity
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C242
SATA
Intel C242 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 1GbE with Intel I210
Graphics
Aspeed AST2500 BMC
Input / Output
USB
6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x8 (in x16 slot),
2 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature
Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
LED
CPU / System Overheat LED, UID/Remote UID
Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Item Dimension (L"xW"xH")
16 x 12 x 4

Weight
6 lbs

Warranty Information
1 year

Available Quantity

5

UPC

672042327652

SKU

mingleMBD-X11SCL-F-O

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Replacement motherboard for Pegatron E15K notebook. Includes Intel Core i7-7500U processor
Item Dimension (L"xW"xH")
15 x 12 x 3

Weight
4 lbs

Warranty Information
6 Months

Available Quantity

5

UPC

Does not apply

SKU

mingle9C-N0FZM1600

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

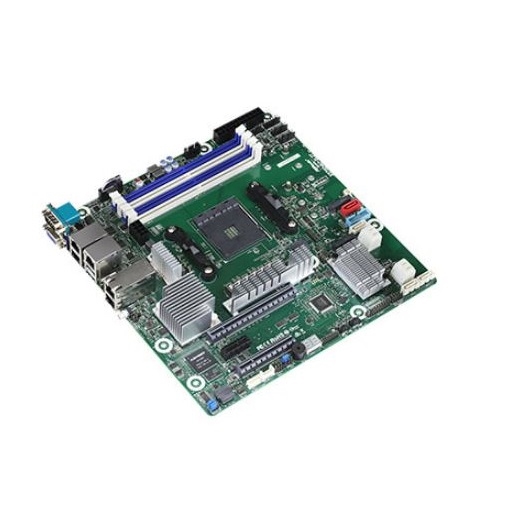

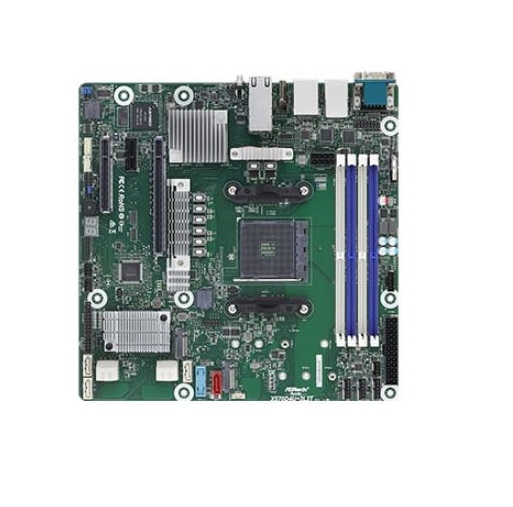

Product Description

micro-ATX (9.6"x 9.6")

Supports 3rd Gen AMD Ryzen Processors

4 DIMMs

1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1

Dual 10 GbE RJ45

Dual 1 GbE RJ45

2 M.2 (PCIe4.0x4/ SATA)

8 SATA 6Gb/s

HDMI

AST2500 Remote management (IPMI)
MB Physical Status
Form Factor
micro-ATX
Processor System
CPU
supports 3^rd Gen AMD Ryzen^TM Processors and 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
Socket
AM4 PGA 1331
Power Design
105W
Chipset
AMD X570
System Memory
Capacity
4 DIMM slots (2DPC)
Type
288-pin DDR4 ECC and non-ECC UDIMM
ECC support varies by CPU
DIMM Size Per DIMM
up to 32GB per DIMM
DIMM Frequency
3rd Gen AMD Ryzen^TM Processors : up to 3200 MHz
2nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics: up to 2666 MHz
Voltage
1.2V
Expansion Slot
PCIe 4.0 x 16
SLOT6: Latch PCIe x16 (PCIe 4.0 x16) (CPU), auto switch to PCIe4.0 x8 when SLOT4 is occupied
Supports PCIe3.0 x8 when using 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
PCIe 4.0 x 8
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) (CPU)
Disabled when using 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
M.2
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570)
Supports PCIe3.0 when using 2^nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics
Storage
SATA Controller
X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device
Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X550-AT2
2 RJ45 (1GbE) by Intel i210
Management
BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
2nd Gen AMD Ryzen^TM Processors with Radeon^TM Graphics:
1 HDMI

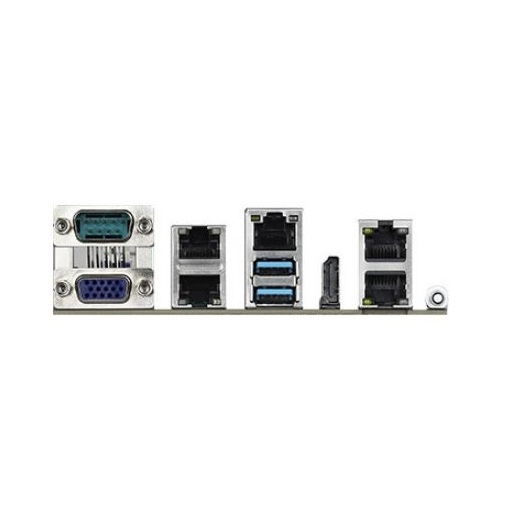

Rear Panel I/O
HDMI
1
VGA Port
1
USB 3.1 Gen2 Port
2
Lan Port
2 RJ45(1GbE), 2 RJ45 (10GbE)
Dedicate LAN
1
Serial Port
1
UID Button/UID LED
1
Internal Connector
Front Lan LED Connector
1 for LAN3/LAN4
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TR1 Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
IPMB Header
1
VGA Header
1
PMBus CONN
1
Buzzer
1
Fan Header
3 (6-pin), 3 (4-pin)
Front Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1
BMC_SMB Header
1
Power Connector
1 ATX main power (24-pin), 1 ATX 12V (8-pin)
Clear CMOS
1 contact pads
Onboard LED
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Item Dimension (L"x W"x H")
12 x 12 x 3
Weight
4.00 LB
Warranty Information
3 years

Available Quantity

5

UPC

Does not apply

SKU

mingleX570D4U-2L2T

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Replacement motherboard for Pegatron E15K notebook. Includes Intel Core i5-7200U processor
Item Dimension (L"xW"xH")
15 x 12 x 3

Weight
4 lbs

Warranty Information
6 Months

Available Quantity

5

UPC

Does not apply

SKU

mingle9C-N0FZM1500

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

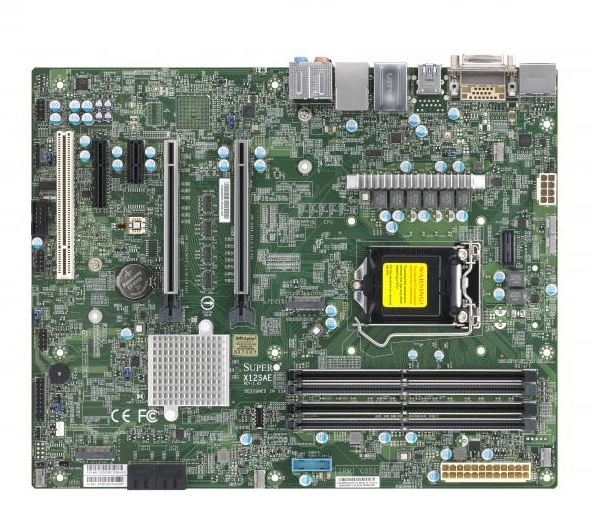

1.10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium /Celeron Processor, Intel Xeon W-1200 ProcessorsSingle Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP

2.Intel W480

3.128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

4.1 PCI-E 3.0 x4,2 PCI-E 3.0 x16 slots (16/NA or 8/8),1 PCI-E 3.0 x11 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

5.1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port

6.Intel W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

7.Single LAN with Intel PHY I219LM LAN controllerfor AMT/vProSingle LAN with Intel Ethernet i225V
Physical Stats
Form Factor
ATX
Processor/Cache
CPU
10th Generation Intel Core^TM i9/Core^TM i7/Core^TMi5/Core^TMi3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
Cores / Cache
Up to 10 cores
System Memory
Memory Capacity
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel W480
SATA
Intel W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
Network Controllers
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
Single LAN with Intel Ethernet i225V
Audio
ALC 888S HD Audio
Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
2 USB 2.0 ports (2 via headers)
3 USB 3.2 Gen1 ports (1 via header + 2 Type A)
5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header)
Video Output
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header

Expansion Slots
PCI-E
1 PCI-E 3.0 x4,
2 PCI-E 3.0 x16 slots (16/NA or 8/8),
1 PCI-E 3.0 x1
1 - 5V PCI 32bit
M.2
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 and 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
256Mb SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
AMT, SSM, SUM, SuperDoctor 5, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
Power button override mechanism
Power supply monitoring
Wake-on-LAN
PC Health Monitoring
Voltage
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, CPU temperature, CPU thermal trip support, LAN temperature, Memory temperature, PCH temperature, System temperature, VBAT, VRM temperature
FAN
5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Single cooling zone
Temperature
N/A
LED
BMC/IPMI Heartbeat LED, Power LED, Catastrophic Error LED
Other Features
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, WOL
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Weight
3.00 lb

Warranty Information
1 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleMBD-X12SAE-B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Add-on-ModuleThe Supermicro AOM-TPM-9655V is a security hardware device on the system board that will hold computer generated keys for encryption. Supermicros outstanding hardware base solution ensures that the information like keys, password and digital certificates stored within is made more secure from external software attacks and physical theft. With the handful of keys it stores, all cryptographic functions are performed on the chip. AOM-TPM-9655V is an ideal tool for customers who are looking for additional layer of security to their super servers.


Features
- TCG 1.2 compliant trusted platform module (TPM)

- Compliant embedded software Advanced Crypto Engine (ACE) with RSA support up to 2048 bit key length

- Tick counter with tamper detection

- Protection against Dictionary Attack

- Intel Trusted Execution Technology Support (TXT)

- AMD Secure Virtual Machine Architecture Support

- Full personalization with Endorsement Key (EK) and EK certificate

- Power saving sleep mode 3.3 V power supply WHQL dual mode 1.1b + 1.2 TPM Windows Kernel Mode Driver
Security Features
Over/Under voltage Detection
Low frequency sensor
High frequency filterbr
Reset filter
Memory Encryption/Decryption (MED)
Application Supports
Microsoft Outlook and Outlook Express
Microsoft Office 2010, Office 2000, Office XP and Office 2003
Microsoft Internet Explorer
Mozilla Firefox
Mozilla Thunderbird
Netscape Communicator
Microsoft Encrypted File System
RSA Secure ID
Check Point SecuRemote/SecureClient
Check Point VPN-1/FireWall-1 NG
Entrust Desktop Manager Solutions
Adobe Acrobat 6.0 Professional
Supported Platforms
Supermicro motherboards with 20-pin TPM connectors
Operating Conditions
Operating temperature range:
20C to 80C (-4F to 176F)
40C to 85C (-40F to 185F)
Item Dimension (L inchxW inchxH inch)
NA

Weight
0.05lb

Warranty Information
1 Year

Available Quantity

5

UPC

672042178209

SKU

mingleAOM-TPM-9655V-S

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

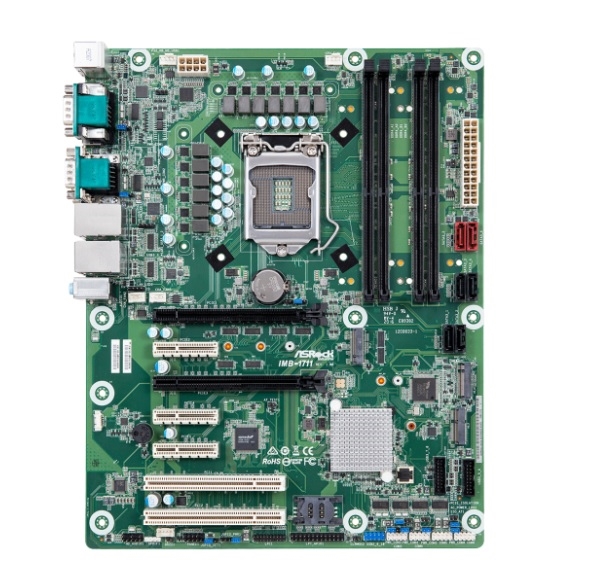

IMB-1711

ATX Motherboard

Intel 10th Gen (Cometlake-S) Core Processors with Q470E chipset

4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB

1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 3 x PCIe x4 Gen3, 2 x PCI

4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0

1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 6 x SATA3

1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN

Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x HDMI 2.0a

TPM 2.0 onboard

ATX-PWR (24+8-pin)
Processor System
CPU
Intel 10th Gen (Cometlake-S) Core Processors, up to 125 W
Chipset
Intel Q470E
Socket
LGA1200
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity
128GB
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0a, Max resolution up to 4096 x 2160 at 60Hz
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096 x 2160 at 60Hz
VGA
Max resolution up to 1920 x 1200 at 60Hz
MultiDisplay
Triple Display
Expansion Slot
PCIe
3 x PCIe Gen3 Slots (PCIE1 / PCIE2 / PCIE3: Single at x16 (PCIE1) Dual at x8 (PCIE1) / x8 (PCIE3) Triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3))
2 x PCIe x4 (Gen3)
PCI
2 x PCI
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 and SIM socket for 4G / 5G
SIM Socket
1 x SIM socket connected to M.2 Key B
Audio
Interface
Realtek ALC887 HD, High Definition Audio. Line-In / Line-Out / Mic-In
Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector
2 x RJ-45
Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.2
VGA
1
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
4 x USB 3.2 Gen2, 2 x USB 2.0
Audio
3 ( Line-In, Line-Out, Mic-In )
COM
2 x COM (RS-232/422/485)
PS2
1
Internal Connector
USB
4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM
4 x COM (RS-232)
Parallel
1
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
TPM
TPM 2.0 onboard
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD
Shared with SATA3_5 / SATA3_6 Ports
- When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled
- When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available
SATA
6 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON
Interval
256 segments, 0,1,2255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0^oC - 60^oC
Storage Temp
-40^o C 85^o C
Operating Humidity
5% - 90%
Storage Humidity
5% - 90%
Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
3 years
