Item

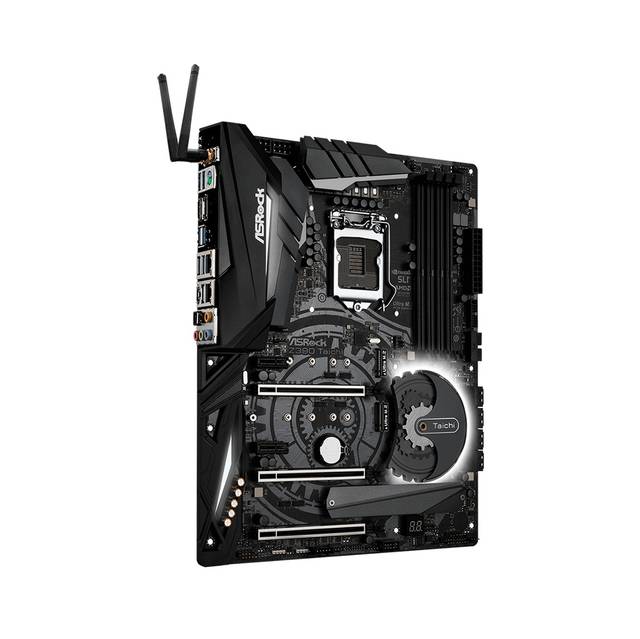

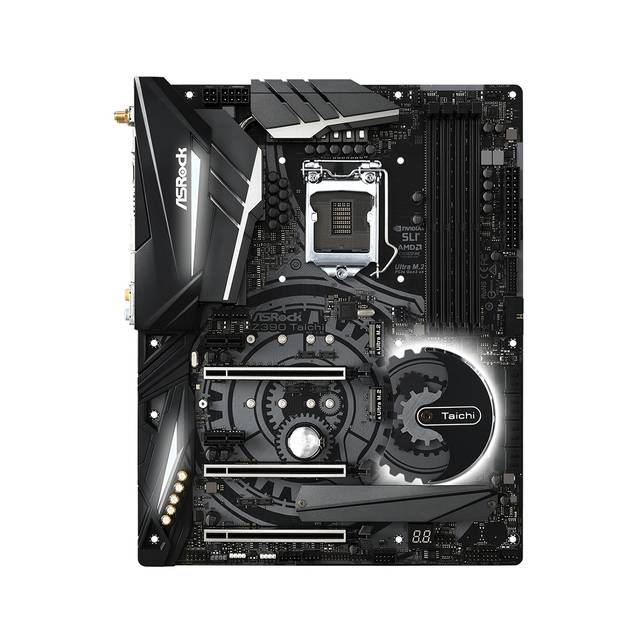

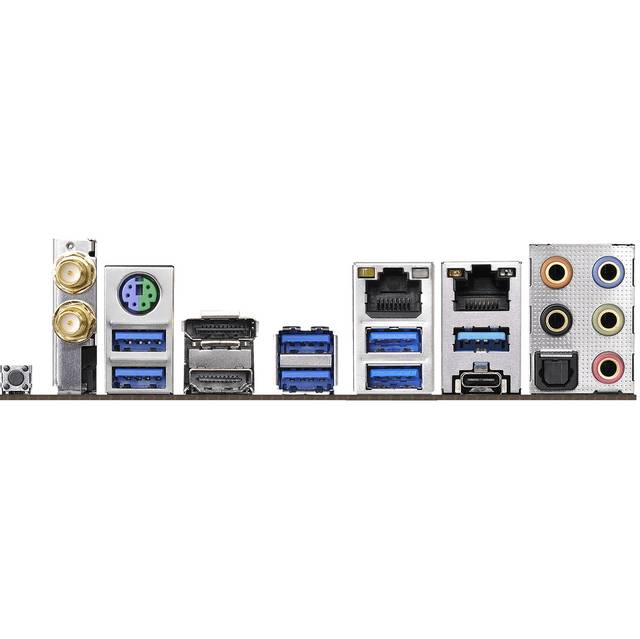

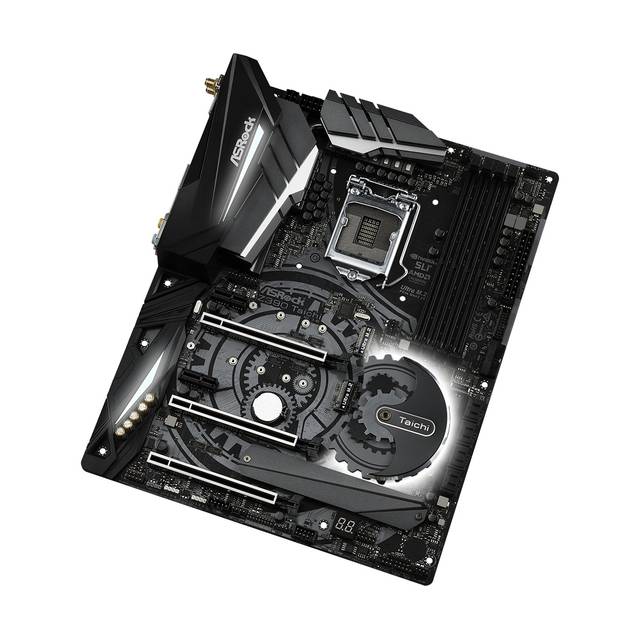

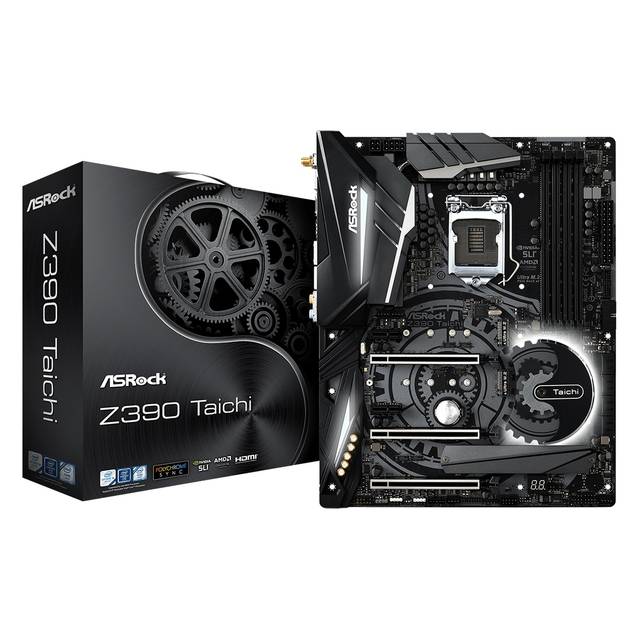

ASRock Z390 TAICHI LGA1151/ Intel Z390/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2/ WiFi/ A&2GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$222.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: Z390 TAICHI
- CPU: LGA1151
- Supports 9th and 8th Generation Intel Core Processors
- IR Digital PWM
- 12 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Supports ASRock Hyper BCLK Engine II
- Chipset: Intel Z390
- Memory: 4x DDR4-4200+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 3x PCI-Express 3.0 x16 Slots (run single at x16 or dual at x8/x8 or triple at x8/x4/x4), 2x PCI-Express 3.0 x1 Slots (Flexible PCIe)
- Multi-Graphics: Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology
- Storage:
- SATA: 8x SATA3 Ports (Two by ASMedia ASM1061, Six Supports RAID 0, 1, 5, 10)
- M.2: 3x Ultra M.2 Ports (M Key), one supports type 2230/ 2242/ 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s), two supports type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s)
- Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
- LAN: Giga PHY Intel I219V and GigaLAN Intel I211AT Gigabit Ethernet Controllers; Dual-Band IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2 / 3.0 + High speed class II
- Ports: 5x USB 3.1 Gen 2 Ports (3 Type-A rear, 1 Type-C rear, 1 Type-C front), 8x USB 3.1 Gen 1 Ports (4 rear, 4 front), 3x USB 2.0 Ports (via headers), 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x DisplayPort, 1x Optical SPDIF Out Port, 2x Antenna Ports, 2x RJ45 LAN Port with LED, Audio I/O Jacks
- Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector, 1x 4-pin 12V Power Connector
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
Available Quantity
5
UPC
Does not apply
SKU
mingleZ390 TAICHI
Item

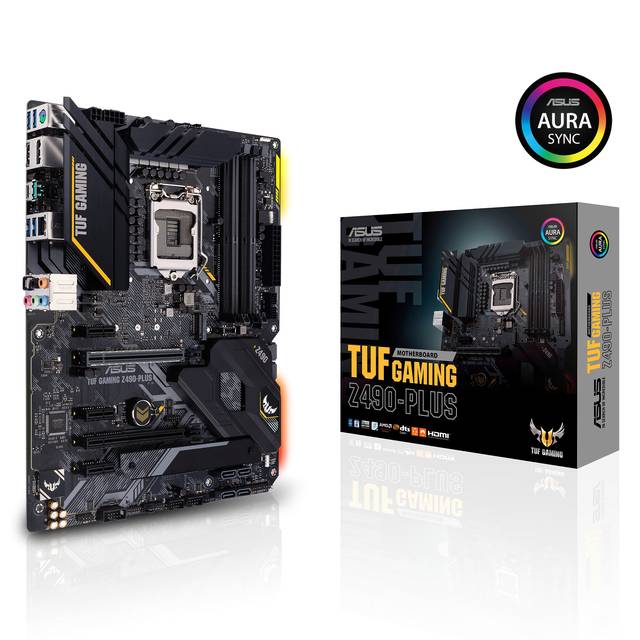

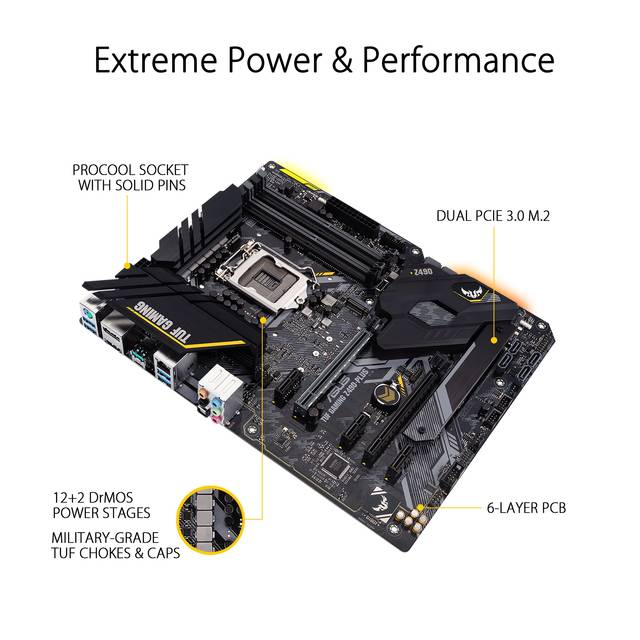

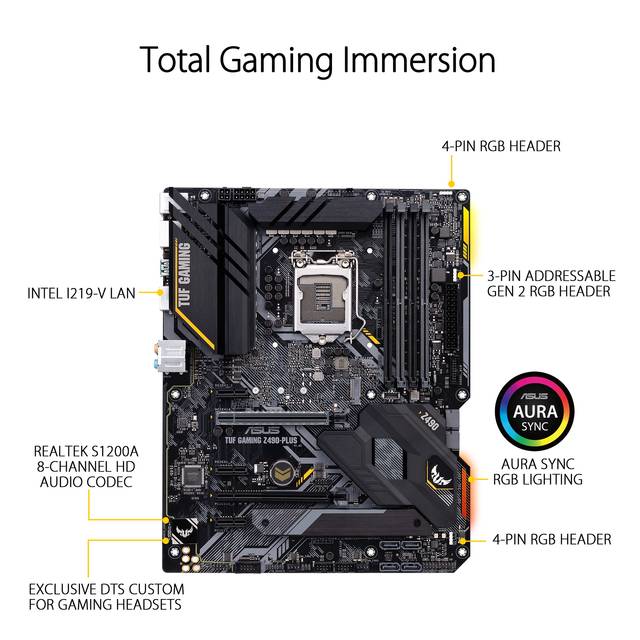

Asus TUF GAMING Z490-PLUS LGA1200/ Intel Z490/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$175.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: TUF GAMING Z490-PLUS
- CPU:
- Build in Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Build in Intel Z490
- Memory:
- 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/ 2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem II
- Graphics:
- Integrated Graphics Processor
- 1 x DisplayPort 1.4
- 1 x HDMI 1.4b
- Integrated Graphics Processor
- Expansion Slots:
- Intel 10th Gen Processors
- 1 x PCIe 3.0 x16 (x16 modes)
- Intel Z490 Chipset
- 1 x PCIe 3.0 x16 (x4 mode)
- 3 x PCIe 3.0 x1
- Multi-GPU Support
- Supports AMD 2-Way CrossFireX Technology
- Storage
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel Z490 Chipset
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 6 x SATA 6Gb/s ports
- Support Raid 0,1,5,10
- Intel Rapid Storage Technology supports
- Intel Optane Memory Ready
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Ethernet
- Intel I219V 1Gb Ethernet
- TUF LANGuard
- USB Ports
- Rear USB Port ( Total 6 )
- 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
- Front USB Port ( Total 7 )
- 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C)
- 1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 2 x USB 2.0 port(s)(4 x Type-A)
- Rear USB Port ( Total 6 )
- Audio:
- Realtek S1220A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Audio Feature:
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors

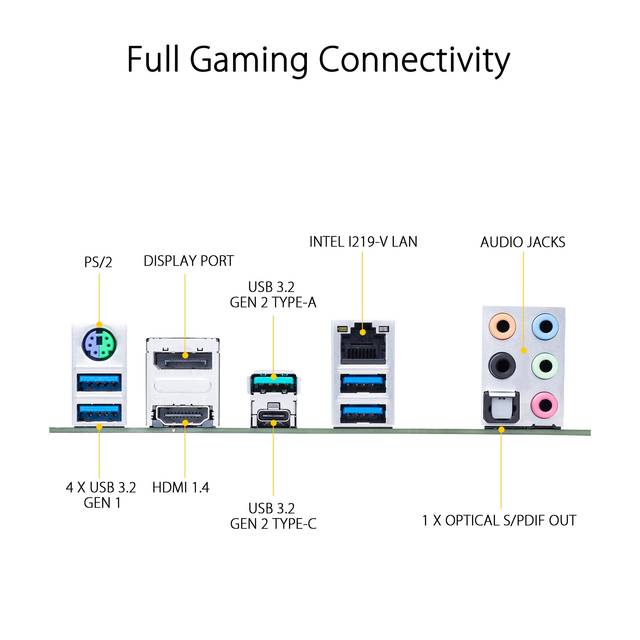

- Back I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 1 x Optical S/PDIF out
- 5 x Audio jacks
- 1 x PS/2 keyboard/mouse combo port(s)
- Internal I/O Connectors
- 1 x CPU Fan header
- 1 x CPU OPT Fan header
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 2 x M.2 Socket 3
- 6 x SATA 6Gb/s connector(s)
- 1 x Thunderbolt header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s) (Chassis intrusion header is inbuilt)
- 1 x Clear CMOS jumper(s)
- 1 x COM port header
- ASUS Special Features
- ASUS TUF PROTECTION
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
- ASUS Thermal Solution
- Stylish heatsink
- ASUS EZ DIY
- Procool
- AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
- Software Features:
- ASUS Exclusive Software
- Armoury Crate
- Aura Sync
- Armoury Crate
- AI Suite 3:
- Performance And Power Saving Utility
- Turbo V Evo
- EPU
- Digi+ VRM
- Fan Xpert 4
- System information- EZ update
- AI Charger
- ASUS Turbo LAN
- DTS Custom for GAMING Headsets
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS Exclusive Software
- BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Accessories:
- User's manual
- 1 x ASUS Fan Holder
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- 1 x TUF GAMING Sticker
- 1 x TUF Certification card(s)
- Operating System: Windows 10 64-bit
- Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Available Quantity
5
UPC
192876678886
SKU
mingleTUF GAMING Z490-PLUS
Item

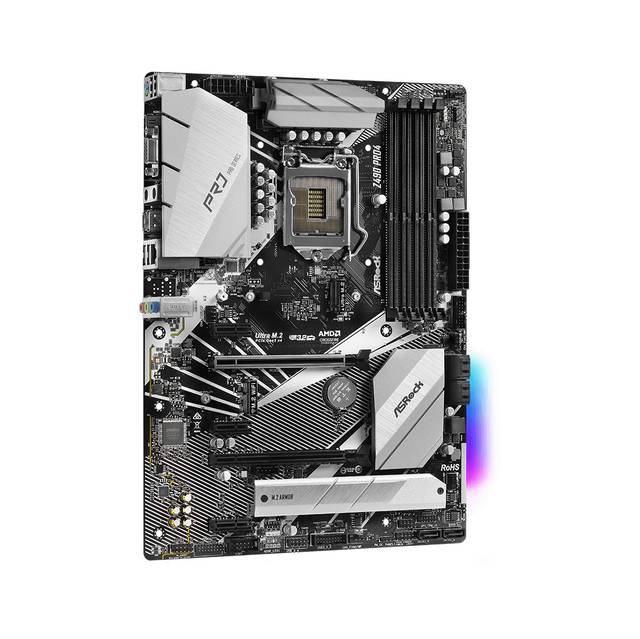

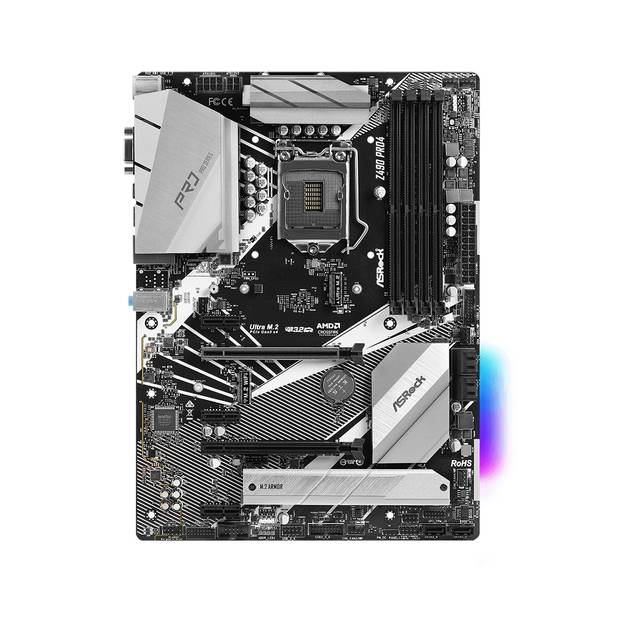

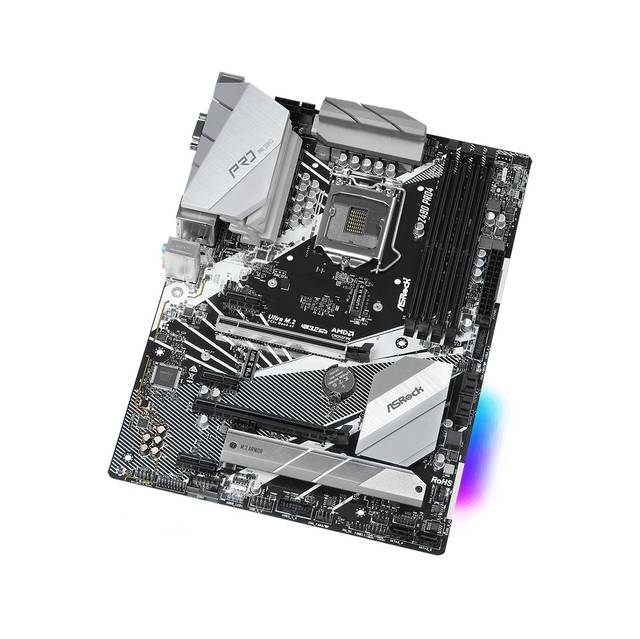

ASROCK Z490 PRO4 Socket LGA1200/ Intel Z490/ DDR4/ Quad CrossFireX/ SATA3&USB3.2/ M.2/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$169.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number:Z490 PRO4
- Unique Feature
- ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
- ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
- ASRock Steel Slots
- ASRock Full Coverage M.2 Heatsink
- ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- CPU
- Supports 10th Gen Intel Core Processors (Socket 1200)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Chipset
- Intel Z490
- Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4400+(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15 Gold Contact in DIMM Slots
- BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
- Graphics
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Slots
- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)
- 3 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)
- Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- Connector
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connectors
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports)(Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

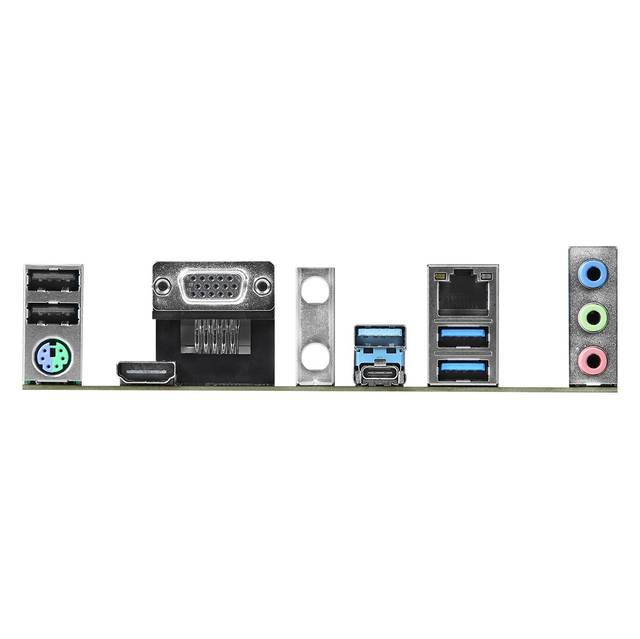

- Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- Software and UEFI
- Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
- UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
- Software
- Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories
- Quick Installation Guide, Support CD
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x Standoffs for M.2 Sockets
- Hardware Monitor
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO
- Form Factor
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- Solid Capacitor design
- OS
- Microsoft Windows 10 64-bit
- Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
Does not apply
SKU
mingleZ490 PRO4
Item
Asus TUF GAMING B550-PLUS Socket AM4/ AMD B550/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ WiFi/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$158.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: TUF GAMING B550-PLUS
- CPU: Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors
- Chipset: AMD B550
- Memory:
- 3rd Gen AMD Ryzen Processors- 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
- Dual Channel Memory Architecture- ECC Memory (ECC mode) support varies by CPU.
- Graphics:
- 1 x DisplayPort 1.4
- 1 x HDMI 2.1(4K@60HZ)
- Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
- Expansion Slots:
- 3rd Gen AMD Ryzen Processors- 1 x PCIe4.0 x16 (x16 mode)
- AMD B550 Chipset- 1 x PCIe 3.0 x16 (x4 mode)- 3 x PCIe 3.0 x1
- Storage:
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- 3rd Gen AMD Ryzen Processors:- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- AMD B550 Chipset:- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)- 6 x SATA 6Gb/s port(s)- Support Raid 0, 1, 10
- LAN:
- Realtek RTL8125B 2.5Gb Ethernet
- TUF LANGuard
- Wireless Data Network: M.2 slot only (Key E) (Support PCIe interface)
- Audio:
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Audio Feature:- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors- Unique de-pop circuit
- USB Ports:
- Rear USB Port ( Total 8 )- 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)- 2 x USB 2.0 port(s)(2 x Type-A)
- Front USB Port ( Total 6 )- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)- 4 x USB 2.0 port(s)(4 x Type-A)
- Rear USB Port ( Total 8 )
- Software Features:
- ASUS Exclusive Software
- Armoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling Microphone
- AI Suite 3- Performance And Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- Fan Xpert 2+- EZ update
- TUF GAMING CPU-Z
- AI Charger
- ASUS Turbo LAN
- DAEMON Tools
- DTS Custom for GAMING Headsets
- Norton Anti-virus software (Free Trial for 60 days)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
- ASUS Special Features:
- ASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/O
- ASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-Slot
- ASUS Thermal Solution- Aluminum M.2 heatsink
- ASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- Procool
- AURA Sync- Standard RGB headers- Addressable Gen 2 RGB header
- Back I/O Ports:
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (2.5G) port(s)
- 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)
- 1 x BIOS FlashBack Button(s)
- Internal I/O Ports:
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 with E key for Wi-Fi module
- 1 x SPI TPM header
- 6 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Thermal sensor connector(s)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x COM port header
- Accessories:
- User's manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x Supporting DVD
- 1 x TUF Gaming Sticker
- 1 x TUF Certification card(s)
- 1 x M.2 SSD screw package(s)
- 1 x M.2 Rubber Package(s)
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PXE
- Operating System: Windows 10 64-bit
- Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch( 30.5 cm x 24.4 cm )
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offer
Available Quantity
5
UPC
192876749449
SKU
mingleTUF GAMING B550-PLUS
Item
ASROCK Z490 PHANTOM GAMING 4/2.5G LGA1200/ Intel Z490/ DDR4/ Quad CrossFireX/ SATA3&USB3.2/ M.2/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$159.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number:Z490 PHANTOM GAMING 4/2.5G
- Gaming Armor
- Memory
- 15 Gold Contact in DIMM Slots
- Internet
- 2.5G LAN
- Audio
- Nahimic Audio
- Memory
- Unique Feature
- ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
- ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Phantom Gaming 2.5G LAN
- ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
- ASRock Steel Slots
- ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- CPU
- Supports 10th Gen Intel Core Processors (Socket 1200)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Supports 10th Gen Intel Core Processors (Socket 1200)
- Chipset
- Intel Z490
- Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4400+(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15 Gold Contact in DIMM Slots
- Dual Channel DDR4 Memory Technology
- BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
- Graphics
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
- LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Slots
- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)
- 3 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)
- Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- Connector
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connectors
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports)(Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- Software and UEFI
- Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC
- ASRock Key Master
- UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
- Software
- Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories
- Quick Installation Guide, Support CD
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
- Hardware Monitor
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO
- Form Factor
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- Solid Capacitor design
- OS
- Microsoft Windows 10 64-bit
- Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
Does not apply
SKU
mingleZ490 PHANTOM GAMING 4/2.5G
Item
Asus PRIME Z490-P LGA1200/ Intel Z490/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$160.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Available Quantity
5
UPC
192876666050
SKU
minglePRIME Z490-P
Item
Asus PRO Q470M-C/CSM LGA1200/ Intel Q470/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$150.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRO Q470M-C/CSM
- CPU:
- Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Q470
- Memory:
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- OptiMem
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Graphic:
- Integrated Graphics Processor
- 2 x DisplayPort 1.4
- 1 x HDMI 1.4b
- 1 x D-Sub
- Integrated Graphics Processor
- Expansion Slots:
- 1 x PCIe 3.0 x16 (x16 mode)
- 1 x PCIe 3.0 x1
- 1 x PCI
- Storage:
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel Q470 Chipset:
- 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
- 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
- 6 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 5, 10
- Intel Rapid Storage Technology supports
- Intel Optane Memory Ready
- LAN:
- Intel I219-LM
- ASUS LANGuard
- Audio:
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
- USB Ports
- Rear USB Port ( Total 6 )
- 4 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A) - Front USB Port ( Total 5 )
- 1 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(1 x USB Type-C)
- 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
- Rear USB Port ( Total 6 )
- Software Feature:
- ASUS Exclusive Software
- IT Management software supported
- ASUS Control Center Express(ACCE)
- ASUS Special Features:
- Bespoke Motherboard Design & Business Focused Features :
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection - ASUS EZ DIY
- Box Headers - TPM 2.0 IC onboard
- Bespoke Motherboard Design & Business Focused Features :
- Back I/O Ports:
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x D-Sub
- 2 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.2 Gen 2 (teal blue)
- 2 x USB 2.0
- 3 x Audio jack(s)
- Internal I/O Ports:
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 2 x Chassis Fan connector(s) (2 x 4 -pin)
- 1 x MONO out header
- 1 x USB 3.2 Gen 1 front panel TypeC connector
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
- 1 x M.2 with E key for Wi-Fi module
- 1 x LPT header
- 6 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Chassis Intrusion connector(s)
- 1 x Clear CMOS jumper(s)
- 1 x DIS ME jumper
- 1 x System panel connector
- 2 x COM port header
- 1 x LPC Debug header
- 1 x Speaker connector
- Accessories:
- User's manual
- 1 x ACC Express Activation Key Card
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 2 x M.2 Screw Package
- 1 x Supporting DVD
- BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Operating System: Windows 10 64-bit
- Form Factor:
- mATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
192876714201
SKU
minglePRO Q470M-C/CSM
Item
ASROCK B550M STEEL LEGEND Socket AM4/ AMD B550/ DDR4/ Quad CrossFireX/ SATA3&USB3.2/ M.2/ Micro ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$154.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: B550M STEEL LEGEND
- Unique Feature:
- ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
- ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCB
- 2.5G LAN
- ASRock Steel Slot Gen4
- ASRock Full Coverage M.2 Heatsink
- ASRock Hyper M.2 (PCIe Gen4x4)
- ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- CPU:
- Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors
- Digi Power design
- 10 Power Phase design
- Chipset: AMD B550
- Memory:
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- MD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) memory modules
- 15 Gold Contact in DIMM Slots
- BIOS:
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
- Graphics:
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft PlayReady
- Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Nahimic Audio
- LAN:
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Slots:
- AMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
- AMD Ryzen series APUs (Renoir)- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*- 1 x PCI Express 3.0 x1 Slot- Supports AMD Quad CrossFireX and CrossFireX- 15 Gold Contact in VGA PCIe Slot (PCIE1)- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
- Storage:
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)
- 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
- Connector:
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- Rear Panel I/O:
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
- Software and UEFI:
- Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC
- UEFI- ASRock Full HD UEFI- ASRock Instant Flash
- Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories:
- Quick Installation Guide, Support CD
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
- Hardware Monitor:
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
- Form Factor:
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2oz Copper PCB
- OS: Microsoft Windows 10 64-bit
- Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Available Quantity
5
UPC
Does not apply
SKU
mingleB550M STEEL LEGEND
Item
ASROCK Z490M PRO4 LGA1200/ Intel Z490/ DDR4/ SATA3&USB3.2/ M.2/ Quad CrossFireX/ Micro ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$151.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: Z490M PRO4
- Unique Feature
- ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
- ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
- ASRock Steel Slots
- ASRock Full Coverage M.2 Heatsink
- ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3
- ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- ASRock USB 3.2 Gen2
- CPU
- Supports 10th Gen Intel Core Processors (Socket 1200)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel K-Series unlocked CPUs
- Chipset
- Intel Z490
- Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4500+(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15 Gold Contact in DIMM Slots
- BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM,VTTDDR, PCH 1.05V, VCCIO, VCCST, VCCSA, VCCPLL,VCCPLL_OC, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
- Graphics
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
- LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Slots
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
- Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z490) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- Rear Panel I/O
- 1 x Antenna Bracket
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- Software and UEFI
- Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
- UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
- Software
- Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- Hardware Monitor
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.05V, VCCSA, VCCST, VCCIO, VCCPLL,VCCPLL_OC
- Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design
- OS
- Microsoft Windows 10 64-bit
- Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Available Quantity
5
UPC
Does not apply
SKU
mingleZ490M PRO4
Item
Asus TUF GAMING H470-PRO (WI-FI) LGA1200/ Intel H470/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ WiFi/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$144.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: TUF GAMING H470-PRO (WI-FI)
- CPU:
- Build in Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Build in Intel H470
- Memory:
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem
- Graphics:
- Integrated Graphics Processor
- 1 x DisplayPort 1.4
- 1 x HDMI 1.4b
- Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
- Expansion Slots:
- Intel 10th Gen Processors- 1 x PCIe 3.0 x 16 (x16 mode)
- Intel H470 Chipset- 1 x PCIe 3.0 x 16 (x4 mode)- 3 x PCIe x 1
- Storage:
- Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports
- Intel H470 Chipset:- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)- 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)- 5 x SATA 6Gb/s port(s)- Support Raid 0, 1, 5, 10- Intel Rapid Storage Technology supports- Intel Optane Memory Ready
- LAN:
- Intel I219-V 1Gb Ethernet
- TUF LANGuard
- Wireless Data Network:
- Intel Wi-Fi 6 AX201
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
- Supports up to 2.4Gbps max data rate
- Supports dual band frequency 2.4/5 GHz
- Supports channel bandwidth: HT20/HT40/HT80/HT160
- Supports CNVI interface
- Audio:
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Audio Feature:- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- USB Ports:
- Rear USB Port ( Total 6 )- 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)- 2 x USB 2.0 port(s)
- Front USB Port ( Total 6 )- 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C)- 1 x USB 3.2 Gen 1 port(s)(2 x Type-A)- 1 x USB 2.0 port(s)(2 x Type-A)- 1 x USB 2.0 port(s)(1 x Type-A)
- Rear USB Port ( Total 6 )
- Software Features:
- ASUS Exclusive Software
- Armoury Crate- Aura Sync
- AI Suite 3:- Performance And Power Saving Utility
- Turbo V Evo
- EPU
- Digi+ VRM
- Fan Xpert 4
- System information- EZ update
- AI Charger
- ASUS Turbo LAN
- DTS Custom for GAMING Headsets
- WinRAR
- UEFI BIOS
- ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
- ASUS Special Features:
- ASUS TUF PROTECTION- ASUS DIGI+ VRM- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot
- ASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-Slot
- ASUS Thermal Solution- Stylish heatsink
- ASUS EZ DIY- Procool- Pre-mounted I/O shield
- AURA Sync- Standard RGB headers- Addressable Gen 2 RGB header
- Back I/O Ports:
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
- 2 x USB 3.2 Gen 1 (blue) Type-A
- 2 x USB 2.0
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)
- Internal I/O Connectors:
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
- 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
- 2 x M.2 Socket 3
- 5 x SATA 6Gb/s connector(s)
- 1 x Thunderbolt header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s) (Chassis intrusion header is inbuilt)
- 1 x Clear CMOS jumper(s)
- 1 x COM port header
- 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
- Accessories:
- User's manual
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- 1 x TUF GAMING Sticker
- 1 x TUF Certification card(s)
- 1 x Wi-Fi moving antenna
- BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Operating System: Windows 10 64-bit
- Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Available Quantity
5
UPC
192876720387
SKU
mingleTUF GAMING H470-PRO (WI-FI)
Item
ASROCK H470 STEEL LEGEND Socket LGA1200/ Intel H470/ Quad CrossFireX/ DDR4/ SATA3&USB3.2/ M.2/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$140.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: H470 STEEL LEGEND
- Unique Feature:
- ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) - ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB - 2.5G LAN
- ASRock Steel Slot
- ASRock Full Coverage M.2 Heatsink
- ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
- ASRock Ultra USB Power
- ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- CPU:
- Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
- Digi Power design
- 11 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel H470
- Memory:
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15 Gold Contact in DIMM Slots
- BIOS:
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
- Graphics:
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
- Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- 110dB SNR DAC with Differential Amplifier
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Nahimic Audio
- LAN:
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control - Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Slots:
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
- Storage:
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- Connector:
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel H470) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel H470) (Supports ESD Protection)
- Rear Panel I/O:
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Intel H470) (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
- Software and UEFI:
- Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC - UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
- Software
- Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets
- Hardware Monitor:
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.05V, VCCSA, VCCST, VCCIO
- Form Factor:
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- OS:
- Microsoft Windows 10 64-bit
- Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
Does not apply
SKU
mingleH470 STEEL LEGEND
Item
Asus PRIME B550M-A/CSM Socket AM4/ AMD B550/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$118.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRIME B550M-A/CSM
- CPU: Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors
- Chipset: AMD B550
- Memory:
- 3rd Gen AMD Ryzen Processors
- 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
- ECC Memory (ECC mode) support varies by CPU
- 3rd Gen AMD Ryzen Processors
- Graphic:
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI 2.1(4K@60HZ)
- Expansion Slots:
- 3rd Gen AMD Ryzen Processors
- 1 x PCIe 4.0 x16 (x16 mode) - AMD B550 Chipset
- 2 x PCIe 3.0 x1
- 3rd Gen AMD Ryzen Processors
- Storage:
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- 3rd Gen AMD Ryzen Processors :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support - AMD B550 Chipset :
- 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
- 4 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 10
- LAN: Realtek RTL8111H 1Gb Ethernet
- Audio:
- Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - Audio Feature :- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors
- Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
- USB Ports:
- Rear USB Port ( Total 6 )
- 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) - Front USB Port ( Total 6 )
- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 4 x USB 2.0 port(s)(4 x Type-A)
- Rear USB Port ( Total 6 )
- Software Features:
- ASUS Exclusive Software
- Armoury Crate- Aura Creator- Aura Sync
- AI Suite 3- Performance And Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- Fan Xpert 2+- EZ update
- ASUS CPU-Z
- AI Charger
- DAEMON Tools
- Norton Anti-virus software (Free Trial for 60 days)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
- ASUS Special Features:
- ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/O
- ASUS Q-Design- ASUS Q-DIMM- ASUS Q-Slot
- ASUS Thermal Solution- Aluminum heatsink design
- AURA Sync- Standard RGB headers- Addressable Gen 2 RGB header
- ASUS Lighting Control
- Back I/O Ports:
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 3 x Audio jack(s)
- Internal I/O Ports:
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 2 x Chassis Fan connector(s)
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x SPI TPM header
- 4 x SATA 6Gb/s connector(s)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x COM port header
- 1 x Speaker connector
- Accessories:
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x Supporting DVD
- User manual
- 1 x M.2 SSD screw package(s)
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PXE
- Operating System: Windows 10 64-bit
- Form Factor:
- mATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
192876755532
SKU
minglePRIME B550M-A/CSM
Item
Asus PRO B460M-C/CSM LGA1200/ Intel B460/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$105.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRO B460M-C/CSM
- CPU:
- Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel B460
- Memory:
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem
- Graphics:
- Integrated Graphics Processor- 2 x DisplayPort 1.4- 1 x D-Sub- 1 x HDMI 1.4b
- Integrated Graphics Processor
- Expansion Slots:
- 16-Lane CPU-- 1 x PCIe 3.0/2.0 x16 (x16 mode)
- Intel B460 Chipset- 2 x PCIe 3.0/2.0 x1- 1 x PCI
- Storage:
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel B460 Chipset:- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)- 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)- 6 x SATA 6Gb/s port(s)- Support Raid 0, 1, 5, 10- Intel Rapid Storage Technology supports- Intel Optane Memory Ready
- LAN:
- Intel I219V, 1 x Gigabit LAN Controller(s)
- ASUS LANGuard
- Audio:
- Realtek ALC887 7.1-Channel High Definition Audio CODEC- Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- USB Ports:
- Rear USB Port ( Total 6 )- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)- 2 x USB 2.0 port(s)(2 x Type-A)
- Front USB Port ( Total 6 )- 2 x USB 3.2 Gen 1 port(s)- 4 x USB 2.0 port(s)
- Rear USB Port ( Total 6 )
- Special Features:
- Bespoke Motherboard Design & Business Focused Features:- Overcurrent Protection: Short circuit prevention, protects your system- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen- ASUS Event Log: Record activities of system and provides information in BIOS- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design- Anti-Moisture: Against moisture and corrosion prolonging the life of your motherboard- 24/7 Reliability: Tested under temperature up to 45 C and humidity up to 80% to ensure handle diverse environment
- Easy Assembly Design:- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
- Back I/O Ports:
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x D-Sub
- 2 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.1 Gen 1 Type-A
- 2 x USB 2.0
- 3 x Audio jack(s)
- Internal I/O Ports:
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 2 x Chassis Fan connector(s) (2 x 4 -pin)
- 1 x MONO out header (with Amp IC)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
- 1 x SPI TPM header
- 1 x LPT header
- 2 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Internal speaker connector(s)
- 1 x System panel(s)
- 1 x Chassis Intrusion connector(s)
- 1 x Clear CMOS jumper(s)
- 1 x LPC Debug header
- Accessories:
- User's manual
- 1 x ACC Express Activation Key Card
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Operating System: Windows 10 64-bit
- Form Factor:
- mATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offer
Available Quantity
5
UPC
192876720615
SKU
minglePRO B460M-C/CSM
Item
Asus PRIME H410M-A/CSM LGA1200/ Intel H410/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$84.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Available Quantity
5
UPC
192876715437
SKU
minglePRIME H410M-A/CSM
Item
Asus PRO H410M-C/CSM LGA1200/ Intel H410/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$79.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRO H410M-C/CSM
- CPU:
- Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H410
- Memory:
- 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem
- Graphic:
- Integrated Graphics Processor
- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI 1.4b
- Integrated Graphics Processor
- Expansion Slots:
- 16-Lane CPU-
- 1 x PCIe 3.0/2.0 x16 (x16 mode) - Intel H410 Chipset
- 1 x PCIe 3.0/2.0 x1
- 2 x PCI
- 16-Lane CPU-
- Storage:
- Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel B460 Chipset :
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
- 4 x SATA 6Gb/s port(s)
- LAN:
- Intel I219V, 1 x Gigabit LAN Controller(s)
- ASUS LANGuard
- Intel I219V, 1 x Gigabit LAN Controller(s)
- Audio:
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
- USB Ports
- Rear USB Port ( Total 6 )
- 2 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A) - Front USB Port ( Total 6 )
- 2 x USB 3.2 Gen 1 port(s)
- 4 x USB 2.0 port(s)
- Rear USB Port ( Total 6 )
- Special Features:
- Bespoke Motherboard Design & Business Focused Features :- Overcurrent Protection: Short circuit prevention, protects your system- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen- ASUS Event Log: Record activities of system and provides information in BIOS- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design- Anti-Moisture: Against moisture and corrosion prolonging the life of your motherboard- 24/7 Reliability: Tested under temperature up to 45 C and humidity up to 80% to ensure handle diverse environment
- Easy Assembly Design:- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
- Back I/O Ports:
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 1 (blue) Type-A
- 2 x USB 2.0
- 1 x COM port(s)
- 3 x Audio jack(s)
- Internal I/O Ports:
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x Chassis Fan connector(s) (1 x 4 -pin)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
- 1 x SPI TPM header
- 1 x LPT header
- 1 x COM port(s) connector(s)
- 4 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Internal speaker connector(s)
- 1 x System panel(s)
- 1 x Chassis Intrusion connector(s)
- 1 x Clear CMOS jumper(s)
- 1 x LPC Debug header
- Accessories:
- User's manual
- 1 x ACC Express Activation Key Card
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- BIOS: 128Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Operating System: Windows 10 64-bit
- Form Factor:
- mATX Form Factor
- 9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
192876721841
SKU
minglePRO H410M-C/CSM
Item
Supermicro AOM-TPM-9670V-S-O TPM Add-on-Module
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$46.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: AOM-TPM-9670V-S-O
- Features:
- TCG 2.0 compliant trusted platform module (TPM)
- Compliant embedded software
- EEPROM for TCG firmware enhancements and for user data and keys
- Hardware accelerator for SHA-1 and SHA-256
- Random Number Generator (RNG)
- Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria
- Protection against Dictionary Attack
- SPI interface
- Intel Trusted Execution Technology Support
- AMD Secure Virtual Machine Architecture Support
- Pre-Generation of RSA Keys
- Power saving sleep mode
- 3.3 V power supply
- Built-in support by Linux Kernel
- Operating temperature range - -20 C to +80 C
- Security Features:
- Over/Under voltage Detection
- Low frequency sensor
- High frequency filter
- Reset filter
- Memory Encryption/Decryption (MED)
- Application Supports:
- Microsoft Tools
- Mozilla Firefox
- Mozilla Thunderbird
- Netscape Communicator
- Google Chromebook
- Google Chromebox
- Microsoft Encrypted File System
- RSA Secure ID
- Check Point SecuRemote/SecureClient
- Check Point VPN-1/FireWall-1 NG
- Entrust Desktop Manager Solutions
- Adobe Acrobat 6.0 Professional
- GemSafe for TPM / Smart Card
- Microsoft Tools
- Supported Platforms: Motherboards - X11 motherboards with 10-pin TPM header
- Dimensions (WxLxH): 26.13 x 14.64 x 13.10 mm
- RoHS Compliant
Available Quantity
5
UPC
672042308736
SKU
mingleAOM-TPM-9670V-S-O
Item
GIGABYTE Z390 AORUS PRO WIFI LGA1151/ Intel Z390/ DDR4/ Quad-GPU CrossFireX & Quad-GPU SLI/ SATA3&USB3.1/ M.2/ WiFi/ A&GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$202.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: Z390 AORUS PRO WIFI
- CPU: LGA1151
- Supports 9th and 8th Generation Intel Core i9/ i7/ i5/ i3, Pentium and Celeron processors
- L3 cache varies with CPU
- Chipset: Intel Z390 Express
- Memory: 4x DDR4-4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3666(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 3x PCI-Express 3.0 x1 Slots
- Multi-Graphics: Supports AMD Quad-GPU, 3-Way/ 2-Way CrossFireX and NVIDIA Quad-GPU, 2-Way SLI Technology
- Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 2x M.2 Ports (w/ M Key), one supports type 2242/2260/2280/22110 SATA and PCIe x4/ x2 SSD (M2A); one supports type 2242/2260/2280 SATA and PCIe x4/x2 SSD (M2M)
- Audio: Realtek ALC1220-VB 7.1-Channel High Definition Audio CODEC, Support for S/PDIF Out
- LAN: Intel Gigabit Ethernet Controller, Intel CNVi interface 802.11a/b/g/n/ac Wireless LAN (2.4/5 GHz, Dual-Band), Bluetooth 5.0
- Ports: Ports: 2x USB Type-C Ports (1 rear, with USB 3.1 Gen 2 support; 1 via header, with USB 3.1 Gen 1 support), 2x USB 3.1 Gen 2 Ports (Type-A rear), 5x USB 3.1 Gen 1 Ports (3 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4via headers), 1x HDMI Port, 2x SMA antenna connectors (2T2R), 1x optical S/PDIF Out connector, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector, 1x 4-pin ATX 12V Power connector
- Form Factor: ATX, 30.5 x 24.4 cm
Available Quantity
5
UPC
889523014882
SKU
mingleZ390 AORUS PRO WIFI
Item
Asus PRIME H310M-C R2.0/CSM LGA1151/ Intel H310/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$76.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRIME H310M-C R2.0/CSM
- CPU: LGA1151
- Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports 14nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel H310
- Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0/2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, 1x PCI slot
- Storage:
- SATA: 4x SATA3 Ports
- M.2: 1x M.2 Ports (w/ M Key), Supports type 2260/2280 storage devices & SATA & PCIE x2 mode
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- LAN: Realtek 8111H Gigabit Ethernet Controller
- Ports: 4x USB 3.1 Gen 1 Ports (2 rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (4 rear, 2 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin EATX Power Connector, 1x 4pin EATX 12V Power connector
- Form Factor: MicroATX, 9.6 x 7.6 inch / 24.4 x 19.3 cm
Available Quantity
5
UPC
192876124604
SKU
minglePRIME H310M-C R2.0/CSM
Item
MSI B365M PRO-VH LGA1151/ Intel B365/ DDR4/ SATA3&USB3.1/ Turbo M.2/ A&V&GbE/ Micro-ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$71.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: B365MPROVH
- CPU: Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- Chipset: Intel B365 Chipset
- Memory:
- 2x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP)
- Slots:
- 1 x PCIe 3.0 x16 slots
- 2 x PCIe 3.0 x1 slots
- Onboard Graphics:
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
- Storage:
- Intel B365 Chipset
- 6 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
*Supports up to PCIe 3.0 x4 and SATA 6Gb/s
*Supports 2242/ 2260 /2280 storage devices
*Intel Optane Memory Ready
- Intel B365 Chipset
- RAID:
- Intel B365 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Intel B365 Chipset
- USB:
- Intel B365 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
- Intel B365 Chipset
- Audio:
- Realtek ALC887 Codec
- 7.1-Channel High Definition Audio
- Realtek ALC887 Codec
- LAN: 1 x Realtek RTL8111H Gigabit LAN controller
- Internal Connectors:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
- 6 x SATA 6Gb/s connectors
- 1 x Clear CMOS jumper
- 2 x Front panel connectors
- 1 x Serial port connector
- 1 x Chassis Intrusion connector
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x Front panel audio connector
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x TPM module connector
- Back Panel Ports:
- PS/2 Combo
- VGA Port
- LAN Port
- HD Audio Connectors
- USB 2.0 Ports
- HDMI Port
- USB 3.1 Gen1 Ports
- Dimension:
- 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
- Micro-ATX Form Factor
- Mounting: 6 mounting holes
- Operating System: Support for Windows 10 64-bit
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
824142178751
SKU
mingleB365MPROVH
Item
Asus PRIME B450M-A/CSM Socket AM4/ AMD B450/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$78.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRIME B450M-A/CSM
- CPU: Socket AM4
- Supports AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors
- Supports CPU up to 8 cores
- Supports AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors
- Chipset: AMD B450
- Memory: 4x DDR4-3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI Express 3.0 x16 Slot(one runs at x8), 2x PCI Express 2.0 x1 Slot
- Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 10
- M.2: 1x M.2 Port (w/ M Key), supports type 2242/ 2260/ 2280/ 22110 & PCI-Express 3.0 x4 & SATA modes
- Audio: Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
- LAN: Realtek 8111H Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Gen 2 Ports (rear), 6x USB 3.1 Gen 1 Ports (4 rear, 2 at mid-board), 4x USB 2.0/1.1 Ports (at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: MicroATX, 9.6 x 9.5 inch / 24.4 x 24.0 cm
Available Quantity
5
UPC
192876078808
SKU
minglePRIME B450M-A/CSM
Item
Asus WS X299 SAGE LGA2066/ Intel X299/ DDR4/ 4-Way CrossFireX & 4-Way SLI/ SATA3&USB3.1/ M.2&U.2/ A&2GbE/ CEB Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$513.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: WS X299 SAGE
- CPU: LGA2066
- Supports Intel Core X-Series Processors
- Supports Intel Virtual RAID on CPU (VROC)
- Chipset: Intel X299
- Memory: 8x DDR4-4200(OC)/ 4133(OC)/ 4000(OC)/ 3600(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 128GB (6-core above); 4x DDR4-4200(OC)/ 4133(OC)/ 4000(OC)/ 3600(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 64GB (4-core)
- Slots: 7x PCI-Express 3.0/2.0 x16 Slots (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
- Multi-Graphics: Supports AMD 4-Way CrossFireX and NVIDIA 4-Way SLI Technology
- Storage:
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 2x M.2 Ports (w/ M key), one supports type 2242/ 2260/ 2280/ 22110 & PCI-Express 3.0 x4 modes, one supports type 2242/ 2260/ 2280 & PCI-Express 3.0 x4 modes
- U.2: 2x U.2 Ports
- Audio: Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC
- LAN: Intel I210-AT and Intel I219-LM Gigabit Ethernet Controllers
- Ports: 3x USB 3.1 Gen 2 Ports (2 at back, Type-A + USB Type-CTM, 1 at mid-board), 8x USB 3.1 Gen 1 Ports (6 rear, 2 at mid-board), 4x USB 2.0 Ports (rear), 1x Optical S/PDIF out, 1x USB BIOS Flashback Button, 2x RJ45 LAN Ports, Audio I/O Jacks
- Power Connector: 1x 24-pin EATX Power Connector, 2x 8-pin ATX 12V Power connectors, 1x 6-pin ATX Power connector
- Form Factor: CEB, 12.0 x 10.5 inch / 30.5 x 26.7 cm
Available Quantity
5
UPC
889349853672
SKU
mingleWS X299 SAGE
Item
Supermicro X11SSL-NF-O LGA1151/ Intel C232/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$199.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X11SSL-NF-O
- CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors
- Support up to 80W TDP
- Chipset: Intel C232
- Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 1x PCI-Express 3.0 x8 Slot (runs at x4), 1x PCI-E 3.0 x1 slot
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC Graphics
- LAN: Dual Intel I210-AT Gigabit Ethernet Controllers
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x PCI-E 3.0 NVMExpress x4 External Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
- RoHS Compliant
Available Quantity
5
UPC
672042200894
SKU
mingleMBD-X11SSL-NF-O
Item
ASRock X570 STEEL LEGEND WIFI AX Socket AM4/ AMD X570/ DDR4/ PCIE 4.0/ SATA3&USB3.2/ M.2/ A&GbE/ WIFI&BT/ HDMI/ DP/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$201.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X570 STEEL LEGEND WIFI AX
- Unique Feature:
- ASRock USB 3.2 Gen2
- ASRock Super Alloy
- Intel 802.11ax WiFi
- ASRock Steel Slot Gen4
- ASRock Full Coverage M.2 Heatsink
- ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
- ASRock Ultra USB Power
- ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- CPU: Socket AM4
- Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
- Intersil Digital PWM
- 10 Power Phase design
- Chipset: AMD X570
- Memory:
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB**
- 15 Gold Contact in DIMM Slots
- BIOS:
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
- Slots:
- AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* - AMD Ryzen series CPUs (Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* - AMD Ryzen series CPUs (Picasso)
- 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))*
- 3 x PCI Express 4.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
- AMD Ryzen series CPUs (Matisse)
- Graphics:
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.0
- Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports Microsoft PlayReady
- *Actual support may vary by CPU
- **The Max shared memory 16GB requires 32GB system memory installed.
- Storage:
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- LAN:
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE.
- Wireless LAN:
- Intel 802.11ax WiFi Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 2.4Gbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.0 + High speed class II
- Supports MU-MIMO
- Connector:
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x AMD Fan LED Header*
- 1 x RGB LED Header**
- 1 x Addressable LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector (15 Gold Audio Connector)
- 1 x AMD LED Fan USB Header
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- Rear Panel I/O:
- 2 x Antenna Ports (on I/O Panel Shield)
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
- Software:
- ASRock Polychrome SYNC
- ASRock XFast LAN
- UEFI:
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
- Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories:
- Quick Installation Guide, Support CD
- 4 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x ASRock WiFi 2.4/5 GHz Antenna
- 2 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets
- Hardware Monitor:
- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
- Form Factor:
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
- OS: Microsoft Windows 10 64-bit
- Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Available Quantity
5
UPC
Does not apply
SKU
mingleX570 STEEL LEGEND WIFI AX
Item
MSI B450 TOMAHAWK MAX Socket AM4/ AMD B450/ DDR4/ 2-Way CrossFire/ SATA3&USB3.2/ Turbo M.2/ A&GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$124.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: B450TOMAMAX
- CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Chipset: AMD B450 Chipset
- Memory:
- 4 x DDR4 memory slots, support up to 64GB
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- For AMD Ryzen Gen3 (R5/R7/R9)
*Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
- For AMD Other CPU
*Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) - Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- 4 x DDR4 memory slots, support up to 64GB
- Slots:
- 1 x PCIe 3.0 x16 slot (PCI_E1)
- 1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed
- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors support x8 speed
*1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
*3 x PCIe 2.0 x1 slots
- 1 x PCIe 3.0 x16 slot (PCI_E1)
- Onboard Graphics:
- 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
- 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
- Multi-GPU: Supports 2-Way AMD CrossFire Technology
- Storage:
- AMD CPU
- 2 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
*Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
*Supports 2242/ 2260/ 2280/ 22110 storage devices - AMD B450
- 4 x SATA 6Gb/s ports
- AMD CPU
- RAID:
- AMD B450
- Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
- AMD B450
- USB:
- AMD B450
- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C ports on the back panel
- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) - AMD CPU
- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
- AMD B450
- Audio:
- Realtek ALC892 Codec
- 7.1-Channel High Definition Audio
- Realtek ALC892 Codec
- LAN: 1 x Realtek 8111H Gigabit LAN controller
- Internal Connectors:
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Serial Port connector
- 1 x Clear CMOS jumper
- 2 x 5050 RGB LED strip 12V connectors
- 1x 24-pin ATX main power connector
- Back Panel Ports:
- Flash BIOS Button
- PS/2 Combo Port
- USB 3.2 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 port
- DVI-D Port
- HDMI Port
- USB 3.2 Gen2 Type A+C
- Dimension:
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
- Mounting: 9 mounting holes
- Operating System:
- Support for Windows 10 64-bit
- Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
824142191699
SKU
mingleB450TOMAMAX
Item
GIGABYTE B365M DS3H Socket LGA1151/ Intel B365/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ Micro ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$80.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: B365M DS3H
- CPU:
- Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
- L3 cache varies with CPU
- Chipset: Intel B365 Express Chipset
- Memory:
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel Core i9/i7/i5 processor.
- Onboard Graphics:
- Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
*The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2. - Support for up to 3 displays at the same time
- Maximum shared memory of 1 GB
- Actual support may vary by CPU
- Integrated Graphics Processor-Intel HD Graphics support:
- Audio:
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. - Support for S/PDIF Out
- LAN: Realtek GbE LAN chip (10/100/1000 Mbit)
- Expension Slots:
- 1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x4 slot
- 1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x16
- Storage Interface:
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. - Intel Optane Memory Ready
- Chipset:
- USB:
- Chipset:
- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- Chipset:
- Internal I/O Connectors:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x RGB LED strip headers
- 1 x M.2 Socket 3 connector
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper
- Back Panel Connectors:
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I/O Controller: iTE I/O Controller Chip
- H/W Monitoring:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS:
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features:
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- 3D OSD
- @BIOS
- AutoGreen
- Cloud Station
- EasyTune
- Easy RAID
- Fast Boot
- Game Boost
- ON/OFF Charge
- Platform Power Management
- RGB Fusion
- Smart Backup
- Smart Keyboard
- Smart TimeLock
- Smart HUD
- Smart Survey
- System Information Viewer
- USB Blocker - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
- Bundled Software: Norton Internet Security (OEM version)
- Operating System: Support for Windows 10 64-bit
- Form Factor: Micro ATX Form Factor; 22.6cm x 20.5cm
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
Available Quantity
5
UPC
889523017203
SKU
mingleB365M DS3H
Item
Supermicro X11SPL-F-O LGA3647/ Intel C621/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$321.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X11SPL-F-O
- CPU: Single Socket P LGA3647
- Support Intel Xeon Scalable Processors
- CPU TDP support 165W
- Up to 28 cores
- Chipset: Intel C621
- Memory: 8x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz ECC DIMM Slots, Support up to 1TB 3DS ECC/Load Reduced Memory or up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
- Slots: 2x PCI-Express 3.0 x8 Slots (runs at x16), 4x PCI-Express 3.0 x8 Slot, 1x PCI-Express 3.0 x4 Slot (runs at x8)
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: Aspeed AST2500 BMC Graphics
- LAN: Dual LAN with 1GbE with Intel I210
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 Ports
- Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
- RoHS Compliant
Available Quantity
5
UPC
672042281206
SKU
mingleMBD-X11SPL-F-O
Item
Supermicro X9DBU-IF-B LGA1356/ Intel C602/ DDR3/ SATA3/ V&2GbE/ Proprietary UIO Server Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$299.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X9DBU-IF-B
- CPU: Dual LGA1356; Supports Intel Xeon E5-2400 Processors; Cache up to 20MB; QPI up to 8 GT/s
- Chipset: Intel C602
- Memory: 12x 240pin DDR3-1600/1333/1066/800 DIMM Slots; Supports up to 384GB ECC Memory or up to 96GB DDR3 ECC/Non-ECC, Un-Buffered Memory
- Slots: 1x PCI-Express 3.0 x24 Slot; 1x PCI-Express 2.0 x8 Slot
- SATA: 2x SATA3 Ports, 8x SATA2 Ports; Supports RAID 0, 1, 5, 10
- Video: Integrated G200 (Nuvoton WPCM450 BMC) Graphics Controller
- LAN: Intel i350 Dual Port Gigabit Ethernet Controllers; 1x Realtek RTL8201F PHY (dedicated IPMI)
- Ports: 8x USB 2.0 Ports (2 rear, 4 via headers, 2 Type A); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x VGA Port; 2x Serial Ports (1 rear,1 via header); 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: Proprietary UIO; 12.0 x 13.0 inch / 30.5 x 33.0 cm
- RoHS Compliant
Available Quantity
5
UPC
672042117093
SKU
mingleMBD-X9DBU-IF-B
Item
Supermicro X11SPM-F-O LGA3647/ Intel C621/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$339.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X11SPM-F-O
- CPU: Single Socket P LGA 3647
- Support Intel Xeon Scalable Processors
- CPU TDP support 165W
- Up to 28 cores
- Chipset: Intel C621
- Memory: 6x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz ECC DIMM Slots, Support up to 768GB ECC 3DS Load Reduced Memory or 384GB ECC Load Reduced Memory or up to 192GB ECC REG Memory
- Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x8 Slot
- SATA: 12x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: Aspeed AST2500 BMC Graphics
- LAN: Marvell 88E1512 Dual LAN Gigabit Ethernet Controller
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
- RoHS Compliant
Available Quantity
5
UPC
672042282593
SKU
mingleMBD-X11SPM-F-O
Item
Supermicro X11SSM-F-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$199.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X11SSM-F-B
- CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors
- Support up to 80W TDP
- Chipset: Intel C236
- Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8) , 3x PCI-Express 3.0 x8 Slots (two runs at x4)
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC Graphics
- LAN: 2x Intel I210-AT Gigabit Ethernet Controllers
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
- RoHS Compliant
Available Quantity
5
UPC
672042200962
SKU
mingleMBD-X11SSM-F-B
Item
Supermicro X11SSI-LN4F-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.0/ V&4GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$225.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X11SSI-LN4F-B
- CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors
- Support up to 80W TDP
- Chipset: Intel C236
- Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x8 Slots (one runs at x4)
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC Graphics
- LAN: 4x Intel I210-AT Gigabit Ethernet Controllers
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 4x RJ45 Gigabit Ethernet LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
- RoHS Compliant
Available Quantity
5
UPC
672042205936
SKU
mingleMBD-X11SSI-LN4F-B
Item
Supermicro X11SAE-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.1/ A&2GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$199.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X11SAE-B
- CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Support up to 95W TDP
- Chipset: Intel C236
- Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 3x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit)
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
- Audio: Realtek ALC888S High Definition Audio CODEC
- LAN: Intel I210-AT + Intel PHY I219LM Gigabit Ethernet Controllers
- Ports: 2x USB 3.1 Ports, 6x USB 3.0 Ports (2 rear, 4 via headers), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm
Available Quantity
5
UPC
672042204786
SKU
mingleMBD-X11SAE-B
Item
Supermicro X10SRW-F-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary Server Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$280.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X10SRW-F-B
- CPU: LGA2011
- Support Intel Xeon E5-2600/1600 v3 Family Processors
- Support up to 145W TDP
- Support up to 18 Cores
- Support up to 45MB Cache
- Chipset: Intel C612 Express
- Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333MHz DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
- Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8 ), 1x PCI-Express 3.0 x32 Slot (Left Riser)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
- Video: Integrated Aspeed AST2400 BMC Graphics
- LAN: Intel i350-AM2 Dual-Port Gigabit Ethernet Controller
- Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x eUSB header, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: Proprietary, 8.15 x 13.05 inch / 20.70 x 33.15 cm
- RoHS Compliant
Available Quantity
5
UPC
672042156122
SKU
mingleMBD-X10SRW-F-B
Item
Supermicro X10SRL-F-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$226.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X10SRL-F-B
- CPU: LGA2011
- Supports Intel Xeon E5-2600/1600 v3 Processors
- Supports up to 18 Cores
- Supports up to 45MB Cache
- Supports up to 145W TDP
- Chipset: Intel C612 Express
- Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Supports up to 512GB ECC Load Reduced Memory or up to 256GB ECC/REG Memory
- Slots: 2x PCI-Express 3.0 x16 Slot (run at x8), 4x PCI-Express 3.0 x8 Slots (two run at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
- Video: Integrated ASPEED AST2400 BMC Graphics
- LAN: Intel i210 Dual Port Gigabit Ethernet Controller
- Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
- RoHS Compliant
Available Quantity
5
UPC
672042156108
SKU
mingleMBD-X10SRL-F-B
Item
Supermicro X10DDW-I-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary WIO Server Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$383.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X10DDW-I-B
- CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Support up to 45MB Cache
- QPI up to 9.6 GT/s
- Support up to 145W TDP
- Chipset: Intel C612 Express
- Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
- Slots: 1x PCI-Express 3.0 x24 Slot (Left riser), 1x PCI-Express 3.0 x8 Slot (Right riser), 1x PCI-Express 3.0 x8 (Add-on module)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC Graphics
- LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
- Ports: 3x USB 3.0 Ports (2 rear, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via headers), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: Proprietary WIO, 12.8 x 13.4 inch / 32.5 x 34.0 cm
- RoHS Compliant
Available Quantity
5
UPC
672042156702
SKU
mingleMBD-X10DDW-I-B
Item
ASRock X570M PRO4 Socket AM4/ AMD X570/ Quad CrossFireX/ DDR4/ PCIE 4.0/ SATA3&USB3.2/ M.2/ A&GbE/ HDMI/ DP/ Micro ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$190.50
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Available Quantity
5
UPC
Does not apply
SKU
mingleX570M PRO4
Item
MSI X570-A PRO Socket AM4/ AMD X570/ DDR4/ SATA3&USB3.2/ PCIE 4.0/ M.2/ A&GbE/ HDMI ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$130.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X570APRO (X570-A PRO)
- CPU: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Chipset: AMD X570 Chipset
- Memory:
- 4 DDR4 memory slots, support up to 128GB (depending on the processor)1
- 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE - Dual channel memory architecture
- Supports non-ECC UDIMM memory
- ports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Expansion Slots:
- 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode - 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
- 3 x PCIe 3.0 x1 slots1
* PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. The speeds may vary for different devices - Onboard Graphics:
- 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
- Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors
- Maximum shared memory of 2048 MB
- Multi-Graphics:
- Supports 2-Way AMD CrossFire Technology
- Storage:
-
6 x SATA 6Gb/s ports
-
2 x M.2 slot (Key M)
- M2_1 slot (from AMD Processor)
*Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
*Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
*Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD X570 Chipset)
*Supports PCIe 3.0 x4 and SATA 6Gb/s
*Supports 2242/ 2260/ 2280 storage devices
-
- RAID: AMD X570 Chipset Supports RAID 0, RAID 1 and RAID 10
- USB:
- AMD X570 Chipset
- 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) - AMD Processor
- 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel - Audio:
- Realtek ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
- LAN:
- 1 x Realtek 8111H Gigabit LAN Controller
- Internal Connectors:
-
1 x 24-pin ATX main power connector
-
1 x 8-pin ATX 12V power connector
-
1 x 4-pin ATX 12V power connector
-
6 x SATA 6Gb/s connectors
-
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
-
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
-
1 x 4-pin CPU fan connector
-
1 x 4-pin water-pump connector
-
4 x 4-pin system fan connectors
-
1 x Front panel audio connector
-
2 x System panel connectors
-
1 x TPM module connector
-
1 x Serial port connector
-
1 x Clear CMOS jumper
-
1 x Chassis Intrusion connector
-
2 x 4-pin RGB LED connectors
-
2 x 3-pin RAINBOW LED connectors
-
4 x EZ Debug LEDs
-
- Back Paner Ports:
-
Keyboard / Mouse
-
USB 3.2 Gen1 Type-A
-
LAN Port
-
HD Audio Connectors
-
Flash BIOS Button
-
USB 2.0 Ports
-
HDMI Port
-
USB 3.2 Gen2 Ports (Type-A + C)
-
USB 3.2 Gen1 Type-A Ports
-
Optical S/PDIF out
-
- Dimension: 12 in. x 9.6 in. (30.4 cm x 24.3 cm); ATX Form Factor
- Mounting: 9 mounting holes
- Operating System: Support for Windows 10 64-bit
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Available Quantity
5
UPC
824142189627
SKU
mingleX570APRO
Item
Asus PRIME X570-P Socket AM4/ AMD X570/ DDR4/ SATA3&USB3.2/ M.2/ A&V&GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$150.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRIME X570-P
- CPU: AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- Chipset: AMD X570
- Memory:
-
3rd Gen AMD Ryzen Processors
- 4 x DIMM, max. 128GB, DDR4 4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, un-buffered memory -
2nd Gen AMD Ryzen Processors
- 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz, un-buffered memory -
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz, un-buffered memory
- Dual channel memory architecture
- ECC Memory (ECC mode) support varies by CPU.
* The maximum memory capacity supported vary depending on the CPU you installed.
-
- Expansion Slots:
-
3rd Gen AMD Ryzen Processors
- 1 x PCI Express 4.0 x16 slot (at x16 mode) -
2nd Gen AMD Ryzen Processors
- 1 x PCI Express 3.0 x16 slot (at x16 mode) -
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- 1 x PCI Express 3.0 x16 slot (at x8 mode) -
AMD X570 chipset
- 1 x PCI Express 4.0 x 16 slot (max. at x4 mode)
- 3 x PCI Express 4.0 x1 slots
-
- Graphics:
-
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
VGA output support: HDMI port
Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
-
- Multi-GPU Support:
-
3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Supports AMD 2-Way CrossFireX Technology
-
- Storage:
-
3rd Gen AMD Ryzen Processors
- M.2_1 socket 3 with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support -
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- M.2_1 socket 3 with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support -
AMD X570 Chipset
- M.2_2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
- 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
-
- LAN: Realtek 8111H
-
Audio:
-
Realtek S1200A 8-channel* high definition audio CODEC
- Audio shielding: ensures precise analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: provides warm, natural, and immersive sound with exceptional clarity and fidelity
- Supports jack-detection and front panel jack-retasking
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
-
-
USB:
-
3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- 2 x USB 3.2 Gen 1 (up to 5Gbps) ports (2 ports at back panel)
- 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (2 ports at back panel)*
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors. -
AMD X570 chipset
- 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (2 ports at back panel)
- 4 x USB 3.2 Gen 1 (up to 5Gbps) ports (4 ports at mid-board)
- 5 x USB 2.0 ports (2 ports at back panel, 3 ports at mid-board)
-
- ASUS Quiet Thermal Solution:
-
ASUS Fan Xpert 4
-
Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
-
- Back I/O Ports:
-
1 x PS/2 keyboard/mouse combo port
-
1 x HDMI port
-
1 x LAN (RJ-45) port
-
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)*
-
2 x USB 3.2 Gen 1 (up to 5Gbps) ports (Type-A)
-
2 x USB 2.0/1.1 ports
-
3 x Audio jacks support 8-channel audio output
-
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors .
-
- Internal connectors:
-
2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB 3.2 Gen 1 ports
-
2 x USB 2.0/1.1 connectors support additional 3 USB 2.0/1.1 ports
-
1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280 devices support (both SATA & PCIE mode)
-
1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280/22110 devices support (both SATA & PCIE mode)
-
6 x SATA 6.0Gb/s connectors (gray)
-
1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
-
1 x AIO Pump header (4-pin)
-
3 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support
-
1 x PCH _FAN connector (4-pin)
-
2 x Aura RGB headers
-
1 x Addressable Gen 2 header
-
1 x COM header
-
1 x SPI_TPM header
-
1 x S/PDIF out header
-
1 x System Panel connector
-
1 x Front panel audio connector (AAFP)
-
1 x 24-pin EATX Power connector
-
1 x 8-pin EATX 12V Power connector
-
1 x 4-pin EATX 12V Power connector
-
1 x Clear CMOS jumper
-
1 x Chassis Intrusion header (layout only)
-
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability: WOL by PME, PXE
- Accessories:
-
2 x Serial ATA 6.0Gb/s cables
-
1 x Addressable RGB header extension cable
-
1 x IO Shield
-
1 x M.2 screw package
-
1 x Support DVD
-
1 x User's Manual
-
- Support DVD:
-
Drivers
-
ASUS Utilities
-
EZ Update
-
- Operating System: Windows 10 64-bit
-
Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Available Quantity
5
UPC
192876263815
SKU
minglePRIME X570-P
Item
ASRock X570 EXTREME4 Socket AM4/ AMD X570/ DDR4/ PCIE 4.0/ SATA3&USB3.2/ M.2/ A&GbE/ HDMI/ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$240.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X570 EXTREME4
- Unique Feature:
- ASRock USB 3.2 Gen2
- ASRock Super Alloy
- ASRock Steel Slot Gen4
- ASRock Full Coverage M.2 Heatsink
- ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
- ASRock Ultra USB Power
- ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- CPU: Socket AM4
- Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
- Intersil Digital PWM
- 10 Power Phase design
- Chipset: AMD X570
- Memory:
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/4400(OC)/4300(OC)/4266(OC)/4200(OC)/4133(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 64GB
- 15 Gold Contact in DIMM Slots
- BIOS:
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO,PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
- Slots:
- AMD Ryzen series CPUs (Matisse):
- 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) - AMD Ryzen series CPUs (Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) - AMD Ryzen series CPUs (Picasso)
- 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4)) Supports NVMe SSD as boot disks
- 3 x PCI Express 4.0 x1 Slots
- Supports AMD Quad CrossFireXTM and CrossFireXTM
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
- AMD Ryzen series CPUs (Matisse):
- Graphics:
- Integrated AMD RadeonTM Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Ports (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI 1.4 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
- Supports Microsoft PlayReady
- Storage:
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse)
or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso) - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
- Audio:
-
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
-
Premium Blu-ray Audio support
-
Supports Surge Protection
-
Supports Purity Sound 4
-
Supports DTS Connect
-
- LAN:
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Connector:
- 1x TPM Header
- 1x SPI TPM Header
- 1x Power LED and Speaker Header
- 1x AMD Fan LED Header
- 1x RGB LED Header
- 1x Addressable LED Header
- 1x CPU Fan Connector (4-pin)
- 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1x Front Panel Audio Connector (15 Gold Audio Connector)
- 1x AMD LED Fan USB Header
- 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)
- 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
- Rear Panel I/O:
- 2x Antenna Ports (on I/O Panel Shield)
- 1x PS/2 Mouse/Keyboard Port
- 1x HDMI Port
- 1x Optical SPDIF Out Port
- 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker /Microphone
- Software:
- ASRock A-Tuning
- ASRock Polychrome SYNC
- ASRock XFast LAN
- UEFI:
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
- Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories:
- Quick Installation Guide, Support CD
- 4x SATA Data Cables
- 3x Screws for M.2 Sockets
- 2x Standoffs for M.2 Sockets
- Form Factor:
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
- OS: Microsoft Windows 10 64-bit
- Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Available Quantity
5
UPC
Does not apply
SKU
mingleX570 EXTREME4
Item
ASRock Rack X470D4U Socket AM4/ AMD Promontory X470/ DDR4/ SATA3&USB3.1/ M.2/ V&2GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$224.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X470D4U
- CPU: Socket AM4 PGA 1331
- Supports AMD Ryzen (Pinnacle Ridge) 2nd Generation Series Processors
- Supports AMD Ryzen (Pinnacle Ridge) 2nd Generation Series Processors
- Chipset: AMD Promontory X470
- Memory: 4x 288-pin DDR4 DIMM slots, Dual Channel, ECC, non-ECC, Unbuffered, Max Capacity of 64GB
- Slots:
- PCI-Express 3.0 x16: PCIE6 - Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied; SLOT4 - Gen3 x8 link
- PCI-Express 3.0 x8: SLOT5 - Gen3 x4 link
- PCI-Express 3.0 x16: PCIE6 - Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied; SLOT4 - Gen3 x8 link
- Storage:
- SATA: 6x SATA3 Ports (1x SATA DOM port)
- M.2: 2x M.2 Ports, one supports type 2242/ 2260/ 2280/ 22110 and SATA3 6.0 Gb/s or PCIe 3.0 x2, one supports type 2242/ 2260/ 2280/ 22110 and PCIe 2.0 x4
- SATA: 6x SATA3 Ports (1x SATA DOM port)
- Video: Aspeed AST2500 BMC Graphics w/ 256MB DDR4 VRAM
- LAN: 2x Intel i210 Gigabit Ethernet Controllers, 1x Realtek RTL8211E for dedicated management GLAN
- Ports: 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports with LED, 1x RJ45 Dedicated IPMI LAN Port with LED
- Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin ATX Power Connector
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
Available Quantity
5
UPC
Does not apply
SKU
mingleX470D4U
Item
Asus PRIME X570-PRO Socket AM4/ AMD X570/ DDR4/ 3-Way CrossFireX & 2-Way SLI/ SATA3&USB3.2/ M.2/ A&V&GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$242.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRIME X570-PRO
- CPU: AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- Chipset: AMD X570
- Memory:
-
3rd Gen AMD Ryzen Processors
- 4 x DIMM, max. 128GB, DDR4 4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, un-buffered memory -
2nd Gen AMD Ryzen Processors
- 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz, un-buffered memory -
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz, un-buffered memory -
Dual channel memory architecture
-
ECC Memory (ECC mode) support varies by CPU.
-
*The maximum memory capacity supported vary depending on the CPU you installed.
-
- Expansion Slots:
-
3rd Gen AMD Ryzen Processors
- 2 x PCI Express 4.0 x16 slots (single at x16 or dual at x8/x8 mode) -
2nd Gen AMD Ryzen Processors
- 2 x PCI Express 3.0 x16 slots (single at x16 or dual at x8/x8 mode) -
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- 1 x PCIe 3.0 x16 slot (x8 mode) -
AMD X570 chipset
- 1 x PCI Express 4.0 x 16 slot (max. at x4 mode)
- 3 x PCI Express 4.0 x1 slots
-
- Graphics:
-
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: DisplayPort/HDMI ports
Supports DisplayPort 1.2 with max. resolution of 4096 x 2160 @60Hz
Supports HDMI 2.0b with max. resolution of 4096 x 2160 @60Hz
-
- Multi-GPU Support:
-
3rd and 2nd Gen AMD Ryzen Processors
- Supports NVIDIA 2-Way SLI Technology
- Supports AMD 3-Way CrossFireX Technology -
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- Supports AMD 2-Way CrossFireX Technology
-
- Storage:
-
3rd Gen AMD Ryzen Processors
- M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support -
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support -
AMD X570 Chipset:
- M.2_2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x 4 and SATA modes) storage devices support
- 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
-
- LAN: Intel I211-AT Gigabit LAN
-
Audio:
-
Realtek S1220A 8-channel high definition audio CODEC featuring Crystal Sound 3
- Separate layer for left and right track, ensuring both sound deliver equal quality
- Impedance sense for front and rear headphone outputs
- Audio shielding ensures precise analog/digital separation and greatly reduced multi-lateral interference
- EMI protection cover to prevent electrical noise to affect the amplifier quality
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Premium Japanese audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
- High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR input (Line-in) support
- Supports up to 32-Bit/192kHz playback*
- Supports jack-detection, multi-streaming, front panel jack-retasking (MIC)
- Optical S/PDIF out port at back I/O
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
-
-
USB:
-
3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
- 4 x USB 3.2 Gen 1(up to 5Gbps) ports (4 ports at back panel) -
AMD X570 chipset
- 1 x USB 3.2 Gen 2 (up to 10Gbps) front connector
- 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (3*Type A+1*Type C at back panel)
- 2 x USB 3.2 Gen 1 (up to 5Gbps) ports (2 ports at mid-board)
- 4 x USB 2.0 ports at mid-board
-
- ASUS Quiet Thermal Solution:
-
ASUS Fan Xpert 4
-
Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan,PCH and M.2 Heatsink
-
- Back I/O Ports:
-
1 x PS/2 keyboard/mouse combo port
-
1 x DisplayPort
-
1 x HDMI port
-
1 x Intel LAN (RJ45) port
-
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
-
1 x USB 3.2 Gen 2 (up to 10Gbps) port (Type-C)
-
4 x USB 3.2 Gen 1 (up to 5Gbps) ports (Type-A)
-
1 x Optical S/PDIF out
-
5 x Audio Jacks(Line in,Front Speaker Out,Mic in,Center/Subwoofer,Rear Speaker Out)
-
- Internal connectors:
-
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
-
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
-
2 x USB 2.0 connectors support additional 4 USB ports
-
1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280/22110 devices support, (both SATA & PCIE mode)
-
1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280/22110 devices support, (both SATA & PCIE mode)
-
6 x SATA 6.0Gb/s connectors (gray)
-
1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
-
1 x CPU OPT Fan header (4-pin)
-
1 x AIO Pump header (4-pin)
-
1 x W_PUMP+ header (4-pin)
-
1 x PCH _FAN connector (4-pin)
-
3 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support
-
2 x Aura RGB headers
-
1 x addressable Gen 2 header
-
1 x Front panel audio connector (AAFP)
-
1 x SPI_TPM connector
-
1 x COM connector
-
1 x 24-pin EATX Power connector
-
1 x 8-pin EATX 12V Power connector
-
1 x 4-pin EATX 12V Power connector
-
1 x System Panel Connector
-
1 x Clear CMOS header
-
1 x Node Connector
-
1 x Power-on button
-
1 x T_Sensor Header
-
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information.
- Manageability: WOL by PME, PXE
- Dimesion:
-
Product (mm): L 305*W 244*H 1.2mm
-
Color box(mm): L 326*W 274*H 68mm
-
- Weight:
-
Product: 0.967KG
-
Color box: 1.52KG
-
- Accessories:
-
2 x Serial ATA 6.0Gb/s cables
-
1 x ASUS Q-connector
-
1 x Support DVD
-
1 x 2-in-1 M.2 screws package
-
1 x Extension cable for Addressable LED
-
1 x user's manual
-
- Support DVD:
-
Drivers
-
ASUS Utilities
-
EZ Update
-
- Operating System: Windows 10 64-bit
- Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Available Quantity
5
UPC
192876254011
SKU
minglePRIME X570-PRO
Item
MSI MPG X570 GAMING PRO CARBON WIFI Socket AM4/ AMD X570/ DDR4/ SATA3&USB3.2/ PCIE 4.0/ M.2/ A&GbE/ WIFI&Bluetooth/ HDMI/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$253.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X570GPCARBWIFI (MPG X570 GAMING PRO CARBON WIFI)
- CPU: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Chipset: AMD X570 Chipset
- Memory:
-
4x DDR4 memory slots, support up to 128GB, Supports 1866/ 2133/ 2400/ 2666Mhz by JEDEC
-
Dual channel memory architecture
-
Supports non-ECC UDIMM memory
-
Supports ECC UDIMM memory (non-ECC mode)
-
Supports un-buffered memory
-
- Expansion Slots:
-
1x PCIe 4.0/3.0 x16 slot (PCI_E1): 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode; 2nd Gen AMD Ryzen support PCIe 3.0x16 mode; Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
-
1x PCIe 4.0/ 3.0 x4 slot (PCI_E3)
-
2x PCIe 3.0 x1 slots
-
-
Onboard Graphics: 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 24Hz
- Multi-Graphics: Supports 2-Way AMD CrossFire Technology
- Storage:
-
AMD X570 Chipset:
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M): M2_1 slot(from AMD Processor): supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices; M2_2 slot (from AMD X570 Chipset): supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
-
- RAID: AMD X570 Chipset Supports RAID 0, RAID 1 and RAID 10
- USB:
- AMD X570 Chipset:
- 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell
- 4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) - AMD Processor:
- 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel
- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
- AMD X570 Chipset:
- Audio:
- Realtek ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
- LAN: 1x Intel I211AT Gigabit LAN controller
- Wifi & Bluetooth:
-
Intel Wi-Fi 6 AX200
-
The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
-
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- Supports Bluetooth 5
-
- Internal Connectors:
-
1x 24-pin ATX main power connector
-
1x 8-pin ATX 12V power connector
-
1x 4-pin ATX 12V power connector
-
6x SATA 6Gb/s connectors
-
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
-
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
-
1x 4-pin CPU fan connector
-
1x 4-pin water-pump connector
-
4x 4-pin system fan connectors
-
1x Front panel audio connector
-
2x System panel connectors
-
1x TPM module connector
-
1x Clear CMOS jumper
-
1x Chassis Intrusion connector
-
1x 4-pin RGB LED connector
-
2x 3-pin RAINBOW LED connectors
-
1x 3-pin CORSAIR connector
-
1x 2-pin LED Demo Connect
-
4x EZ Debug LEDs
-
- Back Paner Ports:
-
Keyboard / Mouse
-
USB 3.2 Gen1 Type-A
-
Wireless / Bluetooth
-
LAN
-
Audio Connectors
-
Flash BIOS Button
-
USB 2.0
-
HDMI
-
USB 3.2 Gen2 Type-A + C
-
USB 3.2 Gen2 Type-A
-
Optical S/PDIF out
-
- Dimension: 12 in. x 9.6 in. (30.4 cm x 24.3 cm); ATX Form Factor
- Mounting: 9 mounting holes
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
- Operating System: Support for Windows 10 64-bit
Available Quantity
5
UPC
824142189511
SKU
mingleX570GPCARBWIFI
Item
ASRock X570 PHANTOM GAMING 4 Socket AM4/ AMD X570/ DDR4/ Quad CrossFireX/ PCIE 4.0/ SATA3&USB3.2/ M.2/ A&GbE/ HDMI/ DP/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$151.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: X570 PHANTOM GAMING 4
- Unique Feature:
- ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s) - ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB - ASRock Steel Slot Gen4
- ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
- ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
- ASRock USB 3.2 Gen2
- CPU: Socket AM4
- Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
- Digi Power design
- 10 Power Phase design
- Chipset: AMD Premium X570
- Memory:
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 64GB
- 15 Gold Contact in DIMM Slots
- BIOS:
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment
- Slots:
- AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1);dual at x16 (PCIE1) / x4 (PCIE3))
AMD Ryzen series CPUs (Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1);dual at x16 (PCIE1) / x4 (PCIE3))
AMD Ryzen series CPUs (Picasso)
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1);dual at x8 (PCIE1) / x4 (PCIE3))
- 2 x PCI Express 4.0 x1 Slots
- Supports AMD Quad CrossFireXTM and CrossFireXTM
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
- AMD Ryzen series CPUs (Matisse)
- Graphics:
- Integrated AMD RadeonTM Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Ports (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
- Supports Microsoft PlayReady
- Storage:
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
- 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
- Supports NVMe SSD as boot disks
- Supports ASRock U.2 Kit
- Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- LAN:
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Connector:
- 1 x COM Port Header
- 1 x TPM Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 1 x Addressable LED Header
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- Rear Panel I/O:
- 3 x Antenna Ports (on I/O Panel Shield)
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- Software:
- ASRock Phantom Gaming Tuning
- ASRock Polychrome SYNC
- ASRock Key Master
- ASRock XFast LAN
- UEFI:
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
- Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- Form Factor:
- ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
- Solid Capacitor design
- 2oz Copper PCB
- OS: Microsoft Windows 10 64-bit
- Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers
Available Quantity
5
UPC
Does not apply
SKU
mingleX570 PHANTOM GAMING 4
Item
Asus ROG STRIX X570-E GAMING Socket AM4/ AMD X570/ DDR4/ 3-Way CrossFireX & 2-Way SLI/ SATA3&USB3.2/ M.2/ WiFi+Bluetooth/ A&V&GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$304.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Available Quantity
5
UPC
192876380512
SKU
mingleROG STRIX X570-E GAMING
Item
MSI H310M PRO-VDH PLUS LGA1151/ Intel H310/ DDR4/ SATA3&USB3.1/ A&GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$60.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: H310MPROVDHP
- CPU: LGA1151
- Supports 9th/8th Generation Intel Core, Pentium Gold and Celeron Processors
- Chipset: Intel H310
- Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCIe 3.0 x16 slot, 2x PCI-Express 2.0 x1 Slots
- Storage: 4x SATA3 Ports
- Audio: Realtek ALC887 7.1-Channel High Definition Audio
- LAN: RTL8111H Gigabit Ethernet Controller
- Ports: 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 via header), 6x USB 2.0 Ports (4 rear, 2 via header), 1x PS/2 Combo Port, 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: MicroATX, 8.9 x 7.3 inch / 22.6 x 18.5 cm
Available Quantity
5
UPC
824142168592
SKU
mingleH310MPROVDHP
Item
ASRock B450M-HDV R4.0 Socket AM4/ AMD Promontory B450/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$66.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: B450M-HDV R4.0
- CPU: Socket AM4
- 6 Power Phase design
- Supports CPU up to 105W
- Chipset: AMD Promontory B450
- Memory:
- 2x DDR4-3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs (Pinnacle Ridge))
- 2x DDR4-3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs (Summit Ridge))
- 2x DDR4- 3200+(OC)/ 2933/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs (Raven Ridge))
- Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 1x PCI Express 2.0 x1 Slot
- Storage:
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug
- M.2: 1x Ultra M.2 Port (w/ M Key), supports type 2242/ 2260/ 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
- Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
- LAN: Realtek RTL8111H PCIE x1 Gigabit Ethernet Controller
- Ports: 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port with LED, Audio I/O Jacks
- Power Connector: 1x 24-pin ATX Power Connector, 1x 4-pin 12V Power Connector
- Form Factor: MicroATX, 9.0 x 7.9 inch / 23.0 x 20.1 cm
Available Quantity
5
UPC
Does not apply
SKU
mingleB450M-HDV R4.0
Item
Asus PRIME H310M-E R2.0 LGA1151/ Intel H310 Express/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$63.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRIME H310M-E R2.0
- CPU: LGA1151
- Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports 14nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel H310 Express
- Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0/2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots
- Storage:
- SATA: 4x SATA3 Ports
- M.2: 1x M.2 Port (w/ M Key), Supports type 2242/ 2260/ 2280 & SATA mode & x2 PCIE mode
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- LAN: Realtek 8111H Gigabit Ethernet Controller
- Ports: 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin EATX Power Connector, 1x 4pin EATX 12V Power connector
- Form Factor: MicroATX, 8.9 x 7.3 inch / 22.6 x 18.5 cm
Available Quantity
5
UPC
192876030608
SKU
minglePRIME H310M-E R2.0
Item
MSI MPG Z390 GAMING PLUS LGA1151/ Intel Z390/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$146.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: MPG Z390 GAMING PLUS
- CPU: LGA1151
- Supports Intel Core 9000 series, 8th Generation Intel Core/ Pentium Gold/ Celeron Processors
- Supports Intel Core 9000 series, 8th Generation Intel Core/ Pentium Gold/ Celeron Processors
- Chipset: Intel Z390
- Memory: 4x DDR4-4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz Slots, Dual Channel, Non-ECC, un-buffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0 x16 Slots, 4x PCI-Express 3.0 x1 Slots
- Multi-Graphics: Supports AMD 2-Way CrossFireX Technology
- Storage:
- SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10
- M.2: 2x M.2 Ports (Key M), one supports PCIe 3.0 x4 and SATA3, 2242/ 2260/ 2280/ 22110 storage devices, one supports PCIe 3.0 x4 and SATA3, 2242/ 2260/ 2280 storage devices
- SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10
- Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
- LAN: Intel I219-V Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear), 6x USB 3.1 Gen 1 Ports (2 Type-A rear, 4 via headers), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Combo Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
Available Quantity
5
UPC
824142169643
SKU
mingleZ390GAMINGP
Item
GIGABYTE B450 AORUS PRO WIFI Socket AM4/ AMD B450/ DDR4/ Quad-GPU CrossFireX/ SATA3&USB3.1/ M.2/ WiFi/ A&GbE/ ATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$128.50
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: B450 AORUS PRO WIFI
- CPU: Socket AM4
- AMD Ryzen 2nd Generation processors
- AMD Ryzen with Radeon Vega Graphics processors
- AMD Ryzen 1st Generation processors
- Chipset: AMD B450
- Memory: 4x DDR4-3200(OC)/ 2933/ 2667/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 2.0 x16 Slots (one runs at x4, one runs at x1), 1x PCI-Express 2.0 x1 Slot
- Multi-Graphics: Support for AMD Quad-GPU and 2-Way CrossFireX Technology
- Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 10
- M.2: 2x M.2 Ports (M Key), One supports type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD, One supports type 2242/ 2260/ 2280 PCIe 3.0 x2 SSD
- Audio: Realtek ALC1220-VB 7.1-Channel High Definition Audio CODEC
- LAN: Intel Gigabit Ethernet Controller; Dual-Band 802.11 a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2
- Ports: 2x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear), 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 4x USB 2.0/1.1 Ports (4 via headers), 1x HDMI port, 1x DVI-D port, 1x Optical S/PDIF Out Connector, 2x SMA antenna connectors (1T1R), 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector
- Form Factor: ATX, 30.5 x 24.4 cm
Available Quantity
5
UPC
889523014349
SKU
mingleB450 AORUS PRO WIFI
Item
ASRock Rack C236M WS LGA1151/ Intel C236/ DDR4/ SATA3USB3.0/ M.2/ A&2GbE/ MicroATX Server Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$175.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: C236M WS
- CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Series Processors
- Chipset: Intel C236
- Memory: 4x DDR4-2133/ 1866 DIMM Slots, Dual Channel, ECC
- Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express 3.0 x4 Slot, 1x PCI-Express 3.0 x1 Slot (share with M.2)
- Storage:
- SATA: 8x SATA3 Ports
- M.2: 1x M.2 Port
- Audio: Realtek ALC1150 High Definition Audio CODEC
- LAN: Intel i210 + Intel i219 Gigabit Ethernet Controllers
- Ports: 7x USB 3.0 Ports (4 rear, 2 via header, 1 Type A), 2x USB 2.0 Ports (via header), 1x PS/2 Keyboard/Mouse Port, 1x HDMI Port, 1x VGA Port, 1x DVI Port, 2x RJ45 LAN Ports, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Power Connector, 4x 8pin ATX Power Connectors
- Form Factor: MicroATX, 9.6 x 9.6 inch
Available Quantity
5
UPC
Does not apply
SKU
mingleC236M WS
Item
Asus PRIME H370M-PLUS/CSM LGA1151/ Intel H370/ DDR4/ Quad-GPU CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard
|
Show more images |
|
Please note, Login or Registration at time of checkout will be required. Thank you. |
Price
$103.00
Buy Now
Expand to see more details...Rebate
15% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping
Free 2 day shipping
Return Policy
6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description
Specifications
- Mfr Part Number: PRIME H370M-PLUS/CSM
- CPU: LGA1151
- Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports 14nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel H370
- Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0/2.0 x16 Slots (one runs at x4), 2x PCI-Express 3.0/2.0 x1 Slots
- Multi-Graphics: Supports AMD 2-Way/Quad-GPU CrossFireX Technology
- Storage:
- SATA: 6x SATA3 Ports
- M.2: 2x M.2 Ports (w/ M Key), one supports type 2242/ 2260/ 2280 & SATA & PCIE x2 modes, one supports type 2242/ 2260/ 2280 & PCIE x4 modes
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- LAN: Intel I219-V Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Gen 2 Ports (Type-A rear), 5x USB 3.1 Gen 1 Ports (2 Type-A rear, 1 Type-A rear, 2 at mid-board), 6x USB 2.0 Ports (2 rear, 4 at mid-board), 1x PS/2 Combo Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin EATX Power Connector, 1x 8pin EATX 12V Power connector
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
Available Quantity
5
UPC
889349989425
SKU
minglePRIME H370M-PLUS/CSM
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
