Product Description

Specifications

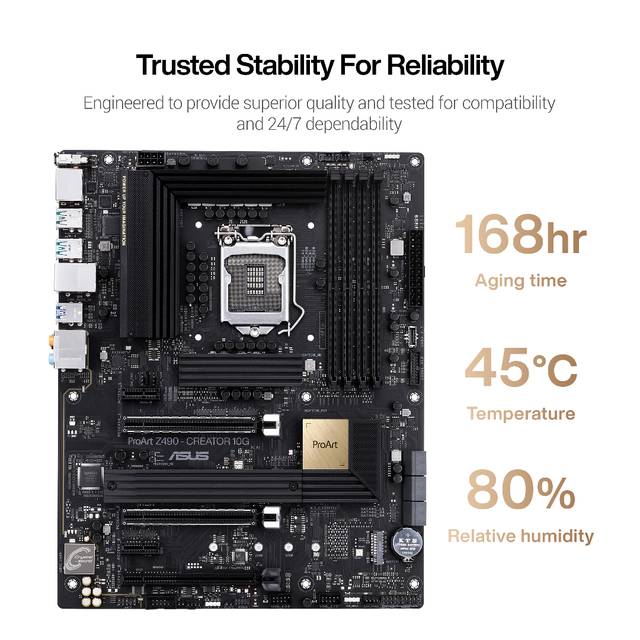

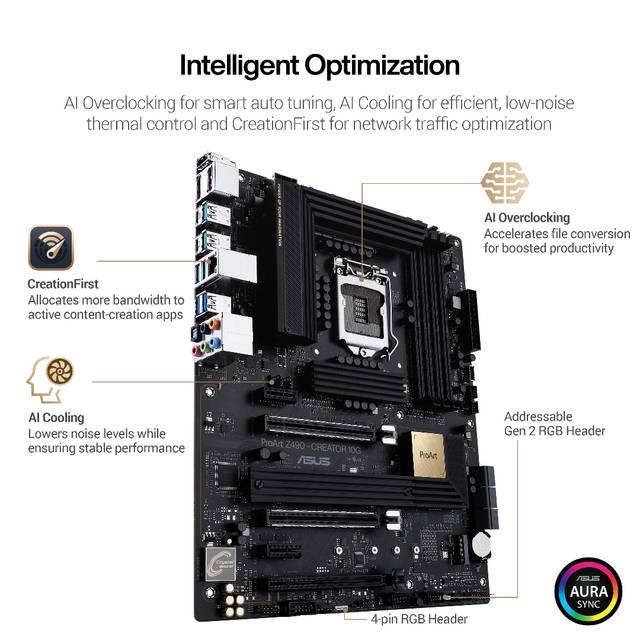

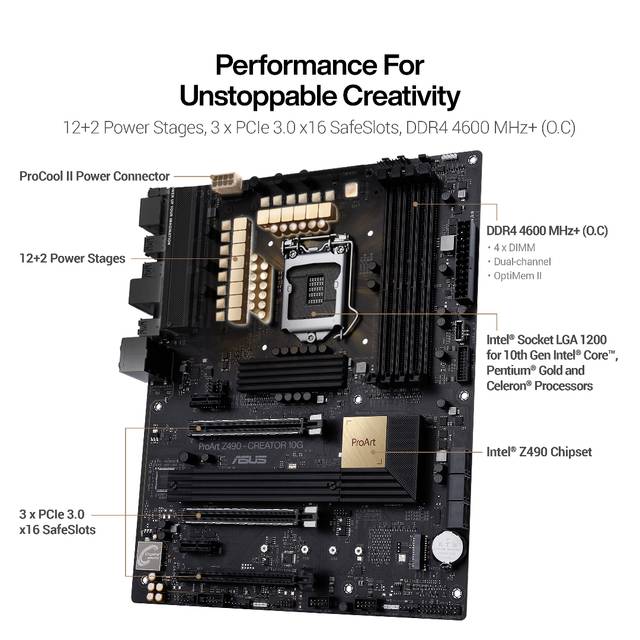

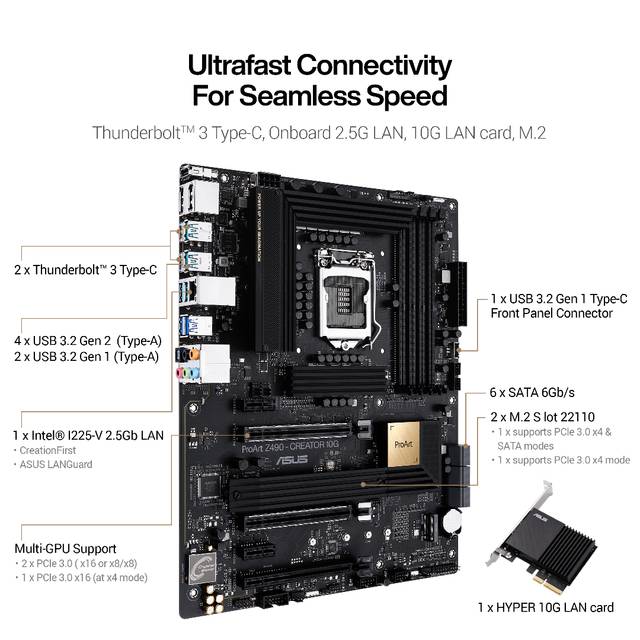

• Mfr Part Number: PROART Z490-CREATOR 10G
• CPU:
  • Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Chipset: Intel Z490
• Memory:
  • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

  • Dual Channel Memory Architecture

  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
• Thunderbolt:
  • 2 x Intel Thunderbolt 3 ports(TypeC) support DisplayPort and Thunderbolt video outputs
  • Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/ @60 Hz
  • Data transfer rate up to 40 Gbps
  • Daisy-chain up to 12 Thunderbolt devices

  • Up to 5V/3A 15W charging support
• Graphic:

  • Integrated Graphics Processor
  • 1 x DisplayPort 1.4
  • 1 x HDMI 1.4b
• Multi-GPU Support: Supports AMD 3-Way CrossFireX Technology
• Expansion Slots:
  • Intel 10th Gen Processors
    - 2 x PCIe 3.0 x16 (x16 or dual x8)

  • Intel Z490 Chipset

    - 1 x PCIe 3.0 x16 (x4 mode)

    - 2 x PCIe 3.0 x1
• Storage:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel Z490 Chipset:
    - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    - 6 x SATA 6Gb/s port(s)
    - Support Raid 0, 1, 5, 10
    - Intel Rapid Storage Technology supports
    - Intel Optane Memory Ready
• LAN: Intel I225-V 2.5Gb Ethernet
• Audio:
  • Realtek ALC S1220A 8-Channel High Definition Audio CODEC

    - Supports:Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
    - High quality 120 dB SNR stereo playback output and SNR recording input
  • Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
    - Audio Cover
    - Unique de-pop circuit

• USB Ports:
  • Intel Thunderbolt 3 Controller:
    - 2 x USB 3.2 Gen 2 port(s)(USB Type- C)
  • Rear USB Port(Total 6)
    - 4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
    - 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • Front USB Port(Total 7)

    - 1 x USB 3.1 Gen 1 port(s) (1 x USB Type- C)
    - 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
    - 4 x USB 2.0 port(s)
• Software Features:
  • ASUS Exclusive Software
  • Armoury Crate
    - Aura Creator
    - Aura Sync
    - OLED Display
  • AI Suite 3
  • 5-Way Optimization with AI Overclocking
    - TPU
    - EPU
    - Digi+ VRM
    - EZ update
    - Fan Xpert 4
    - Turbo app
  • ProArt Creator Hub

  • AI Charger
  • Optimization tool specially for content creators
  • WinRAR
  • UEFI BIOS
  • AI Optimization Guide
  • ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode

  • FlexKey
    - ASUS UEFI BIOS EZ Mode

• Operating System Support: Windows 10 64-bit
• ASUS Special Features:
  • ASUS 5X PROTECTION III
    - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)

    - ASUS Enhanced DRAM Overcurrent Protection
    - ASUS ESD Guards
    - ASUS LANGuard
    - ASUS Overvoltage Protection
    - ASUS SafeSlot Core+

    - ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-LED
    - ASUS Q-Shield
    - ASUS Q-Slot

  • ASUS Thermal Solution
    - Aluminum heatsink design
  • ASUS EZ DIY
    - Procool
    - SafeSlot

  • AURA Sync
    - Standard RGB headers
    - Addressable Gen 2 RGB header(s)
    - Addressable Gen 2 RGB header

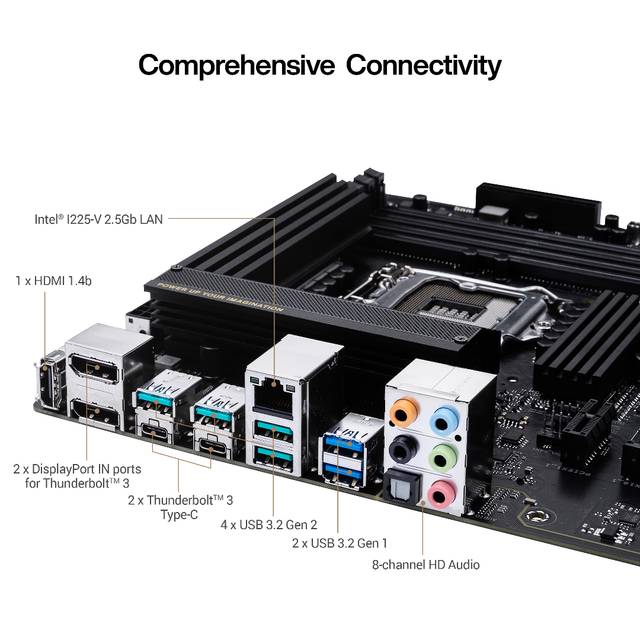

• Back I/O Ports:
  • 2 x Thunderbolt 3 ports TypeC
  • 2 x DisplayPort IN ports for Thunderbolt 3
  • 1 x HDMI
  • 1 x LAN (2.5G) port(s)
  • 4 x USB 3.2 Gen 2 Type-A

  • 2 x USB 3.2 Gen 1 Type-A
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)

• Internal I/O Ports:
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s connector(s)

  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
  • 1 x Thermal sensor connector(s)

  • 1 x CPU OV

  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header
• Accessories:
  • I/O Shield
  • 4 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x DisplayPort cable
  • User manual
  • 1 x CPU Fan Holder
  • 1 x 2-in-1 Rubber pad
  • 1 x HYPER 10G LAN CARD
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Note

Currently out of stock

Available Quantity

0

UPC

192876703243

SKU

minglePROART Z490-CREATOR 10G

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

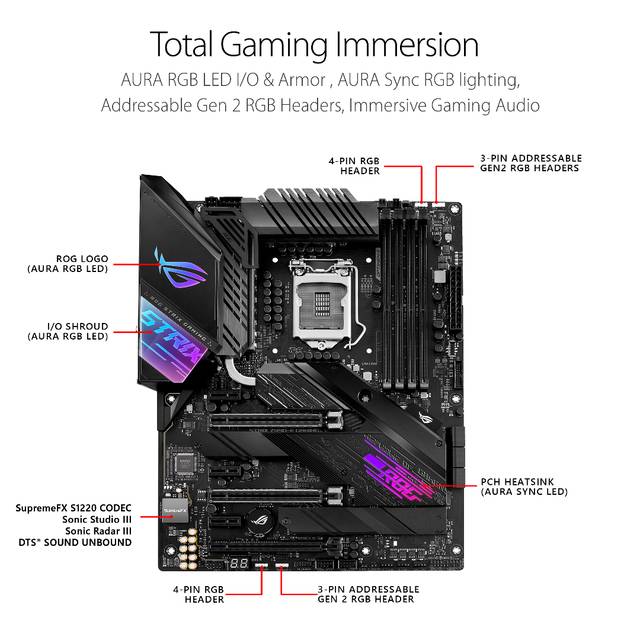

• Mfr Part Number: ROG STRIX Z490-E GAMING
• CPU:
  • Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Chipset: Intel Z490
• Memory:
  • 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • OptiMem II
• Graphic:
  • Integrated Graphics Processor
  • 1 x DisplayPort 1.4
  • 1 x HDMI 1.4b
• Multi-GPU Support:
  • Supports NVIDIA 2-Way SLI Technology
  • Supports AMD 3-Way CrossFireX Technology
• Expansion Slots:
  • Intel 10th Gen Processors
    - 2 x PCIe 3.0 x16 (x16 or dual x8)
  • Intel Z490 Chipset
    - 1 x PCIe 3.0 x4 (x4 mode)
    - 3 x PCIe 3.0 x1
• Storage:
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel Z490 Chipset:
    - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    - 6 x SATA 6Gb/s port(s)
    - Support Raid 0, 1, 5, 10
    - Intel Rapid Storage Technology supports
    - Intel Optane Memory Ready
• LAN:
  • Intel I225-V 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless Data Network:
  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Supports dual band frequency 2.4/5 GHz
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports CNVI interface
• Bluetooth: Bluetooth v5.1
• Audio:
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual OP Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback
  • Audio Feature :
    - SupremeFX Shielding Technology
    - Gold-plated jacks
    - Optical S/PDIF in port(s) at back panel
    - LED-lit Audio Shielding
    - Premium Japanese audio capacitors
    - Audio Cover
• USB Ports:
  • Rear USB Port(Total 10)
    - 4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C)
    - 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
    - 4 x USB 2.0 port(s)
  • Front USB Port(Total 7)
    - 1 x USB 3.2 Gen 2 port(s) (1 x USB Type- C)
    - 2 x USB 3.2 Gen 1 port(s)
    - 4 x USB 2.0 port(s)
• Special Features:
  • AURA :
    - Aura RGB Strip Headers
    - Addressable Gen 2 Header
  • ASUS EZ DIY :
    - ASUS USB BIOS FlashBack
  • ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • DIY Friendly Design
    - ProCool II
    - SafeSlot
• Software Features:
  • ROG Exclusive Software
    - RAMCache III
    - ROG CPU-Z
    - GameFirst VI
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - Sonic Radar III
    - DTS Sound Unbound
    - Overwolf
    - Anti-virus software
  • ASUS Exclusive Software Features
  • Armoury Crate
    - Aura Creator
    - Aura Sync
  • AI Suite 3: 5-way Optimization with AI Optimization
  • TPU
  • EPU
  • Digi+ VRM
  • Fan Xpert 4
  • Turbo APP -EZ update
  • WinRAR
  • UEFI BIOS
  • AI Optimization Guide
  • ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • FlexKey

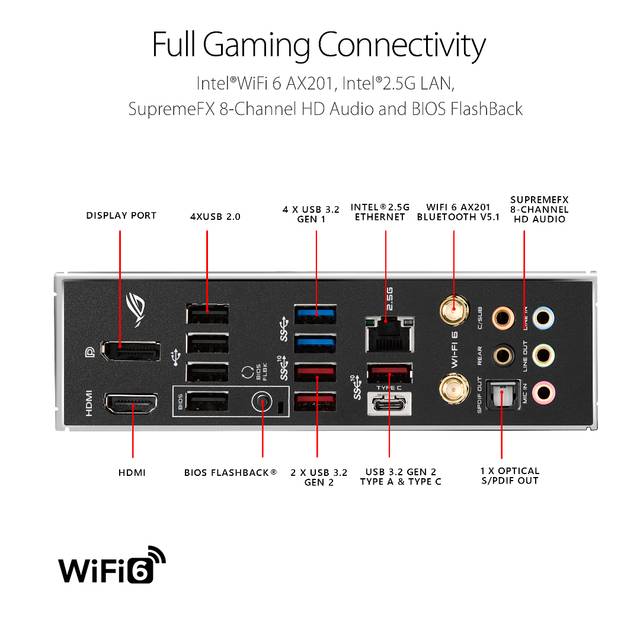

• Back I/O Ports:
  • 1 x Intel I225-V 2.5Gb Ethernet
  • 1 x DisplayPort
  • 1 x HDMI
  • 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C)
  • 2 x USB 3.2 Gen 1
  • 4 x USB 2.0
  • 1 x Optical S/PDIF outt
  • 1 x USB BIOS FlashBack Button(s)
  • 5 x Gold-plated audio jacks
  • ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
• Internal I/O Ports:
  • 1 x M.2_FAN connector
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x W_PUMP+ connector
  • 2 x Addressable RGB header
  • 1 x AAFP connector
  • 2 x Aura RGB Strip Headers
  • 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
  • 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connectors
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x System panel(s) (Chassis intrusion header is inbuilt)
  • 1 x Thermal sensor connector(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x CPU_OV jumper
  • 1 x Q-Code
  • 1 x VRM_HS_FAN Header

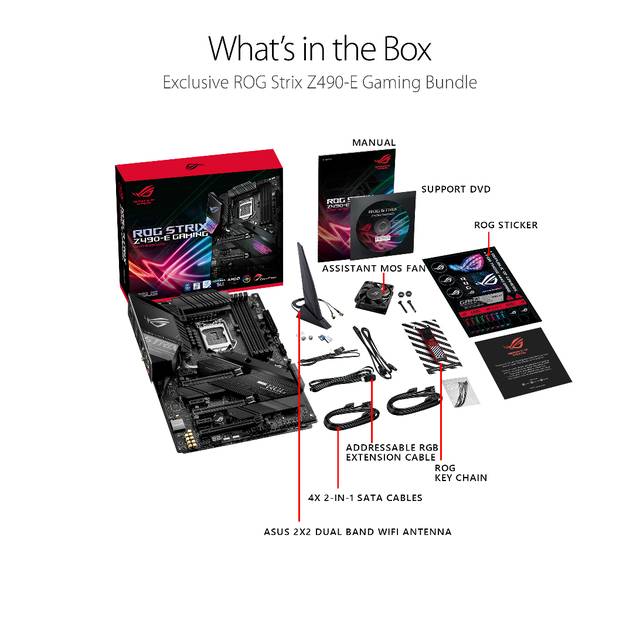

• Accessories:
  • User manual
  • 1 x ASUS Fan Holder
  • 4 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
  • 1 x ROG Strix stickers
  • 1 x Cable ties pack(s)
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1 x Thermistor cable(s)
  • 1 x ROG Thank you card
  • 1 x 2-in-1 Rubber pad
  • 1 x Wi-Fi moving antenna
  • 1 M.2 SSD screw package(s)
  • 1 ROG key chain
• BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows 10 64-bit
• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Note

Currently out of stock

Available Quantity

0

UPC

192876671634

SKU

mingleROG STRIX Z490-E GAMING

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Note

Currently out of stock

Available Quantity

0

UPC

889523021538

SKU

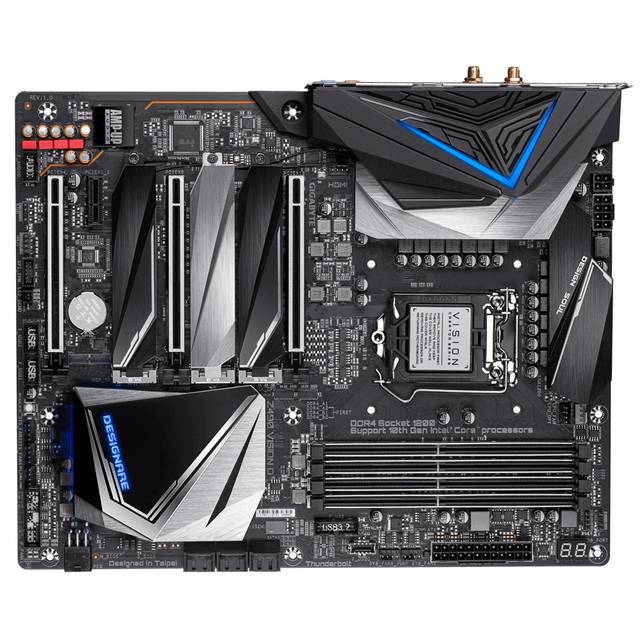

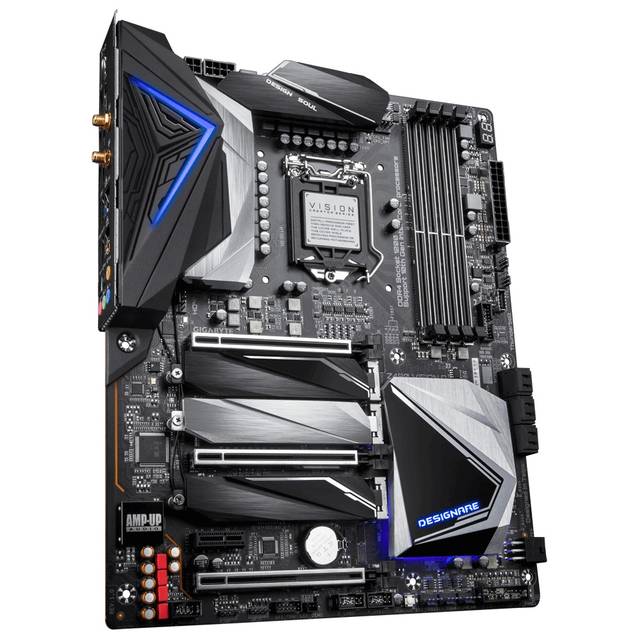

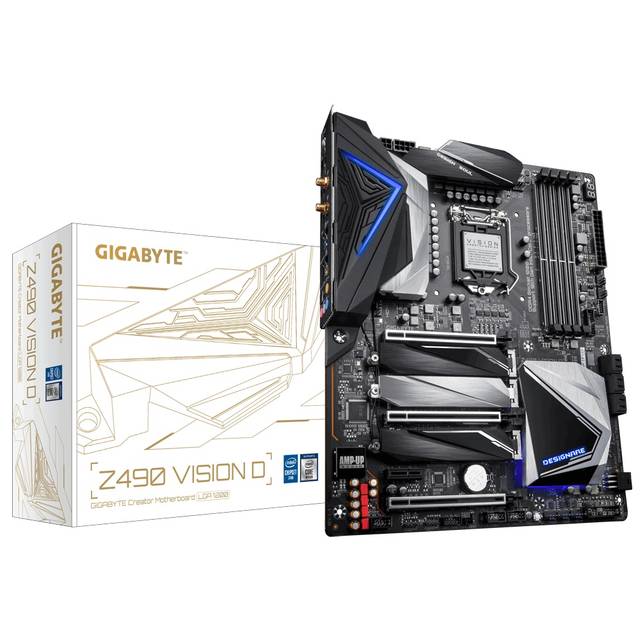

mingleZ490 VISION D

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

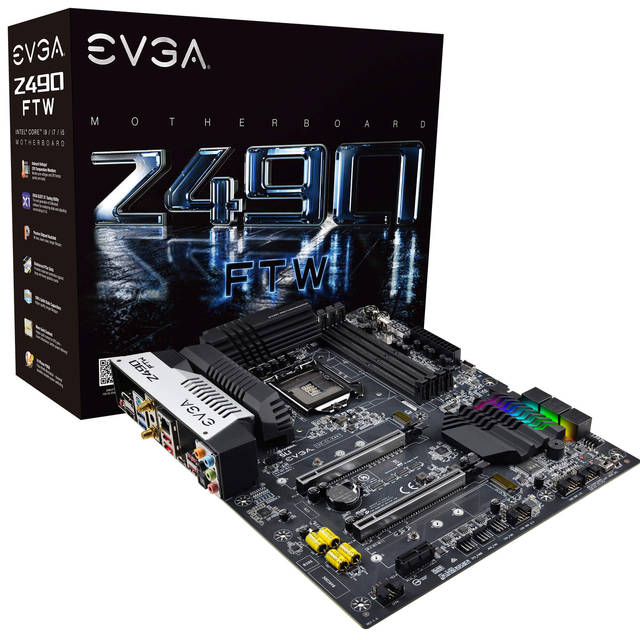

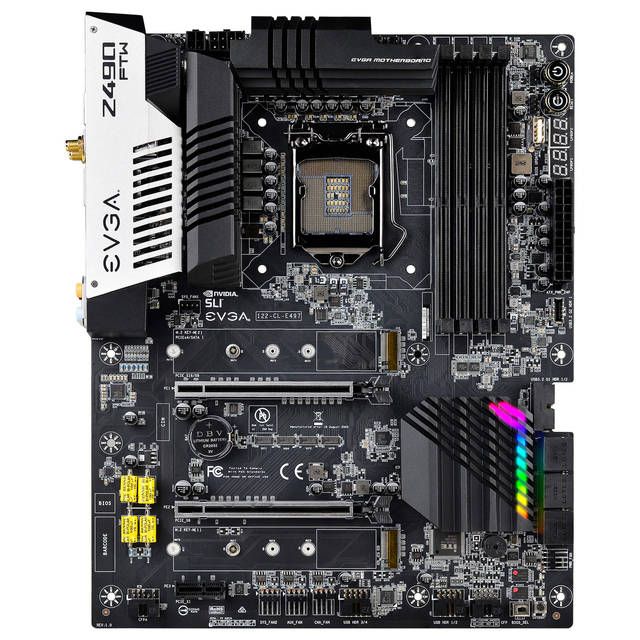

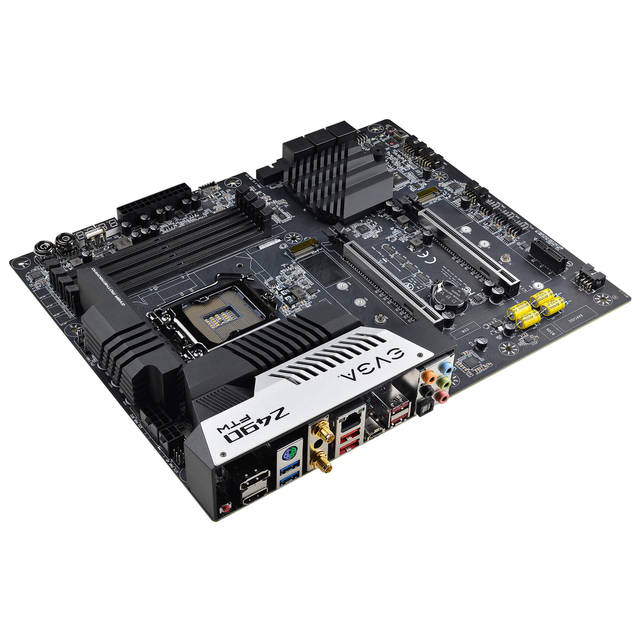

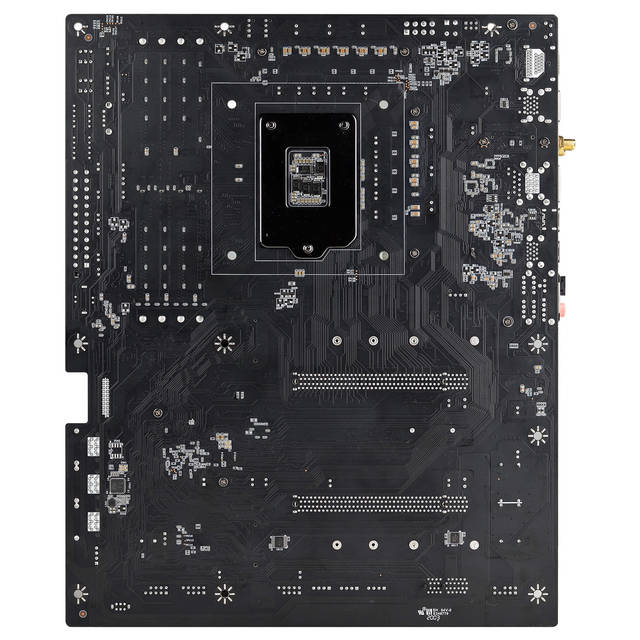

• Mfr Part Number: 122-CL-E497-KR

• CPU: LGA1200 socket, Supports Intel Core 10th Generation Processor Family

• Chipset: Intel Z490
• Memory Support: 4 DIMM Dual-Channel DDR4 4400MHz+ (up to 128GB)
• USB:
  • 5 USB 2.0 Ports ( 4 from internal headers , 1 from Update Port for flashing BIOS)

  • 4 USB 3.2 Gen1 Ports ( 2 rear panel , 2 from internal headers)
  • 5 USB 3.2 Gen2 Ports ( 4 Type-A rear panel , 1 Type-C header)
• Network:
  • Network speed: 10/100/1000
  • Network ports/controller: Intel i219V PHY
• Raid: RAID 0, 1, 5, and 10
• WiFi/BT: Intel AX201 WiFi 6/BT 5.1 module, preinstalled in the M.2 Key-E 32mm Slot
• Storage Interface:
  • SATA

    - 4x Intel Z490 PCH SATA 6GB/S Ports

    - 2x ASMedia ASM1061 SATA 6Gb/s ports
  • M.2

    - M.2 Key-M: 2x 110mm Slot(Up to 32Gb/s)

    - M.2 Key-E: 1x 32mm Slot
• Audio:
  • Audio: 7.1 Channel Realtek + EVGA NU Audio
  • Audio Controller: Realtek ALC1220 + SV3H615
• Display Outputs: DP 1.2, HDMI 1.4
• Slots:
  • PCIe Slot Arrangement: 2x16, 1x1
  • PCIe x16 Mechanical Slots: 2
  • PCIe x16 Mechanical Arrangement: 1x16/8,1x8
  • PCIe x1 Mechanical Slots: 1
• Fan Header: 7x 4-Pin (2x CPU PWM,5x PWM/DC)
• BIOS Type: Latest UEFI BIOS with mouse/keyboard control, OC Robot, In-BIOS Stress Test
• Software: EVGA ELEET X1 Tuning Utility

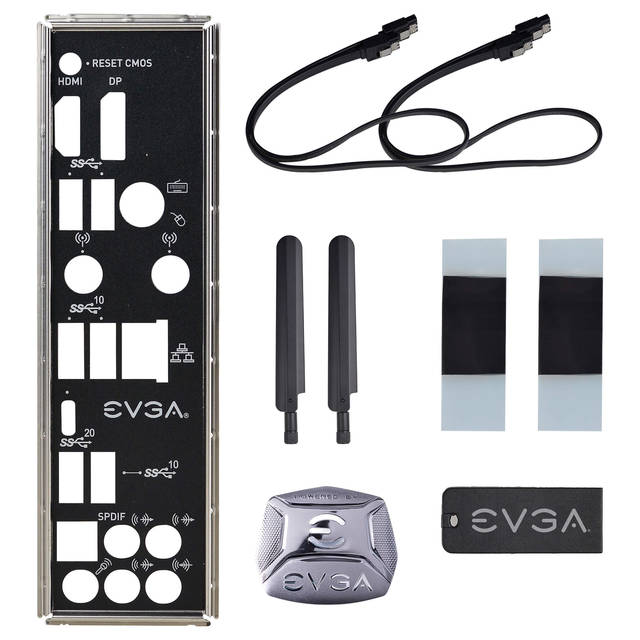

• Accessories:
  • EVGA Quick Installation Guide
  • Rear Case I/O Panel
  • 2 SATA 6G Data Cables
  • 2x M.2 Thermal Pad
  • 2x Antenna for WiFi
  • Case Badge
  • USB Flash Drive
  • Contains Driver and Manual
• Form Factor:
  • ATX Form Factor
  • 9.6 x 12.0 inch / 244.0 x 305.0 mm
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Note

Currently out of stock

Available Quantity

0

UPC

843368065775

SKU

mingle122-CL-E497-KR

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

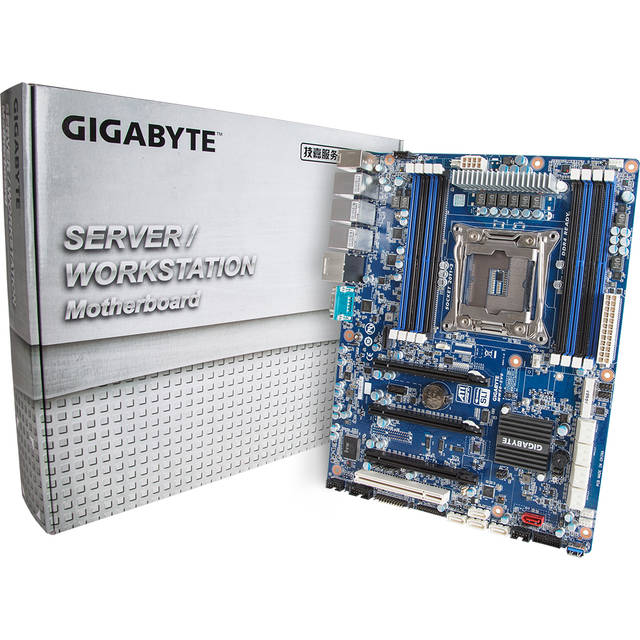

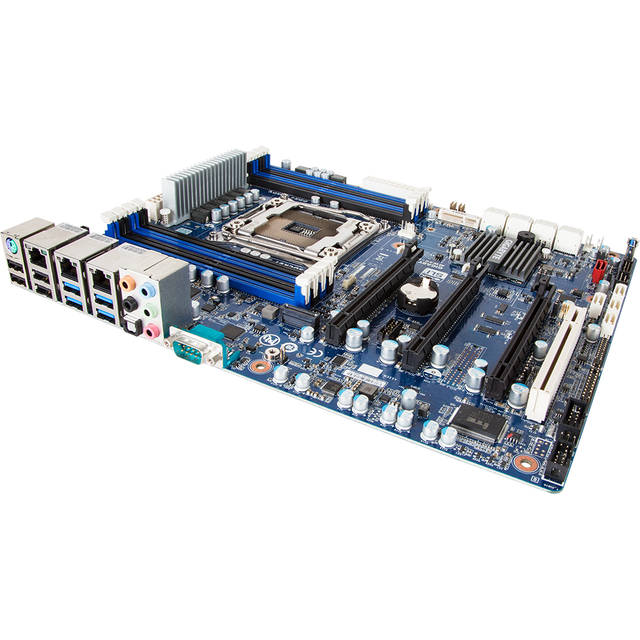

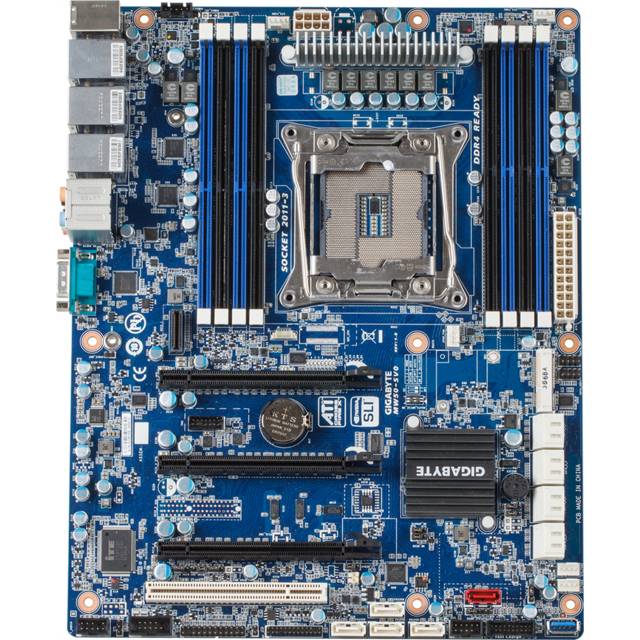

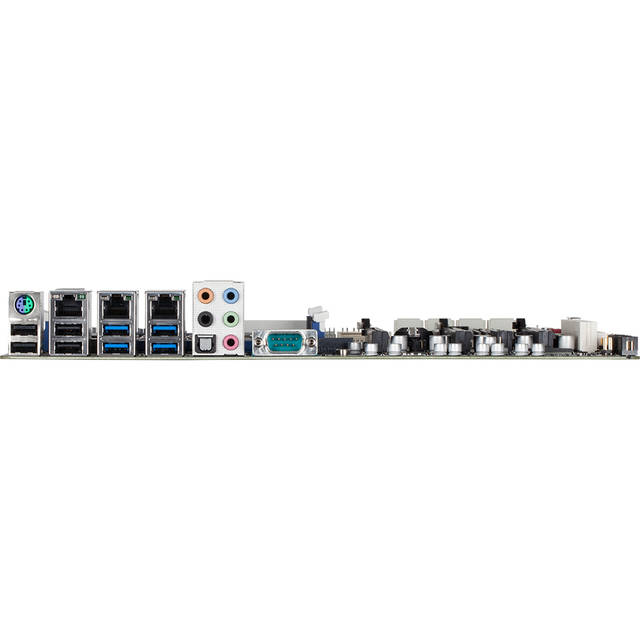

• Mfr Part Number: MW50-SV0
• CPU: LGA 2011-v3
  • Support Intel Xeon E5-2600 V3 Processors
  • Support Intel Xeon E5-1600 V3 Processors
• Chipset: Intel C612
• Memory: 8x DDR4-2133/ 1866/ 1600 DIMM Slots, Quad-Channel, ECC, Non-ECC, REG, Support Single and dual rank RDIMM modules up to 32GB, Support Quad rank LRDIMM modules up to 64GB.
• Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express x4 Slot (mezzanine card), 1x PCI Slot
• Multi-Graphics: Supports 3-way/ 2way AMD CrossFireX and 3-way/ 2way NVIDIA SLI Technology
• SATA: 13x SATA3 Ports (one Support SATA DOM, 4 via Marvell 88SE9230 controller), Intel SATA Support RAID 0, 1, 5, 10; Marvell SATA Support RAID 0, 1, 10; 1x mSATA Slot
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Intel I210 & Intel I218 Gigabit Ethernet Controllers
• Ports: 7x USB 3.0 Ports (4 rear, 2 via header, 1 vertical Type A), 6x USB 2.0 Ports (4 rear, 2 via header), 1x PS/2 Keyboard/Mouse Combo Port, 2x Serial Ports (1 rear, 1 via header), 3x RJ45 LAN Ports, 1x Optical S/PDIF-Out, Audio I/O Jacks

• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector, 1x 4pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 24.4 cm

Note

Currently out of stock

Available Quantity

0

UPC

818313022110

SKU

mingleMW50-SV0

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Note

Currently out of stock

Available Quantity

0

UPC

889523021439

SKU

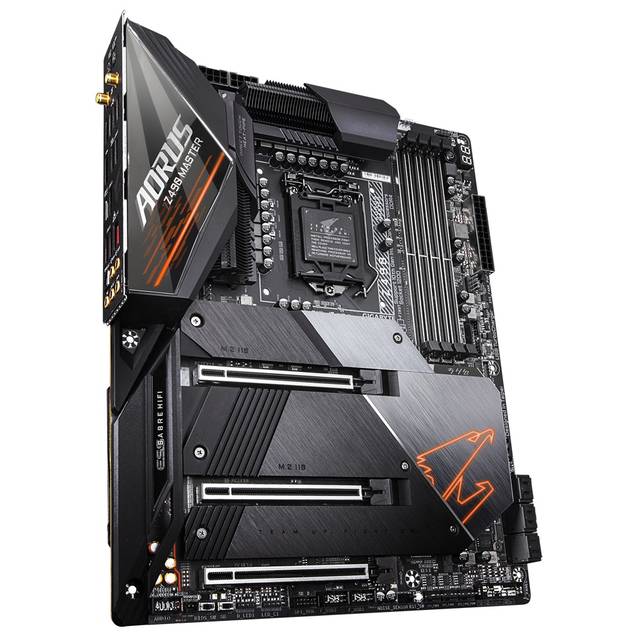

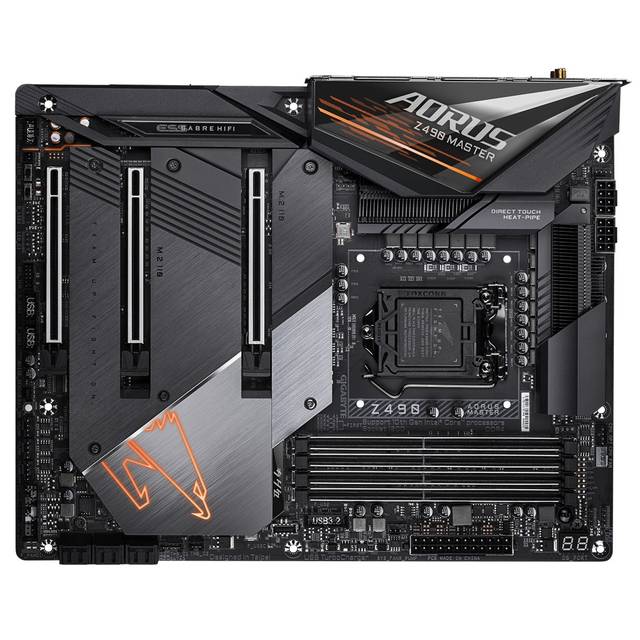

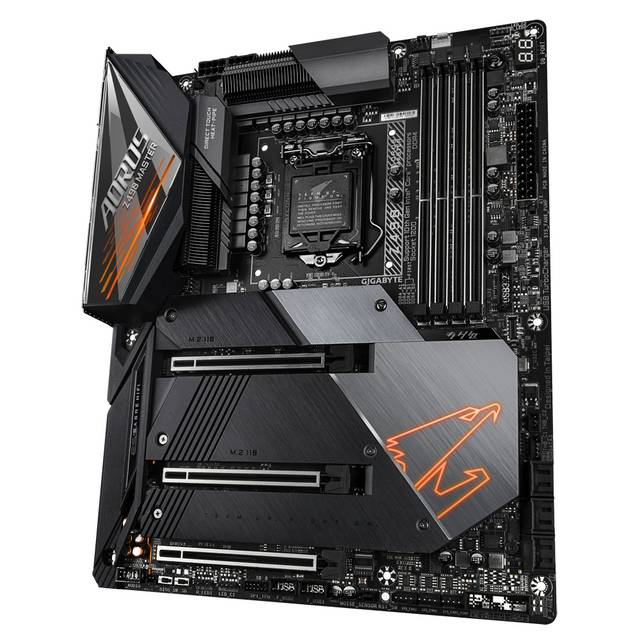

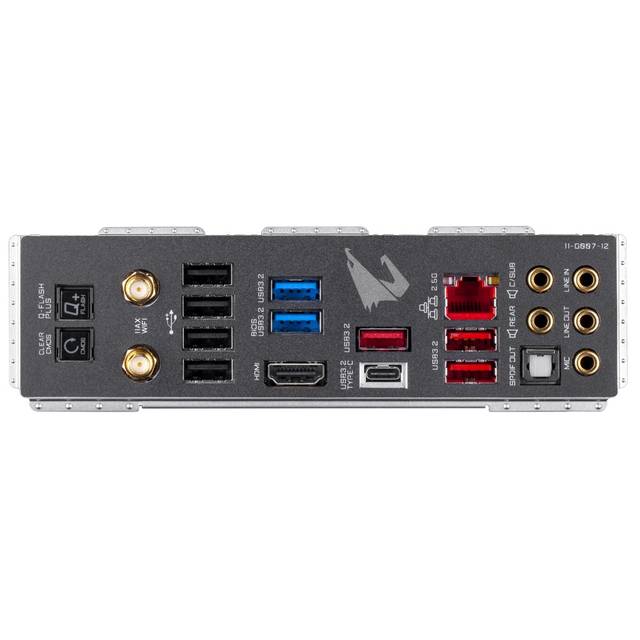

mingleZ490 AORUS MASTER

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Note

Currently out of stock

Available Quantity

0

UPC

889523020203

SKU

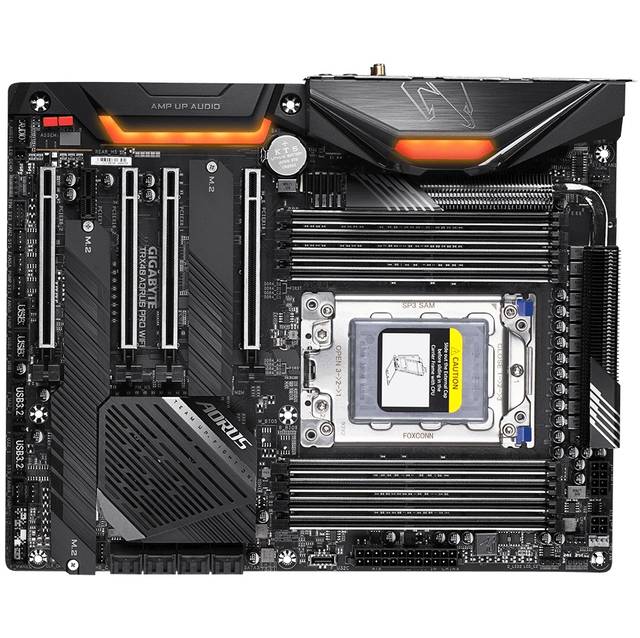

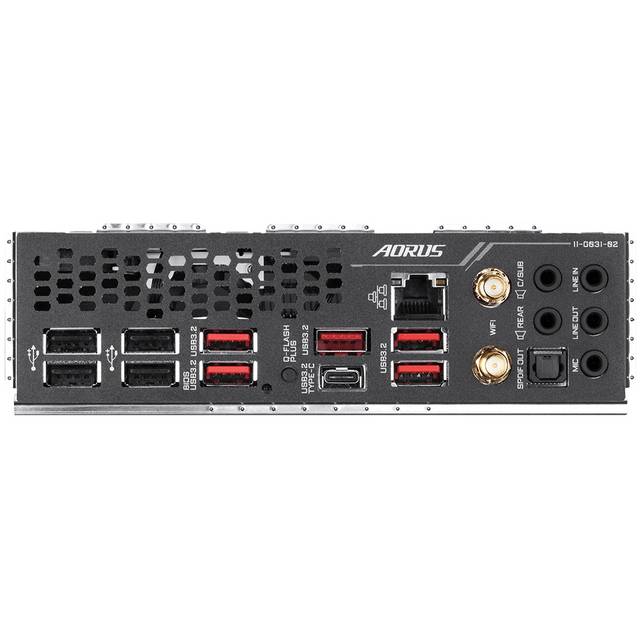

mingleTRX40 AORUS PRO WIFI

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

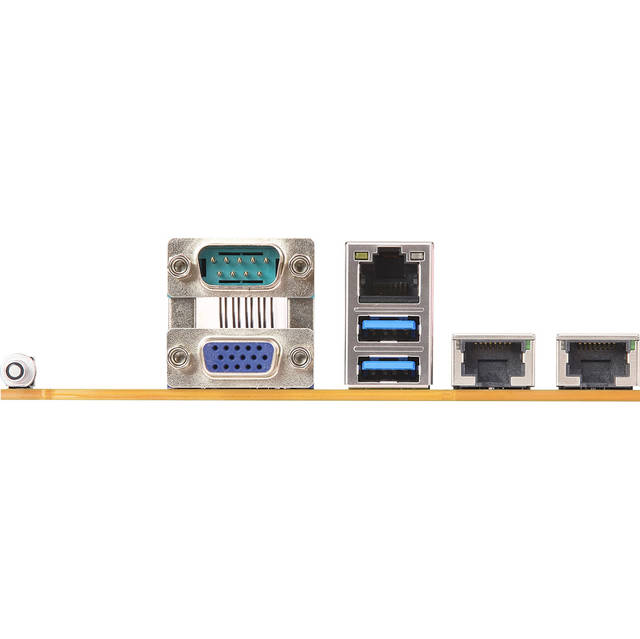

• Mfr Part Number: EPYCD8-2T
• CPU: Single Socket SP3 LGA4094
  • Support AMD EPYC 7000 series family Processors
• Chipset: N/A
• Memory: 8x DDR4-2666/ 2400 DIMM Slots, Eight Channel
• Slots: 4x PCI-Express 3.0 x16 Slots, 3x PCI-Express 3.0 x8 Slots
• SATA: 9x SATA3 Ports (from 2x mini SAS HD and 1x SATA DOM port)
• Video: Aspeed AST2500 Graphics w/ 256MB DDR4 Video Memory
• LAN: 2x Intel X550 10G base-T Gigabit Ethernet Controllers; 1x Realtek RTL8211E for Dedicated IPMI LAN
• Ports: 2x USB 3.1 Gen 1 Ports (rear), 1x USB 3.1 Gen 1 Port (via Header, supports 2 USB 3.0 ports), 1x VGA Port, 1x Serial Port, 2x RJ45 10G base-T LAN Ports w/ LED, 1x RJ45 Dedicated IPMI LAN Port
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector, 1x 4pin ATX Power Connector, 1x 6pin ATX Power Connector (6 pin for GPU for PCIE Slot)
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

mingleEPYCD8-2T

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

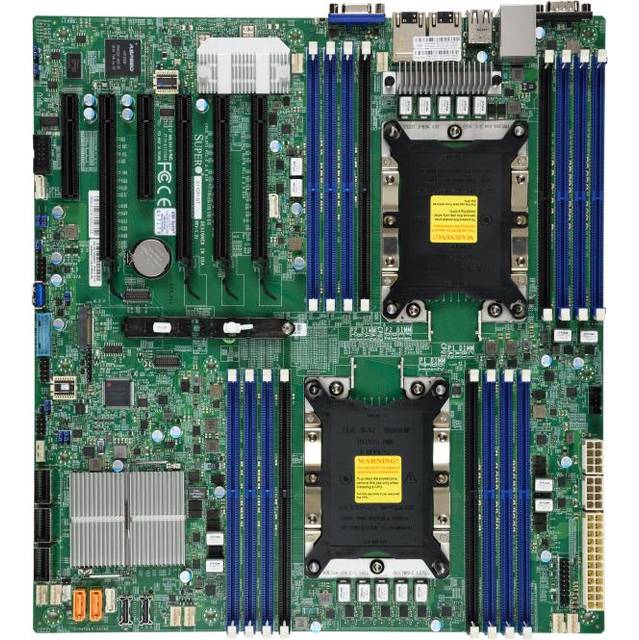

• Mfr Part Number: X11DPI-N-O
• CPU: Dual Socket P LGA3647
  • Support Intel Xeon Scalable Processors
  • CPU TDP support 205W
  • 2 UPI up to 10.4 GT/s
  • Up to 28 cores
• Chipset: Intel C621
• Memory: 16x DDR4-2666/ 2400/ 2133 MHz ECC DIMM Slots, Support up to 2TB 3DS ECC/REG Memory or up to 2TB 3DS ECC/Load Reduced Memory
• Slots: 4x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots
• SATA: 14x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2500 BMC Graphics
• LAN: Dual LAN with Gigabit from C621
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 2x USB 2.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 Gigabit Ethernet LAN Ports
• Form Factor: EATX, 12.0 x 13.0 inch / 30.48 x 33.02 cm

• RoHS Compliant

Note

Currently out of stock

Available Quantity

0

UPC

672042280056

SKU

mingleMBD-X11DPI-N-O

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

mingleTRX40 TAICHI

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

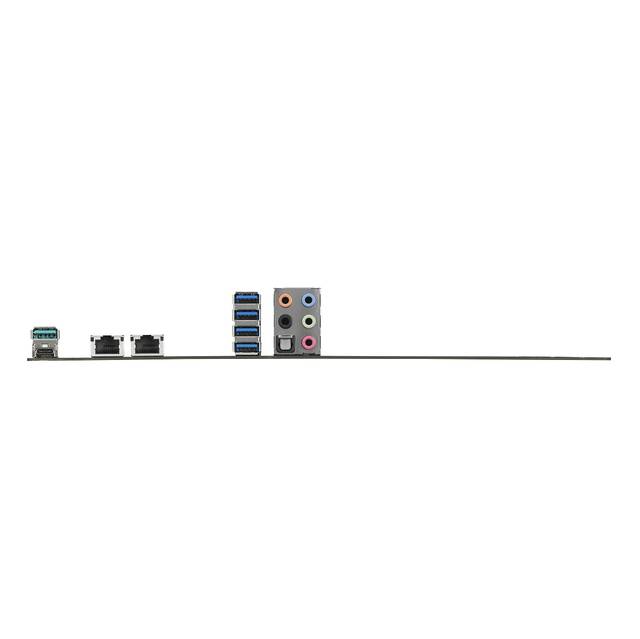

• Mfr Part Number: WS C422 SAGE/10G

• CPU: LGA 2066
  • Supports Intel Virtual RAID on CPU (VROC)

  • Supports Intel 14 nm CPU

  • Supports Intel Turbo Boost Max Technology 3.0

• Chipset: Intel C422

• Memory: 8x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, RDIMM, LR-DIMM, Quad Channel, Max Capacity of 512GB

• Slots: 7x PCI-Express 3.0 x16 Slots (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)

• Multi-Graphics: Supports AMD 4-Way CrossFireX and NVIDIA 4-Way SLI Technology

• Storage:
  • SATA: 8x SATA3 ports, Support RAID 0, 1, 10

  • M.2: 2x M.2 Ports (M key), one supports type 2242/ 2260/ 2280 & PCI-Express 3.0 x4 mode, one supports type 2242/ 2260/ 2280/ 22110 & PCI-Express 3.0 x4 mode
  • U.2: 2x U.2 Ports

• Audio: Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC

• LAN: 2x Intel X550-AT2 10-Gigabit Ethernet Controllers

• Ports: 6x USB 3.1 Gen 1 Ports (4 rear, 2 at mid-board), 3x USB 3.1 Gen 2 Ports ( 1 Type A rear, 1 Type C rear, 1 at mid-board ), 1x Optical S/PDIF Out, 2x RJ45 LAN Ports,  Audio I/O Jacks

• Power Connector: 1x 24-pin EATX Power Connector, 2x 8-pin ATX 12V Power Connector, 1x 6-pin ATX Power Connector

• Form Factor: CEB, 12.0 x 10.5 inch/ 30.5 x 26.7 cm


Note

Currently out of stock

Available Quantity

0

UPC

889349962954

SKU

mingleWS C422 SAGE/10G

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Note

Currently out of stock

Available Quantity

0

UPC

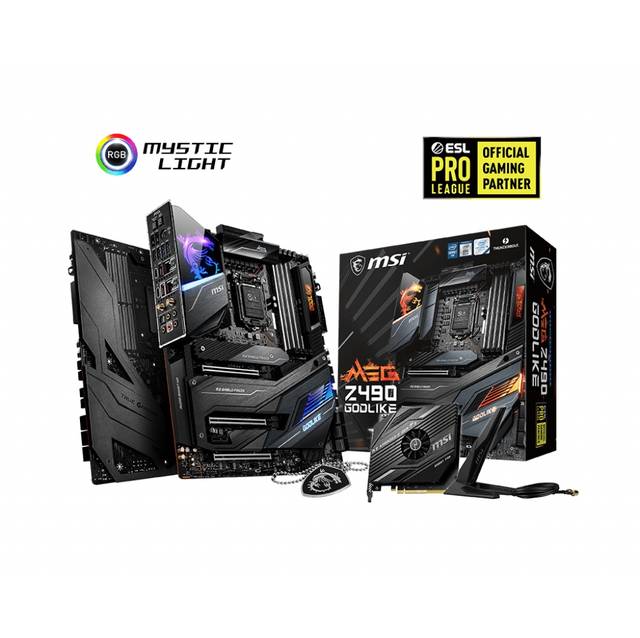

824142214107

SKU

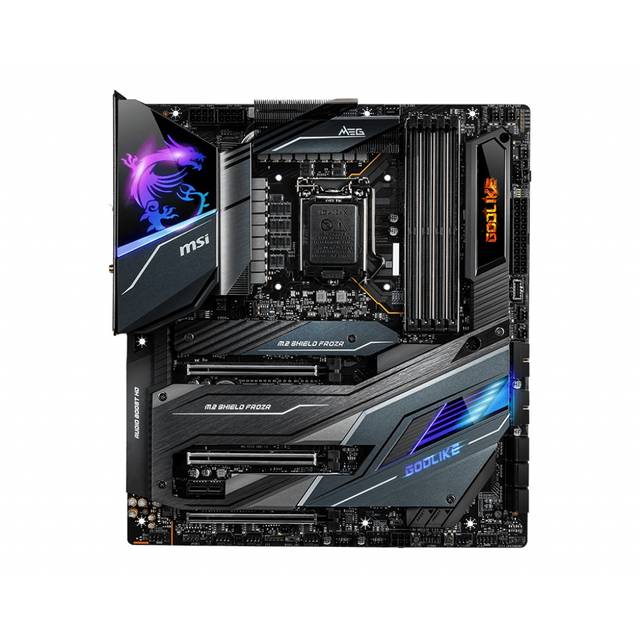

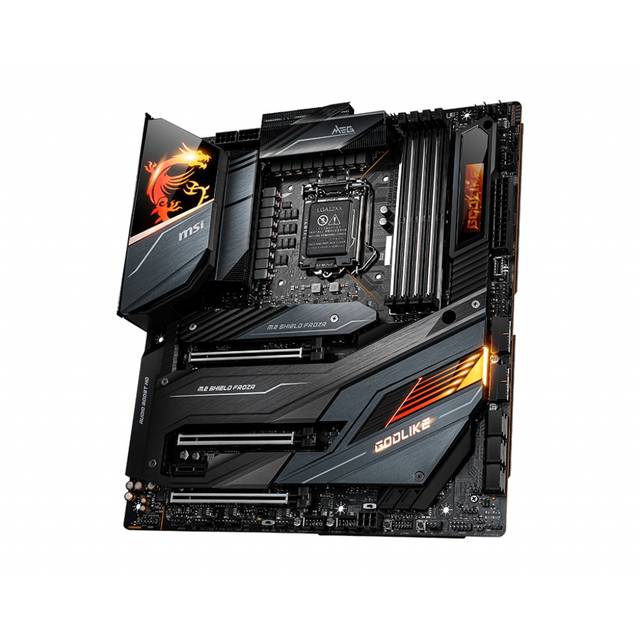

mingleZ490GODLIKE

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

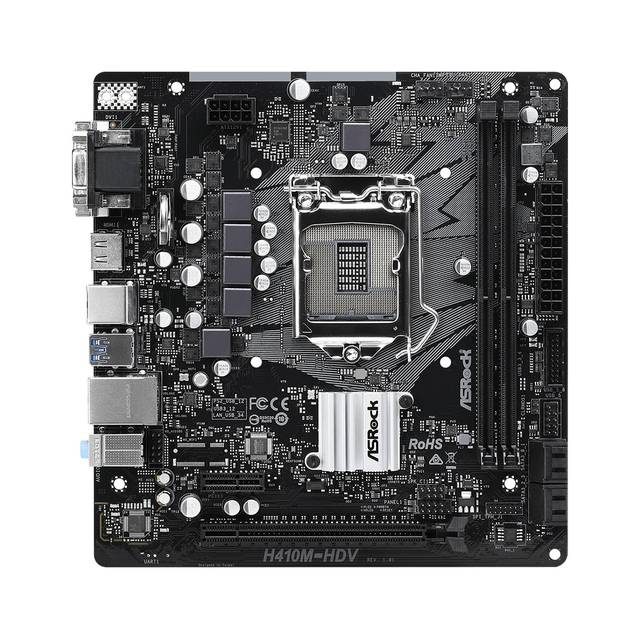

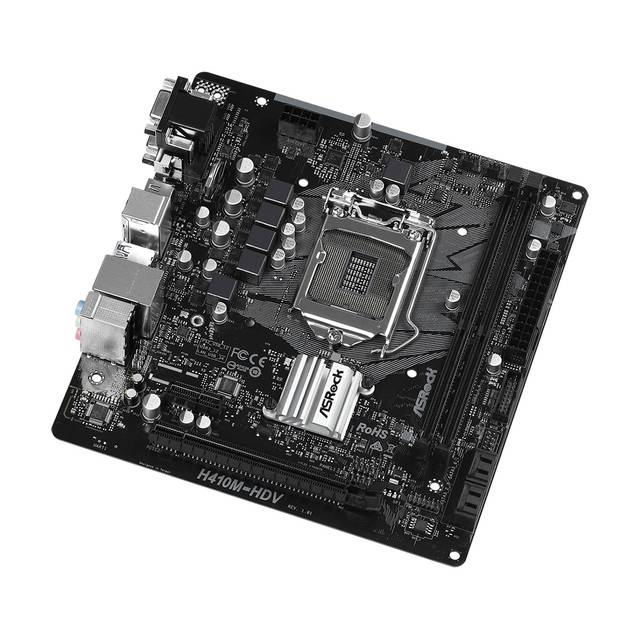

mingleH410M-HDV

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

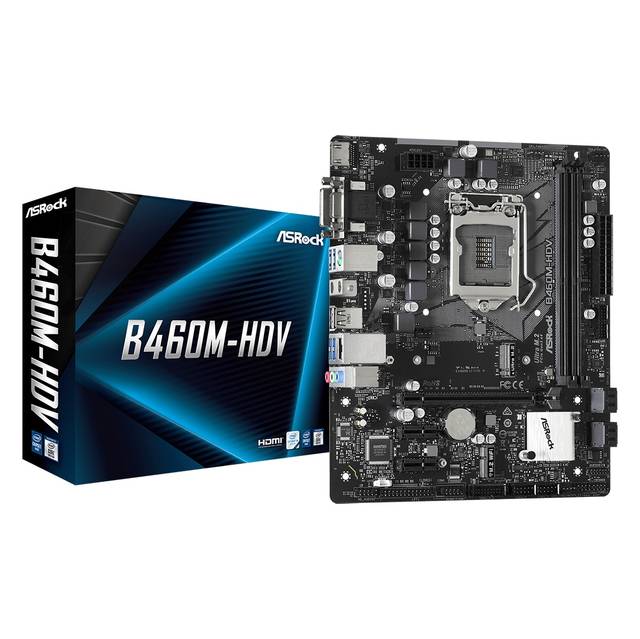

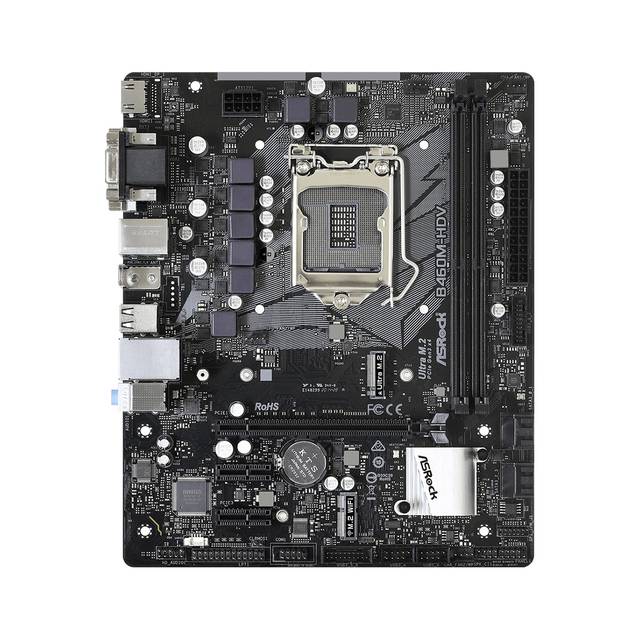

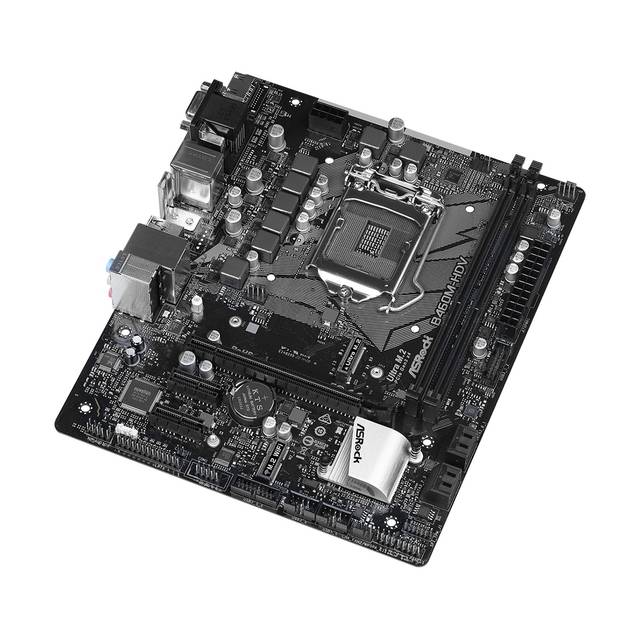

mingleB460M-HDV

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

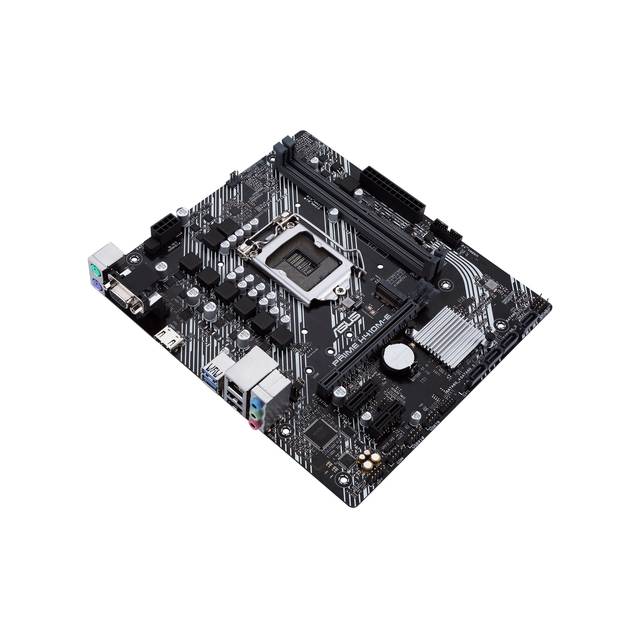

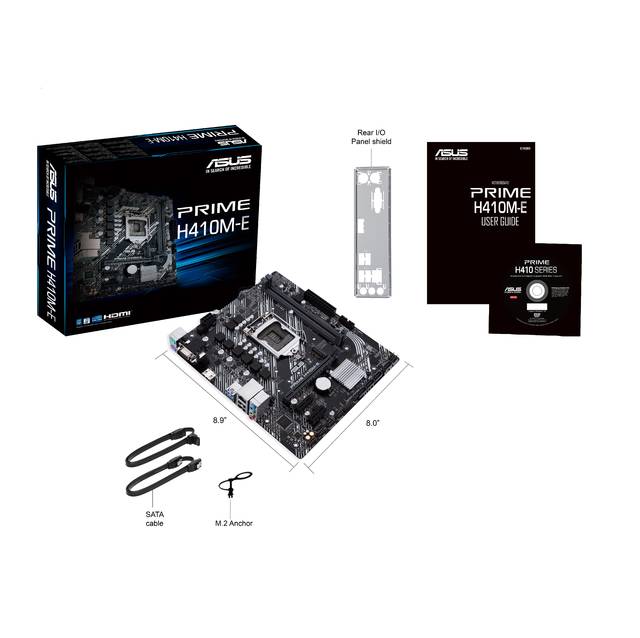

• Mfr Part Number: PRIME H410M-E
• CPU:
  • Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Chipset: Intel H410
• Memory:
  • 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem
• Graphic:
  • Integrated Graphics Processor
  • 1 x D-Sub
  • 1 x HDMI 1.4b
• Expansion Slots:
  • Intel 10th Gen Processors
    - 1 x PCIe 3.0 x 16 (x16 mode)
  • Intel H410 Chipset
    - 2 x PCIe 3.0 x 1
• Storage:
  • Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel H410 Chipset:
    - 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
    - 4 x SATA 6Gb/s port(s)
• LAN: Realtek RTL8111H
• Audio:
  • Realtek ALC887 7.1-Channel High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature:
    - LED-illuminated design

    - Audio Shielding

    - Dedicated audio PCB layers

    - Premium Japanese audio capacitors
• USB Ports:
  • Rear USB Port ( Total 4 )

    - 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

    - 2 x USB 2.0 port(s)(2 x Type-A)
  • Front USB Port ( Total 6 )

    - 2 x USB 3.2 Gen 1 port(s)

    - 4 x USB 2.0 port(s)
• Software Features:
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
    - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert
    - EZ update
  • ASUS CPU-Z
  • AI Charger
  • DAEMON Tools
  • Norton Anti-virus software(Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
• ASUS Special Features:
  • ASUS 5X PROTECTION III
    - ASUS DIGI+ VRM
    - ASUS LANGuard
    - ASUS Overvoltage Protection
    - ASUS Safeslot Core
    - ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
    - ASUS Q-DIMM

    - ASUS Q-Slot
  • ASUS Thermal Solution
    - Aluminum heatsink design
• Back I/O Ports:
  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0
  • 3 x Audio jack(s)
• Internal I/O Ports:
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  • 1 x COM port(s) connector(s)
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x Speaker connector
• Accessories:
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Anchor
  • 1 x Supporting DVD
  • User manual
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows 10 64-bit
• Form Factor:
  • mATX Form Factor
  • 8.9 inch x 8.0 inch ( 22.6 cm x 20.3cm )
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Note

Currently out of stock

Available Quantity

0

UPC

192876721940

SKU

minglePRIME H410M-E

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

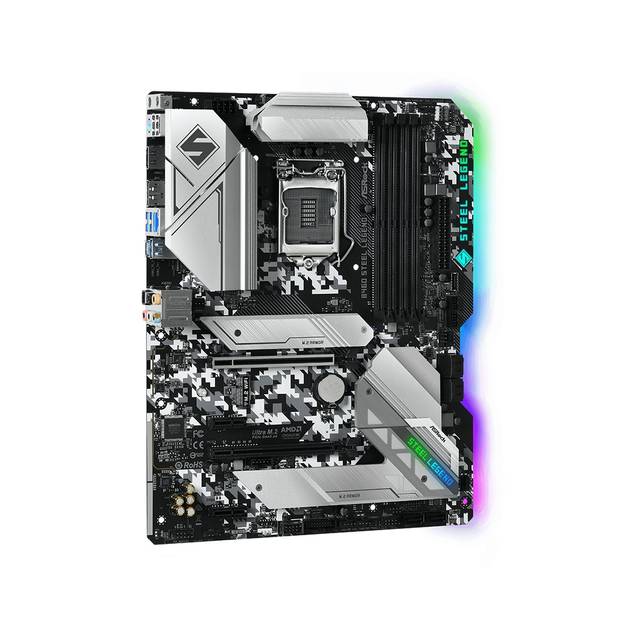

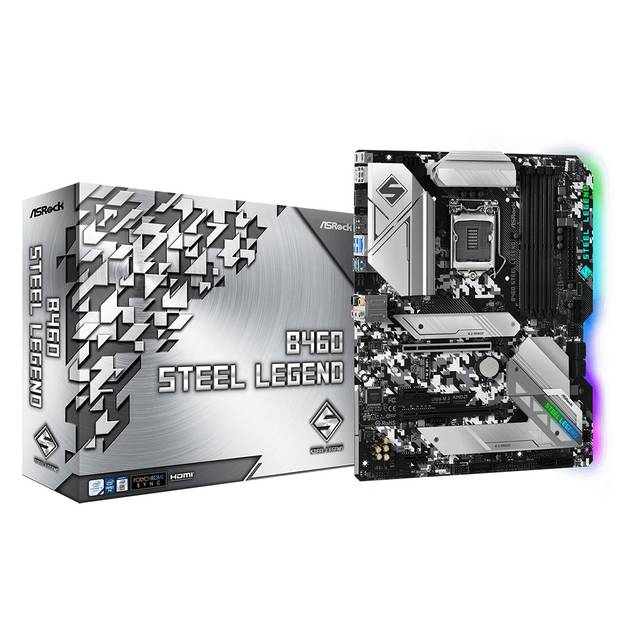

• Mfr Part Number: B460 STEEL LEGEND
• Unique Feature:
  • ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 60A Power Choke
    - 50A Dr.MOS
    - Combo Caps (Nichicon 12K Black Caps)
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - Shaped PCB Design
    - Matte Black PCB
    - High Density Glass Fabric PCB 2.5G LAN
  • ASRock Steel Slots ASRock Full Coverage M.2 Heatsink
  • ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC)
  • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  • ASRock Live Update & APP Shop
• CPU:
  • Supports 10th Gen Intel Core Processors (Socket 1200)
  • Digi Power design
  • 9 Power Phase design
  • Supports Intel Turbo Boost Max 3.0 Technology
• Chipset: Intel B460
• Memory:
  • Dual Channel DDR4 Memory Technology
  • 4 x DDR4 DIMM Slots
  • Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 128GB
  • Supports Intel Extreme Memory Profile (XMP) 2.0
  • 15 Gold Contact in DIMM Slots
• BIOS:
  • 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  • ACPI 6.0 Compliant wake up events
  • SMBIOS 2.7 Support
  • CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment
• Graphics:
  • Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
  • Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  • Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
  • Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
  • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  • Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  • Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
• Audio:
  • 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
  • Premium Blu-ray Audio support
  • Supports Surge Protection
  • 110dB SNR DAC with Differential Amplifier
  • PCB Isolate Shielding
  • Individual PCB Layers for R/L Audio Channel
  • Gold Audio Jacks
  • 15 Gold Audio Connector
  • Nahimic Audio
• LAN:
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
• Slots:
  • 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)
  • 2 x PCI Express 3.0 x1 Slots
  • Supports AMD Quad CrossFireX and CrossFireX
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • 15 Gold Contact in VGA PCIe Slot (PCIE1)
• Storage:
  • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
  • 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  • 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• Connector:
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 2 x RGB LED Headers
  • 2 x Addressable LED Headers
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15 Gold Audio Connector)
  • 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
  • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel B460) (Supports ESD Protection)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Intel B460+ASMedia ASM1074 hub) (Supports ESD Protection)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header (ASMedia ASM1074 hub) (Supports ESD Protection)

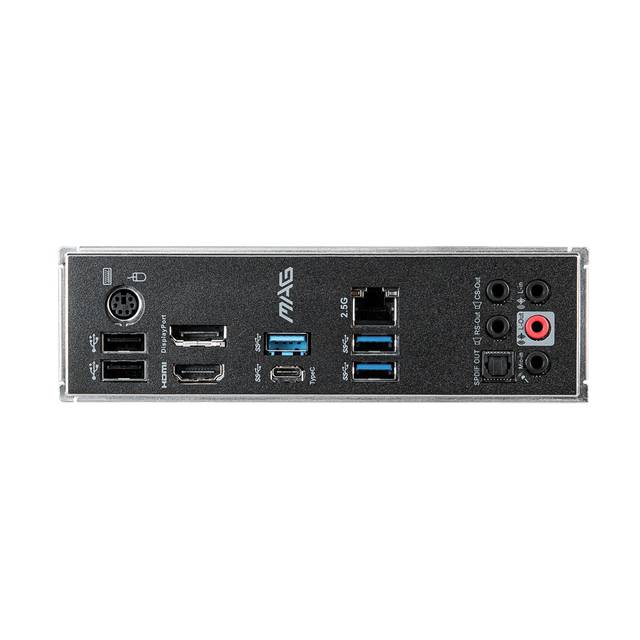

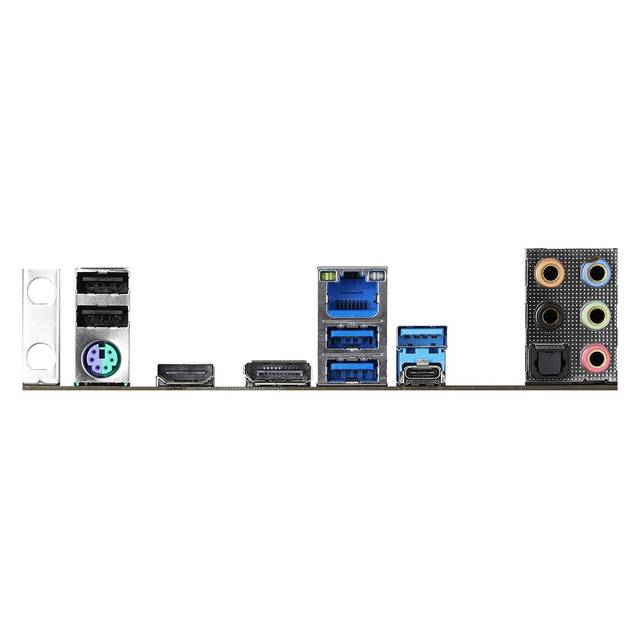

• Rear Panel I/O:
  • 1 x Antenna Bracket
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Software and UEFI:
  • Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC
  • UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer
• Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories:
  • Quick Installation Guide, Support CD, I/O Shield
  • 2 x SATA Data Cables
  • 3 x Screws for M.2 Sockets
  • 2 x Standoffs for M.2 Sockets
• Hardware Monitor:
  • Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • CASE OPEN detection
  • Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCST, VCCIO, VCCSA
• Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• OS: Microsoft Windows 10 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
