Product Description

Specifications

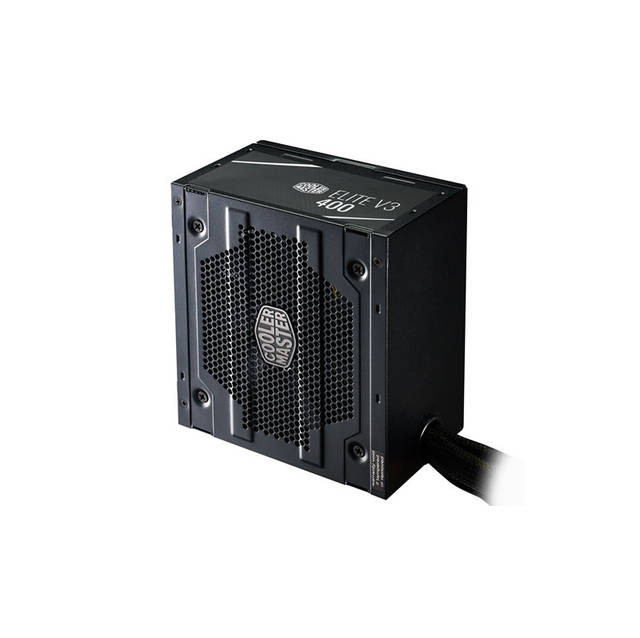

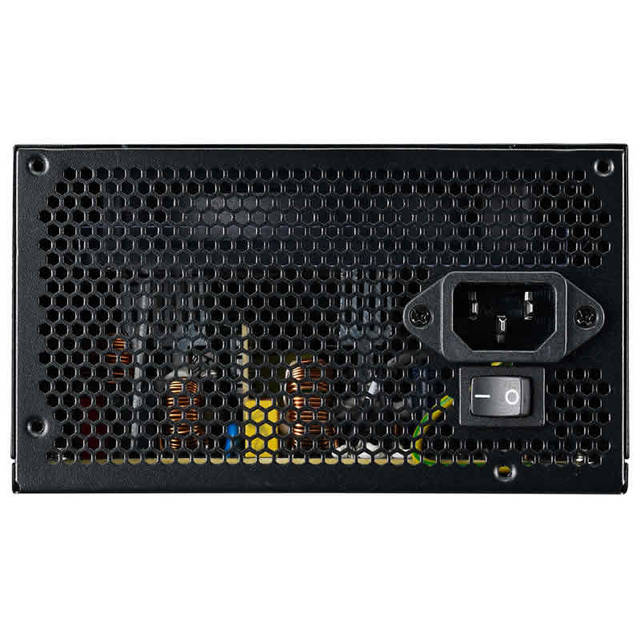

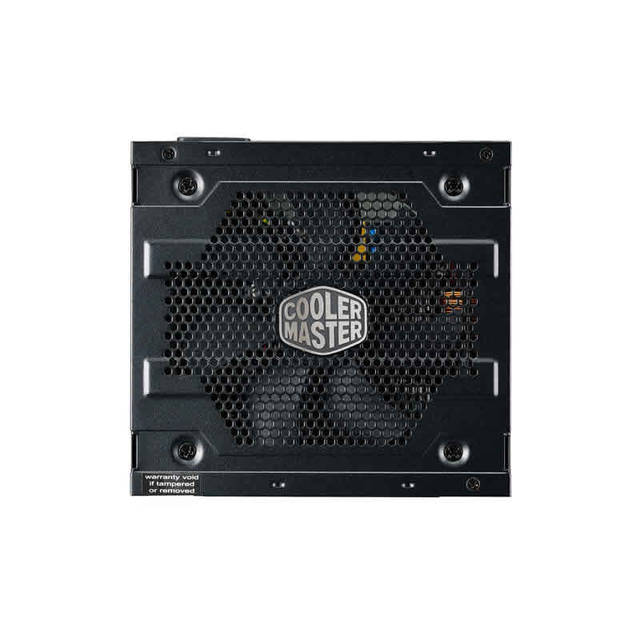

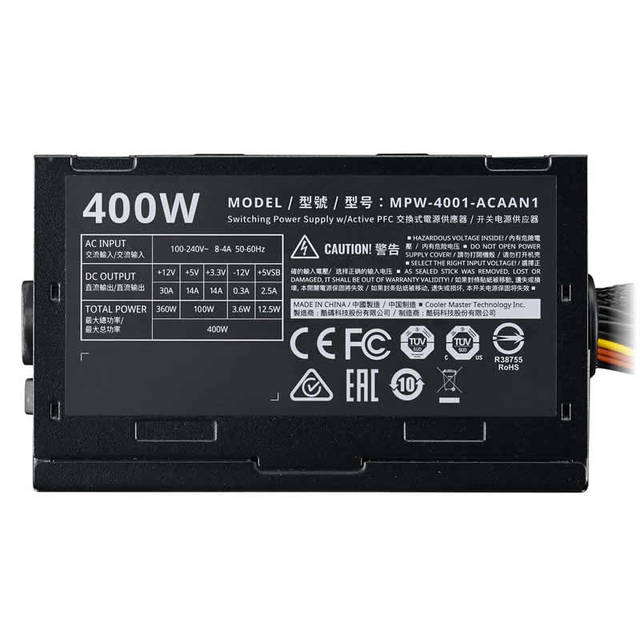

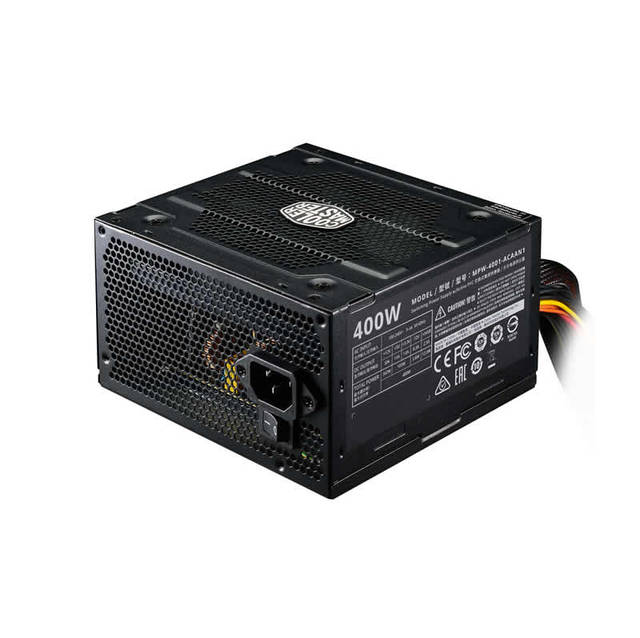

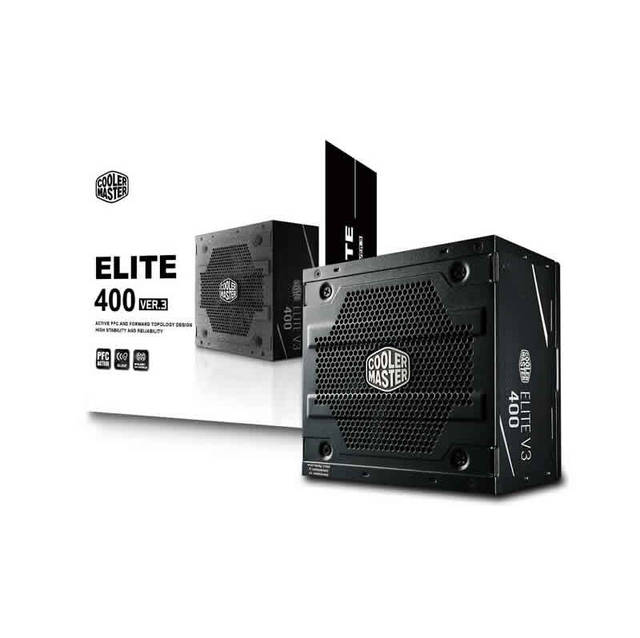

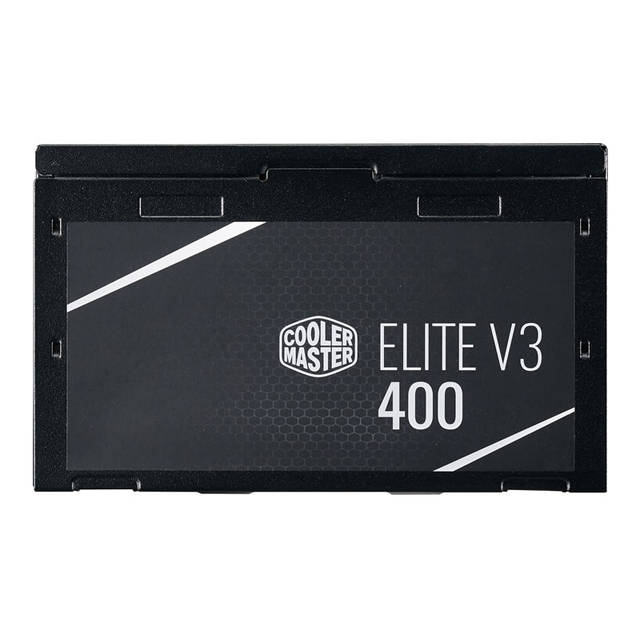

• Mfr Part Number: MPW-4001-ACAAN1-US
• Features:
  • 75% efficiency

  • Active power factor correction
  • Higher temperature resistance
  • Fits all environments
• Type: Intel ATX 12V V2.31
• Output Capcity: 400 W
• Input:
  • Voltage: 100 - 240V AC
  • Current: 8 - 4A
  • Frequency Range: 50 ~ 60Hz
• PFC: Active PFC (>0.9)
• Power Good Signal: 100 ~ 500ms
• Hold Up Time: >10ms at 100% Load
• MTBF: > 100,000 Hours

• Fan: 120mm Sleeve Fan

• Efficiency: 75% @ Typical Load

• Protection: OVP/ OPP/ OTP/ SCP
• Output: +3.3V @ 14A; +5V @ 14A; +12V @ 30A; -12V @ 0.3A; +5Vsb @ 2.5A

• Connectors: 1x 20+4pin Motherboard Connector; 1x 4+4pin CPU 12V Connector; 1x 6+2pin PCI Express Connector, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: TUV/ cTUVus/ CE/ FCC/ BSMI
• Dimensions (BxLxH): 140.0 x 150.0 x 86.0 mm


Available Quantity

5

UPC

884102038228

SKU

mingleMPW-4001-ACAAN1-US

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

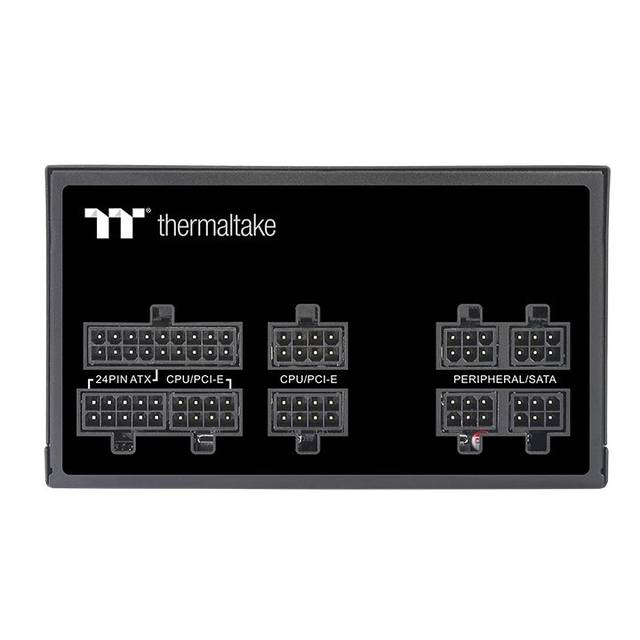

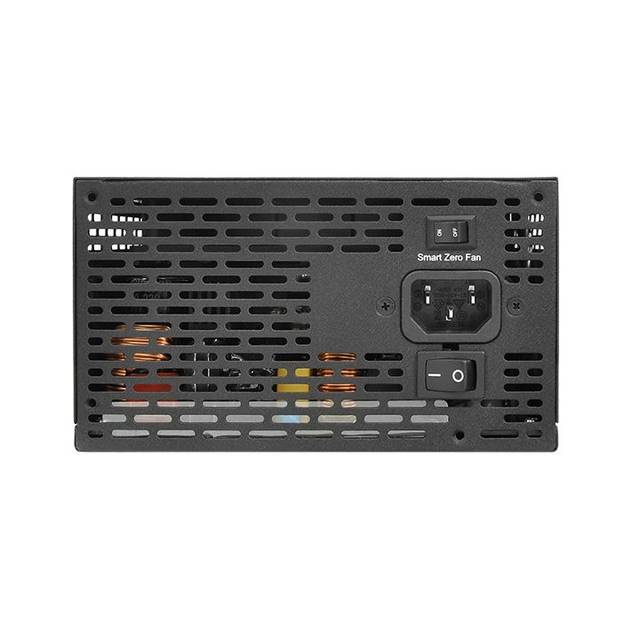

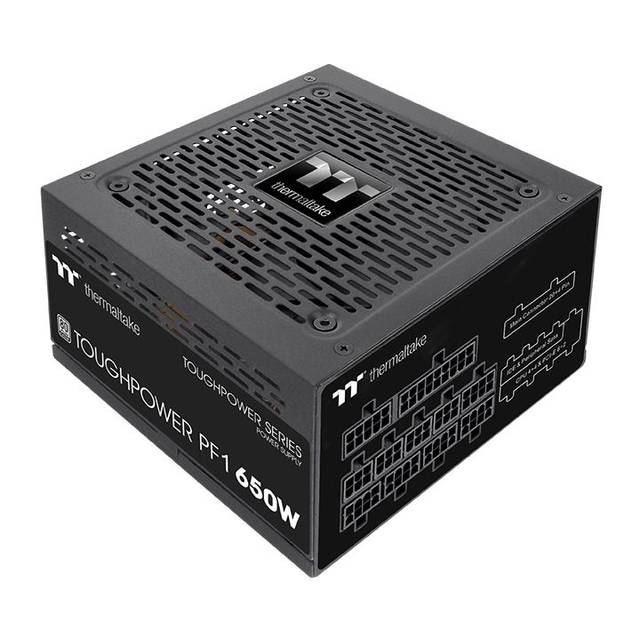

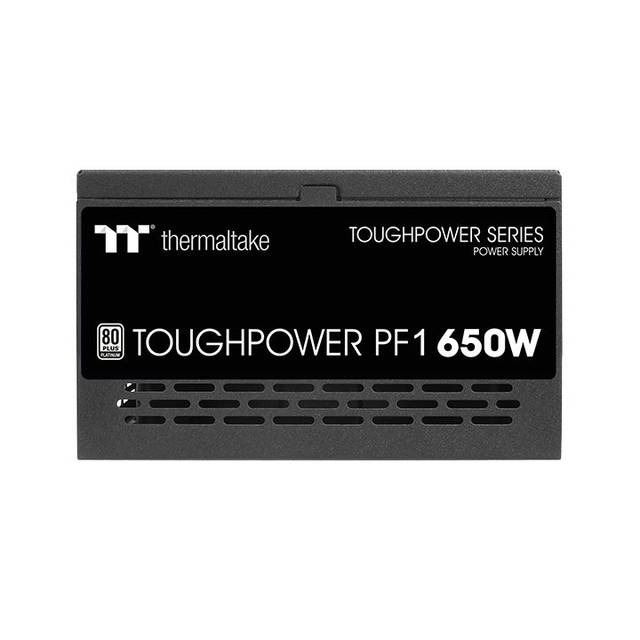

• Mfr Part Number: PS-TPD-0650FNFAPU-1
• Features:
  • New Board Technology Offering Single Side SMD
  • Compact Design with 140mm Depth
  • Ultra Quiet 120mm Hydraulic Bearing Fan
  • Smart Zero Fan
  • 30mV Low Ripple Noise
  • Extremely Strict Voltage Regulation 2%
  • Fully Modular Low-Profile Flat Cable
  • Premium Japanese 105 C/221 F Capacitors
  • High Amperage Single +12V Rail
  • 80 PLUS Platinum Certified and Intel C6/C7 States Ready
• Watts: 650W
• Model: TTP-650AH2FKP
• Max. Output Capacity: 650W
• Peak Output Capacity: 780W
• Color: Black
• PFC (Power Factor Correction): Active PFC
• Power Good Signal: 100-500 msec
• Hold Up Time: > 16msec at 100% of full load
• Input Current: 10A
• Input Frequency Range: 50Hz - 60Hz
• Input Voltage: 100V 240V
• Openating Temperature: 5 C to + 50 C
• Openation Humidity: 20% to 85%, non-condensing
• Storage Temperature: -40 C to + 55 C
• Storage Humidity: 10% to 95%, non-condensing
• Cooling System: 12cm hydraulic bearing fan
• Efficiency: Meet 80 PLUS Platinum at 115Vac input.
• MTBF: 120,000 hrs minimum
• Output: +3.3V @ 20A; +5V @ 20A; +12V @ 54A; -12V @ 0.3A; +5VSB @ 2.5A

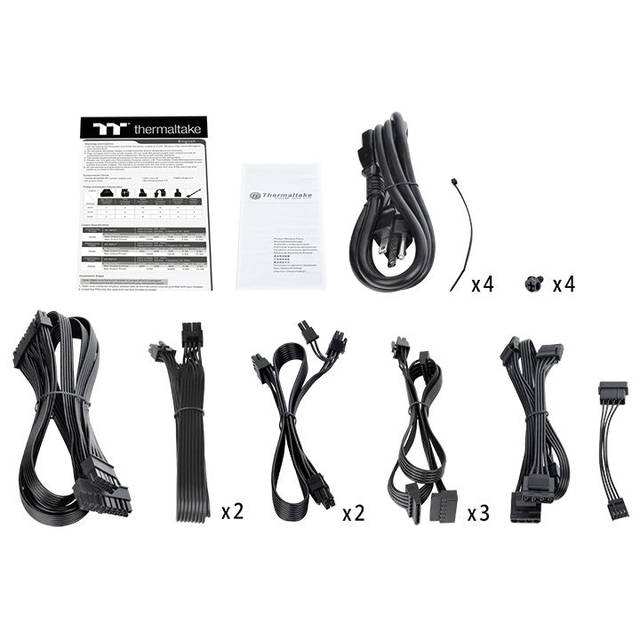

• Connectors:
  • 1 x 24pin Main Power Connector
  • 2 x ATX 12V 4+4pin Connectors
  • 9 x 5-pin SATA Connectors
  • 4 x 6+2-pin PCI-Express Connectors
  • 4 x 4-pin Peripheral Connectors
  • 1 x Floppy Connector
• Safety Approval: OVP/OCP/CE/UL/T V/FCC/BSMI/CCC/ EAC
• Dimension: 150mm(W) x 86mm(H) x 140mm(D)

Available Quantity

5

UPC

841163075395

SKU

minglePS-TPD-0650FNFAPU-1

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

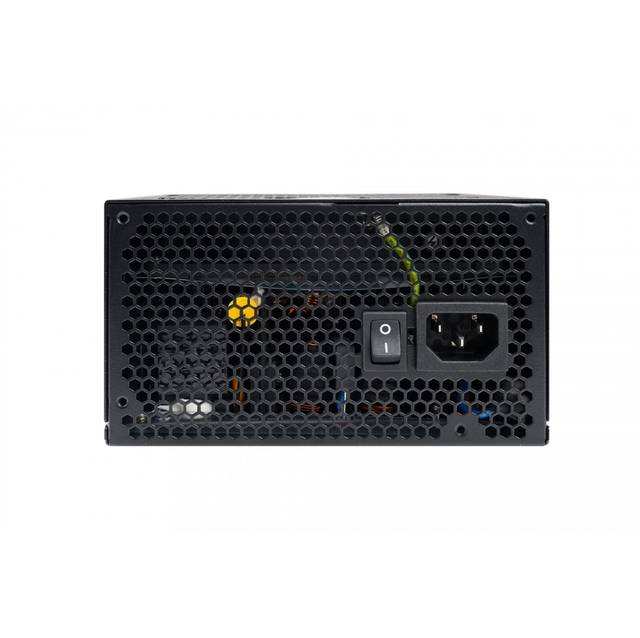

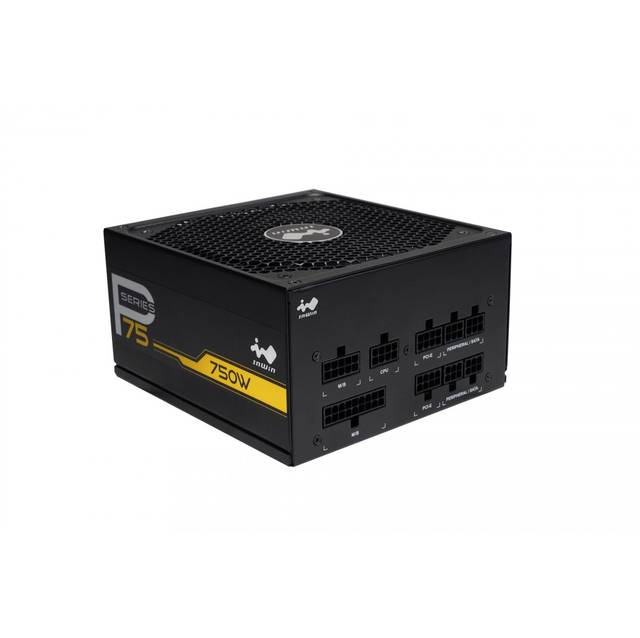

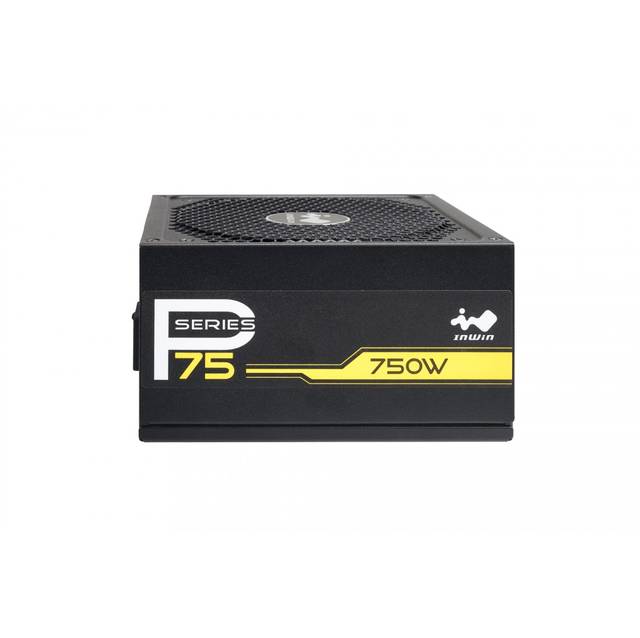

• Mfr Part Number: P75
• Features:
  • 80 PLUS Gold Certified with Up to 90% Conversion Efficiency
  • 5V and 3.3V DC to DC Design
  • Highly Reliable Japanese Aluminium Electrolytic Capacitors
  • Multi-Protection Safeguards (OCP, OVP, UVP, SCP, OTP, OPP)
  • Ultra-Quiet, Smart Fan Control
  • Fully Modular Cables for Quick and Easy Installation
• Maximum Power: 750 W
• Material: SECC
• Type: ATX12V V2.4, EPS12V V2.92
• Cable Management: Fully Modular
• PFC: Active PFC ( >0.95)
• Efficiency: 80 PLUS Gold (Up to 90%)
• MTBF (Hours): >100,000 hrs.
• AC Input: 100-240V, 10A, 50-60Hz
• Output: +12V @ 62.5A, +5V @ 22A, +3.3V @ 22A, -12V @ 0.3A, +5Vsb @ 3A
• Fan: 135mm FDB Fan
• Connector:
  • 1x 20+4Pin Motherboard Connector
  • 2x 8(4+4)Pin 12V CPU Connector
  • 4x 8 (6+2) Pin PCI-E Connector
  • 4x 4 Pin Peripheral Connector
  • 12x SATA (90 Degree) Connectors
  • 1x Floppy Connector
• Typical Load Fan Noise(dBA) (50% Loading): <25dBA
• Operating Temperature Range ( C): 0~40 C
• Full Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Safety Certifications: cTUVus/ TUV/ CB/ BSMI/ CE/ FCC/ EAC/ CCC/ RCM
• Dimensions (L x W x H): 160 x 150 x 86mm
• Package Dimensions (L x W x H): 210 x 325 x 100mm
• Net Weight: 2.46 kg
• Gross Weight: 2.92 kg
• Warranty: 5 Years

Available Quantity

5

UPC

827955027773

SKU

mingleP75

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

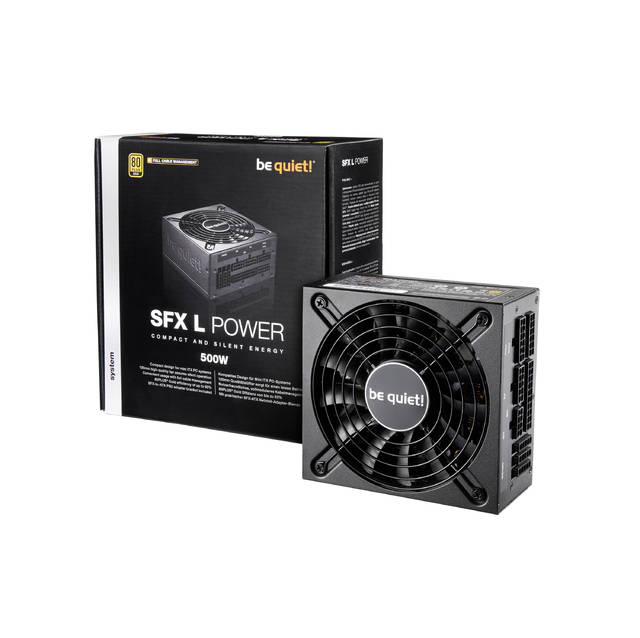

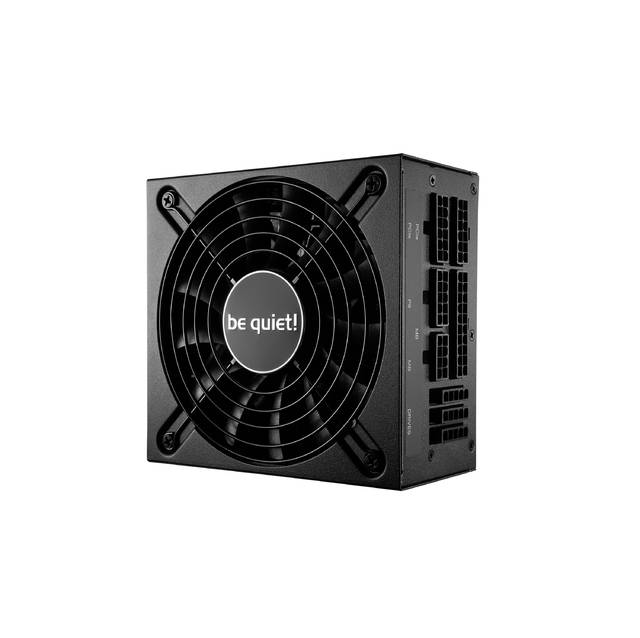

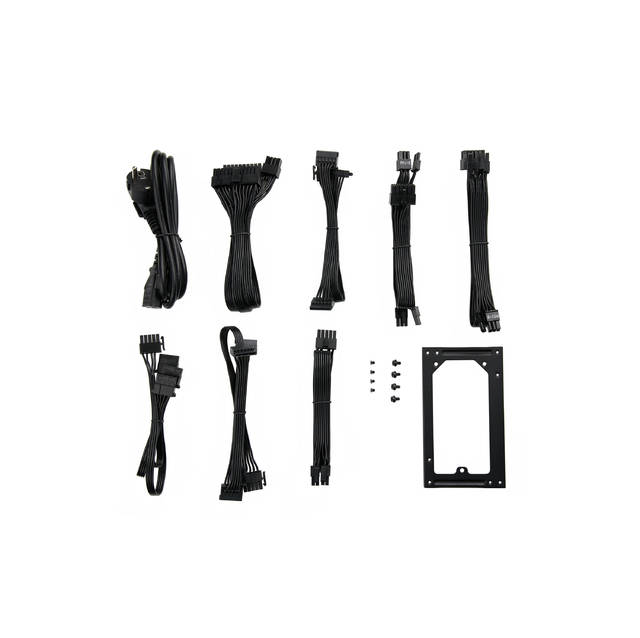

• Mfr Part Number: BN638
• Features:
  • 80 PLUS Gold certification (up to 92% efficiency)

  • Multi-GPU support with four PCIe connectors

  • Stable LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion

  • Modular cables for maximum build flexibility

  • Temperature-controlled 120mm high-quality fan

  • SFX-to-ATX adapter bracket for usage with larger case sizes

  • 3-year manufacturer s warranty
• Power:
  • Continuous Power: 500W
  • Peak Power: 550W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V v2.4 / EPS12V v2.92
• Power Factor Correction: Active PFC
• Efficiency: 80Plus Silver, up to 91% @ 20~100% load
• Fan: 120mm Silence-optimized Rifle Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V1 @ 41.7A,  +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connectors, 4x 6+2pin GPU PCI-Express Connectors, 6x 15-pin SATA Connectors, 3x 4-pin PATA Connectors
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Approvals: CE, CB, TUV, FCC, cTUVus, RCM, ErP, WEEE, RoHS
• Color: Black
• Dimensions (WxLxD): 130.0 x 125.0 x 64.0 mm
• Weight: 1.14 kg

Available Quantity

5

UPC

Does not apply

SKU

mingleBN638

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

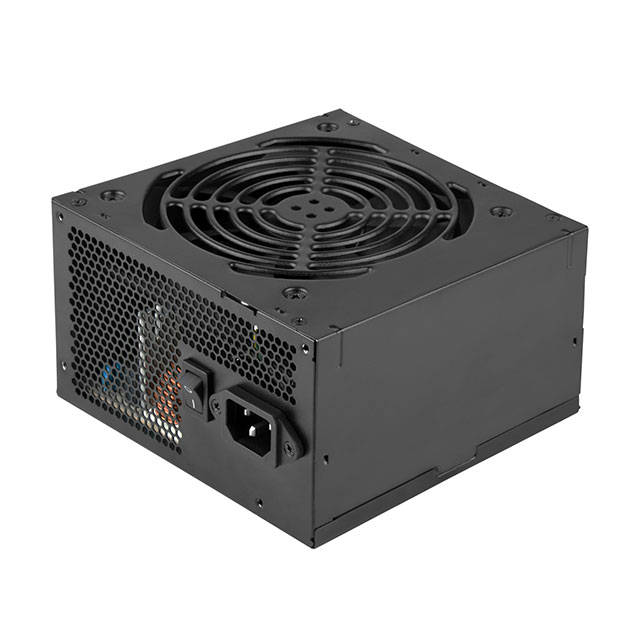

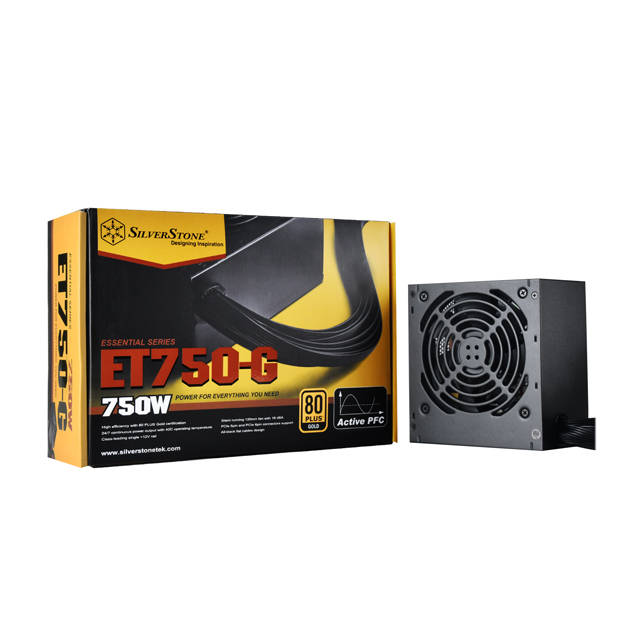

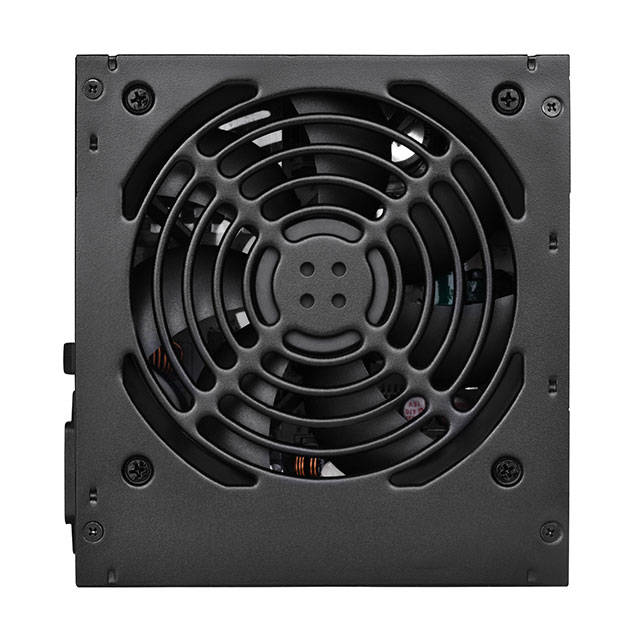

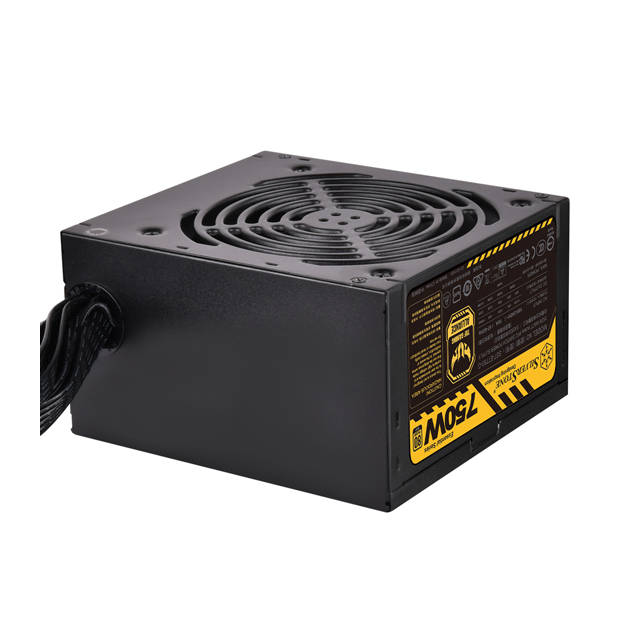

• Mfr Part Number: ET750-G
• Features:
  • High efficiency with 80 PLUS Gold certification
  • 24/7 continuous power output with 40 operating temperature
  • Class-leading single +12V rail
  • Silent running 120mm fan with 18 dBA
  • PCIe 8pin and PCIe 6pin connectors support
  • All-black flat cables design
  • ASUS TUF Gaming Alliance decals & branding (TUF Gaming retail box only)
  • Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)
• Output: +3.3V @ 22A, +5V @ 22A, +12V @ 62A,   +5VSB @ 2.5A, -12V @ 0.3A
• Connectors:
  • V1.1
    • 1 x 24 / 20-Pin motherboard connector (500mm)
    • 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
    • 4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)
    • 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)
    • 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
    • 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
  • V1.2
    • 1 x 24 / 20-Pin motherboard connector (500mm)
    • *1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)
    • 4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)
    • 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)
    • 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
    • 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
• Protection:
  • Over current protection
  • Over power protection
  • Over voltage protection
  • Short circuit protection
  • Over temperature protection
• Color : Black Lead-Free Paint
• Certification : 80 PLUS Gold
• Combined +3.3V & +5V : 120W
• Combined +12V : 744W
• Input Voltage : 90 ~ 264 Vrms
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC (PF>0.9 at full load)
• Efficiency : 87% ~ 90% at 20% ~ 100% loading
• MTBF : 100,000 hours
• Operating temperature : 0 C ~ 40 C
• Cooling System : Single 120mm silent fan
• Form factor : ATX
• Noise Level : 18 dBA minimum
• Dimension : 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D)
• Weight : 1.68 kg

Available Quantity

5

UPC

844761015329

SKU

mingleET750-G

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

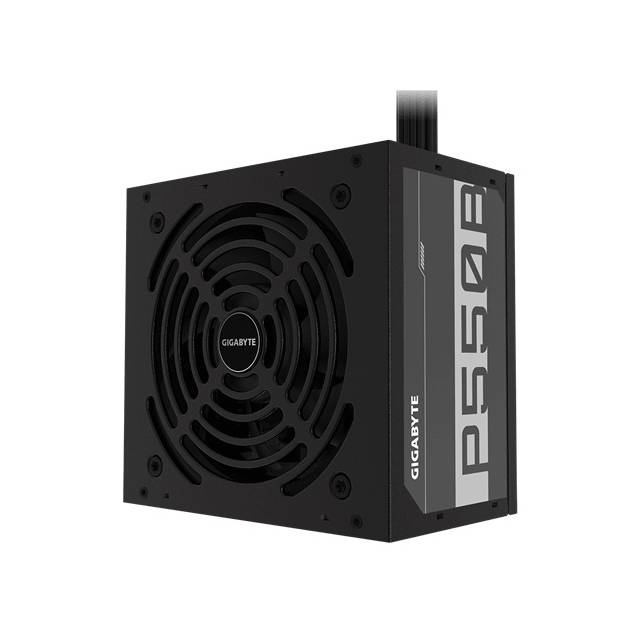

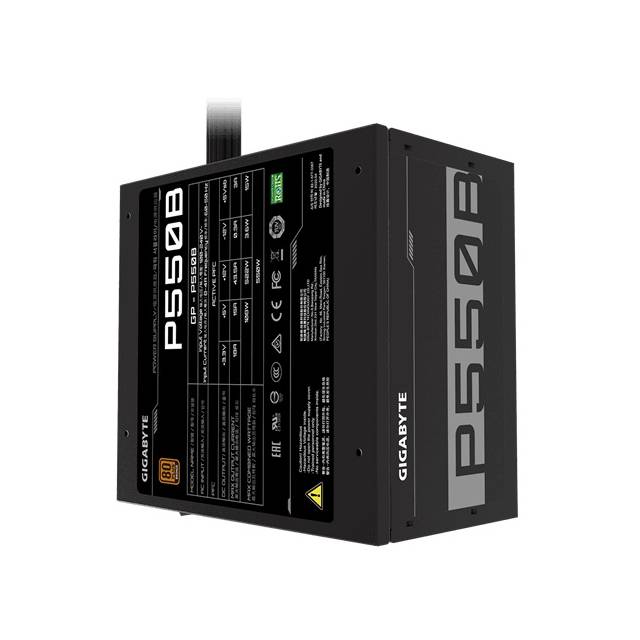

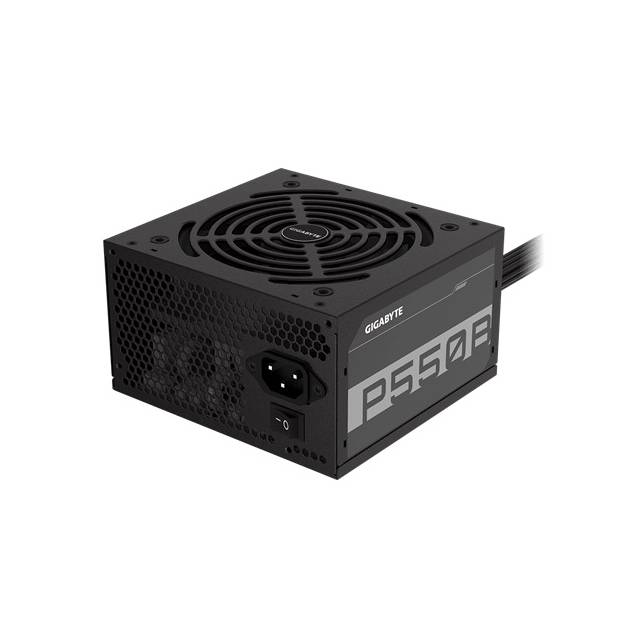

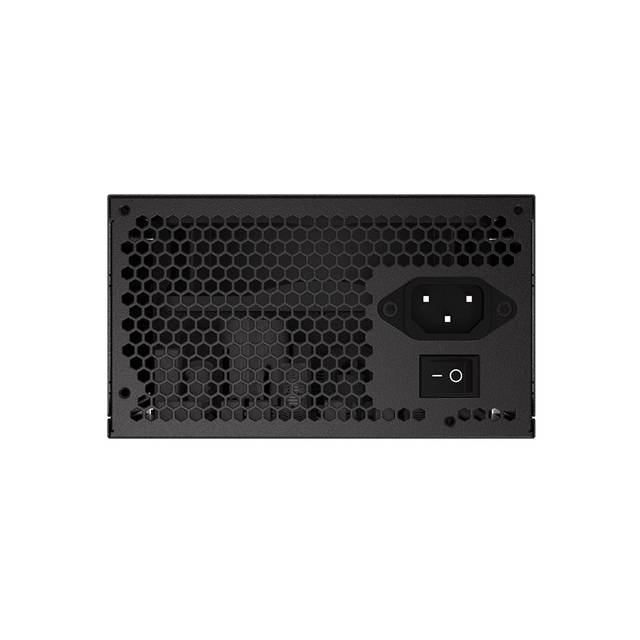

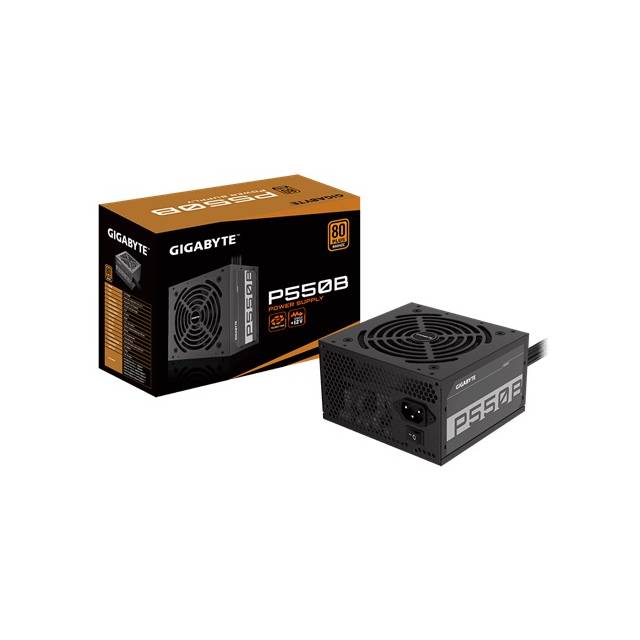

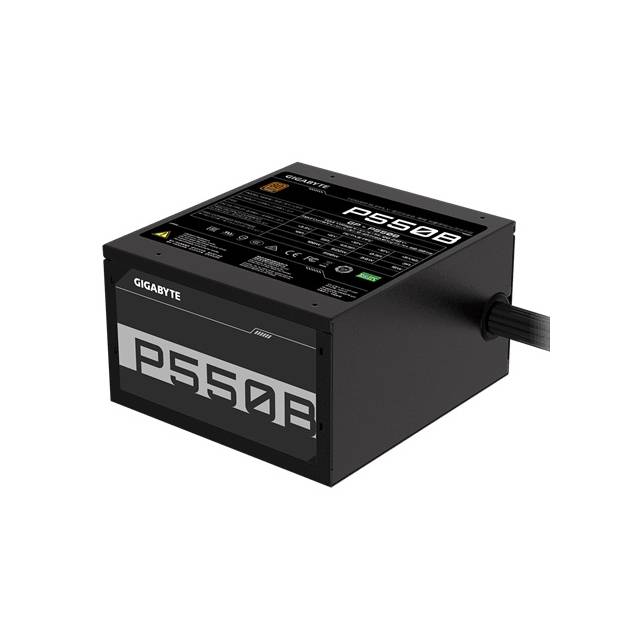

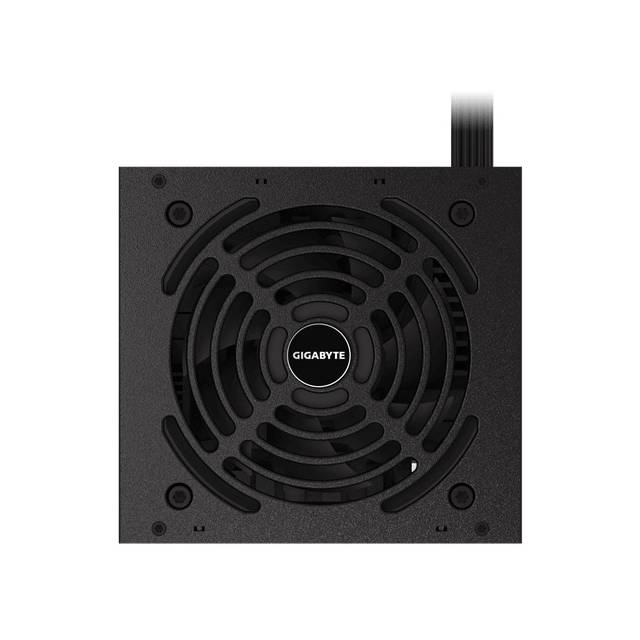

• Mfr Part Number: GP-P550B
• Model: P550B
• Features:
  • 80 PLUS Bronze certified
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Reliable flat cable
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 3 years warranty (Adjusted according to different regions)
• Maximum Power: 550 W
• Type: Intel Form Factor ATX 12V v2.31
• PFC: Active PFC(>0.9 typical)
• Input:
  • Voltage: 1 00-240 Vac(full range)
  • Current: 8 -4 A
  • Frequency Range: 6 0-50 Hz
• Fan: 1 20 mm Hydraulic Bearing (HYB) Fan
• 80 PLUS: Bronze
• Efficiency: 8 5% at typical load
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 1 00-500ms
• Hold Up Time: >16ms
• Cable Type: Flat, All black
• Connectors:
  • ATX/MB 20+4 Pin x 1: 550mm*1
  • CPU/EPS 4+4 Pin x 1: 600mm*1
  • PCI-e 6+2 Pin x 2: 550mm+150mm*1
  • SATA x 6: 500mm+120mm+120mm*2
  • 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1
• Dimensions: 150.0 x 140.0 x 86.0 mm

Available Quantity

5

UPC

813567028628

SKU

mingleGP-P550B

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

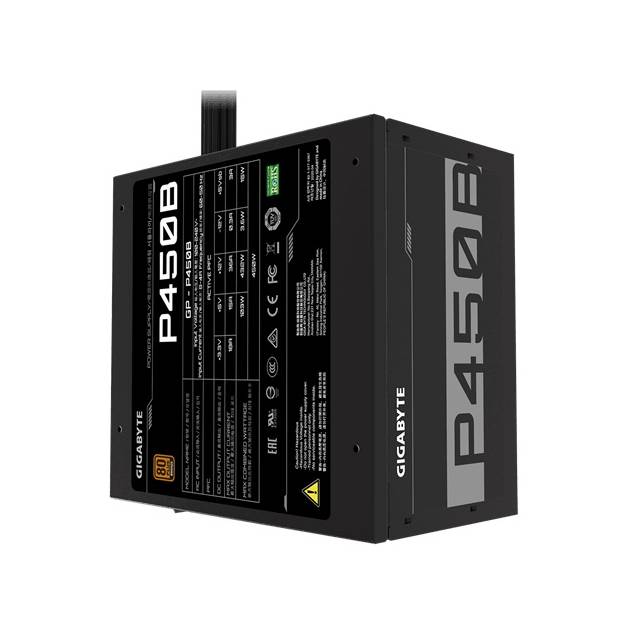

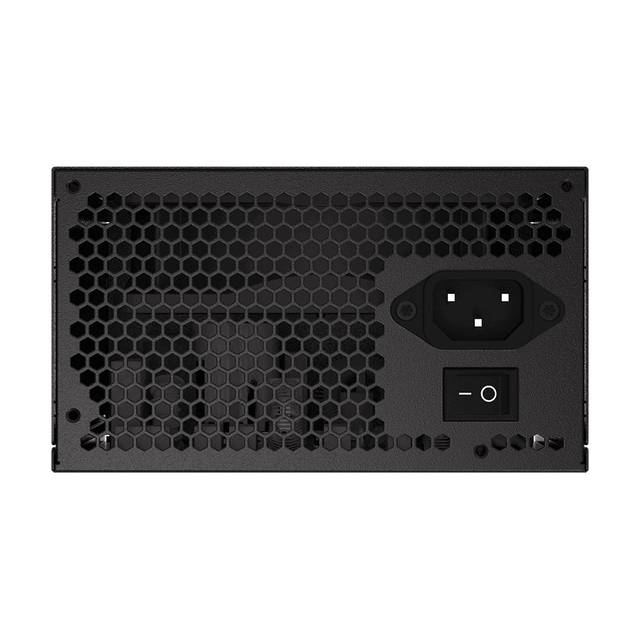

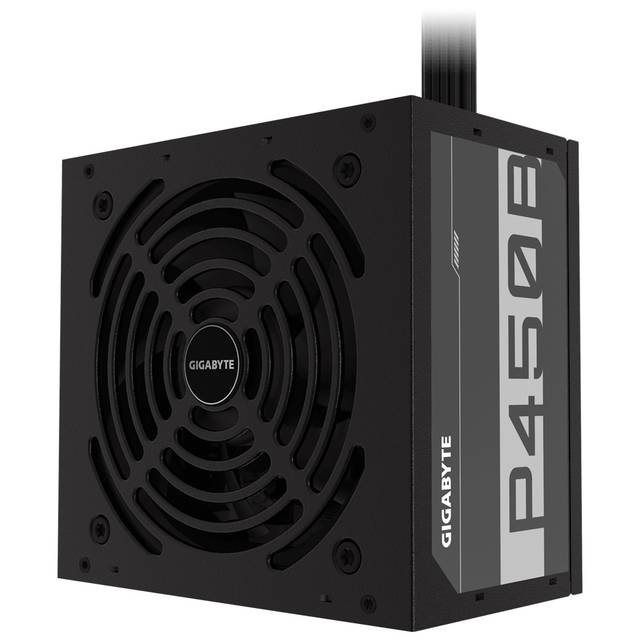

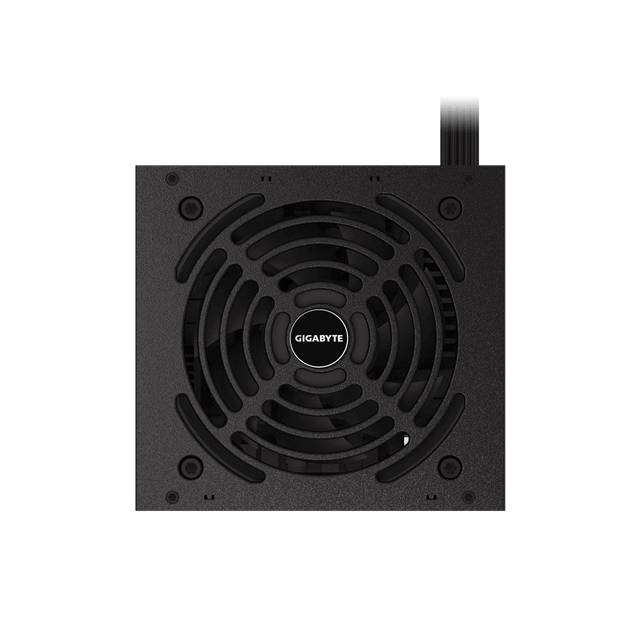

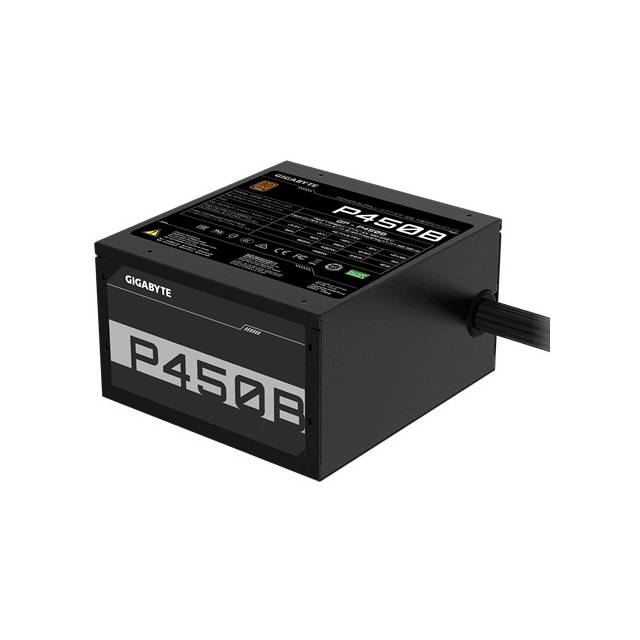

• Mfr Part Number: GP-P450B
• Model: P450B
• Features:
  • 80 PLUS Bronze certified
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Reliable flat cable
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 3 years warranty (Adjusted according to different regions)
• Maximum Power: 450 W
• Type: Intel Form Factor ATX 12V v2.31
• PFC: Active PFC(>0.9 typical)
• Input:
  • Voltage: 1 00-240 Vac(full range)
  • Current: 8 -4 A
  • Frequency Range: 6 0-50 Hz
• Fan: 1 20 mm Hydraulic Bearing (HYB) Fan
• 80 PLUS: Bronze
• Efficiency: 8 5% at typical load
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 1 00-500ms
• Hold Up Time: >16ms
• Cable Type: Flat, All black
• Connectors:
  • ATX/MB 20+4 Pin x 1: 550mm*1
  • CPU/EPS 4+4 Pin x 1: 600mm*1
  • PCI-e 6+2 Pin x 2: 550mm+150mm*1
  • SATA x 6: 500mm+120mm+120mm*2
  • 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1
• Dimensions: 150.0 x 140.0 x 86.0 mm

Available Quantity

5

UPC

813567028659

SKU

mingleGP-P450B

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

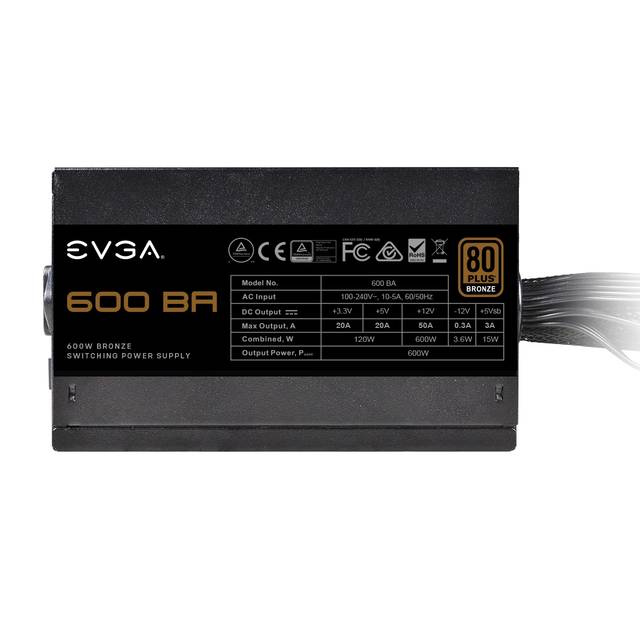

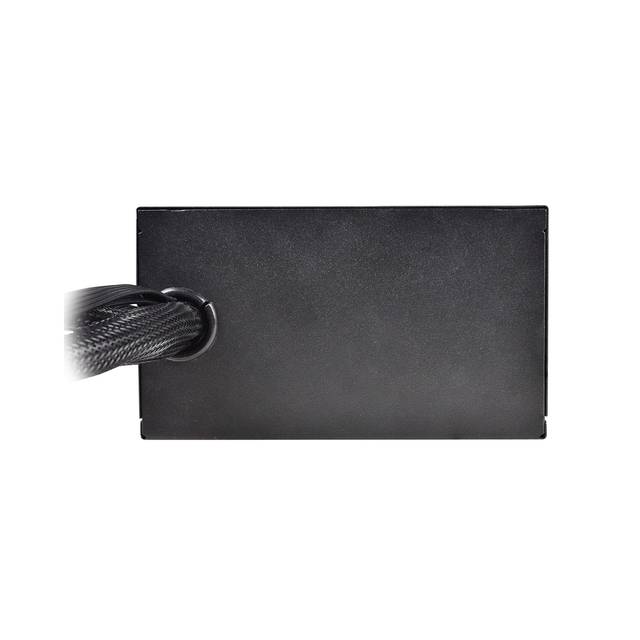

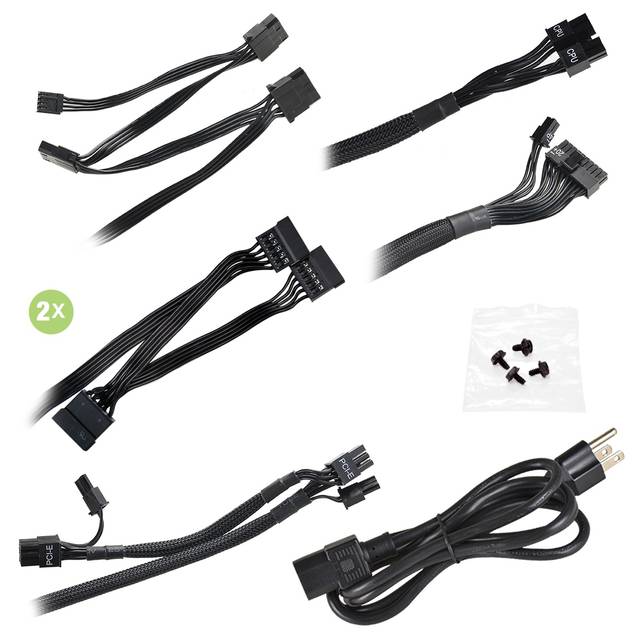

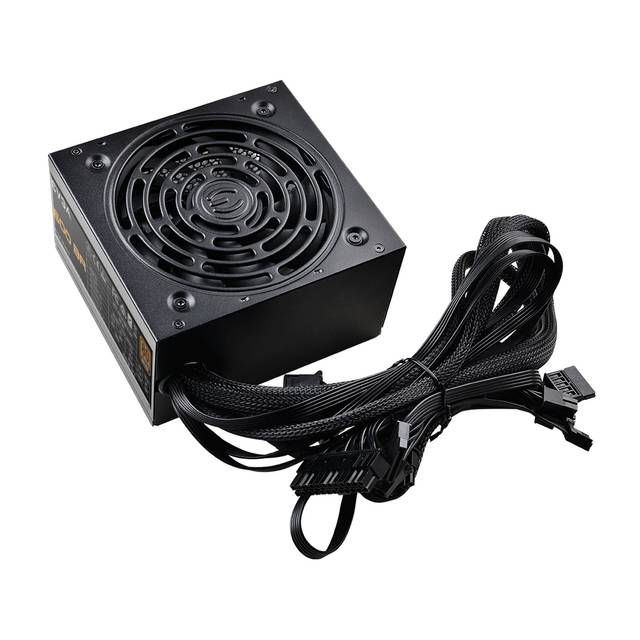

• Mfr Part Number: 100-BA-0600-K1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Single 12V. Rail
  • Active Power Factor Correction
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 3 Year Warranty
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
• Maximum Power: 600 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • AC Input: 10-5A
  • Frequency Range: 50 ~ 60 Hz
• Efficiency: 85% Typical
• MTBF: 100,000 hours
• Fan: 120mm Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 50A, -12V @ 0.3A, +5VSB @ 3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS (CPU) Power Connector, 2x 8pin (6+2) PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• Weight: 4.36 lbs

Available Quantity

5

UPC

843368064624

SKU

mingle100-BA-0600-K1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

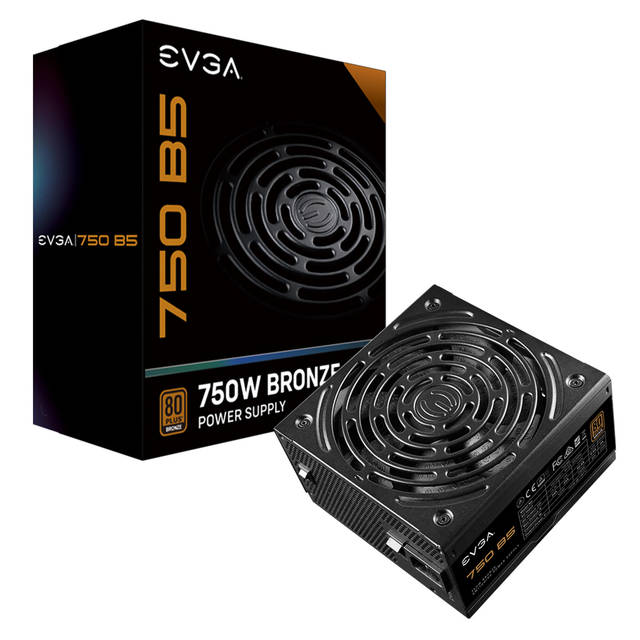

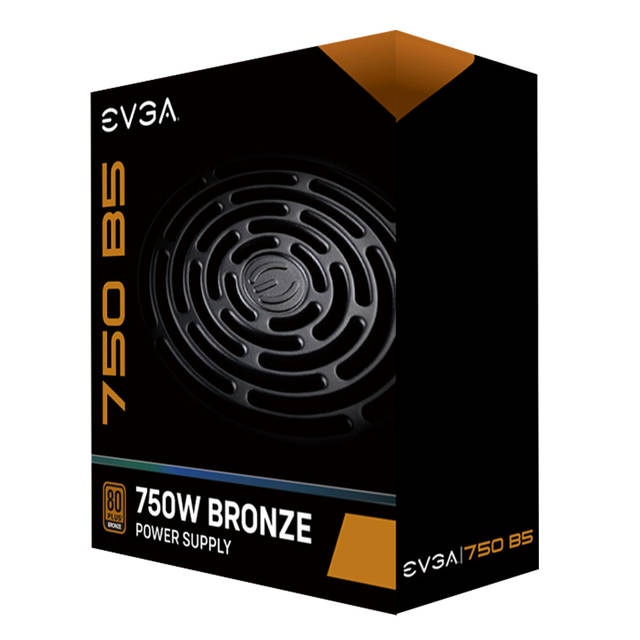

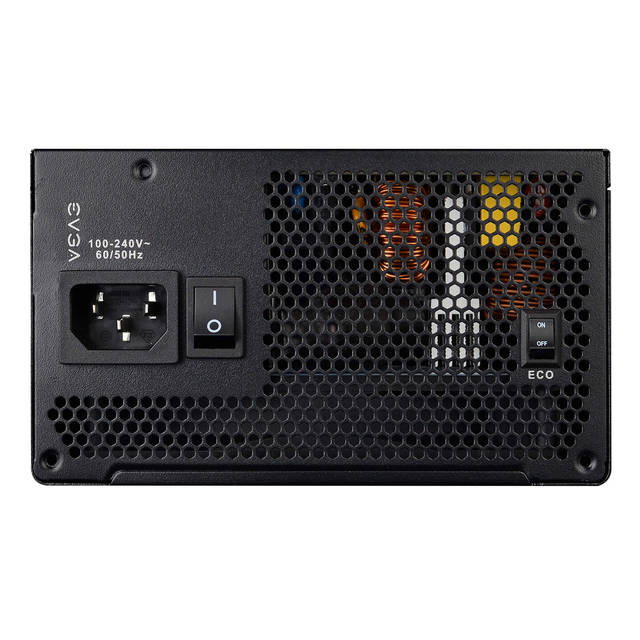

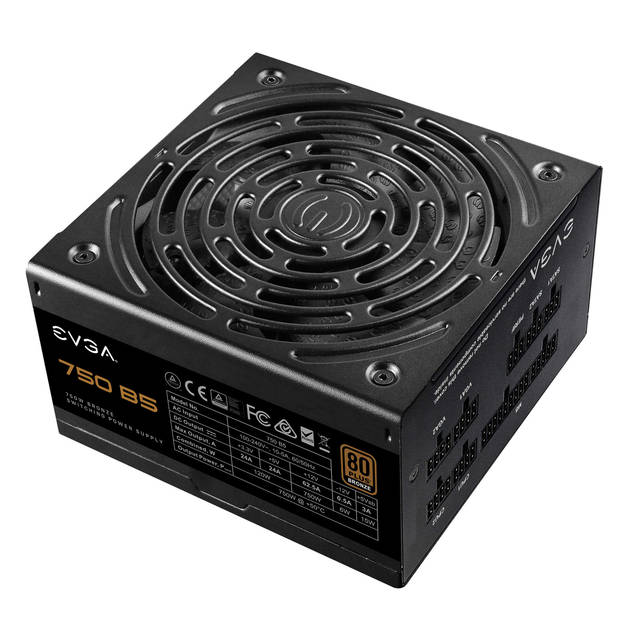

• Mfr Part Number: 220-B5-0750-V1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 62.5A, +5VSB @ 3.0A, -12V @ 0.5A

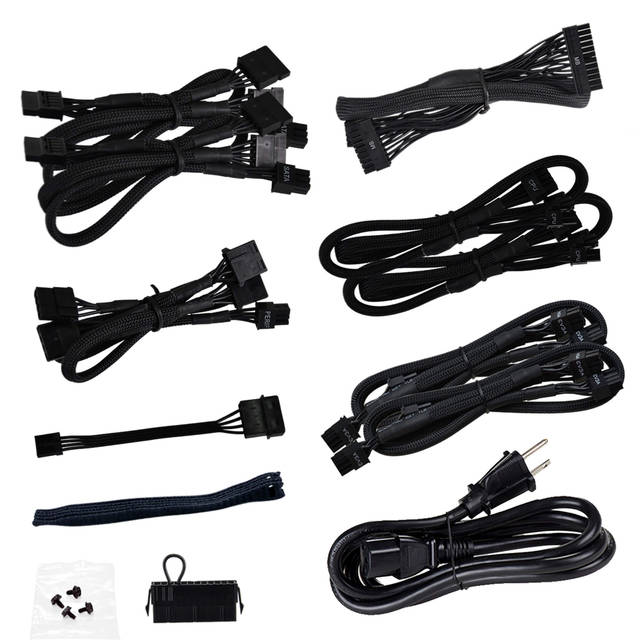

• ATX  Cable : 1x 600mm (m)
• EPS Cable  : 2x 600mm (m)
• PCIe Cable  : 2x 550mm, 700mm (m)
• SATA Cable  : 2x 500mm, 600mm, 700mm (m)
• Four-Pin Peripheral Cable  : 1x 500mm, 600mm, 700mm (m)
• Floppy Adapter  : 1x Molex to FDD Adapter
• AC Power  : 1x 1500mm (m)
• Modular Cable Type  : Full
• 24 Pin ATX  : 1x 24pin (20+4)
• EPS (PU)  : 2x 8pin (4+4)
• PIe  : 4x 8pin (6+2)
• SATA  : 6x
• Four-Pin Peripheral  : 3x
• Floppy  : 1x
• Operating Temperature   : 0 to 50
• Japanese apacitors   : 100%
• EO Mode   : Yes
• MTBF   : 100,000 Hours
• Net Weight   : 4.8 lbs
• Size   : 86mm (H) x 150mm (W) x 150mm (L)
• Approvals : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHSCompliance with ErP Lot 3 2014 Requirement
• Fan Size / Bearing   : 135mm Fluid Dynamic Bearing

Available Quantity

5

UPC

843368064297

SKU

mingle220-B5-0750-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

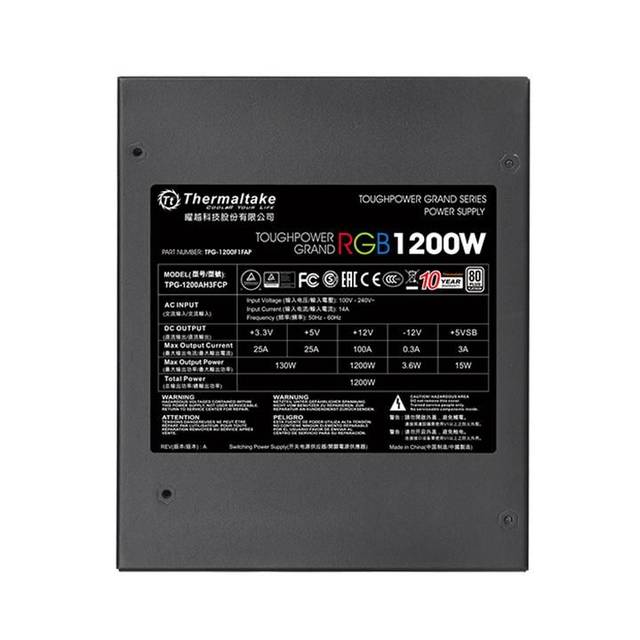

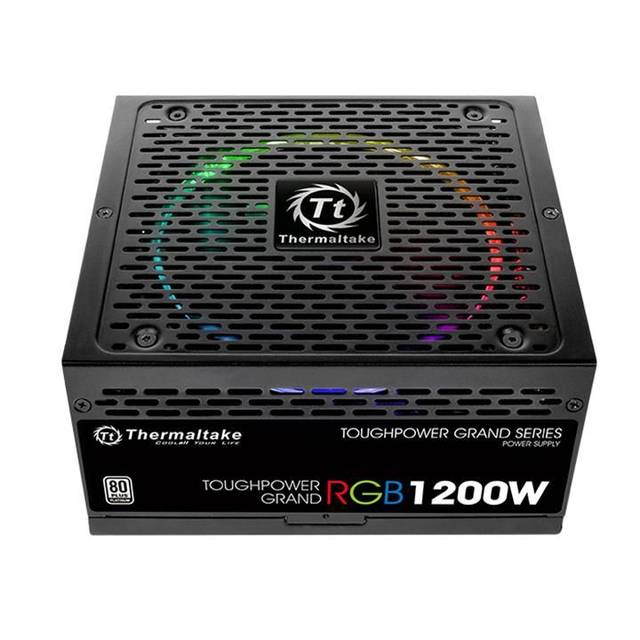

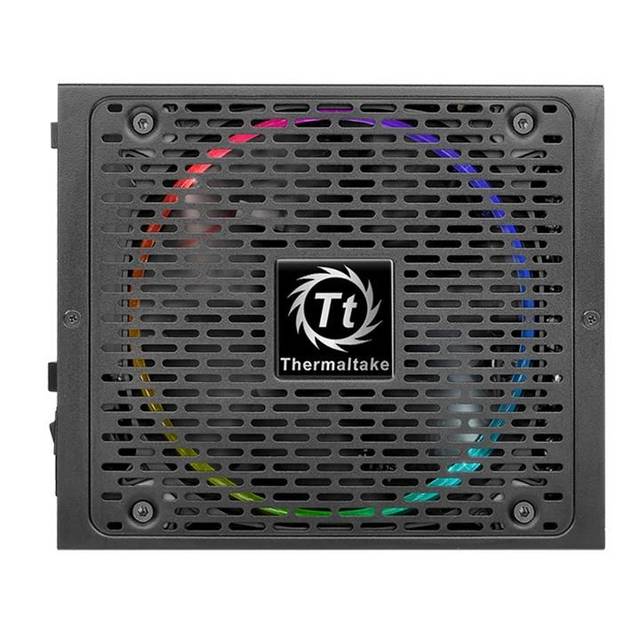

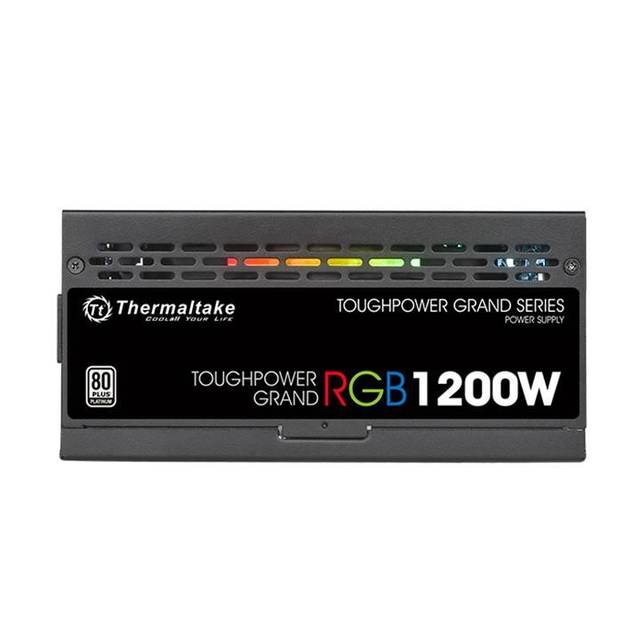

• Mfr Part Number: PS-TPG-1200F1FAPU-1
• Features:
  • One Button to Your Desired Color
  • New Platform for Better Ripple Noise Performance and Steady Voltage Output
  • Power Supply Fan Face-Up Placement for Better Cooling
  • Riing 14 RGB Fan with Concentrated Compression Fan Blade
  • Ultra Quiet Smart Zero Fan
  • < 30 mV Low Ripple Noise
  • Extremely Strict Voltage Regulation < 2%
  • 100% High Quality Japanese 105 C/221 F Capacitors
  • High Amperage Single +12V Rail & DC to DC Design
  • Fully Modular Low-Profile Flat Cable
  • 80 PLUS Platinum Certified and Intel C6/C7 States Ready
  • RGB Lighting Provides Best Aesthetics for All Chassis

• Watts: 1200W

• RGB Fan: Yes

• Form Factor: ATX

• Max. Output Capacity: 1200W

• Peak Output Capacity: 1440W

• Color: Black
• PFC (Power Factor Correction): Active PFC

• Power Good Signal: 100-500 msec

• Hold Up Time: > 16msec at 100% of full load

• Input Current: 14A

• Input frequency Range: 50Hz - 60Hz

• Input Voltage: 100V 240V~

• Openating Temperature: 0 C to + 50 C

• Openation Humidity: 20% to 90%,non-condensing

• Storage Temperature: -20 C to + 70 C

• Storage Humidity: 5% to 95%, non-condensing

• Cooling System: 14cm hydraulic bearing fan

• Efficiency: Meet 80 PLUS Platinum at 115Vac input. MTBF 120,000 hrs minimum

• Safety Approval: CE/cTUVus/T V /FCC/CCC/EAC /S-Mark PCI-E 6+2PIN 8

• Protection: OVP, SCP, OPP, UVP, OTP,OCP
• Dimension: 150mm(W) x 86mm(H) x 180mm(D)

Available Quantity

5

UPC

841163000403

SKU

minglePS-TPG-1200F1FAPU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

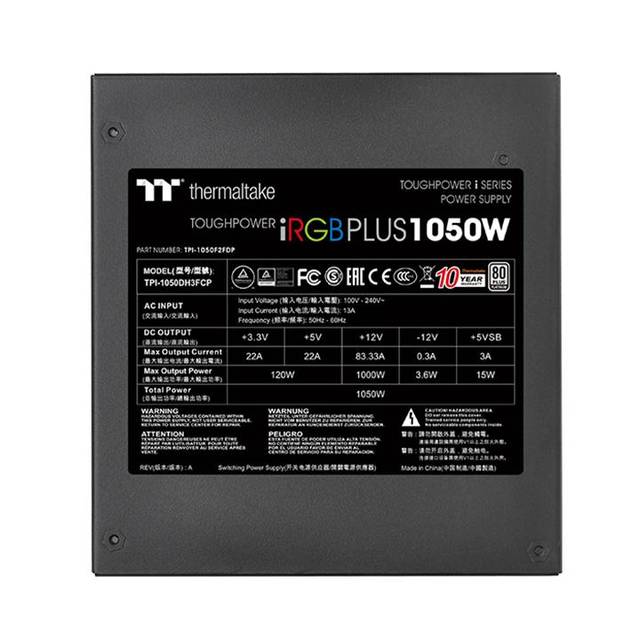

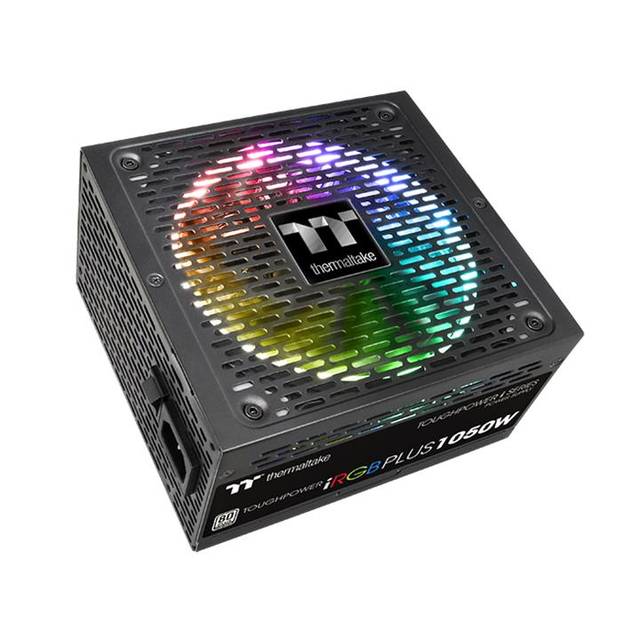

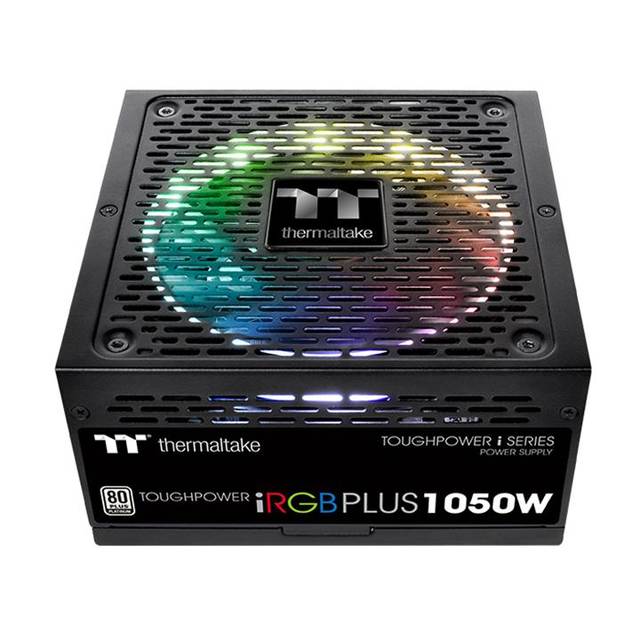

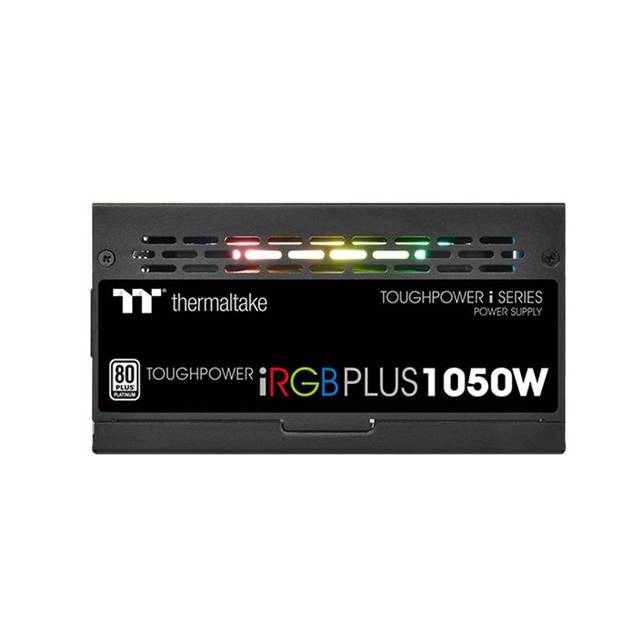

• Mfr Part Number: PS-TPI-1050F2FDPU-1
• Features:
  • Thermaltake Toughpower iRGB PLUS 1050W Platinum – TT Premium Edition
  • Shimmering Your Build From Color to Color
  • Smart Power Management Service Architecture
  • Patented 16.8 Million Colors Riing PLUS 14 RGB Fan
  • 12 Addressable RGB LEDs at Your Control
  • Security Protection – Warning Alert & PC Off Remote Control
  • Security Protection – Schedule Shutdown
  • Compact Design for Easy Installation
  • New Platform for Better Ripple Noise Performance and Steady Voltage Output
  • < 30 mV Low Ripple Noise
  • Extremely Strict Voltage Regulation < ±2%
  • 100% High Quality Japanese Capacitors
  • Fully Modular Cable Design
  • Core Component: MCU
  • Digital Control Board
  • Massive and Dedicated +12V Output
  • 80 PLUS Platinum-Certified and Kaby lake-Ready
  • TT Power VR Ready
  • DPS G PC APP 3.0: Smart Zero Fan
• Maximum Power: 1050 W
• Input:
  • Voltage: 100 VAC ~ 240 VAC
  • Current: 13A
  • Frequency Range: 50 ~ 60 Hz
• Form Factor: ATX 12V v2.4 and EPS v2.92
• Efficiency: MEET 80 PLus Platinum at 115Vac input
• Hold-up Time: 16msec (minimum) @ 100% of full load
• Power Good Signal: 100 ~ 500 ms
• Power Factor Correction: Active PFC
• Fan: 14cm hydraulic bearing fan
• MTBF: 120,000 hrs minimum
• Output: +3.3V @ 22A; +5V @ 22A; +12V @ 83.83A; -12V @ 0.3A; +5VSB @ 3A
• Connectors: 1x 24pin Main Connector, 2x 8/4+4pin ATX 12V Connectors, 8x 6+2pin PCI-Express Connectors,12x SATA Connectors, 4x 4pin Peripheral Connectors, 1x FDD Connector
• Safety Approval: CE/cTUVus/TÜV/FCC/CCC/EAC /S-Mark
• Color: Black
• Dimensions (WxDxH): 150.0 x 160.0 x 86.0 mm

Available Quantity

5

UPC

841163000304

SKU

minglePS-TPI-1050F2FDPU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

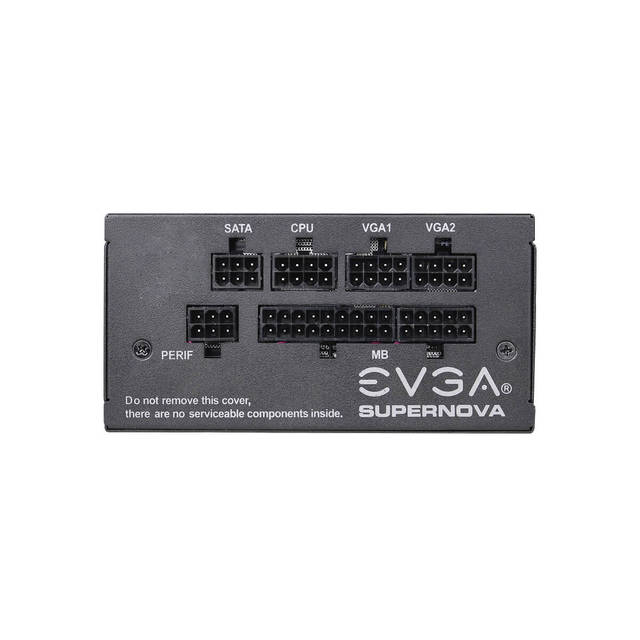

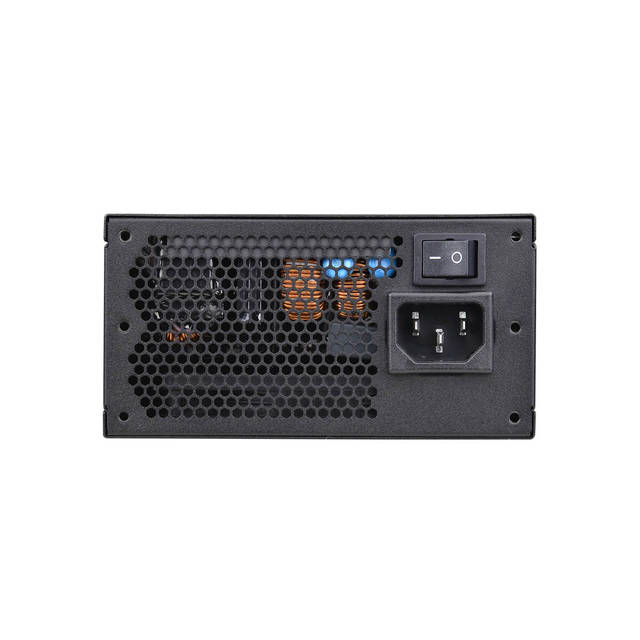

• Mfr Part Number: 123-GM-0550-Y1

• Features:
  • 100% Japanese Capacitors ensure long-term reliability

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • SFX-Standard Form Factor packs large power into a small space for compatibility with mITX cases and compact gaming systems
  • Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
  • Active Power Factor Correction (PFC)
• Maximum Power: 550 W
• Input:
  • Voltage: 100 ~ 240 VAC

  • Current: 7.5 - 4A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V

• Efficiency: 90% (115VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 92mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 45.8A, +5VSB @ 2.5A, -12V @ 0.3A

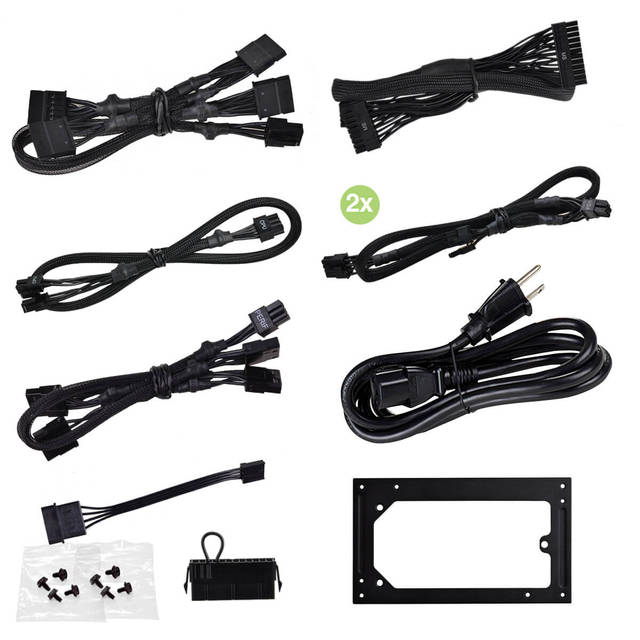

• Connectors: 1x 24pin ATX Power Connector, 1x 8(4+4)pin EPS (CPU) Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 4x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 125.0 x 100.0 x 63.0 mm

• Weight: 3.3 lbs


Available Quantity

5

UPC

843368056322

SKU

mingle123-GM-0550-Y1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

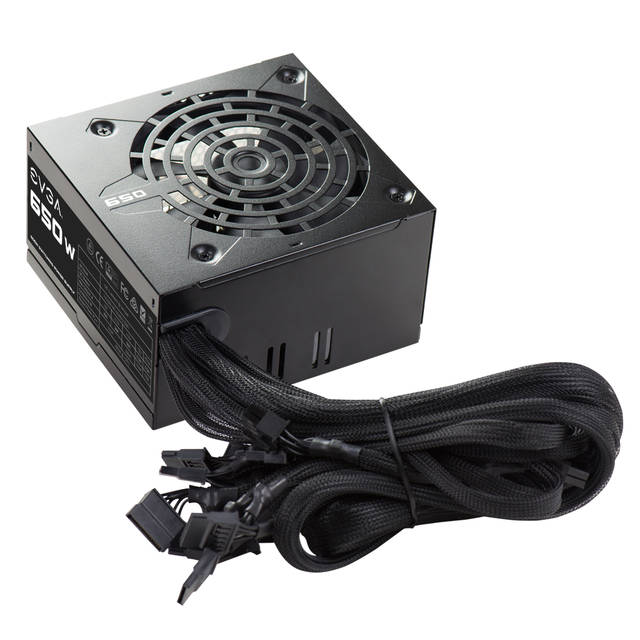

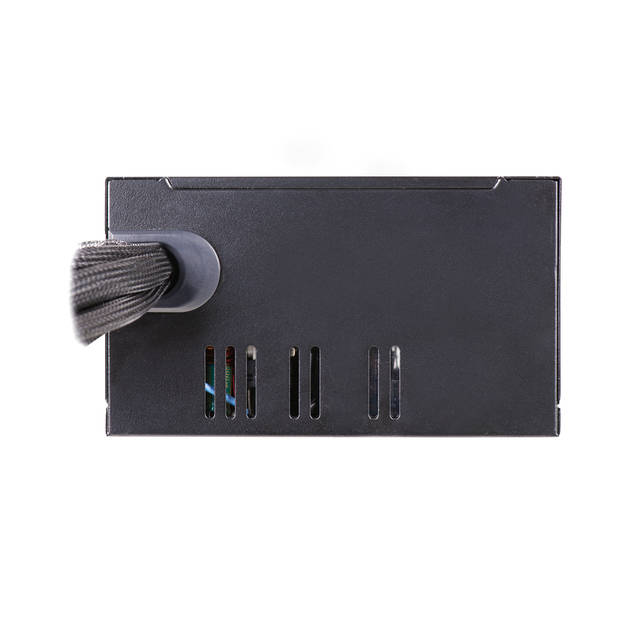

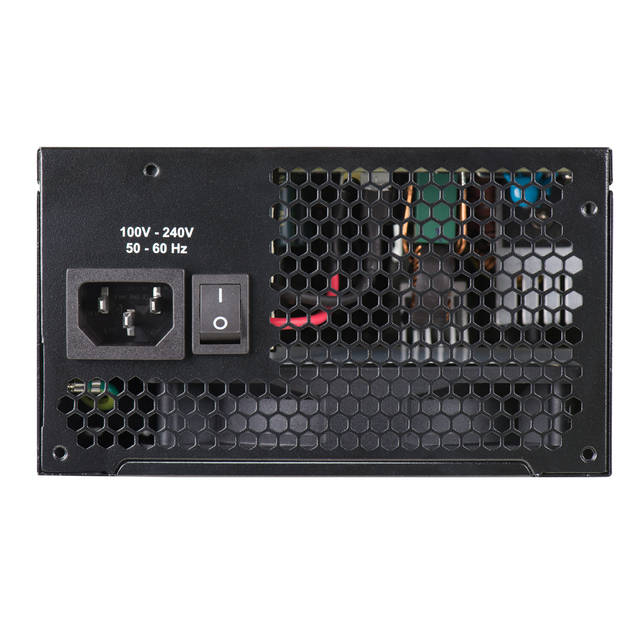

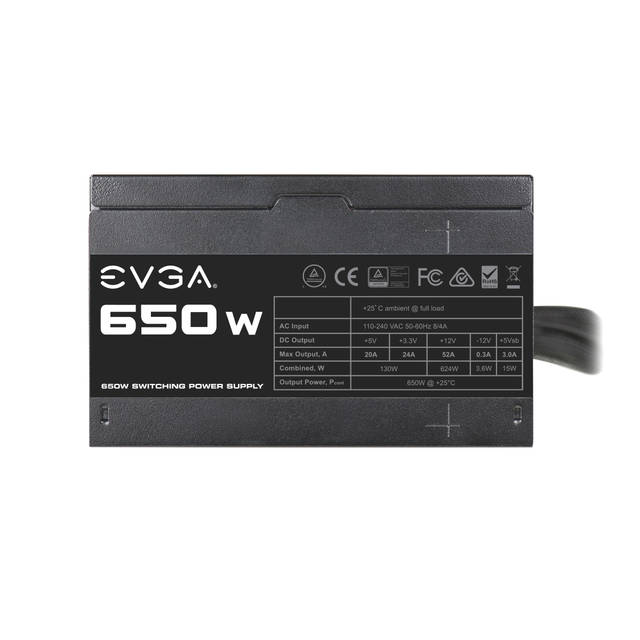

• Mfr Part Number: 100-N1-0650-L1
• Features:
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 8 - 4 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 75% Typical
• MTBF: 100,000 hours
• Fan: 1x 120mm Sleeve Bearing Fan
• Output: +3.3V @ 24A, +5V @ 20A, +12V @ 52A, +5VSB @ 3A, -12V @ 0.3A

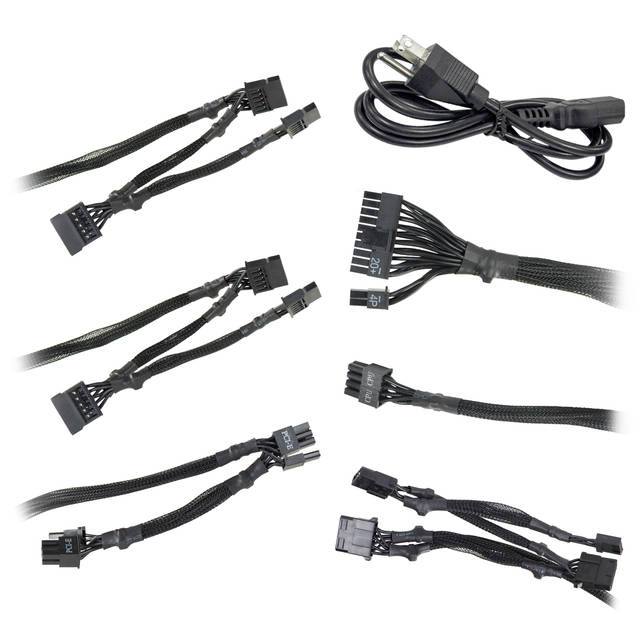

• Connectors: 1x 24pin ATX Main Connector, 1x 8(4+4)pin EPS Power Connector, 2x 8(6+2)pin PCI-Express Connector, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, cUL, CE, FCC, BSMI, CCC, WEEE, RoHS
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 3.0 lbs

Available Quantity

5

UPC

843368040277

SKU

mingle100-N1-0650-L1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

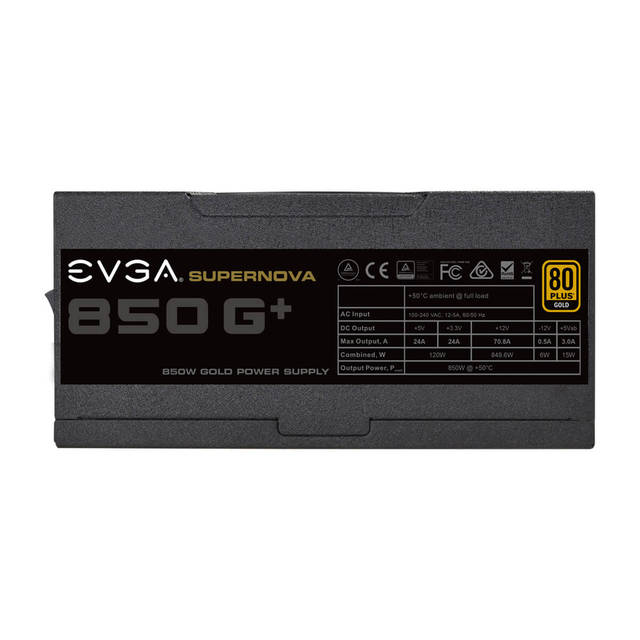

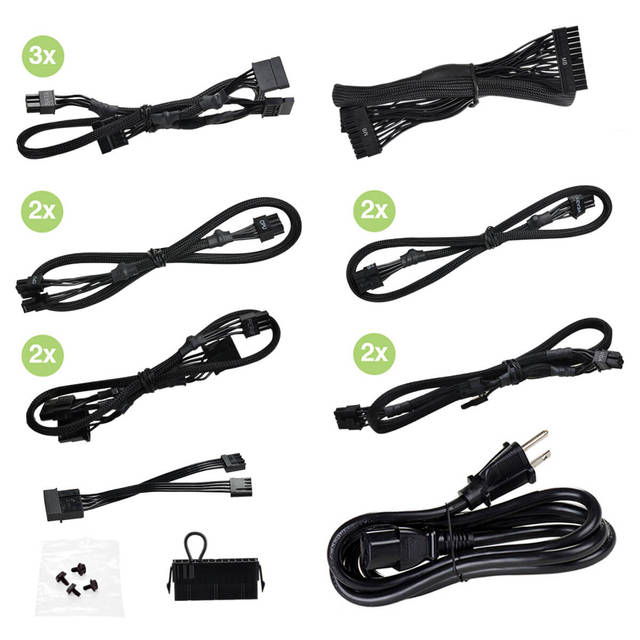

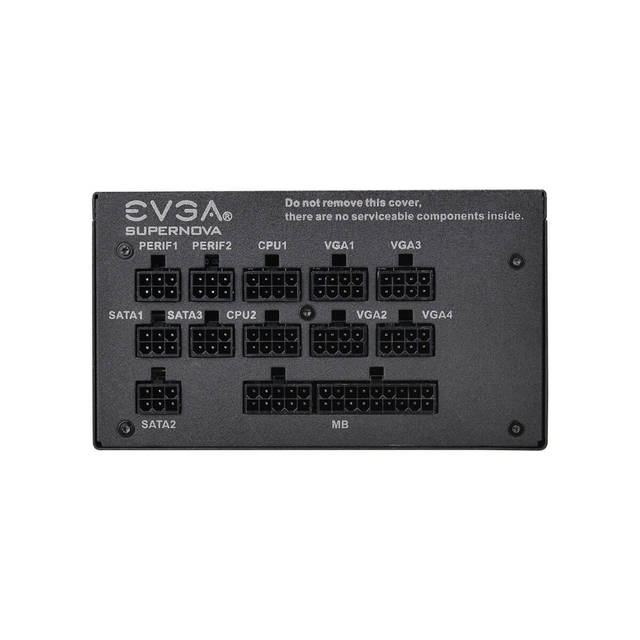

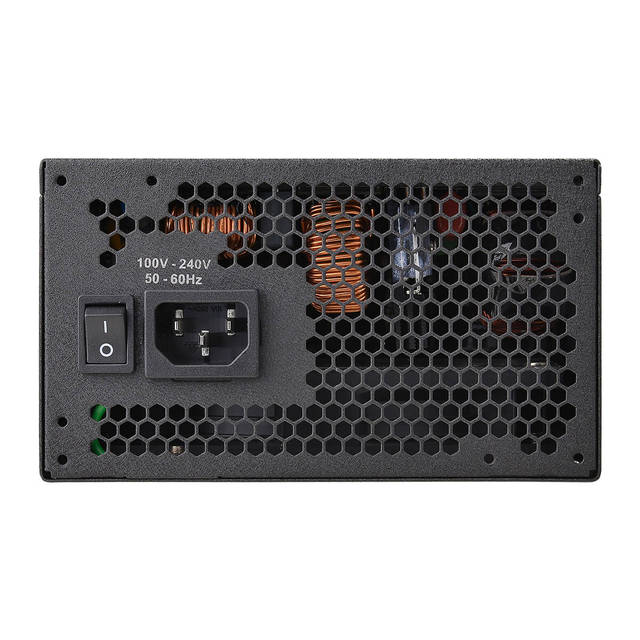

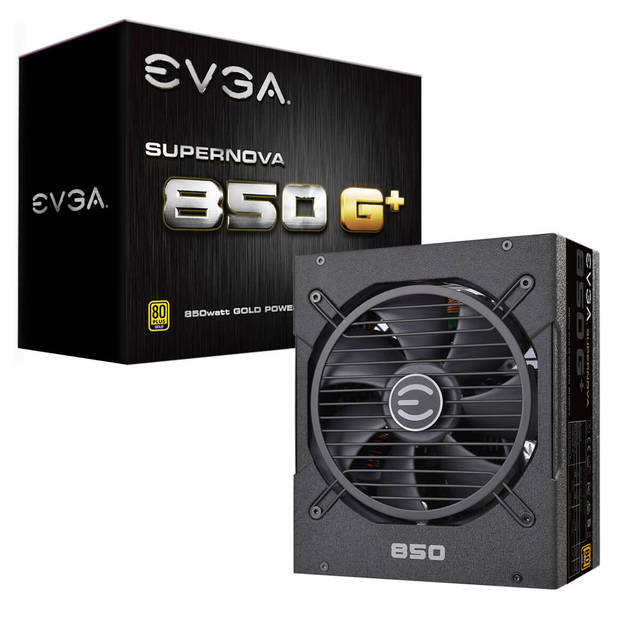

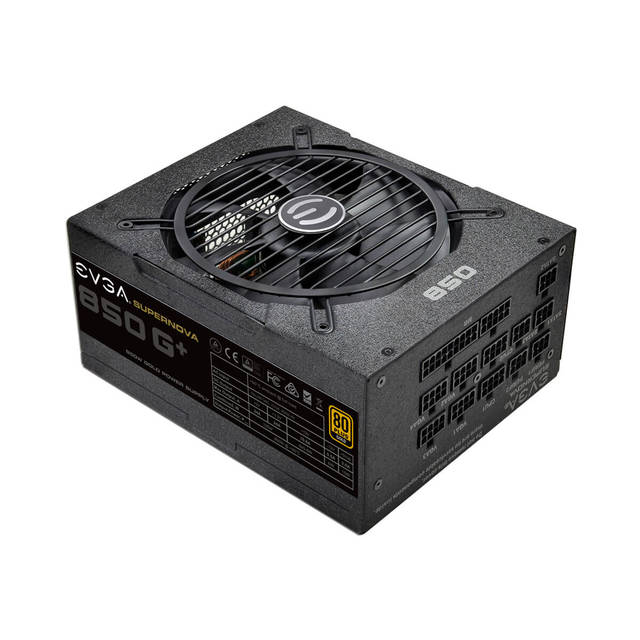

• Mfr Part Number: 120-GP-0850-X1
• Features:
  • 100% Japanese Capacitors ensure long-term reliability
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

  • NVIDIA SLI & AMD Crossfire Ready
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 12-5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

• MTBF: 100,000 hours
• Fan: 1x 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @70.8A, +5VSB @ 3.0A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connectors, 6x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 6x 4pin Peripheral Connectors, 2x Floppy Connectors

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 180.0 x 85.0 mm
• Weight: 7.0 lbs

Available Quantity

5

UPC

843368048570

SKU

mingle120-GP-0850-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

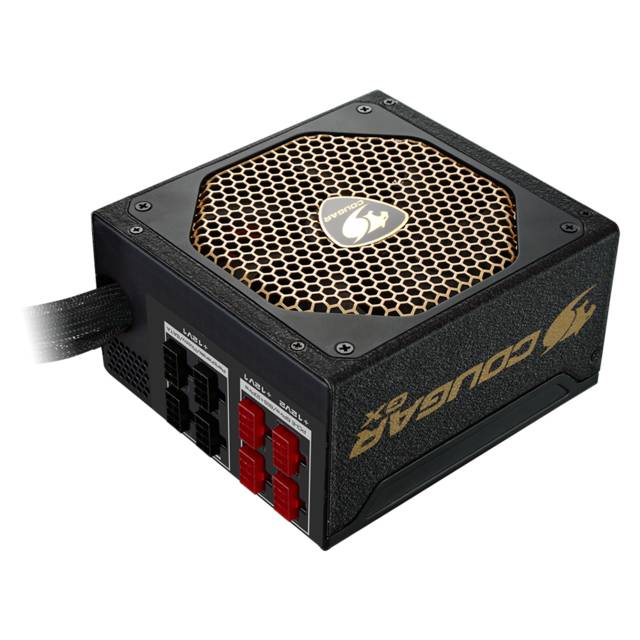

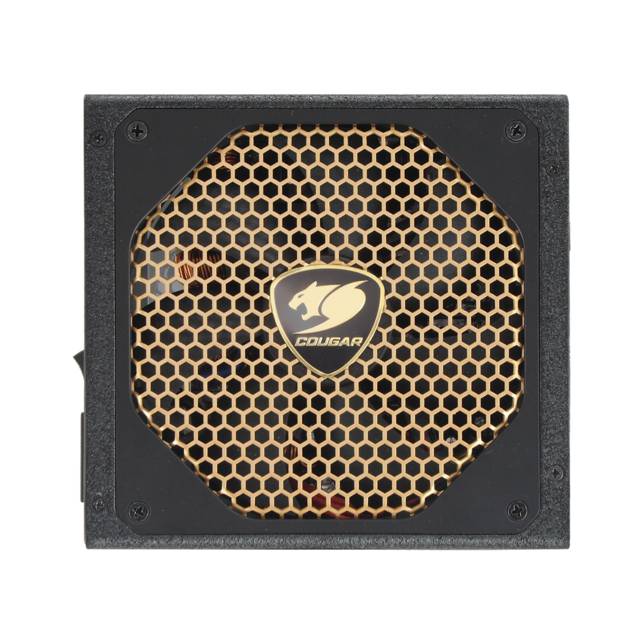

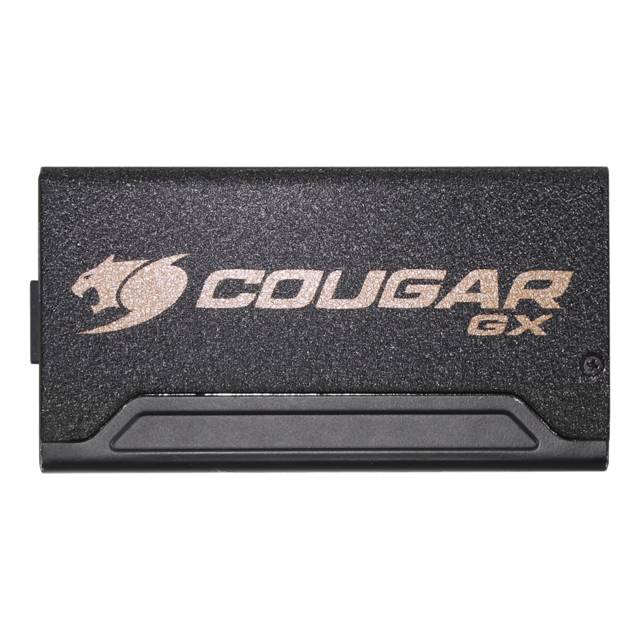

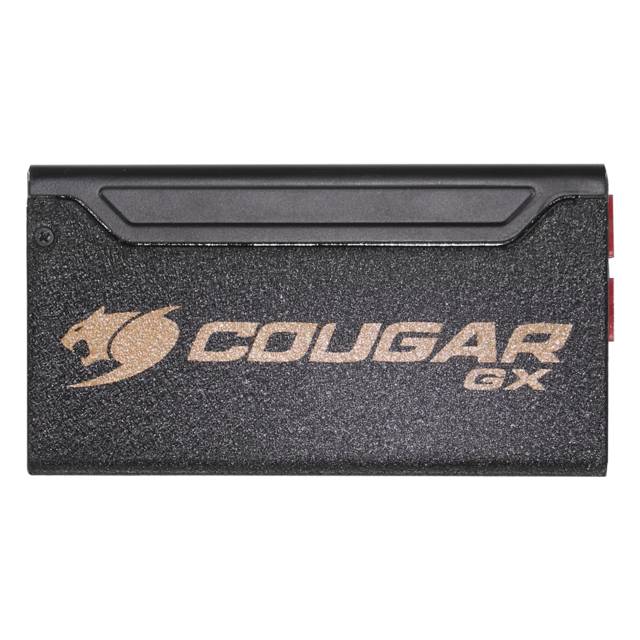

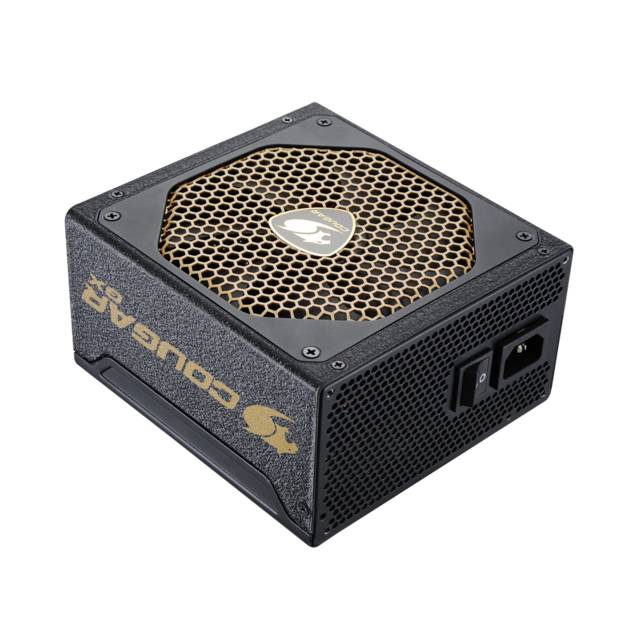

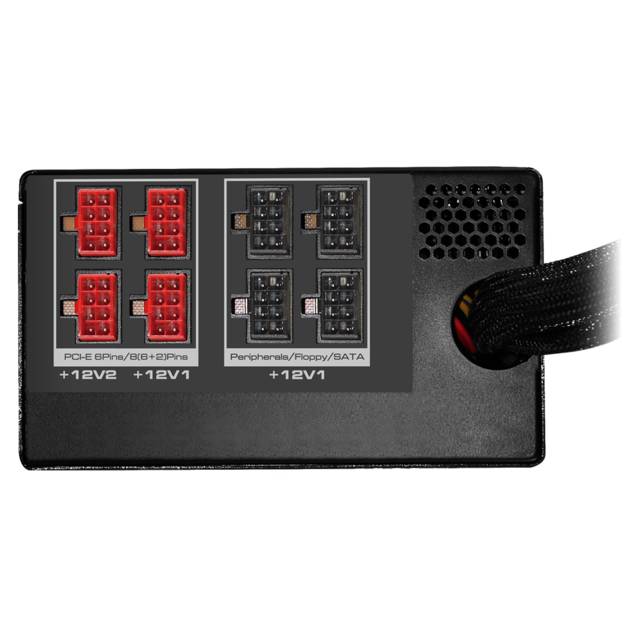

• Mfr Part Number: GX1050V3
• Features:
  • 80-PLUS gold certified - Up to 93% of efficiency, compliant with 80-PLUS GOLD efficiency requirement
  • Ultra-quiet & temperature-controlled 140mm fan
  • Advanced modular cable
  • Compatible with latest PC-technology - Supports the newest specifications of ATX12V v2.31 and EPS 2.92 standards
  • Support Multi-GPU technology
  • 105 C Japanese capacitors
  • High performance at 50 c
  • Dynamic multi-12V
  • Compliant with the latest ERP lot6 2013
  • Full protections with OCP, SCP, OVP, UVP, OPP & OTP
• Maximum Power: 1050 W
• Type: ATX12V v2.31 and EPS 2.92
• Input:
  • Input Voltage: 110 ~ 240 V
  • Input Frequency Range: 50 ~ 60 Hz
  • Input Current: 12 - 6.3 A
• Output: +3.3V @ 25A; +5V @ 25A; +12V1 @ 60A; +12V2 @ 60A; -12V @ 0.8A; +5V SB @ 4A
• Efficiency: Up to 93%
• Fan: 1x 140mm Ultra-quiet & Temerature-controlled Fan
• Connectors: 1x 24(20+4)pin Main Connector, 1x 8(4+4)pin CPU Connector, 6x 8(6+2)pin PCI-Express Connectors, 10x SATA Connectors, 4x Peripheral Connectors
• Dimensions (WxLxH): 150.0 x 160.0 x 86.0 mm

Available Quantity

5

UPC

871520007646

SKU

mingleGX1050V3

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

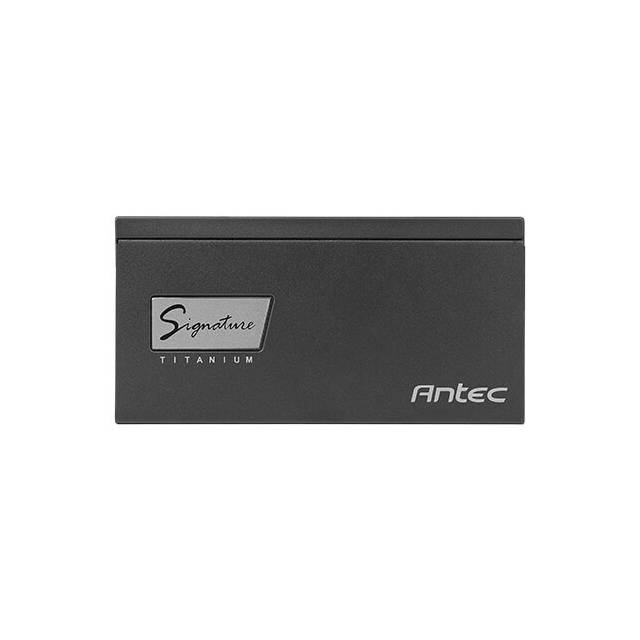

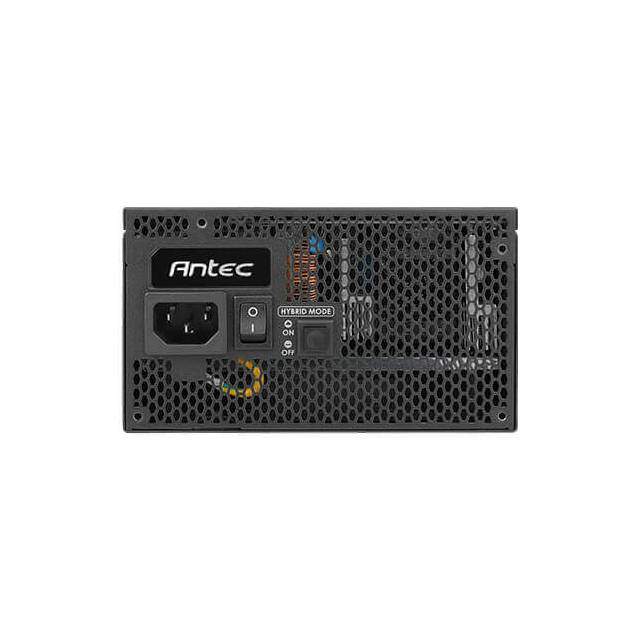

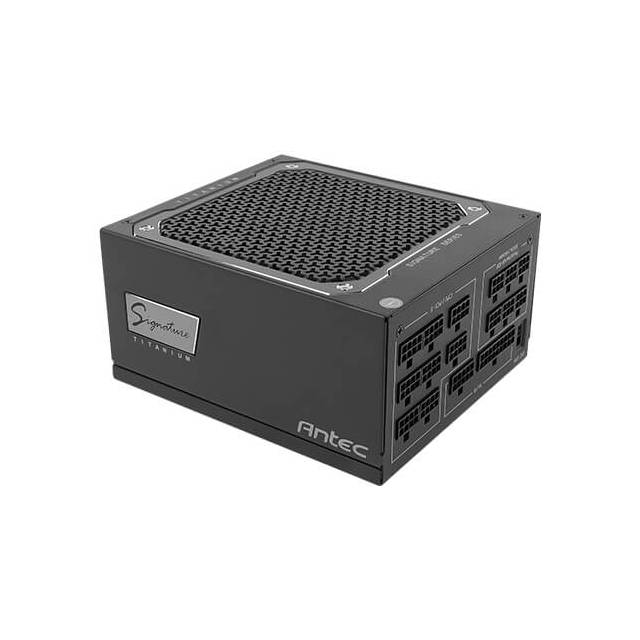

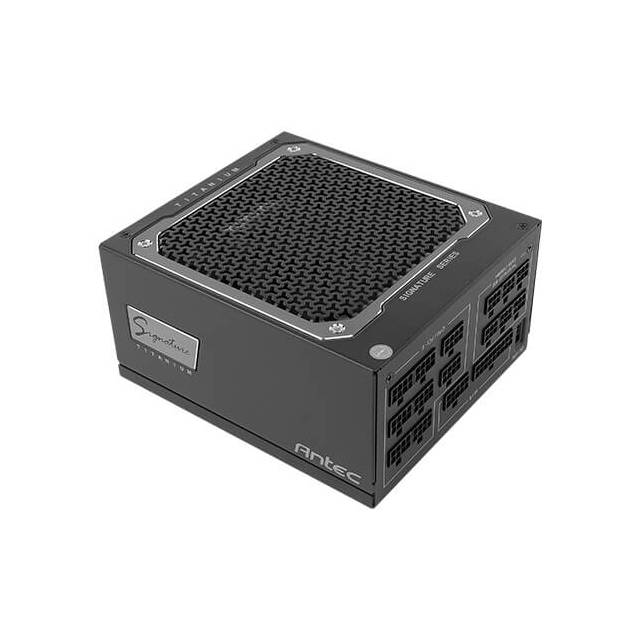

• Mfr Part Number: ST1000
• Features:
  • 80 PLUS Titanium Certified reduces your electricity bill
  • 100% Top-Grade Japanese Heavy-Duty Capacitors ensure long-term reliability with Antec Quality 10-year warranty
  • 28(18+10) pin MBU Socket for possible future MBU connectors
  • 135 mm FDB Silence: Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
  • PhaseWave Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
  • Zero RPM Manager: An advanced low voltage fan control with fan-off mode at low loads for absolute silence
  • CircuitShield: Full suite of industrial grade protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO
  • OC Link Feature allows 2 Signature PSUs to work in tandem to power the most demanding systems
• Maximum Power: 1000 W
• Input:
  • Voltage: 100 - 240 VAC 10%
  • Current: 13 - 6.5 A
  • Frequency Range: 47 - 63 Hz
• Type: ATX
• Power Factor Correction: APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical)
• Efficiency: At 10% / 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 94% / 90%.
• Fan: 135 x 135 x 25(mm) FDB Silent Fan
• Connectors: 1x 24(20+4)pin Main Power Connector, 2x 8(4+4)pin EPS 12V Power Connectors, 8x 8(6+2)pin PCI-Express Connectors, 16x SATA Connectors, 5x Molex Connectors, 1x FDD Connector
• Regulatory: CB, CE, FCC, BSMI, TUV, cTUVus, 3C, KC, RCM
• Dimensions (WxLxH): 150 x 170 x 86mm
• Gross Weight: 3.94 Kgs

Available Quantity

5

UPC

761345117104

SKU

mingleST1000

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

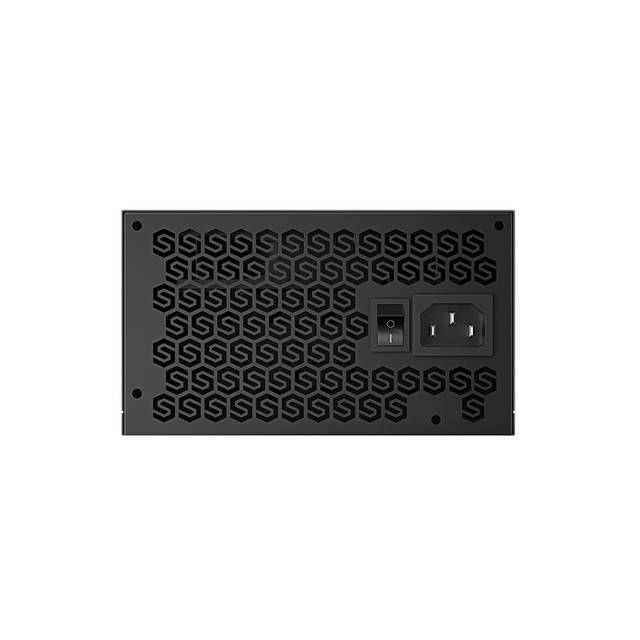

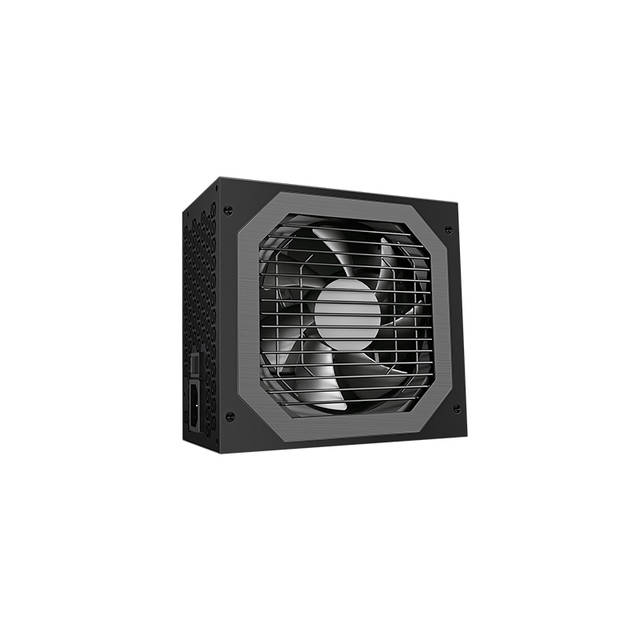

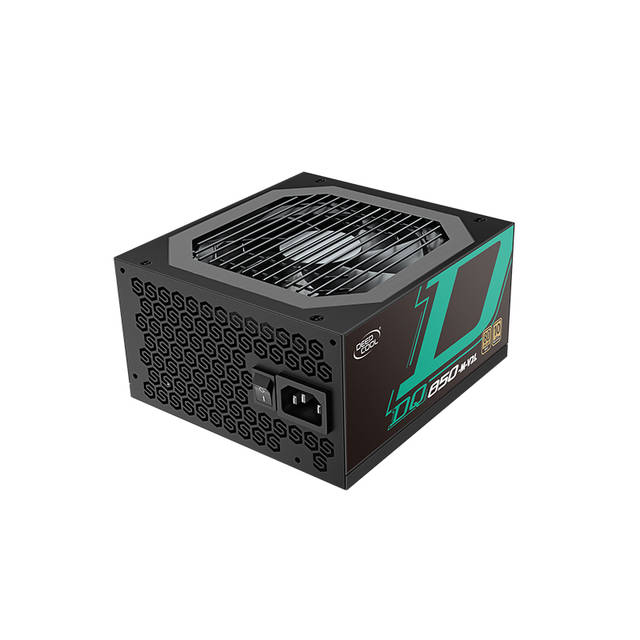

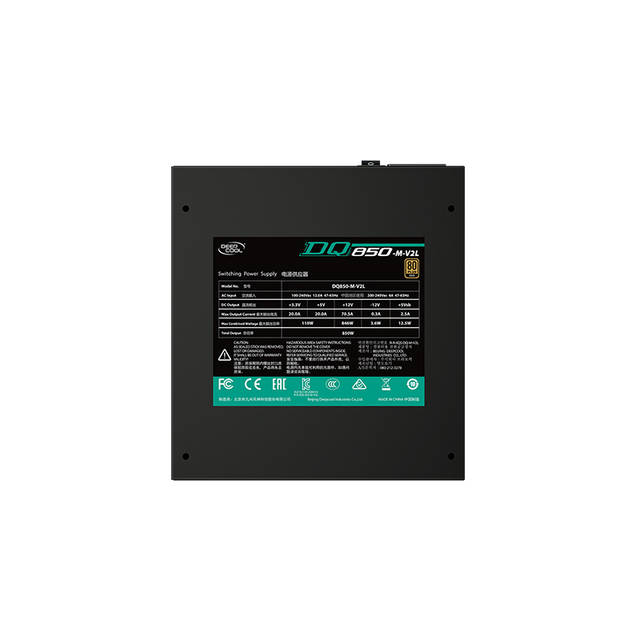

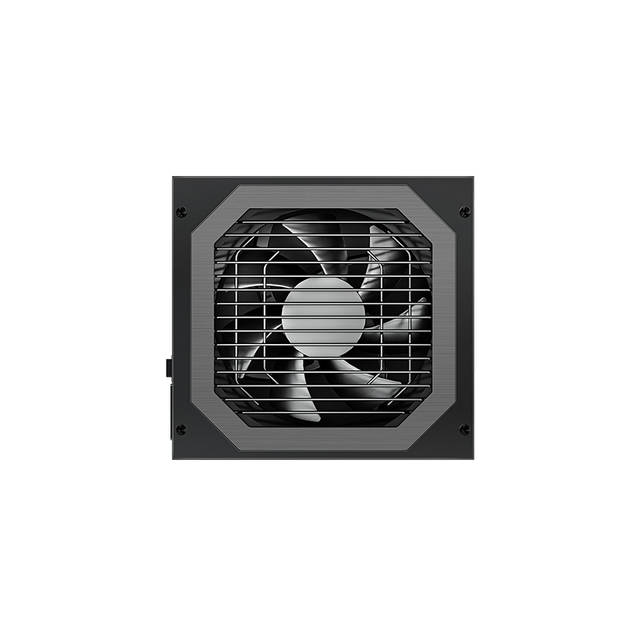

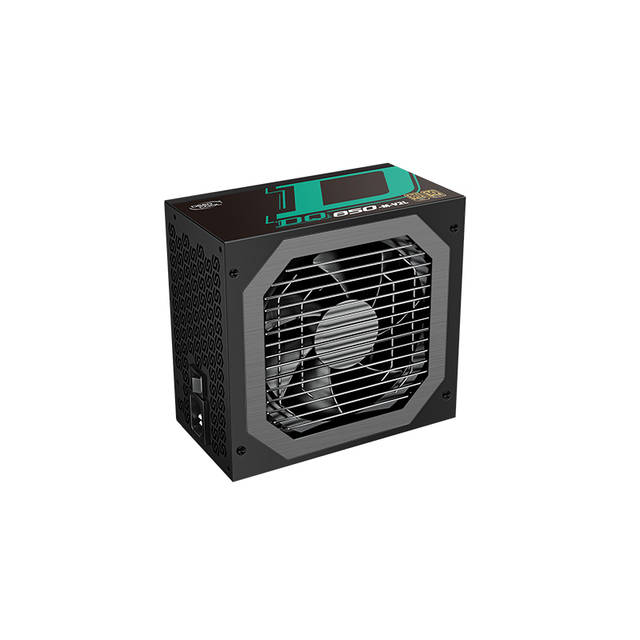

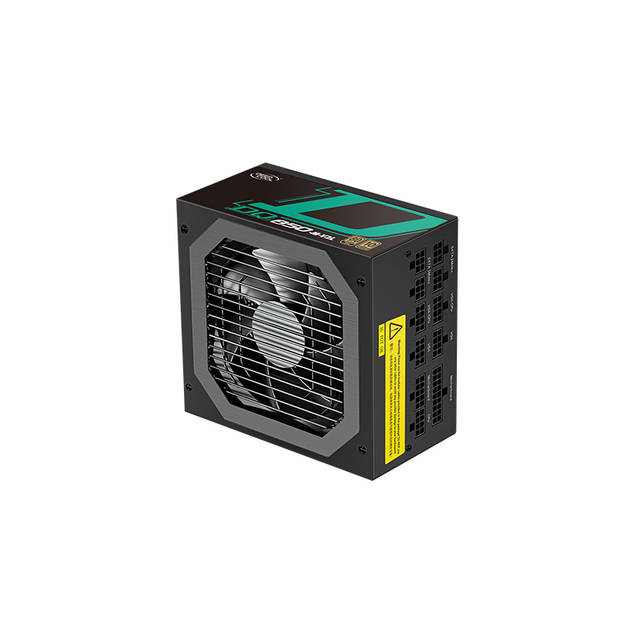

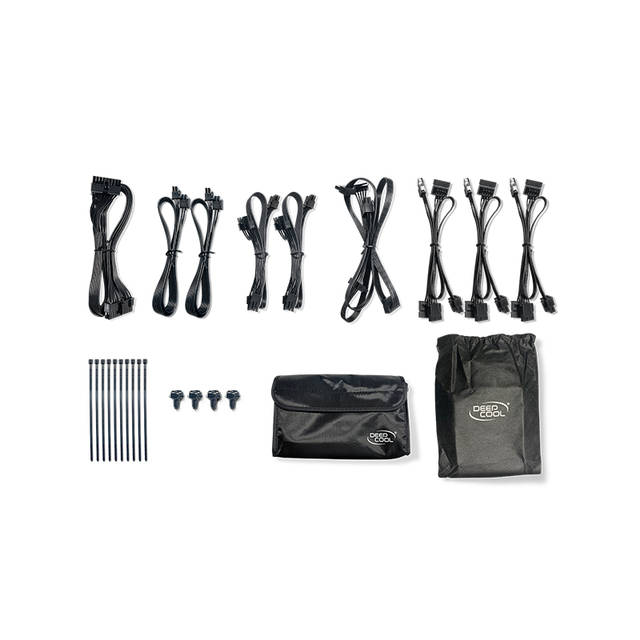

• Mfr Part Number: DQ850-M-V2L
• Features:
  • 80 PLUS Gold certified for efficient power delivery and lower temperatures
  • Industrial grade 100% Japanese capacitors provide longer lasting reliability and continous power.
  • Fully modular with flat black cables help keep the clutter down.
  • Quiet low-noise operation with a tuned fan curve.
  • CircuitShield protects your PSU from irregular voltage and current issues including short circuit, overpower and over temperature.
  • 10 Year warranty for complete reassurance
• Maximum Power: 850 W
• Type: ATX12V / EPS12V
• Fans: 1 x 120mm Hydraulic Bearing Fan
• PFC: Active
• Main Connector: 20+4 Pin
• PCI-Express Connector: 2 x 6+2-Pin
• SATA Power Connector: 4
• Modular: Full Modular
• Energy-Efficient: 80 PLUS Gold Certified
• Over Voltage Protection: Yes
• Input Voltage: 100-240V
• Input Frequency Range: 47-63Hz
• Input Current: 12.0A
• Output: +3.3V@20A, +5V@20A, +12V@70.5A, -12V@0.3A, +5VSB@2.5A
• MTBF: 100,000 Hours
• Dimensions: 150 x 160 x 86 mm
• Max PSU Length: 160
• Weight: 2.84kg
• Warranty: 10 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleDQ850-M-V2L

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

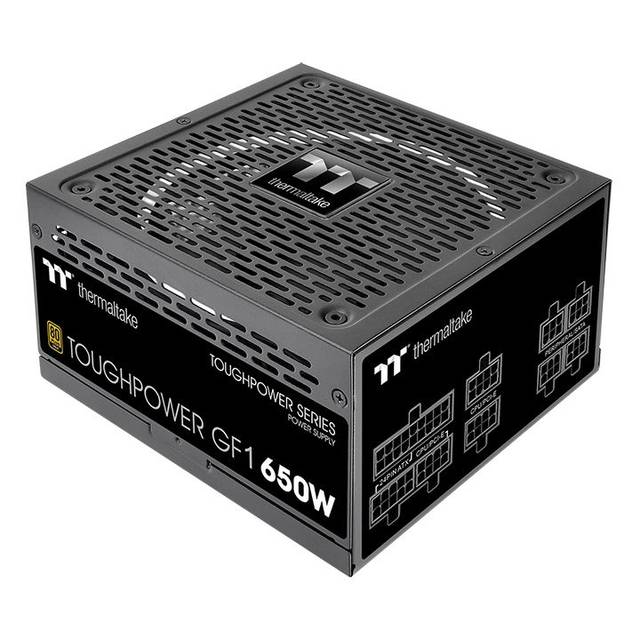

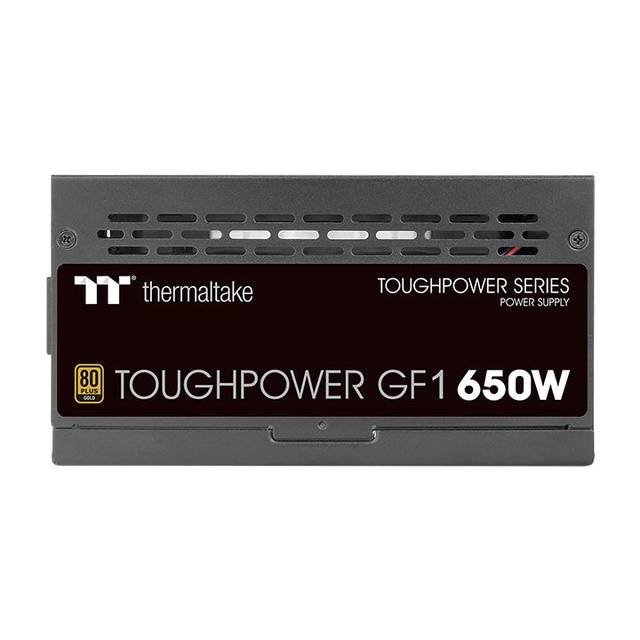

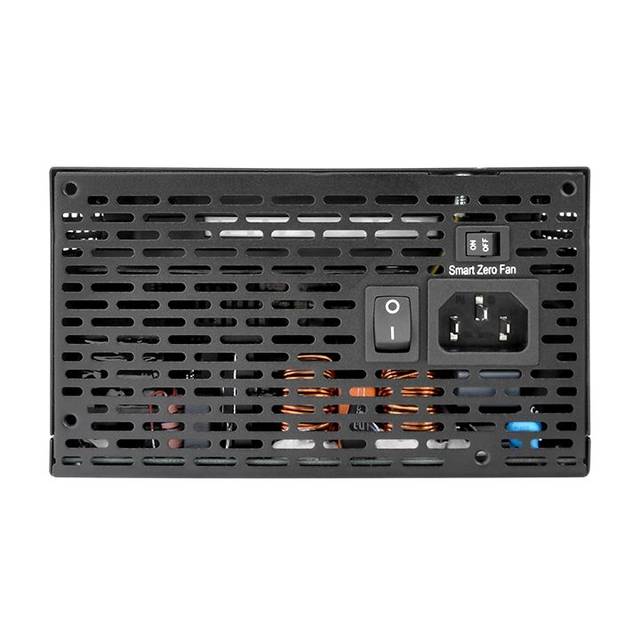

• Mfr Part Number: PS-TPD-0650FNFAGU-1
• MAX. OUTPUT CAPACITY : 650W

• PEAK OUTPUT CAPACITY : 780W

• COLOR : Black

• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 160mm(D)

• PFC (POWER FACTOR CORRECTION) : Active PFC

• POWER GOOD SIGNAL : 100-500 msec

• HOLD UP TIME : > 16msec at 100% of full load

• INPUT CURRENT : 10A

• INPUT FREQUENCY RANGE : 50Hz - 60HzINPUT VOLTAGE : 100V 240V~

• OPERATING TEMPERATURE : 0 C to + 50 C
• OPERATING HUMIDITY : 20% to 90%,non-condensing

• STORAGE TEMPERATURE : -20 C to + 70 C

• STORAGE HUMIDITY : 5% to 95%, non-condensing

• COOLING SYSTEM : 14cm hydraulic bearing fan

• EFFICIENCY : Meet 80 PLUS Gold at 115Vac input.

• MTBF : 120,000 hrs minimum

• SAFETY APPROVAL : CE/cTUVus/T V S D/FCC/BSMI/EAC

• PCI-E 6+2PIN : 4

• PROTECTION : OCP, OVP, UVP, OPP, SCP, OTP



Available Quantity

5

UPC

841163006528

SKU

minglePS-TPD-0650FNFAGU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-B5-0650-V1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 54.1A, +5VSB @ 3.0A, -12V @ 0.5A
• ATX  Cable : 1x 600mm (m)
• EPS Cable  : 1x 600mm (m)
• PCIe Cable  : 1x 550mm, 700mm (m)
• SATA Cable  : 2x 500mm, 600mm, 700mm (m)
• Four-Pin Peripheral Cable  : 1x 500mm, 600mm, 700mm (m)
• Floppy Adapter  : 1x Molex to FDD Adapter
• AC Power  : 1x 1500mm (m)
• Modular Cable Type  : Full
• 24 Pin ATX  : 1x 24pin (20+4)
• EPS (PU)  : 1x 8pin (4+4)
• PIe  : 3x 8pin (6+2)
• SATA  : 6x
• Four-Pin Peripheral  : 3x
• Floppy  : 1x
• Operating Temperature   : 0 to 50
• Japanese apacitors   : main
• EO Mode   : Yes
• MTBF   : 100,000 Hours
• Net Weight   : 4.5 lbs
• Size   : 86mm (H) x 150mm (W) x 150mm (L)
• Approvals : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHSCompliance with ErP Lot 3 2014 Requirement
• Fan Size / Bearing   : 135mm Fluid Dynamic Bearing

Available Quantity

5

UPC

843368064235

SKU

mingle220-B5-0650-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: DQ650-M-V2L
• Features:

  • 80 PLUS Gold certified for efficient power delivery and lower temperatures
  • Industrial grade 100% Japanese capacitors provide longer lasting reliability and continous power.

  • Fully modular with flat black cables help keep the clutter down.

  • Quiet low-noise operation with a tuned fan curve.

  • CircuitShield protects your PSU from irregular voltage and current issues including short circuit, overpower and over temperature.

  • 10 Year warranty for complete reassurance
• Maximum Power: 650 W
• Type: ATX12V / EPS12V
• Fans: 1 x 120mm Hydraulic Bearing Fan
• PFC: Active

• Main Connector: 20+4 Pin

• PCI-Express Connector: 2 x 6+2-Pin

• SATA Power Connector: 4

• Modular: Full Modular

• Energy-Efficient: 80 PLUS Gold Certified
• Over Voltage Protection: Yes

• Input Voltage: 100-240V

• Input Frequency Range: 47-63Hz

• Input Current: 12.0A

• Output: +3.3V@20A, +5V@20A, +12V@70.5A, -12V@0.3A, +5VSB@2.5A

• MTBF: 100,000 Hours
• Dimensions: 150 x 160 x 86 mm

• Max PSU Length: 160

• Weight: 2.37kg

• Warranty: 10 Year

Available Quantity

5

UPC

Does not apply

SKU

mingleDQ650-M-V2L

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: PS-TPD-0700NNFAGU-1
• WATTS : 700W
• RGB FAN : No
• FORM FACTOR : ATX
• MODEL : SP-700AH2NCG
• TYPE : ATX 12V v2.4 and EPS v2.92
• MAX. OUTPUT CAPACITY : 700W
• PEAK OUTPUT CAPACITY : 840W
• COLOR : Black
• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 140mm(D)
• PFC (POWER FACTOR CORRECTION) : Active PFC
• POWER GOOD SIGNAL : 100-500 msec
• HOLD UP TIME : > 12msec at 80% of full load
• INPUT CURRENT : 10A max.
• INPUT FREQUENCY RANGE : 47Hz - 63Hz
• INPUT VOLTAGE : 100V 240V~
• OPERATING TEMPERATURE : 0 C to + 40 C
• OPERATING HUMIDITY : 20% to 90%, non-condensing
• STORAGE TEMPERATURE : -20 C to + 70 C
• STORAGE HUMIDITY : 5% to 95%, non-condensing
• COOLING SYSTEM : 12cm fluid dynamic bearing fan
• EFFICIENCY : Meet 80 PLUS Gold at 115Vac input.
• MTBF : 100,000 hrs minimum
• SAFETY APPROVAL : CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark
• PCI-E 6+2PIN : 4



Available Quantity

5

UPC

841163002629

SKU

minglePS-TPD-0700NNFAGU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-B5-0550-V1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 45.8A, +5VSB @ 3.0A, -12V @ 0.5A
• ATX  Cable : 1x 600mm (m)
• EPS Cable  : 1x 600mm (m)
• PCIe Cable  : 1x 550mm, 700mm (m)
• SATA Cable  : 2x 500mm, 600mm, 700mm (m)
• Four-Pin Peripheral Cable  : 1x 500mm, 600mm, 700mm (m)
• Floppy Adapter  : 1x Molex to FDD Adapter
• AC Power  : 1x 1500mm (m)
• Modular Cable Type  : Full
• 24 Pin ATX  : 1x 24pin (20+4)
• EPS (PU)  : 1x 8pin (4+4)
• PIe  : 2x 8pin (6+2)
• SATA  : 6x
• Four-Pin Peripheral  : 3x
• Floppy  : 1x
• Operating Temperature   : 0 to 50
• Japanese apacitors   : 100%
• EO Mode   : Yes
• MTBF   : 100,000 Hours
• Net Weight   : 4.4 lbs
• Size   : 86mm (H) x 150mm (W) x 150mm (L)
• Approvals : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHSCompliance with ErP Lot 3 2014 Requirement
• Fan Size / Bearing   : 135mm Fluid Dynamic Bearing

Available Quantity

5

UPC

843368064174

SKU

mingle220-B5-0550-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MPE-5501-ACAAW-US
• Type: ATX 12V V2.52
• Output Capacity: 550V
• Input
  • Voltage: 100 - 240V AC
  • Current: 4 - 8A
  • Frequency: 50 - 60Hz
• PFC: Active PFC (>0.9 typical)
• Power Good Signal: 100 - 500ms
• Hold Up Time: >14ms at 100% full load
• MTBF: >100,000 Hours
• Fan: 120mm HDB fan
• Efficiency: 80% Typically Load
• Protection: OVP/UVP/OPP/OTP/OCP/SCP
• Output: +3.3V @ 17A, +5V @ 17A, +12V @ 45A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin CPU 12V Connectors, 2x 6+2pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors
• Regulatory: TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCMC
• Dimensions: 245 x 190 x 110mm (9.65 x 7.48 x 4.33")
• Gross Weight:1.769 kg / 3.9 lb

Available Quantity

5

UPC

884102053344

SKU

mingleMPE-5501-ACAAW-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: EP-600PM
• Features:
  • 75% Efficiency Rating

• Maximum Power: 600W

• Fans: 1x 120mm Cooling Fan

• Input:
  • Input Voltage: 115 ~ 230 V
  • Input Frequency Range: 50/60Hz
  • Input Current: 10 ~ 6 A

• Output: +3.3V @ 24A, +5V @ 24A, +12V1 @ 20A, +12V2 @ 20A, -12V @ 0.5A, +5VSB @ 2.5A

• Connectors: 1x 20+4pin Main Power Connector, 1x 4+4Pin ATX Power Connector, 1x 6pin PCI-Express Connector, 1x 6+2 pin PCI-Express Connector, 6x SATA Connectors, 6x 4pin Molex Connectors, 2x FDD Connectors

• Approvals: UL, FCC

• Form Factor: ATX12V 2.3

• Dimensions (WxLxH): 6.0 x 5.5 x 3.3 inch / 150.0 x 140.0 x 85.0 mm

• Weight: 4.0 lbs / 1.81 kg


Available Quantity

5

UPC

845659091609

SKU

mingleEP-600PM

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

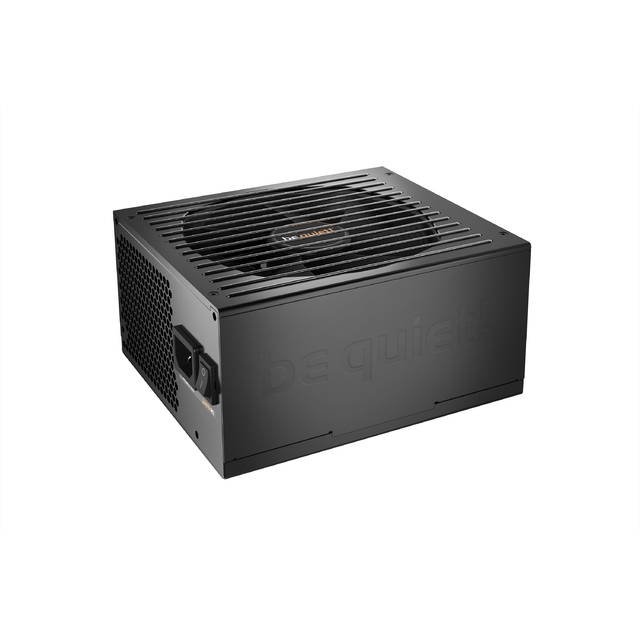

• Mfr Part Number: BN629
• Features:
  • 80 PLUS Gold efficiency (up to 92%)
  • Two strong 12V-rails
  • Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions

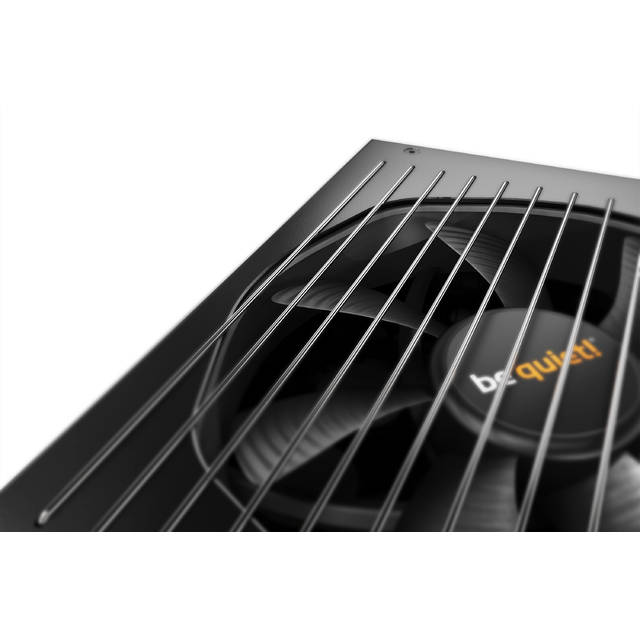

  • Silence-optimized 120mm be quiet! fan
  • Full suite of top safety features
  • 5-year manufacturer s warranty
• Power:
  • Continuous Power: 600W
  • Peak Power: 650W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 8 - 5 A
  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V v2.4 / EPS12V v2.92
• Power Factor Correction: Active PFC
• Efficiency: 80Plus Gold, up to 92% @ 20~100% load

• Fan: 120mm Silence-optimized Rifle Fan
• Output: +3.3V @ 25A, +5V @ 18A, +12V1 @ 32A, +12V2 @ 28A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connectors, 4x 6+2pin GPU PCI-Express Connectors, 6x 15-pin SATA Connectors, 3x 4-pin PATA Connectors, 1x Floppy Connector
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, ErP, WEEE, RoHS
• Color: Black
• Dimensions (WxLxD): 150.0 x 160.0 x 86.0 mm (w/o cable)
• Weight: 2.08 kg

Available Quantity

5

UPC

Does not apply

SKU

mingleBN629

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-P2-0850-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 140mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70.8A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 4x 8pin (6+2) PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 10x SATA Connectors, 4x 4Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 165.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368034733

SKU

mingle220-P2-0850-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

ELITE V3

The new Elite V3 power supply is a dependable choice for the everyday PC user. The included 120mm quiet fan, PCI-E support, and global 3 year warranty delivers a PSU that provides function and resilience you can count on. It's the perfect option for users and applications that don't require 80 Plus efficiency to get the job done. This power supply has been engineered for reliability with a focus on reducing random shutdowns in brownout conditions when power sources are unstable. The Elite V3 is a complete solution delivering powerful stability in a small package for an affordable price.
Product Name
Elite V3 500W
Model
MPW-5001-ACAAN1-US
ATX Version
Intel ATX 12V V2.31
PFC
Active PFC (>0.9)
Input Voltage
100-240Vac
Input Current
10-5A
Input Frequency
50-60Hz
Fan Size
120mm
Fan Bearing
Sleeve Fan
Powergood Signal
100-500ms
Hold Up Time
>10ms at 100% Load
Efficiency
75% at Typical Load
MTBF
>100,000 Hours
Operating Temperature
10 to 40^oC
Protection
OVP / OPP / OTP / SCP
Regulatory
TUV, cTUVus, CE, FCC, BSMI
Connector
M/B 20+4 Pin
1
CPU 12V 4+4 Pin
1
SATA
6
Peripheral 4 Pin
3
FDD Cable 4 Pin
1
PCI-e 6+2 Pin
2
Item Dimension (L inchxW inchxH inch)
9 x 8 x 4

Weight
4.28lb

Warranty Information
3 Years

Available Quantity

5

UPC

884102038297

SKU

mingleMPW-5001-ACAAN1-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 100-BR-0700-K1

• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads

  • Single 12V. Rail

  • Active Power Factor Correction (PFC)
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

  • DC-DC Converter improves 3.3V/5V stability

  • Quiet and Intelligent Auto Fan for near-silent operation

• Maximum Power: 700 W

• Input:
  • Voltage: 100 ~ 240 VAC

  • Current: 10/5 A

  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V

• Efficiency: 85% Typical

• MTBF: 100,000 hours

• Fan: 1x 120mm Long Sleeve Bearing

• Output: +3.3V @ 24A, +5V @ 20A, +12V @ 58.3A, +5VSB @ 3A, -12V @ 0.3A

• Connectors: 1x 24pin ATX Power Connector, 1x 8(4+4)pin EPS Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm

• Weight: 4.0 lbs


Available Quantity

5

UPC

843368051983

SKU

mingle100-BR-0700-K1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MPY-5501-AFAAG-US
• Features:
  • Full Modular Flat Cables - Full modular flat cables are easy to install, reduce clutter, and maximize airflow
  • 80 PLUS Gold Certified - The 80 PLUS Gold certification guaranties a minimum typical efficiency of 90%
  • Silent and Durable LDB Fan Bearing - Silencio technology combines sealed LDB bearings with quiet fan blades, delivering a long lifetime of quiet cooling
  • Proven Thermal Resistance - Engineered to operate at full performance in temperatures up to 45 C, providing reliability in even the hottest environments
  • High Efficiency and Stable Output - The MWE Gold's fullbridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable Voltage outputs

• Type: ATX 12V V2.31
• Output Capacity: 550W
• Input
  • Voltage: 100 - 240V AC
  • Current: 6.3 A
  • Frequency: 50/ 60Hz
• PFC: Active PFC
• Power Good Signal: 100 - 500 ms
• Hold Up Time: >14 ms @ 100% load
• MTBF: >100,000 Hours
• Fan: 120mm LDB Fan
• Efficiency: 90% Typically
• Protection: OVP / OPP / UVP / SCP / OTP
• Output: +3.3V @ 15A, +5V @ 15A, +12V @ 45.8A, -12V @ 0.3A, +5sb @ 2.5A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin CPU 12V Connector, 2x 6+2pin PCI-Express Connectors, 8x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
• Dimensions (BxLxH): 150.0 x 160.0 x 86.0 mm

Available Quantity

5

UPC

884102029608

SKU

mingleMPY-5501-AFAAG-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-T2-0850-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Ultra Quiet Fan with ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45 C)
  • 80 PLUS Titanium certified, with 94% (115VAC) / 96% (220VAC~240VAC) efficiency or higher under typical loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 94% (115VAC) / 96% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 140mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70.8A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS (CPU) Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 10x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 180.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368035129

SKU

mingle220-T2-0850-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: PS-TPD-0850FNFAGU-1
• MAX. OUTPUT CAPACITY : 850W
• PEAK OUTPUT CAPACITY : 1020W
• COLOR : Black
• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 160mm(D)
• PFC (POWER FACTOR CORRECTION) : Active PFC
• POWER GOOD SIGNAL : 100-500 msec
• HOLD UP TIME : > 16msec at 100% of full load
• INPUT CURRENT : 12A
• INPUT FREQUENCY RANGE : 50Hz - 60Hz
• INPUT VOLTAGE : 100V 240V~
• OPERATING TEMPERATURE : 0 C to + 50 C
• OPERATING HUMIDITY : 20% to 90%,non-condensing
• STORAGE TEMPERATURE : -20 C to + 70 C
• STORAGE HUMIDITY : 5% to 95%, non-condensing
• COOLING SYSTEM : 14cm hydraulic bearing fan
• EFFICIENCY : Meet 80 PLUS Gold at 115Vac input.
• MTBF : 120,000 hrs minimum
• SAFETY APPROVAL : CE/cTUVus/T V S D/FCC/BSMI/EAC
• PCI-E 6+2PIN : 6
• PROTECTION : OCP, OVP, UVP, OPP, SCP, OTP



Available Quantity

5

UPC

841163006597

SKU

minglePS-TPD-0850FNFAGU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-B5-0850-V1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads

  • Fully Modular to reduce clutter and improve airflow

  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

  • 5 Year Warranty and unparalleled EVGA Customer Support

  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 70.8A, +5VSB @ 3.0A, -12V @ 0.5A
• ATX  Cable : 1x 600mm (m)

• EPS Cable  : 2x 600mm (m)

• PCIe Cable  : 3x 550mm, 700mm (m)

• SATA Cable  : 3x 500mm, 600mm, 700mm (m)

• Four-Pin Peripheral Cable  : 1x 500mm, 600mm, 700mm (m)

• Floppy Adapter  : 1x Molex to FDD Adapter

• AC Power  : 1x 1500mm (m)

• Modular Cable Type  : Full

• 24 Pin ATX  : 1x 24pin (20+4)

• EPS (PU)  : 2x 8pin (4+4)

• PIe  : 6x 8pin (6+2)

• SATA  : 9x

• Four-Pin Peripheral  : 3x

• Floppy  : 1x

• Operating Temperature   : 0 to 50

• Japanese apacitors   : 100%

• EO Mode   : Yes

• MTBF   : 100,000 Hours

• Net Weight   : 5.4 lbs

• Size   : 86mm (H) x 150mm (W) x 150mm (L)

• Approvals : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHSCompliance with ErP Lot 3 2014 Requirement

• Fan Size / Bearing   : 135mm Fluid Dynamic Bearing

Available Quantity

5

UPC

843368064358

SKU

mingle220-B5-0850-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: PS-TPD-0750FNFAGU-1
• MAX. OUTPUT CAPACITY : 750W
• PEAK OUTPUT CAPACITY : 900W
• COLOR : Black
• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 160mm(D)
• PFC (POWER FACTOR CORRECTION) : Active PFC
• POWER GOOD SIGNAL : 100-500 msec
• HOLD UP TIME : > 16msec at 100% of full load
• INPUT CURRENT : 10A
• INPUT FREQUENCY RANGE : 50Hz - 60Hz

• INPUT VOLTAGE : 100V 240V~
• OPERATING TEMPERATURE : 0 C to + 50 C
• OPERATING HUMIDITY : 20% to 90%,non-condensing
• STORAGE TEMPERATURE : -20 C to + 70 C
• STORAGE HUMIDITY : 5% to 95%, non-condensing
• COOLING SYSTEM : 14cm hydraulic bearing fan
• EFFICIENCY : Meet 80 PLUS Gold at 115Vac input.
• MTBF : 120,000 hrs minimum
• SAFETY APPROVAL : CE/cTUVus/T V S D/FCC/BSMI/EAC
• PCI-E 6+2PIN : 4
• PROTECTION : OCP, OVP, UVP, OPP, SCP, OTP



Available Quantity

5

UPC

841163006573

SKU

minglePS-TPD-0750FNFAGU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 110-BQ-0850-V1
• Features:
  • 5 Year Warranty and unparalleled EVGA Customer Support

  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)

  • Quiet and Intelligent Auto Fan for near-silent operation
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 12 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Power Factor Correction: Active PFC
• Efficiency: 85% Typical
• MTBF: 100,000 hours
• Fan: 140mm Teflon Nano-Steel Bearing
• Output: +3.3V @ 24A, +5V @ 20A, +12V @ 70A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 3x 8pin (6+2) PCI-Express Connectors, 10x SATA Connectors, 5x 4pin Peripheral Connectors, 1x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHSCompliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 7.0 lbs

Available Quantity

5

UPC

843368036607

SKU

mingle110-BQ-0850-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: NE650M  V2
• Features:
  • Continuous Power - Guaranteed Continuous Power from Antec
  • 80 PLUS BRONZE certified - Up to 88% efficient, to reduce your electricity bill
  • AQ3 - Antec Quality 3 year warranty and lifetime global 24/7 support
  • 120mm Silent Fan
  • Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
  • CircuitShield - Full suite of industrial grade protections
  • Heavy-duty Caps - High-performance capacitors ensure tightest DC stability and regulation
  • Advanced Hybrid Cable Management - Improves airflow and reduces clutter
• Maximum Power: 650 W
• Efficiency: 88% Typically
• Fan: 1x 120mm Silent Fan
• Certifications: 80 Plus BRONZE
• Dimensions (WxDxH): 9.25 x 5 x 8.5 inch
• Weight: 4.90LB

Available Quantity

5

UPC

761345111690

SKU

mingleNE650M V2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number:MPE-4501-ACAAW-US
• Features:
  • 80 PLUS Standard Certified

  • 120 mm HDB Fan

  • DC-to-DC + LLC Circuit Design

  • Single +12V Rail

  • Flat Black Cables
• Type: Intel ATX 12V V2.52
• Output Capcity: 450 W
• Input:
  • Voltage: 100 - 240V AC
  • Current: 8 - 4A
  • Frequency Range: 50 ~ 60Hz
• Hold Up Time: >14ms at 100% Full Load@230Vac
• MTBF: > 100,000 Hours
• Fan: 120mm HDB Fan
• Efficiency: 80% @ Typical Load
• Protection:  OVP, OPP, OTP, SCP, UVP
• Connectors: 1x 20+4pin Motherboard Connector; 1x 4+4pin CPU 12V Connector; 2x 6+2pin PCI Express Connector, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: CB, TUV, cTUVus, CE, FCC, CCC, EAC, RCM, BSMI, KC
• ERP 2014 LOT 3 : Yes

• OPERATING TEMPERATURE:  40 C

• POWER GOOD SIGNAL : 100-500ms

• Dimensions (BxLxH): 140.0 x 150.0 x 86.0 mm

Available Quantity

5

UPC

Does not apply

SKU

mingleMPE-4501-ACAAW-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-P2-1200-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• Maximum Power: 1200 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 15 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 140mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 99.9A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS12V Power Connectors, 6x 8(6+2)pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 12x SATA Connectors, 5x Molex Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
• Dimensions (WxLxH): 150.0 x 200.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368030490

SKU

mingle220-P2-1200-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-G3-0550-Y1

• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Unbeatable 7 Year Warranty and unparalleled EVGA Customer Support.
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
• Maximum Power: 550 W

• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours

• Fan: 1x 130mm Hydraulic Dynamic Bearing

• Output: +3.3V @ 22A, +5V @ 22A, +12V @ 45.8A, +5VSB @ 3A, -12V @ 0.5A

• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connector, 3x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 85.0 mm

• Weight: 7.0 lbs


Available Quantity

5

UPC

843368042547

SKU

mingle220-G3-0550-Y1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 100-BR-0500-K1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Single 12V. Rail
  • Active Power Factor Correction (PFC)
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
• Maximum Power: 500 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 8/4 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 85% Typical
• MTBF: 100,000 hours
• Fan: 1x 120mm Long Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 41.7A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Power Connector, 1x 8(4+4)pin EPS Power Connector, 2x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS  Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 4.0 lbs


Available Quantity

5

UPC

843368051860

SKU

mingle100-BR-0500-K1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-G3-0750-X1

• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC

  • Current: 10 A

  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V

• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

• MTBF: 100,000 hours

• Fan: 1x 130mm Hydraulic Dynamic Bearing

• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 62.4A, +5VSB @ 3A, -12V @ 0.5A

• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connector, 6x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 150.0 x 85.0 mm

• Weight: 8.0 lbs


Available Quantity

5

UPC

843368042622

SKU

mingle220-G3-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-GA-0750-X1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 9-4.5A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @62.5A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS Power Connector, 6x 8pin(6+2)PCI-Express Connector, 9x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Net Weight: 6.59 lbs

Available Quantity

5

UPC

843368061968

SKU

mingle220-GA-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 100-GD-0700-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 5 Year Warranty and unparalleled EVGA Customer Support
• Maximum Power: 700 W
• Input:
  • Voltage: 110 ~ 240 VAC
  • Current: 9.5-4.5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• MTBF: 100,000 hours
• Fan: 120mm Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 58.3A, +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 2x 8pin (6+2), PCI-Express Connector, 6x SATA Connectors, 3x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• Weight: 5 lbs

Available Quantity

5

UPC

843368057374

SKU

mingle100-GD-0700-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: SDGR-FLEX320
• Features:
  • Mini-ITX/FLEX ATX type
  • Supports Intel & AMD Socket
  • Low ripple and noise
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • Short Circuit protection
  • Thermal overload cut-off protection
  • Stained SECC Steel Material
  • 15" long cables
  • Energy efficiency
• Maximum Power: 320W
• Input:
  • Voltage: 100-240V
  • Current: 100A max cold start
  • Frequency Range: 47/63Hz

• Regulation:
  • Line: +/-1% typical
  • Load: +/- 5% typical
• Output Ripple: noise - 1%
• Fan: 1x 40mm Cooling Fan
• Output: +3.3V @ 11A, +5V @ 14A, +12V @ 17A, -12V @ 0.3A, -5V @ 0.1A, +5Vsb @ 2.0A
• Connectors: 1x 20+4pin Main Connector, 1x 4pin P4 12V Connector, 2x 15pin SATA Connectors, 2x 4pin Molex Connectors, 1x 4pin Floppy Connector
• MTBF (Full Load): >20,000 Hours
• EnergystarStand by: < 1W
• Dimensions (WxDxH): 3.250 x 6.000 x 1.625 inches
• Weight: 2.0 lbs

Available Quantity

5

UPC

859337002412

SKU

mingleSDGR-FLEX320

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 100-GD-0600-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 5 Year Warranty and unparalleled EVGA Customer Support
• Maximum Power: 600 W
• Input:
  • Voltage: 110 ~ 240 VAC
  • Current: 8-4 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• MTBF: 100,000 hours
• Fan: 120mm Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 50.0A, +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 2x 8pin (6+2), PCI-Express Connector, 6x SATA Connectors, 3x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• Weight: 4.9 lbs

Available Quantity

5

UPC

843368057329

SKU

mingle100-GD-0600-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 120-G2-1300-XR
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) and OTP (Over Temperature Protection)
• Maximum Power: 1300 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 15 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% Typical
• Fan: 1x Fan
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 108.3A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 4+4pin EPS12V Power Connectors, 6x 6+2pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 12x SATA Connectors, 5x 4Pin Molex Connectors, 1x Floppy Connector
• Japanese Capacitors: 100%
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 5.9 x 7.9 x 3.4 inch / 150.0 x 200.0 x 85.0 mm
• Net Weight: 8.0 lbs

Available Quantity

5

UPC

843368024550

SKU

mingle120-G2-1300-XR

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-P2-0750-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 140mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 62.4A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connector, 4x 8pin (6+2) PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 10x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 165.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368034726

SKU

mingle220-P2-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: ATX-SP700W
• Features:
  • Connectors:1 x 20/24pin Main Power, 1 x 4+4pin 12V, 1 x PCI 6+2pin, 4 x SATA, 4 x Peripheral, 1 x Floppy
  • 1 x Auto-Thermally Controlled Black 120mm Fan. 115/230V Switch
  • 5% Tolerance of 5V, 3.3V & 12V Output
  • Short-Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections
• Maximum Power: 700 W
• Input:
  • Voltage Range: 115 - 230V
  • Frequency: 50 - 60Hz
  • Current: Input current:8A for 115VAC, 4A for 230VAC
• Connectors: 1 x 20/24pin Main Power    1 x 4+4 pin 12V    4 x SATA    4 x Peripheral    1 x Floppy    1 x 6+2pin PCI Express
• Fan: Forced air ventilation by 1 x 120mm black fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 6.3 x 5.9 x 3.4 inch / 160.0 x 150.0 x 85.0 mm
• Weight: 4.0 lbs
• Switches:Additional power rocker switch 115/230 Volt selector switch
• Material:Metal

Available Quantity

5

UPC

837344006746

SKU

mingleATX-SP700W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-G5-0750-X1
• Features:
  • 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loadst
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • Active Clamp +DC to DC design for efficient operation
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over CurrentProtection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 62.5A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS Power Connector, 6x 8pin(6+2)PCI-Express Connector, 9x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 6 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Weight: 6.8 lbs

Available Quantity

5

UPC

843368062118

SKU

mingle220-G5-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: SL-275TFX
• Features:
  • Proprietary IC & unique design
  • Embedded thermal sensor
  • Low-noise variable fan
  • Various safety protection - OCP(over-current), OVP(over-voltage), SCP(short-circuit), UVP(under-voltage), OPP(over-power)
  • Upgrade for Antec Minuet PSU and many others
• Maximum Power: 275W
• Input:
  • Voltage Range: 90V~132Vac or 180V~253Vac
  • Current: 275W 6A/4A @ 115/230 Vac
  • Frequency Range: 47~63Hz
• Type: TFX12V
• Efficiency: 65% at full load
• Fan: 1x 12V Internal Fan
• Connectors: 1x 24pin Main Power; 2x Peripheral; 1x SATA; 1x Floppy
• MTBF: 50,000 Hours
• Safety Approval: UL, FCC
• Dimension (WxDxH): 3.25 x 5.75 x 2.5 inch

Available Quantity

5

UPC

835712003267

SKU

mingleSL-275TFX

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 210-GQ-1000-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • NVIDIA SLI & AMD Crossfire Ready
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Modular Design to reduce clutter and improve airflow
  • 100% Japanese Capacitors ensure long-term reliability
  • Active Clamp +DC to DC design for efficient operation
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
  • Active Power Factor Correction (PFC)
• Maximum Power: 1000 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 16 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Power Factor Correction: Active PFC
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing Fan
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 83.3A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connector, 10x 8pin (6+2) PCI-Express Connectors, 12x SATA Connectors, 3x 4pin Peripheral Connectors, 2x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance w/ ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 180.0 x 85.0 mm
• Weight: 7.0 lbs

Available Quantity

5

UPC

843368035662

SKU

mingle210-GQ-1000-V1
