Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

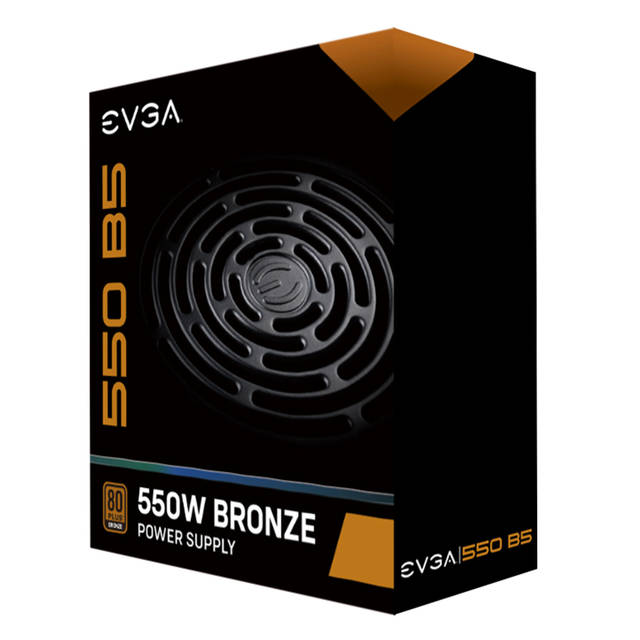

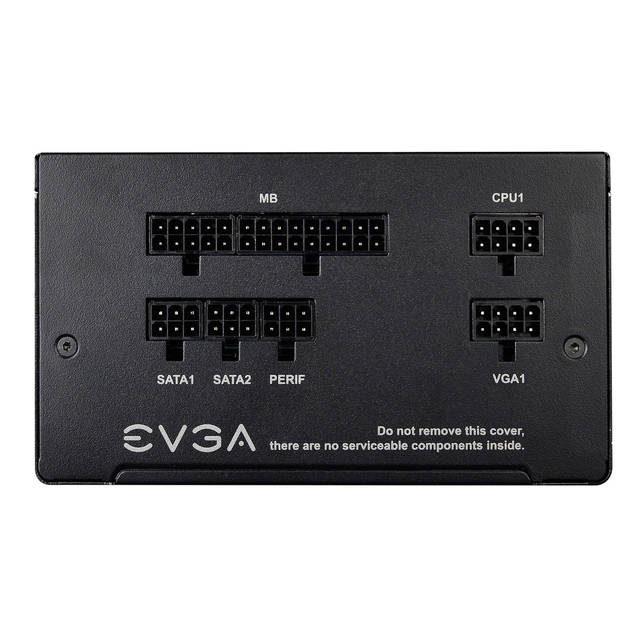

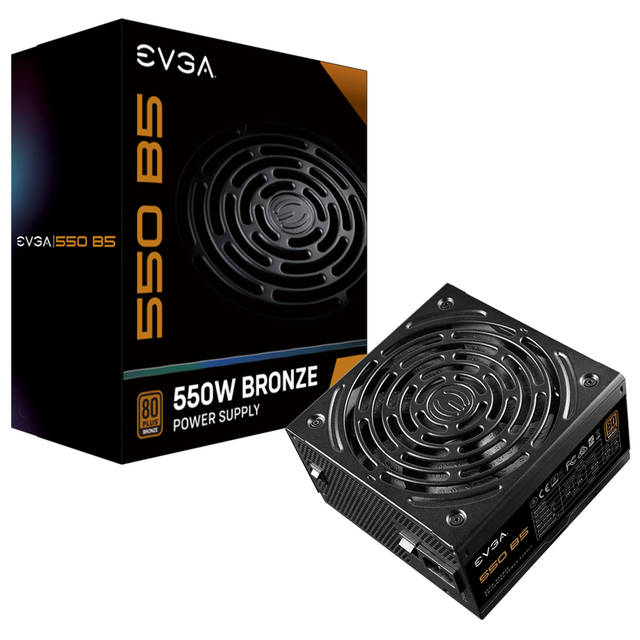

• Mfr Part Number: 220-B5-0550-V1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 45.8A, +5VSB @ 3.0A, -12V @ 0.5A
• ATX  Cable : 1x 600mm (m)
• EPS Cable  : 1x 600mm (m)
• PCIe Cable  : 1x 550mm, 700mm (m)
• SATA Cable  : 2x 500mm, 600mm, 700mm (m)
• Four-Pin Peripheral Cable  : 1x 500mm, 600mm, 700mm (m)
• Floppy Adapter  : 1x Molex to FDD Adapter
• AC Power  : 1x 1500mm (m)
• Modular Cable Type  : Full
• 24 Pin ATX  : 1x 24pin (20+4)
• EPS (PU)  : 1x 8pin (4+4)
• PIe  : 2x 8pin (6+2)
• SATA  : 6x
• Four-Pin Peripheral  : 3x
• Floppy  : 1x
• Operating Temperature   : 0 to 50
• Japanese apacitors   : 100%
• EO Mode   : Yes
• MTBF   : 100,000 Hours
• Net Weight   : 4.4 lbs
• Size   : 86mm (H) x 150mm (W) x 150mm (L)
• Approvals : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHSCompliance with ErP Lot 3 2014 Requirement
• Fan Size / Bearing   : 135mm Fluid Dynamic Bearing

Available Quantity

5

UPC

843368064174

SKU

mingle220-B5-0550-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

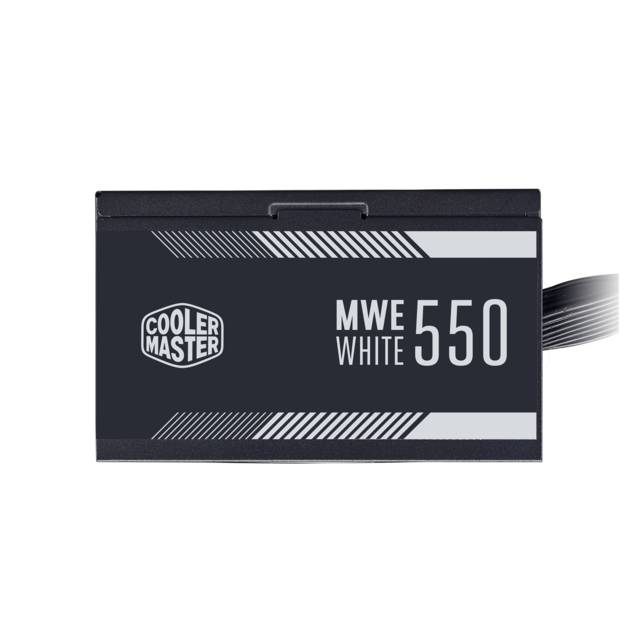

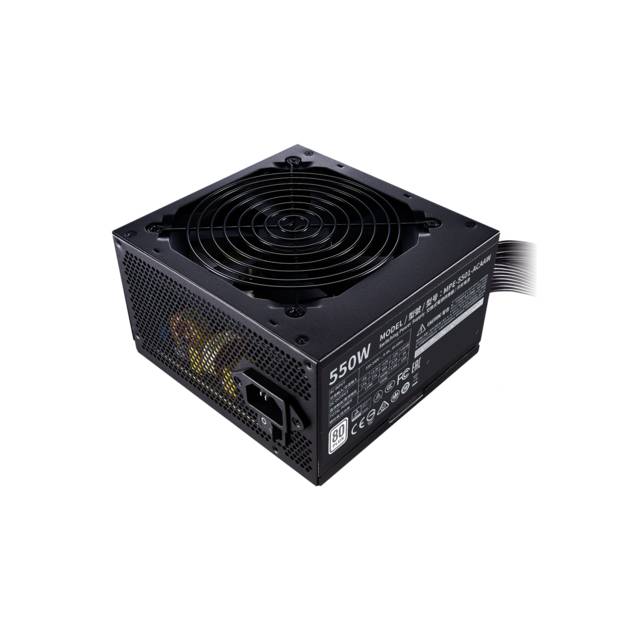

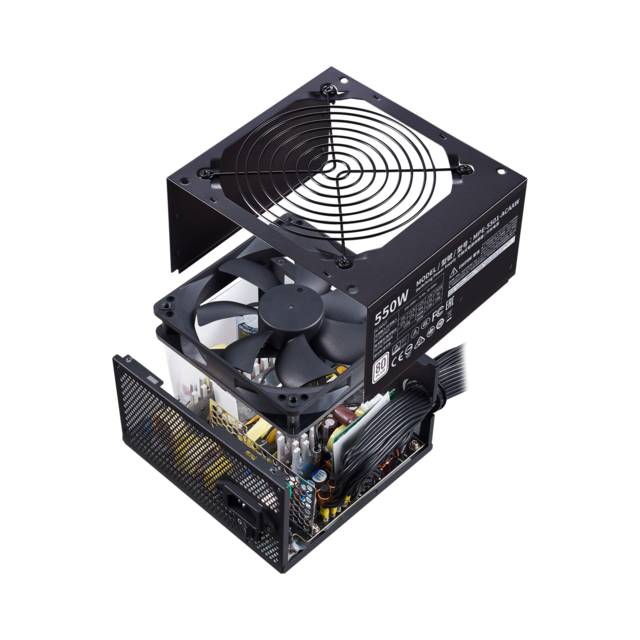

• Mfr Part Number: MPE-5501-ACAAW-US
• Type: ATX 12V V2.52
• Output Capacity: 550V
• Input
  • Voltage: 100 - 240V AC
  • Current: 4 - 8A
  • Frequency: 50 - 60Hz
• PFC: Active PFC (>0.9 typical)
• Power Good Signal: 100 - 500ms
• Hold Up Time: >14ms at 100% full load
• MTBF: >100,000 Hours
• Fan: 120mm HDB fan
• Efficiency: 80% Typically Load
• Protection: OVP/UVP/OPP/OTP/OCP/SCP
• Output: +3.3V @ 17A, +5V @ 17A, +12V @ 45A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin CPU 12V Connectors, 2x 6+2pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors
• Regulatory: TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCMC
• Dimensions: 245 x 190 x 110mm (9.65 x 7.48 x 4.33")
• Gross Weight:1.769 kg / 3.9 lb

Available Quantity

5

UPC

884102053344

SKU

mingleMPE-5501-ACAAW-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

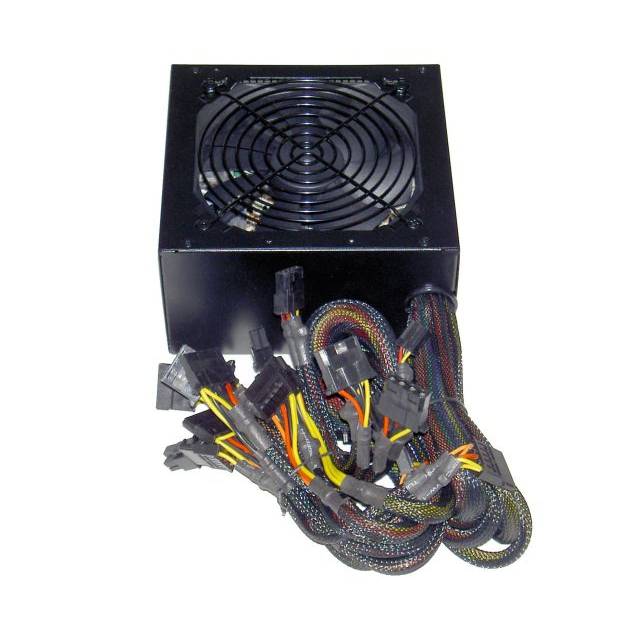

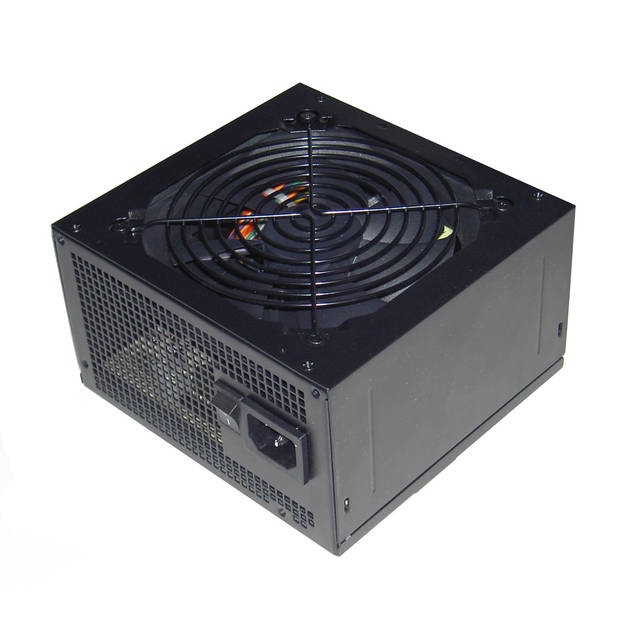

• Mfr Part Number: EP-600PM
• Features:
  • 75% Efficiency Rating

• Maximum Power: 600W

• Fans: 1x 120mm Cooling Fan

• Input:
  • Input Voltage: 115 ~ 230 V
  • Input Frequency Range: 50/60Hz
  • Input Current: 10 ~ 6 A

• Output: +3.3V @ 24A, +5V @ 24A, +12V1 @ 20A, +12V2 @ 20A, -12V @ 0.5A, +5VSB @ 2.5A

• Connectors: 1x 20+4pin Main Power Connector, 1x 4+4Pin ATX Power Connector, 1x 6pin PCI-Express Connector, 1x 6+2 pin PCI-Express Connector, 6x SATA Connectors, 6x 4pin Molex Connectors, 2x FDD Connectors

• Approvals: UL, FCC

• Form Factor: ATX12V 2.3

• Dimensions (WxLxH): 6.0 x 5.5 x 3.3 inch / 150.0 x 140.0 x 85.0 mm

• Weight: 4.0 lbs / 1.81 kg


Available Quantity

5

UPC

845659091609

SKU

mingleEP-600PM

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

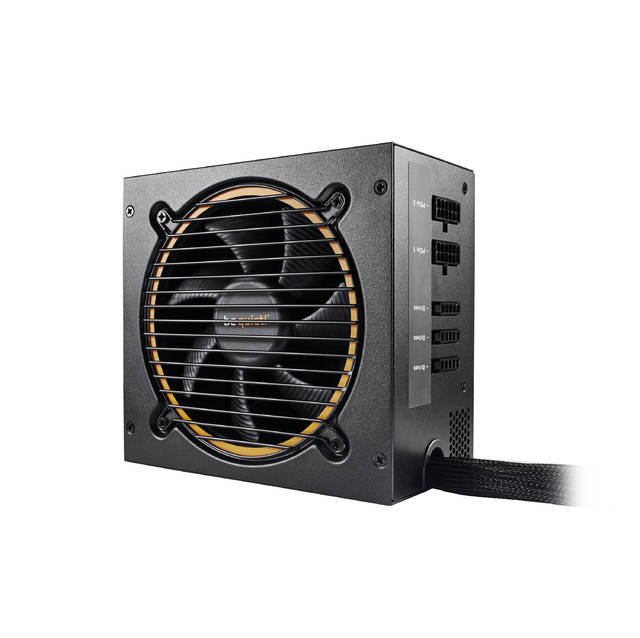

Product Description

Specifications

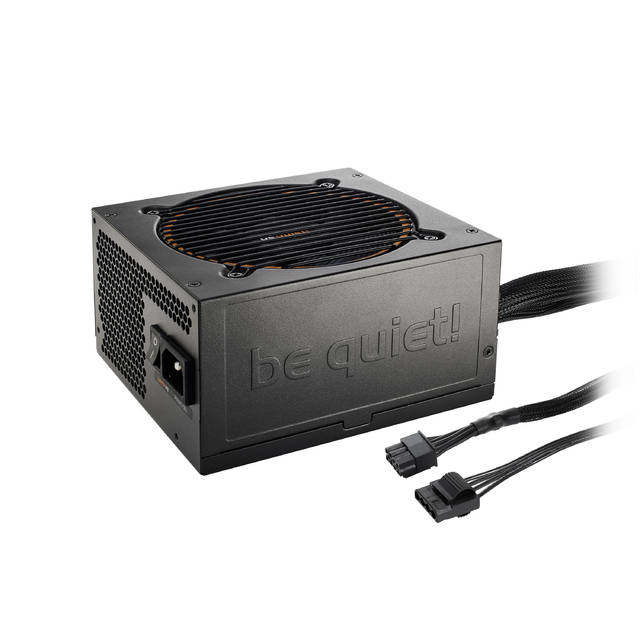

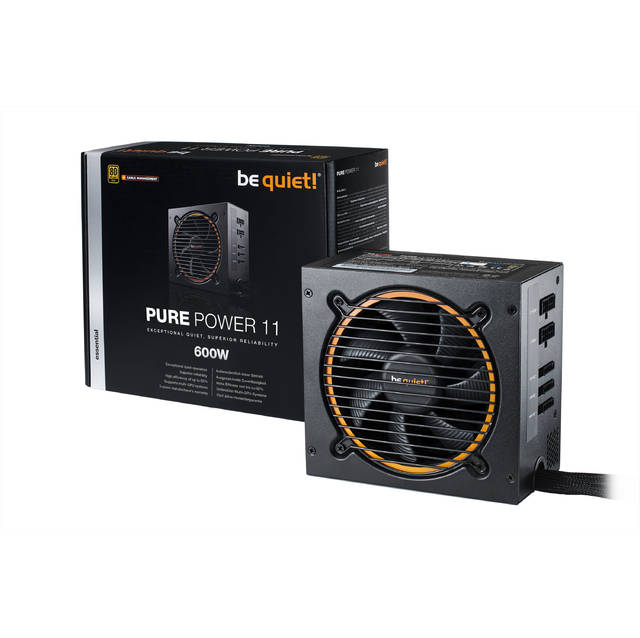

• Mfr Part Number: BN629
• Features:
  • 80 PLUS Gold efficiency (up to 92%)
  • Two strong 12V-rails
  • Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
  • Silence-optimized 120mm be quiet! fan
  • Full suite of top safety features
  • 5-year manufacturer s warranty
• Power:
  • Continuous Power: 600W
  • Peak Power: 650W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 8 - 5 A
  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V v2.4 / EPS12V v2.92
• Power Factor Correction: Active PFC
• Efficiency: 80Plus Gold, up to 92% @ 20~100% load

• Fan: 120mm Silence-optimized Rifle Fan
• Output: +3.3V @ 25A, +5V @ 18A, +12V1 @ 32A, +12V2 @ 28A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connectors, 4x 6+2pin GPU PCI-Express Connectors, 6x 15-pin SATA Connectors, 3x 4-pin PATA Connectors, 1x Floppy Connector
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, ErP, WEEE, RoHS
• Color: Black
• Dimensions (WxLxD): 150.0 x 160.0 x 86.0 mm (w/o cable)
• Weight: 2.08 kg

Available Quantity

5

UPC

Does not apply

SKU

mingleBN629

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

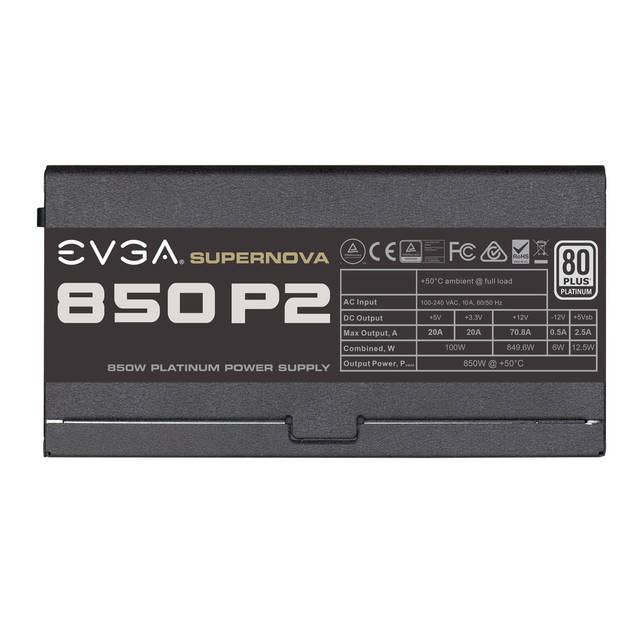

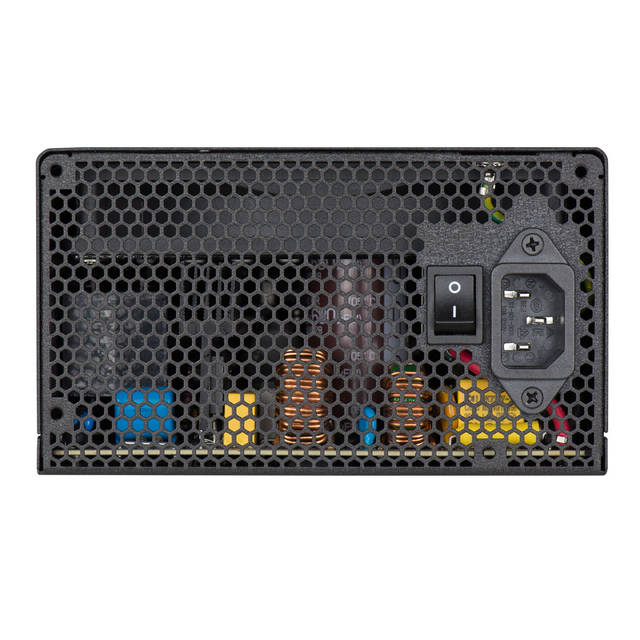

• Mfr Part Number: 220-P2-0850-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 140mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70.8A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 4x 8pin (6+2) PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 10x SATA Connectors, 4x 4Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 165.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368034733

SKU

mingle220-P2-0850-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

SSP-300SUB Active PFC F0

The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in 200 W, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low nose fan control makes them a pleasant companion in any industrial system.


Features

SATA-ready

Fully modular

High efficiency and reliability

Low ripple and noise

Super low noise fan control

Short circuit protection on all outputs

Over voltage protection

Over power protection

Fanless Mode (up to 30 % system load)

Input frequency
47 - 63 Hz
Inrush current at cold sta
100 A max.
Efficiency (at normal input voltage)
more than or equal 85 %
Line regulation
+/- 1 % (typical)
Load regulation
+/- 5 % (typical)
Cross regulation
+/- 5 % (typical)
Ripple / noise
1 %
MTBF, full load at 25 ^oC ambient (excl. DC fan)
more than 100,000 hours
Power Factor Correction
95 % (typical)
DC Outputs
+3.3 V /14 A /110 W
+5 V /17 A /110 W
+12 V1 /18 A /252 W
+12 V2 /18 A /252 W
-12 V /0.8 A /9.6 W
+5 Vsb /2 A /10 W
Total continuous power: 300 W
Input Type: Full range
Item Dimension (L"xW"xH")
6 x 4 x 2

Weight
2.4 lbs

Warranty Information
3 Years

Available Quantity

5

UPC

Does not apply

SKU

mingleSSP-300SUB

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

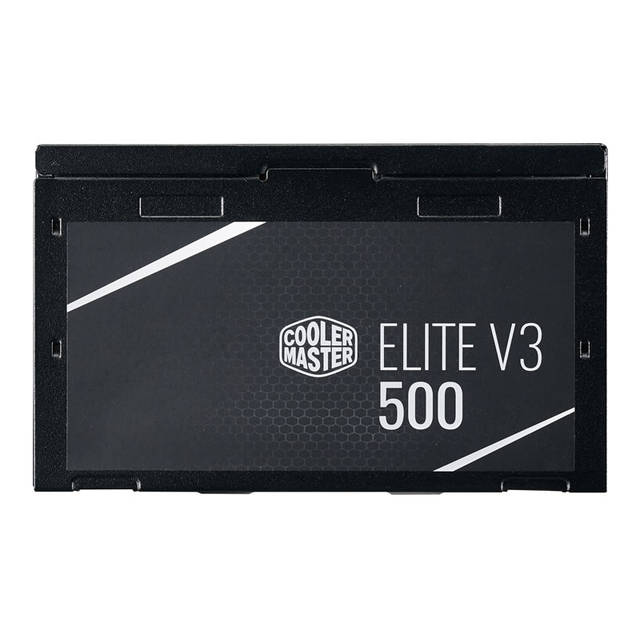

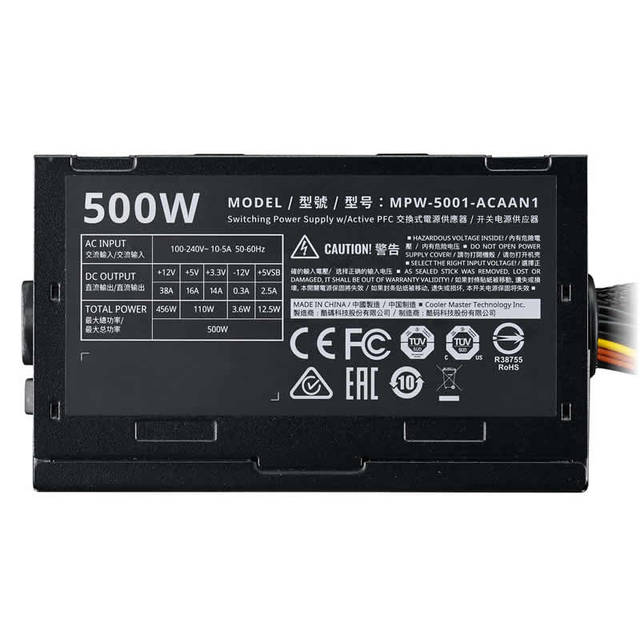

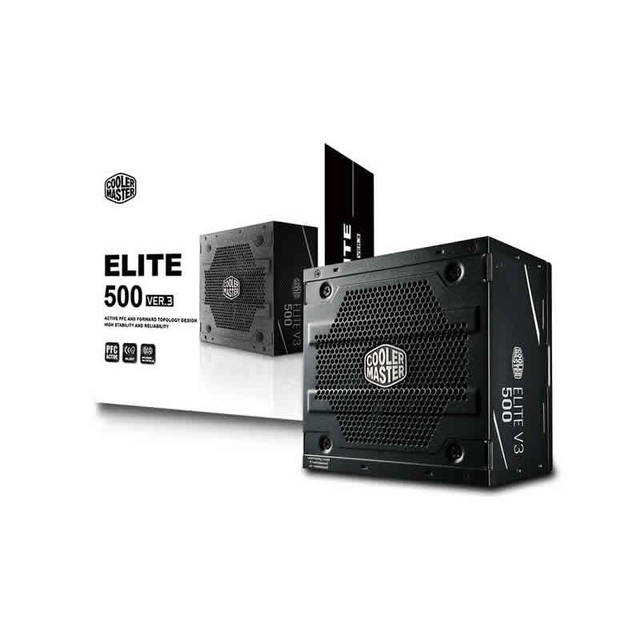

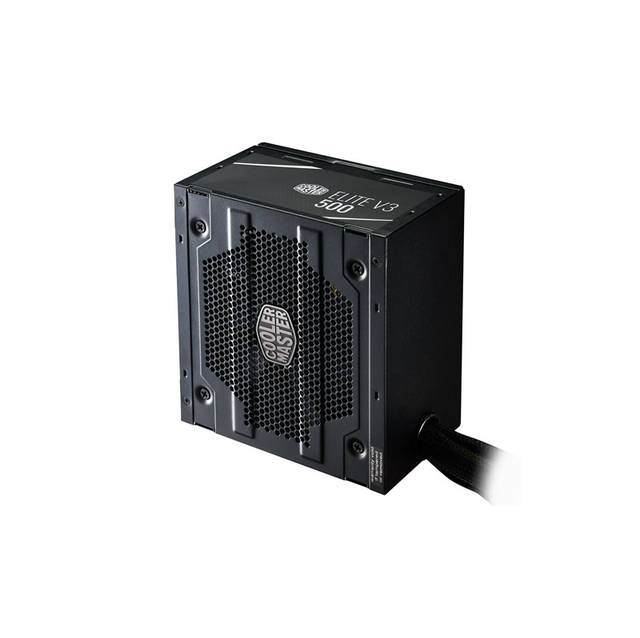

ELITE V3

The new Elite V3 power supply is a dependable choice for the everyday PC user. The included 120mm quiet fan, PCI-E support, and global 3 year warranty delivers a PSU that provides function and resilience you can count on. It's the perfect option for users and applications that don't require 80 Plus efficiency to get the job done. This power supply has been engineered for reliability with a focus on reducing random shutdowns in brownout conditions when power sources are unstable. The Elite V3 is a complete solution delivering powerful stability in a small package for an affordable price.
Product Name
Elite V3 500W
Model
MPW-5001-ACAAN1-US
ATX Version
Intel ATX 12V V2.31
PFC
Active PFC (>0.9)
Input Voltage
100-240Vac
Input Current
10-5A
Input Frequency
50-60Hz
Fan Size
120mm
Fan Bearing
Sleeve Fan
Powergood Signal
100-500ms
Hold Up Time
>10ms at 100% Load
Efficiency
75% at Typical Load
MTBF
>100,000 Hours
Operating Temperature
10 to 40^oC
Protection
OVP / OPP / OTP / SCP
Regulatory
TUV, cTUVus, CE, FCC, BSMI
Connector
M/B 20+4 Pin
1
CPU 12V 4+4 Pin
1
SATA
6
Peripheral 4 Pin
3
FDD Cable 4 Pin
1
PCI-e 6+2 Pin
2
Item Dimension (L inchxW inchxH inch)
9 x 8 x 4

Weight
4.28lb

Warranty Information
3 Years

Available Quantity

5

UPC

884102038297

SKU

mingleMPW-5001-ACAAN1-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

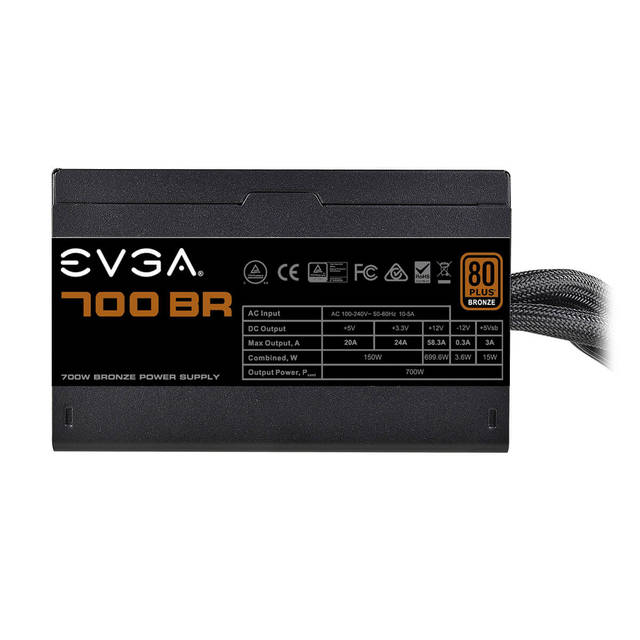

• Mfr Part Number: 100-BR-0700-K1

• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads

  • Single 12V. Rail

  • Active Power Factor Correction (PFC)
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

  • DC-DC Converter improves 3.3V/5V stability

  • Quiet and Intelligent Auto Fan for near-silent operation

• Maximum Power: 700 W

• Input:
  • Voltage: 100 ~ 240 VAC

  • Current: 10/5 A

  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V

• Efficiency: 85% Typical

• MTBF: 100,000 hours

• Fan: 1x 120mm Long Sleeve Bearing

• Output: +3.3V @ 24A, +5V @ 20A, +12V @ 58.3A, +5VSB @ 3A, -12V @ 0.3A

• Connectors: 1x 24pin ATX Power Connector, 1x 8(4+4)pin EPS Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm

• Weight: 4.0 lbs


Available Quantity

5

UPC

843368051983

SKU

mingle100-BR-0700-K1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

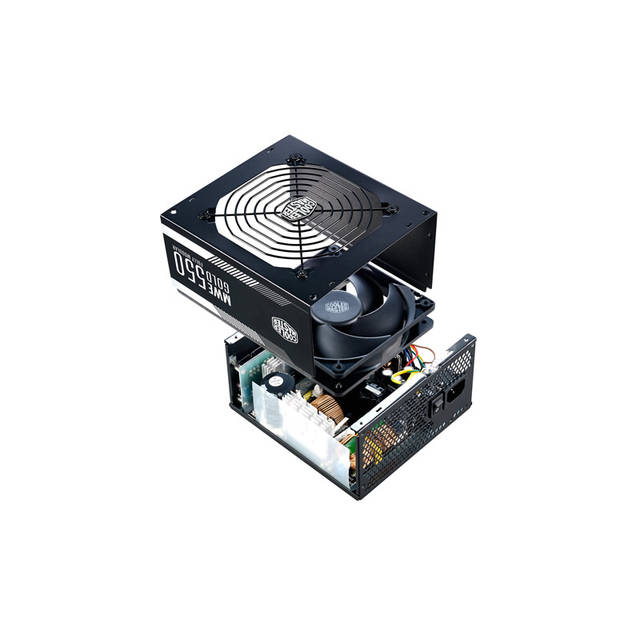

Product Description

Specifications

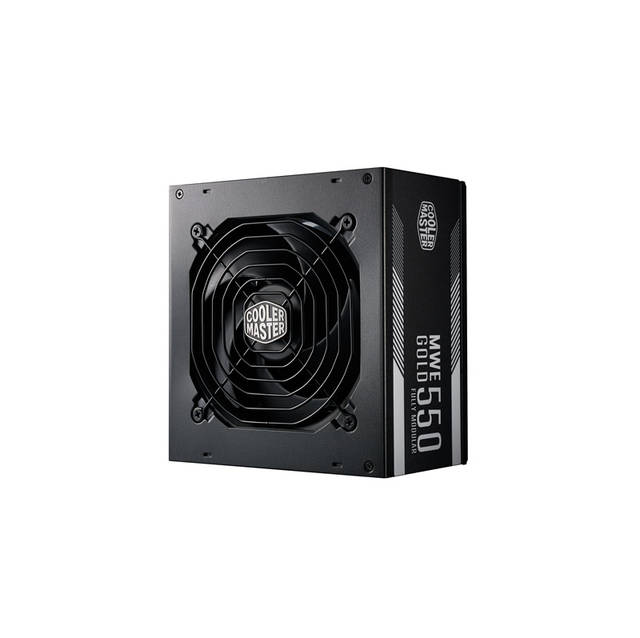

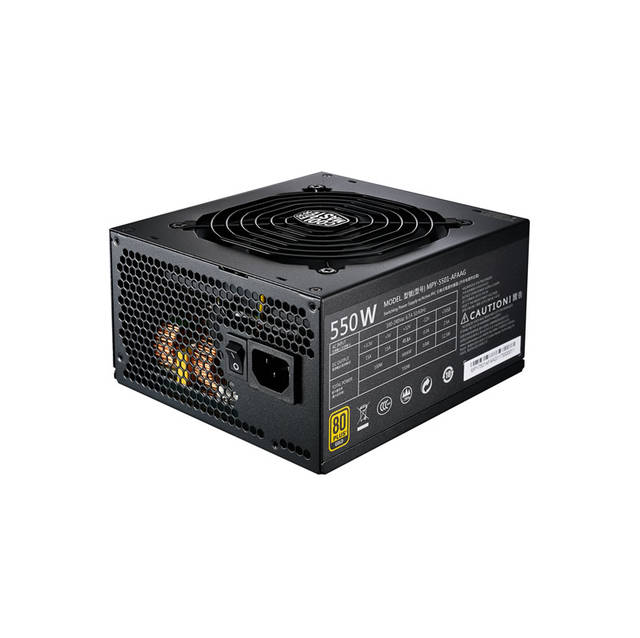

• Mfr Part Number: MPY-5501-AFAAG-US
• Features:

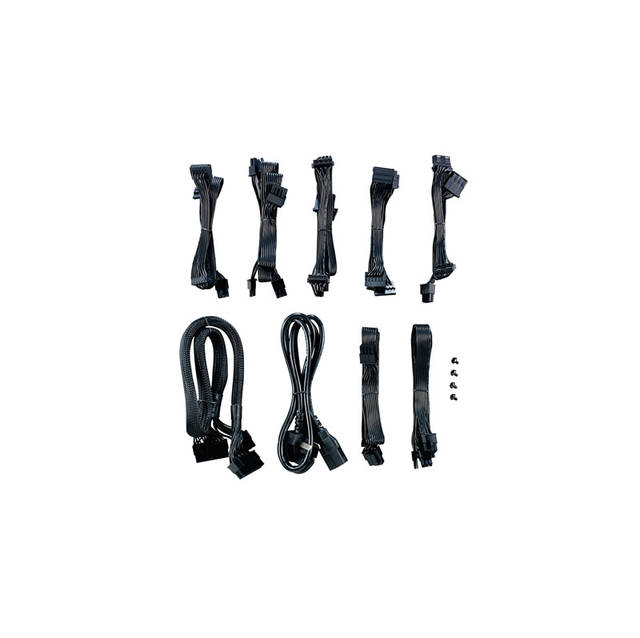

  • Full Modular Flat Cables - Full modular flat cables are easy to install, reduce clutter, and maximize airflow
  • 80 PLUS Gold Certified - The 80 PLUS Gold certification guaranties a minimum typical efficiency of 90%
  • Silent and Durable LDB Fan Bearing - Silencio technology combines sealed LDB bearings with quiet fan blades, delivering a long lifetime of quiet cooling
  • Proven Thermal Resistance - Engineered to operate at full performance in temperatures up to 45 C, providing reliability in even the hottest environments
  • High Efficiency and Stable Output - The MWE Gold's fullbridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable Voltage outputs

• Type: ATX 12V V2.31
• Output Capacity: 550W
• Input
  • Voltage: 100 - 240V AC
  • Current: 6.3 A
  • Frequency: 50/ 60Hz
• PFC: Active PFC
• Power Good Signal: 100 - 500 ms
• Hold Up Time: >14 ms @ 100% load
• MTBF: >100,000 Hours
• Fan: 120mm LDB Fan
• Efficiency: 90% Typically
• Protection: OVP / OPP / UVP / SCP / OTP
• Output: +3.3V @ 15A, +5V @ 15A, +12V @ 45.8A, -12V @ 0.3A, +5sb @ 2.5A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin CPU 12V Connector, 2x 6+2pin PCI-Express Connectors, 8x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
• Dimensions (BxLxH): 150.0 x 160.0 x 86.0 mm

Available Quantity

5

UPC

884102029608

SKU

mingleMPY-5501-AFAAG-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

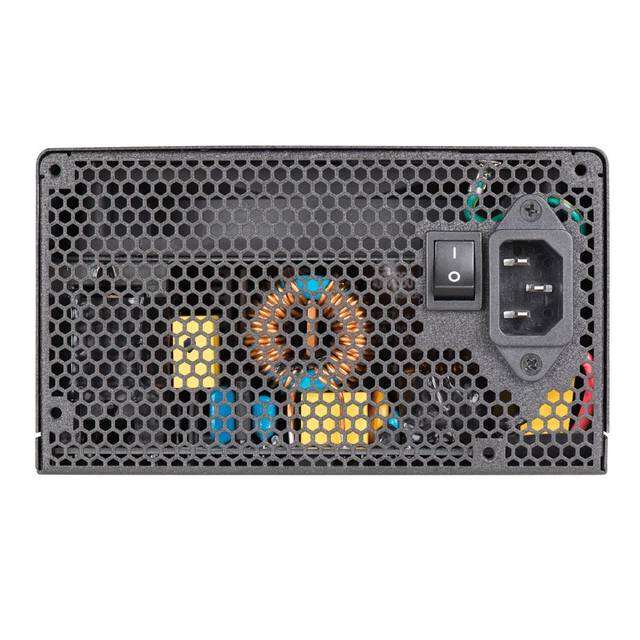

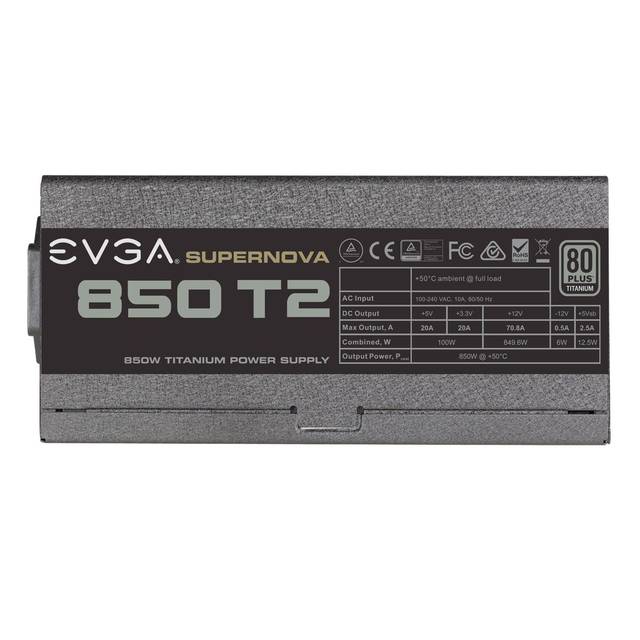

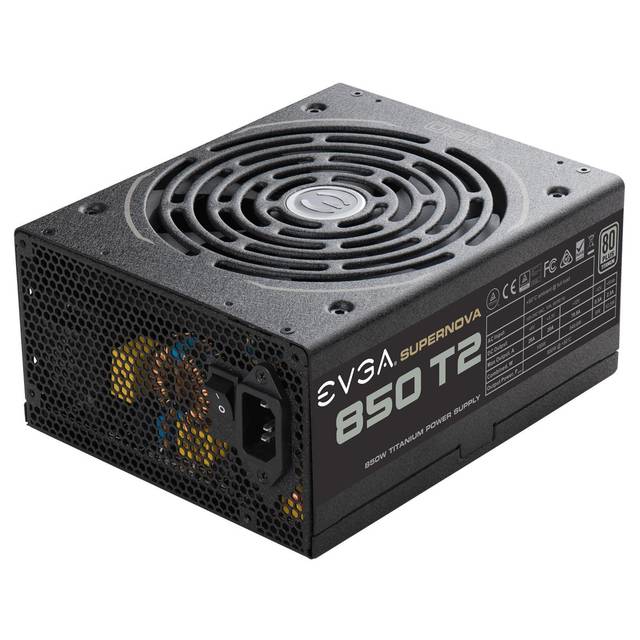

• Mfr Part Number: 220-T2-0850-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Ultra Quiet Fan with ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45 C)
  • 80 PLUS Titanium certified, with 94% (115VAC) / 96% (220VAC~240VAC) efficiency or higher under typical loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 94% (115VAC) / 96% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 140mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70.8A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS (CPU) Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 10x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 180.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368035129

SKU

mingle220-T2-0850-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

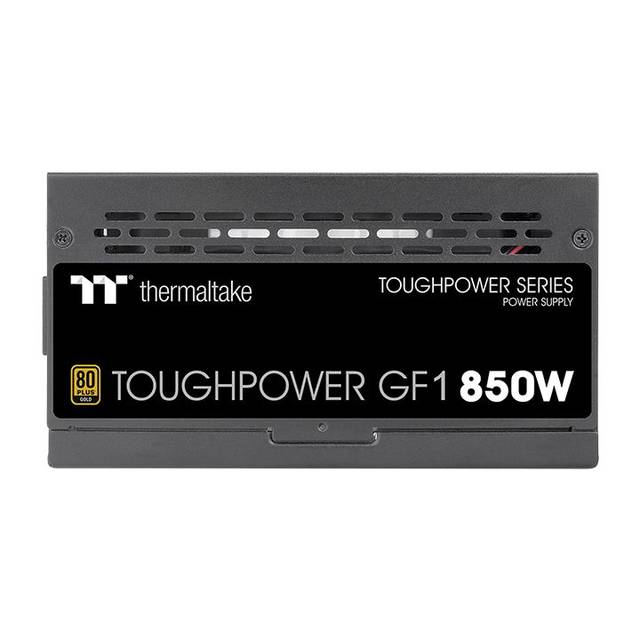

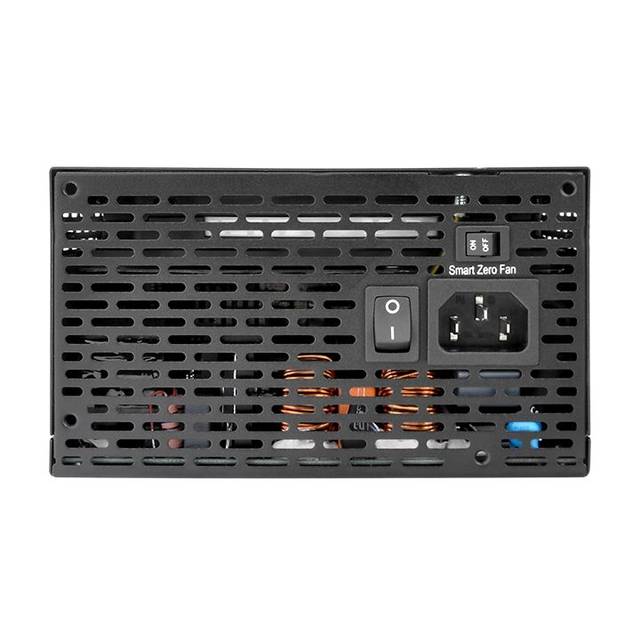

• Mfr Part Number: PS-TPD-0850FNFAGU-1
• MAX. OUTPUT CAPACITY : 850W
• PEAK OUTPUT CAPACITY : 1020W
• COLOR : Black
• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 160mm(D)
• PFC (POWER FACTOR CORRECTION) : Active PFC
• POWER GOOD SIGNAL : 100-500 msec
• HOLD UP TIME : > 16msec at 100% of full load
• INPUT CURRENT : 12A
• INPUT FREQUENCY RANGE : 50Hz - 60Hz
• INPUT VOLTAGE : 100V 240V~
• OPERATING TEMPERATURE : 0 C to + 50 C
• OPERATING HUMIDITY : 20% to 90%,non-condensing
• STORAGE TEMPERATURE : -20 C to + 70 C
• STORAGE HUMIDITY : 5% to 95%, non-condensing
• COOLING SYSTEM : 14cm hydraulic bearing fan
• EFFICIENCY : Meet 80 PLUS Gold at 115Vac input.
• MTBF : 120,000 hrs minimum
• SAFETY APPROVAL : CE/cTUVus/T V S D/FCC/BSMI/EAC
• PCI-E 6+2PIN : 6
• PROTECTION : OCP, OVP, UVP, OPP, SCP, OTP



Available Quantity

5

UPC

841163006597

SKU

minglePS-TPD-0850FNFAGU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

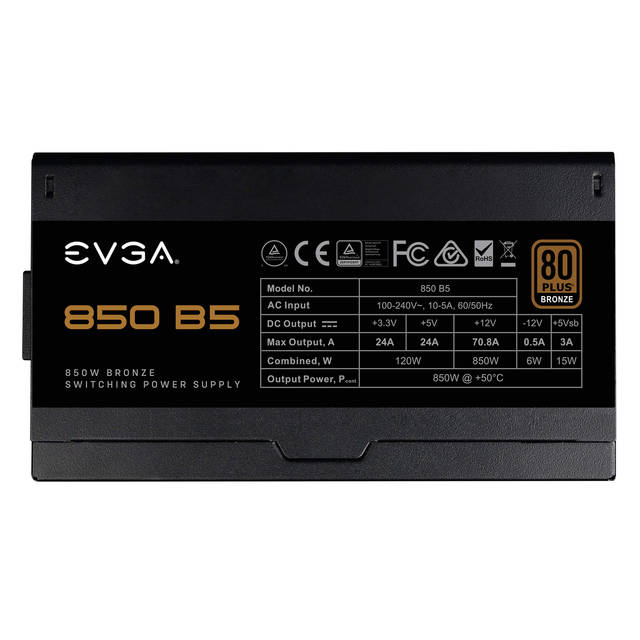

Product Description

Specifications

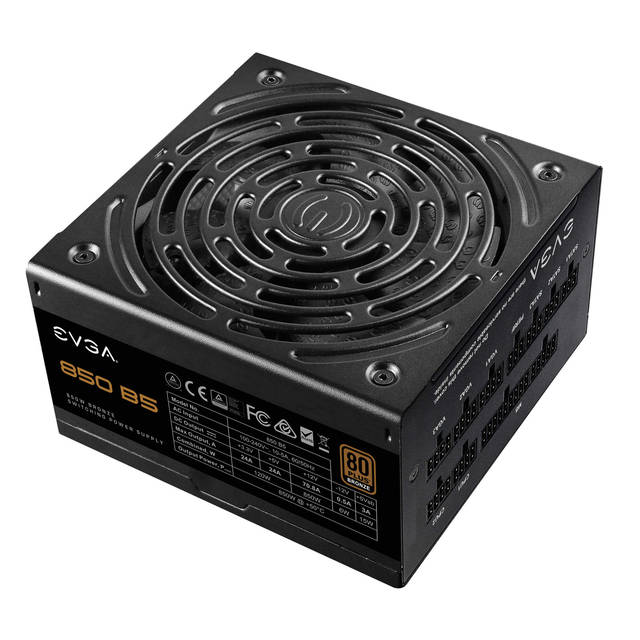

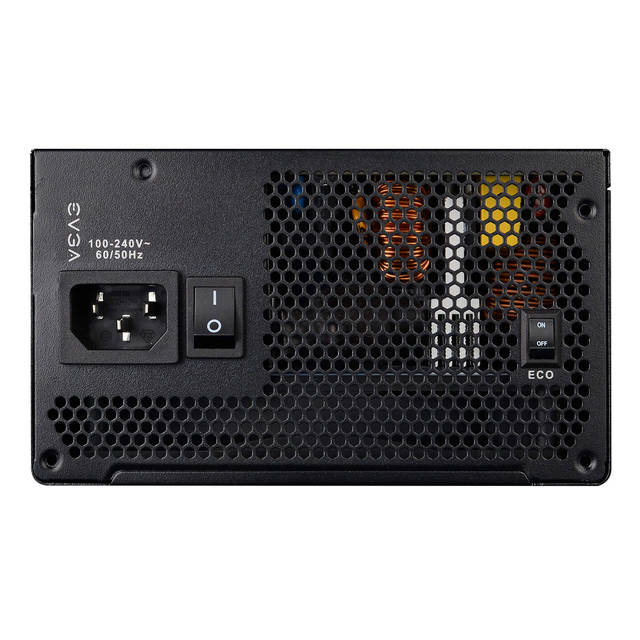

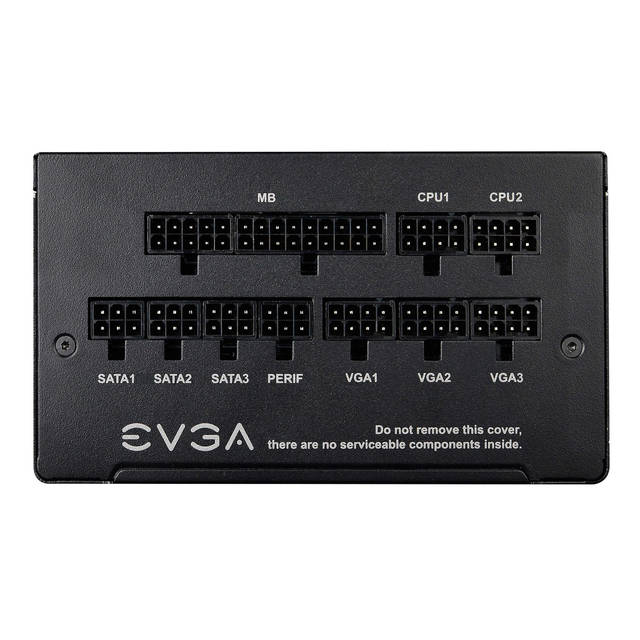

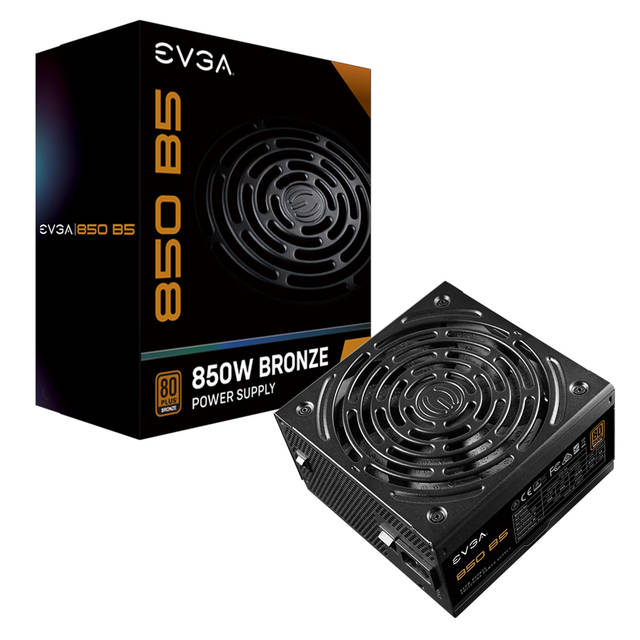

• Mfr Part Number: 220-B5-0850-V1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads

  • Fully Modular to reduce clutter and improve airflow

  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

  • 5 Year Warranty and unparalleled EVGA Customer Support

  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 70.8A, +5VSB @ 3.0A, -12V @ 0.5A
• ATX  Cable : 1x 600mm (m)

• EPS Cable  : 2x 600mm (m)

• PCIe Cable  : 3x 550mm, 700mm (m)

• SATA Cable  : 3x 500mm, 600mm, 700mm (m)

• Four-Pin Peripheral Cable  : 1x 500mm, 600mm, 700mm (m)

• Floppy Adapter  : 1x Molex to FDD Adapter

• AC Power  : 1x 1500mm (m)

• Modular Cable Type  : Full

• 24 Pin ATX  : 1x 24pin (20+4)

• EPS (PU)  : 2x 8pin (4+4)

• PIe  : 6x 8pin (6+2)

• SATA  : 9x

• Four-Pin Peripheral  : 3x

• Floppy  : 1x

• Operating Temperature   : 0 to 50

• Japanese apacitors   : 100%

• EO Mode   : Yes

• MTBF   : 100,000 Hours

• Net Weight   : 5.4 lbs

• Size   : 86mm (H) x 150mm (W) x 150mm (L)

• Approvals : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHSCompliance with ErP Lot 3 2014 Requirement

• Fan Size / Bearing   : 135mm Fluid Dynamic Bearing

Available Quantity

5

UPC

843368064358

SKU

mingle220-B5-0850-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

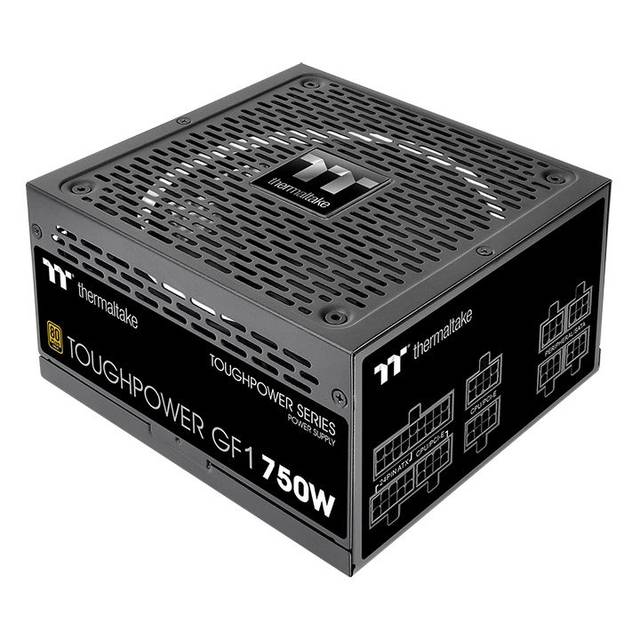

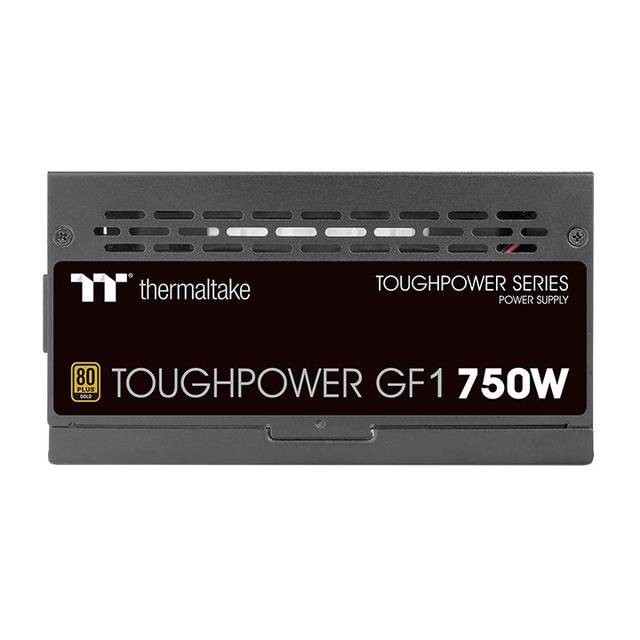

• Mfr Part Number: PS-TPD-0750FNFAGU-1
• MAX. OUTPUT CAPACITY : 750W
• PEAK OUTPUT CAPACITY : 900W
• COLOR : Black
• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 160mm(D)
• PFC (POWER FACTOR CORRECTION) : Active PFC
• POWER GOOD SIGNAL : 100-500 msec
• HOLD UP TIME : > 16msec at 100% of full load
• INPUT CURRENT : 10A
• INPUT FREQUENCY RANGE : 50Hz - 60Hz

• INPUT VOLTAGE : 100V 240V~
• OPERATING TEMPERATURE : 0 C to + 50 C
• OPERATING HUMIDITY : 20% to 90%,non-condensing
• STORAGE TEMPERATURE : -20 C to + 70 C
• STORAGE HUMIDITY : 5% to 95%, non-condensing
• COOLING SYSTEM : 14cm hydraulic bearing fan
• EFFICIENCY : Meet 80 PLUS Gold at 115Vac input.
• MTBF : 120,000 hrs minimum
• SAFETY APPROVAL : CE/cTUVus/T V S D/FCC/BSMI/EAC
• PCI-E 6+2PIN : 4
• PROTECTION : OCP, OVP, UVP, OPP, SCP, OTP



Available Quantity

5

UPC

841163006573

SKU

minglePS-TPD-0750FNFAGU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

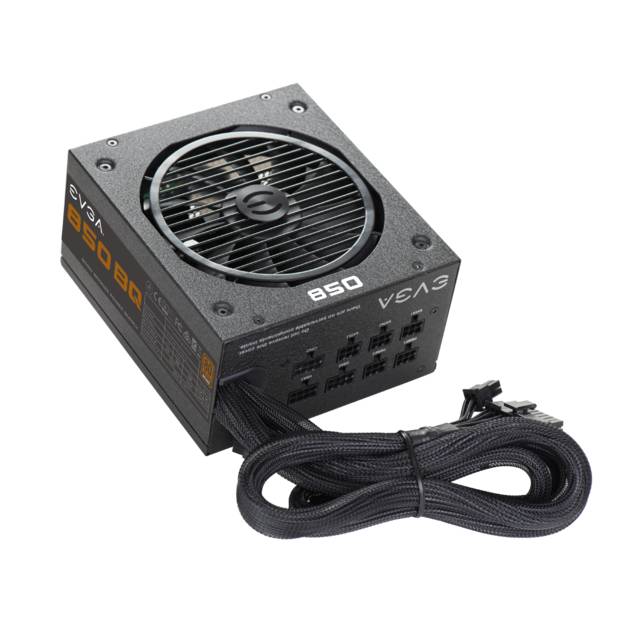

• Mfr Part Number: 110-BQ-0850-V1
• Features:
  • 5 Year Warranty and unparalleled EVGA Customer Support

  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)

  • Quiet and Intelligent Auto Fan for near-silent operation
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 12 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Power Factor Correction: Active PFC
• Efficiency: 85% Typical
• MTBF: 100,000 hours
• Fan: 140mm Teflon Nano-Steel Bearing
• Output: +3.3V @ 24A, +5V @ 20A, +12V @ 70A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 3x 8pin (6+2) PCI-Express Connectors, 10x SATA Connectors, 5x 4pin Peripheral Connectors, 1x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHSCompliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 7.0 lbs

Available Quantity

5

UPC

843368036607

SKU

mingle110-BQ-0850-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

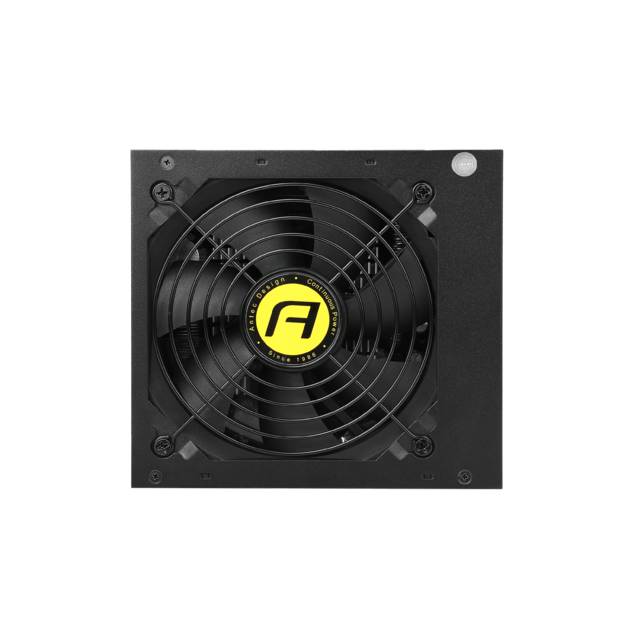

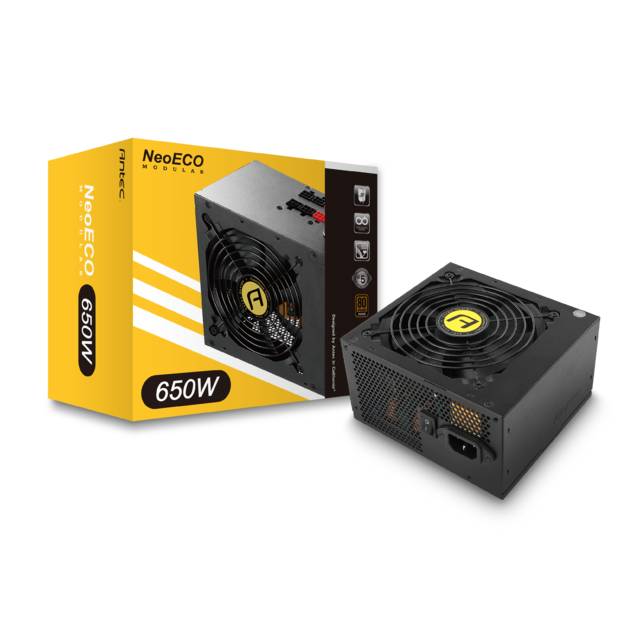

• Mfr Part Number: NE650M  V2
• Features:
  • Continuous Power - Guaranteed Continuous Power from Antec
  • 80 PLUS BRONZE certified - Up to 88% efficient, to reduce your electricity bill
  • AQ3 - Antec Quality 3 year warranty and lifetime global 24/7 support
  • 120mm Silent Fan
  • Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
  • CircuitShield - Full suite of industrial grade protections
  • Heavy-duty Caps - High-performance capacitors ensure tightest DC stability and regulation
  • Advanced Hybrid Cable Management - Improves airflow and reduces clutter
• Maximum Power: 650 W
• Efficiency: 88% Typically
• Fan: 1x 120mm Silent Fan
• Certifications: 80 Plus BRONZE
• Dimensions (WxDxH): 9.25 x 5 x 8.5 inch
• Weight: 4.90LB

Available Quantity

5

UPC

761345111690

SKU

mingleNE650M V2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

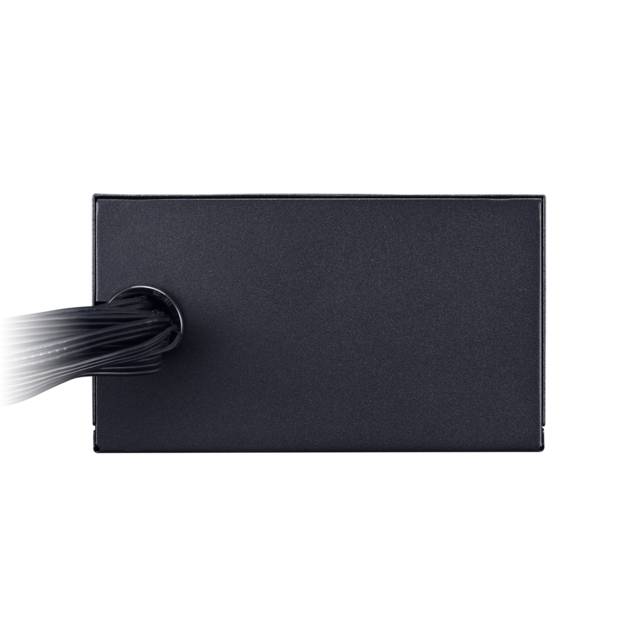

Product Description

Specifications

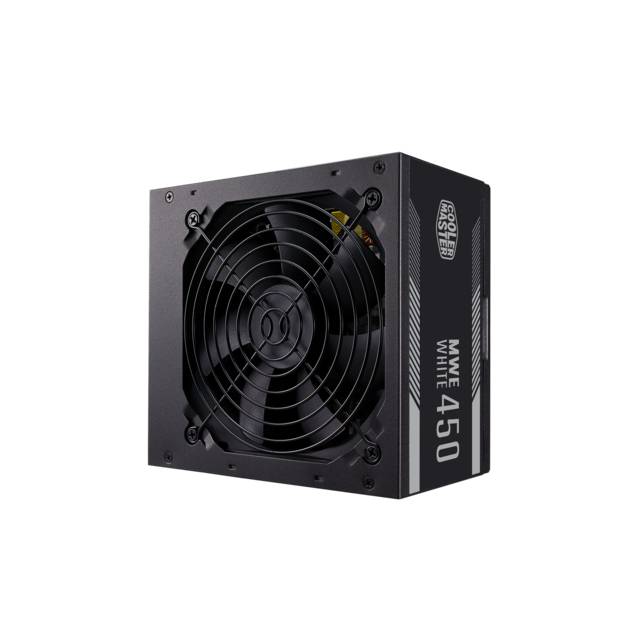

• Mfr Part Number:MPE-4501-ACAAW-US
• Features:
  • 80 PLUS Standard Certified

  • 120 mm HDB Fan

  • DC-to-DC + LLC Circuit Design

  • Single +12V Rail

  • Flat Black Cables
• Type: Intel ATX 12V V2.52
• Output Capcity: 450 W
• Input:
  • Voltage: 100 - 240V AC
  • Current: 8 - 4A
  • Frequency Range: 50 ~ 60Hz
• Hold Up Time: >14ms at 100% Full Load@230Vac
• MTBF: > 100,000 Hours
• Fan: 120mm HDB Fan
• Efficiency: 80% @ Typical Load
• Protection:  OVP, OPP, OTP, SCP, UVP
• Connectors: 1x 20+4pin Motherboard Connector; 1x 4+4pin CPU 12V Connector; 2x 6+2pin PCI Express Connector, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: CB, TUV, cTUVus, CE, FCC, CCC, EAC, RCM, BSMI, KC
• ERP 2014 LOT 3 : Yes

• OPERATING TEMPERATURE:  40 C

• POWER GOOD SIGNAL : 100-500ms

• Dimensions (BxLxH): 140.0 x 150.0 x 86.0 mm

Available Quantity

5

UPC

Does not apply

SKU

mingleMPE-4501-ACAAW-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

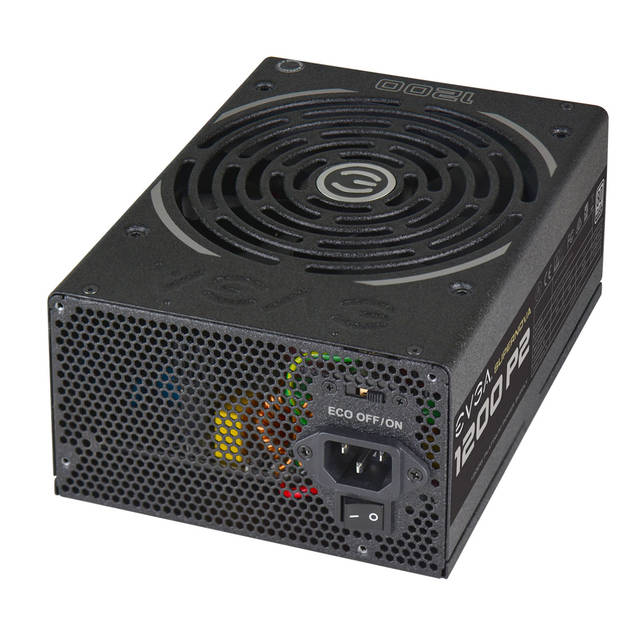

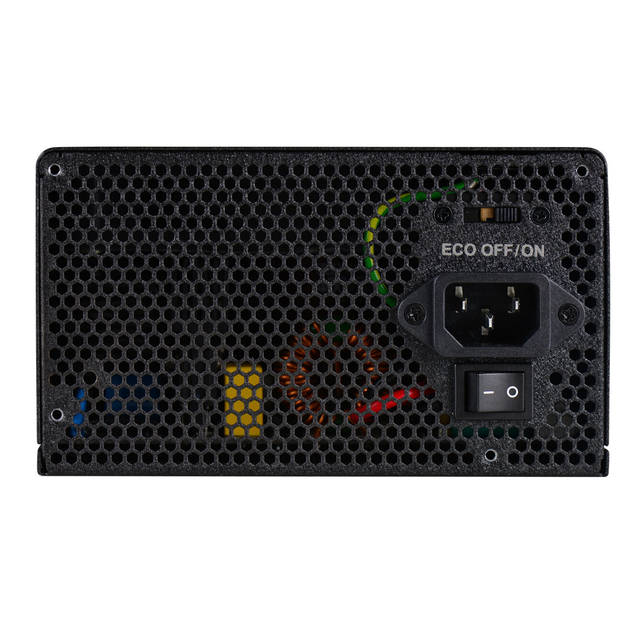

• Mfr Part Number: 220-P2-1200-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• Maximum Power: 1200 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 15 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 140mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 99.9A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS12V Power Connectors, 6x 8(6+2)pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 12x SATA Connectors, 5x Molex Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
• Dimensions (WxLxH): 150.0 x 200.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368030490

SKU

mingle220-P2-1200-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

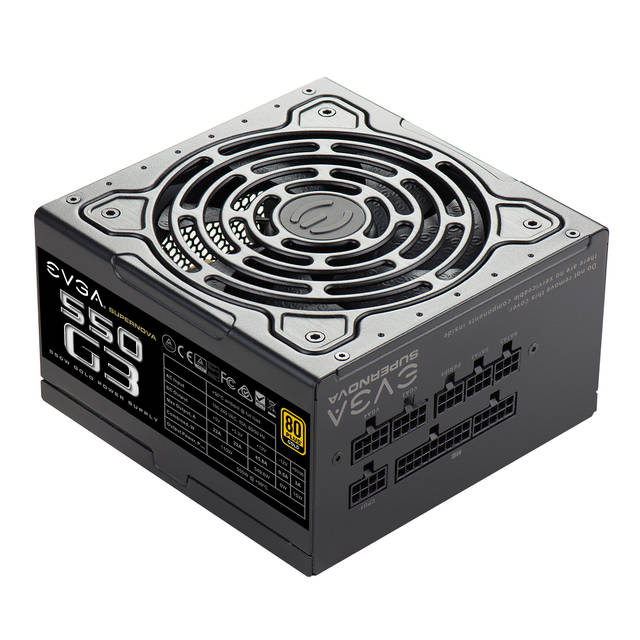

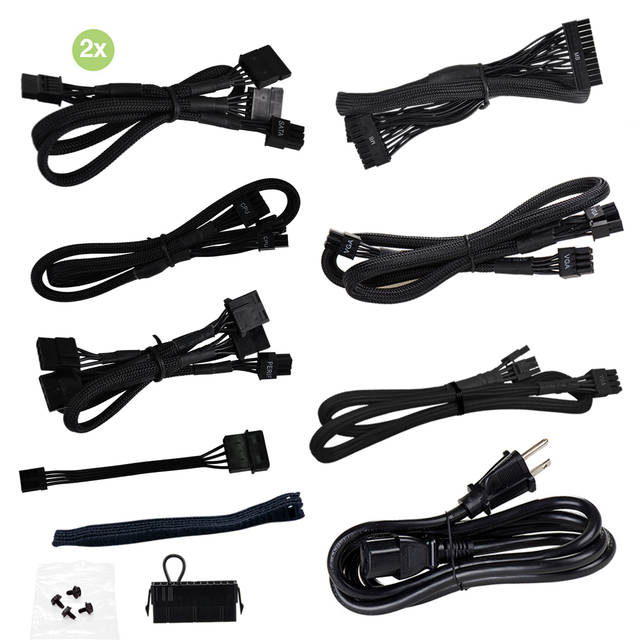

• Mfr Part Number: 220-G3-0550-Y1

• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Unbeatable 7 Year Warranty and unparalleled EVGA Customer Support.
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
• Maximum Power: 550 W

• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours

• Fan: 1x 130mm Hydraulic Dynamic Bearing

• Output: +3.3V @ 22A, +5V @ 22A, +12V @ 45.8A, +5VSB @ 3A, -12V @ 0.5A

• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connector, 3x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 85.0 mm

• Weight: 7.0 lbs


Available Quantity

5

UPC

843368042547

SKU

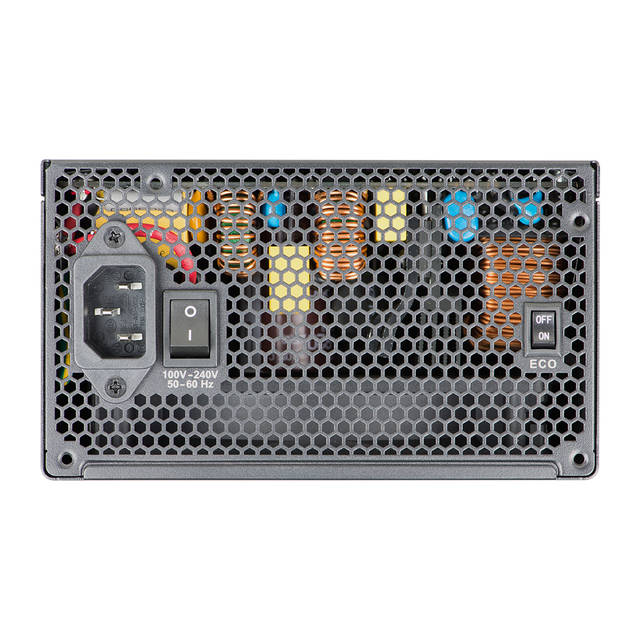

mingle220-G3-0550-Y1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

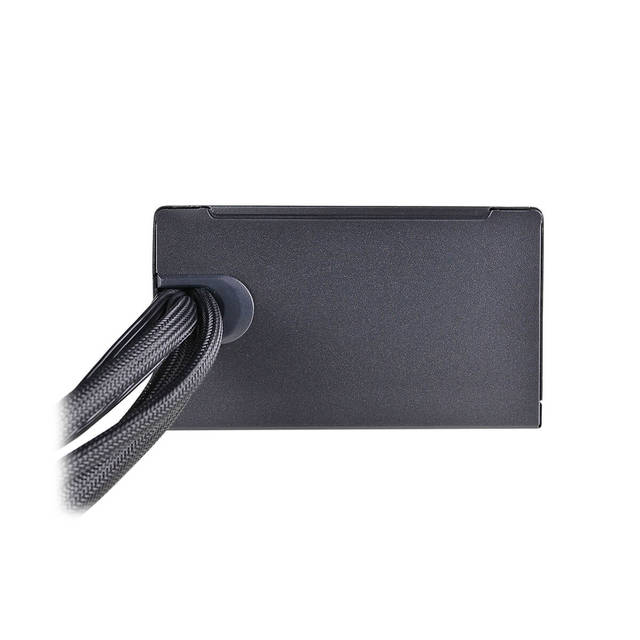

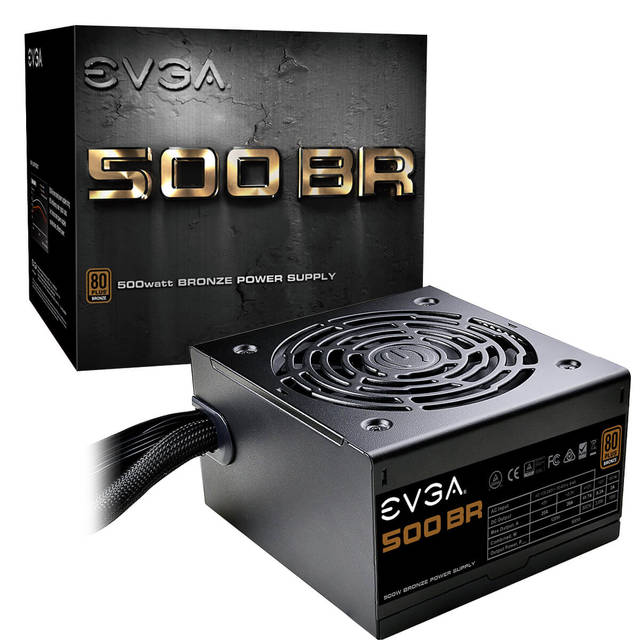

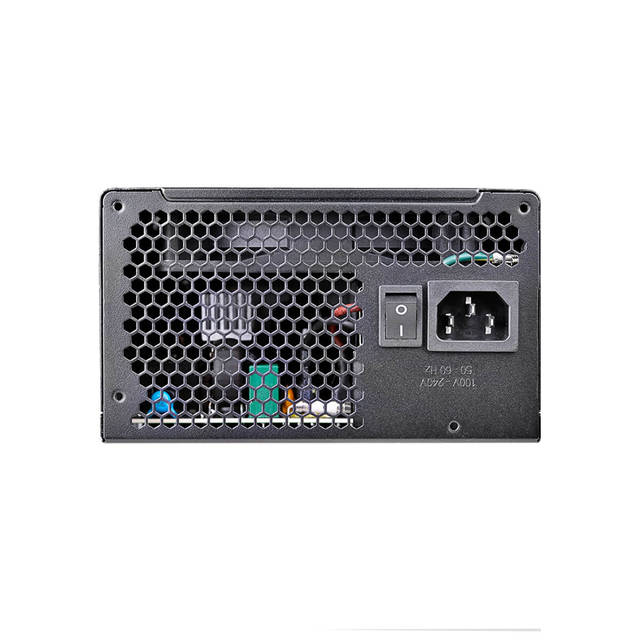

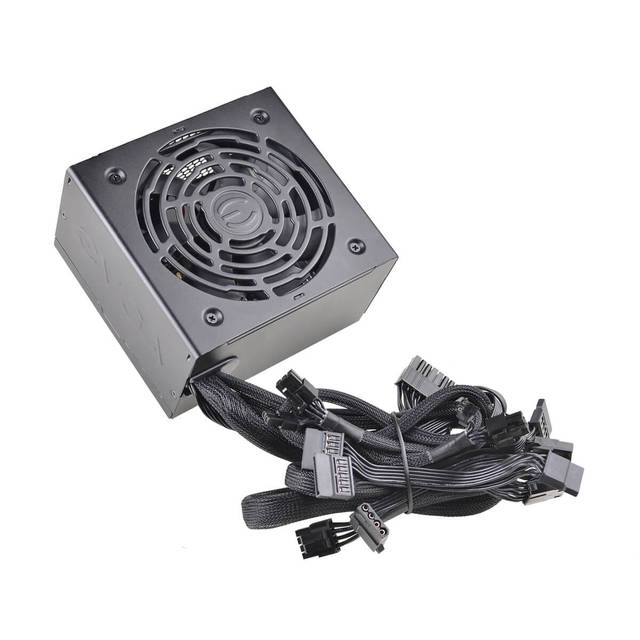

• Mfr Part Number: 100-BR-0500-K1
• Features:
  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Single 12V. Rail
  • Active Power Factor Correction (PFC)
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
• Maximum Power: 500 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 8/4 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 85% Typical
• MTBF: 100,000 hours
• Fan: 1x 120mm Long Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 41.7A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Power Connector, 1x 8(4+4)pin EPS Power Connector, 2x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS  Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 4.0 lbs


Available Quantity

5

UPC

843368051860

SKU

mingle100-BR-0500-K1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

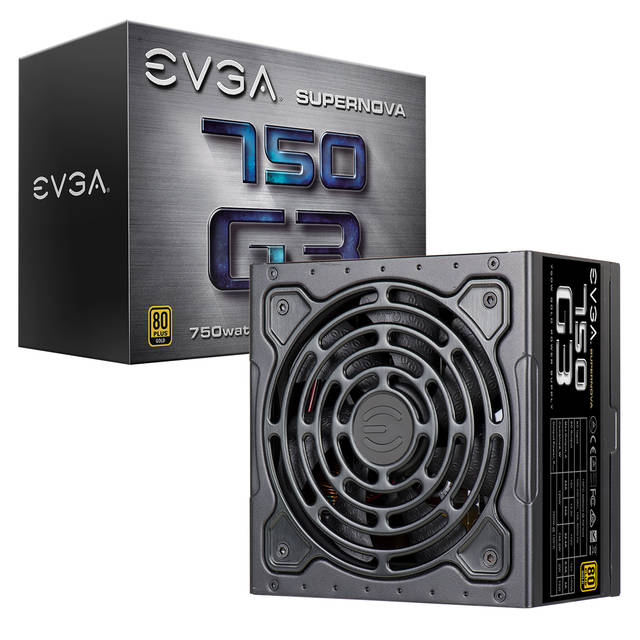

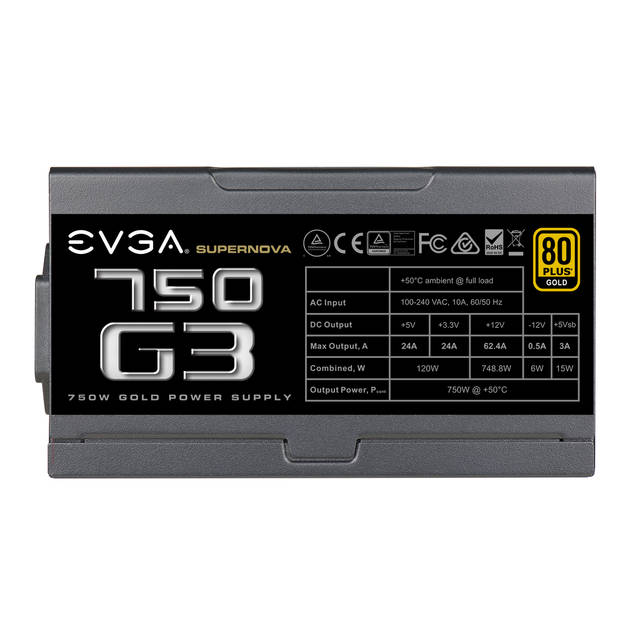

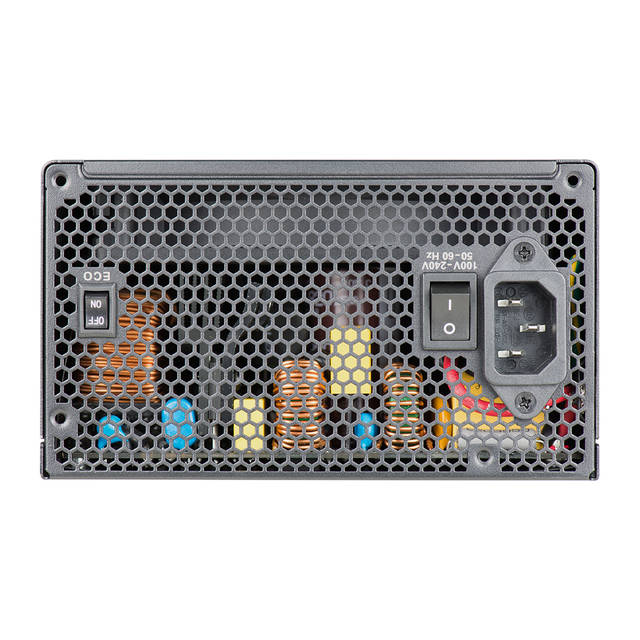

• Mfr Part Number: 220-G3-0750-X1

• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC

  • Current: 10 A

  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V

• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

• MTBF: 100,000 hours

• Fan: 1x 130mm Hydraulic Dynamic Bearing

• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 62.4A, +5VSB @ 3A, -12V @ 0.5A

• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connector, 6x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 150.0 x 85.0 mm

• Weight: 8.0 lbs


Available Quantity

5

UPC

843368042622

SKU

mingle220-G3-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

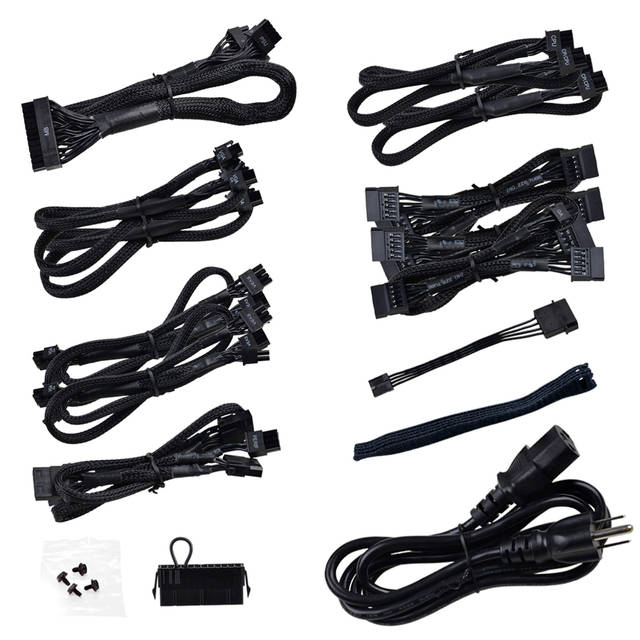

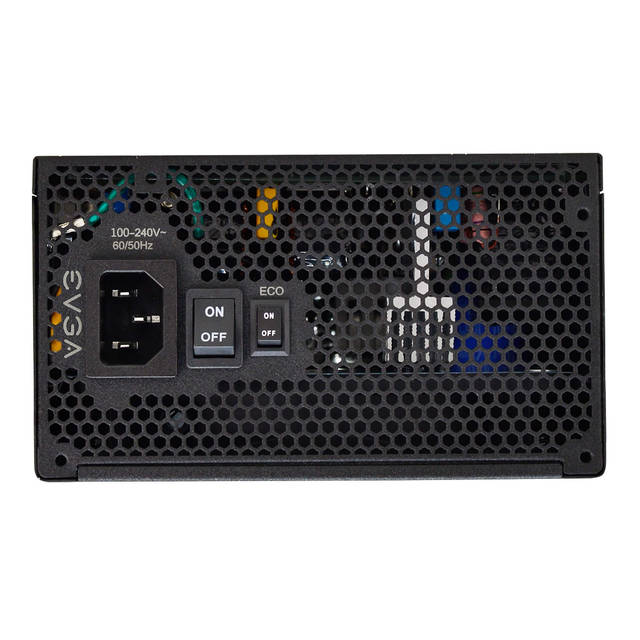

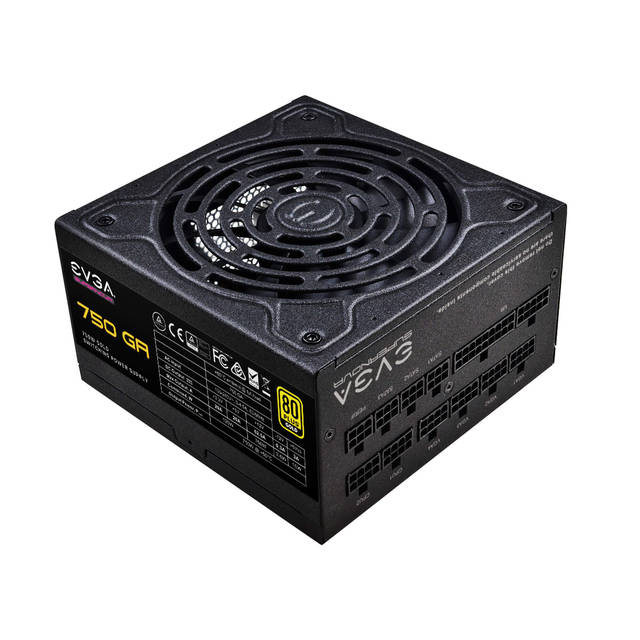

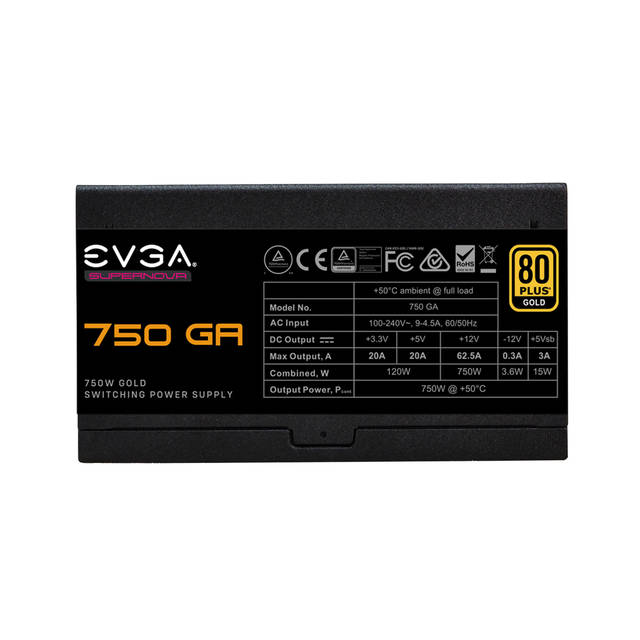

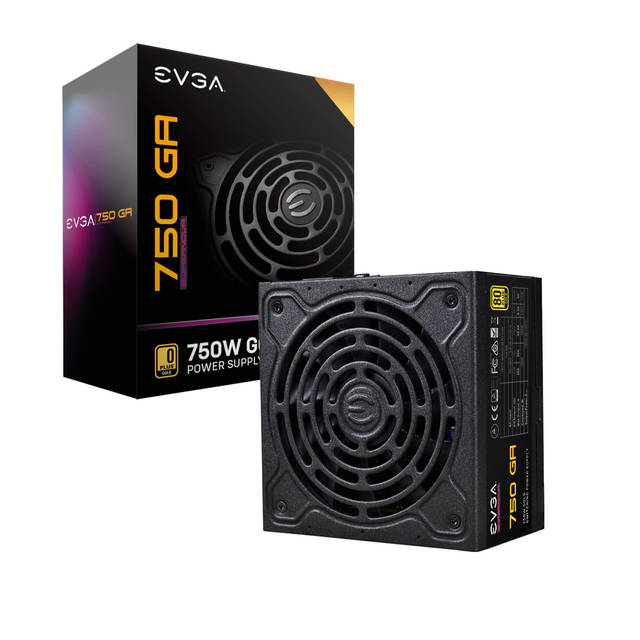

• Mfr Part Number: 220-GA-0750-X1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 9-4.5A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @62.5A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS Power Connector, 6x 8pin(6+2)PCI-Express Connector, 9x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Net Weight: 6.59 lbs

Available Quantity

5

UPC

843368061968

SKU

mingle220-GA-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

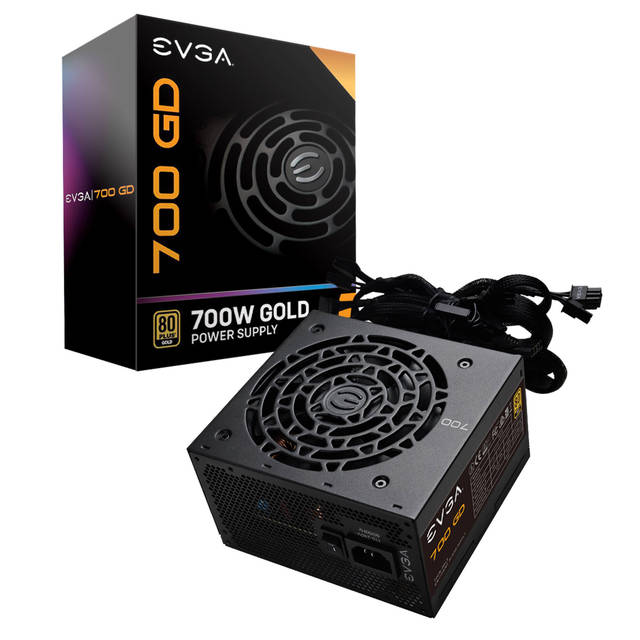

• Mfr Part Number: 100-GD-0700-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 5 Year Warranty and unparalleled EVGA Customer Support
• Maximum Power: 700 W
• Input:
  • Voltage: 110 ~ 240 VAC
  • Current: 9.5-4.5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• MTBF: 100,000 hours
• Fan: 120mm Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 58.3A, +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 2x 8pin (6+2), PCI-Express Connector, 6x SATA Connectors, 3x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• Weight: 5 lbs

Available Quantity

5

UPC

843368057374

SKU

mingle100-GD-0700-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: SDGR-FLEX320
• Features:
  • Mini-ITX/FLEX ATX type
  • Supports Intel & AMD Socket
  • Low ripple and noise
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • Short Circuit protection
  • Thermal overload cut-off protection
  • Stained SECC Steel Material
  • 15" long cables
  • Energy efficiency
• Maximum Power: 320W
• Input:
  • Voltage: 100-240V
  • Current: 100A max cold start
  • Frequency Range: 47/63Hz

• Regulation:
  • Line: +/-1% typical
  • Load: +/- 5% typical
• Output Ripple: noise - 1%
• Fan: 1x 40mm Cooling Fan
• Output: +3.3V @ 11A, +5V @ 14A, +12V @ 17A, -12V @ 0.3A, -5V @ 0.1A, +5Vsb @ 2.0A
• Connectors: 1x 20+4pin Main Connector, 1x 4pin P4 12V Connector, 2x 15pin SATA Connectors, 2x 4pin Molex Connectors, 1x 4pin Floppy Connector
• MTBF (Full Load): >20,000 Hours
• EnergystarStand by: < 1W
• Dimensions (WxDxH): 3.250 x 6.000 x 1.625 inches
• Weight: 2.0 lbs

Available Quantity

5

UPC

859337002412

SKU

mingleSDGR-FLEX320

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

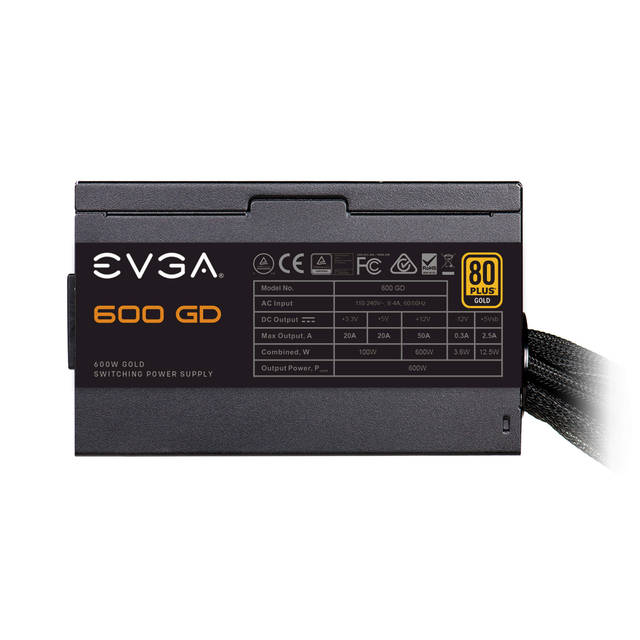

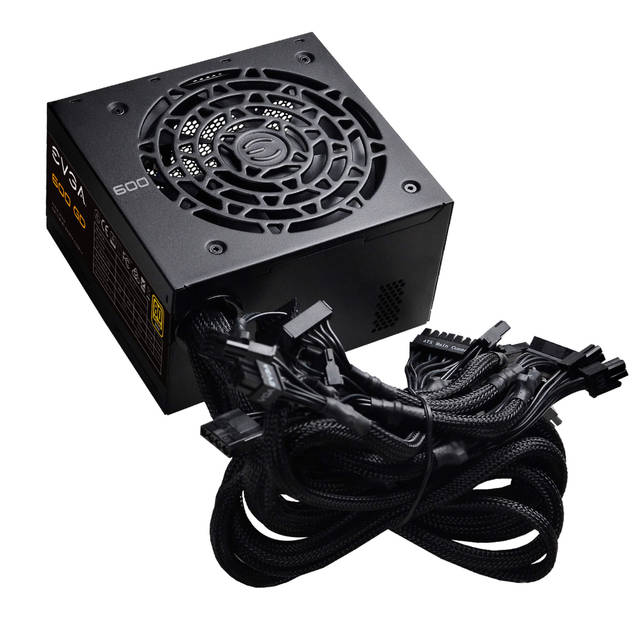

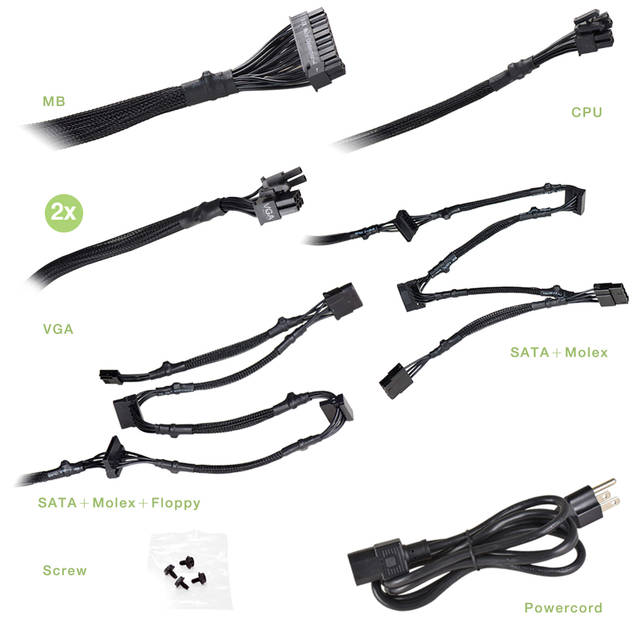

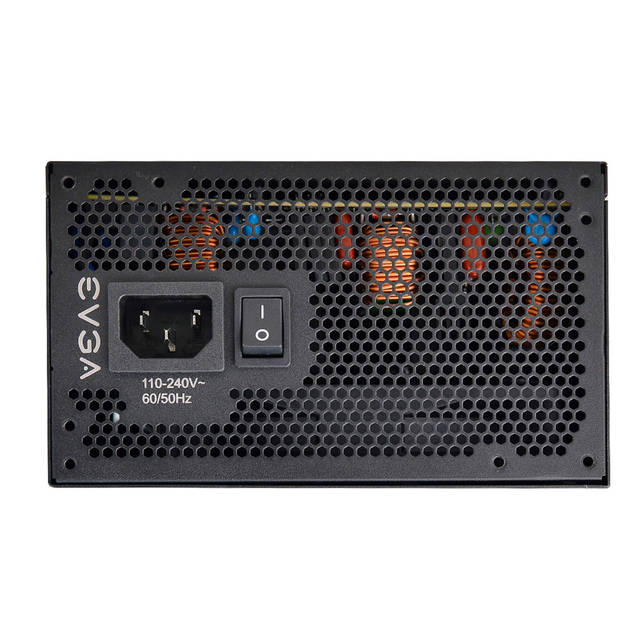

• Mfr Part Number: 100-GD-0600-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 5 Year Warranty and unparalleled EVGA Customer Support
• Maximum Power: 600 W
• Input:
  • Voltage: 110 ~ 240 VAC
  • Current: 8-4 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• MTBF: 100,000 hours
• Fan: 120mm Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 50.0A, +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 2x 8pin (6+2), PCI-Express Connector, 6x SATA Connectors, 3x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• Weight: 4.9 lbs

Available Quantity

5

UPC

843368057329

SKU

mingle100-GD-0600-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

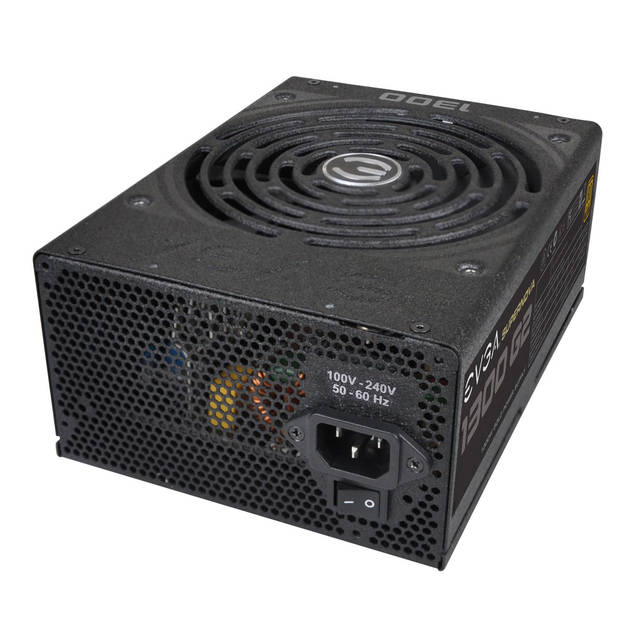

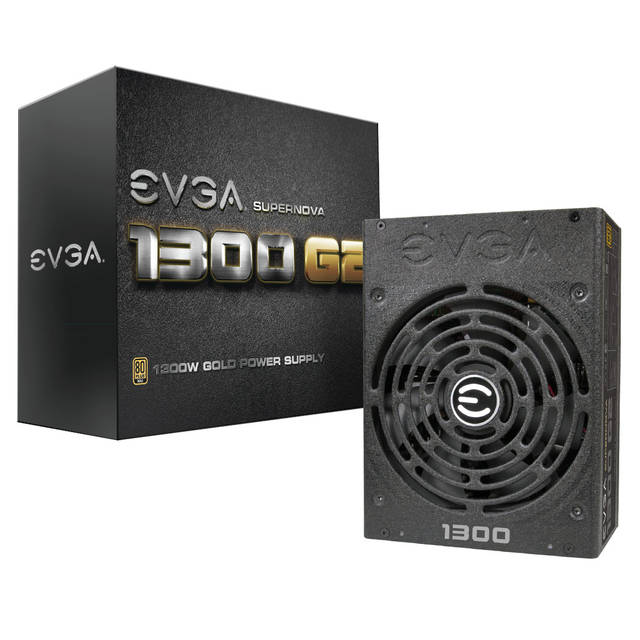

• Mfr Part Number: 120-G2-1300-XR
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) and OTP (Over Temperature Protection)
• Maximum Power: 1300 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 15 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% Typical
• Fan: 1x Fan
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 108.3A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 4+4pin EPS12V Power Connectors, 6x 6+2pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 12x SATA Connectors, 5x 4Pin Molex Connectors, 1x Floppy Connector
• Japanese Capacitors: 100%
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 5.9 x 7.9 x 3.4 inch / 150.0 x 200.0 x 85.0 mm
• Net Weight: 8.0 lbs

Available Quantity

5

UPC

843368024550

SKU

mingle120-G2-1300-XR

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

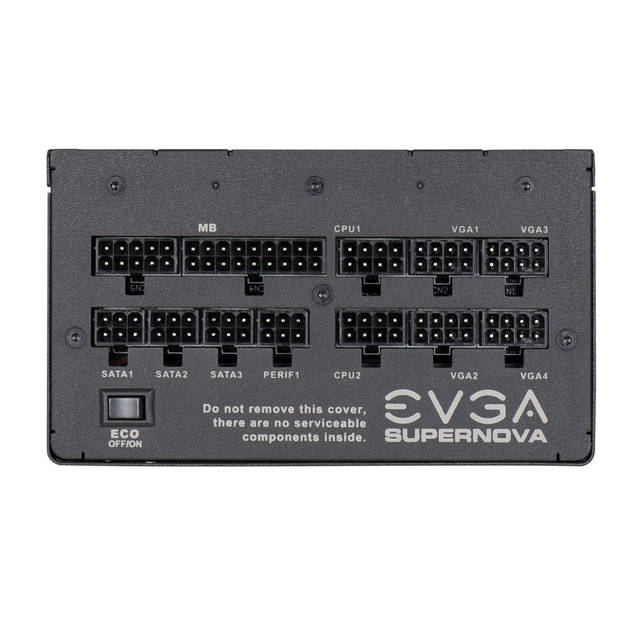

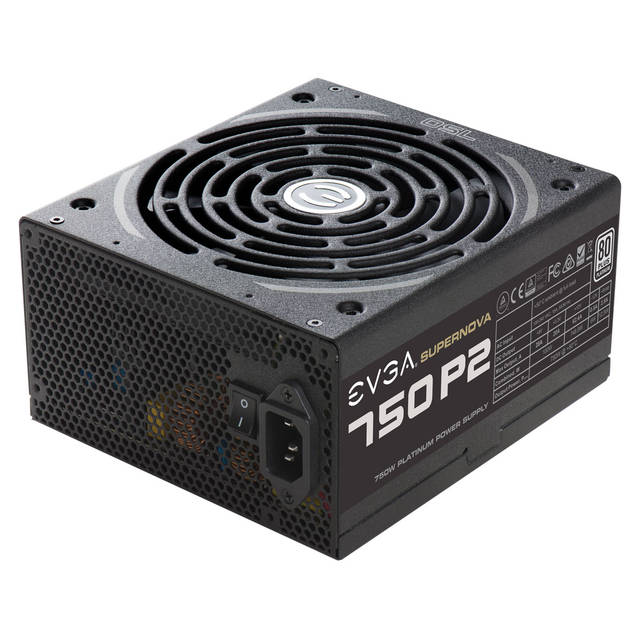

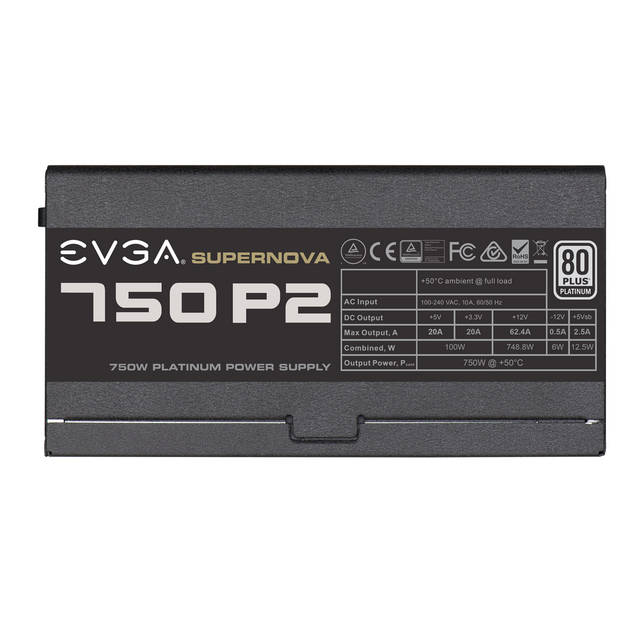

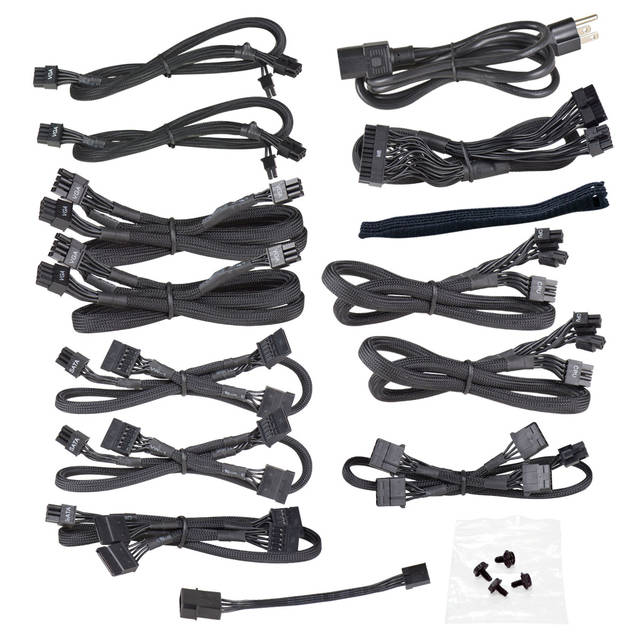

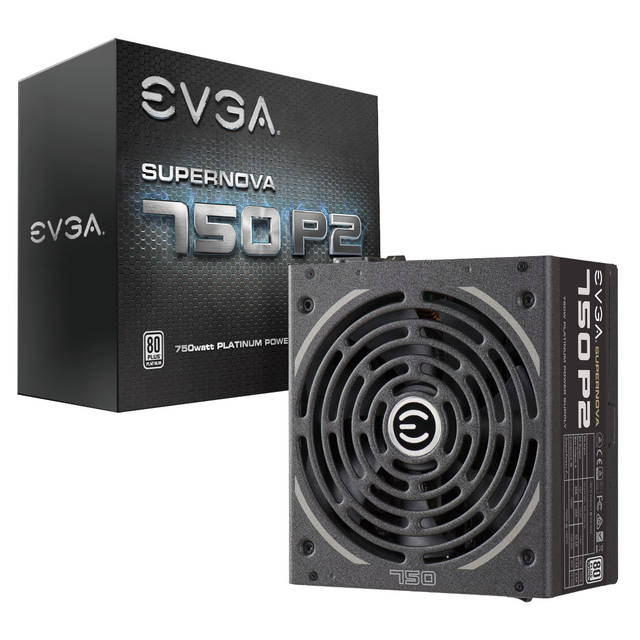

• Mfr Part Number: 220-P2-0750-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 140mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 62.4A, +5VSB @ 2.5A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connector, 4x 8pin (6+2) PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 10x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 165.0 x 85.0 mm
• Weight: 8.0 lbs

Available Quantity

5

UPC

843368034726

SKU

mingle220-P2-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

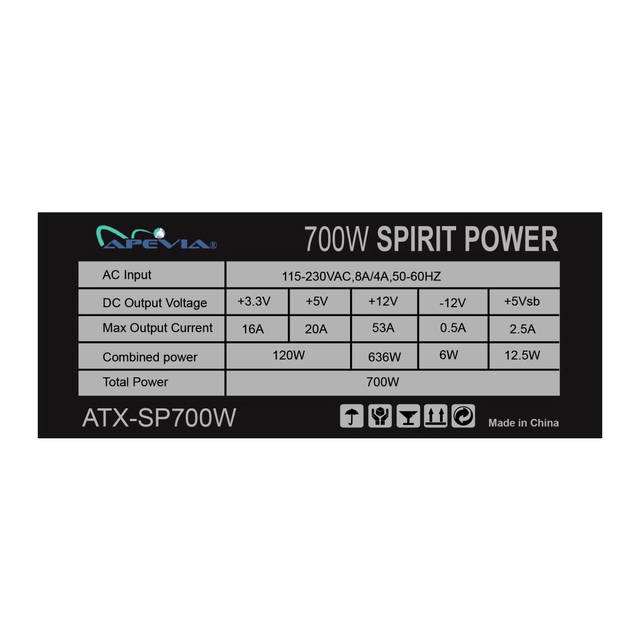

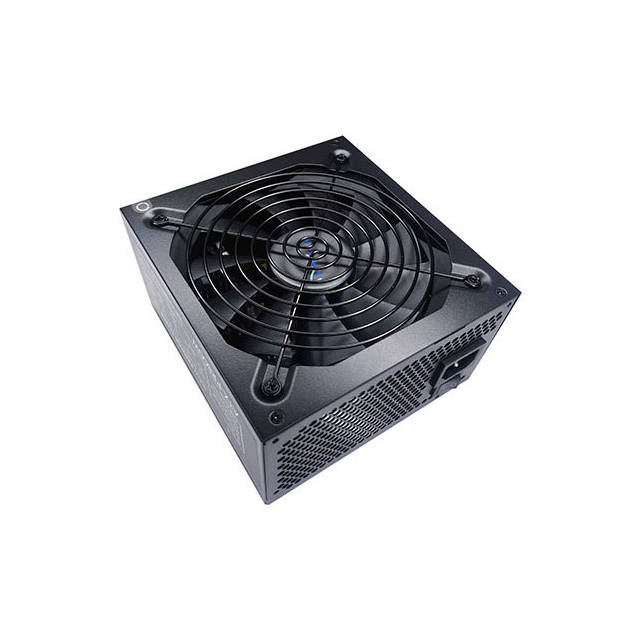

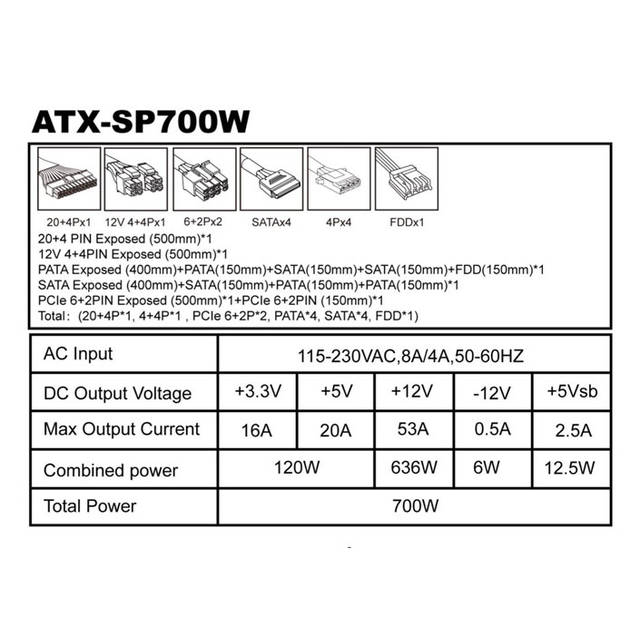

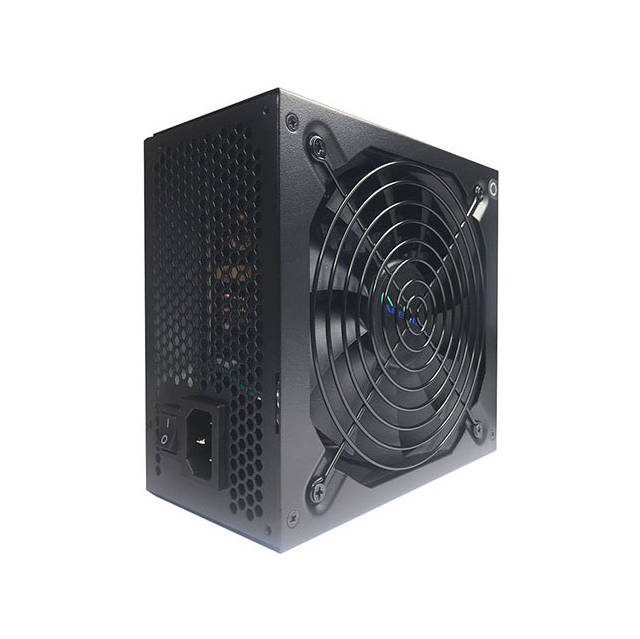

• Mfr Part Number: ATX-SP700W
• Features:
  • Connectors:1 x 20/24pin Main Power, 1 x 4+4pin 12V, 1 x PCI 6+2pin, 4 x SATA, 4 x Peripheral, 1 x Floppy
  • 1 x Auto-Thermally Controlled Black 120mm Fan. 115/230V Switch
  • 5% Tolerance of 5V, 3.3V & 12V Output
  • Short-Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections
• Maximum Power: 700 W
• Input:
  • Voltage Range: 115 - 230V
  • Frequency: 50 - 60Hz
  • Current: Input current:8A for 115VAC, 4A for 230VAC
• Connectors: 1 x 20/24pin Main Power    1 x 4+4 pin 12V    4 x SATA    4 x Peripheral    1 x Floppy    1 x 6+2pin PCI Express
• Fan: Forced air ventilation by 1 x 120mm black fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 6.3 x 5.9 x 3.4 inch / 160.0 x 150.0 x 85.0 mm
• Weight: 4.0 lbs
• Switches:Additional power rocker switch 115/230 Volt selector switch
• Material:Metal

Available Quantity

5

UPC

837344006746

SKU

mingleATX-SP700W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

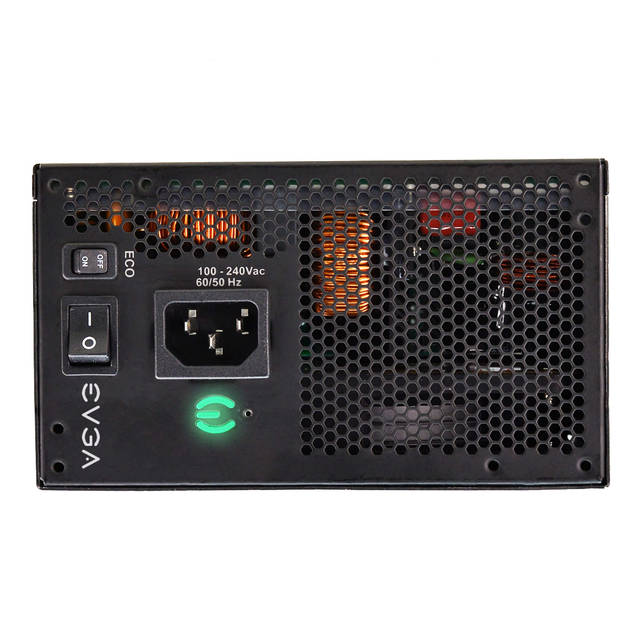

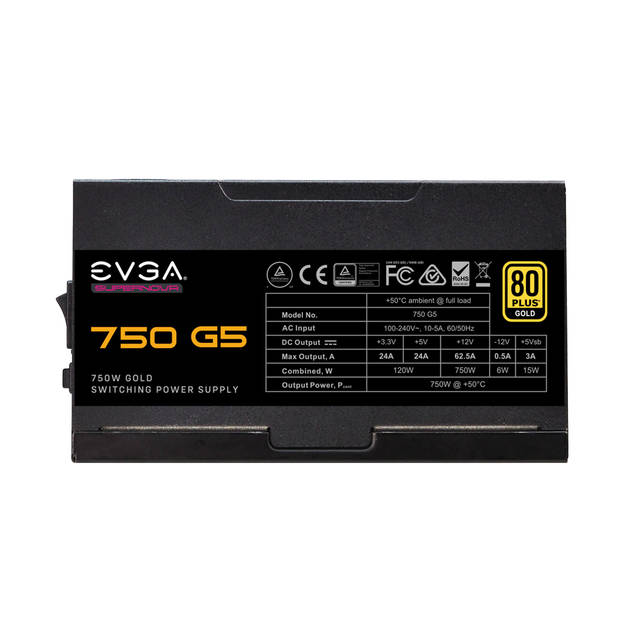

• Mfr Part Number: 220-G5-0750-X1
• Features:
  • 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loadst
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • Active Clamp +DC to DC design for efficient operation
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over CurrentProtection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 62.5A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS Power Connector, 6x 8pin(6+2)PCI-Express Connector, 9x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 6 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Weight: 6.8 lbs

Available Quantity

5

UPC

843368062118

SKU

mingle220-G5-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: SL-275TFX
• Features:
  • Proprietary IC & unique design
  • Embedded thermal sensor
  • Low-noise variable fan
  • Various safety protection - OCP(over-current), OVP(over-voltage), SCP(short-circuit), UVP(under-voltage), OPP(over-power)
  • Upgrade for Antec Minuet PSU and many others
• Maximum Power: 275W
• Input:
  • Voltage Range: 90V~132Vac or 180V~253Vac
  • Current: 275W 6A/4A @ 115/230 Vac
  • Frequency Range: 47~63Hz
• Type: TFX12V
• Efficiency: 65% at full load
• Fan: 1x 12V Internal Fan
• Connectors: 1x 24pin Main Power; 2x Peripheral; 1x SATA; 1x Floppy
• MTBF: 50,000 Hours
• Safety Approval: UL, FCC
• Dimension (WxDxH): 3.25 x 5.75 x 2.5 inch

Available Quantity

5

UPC

835712003267

SKU

mingleSL-275TFX

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

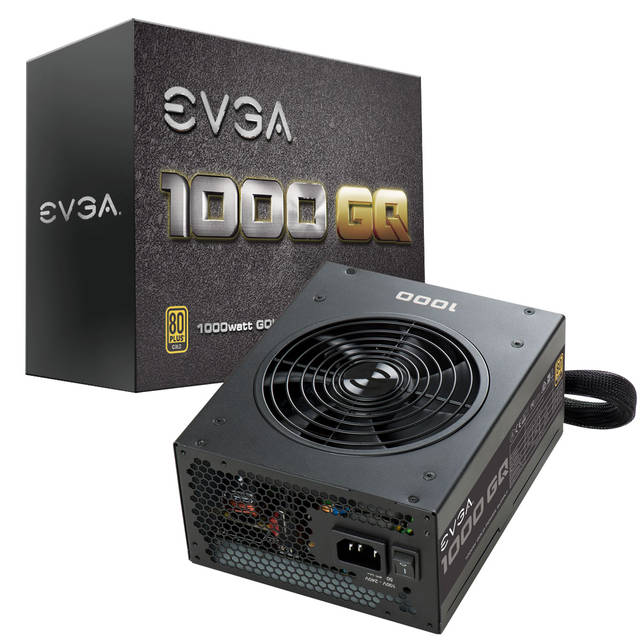

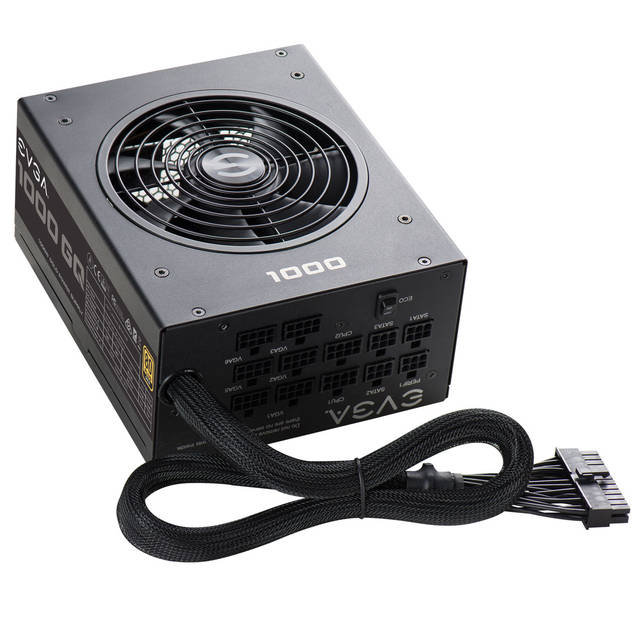

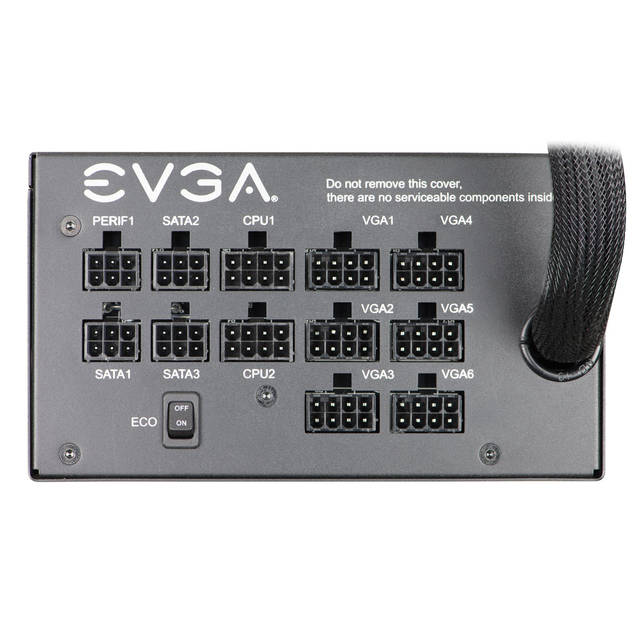

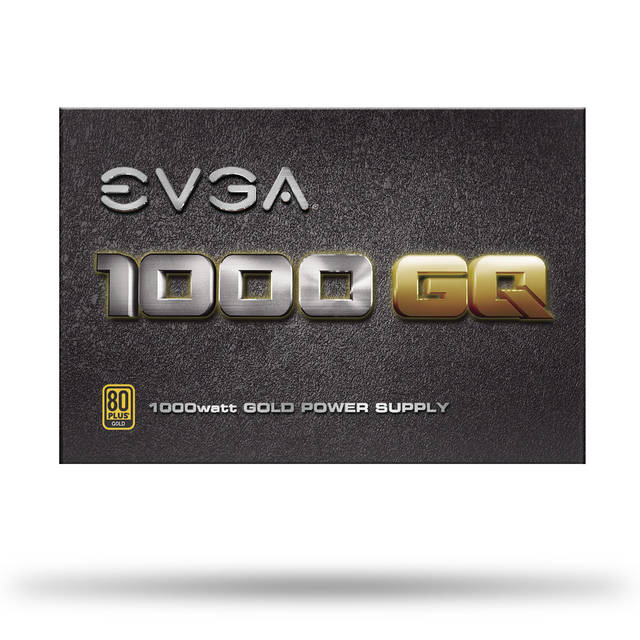

• Mfr Part Number: 210-GQ-1000-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • NVIDIA SLI & AMD Crossfire Ready
  • 5 Year Warranty and unparalleled EVGA Customer Support
  • Modular Design to reduce clutter and improve airflow
  • 100% Japanese Capacitors ensure long-term reliability
  • Active Clamp +DC to DC design for efficient operation
  • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
  • Active Power Factor Correction (PFC)
• Maximum Power: 1000 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 16 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Power Factor Correction: Active PFC
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing Fan
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 83.3A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connector, 10x 8pin (6+2) PCI-Express Connectors, 12x SATA Connectors, 3x 4pin Peripheral Connectors, 2x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance w/ ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 180.0 x 85.0 mm
• Weight: 7.0 lbs

Available Quantity

5

UPC

843368035662

SKU

mingle210-GQ-1000-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

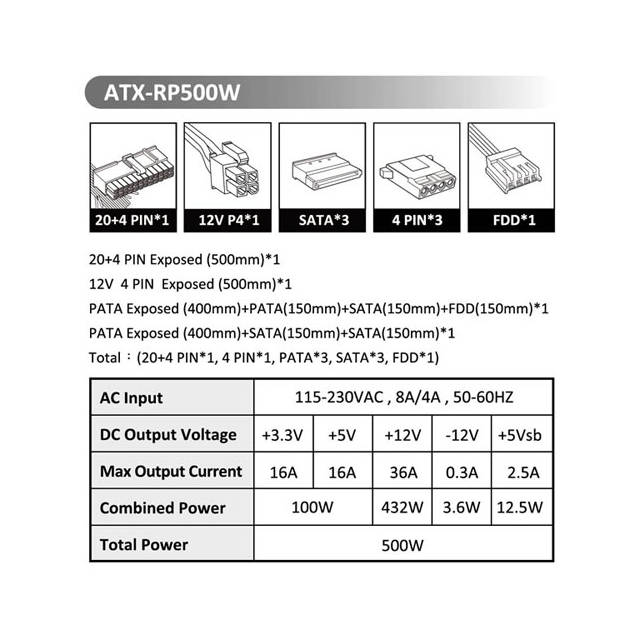

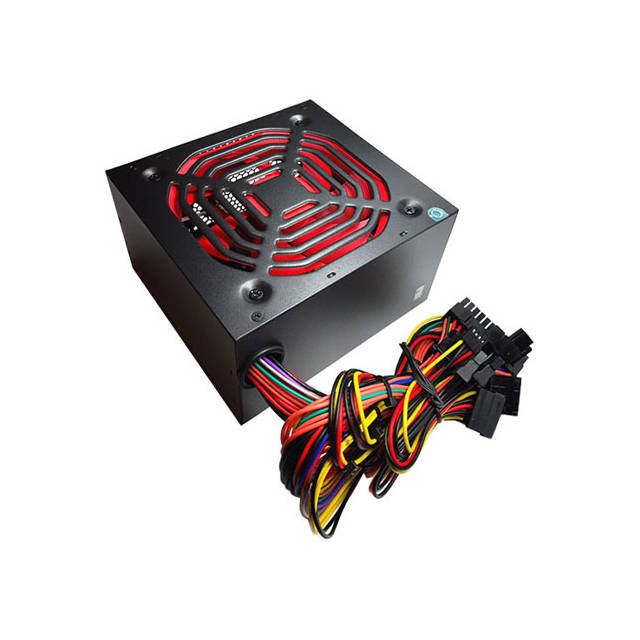

• Mfr Part Number: ATX-RP500W
• Features:
  • 500W Power with 12cm red fan
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing
  • Low noise auto-thermally control 120mm fan
• Maximum Power: 500 W
• Input:
  • Voltage Range: 115 - 230V
  • Frequency: 50 - 60Hz
  • Current: 10A for 115VAC, 5A for 230VAC
• Type: ATX 12v
• Output: +3.3V @ 16A, +5V @ 16A, +12V @ 36A, -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: 1x 20/24pin Main Connector, 1x 4pin P4 Connector, 3x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
• Fan: Forced air ventilation by 1 x 120mm red fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 159.0 x 86.0 mm
• Weight: 3.0 lbs

Available Quantity

5

UPC

837344005466

SKU

mingleATX-RP500W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

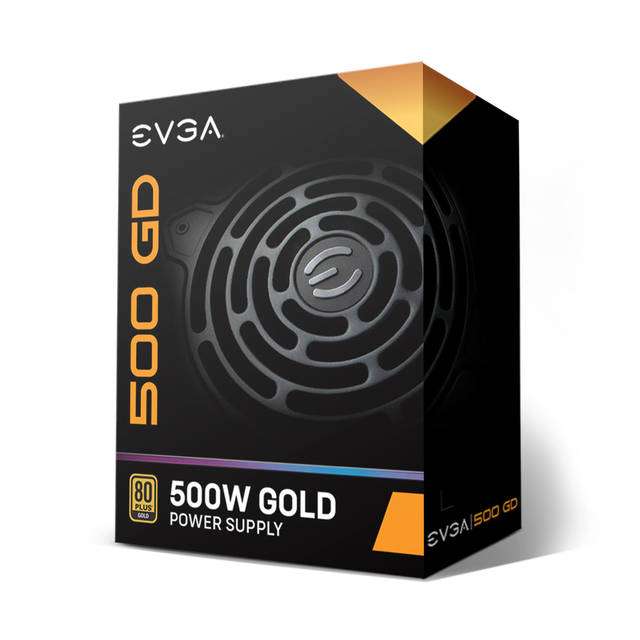

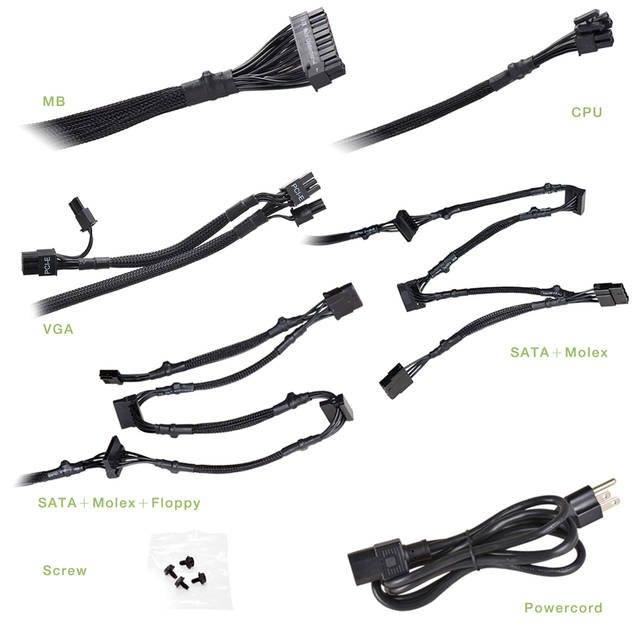

• Mfr Part Number: 100-GD-0500-V1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Active Power Factor Correction
  • Single 12V. Rail
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 5 Year Warranty and unparalleled EVGA Customer Support
• Maximum Power: 500 W
• Input:
  • Voltage: 110 ~ 240 VAC
  • Current: 7-3 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• MTBF: 100,000 hours
• Fan: 120mm Sleeve Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 41.6A, +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 2x 8pin (6+2), PCI-Express Connector, 6x SATA Connectors, 3x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
• Weight: 4.7 lbs

Available Quantity

5

UPC

843368057275

SKU

mingle100-GD-0500-V1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

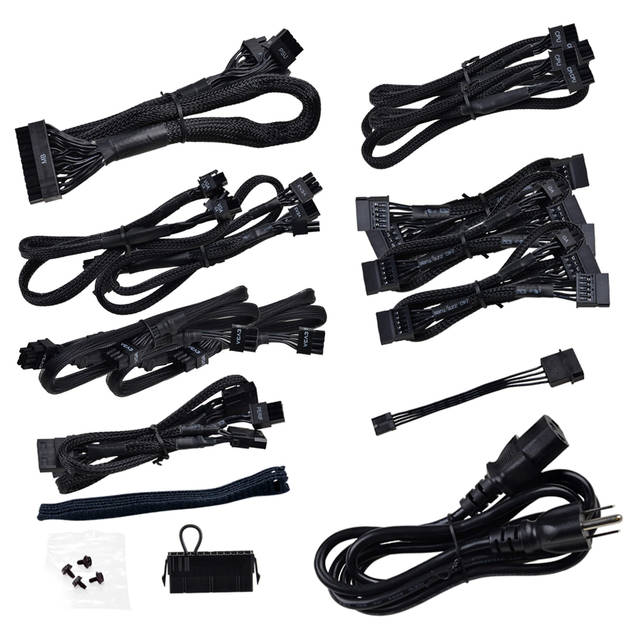

• Mfr Part Number: 220-G5-0850-X1
• Features:
  • 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loadst
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • Active Clamp +DC to DC design for efficient operation
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over CurrentProtection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 12-5 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 70.8A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS Power Connector, 6x 8pin(6+2)PCI-Express Connector, 9x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 6 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Weight: 7 lbs

Available Quantity

5

UPC

843368062163

SKU

mingle220-G5-0850-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

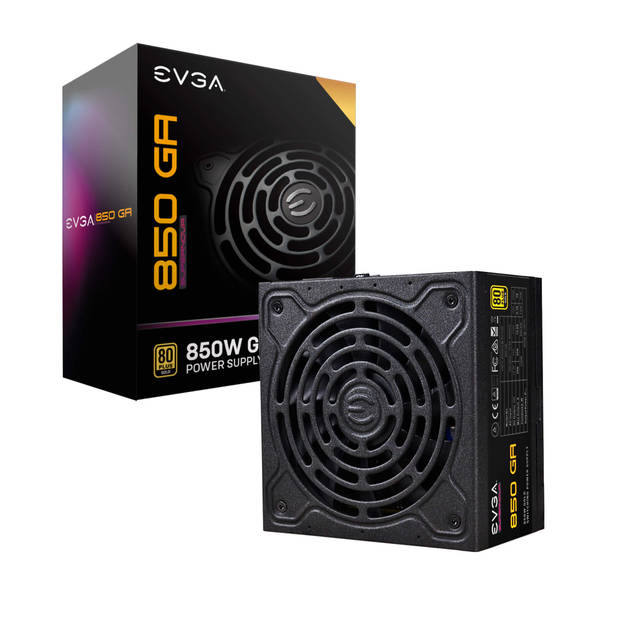

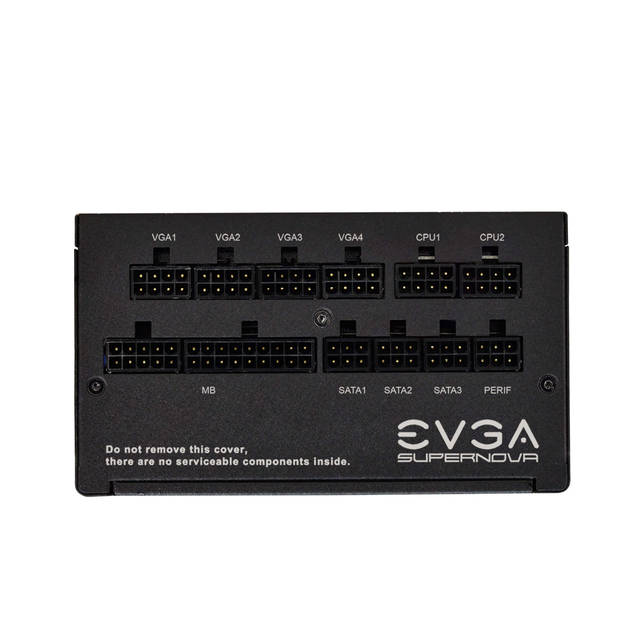

• Mfr Part Number: 220-GA-0850-X1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
• Maximum Power: 850 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @70.8A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS Power Connector, 6x 8pin(6+2)PCI-Express Connector, 9x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Net Weight: 6.59 lbs

Available Quantity

5

UPC

843368062019

SKU

mingle220-GA-0850-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

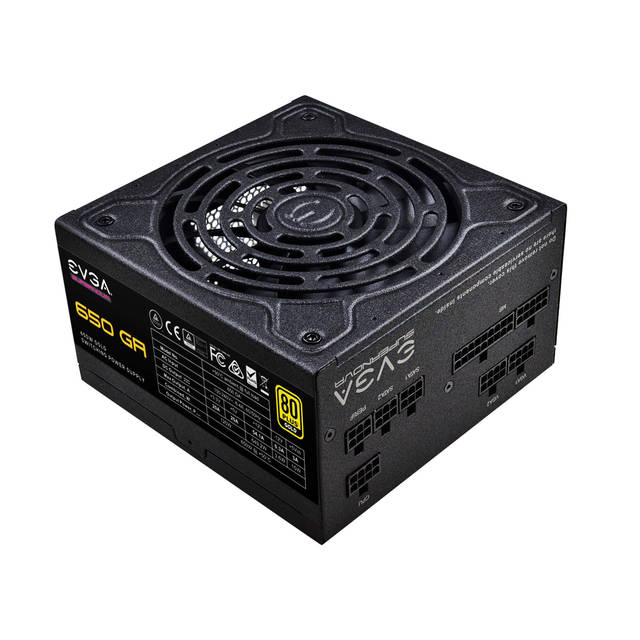

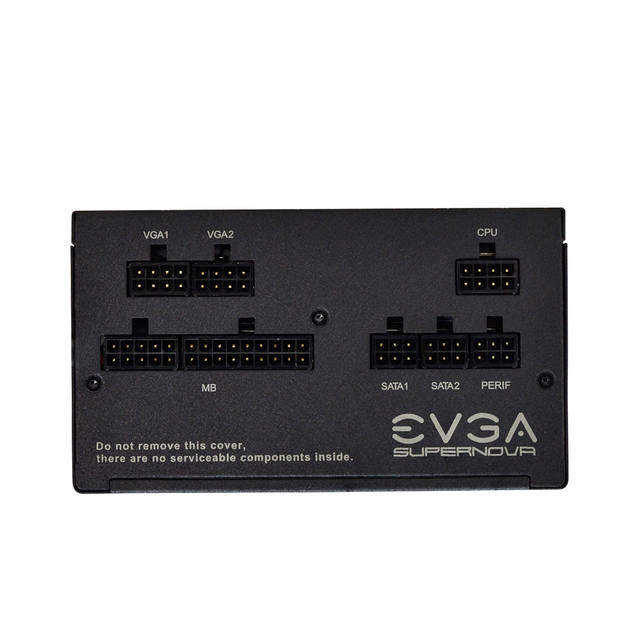

• Mfr Part Number: 220-GA-0650-X1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 8-4 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @54.1A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 3x 8pin(6+2)PCI-Express Connector, 6x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Net Weight: 5.82 lbs

Available Quantity

5

UPC

843368061906

SKU

mingle220-GA-0650-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-GA-0550-X1
• Features:
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
• Maximum Power: 550 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 8-4 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @45.8A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 3x 8pin(6+2)PCI-Express Connector, 6x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 3 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Net Weight: 5.82 lbs

Available Quantity

5

UPC

843368061845

SKU

mingle220-GA-0550-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 110-BQ-0600-K1
• Features:
  • Quiet and Intelligent Auto Fan for near-silent operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 3 Year Warranty
• Maximum Power: 600 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 -5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 120mm Double Ball Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 50A, +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 2x 8pin (6+2) PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 9x SATA Connectors, 6x 4Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 140.0 x 85.0 mm
• Weight: 5.0 lbs

Available Quantity

5

UPC

843368043292

SKU

mingle110-BQ-0600-K1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: BN639
• Features:
  • 80 PLUS Gold certification (up to 92% efficiency)
  • Multi-GPU support with four PCIe connectors
  • Stable LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion
  • Modular cables for maximum build flexibility
  • Temperature-controlled 120mm high-quality fan
  • SFX-to-ATX adapter bracket for usage with larger case sizes
  • 3-year manufacturer s warranty
• Power:
  • Continuous Power: 600W
  • Peak Power: 650W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V v2.4 / EPS12V v2.92
• Power Factor Correction: Active PFC
• Efficiency: 80Plus Silver, up to 91% @ 20~100% load
• Fan: 120mm Silence-optimized Rifle Fan
• Output: +3.3V @ 22A, +5V @ 22A, +12V1 @ 50A,  +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connectors, 4x 6+2pin GPU PCI-Express Connectors, 6x 15-pin SATA Connectors, 3x 4-pin PATA Connectors
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Approvals: CE, CB, TUV, FCC, cTUVus, RCM, ErP, WEEE, RoHS
• Color: Black
• Dimensions (WxLxD): 130.0 x 125.0 x 64.0 mm
• Weight: 1.16 kg

Available Quantity

5

UPC

Does not apply

SKU

mingleBN639

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-G5-0650-X1
• Features:
  • 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loadst
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

  • Active Clamp +DC to DC design for efficient operation

  • DC-DC Converter improves 3.3V/5V stability

  • Active Power Factor Correction

  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

  • NVIDIA SLI & AMD Crossfire Ready

  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over CurrentProtection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 54.1A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 3x 8pin(6+2)PCI-Express Connector, 6x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 6 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Weight: 6.1 lbs

Available Quantity

5

UPC

843368062064

SKU

mingle220-G5-0650-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 220-G5-1000-X1
• Features:
  • 80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loadst
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • Active Clamp +DC to DC design for efficient operation
  • DC-DC Converter improves 3.3V/5V stability
  • Active Power Factor Correction
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • NVIDIA SLI & AMD Crossfire Ready
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over CurrentProtection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 1000 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 15-8A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 83.3A, +5VSB @ 3A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS Power Connector, 8x 8pin(6+2)PCI-Express Connector, 12x SATA Connectors, 4x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus,  WEEE, RoHS  Compliance with ErP Lot 6 2014 Requirement
• Dimensions (WxLxH): 150.0 x 150.0 x 86.0 mm
• Weight: 7.2 lbs

Available Quantity

5

UPC

843368062217

SKU

mingle220-G5-1000-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: EP-700PM
• Features:
  • 75% Efficiency Rating
• Maximum Power: 700W
• Fans: 1x 140mm Cooling Fan
• Input:
  • Input Voltage: 115 ~ 230 V
  • Input Frequency Range: 50/60Hz
  • Input Current: 10 ~ 6 A
• Output: +3.3V @ 26A, +5V @ 26A, +12V1 @ 20A, +12V2 @ 20A, -12V @ 0.8A, +5VSB @ 3.0A
• Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin ATX Power Connector, 1x 6pin PCI-Express Connector, 1x 6+2pin PCI-Express Connector, 8x SATA Connectors, 8x 4pin Molex Connectors, 2x FDD Connectors

• Certification: UL, FCC
• Form Factor: ATX12V 2.3
• Dimensions (WxLxH): 6.00 x 6.18 x 3.30 inch / 150.00 x 157.16 x 85.00 mm
• Weight: 6.0 lbs / 2.72 kg

Available Quantity

5

UPC

845659091708

SKU

mingleEP-700PM

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 120-GP-0650-X1

• Features:
  • 100% Japanese Capacitors ensure long-term reliability
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Fully Modular to reduce clutter and improve airflow
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V

• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

• MTBF: 100,000 hours
• Fan: 1x 135mm Fluid Dynamic Bearing
• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 54A, +5VSB @ 3.0A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connectors, 4x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 6x 4pin Peripheral Connectors, 2x Floppy Connectors
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 170.0 x 85.0 mm
• Weight: 7.0 lbs


Available Quantity

5

UPC

843368048495

SKU

mingle120-GP-0650-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: ATX-AS500W
• Features:
  • 500W Power with 12cm black fans
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing
  • 20 + 4 pin main connector can be used for 20 pin or 24 pin
• Maximum Power: 500 W
• Material: Metal
• Input:
  • Voltage Range: 115 - 230V

  • Frequency: 50 - 60Hz
  • Current: 10A for 115VAC, 5A for 230VAC

• Type: ATX 12V

• Output: +3.3V @ 16A, +5V @ 16A, +12V @ 36A, -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: 1x 20/24pin Power Main Connector, 1x 4pin P4 Connector, 3x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector

• Fan: Forced air ventilation by 1x 120mm black fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 150.0 x 85.0 mm
• Weight: 3.0 lbs

Available Quantity

5

UPC

837344006081

SKU

mingleATX-AS500W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: ATX-AS450W

• Features:
  • 450W Power with 12cm black fans
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • High quality components and housing

  • 20 + 4 pin main connector can be used for 20 pin or 24 pin
• Maximum Power: 450 W

• Material: Metal
• Input:
  • Voltage Range: 115 - 230V

  • Frequency: 50 - 60Hz

  • Current: 10A for 115VAC, 5A for 230VAC

• Type: ATX 12v
• Output: +3.3V @ 16A, +5V @ 16A, +12V @ 32A, -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: 1x 20/24pin Main Power Connector, 1x 4pin P4 Connector, 3x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
• Fan: Forced air ventilation by 1x 120mm black fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 150.0 x 85.0 mm
• Weight: 3.0 lbs

Available Quantity

5

UPC

837344006074

SKU

mingleATX-AS450W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: SSP-300TBS
• Features:
  • SATA-ready
  • High efficiency and reliability
  • Low ripple and noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • Fanless Mode (up to 30 % system load)
• Type: TFX 12 V v.2.31
• Total Power: 300 W
• Input:
  • Current: 100A max.
  • Frequency: 47 - 63 Hz
• Power Factor Correction: 95% typical
• Efficiency: >85 %
• MTBF: >100,000 hours
• Output: +3.3V @ 14A, +5V @ 17A, +12V1 @ 18A, +12V2 @ 18A, -12V @ 0.8A, +5VSB @ 2A
• Connector: Main Power - ATX 12V; Peripherals - SATA, HDD
• Safety: CB, CUL, CCC, TUV
• EMI/EMC: BSMI, CE, FCC, RCM
• Dimension (WxLxH): 140.0 x 85.0 x 65.0 mm

Available Quantity

5

UPC

Does not apply

SKU

mingleSSP-300TBS

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: SSR-550FM
• Features:
  • 80 PLUS Gold
  • Compact Size
  • S2FC
  • Fluid Dynamic Fan Bearing
  • Tight Voltage Regulation
  • DC to DC Converter Design
  • 105 C Japanese Capacitor
  • Modular Cable Design
  • 7 Years Warranty
• Type: Intel ATX12V
• Total Power: 550W
• Input:
  • Voltage: 100 - 240V
  • Current: 8 - 4 A
  • Frequency: 50 - 60Hz
• MTBF: 100,000 hours (@ 25 C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 45A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24-pin Main Power Connector; 1x 4/8-pin CPU Connector, 2x 6/8-pin PCI-Express Connectors, 6x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
• Cooling System: 120mm Fluid Dynamic Bearing Fan w/ S2FC Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm

Available Quantity

5

UPC

Does not apply

SKU

mingleSSR-550FM

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: SDGR-600BX
• Features:
  • High efficiency 600-watts total output power
  • Support Dual Core CPU, Qual Core CPU
  • Support Multi-Core GPU
  • Single 12V rail design to provide the best perormance
  • Safety agency approval - CE, CB, TU, CUL
  • Over voltage protection
  • Over power protection
  • Short Circuilt protection
  • Thermal overload cut-off protection
  • Low noise and ripple
• Type: ATX12V v2.3 & EPS12V v2.91
• Maximum Power: 600W
• Input:
  • Voltage: 115 - 230V AC
  • Current: 10 - 6A
  • Frequency Range: 60/50Hz
• Fan: 1x 120mm Cooling Fan
• Output: +3.3V @ 22A, +5V @ 22A, +12V @ 34A, -12V @ 0.5A, +5Vsb @ 2.0A
• Connectors: 1x 20+4pin Main Connector, 1x 4pin CPU Connector, 1x 6pin PCI Connector, 4x SATA Connectors, 4x Molex Connectors, 1x Floppy Connector

• Approvals: cUL, CE, CB, FCC
• Dimensions (WxLxH): 5.75 x 5.00 x 3.50 inch

Available Quantity

5

UPC

859337002733

SKU

mingleSDGR-600BX

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 123-GM-0650-Y1
• Features:
  • 100% Japanese Capacitors ensure long-term reliability

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • SFX-Standard Form Factor packs large power into a small space for compatibility with mITX cases and compact gaming systems
  • Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
  • Active Power Factor Correction (PFC)
• Maximum Power: 650 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 9 - 4.5 A
  • Frequency Range: 50 ~ 60 Hz

• Type: ATX12V / EPS12V
• Efficiency: 90% (115VAC) or Higher Typical

• MTBF: 100,000 hours
• Fan: 1x 92mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 54.1A, +5VSB @ 2.5A, -12V @ 0.3A

• Connectors: 1x 24pin ATX Power Connector, 1x 8(4+4)pin EPS (CPU) Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector

• Approvals: TUV, CB, CE, FCC, cTUVus, WEEE, RoHS  Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 125.0 x 100.0 x 63.0 mm

• Weight: 3.0 lbs

Available Quantity

5

UPC

843368056377

SKU

mingle123-GM-0650-Y1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: 120-GP-0750-X1

• Features:
  • 100% Japanese Capacitors ensure long-term reliability
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow

  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • NVIDIA SLI & AMD Crossfire Ready
  • Whisper Silent with 135mm Fluid Dynamic Bearing Fan
• Maximum Power: 750 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 135mm Fluid Dynamic Bearing

• Output: +3.3V @ 24A, +5V @ 24A, +12V @ 62.4A, +5VSB @ 3.0A, -12V @ 0.5A
• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connectors, 4x 8(6+2)pin PCI-Express Connectors, 9x SATA Connectors, 6x 4pin Peripheral Connectors, 2x Floppy Connectors

• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

• Dimensions (WxLxH): 150.0 x 170.0 x 85.0 mm

• Weight: 7.0 lbs


Available Quantity

5

UPC

843368048532

SKU

mingle120-GP-0750-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Specifications

• Mfr Part Number: MPX-6001-ACAAB-US
• Features:
  • DC-DC Circuit Design - The DC-DC circuit design offers your system more reliable and stable output voltages, providing more consistent power delivery at up to 40 C
  • Durable LDB Bearing - Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.
  • Quality Capacitors - Solid, high quality capacitors are used in the MWE Bronze power supply for increased product lifespan and higher temperature resistance
  • Sleeved Cables - provide easier cable management, offering a clean and professional look. They also save space for better airflow within the PC system, improving thermal performance and heat dissipation
  • Low Standby Power - The MWE Bronze will consume no more than 0.5W when your PC is in standby mode, complying with ErP 2013 lot 6
• Type: Intel ATX 12V V2.31
• Output Capacity: 600W
• Input
  • Voltage: 100 - 240V AC
  • Current: 10 - 5A
  • Frequency: 50 - 60Hz
• PFC: Active PFC
• Power Good Signal: 100 - 500 ms
• Hold Up Time: 16ms at 80% load
• MTBF: >100,000 Hours
• Fan: 120mm Silencio FP Fan
• Efficiency: 85% Typically Load
• Protection: OVP / OPP / OTP / SCP / OCP
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 50A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin CPU 12V Connector, 4x 6+2pin PCI-Express Connectors, 8x SATA Connectors, 4x 4pin Peripheral Connectors, 1x 4pin FDD Cable Connector
• Regulatory: TUV-RH, CE, CCC, KC, EAC, RCM, cTUVus, FCC, BSMI
• Dimensions: 150.0 x 140.0 x 86.0 mm

Available Quantity

5

UPC

884102034343

SKU

mingleMPX-6001-ACAAB-US
