Product Description
Features

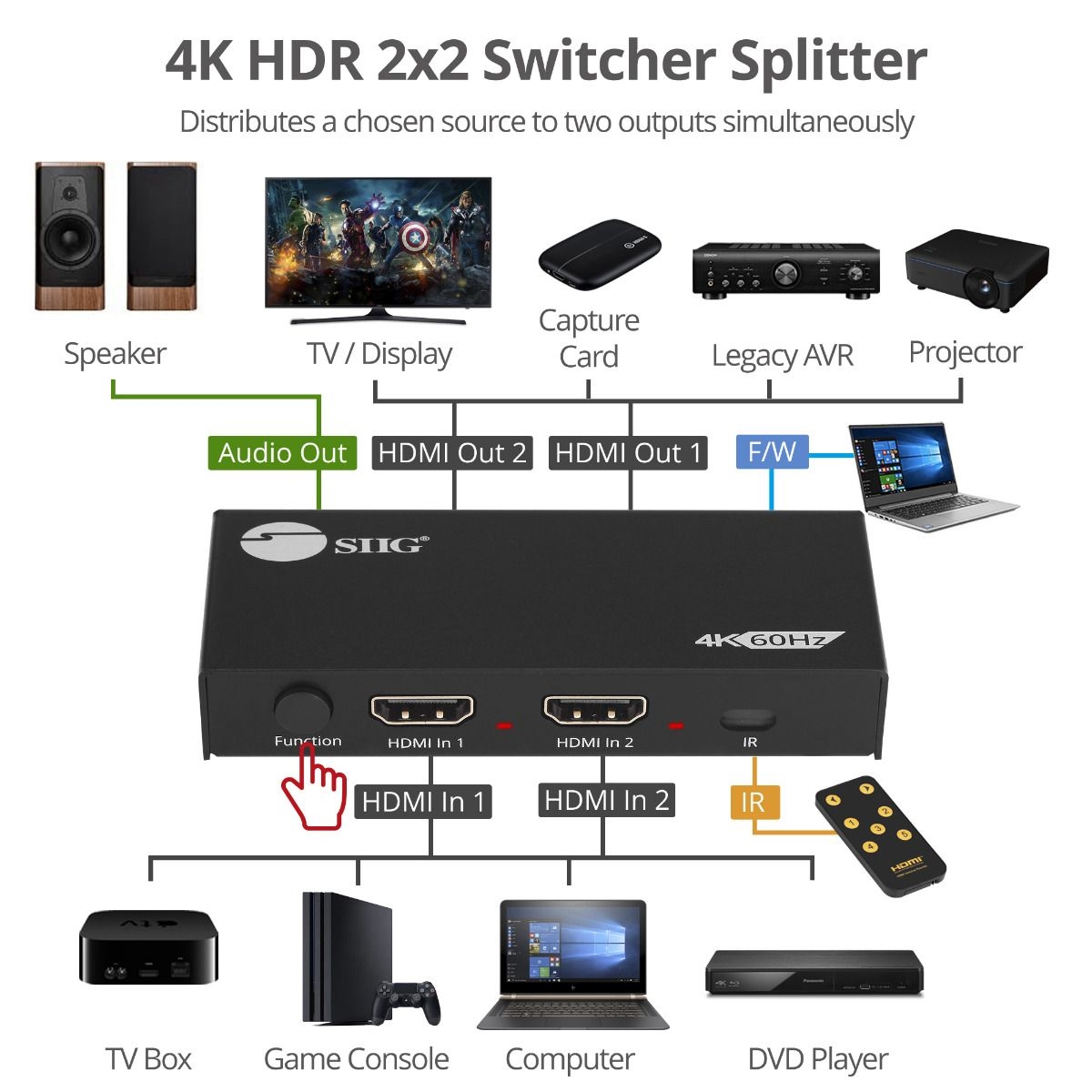

oDistributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality
oCompliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
oSupports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color
oSupports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
oSupports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only

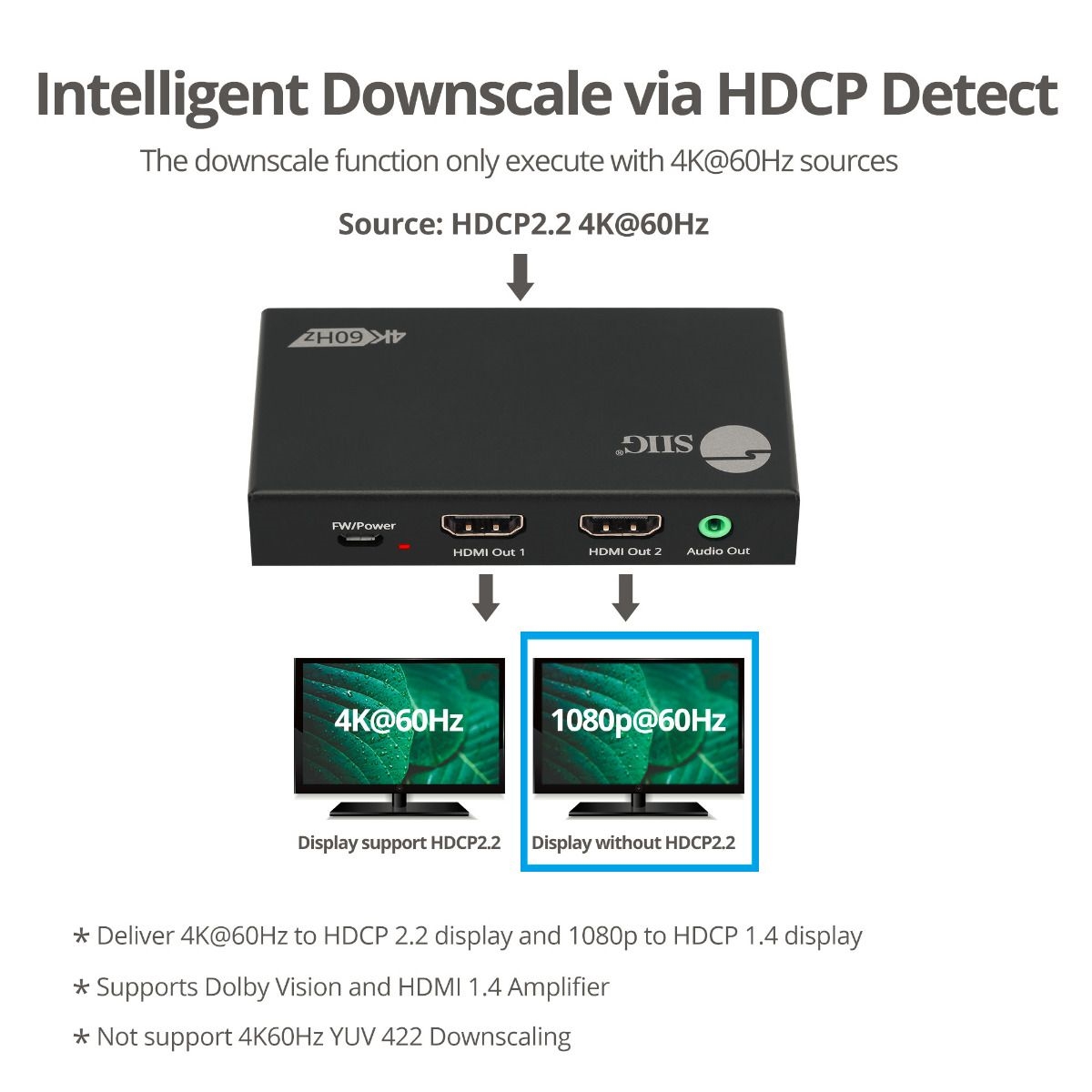

oAuto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors

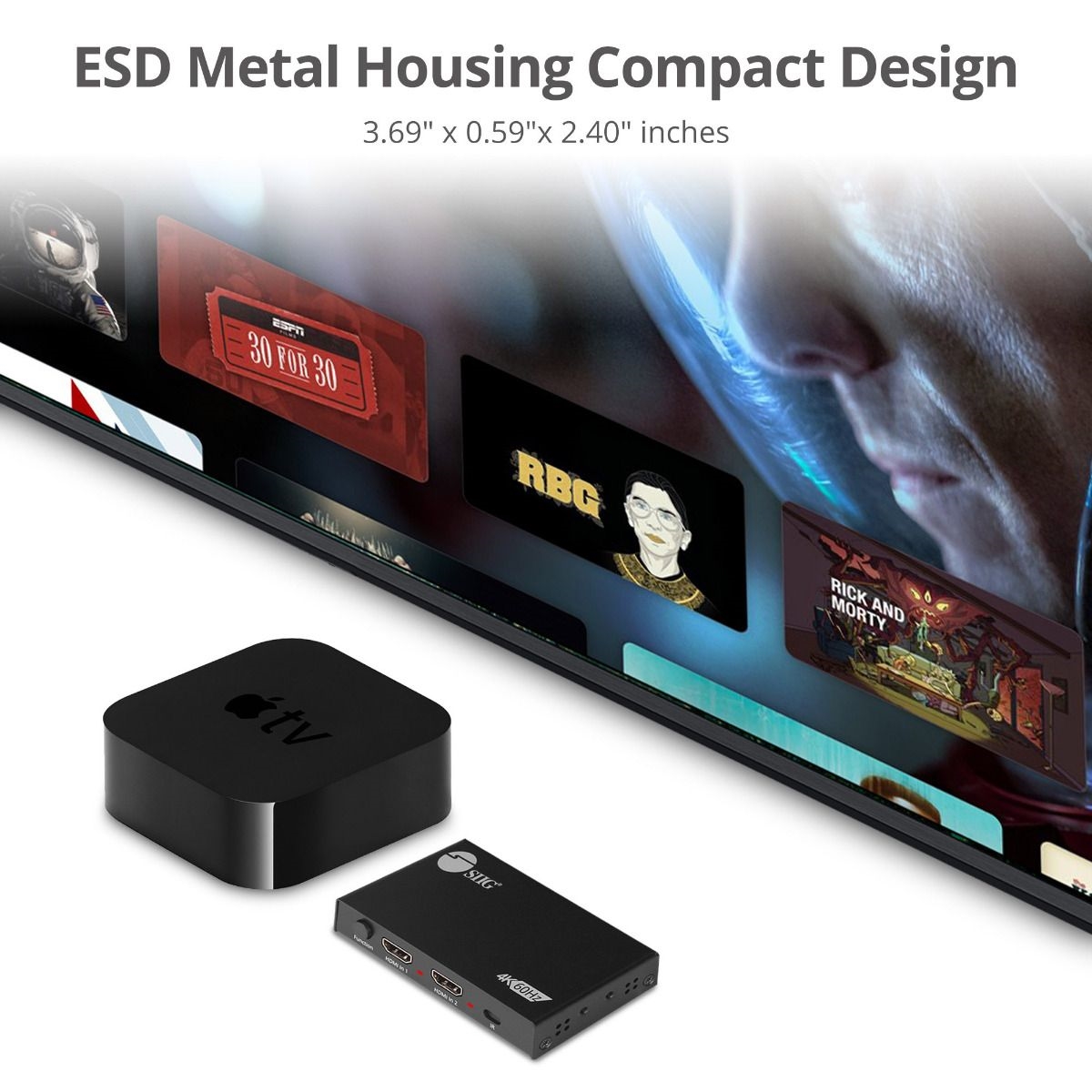

oHigh quality materials and metal housing extends the stability and durability, allowing for long hours of operation
oBuilt-in EDID management and firmware update mechanism further expands compatibility
oEDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes
oIndividual LED indicators for power and EDID mode allow for easy and quick operating status
Compatibility Notes:
- 4K@30Hz monitors will display in 1080p @60Hz resolution
- Does not support 4K/60Hz YUV 422 down scaling
- The 2 HDMI outputs mirror each other, extended displays are not supported
Compliant with HDMI 2.0, HDCP 2.2/1.4
Video bandwidth:
18Gbps
Resolution:
480p/720p/1080i/1080p/ HDR 4K2K at 60Hz (4:2:0 10bit) / 4K2K at 60Hz (YUV 4:4:4 8bit)
Audio:
LPCM up to 7.1, Dolby Atmos and DTS-X (Copy EDID)
Down scaling:
4K at 60Hz (YUV 4:4:4) to 1080p at 60Hz. Note: 4K at 60Hz (YUV 4:2:2) down scaling is not supported
Display mode (output):
Mirror
Product:
Color: Black
Housing: Metal

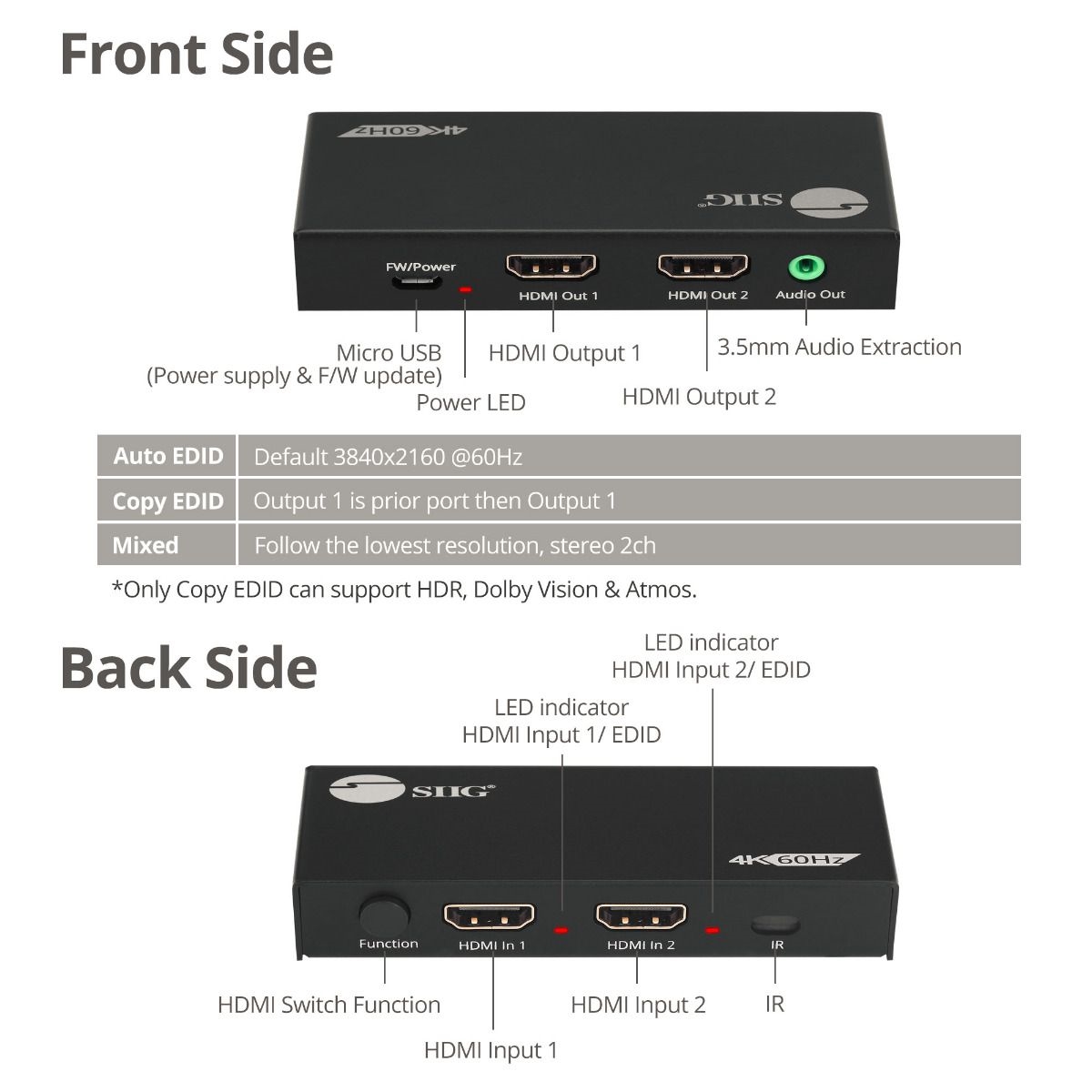

Connectors:
2x 19-Pin, HDMI, Type A, Female, Input
2x 19-pin, HDMI, Type A, Female, Output
1x Push button for Switch function and EDID Selection
1x 5-pin Micro USB, Female, Power and F/W update
1x 3.5mm jack, Stereo audio, Output
EDID management (controlled by the included Remote Control):
Auto EDID: 4K at 60Hz
Copy EDID: The EDID of the monitor connected to HDMI Out 1 is used for the connected displays
Mixed EDID: The EDID of the monitor with the lowest resolution/audio capability is used for the connected displays
Power Adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V/1A
Environmental conditions:
Operating temperature: 23 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Package contents

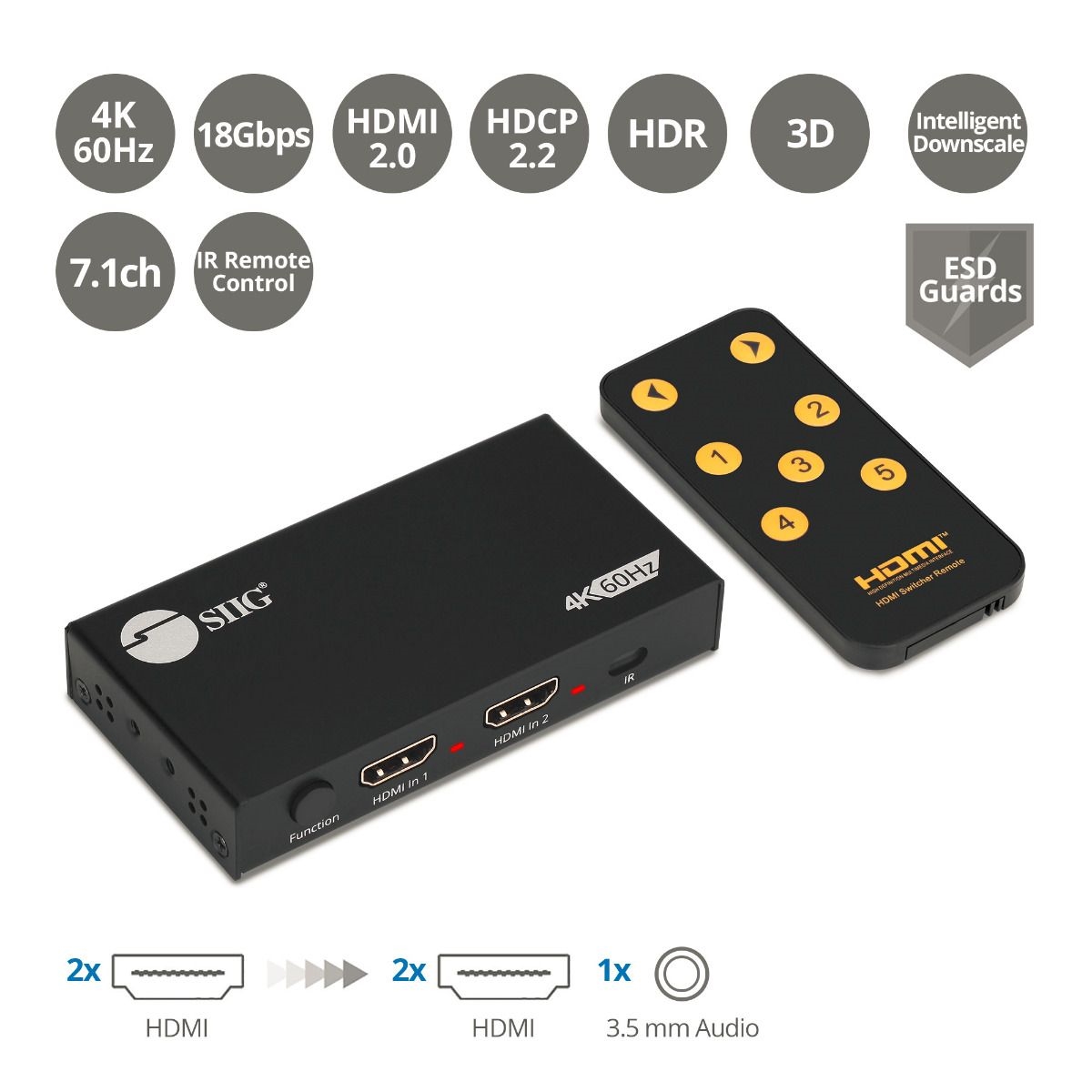

2-Port HDMI 2.0 4K HDR Splitter / Switcher
Power adapter
USB A to Micro-B cable
Remote control
Mounting kit
Quick Start Guide
Item Dimension (L"x W"x H")
4 x 1 x 3
Weight
1.00 LB
Warranty Information
2 Years
Available Quantity
5
UPC
662774044026
SKU
mingleCE-H26D11-S1
